1. Connect the side rails to the bed head
and foot end rail by hooking the side
rail brackets onto the head and foot
end rail bracket. NOTE: Make sure side
rails are attached so that two button
head bolts (already attached to side
rails) are at the foot end of the bed.
2. Screw three button head bolts (M4)
loosely into the holes on the bracket
on the bed head and foot end rail.
3. Tighten the button head bolts – only
finger tight.

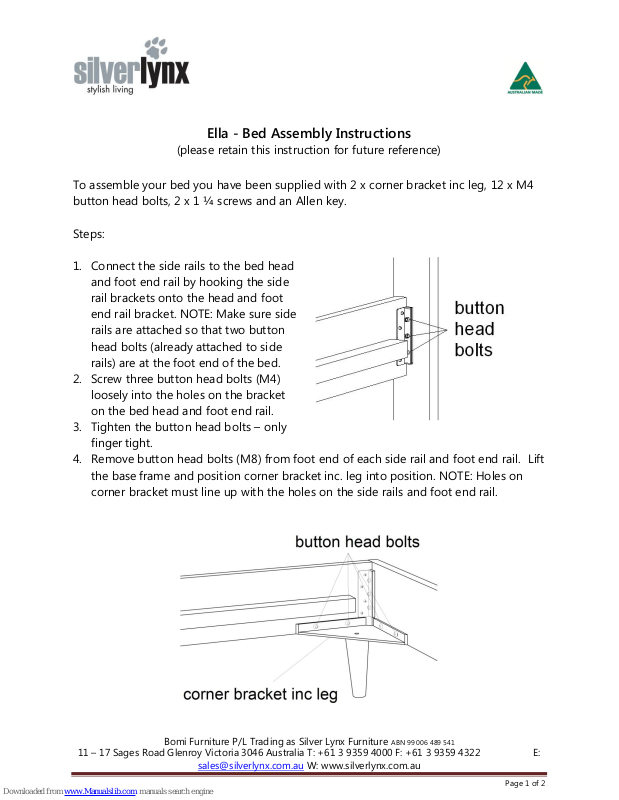

Ella - Bed Assembly Instructions
(please retain this instruction for future reference)
To assemble your bed you have been supplied with 2 x corner bracket inc leg, 12 x M4
button head bolts, 2 x 1 ¼ screws and an Allen key.
Steps:
4. Remove button head bolts (M8) from foot end of each side rail and foot end rail. Lift
the base frame and position corner bracket inc. leg into position. NOTE: Holes on
corner bracket must line up with the holes on the side rails and foot end rail.
11 – 17 Sages Road Glenroy Victoria 3046 Australia T: +61 3 9359 4000 F: +61 3 9359 4322 E:
Page 1 of 2
Bomi Furniture P/L Trading as Silver Lynx Furniture ABN 99 006 489 541
[email protected] W: www.silverlynx.com.au
Page 2
5. Using the button head bolts (M8) secure (finger tight) two corner brackets into
position
6. Ensure that the bed is sitting square and then tighten all button head bolts using the
Allen key.
7. To properly set up the slat and spine system (foundation system – King, Queen and
Double size Beds), proceed to “Instructions for Slats Supports for Bed”. Ensure that
you place slat with hole in either end at the center of your bed. When finished we
recommend that you use the 2 x 1 ¼” screws (supplied) and screw through this slat
into the cleats
NOTES:
Button head bolts should be regularly inspected and may need to be retightened after a period of
time.
Never drag or move assembled bed as this may damage the bed
CARE & MAINTENANCE:
Your Silver Lynx product is crafted with care, properly maintained, it will mature over time developing a
rich deep patina enhancing its appearance. To get the best performance from your Silver Lynx product,
please follow the simple care instructions listed below.
* Do not use silicone based polishes/cleaners at any time.
* Dust surfaces gently with a feather duster then wipe gently with a slightly damp cloth/chamois.
* Do not allow liquids, damp clothes to remain in contact with lacquered surface for extended periods.
* Never place furniture in close proximity to heating outlets.
* Exposure to direct sunlight will cause color fading to fabrics, leathers and timber finishes.
* Do not allow solvents, abrasives or heated objects to come in contact with the suite.
Contact your retailer or our sales office for further information
