Dazzle pushchair and soft cot
These instructions are important.
Read these instructions carefully before use and keep them for future reference.
Your child's safety may be affected if you do not follow these instructions.
Your DAZZLE pushchair is a high quality Silver Cross product. It meets current safety
standards and care and regular light maintenance will ensure long service.
This vehicle is intended for children from birth and up to 15kg.
If somebody unfamiliar is using your DAZZLE always ensure that they read these
instructions carefully so that they understand how the product works best.
Always read all the instructions provided carefully and remember, the safety of
your child is your responsibility.
WARNING: IT MAY BE DANGEROUS TO LEAVE YOUR CHILD UNATTENDED
Contents:
Kit contents .......................................................2
Assembling the Dazzle ...................................3-4
Reclining the Dazzle .........................................5
Using the harness .............................................6
Using the brakes ...............................................7
Dazzle carrycot ................................................8
Folding the Dazzle ............................................ 9
Instructions ................................................. 10-11
Safety Notes ...................................................12
DAZZLE instructions inners.indd 1 8/6/07 16:47:29
Page 2
2
Kit contents
3
2.3
2.1 2.2
2.5
2.4
3.1
3.3
3.2
3.4
Assembling the Dazzle
DAZZLE instructions inners.indd 2-3 8/6/07 16:47:34
Page 3
4
5
4.1 4.2
4.3 4.4
5.1
5.2 5.3
Assembling the Dazzle (cont.) Reclining the Dazzle
DAZZLE instructions inners.indd 4-5 8/6/07 16:47:38
Page 4
6
7
F
G
HH
G
7.1
7.3
6.3
7.2
6.2
6.1
Using the Harness Using the brakes
DAZZLE instructions inners.indd 6-7 8/6/07 16:47:40
Page 5
8
9
8.3
8.2
8.1
9.4
9.3
9.29.18.4
Dazzle carrycot Folding the Dazzle
9.5
DAZZLE instructions inners.indd 8-9 8/6/07 16:47:46
Page 6
10
11
Kit Contents

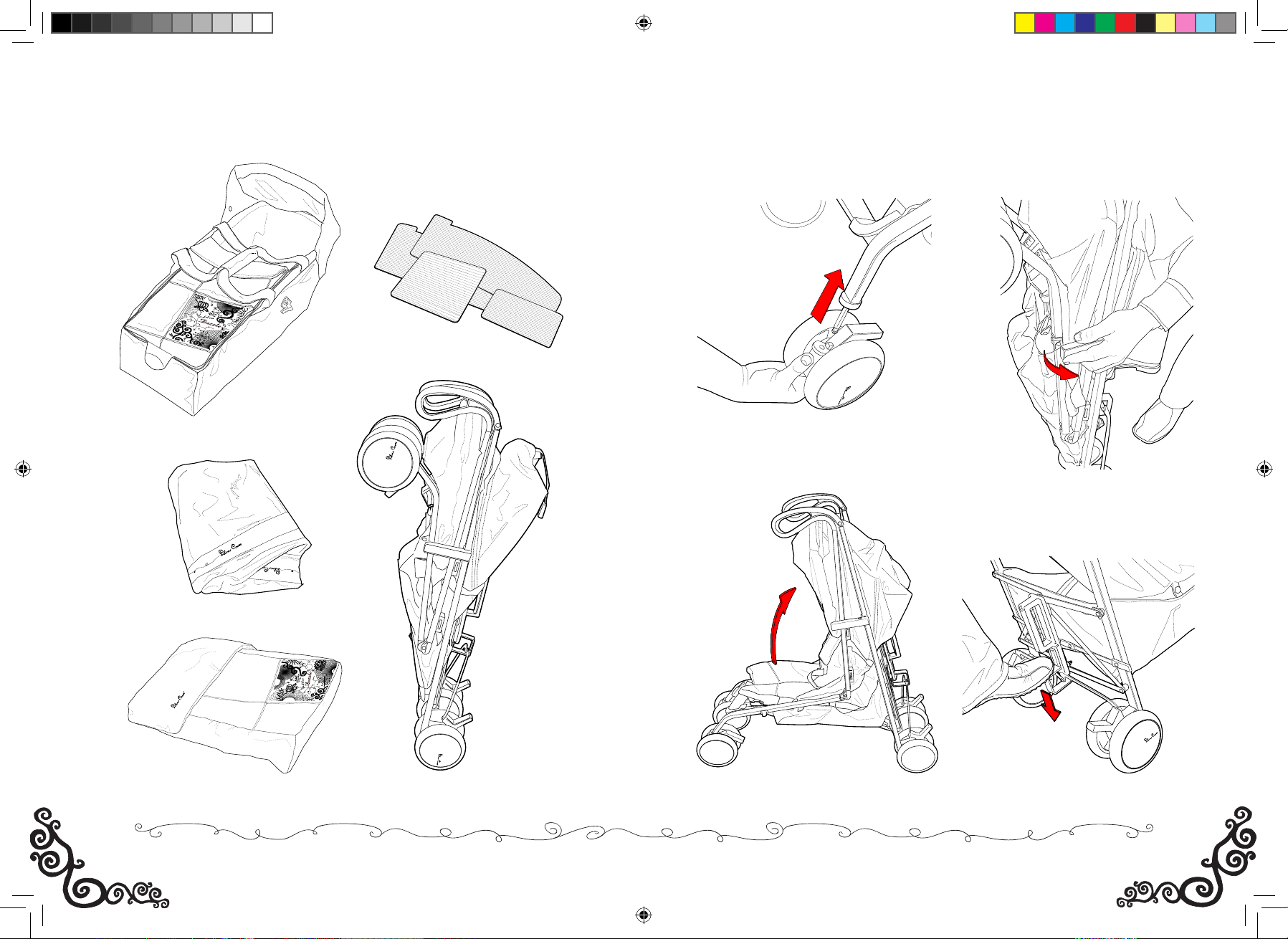

Your Dazzle pushchair and soft cot includes the following components, please check that you have all the items
before proceeding;
2.1 Dazzle soft cot (with construction boards removed)
2.2 Dazzle soft cot construction boards
2.3 Dazzle raincover
2.4 Dazzle apron and blanket
2.5 Dazzle pushchair (with front swivel wheels and hood attached)
Assembling the Dazzle
3.1 Attach the swivel wheels by locating the wheel under the steel attachment pin. Slide the wheel upwards
and press until the wheel clicks into position. WARNING: Check the wheel is secure by pulling
gently downwards. Repeat on both sides. Your Dazzle pushchair is now ready to be unfolded.
3.2 Locate the locking catch on the side of the pushchair and lift to release from the locking stud.
3.3 Repeat on both sides and allow the pushchair to open by lifting the handles upwards
and the wheels will naturally fall to the floor.
3.4 Finally, press down gently upon the rear locking catch (positioned between the rear wheels) at the rear to
lock your pushchair. WARNING: Failure to do this will cause damage to your pushchair.
Place the pushchair on a flat surface and ensure that the pushchair moves freely.
4.1. To attach your hood locate the locking catches on the hood frame. Now, locate the button
holes in the fabric which are in line with the hood attachment points. Simply feed the locking
catches through the button holes and ensure firm location and attachment.
Repeat on both sides.
4.2 Your Dazzle pushchair is now ready for use.
4.3 Your Dazzle stroller has a multi position calf support. Locate the adjustment catch under the
calf support. These are located on both sides of the calf support on the underside.
Depress both catches simultaneously and either lift or lower to the desired position.
NOTE: The calf support upper locking position is for use with the soft cot only.
4.4 Your Dazzle stroller is supplied with a protective apron with detachable blanket. To attach your
apron locate the locking catches on the apron. Now, locate the button holes in the fabric
which are in line with the apron / soft cot attachment points. Simply feed the locking catches
through the button holes and ensure firm location and attachment. Repeat on both sides.
WARNING: The apron MUST be removed before folding.
Reclining the Dazzle

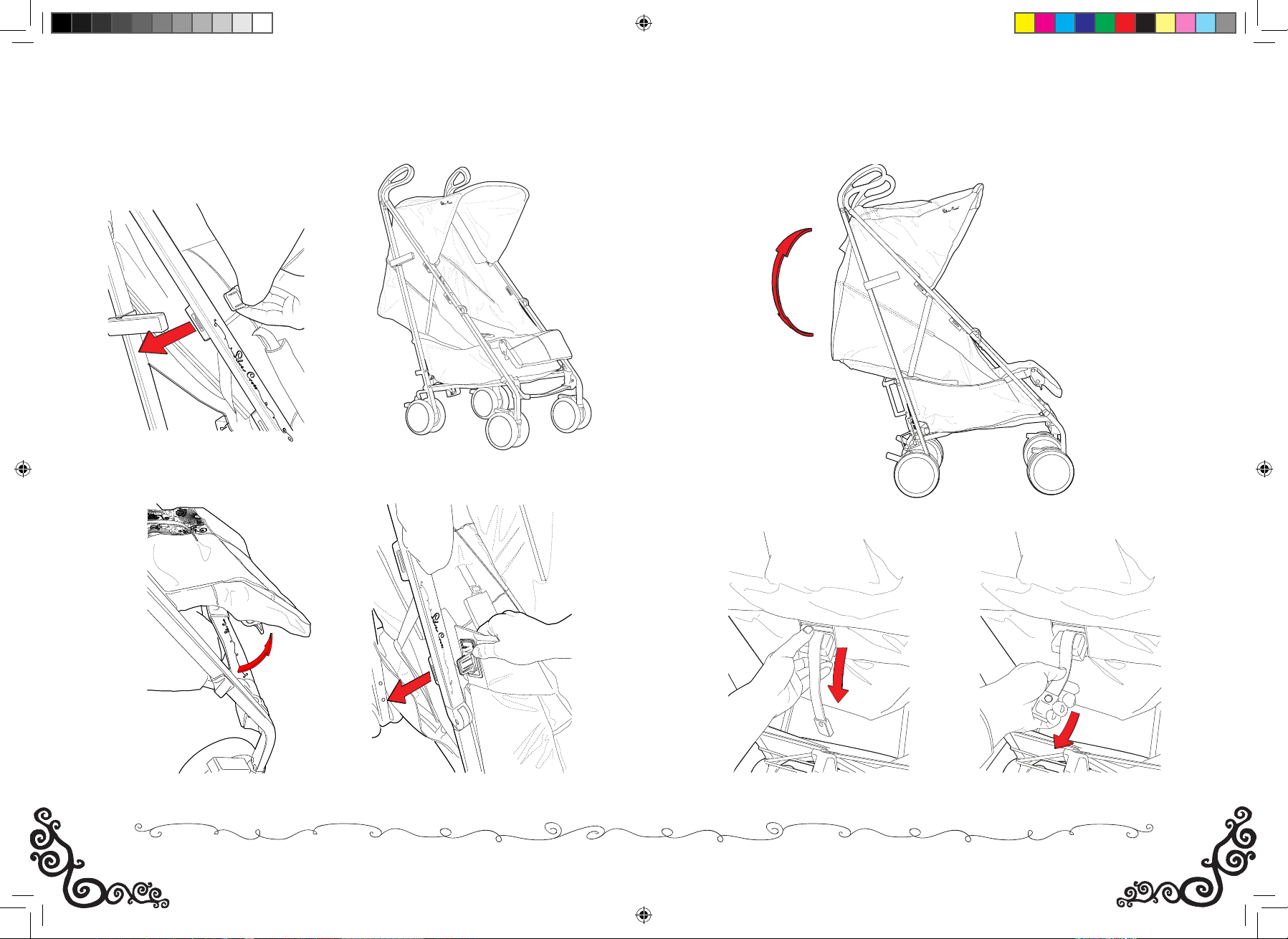

5.1 Your Dazzle stroller has a multi position recline.
5.2 First, locate the backrest adjustment mechanism at the rear of the seat. Place your thumb or forefinger
on the top of the adjuster and squeeze the release catch. The back rest will gently lower to the
desired angle.
5.3 To raise the backrest locate the recline strap and pull gently. The backrest will rise to the desired
height. NOTE: It is recommended that the backrest is in the upright position before folding
the pushchair.
Using the harness

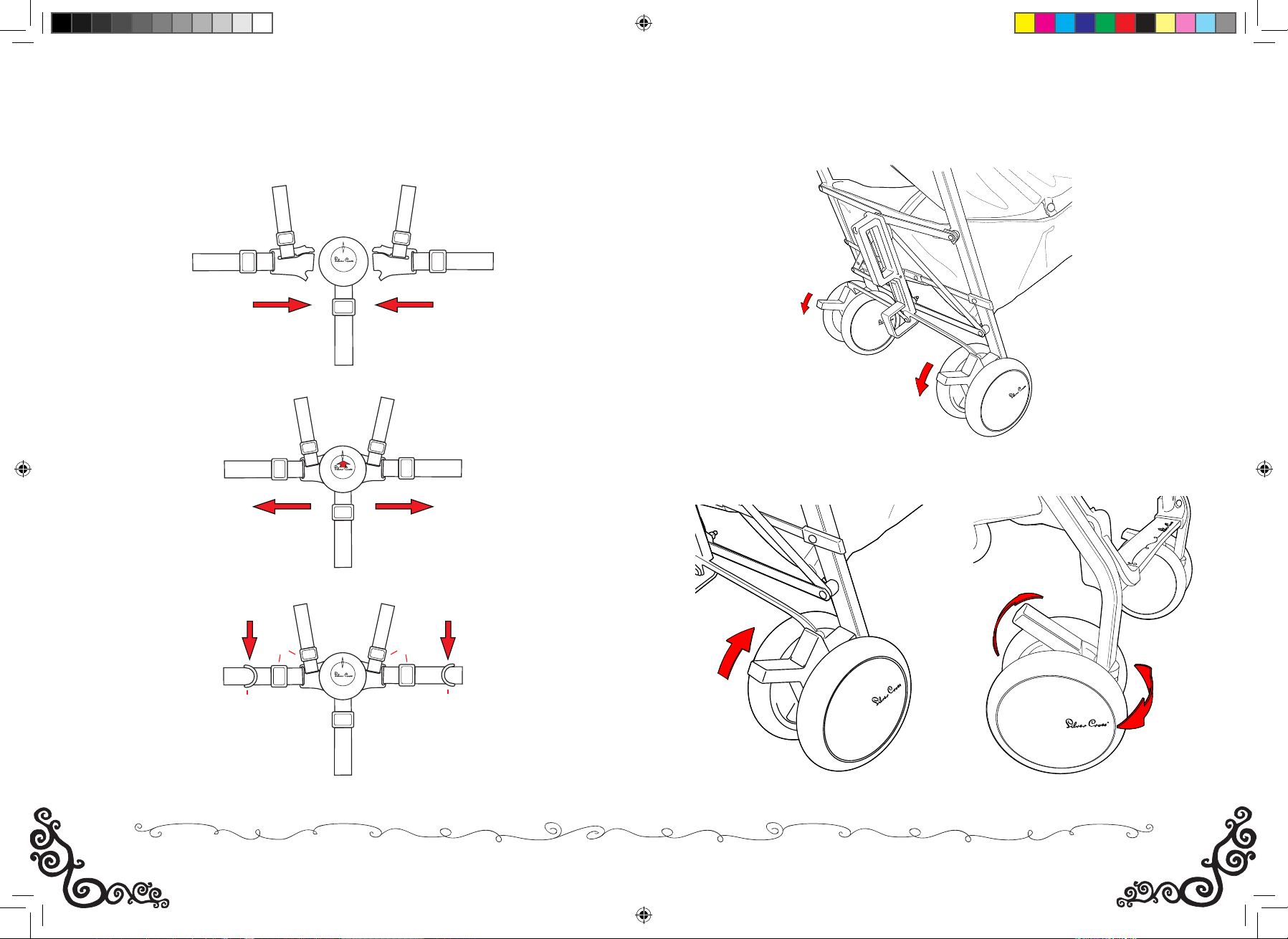

6.1 WARNING: always use the crotch strap in combination with the waist belt. To fasten the
harness insert both buckle clips into each side of the buckle. Listen for the ‘click’.
6.2 WARNING: use a harness as soon as your child can sit unaided. To release the harness press
the centre (F) and pull apart. The shoulder straps can be unhooked from the buckle if required.
6.3 Your harness is fully adjustable by moving the slides (G), to make fitting easy. ‘D’ rings are
provided for fitting a separate harness if required (H), complying with BS 6684. Your child should
always be harnessed in and should never be left unattended, even for short periods of time.
Using the brakes
7.1 Your Dazzle pushchair has a parking device / brake. To apply the brake simply press on either
brake catch located on each rear wheel. The brake will automatically locate on both
wheels simultaneously.
7.2 To release the parking device / brake simply lift either brake catch and both catches will
release simultaneously.
7.3 Your Dazzle pushchair has swivel wheels. To Lock your swivel wheels locate the catch between
the front wheels. Press down in any position. The wheels will automatically lock when the wheels
are rotated. Repeat on both front wheels. To use the wheels in swivel mode release the locking
catch and the wheels should swivel freely. Repeat on both wheels.
Dazzle carrycot

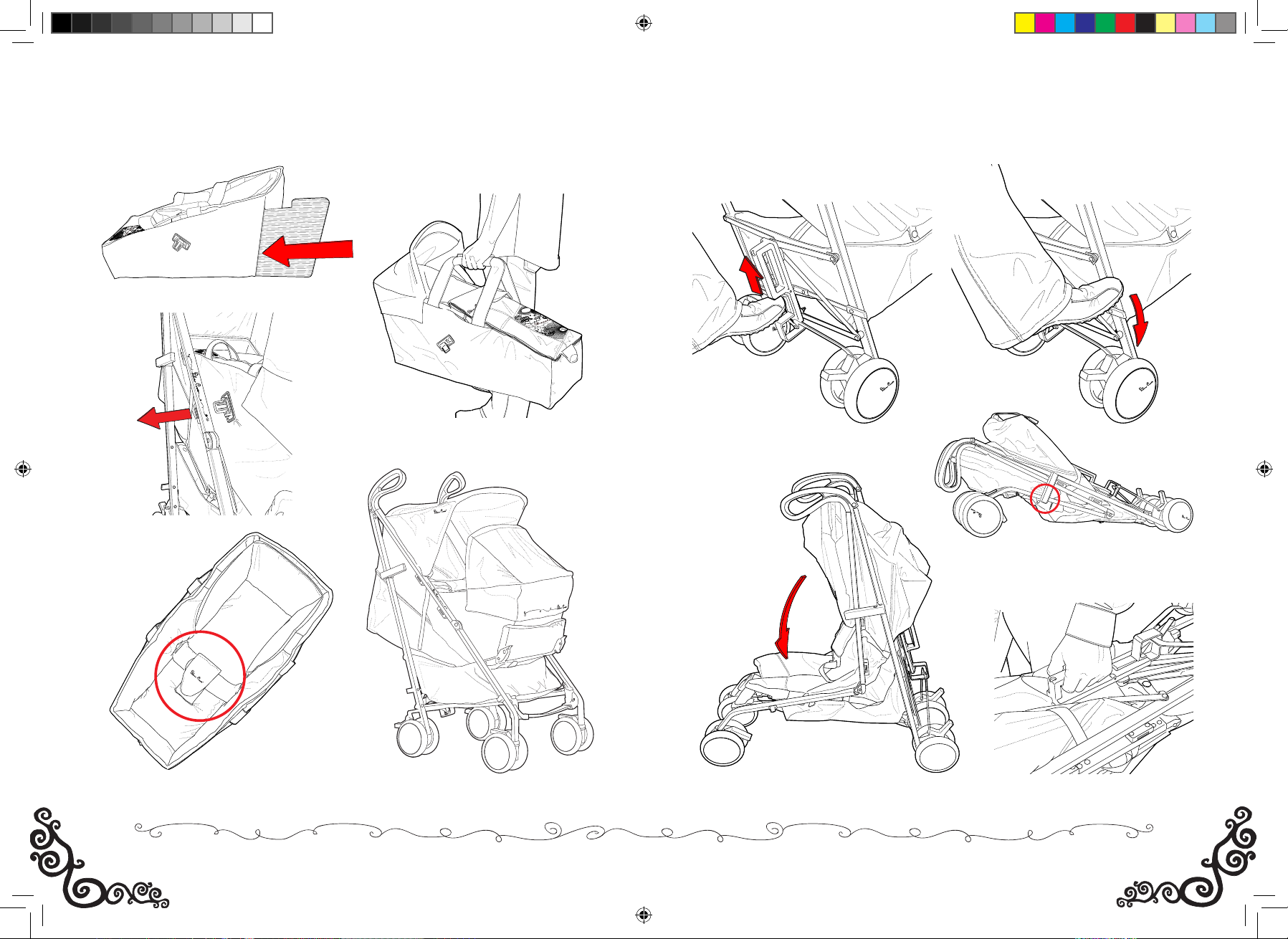

8.1 Your Dazzle soft cot must be constructed before use. This is very simple. Slide the construction
boards into the pockets located in the sides and ends of the soft cot. NOTE: Open the Velcro
fastening first, one on either side and one at each end, four in total. Secure by closing the
Velcro fastening. Manipulate the fabric to ensure perfect position is achieved.
8.2 To attach your soft cot onto the pushchair, locate the locking catches on the soft cot. Now,
locate the button holes in the fabric which are in line with the soft cot / apron attachment
points. Simply feed the locking catches through the button holes and ensure firm location and
attachment. Repeat on both sides. Finally, raise the calf support to the upright position and
lock. To remove the soft cot simply reverse this procedure.
8.3 The soft cot has a protective baby wrap. Open the wrap by releasing the Velcro. Gently attach
around your baby and secure the Velcro. Your soft cot has ‘D’ rings to attach a secondary
harness if required.
8.4 Your soft cot has carry handles which are stored in pockets on the side. Simply remove from
the pockets and lift upwards. NOTE: Your carry handles should be stored in the side pockets
after attachment to the pushchair.
NOTE: Your soft cot can also be used as a day cot. WARNING: Always place on a flat surface.
Folding the Dazzle
WARNING: The apron MUST be removed before folding.
NOTE: We recommend the backrest is in the upright position for folding
9.1 To commence the folding locate the rear locking catch (positioned between the rear wheels) and lift
upwards with the toe of your shoe.
9.2 Now locate the secondary safety catch located above the right hand rear wheel.
Gently press down until the lock has released.
9.3 Now push the handles over and the pushchair will naturally close in two dimensions to a compact size.
9.4 Finally, ensure the two locking catches (located either side of the pushchair) have engaged.
9.5 Your pushchair has a soft grip carry handle within the rear locking catch. WARNING: This is the only
position from which you should lift your pushchair to avoid possible damage
Attaching the raincover
The raincover simply drapes over your pushchair with the hood extended.
Fasten the velcro straps around the front legs to secure.
DAZZLE instructions inners.indd 10-11 8/6/07 16:47:48
Page 7
12
Safety Notes
Your DAZZLE pushchair is a high quality Silver Cross product. It complies with BS EN 1888:2003 and with correct use and
maintenance should give good service. If, however, you should have any problems with your pushchair, please contact your
Silver Cross retailer who will take appropriate action.
• Do not leave your child unattended in this pushchair.
• Do not carry more than one child in this pushchair.
• Do not stand a second child on rear lock or a buggy board.
• Do not allow your child to climb in or out of the pushchair of their accord, as this could result in injury to your child or
damage to your pushchair.
The child should always wear a safety harness complying with BS6684. “D” rings are provided for the
attachment of an additional harness. These are located on the existing harness close to where it is attached
to the seat frame.
Do not hang shopping bags or other objects from the handle. This may cause the pushchair to tip up.
Extra shopping or luggage should only be carried in the basket and should not exceed 5kg in weight,
evenly distributed.
Always hold the seat when making adjustments. Be sure that the parking device is on.
Never try to fold the pushchair when the child is seated as this may trap the child.
Always use the brake pedal to apply the brake, never the connecting bar as this will result in bending the bar or
damage to your pushchair.
If you have any difficulty in folding or unfolding the pushchair do not force. This will cause damage.
Read the “ To fold or unfold” instructions carefully.
It may be unsafe to fit accessories or spare parts other than those supplied or recommended by Silver Cross.
If anyone other than the owner is going to use the pushchair (e.g. grandparent, child minder), please show them
how to use it correctly.
Caution: The child should be clear of moving parts while making adjustments.
Never leave your child in the pushchair with the raincover fully fitted other than in normal outside use.
WARNING: Any load attached to the handle affects the stability of the pram/pushchair • Ensure all locking devices are
engaged before use • Check pram body attachment devices are correctly engaged before use • This product is not suitable
for running or skating • Accessories that are not approved by Silver Cross shall not be used • A baby’s safety
is your responsibilty
Carry cot
WARNING: This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and
knees. Maximum weight of the child: 9kg. • Use only on a firm, horizontal, level and dry surface. • Never use with a stand •
Never leave the child unattended while in the carry cot • Do not let other children play unattended near the carry cot • Only
use carry cot with Dazzle pushchair • Do not use if any part is broken, torn or missing • Use only replacement parts supplied or
approved by the manufacturer. • Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires,
gas fires, etc., in the vicinity of carry cot.
NOTE: We advise you only use the Silver Cross mattress supplied.
NOTE: The handles and bottom of the cot should be inspected regularly for signs of damage and wear.
Care and Maintenance
Always check your pushchair for signs of wear. Lubricate moving parts regularly, especially the wheels, axles, suspension springs and
lower parts of the chassis that tend to collect dirt.
Check for freedom of movement of all locking devices.
Polish metalwork with a clean, dry cloth.
Fabric items and seat unit; To clean, sponge area with warm, soapy water. Rinse well with clean water to avoid staining. Allow to dry
naturally, away from direct heat and strong sunlight. A certain degree of fading may occur over time through everyday use. Never
machine wash, tumble dry, iron or bleach.
Guarantee
All Silver Cross products are guaranteed for a period of six months against faulty workmanship, when the product is used correctly
according to the instruction manual.
Please read these instructions carefully before using your new DAZZLE pushchair and keep for future reference.
