3D Pram System
Instructions
IMPORTANT: KEEP FOR FUTURE REFERENCE
Please read these instructions carefully before using your new pram
Keep them in a safe place so that you may use them in the future
3
ACCESSORY PACK - INSTRUCTIONS
CONTENTS
These instructions are important.
Read these instructions carefully before use and keep them for future reference. Your
child's safety may be affected if you do not follow these instructions.
Your 3D Pram System is a high quality Silver Cross product. It meets current British and
European safety standards and care and regular light maintenance will ensure long
service.
This vehicle is intended for children from birth and up to 15kg.
If somebody unfamiliar is using your 3D always ensure that they read these instructions
carefully so that they understand how the product works best.
The 3D Pushchair (SX2
08, SX214) is designed and tested to accept the Ventura Plus
Car Seat (SX403, SX405)
Always read all the instructions provided carefully and remember, the safety of your
child is your responsibility.
WARNING: IT MAY BE DANGEROUS TO LEAVE YOUR CHILD UNATTENDED
Preparation for use
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Using your 3D as a pram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Using your 3D as a pushchair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Using the brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting the seat position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating the height adjustable handles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating your leg support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating the swivel wheels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using your hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using your liner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using your raincover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Folding your 3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Unfolding your 3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Attaching your Ventura Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Detaching your Ventura Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Description Page No.
3D PRAM SYSTEM - INSTRUCTIONS
First check all your parts have been supplied.
Your 3D Pram System includes:
A. 3D Pushchair
B. Pram System Liner
C. Hood
D. Raincover
E. Apron
4

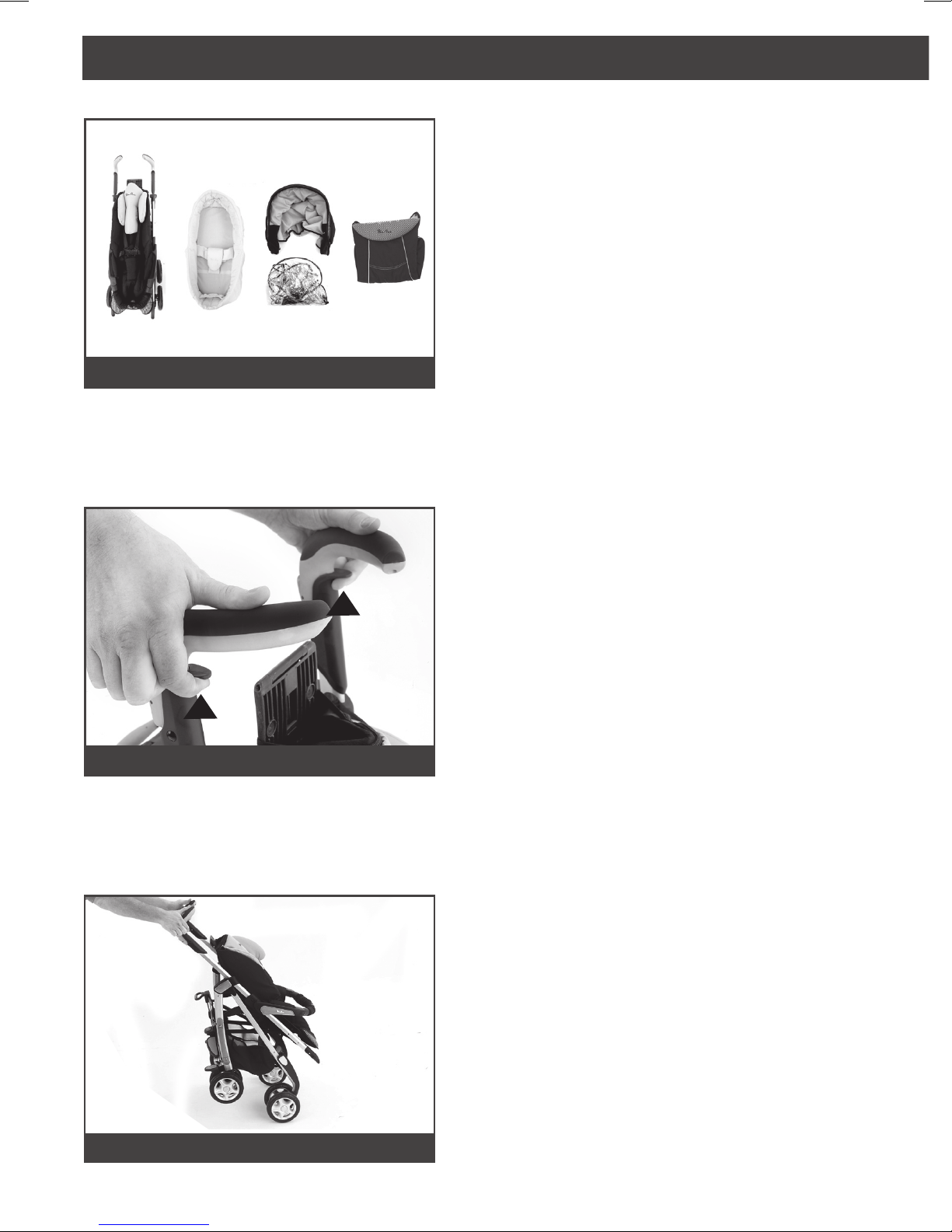

1. PREPARATION FOR USE
Remove all packaging material from your
3D Puschair. Release the folding lock (F)
by pulling up on each side of the chassis
simultaneously.
2
3
1
Gently rock your 3D forwards while tightly
holding the handles.
F
F
A
B
C
D
E
Your 3D will unfold. Push down with your
foot on the centre of the main lock to
engage it.
Ensure that the secondary locks have
engaged on both sides, if not then gently
push down to engage them.
Your 3D Pushchair is now erected.
If you wish to use your pushchair as a pram
continue, if you wish to use your 3D as a
pushchair continue to page 9.
WARNING: Ensure that all locking
devices are engaged before use.
1. PREPARATION FOR USE
5
5
4
6
6

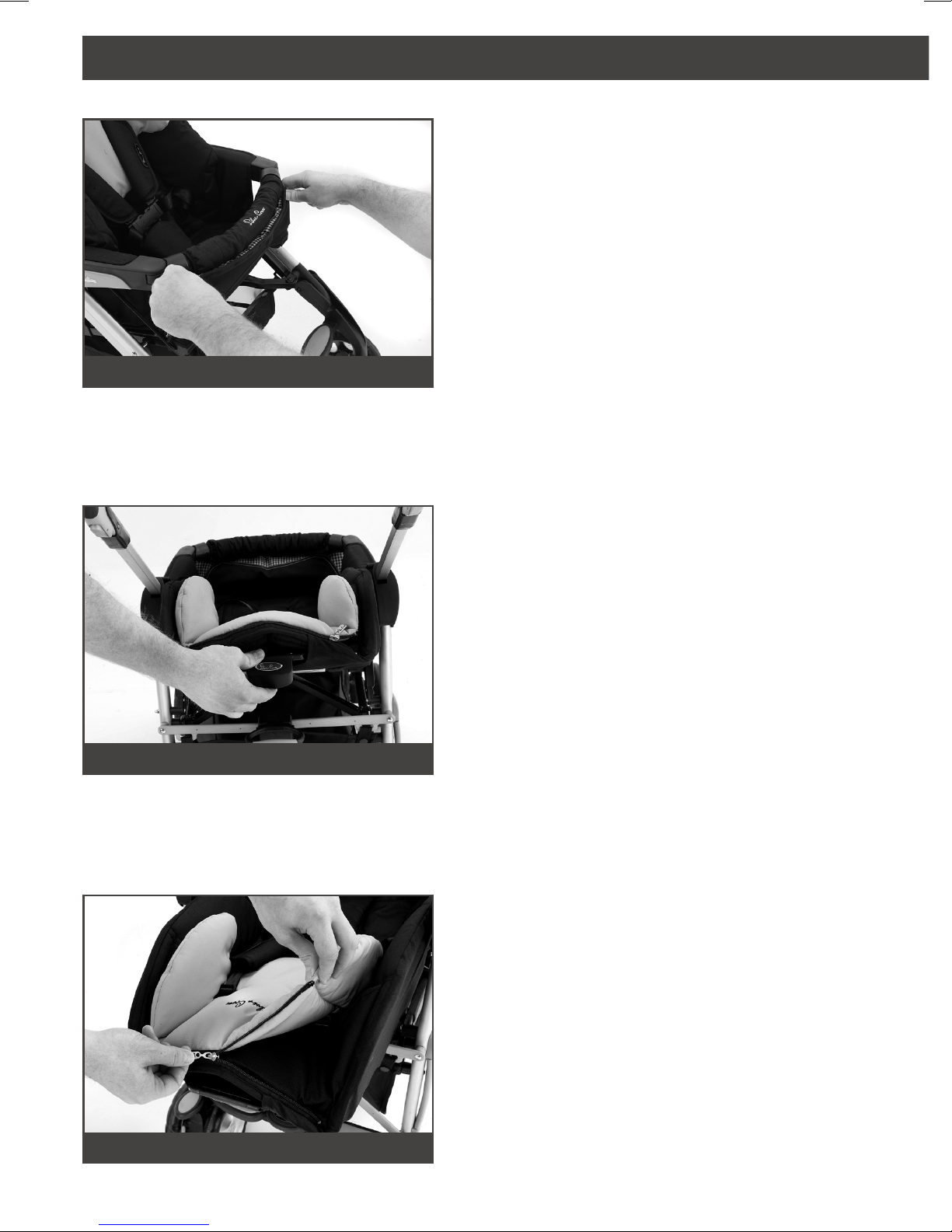

Remove the head support by releasing the zip
and then releasing the harness.
Feed the harness through the harness button
holes.
Recline the seat to the lie flat position by
releasing the mechanism at the back of the
seat.
Lift the leg supports to the upper position, so
that they touch the bumper bar.
8
7
9

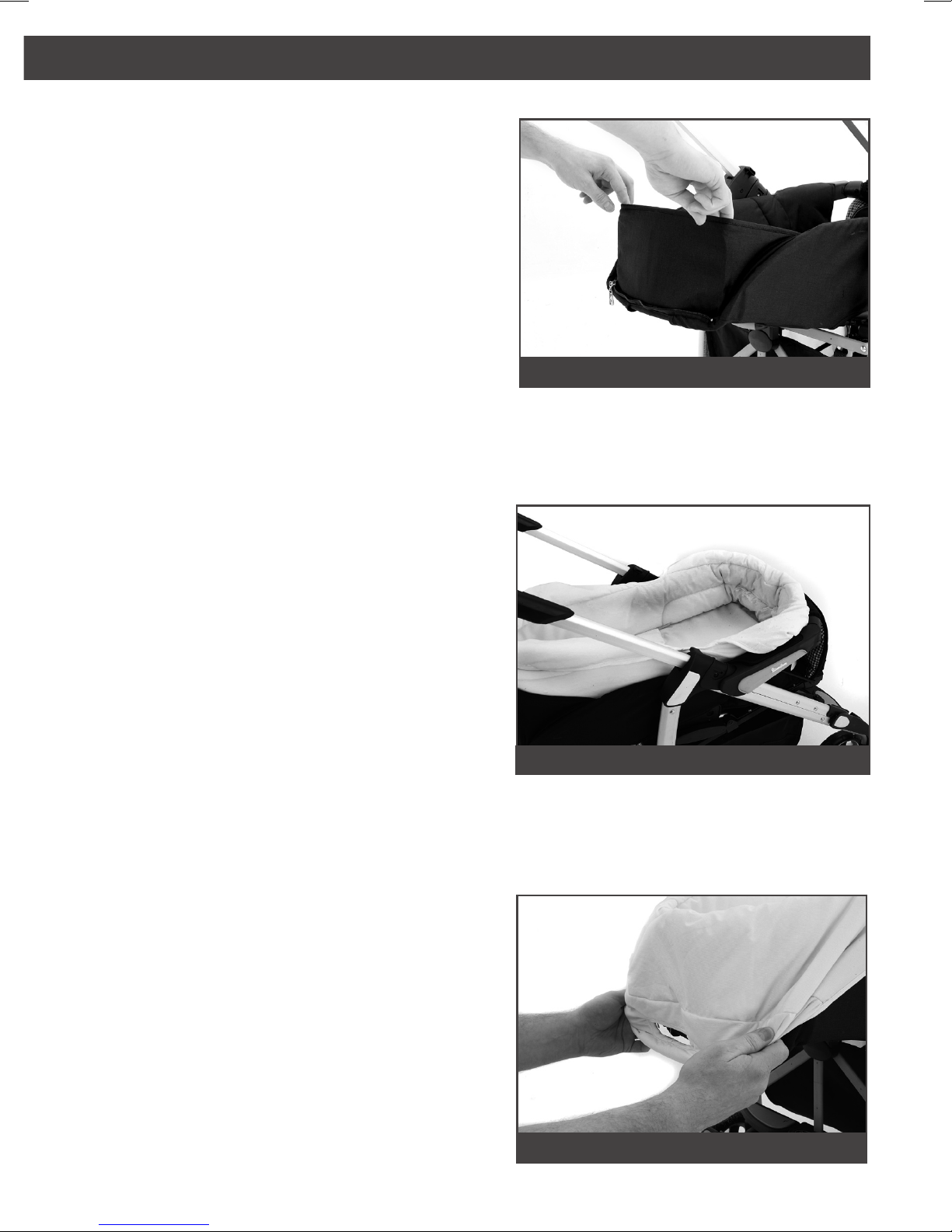

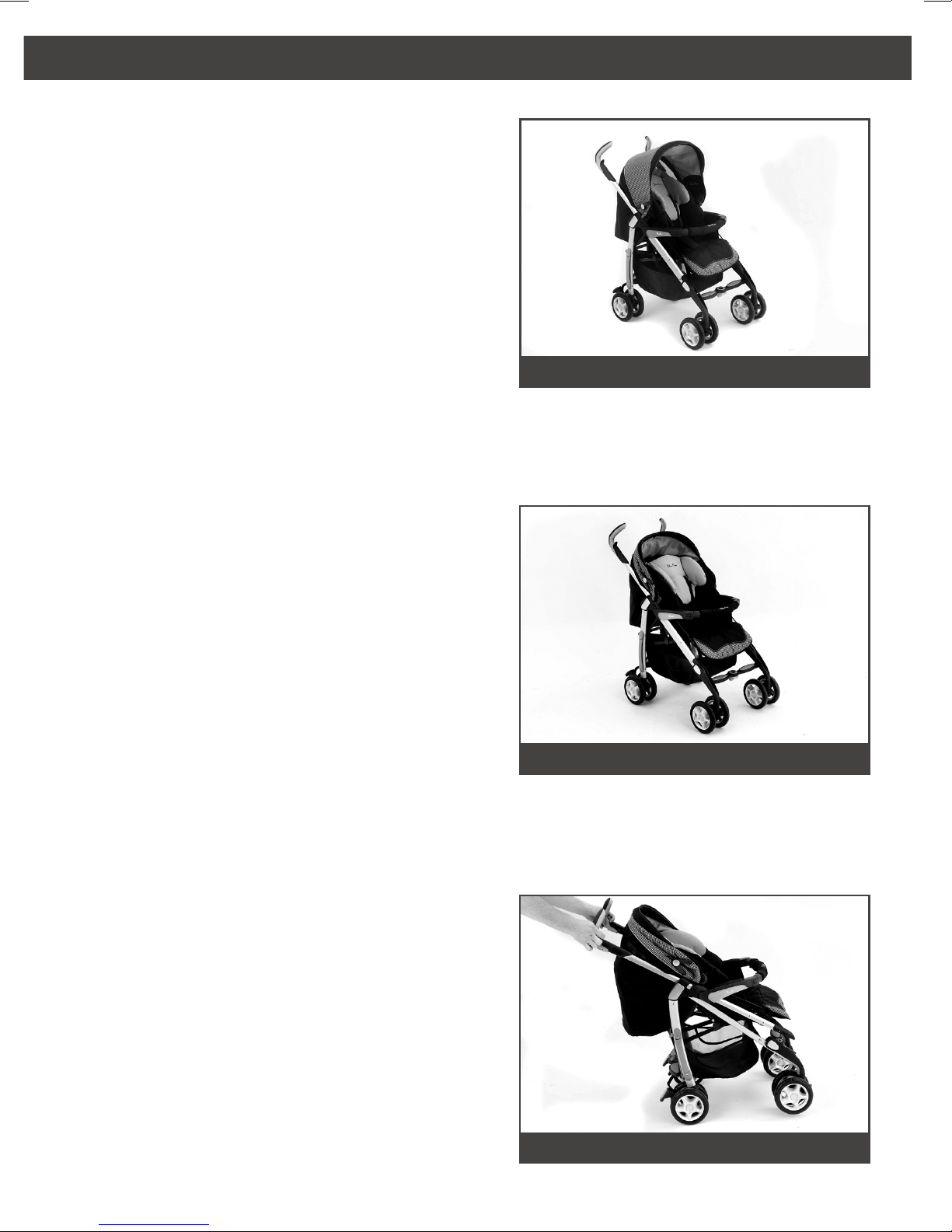

2. USING YOUR 3D AS A PRAM
2. USING YOUR 3D AS A PRAM
Then lift up the fabric liner support which is
situated under the head support cushion.
Place the liner in the seat, with the frill at the
bumper bar end.
7
11
10
Pull the fabrics over and under at the handle
end of the seat. Ensuring that the recline
mechanism can pass through the opening
in the liner.
12

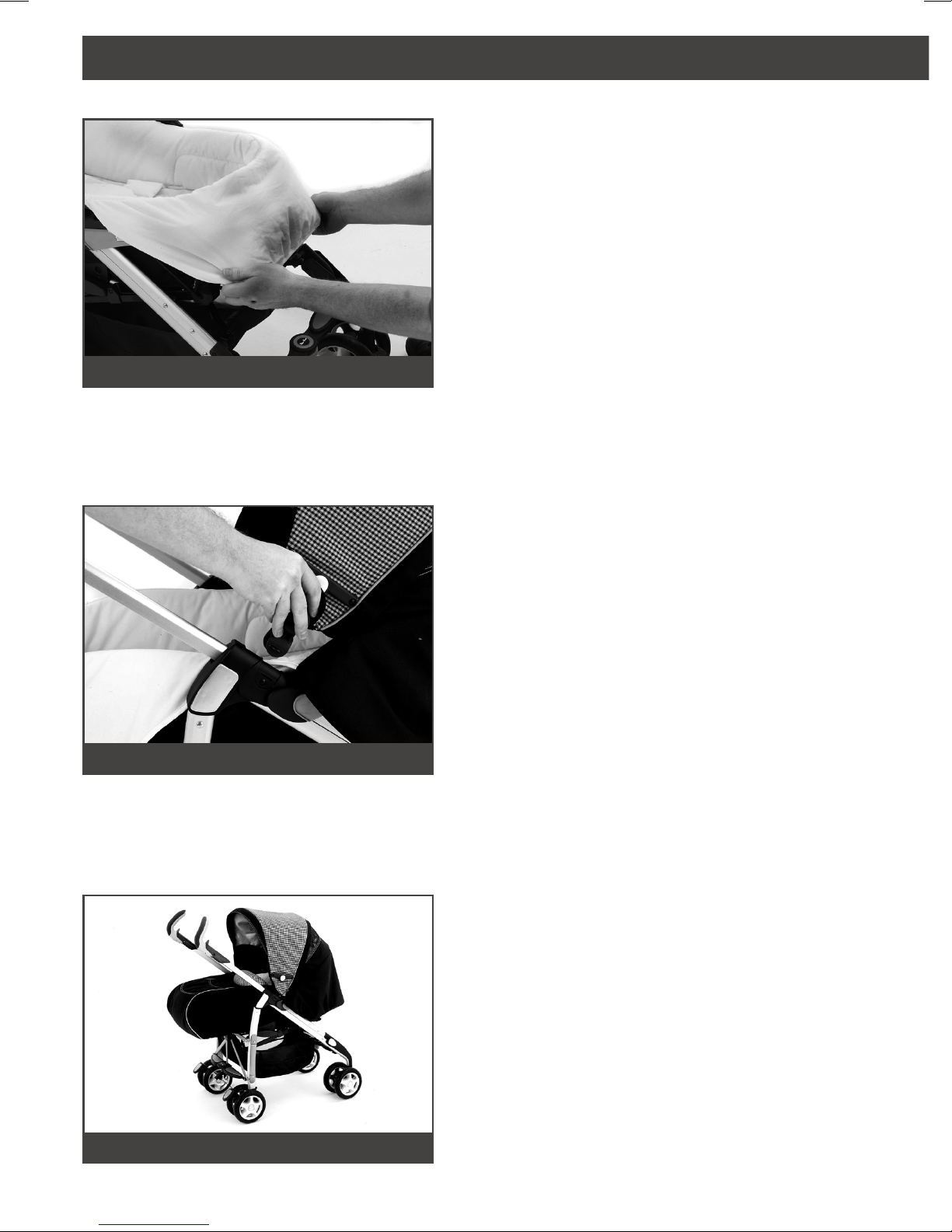

2. USING YOUR 3D AS A PRAM
8

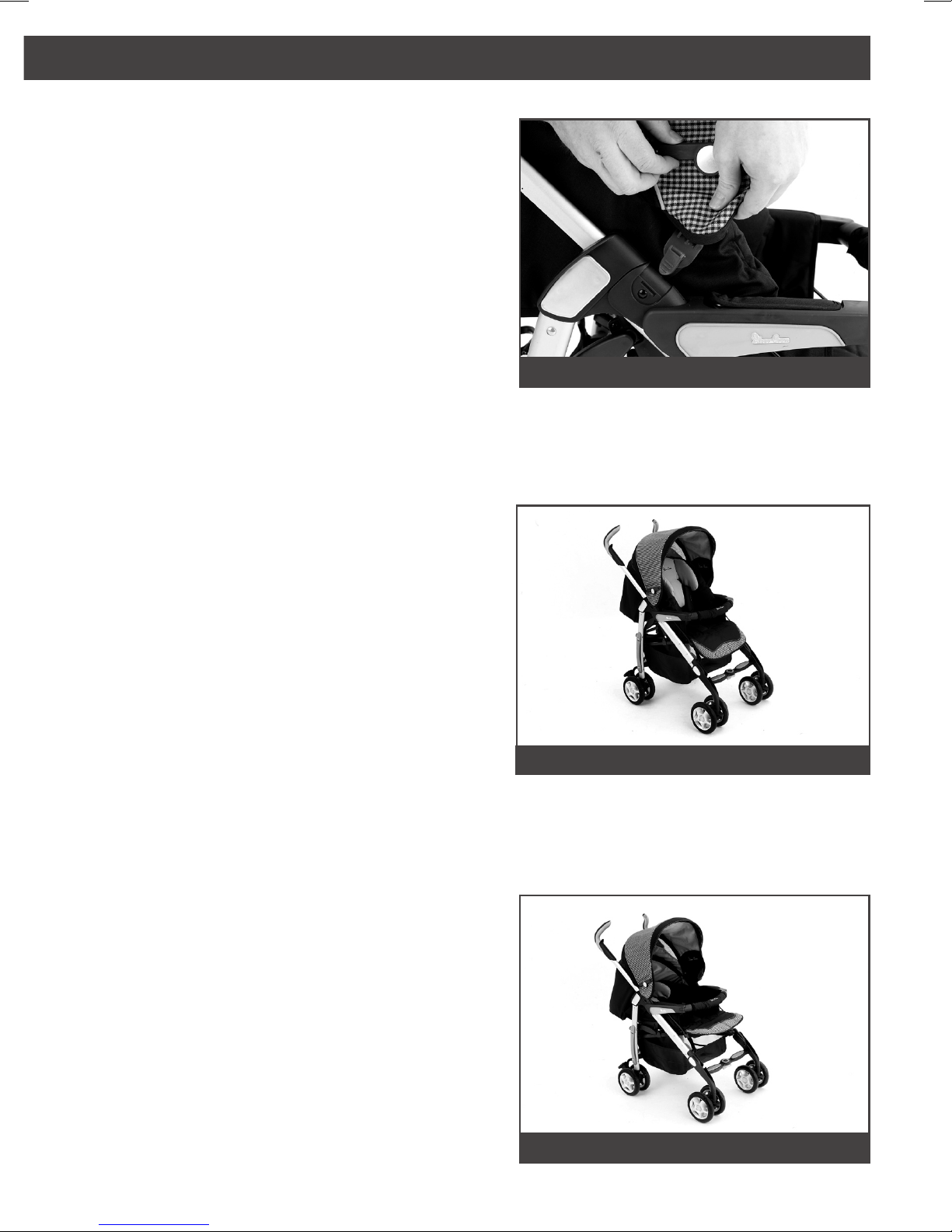

Now attach your apron to the press studs
inside the hood to enclose the pram.
Your 3D Pram System is now ready for use.
Warning: Do not add a separate
mattress
Now fit your hood facing towards the
handles. The hood catches easily 'click' onto
the 3D and lock the catch down. Position the
rear hood skirt under the leg support joint.
Now pull the liner over the bumper bar, and
under the leg support. The liner will attach
with velcro underneath the leg support.
14
13
15

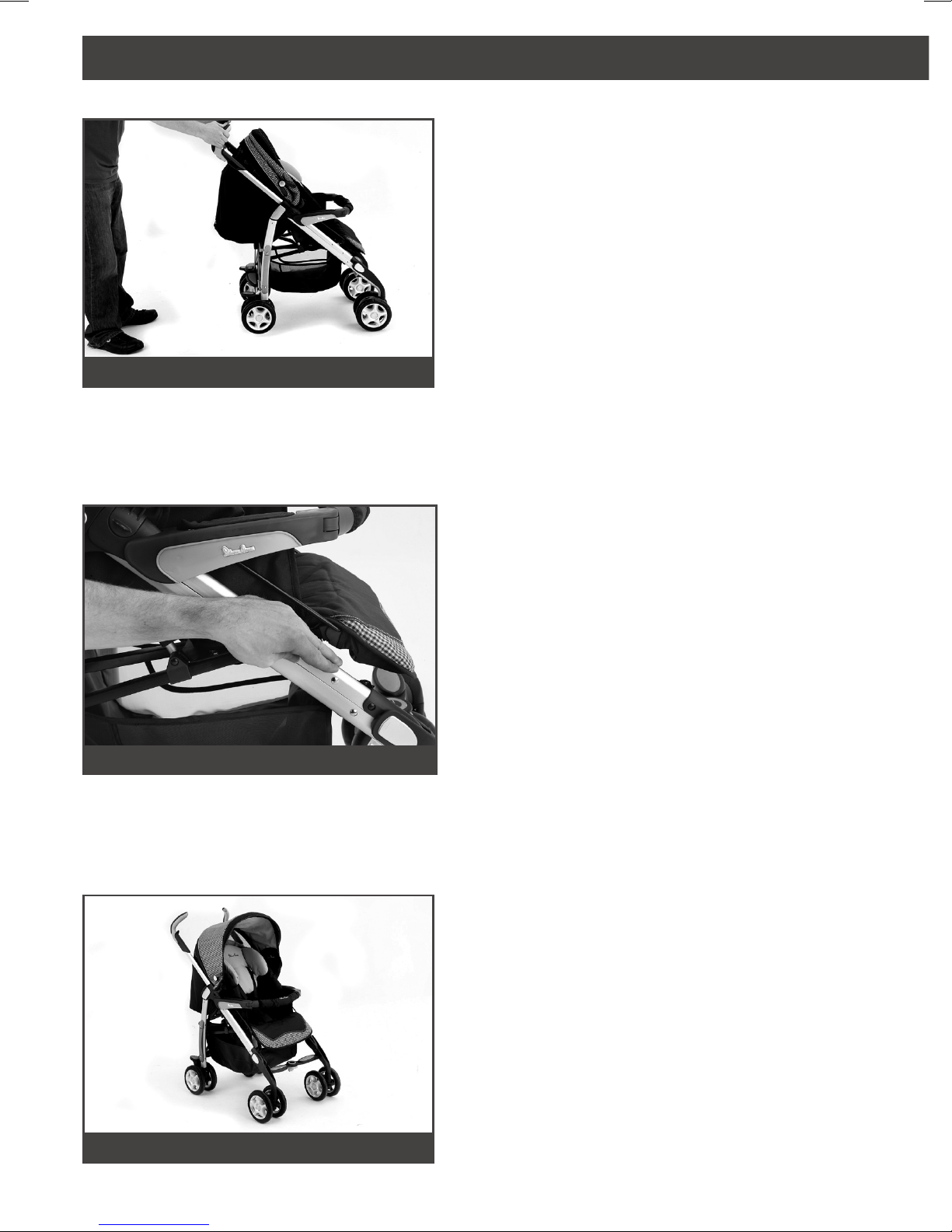

3. USING YOUR 3D AS A PUSHCHAIR
Attach your hood facing towards the
bumper bar. The hood catches should
easily 'click' into position, then push the
securing catch down.
Select the position you require for the seat
back and the leg support.
17
16
Your 3D Pushchair is ready for use.
18
9
10

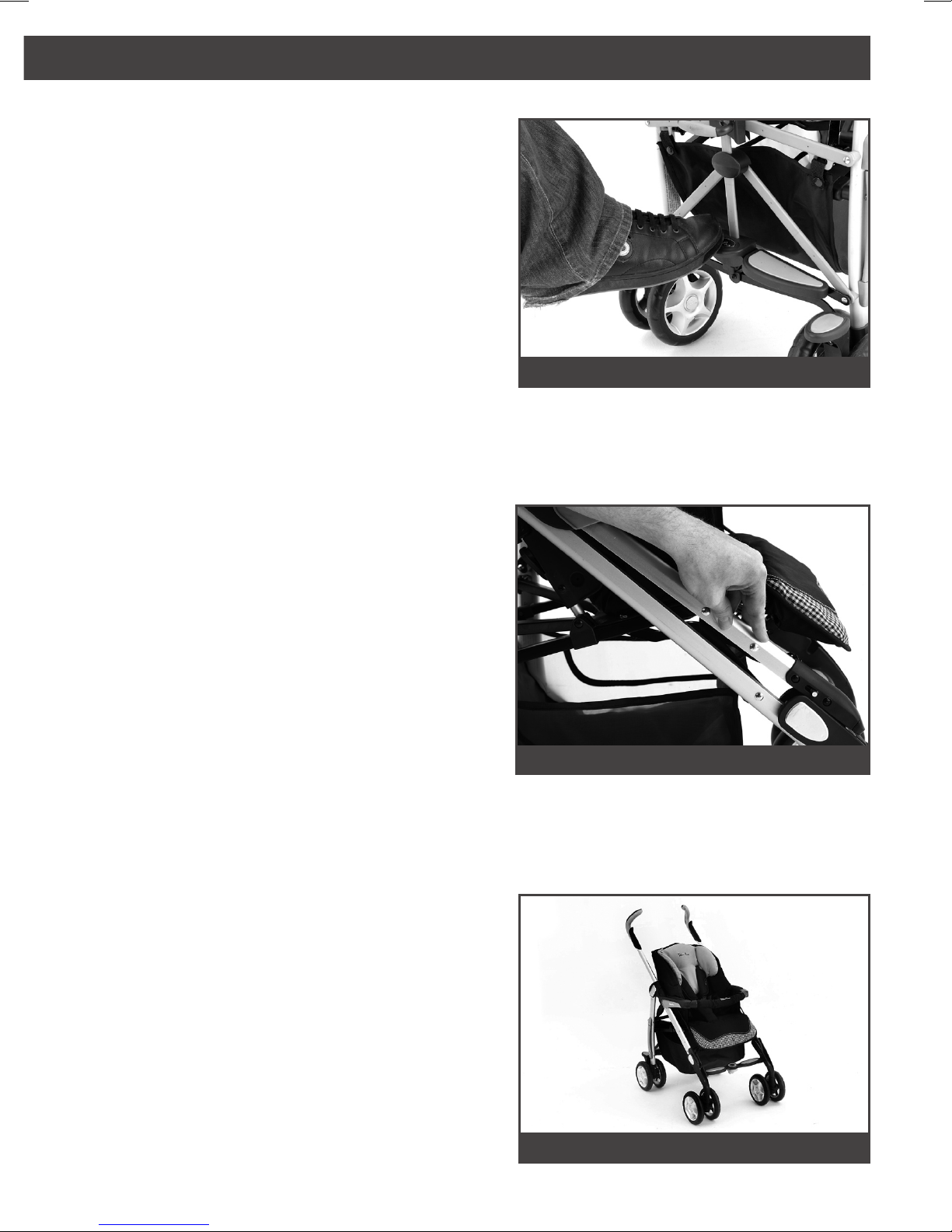

4. USING THE BRAKE
10
To disengage the brake, simply push the
brake pedal upwards, this will disengage
both sides simultaneously.
A 'click' will be heard.
Note:
Always check that your brake is fully engaged
by gently rocking the pushchair.
To engage the brake, press down on either
pedal.
20
19
21
5. USING THE HARNESS
11
Warning: use a harness as soon as
your child can sit unaided.

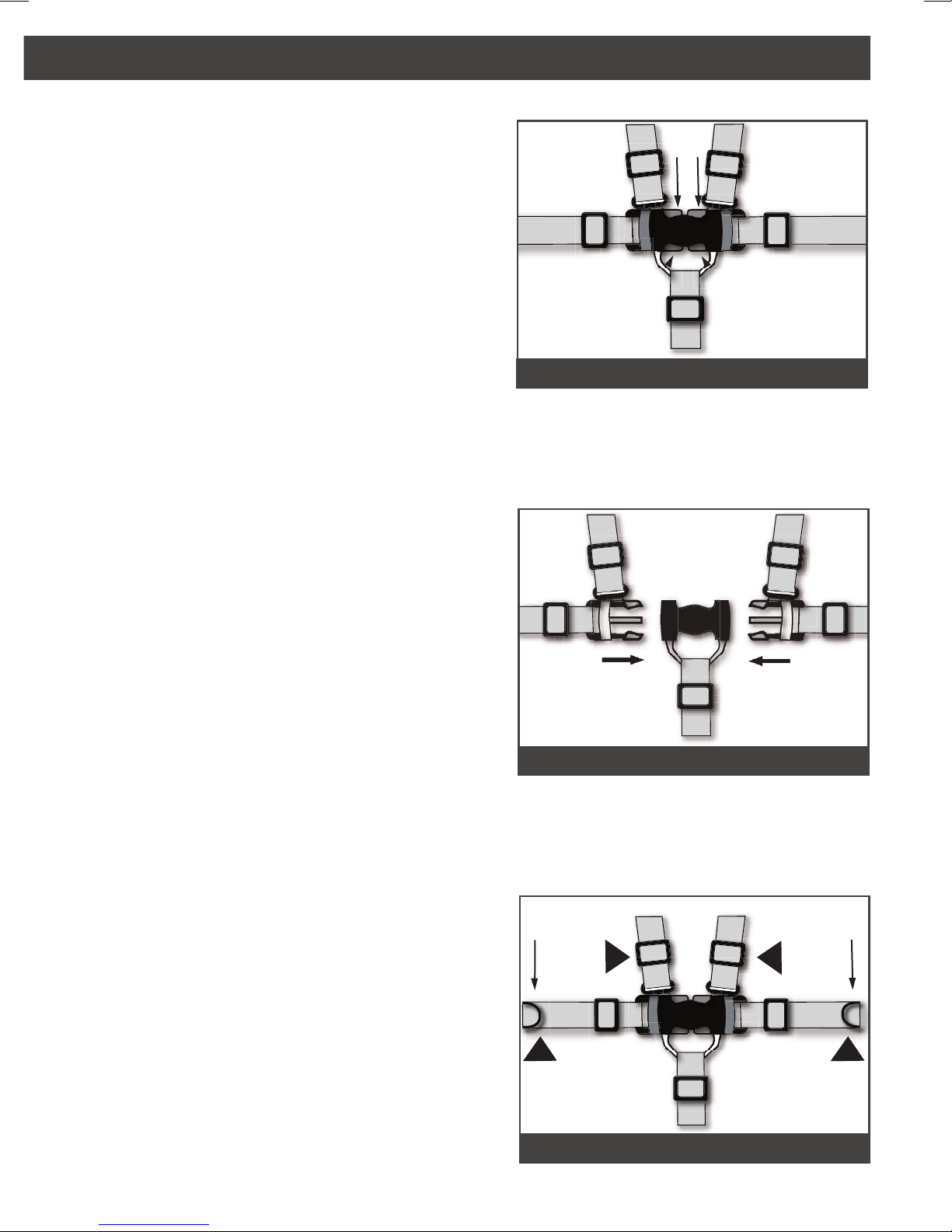

To release the harness press prongs and pull
apart. The shoulder straps will then slide off
the waist strap section
Warning: always use the crotch strap
in combination with the waist belt.
To fasten the harness, first slide the shoulder
strap clips onto the waist section. Then push
the waist prongs into the central buckle.
Your harness is fully adjustable by moving the
slides (G), to make the fitting easy. ‘D’ rings
are provided for fitting a separate harness if
required (H), complying with BS 6684. Your
child should always be harnessed in and
should never be left unattended, even for short
periods of time.
23
22
24
G
G
H H
12

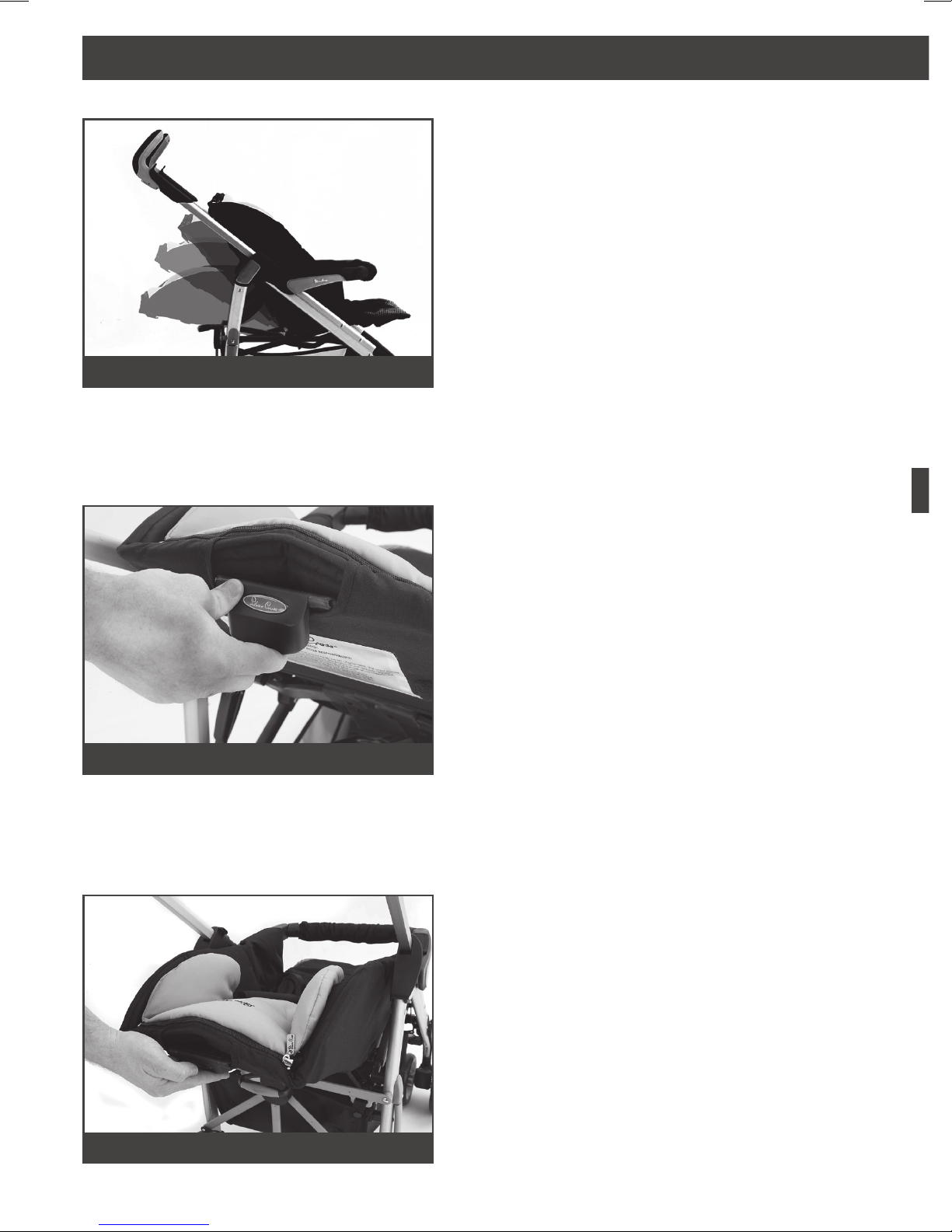

6. ADJUSTING THE SEAT POSITION
12
To raise the seat place your hand in the
middle of the rear of the seat and gently lift to
the desired position ensuring both sides are
level.
To lower the seat, release the mechanism on
the rear top of the seat, and gently lower to
the desired position.
Your 3D has 4 seat positions
26
25
27

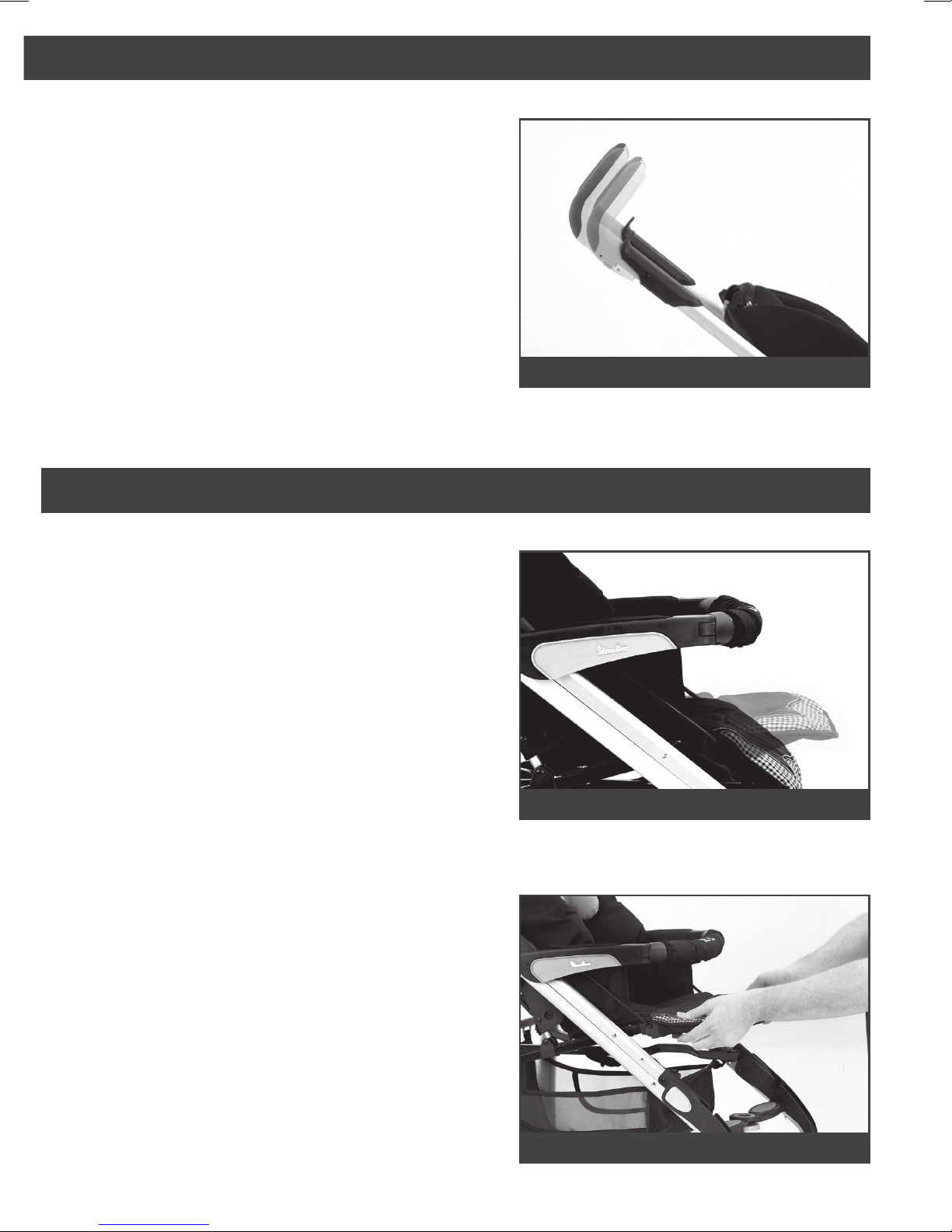

7. OPERATING YOUR HEIGHT ADJUSTABLE HANDLES
The handles on your 3D have 2
positions.
Press the button on the underside and raise or
lower to the desired position.
Your 3D has a two position leg support for
your child.
28
Press the buttons simultaneously underneath
both sides of the leg support and raise or
lower to the desired position.
30
13
8. OPERATING YOUR LEG SUPPORT
29
14

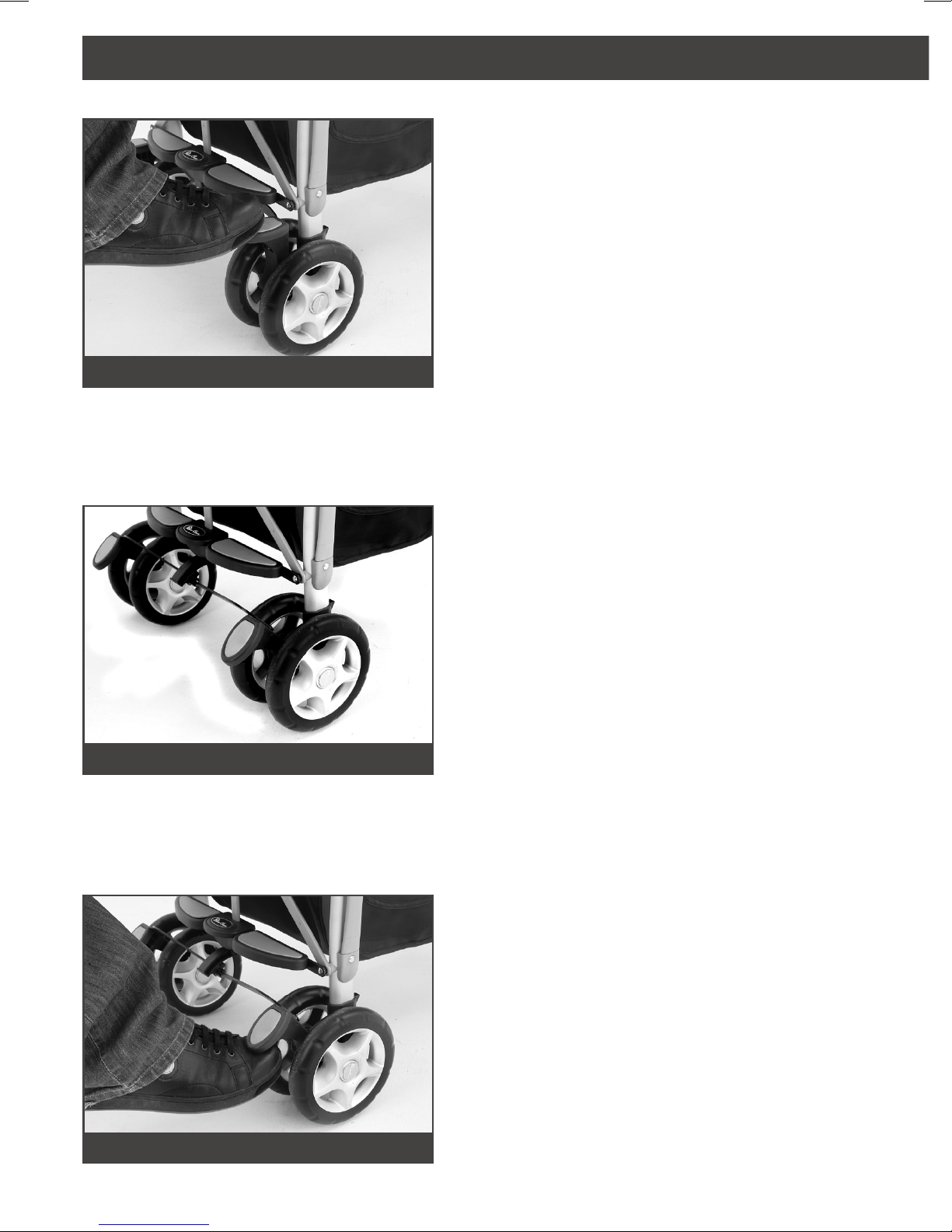

9. OPERATING THE SWIVEL WHEELS

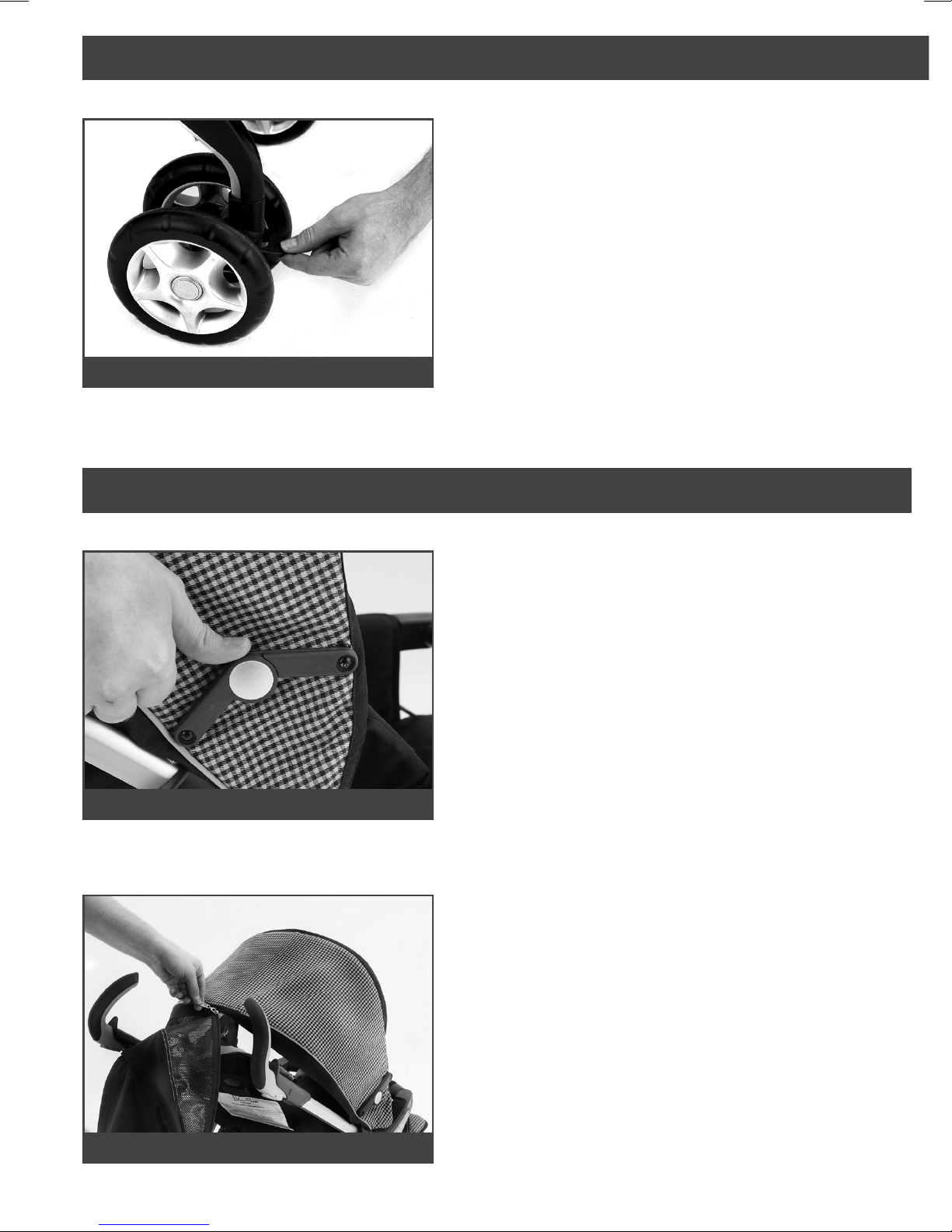

Your 3D has lockable swivel wheels.
By pressing the locking catch down the wheels
will lock in the fixed position. By lifting this up
the wheels will freely swivel for easier steering.
You should always lock the wheels on uneven
surfaces, and before folding.
Your 3D hood fits on the 3D facing both
directions, rearwards for the pram mode
and forwards for pushchair mode.
Press down on the hood arms to tension
the hood.
31
Your hood also has a zip off rear skirt to
allow it to be used as a sun canopy.
33
10. USING YOUR HOOD
32
11. USING YOUR LINER
15

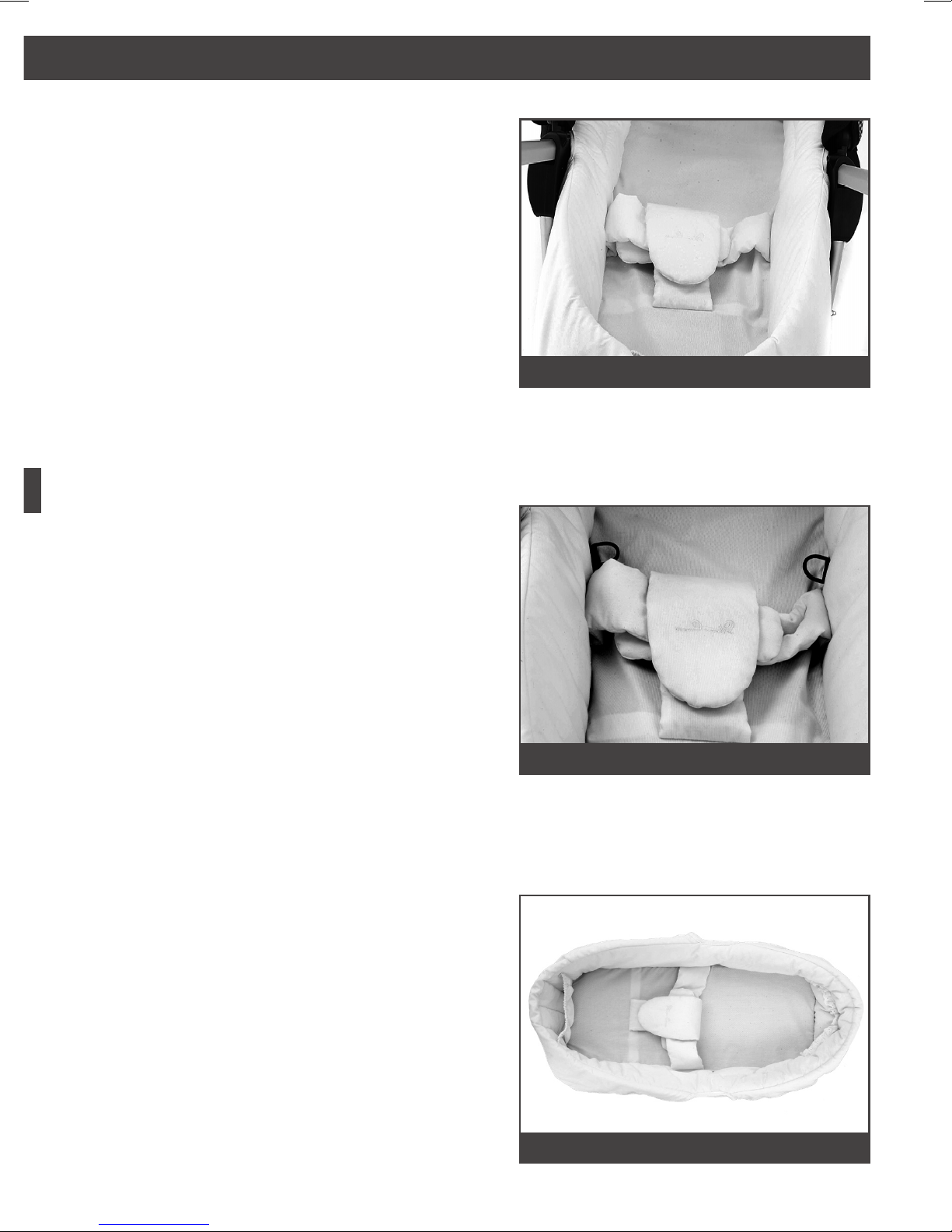

Your pram system liner can be washed
(please refer to washcare labels), it is
recommended that the mattress is removed by
accessing it from the underneath of the liner
and the side supports removed.
If you wish to attach a separate harness Drings can be accessed at the sides of liner.
Warning: use a harness as soon as
your child can sit unaided.
Your 3D liner has a Soft Wrap™ to
help provide your child with a safe and
comfortable position.
Open the wrap completely, place your
child in the centre of the Soft Wrap™ and
close the waist and crotch pads, securing
with the velcro tabs.
35
34
36
12. USING YOUR RAINCOVER
16

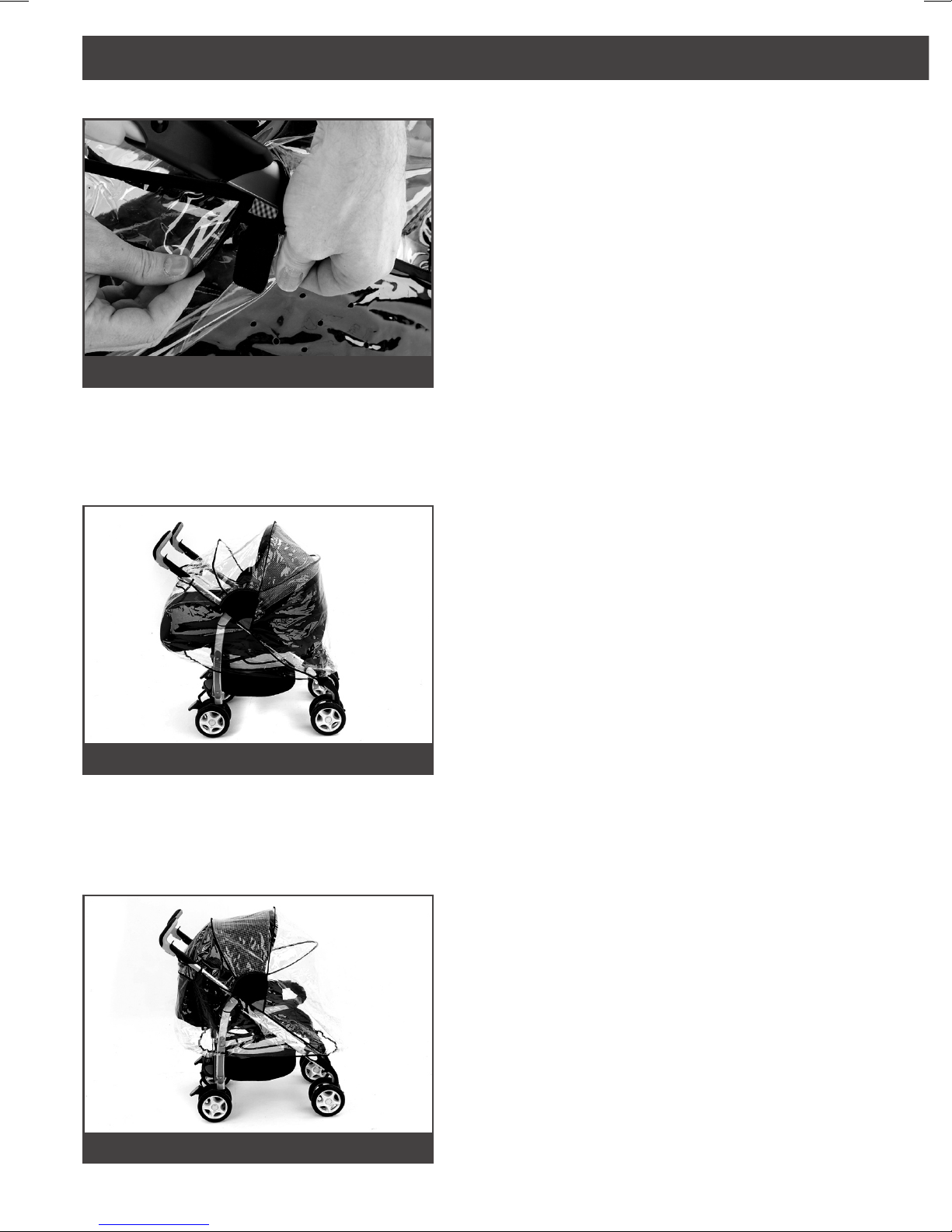

Your 3D Pram System raincover is designed
to fit the 3D in either pram or pushchair
mode. The raincover however is not designed
to fit with Ventura Plus fitted to the 3D.
Loop the webbing at the front around the 3D
leg, just below the foot plate, and fasten.
Your raincover is now fitted.
To attach the raincover, first slide over the 3D
Pram System handles and pass over he hood.
Then fasten the velcro flap at the rear.
38
37
39

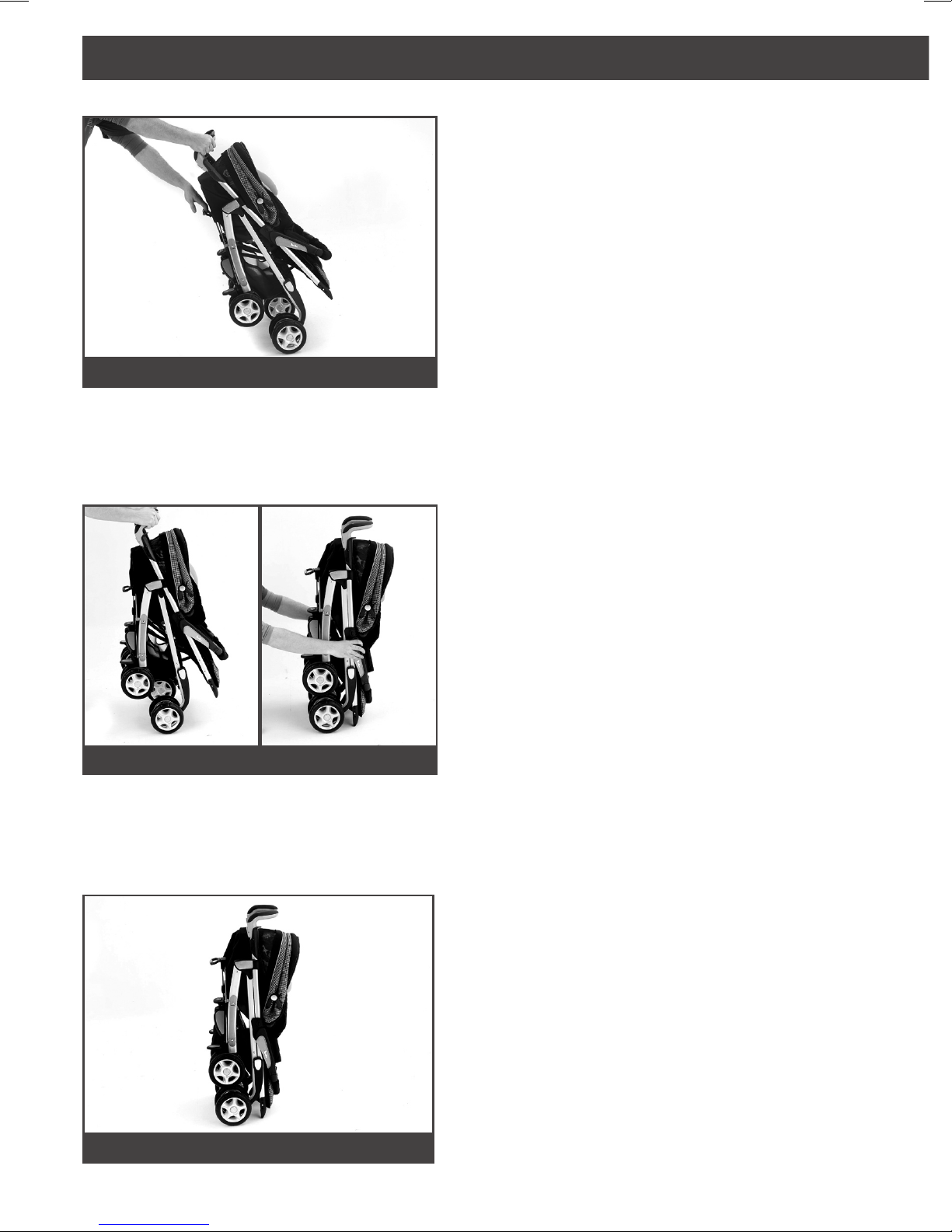

13. FOLDING YOUR 3D
17
Release the catches on each handle and press
down on the handles so that the locks release.
Ensure the swivel wheels are locked.
Close the hood up towards the handles.
Your 3D will fold with and without the liner
fitted. Although it is easier without the liner
in position, and we would recommend it is
removed for folding.
Note: If the liner is left in place and folded
for a long period, then the foam mattress
will curve upwards. This will then regain its
normal flat shape once a baby is placed in
the liner.
41
40
42
18
13. FOLDING YOUR 3D (CONT.)

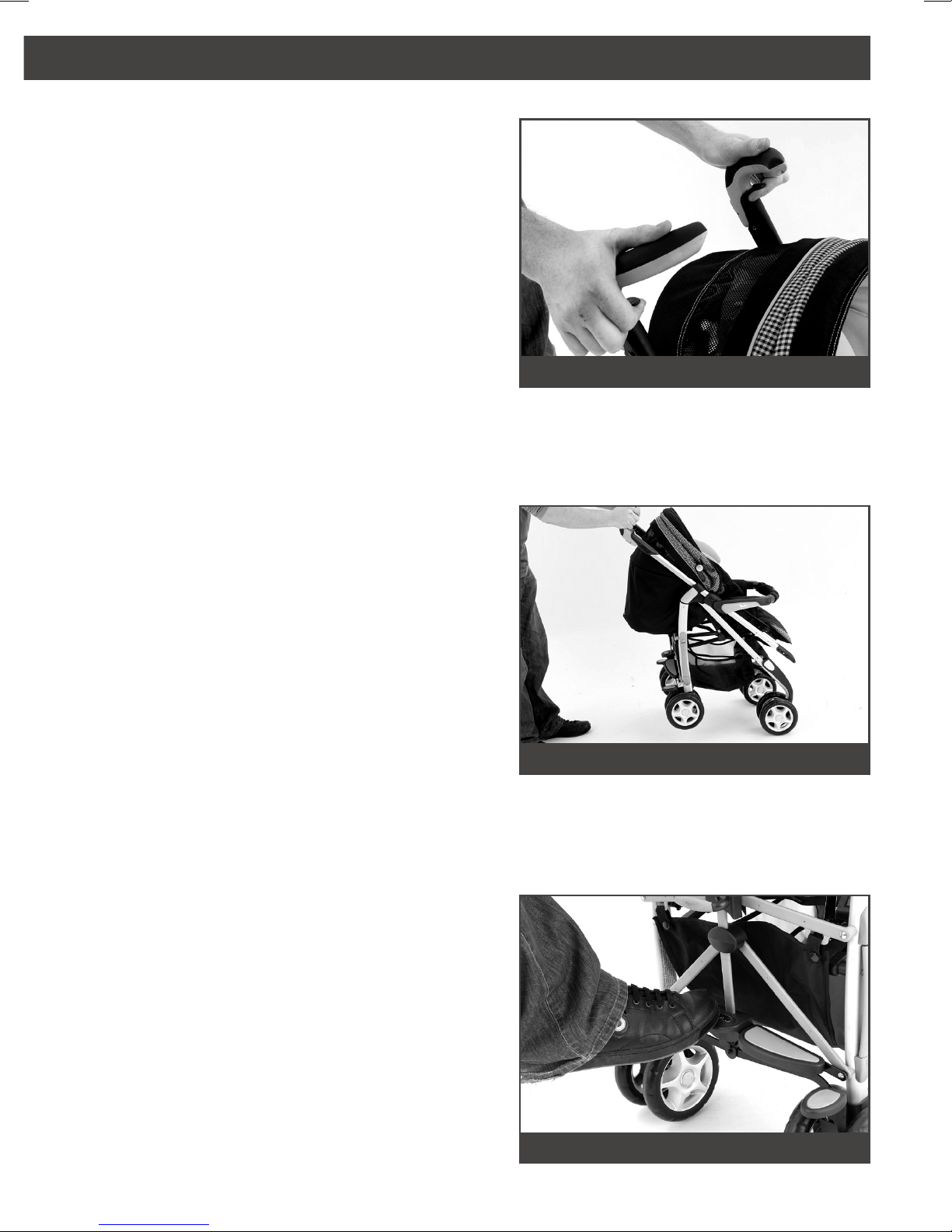

Pull the handle on the main lock, and push on
the pushchair handle. The 3D will begin to
fold
Tilt forward onto the front wheels and push
down on the handles.
The 3D will lock together. It may be
necessary to push the pushchair together
to lock when the liner is in place. This is
perfectly normal, to do this press the tubing
together until the 3D locks.
44
43
Your 3D has a carry handle on the right rear
leg to help transport it. It will also freestand
on level surfaces.
45
14. UNFOLDING YOUR 3D
Push down on the main lock with your foot.
Note: It is essential to ensure the main lock
is engaged. Failure to do so could result in
damage to your pushchair.
Whilst holding the handles flick the 3D
forwards.
To unfold your 3D release both handle locks.
47
46
48
19
14. UNFOLDING YOUR 3D (CONT.)
Push the handles upwards to engage the locks.
Check the secondary lock has engaged on
both sides. If not push down on the tube to
lock.
50
49
Your 3D is ready for use.
Warning: Ensure that all locking
devices are engaged before use.
51
20

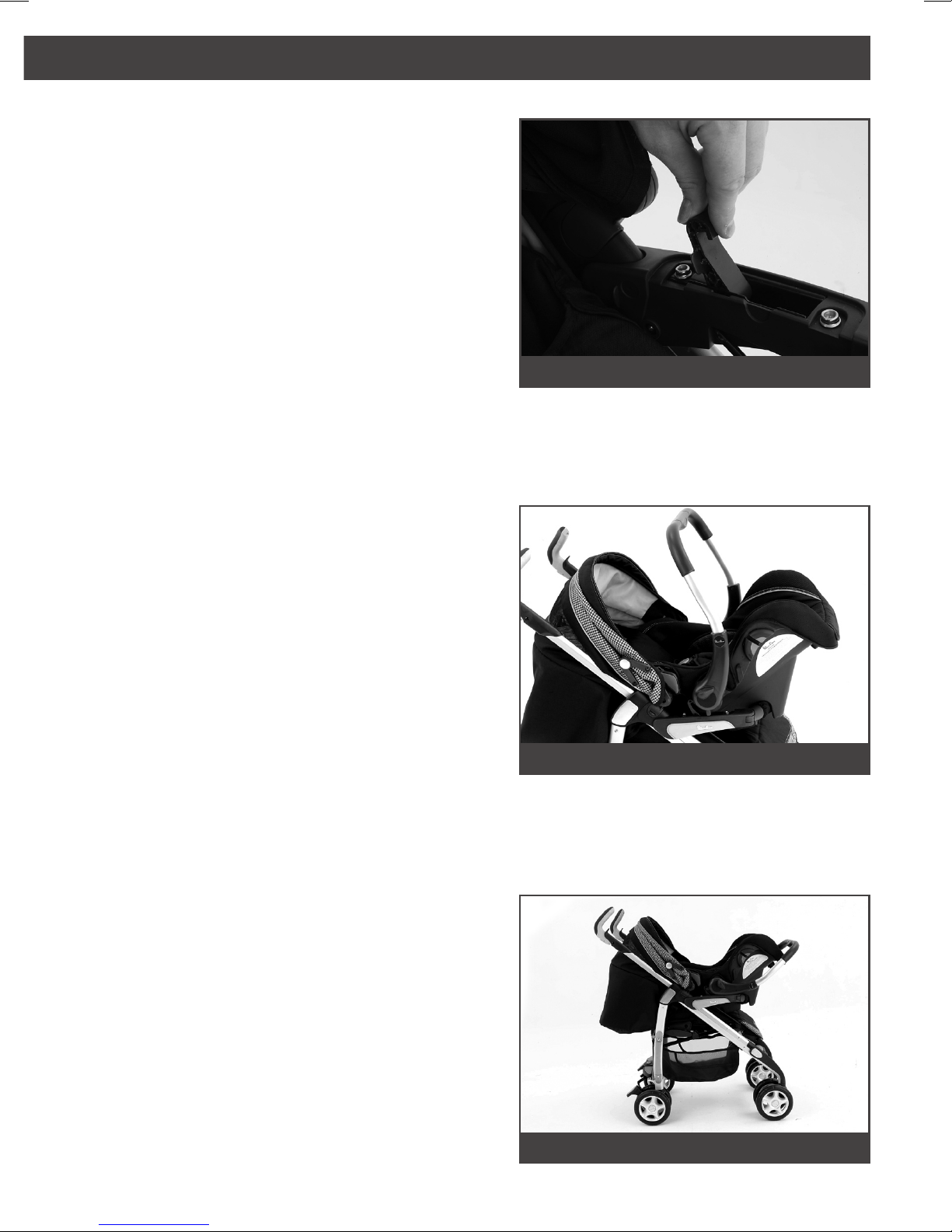

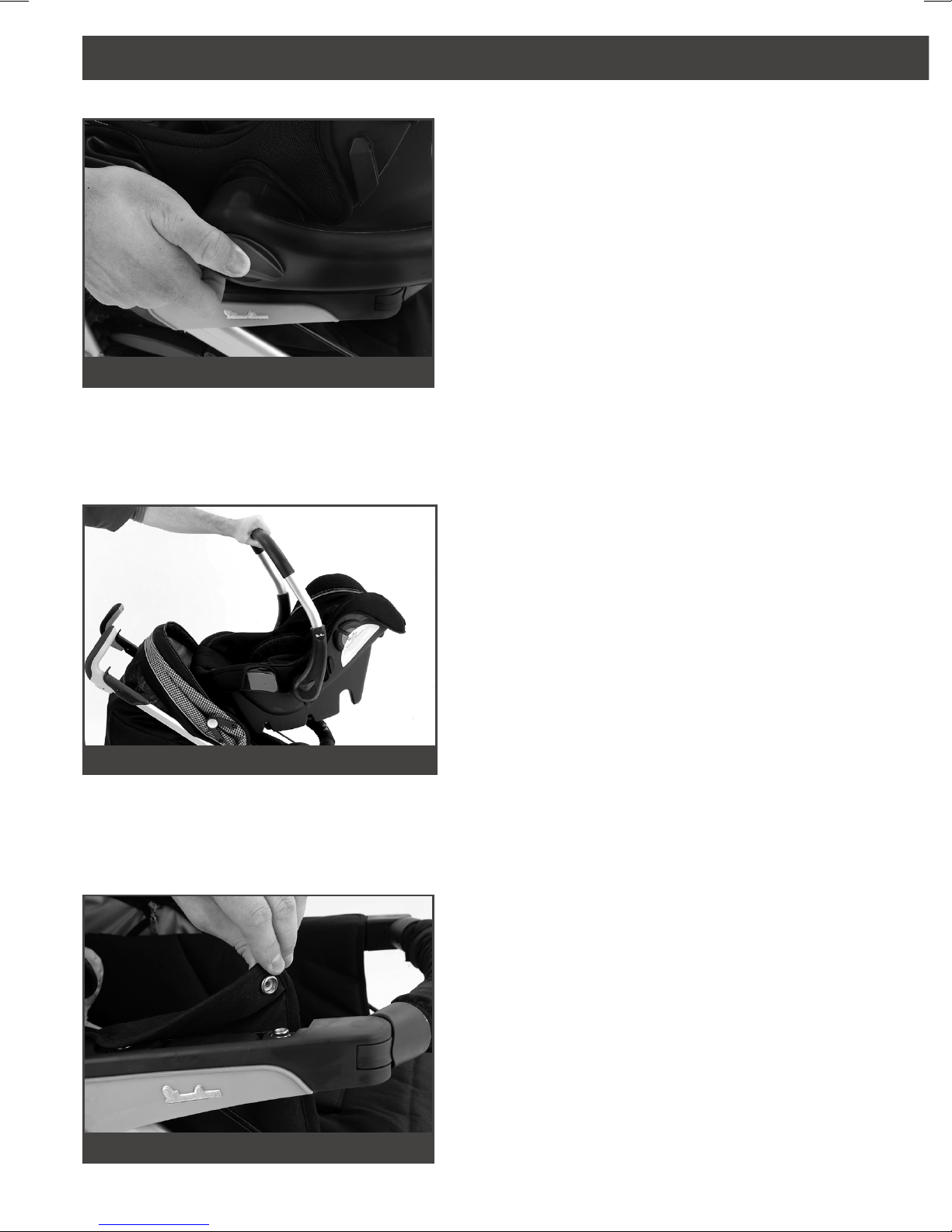

15. ATTACHING YOUR VENTURA PLUS
Lock the handle down towards the bumper
bar, by pressing and holding down both
buttons, then rotating the handle.
An audible 'click' will be heard.
Your 3D Travel System is now ready.
Warning: check that the seat unit
attachment are correctly engaged.
Position the Ventura Plus in the 3D seat, do
this by firstly positioning the large opening on
the Ventura Plus over the bumper bar.
To attach your Ventura Plus, unfasten the
fabric cover on the 3D arms.
Lift the catches inside the arms until they
reach the stop point.
53
52
54
21
16. DETACHING YOUR VENTURA PLUS
To detach your Ventura Plus, press the buttons
on both sides of the car seat handle at the
same time and hold down.
Rotate the handle to the upright carry position
and lift the car seat out of the 3D.
56
55
Push the car seat locks back into the 3D arms
and re-attach the fabrics back onto the arms.
57
22
Notes
23
Safety Notes
Your 3D pushchair is a high quality Silver Cross product. It complies with British Standard 7409:1996 and
European Standard EN:1888:2003 and with correct use and maintenance should give good service. If,
however, you should have any problems with your pushchair, please contact your Silver Cross retailer who
will take appropriate action.
Do not leave your child unattended in this pushchair.
Do not carry more than one child in this pushchair.
Do not stand a second child on rear lock or a buggy board.
The child should always wear a safety harness complying with BS6684. “D” rings are provided for the
attachment of an additional harness. These are located on the existing harness close to where it is attached
to the seat frame.
Do not hang shopping bags or other objects from the handle. This may cause the pushchair to tip up. Extra
shopping or luggage should only be carried in the basket and should not exceed 5kg in weight, evenly
distributed.
Always hold the seat when making adjustments. Be sure that the parking device is on.
Never try to fold the pushchair when the child is seated as this may trap the child.
If you have any difficulty in folding or unfolding the pushchair do not force. This will cause damage. Read
the “ To fold or unfold” instructions carefully.
It may be unsafe to fit accessories or spare parts other than those supplied or recommended by Silver Cross.
If anyone other than the owner is going to use the pushchair (e.g. grandparent, child minder), please show
them how to use it correctly.
Caution: The child should be clear of moving parts while making adjustments.
Never leave your child in the pushchair with the raincover fully fitted other than in normal outside use.
Warning: Any load attached to the handle affects the stability of the pram/pushchair. A baby’s safety is
your responsibility.
Please read these instructions carefully before using your new 3D pushchair
and keep for future reference.
Care and Maintenance
Always check your pushchair for signs of wear. Lubricate moving parts regularly, especially the wheels axles,
suspension springs and lower parts of the chassis that tend to collect dirt.
Check for freedom of movement of all locking devices.
Polish metalwork with a clean, dry cloth.
Fabric items and seat unit. To clean, sponge area with warm, soapy water. Rinse well with clean water to
avoid staining. Allow to dry naturally, away from direct heat and strong sunlight. A certain degree of fading
may occur over time through everyday use. Never machine wash, tumble dry, iron or bleach.
Guarantee
All Silver Cross products are guaranteed for a period of twelve months against faulty workmanship.
Filling material(s) and
covering fabric(s) meet the
requirements for resistance to
cigarette and match ignition in
the 1988 safety regulations.
CARELESSNESS
CAUSES FIRE
Silver Cross (UK) Ltd
Micklethorn
Broughton
Skipton
North Yorkshire
BD23 3JA
Telephone: 01756 702412
Website: www.silvercross.co.uk
Loading...
