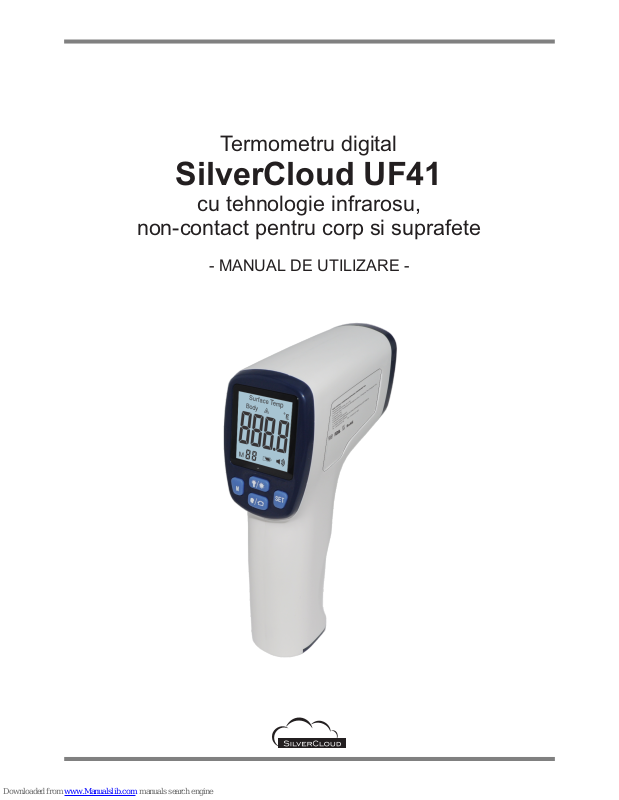

Termometru digital
SilverCloud UF41
cu tehnologie infrarosu,
non-contact pentru corp si suprafete
- MANUAL DE UTILIZARE -
1
Precizari:
Atentionari:
Instructiuni de folosire:
Precautii:
Caracteristici principale:
Setari:
ú Termometrul digital SilverCloud UF41 a fost creat pentru a masura temperatura de pe
suprafata corpului sau suprafata diferitelor obiecte din ambient.
ú Acest aparat trebuie folosit doar pentru scopurile descrise in acest manual
ú Temperatura ambientala ideala de folosire a acestui aparat este 25°C. Nu expuneti acest
aparat la temperaturi mai mari de 40°C sau mai mici de 5°C. Umiditatea ideala de folosire
este 80%RH.
ú Nu supuneti acest aparat la socuri electrice. Feriti-l de apa si de lumina directa a soarelui.
ú Nu folositi acest aparat in apropierea zonelor cu camp electromagnetic puternic
ú Nu produceti socuri mecanice asupra aparatului si nici nu-l folositi daca a fost deteriorat fizic.
ú Pentru curatarea aparatului folositi o carpa moale inmuiata usor in alcool 70%.
ú Nu incercati sa dezmembrati sau sa reparati singuri acest aparat.
ú Apasati butonul “SCAN” pentru a activa aparatul. Imediat aparatul va masura temperatura.
Daca aparatul este setat pe modul “BODY”, pe cran va aparea simbolul “Lo”. Daca aparatul
este setat pe modul “SURFACE TEMP”, pe ecran va aparea direct temperatura masurata
ultima data cand a fost folosit acest mod.
ú Pentru a obtine un rezultat precis, in cazul in care mutati termometrul intr-o incapere cu o
diferenta mare de temperatura fata de cea in care fusese depozitat initial, asteptati 15 - 20 de
minute inainte de a-l folosi.
ú Se pot obtine rezultate diferite in functie de tipul pielii, de grosimea pielii sau de pozitia
corpului.
ú Asteptati un minut intre doua masuratori.
ú Functie alarma (avertizeaza cand temperatura este prea mare). Pragul implicit al acestui
termometru este 37.8°C
ú Salvare automata a rezultatelor
ú Inchidere automata dupa 5 secunde de nefolosire
ú Apasati tasta pentru a selecta modul BODY (masoara temperatura corporala) sau
AMBIENT (masoara temperatura de la suprafata obiectelor)
ú Apasati tasta pentru a schimba intre °C si °F
ú Apasati timp de 5 secunde tasta pana cand pe ecran apare “On” urmat de un beep de
confirmare alarma. Eliberati tasta . Apasati din nou tasta pentru a dezactiva alarma.
ú Apasati tasta pentru a schimba intre functiile: iluminare ecran pornita/oprita, raza
infrarosu pornita/oprita.
ú Apasati tasta pentru a apela o inregistrare din memorie. Aparatul poate salva maxim
32 de rezultate.
2
Descrierea aparatului:
Simboluri ecran:
Instructiuni de folosire:
BODY
Mod temperatura corporala activ
Mod temperatura suprafete activ
Temperatura in grade Celsius
Temperatura in grade Fahrenheit
Baterie descarcata
Memorie
Alarma
M
SURFACE TEMP
ú Instalati bateriile
ú Daca folositi pentru prima data termometrul, asteptati
10 minute ca acesta sa se incalzeasca.
ú Orientati termometrul spre frunte (dupa cum vedeti in
imaginea alaturata) la o distanta de 5 - 10 cm; apasati
butonul SCAN. Rezultatul va fi afisat imediat pe
ecran. Asigurati-va ca persoana analizata nu este
transpirata, nu are produse cosmetice aplicate si nu
are fruntea acoperita de caciula. Pentru a masura
temperatura, puteti folosi si zona de dupa ureche.
ú Apasati butonul “M” pentru a reapela din memorie
temperatura masurata
ú Daca pe ecran apare pictograma trebuie sa
schimbati bateriile. Indepartati capacul de pe
compartimentul destinat bateriilor. Introduceti 2
baterii AA, 1.5V (recomandam baterii alkaline)
respectand polaritatea.
Daca intampinati probleme in timpul folosirii acestui aparat, cititi indicatiile de mai jos. Daca
defectiunea persista, adresati-va unui centru service specializat.
Daca in timpul folosirii termometrului, pe ecran apare “HI”, inseamna ca temperatura masurata
de dispozitiv este mai mare de 42°C in modul BODY.
Daca in timpul folosirii termometrului, pe ecran apare “Lo”, inseamna ca temperatura
masurata de dispozitiv este mai mica de 32°C in modul BODY.
NOTA: Daca incercati sa masurati temperatura de la suprafata unui obiect din ambient, iar
termometrul este in modul BODY, este posibil ca pe ecran sa apara “HI” sau “Lo”. In acest caz,
schimbati pe modul “SURFACE TEMP” .
Daca termometrul este in modul de functionare BODY, iar pe ecran apare “Lo”, cauzele pot fi
urmatoarele:
1. Fruntea este acoperita de par sau de transpiratie.
2. Va aflati intr-o zona in care sunt curenti de aer care interfereaza cu fluxul IR
3. Perioada dintre doua masuratori este prea mica
4. Distanta dintre termometru si corp este mai mica de 5 cm
Posibile probleme:
Descriere pictograme:
Detalii tehnice:
Intervaluri temperatura normala in functie de varsta:
Temperatura masurata depaseste 42.9°C (in modul BODY)
Temperatura masurata este sub 32.0°C (in modul BODY)
Temperatura ambientala este in afara intervalului 5.0°C - 40°C
Interval masurare: 32.0°C - 42.9°C (modul BODY)
0°C - 100°C (modul AMBIENT)
Precizie: ±0.3°C (32.0°C - 34.9°C)
±0.2°C (35.0°C - 39.0°C)
±0.3°C (39.1°C - 42.0°C)
Pas de masurare: 0.1°C
Temperatura de lucru: 5.0°C - 40.0°C
Umiditatea de lucru: Rh≤80%
Temperatura de depozitare: -25°C - 55.0°C
Umiditatea de depozitare: Rh≤85%
Distanta masurare: 5 ~ 10cm
Alimentare: 3Vd.c. (2 AA baterii alkaline)
Dimensiuni: 145 x 37 x 98 mm
Greutate: 141g
Varsta
0-2 ani 36.4-38.0
36.1-37.8
35.9-37.6
35.8-37.5
3-10 ani
11-65 ani
>65 ani
Temperatura °C
3
Non-contact Infrared Thermometer
SilverCloud UF41
for body and ambient
- USER MANUAL -
1
General description:
Safety cautions:
Mode setting:
Precaution before use:
Features:
Settings
ú SilverCloud UF41 Non-contact Infrared Thermometer is specially designed to measure
body or ambient temperature.
ú This device must only be used for the purposes described in this instruction manual.
ú This device must only be used in an ambient temperature range of 5℃~40℃, the best
temperature is 25℃.
ú Do not expose this thermometer to extreme temperature environment of ＞40℃ or ＜5℃
ú Do not expose this device to electric shocks.
ú Do not use this device in relative humidity higher than 80%RH.
ú Do not use the device near strong electromagnetic fields such as found with cordless or cell
phones.
ú Keep the device away from water, heater and direct sunlight.
ú Do not drop or knock the device and do not use if it is damaged.
ú Do not attempt by yourself to disassemble ,repair or re design the device.
ú Press “SCAN” button to activate the device and at the same time the device will start
measuring the temperature. If the mode is “BODY” last time you used, the LCD maybe
display “Lo”; if the mode is “SURFACE TEMP” last time you used, the LCD will show the
measured result.
ú In order to obtain reliable and stable results, when changing the environment to a room with a
significant temperature difference, it is recommended to leave the non-contact infrared
thermometer to this ambient temperature for 15~20 minutes before using it.
ú Depending various skin types, thickness and body position there may be different measured
result. This is normal.
ú Allow 1 minute interval between two measurements.
ú Alarm function once temperature is too high. The default threshold alarm value is 37.8℃
(100.04°F)
ú Automatically save data
ú Automatically power off in 5 seconds if no operation
ú Press button to switch between BODY and SURFACE TEMP (ambient) measuring
mode.
ú Press button to switch between°C si °F
ú Hold pressing button till the screen displays “On” and you hear a confirmation beep.
Release the button. Press again to disable the alarm.
ú Press button to switch to below functions: back light on, laser on, back light off, laser
off”
ú Press button to consult memories of to consult saved data of the measured results.。
The memory capacity is 32 results.
2
Configuration:
Display symbols:
Taking a measurement:
BODY
Forehead measuring mode
Ambient measuring mode
Centigrade
Fahrenheit
Low battery
Memory
Alarm beep signal
M
SURFACE TEMP
ú Install battery
ú For the first use or when inserting new batteries, wait
10 minutes for the warming-up of the device.
ú Aim towards the forehead as the picture shows, from
a distance of 5~10cm, press the scan button and
measured data will be immediately displayed on the
LCD. Make sure there is no air perspiration, cosmetic
or cap covered on forehead. When there is sweat on
forehead you can measure behind the ear lobe
making sure no hair, sweater or other things cover the
ear.
ú Memory recall: Press “M” button to consult measured
result
ú Battery replacement: When LCD shows low battery
symbol it means you must install new batteries.
Remove the battery compartment cover and put 2AA
(1.5 volt) batteries (alkaline batteries) paying attention
to the polarity.
If you happen to meet one of the following problems while using the device please refer to this
breakdown service guide. If the problem persists please contact our customer service.
The screen display “HI” when using, which means the temperature you got is over
42℃/107.6°F on “Body” Mode.
The screen display “Lo” when using, which means the temperature you got is under 32°C/90°F
on “Body” Mode.
Note: If the default measuring mode is BODY mode, when you turn on the device and measure
ambient temperature you will probably see HI or Lo. In this situation, change on “SURFACE
TEMP” mode. Possible causes:
1. The forehead is covered with hair or perspiration.
2. You are in an area where air currents interfere with the IR flow .
3. Temperature readings are too close together to make the body temperature have chance to
boot itself.
4. The measuring distance if too far.
Trouble shooting:
Icons description:
Specification:
Normal temperatures according to age:
Measured result is over 42.9℃ (Body measuring mode)
Measured result is below 32.0℃ (Body measuring mode)
The ambient temperature is beyond the range for proper working temperature of
5.0°C - 40°C
Measurement range: 32.0°C - 42.9°C (BODY mode)
0°C - 100°C (AMBIENT mode)
Accuracy ±0.3°C (32.0°C - 34.9°C)
±0.2°C (35.0°C - 39.0°C)
±0.3°C (39.1°C - 42.0°C)
Resolution: 0.1°C
Working temperature: 5.0°C - 40.0°C
Working humidity: Rh≤80%
Storage temperature: -25°C - 55.0°C
Storage humidity: Rh≤85%
Measure distance: 5 ~ 10cm
Power supply 3Vd.c. (2 AA alkaline batteries)
Dimensions: 145 x 37 x 98 mm
Weight: 141g
Age
0-2 years 36.4-38.0
36.1-37.8
35.9-37.6
35.8-37.5
3-10 years
11-65 years
>65 years
Temperature °C
3
