Page 1

MODEL NO.

B5402

SB60

BASKETBALL SYSTEM

O W N E R ' S M A N U A L

1. Read this manual carefully before starting assembly. Read each step completely before beginning

each step.

2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts.

3. To make assembly of your basketball system easier, use the Hardware Identifier on page 4 to identify and sort all fasteners. Check all cartons for kits. All hardware may not be located in one kit.

4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes

may not align and parts may not easily fit together. Leave locknuts slightly loose until you are instructed to tighten them.

An electric screwdriver is helpful in assembly. However, please set at low torque and use caution

because you could overtighten the hardware and strip the screws.

Save these instructions and your proof of purchase (receipt) in the event that the manufacturer

has to be contacted for replacement parts.

Please Do Not Return This Product To The Store!

Contact Escalade®Sports customer service department at: Phone: 1-888-USA-GOAL T Fax: 1-866-873-3536 T E-mail: [email protected] Mailing Address (correspondence only): Escalade Sports PO Box 889 Evansville, IN 47706

Please visit our World Wide Web site at: www.escaladesports.com

ON-LINE TROUBLE SHOOTING TECHNICAL ASSISTANCE

ON-LINE PARTS REQUESTS FREQUENTLY ASKED QUESTIONS

ADDITIONAL ESCALADE

SPORTS PRODUCT INFORMATION

oll Free! oll Free!

2L-7538-01

Escalade®Sports products may be manufacturedand/or licensed under the following patents: 6419596, 6179733,5919102, 5071120, 4798381, 4424968, D326128, 7244046 Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.

2013 Escalade Sports

Page 2

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY

DAMAGE.

Owner must ensure that all players know and follow these rules for safe operation of the system.

SAFETY INSTRUCTIONS

WARNING!

Failure to observe this warning

may cause property damage

and/or serious injury.

This product is NOT designed to support a player hanging from any component of this basketball system. Rim height adjustments should be made under parental supervision. Wear a mouth guard when playing to avoid dental injuries. During play, do not wear jewelry (rings, watches, necklaces, etc). Objects may entangle in net.

(Affixed to backboard)

WARNING

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

Owner must ensure that all players know and follow these rules for safe operation of the system.

 Do not dunk on this unit  Do not hang from any part of the unit, including

the backboard, rim, support braces, or net.

 Do not slide, climb, or play on pole.  Keep organic material away from pole base.

Grass, litter, etc. could cause corrosion and /or deterioration.

 Check pole system for signs of corrosion

(rust, pitting, chipping). Remove rust and/or loo se paint c ompletely and rep aint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.

 Check system before each use for proper

ballast, loose hardware, excessive wear, and signs of corrosion and repair before using.

 During play, use extreme caution to keep

players face away from the backboard, rim, an d n et. Seri ou s i nju ry co uld occu r i f teeth/face come in contact with backboard, rim, or net.

 Wear a mouth guard when playing to avoid

dental injuries.

 Whe n adjusting h eigh t, keep h ands and

fingers away from moving parts.

 During play, do not wear jewelr y (rings,

wa tch es, ne ckl ace s, etc .). Ob jec ts may entangle in net.

 Do not allow children to adjust system.  Check system before each use for instability.  Never play on damaged equipment.

Page 3

DO NOT DUNK ON THIS UNIT .

DO NOT HANG FROM ANY PART OF THIS

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET.

(Affixed to Top Post on the front side)

WARNING

4L-8152-01

Bottom of upper pole must cover the above orange portion of this sticker (6” mark).

WARNING

FAILURE TO FULLY ENGAGE THE BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.

BACKSIDE

(Affixed to Bottom Post on the back side)

4L-8151-00

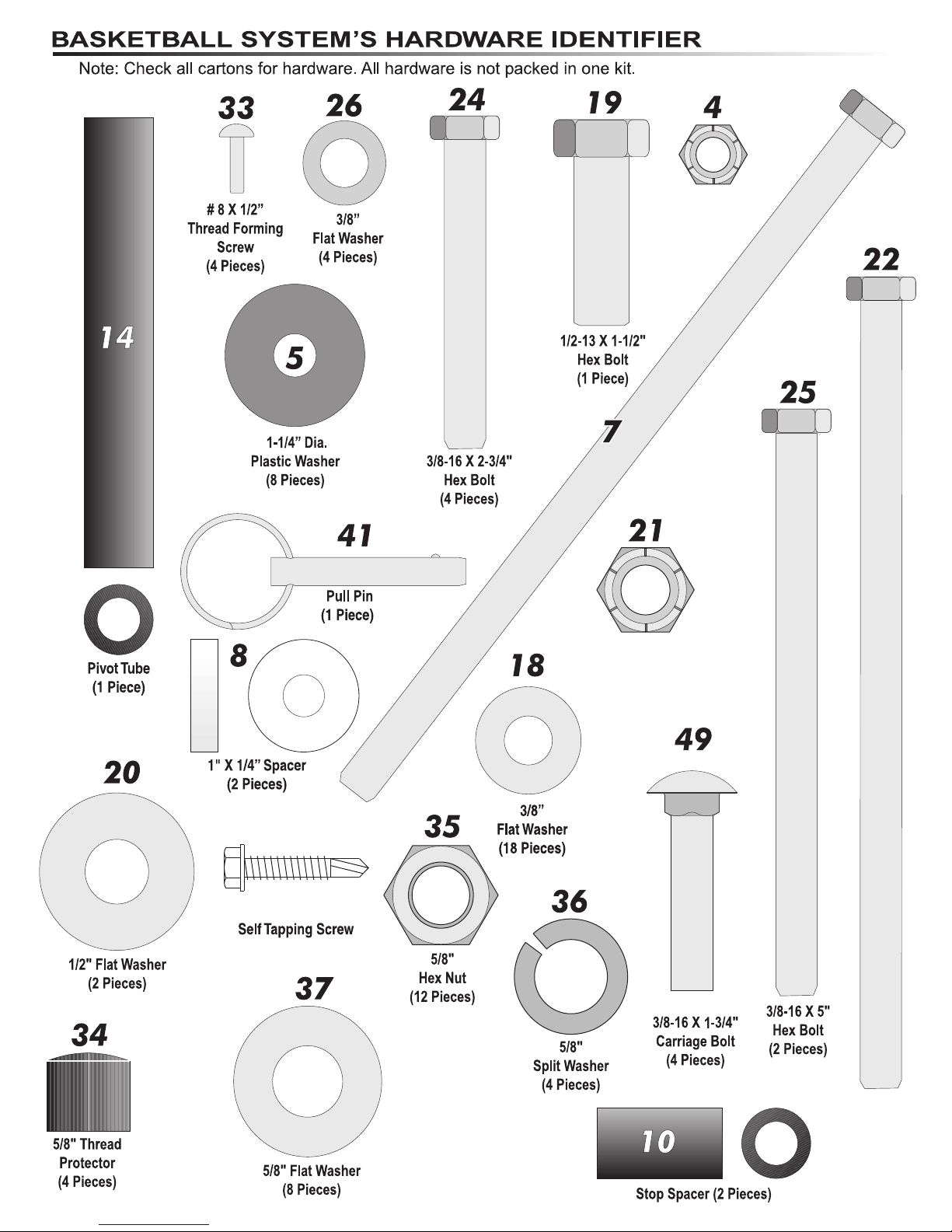

Page 4

3/8-16 X 71/2”

Hex Bolt (1 Piece)

3/8”-16

Nylon Insert

Lock Nut

(14 Pieces)

#10 X 1 1/8”

(10 Pieces)

1/2”-13

Nylon Insert

Lock Nut

(1 Piece)

3/8-16 X 7”

Hex Bolt

(3 Pieces)

Page 5

INSTALLATION TIMELINE

1. Prior to anchor system and goal assembly, call utility services for location of underground utility lines before you dig.

2. Vertical main post assembly is a two part process.

PART 1

Day 1. Complete Anchor System Installation Instructions.

(Below)

Day 2-4. Allow concrete to cure.

ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1)

Before digging hole for anchor system, check for buried power, gas, water, and telecommunication lines! Failure to do so could result in serious or fatal injury! Contact your local utility company if unsure.

Items needed for Anchor Installation (not included)

9 - 80 lb. bags of concrete (2-3 extra recommended) 1 - post hole digger (optional) 1 - 15/16” open end wrench 1 - 15/16” socket and ratchet (optional) 1 - concrete form (see note after step 2)

Note: For best results with less vibration, anchor system should be independent of court. If pouring concrete for both at same time, add an expansion joint in between.

Note: When digging hole, if you hit rock and cannot dig through contact a contractor.

1. Determine the location of the anchor

system. The proper location is as close to the court without making contact, as shown in Figure 1. This, however, is a general rule. If you need to locate the anchor system in a location other than this, use the following dimensions as a guide.

Overhang when adjusted to 10 ft. = 27”

Note: Minimum of 18” rear clearance is required behind pole.

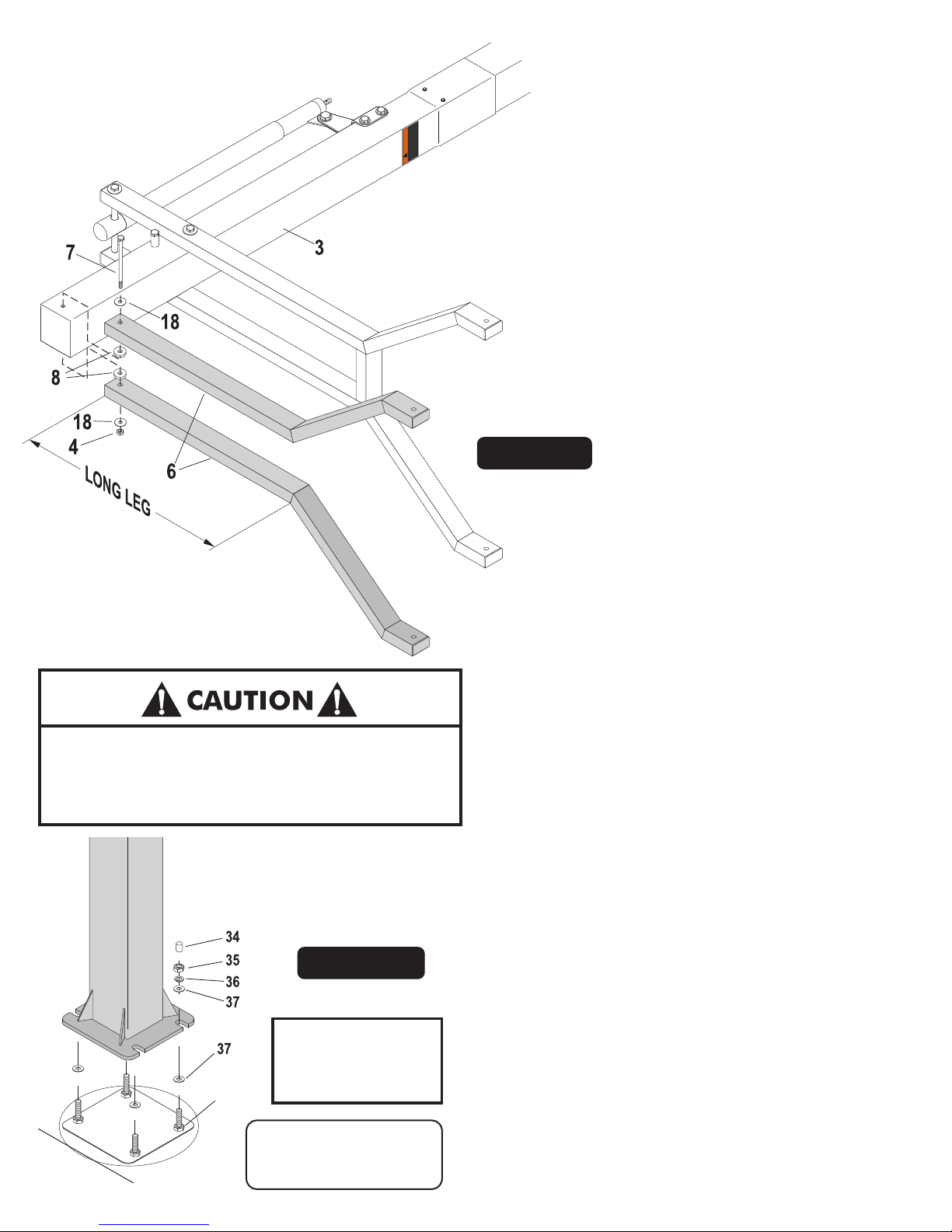

2. Assemble anchor system as follows: Thread nut (#35) to bottom

of threads on anchor bolt (#39) insert threads of anchor bolt (#39) through hole on anchor plate (#38) and secure with nut (#35). Repeat this step for the remaining anchor bolts. See Figure

THESE NUTS USED FOR LEVELING

2. Note: Each leg of anchor bolts should face the anchor bolt to the right. See Detail A.

1 - wheel barrow 1 - garden hose 1 - level 1 - tape measure

18 INCH

MINIMUM

CLEARANCE

REQUIRED

OVERHANG

REAR

PART 2

Day 5. Complete Silverback® assembly instructions. (Requires

four adults)

Figure 1

Court Level

Top View

Court

36”

Anchor Plate must be

square to your court so

the backboard will

line up with court.

16” Diameter

Court

Concrete

Rebar

(Key #40)

20” Diameter

Note: Using a concrete form for the top 4" of the concrete is recommended. Cardboard forms can be purchased at some hardware and home stores or a wooden form can be constructed out of 2 x 4's.

Note: Failure to dig and fill hole as instructed will result in increased system vibration.

*Tip: It is always a good idea to purchase two or three

extra bags of concrete, just in case you need them. If extra bags are not used you can return them to the store.

3. Mix and pour concrete into hole. Follow instructions on

concrete bag. Stop about 18" below court level.

4. Insert four reinforcement bars (Key #40) into concrete 8"

apart creating a square in center on hole.

Place form in desired location and finish pouring concrete

up to court level.

6. Push anchor system into concrete and agitate to work out

voids in concrete. Immediately use a level to level and square anchor plate to playing surface. Clean off any concrete that may be on exposed threads.

Note: The bottom four nuts will be forever embedded in concrete. The top four nuts remain on bolts and

are used for leveling. (See Step 12 on page 10).

Figure 2

Let concrete cure for a MINIMUM of 72 hours.

Page 6

ASSEMBLY INSTRUCTIONS (Day 5)

TOOLS REQUIRED FOR THE FOLLOWING STEPS

1 - Phillips Screwdriver

1 - 15/16" Open end Wrench

1 - 15/16" Open end Wrench 1 - 15/16” Socket and Ratchet (optional)

1 - 15/16” Socket and Ratchet (optional) 1 - 9/16” Deep Well Socket & Ratchet

1 - 9/16” Deep Well Socket & Ratchet 1 - 9/16” Open end Wrench

1 - 9/16” Open end Wrench 1 - 3/4” Socket & Ratchet

1 - 3/4” Socket & Ratchet 1 - 3/4” Open end Wrench

1 - 3/4” Open end Wrench 1 - Cordless drill & 9/64” drill bit

1 - Cordless drill & 9/64” drill bit 1 - 5/16” socket driver (for cordless drill)

1 - 5/16” socket driver (for cordless drill)

Before putting any of the poles tubes together, make sure that the orange area

Before putting any of the poles tubes together, make sure that the orange area of the Warning Sticker on Pole (#2) is 6 inches from the top end. Be sure that

of the Warning Sticker on Pole (#2) is 6 inches from the top end. Be sure that

the “Back Side” stickers are at the back of the pole. See Figure 3A.

If you want to see a video on how to put the poles together go to:

http://www.escaladesports.com/customer-service/instruction-videos/basketball

Figure 3B

1 - Phillips Screwdriver 1 - Level

1 - Level 1 - Tape Measure

1 - Tape Measure 1 - Rubber Mallet

1 - Rubber Mallet 1 - Set of Padded

1 - Set of Padded

Saw Horses

1 - Safety glasses

1 - Safety glasses 1 - Ladder

1 - Ladder

Or Scan with your

smart phone:

Be sure that the

“Back Side”

stickers are at the

stickers are at the back of the poles.

back of the poles.

Figure 3A

NOTE: Top Pole must cover upper

orange area of sticker. If Pole goes

orange area of sticker. If Pole goes slightly past the 6” mark, it is OK.

slightly past the 6” mark, it is OK.

Bottom of upper pole must cover the

Bottom of upper pole must cover the above orange portion of this sticker

above orange portion of this sticker (6” mark).

(6” mark).

WARNING

FAILURE TO FULLY ENGAGE THE

FAILURE TO FULLY ENGAGE THE BOTTOM OF THE UPPER POLE TO

BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM

THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE

POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY

YOUR UNIT TO COLLAPSE AND MAY RESULT IN SERIOUS INJURY OR

RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.

PROPERTY DAMAGE.

BACKSIDE

4L-8151-00

BACK SIDE

Bottom

Bottom above

above

of (6” mark).

(6” mark).

orange

FAILURE TO FULL

BOTTOM OF THE UPPER POLE TO

BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM

THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE

POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY

YOUR UNIT TO COLLAPSE AND MAY RESULT IN SERIOUS INJURY OR

RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.

PROPERTY DAMAGE.

BACKSIDE

upper

pole must

pole must portion

portion

cover

cover this

this

ARNING

the

the sticker

sticker

Y ENGAGE THE

4L-8151-00

WARNING

KEEP FEET AWAY WHEN

SLAMMING POLE.

NOTE: When slamming

poles together make sure to

poles together make sure to keep the poles STRAIGHT.

keep the poles STRAIGHT.

2.2.

FRONT

BACK

NOTCHES IN BASE

NOTCHES IN BASE PLATE MUST BE ON

PLATE MUST BE ON SIDE AS SHOWN

SIDE AS SHOWN

WARNING: This pole assembly is heavy. Step 2 will require two adults.

WARNING: This pole assembly is heavy. Step 2 will require two adults. Make sure you can control the pole when slamming it together. Have a

Make sure you can control the pole when slamming it together. Have a helper stand on the opposite side of the pole. Attention should be paid

helper stand on the opposite side of the pole. Attention should be paid to one’s feet and toes during entire slamming process.

to one’s feet and toes during entire slamming process.

Align the upper pole (#3) with the bottom pole (#2) as shown in Figure 3A and

slide them together. While maintaining control of the pole assembly stand poles

up STRAIGHT on a piece of cardboard from your box, lift poles up by bottom

pole below the 6” mark shown on sticker and slam down the bottom pole as

many times as needed on the cardboard until the bottom of the upper pole

reaches the 6” mark (on Sticker) on the bottom pole. Lift the pole 10-12 inches

off the ground when slamming the poles together. See Figure 3A & 3B.

Should any concerns exist about damaging your driveway, use a 12” X 12” piece

of Plywood or mdf board.

SIDE

PIECE OF

CARDBOARD

Must be at least as

big as pole base plate.

CARDBOARD

10-12”

NOTE: When Slamming the pole together make sure you place the cardboard on a flat surface like concrete or Asphalt, do not slam pole on grass or soft ground.

IMPORTANT! DO NOT hit poles with hammer or sledge hammer

IMPORTANT! DO NOT hit poles with hammer or sledge hammer to attach poles together you will damage your pole or pole cap.

to attach poles together you will damage your pole or pole cap.

NOTE: When slamming poles together make sure to keep the poles

NOTE: When slamming poles together make sure to keep the poles STRAIGHT. Slamming the poles down crooked will damage the bottom of

STRAIGHT. Slamming the poles down crooked will damage the bottom of

the pole and base plate. Top Pole must cover upper orange area of sticker.

the pole and base plate. Top Pole must cover upper orange area of sticker. If Pole goes slightly past the 6” mark, it is OK.

If Pole goes slightly past the 6” mark, it is OK.

Page 7

NOTE: Self Drilling screws (#77) are used. Holes are only on outside Pole. User must insert screws through

SCREWS (#77) MUST BE INSTALLED TO POLE AS DESCRIBED IN STEP 3. FAILURE TO INSTALL SCREWS COULD RESULT IN

SERIOUS INJURY OR PROPERTY DAMAGE.

BOTH POLES.

4L-8152-01

SUPPORT BRACES OR NET.

WARNING

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

DO NOT HANG FROM ANY PART OF THIS

NOTE: Cordless drill required for screw installation. Do not over

tighten screws causing screws to strip. Once Screw heads touch pole, STOP! Overtightening will cause Pole to Warp

WARNING

DO NOT DUNK ON THIS UNIT .

DO NOT HANG FROM ANY PART OF THIS

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET.

4L-8152-01

NOTE: To install screws, it will be easier if you use a cordless

NOTE: Screws #77, used in step 3, are Self Drilling screws and

and damage system.

drill with 5/16” socket (instead of Phillips head).

can be installed without drilling pilot holes. However, it

Figure 4

will be easier to install screws if you drill 9/64” pilot holes in bottom pole. WEAR SAFETY GLASSES if drilling holes.

Once the Top pole is to the 6” Mark on the Warning Sticker, lay

Pole Assembly on its side on two padded saw horses. Insert a

(#77) Screw into each 3/16” hole in top Pole, two on each

side of the Post Assembly. You will need someone to hold the

Pole assembly while inserting screws. Screw must go through

both Top and Bottom (Inner) Poles. Make sure to not strip

screws once they are all they way through. See Figure 4.

Attach Post Ears (#30) to holes near the bottom of Top Post

(#3) using two Hex Bolts (#25) four Washers (#18) and two

Lock Nuts (#4). Do not tighten nuts (#4) completely until

BACK SIDE

4L-8152-01

SUPPORT BRACES OR NET.

WARNING

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

DO NOT HANG FROM ANY PART OF THIS

instructed to do so. See Figure 5.

Figure 5

Page 8

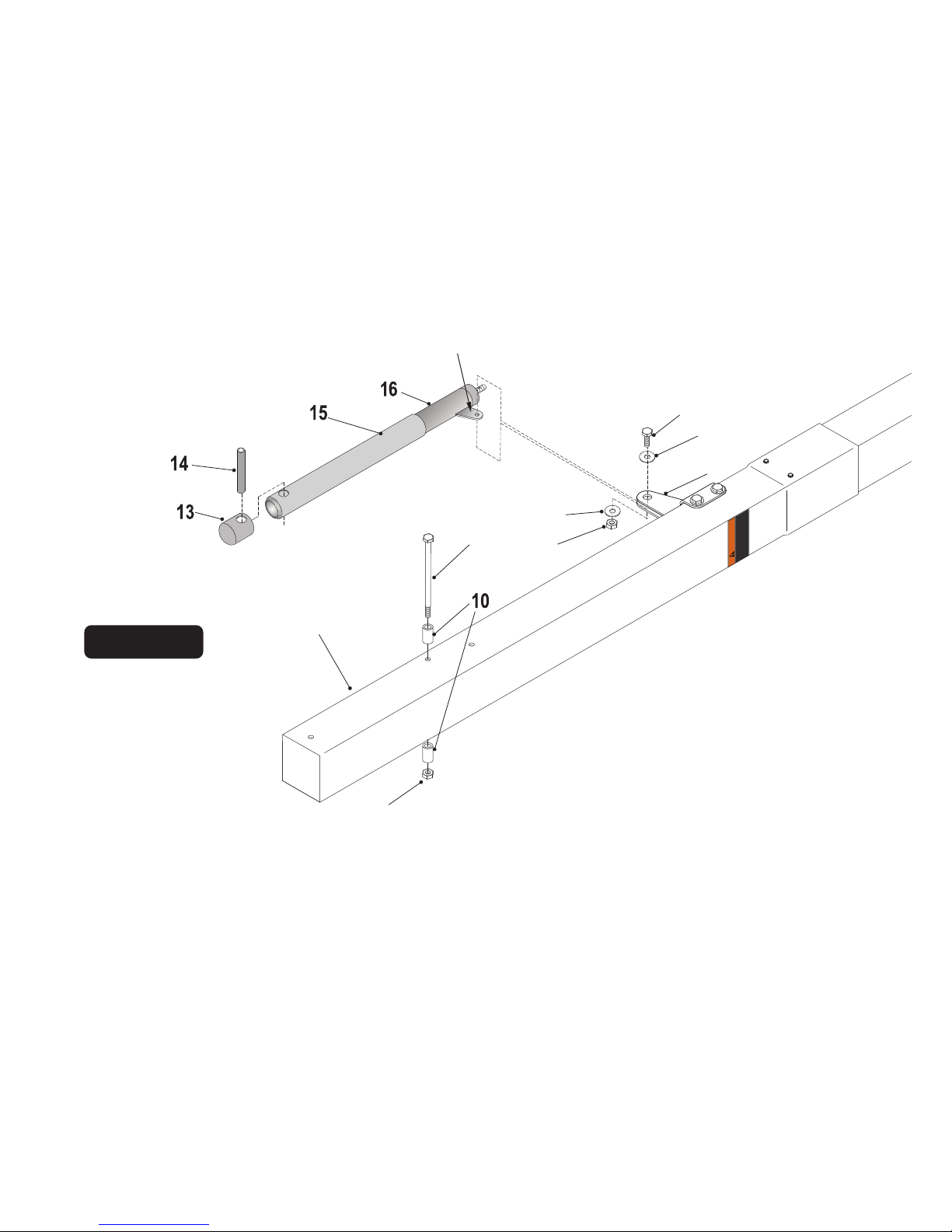

If not already pre-assembled, slide Plastic Actuator Sleeve (#15) over Steel Actuator (#16)

and place Actuator Cap (#13) on top. Align holes in all 3 parts and slide Pivot Tube (#14)

through holes in Actuator Cap (#13), Plastic Actuator Sleeve (#15) and Steel Actuator Tube

(#16) until equal amounts stick out through both sides of actuator. See Figure 6.

NOTE: If necessary, use a rubber mallet

to tap in Pivot Tube (#14)

NOTE: Make sure (#14) Pivot Tube is

installed through all three parts:

1. Actuator Cap (#13)

2. Plastic Sleeve (#15)

Actuator Tab

3. Steel Actuator Tube (#16)

(#22) Bolt goes

in upper hole

Figure 6

While still on the two padded saw horses, Slide tab on Actuator (#16) between Post

Ears (#30) and secure using one bolt (#19), two washers (#20) and one lock nut

(#21). Tighten Lock Nut (#21) snug but do not over tighten. See Figure 6.

WARNING

DO NOT DUNK ON THIS UNIT .

DO NOT HANG FROM ANY PART OF THIS

4L-8152-01

SUPPORT BRACES OR NET

UNIT , INCLUDING THE BACKBOARD, RIM,

At this time also tighten nuts (#4) from Step 4.

Secure two stop spacers (#10) to pole, as shown in Figure 6, using one hex

bolt (#22) and one lock nut (#4). Tighten Lock Nut (#4) but do not over

tighten.

Page 9

IMPORTANT! Nylon washers (#5) adequately space painted parts at all pivot points. Neglecting the use of

these washers will result in rusted parts.

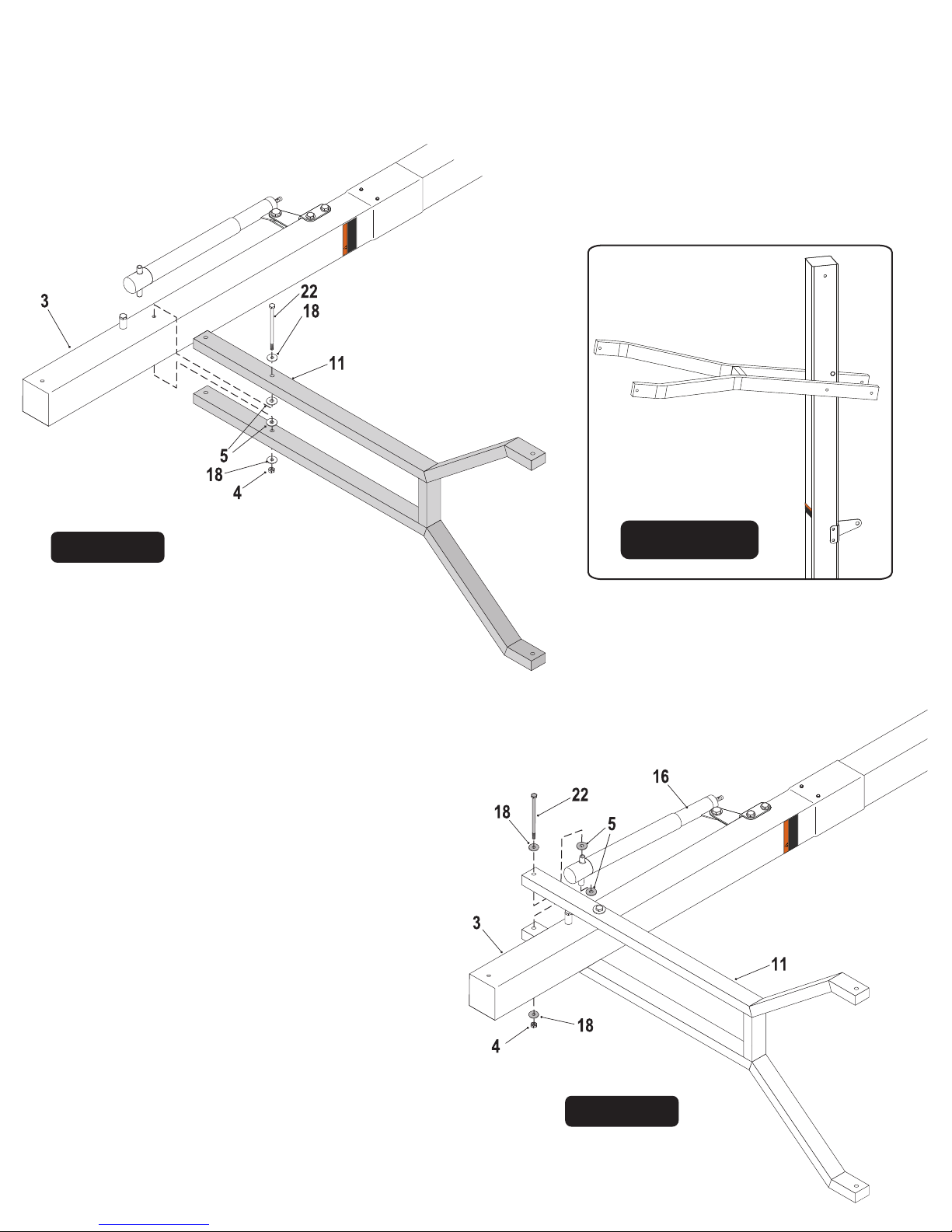

Attach lower arms (#11) to Top Pole (#3), as shown in

Figure 7, using a hex bolt (#22), two flat washers (#18),

two plastic washers (#5) and lock nut (#4).

NOTE: All board arms are made of rectangular tubing. Tightening hardware too tight may damage tubing and make adjustment of system difficult.

4L-8152-01

SUPPORT BRACES OR NET

WARNING

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

DO NOT HANG FROM ANY PART OF THIS

Figure 7

Note: Small amounts of clear tape can be used to adhere

Plastic Washers (#5) to Pole. This will make assembly easier.

Note: make sure lettering is right side up. (See Side View).

DO NOT tighten bolt (#22) at this time. (See Figure 7.)

WARNING

DO NOT DUNK ON THIS UNIT . DO NOT HANG FROM ANY PART OF THIS UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET.

4L-8152-01

SIDE VIEW

Secure Actuator (#16) to Lower Arms (#11) using one

bolt (#22), two flat washers (#18), two plastic washers

(#5) and one lock nut (#4). See Figure 8. Tighten

both bolts (#22) snug but, do not over tighten.

Board Arms must pivot freely.

4L-8152-01

SUPPORT BRACES OR NET

WARNING

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

DO NOT HANG FROM ANY PART OF THIS

Figure 8

Page 10

4L-8152-01

SUPPORT BRACES OR NET.

WARNING

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

DO NOT HANG FROM ANY PART OF THIS

10.

Attach long leg of Upper Arms (#6) to Top Pole (#3), as

shown in Figure 9, using a bolt (#7), two flat washers

(#18), two spacers (#8) and one lock nut (#4).

Note: Tighten bolts snug but, do not over tighten.

Board Arms must pivot freely

Figure 7Figure 9

PLACING THE POST ON THE ANCHOR SYSTEM REQUIRES AT LEAST FOUR CAPABLE ADULTS. POLE WILL WANT TO LEAN WHILE ATTEMPTING TO STAND IT UP ON ANCHOR BOLTS.

Figure 10

BE SURE CONCRETE

HAS BEEN ALLOWED

(Bottom Nut)

TO CURE FOR AT

LEAST 3 DAYS

Locate hardware needed to mount pole to anchor

11.

bolts. You will need, eight flat washers (#37), four lock

washers (#36), four hex nuts (#35) and four thread

protectors (#34).

NOTE: Do not remove the nuts #35 you

installed in step 2 (pg. 5).

Put a flat washer (#37) on each anchor bolt. Lift post

12.

onto anchor system and secure with one flatwasher

(#37), one lock washer (#36) and one hex nut (#35)

for each anchor bolt. Tighten Fasteners finger tight,

leave loose enough to level pole. Place a level on pole

and adjust bottom nuts #35 until pole is level (left to

right and front to back). Tighten top four hex nuts

PLA

YING SURF

ACE

Note: Bottom nuts #35 can be used for leveling system. See Step 12.

#35 tight. Place a thread protector (#34) on each

anchor bolt. See Figure 10.

Page 11

13.

Slide Actuator Crank (#42) onto shaft on the

bottom of Actuator (#16). Line up hole in shaft with

hole in Actuator Crank and insert Pin (#41) to

secure. See Figure 11.

To aid in the assembly of the backboard, lower the

14.

backboard, by turning the Actuator Handle, until the

lower arm makes contact with Stop Spacer (#10).

DO NOT HANG FROM ANY PART OF THIS

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

ARNING

SUPPORT BRACES OR NET

4L-8152-01

HANDLE BACKBOARD WITH CARE, IT IS A GLASS PRODUCT. ALWAYS WEAR SAFETY GLASSES AND GLOVES WHEN HANDLING GLASS.

ATTACHING B A CKBOARD T O BO AR D ARMS REQUIRES AT LEAST FOUR CAPABLE ADULTS.

Figure 11

Figure 12

15.

With at least three capable people, raise the backboard

assembly up and have the fourth attach Lower Board Arms to

lower mounting tubes on backboard using two bolts (#24), two

plastic washers (#5), four washers (#18) and two lock nuts (#4).

See Figure 12.

16.

Attach Upper Board Arms to upper mounting tubes on

backboard using two bolts (#24), two plastic washers (#5), four

washers (#18) and two lock nuts (#4). See Figure 12.

Page 12

Figure 13

Note: Make sure (#27) Rim Pad is installed between Rim (#28) and Backboard (#23)

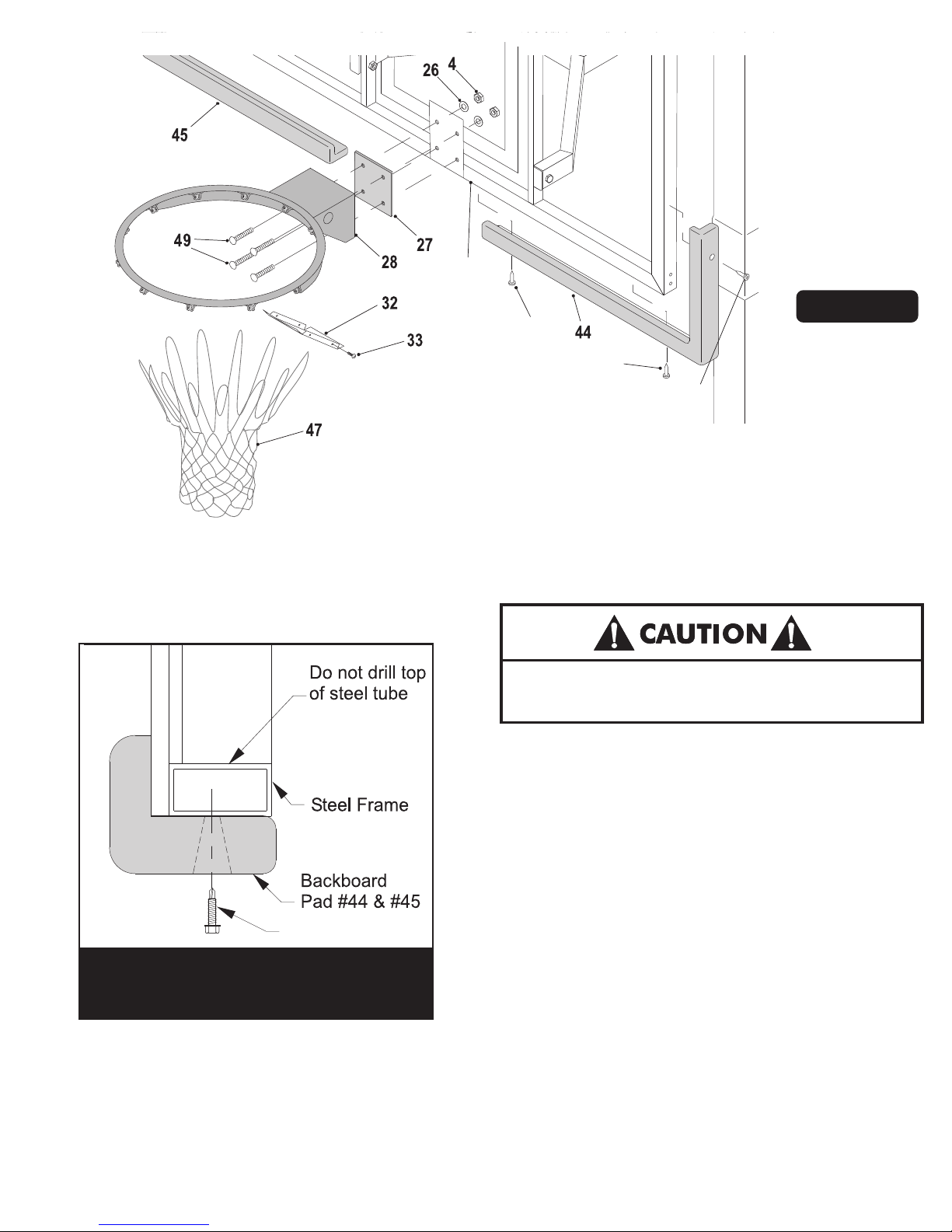

Mount Goal Assembly (#28) and Rim Pad (#27) to

17.

Backboard, as shown in Figure 13, using four bolts (#49), four washers (#26), and four locknuts (#4). Tighten fasteners, but leave them loose enough to level rim.

Note: Make sure (#27) Rim Pad is installed between Rim (#28) and Backboard (#23)

18.Place a level across rim assembly and adjust rim until it is

level. Finish tightening the four nuts.

NEVER USE RIM WITH COVERPLATE REMOVED!

19. Attach Rim Cover Plate (#32) using four screws (#33). See

20. Check all nuts and bolts and make sure everything is

Figure 13.

tightened properly.DO NOT over tighten pivot points, snug is tight enough.

Screw #77

Detail A

21. Use the Backboard Pads (#44) and (#45) as a template and mark the hole locations on the backboard frame. See Figure

13 Detail Aand .

Note: Screws (#42), used in step 22, are Self Drilling

screws and can be installed without drilling pilot holes. However, it will be easier to install screws if you drill 9/64” pilot holes. WEAR SAFETY GLASSES if drilling holes.

22. Drill 9/64" pilot holes into steel backboard frame. See Detail A. Do not drill through both sides of

backboard tube frame.

Note: Cordless drill recommended for screw installation. Do not over tighten screws causing screws to strip.

Note: To install screws, it will be easier if you use a cordless drill with 5/16” socket (instead of Phillips head).

23. Secure Backboard Pads (#44) and (#45), as shown, using

screws (#77). Note: Tighten screws tight but, do not over

tighten.

Page 13

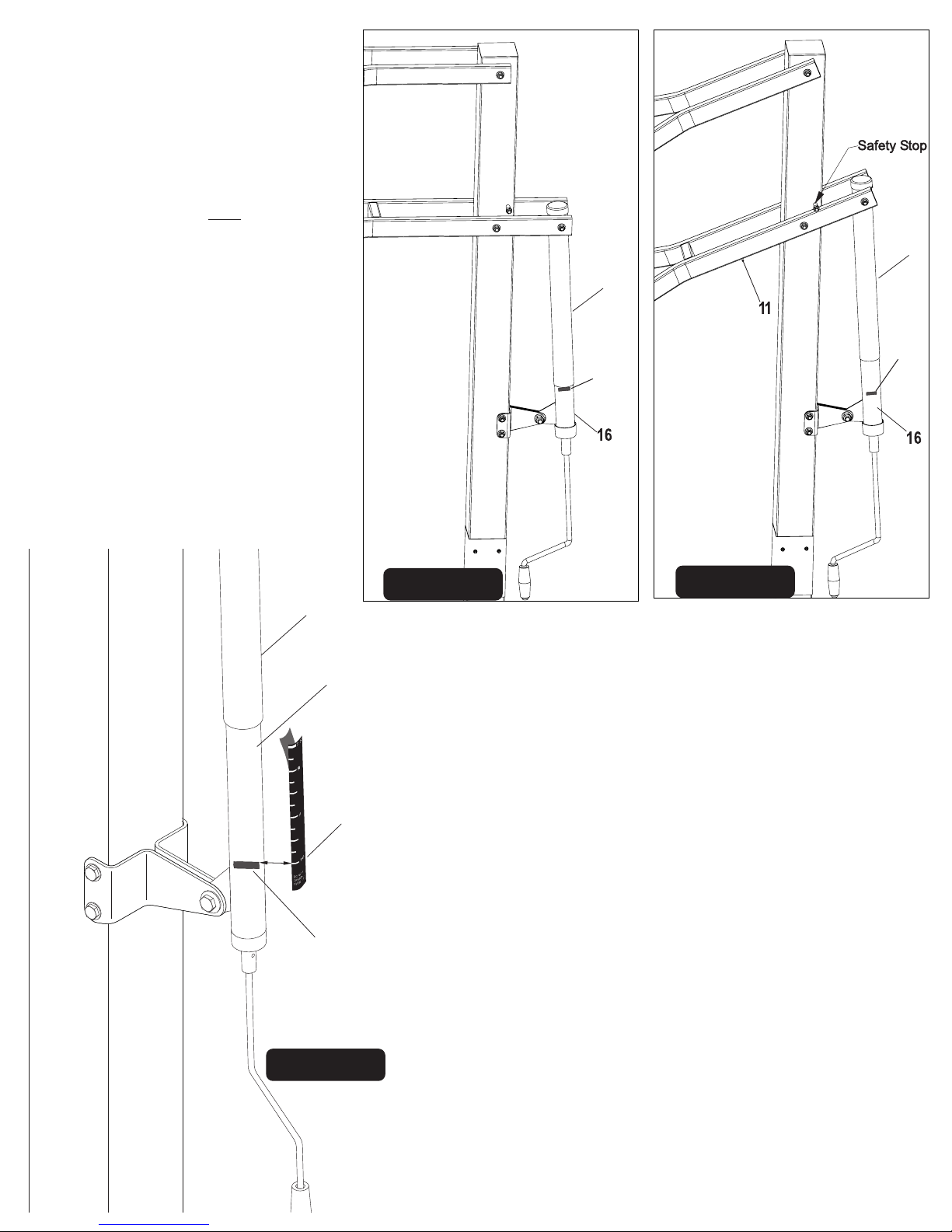

Raise Backboard to 10 FT. regulation

24.

playing height. Measure from top of rim

straight down to the playing surface.

25.

Using tape - mark the side of the steel

actuator (#16) just under the plastic

actuator sleeve (#15) at this 10 ft rim

height. See Figure 14.

26.

Lower backboard all the way down. Do not

force actuator once backboard is in it's

lowest position. See .Figure 15

Figure 14

Set at 10 feet

Mark with

tape

Tape at 10 feet

Figure 15

Lowered all

the way down

Tape

Figure 16

27.

Do not remove adhesive backing from height decal

(#17) yet. Carefully place height decal on backside of

steel actuator (#16) and line up the 10 ft mark on the

tape with the 10 ft mark on the height decal. Decal

should fit correctly onto the backside of the steel

actuator. ( If not , simply trim to fit the top of the

actuator decal).

28.

Remove the adhesive backing from the Height Decal

(#17). Next, carefully align and stick decal to backside

of steel actuator (#16) starting at the . 10 ft mark first

Be sure to keep the height decal straight and rub out all

air bubbles. See .Figure 16

Page 14

Two adults are recommended for this step, one to level and one to

adjust the bottom #35 nuts.

If further leveling is required loosen top #35 nuts

29.

but do not loosen past the top of #39 “J” Bolt. DO

NOT REMOVE NUTS #35 Place a level on pole .

and adjust bottom nuts #35 with a 15/16” open

end wrench until pole is level. Tighten top #35 hex

nuts. See Detail B.

30.

Secure Post Pad (#48) to front of pole by wrapping straps

Figure 17

around pole and sticking to velcro on opposite side of Pad.

Post Pad should cover Post Screws but remain below

Warning Label on front of the Pole. See Figure 17. Make

sure to repostion Pole Pad if Sliding occurs.

NOTE: Do not cover the Warning Label on the

front of the pole with the Pole Pad.

NOTE: Top of Pole Pad #48 should

cover Post Screws but remain

below Warning Label on the

front of the Pole.

Post Screws

Detail B

(Top)

(Bottom)

NOTE: DO NOT remove top Nut #35

Page 15

LIMITED 7 YEAR WARRANTY

This consumer warranty extends to the original consumer purchase of any Escalade

Sports Product (hereinafter referred to as

the “Product”).

WARRANTY COVERAGE: Escalade

Sports warrants to the original Consumer Purchaser that any Product of its manufacture is

free from defects in material and workmanship. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PRODUCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP.

Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail

purchaser all structural components of the Silverback® System to be free of defects in material and workmanship for a period of Seven (7) years from the original purchase.

Merchandise must be shipped prepaid with a copy of proof of purchase to Escalade if the basketball system needs to be repaired or replaced. Any labor costs, travel expenses and any other changes involved in the removal, installation or replacement of the defective/repaired parts from/to your Silverback Shipping charges for replaced or warranted merchandise sent back to the customer from Escalade

Sports factory for examination to determine

System will be the purchaser’s responsibility.

Sports factory must be prepaid

by the customer in advance. If not, the replacement shipment will be sent out collect.

Escalade

Sports reserves the right to examine photographs or physical evidence of merchandise claimed to be defective, and to

recover said merchandise, prior to authorization of warranty claims. A “Returned Goods Authorization” number may be required, please call for details prior to the return of any photographs or merchandise.

This limited 7 year warranty is expressly in lieu of all warranties, expressed or implied, including warranties of merchantability or fitness for use. Escalade

Sports does not assume or authorize any person or representative to assume for us, any other liability in connection with the

sale of our products.

The remedy of repair or replacement stated above is Escalade other damages or expenses which may incur, including but not limited to incidental or consequential damages. Escalade assumes no other obligations or liability on the part of the purchaser, and Escalade

Sports exclusive remedy. Escalade® Sports will not be liable for any

Sports neither assumes nor authorizes any other

Sports

person to assume for it any other liability in connection with the goods sold.

This warranty shall not apply in any manner to parts or accessories not manufactured by Escalade

Sports.

NOT COVERED BY THIS WARRANTY

•

Merchandise not intended to be in places of public assembly, such as, but not limited to, schools, parks, public or private recreational

facilities.

• Any merchandise subjected to Non-residential abuse, negligence, improper installation, vandalism, acts of God, alteration of product, or any other events beyond the control of Escalade Sports.

• Paint or rusted parts. If rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish

enamel paint.

• HANGING ON RIM WILL VOID THE WARRANTY: Rims are not warranted for any defects other than workmanship. Torn back plates, damaged springs, bent rings, damaged eyebolts, and torn or distorted rim supports result from hanging on the rim and are not warranted.

• Shipping charges both ways. Note: Any merchandise shipped to Escalade

• Dealer service charges, labor charges and travel expenses associated with replacement of repair of warranty item.

WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION. ESCALADE

SPORTS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER CONSEQUENTIAL OR INCIDENTAL

COSTS. EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.

Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental damages, so the above limitations or exclusions may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Sports collect will be refused.

WARRANTY GUIDELINES IS REQUIRED FOR ALL WARRANTY CLAIMS

1. Proof of Purchase (original retail purchaser) is required for all warranty claims.

2. Call or write Escalade

Phone: 1-888-USA-GOAL / Warranty Dept. Or Write Escalade Or E-mail us at: [email protected]

Sports to receive a Return Authorization # and determine specific needs.

Sports at: Escalade® Sports - P.O. Box 889, Evansville, IN 47706 - Attn: Warranty Dept.

Page 16

SILVERBACK CARE INFORMATION

- BACKBOARD -

Items needed to clean backboard:

- 100% cotton soft cloth, (only)

- Glass Cleaner

Clean backboard using a 100% Cotton soft cloth and glass cleaner. Clean glass as you would household windows. Strong cleansers will damage backboard and void warranty.

– RIM –

HANGING ON THE RIM WILL VOID YOUR WARRANTY. Rims are not warranted for any defects other than workmanship. Torn back plates,

damaged springs, bent rings, damaged eye bolts, and torn or distorted rim supports result from hanging on the rim and are not warranted.

The goal should not be cranked under 7-1/2' or over 10'. Adjustments of the goal should be done under adult supervision.

When attempting slam dunk activity you should always wear a mouth guard to avoid dental injury.

– –MAINTENANCE

To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40.

– – RUST

Inspect your pole periodically, if rust should appear

enamel paint.

, remove loose paint, sand lightly, primer and paint with exterior flat matte finish

B5402 REPLACEMENT PARTS LIST

Key# Part # Description Qty. Key# Part # Description Qty.

1 3M-6850-00 4" Square Tube Plug (Pre-Installed) 1 2 1A-7686-02 Bottom Post 1 3 8S-6898-02 Top Post 1 4 901-28 3/8-16 Nylon Insert Locknut 14 5 3M-6883-00 1-1/4" OD Plastic Washer 8 6 8S-6630-01 Upper Board Arm 2 7 1B-6483-10 3/8-16 X 7.5" Hex Bolt-Grade 5 1 8 3M-6269-00 1/4" Spacer 2 9 3M-6548-00 1 X 2 Tube Plug 8

(Pre-Installed) 10 8S -6657-00 Stop Spacer 2 11 1A-6331-01 Lower Board Arm 1 12 NOT USED 13 3M-6467-00 Actuator Cap 1

(Pre-Installed)

14 8S -6658-00 Pivot Tube 1 15 3M-6542-00 Actuator Sleeve 1

(Pre-Installed) 16 4A-6605-00 Actuator 1 17 4L-7501-00 Height Decal 1 18 701-50 3/8 STD Washer 18 19 1B-6486-10 1/2-13 X 1-1/2" Hex Bolt 1 20 2B-6093-00 1/2 Flat Washer 2 21 2B-6095-00

1/2-13 Nylon Insert Locknut 1 22 1B-6484-10 3/8-16 X 7" Hex Bolt-Grade 5 3 23 6A-7404-01 Backboard Assembly-60x33” Glass 1 24 1B-6195-00 3/8-16 X 2.75" Hex Bolt 4

25 1B-6485-10 3/8-16 X 5" Hex Bolt 2 26 2B-6114-00 3/8 Flat Washer 4 27 3M-6473-00 3X4 Rim Pad 1 28 6A-6374-00 Goal Assembly 1 29 3M-6835-00 Goal Spacer Plate (Pre-Installed)

1 30 2S-6795-01 Post Ear 2 31 Not Used 32 2S -6427-00 Rim Cover Plate 1 33 1B-6788-00 #8 x 1/2 Thread Forming Scr. 4 34 3M-6469-00 5/8 Thread Protector 4 35 2B-6097-00 5/8-11 Hex Nut 12 36 2B-6099-00 5/8 Split Lockwasher 4 37 2B-6098-01 5/8 SAE FLAT WSHR ZNC 8

38 2S -6453-00 Anchor T

emplate 1 39 2B-6112-00 5/8-11 X 14 "J" Bolt 4 40 1S -6167-00 #3 X 30" Rebar 4 41 7B-6255-00 Pull Pin 1 42 4A-6606-00 Actuator Handle 1 43 2L-7538-01 This Manual 1 44 3M-6580-01 48" Board Pad Right 1 45 3M-6581-01 48" Board Pad Left 1 46 Not Used 47 3F-6010-00 Net 1 48 3M-6564-01 Post Pad 1 49 1B-6782-00 3/8-16 x 1 3/4" Carriage Bolt 4 50 Not Used 77 1B-6821-00 Self Tapping Screw-#10 x 1 1/8" 10

2L-7538-01

Page 17

(Pre-Installed)

Note: All #9 Caps are Pre-Installed.

DO NOT HANG FROM ANY PART OF THIS

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

ARNING

SUPPORT BRACES OR NET

4L-8152-01

(Pre-Installed)

2L-7538-01
