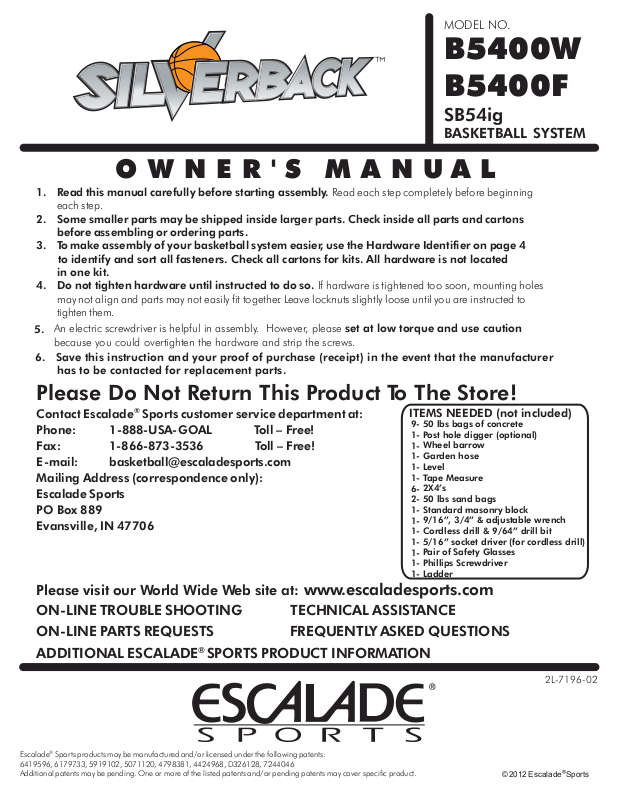

MODEL NO.

B5400W B5400F

SB54ig

BASKETBALL SYSTEM

O W N E R ' S M A N U A L

1. Read this manual carefully before starting assembly. Read each step completely before beginning

each step.

2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts.

3. To make assembly of your basketball system easier, use the Hardware Identifier on page 4

to identify and sort all fasteners. Check all cartons for kits. All hardware is not located

in one kit.

4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes

may not align and parts may not easily fit together. Leave locknuts slightly loose until you are instructed to tighten them.

An electric screwdriver is helpful in assembly. However, please set at low torque and use caution

because you could overtighten the hardware and strip the screws.

Save this instruction and your proof of purchase (receipt) in the event that the manufacturer

has to be contacted for replacement parts.

Please Do Not Return This Product To The Store!

Contact Escalade®Sports customer service department at: Phone: 1-888-USA-GOAL Toll – Free! Fax: 1-866-873-3536 Toll – Free! E-mail: [email protected] Mailing Address (correspondence only): Escalade Sports PO Box 889 Evansville, IN 47706

Please visit our World Wide Web site at: www.escaladesports.com ON-LINE TROUBLE SHOOTING TECHNICAL ASSISTANCE

ON-LINE PARTS REQUESTS FREQUENTLY ASKED QUESTIONS

ADDITIONAL ESCALADE

SPORTS PRODUCT INFORMATION

ITEMS NEEDED (not included)

50 lbs bags of concrete

Post hole digger (optional)

Wheel barrow

Garden hose

Level

Tape Measure

2X4’s

50 lbs sand bags

Standard masonry block

9/16”, 3/4” & adjustable wrench

Cordless drill & 9/64” drill bit

5/16” socket driver (for cordless drill)

Pair of Safety Glasses

Phillips Screwdriver

Ladder

2L-7196-02

Escalade®Sports products may be manufacturedand/or licensed under the following patents: 6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128,7244046 Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.

2012 Escalade Sports

Page 2

SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY

Owner must ensure that all players know and follow these rules for safe operation of the system.

WARNING

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

Owner must ensure that all players know and follow these rules for safe operation of the system.

! Do not dunk on this unit ! Do not hang from any part of the unit, including

the backboard, rim, support braces, or net.

! Do not slide, climb, or play on pole. ! Keep organic material away from pole base.

Grass, litter, etc. could cause corrosion and /or deterioration.

! Check pole system for signs of corrosion

(rust, pitting, chipping). Remove rust and/or loose paint completely and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.

! Check system before each use for proper

ballast, loose hardware, excessive wear, and signs of corrosion and repair before using.

! During play, use extreme caution to keep

players face away from the backboard, rim, and net. Serious injury could occur if teeth/face come in contact with backboard, rim, or net.

! Wear a mouth guard when playing to avoid

dental injuries.

! When adjusting height, keep hands and

fingers away from moving parts.

! During play, do not wear jewelry (rings,

watches, necklaces, etc.). Objects may entangle in net.

! Do not allow children to adjust system. ! Check system before each use for instability. ! Never play on damaged equipment.

4L-7609-00

WARNING!

Failure to observe this warning

may cause property damage

and/or serious injury.

This product is NOT designed to support a player hanging from any component of this basketball system. Rim height adjustments should be made under parental supervision. Wear a mouth guard when playing to avoid dental injuries. During play, do not wear jewelry (rings, watches, necklaces, etc). Objects may entangle in net.

DAMAGE.

(Affixed to backboard)

Page 3

DO NOT DUNK ON THIS UNIT .

DO NOT HANG FROM ANY PART OF THIS

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET.

WARNING

4L-8152-01

(Affixed to Top Post)

Bottom of upper pole must cover the above orange portion of this sticker (6” mark).

WARNING

FAILURE TO FULLY ENGAGE THE BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.

BACKSIDE

4L-8151-00

(Affixed to Bottom Post)

Page 4

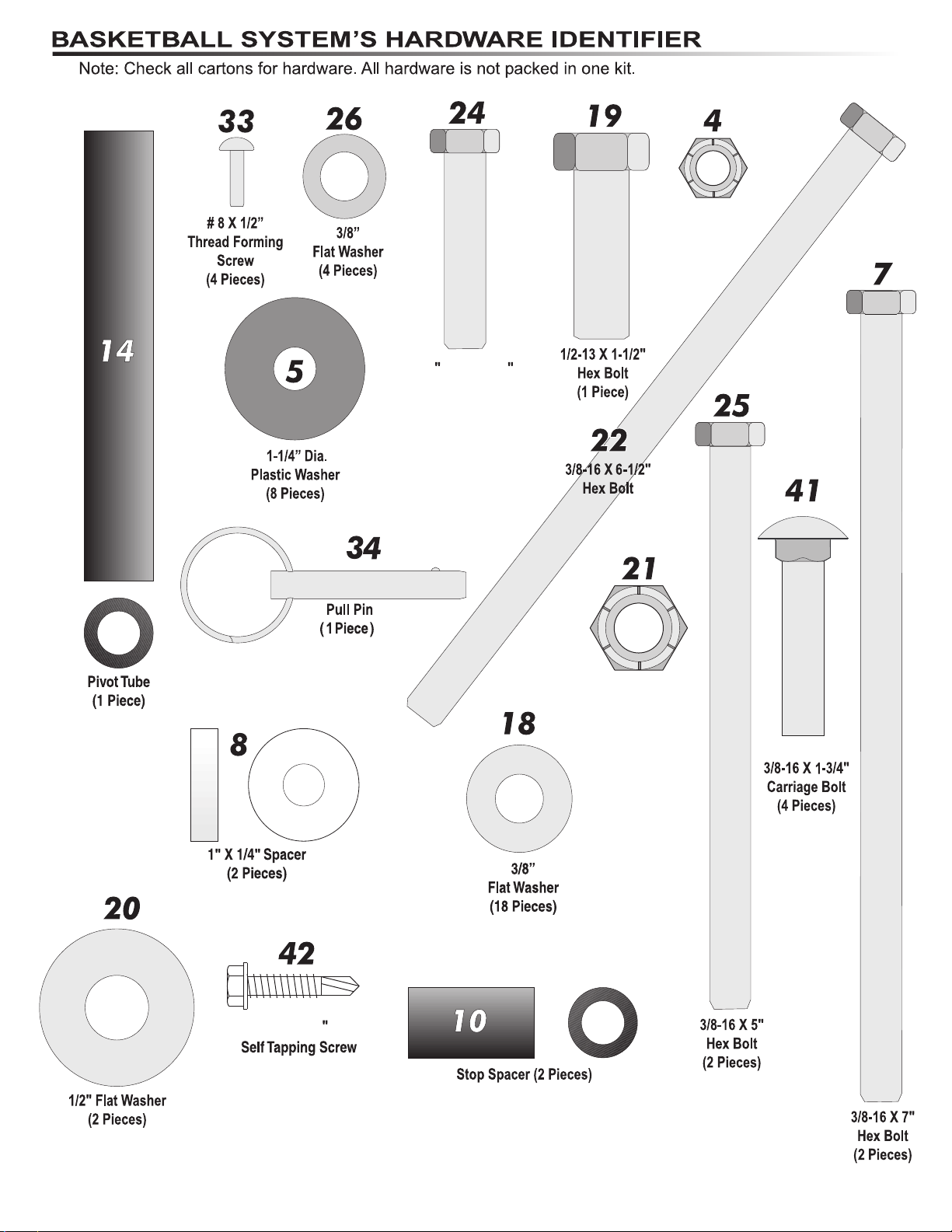

3/8 - 16 X 1 3/4..

Hex Bolt

(4 Pieces)

3/8-16”

Lock Nut

(14 pieces)

(2 Pieces)

#10 X 1

(10 Pieces)

1/2”-13

Lock Nut

(1 piece)

Page 5

INSTALLATION TIMELINE

1. Prior to pole installation and goal assembly, call utility services for location of underground utility lines before you dig.

2. Vertical main post assembly is a two part process.

PART 1

Day 1. Post assembly, pour concrete, set post and

Allow concrete to cure.

Day 2. Allow concrete to cure.

POST INSTALLATION INSTRUCTIONS (Day 1)

Before digging hole for your system, check for buried power, gas, water, and telecommunication lines! Failure to do so could result in serious or fatal injury! Contact your local utility company if unsure.

ITEMS NEEDED (not included)

50 lbs bags of concrete

Post hole digger (optional)

Wheel barrow

Garden hose

Level

Tape Measure

2X4’s

50 lbs sand bags

Standard masonry block

9/16”, 3/4” & adjustable wrench

Cordless drill & 9/64” drill bit

5/16” socket driver (for cordless drill)

Pair of Safety Glasses

Phillips Screwdriver

Ladder

Note: For best results with less vibration, your system should be independent of court. If pouring concrete for both at same time, add an expansion joint in between.

Note: When digging hole, if you hit rock and cannot dig through contact a contractor.

1. Determine the location of the hole.

The proper location is as close to the court without making contact, as shown in Figure 1. This, however, is a general rule. If you need to locate the hole in a location other than this, use the following dimensions as a guide.

Overhang when adjusted to 10 ft. = 19 1/4”

18 INCH

MINIMUM

REAR

CLEARANCE

REQUIRED

PART 2

Day 3. Complete assembly instructions. (Requires

3-4 adults)

Figure 1

Diameter

16"

Court Level

Top View

Court

Hole must be close to

the Court without

making contact.

Place and center a masonry block in the bottom of the

hole so there is exactly 16” from the playing surface to

the top of the masonry block. See Figure 2.

32"

20” Diameter

16"

Court

Hole

Masonry

Block

Note: Minimum of 18” rear clearance is required behind pole.

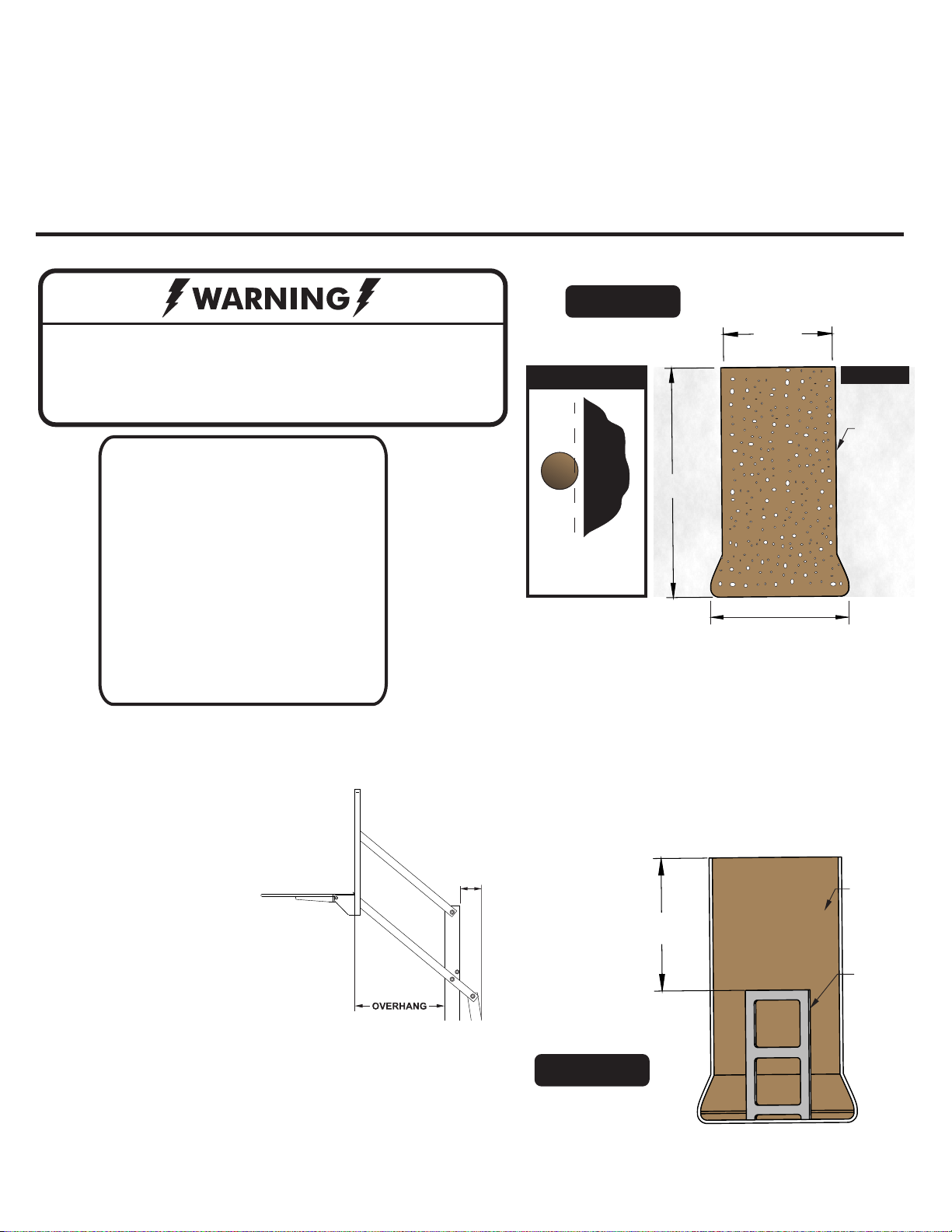

Dig a round hole 32” deep and 16” in diameter at

the top and 20” in diameter at the bottom of the hole.

If you live in an area where frost heaves may pose a

problem, consult your local building inspector to

determine the proper hole depth. See Figure 1.

Figure 2

Page 6

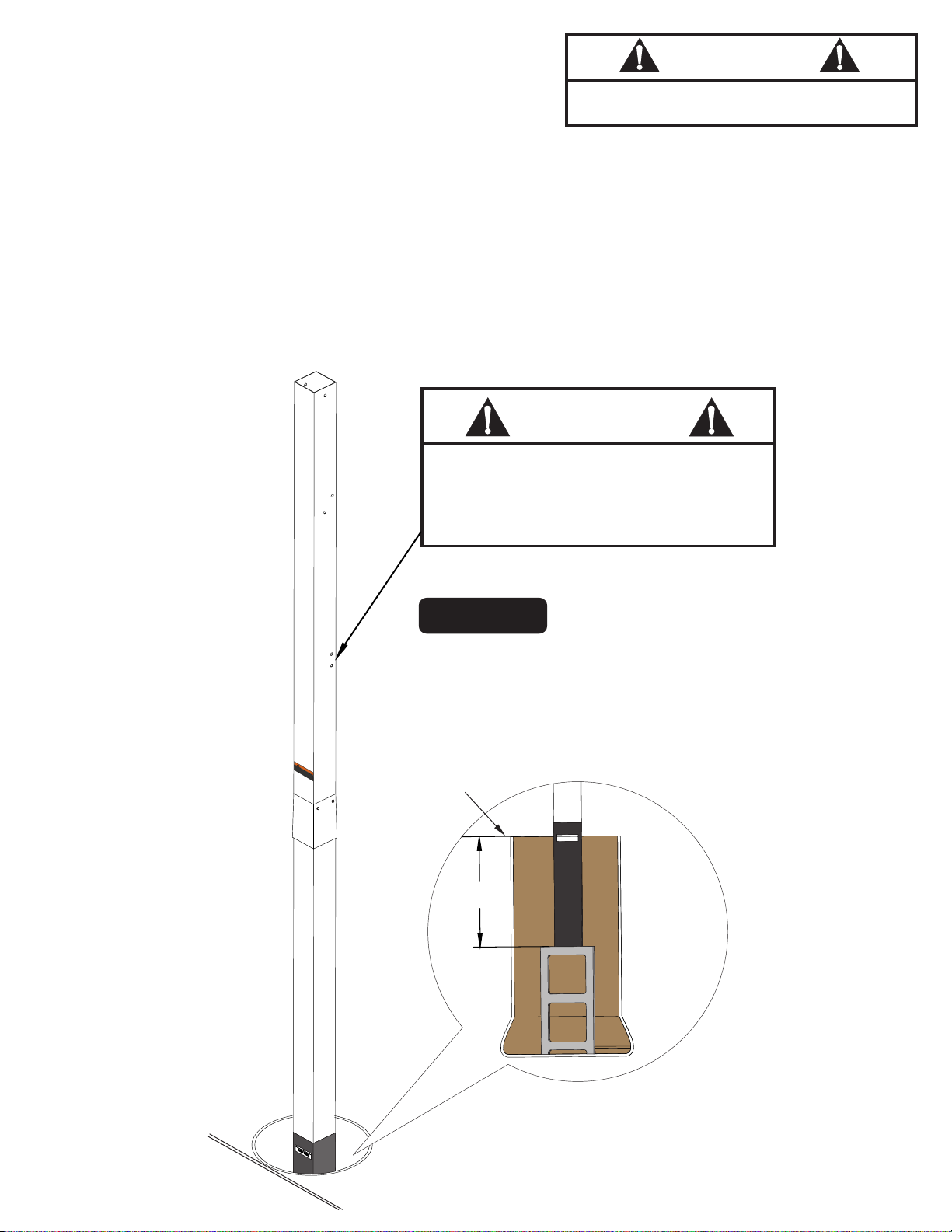

POST ASSEMBLY

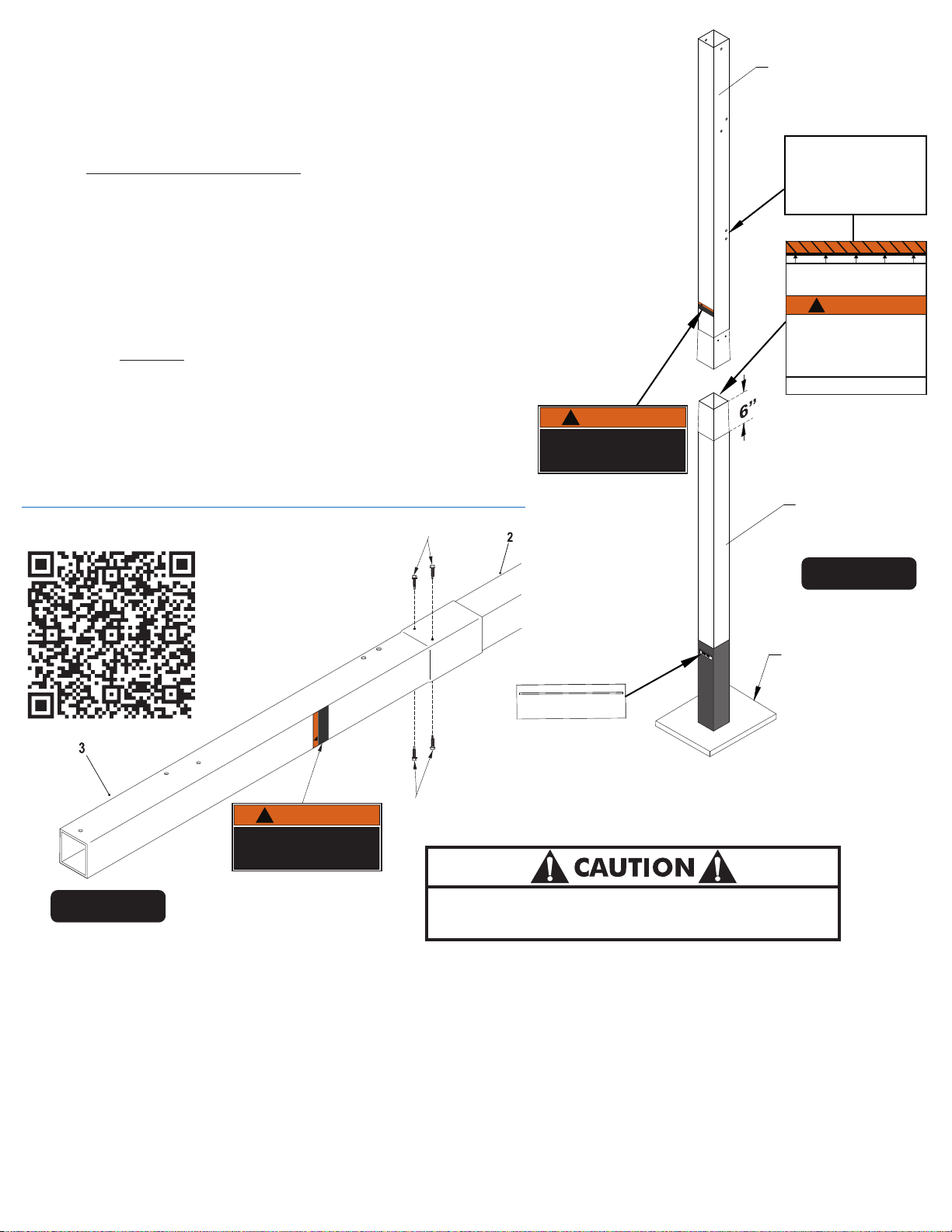

Before putting any of the poles tubes together, make sure that the orange area of the

INSTRUCTIONS

Warning Sticker on Pole (#2) is 6 inches from the top end. Be sure that the “Back Side” stickers are on the back of the pole. See Figure 3.

WARNING: This pole assembly is heavy. Step 2 may require two adults. Make sure you can control the pole when slamming it together. If you are unsure if you can safely control the pole ask another adult to help you. This helper can stand on the opposite side of the pole. Attention should be paid to one’s feet and toes during entire slamming process.

Align the upper pole (#3) with the bottom pole (#2) as shown in Figure 3 and slide them together. While maintaining control of the pole assembly stand poles up STRAIGHT on a piece of MDF or plywood, lift poles up by bottom pole below the 6” mark shown on sticker and slam down the bottom pole as many times as needed on a piece of MDF or plywood until the bottom of the upper pole reaches the 6” mark (on Sticker) on the bottom pole. See Figure 3.

IMPORTANT! DO NOT hit poles with hammer or sledge hammer to attach poles together.

NOTE: When slamming poles together make sure to keep the poles straight.

Slamming the poles down crooked will damage the bottom of the pole. Top Pole must cover upper orange area of sticker. If Pole goes slightly past the 6” mark, it is OK.

If you want to see a video on how to put the poles together go to:

http://www.escaladesports.com/customer-service/instruction-videos/basketball

Or Scan with your

smart phone:

NOTE: Self Drilling screws

WARNING

DO NOT DUNK ON THIS UNIT .

DO NOT HANG FROM ANY PART OF THIS

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET.

4L-8152-01

(#42) are used. Holes are only on outside Pole. User must insert screws through BOTH POLES.

DO NOT HANG FROM ANY PART OF THIS UNIT , INCLUDING THE BACKBOARD, RIM,

Be sure to match up both

“Back Side” stickers on

the back of the poles and

that the holes on top pole

are toward the back.

Bottom of upper pole must cover the above orange portion of this sticker

DO NOT DUNK ON THIS UNIT .

ARNING

SUPPORT BRACES OR NET.

4L-8152-00

(6” mark).

WARNING

FAILURE TO FULLY ENGAGE THE BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.

BACKSIDE

4L-8151-00

NOTE: Top Pole must cover upper orange area of sticker. If Pole goes slightly past the 6” mark, it is OK.

Figure 3

PIECE OF

PLYWOOD / MDF

(must be at least as

big as pole plate)

BURY LINE

Figure 4

4L-8152-00

SUPPORT BRACES OR NET.

WARNING

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

DO NOT HANG FROM ANY PART OF THIS

WARNING

DO NOT DUNK ON THIS UNIT .

DO NOT HANG FROM ANY PART OF THIS

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET.

4L-8152-01

SCREWS (#42) MUST BE INSTALLED TO POLE AS DESCRIBED IN STEP 3. FAILURE TO INSTALL SCREWS COULD RESULT IN

SERIOUS INJURY OR PROPERTY DAMAGE.

NOTE: Cordless drill required for screw installation. Do not over tighten screws causing screws to strip.

Once Screw heads touch pole, STOP! Overtightening will cause Pole to Warp and damage system.

NOTE: To install screws, it will be easier if you use a cordless drill with 5/16” socket (instead of Phillips head).

Once the Top pole is to the 6” Mark on the Warning Sticker, lay Pole Assembly on its side on two padded saw horses. Insert

a (#42) Screw into each 3/16” hole in top Pole, two on each side of the Post Assembly. You will need someone to hold the Pole assembly while inserting screws. Screw must go through both Top and Bottom (Inner) Poles. Make sure to not strip screws once they are all they way through. See Figure 4.

NOTE: Screws #42, used in step 3, are Self Drilling screws and can be installed without drilling pilot holes.

However, it will be easier to install screws if you drill 9/64” pilot holes in bottom pole. WEAR SAFETY

GLASSES if drilling holes.

Page 7

Mix concrete per the instructions on concrete bag. Pour into the hole

and stop about 16” from Playing Surface or until you can still see the top

of the Masonry block you placed earlier. See Figure 5 and Detail 1.

Set the bottom of the pole on the masonry block in the hole. Make

sure the Pole stays on the block as shown in Figure 5. The Bury line

should be level with the playing surface see Detail 1.

While one person holds the pole in place have two other people finish

pouring concrete up to court level. Use a level to make sure Pole is vertical.

BE SURE THAT THE HOLES ARE TOWARD THE BACK OF THE POLE AND “BACK SIDE” STICKERS ARE AT THE BACK OF THE POLES/ OPPOSITE THE PLAYING SURFACE BEFORE POURING CONCRETE ON STEPS 4-6.

IMPORTANT

THE FOLLOWING STEPS WILL REQUIRE

AT LEAST THREE CAPABLE ADULTS.

IMPORTANT

DO NOT HANG FROM ANY PART OF THIS

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET

Figure 5

ARNING

4L-8152-00

PLAYING SURFACE

BURY LINE

16"

Detail 1

PLA

YING SURF

(Court Level)

ACE

Page 8

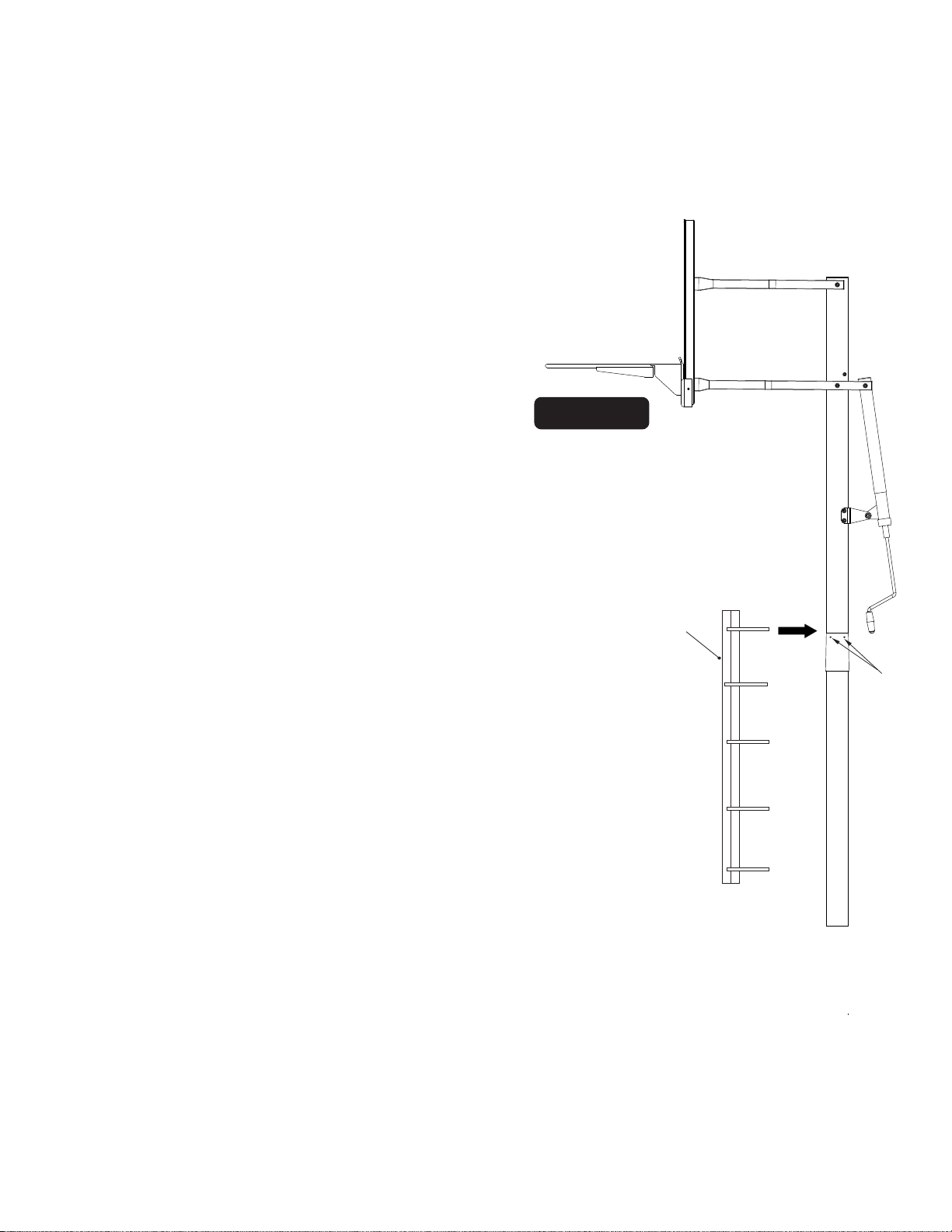

Note: Periodically check pole with level to ensure that pole is vertical.

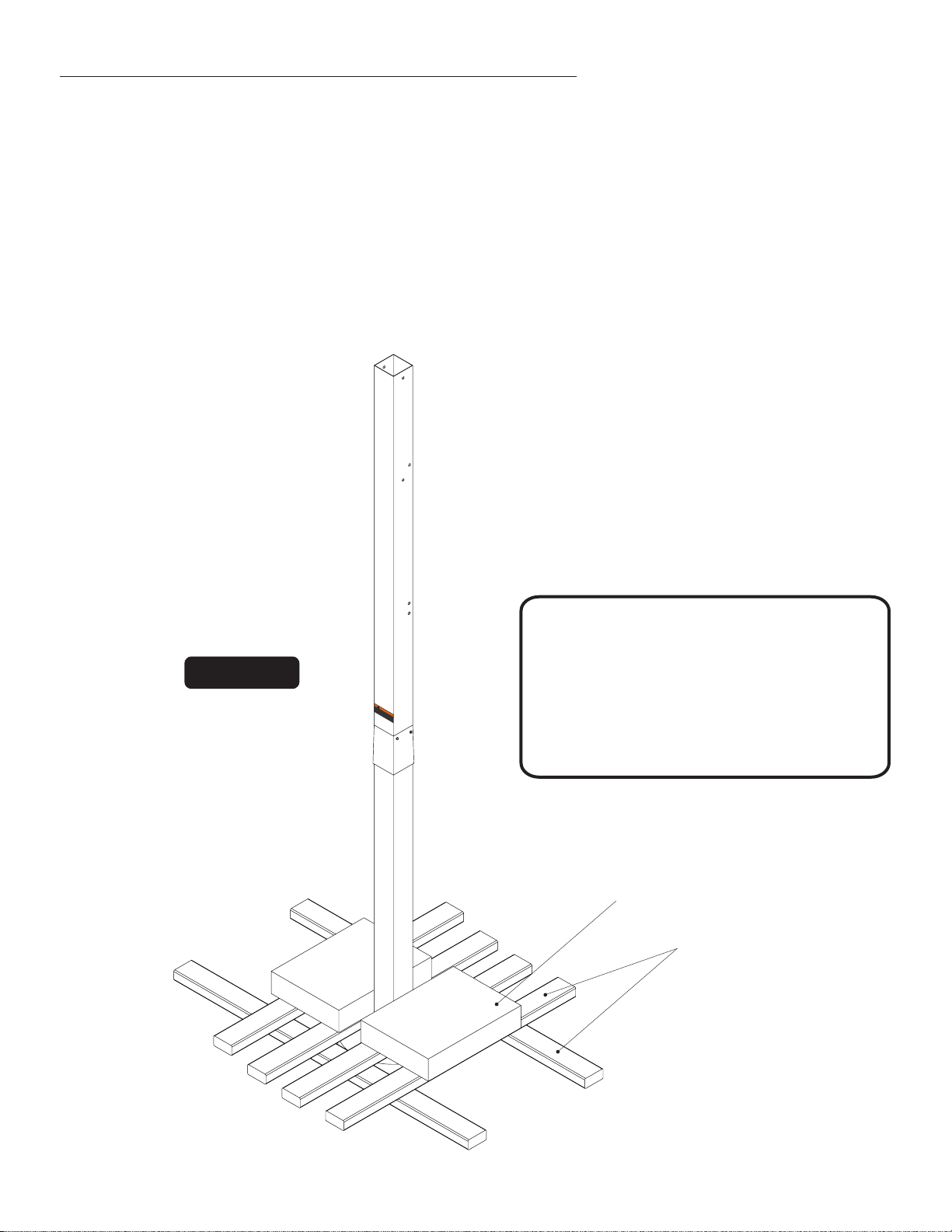

Stabilize the pole by using six 2X4’s and placing two 50 lbs.

bags of sand on top to keep pole from shifting, periodically

check the pole with level to ensure that pole is vertical.

See Figure 5.

Let concrete Stand for a MINIMUM of 48 hours (2 days).

Figure 6

DO NOT HANG FROM ANY PART OF THIS

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET

IMPORTANT!

Let concrete stand for a MINIMUM of 48 hours (2 days) before proceeding to the next step. In humid climates or wet

ARNING

4L-8152-00

weather, allow additional time for the concrete to cure. Do not install anything else until concrete is completely cured.

Sand bag

2 X 4’s

Page 9

ASSEMBLY INSTRUCTIONS (Day 3)

IMPORTANT! BE SURE CONCRETE HAS BEEN ALLOWED TO CURE FOR AT LEAST 2 DAYS.

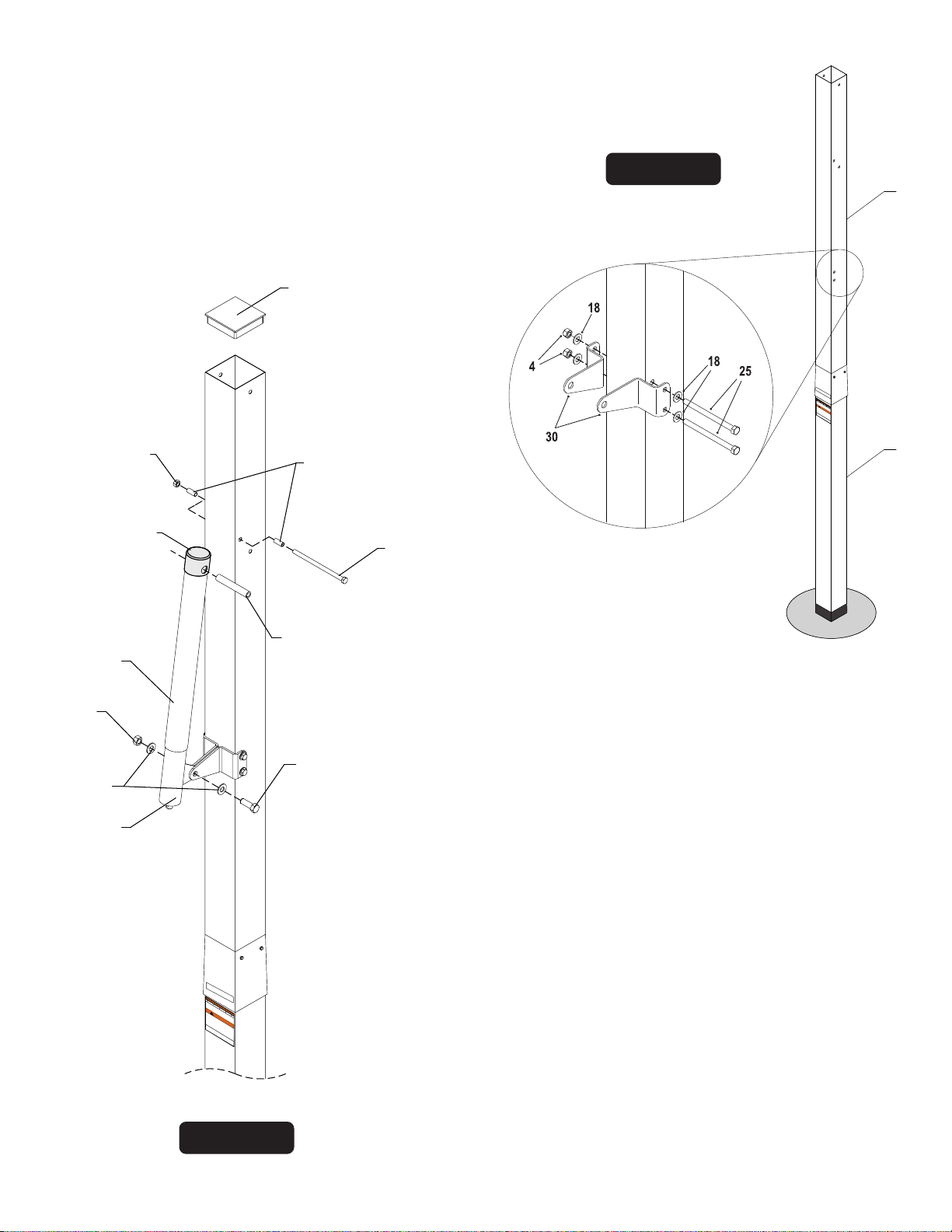

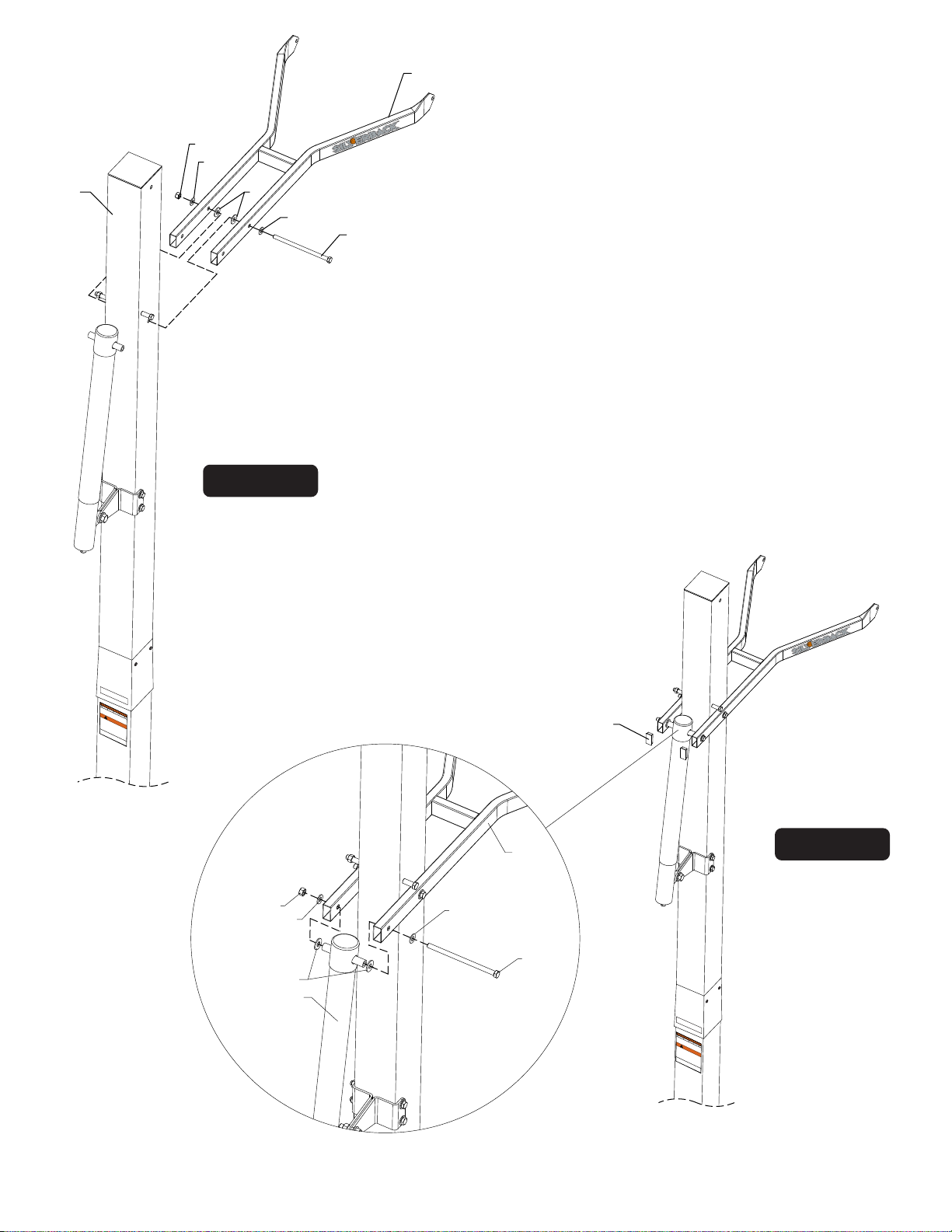

9. Attach Post Ears (#30) to holes near the bottom of Top

Post (#3) using two hex bolts (#25) four washers (#18)

and two lock nuts (#4). Do not tighten nuts (#4) completely until instructed to do so. See Figure 7 & Detail 2.

Figure 7

Detail 2

BACK SIDE

Bottom of upper above (6” mark).

FAILURE TO FULLY ENGAGE THE BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.

BACKSIDE

orange portion of

pole

must cover

this sticker

ARNING

the

4L-8151-00

BACK SIDE

Bottom of above (6” mark).

upper pole

orange

portion of

FAILURE TO FULLY ENGAGE THE

WARNING

BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESUL PROPERTY DAMAGE.

T IN SERIOUS INJURY OR

BACKSIDE

10.

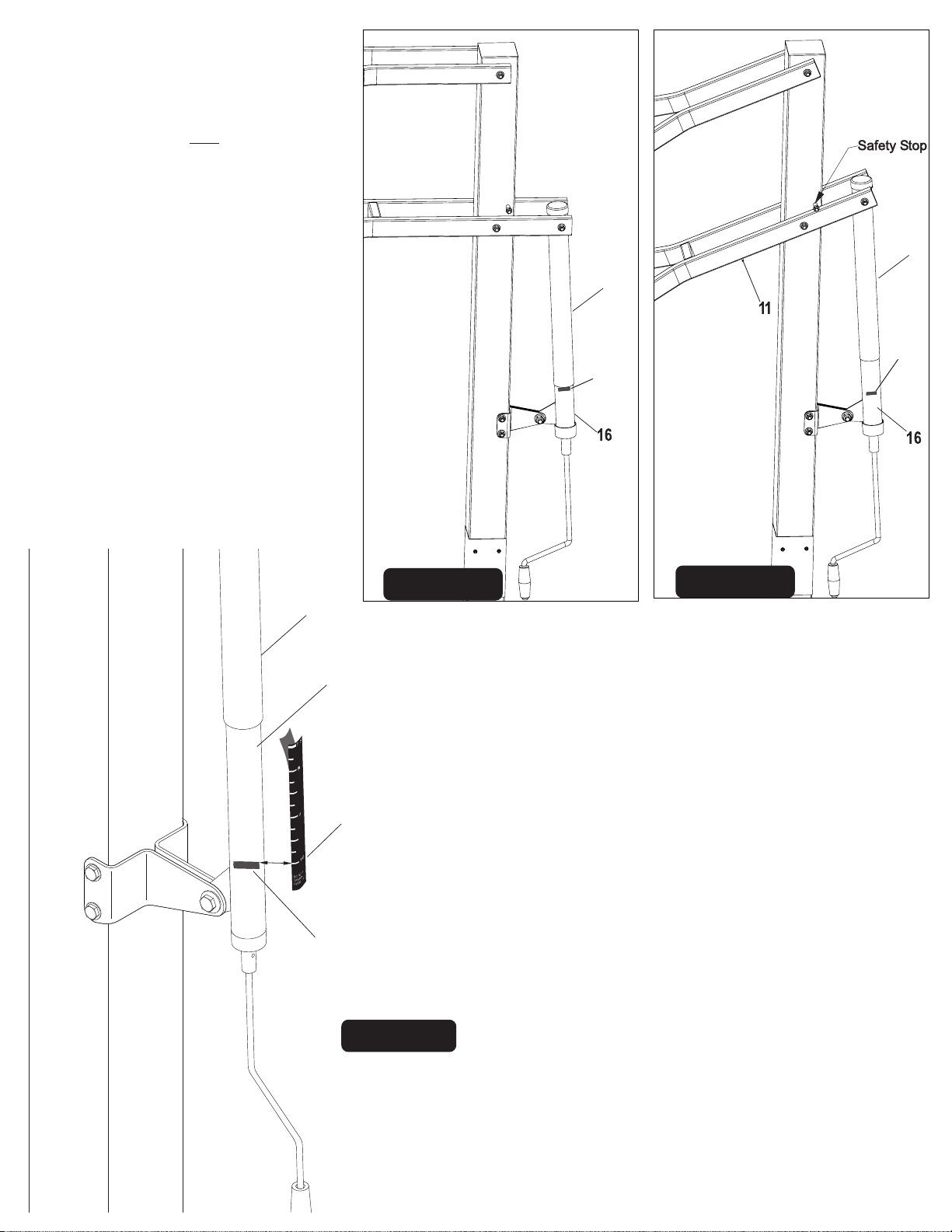

If not already pre-assembled, slide Plastic Actuator Sleeve (#15) over Steel Actuator (#16) and place Actuator Cap (#13) on top. Align holes in all 3 parts and slide Pivot Tube (#14) through holes

must cover

this

the

sticker

4L-8151-00

in Actuator Cap (#13), Plastic Actuator Sleeve (#15) and Steel Actuator (#16) until equal amounts stick out through both sides of actuator. See Figure 8.

Note: If necessary, use a rubber mallet to tap in

Pivot Tube (#14)

Slide tab on Actuator (#16) between Post Ears (#30) and

11.

Secure using one bolt (#19), two washers (#20) and one lock nut(#21). Tighten Lock Nut (#21) snug but do not over tighten. See Figure 8. At this time also tighten

nuts (#4) from Step 9.

12. Place Pole Cap (#1) onto top of Top P

ole (#3). Note: Pole

Cap may be pre-installed by the factory.

Figure 8

13. Secure two stop spacers (#10) to pole, as shown in Figure 8,

using one hex bolt (#7) and one lock nut (#4). Tighten Lock

Nut (#4) but do not over tighten.

Page 10

painted parts at all pivot points. Neglecting the use of these washers will result in rusted parts.

NOTE: All board arms are made of rectangular tubing.

IMPORTANT! Nylon washers (#5) adequately space

Tightening hardware too tight may damage tubing and make adjustment of system difficult.

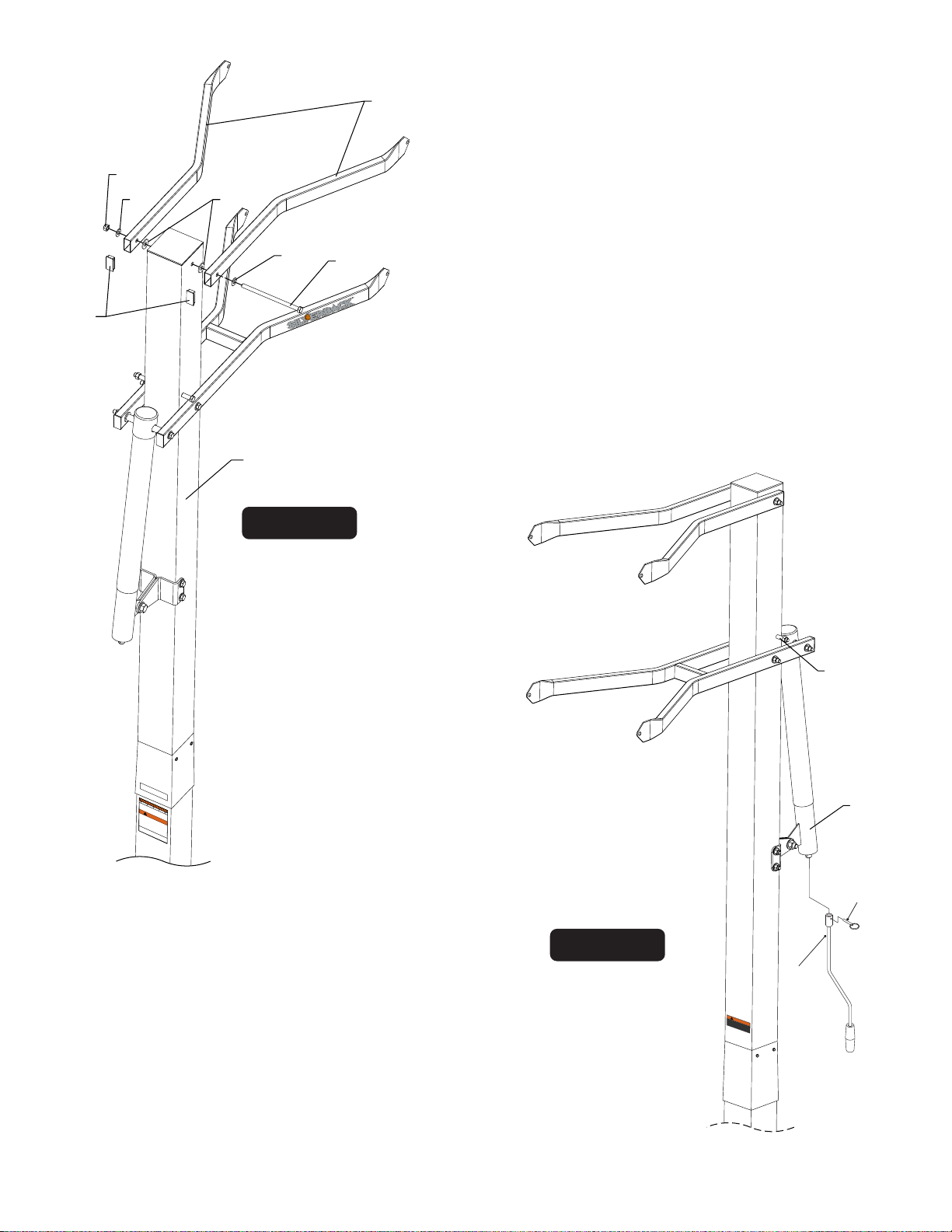

14. Attach lower arms (#11) to Top Pole (#3), as shown in Figure 9, using a hex bolt (#22), two flat washers (#18),

two plastic washers (#5) and lock nut (#4).

Note: Small amounts of clear tape can be used to adhere Plastic Washers (#5) to Pole. This will make assembly easier.

Note: make sure lettering is right side up. Do NOT tighten bolt (#22) at this time.

15. Secure Actuator (#16) to Lower Arms (#11) using one bolt

(#22), two flat washers (#18), two plastic washers (#5) and one lock nut (#4). See Figure 10 and Detail 3. Tighten both bolts (#22) snug but, do not over tighten. Board Arms

must pivot freely.

Figure 9

16. Insert Two Tube Plugs (#9) into open ends of Lower Arms

(#11). It may be necessary to use a rubber mallet to tap them in. See Figure 10. Note: Tube plugs may be pre-installed

by the factory.

BACK SIDE

Bottom of upper pole above (6” mark).

orange

portion

FAILURE TO FULL

WARNING

BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.

BACKSIDE

must of

cover

this sticker

the

Y ENGAGE THE

4L-8151-00

Figure 10

15,16

BACK SIDE

Bottom above

(6” mark).

upper

orange portion of this

pole

must cover the

FAILURE TO FULLY ENGAGE THE

WARNING

sticker BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESUL PROPERTY DAMAGE.

T IN SERIOUS INJURY OR

BACKSIDE

Detail 3

4L-8151-00

Page 11

17. Attach of Upper Arms (#6) to Top Pole (#3), as shown

Figure 11, using a bolt (#7), two flat washers (#18),

two spacers (#8) and one lock nut (#4).

Note: Tighten bolts snug but, do not over tighten. Board

Arms must pivot freely.

818

18. Insert two Tube Plugs (#9) into open ends of Upper Arms

(#6). It may be necessary to use a rubber mallet to tap plug

in. Note: Tube plugs may be pre-installed by the factory.

Figure 11

BACK SIDE

Bottom of upper above (6” mark).

orange

pole

portion of this

must

cover

WARNING

the

AILURE TO FULLY ENGAGE THE

sticker BOTTOM OF THE UPPER POLE TO THE 6” MARK ON THIS BOTTOM POLE STICKER, COULD CAUSE YOUR UNIT TO COLLAPSE AND MAY RESUL PROPERTY DAMAGE.

T IN SERIOUS INJURY OR

BACKSIDE

4L-8151-00

19. Slide Actuator Crank (#35) onto shaft on the bottom of

Actuator (#16). Line up hole in shaft with hole in Actuator Crank and insert Pin (#34) to secure. See Figure 12.

20. To aid in the assembly of the backboard, lower the backboard,

by turning the Actuator Crank, until the lower arm makes contact with Stop Spacer (#10).

Figure 12

ARNING

DO NOT DUNK ON THIS UNIT . DO NOT HANG FROM ANY PART OF THIS UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET

Stop Spacer

(#10)

4L-8152-00

Page 12

Figure 13

WARNING

DO NOT HANG FROM ANY PART OF THIS

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET

4L-8152-00

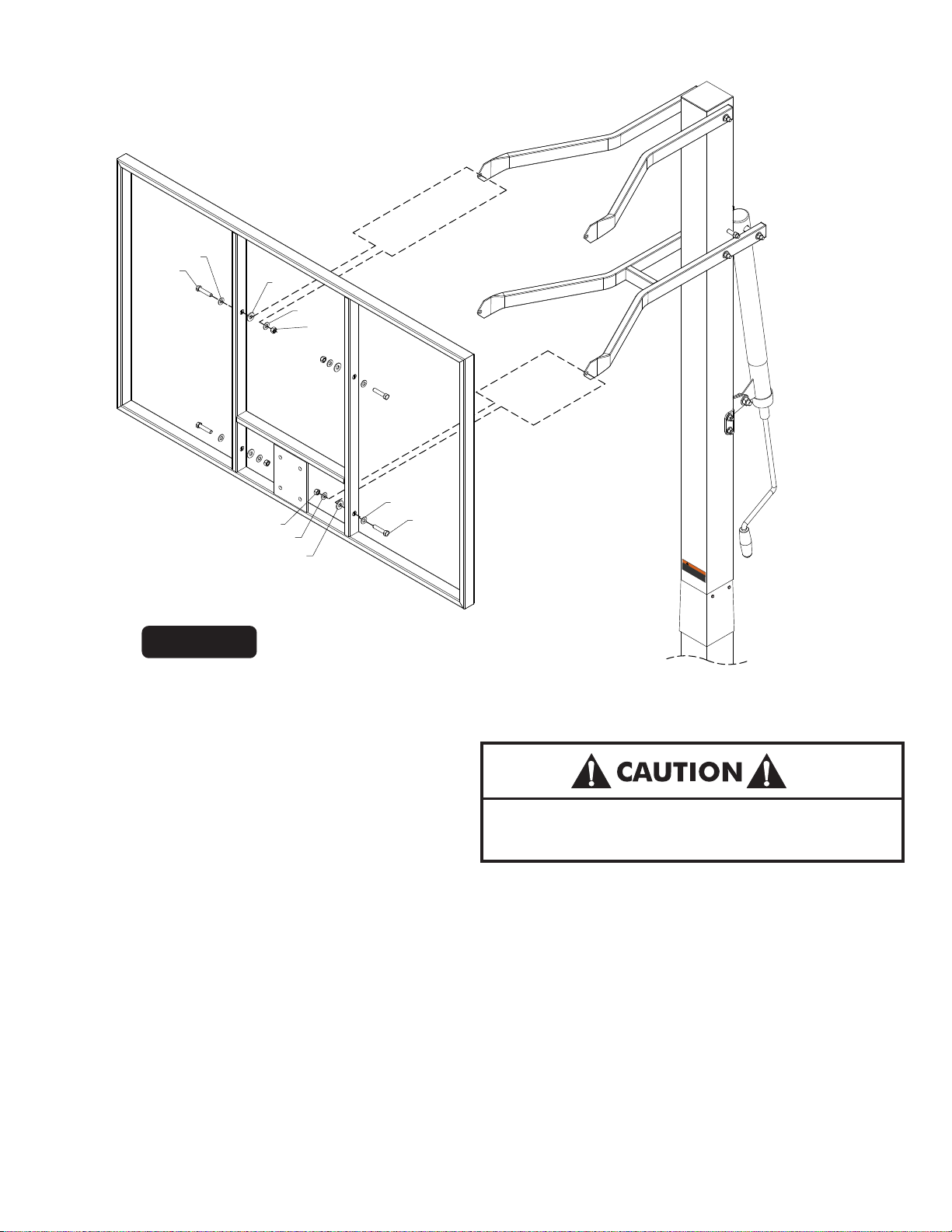

ATTACHING B A C KBO ARD TO BOARD A RMS REQUIRES A12T LEAST THREE CAPABLE ADULTS.

21. With at least two capable people, raise the backboard assembly

up and have the third attach Lower Board Arms to lower mounting tubes on backboard using two bolts (#24), two plastic washers (#5), four washers (#18) and two lock nuts (#4). See Figure 13.

NOTE: Do NOT over tighten these bolts. This is a pivot point. Snug is tight enough.

22. Attach Upper Board Arms to upper mounting tubes on backboard

using two bolts (#24), two plastic washers (#5), four washers (#18) and two lock nuts (#4). See Figure 13.

NOTE: Do NOT over tighten these bolts. This is a pivot point. Snug is tight enough.

Page 13

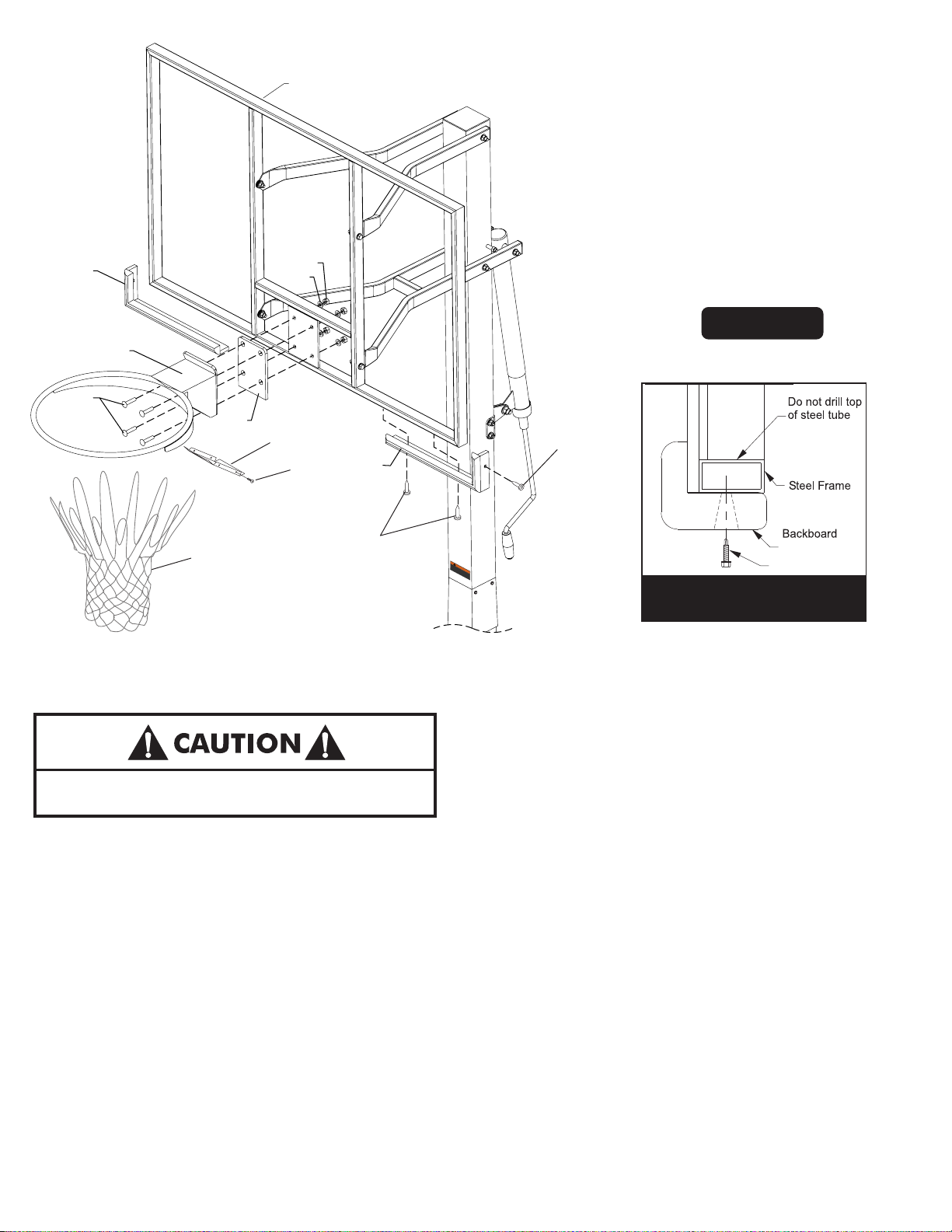

Mount Goal Assembly (#28) and Rim Pad (#27) to

23.

Backboard, as shown in Figure 14, using four bolts (#41), four washers (#26), and four locknuts (#4). Tighten fasteners, but leave them loose enough to level rim.

Note: Make sure (#27) Rim Pad is installed

between Rim (#28) and Backboard (#23)

24. Place a level across rim assembly and adjust rim until it is

level. Finish tightening the four nuts.

Note: Make sure (#27) Rim Pad is installed between Rim (#28) and Backboard (#23)

WARNING

DO NOT HANG FROM ANY PART OF THIS

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

SUPPORT BRACES OR NET

Figure 14

Pad #37 & #38

4L-8152-00

Screw #42

Detail A

25. Attach Rim Cover Plate (#32) using four screws (#33). See Figure 14.

NEVER USE RIM WITH COVERPLATE REMOVED!

26. Check all nuts and bolts and make sure everything is

tightened properly. DO NOT over tighten pivot points, snug is tight enough.

27. Use the Backboard Pads (#37) and (#38) as a template and mark the hole locations on the backboard frame. See Figure

14 and Detail A.

Note: Screws (#42), used in step 29, are Self Drilling screws and can be installed without drilling pilot holes. However, it will be easier to install screws if you drill 9/64” pilot holes. WEAR SAFETY GLASSES if drilling holes.

28. Drill 9/64" pilot holes into steel backboard frame. See Detail A. Do not drill through both sides of tube.

Note: Cordless drill recommended for screw installation. Do not over tighten screws causing screws to strip.

Note: To install screws, it will be easier if you use a cordless drill with 5/16” socket (instead of Phillips head).

29. Secure Backboard P

ads (#37) and (#38), as shown, using

screws (#42). Note: Tighten screws tight but, do not over

tighten.

Page 14

30.

Raise Backboard to 10 FT. regulation playing

height. Measure from top of rim straight down

to the playing surface.

31.

Using tape - mark the side of the steel actuator

(#16) just under the plastic actuator sleeve

(#15) at this 10 ft rim height. See Figure 15.

32.

Lower backboard all the way down. Do not force

actuator once backboard is in it's lowest position.

See Figure 16.

33.

Do not remove adhesive backing from height

decal (#17) yet. Carefully place height decal on

backside of steel actuator and line up the

10 ft mark on the tape with the 10 ft mark on the

height decal. Decal should fit correctly onto the

backside of the steel actuator. ( If not , simply

trim to fit the top of the actuator decal).

(#16)

Mark with

tape

Tape at 10 feet

Tape

Figure 15

Set at 10 feet

34.

Figure 16

Lowered all

the way down

Remove the adhesive backing from the Height Decal (#17).

Next, carefully align and stick decal to backside of steel

actuator (#16) starting at the 10 ft mark first. Be sure to

keep the height decal straight and rub out all air bubbles. See

Figure 17.

Figure 17

Page 15

35. Secure Post Pad (#39) to front of pole by wrapping straps around

pole and sticking to velcro on opposite side of Pad. Post Pad should cover Post Screws but remain below Warning Label on front

of the Pole. See Figure 18. Make sure to repostion Pole Pad if Sliding occurs.

NOTE: Do not cover the Warning Label on the front

of the pole with the Pole Pad.

Figure 18

NOTE: Top of Pole Pad #48 should

cover Post Screws but remain below Warning Label on the front of the Pole.

Post Screws

Page 16

LIMITED 7 YEAR WARRANTY

This consumer warranty extends to the original consumer purchase of any Escalade

Sports Product (hereinafter referred to as

the “Product”).

WARRANTY COVERAGE: Escalade

Sports warrants to the original Consumer Purchaser that any Product of its manufacture is

free from defects in material and workmanship. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PRODUCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP.

Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail

purchaser all structural components of the Silverback® System to be free of defects in material and workmanship for a period of Seven (7) years from the original purchase.

Merchandise must be shipped prepaid with a copy of proof of purchase to Escalade if the basketball system needs to be repaired or replaced. Any labor costs, travel expenses and any other changes involved in the removal, installation or replacement of the defective/repaired parts from/to your Silverback Shipping charges for replaced or warranted merchandise sent back to the customer from Escalade

Sports factory for examination to determine

System will be the purchaser’s responsibility.

Sports factory must be prepaid

by the customer in advance. If not, the replacement shipment will be sent out collect.

Escalade

Sports reserves the right to examine photographs or physical evidence of merchandise claimed to be defective, and to

recover said merchandise, prior to authorization of warranty claims. A “Returned Goods Authorization” number may be required, please call for details prior to the return of any photographs or merchandise.

This limited 7 year warranty is expressly in lieu of all warranties, expressed or implied, including warranties of merchantability or fitness for use. Escalade

Sports does not assume or authorize any person or representative to assume for us, any other liability in connection with the

sale of our products.

The remedy of repair or replacement stated above is Escalade other damages or expenses which may incur, including but not limited to incidental or consequential damages. Escalade assumes no other obligations or liability on the part of the purchaser, and Escalade

Sports exclusive remedy. Escalade® Sports will not be liable for any

Sports neither assumes nor authorizes any other

Sports

person to assume for it any other liability in connection with the goods sold.

This warranty shall not apply in any manner to parts or accessories not manufactured by Escalade

Sports.

NOT COVERED BY THIS WARRANTY

•

Merchandise not intended to be in places of public assembly, such as, but not limited to, schools, parks, public or private recreational facilities.

• Any merchandise subjected to Non-residential abuse, negligence, improper installation, vandalism, acts of God, alteration of product, or any other events beyond the control of Escalade Sports.

• Paint or rusted parts. If rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish enamel paint.

• HANGING ON RIM WILL VOID THE WARRANTY: Rims are not warranted for any defects other than workmanship. Torn back plates, damaged springs, bent rings, damaged eyebolts, and torn or distorted rim supports result from hanging on the rim and are not warranted.

• Shipping charges both ways. Note: Any merchandise shipped to Escalade

• Dealer service charges, labor charges and travel expenses associated with replacement of repair of warranty item.

WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION. ESCALADE

SPORTS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER CONSEQUENTIAL OR INCIDENTAL

COSTS. EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.

Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental damages, so the above limitations or exclusions may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Sports collect will be refused.

WARRANTY GUIDELINES IS REQUIRED FOR ALL WARRANTY CLAIMS

1. Proof of Purchase (original retail purchaser) is required for all warranty claims.

2. Call or write Escalade

Phone: 1-888-USA-GOAL / Warranty Dept. Or Write Escalade Or E-mail us at: [email protected]

Sports to receive a Return Authorization # and determine specific needs.

Sports at: Escalade® Sports - P.O. Box 889, Evansville, IN 47706 - Attn: Warranty Dept.

Page 17

SILVERBACK CARE INFORMATION

- BACKBOARD -

Items needed to clean backboard:

- 100% cotton soft cloth, (only)

- Glass Cleaner

Clean backboard using a 100% Cotton soft cloth and glass cleaner. Clean glass as you would household windows. Strong cleansers will damage backboard and void warranty.

– RIM –

HANGING ON THE RIM WILL VOID YOUR WARRANTY. Rims are not warranted for any defects other than workmanship. Torn back plates,

damaged springs, bent rings, damaged eye bolts, and torn or distorted rim supports result from hanging on the rim and are not warranted.

The goal should not be cranked under 7-1/2' or over 10'. Adjustments of the goal should be done under adult supervision.

When attempting slam dunk activity you should always wear a mouth guard to avoid dental injury.

– –MAINTENANCE

To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40.

– – RUST

Inspect your pole periodically, if rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish

enamel paint.

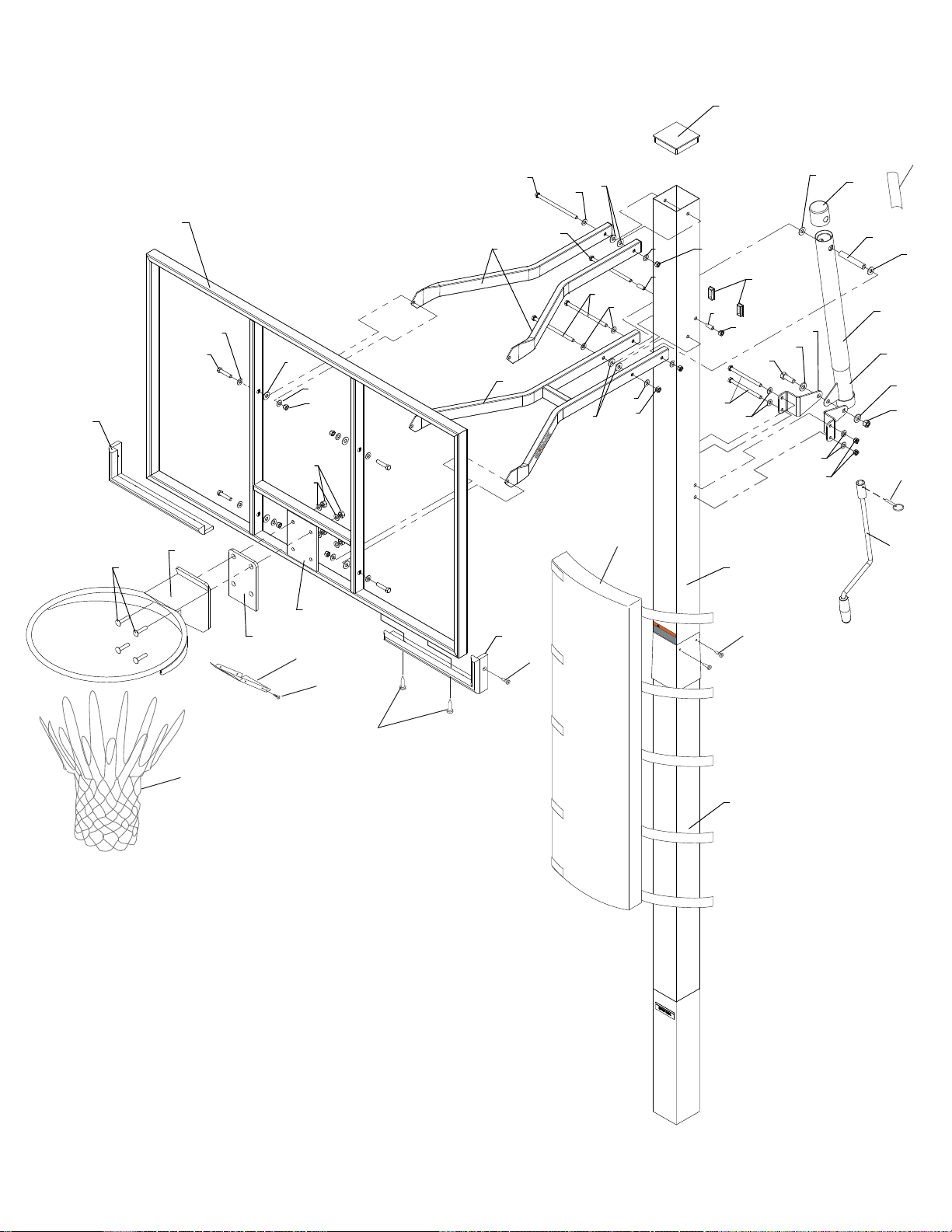

B5400 REPLACEMENT PARTS LIST

Key# Part # Description Qty. Key# Part # Description Qty.

1 3M-6850-00 4" Square Tube Plug (pre-installed) 1 2 8S-6864-00 Bottom Post 1 3 Top Post 1

8S-6863-00 4 901-28 3/8-16 Lock Nut 14 5 3M-6883-00 1-1/4" OD Plastic Washer 8 6 8S-6865-00 Upper Board Arm 2 7 1B-6484-10 2

3/8-16 X 7" Hex Bolt - Grade 5 8 3M-6269-00 1/4" Spacer 2 9 3M-6898-00 40mm X 20mm Tube Plug 4 10 8S-6657-00 Stop Spacer 2 11 1A-7030-01 Lower Board Arm 1 12 Not Used 13 3M-6467-00 Actuator Cap 1 14 8S-6658-00 Pivot Tube 1 15 3M-6542-00 Actuator Sleeve 1 16 4A-6605-00 Actuator 1 17 4L-8110-00 Height Decal 1 18 701-50 3/8 STD Washer 18 19 1B-6486-10 1/2-13 X 1-1/2" Hex Bolt 1 20 2B-6093-00 1/2 Flat Washer 2 21 2B-6095-00 1/2-13 Locknut 1 22 1B-6957-00 3/8-16 X 6.5” Hex Bolt-Grade 5 2 23 6A-7426-01 Backboard Assembly-33x54" Glass 1 24

1B-6955-00 3/8-16 X 1.75" Hex Bolt 4

25 1B-6485-10 3/8-16 X 5" Hex Bolt 2 26

2B-6114-00 3/8 Flat Washer 4

27 3M-6473-00 3X4 Rim Pad 1

6A-6374-00 Goal Assembly 1

28 29 3M-6835-00 Goal Spacer Plate (Pre-Installed) 30 2S-6795-01 Post Ear 2

Not Used

31 32 2S-6427-00 Rim Cover Plate 1

1B-6788-00 #8 x 1/2 Thread Forming Scr. 4

7B-6255-00 Pull Pin 1

4A-6606-00 Actuator Handle 1

2L-7196-02 This Manual 1

3M-6899-01 48" Board Pad Right 1

3M-6900-01 48" Board Pad Left 1

3M-8901-01

3F-6010-00 Net 1

1B-6782-00

1B-6821-00 Self Tapping Screw-#10 x 1” 10

Post Pad

3/8-16 x 1 3/4" Carriage Bolt 4

2L-7196-02

Page 18

(Pre-Installed)

18 4

20 21

341

DO NOT HANG FROM ANY PART OF THIS

DO NOT DUNK ON THIS UNIT .

UNIT , INCLUDING THE BACKBOARD, RIM,

ARNING

SUPPORT BRACES OR NET.

4L-8152-00

2L-7196-02
