Silver 9500E User Manual

SYMBOL INSTRUCTIONS

Raise needle

Raise presser foot Lower presser foot

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety should always be followed, including the following:

Read all instructions before using this sewing machine.

DANGER

1. An appliance should never be left unattended when plugged in.

2. Always unplug this appliance from the electric outlet immediately after using and before cleaning.

3. Always unplug before checking and re-lamping. Contact the manufacturer or its service agent for repair in the event of failure if the machine is with 240mW LED lamp, which is not userreplaceable. Replace bulb with same type rated 5 watts if the machine is with 5W lamp.

WARNING

1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or near children.

2. Use this appliance only for its intended use as described in this manual. Use only the attachments recommended by the manufacturer as contained in this manual.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.

4. Never operate the appliance with any air openings block. Keep ventilation openings of the sewing machine and foot controller free from accumulation of lint, dust, and loose cloth.

5. Keep fingers away from all moving parts. Special care is required around the sewing machine needle.

6. Always use the proper needle plate, a wrong needle plate can cause the needle to break.

7. Do not use bent needles.

8. Do not pull or push fabric while stitching. It may deflect the needle causing it to break. Switch the sewing machine off ("O") when making any adjustments in the needle area, such as

9. threading needle, changing needle, threading bobbin, or changing presser foot, and the light.

10.Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.

11.Never drop or insert any object into any opening.

12.Do not use outdoors.

13.Do not operate where aerosol spray products are being used or where oxygen is being administered.

14.To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.

15.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

16.The sound pressure level under normal operating conditions is 75dB(A).

17.

Please turn off the machine or unplug when the machine is not operating properly.

18.Never place anything on the foot controller.

19.If the supply cord that is fixed with foot controller is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

20.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

21.Children should be supervised to ensure that they do not play with the appliance.

-To reduce the risk of electric shock:

-To reduce the risk of burns, fire, electric shock, or injury to persons:

SAVE THESE INSTRUCTIONS

This sewing machine is intended for household use only.

CONTENTS

PRINCIPAL PARTS OF THE MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

BUTTONS OF THE MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Operation buttons (see page 23/24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Function buttons (see page 25/26/27) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Selection buttons (see page 28/29) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

LCD SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

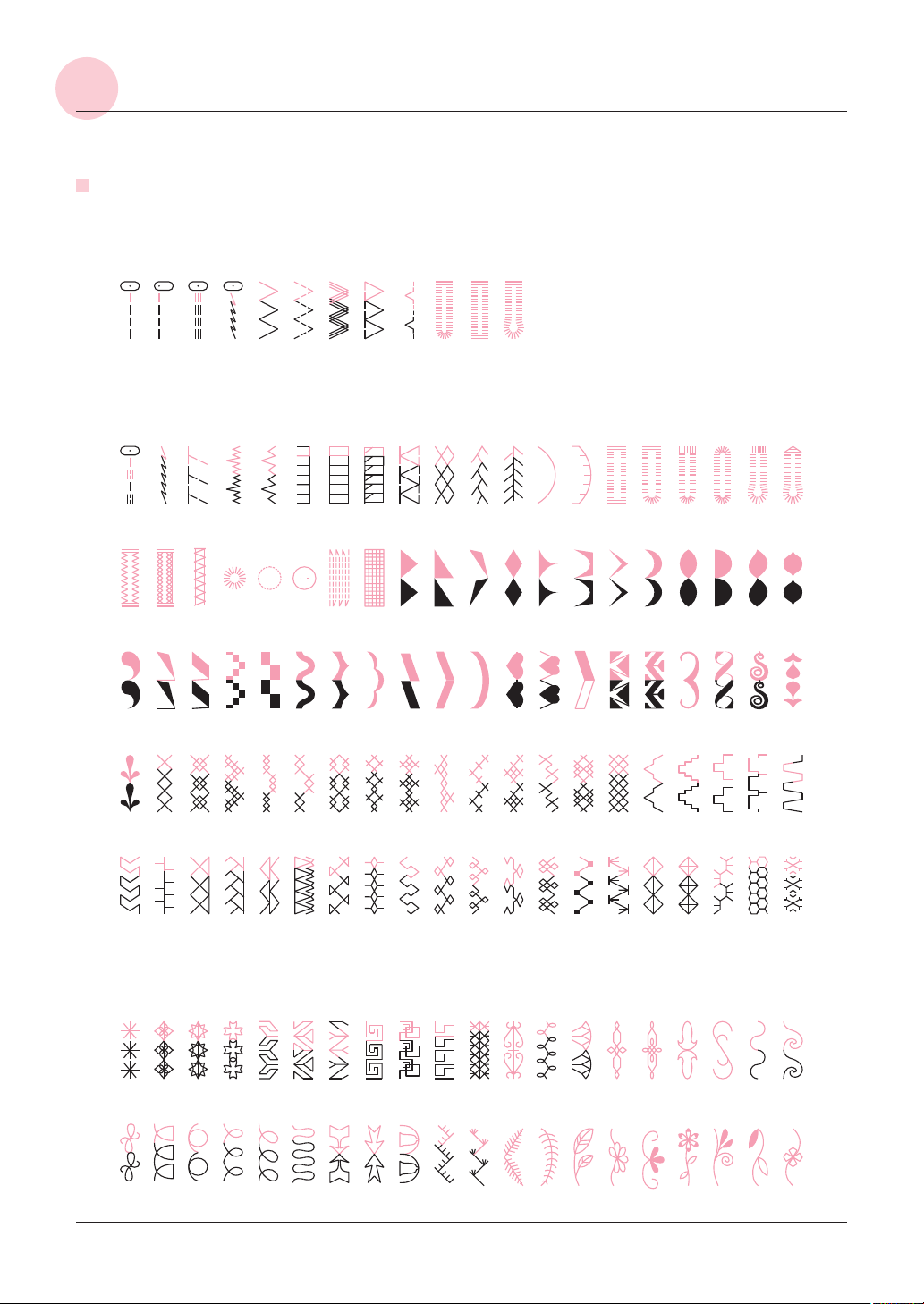

PATTERN CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CONNECTING THE MACHINE TO THE POWER SOURCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

STARTING SEWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Foot control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

ADJUSTING THE PRESSER FOOT PRESSURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

LCD BRIGHTNESS CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CHANGING THE PRESSER FOOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

REPLACING THE NEEDLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

MATCHING NEEDLE/ FABRIC/ THREAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

TYPE OF PRESSER FOOT CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

WINDING THE BOBBIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

Bobbin winding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

INSERTING THE BOBBIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

THREADING THE UPPER THREAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

USING THE NEEDLE THREADER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

THREAD TENSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

RAISING UP THE LOWER THREAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CUTTING THE THREAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

TWO-STEP PRESSER FOOT LIFTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

TO RAISE OR DROP THE FEED DOGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

OPERATION BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24

Start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Reverse button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Auto-lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Needle up/ down position button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

FUNCTION BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27

Stitch width adjustment button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Stitch length adjustment button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

MODE selection button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Elongation button (see page 59). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Mirror button (see page 60) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Twin needle button (see page 61) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

SELECTION BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29

Direct pattern selection and number buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Clear button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Edit button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Memory button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

USEFUL SKILLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31

Sewing corners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Reverse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Free arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Sewing on the heavy fabric. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

STRAIGHT STITCHES AND NEEDLE POSITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ZIGZAG STITCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

STRETCH STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

CONTENTS

OVERCASTING STITCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using the overcasting foot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using the all purpose foot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

BLIND HEM/ LINGERIE STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

BUTTON SEWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

BUTTONHOLE STITCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-40

Making a buttonhole on stretch fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

BAR TACK STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

ADJUSTING PATTERN BALANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

EYELET STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

DARNING STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-45

ZIPPER INSERTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-47

Inserting a centered zipper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Inserting a side zipper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

NARROW HEMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

CORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Single cording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Triple cording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

SATIN STITCH SEWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

QUILTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

GATHERING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

SMOCKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

FREE MOTION DARNING, EMBROIDERY AND MONOGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . 54-55

Darning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Embroidery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Monogramming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

WALKING FOOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

FAGOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

PATCHWORK STITCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

SCALLOP STITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Scallop hem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Scallop edging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

ELONGATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

MIRROR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

USING THE TWIN NEEDLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

MEMORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62-65

Combining patterns or letters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62-63

Adding patterns or letters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Editing patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Clearing patterns or letters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Recalling and sewing the memorized pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

WARNING FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66-67

Warning animation message display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Instruction animation message display

Warning beeping sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

BUZZER SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

REPLACING THE LIGHT BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-71

Cleaning the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Cleaning the sewing machine surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Cleaning the hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-71

TROUBLE SHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72-73

QUICK ADJUSTMENT REFERENCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74-79

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

3

5

4

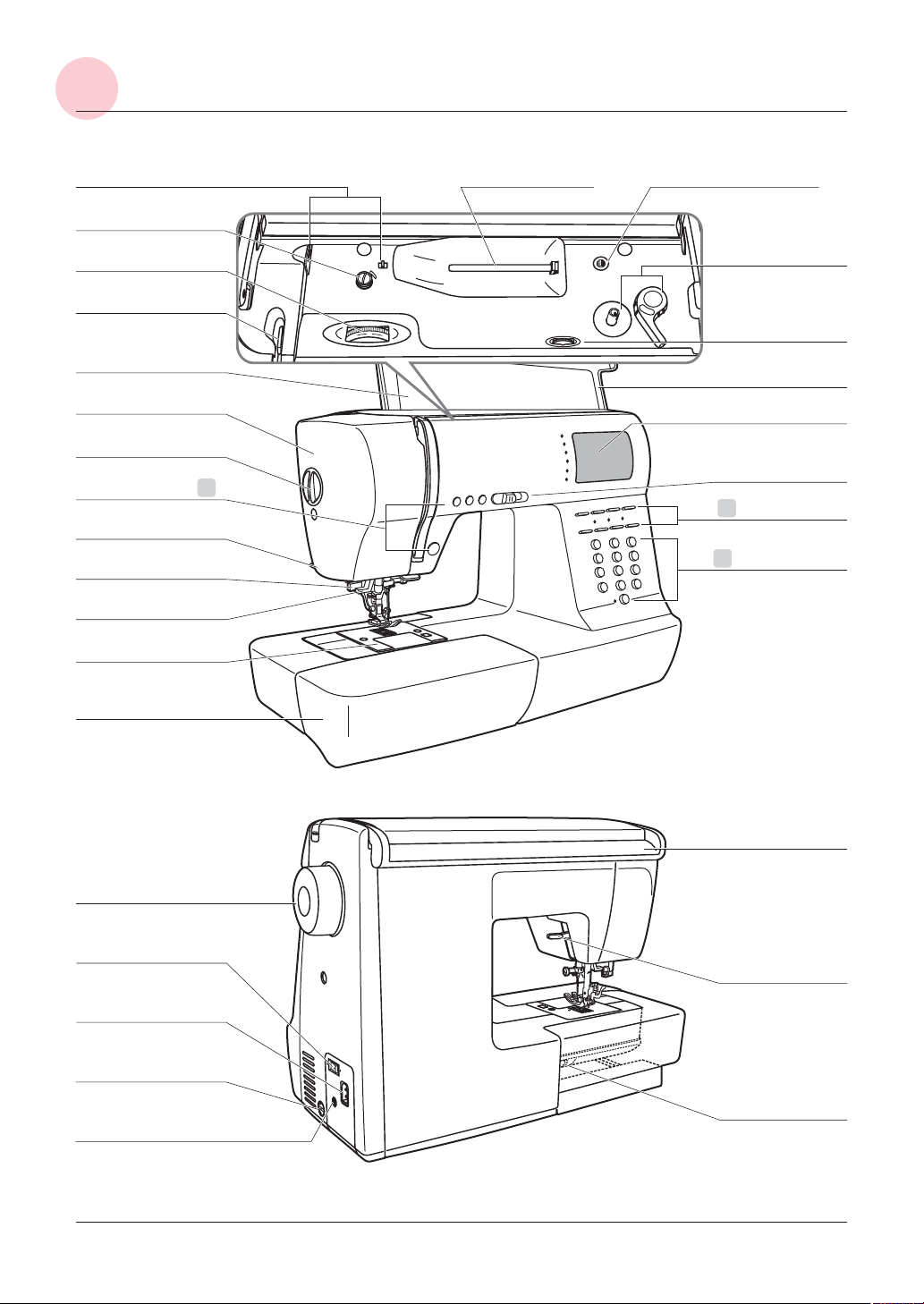

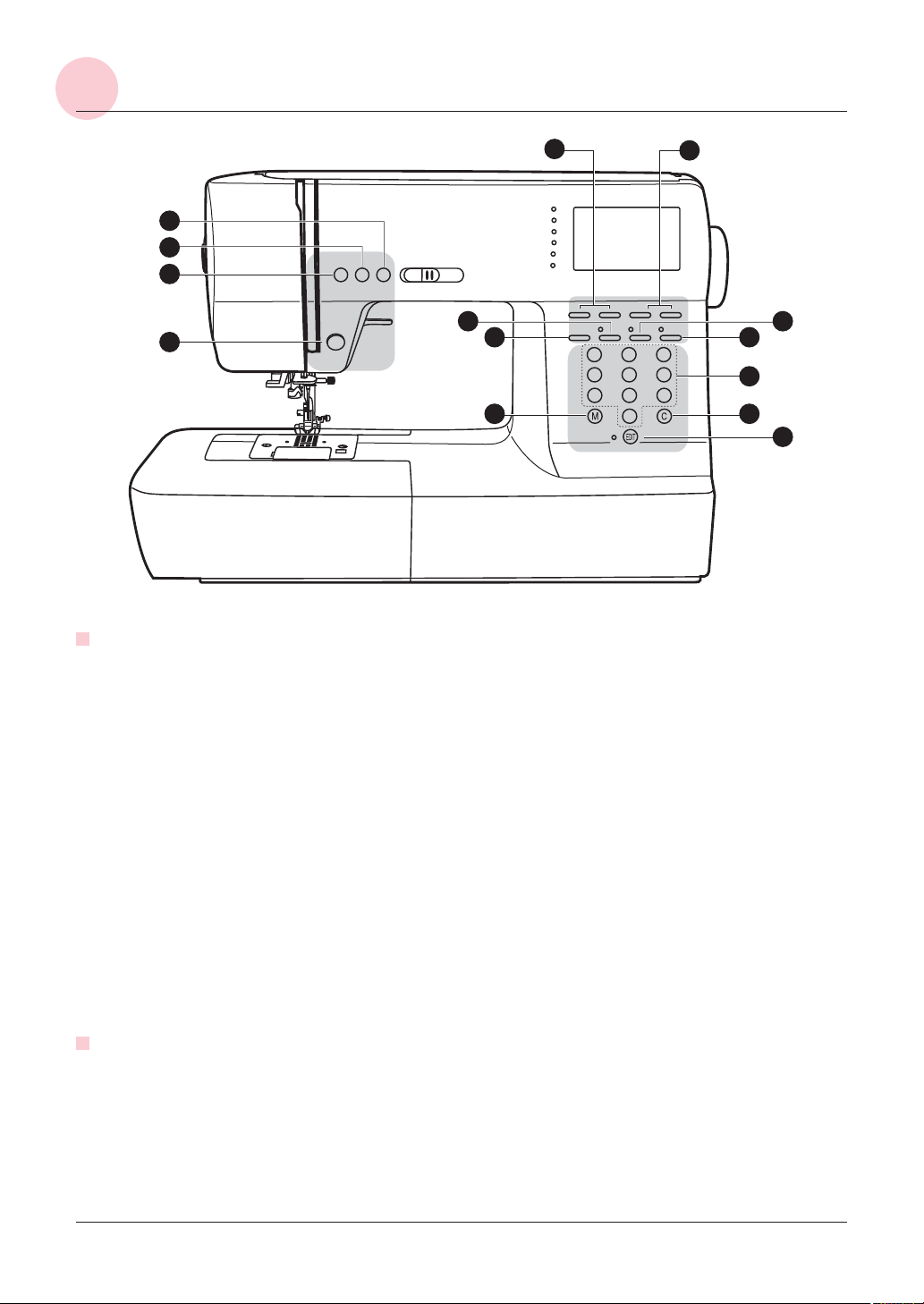

PRINCIPAL PARTS OF THE MACHINE

Upper thread guide

Bobbin thread guide

Tension dial

Thread take-up lever

Flip-top sewing instruction panel

Face plate

Presser foot pressure

Operation buttons

A

Thread cutter

Buttonhole lever

Auto needle threader

Needle plate

Sewing table and accessory box

Horizontal spool pin

Hole for second spool pin

Bobbin winder with on/off switch

LCD screen brightness control

Top cover

LCD screen

Speed limiting adjustment lever

B

Function buttons

C

Selection buttons

Handwheel

Main power switch

Power cord

Feed balancing dial

Foot controller connector

* The LCD display control adjustment is only suitable for the voltage 120V/60Hz system.

1

Handle

Presser foot lifter

Drop feed lever

BUTTONS OF THE MACHINE

2

3

4

1

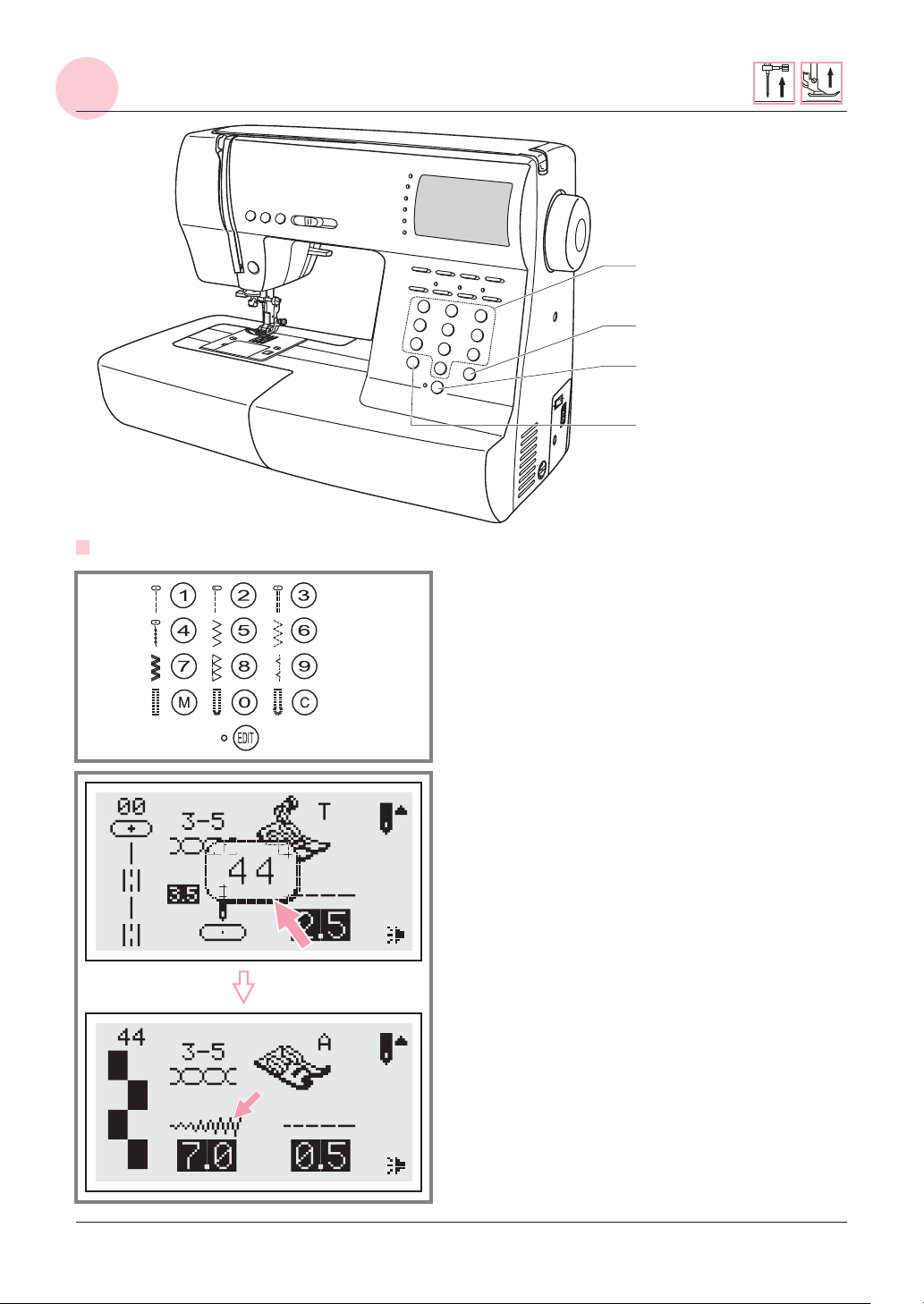

A. Operation buttons (see page 23/24)

A

5

8

7

14

B

23

1

47586

0

C

6

9

10

11

9

12

13

1. Start/stop button

Press this button to start or stop the machine.

2. Reverse button

Press this button to sew either backwards or a reinforcement stitch at a low speed.

3. Auto-lock button

Press this button to sew locking stitches immediately or at the end of the current patterns and automatically stop.

4. Needle up/down position button

Press this button to move the needle either up or down.

B. Function buttons (see page 25/26/27)

5. Stitch width adjustment buttons

Press these buttons to adjust the width of the zigzag stitch.

6. Stitch length adjustment buttons

Press these buttons to adjust the length of the stitch.

2

BUTTONS OF THE MACHINE

7. Mode selection button

Press this button to select direct mode, utility and decorative pattern mode, block letter mode, script letter mode and outline letter mode.

8. Elongation button

A Group Patterns 28 to 51 can be elongated up to five times its normal length by pressing this button.

9. Mirror button

Press this button to sew a reflection pattern.

10.Twin needle button

Press this button to limit the maximum width when using the twin needle.

C. Selection buttons (see page 28/29)

11.Direct pattern selection and numbered buttons

Direct access to utility stitches by pressing the button beside the selected stitch or press the numbers of the selected pattern.

12.Direct pattern selection and clear button

Direct access to utility stitches by pressing the button beside the selected stitch.

If an incorrect pattern is selected or memorized, pressing this button will clear it.

13.Edit button

Press this button to set an added pattern when sewing combinations of decorative stitches.

14.Direct pattern selection and memory button

Direct access to utility stitches by pressing the button beside the selected stitch.

Press this button to enter or store the created patterns combination in the memory.

3

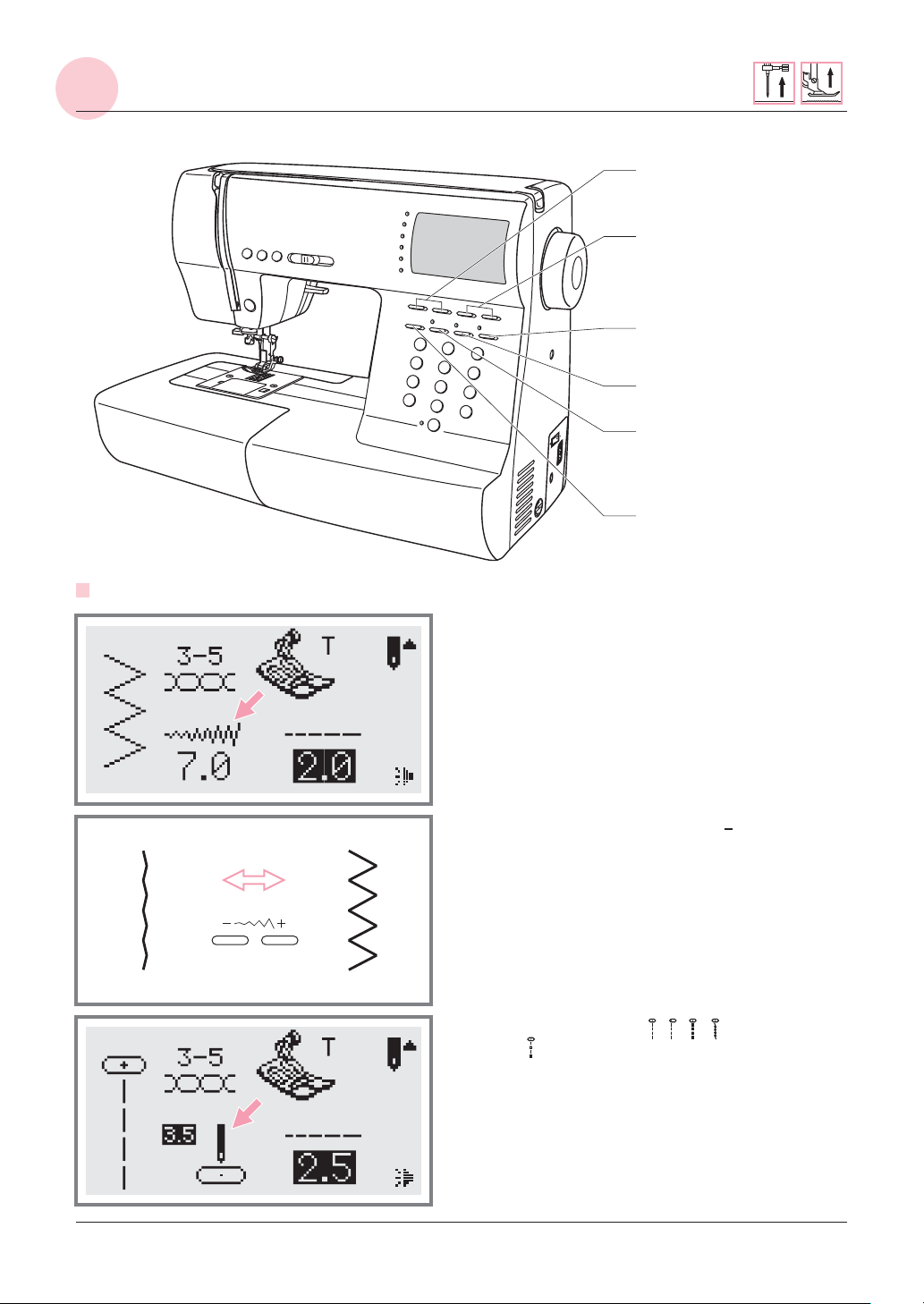

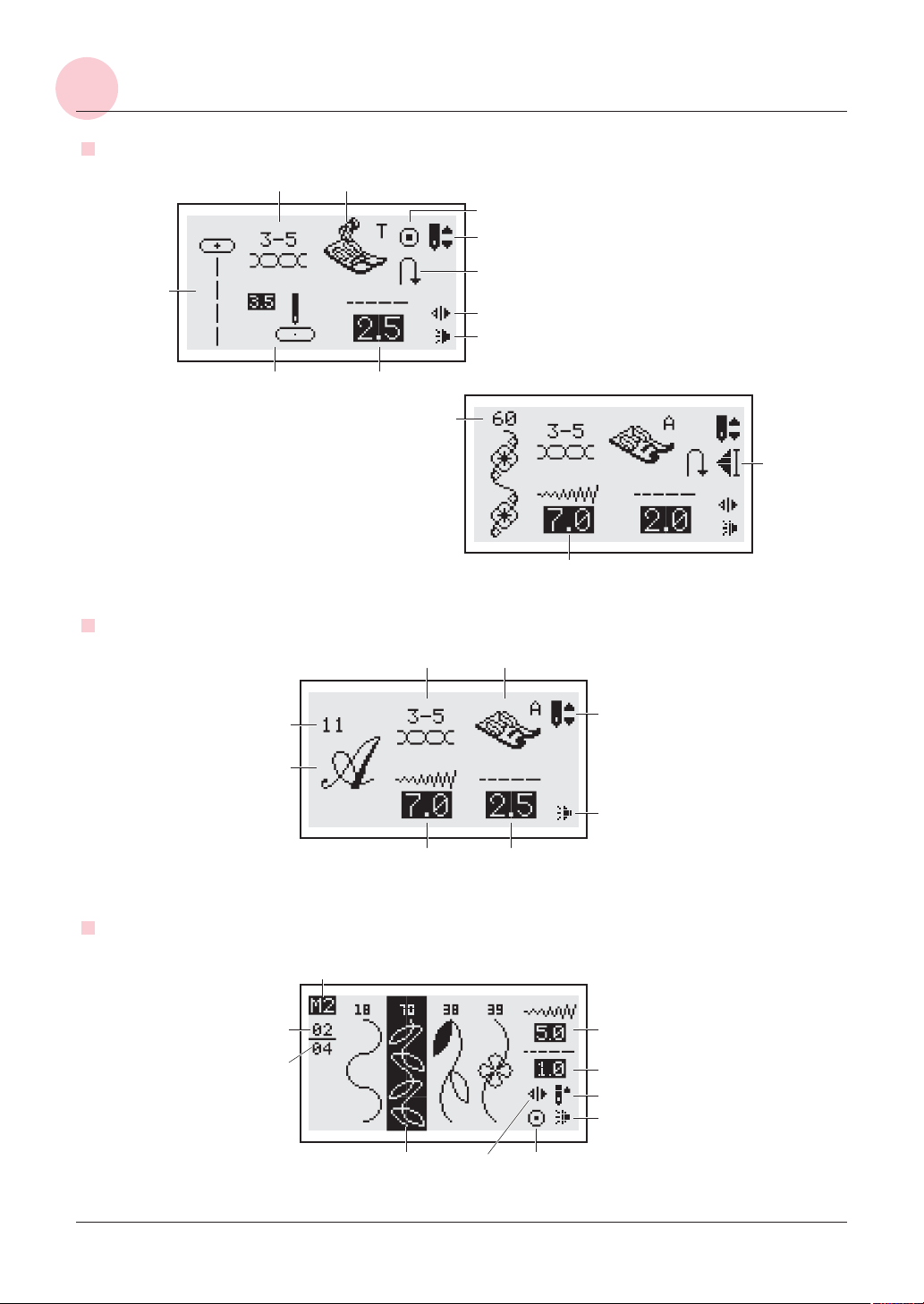

LCD SCREEN

Pattern

Needle position Stitch length

Tension

Suggested presser foot and identification letter

Auto-lock

Needle up/down position

Reverse

Mirror Sound on/off

Pattern number

Auto-stop

Stitch width

Alphabet

Alphabet number

Pattern

Memory

Number of current unit

Total number of unit

Stitch width

Memory group

Tension

Suggested presser foot and identification letter

Needle up/down position

Sound on/off

Stitch length

Stitch width

Stitch length Needle up/down position

Sound on/off

Pattern

to edit

Mirror

4

Auto-lock

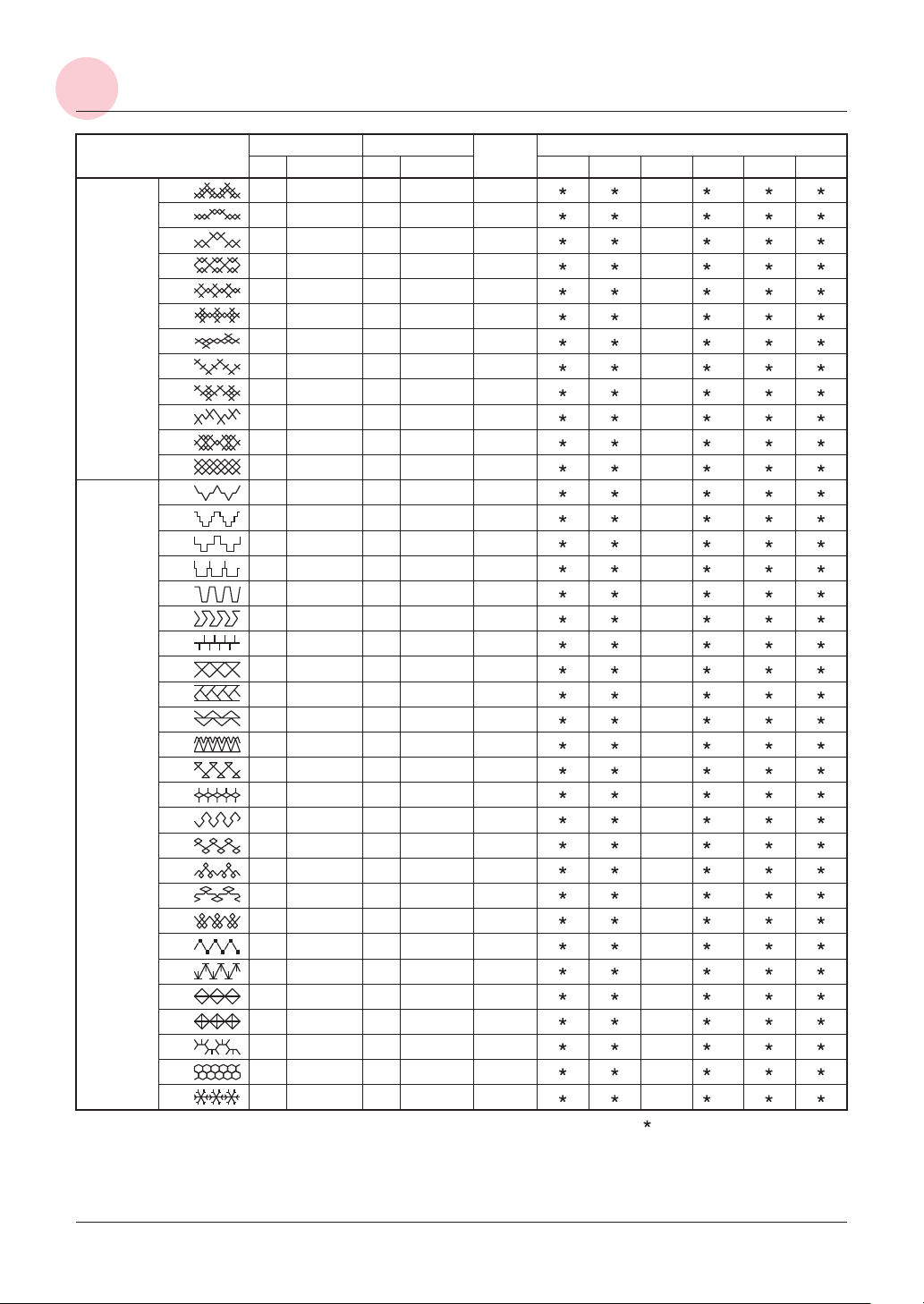

PATTERN CHART

The portion marked in purple on the chart shows the one unit of each pattern.below

Patterns

Direct Patterns-12

12345678 9 C0 M

A Group Patterns-100

01

20

40

41 42 49

60

61 62 63 64 66 67 68 69 70

03

23

2221

43

83

25 26

24

45

44

65

84 85 86 88 89 9187 90

46

07 08

28

27

47

48

111512

30 31 32 33 34 36 3735 38 39

29

50

51

71

13

14

52 53 54

73

93

74

94 95 96 97 98 999280 81 82

72

1618

17

57

56

55

75

76 77 78 79

58

1900 02 04 05 06 09 10

59

B Group Patterns-100

01

20

03

23

2221

24

25 26

07 08

28

27

111512

30 31 32 33 34 36 3735 38 39

29

13

14

1618

17

5

1900 02 04 05 06 09 10

PATTERN CHART

40

41 42 49

43

44

45

46

47

48

50

52 53 54

51

55

56

57

58

59

60

61 62 63 64 66 67 68 69 70

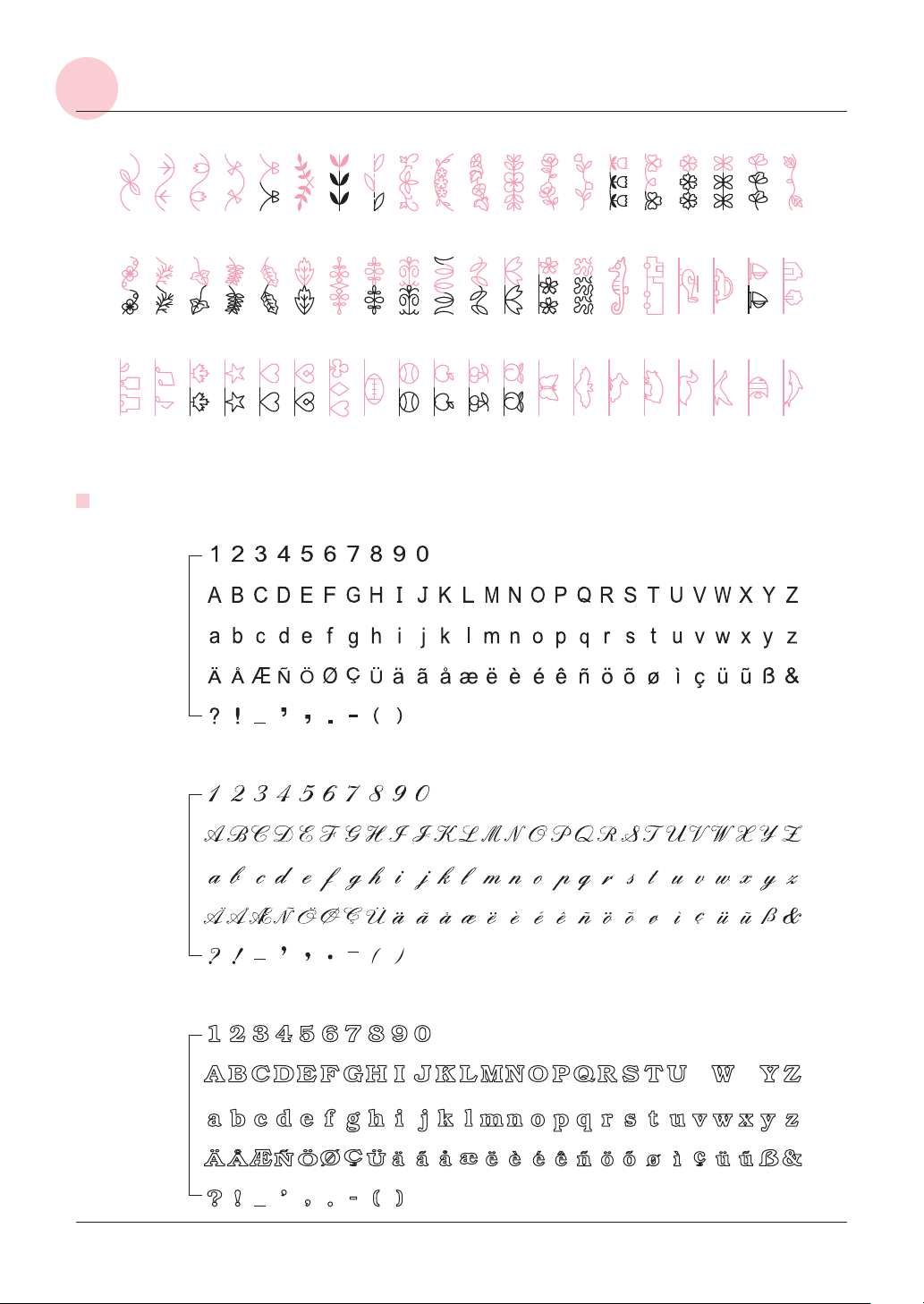

Alphabets

Block style

65

83

84 85 86 88 89 9187 90

01 020304 05 06 07 08 09 10

11 121314

37 38 39

63 64 65

90 91

89

151617181920

41 42

67 68

93 94

43

44

69

70

95

96

40

66

92

45

71

97

72

71

21 222324

464748 49 50 51 52

727374 75 76 77 78

25 262728 29

73

93

53

79

75

74

76 77 78 79

94 95 96 97 98 999280 81 82

30 31 32 33 34 35 36

56 57 58 59 60 61 62

55

54

82 83 84 85 86 87 88

81

80

Script style

Outline style

01 020304 05 06 07 08 09 10

11 121314

37 38 39

63 64 65

90 91

89

01 020304 05 06 07 08 09 10

11 121314

37 38 39

63 64 65

90 91

89

151617181920

40

66

92

40

66

92

43

41 42

67 68

93 94

151617181920

41 42

67 68

93 94

44

69

70

95

96

43

44

69

70

95

96

45

71

97

45

71

97

21 222324

464748 49 50 51 52

727374 75 76 77 78

21 222324

464748 49 50 51 52

727374 75 76 77 78

25 262728 29

6

30 31 32 33 34 35 36

56 57 58 59 60 61 62

55

54

53

82 83 84 85 86 87 88

81

80

79

30 31 32 33 34 35 36

V

X

56 57 58 59 60 61 62

55

54

53

82 83 84 85 86 87 88

81

80

79

ACCESSORIES

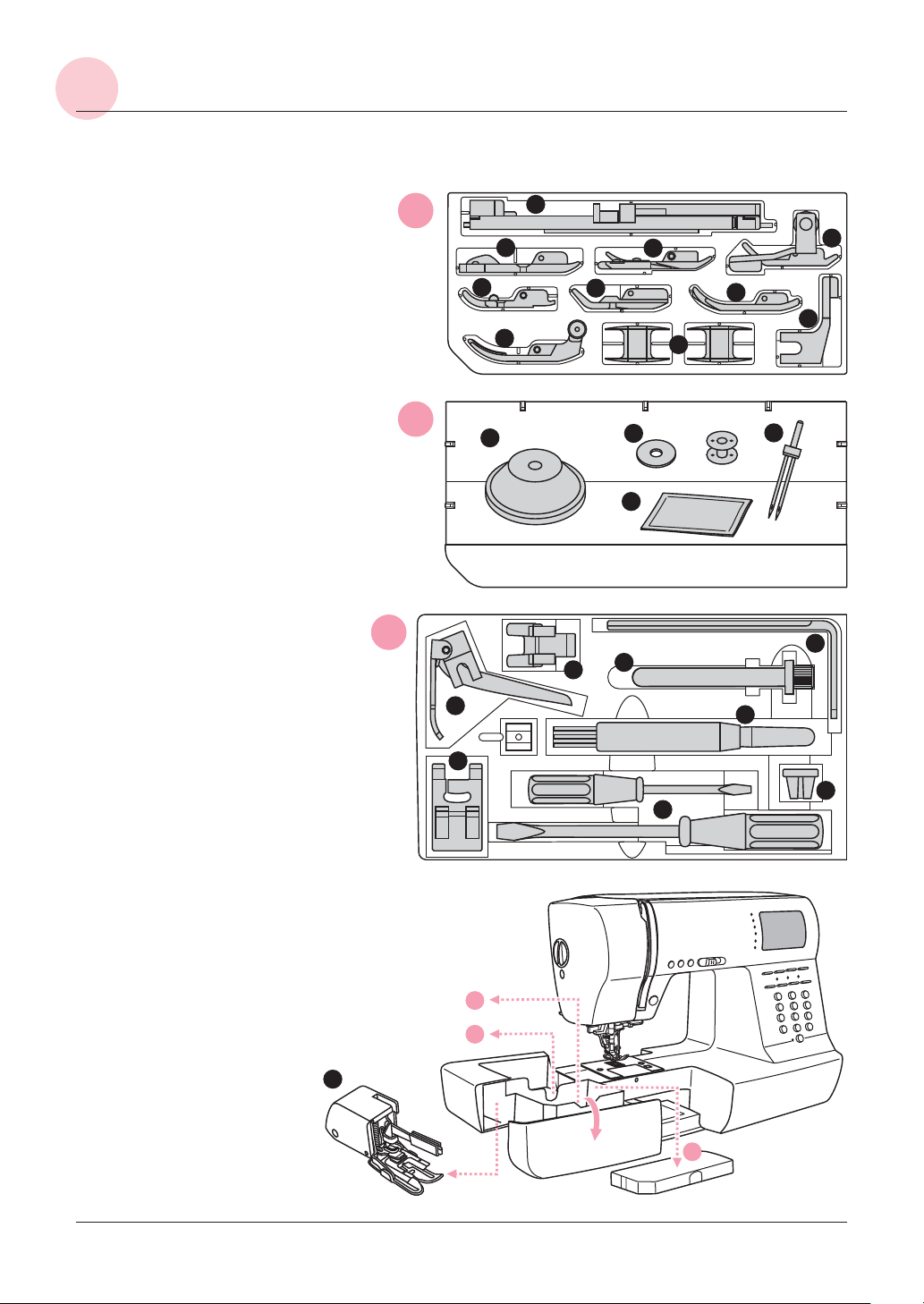

Following the directions of the arrows, you can see the three accessory storage spaces (a), (b), (c).

Standard accessories

1. All purpose foot (T)-

2. Zipper foot (I)-

3. Buttonhole foot (D) -

4. Cording foot (M) -

5. Overcasting foot (E) -

6. Blind hem foot (F) -

7. Hemmer foot (K) -

8. Satin stitch foot (A) -

9. Quilting foot (P) -

006186008

006905008

006102008

006813008

006907008

006904008

006900008

006172008

006916008

10.Darning/ Embroidery foot -

11.Gathering foot -

12.Button sewing foot -

13.Brush/ Seam ripper -

14.Spool holder (Large) -

15.Spool holder (Small) -

16.Seam guide -

006917008

006914008

006099008

R12373210

TA10943209

006008001

006016008

c

a

b

10

3

7

4

1

14

8

2

12

21

19

20

5

9

17

22

13

18

6

11

16

15

17.Bobbin(3x) -

006084009

18.Screwdriver (L & S) -

19.Pack of needle -

20.Spool pin felt -

21.Second spool pin -

22.Twin needle -

23.Walking foot -

006014148

006015009

R60033210

006020008

006185008

006012008

b

c

23

a

7

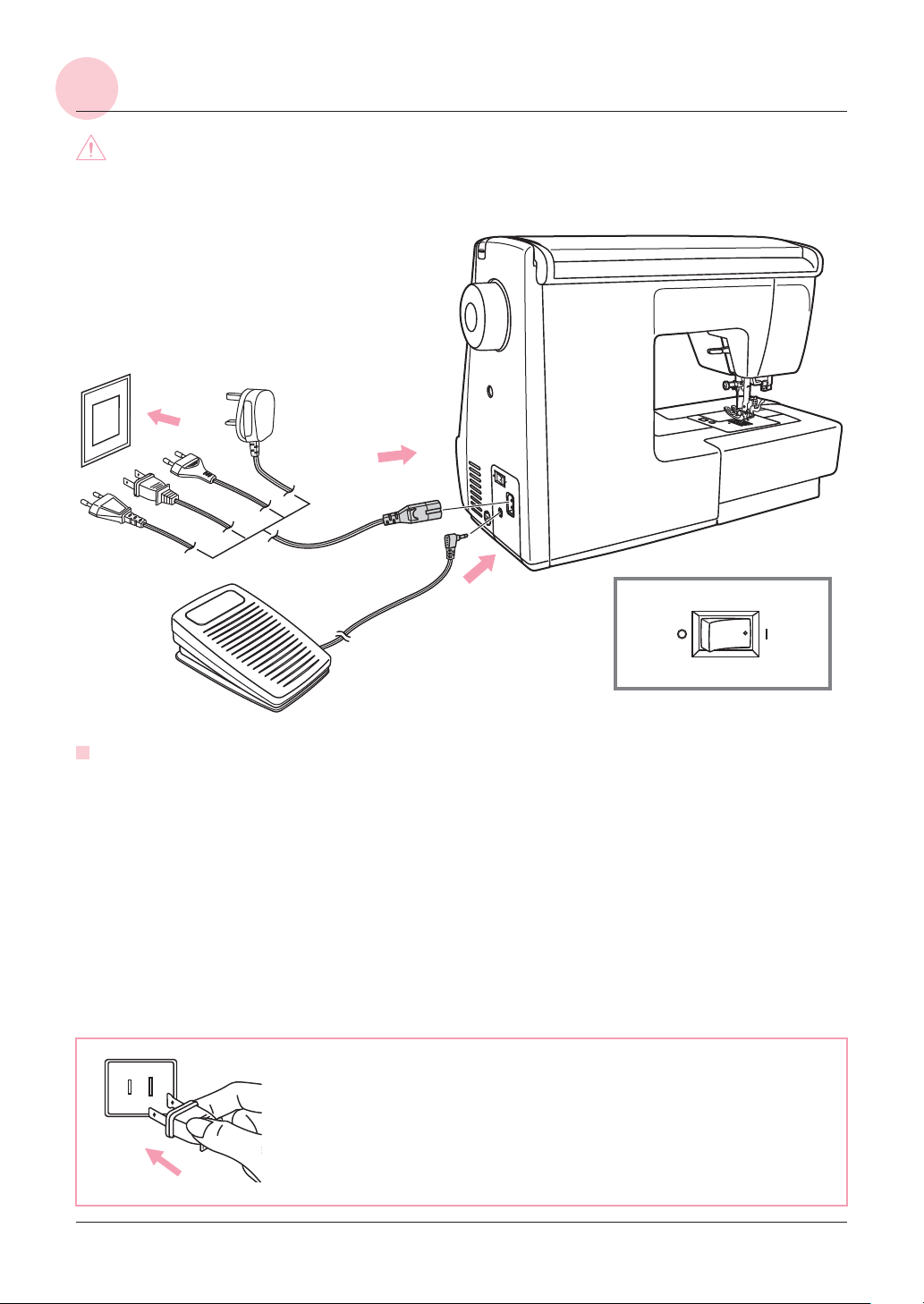

CONNECTING THE MACHINE TO THE POWER SOURCE

Caution: Always make sure that the machine is unplugged from the power source and the main switch is on "O". when the machine is not in use and before inserting or removing parts.

ONOFF

Connecting the machine

Before connecting the power supply, make sure that the voltage and the frequency shown on the machine is conforming with your electrical power.

Place the machine on a stable table.

1. Connect the power line cord to the machine by inserting the 2-hole plug into the terminal box.

2. Connect the power line plug to the electric outlet.

3. Turn on the power switch.

4. The sewing lamp will light up when the switch is turned on.

To disconnect, turn the power switch to the off position, then remove the plug from outlet.

Polarized plug information

This appliance has a polarized plug (one blade wider than the other), to reduce the risk of electrical shock; this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

8

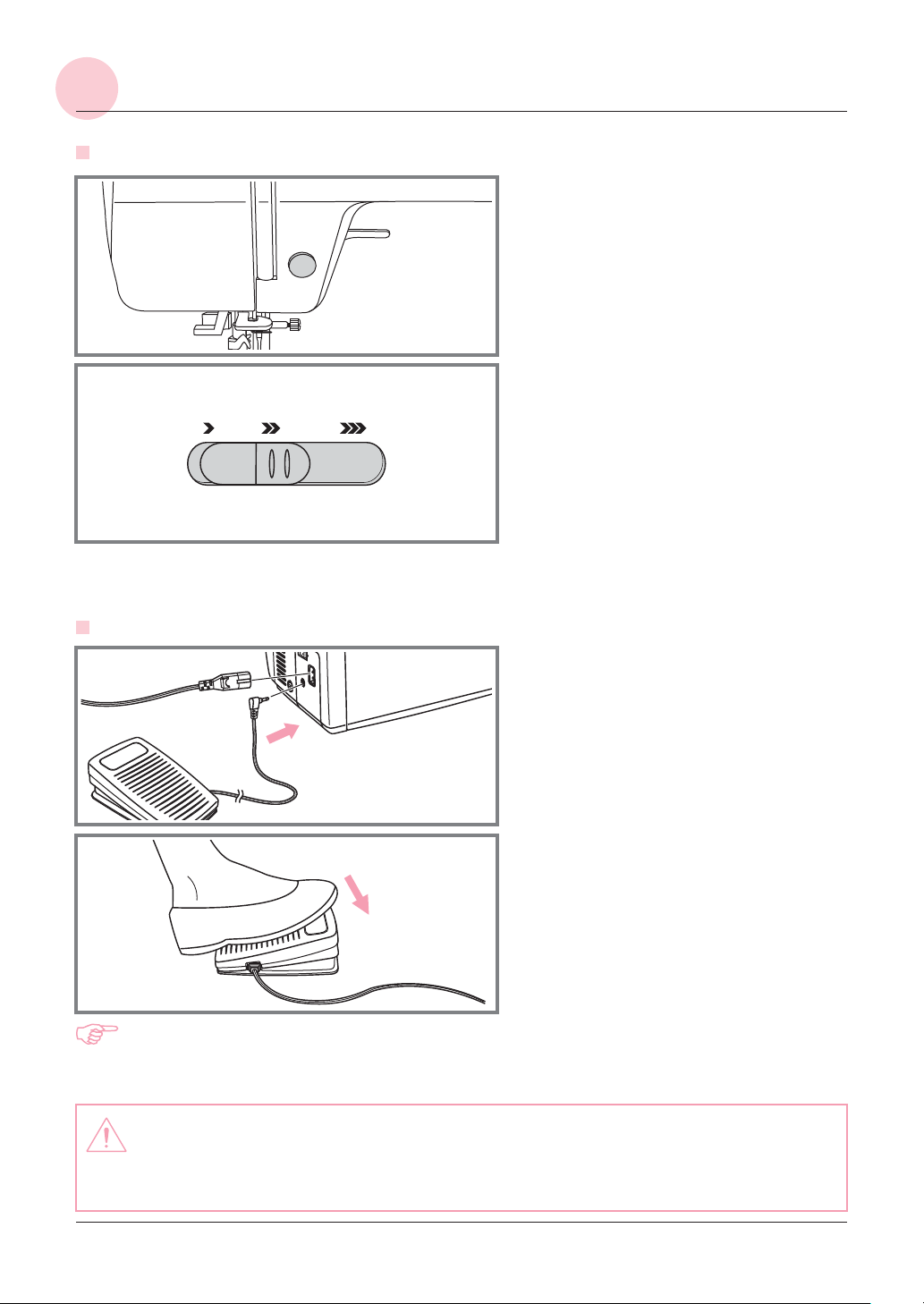

STARTING SEWING

Start/stop button

The machine will start running when Start/stop button is pressed and will stop when pressed the second time.

The machine will rotate slowly at the beginning of the sewing.

The speed limiting adjustment lever can control the sewing speed. To increases the speed, slide the lever to the right , To decrease the sewing speed, slide the lever to the left.

Foot control

With the sewing machine turned off, insert the foot control plug into its connector on the sewing machine.

Turn on the sewing machine, and then slowly depress the foot control to start sewing.

Release the foot control to stop the sewing machine.

Please Note: The setting of the speed limiting adjustment lever will limit the maximum speed of the machine.

Attention: Consult a qualified electrician if in doubt as how to connect the machine to the power source. Unplug the power cord when the machine is not in use.

The appliance must be used with the foot controller C-9000 manufactured by CHIEN HUNG TAIWAN., LTD.

9

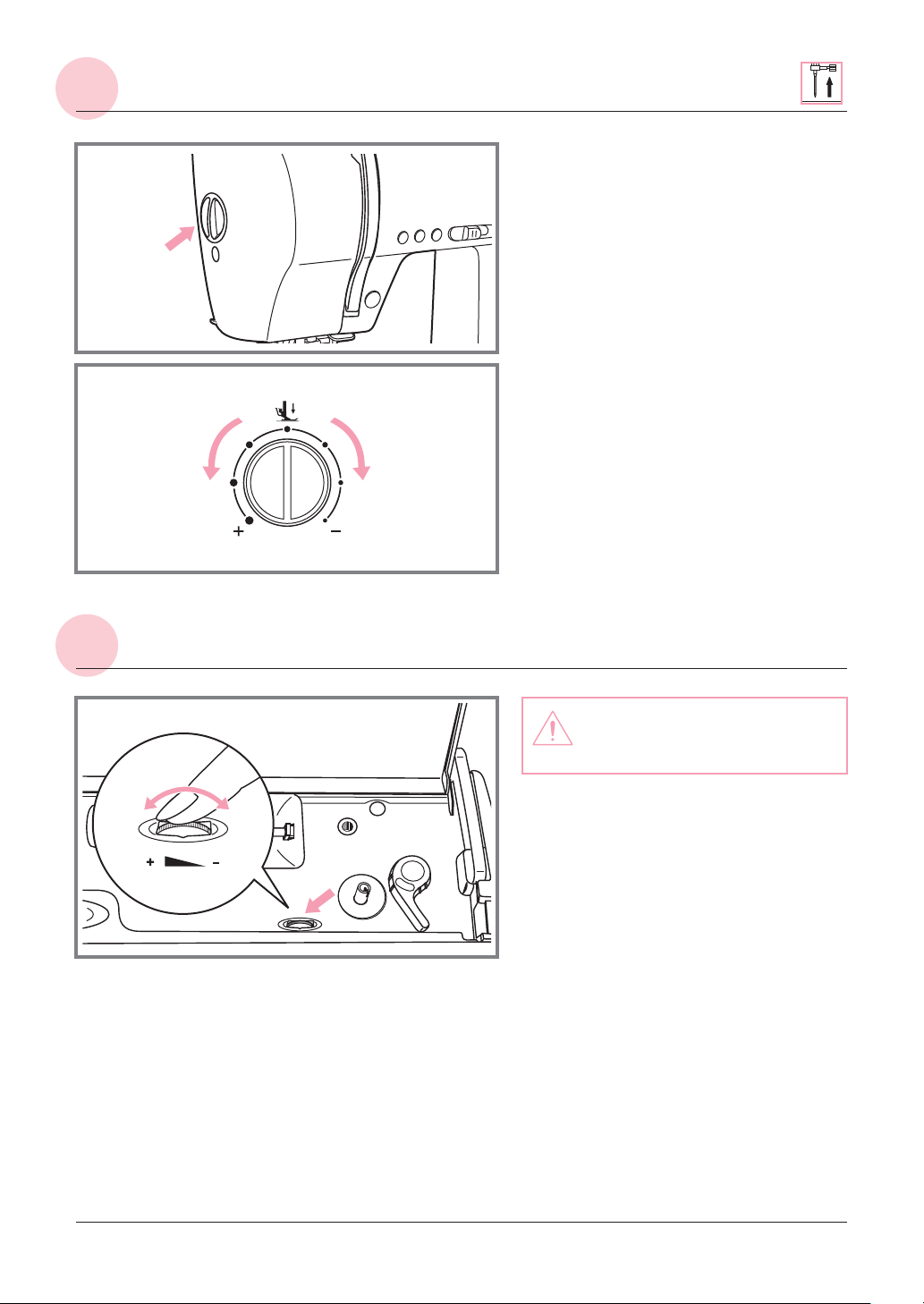

ADJUSTING THE PRESSER FOOT PRESSURE

The presser foot pressure dial is on the left of the face plate.

The presser foot pressure of the machine has been pre-set and requires no particular readjustment according to the type of fabric.

For sewing with very thin fabric, reduce the pressure by turning the knob clockwise, and for heavy fabric, increase the pressure by turning it counterclockwise.

LCD SCREEN BRIGHTNESS CONTROL

Attention: The LCD display control adjustment is only suitable for the voltage 120V/60Hz system.

The LCD screen brightness control dial in the upper inner cover. Use this to adjust the sharpness of the LCD .

If no indication is shown on the screen after switching on the power. adjust the LCD screen brightness with the dial.

LCD screen brightness : Turn the dial to the left direction.

LCD screen darkness : Turn the dial to the right direction.

screen

10

CHANGING THE PRESSER FOOT

e

a

b

d

c

f

e

b

a

CHANGING THE PRESSER FOOT

Attention: Turn power switch to off

"O"

( ) when carrying out any of the above operations!

1

3

REPLACING THE NEEDLE

2

4

Attaching the presser foot holder

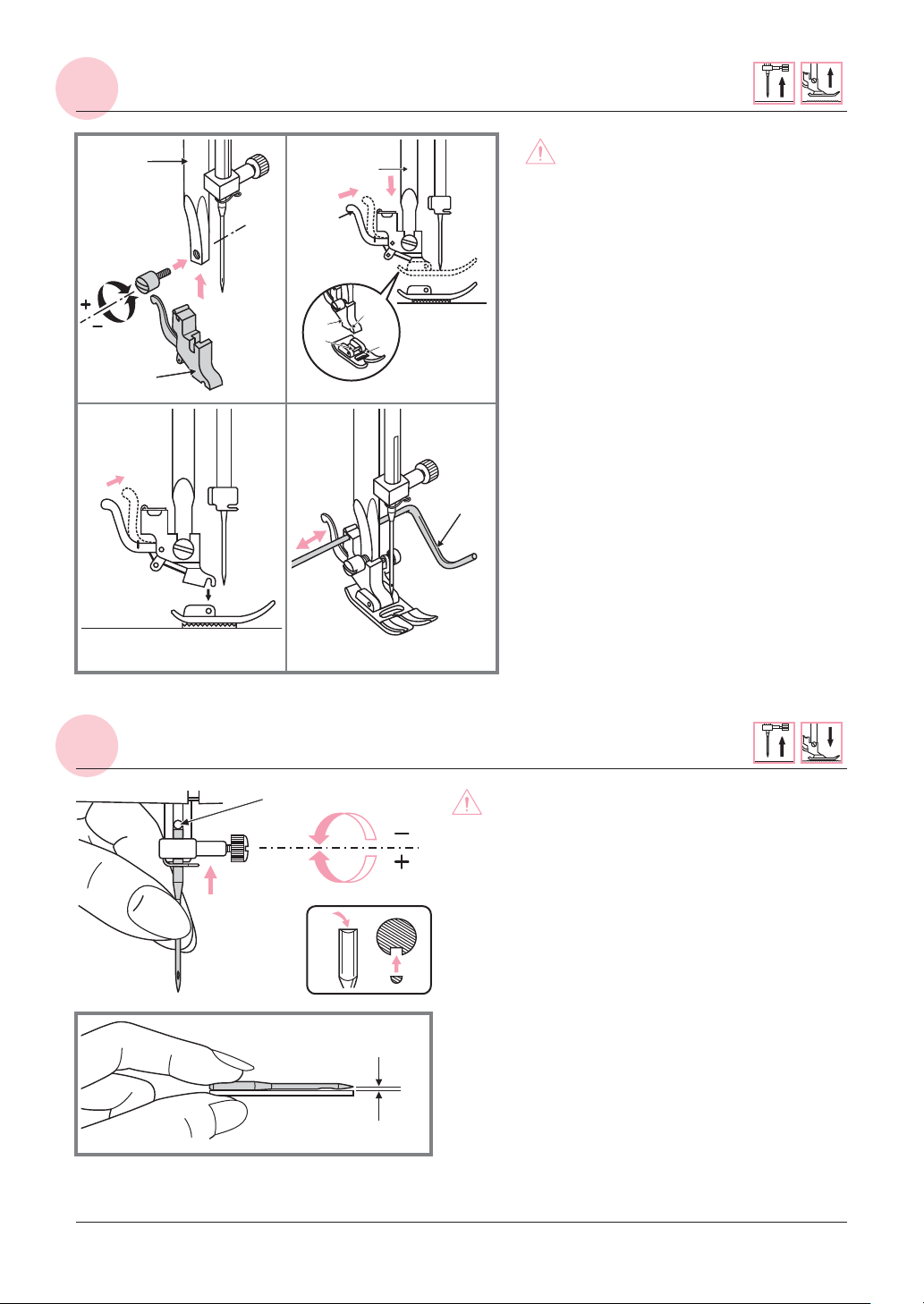

Raise the presser foot bar (a). Attach the presser foot holder (b) as illustrated.

Attaching the presser foot

Lower the presser foot holder (b) until the cut-out (c) is directly above the pin (d).

Raise the lever (e). Lower the presser foot holder (b) and the

presser foot (f) will engage automatically.

g

Removing the presser foot

Raise the presser foot.

Raise the lever (e) and the foot will disengages.

Attaching the seam guide

Attach the seam guide (g) in the slot as illustrated. Adjust according to need for hems, pleats, etc.

(2)

(3)

(4)

(1)

B

A

Attention: Turn power switch to off. ( when carrying out any of the above operations!

Change the needle regularly, especially if it is showing signs of wear and causing problems.

Insert the needle following the illustrated instructions.

A. Loosen the needle clamp screw and tighten

again after inserting the new needle. The flat side of the shaft should be towards the

back.

B. Insert the needle as far up as it will go.

Needles must be in perfect condition.

Problems can occur with:

- Bent needles

- Blunt needles

- Damaged points

11

"O")

MATCHING NEEDLE/ FABRIC/ THREAD

NEEDLE, FABRIC, THREAD SELECTION GUIDE

NEEDLE SIZE

9-11 (70-80) Lightweight fabrics-thin cottons,

voile, serge, silk, muslin, Qiana, interlocks, cotton knits, tricot, jerseys, crepes, woven polyester, shirt & blouse fabrics.

11-14 (80-90) Medium weight fabrics-cotton,

satin, kettleclote, sailcloth, double knits, lightweight woollens.

14 (90)

16 (100)

18 (110)

Medium weight fabrics-cotton duck, woolen, heavier knits, terrycloth, denims.

Heavyweight fabrics-canvas, woolens, outdoor tent and quilted fabrics, denims, upholstery material (light to medium).

Heavy woollens, overcoat fabrics, upholstery fabrics, some leathers and vinyls.

FABRICS THREAD

Light-duty thread in cotton, nylon, polyester or cotton wrapped polyester.

Most threads sold are medium size and suitable for these fabrics and needle sizes. Use polyester threads on synthetic materials and cotton on natural woven fabrics for best results. Always use the same thread on top and bottom.

Heavy duty thread, carpet thread.

Please Note:

- In general, fine threads and needles are used for sewing fine fabrics, and thicker threads are used for sewing heavy fabrics.

- Always test thread and needle size on a small piece of fabric which will be used for actual sewing.

- Use the same thread for needle and bobbin.

12

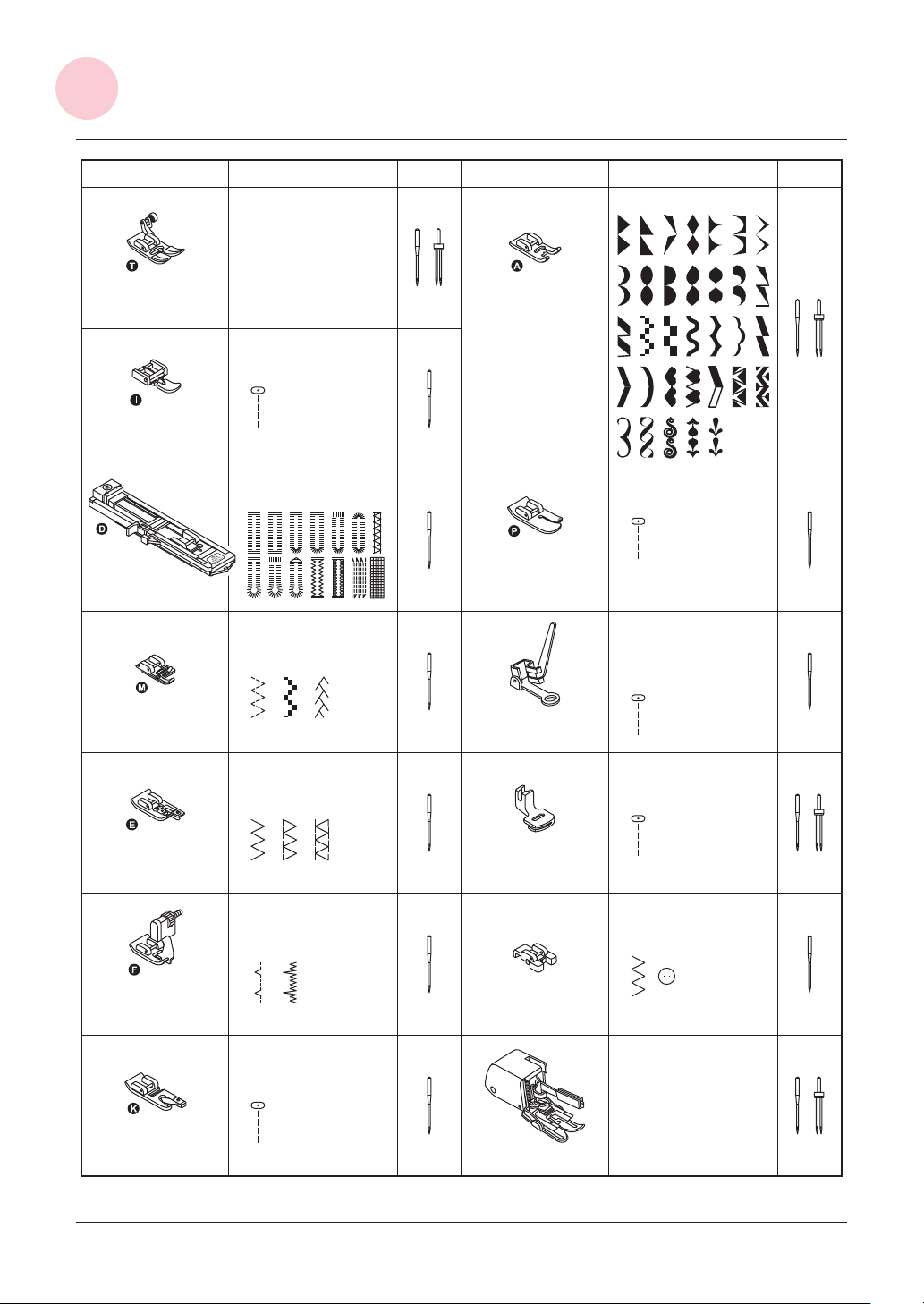

TYPE OF PRESSER FOOT CHART

TYPE OF PRESSER FOOT CHART (Double needle is being suggested for certain stitches for more creativity)

PRESSER FOOT

All purpose foot (T)

Zipper foot (I)

Buttonhole foot (D)

APPLICATION

General sewing, Patchwork stitches, Decorative stitching, Smocking, Fagoting, etc.

Inserting zippers

Buttonhole

Cording

NEEDLE NEEDLE

PRESSER FOOT

APPLICATION

Satin stitch

Satin stitch foot (A)

Quilting

Quilting foot (P)

Darning Free embroidery Monogramming

Cording foot (M)

Overcasting foot (E)

Blind hem foot (F)

Hemmer foot (K)

Overcasting

Blind hem

Narrow hemming

Darning/ Embroidery foot

Gathering

Gathering foot

Button sewing

Button sewing foot

This foot helps to prevent uneven feeding of very difficult fabrics

Walking foot

13

WINDING THE BOBBIN

4

3

5

4

1

4

11

WINDING THE BOBBIN

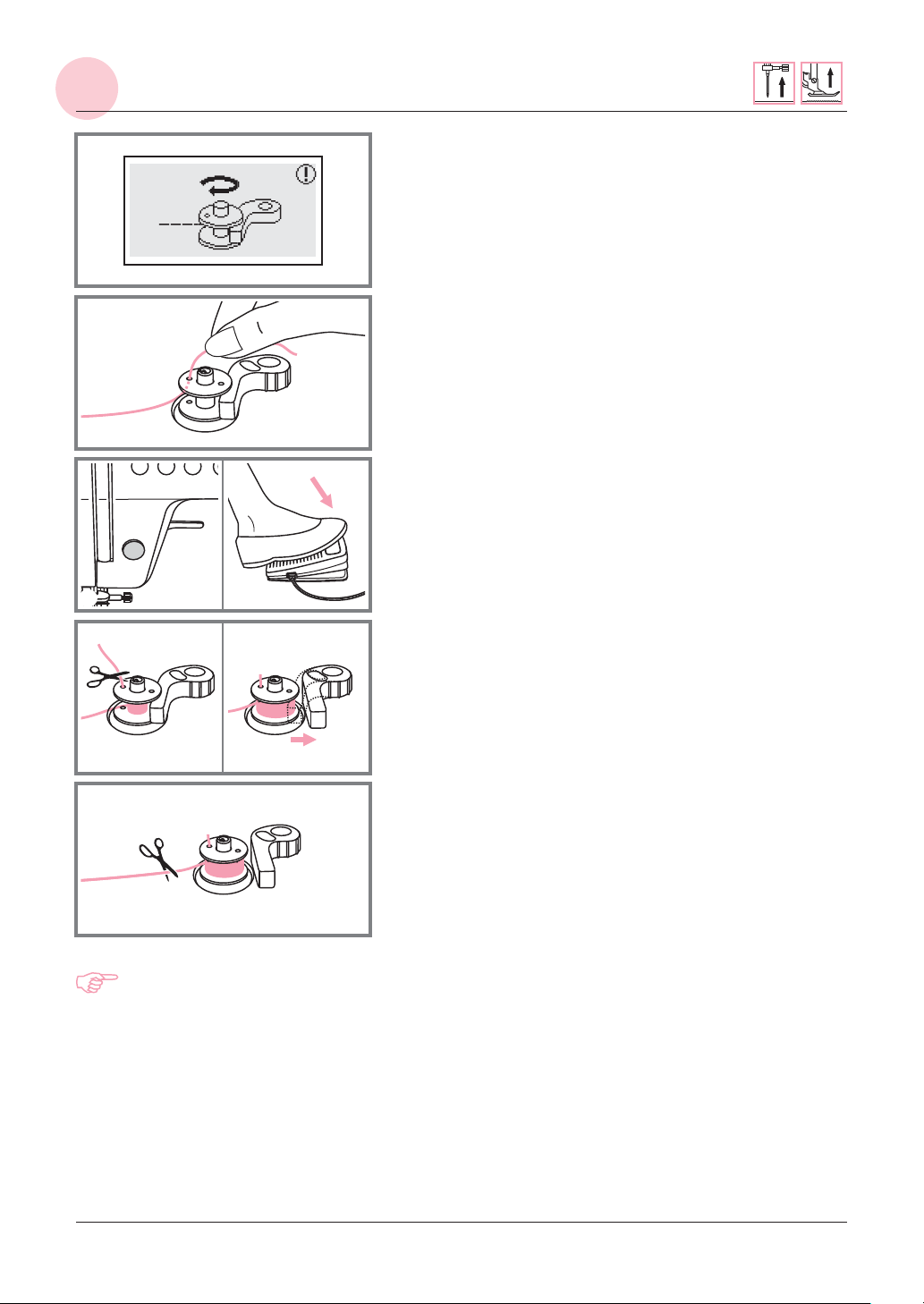

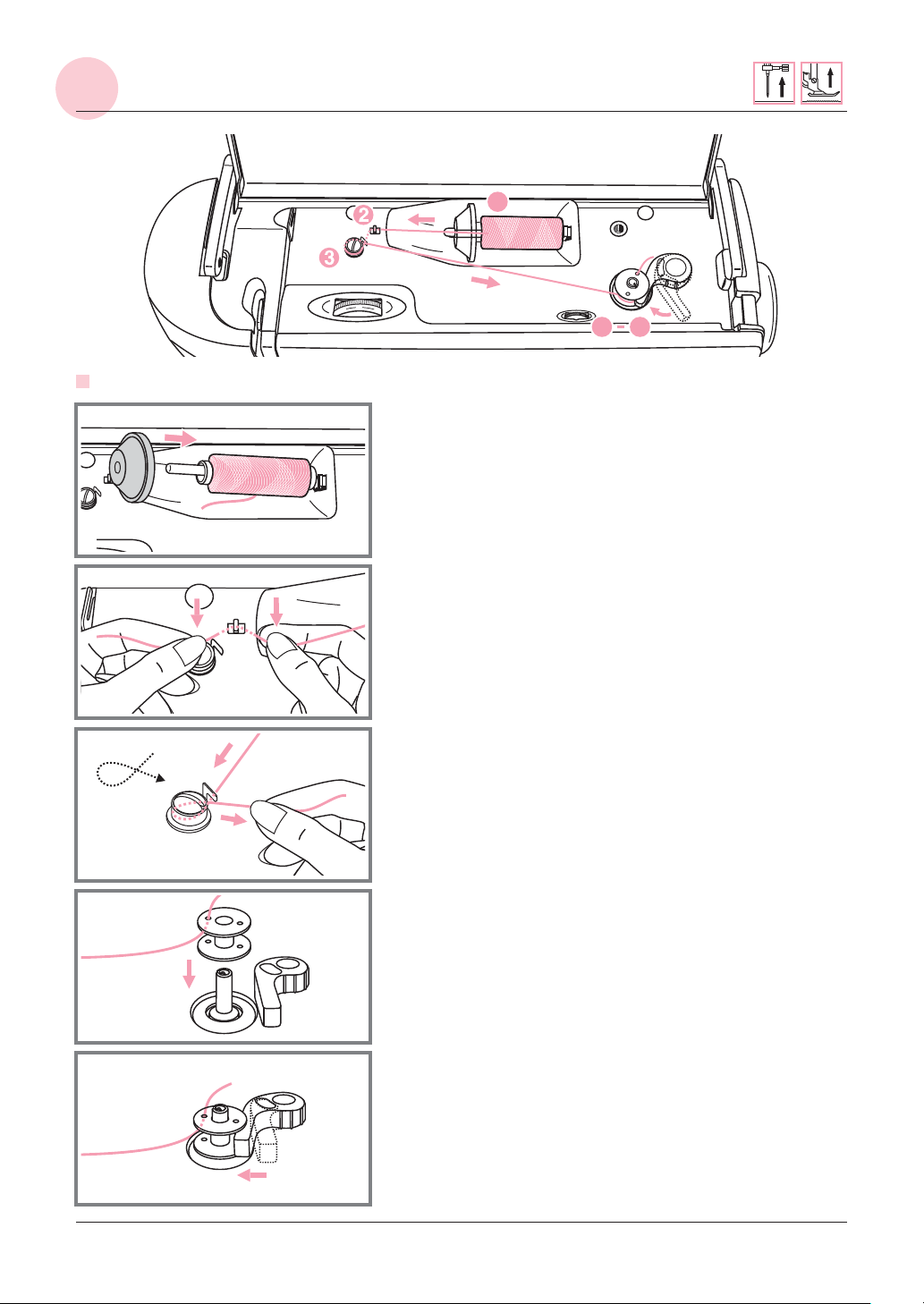

Bobbin winding

1

1. Place the thread and spool holder onto the spool pin. For smaller spools of thread, place the spool holder with the small side next to the spool or use the small spool holder.

2. Snap the thread into the thread guide (Located beneath the thread guide cover).

2

3. Wind the thread clockwise around the bobbin winder tension discs.

3

4. Place the thread end through one of the inner holes in the bobbin as illustrated and place the empty bobbin on the spindle.

4

5. Press the bobbin winder stopper against the bobbin.

5

14

WINDING THE BOBBIN

6

7

8

6. When the bobbin winder switch is pushed to the left, the LCD screen will display the animation of the bobbin winding. Push the engaging lever to the right, and the animation will disappear. The LCD screen will display the structure of ordinary operation.

7. Hold the thread tail securely in one hand.

8. Press the Start/stop button or the foot control.

9. After the bobbin has wound a few turns stop the machine and cut the thread near the hole of the bobbin. Set the speed to maximum. Continue filling the bobbin until it is full. The motor stops automatically when the bobbin is full.

9

10.Stop the machine, cut the thread and then remove the bobbin.

10

Please Note: When the bobbin winder switch is placed on the left, "bobbin winding position", the machine will not sew and the handwheel will not turn. To start sewing, push the bobbin winder switch to the right "sewing position".

15

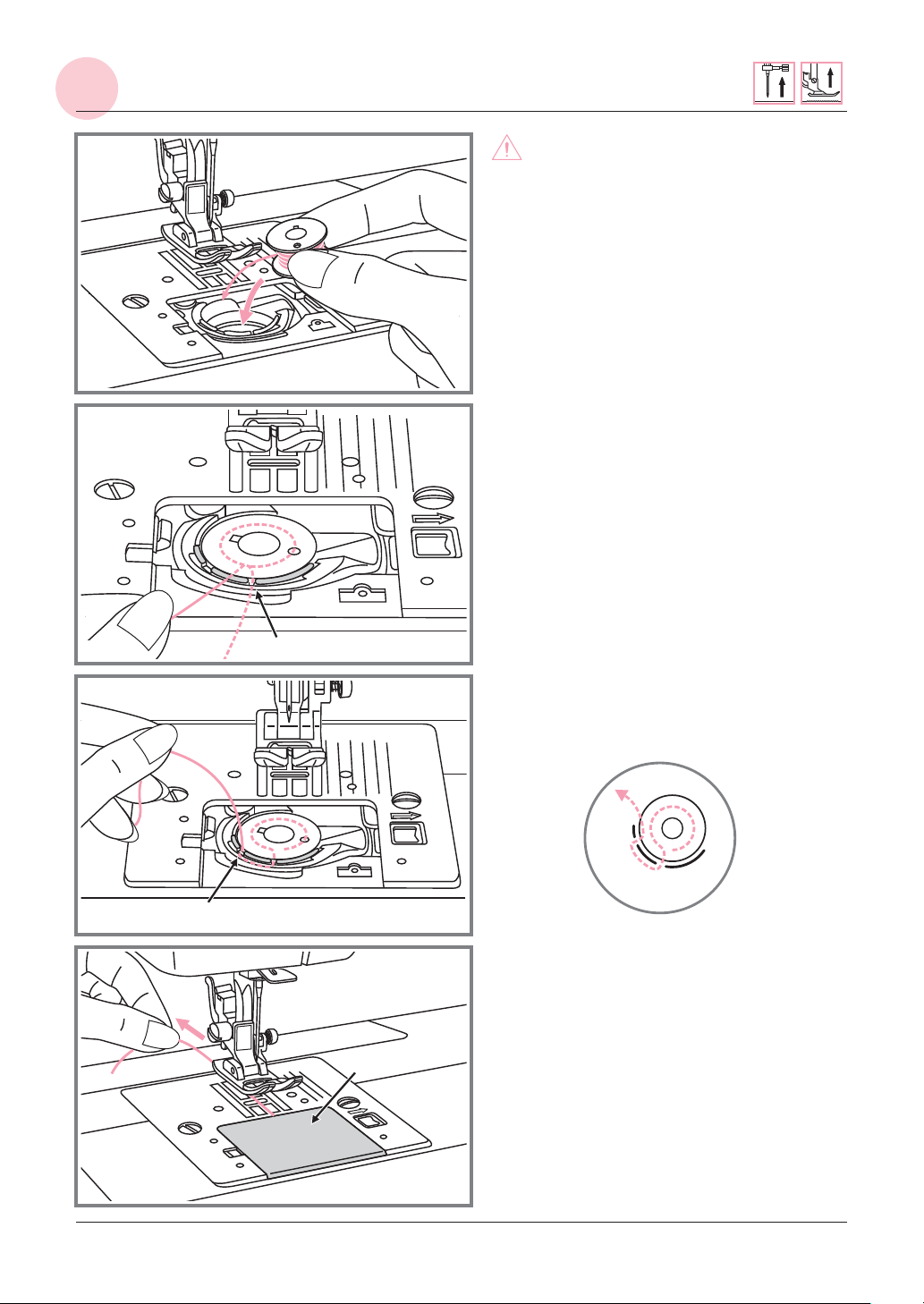

INSERTING THE BOBBIN

1

Attention: Turn power switch to off ("O") before inserting or removing the bobbin.

When inserting or removing the bobbin, the needle must be fully raised.

1. Insert the bobbin in the bobbin case with the thread running in a counterclockwise direction (arrow).

2. Pull the thread through the slit (A).

2

A

3. Pull the thread toward the left and along the inside of the spring until it slips into the notch (B) being sure that the thread does not slip out of the slit (A).

B

A

3

B

4. Pull out about 15 cm (6 inches) of thread and attach the bobbin cover plate. (C)

C

4

16

THREADING THE UPPER THREAD

4

THREADING THE UPPER THREAD

3

2

1

4

6

5

7

8

Please Note: It is important to carry out the threading correctly as by not doing so several sewing problems could result.

Start by raising the needle to its highest point, and also raise the presser foot to release the tension discs.

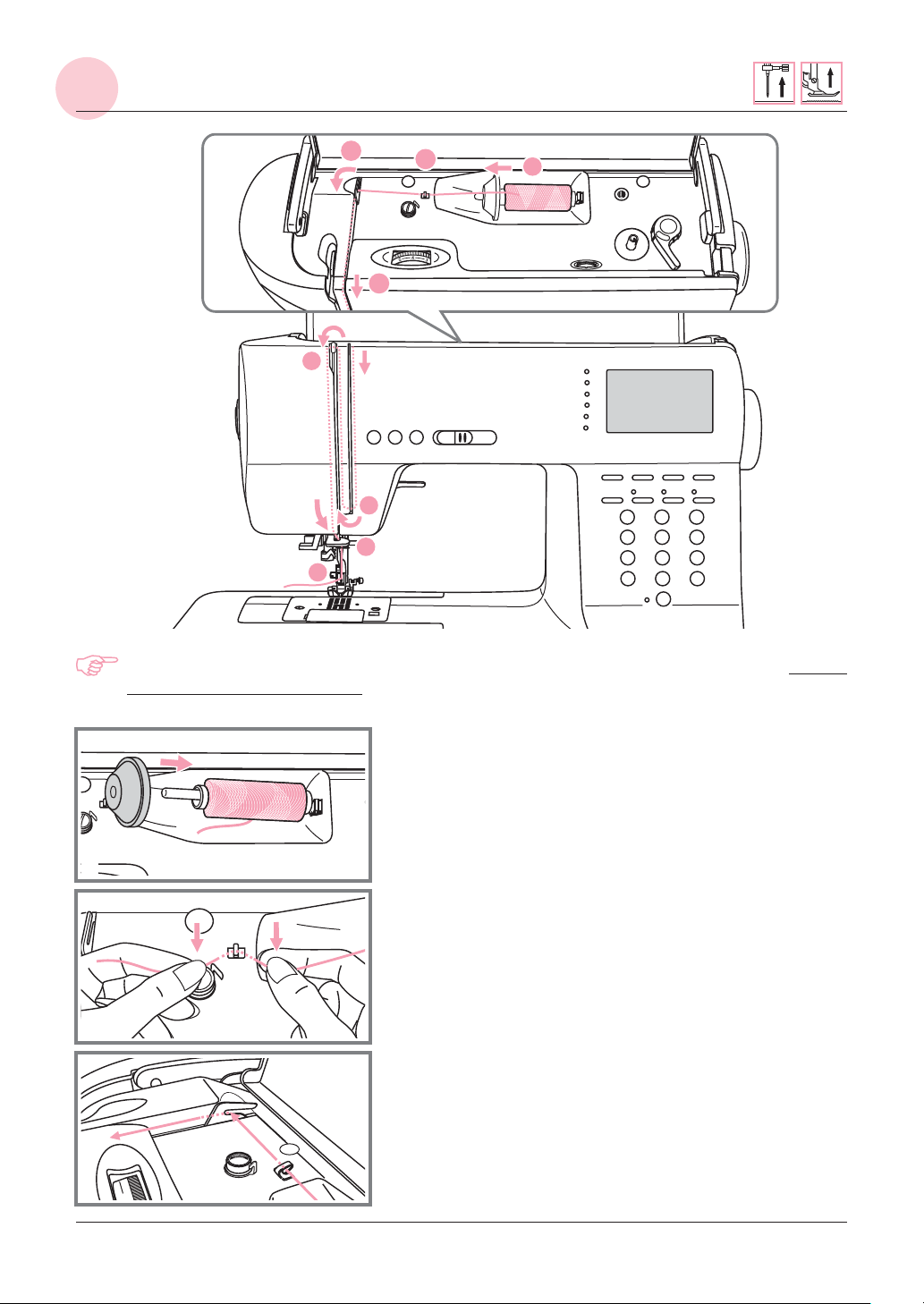

1. Lift up the spool pin. Place the spool of thread on the spool pin so that the thread comes from the front of the spool, then place the spool cap at the end of the spool pin.

1

2. Draw the thread from the spool through the upper thread guide.

2

3. Guide the thread around the thread guide pulling the thread through the pre-tension spring as illustrated.

3

17

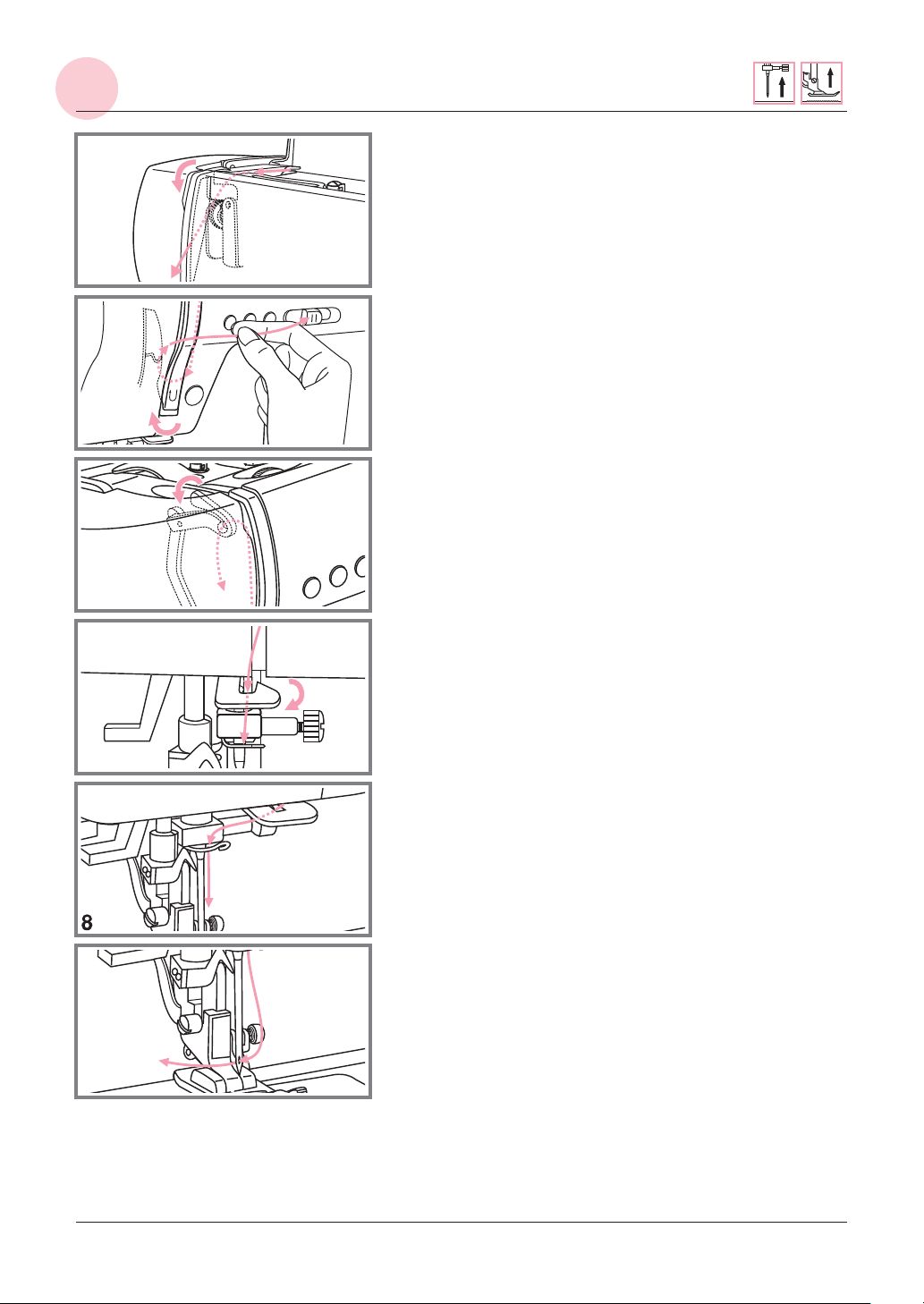

THREADING THE UPPER THREAD

4. Thread the tension module by passing the thread between the silver discs.

4

5. Then, down and around the check spring holder.

5

6. At the top of this movement, pass the thread from right to the left through the slotted eye of the take-up lever and then downwards again.

6

7. Pass the thread behind the flat, horizontal thread guide.

7

8. Guide the thread through the wire loop.

9. Pull the end of the thread through the needle from front to the rear, and pull out about 10 cm of thread.

Use the needle threader to thread the needle. (On the next page.)

9

18

USING THE NEEDLE THREADER

4

USING THE NEEDLE THREADER

1

Attention: Turn power switch to the off position ("O").

Raise the needle to its highest position and lower the presser foot.

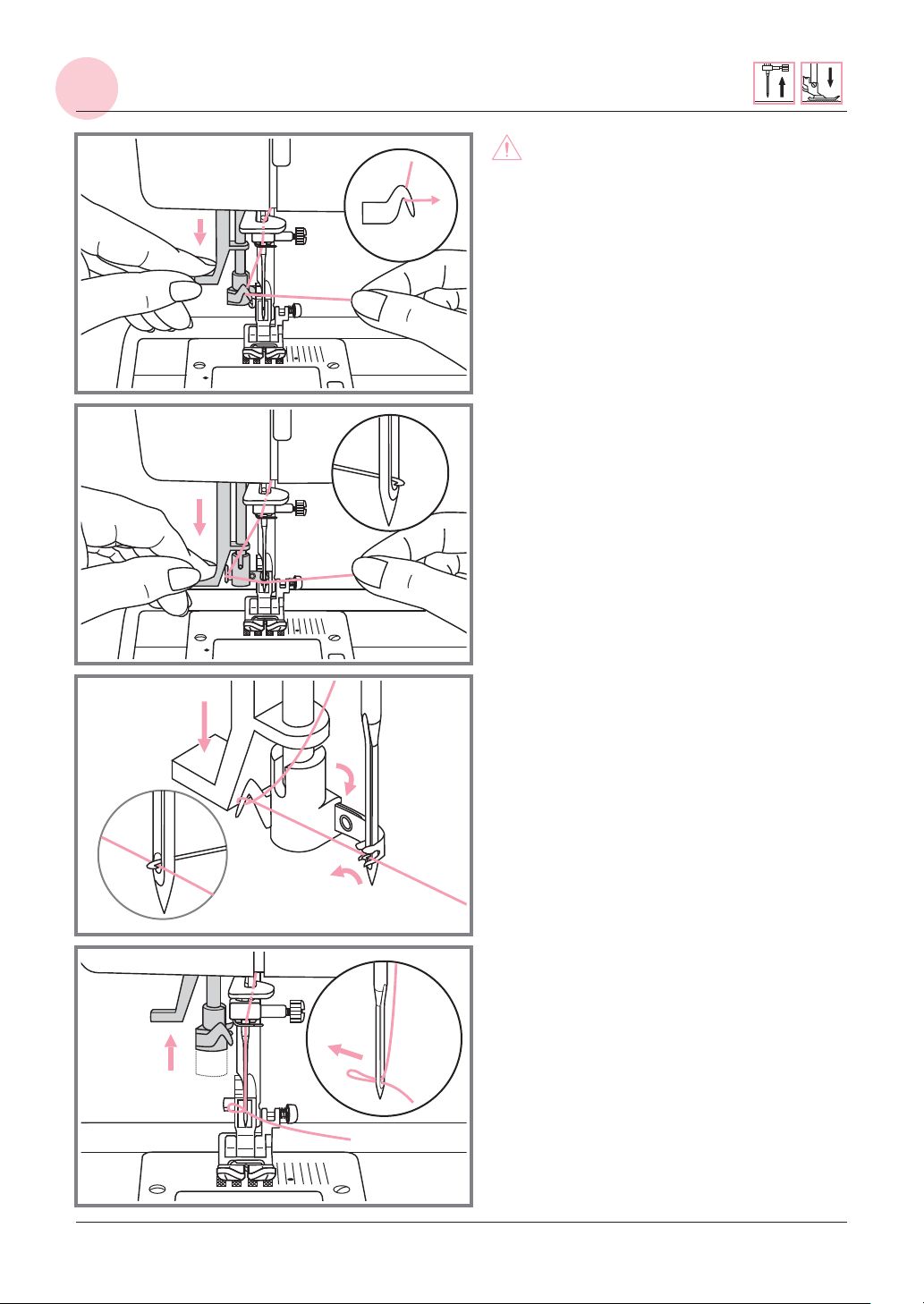

1. Lower the needle threader lever slowly and draw the thread through the thread guide as illustrated and then to the right.

2. The needle threader automatically turns to the threading position and the hook pin passes through the needle eye.

2

3. Take the thread in front of the needle.

3

4. Hold the thread loosely and release the lever slowly. The hook will turn and pass the thread through the needle eye forming a loop.

Pull the thread through the needle eye.

19

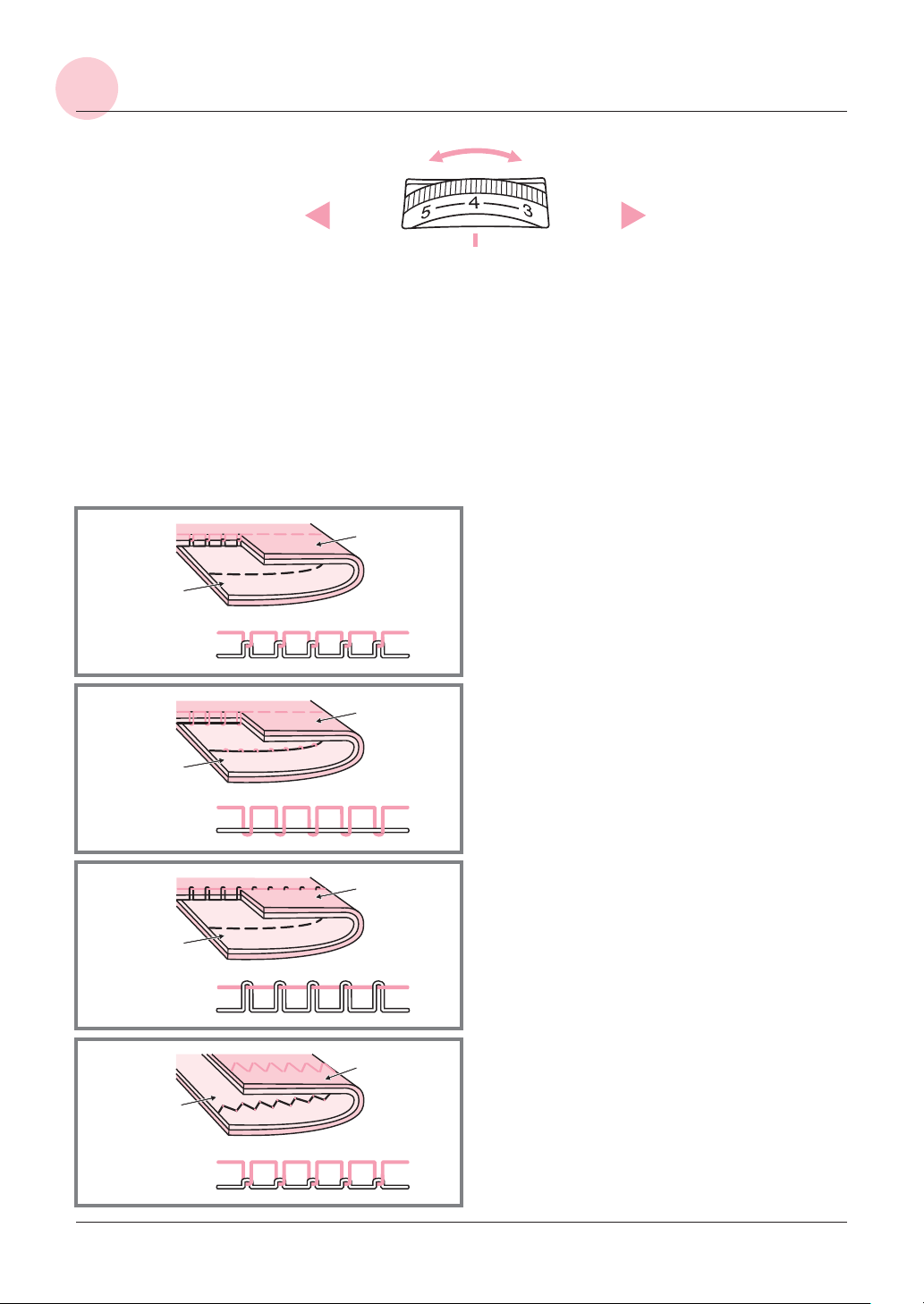

THREAD TENSION

TightLoose

- Basic thread tension setting: "4"

- To increase the tension, turn the dial to the next number up. To reduce the tension, turn the dial to the next number down.

- Proper setting of tension is important to good sewing.

- There is no single tension setting appropriate for all the stitch functions and fabrics.

- 90% of all sewing will be between "3" and "5" ("4" is basic setting).

- For all decorative sewing you will always obtain a nicer stitch and less fabric puckering when the upper thread appears on the bottom side of your fabric.

1

2

3

Reverse side

Upper thread

Bobbin thread

Reverse side

Upper thread

Bobbin thread

Reverse side

Upper thread

Bobbin thread

Surface

1.Normal thread tension for straight stitch sewing.

2. Thread tension is too loose for straight

stitch sewing. Turn dial to higher number.

3. Thread tension is too tight for straight stitch

sewing. Turn dial to lower number.

4

Reverse side

Upper thread

Bobbin thread

Surface

4. Normal thread tension for zig zag and

decorative sewing.

20

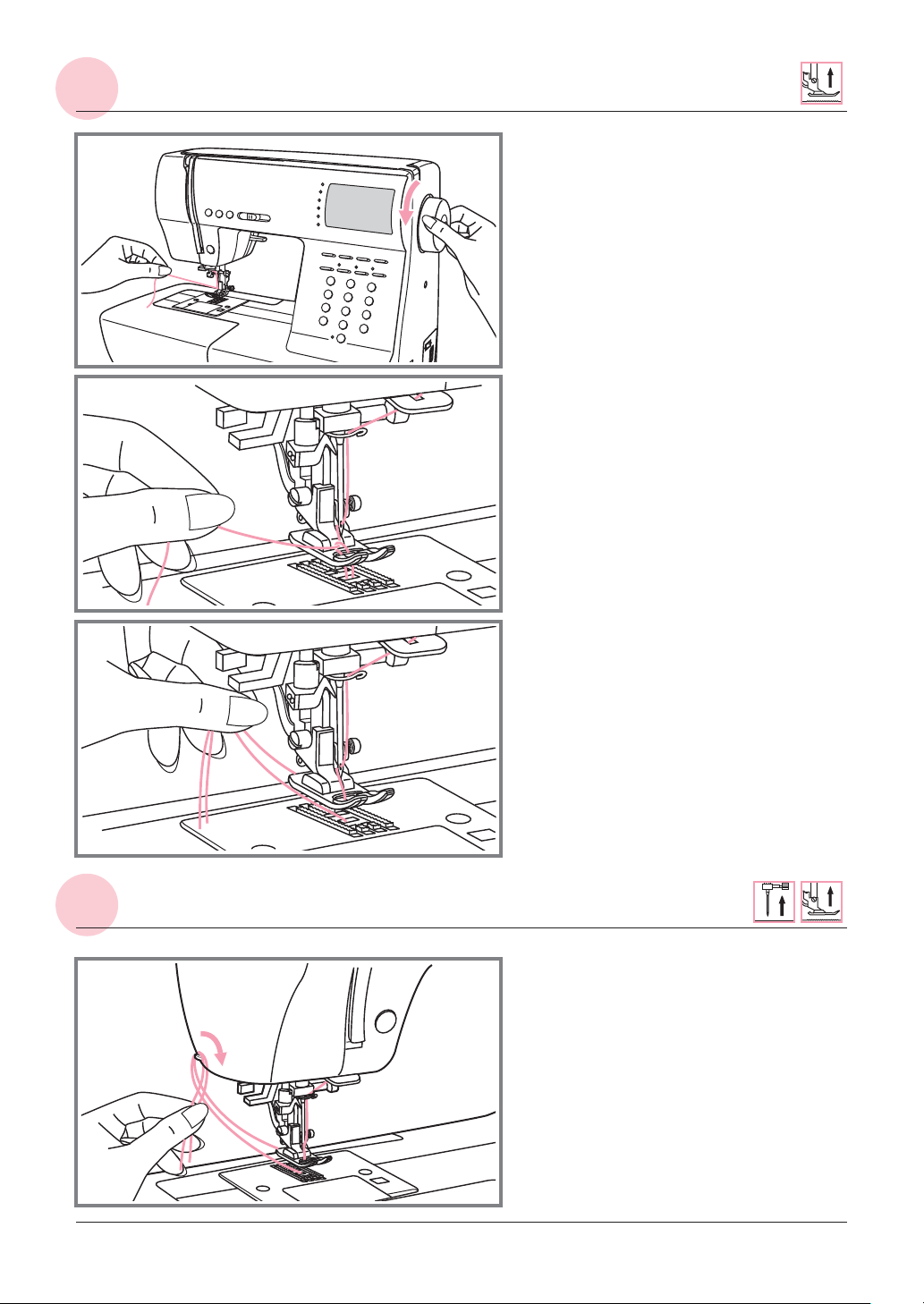

RAISING UP THE LOWER THREAD

1

2

1. Hold the upper thread with the left hand. Turn the handwheel towards you (counterclockwise) lowering, then raising the needle.

2. Gently pull on the upper thread to bring the bobbin thread up through the needle plate hole. The bobbin thread will come up in a loop.

3

CUTTING THE THREAD

3. Pull both threads to the back under the presser foot.

Raise the presser foot. Remove the fabric, draw the threads to the left side of the face cover and cut using the thread cutter.

The threads are cut at the proper length to start the next seam.

21

TWO-STEP PRESSER FOOT LIFTER

a

b

aa

1

TWO-STEP PRESSER FOOT LIFTER

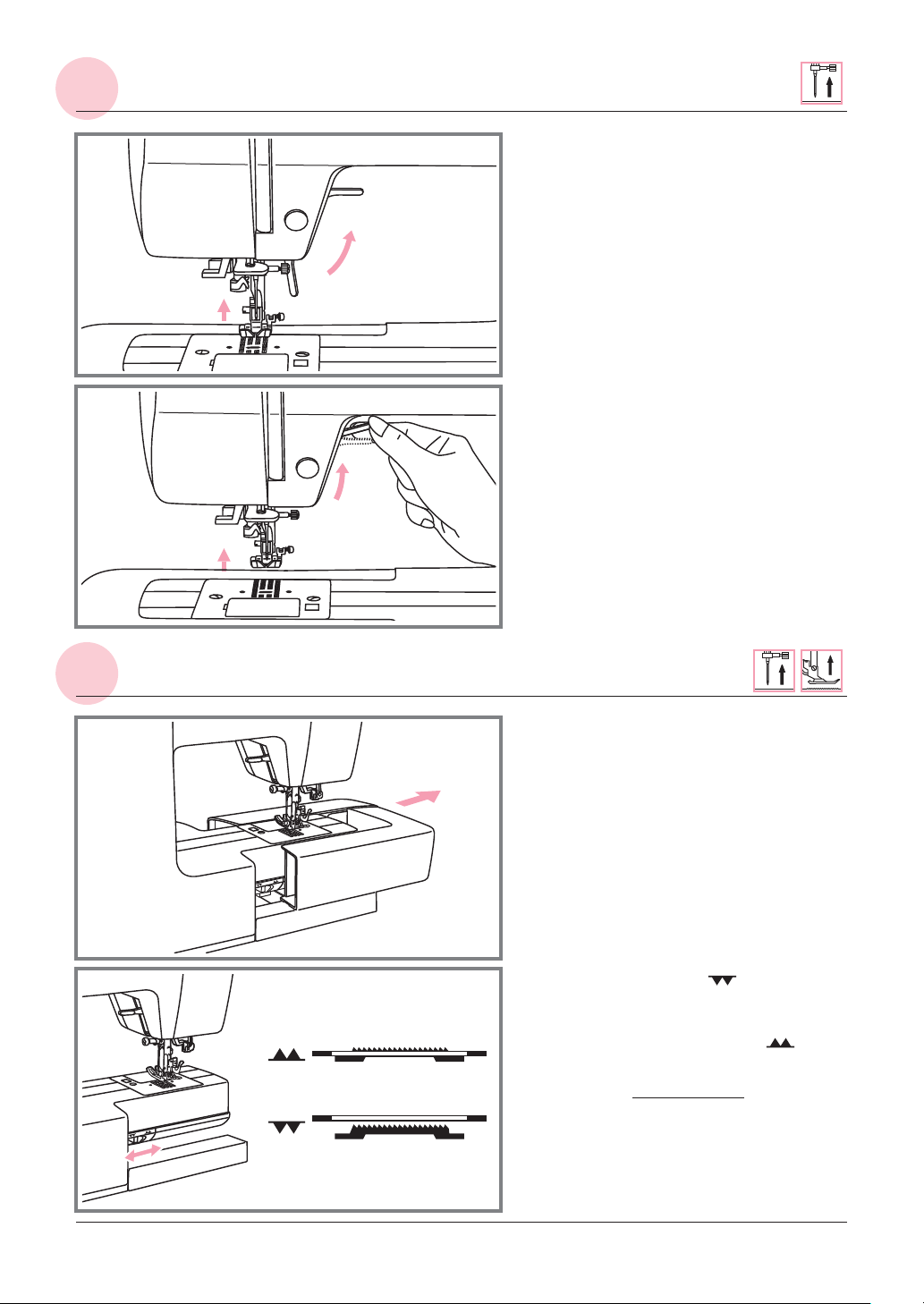

1. The presser foot lifter raises and lowers your presser foot.

2. When sewing several layers or thick fabrics, the presser foot can be raised a second stage for easy positioning of the work.

2

TO RAISE OR DROP THE FEED DOGS

With the sewing table off the machine, the feed dog adjustment lever can be located at the base of the free-arm in the back of the machine after the sewing table have been remove.

Sliding the lever to the " " (b) will lower the feed dog, for example during button sewing. If you wish to continue sewing normally, slide the lever to the " " (a) in order to raise the feed dogs.

The feed dog if you do not turn the handwheel, even if the lever is slid to the right. Make a complete turn to raise the feed dogs.

will not rise up

22

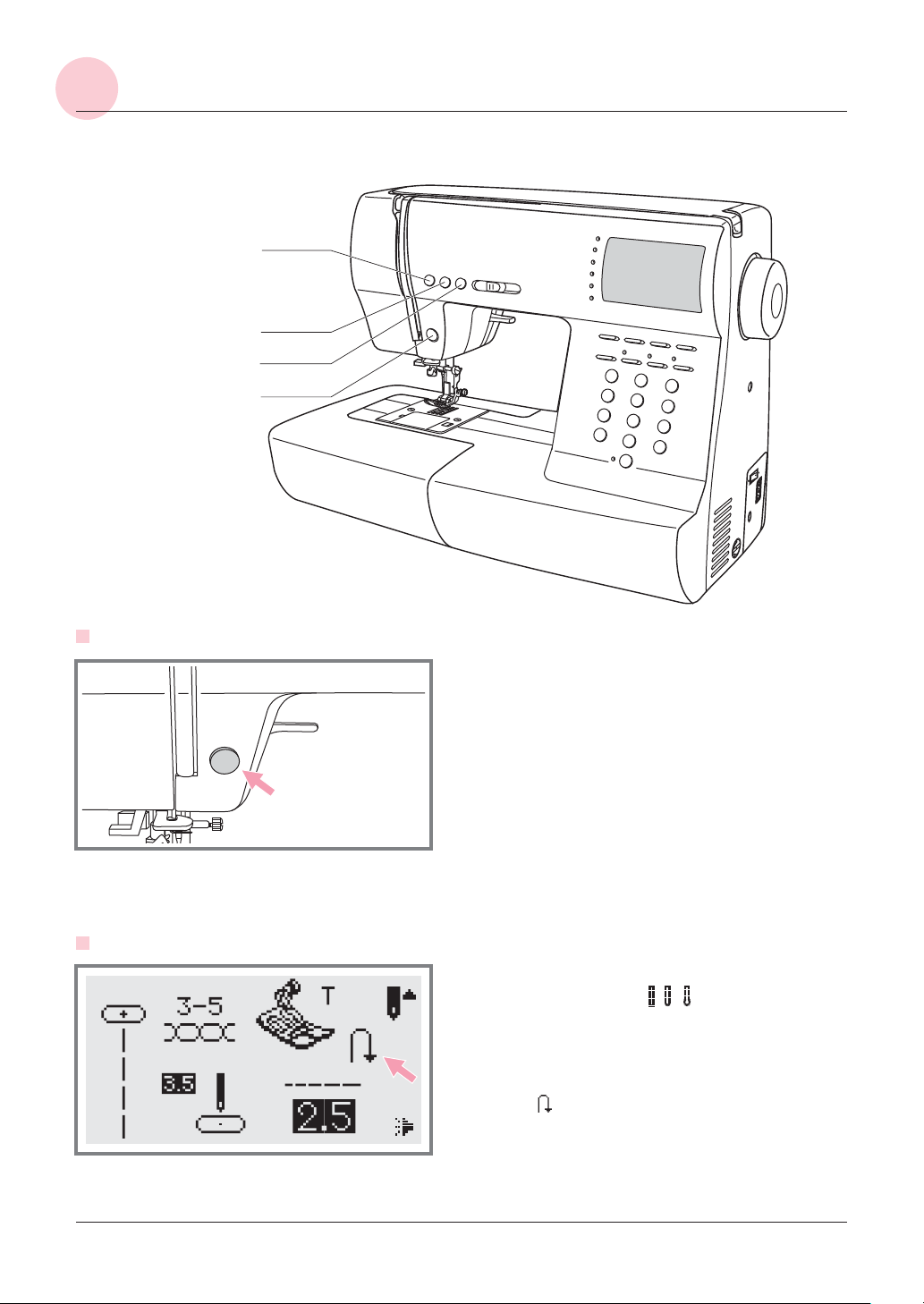

OPERATION BUTTONS

Needle up/down

position button

Auto-lock button

Reverse button

Start/stop button

Reverse button

The machine will start running when start/stop button is pressed and will stop when pressed the second time. The machine will rotate slowly at the beginning of the sewing.

The sewing speed can be controlled by the speed limiting adjustment lever.

The foot control must be disconnected to complete this operation.

Select one pattern (except A Group Patterns 1427 and Direct Patterns " , , "), the machine will sew in reverse or a reinforcement stitch at a low speed if the reverse button is pressed. The machine will sew forward after the button is released.

An arrow " " on the LCD screen display indicates reverse sewing.

23

OPERATION BUTTONS

Auto-lock button

When the Direct Patterns ",,,"andAGroup Pattern " " are selected, the machine will immediately sew 3 locking stitches when the Autolock button is pressed, then automatically stop.

The LCD screen will display the figure " " until the machine is stopped.

Select one pattern (except A Group Patterns 00, 14-27 and the Direct Patterns ",,,,,,"), press the Auto-lock button, the machine will sew 3 locking stitches at the end of the current pattern and automatically stop. The LCD screen will display the figure " " until the machine is stopped.

The function will be cancelled if you press the button once again or select another pattern.

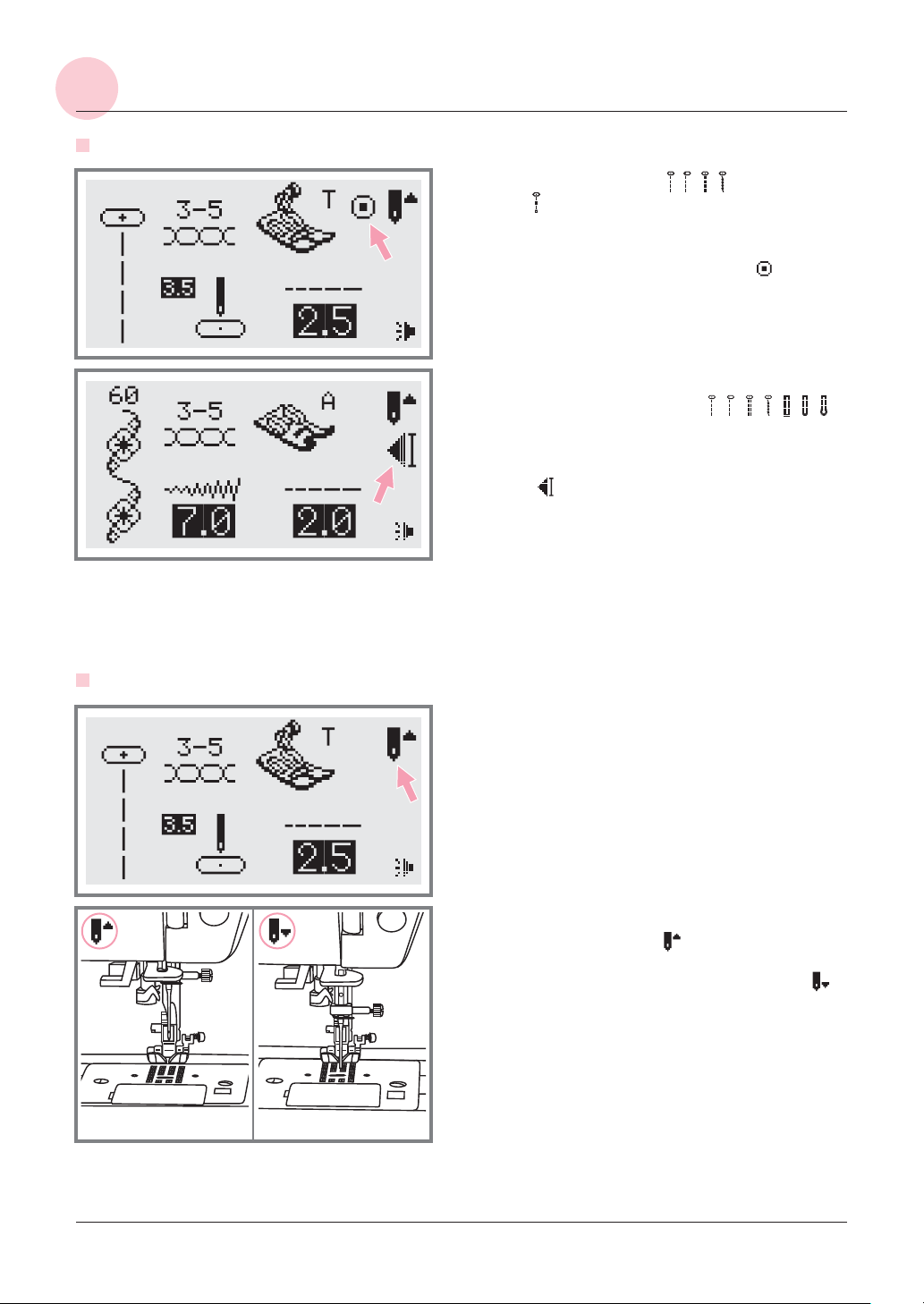

Needle up/ down position button

With the Needle up/down position button, you decide whether the needle shall stop in the up position or in the material when you stop sewing.

Press the button so that the arrow, on the LCD screen, will point upward " " and the needle will stop in the highest position. When you press the button so that the arrow points downward " ", the machine will stop with the needle in the lowest position.

24

FUNCTION BUTTONS

Stitch width adjustment buttons

Stitch length adjustment buttons

Twin needle button

Mirror button

Elongation button

Mode selection button

When you select a stitch, the machine will automatically set the recommended stitch width, which will be indicated by numbers on the LCD screen. The stitch width can be regulated by pressing the stitch width adjustment buttons.

Certain stitches have a limited stitch width.

For a narrower stitch, press the " " button (left). For a wider stitch, press the "+" button (right). The stitch width can be adjusted between "0.0-7.0". Certain stitches have a limited stitch width.

When Direct Patterns " ,,,"andAGroup Pattern " " are selected, the needle position is regulated by the stitch width adjustment buttons. Pressing the "" button (left), will move the needle to the left and pressing the "+" button (right), will move the needle to the right. The numbers will be changed from left position "0.0" to extreme right position "7.0". The pre-set center needle position will be indicated as "3.5".

25

FUNCTION BUTTONS

MODE

FUNCTION BUTTONS

Stitch length adjustment button

MODE selection button

When you select a stitch the machine will automatically set the recommended stitch length which will be indicated by numbers on the LCD screen. The stitch length can be adjusted by pressing the stitch length adjustment buttons.

To shorten the stitch length, press the "" button (left). For a longer stitch length, press the "+" button (right). The stitch length can be adjusted between "0.0-4.5". Certain stitches have a limited stitch length.

Elongation button (see page 59)

The LED light will be set at direct mode " " when you start the machine. By pressing the button, LED light will move step by step to select the stitch mode, as shown.

Direct mode stitch selection.

Utility and decorative pattern mode (A group): Stitch selection using the number buttons.

Decorative pattern mode (B group): Stitch selection using the number buttons.

Block letter mode: Character selection using the number buttons.

Script letter mode: Character selection using the number buttons.

Outline letter mode: Character selection using the number buttons.

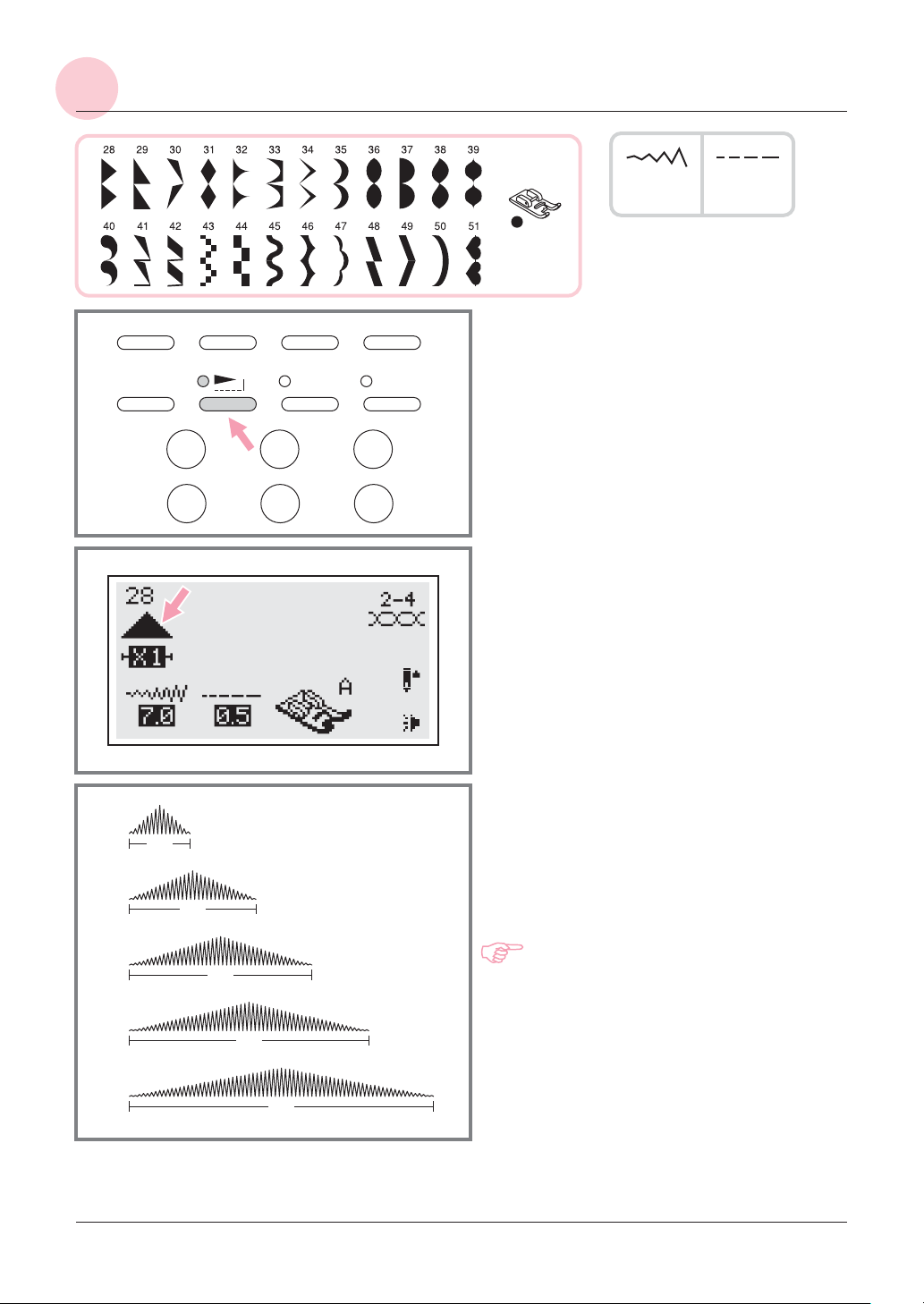

A Group Patterns 28-51 can be elongated up to five times its normal length by pressing the " " button, the LED light will turn on.

When the width or length or stitch is changed, a greater variety of patterns are available.

26

FUNCTION BUTTONS

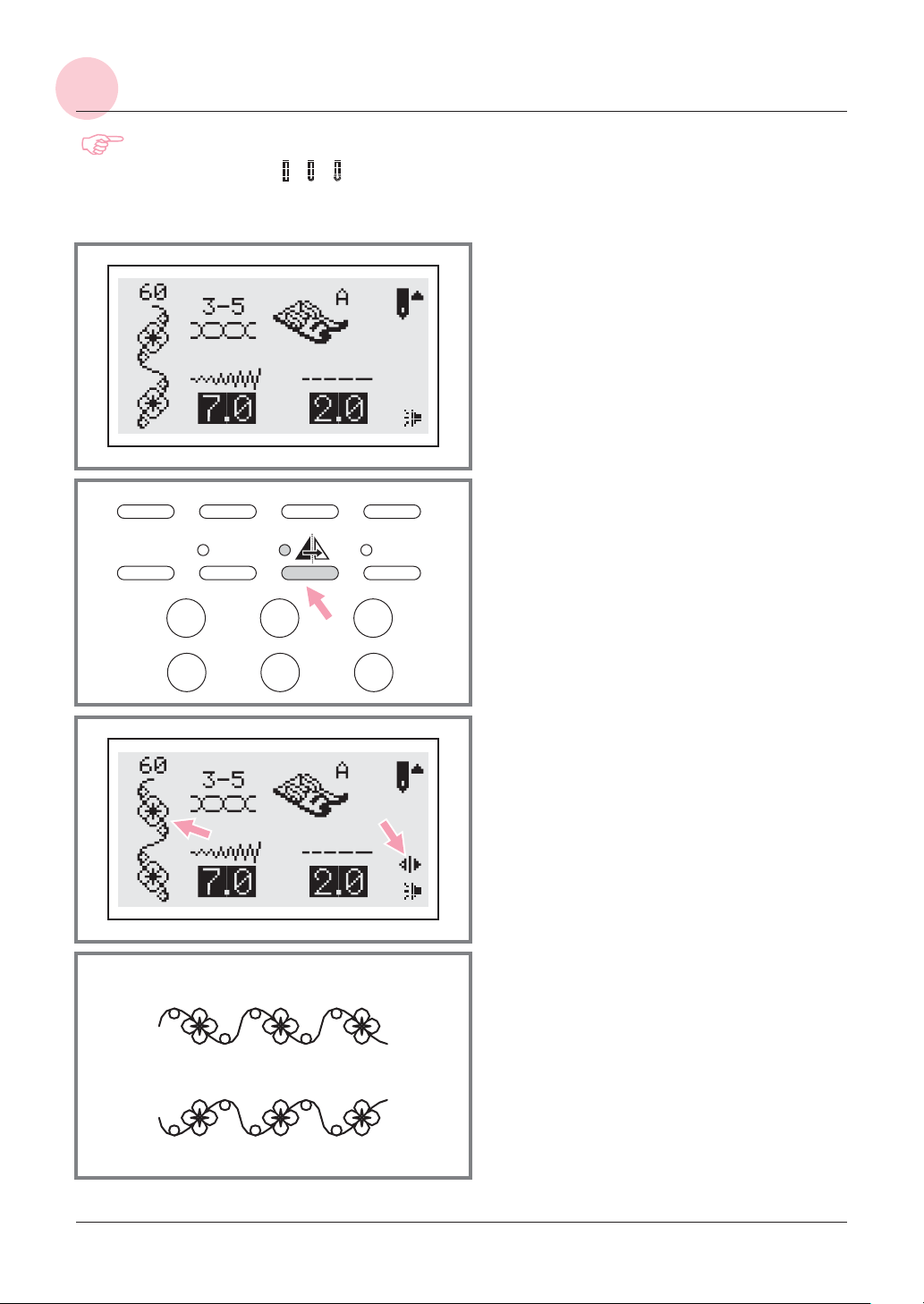

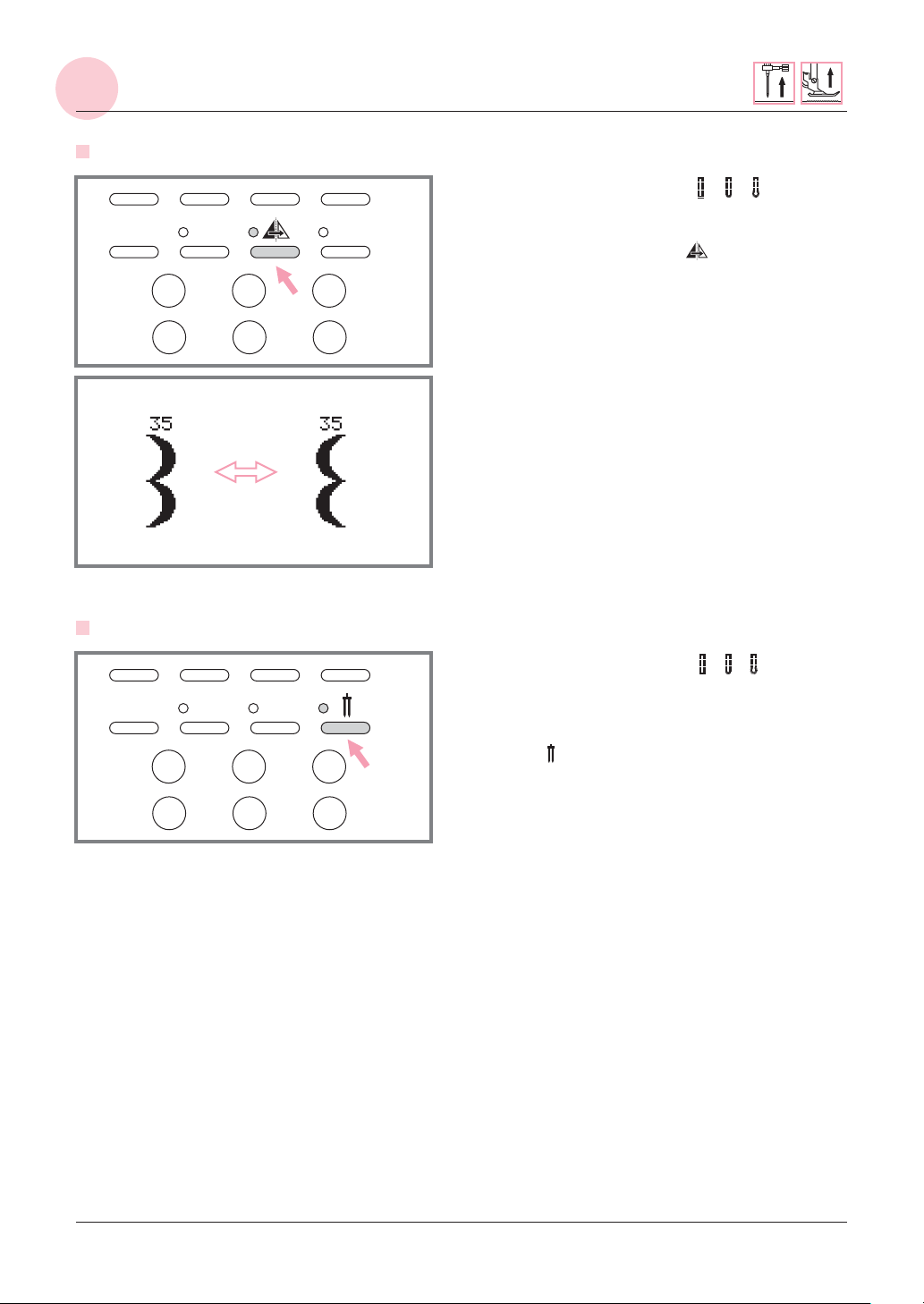

Mirror button (see page 60)

Except the Direct Patterns ",,"andthe patterns 14-27 from the Group Patterns "A", the other patterns can be mirror imaged along a vertical axis by pressing the " " button.

LED light will turn on. The machine will continue to sew the reflected pattern until the mirror button is pressed again. The mirror function also will be canceled if the pattern changed.

The function for mirror imaging the pattern appears on the LCD screen.

Twin needle button (see page 61)

Except the Direct Patterns ",,"andthe patterns 14-27 from Group Patterns "A", the other patterns can be sewn in two parallel line of the same stitch with the twin needle.

Press the " " button, LED light will turn on, and the machine automatically reduces the maximum width for the twin needle sewing. Press the button again to return to single needle sewing.

27

SELECTION BUTTONS

Direct pattern selection and number buttons

Direct pattern selection

Press the buttons to select the utility patterns shown beside the number button when the mode button is set at the Direct mode.

Direct pattern selection and number buttons

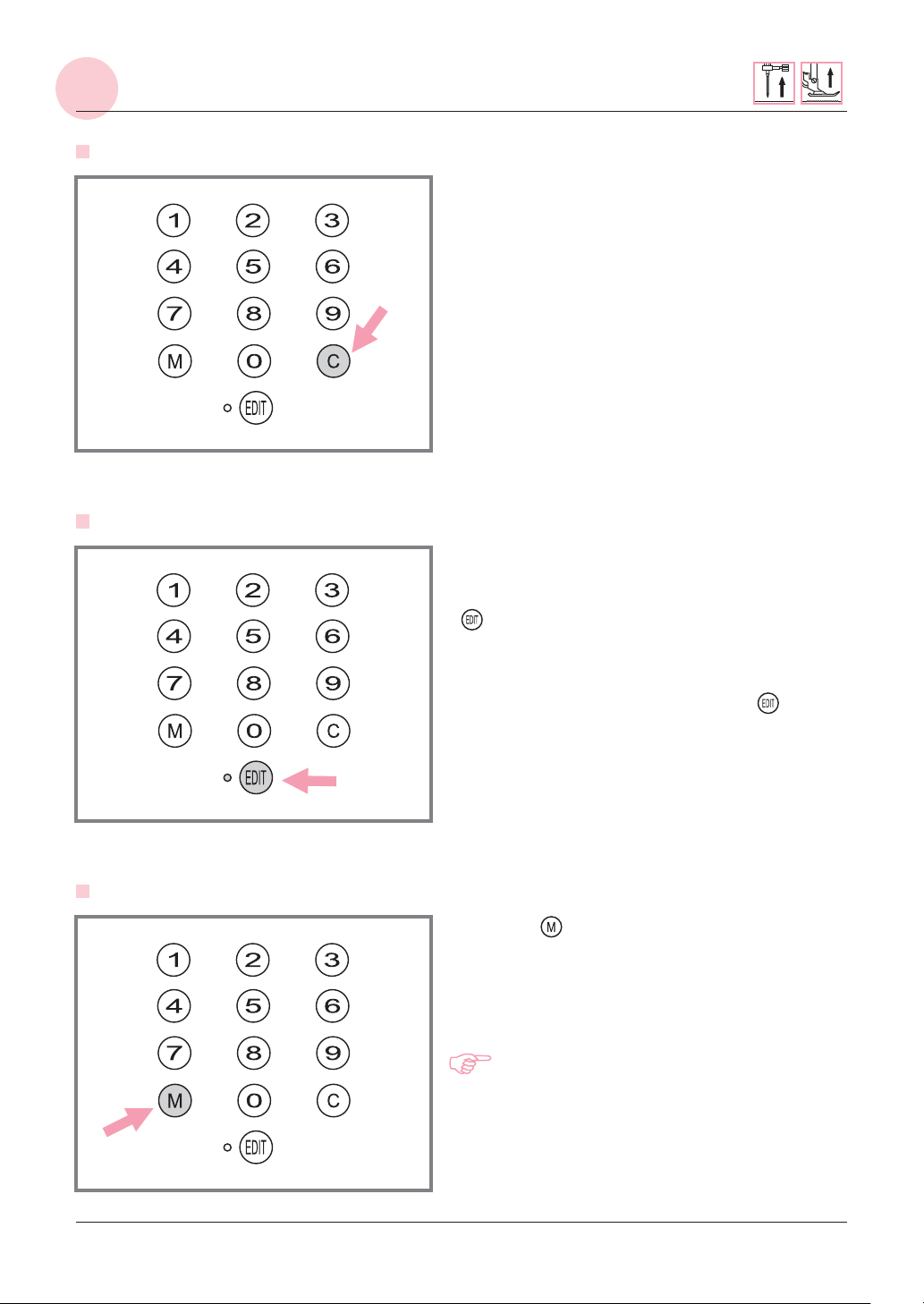

Clear button

Edit button

Memory button

Number buttons

To select the desired pattern and press the number buttons .

Except the Direct Pattern mode, the other mode can be selected by pressing the desired numbers.

For example: pattern 44

28

SELECTION BUTTONS

Clear button

Edit button

Press this button when the incorrect character is selected. Each press of this button erases one character, or press this button to remove an added pattern when sewing combinations of characters or decorative stitches.

If you wish to modify any settings in the memory mode, use the stitch width "+" or "" button to select the pattern to be modified, and press the " " button to set the selected pattern under the

123

editing mode, the LED light will turn on. Manual setting function of the stitch width, stitch length, mirror and Auto-lock for these memorized patterns is now possible. Press the " " button again to leave the editing mode and return to memory mode.

Memory button

Press the " " button to enter the memory mode, and store the combinations of characters or decorative stitches. Use the stitch width "+" or "" button to confirm the pattern memorized by pressing this button in memory mode.

Please Note: The Direct mode patterns and buttonholes cannot be memorized.

29

USEFUL SKILLS

5

1

22

3

4

USEFUL SKILLS

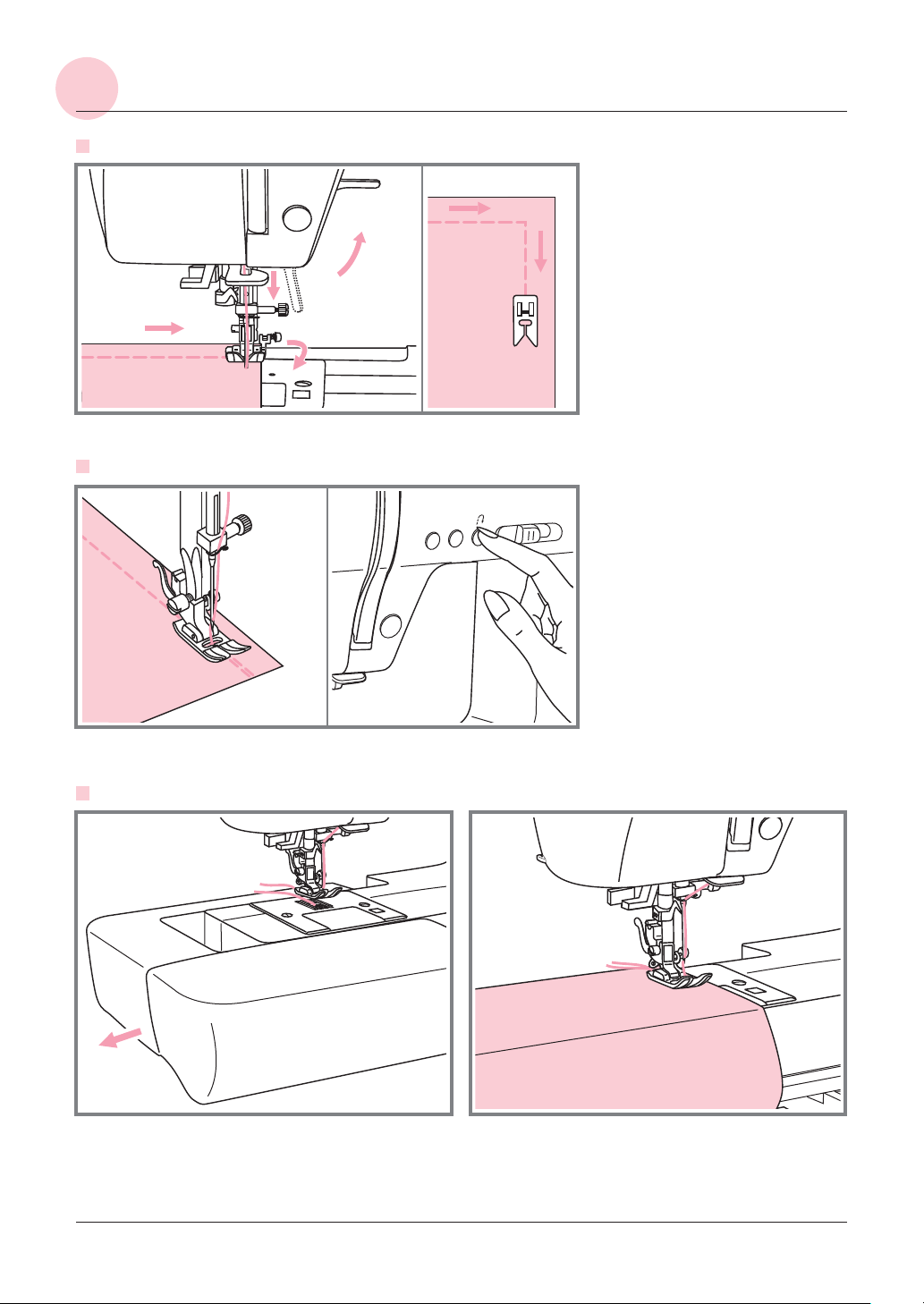

Sewing corners

Reverse

1. Stop the sewing machine when you reach a corner.

2. Lower the needle into the fabric manually or by pressing the needle up/down button once.

3. Raise the presser foot.

4. Use the needle as a pivot and turn the fabric.

5. Lower the presser foot and resume sewing.

Reverse stitching is used to secure the threads at the beginning and at the end of a seam.

Press the reverse button and sew 4-5 stitches.

The machine will sew forward when the button is released.

Free arm

Free-arm sewing is convenient for sewing tubular areas such as pant hems and cuffs.

30

USEFUL SKILLS

Cardboard or

thick fabric

USEFUL SKILLS

Sewing on the heavy fabric

The black button on the right side of the presser foot will lock the presser foot in a horizontal position if you push it in before lowering the presser foot. This ensures even feeding at the beginning of a seam and helps when sewing multiple layers of fabric such as sewing over seams when hemming jeans.

When you reach the point of an increased thickness, lower the needle and raise the presser foot. Press the toe of the foot and push in the black button, then lower the foot and continue sewing.

The black button releases automatically after sewing few stitches.

31

You also can place another piece of fabric with the same thickness at the back of the seam.

Or support the presser foot while feeding by hand and sewing toward the folded side.

STRAIGHT STITCHES AND NEEDLE POSITION

T

Changing the needle position

This setting can be apply only to Direct Patterns ",,,

" and pattern " " from Group Patterns "A" .

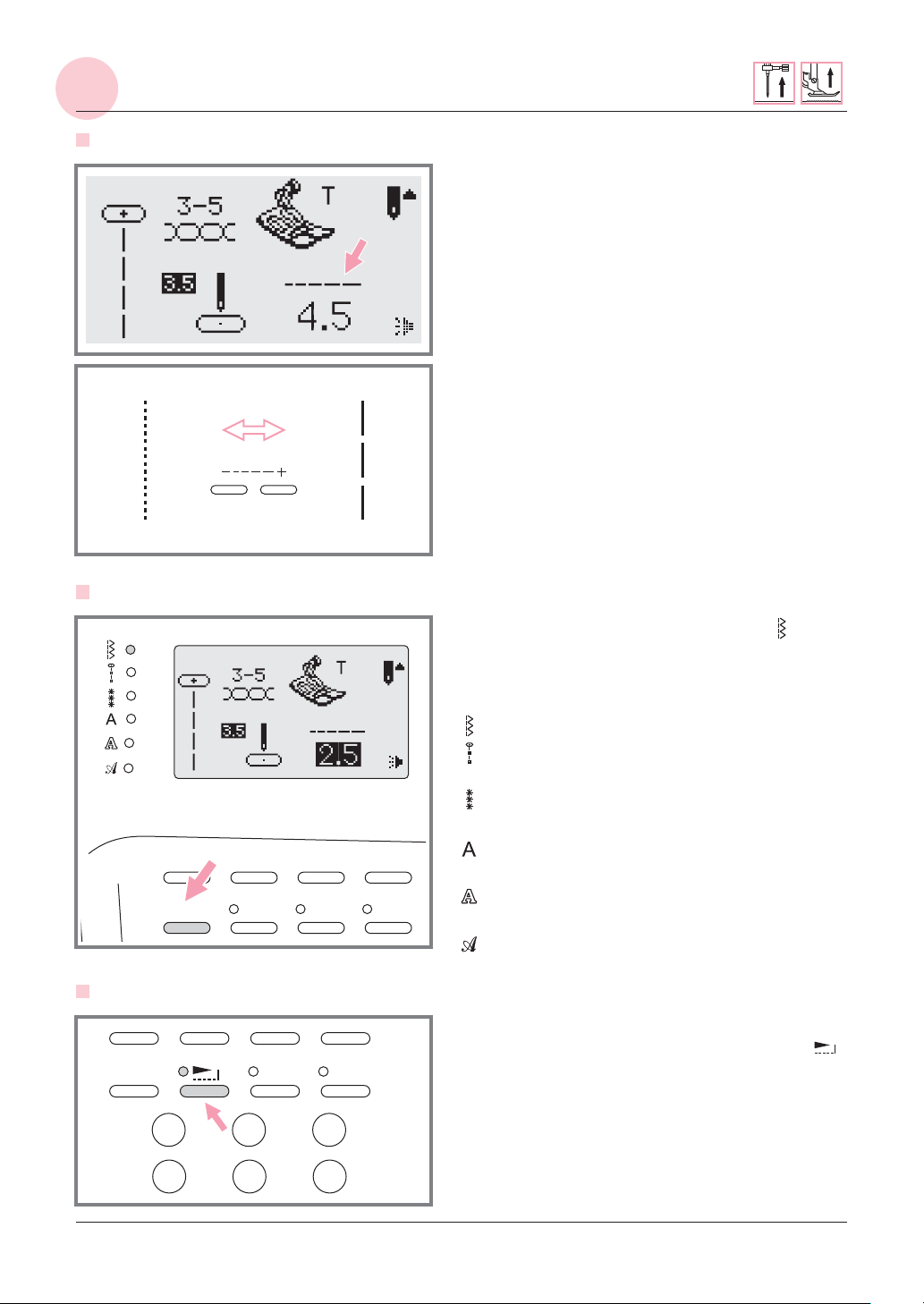

The pre-set position is "3.5", center position. When you press the "" stitch width adjustment button, the needle position will move to the left. When you press the "+"

0.0 2.0

3.5

5.0 7.0

stitch width adjustment button, the needle position will move to the right. On the LCD screen, the point illustration and the number indicate the needle position.

Changing the stitch length

To shorten the stitch length, press the "" stitch length adjustment button. For a longer stitch length, press the "+" stitch length adjustment button.

Generally speaking, the thicker the fabric, thread and

2.01.00.5

3.0

4.5

needle, the longer the stitch should be.

ZIGZAG STITCHES

T

0.0

1.0

3.0

2.01.00.5

3.0

A

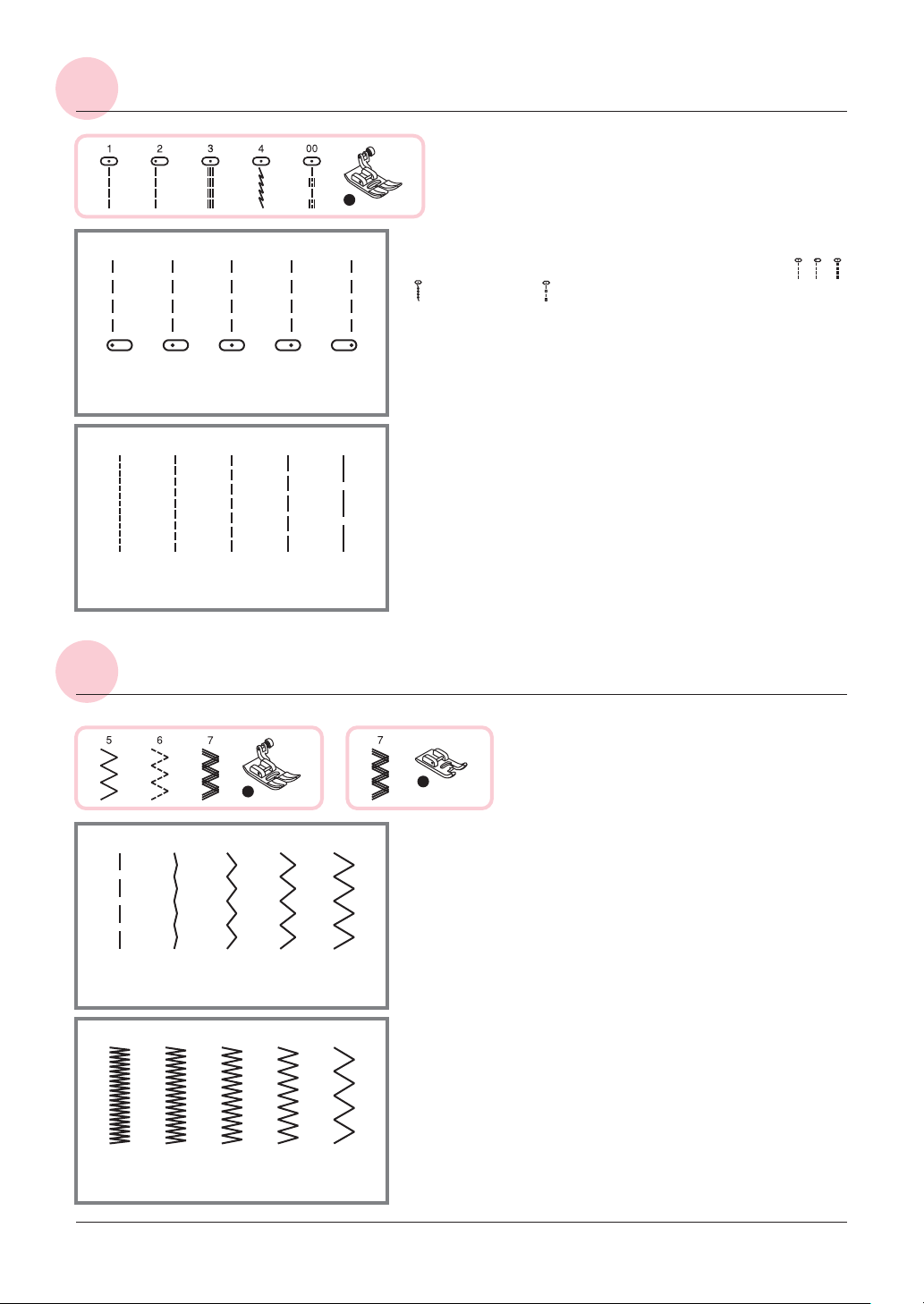

Adjusting the stitch width

The maximum zigzag stitch width for zigzag stitching is "7.0"; however, the width can be reduced on any patterns. The width increases as you press the "+" stitch width adjustment button from "0.0-7.0".

7.05.0

Adjusting the stitch length

The density of zigzag stitches increase as the setting of stitch length approaches "0.2".

Neat zigzag stitches are usually achieved at "1.0-2.5".

Closed up zigzag stitches (close together) are referred to as a satin stitch.

4.5

32

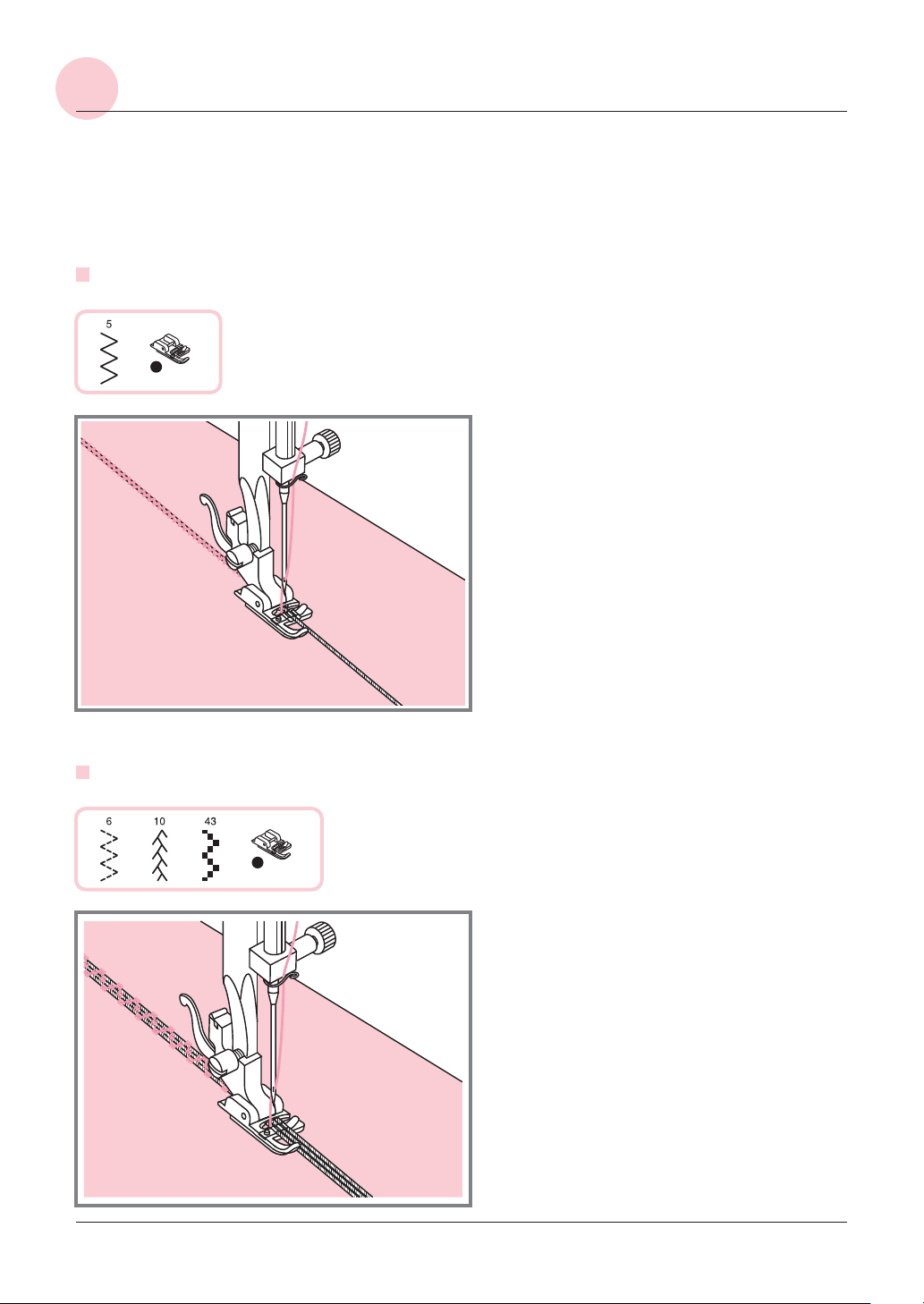

STRETCH STITCH

Straight stretch stitch

Straight stitch

STRETCH STITCH

T

A

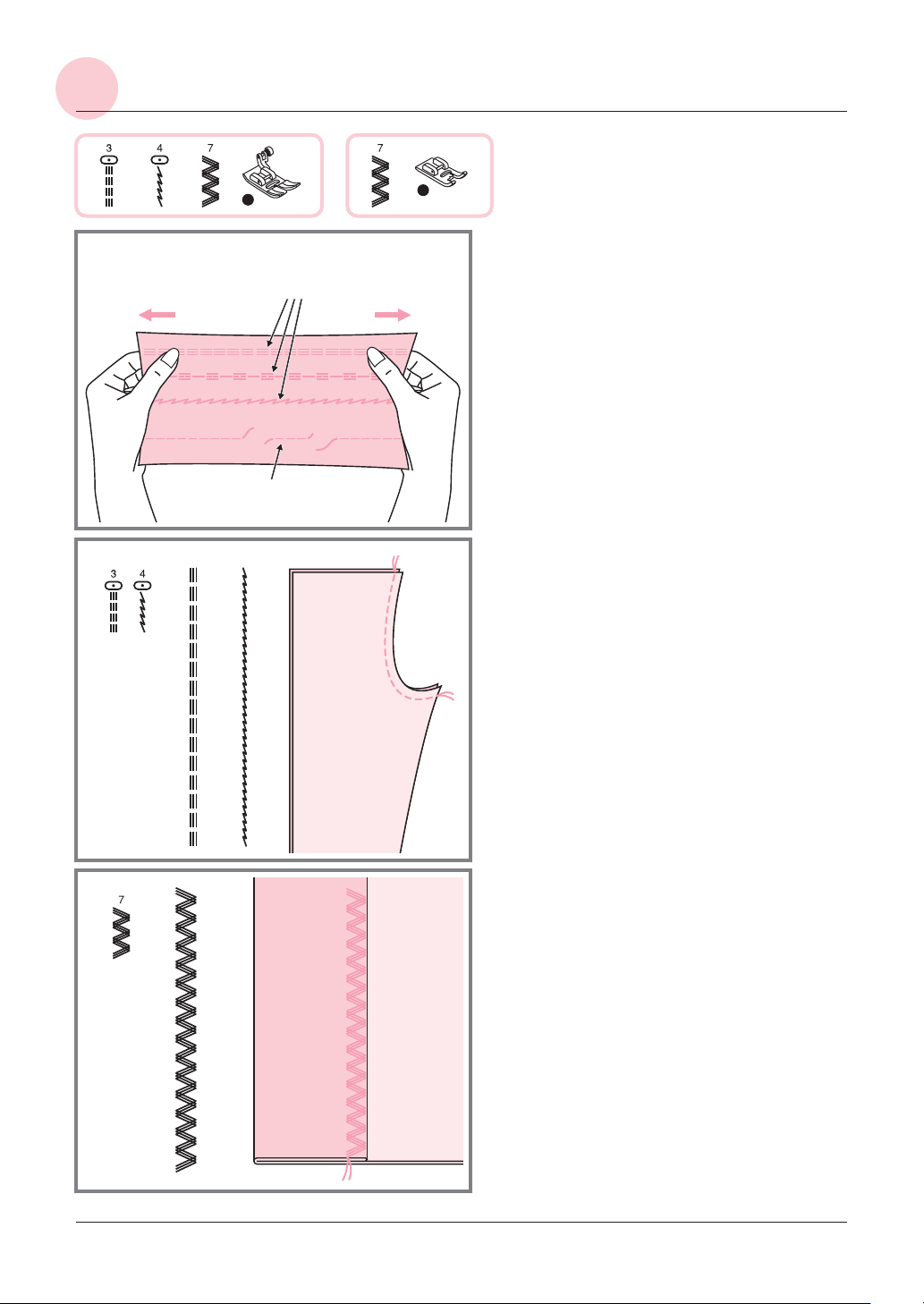

It assures you of a stitch that is strong and flexible and will give with the fabric without breaking. Good for easy to ravel and knit fabrics. It is good for joining durable fabric such as denims.

These stitches can also be used as a decorative top stitch.

Straight stretch stitch is used to add triple reinforcement to stretch and hardwearing seams.

Triple zigzag stretch stitch is suitable for firm fabrics like denim, poplin, duck, etc.

33

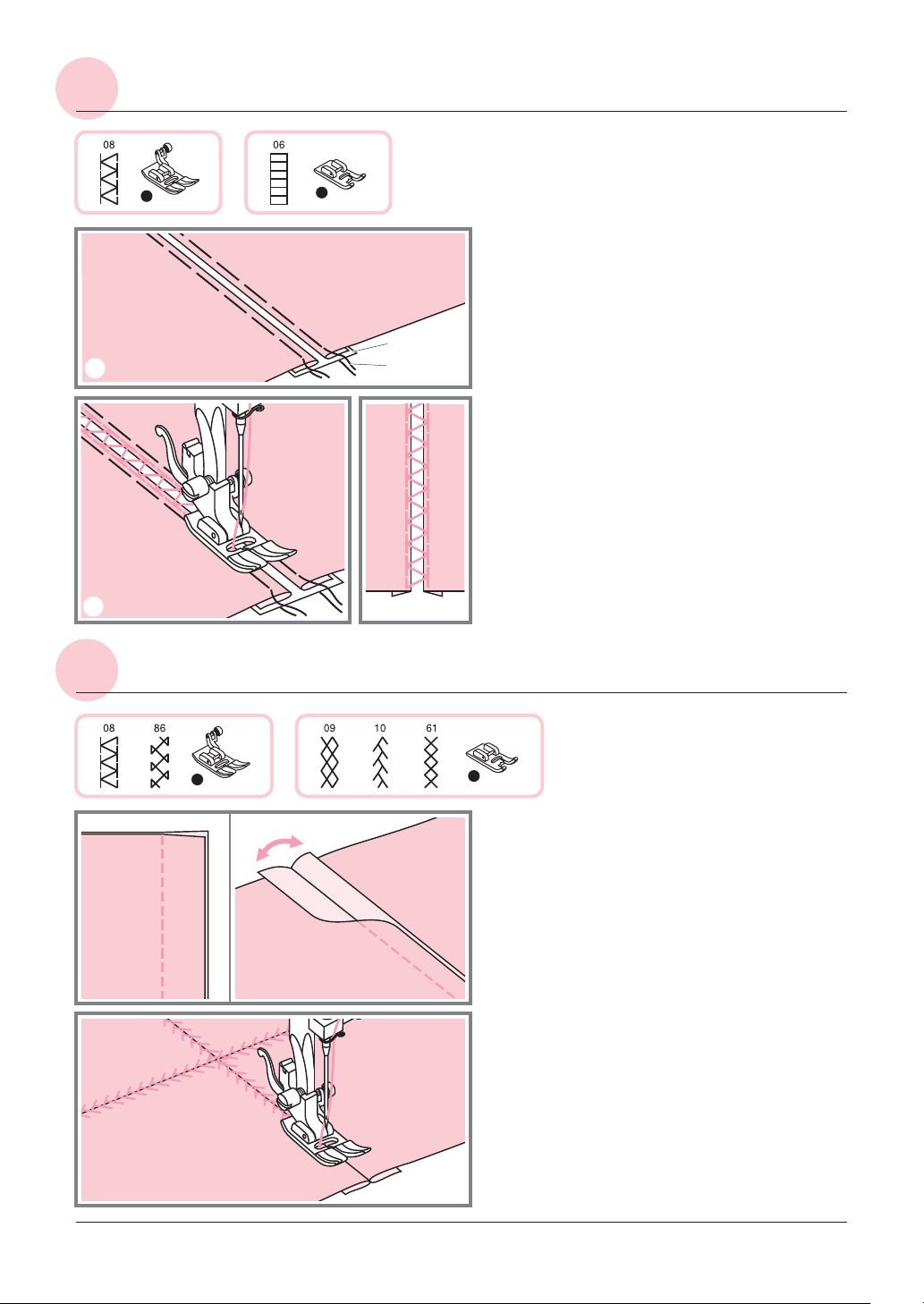

OVERCASTING STITCHES

3

2

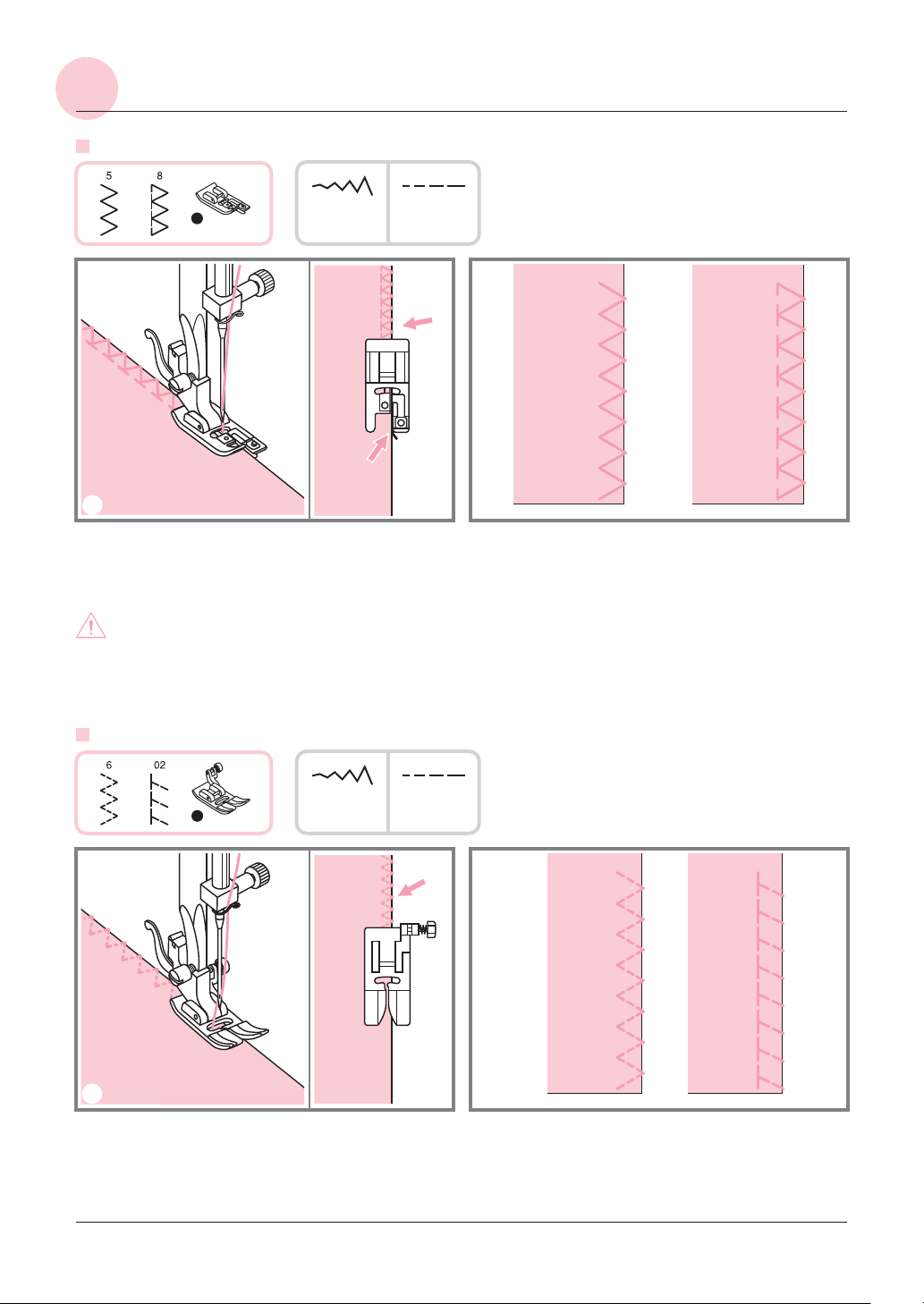

OVERCASTING STITCHES

Using the overcasting foot

1

E

1. Change the presser foot to the overcasting foot.

2. Sew the fabric with the fabric edge against the guide of the overcasting foot.

Attention: The overcasting foot should be used to sew with Direct Patterns 5 and 8 only and do not set the stitch width narrower than "5.0". It is possible that needle could hit the presser foot and break when sewing other patterns and width.

5.0~7.0

2.0~3.0

Using the all purpose foot

1

T

2.5~4.5

2.0~3.0

3

1. Change the presser foot to the all purpose foot.

2. Sewing the overcasting along the edge of the fabric so that the needle drops over the edge of the fabric on the right side.

34

BLIND HEM/ LINGERIE STITCH

a

b

3

5

2

4

BLIND HEM/ LINGERIE STITCH

F

2.5~4.0

1.0~2.0

9 :

Blind hem/ lingerie for firm fabrics

03:

Blind hem for stretch fabrics

04:

Blind hem for stretch fabrics

1

Reverse

side

5mm 5mm

Overcasting

stitches

Reverse

side

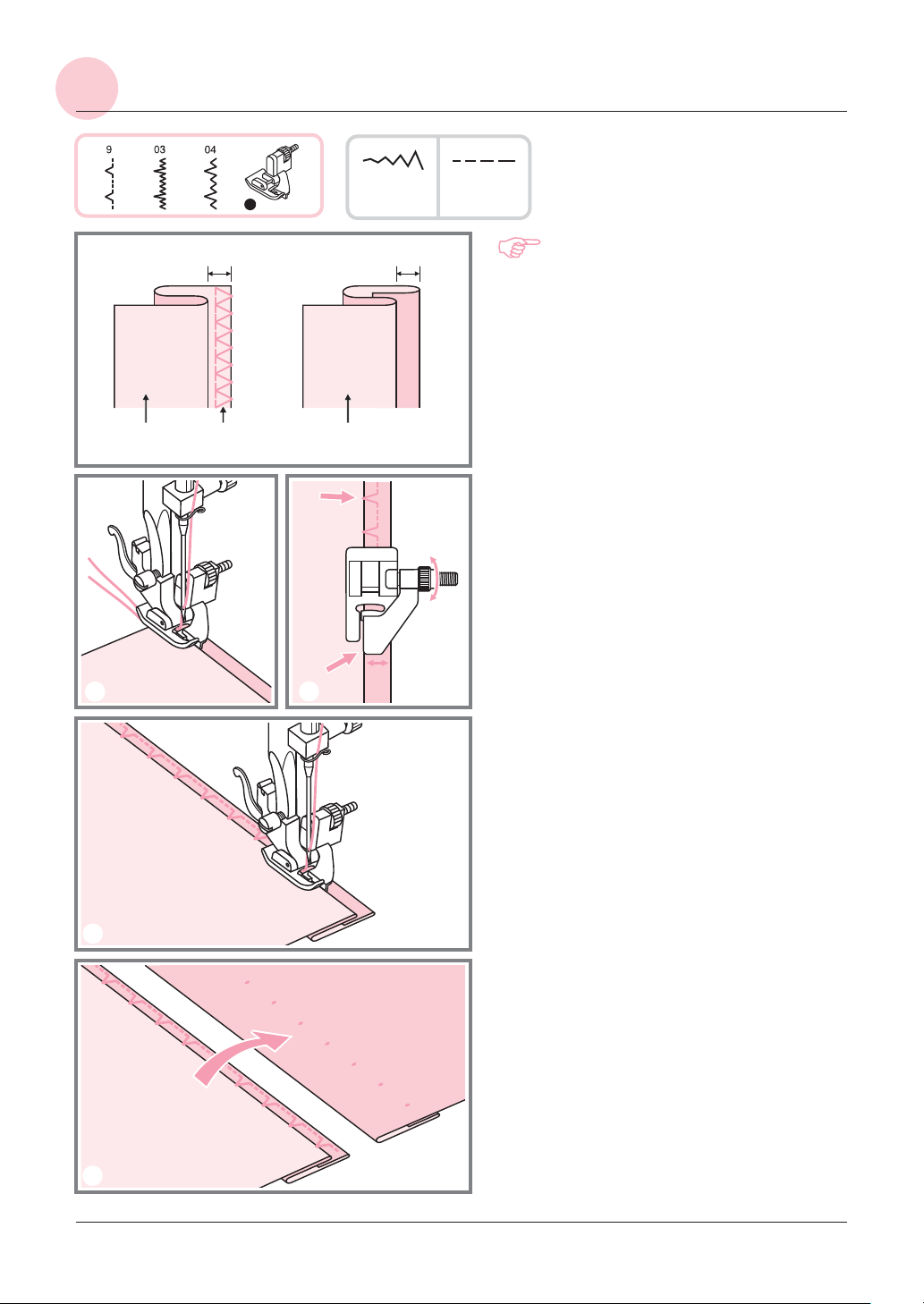

Please Note: It takes practice to sew blind hems. Always make a sewing test first.

1. Fold the fabric as illustrated with the wrong side uppermost.

2. Place the fabric under the foot. Turn the handwheel forwards by hand until the needle swings fully to the left. It should just pierce the fold of the fabric. If it does not, adjust the stitch width accordingly.

3. Adjust the guide (b) by turning the knob (a) so that the guide just rests against the fold.

4. Sew slowly, guiding the fabric carefully along the edge of the guide.

5. Turn over the fabric.

35

BUTTON SEWING

2

5

BUTTON SEWING

1

2.5~4.5

3

2.5~4.5

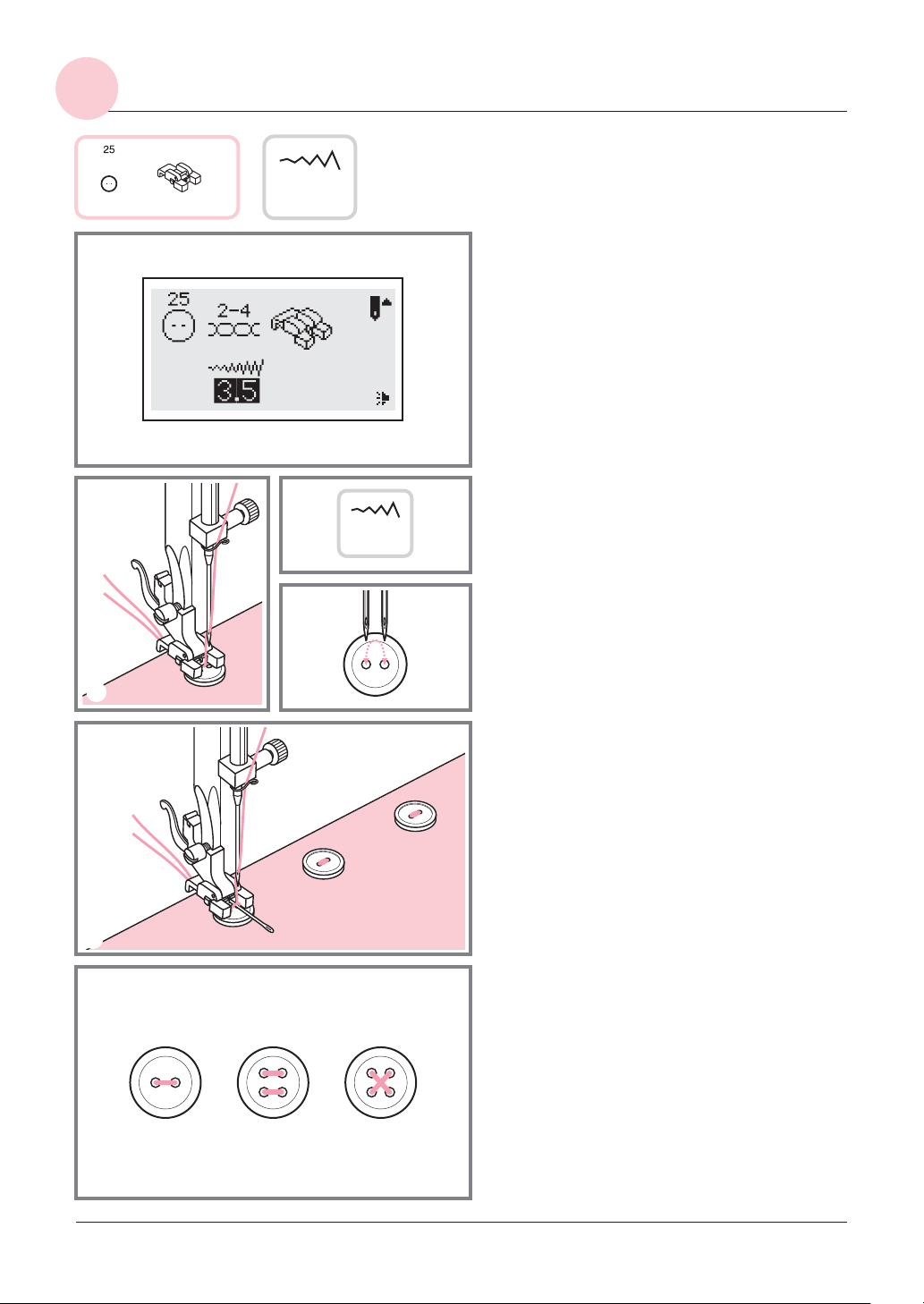

1. Select the pattern 25 from the Group Patterns "A" to get the button sewing stitch. Change the presser foot to the button sewing foot.

2. Position the work under the foot. Place the button in the desired position, lower the foot.

3. Adjust the stitch width to "2.5-4.5" according to the distance between the two holes of the button.

4. Turn the handwheel to check that the needle goes cleanly into the left and right holes of the button.

4

5. Before sewing, press the Auto-lock button to sew reinforcement stitches automatically at the beginning and at the end of the stitch.

If a shank is required, place a darning needle on top of the button and sew.

6. For buttons with 4 holes, sew through the front two holes first, push work forward and then sew through the back two holes.

6

36

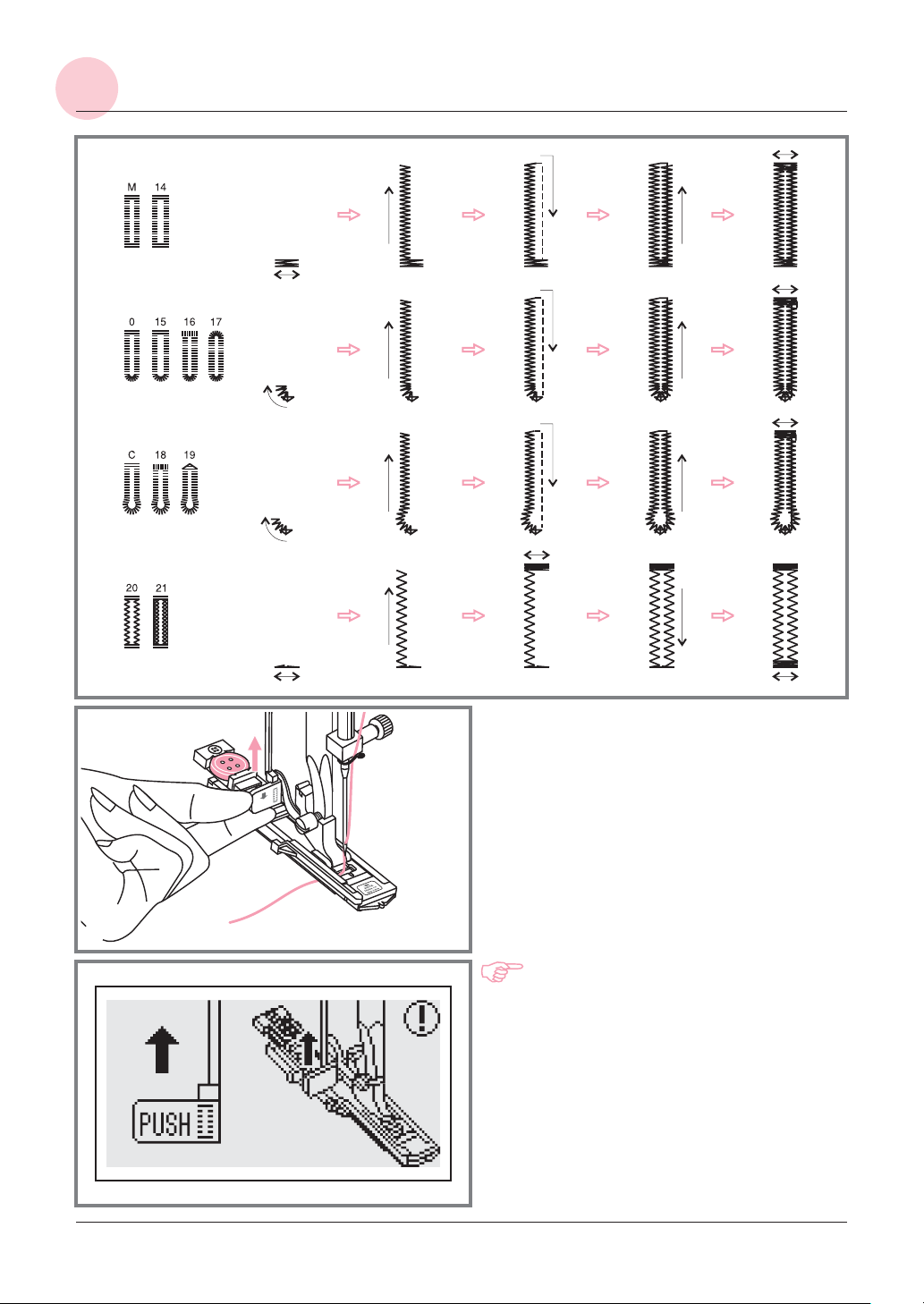

BUTTONHOLE STITCHING

1

2

BUTTONHOLE STITCHING

D

2.5~7.0

3.0~7.0

2.5~5.5

5.5~7.0

3.0~7.0

0.3~1.0

1.0~2.0

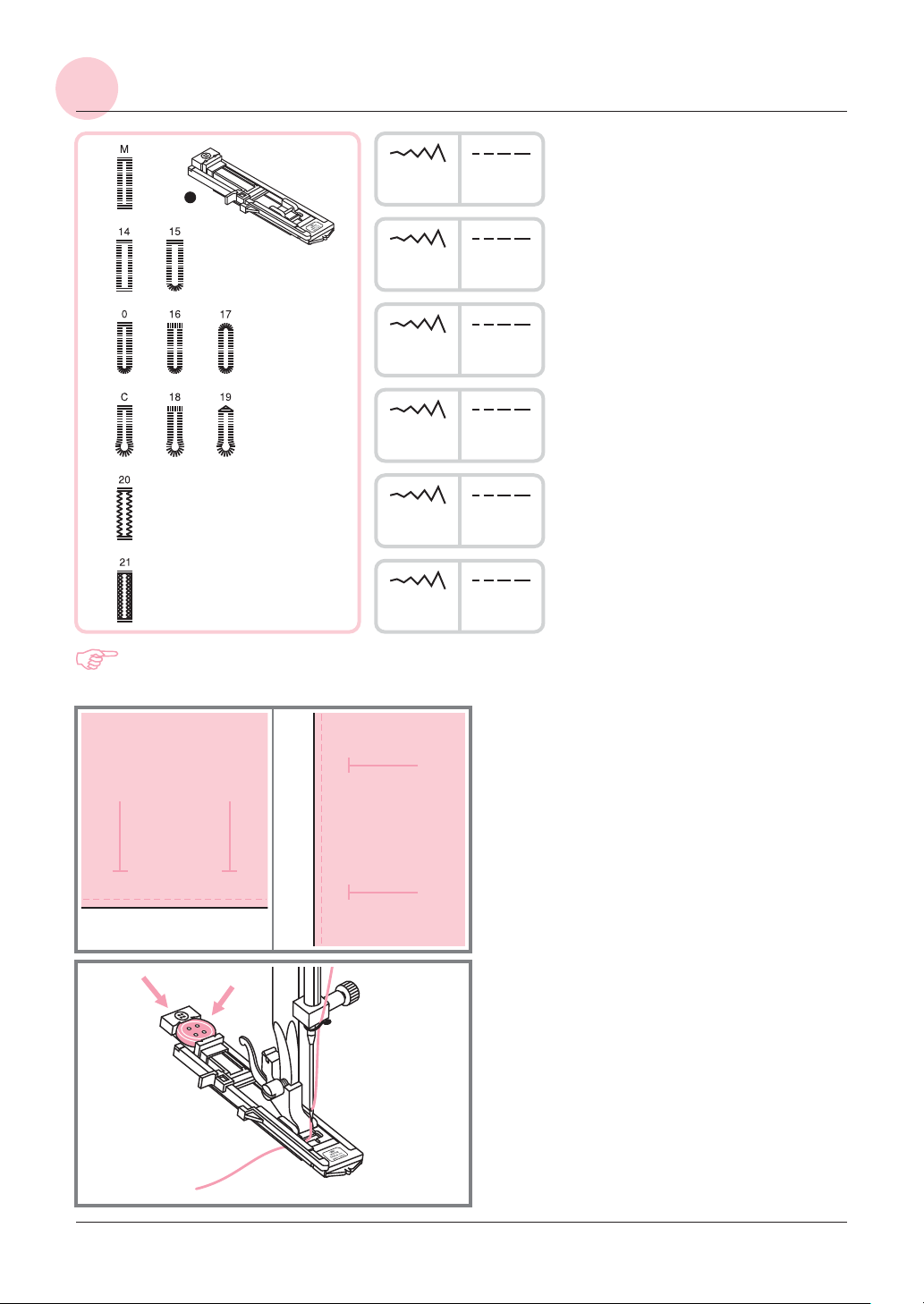

For thin or medium fabric

M:

For horizontal holes on blouses

14:

or shirts made from thin or medium fabric

For thin or medium fabric

0:

For horizontal holes on blouses

15 :

or shirts made from thin or medium fabric

For horizontal buttonholes on

16:

thick fabrics

For thin or medium fabric

17:

For suits or overcoats

C:

For thick coats

18:

For jeans or trousers

19:

For jeans or stretch fabric with

20:

a coarse weave

For stretch fabric

21:

3.0~7.0

Please Note: Before sewing a buttonhole on your project, practice on a scrap piece of the same type of fabric.

1.0~3.0

1. Mark the positions of the buttonhole on the fabric.

The maximum buttonhole length is 3cm (1 3/16 inch). (Total of diameter + thickness of button.)

2. Attach the buttonhole foot, then pull out the button holder plate and insert the button. The size of the buttonhole is determined by the button inserted in the button plate.

The thread should be passed through the hole in the presser foot, then be placed under the foot.

37

BUTTONHOLE STITCHING

PUSH

4

PUSH

5

PUSH

3

BUTTONHOLE STITCHING

3. Select the buttonhole stitch. Adjust the stitch width and the stitch length to the desired width and density.

NOTE

Makeno gaphere

Starting

point

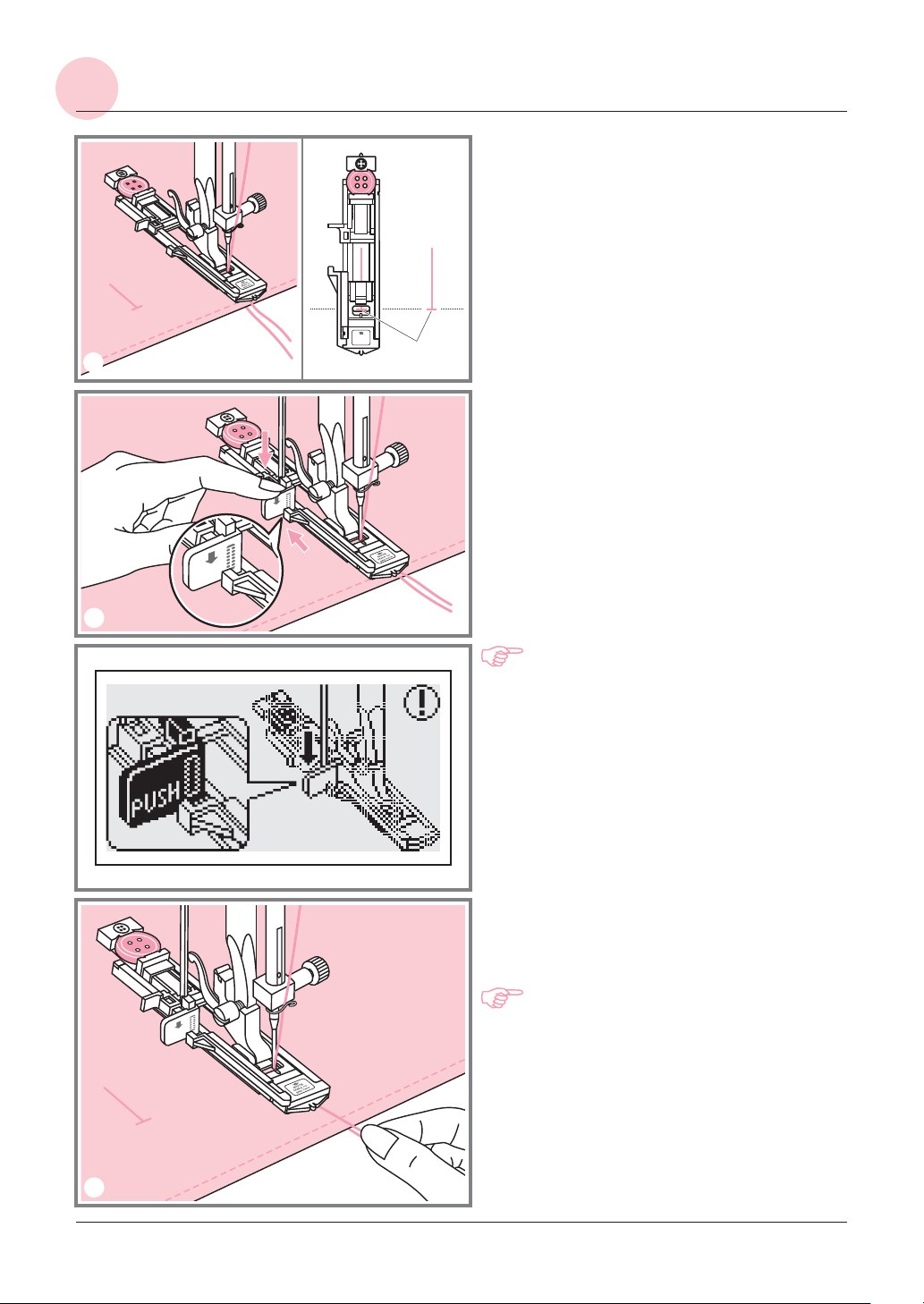

4. Position the fabric under the presser foot so that the centerline's mark is aligning with the center of the buttonhole foot.

Lower the buttonhole lever, then push it to the back.

Please Note: When you select any buttonhole pattern, theLCD screen will be demonstrated the message display

warning animation

, it is to remind you to

lower the buttonhole lever.

5. While lightly holding the end of the upper thread, start sewing.

Please Note: Gently feed the fabric by hand. Before stopping, the machine will automatically sew a reinforcement stitch after the buttonhole is sewn.

38

BUTTONHOLE STITCHING

7

PU

SH

BUTTONHOLE STITCHING

6

6. Buttonholes are sewn from the front of the presser foot to the back, as shown.

7. Raise the presser foot and cut thread. To sew over same buttonhole, raise the presser foot (will return to original position). After sewing the buttonhole stitch, raise the buttonhole lever until it stops.

Please Note: After finishing the buttonhole stitch, the LCD screen will be demonstrated the message display lift the buttonhole lever.

warning animation

, it is to remind you to

39

BUTTONHOLE STITCHING

8

2

1

BUTTONHOLE STITCHING

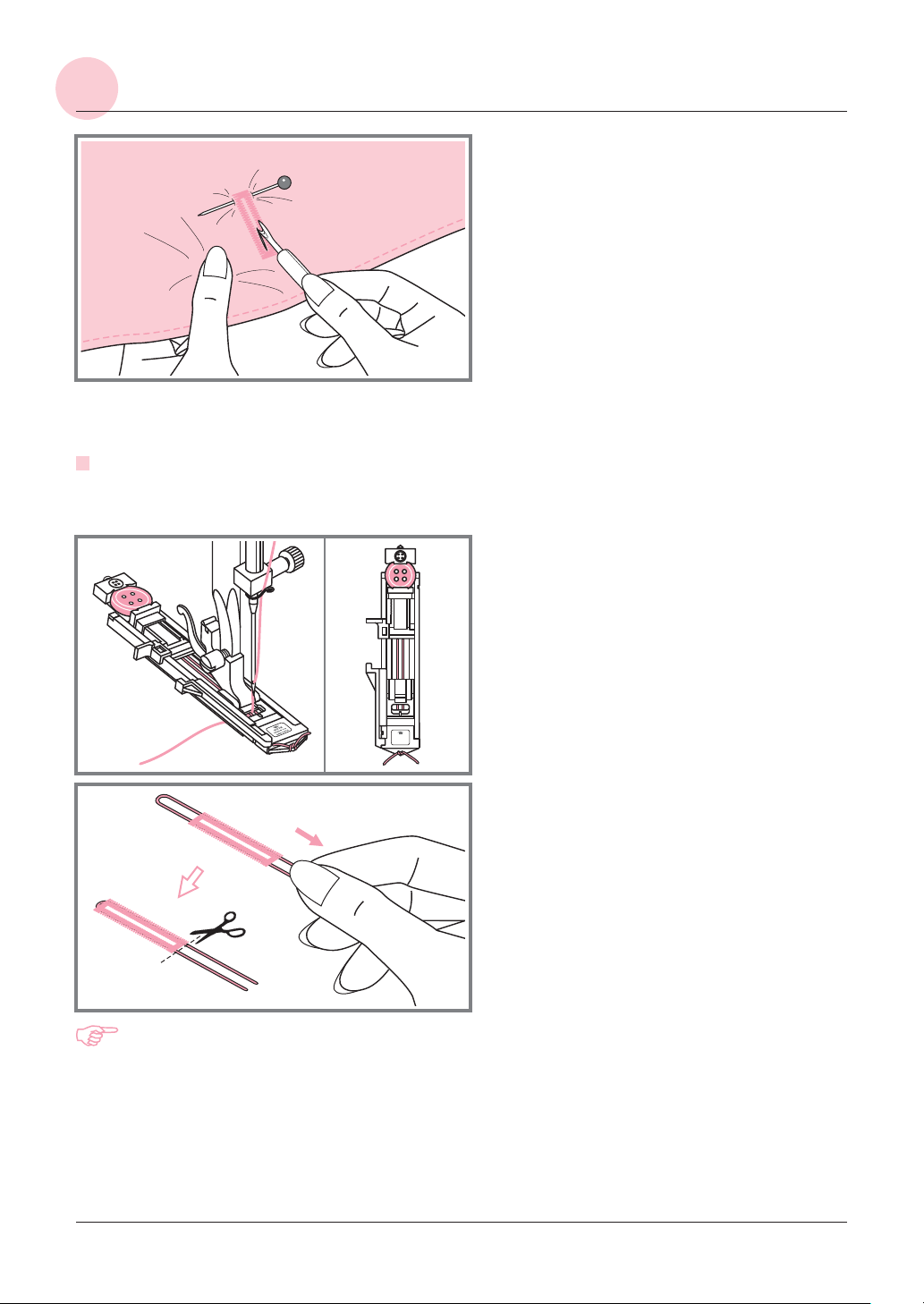

8. Cut the center of the buttonhole being careful not to cut any stitches on either side. Use a pin as a stopper at the bartack so you do not cut too much.

Making a buttonhole on stretch fabrics

When sewing buttonholes on stretch fabric, hook heavy thread or cord under the buttonhole foot.

1. Attach the buttonhole foot and hook the gimp thread onto the back of the presser foot. Bring the two gimp thread ends to the front of the foot and insert them into the grooves, then temporarily tie them there. Lower the presser foot and start sewing.

Set the stitch width to match the diameter of the gimp thread.

NOTE

Makeno gaphere

2. Once sewing is completed, pull the gimp thread gently to remove any slack, then trim off any excess.

Please Note: It is suggested that you use interfacing on the backside of the fabric.

40

BAR TACK STITCH

3

2mm

PUSH

BAR TACK STITCH

D

1.0~3.0

1 2

NOTE

Makeno gaphere

0.3~1.0

Starting

point

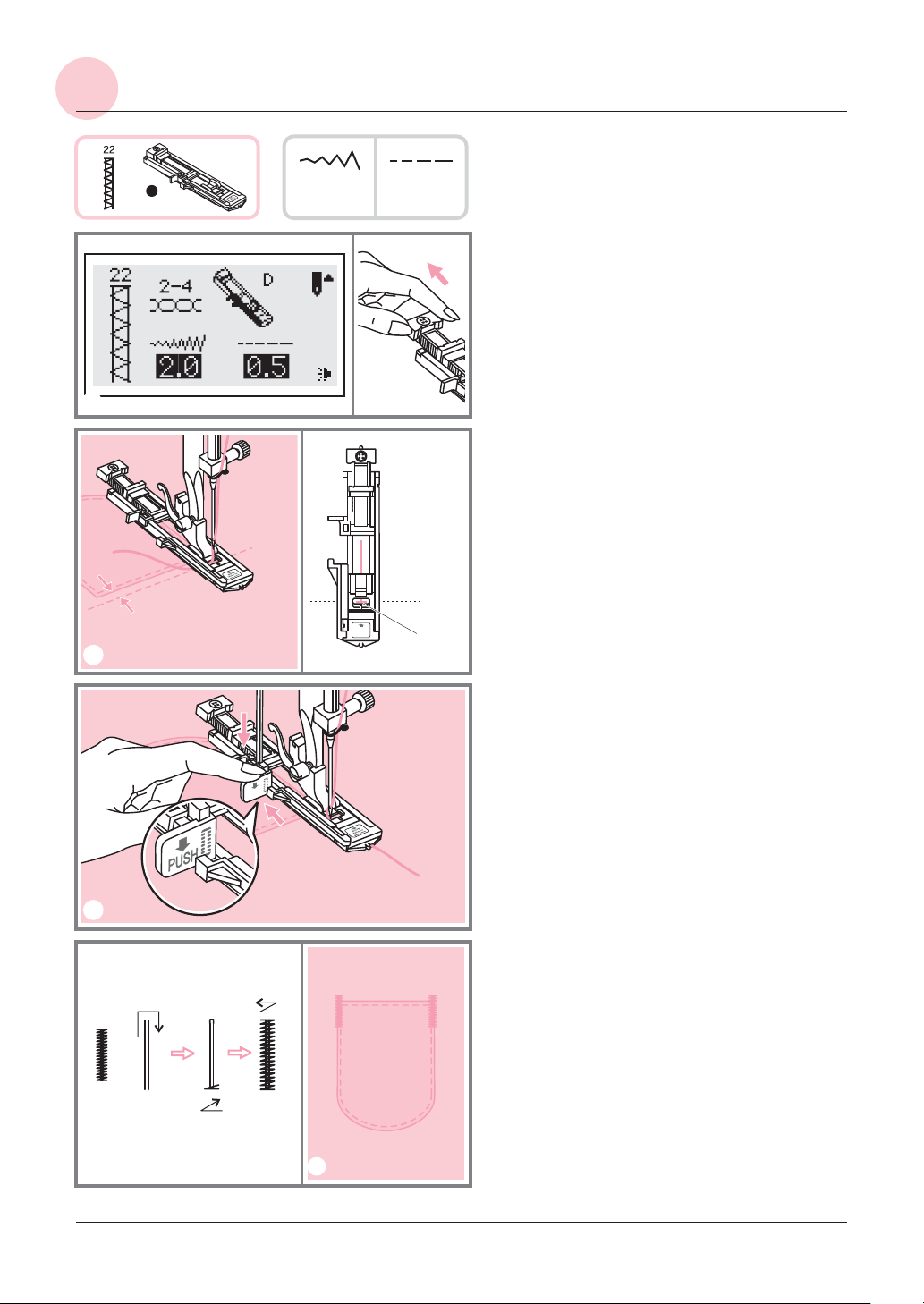

1. Select pattern 22 from the Group Patterns "A" to get the bar tack stitch. the

Change

presser foot to the buttonhole foot.

2. Pull the button holder to the rear. Set the button guide plate on the buttonhole foot to the desired length.

3. Position the fabric so that the needle is

2mm (1/16 inch) in front of the pocket opening, and then lower the presser foot lever.

4. Pass the upper thread down through the

hole in the presser foot. Pull down the buttonhole lever then push it back. The buttonhole lever is positioned behind the bracket on the buttonhole foot. Gently hold the end of the upper thread in your left hand, and then start sewing.

4

5. Bar tack stitches are sewn.

6. As an example, the procedure for sewing bar tacks at pocket corners.

5

6

41

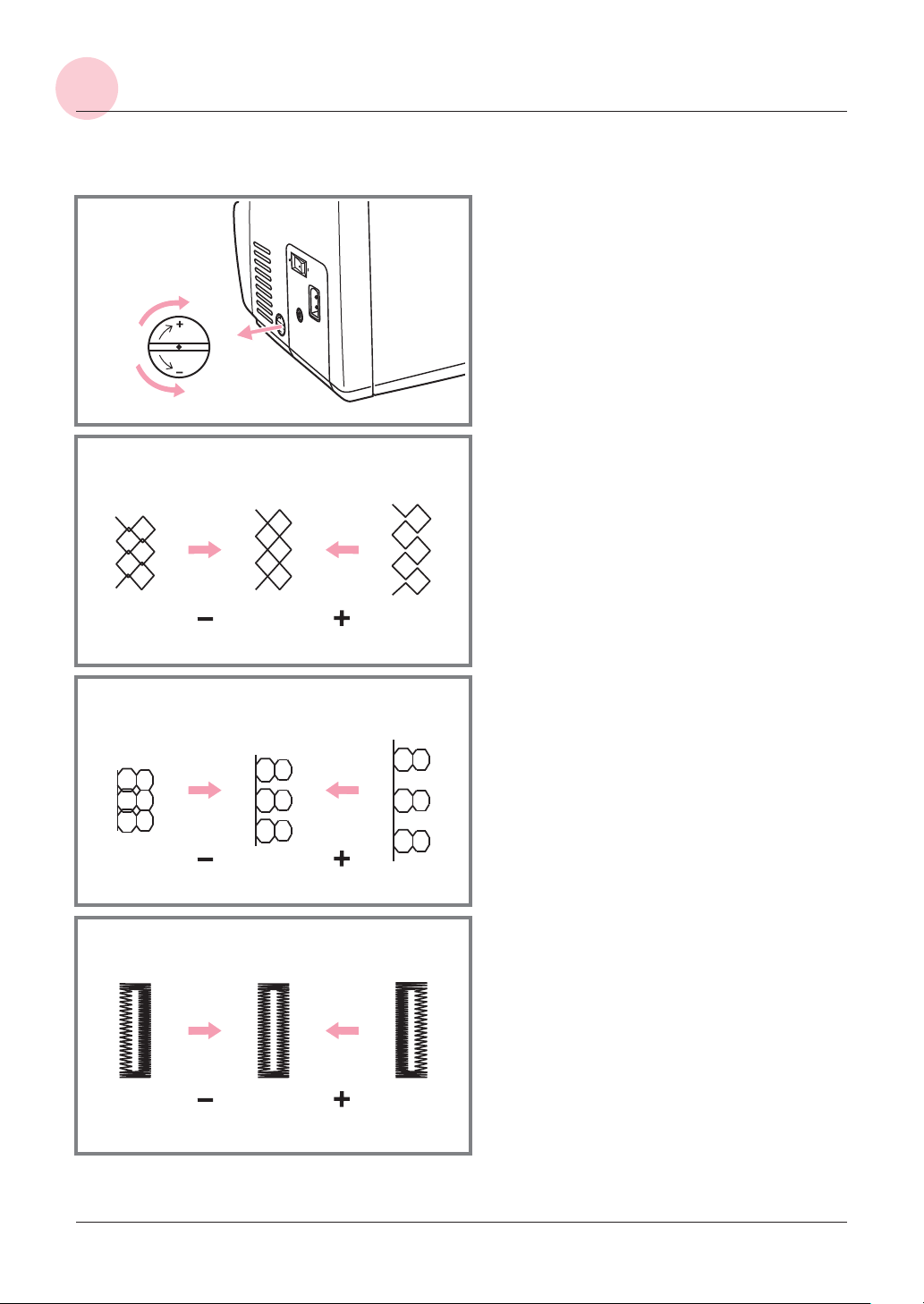

ADJUSTING PATTERN BALANCE

If the decorative stitch patterns, numbers or manual buttonhole stitch are uneven when you sew on a particular fabric, adjust them with the feed balancing dial.

The dial should usually be in a neutral position.

Adjusting distorted stretch stitch patterns

ABC

A. When Patterns are too compressed, correct

by turning the dial in the direction of "".

B. Correct setting.

C. When Patterns are too drawn out, correct

by turning the dial in the direction of "+".

Adjusting distorted letters or numbers

ABC

A. When the letters or numbers ave overlap,

turn the dial to "".

B. Correct setting.

C. When the patterns are too drawn out,

correct by turn the dial to "+".

Adjusting the stitch density for buttonhole

A. Right side is denser. If the left side of the

buttonhole is than the right side, turn the feed balancing dial to "".

B. Correct setting.

C. Left side is denser. If the right side of the

buttonhole is than the left side, turn the feed balancing dial to "+".

less dense

42

EYELET STITCH

A

1

ABC

5.0 6.0 7.0

23:

Select for sewing eyelets on belts , etc

24:

Select for sewing eyelets on belts , etc

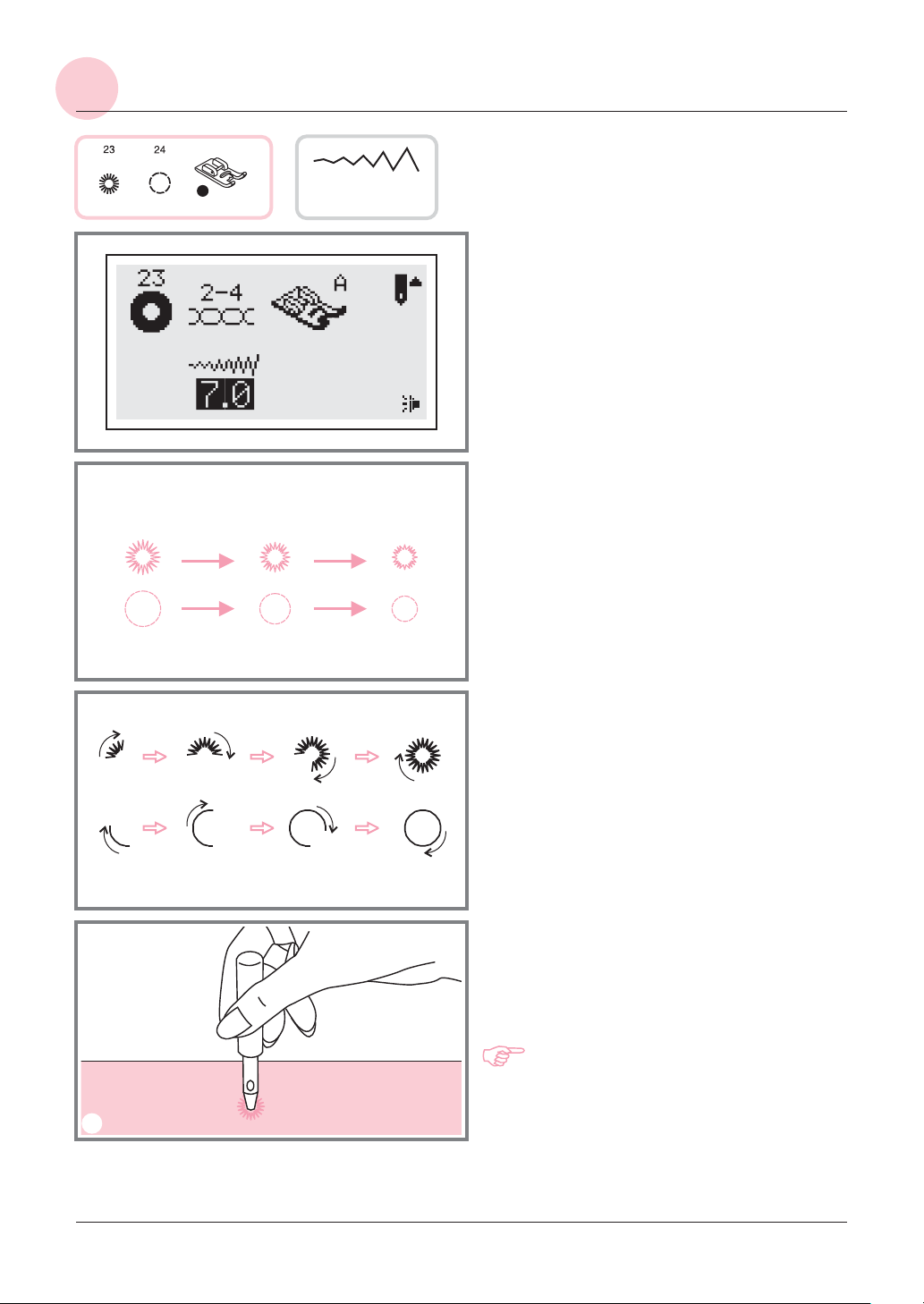

1. Select pattern 23 or 24 from the Group

Patterns "A" to get the eyelet stitch. Attach presser the foot "A".

2. Press the "" or "+" stitch width adjustment

to button select the eyelet size.

Size of eyelet.

A. Large: 7.0mm (1/4 inch).

B. Medium: 6.0mm (15/64 inch).

C. Small: 5.0mm (3/16 inch).

2

3. Lower the needle into the fabric at the

beginning of the stitching, and then lower the presser foot lever. Once sewing is completed, the machine automatically sews reinforcement stitches, then stops.

3

4. Make a hole at the center using an eyelet

punch.

* Eyelet punch is not included with the

machine.

Please Note: If thin thread is used, the stitching may be coarse. If this occurs, sew the eyelet twice one on top of the

4

other.

43

Start

a

b

Stop

4

Stop

a

Start

b

NOTE

Makeno gaphere

DARNING STITCH

D

3.5~7.0

1.0~2.0

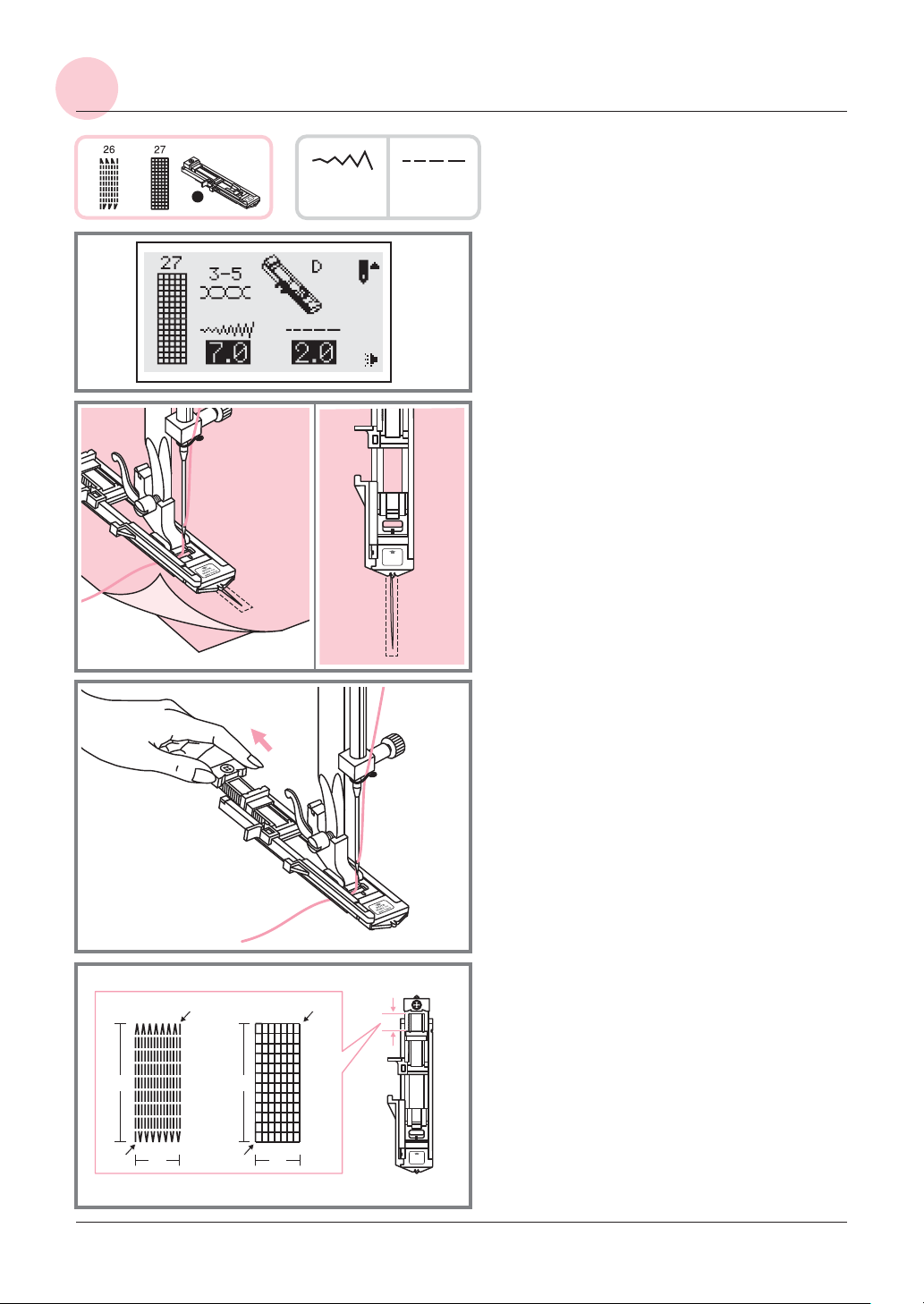

1. Select pattern 26 or 27 from the Group Patterns "A" to get the darning stitch. Change the presser foot to the buttonhole foot.

1

2. Baste the upper fabric and the under fabric together. Select the needle position. Lower the presser foot over the center of the tear.

NOTE

Makeno gaphere

2

3. Pull the button holder to the rear. Set the button guide plate on buttonhole foot to the desired length.

3

4. The size of one darn cycle is variable. However, the maximum stitch length is

2.6cm (1 inch) and the maximum stitch width is 7mm (9/32 inch).

a. The length of sewing.

b. The width of sewing.

44

8

2mm

DARNING STITCH

6

PUSH

DARNING STITCH

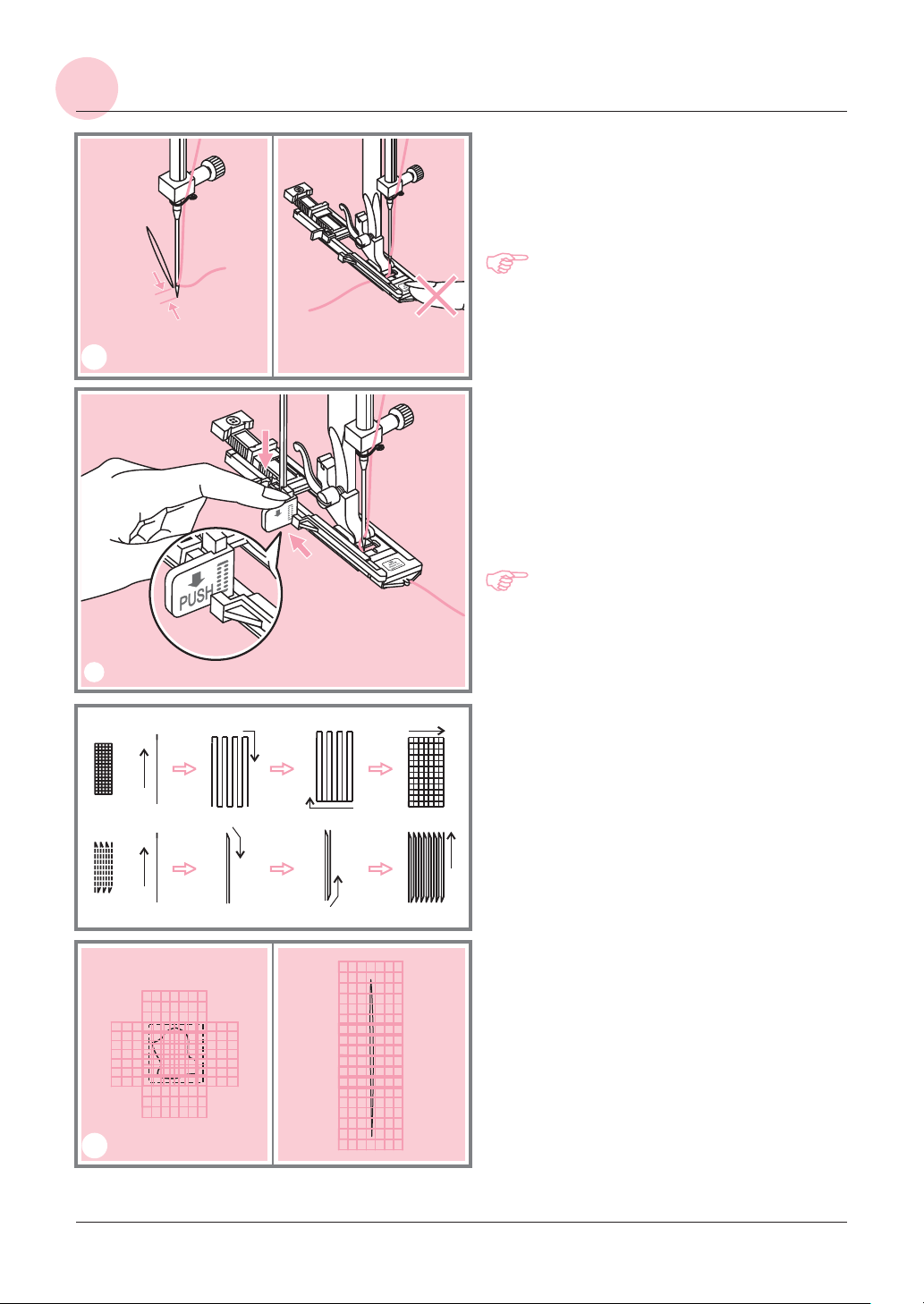

5. Position the fabric so that the needle is

2mm (1/16 inch) in front of the area to be darned, and then lower the presser foot lever.

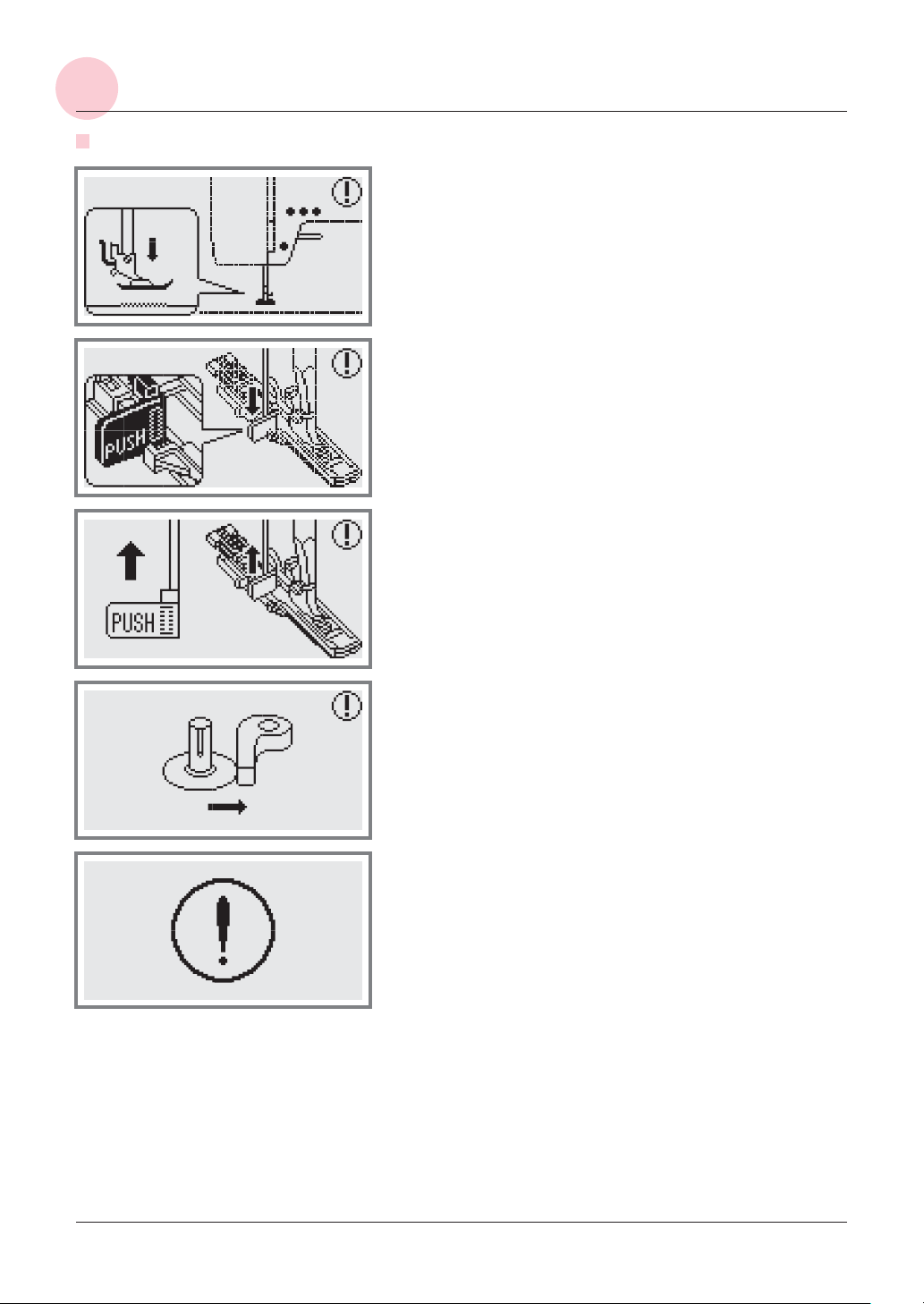

Please Note:

presser foot, do not push in the front of the presser foot, otherwise the darning will not be sewn with the correct size.

When lowering the

5

6. Pass the upper thread down through the

hole in the presser foot. Pull down the buttonhole lever then push it back. The buttonhole lever is positioned behind the bracket on the buttonhole foot. Gently hold the end of the upper thread in your left hand, and then start sewing.

Please Note: When you select any buttonhole pattern or darning pattern, LCD screen will be demonstrated the warning animation message display, it is to remind you to lower the buttonhole lever.

7. Darning stitches are sewn from the front of the presser foot to the back, as shown.

7

8. If the sewing range is too big to sew, then we suggest you can sew several times (or cross sew) to get better sewing result.

45

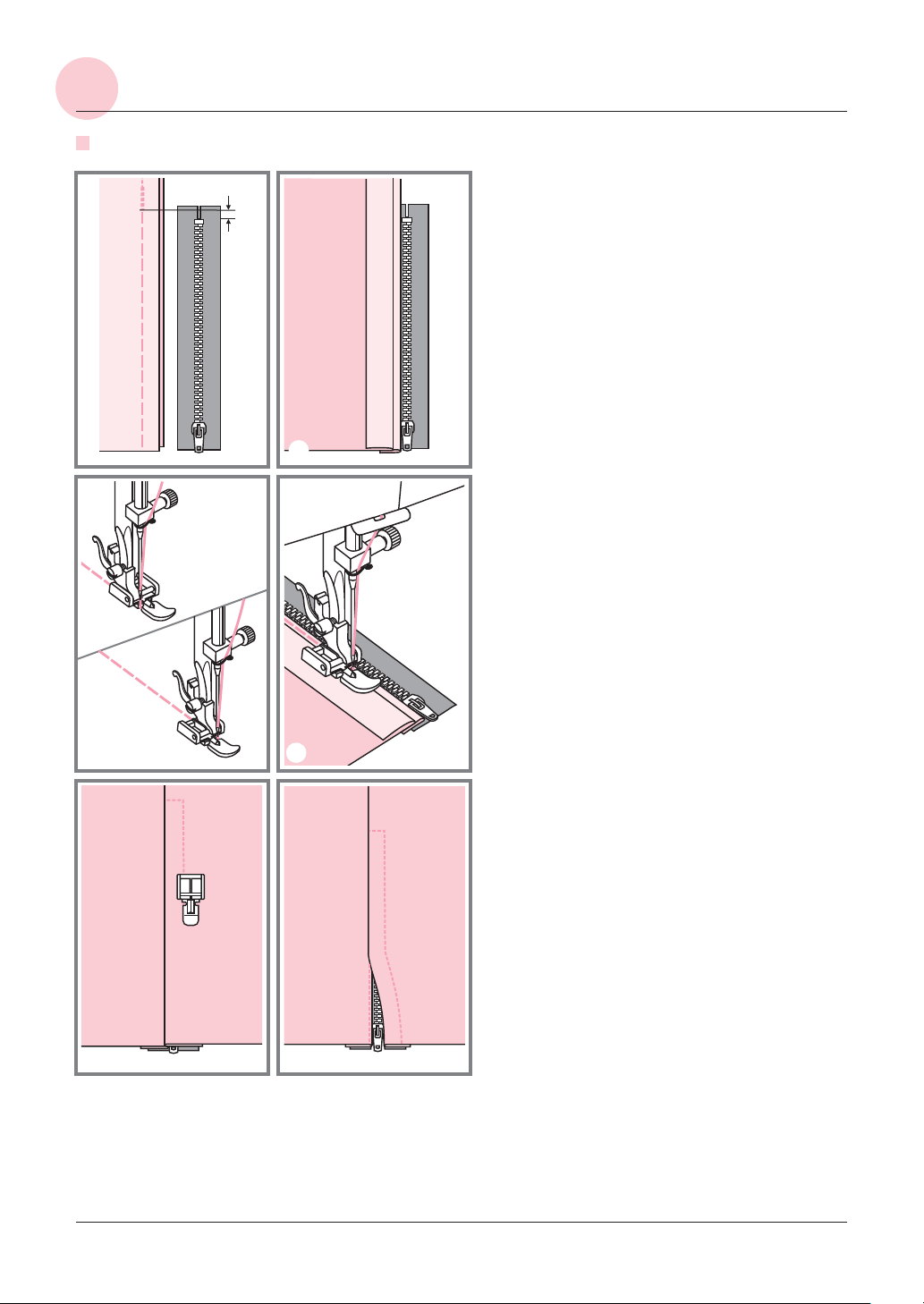

ZIPPER INSERTION

2 inch

1

2

6

3

4

5

ZIPPER INSERTION

I

3.5

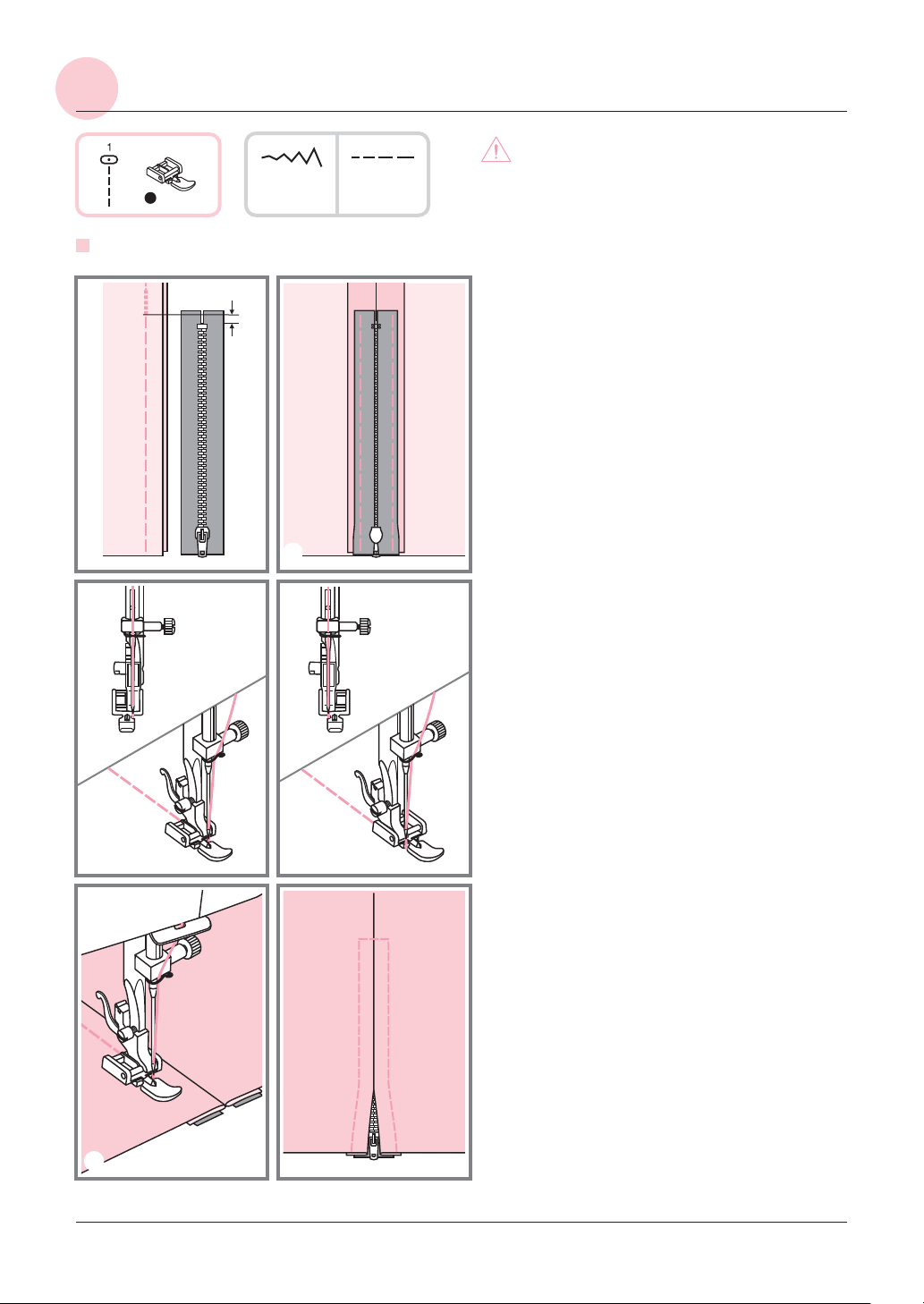

Inserting a centered zipper

1.5~3.0

Attention: Zipper foot should be used for sewing with the centered needle position straight stitch only. It is possible that the needle could hit the presser foot and break when sewing other patterns.

1. Baste the zipper opening on the garment.

2. Press open the seam allowance. Place the zipper face down on the seam allowance with the teeth against the seam line. Baste the zipper tape.

3. Attach the zipper foot. Attach the right side of the presser foot pin to the holder when sewing the left side of the zipper.

4. Attach the left side of the presser foot pin to the presser foot holder when sewing the right side of the zipper.

5. Stitch left side of the zipper from top to bottom.

6. Stitch across the lower end and right side of zipper. Remove the basting and press.

46

ZIPPER INSERTION

2 inch

1

2

5

6

3

4

ZIPPER INSERTION

Inserting a side zipper

1. Baste the zipper opening on the garment.

2. Fold back to the left seam allowance. Turn under the right seam allowance to form a 3mm (1/8 inch) fold.

3. Attach the zipper foot. Attach the right side of the presser foot pin to the holder when sewing the left side of the zipper. Attach the left side of the presser foot pin to the presser foot holder when sewing the right side of the zipper.

4. Stitch the left side of the zipper from bottom to top.

5. Turn the fabric right side out, stitch across the lower end and right side of zipper.

6. Stop about 5cm (2 inches) from the top of zipper. Remove the basting and open the zipper. Stitch the remainder of the seam.

47

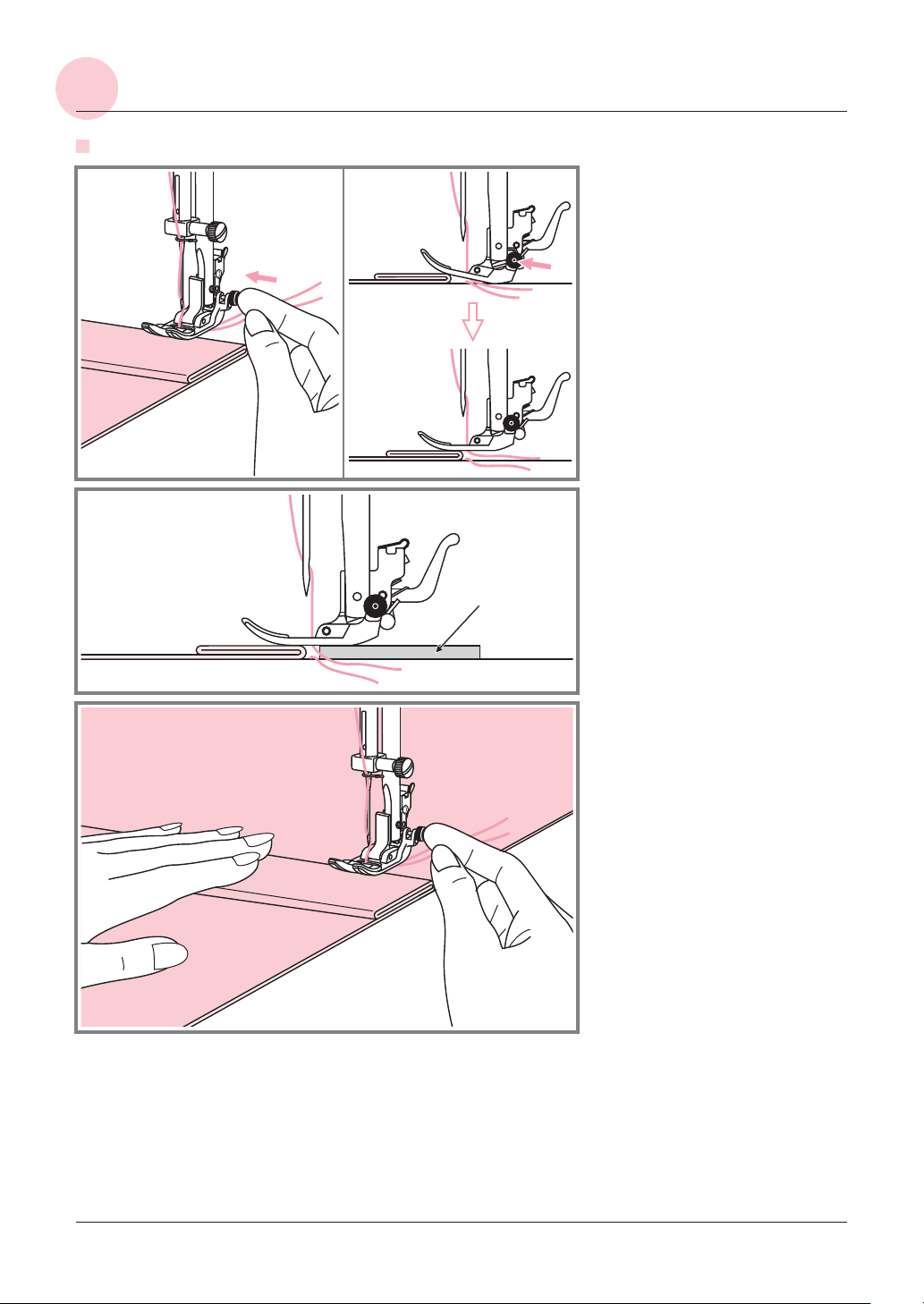

NARROW HEMMING

2

3

NARROW HEMMING

K

3.5

1.5~3.0

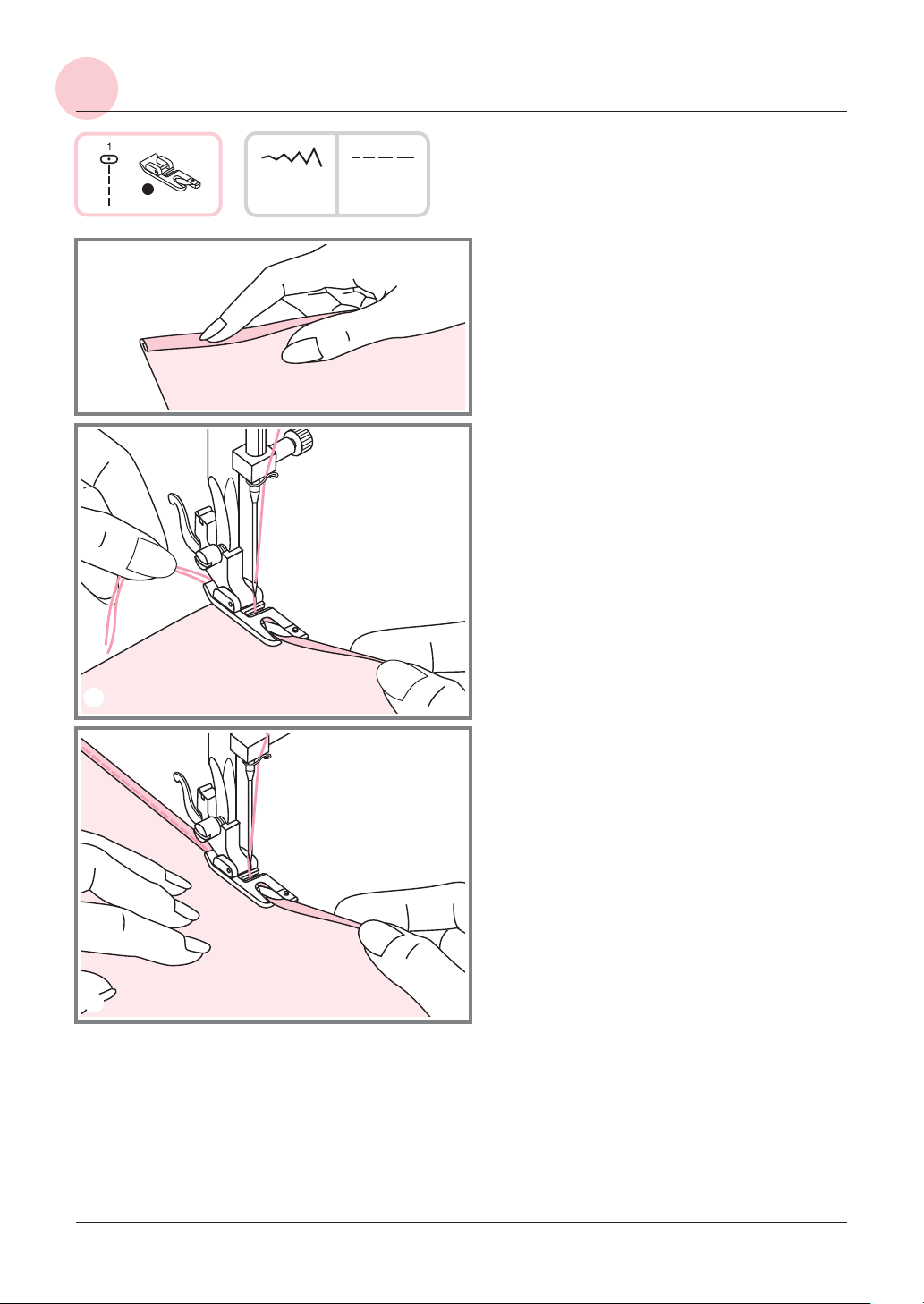

1. Fold the edge of the fabric over about 3mm (1/8 inch), then fold it over again 3mm (1/8 inch) for about 5cm (2 inches) along the edge of the fabric.

1

2. Insert the needle into the fold by rotating the handwheel toward you, and lower the presser foot. Sew several stitches and raise the presser foot.

Insert the fabric fold into the spiral opening of hemmer foot. Move the fabric back and forth until the fold forms a scroll shape.

3. Lower the presser foot and start sewing slowly guiding the raw edge of the fabric in front of the hemmer foot evenly into the scroll of the foot.

48

CORDING

Sew over one strand of cording to create a pretty swirled design on a jacket or vest or sew over three strands of cording for border trims. Pearl cotton, knitting yarn, embroidery floss, lace thread, fine wool or lily yarn can be used for cording.

Single cording

M

Mark the design on the fabric. Insert the cord in the center groove of the cording foot from the right side opening. Pull the cord about 5cm (2 inches) behind the foot.

The grooves under the foot will hold the length of the cord in place while the stitches are being form over the cord.

Triple cording

Select the stitch and adjust the stitch width so that the stitches are just covering the cord. Lower the foot and sew slowly, guiding the cord over the design.

M

Push the sewing thread to the left and insert three cords into the grooves of the foot and pull about 5cm (2 inches) of the cords behind the foot. Select the desired pattern and adjust the stitch width so that the stitches are just covering the cords. Lower the foot and sew slowly guiding the cords.

49

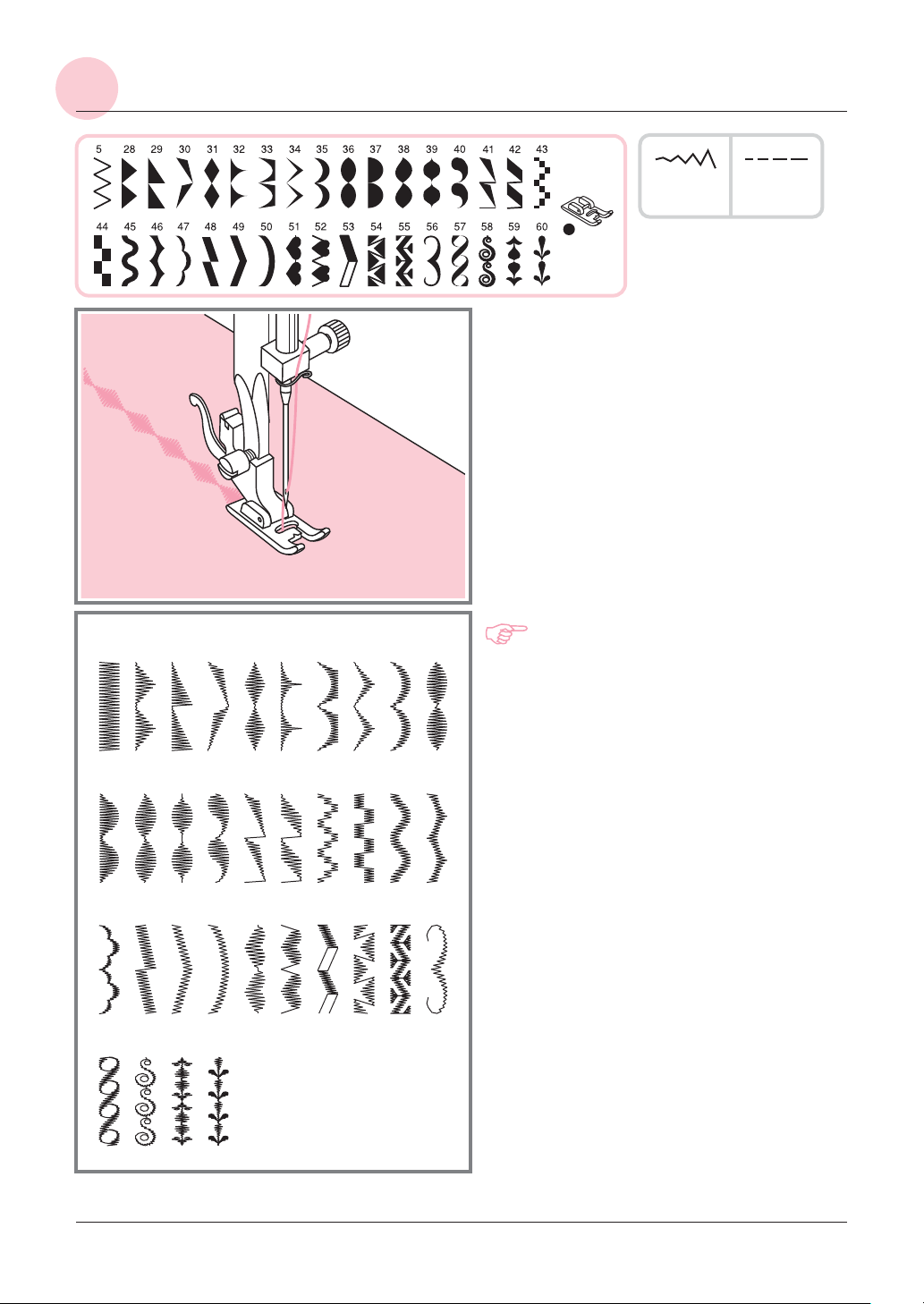

SATIN STITCH SEWING

05 28 29 30 31 32 33 34 35 36

3.5~7.0

A

Use the satin stitch foot for satin stitching and sewing decorative stitches. This foot has a full indentation on the underside to allowed easy sewing over the thickness of the stitches form by closely spaced zigzag stitches, and even feeding of the fabric.

To tailor the satin or decorative stitch pattern, you may adjust the length and width of the pattern by pressing the stitch length and width adjustment buttons. Experiment with fabric scraps until you get the desired length and width.

Please Note: When sewing very thin fabrics, it is suggested that you use interfacing on the backside of the fabric.

0.5~2.0

37 38 39 40 41 42 43 44 45 46

47 48 49 50 51 52 53 54 55 56

57 58 59 60

50

QUILTING

P

3.5

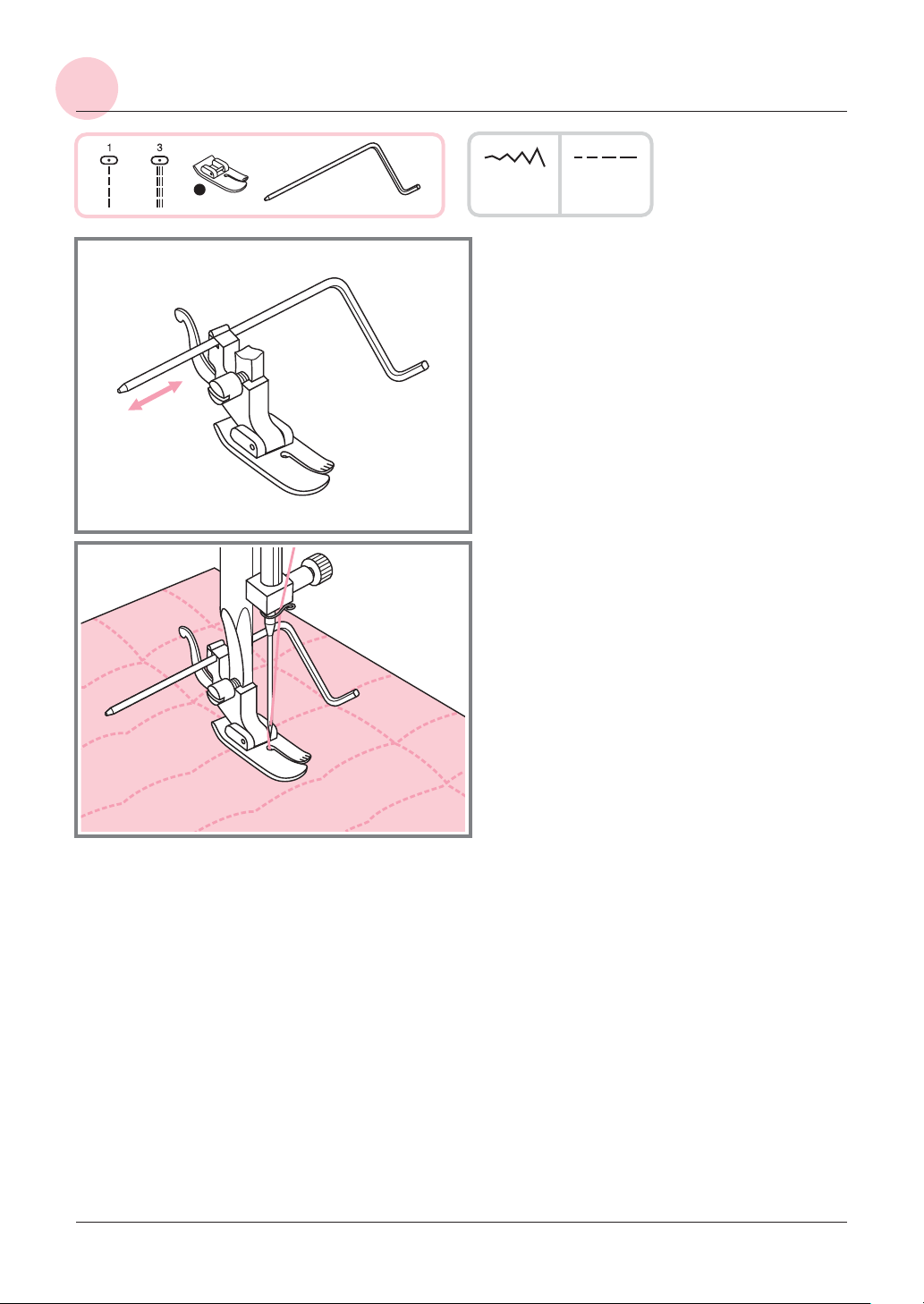

Insert the quilting guide in the presser foot holder as illustrated and set the space as you desire.

Sew the first row and move over the fabric to sew successive rows with the guide riding along the previous row of stitching.

1.0~3.0

51

GATHERING

3.5

4.5

1. Remove the presser foot holder and attach the gathering foot.

2. Sew a single row or multiple rows of straight stitches.

3. If more gathering is required, loosen the upper thread tension to below 2 so that the bobbin thread lies on the underside of the material.

4. Pull the bobbin threads to obtain the desired amount of gather, then tie the threads to secure them.

5. Smooth the gathers by ironing them.

Please Note: It can also use the all purpose foot and gather fabric by hand by lowering the tension setting to below 2 and pulling the lower thread to gather the material.

52

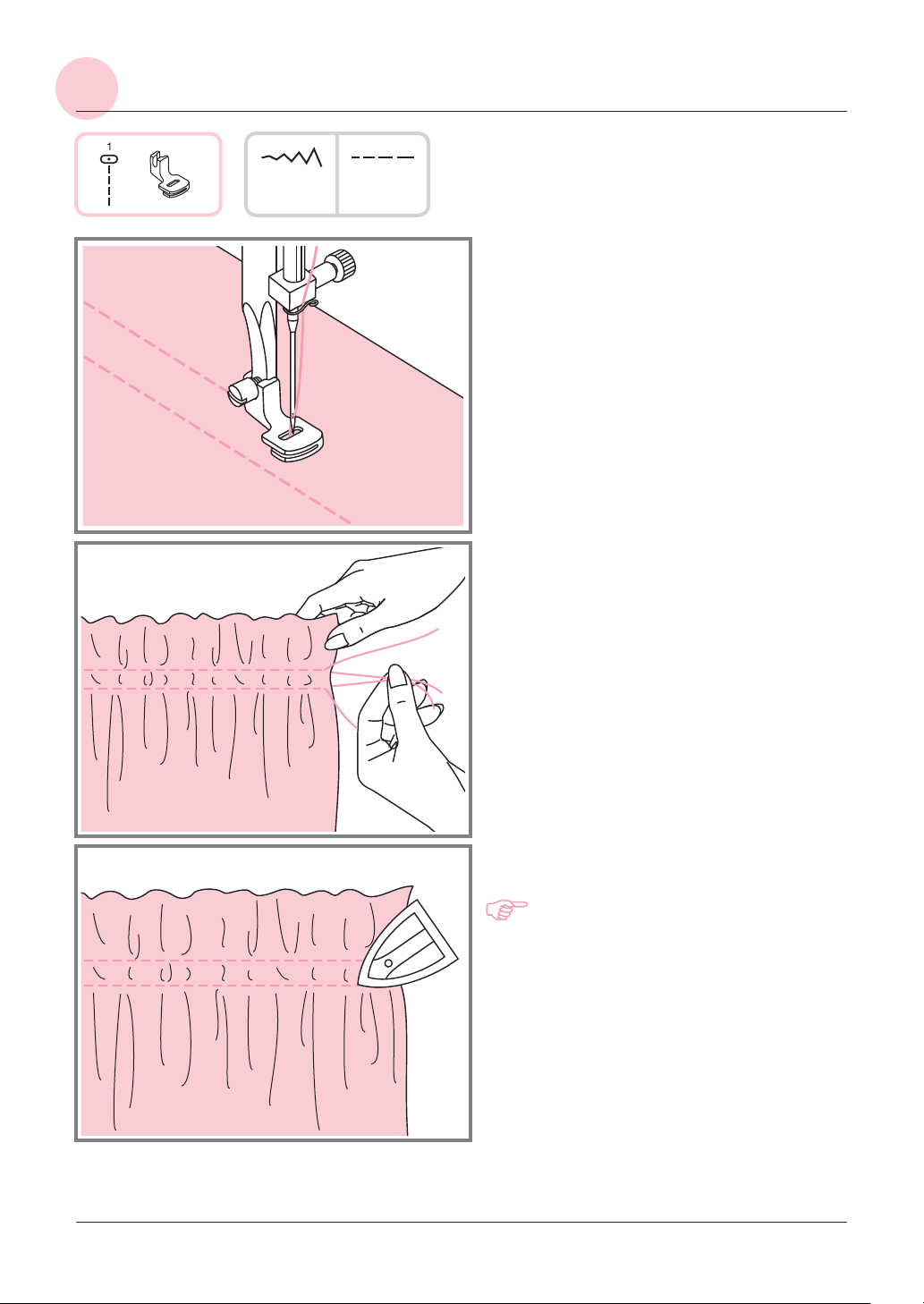

SMOCKING

4

2

3

1

SMOCKING

T

A

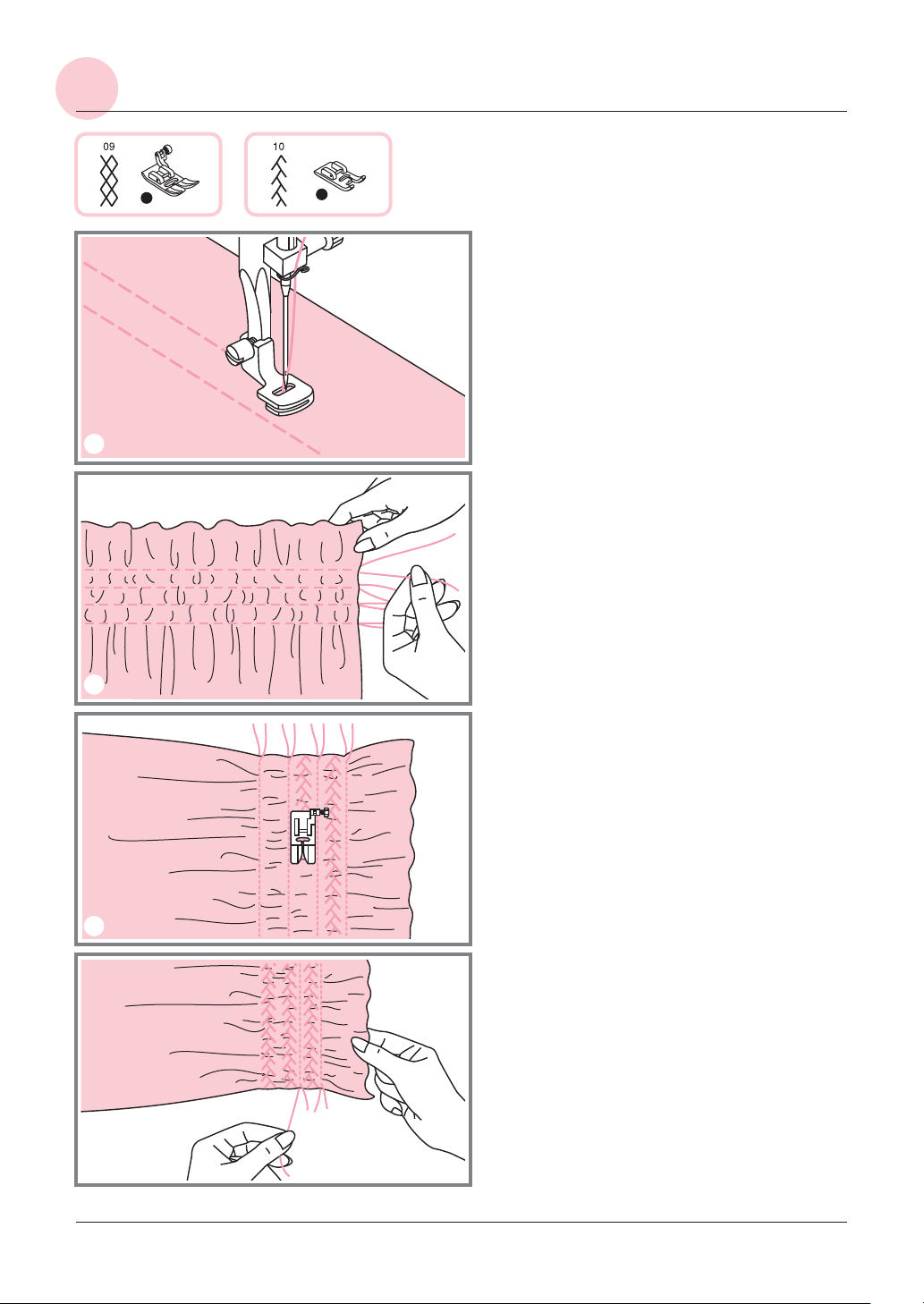

1. Use the gathering foot to sew straight lines 1cm (3/8 inch) apart, across the area to be smocked.

* For gathering sewing instructions, see

page 52.

2. Knot the threads along one edge. Pull the bobbin threads and distribute the gathers evenly. Secure the threads at the other end.

3. Reduce the tension, if necessary and sew decorative pattern stitches between the straight seams.

4. Pull out the gathering stitches.

53

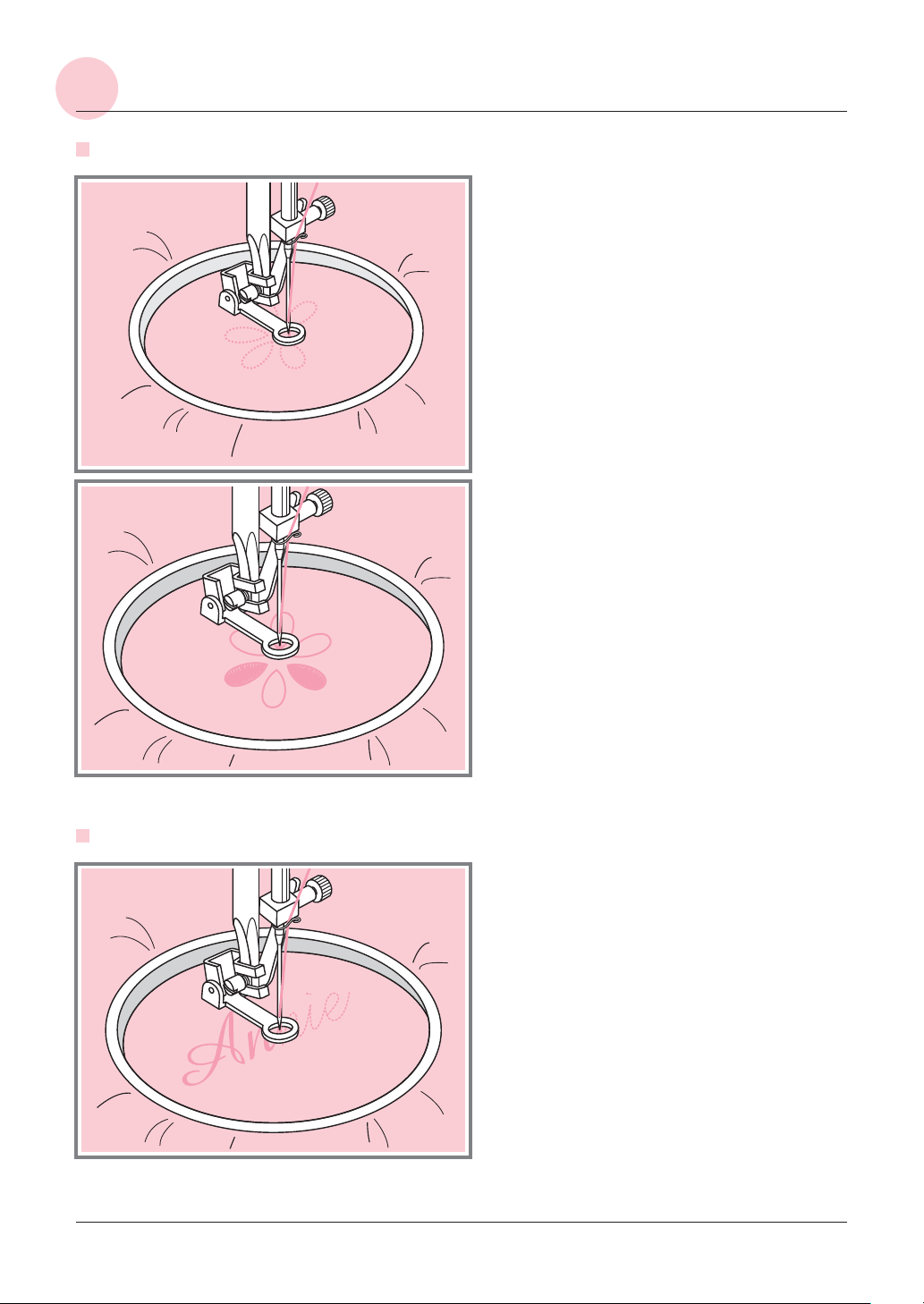

FREE MOTION DARNING, EMBROIDERY AND MONOGRAMMING

a

b

aa

a

b

c

FREE MOTION DARNING, EMBROIDERY AND MONOGRAMMING

3.5~5.0

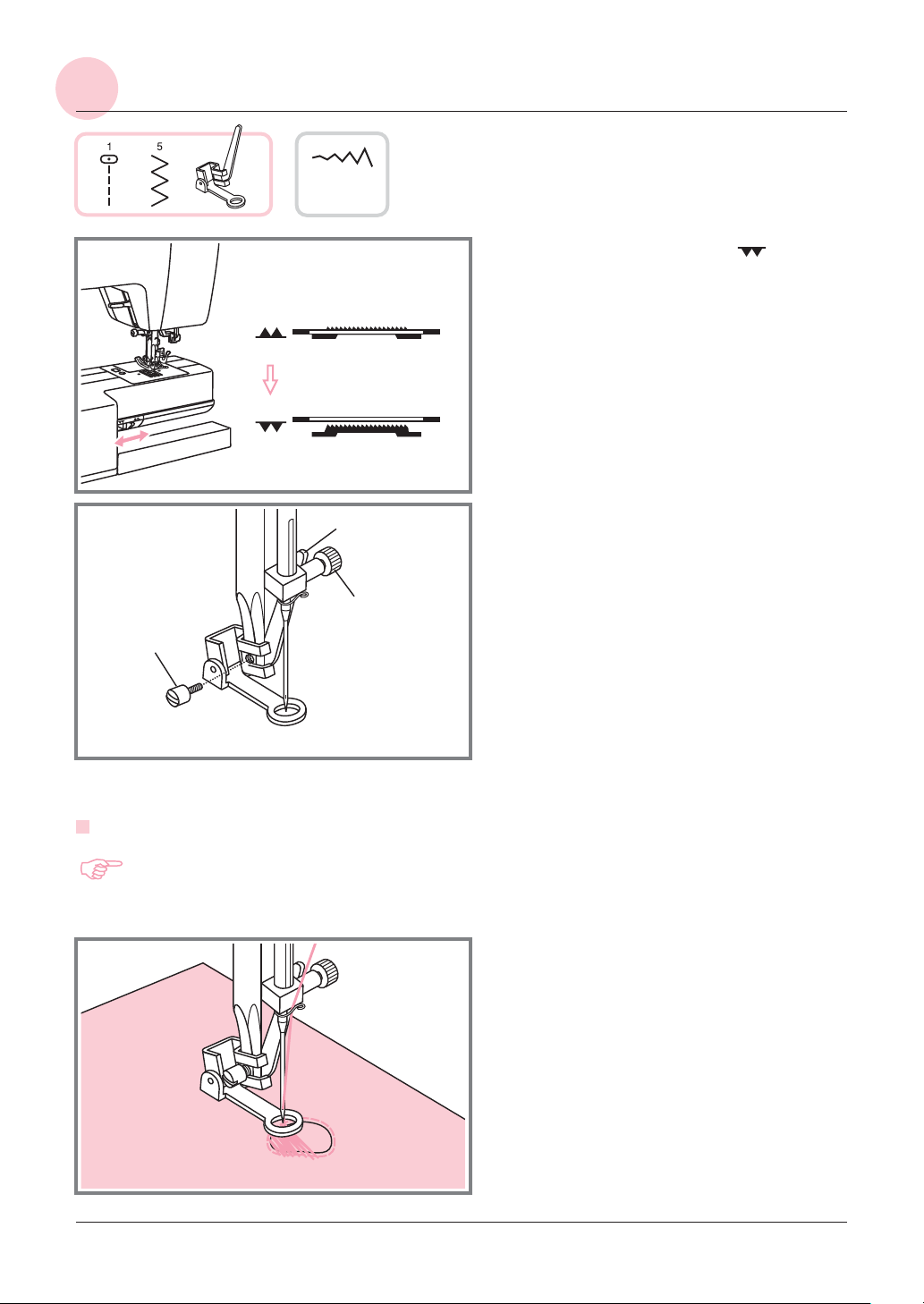

Move the drop feed control to " " to lower the feed dogs.

Remove the presser foot holder, and attach the darning foot to the presser foot holder bar. The lever (a) should be behind the needle clamp screw (b). Press the darning foot on firmly from behind with your index finger and tighten the screw (c).

Darning

Please Note: Free motion darning is accomplished without the sewing machine internal feed system. Movement of the fabric is controlled by the operator. It is necessary to coordinate sewing speed and movement of fabric.

First sew around the edges of the hole (to secure the threads). Working from left to right, sew over the hole in a constant and continuous movement. Turn the work by 1/4 and sew over the first stitching moving the work slower over the hole to separate the threads and not form big gaps between the threads.

54

FREE MOTION DARNING, EMBROIDERY AND MONOGRAMMING

Embroidery

Select zigzag stitch pattern and adjust the stitch width as desired. Stitch along the outline of the design by moving the embroidery hoop. Make sure to maintain a constant speed.

Fill in the design working from the outline towards the inside. Keep the stitches close together.

You will get longer stitches by moving the hoop faster and shorter stitches by moving the hoop more slowly.

Secure with a reinforcement stitches at the end by pressing the Auto-lock button.

Monogramming

* Embroider hoop is not included with the machine.

55

Select the zigzag stitch pattern and adjust the stitch width as desired. Sew at a constant speed, moving the hoop slowly along the lettering.

When the letter is finished. Secure with a reinforcement stitch at the end by pressing the Auto-lock button.

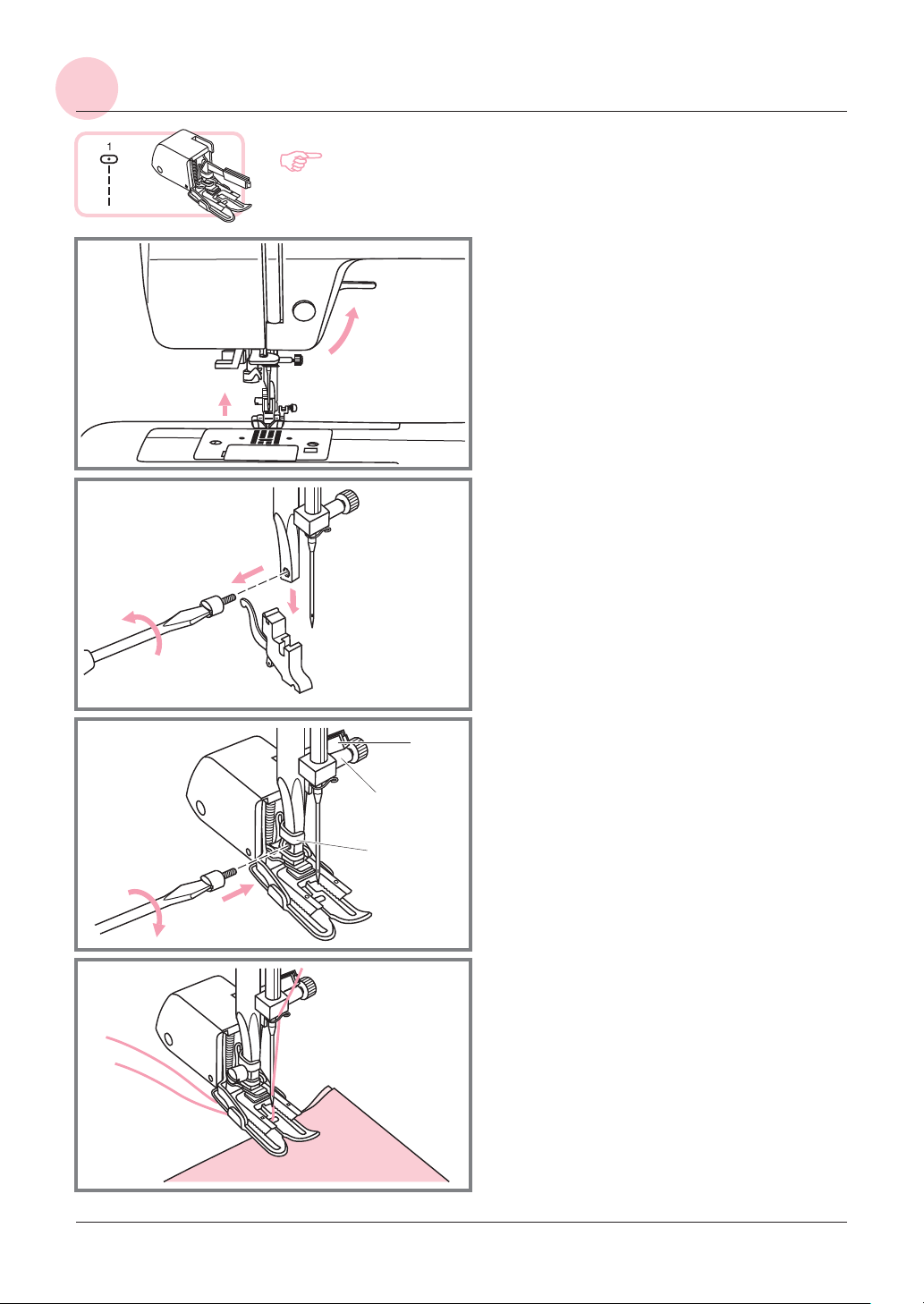

WALKING FOOT

2

a

b

c

3

4

1

WALKING FOOT

Please Note: Always try to sew first without the walking foot accessory which should be used only when necessary.

It is easier to guide the fabric and you have a better view of the seam when using the standard, regular foot on your machine. Your sewing machine offers excellent stitch quality on a wide range of fabrics from delicate chiffons to multiple layers of denim.

The Walking Foot accessory equalizes the feeding of the upper and lower layers of fabric and improves the matching of plaids, stripes and patterns. It also helps to prevent uneven feeding of very difficult fabrics.

1. Lift the presser foot lifter to raise the presser foot bar.

2. Remove the presser foot holder by unscrewing (counterclockwise) the presser bar attaching screw.

3. Attach the Walking Foot to the machine as follows:

- The arm (a) should fit into above the

needle screw and clamp (b).

- Slide the plastic attaching head (c) from

your left to right so that it is fitted into the presser foot bar.

- Lower the presser foot bar.

- Replace and tighten (clockwise) the

presser bar attaching screw.

- Make sure both the needle screw and the

presser bar attaching screw are tightly secured.

4. Draw the bobbin thread up and place both the bobbin thread and the needle thread behind the walking foot attachment.

56

FAGOTING

3

Thin paper Basting

1

2

FAGOTING

T

PATCHWORK STITCHING

A

1. Separate the folded edges of the fabric pieces with a gap of 4mm (1/8 inch) and baste them onto a piece of thin paper or water-soluble stabilizer sheet.

2. Align the center of the presser foot with the center of the two pieces of fabric and begin sewing.

3. After sewing, remove the paper.

T

A

1. Place the two pieces of fabric with the right side together and sew with the straight stitch. Open the seam allowances and presses it flat.

2. Place the center of the presser foot on the seam line of the joined pieces of fabric and sew over the seam.

57

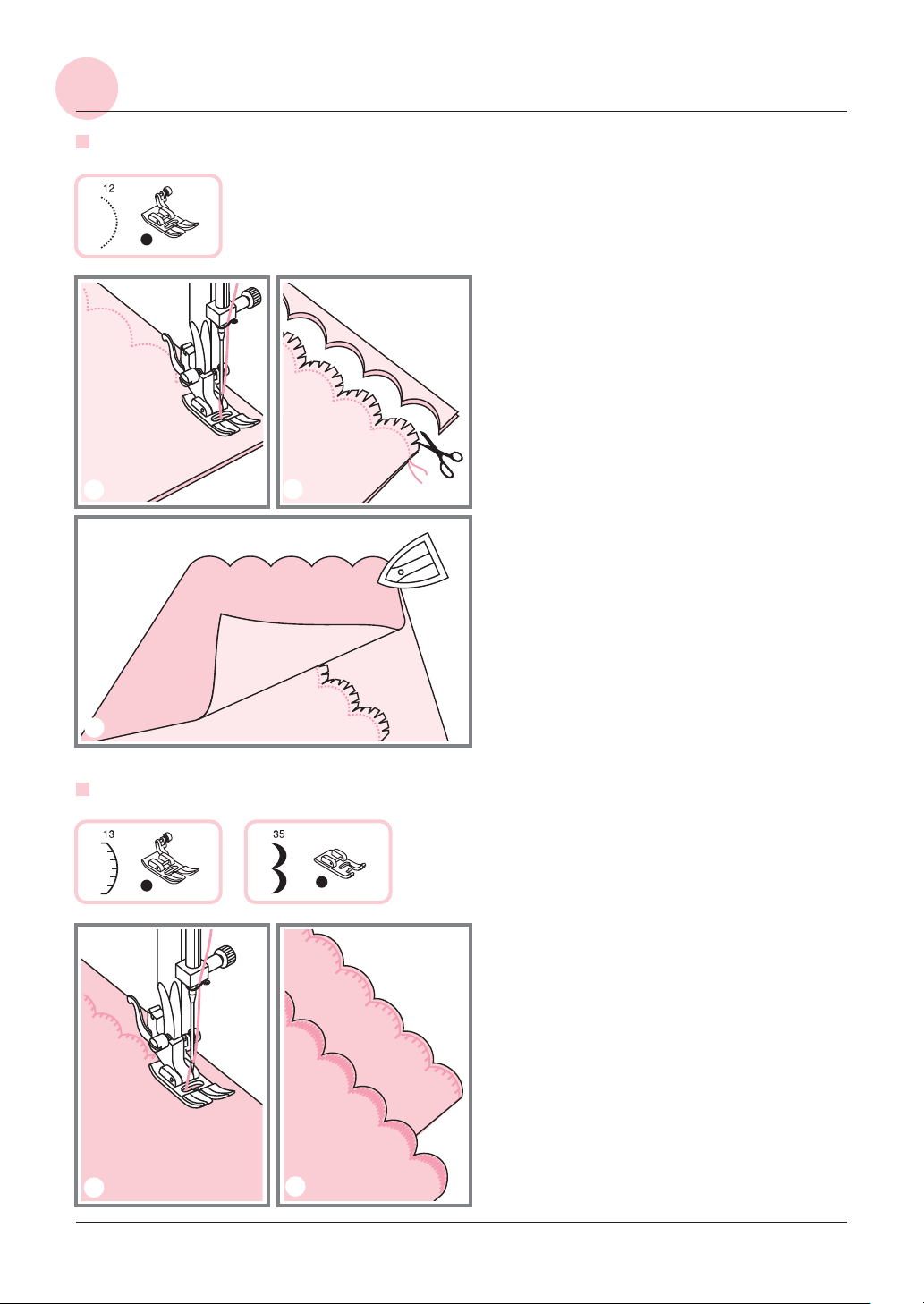

SCALLOP STITCH

3

2

Wrong side of fabric

1

SCALLOP STITCH

Scallop hem

T

1. Fold the fabric right side together in and sew along the edge.

2. Cut the fabric along the seam leaving an allowance of 3mm (1/8 inch) for seaming. Notch the allowance.

3. Turn the fabric over and push out the curved seam to the surface and iron it.

Scallop edging

T

A

1. Stitch along the edge of the fabric, marking sure not to sew directly on the edge of the fabric.

* For better results, apply spray starch onto

the fabric and press with a hot iron before it is sewn.

2. Trim along the stitches.

* Be careful not to cut the stitches.

58

ELONGATION

x5

x4

x3

x2

x1

ELONGATION

2.5~7.0

A

0.3~1.0

1. The stitch can be elongated up to five times its normal length by pressing the elongation button.

1

2. The LCD screen icon for elongation imaging of the pattern appears.

2

3. When the width or length or stitch is changed, a greater variety of patterns are available.

Please Note: A Group Patterns 28-51 can be elongated and mirrored simultaneously.

3

59

MIRROR

Please Note:

- Direct Patterns ",,"andPatterns 14-27 from Group Patterns "A" cannot be mirror imaged.

- Mirror imaged patterns can also be combined with other patterns.

1. Select the pattern.

1

2. Pressing the mirror button.

2

3. The LCD screen icon for mirror imaging of the pattern appears.

3

A. Normal pattern sewing.

A

B. Mirror pattern sewing.

B

4

60

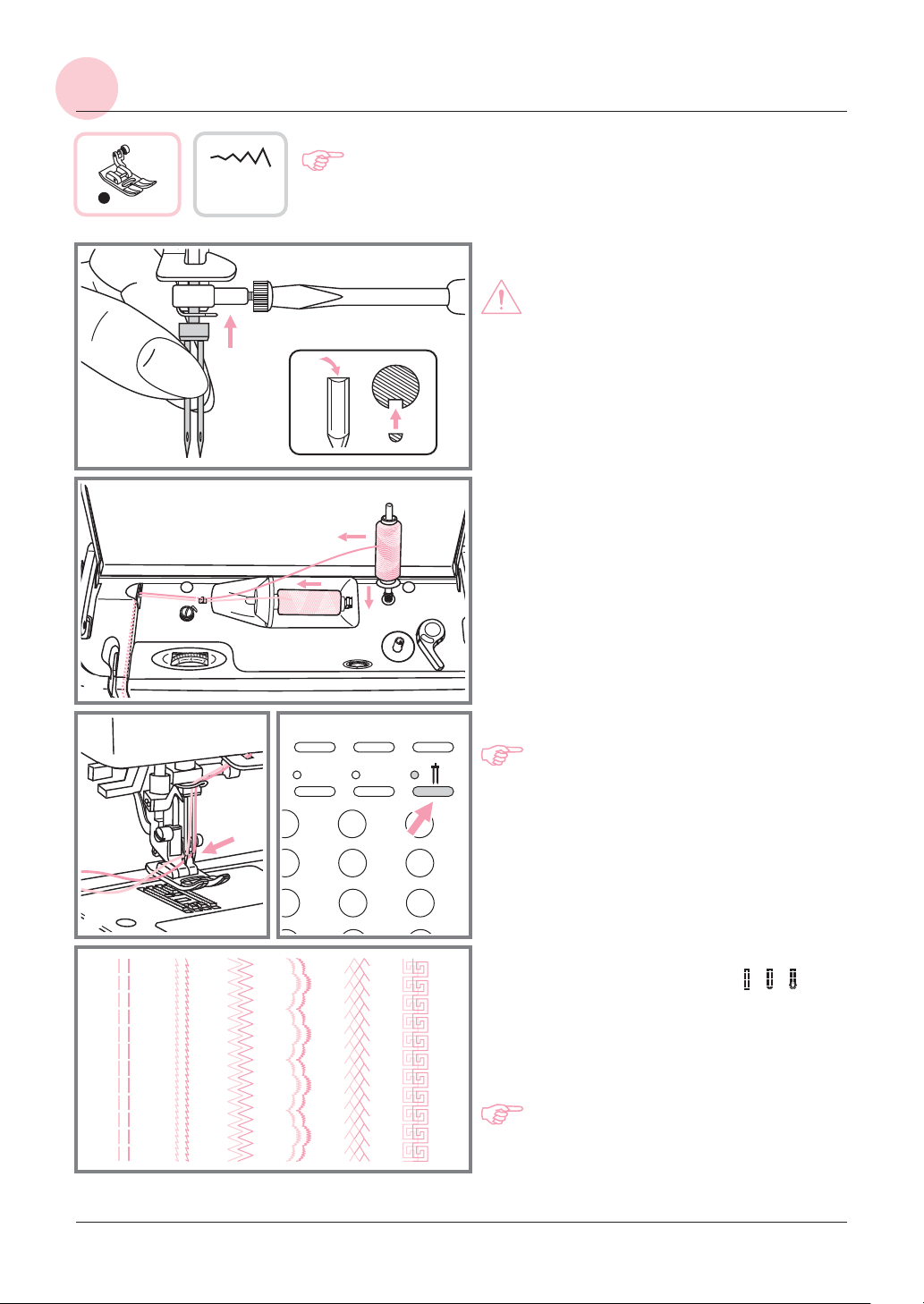

USING THE TWIN NEEDLE

T

1.0~3.0

1

2

Please Note: When using twin needles, use the "T" presser foot regardless of what kind of sewing will be carried out.

1. Insert the twin needle.

Attention: Use only the twin needle type

included (part code: 006020008). Use of any other twin needle type may result in the needle being bent or damage to the machine.

needles can easily break, possibly resulting in injuries.

2. Follow the instructions for single-needle threading using the horizontal spool pin. Thread through the left needle.

Set the second spool pin (included with the accessories) into the hole on the top of the machine. Thread through remaining points, making certain to omit the thread guide above the needle and pass thread through the right needle.

Never use bent needles. Bent

3. Thread each needle separately.

Please Note: Make sure that the two threads used to thread the twin needle are of the same weight. You can use one or two colors.

4. Press the Twin needle button, the LED light will turn on, and the machine automatically reduces the maximum width for twin needle

3

4

5

sewing.

5. Select a stitch pattern and start to sew. Except the Direct Patterns " , , " and patterns 14-27 from the Group Patterns "A", the other patterns can be used.

Two lines of stitching are sewn parallel to each other.

Please Note: When sewing with twin needle, always proceed slowly, and make sure to maintain a low speed to insure quality stitching.

61

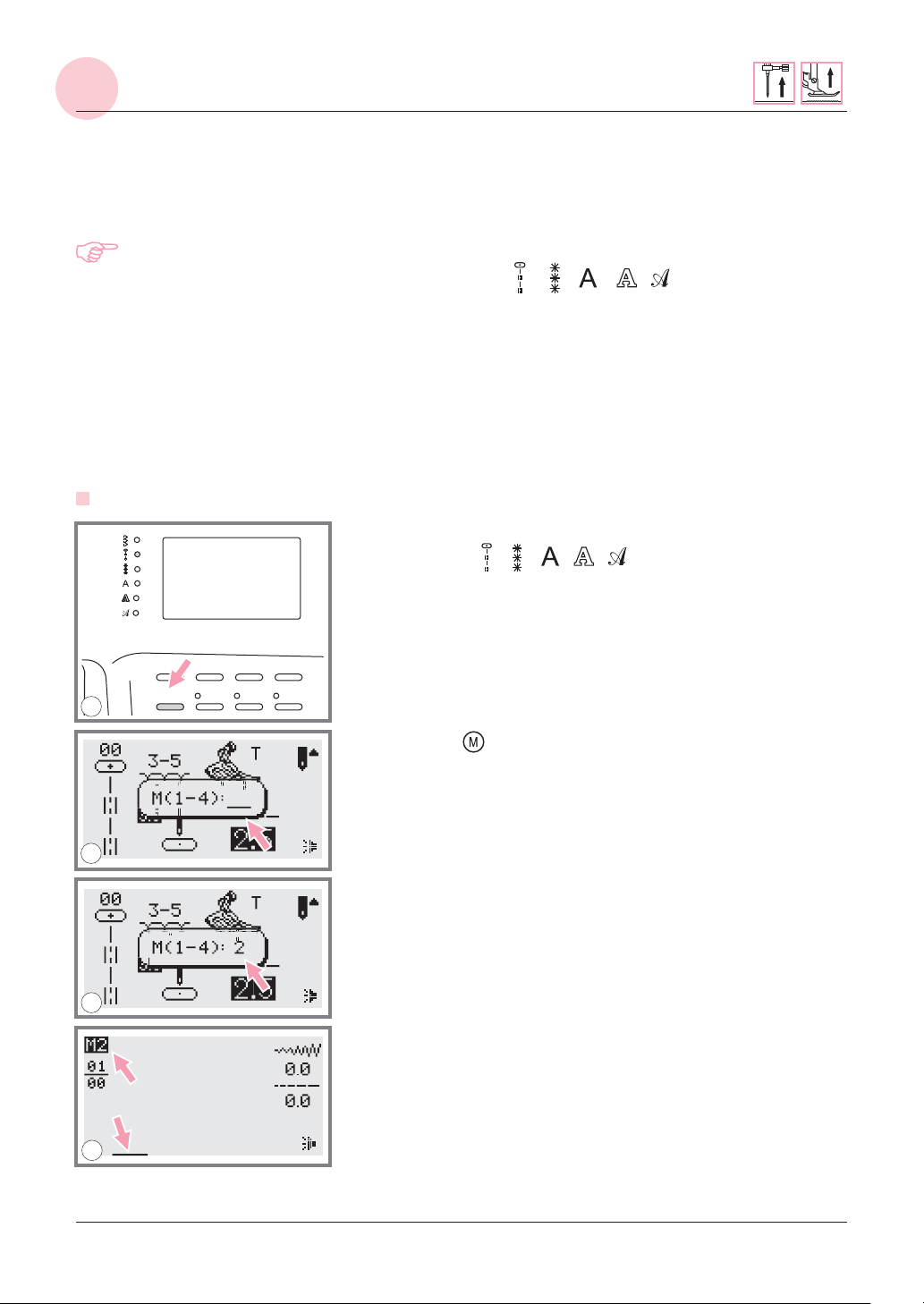

MEMORY

MODE

MEMORY

Combined patterns can be stored for later use. Since stored patterns are not lost after the sewing machine is turned off, they can be recalled at any time. This is convenient for patterns, such as names, that will be used often.

Please Note:

- Multiple patterns selecting from pattern modes ,,,,canbecombined and sewn together.

- Direct Patterns and patterns 14-27 from Group Patterns "A" cannot be entered into memory.

- This machine has 4 modules of program memory and each module can retain 20 units of stitches.

- All the units in the memory can be edited to set its function such as Stitch length, Stitch width, Elongation, Mirror, and Auto-lock.

Combining patterns or letters

1. Press the "MODE" button to select any desired pattern group among , , , , on front cover.

The LED will indicate the selected group.

1

2. Press the " " button to open the memory mode and then appears a sub-screen in the center. It is available to select the number of the memory module when the cursor start flashing.

2

3. Press the number of the memory module. (e.g. 2)

3

4. Enter the memory screen automatically and the flashing cursor stays in the first position.

4

62

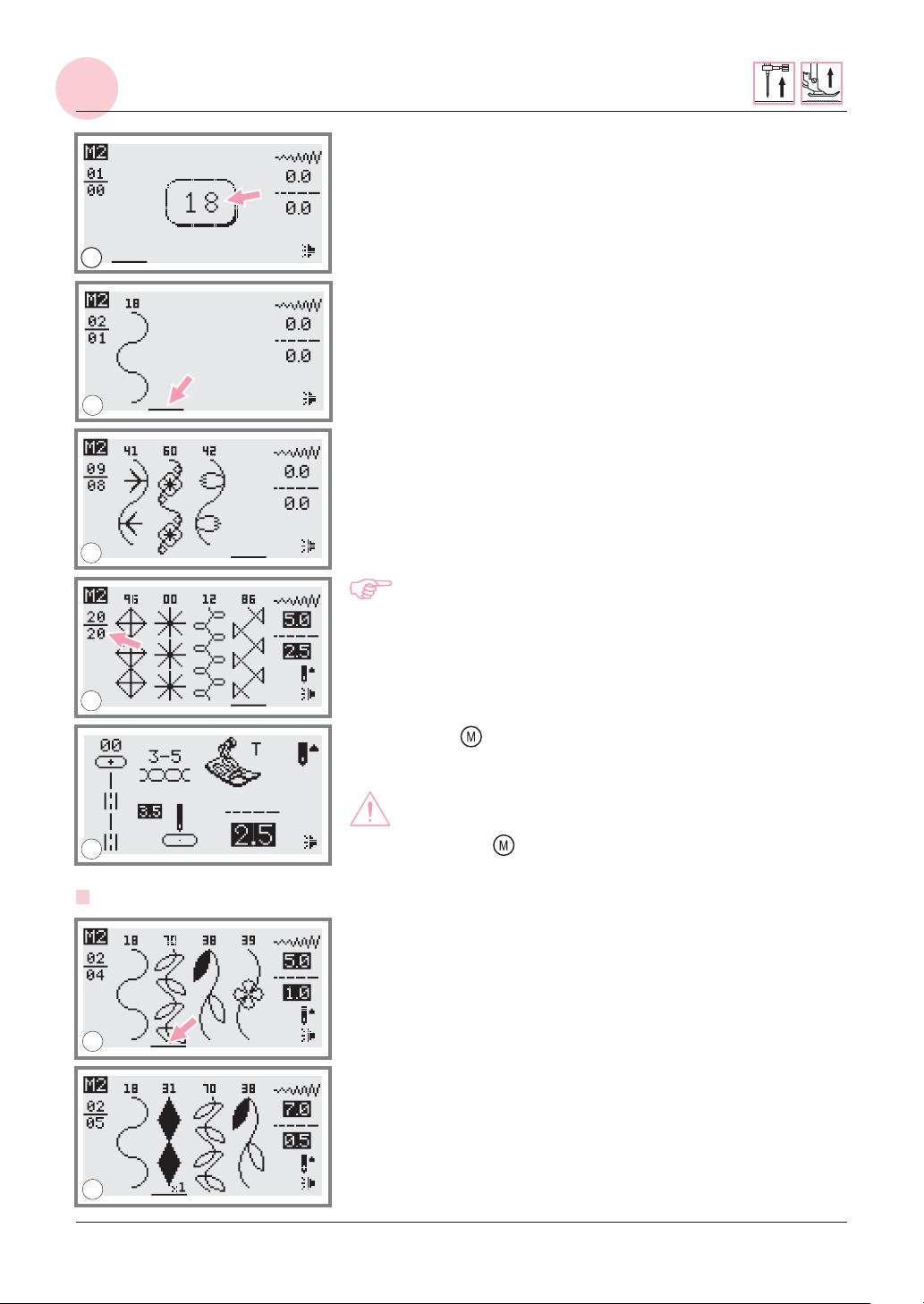

MEMORY

5

6

7

5. Press the desired pattern number. (e.g. 18)

6. The selected pattern displays on the LCD screen and the cursor move to the next position.

7. Repeat step 5, 6 for more patterns to be stored in the memory.

Please Note: When the memory the full with 20 units of patterns, the machine will beep to signal it.

7

8

Adding patterns or letters

1

2

8. Press the " " button to leave the memory mode and return to the normal screen.

Attention:

memory module after closing the machine if you do not press the " " button again when you have completed your selection.

1. Press the stitch width adjustment button and shift the cursor past the last pattern or letter where you would like to add another pattern while in the memory mode.

2. Press pattern number. (e.g. 31) The selected pattern will be inserted.

The selected pattern will be cleared from the

63

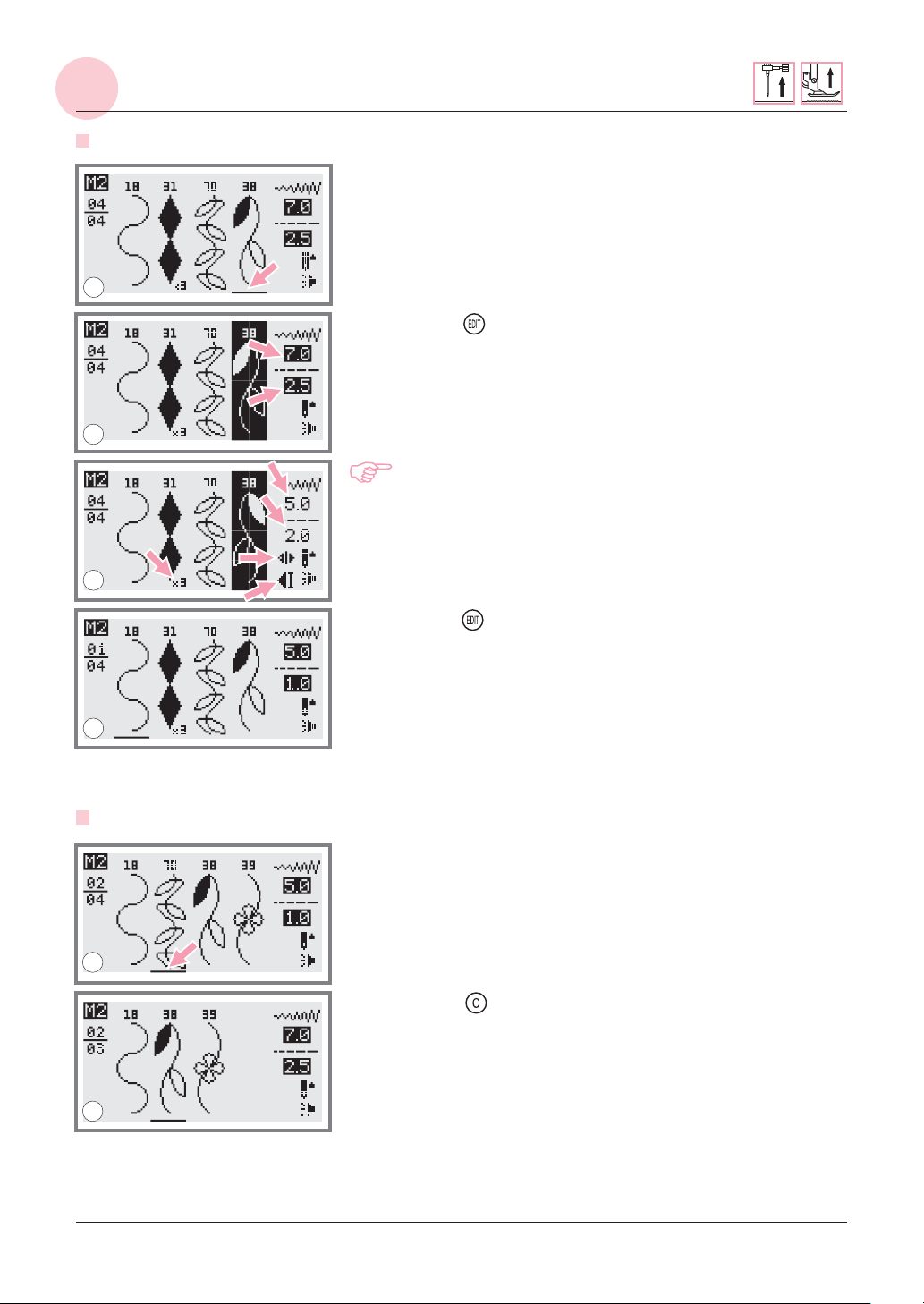

MEMORY

Editing patterns

1

2

3

1. Use the stitch width adjustment button to select the pattern that you wish to edit while in the memory mode.

2. Press the " " button to edit the pattern. The stitch length, stitch width, Elongation, Mirror imaging and Auto-lock of the patterns can be adjusted manually.

Please Note: The stitch length, stitch width, Elongation, Mirror, and Auto-lock of the patterns can be adjusted manually.

4

Clearing patterns or letters

1

2

4. Press the " " button when complete and return to browse status.

1. Use the stitch width adjustment button to select the pattern that you want to clear while in the memory mode.

2. Press the " " button to delete the selected pattern and the next pattern in the back will move forward.

64

MEMORY

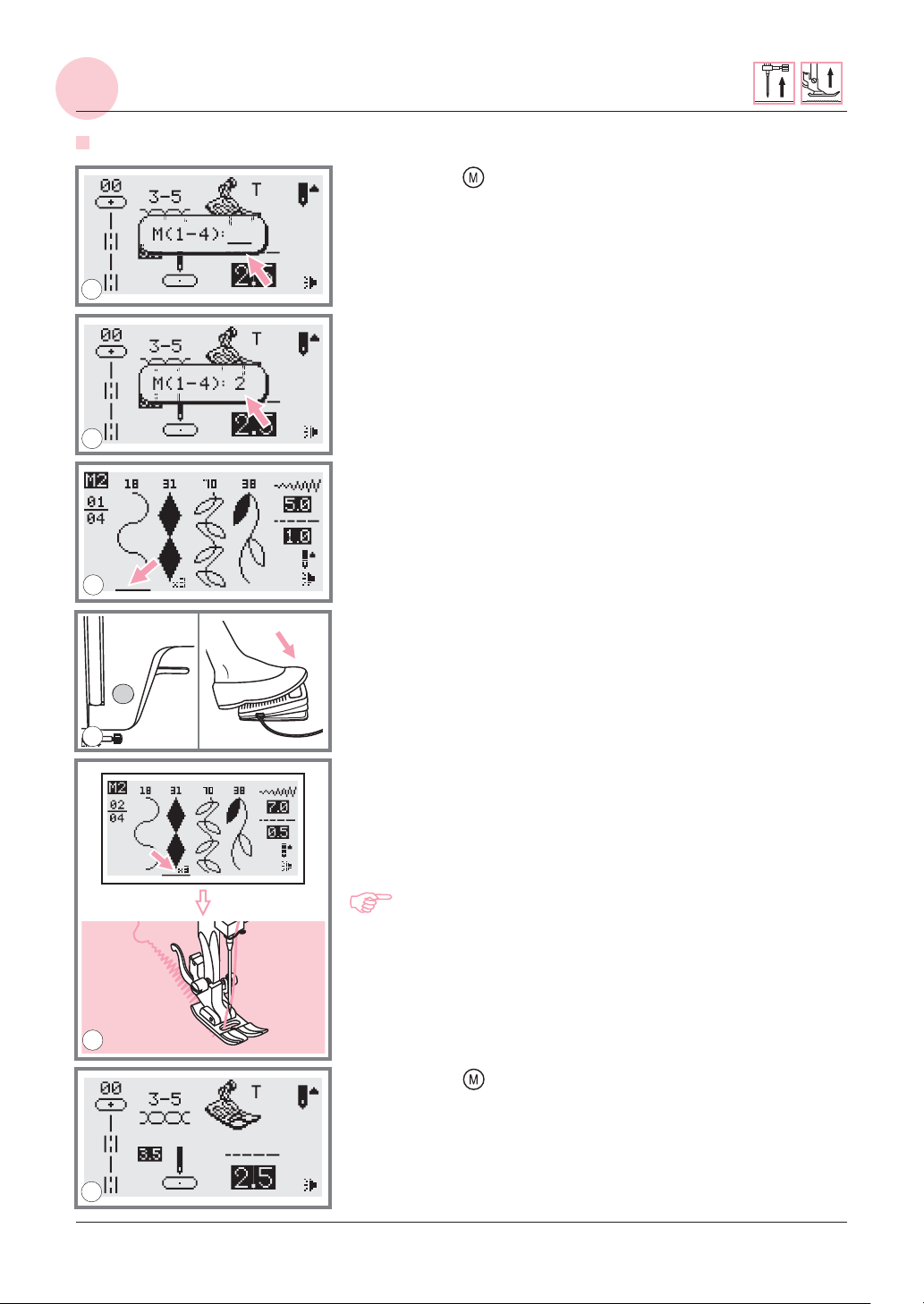

Recalling and sewing the memorized pattern

1. Press the " " button to enter the memory mode and then input the number of the memory module when the cursor start flashing.

1

2. Input the number of the memory module. (e.g. 2)

2

3. The LCD screen containing the various types of stitches will open.

3

4. Press on the foot control or press the Start/stop button to start the sewing machine.

4

5. The cursor on the LCD screen will move along with the sequential pattern while sewing.

Please Note: If the cursor stays in a vacant position in

the end, the machine will start sewing from the first pattern. If the cursor stays under a specific pattern, the machine will start sewing from that pattern.

5

6. Press the " " button to leave memory mode and return to the normal screen.

6

65

WARNING FUNCTIONS

Warning animation message display

Presser foot is not lowered

The Start/stop button or reverse button was pressed while the presser foot was raise.

BH lever is not lowered

The buttonhole or darning stitch was selected and the start/stop button was pressed while the buttonhole lever is raised.

BH lever is not lifted

A stitch other than the buttonhole or darning stitch was selected and the start/stop button was pressed while the buttonhole lever is down.

Return bobbin winder stopper to right

When the bobbin winder stopper is in left, press any button (expect the Start/stop button), the LCD screen will display the animation of return bobbin winder stopper to right.

The sewing machine is in trouble

The animation message means that the thread is twisted or jammed and the hand wheel axle cannot move. Please look through the "Trouble shooting guide" on page 72/73 to find the solution. After the problem has been solved, the machine will continue to sew.

66

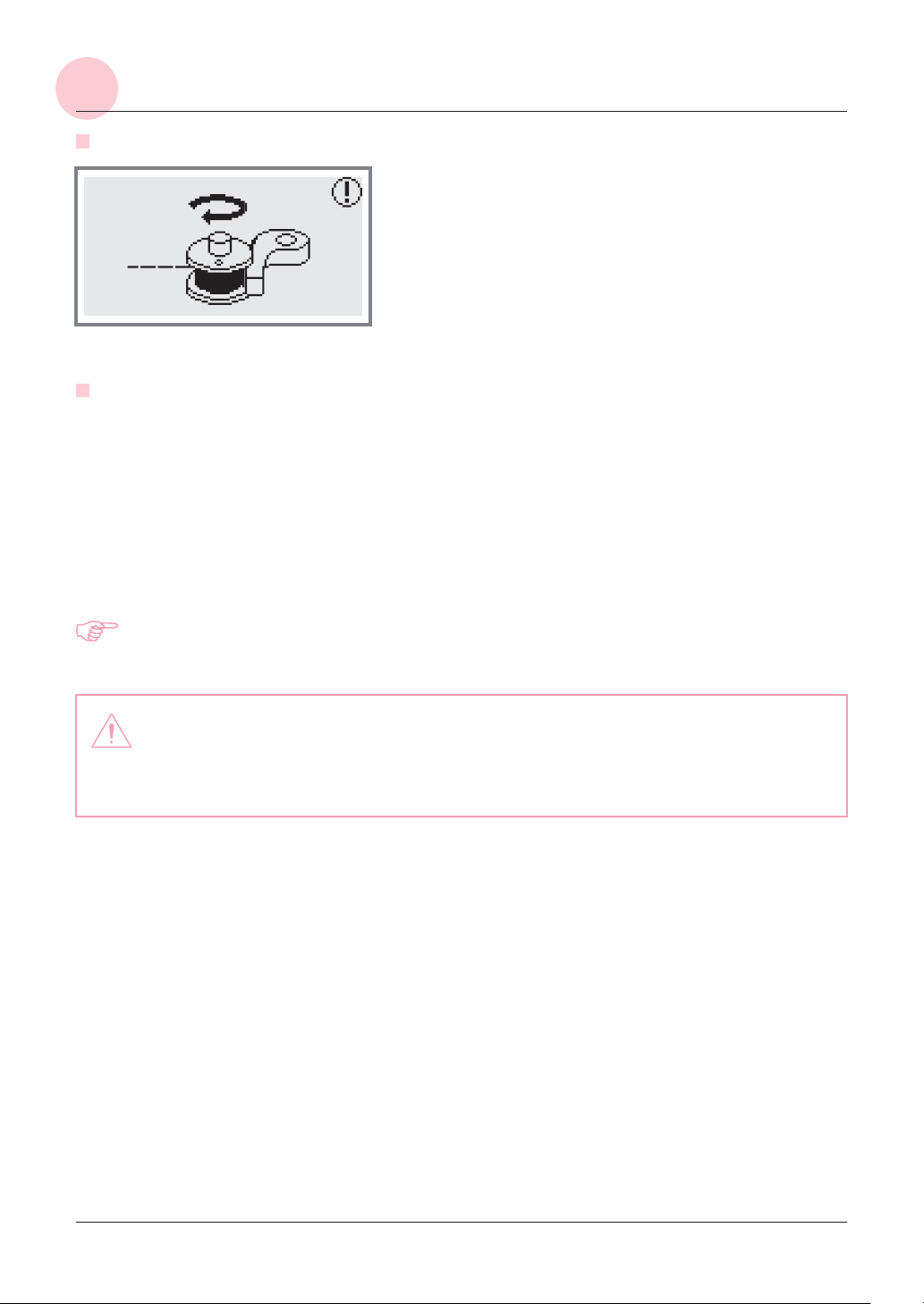

WARNING FUNCTIONS

Instruction animation message display

Bobbin winding

The bobbin winder is winding the bobbin.

Warning beeping sound

- When operating correctly: 1 beep

- When the memory is full with 20 units of pattern: 2-short beeps

- When operating incorrectly: 3-short beeps

- When the sewing machine is in trouble and can't sew: 8 seconds short beeps It means that the thread is twisted or jammed and the hand wheel axle can't move. Please look

through the "Trouble shooting guide" on page 72/73 to find the solution. After the problem has been solved, the machine will continue to sew.

Please Note: If the problem is still not solved, please contact your local dealer.

Attention: During the sewing, if the thread get jammed inside the hook stopping the

needle from moving and you continue pressing the foot control, the security switch will stop the machine completely. In order to restart the sewing machine, you will have to turn the on/off switch to the OFF position and then ON again.

67

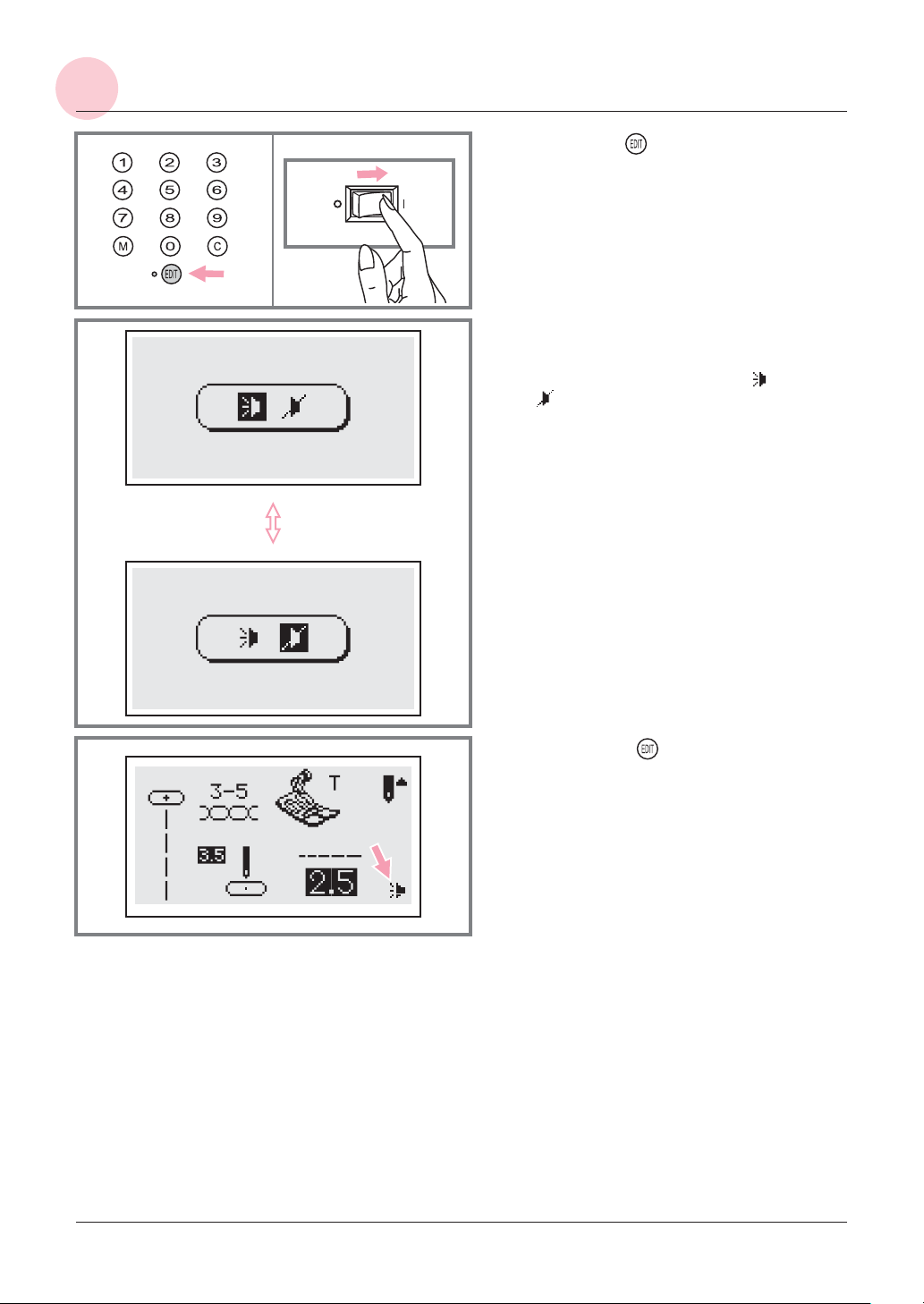

BUZZER SOUND

ONOFF

BUZZER SOUND

1

1. Press on the " " button and turn on the power switch.

2. You can select the mode by pressing the stitch width "+" or "" button.

Select desired mode sound on " " or sound off " ".

2

3. Pressing the " " button. The buzzer sound setting mark will appear on the LCD screen when you have set it.

3

68

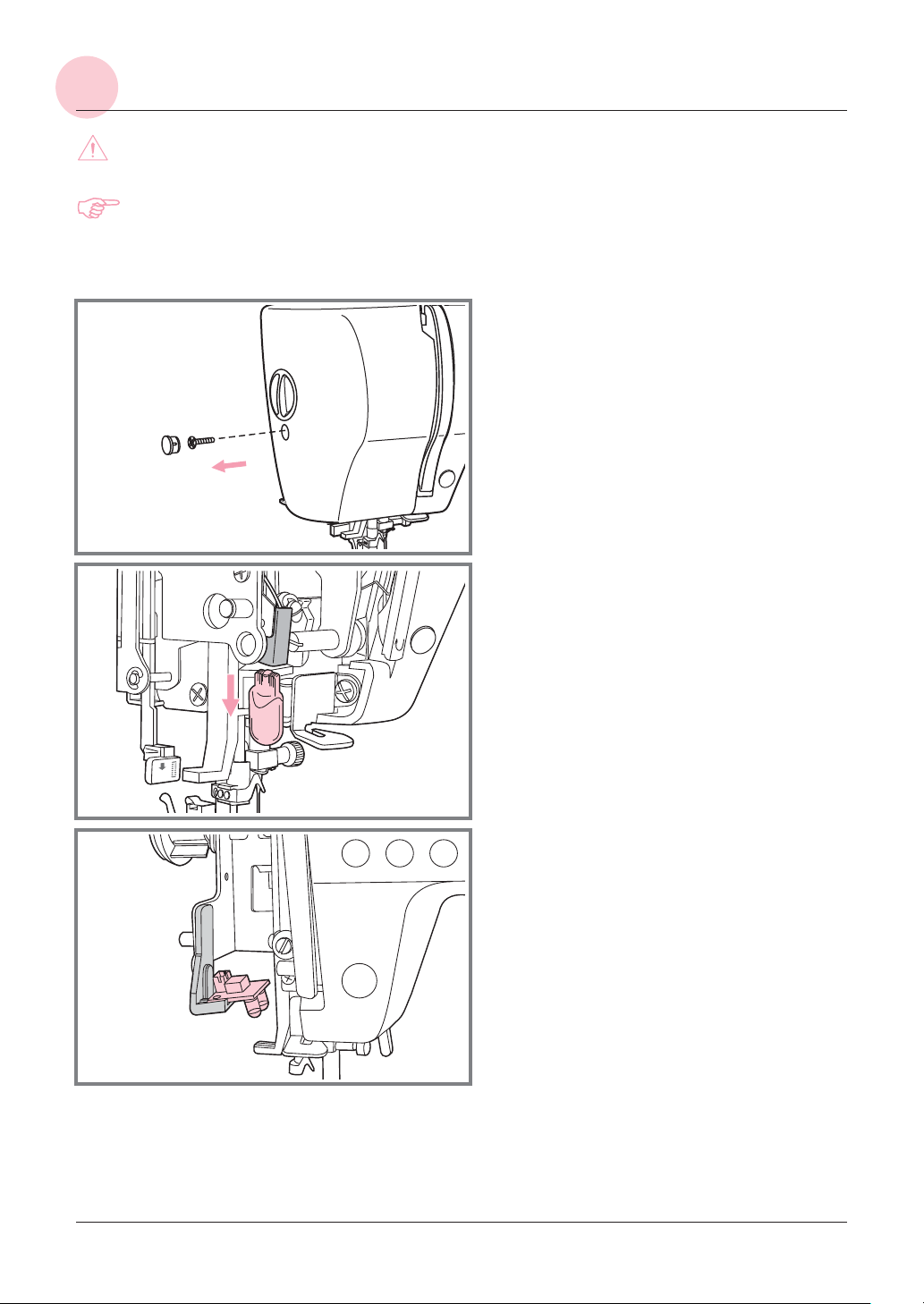

REPLACING THE LIGHT BULB

a

b

2

PUSH

REPLACING THE LIGHT BULB

Attention: Turn the power switch off and wait until the lamp has cooled down before touching it.

Please Note:

--The 5W lamp is user-replaceable.

The 240mW LED lamp is not user-replaceable.

1. Loosen the screw (a) on the left side of the

sewing head and remove the face plate (b).

1

2. If the machine is equipped with a 5W lamp,

replace the bulb as follows:

Pull light bulb downward to remove.

Replace the bulb with same type rated 5W.

Replace the face plate and tighten the screw.

3. If the machine is equipped with a 240mW

LED lamp, you must contact the manufacturer or its service agent for repair in the event of failure.

3

69

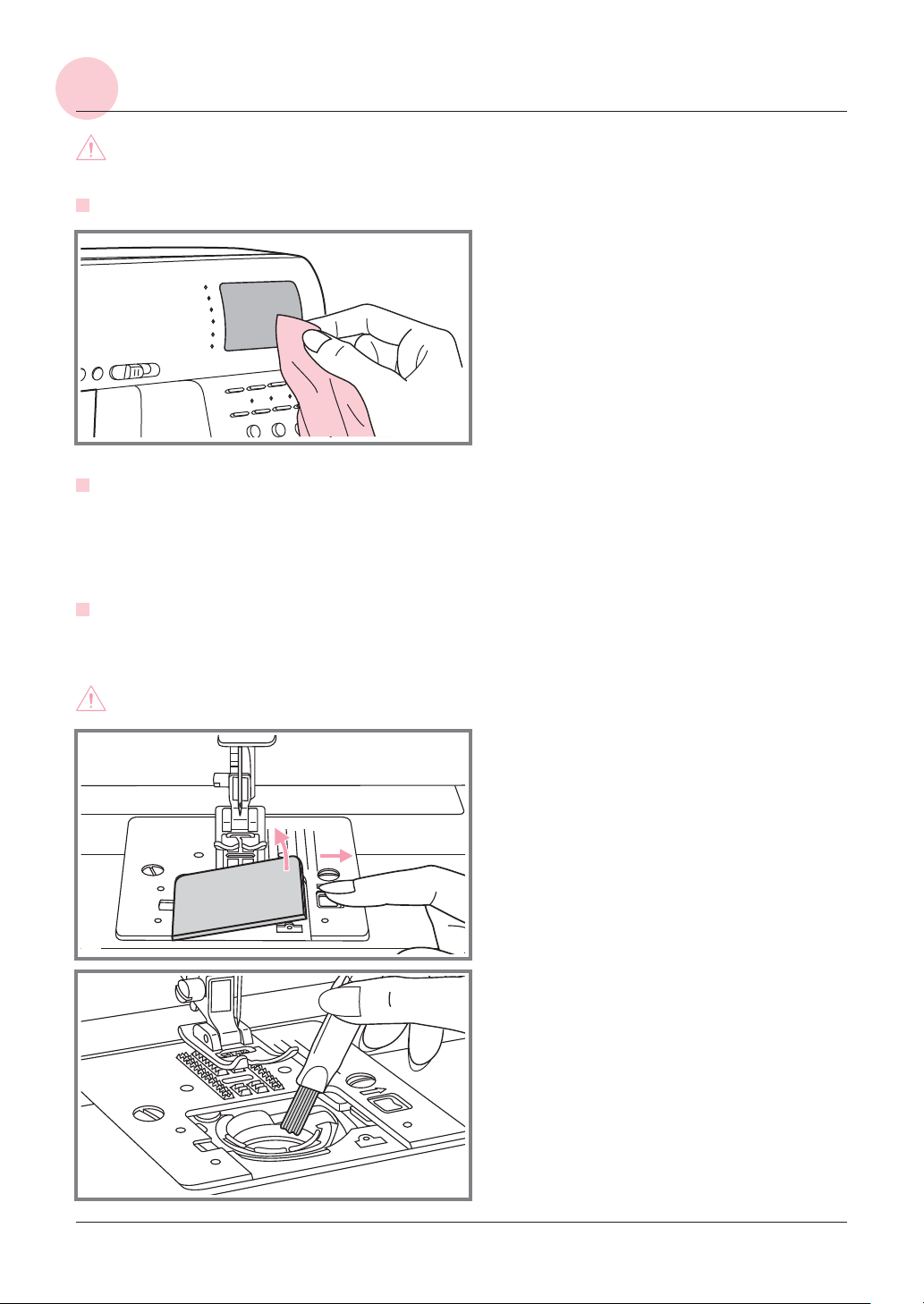

MAINTENANCE

Attention: Disconnect the power cord from the wall socket before cleaning the screen and sewing machine surface, otherwise injury or electrical shock may result.

Cleaning the screen

If the front panel is dirty, wipe it gently with a soft, dry cloth.

Do not use any organic solvents or detergents.

Cleaning the sewing machine surface

If the surface of the sewing machine is dirty, lightly soak a cloth in mild detergent, squeeze it out firmly and then wipe the surface. After cleaning it once in this way, wipe the surface again with a dry cloth.

Cleaning the hook

If lint and bits of thread accumulate in the hook, this will interfere with the smooth operation of the machine. Check regularly and clean the stitching mechanism when necessary.

Attention: Disconnect the machine from the wall outlet before carrying out any maintenance.

1. Remove the bobbin cover plate and bobbin.

1

2. Clean the bobbin holder with a brush.

2

70

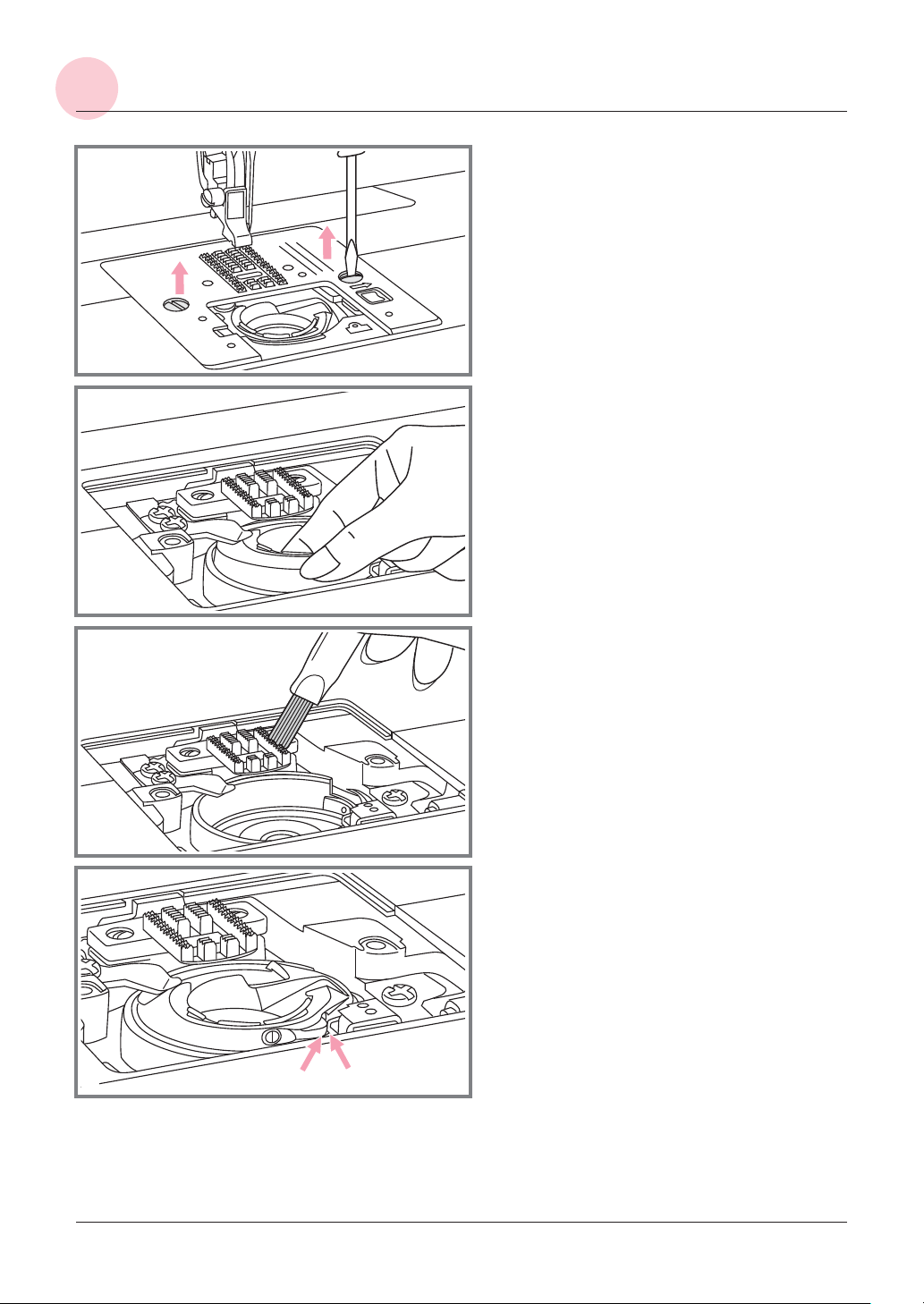

MAINTENANCE

a

b

MAINTENANCE

3

4

3. Remove the needle, presser foot and

presser foot holder. Remove the bobbin cover plate and bobbin. Remove the screw holding the needle plate and remove the needle plate.

4. Lift up the bobbin case and remove it.

5. Clean the hook race, feed dog and bobbin

case with a brush. Also clean them, using a soft, dry cloth.

5

6. Replace the bobbin case into the hook race

so that the tip (a) fits to the stopper (b) as shown.

6

71

TROUBLE SHOOTING GUIDE

Before calling for service, check the following items. If the problem still persists, contact the place of purchase or your nearest authorized dealer.

Problem

Upper thread

breaks

Lower thread

breaks

Skipped

stitches

Needle

breaks

Loose

stitches

Seam

gather or

pucker

Cause

1.The machine is not threaded correctly.

2.The thread tension is too tight.

3.The thread is too thick for the needle.

4.The needle is not inserted correctly.

5.The thread is wound around the spool holder pin.

6.The needle is damaged.

1.The bobbin case is not inserted correctly.

2.The bobbin case is threaded wrong.

3.The lower thread tension is too tight

1.The needle is not inserted correctly.

2.The needle is damaged.

3.The wrong size needle has been used.

4.The foot is not attached correctly.

5.The machine is not threaded correctly.

6.The presser foot pressure is not strong enough.

1.The needle is damaged.

2.The needle is not correctly inserted.

3.Wrong needle size for the fabric.

4.The wrong foot is attached.

5.The needle clamp screw is loose.

6.The presser foot that is used is not appropriate for the type of stitch that you wish to sew.

7.The upper thread tension is too tight.

1.The machine is not correctly threaded.

2.The bobbin case is not correctly threaded.

3.Needle/fabric/thread combination is wrong.

4.Thread tension is wrong.

1.The needle is too thick for the fabric.

2.The stitch length is adjusted wrong.

3.The thread tension is too tight.

Correction

1.Rethread the machine.

2.Reduce the thread tension (lower number).

3.Select a larger needle.

4.Remove and reinsert the needle (flat side towards the back).

5.Remove the reel and wind thread onto reel.

6.Replace the needle.

1.Remove and reinsert the bobbin case and pull on the thread. The thread should pull easily.

2.Check both bobbin and bobbin case.

3.Loosen lower thread tension as described.

1.Remove and reinsert needle(flat side towards the back).

2.Insert a new needle.

3.Choose a needle to suit the thread.

4.Check and attach correctly.

5.Rethread the machine.

6.Adjusting the presser foot pressure.

1.Insert a new needle.

2.Insert the needle correctly (flat side towards the back).

3.Choose a needle to suit the thread and fabric.

4.Select the correct foot.

5.Use the screwdriver to firmly tighten the screw.

6.Attach the presser foot that is appropriate for the type of stitch that you wish to sew.

7.Loosen the upper thread tension.

1.Check the threading.

2.Thread the bobbin case as illustrated.

3.The needle size must suit the fabric and thread.

4.Correct the thread tension.

1.Select a finer needle.

2.Readjust the stitch length.

3.Loosen the thread tension.

Reference

Page 17

Page 20

Page 12

Page 11

Page 17

Page 11

Page 16

Page 20

Page 11

Page 12

Page 74

Page 17

Page 10

Page 11

Page 12

Page 74

Page 11

Page 74

Page 20

Page 17

Page 16

Page 12

Page 20

Page 12

Page 26

Page 20

72

TROUBLE SHOOTING GUIDE

Problem

Seam

puckering

Patterns are

distorted

The

machine

jams

The

machine is

noisy

Uneven stitches,

uneven feed

The sewing

machine

doesn't

operate

Cause

1.The needle thread tension is too tight.

2.The needle thread is not threaded correctly.

3.The needle is too heavy for the fabric being sewn.

4.The stitch length is too long for the fabric.

5.The presser foot pressure is not correctly adjusted.

1.The correct presser foot is not used.

2.The needle thread tension is too tight.

3.The stitch length is not suitable for the fabric being sewn.

4.Feed balancing dial is not set properly.

1.Thread is caught in the hook.

2.The feed dogs are packed with lint.

1.Fluff or oil have collected on the hook or needle bar.

2.The needle is damaged.

3.Slight humming sound coming from internal motor.

4.Thread is caught in the hook.

5.The feed dogs are packed with lint.

1.Poor quality thread.

2.The bobbin case is threaded wrong.

3.Fabric has been pulled.

1.The machine is not turned on.

2.The Start/stop button was not pressed.

3.The presser foot lever is raised.

4.The Start/stop button was pressed, even through the foot controller is connected.

5.A thread is caught in the hook race.

6.The machine is not plugged in.

Correction Reference

1.Lossen the thread tension.

2.Rethread the machine.

3.Choose a needle to suit the thread and fabric.

4.Make stitch dense.

5.Adjusting the presser foot pressure.

1.Select the correct foot.

2.Loosen the thread tension .

3.Make stitch adjust.

4.Adjusting pattern balance.

Remove the upper thread and bobbin case, turn the handwheel backwards and forwards by hand and remove the thread remands.

1.Clean the hook and feed dog as described.

2.Replace the needle.

3.Normal

Remove the upper thread and bobbin case, turn the handwheel backwards and forwards by hand and remove the thread remands.

1.Select a better quality thread.

2.Remove the bobbin case, the thread and reinsert correctly.

3.Do not pull on the fabric while sewing, let it be taken up by the machine.

1.Turn on the machine.

2.Press the Start/stop button.

3.Lower the presser foot lever.

4.Do not use Start/stop button when the foot controller is con-nected. To use Start/stop button, disconnect the foot controller.

5.Remove the upper thread and bobbin case, turn the handwheel backwards and forwards by hand and remove the thread remands.

6.Connect the power line plug to the electric outlet.

Page 20

Page 17

Page 12

Page 26

Page 10

Page 74

Page 20

Page 26

Page 42

Page 70

Page 11

--

Page 70

Page 12

Page 16

--

Page 8

Page 23

Page 22

Page 23

Page 71

Page 8

73

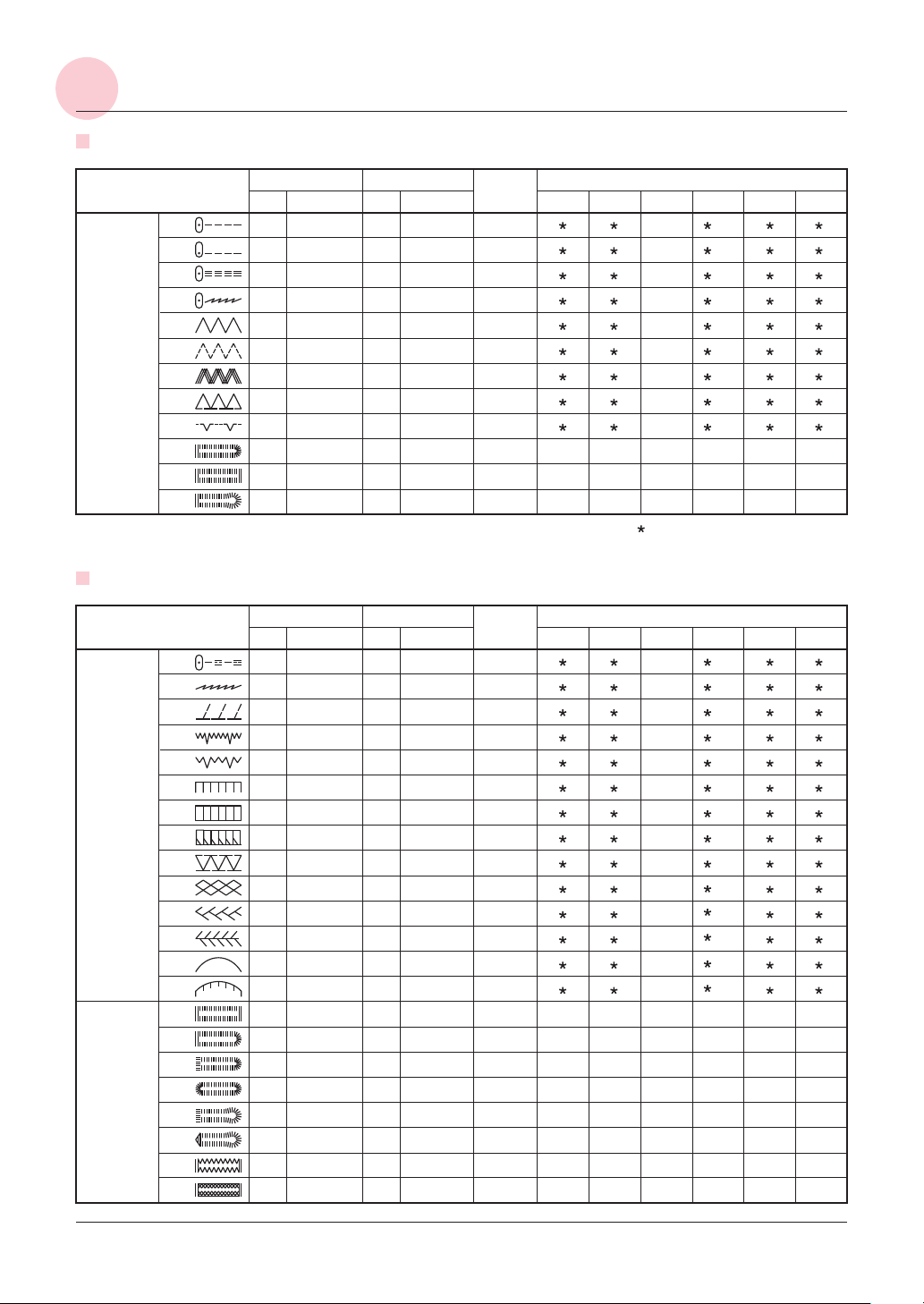

QUICK ADJUSTMENT REFERENCE CHART

Direct patterns-12

Stitch Pattern

Utility

stitches

1

2

3

4

5

6

7

8

9

0

M

C

Width (mm) Length (mm)

Auto Manual Auto Manual

3.5

0.0

3.5

5.0

3.5

5.0

7.0

A group patterns-100

Stitch Pattern

Utility

stitches

Buttonhole

stitches

00

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

Width (mm) Length (mm)

Auto Manual Auto Manual

3.5

1.0

5.0

3.5

5.0

7.0

5.0

7.0

5.5

6.0

5.0

7.0

6.0

0.0~7.0

1.0~6.0

0.0~7.0

2.0~7.0

2.5~7.0

3.5~7.0

2.5~7.0

2.5~5.5

2.5~7.0

5.5~7.0

0.0~7.0

1.0~7.0

2.5~7.0

3.0~7.0

2.5~5.5

5.5~7.0

3.0~7.0

2.5

2.0

1.0

2.5

2.0

0.5

2.5

1.0

2.5

3.0

2.5

2.0

2.5

0.5

1.0

1.5

0.0~4.5

1.0~3.0

0.3~4.5

1.0~3.0

0.5~4.5

0.3~1.0

1.5~3.0

1.0~3.0

0.5~4.5

1.5~3.0

2.0~3.0

1.0~3.0

1.0~4.5

0.3~1.0

1.0~2.0

1.0~3.0

Presser

Foot

T(P/K/I)

T(P)

T

T(E)

T

T(A)

E

F

D

Presser

Foot

T

F

T

A

T(A)

A

A(M)

T

A(T)

D

Reverse

Functions

Auto-lock Elongation

Mirror/

Presser foot

/T

: Adjustments can be made.

Functions

Auto-lock Elongation

Mirror/

Presser foot

/T

/A

/T

/A

/T

/A

Twin needle

Memory

74

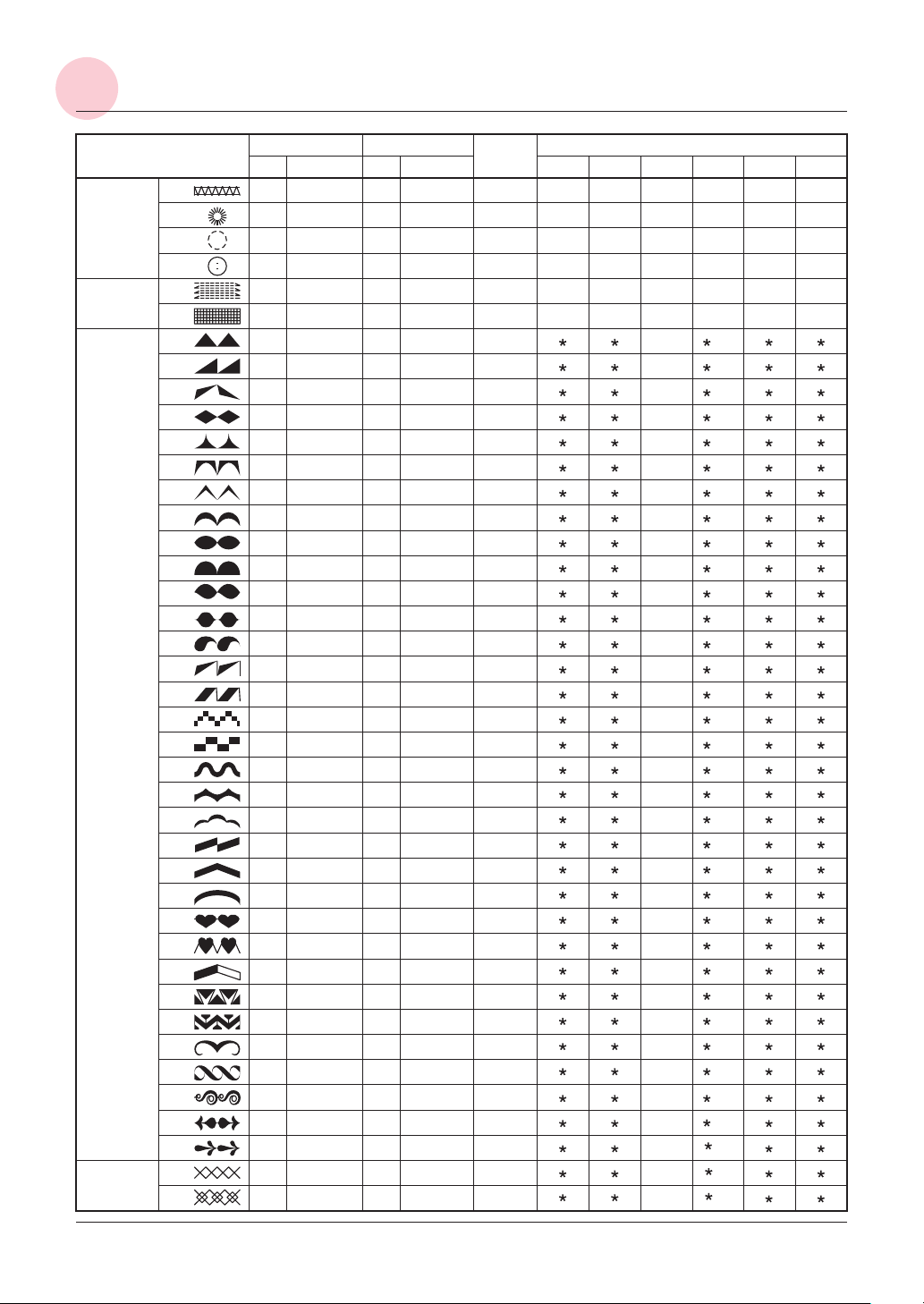

QUICK ADJUSTMENT REFERENCE CHART

Stitch Pattern

Buttonhole

stitches

Darning stitches

Satin

stitches

Cross

stitches

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

Width (mm) Length (mm)

Auto Manual Auto Manual

0.5~1.0

2.0

7.0

3.5

7.0

5.0

6.0

1.0~3.0

7.0,6.0,5.0

2.5~4.5

3.5~7.0

2.5~7.0

4.0~7.0

2.5~7.0

4.0~7.0

5.0~7.0

2.5~7.0

5.0~7.0

0.5

2.0

0.5

1.0

1.5

1.0

2.0

1.5

2.5

1.0

1.0~2.0

0.3~1.0

1.0~2.0

1.5~3.0

0.5~2.0

2.0~3.0

1.5~3.0

1.0~3.0

Presser

Foot

D

A

D

A

A(T)

Reverse

Functions

Auto-lock Elongation

Mirror/

Presser foot

/A

Twin needle

Memory

75

QUICK ADJUSTMENT REFERENCE CHART

Stitch Pattern

Cross

stitches

Decorative

stitches

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

Width (mm) Length (mm)

Auto Manual Auto Manual

1.0~3.0

6.0

4.0

6.0

4.5

5.0

4.0

5.0

5.5

4.5

5.0

4.5

7.0

5.0~7.0

3.0~7.0

5.0~7.0

3.0~7.0

2.5~7.0

4.0~7.0

3.5~7.0

2.5~7.0

4.0~7.0

2.5~7.0

3.5~7.0

4.5~7.0

3.0~7.0

4.0~7.0

2.5~7.0

3.5~7.0

3.0~7.0

4.0~7.0

1.0

1.5

1.0

1.5

2.0

2.5

2.0

2.5

1.5

2.0

1.5

2.0

1.0

2.0

1.5

2.5

1.0

2.0

2.5

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

1.0~3.0

2.0~3.0

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

Presser

Foot

A

A(T)

A

A(T)

A

Reverse

Functions

Auto-lock Elongation

: Adjustments can be made.

Mirror/

Presser foot

/A

Twin needle

Memory

76

QUICK ADJUSTMENT REFERENCE CHART

B group patterns-100

Stitch Pattern

Decorative

stitches

00

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

Width (mm) Length (mm)

Auto Manual Auto Manual

1.5~4.5

5.0

7.0

5.0

7.0

5.0

6.0

5.0

6.0

7.0

5.0

7.0

5.0

7.0

5.0

7.0

5.0

7.0

6.0

7.0

3.0~7.0

5.0~7.0

4.5~7.0

5.0~7.0

2.5~7.0

4.5~7.0

2.5~7.0

3.5~7.0

2.5~7.0

4.0~7.0

6.0~7.0

2.5~7.0

3.5~7.0

6.0~7.0

3.5~7.0

3.0~7.0

2.5~7.0

3.5~7.0

3.0~7.0

2.5~7.0

3.5~7.0

4.0~7.0

2.5~7.0

3.0~7.0

2.5~7.0

2.5

3.5

2.0

1.5

2.0

2.5

2.0

2.5

1.5

2.5

2.0

3.0

2.0

1.0

3.0

2.0

1.5

2.0

1.0

2.0

2.5

2.0

1.5

2.0

3.0

1.5

2.0

3.0

2.5

2.0~4.5

1.5~3.0

1.0~3.0

1.5~3.0

2.0~3.0

1.0~3.0

2.0~3.0

1.5~3.0

1.0~4.5

1.0~3.0

2.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

2.0~3.0

1.5~3.0

Presser

Foot

A

T(A)

A

A(T)

T

A(T)

T

A(T)

A

A(T)

Reverse

Functions

Auto-lock Elongation

Mirror/

Presser foot

/A

/T

/A

/T

/A

/T

/A

Twin needle

Memory

77

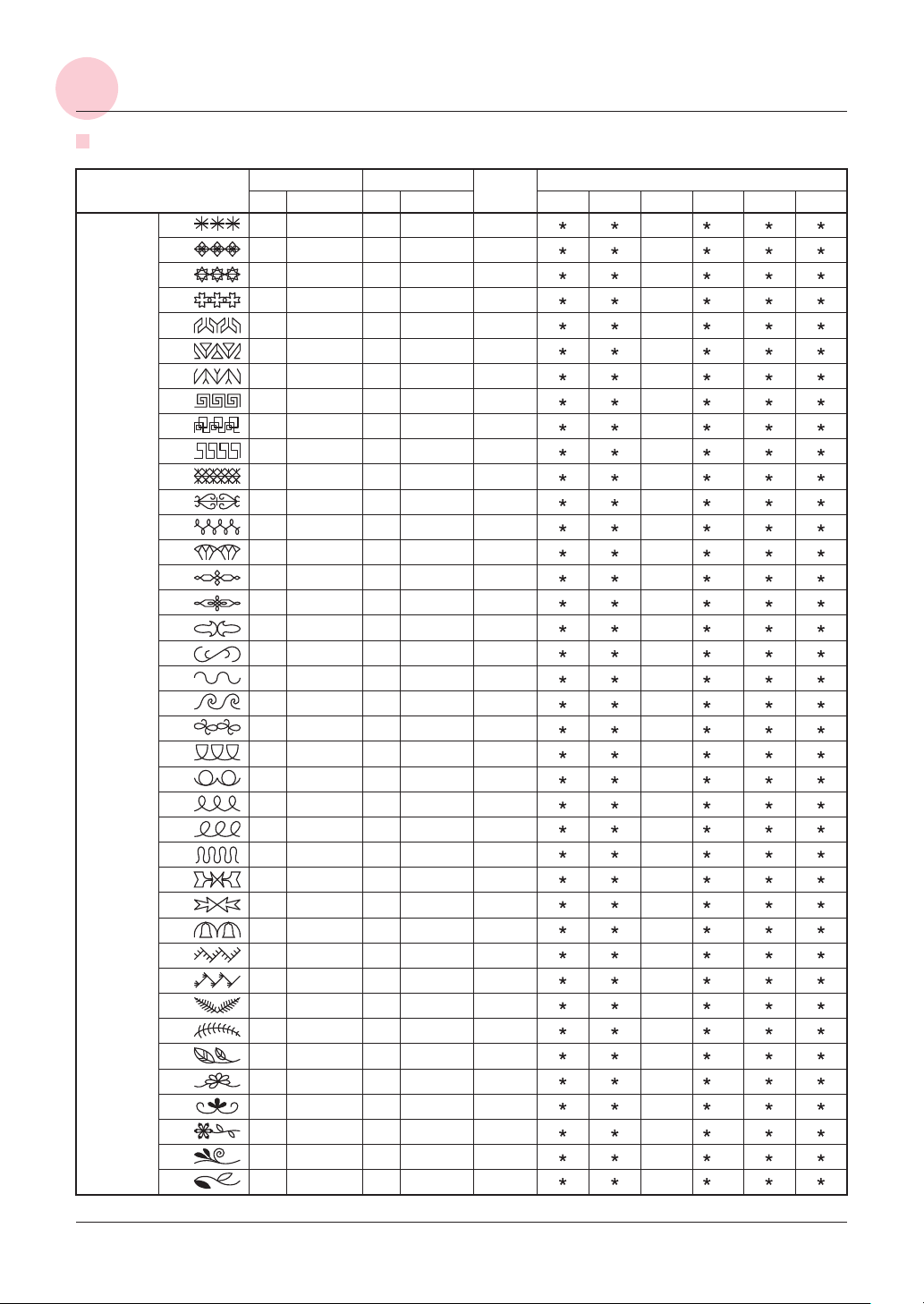

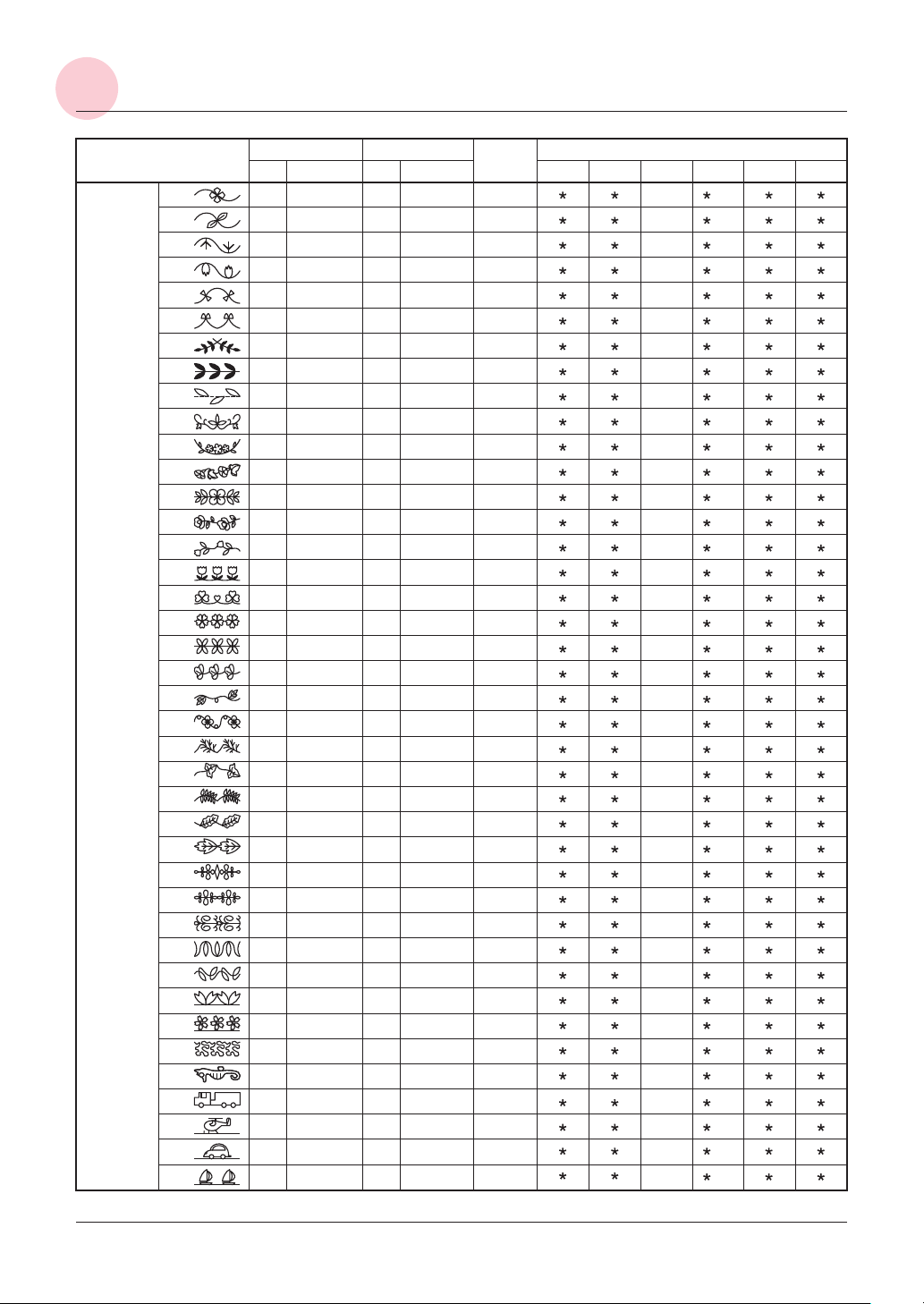

QUICK ADJUSTMENT REFERENCE CHART

Stitch Pattern

Decorative

stitches

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

Width (mm) Length (mm)

Auto Manual Auto Manual

1.5~3.0

7.0

5.0

7.0

6.0

7.0

3.5~7.0

3.0~7.0

2.5~7.0

3.0~7.0

3.5~7.0

5.0~7.0

3.0~7.0

5.0~7.0

6.0~7.0

4.0~7.0

4.5~7.0

3.5~7.0

3.0~7.0

2.5~7.0

4.5~7.0

4.0~7.0

3.0~7.0

3.5~7.0

2.5~7.0

3.5~7.0

2.5~7.0

3.5~7.0

4.5~7.0

4.0~7.0

2.5~7.0

3.5~7.0

5.0~7.0

4.5~7.0

2.5

2.0

2.5

2.0

2.5

1.5

2.5

2.0

2.5

3.0

2.0

1.5

3.0

2.0

1.5

2.0

1.5

2.0

1.5

1.0

2.0

1.0

2.0

2.5

1.5~3.0

1.0~3.0

1.5~3.0

1.0~3.0

2.0~3.0

1.5~3.0

2.0~3.0

2.5~4.5

2.0~3.0

1.5~3.0

2.0~3.0

1.5~3.0

2.0~3.0

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

2.0~3.0

1.5~3.0

Presser

Foot

A(T)

A

A(T)

A

A(T)

A

A(T)

A

A(T)

A

Reverse

Functions

Auto-lock Elongation

Mirror/

Presser foot

/A

Twin needle

Memory

78

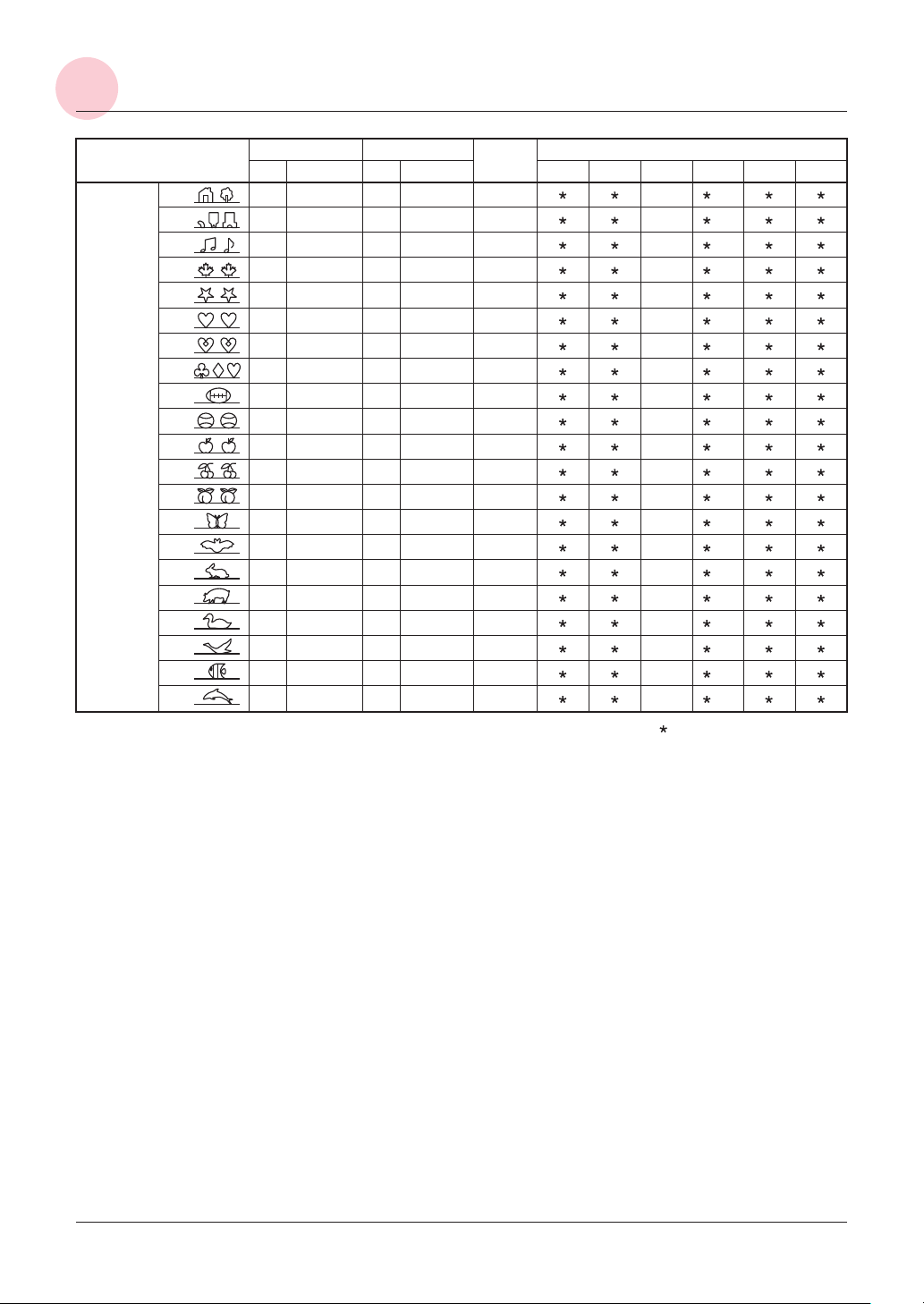

QUICK ADJUSTMENT REFERENCE CHART

Stitch Pattern

Decorative

stitches

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

Width (mm) Length (mm)

Auto Manual Auto Manual

2.0~3.0

7.0

5.0

7.0

5.0

7.0

5.0

4.0~7.0

3.5~7.0

3.0~7.0

4.0~7.0

2.5~7.0

4.0~7.0

2.5~7.0

3.5~7.0

4.5~7.0

3.5~7.0

5.0~7.0

2.5~7.0

4.5~7.0

2.5~7.0

3.5~7.0

3.0~7.0

2.5

3.0

2.0

2.5

2.0

3.0

2.0

3.0

2.0

1.5~3.0

2.0~3.0

1.0~3.0

1.5~3.0

2.0~3.0

1.5~3.0

2.0~3.0

1.5~3.0

2.0~3.0

1.5~3.0

2.0~3.0

1.5~3.0

1.0~3.0

2.0~3.0

1.0~3.0

Presser

Foot

A

A(T)

A

A(T)

A

A(T)

A

Reverse

Functions

Auto-lock Elongation

: Adjustments can be made.

Mirror/

Presser foot

/A

Twin needle

Memory

79

021D3B0104(B)( ) Dec/10 9000B4

Silver 9500E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
