Important safety instructions

1

When using an electrical appliance, basic safety should always be followed, including the
following:

Read all instructions before using this sewing machine.

-To reduce the risk of electric shock:

1. An appliance should never be left unattended when plugged in.

2. Always unplug this appliance from the electric outlet immediately after using and before
cleaning.

3. The sewing machine is equipped with a LED lamp. If the LED lamp is broken, it must be
replaced by the manufacturer or its service agent in order to avoid a hazard.

-To reduce the risk of burns, fire, electric shock, or injury to persons:

Never use the sewing machine if the air vents are blocked. Keep the air vents of the sewing
machine and the food pedal free from dust, fusel and leftovers.

21. Always unplug the sewing machine if you leave it unattended, in order to avoid injuries by
inadvertently switching on the sewing machine.

22. Don't use the sewing machine if it's wet or in humid environment.

23. Keep the instructions at a suitable place close to the sewing machine and hand it over if you
give the sewing machine to a third party.

This sewing machine is intended for household use only.

DANGER

WARNING

SAVE THESE INSTRUCTIONS

1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by
or near children.

2. Use this appliance only for its intended use as described in this manual. Use only the
attachments recommended by the manufacturer as contained in this manual.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Return the appliance to the nearest
authorized dealer or service center for examination, repair, electrical or mechanical adjustment.

4.

5. Keep fingers away from all moving parts. Special care is required around the sewing machine
needle.

6. Always use the proper needle plate, a wrong needle plate can cause the needle to break.

7. Do not use bent needles.

8. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

9. Switch the sewing machine off ("O") when making any adjustments in the needle area, such as
threading needle, changing needle, threading bobbin, or changing presser foot, and the light.

10. Always unplug sewing machine from the electrical outlet when removing covers, lubricating,
or when making any other user servicing adjustments mentioned in the instruction manual.

11. Never drop or insert any object into any opening.

12. Do not use outdoors.

13. Do not operate where aerosol spray products are being used or where oxygen is being
administered.

14. To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.

15. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

16. The sound pressure level under normal operating conditions is 75dB(A).

17. Please turn off the machine or unplug when the machine is not operating properly.

18. Never place anything on the foot controller.

19. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.

20. Children should be supervised to ensure that they do not play with the appliance.

Principal parts of the machine ...........................................................................3-5

Accessories ...........................................................................................................6

Looper cover/ Waste container .............................................................................7

Telescopic thread guide/ Foam pads/ Cone holders/ Thread net/

Thread unreeling disc ..........................................................................................8

Needle position .....................................................................................................9

Presser foot lifting lever ........................................................................................9

Changing a needle..............................................................................................10

Connecting the machine to the power source ....................................................11

Starting sewing....................................................................................................12

Adjusting presser foot pressure ..........................................................................12

Threading the thread guides ...............................................................................13

Threading the upper overedge looper ................................................................14

Threading the lower overedge looper.................................................................15

Double chainstitch and cover stitch looper....................................................16-17

Threading the needles ...................................................................................18-20

Needle threader ..................................................................................................21

Summary of threading paths and threading sequences ...............................22-24

Thread cutter/ Check spring for edging the thread chain/ Waste container ......25

Disengage the upper knife ..................................................................................26

Swiveling stitch width latch .................................................................................27

2-thread converter ...............................................................................................28

Disengage the upper looper ...............................................................................29

Adjusting the stitch length/ Differential feed .......................................................30

Remove knife guard............................................................................................31

Set seam width ...................................................................................................32

Attaching the presser foot holder........................................................................33

Care and solving machine ..................................................................................34

Replacing the upper knife ..........................................................................35

Care of the machine .............................................................................36-37

Cover stitch, important notes on sewing .......................................................38-41

2

Contents

3

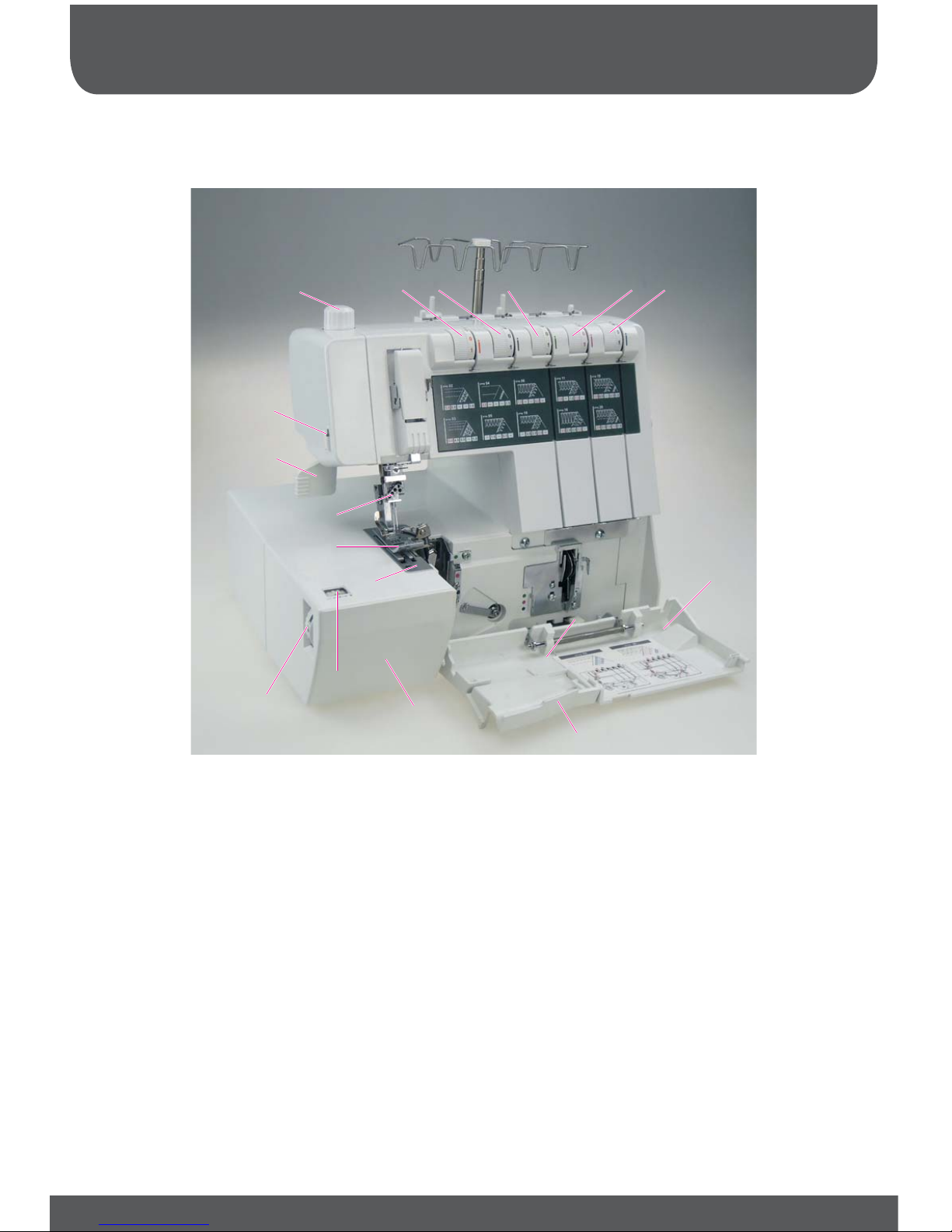

Principal parts of the machine

1. Upper needle-thread tension

2. Upper needle-thread tension

3. Thread tension/ upper looper thread

4. Thread tension/ lower looper thread

5. Thread tension/ two-thread chainstitch looper/ cover stitch looper

6. Adjusting knob for presser foot pressure

7. Needle holder

8. Standard presser foot

9. Needle plate

10. Adjusting knob for seam width

11. Seam width viewing window

12. Swivel plate

13. Looper disengaging lever

14. Blade guard (for Overedge/ Overlock)

15. Looper cover

16. Presser foot lever

17. Thread chain cutter

1

2 3

4 5

7

6

16

8

9

10

12

11

13

14

15

17

Principal parts of the machine

4

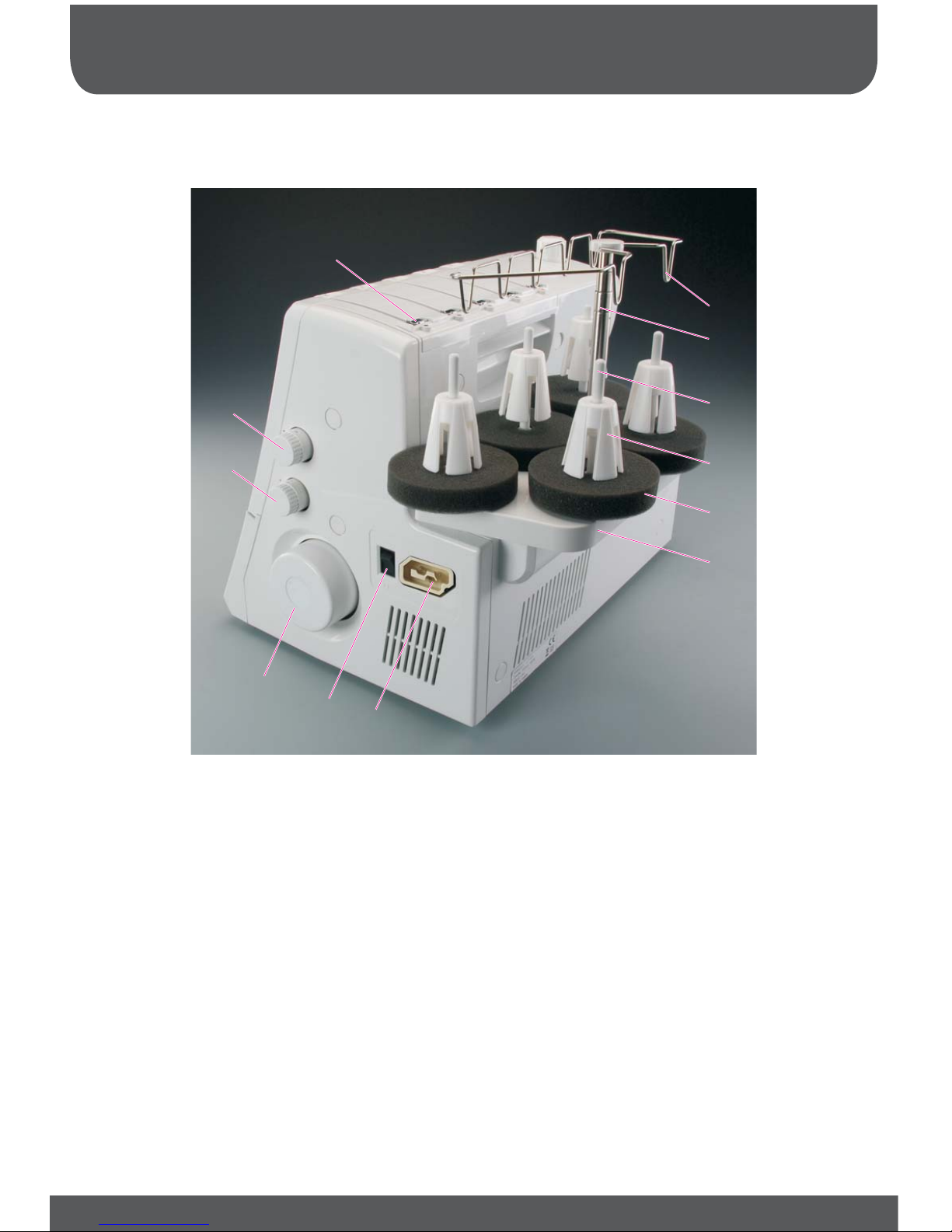

18. Thread guides

19. Telescoping thread guide

20. Thread spool pin

21. Cone thread adapter

22. Spool disc

23. Thread spool stand

24. Rear thread guides

25. Stitch length adjustment knob

26. Regulator wheel for differential feed

27. Handwheel

28. Electrical power master switch

29. Machine socket, foot control

18

19

23

20

22

21

24

25

26

27

28

29

Principal parts of the machine

5

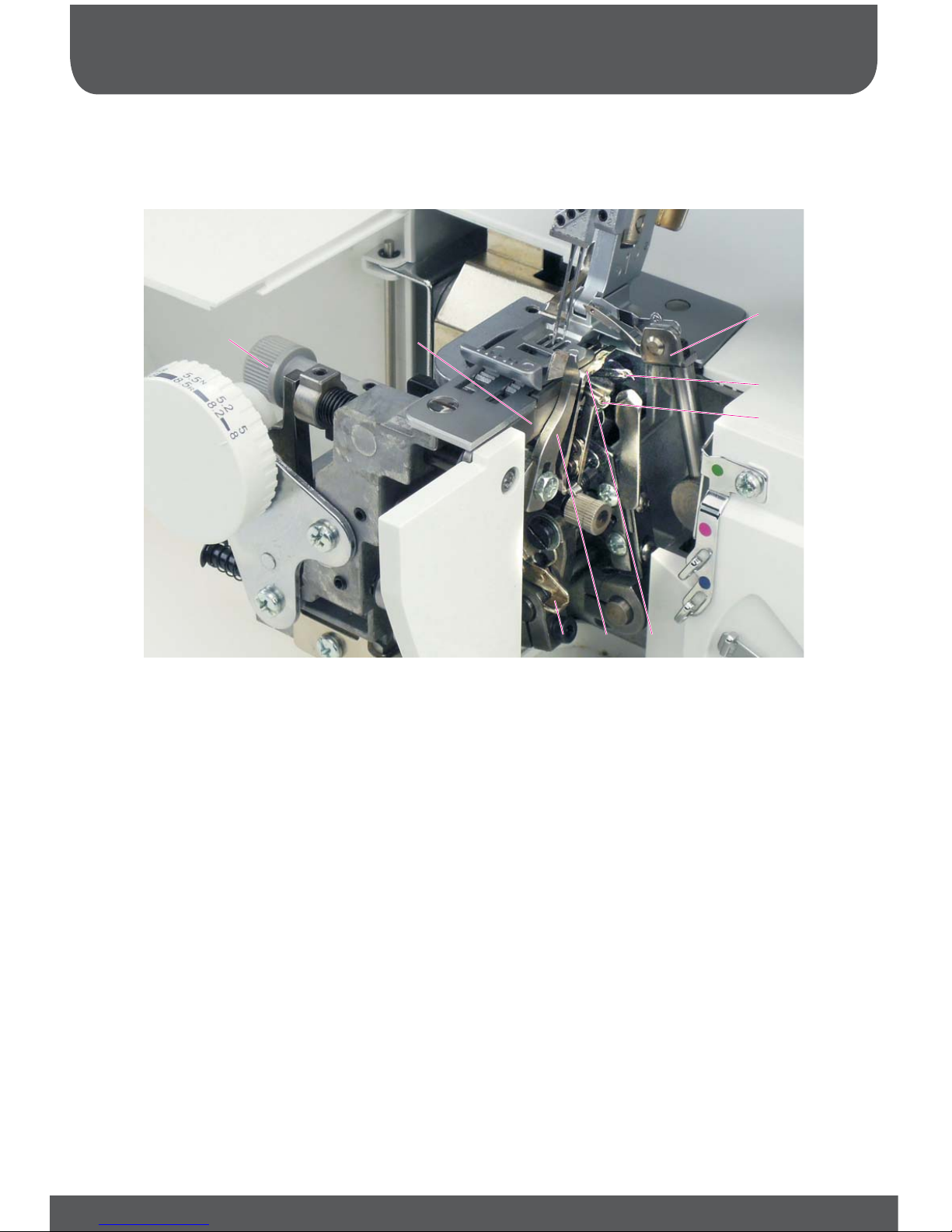

30. Upper overedge looper

31. Lower overedge looper

32. Double chainstitch and cover stitch looper

33. Swiveling stitch width latch

34.

35. Threading aid for double chainstitch and cover-stitch looper

36. Knob for lowering the upper knife

37. Fixed lower knife

Movable upper knife

* Pull the cover to the right and open it towards you.

30

3131

3232

33333434

3535

3636

3737

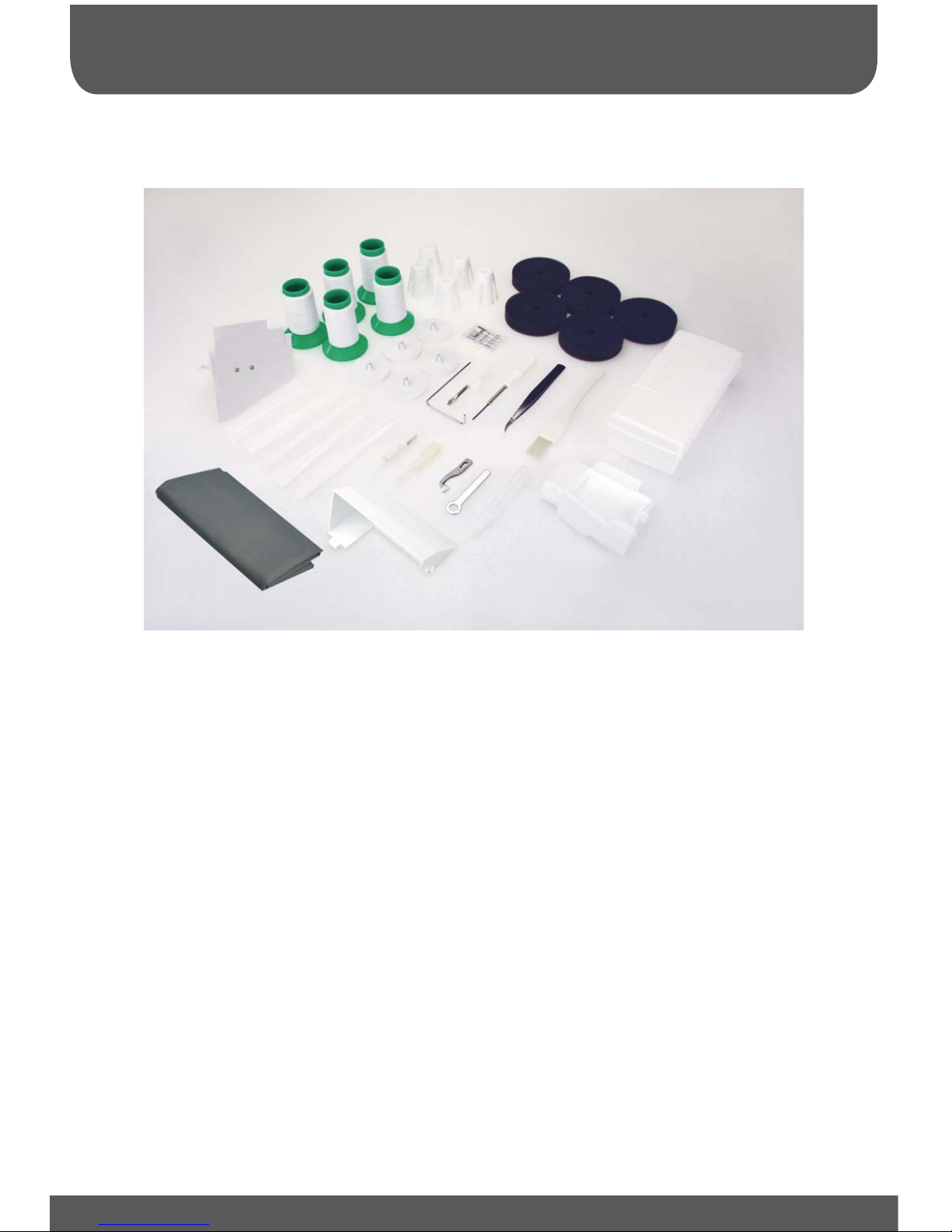

Accessories

6

1. Sewing table (for Coverstitch/ Chainstitch)

2. Thread (5X)

3. Cone holder (5X)

4. Thread nets (5X)

5. Spool cap - large (5X)

6. Pack of needle

7. Thread disc (5X)

8. Waste container

9. Needle threader

10. Needle inserting tool

11. Upper blade

12. Wrench

13. Oil bottle

14. Edge/ Quilting guide

15. Screwdriver

16. Hex Wrench

17. Tweezers

18. Cleaning brush

19. Blade guard

20. Accessory box

21. Soft cover

* In the Accessory Box.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

To remove the waste container, repeat this procedure
in the reverse order.

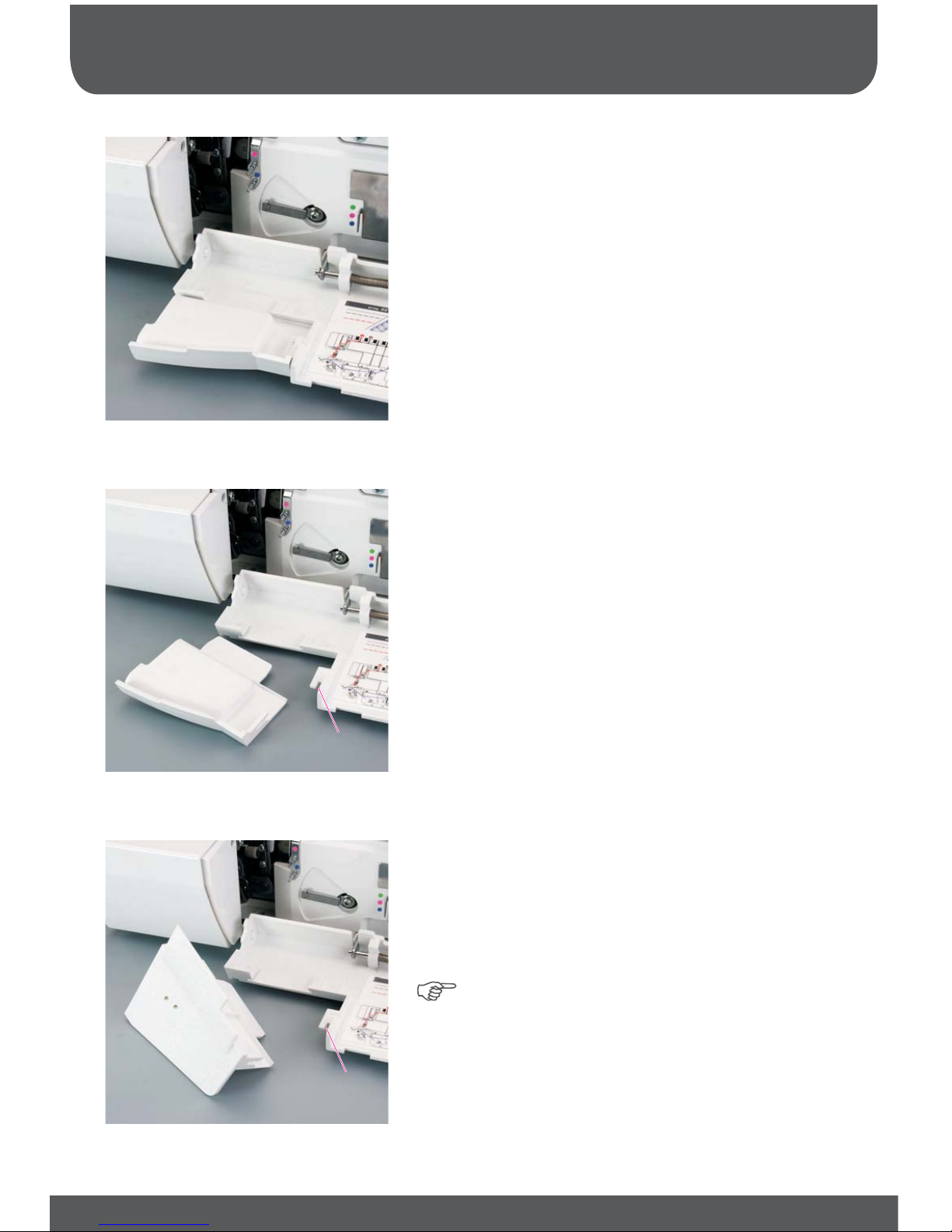

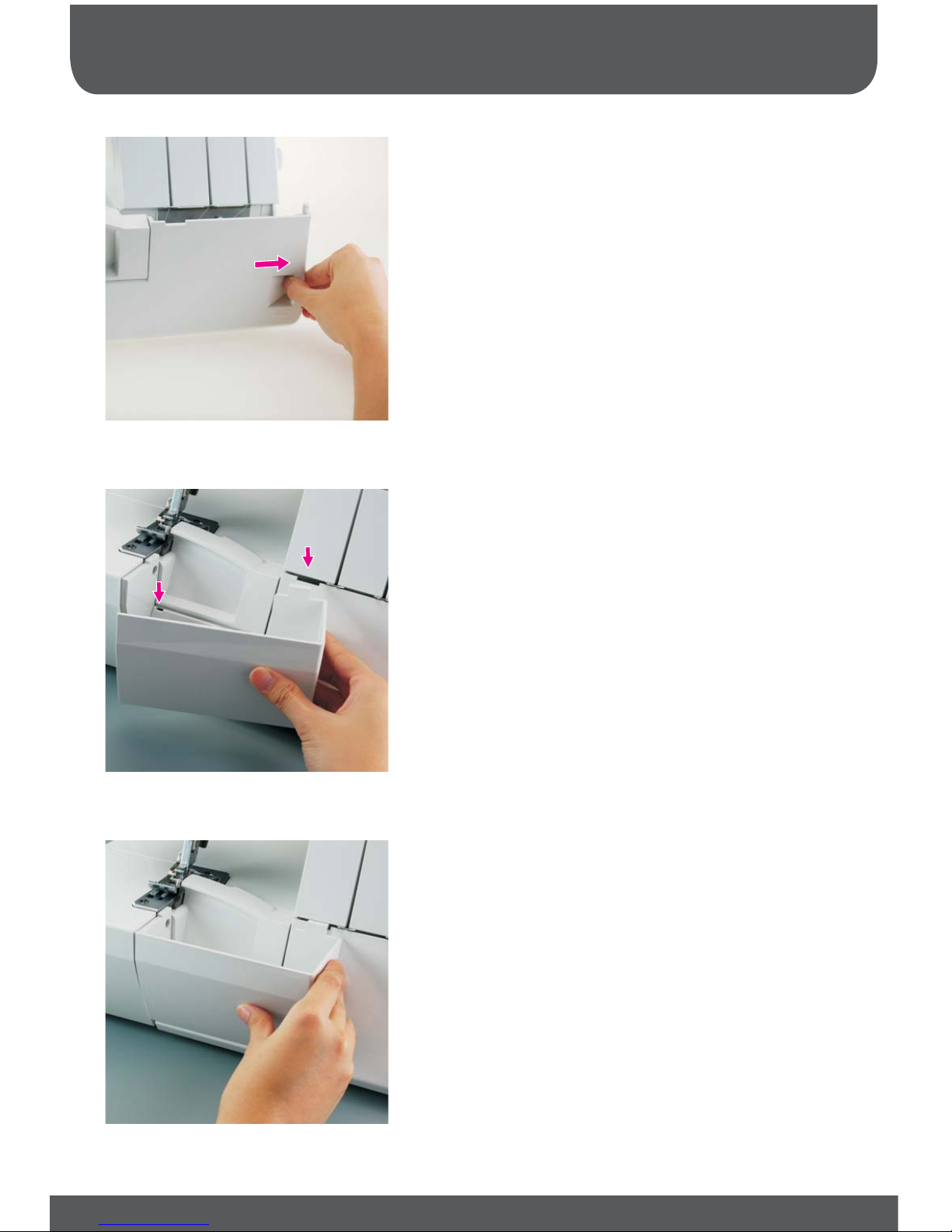

Waste Container

Insert the upper latch of the waste container into the
upper slot of the looper cover. Apply pressure to the
lower part of the container until the lower latches fick
into place in the lower slots of the looper cover.

Looper Cover

Push the looper cover fully to the right and then
swivel it down.

Looper cover/ Waste container

7

Thread Unreeling Disc

The thread unreeling disc (in the accessory box) is
used for small spools/spools with notched or rough
ends. Place the spool on the spool pin. Place the
thread unreeling disc on top of the spool. Make sure
the spool dise is used under the spool.

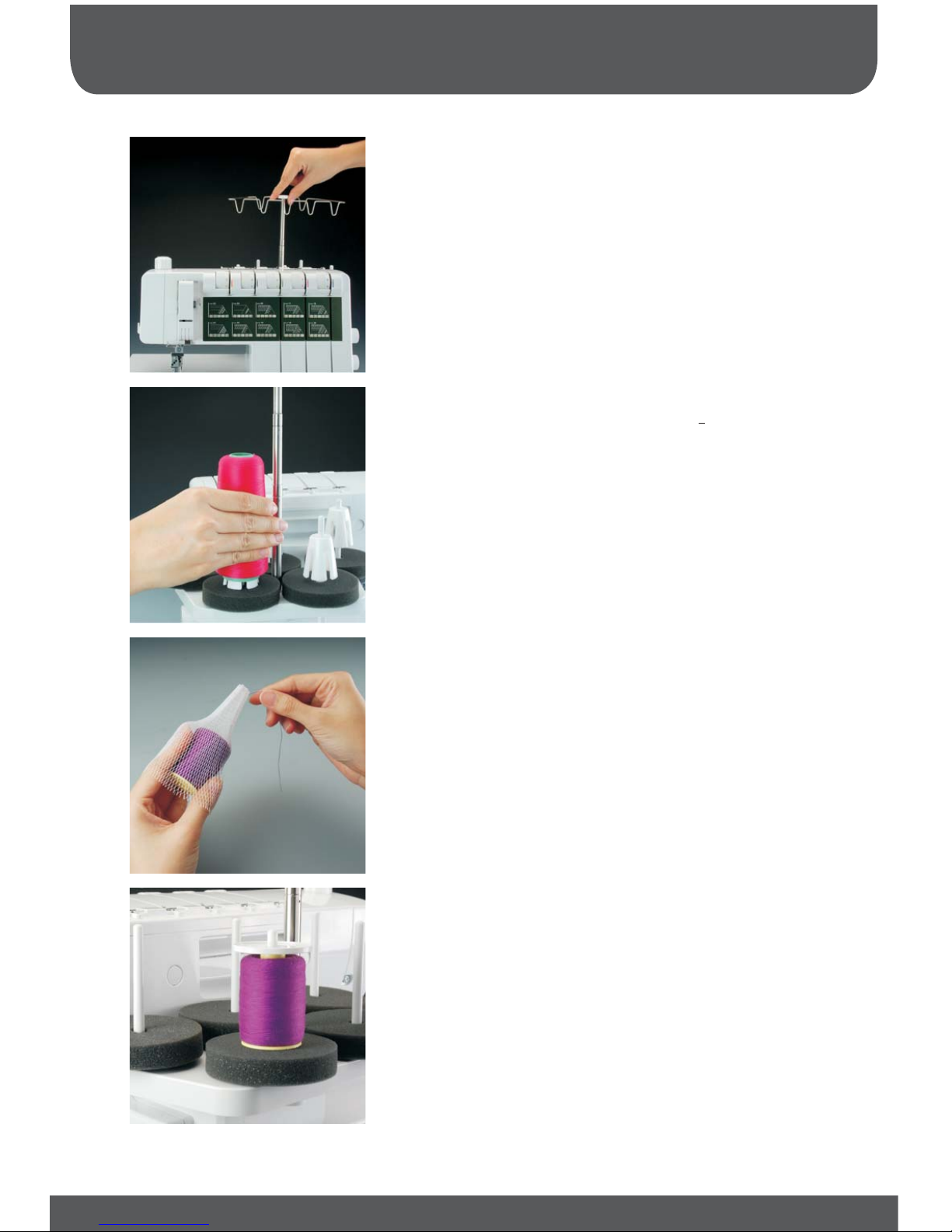

Thread Net

Synthetic threads generally unwind too quickly from
the thread spool. Thread nets have been included to
allow easy use of these threads. Pull the thread net
(located in the accessory box) over the spool from
below. Place the spool on the spool holder catching
the bottom of the thread net with the spool pin.

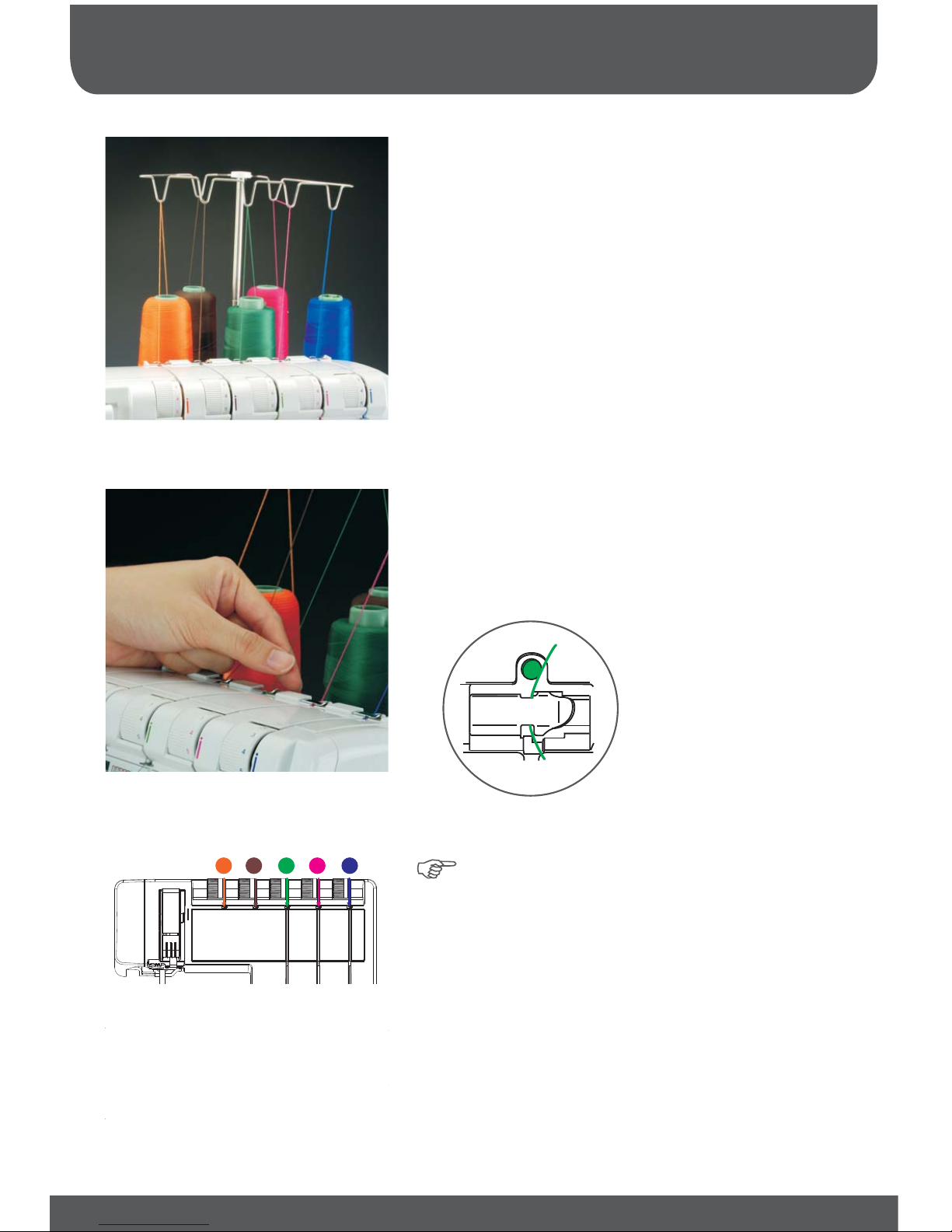

Foam Pads/ Cone Holders

If you are using large cones (5,000 10,000 mm), the
foam pads and the cone holders will be helpful to you.

With synthetic threads, the foam pads catch threads
that have slipped down and help to advance the
thread flawlessly.

Cone holders serve to ensure that large cones are
well positioned.

Telescopic Thread Guide

Pull the telescopic thread guide upwards to its highest
position.

To ensure optimum thread feed, turn the telescopic
parts slowly until you hear the locking balls fick into
place.

8

Telescopic thread guide/ Foam pads/ Cone holders

/ Thread net/ Thread unreeling disc

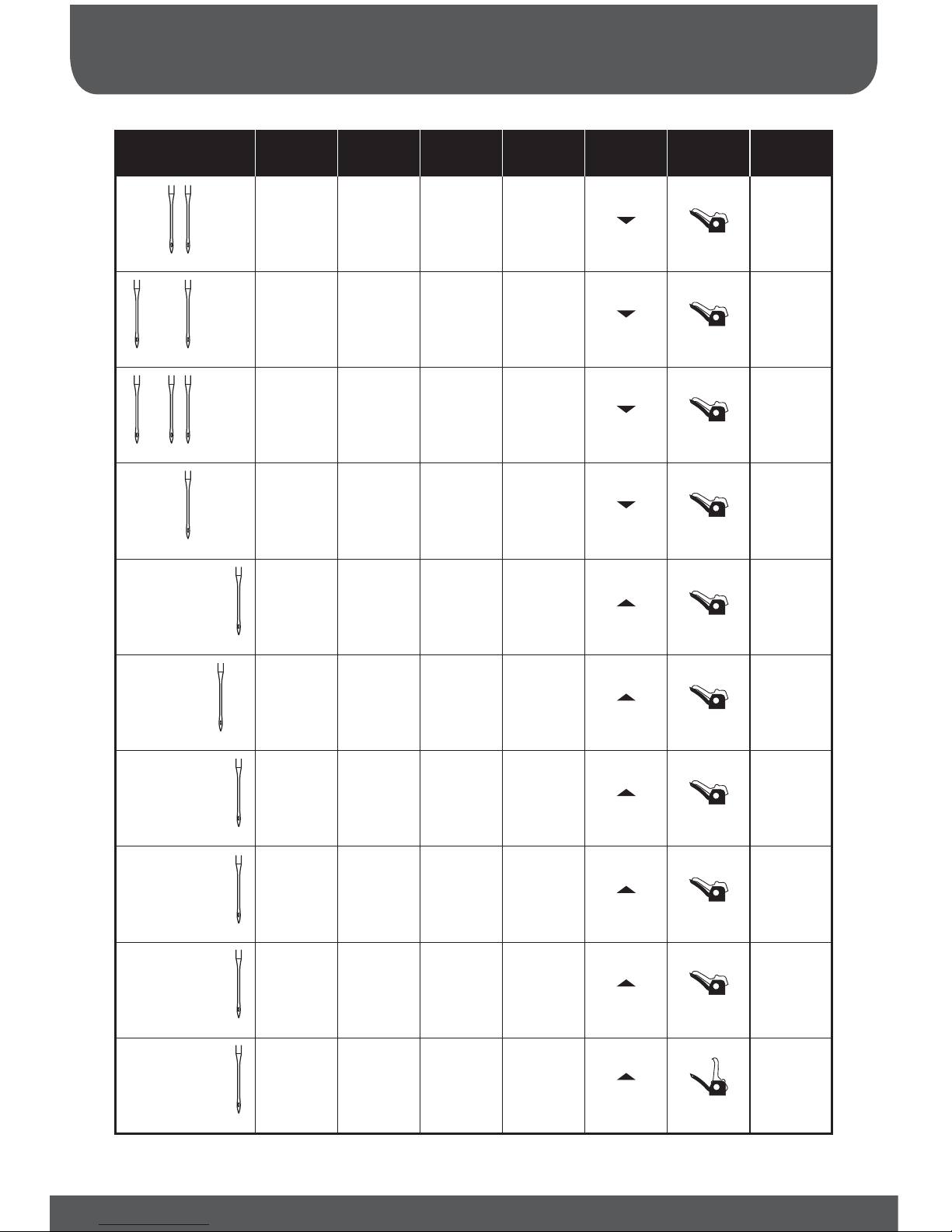

The offers a choice of 5 needle positions. You can
sew with as many as 3 needles simultaneously. The
needle positions are L1, L2, L3, R1 and R2. A
retaining screw is provided above each needle.

Please Note: If the needles are inserted at R1

and R2, the left needle is slightly higher than the
right.

Please Note: Presser foot should be lowered
when sewing.

Needle position

9

If the needles are inserted at L2 and L3, the left
needle is slightly lower than the right.

If the needles are inserted at L1 and L3, the left
needle is also lower than the right.

If the needles are inserted at L1, L2 and L3, the left
needle is at the lowest point.

L3
L2

L1

R1

R2

The presser foot can be up or down position by using
the presser foot lifting lever.

Presser foot lifting lever

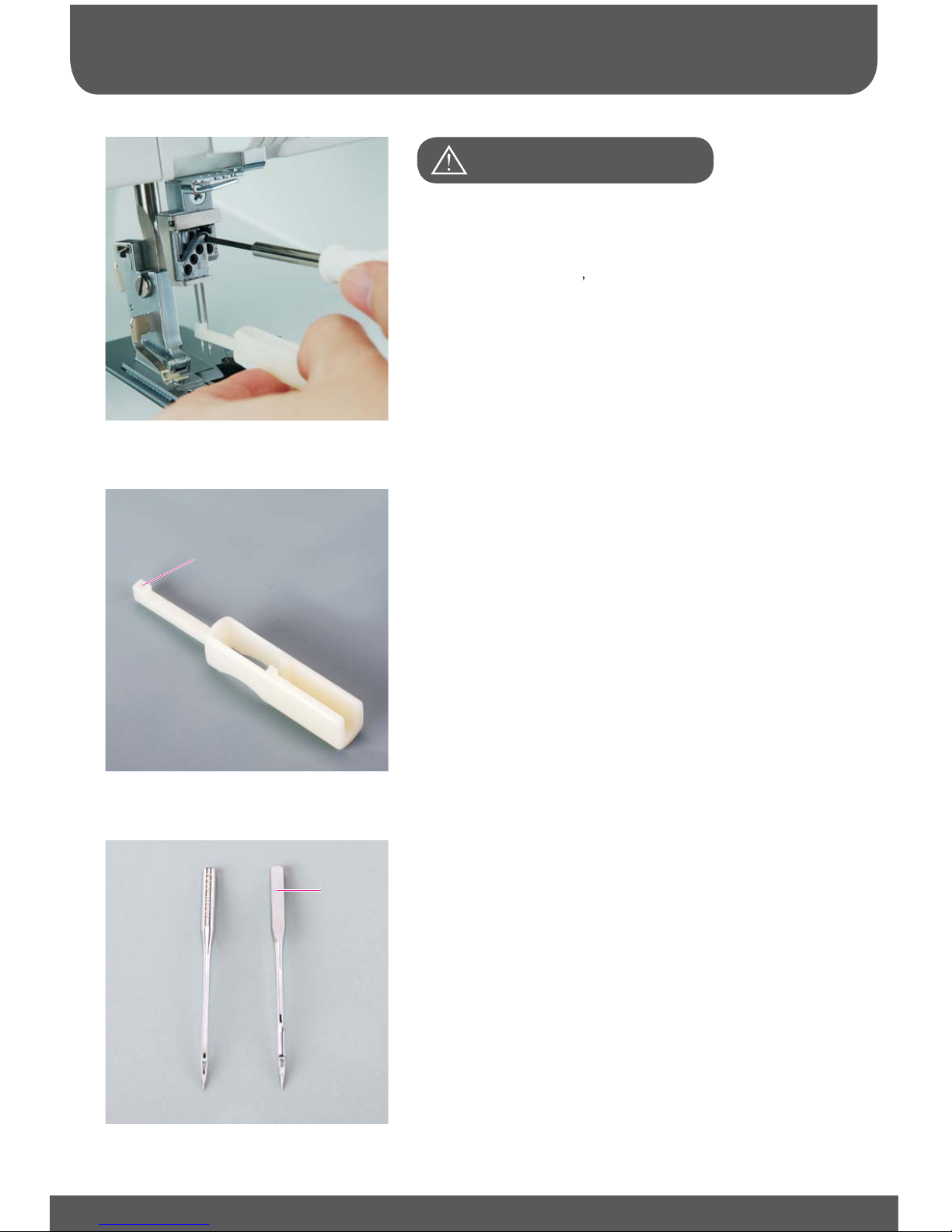

To insert: Insert the needle in hole A of the needle
changing tool so that the flat side B of the needle is
opposite face of the tool. Insert the needle as far as it
will go into the needle holder (you may have to push
a little harder by hand) and tighten the retaining
screw. Remove the needle changing tool.

Lower the presser foot and raise the
needle(s) to its/their highest position. Take the needle
changing tool out of the accessory box and push it up
over the needle as far as it will go. Loosen (but do not
remove) the needle s retaining screw with the allen
key and pull the needle out from below.

To remove:

10

Changing a needle

Turn off at the power switch

A

B

The uses EL X 705 CF overlock needles.

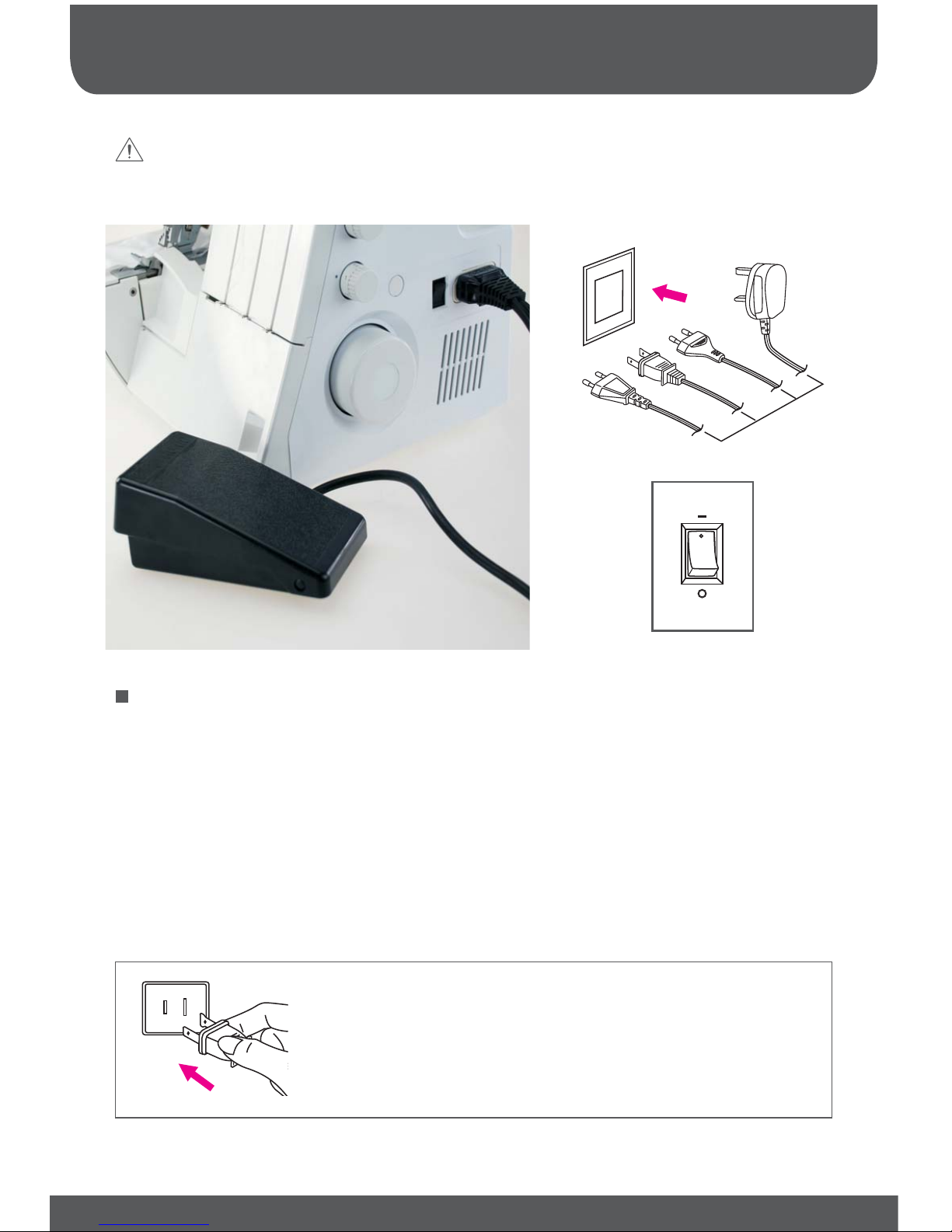

Connecting the machine

Before connecting the power supply, make sure that the voltage and frequency shown on the
machine is conforming with your electrical power.

Place machine on a stable surface.

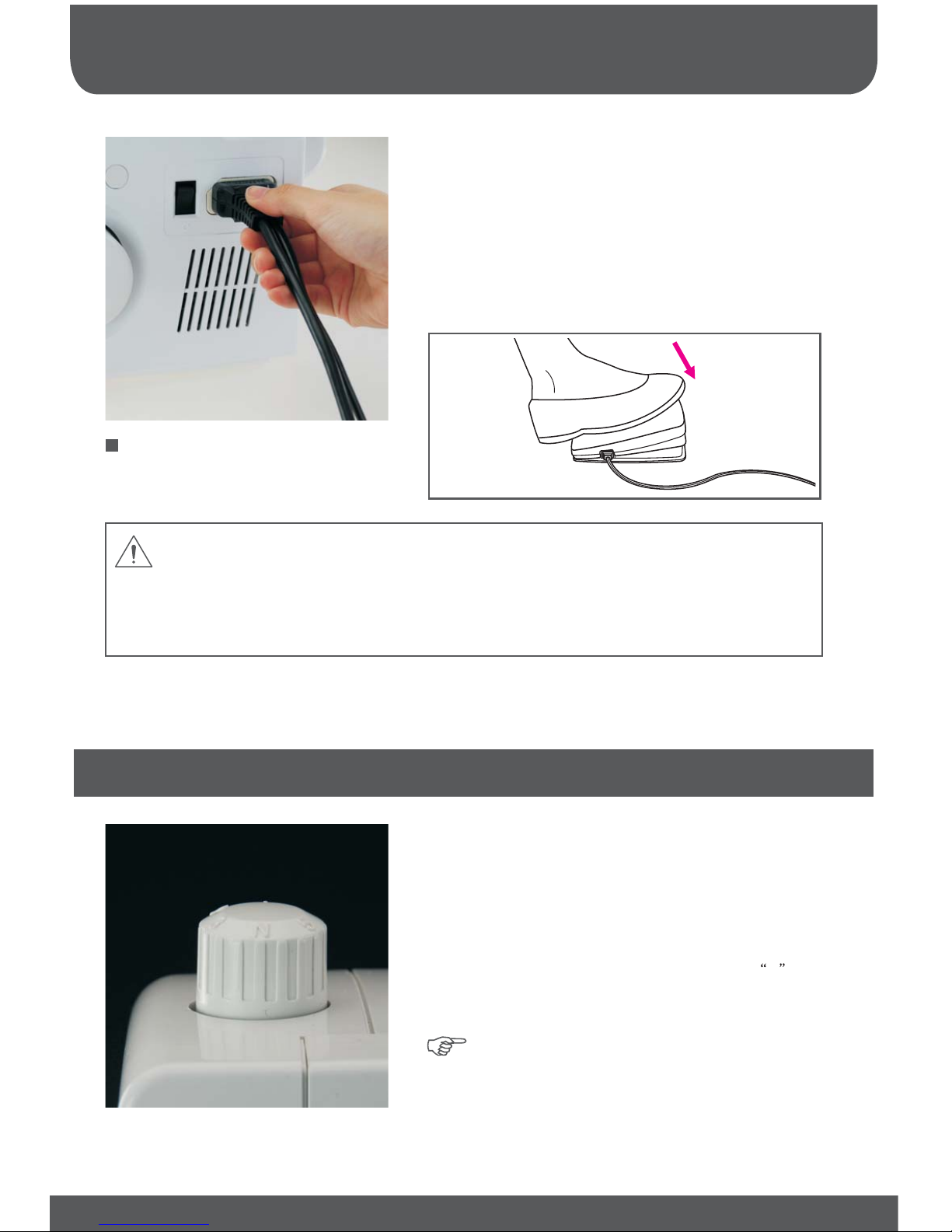

1. Connect the power line cord to the machine by inserting the 3 pin plug into the power cord
socket.

2. Connect the power line plug to the electric outlet.

3. Turn on the power switch.

4. The sewing lamp will light up when the switch is turned on.

To disconnect, turn the power switch to the off position, then remove plug from outlet.

Caution: Always make sure that the machine is unplugged from power source and the main
switch is on "O" when the machine is not in use and before inserting or removing parts.

ON

OFF

Connecting the machine to the power source

11

Polarized plug information
This appliance has a polarized plug (one blade wider than the other),

to reduce the risk of electrical shock; this plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do not
modify the plug in any way.

Attention: Consult a qualified electrician if in doubt as how to connect the machine to
the power source. Unplug the power cord when the machine is not in use.

Unplug power cord when machine is not in use.

The foot control must be used with the appliance by 4C-316B (110-120V area) / 4C­326G (220-240V area).

With the sewing machine turned off, insert the foot
control plug into its connector on the sewing machine.

Turn on the sewing machine, and then slowly
depress the foot control to start sewing.

Release the foot control to stop the sewing machine.

Foot control

The preset presser foot pressure on the machine is
suitable for medium fabrics. For most fabrics, the
presser foot pressure does not need to be altered. If
you intend to work with lighter or heavier fabrics,
however, it may be necessary to reset the pressure.
In this case, you can choose from six positions; make
your selection with the presser foot pressure
adjustment knob. The standard setting is N .

Lower the presser foot before
turning the presser foot pressure adjustment knob.
This makes the knob easier to turn.

Please Note:

12

Starting sewing

Adjusting presser foot pressure

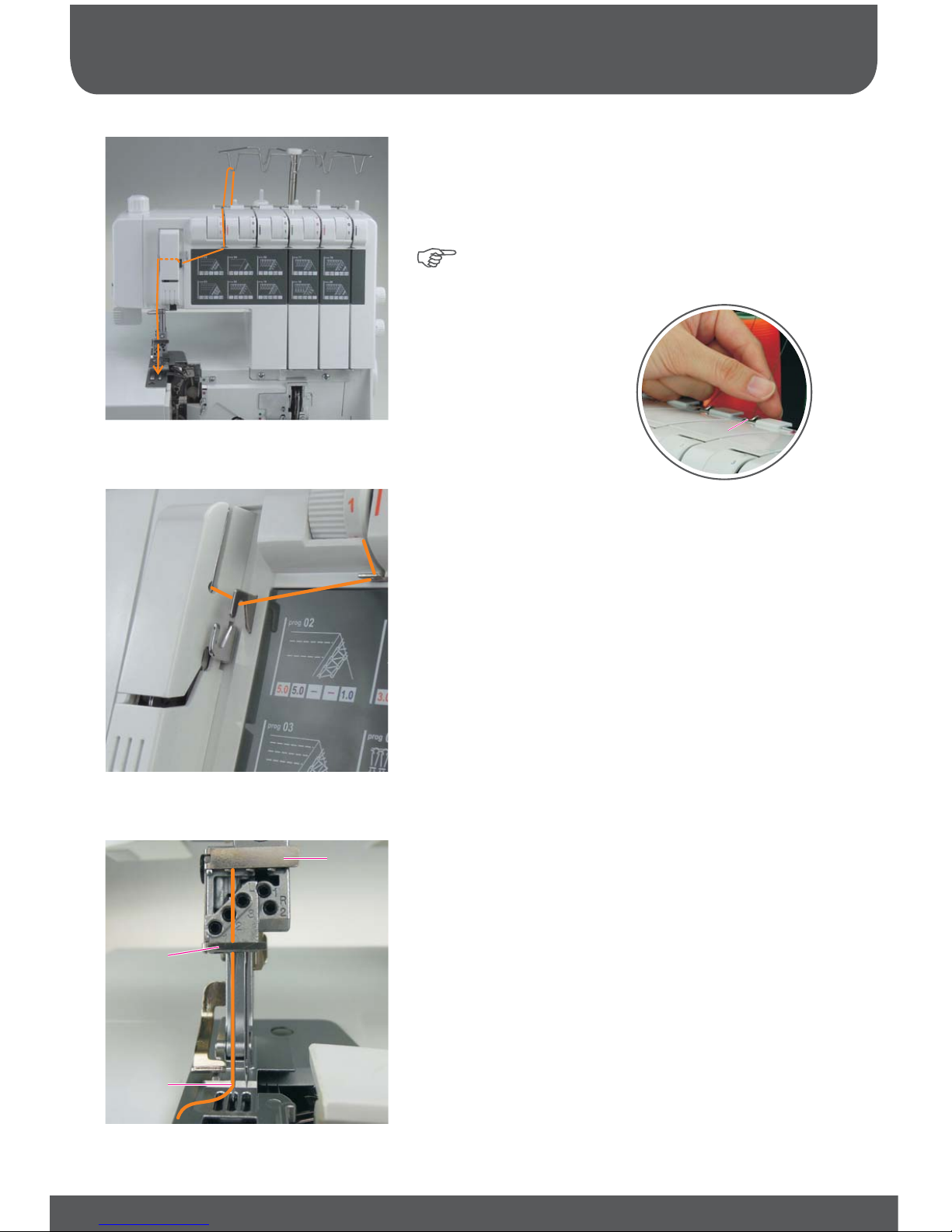

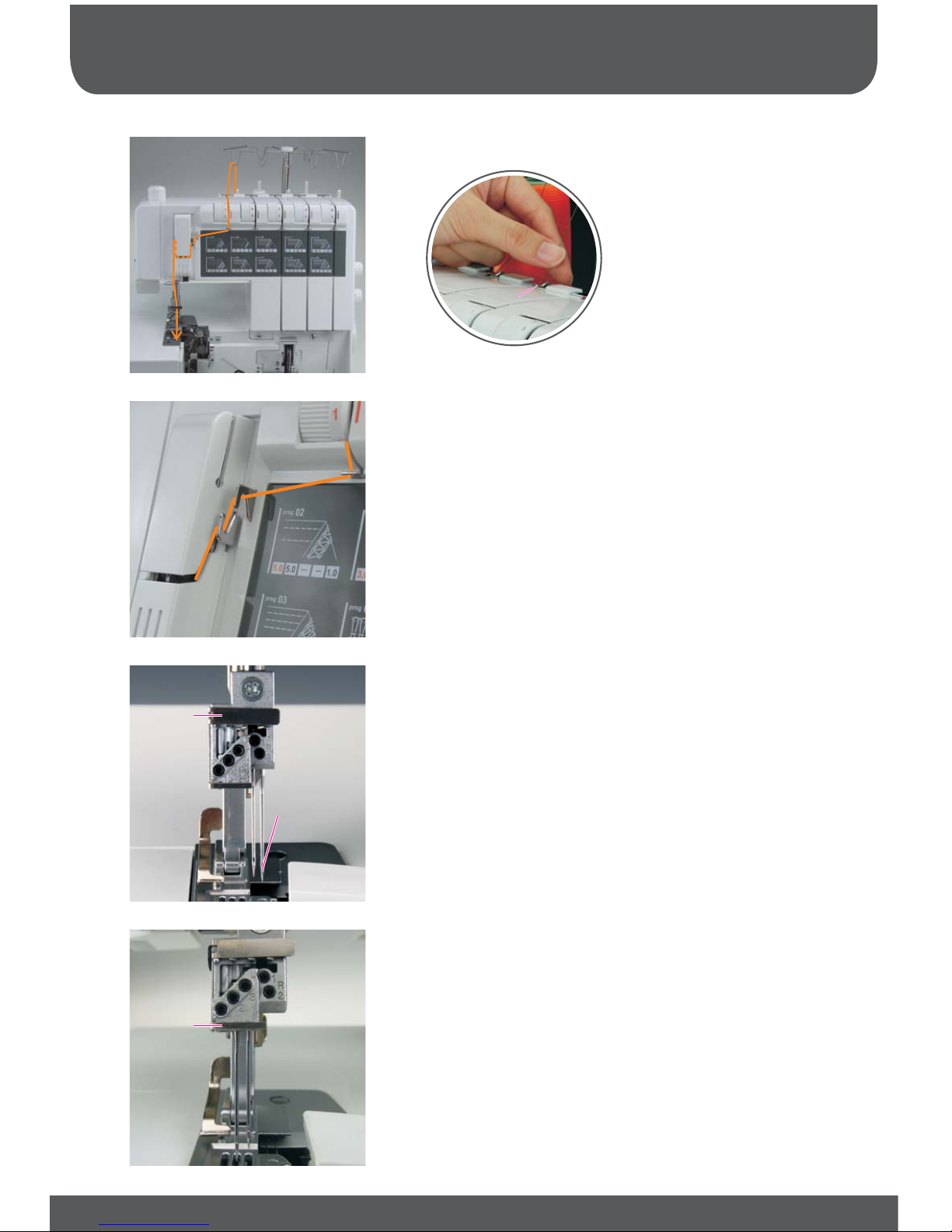

Place the spools on the spool pins. For notes on the
spool net, the thread run-off disc, the foam pads and
the cone holders. Thread the threads from the back
to the front through the thread guides as indicated by
the codes.

Please Note: Thread in a sequence of 1 to 5.

Threading the thread guides

13

3

1 2

5

4

After threading the thread guide bar, slip the thread
into the first guide on the machine. To do this, pull the
thread down with both hands until it slips under the
thread guide. Pass the thread between the tension
discs and pull it down so that it is between the tension
discs.

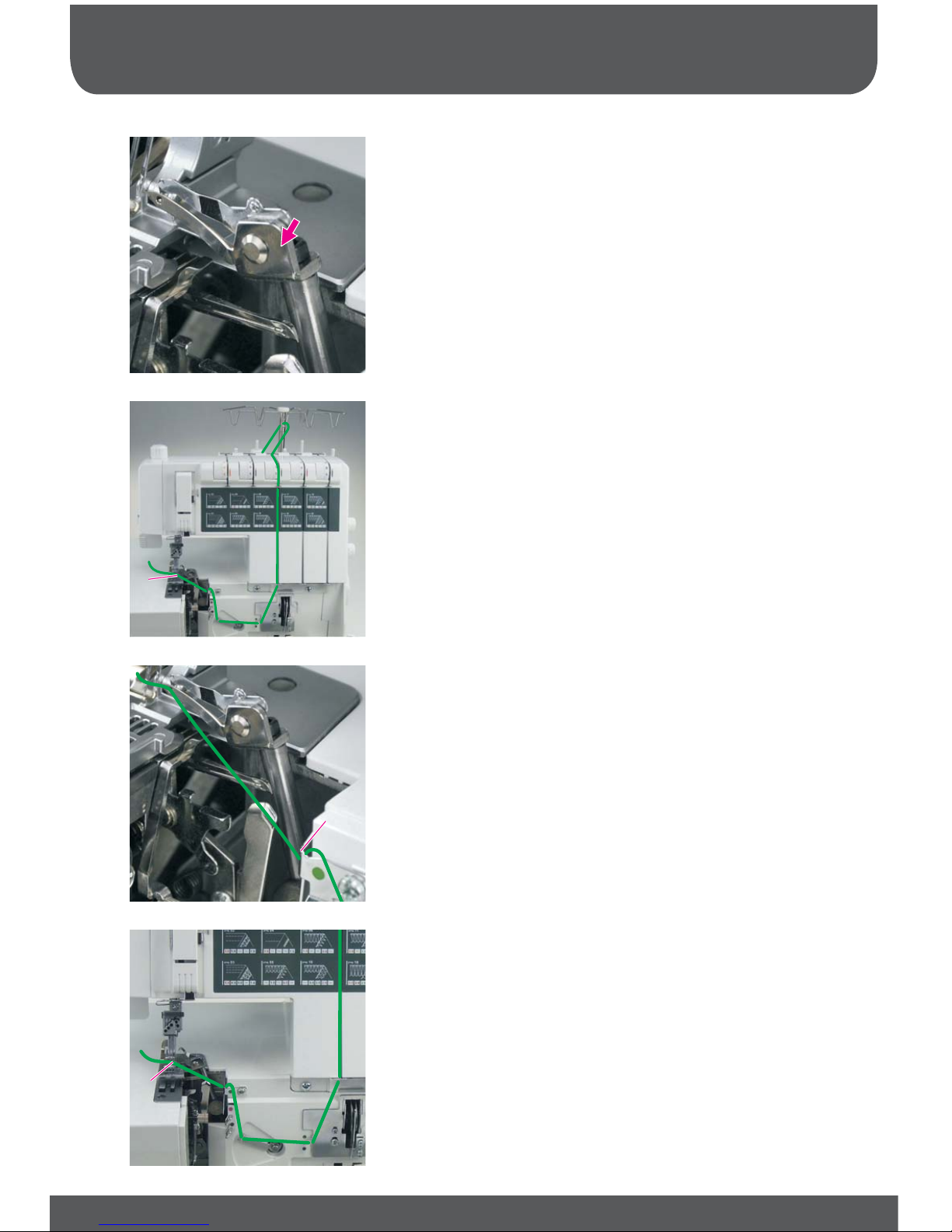

Upper looper (green)

Turn the hand wheel towards you until the upper
looper reaches its highest position.

From the front, pass the thread through the eye 9 of
the upper looper. Pull about 10cm (5 inches) of
thread through the hook and place it facing to the left
under the presser foot.

Thread the thread in thread guides 1 to 7. Pass the
thread over the top of guide 8 from above and pull it
down and to the left until it slips into the guide.

Thread the threads in order from 1 to 9. Some of the
thread guides are marked with a green dot.

14

Threading the upper overedge looper

5

6

7

8

9

8

1

2

3

4

5

6

7

8

9

(a)

(b)

(c)

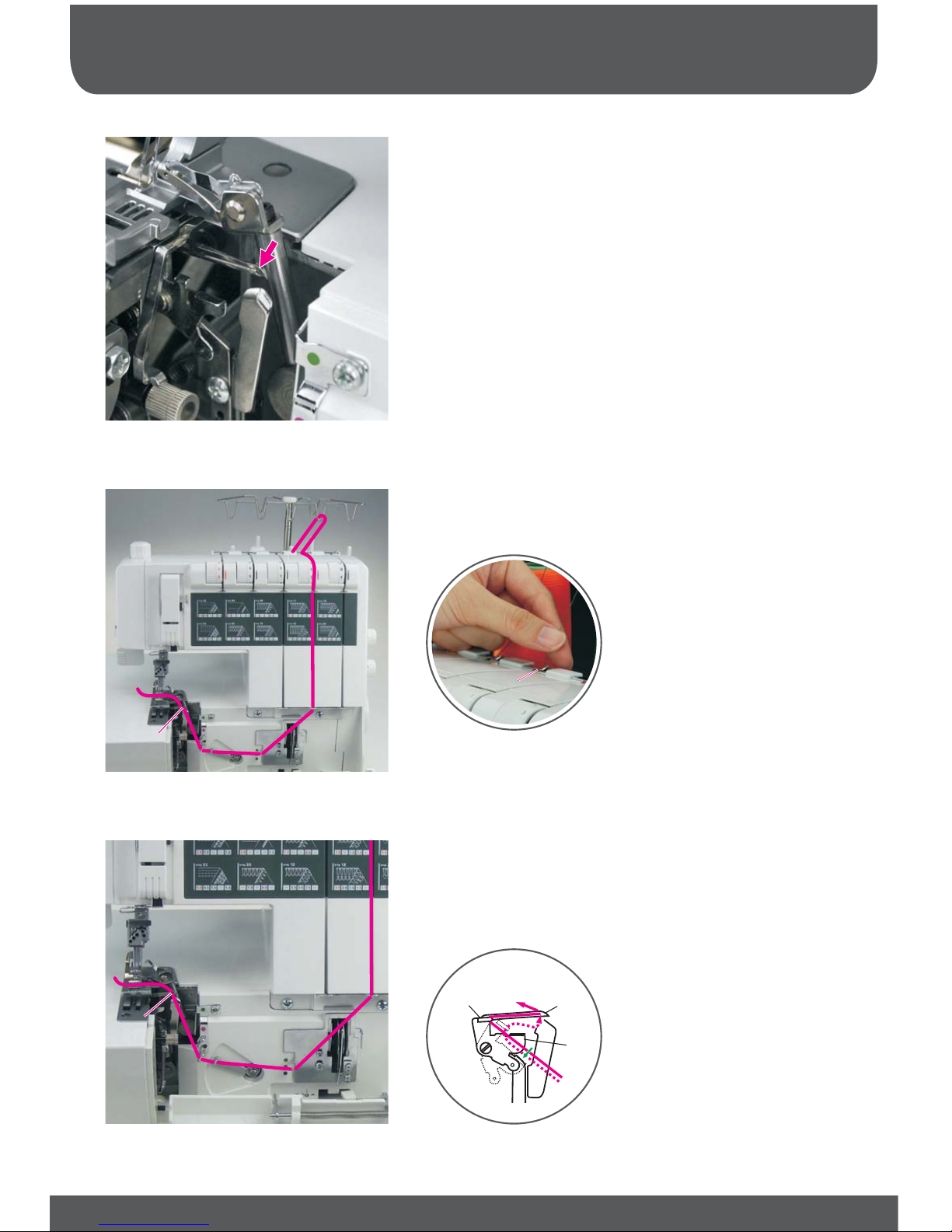

Push lever (a) down and hook the thread on the
guide (b). Pass the thread from front to back through
the hole (c) on far right end of the looper. Draw the
thread back to the left under the presser foot, leaving
a 10cm (4 inches) tail.

Threading Lower Looper (pink)

Turn the hand wheel towards you until the lower
looper is as far to the right as possible.

Thread the thread in order from 1 to 9. Some of the
thread guides are marked with a pink dot.

15

Threading the lower overedge looper

5

6

7

8

9

1

2

3

4

5

6

7

8

9

3

10

11

12

5

6

7

8

9

10

1

2

3

4

5

6

7

8

9

10

11

12

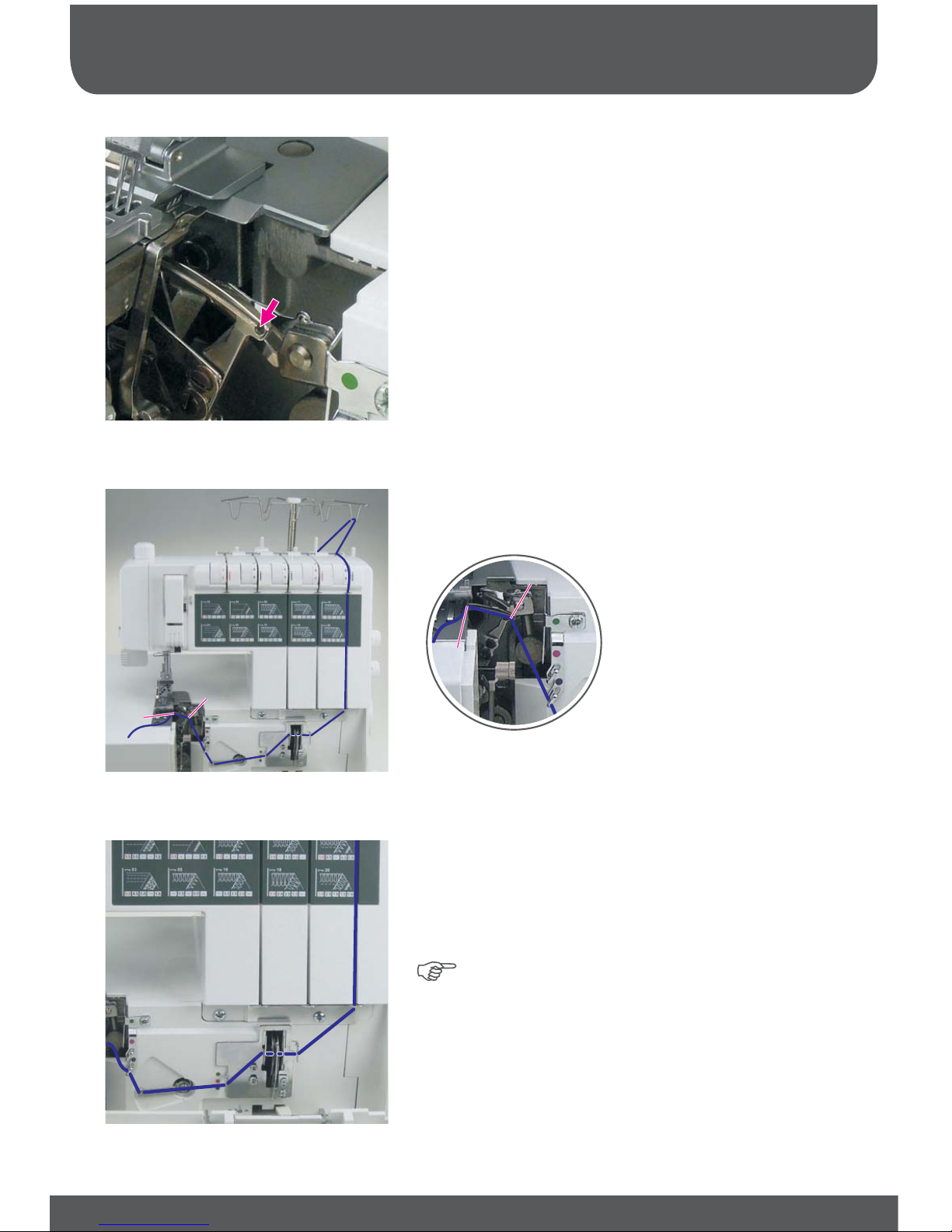

Double chainstitch(blue)

Turn the hand wheel towards you until the double
chainstitch and coverstitch looper is as far to the right
as possible.

Thread the thread in order from 1 to 12. Some of the
thread guides are marked with a purple square.

Thread the thread in the guides from 1 to 8. Pull the
thread under latch 9 and into thread guide 10.

Please Note: In the case of thread guides 6 and
7, the thread is simply placed on top of them, not
threaded through.

16

Double chainstitch and cover stitch looper

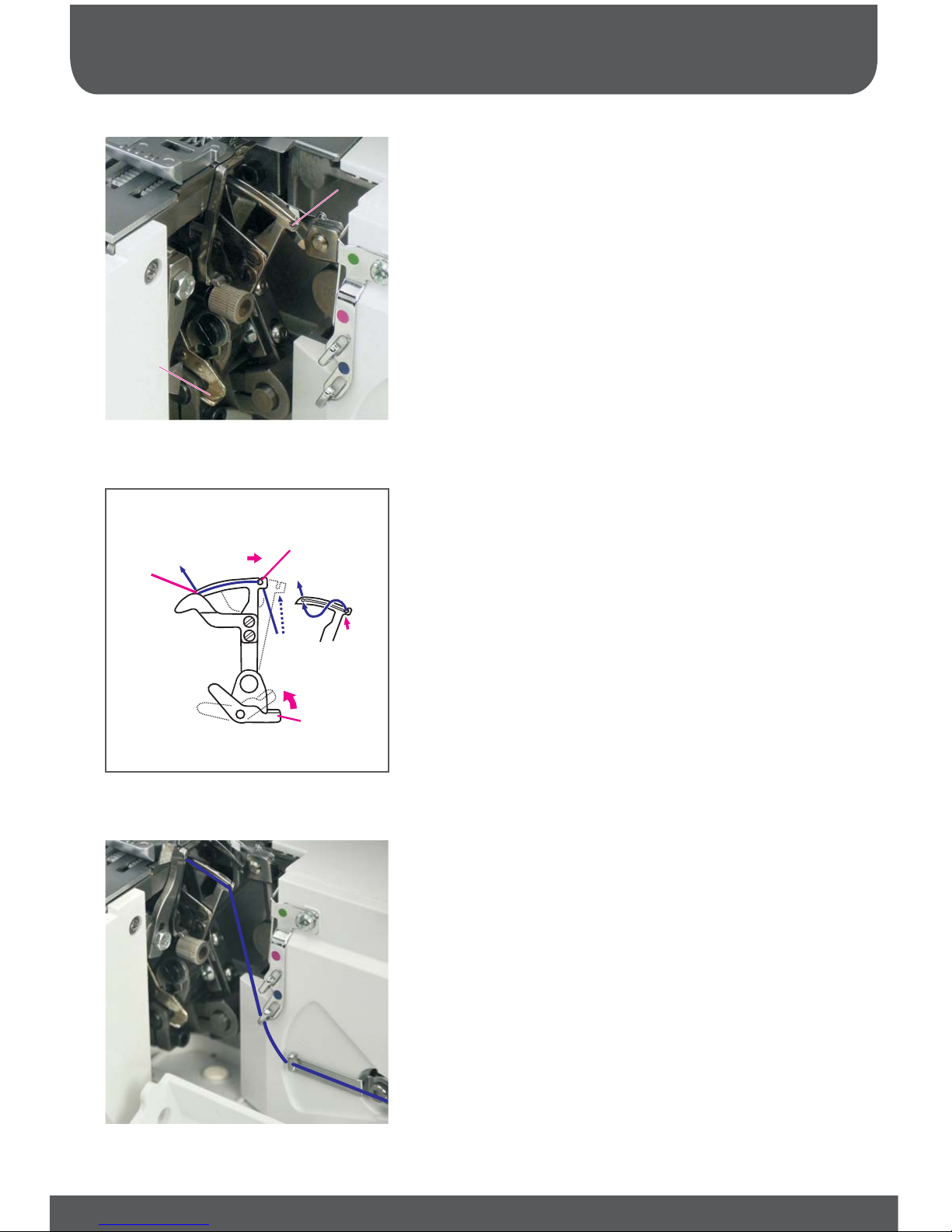

Press lever A up and hook the thread into slot B. The
illustration right shows how to do this.

Please Note: The lever will return to its original
position as soon as you start to sew.

From the front, pass the thread through eye C of the
double chain stitch and cover stitch looper.

Pull about 10 cm (4 inches) of thread through the
looper and place it to the left under the presser foot.

17

Double chainstitch and cover stitch looper

B

A

C

B

A

18

Threading the needles

The thread must pass through the lower slot in thread
guide 6.

Pull the thread about 10 cm (4 inches) through the
eye of the needle and place it facing to the left under
the presser foot.

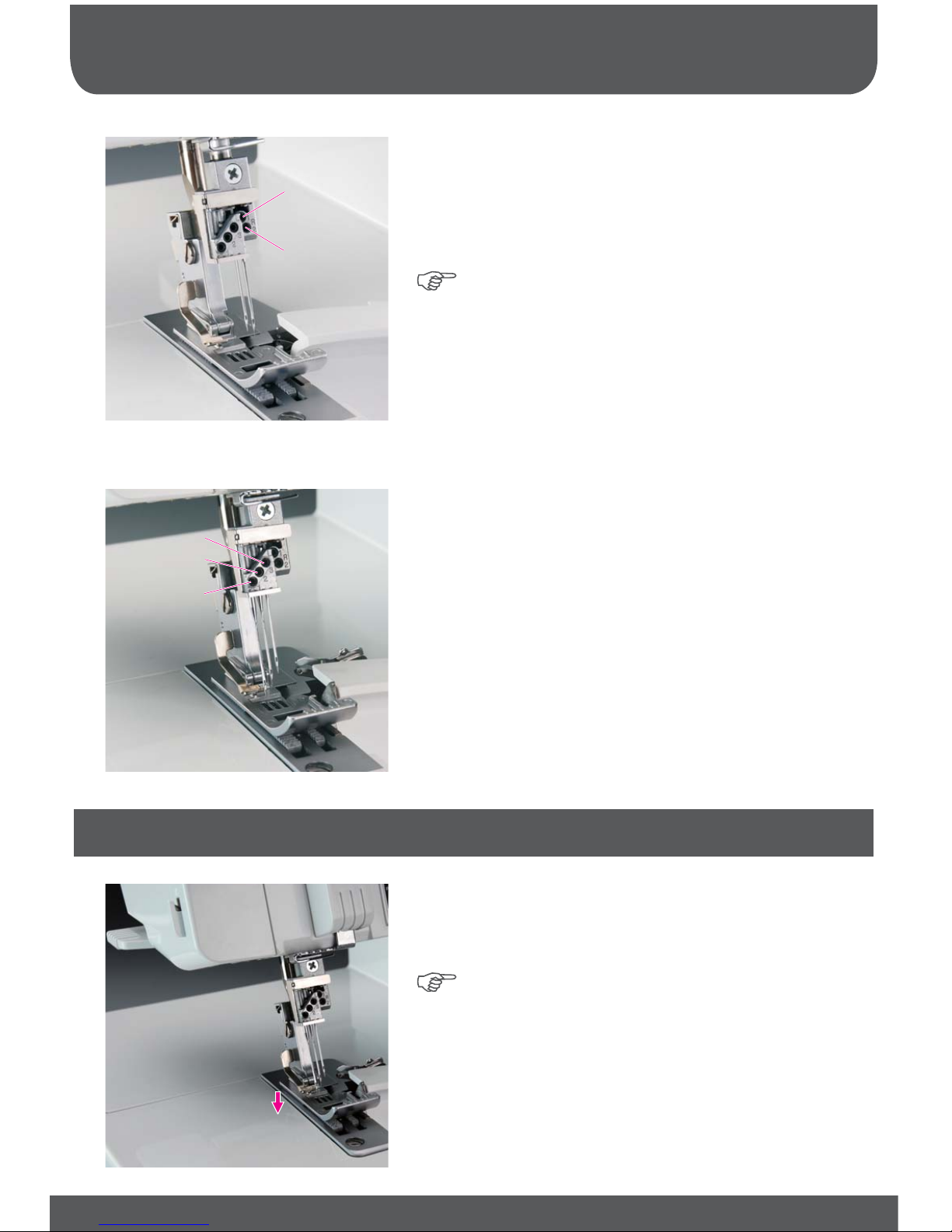

If you sew with the needles L1, L2, or L3 you have to
use the thread guide A.

Thread the thread in order from 1 to 10.

1

2

3

5

4

6

7

8

9

10

5

6

8

7

A

3

19

Threading the needles

The thread must pass through the upper slot in
thread guide 6.

Pull the thread about 10 cm (4 inches) through the
eye of the needle and place it facing to the left under
the presser foot.

Exception: Threading needle L3 when sewing a 5­thread safety-stitch seam (Prog. 20), a 4-thread safety­stitch seam (Prog. 19) and a 2-thread chainstitch (Prog.

04)Thread in a sequence of 1 to 10.

Please Note: To thread the double chainstitch

(prog. 04) you have to thread the green tension .

9

8

7

6

2

1

3

4

5

6

7

8

9

10

3

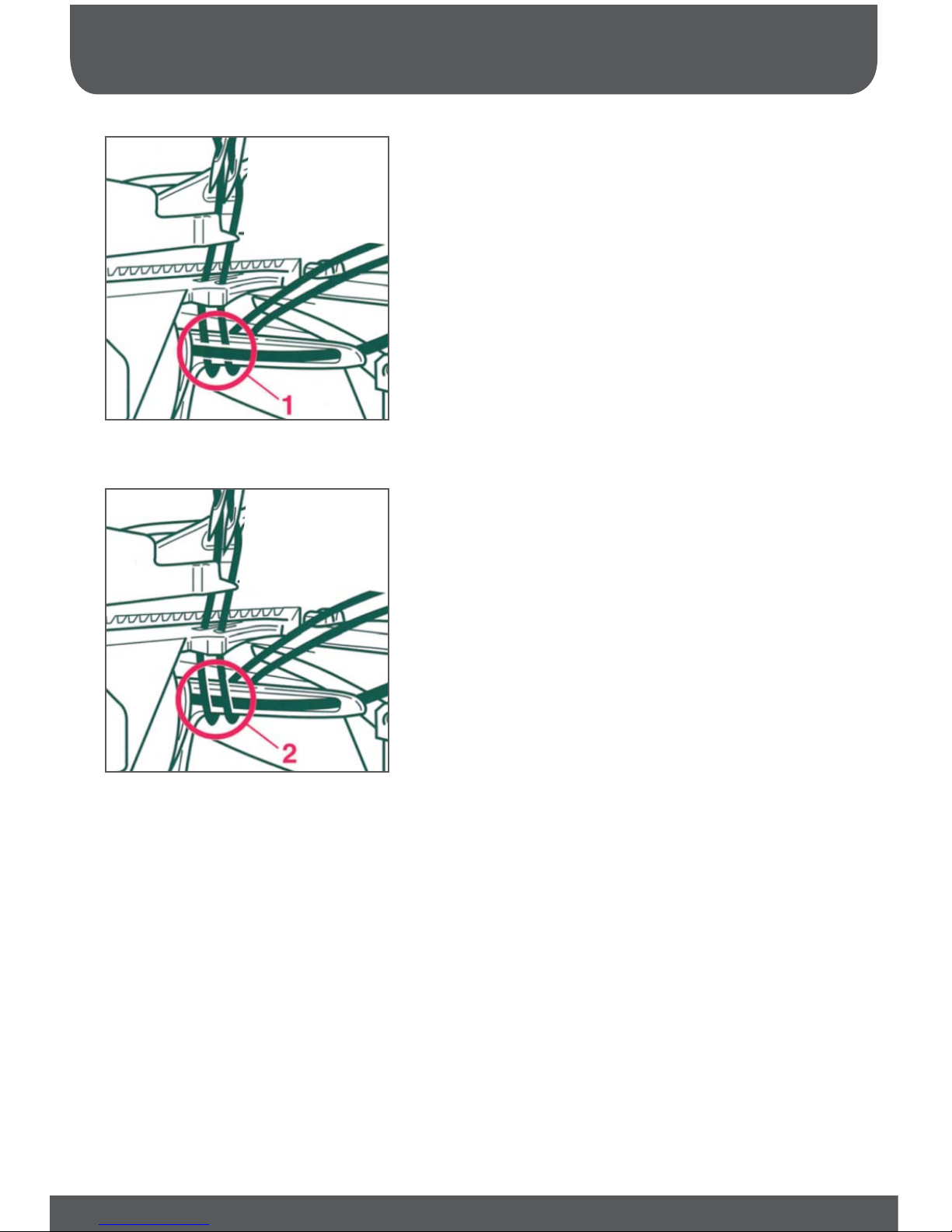

Important note on threading

The needles must always be threaded last so that the
needle threads do not run under the looper thread as
seen in drawing 1, but instead over the looper thread
as depicted in drawing 2. Should this sequence not
be followed, thread breakage or missed stitches can
occur.

20

Threading the needles

If the looper threads break, you must pull the needle
threads out of the needle eye, rethread the loopier
thread and then rethread the needle threads.

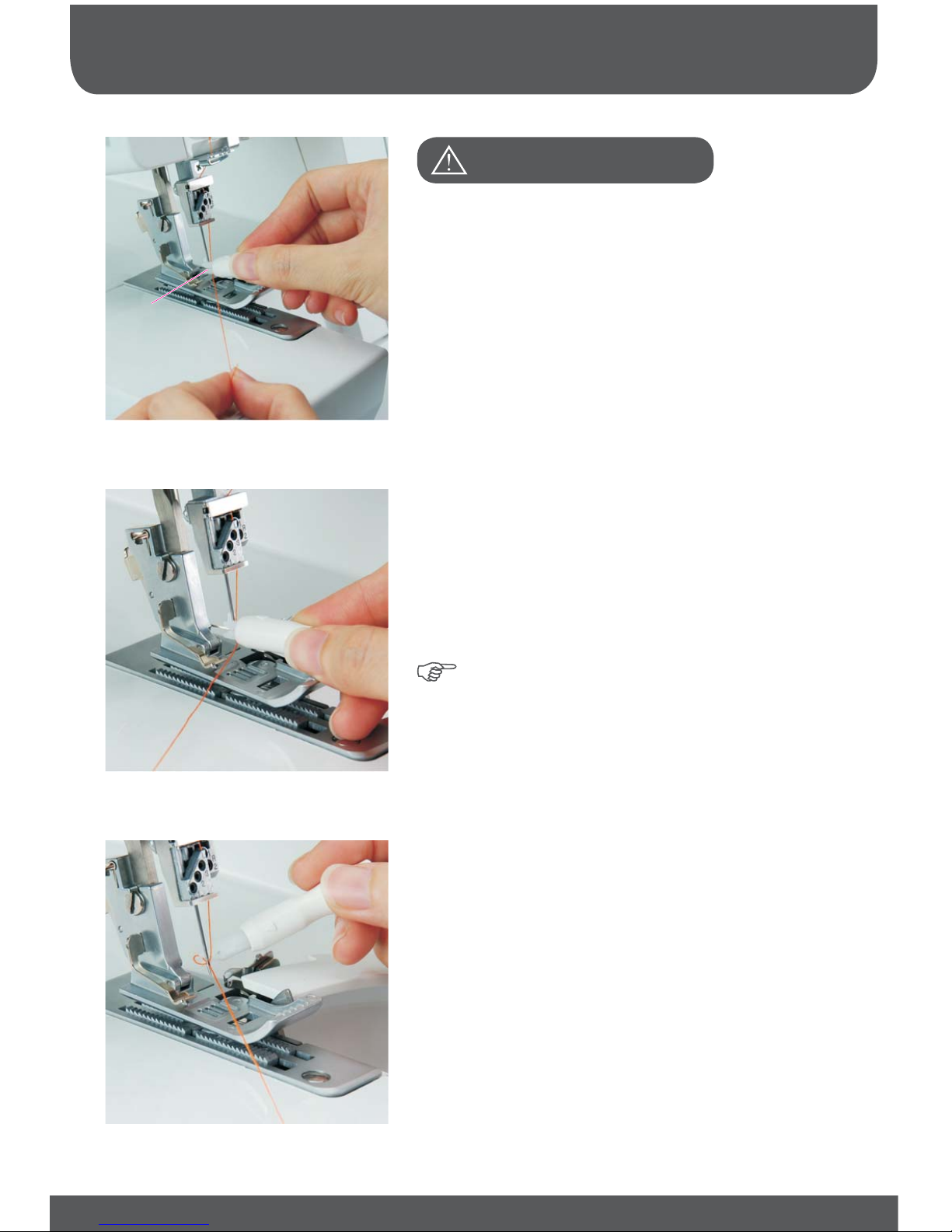

Now you can use the needle threader to pull the
thread loop through to the rear.

Place the needle threader against the front groove of
the needle. Move down as far as the eye of the
needle and press the threader gently against the
needle. This causes a small metal pin to pass
through the eye and the needle is threaded
automatically.

Please Note: If you press too hard, the small
metal pin will bend and you will no longer be able
to use the threader to thread the needle.

Raise the needles into their highest position and
lower the presser foot. Place the thread running from
right to left in notch A of the needle threader (the
needle threader is included in the accessory box).
One of the two triangles must be pointing upwards.

21

Needle threader

Turn off at the power switch

A

Program 01

2-needle cover hem, narrow(L2/ L3)

Program 02

2-needle cover hem,wide(L1/ L3)

Program 04

Chainstitch(L3)

Program 03

3-needle cover hem(L1/ L2/ L3)

22

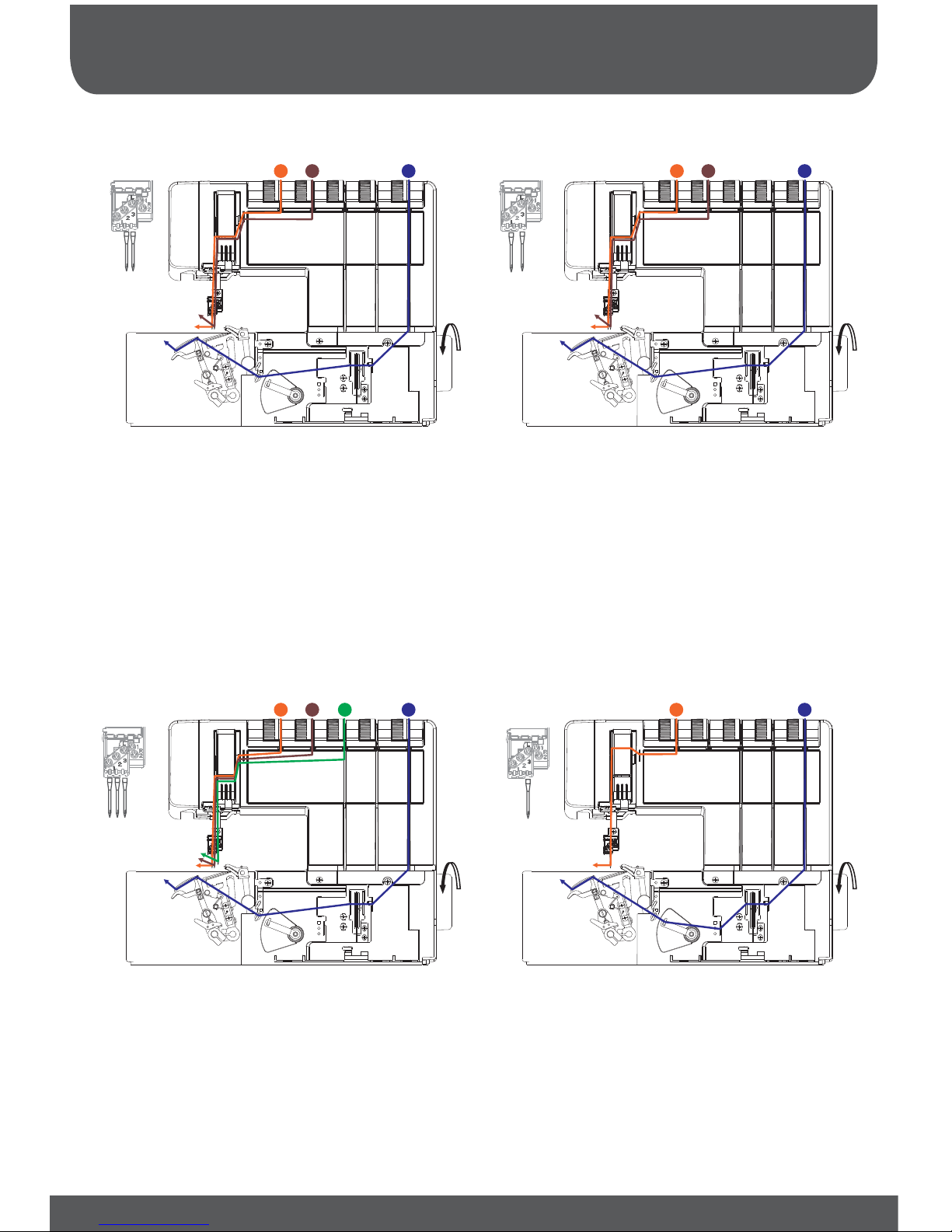

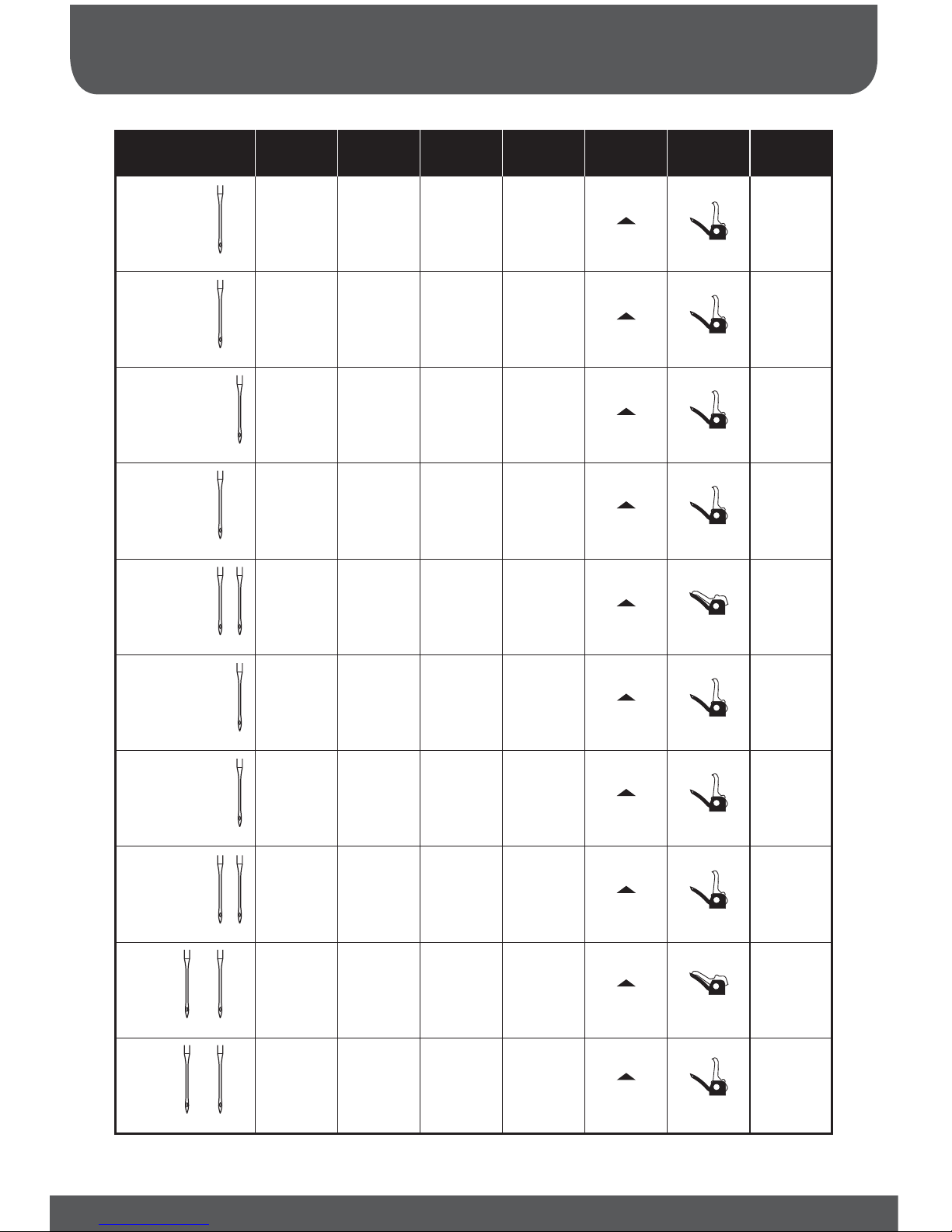

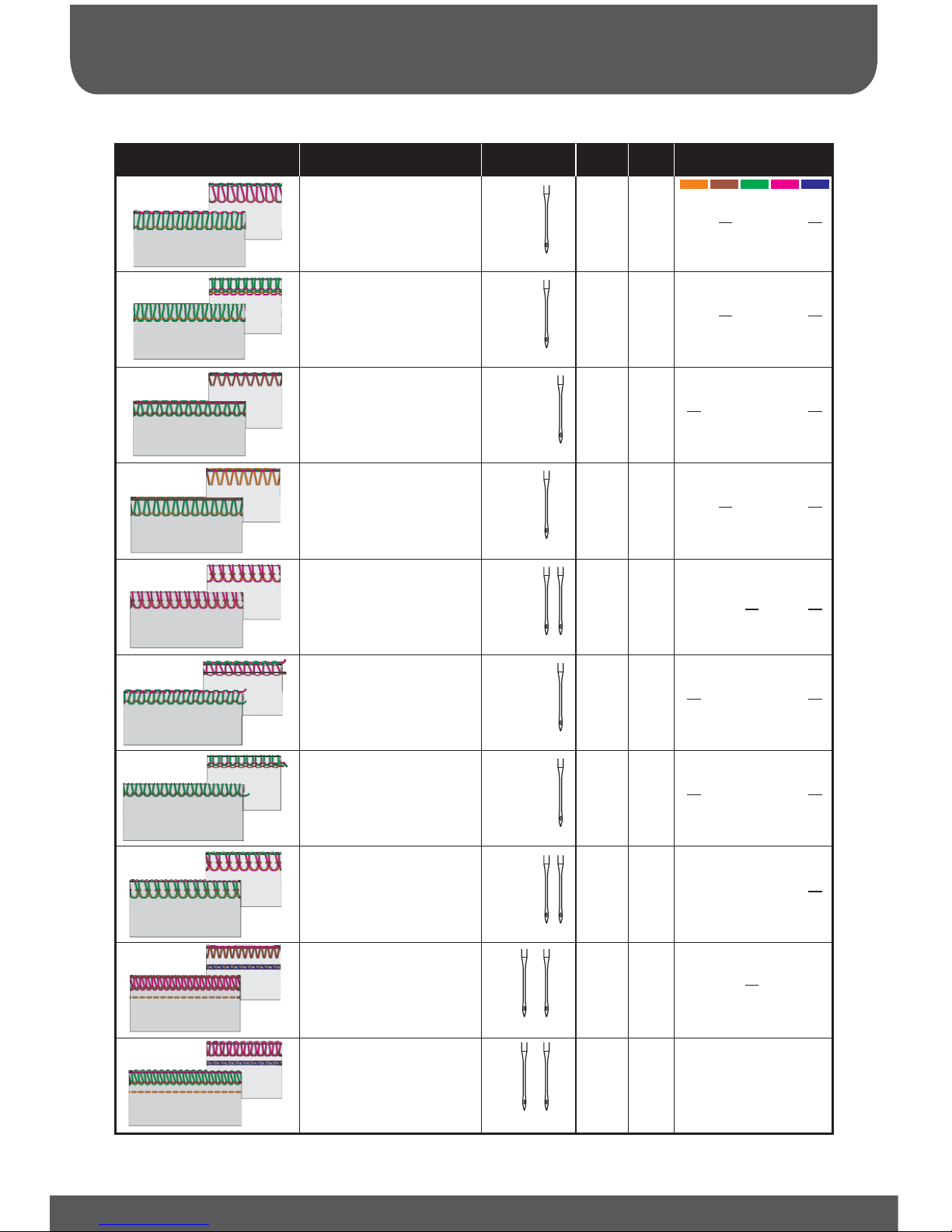

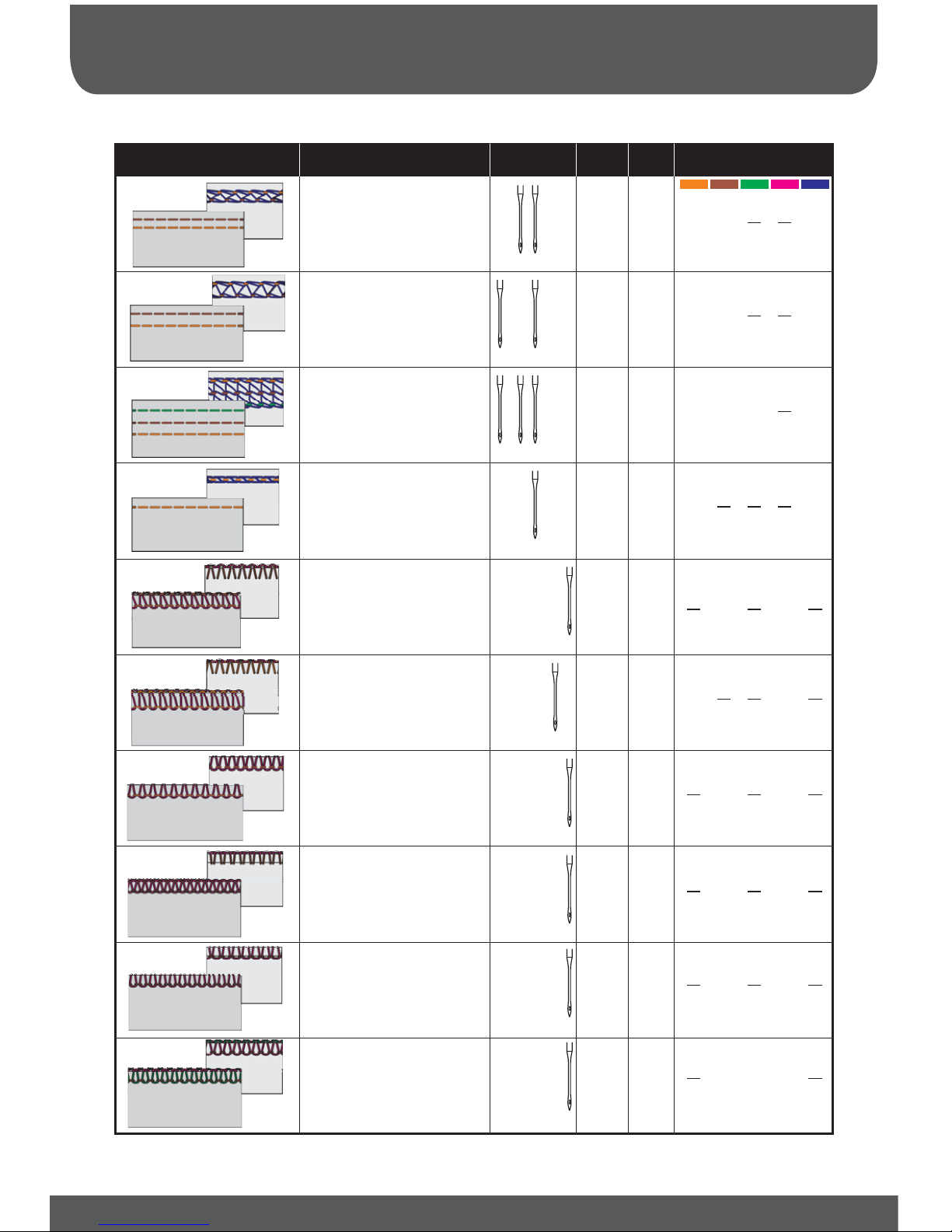

Summary of threading paths and threading sequences

12 3 12 3

1212 3 4

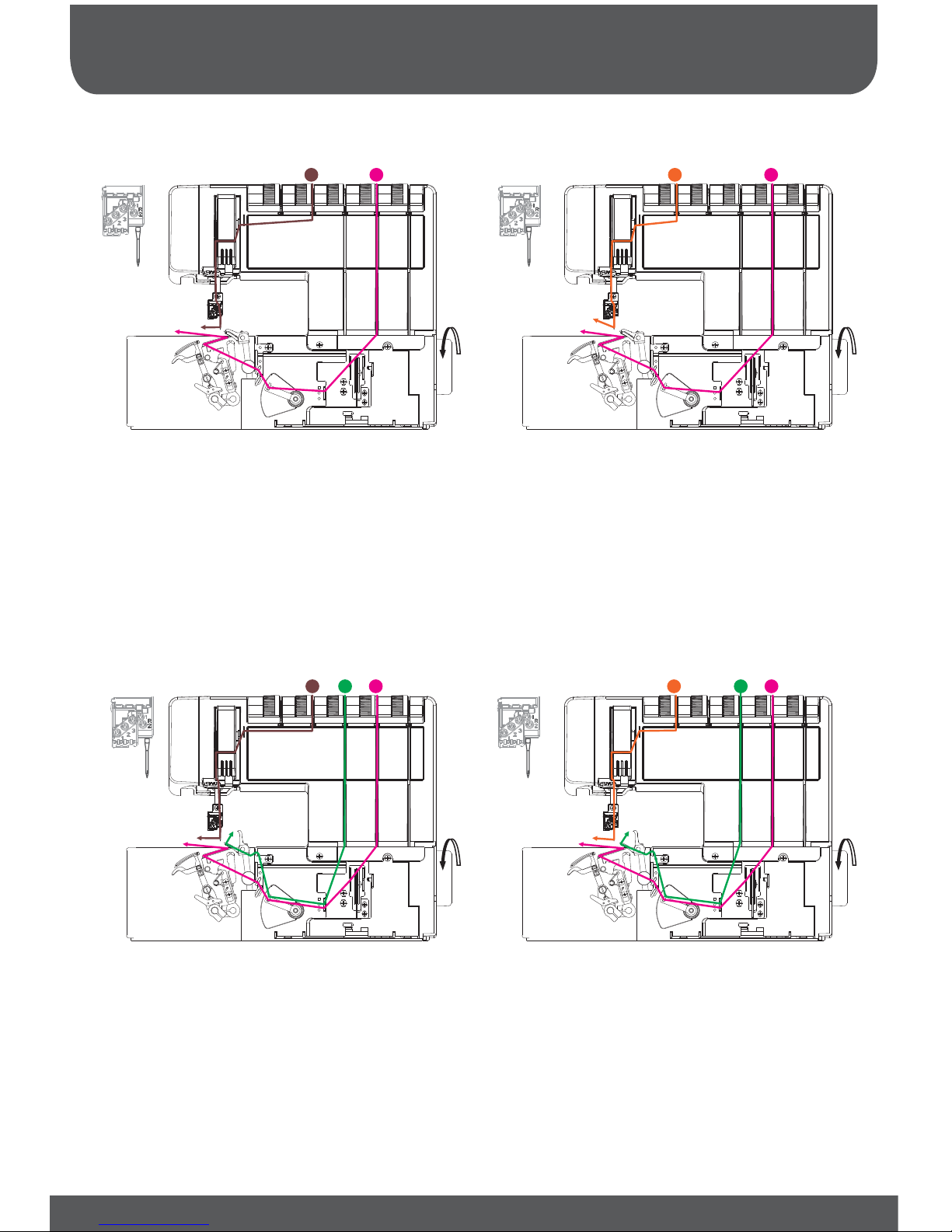

Program 06

2-thread flatlock, wide(R1)

Program 05

Program 07

Program 08

Program 09

2-thread flatlock, narrow(R2)

2-thread serging, narrow(R2)

2-thread flat hem(R2)

2-thread fold. Rolled hem(R2)

Program 10

3-thread overedge seam,narrow(R2)

3-thread flatlock, narrow(R2)

3-thread flat hem(R2)

3-thread fold. Rolled hem(R2)

Program 13

Program 16

Program 17

Program 11

3-thread overedge seam,wide(R1)

3-thread serging, wide(R1)

3-thread flatlock, wide(R1)

Program 12

Program 14

23

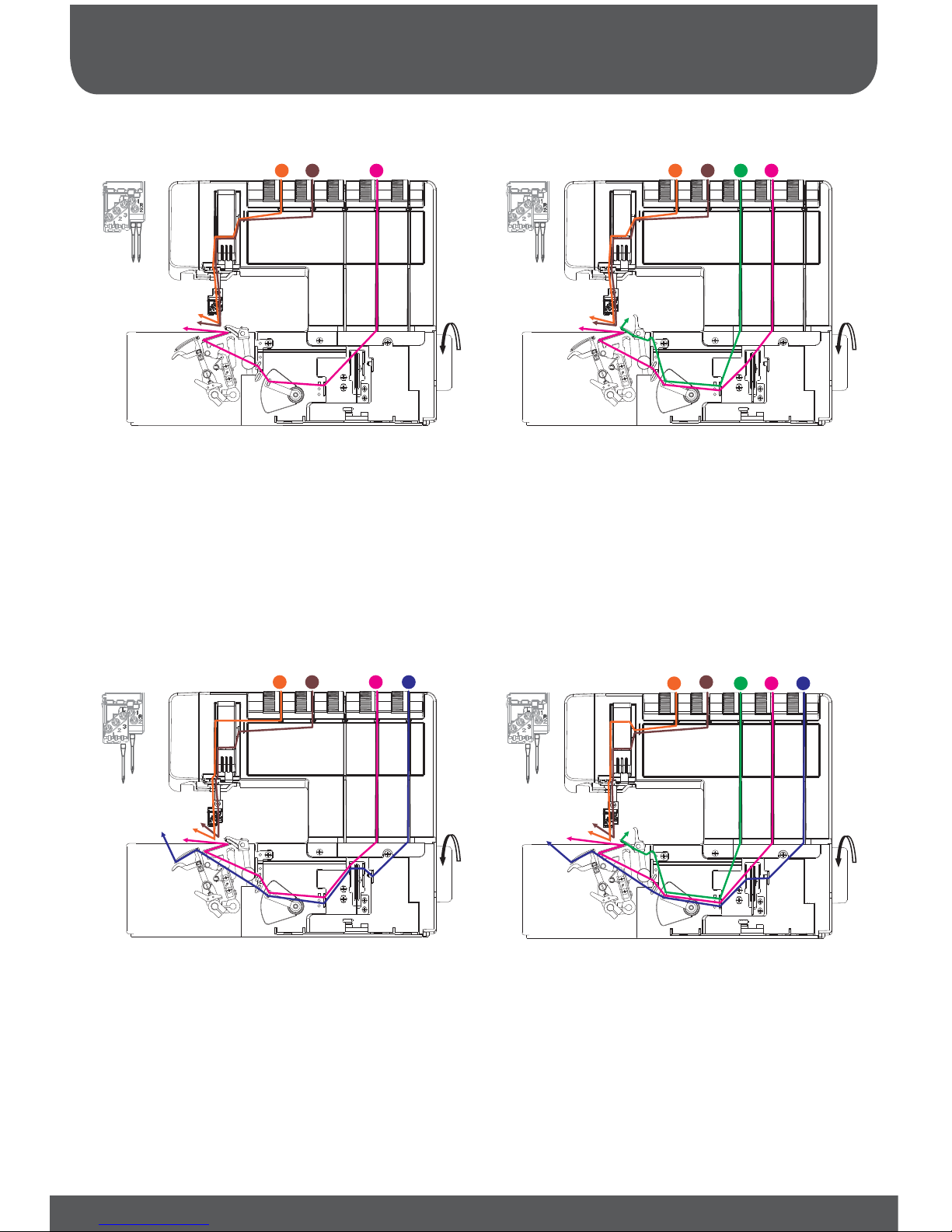

Summary of threading paths and threading sequences

12 12

1 23 1 23

Program 18

4-thread overedge seam(R1/ R2)

Program 15

2-needle,3-thread overedge seam(R1/ R2)

Program 19

4-thread safety stitch,wide(L3/ R1)

Program 20

5-thread safety stitch,wide(L3/ R1)

24

Summary of threading paths and threading sequencesSummary of threading paths and threading sequences

12 3 1 23 4

3 214

31 2

5

4

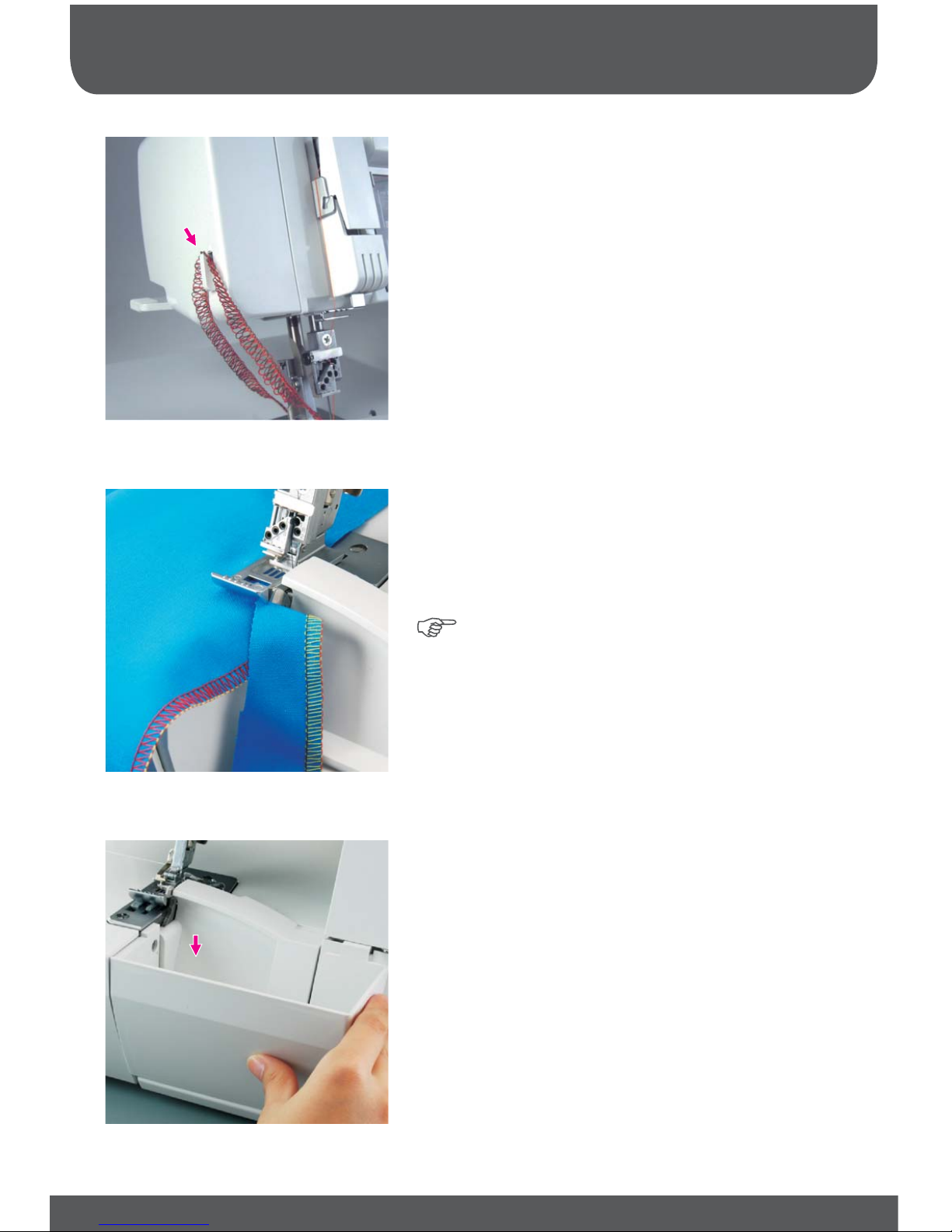

Place the fabric just in front of the needles. If
necessary, first cut about 3 cm along the cutting line
with a pair of scissors. Lower the presser foot and
start sewing. The thread chain will be drawn inside
the seam automatically.

Please Note: This technique cannot be used for
the 5-thread safety seam, the 4-thread safety
seam, the double chain stitch, the rolled hem, or
for sewing in the fabric.

At the end of a seam, sew a thread chain of 15 to 20
cm and pull the thread chain from back to front over
the thread chain cutter.

This will cut off the thread chain.

25

Thread cutter/ Check spring for edging the thread chain/ Waste container

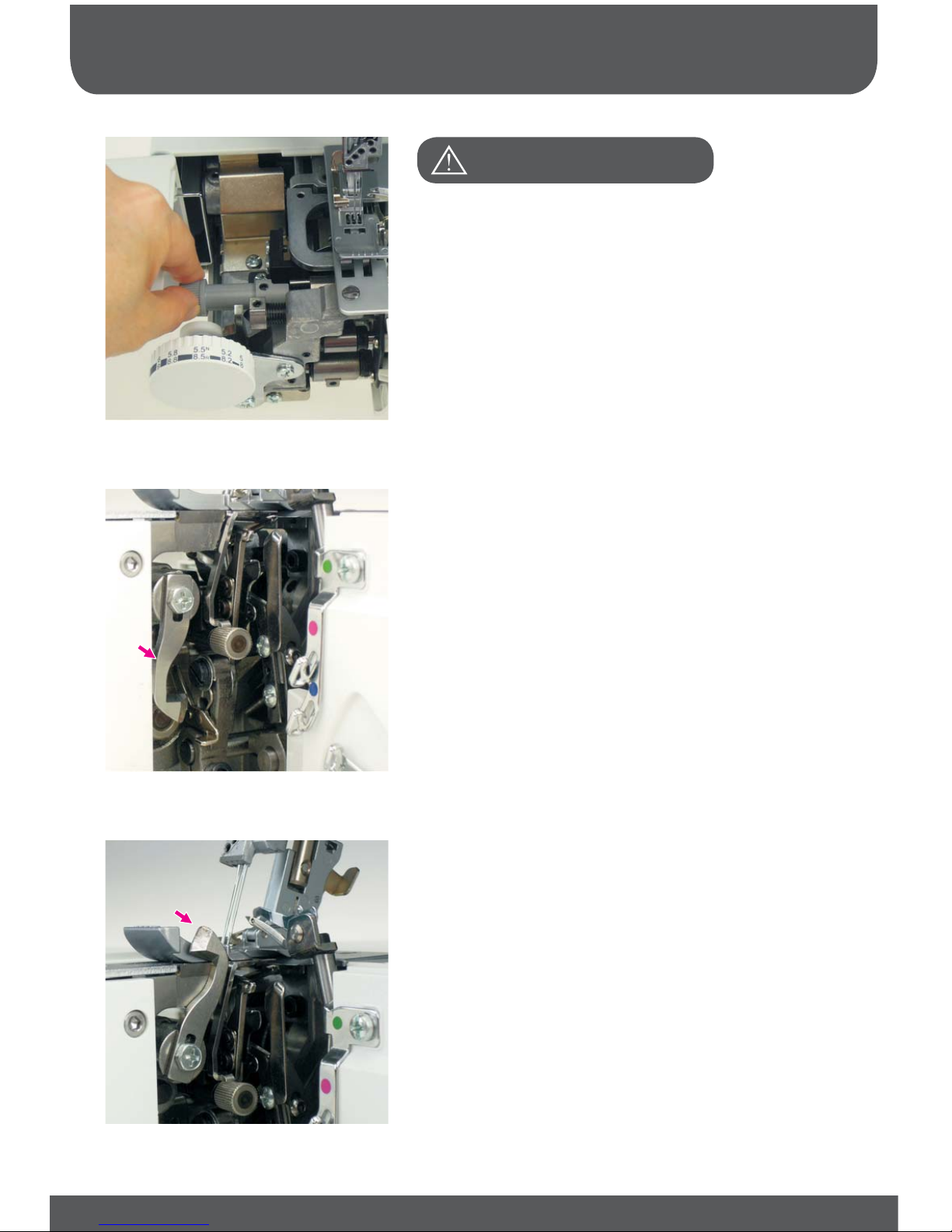

Attach the waste container to the front cover. The tray
will catch fabric scraps that are cut off.

Engage the upper knife. Push the knob for lowering
the upper knife to the right and swing the knife back
until it clicks back into its working position. Close the
front cover and the swivel table and reattach the trim
catcher.

Turn the knob towards you until the upper knife is
seated in its lowest position. The upper knife is now
disengaged.

26

Disengage the upper knife

Remove the trim catcher and open the front cover
and the swivel table. Raise the upper knife to its
highest position by turning the hand wheel. Now push
the knob for lowering the upper knife as far as it will
go to the right.

Turn off at the power switch

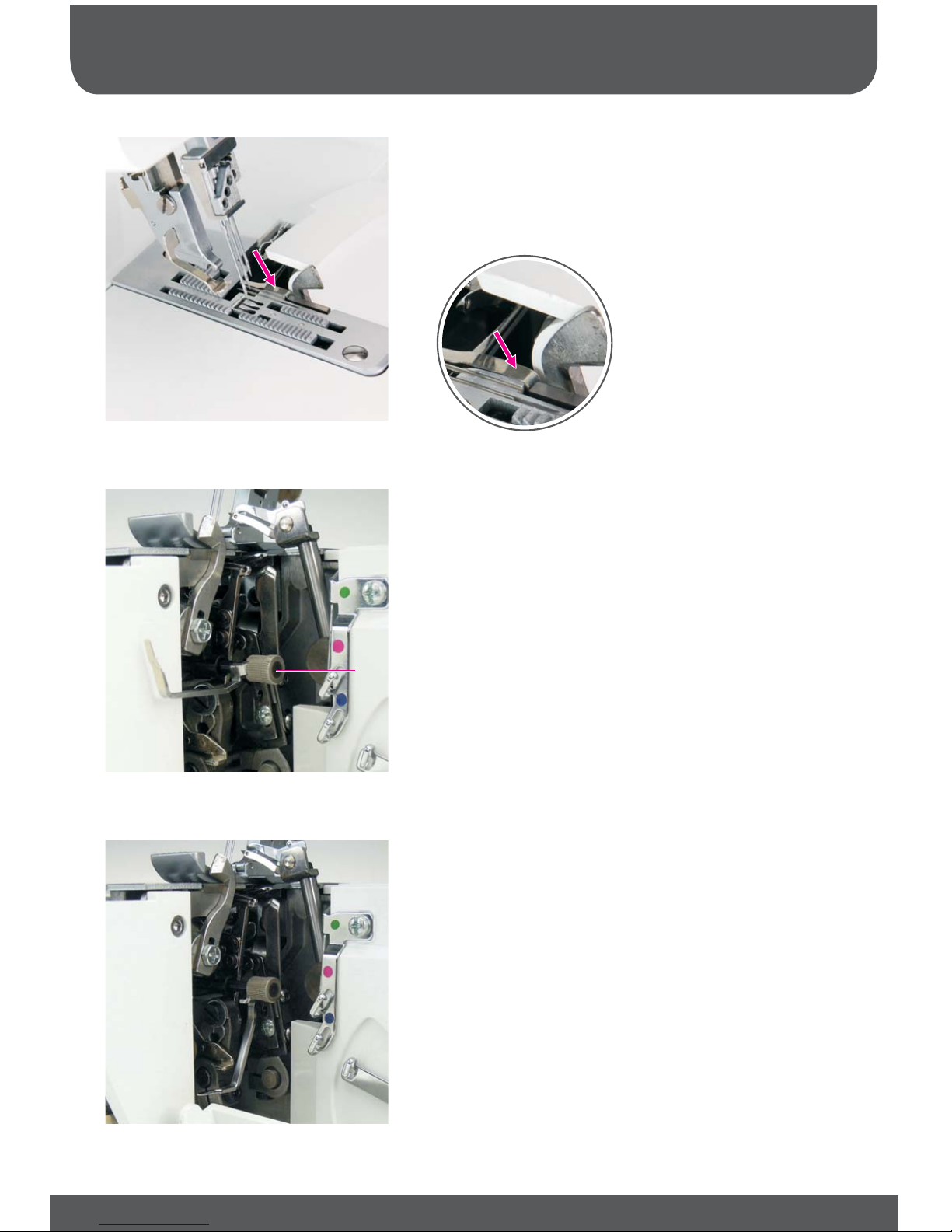

You can sew all rolled hems with this setting. This
setting is also used for sewing coverstitches, double
chain stitch, top cover and deco cover (progs. 02, 04).

For rolled hems

Remove the trim catcher and open the front cover.
Pull knob A of the swiveling stitch width latch to the
right and swing it down into its disengaged position.

For Standard Overlock Seams:

For sewing all standard overlock seams (ex. progs.
02, 04) the swiveling stitch width latch remains in its
engaged position.

27

Swiveling stitch width latch

A

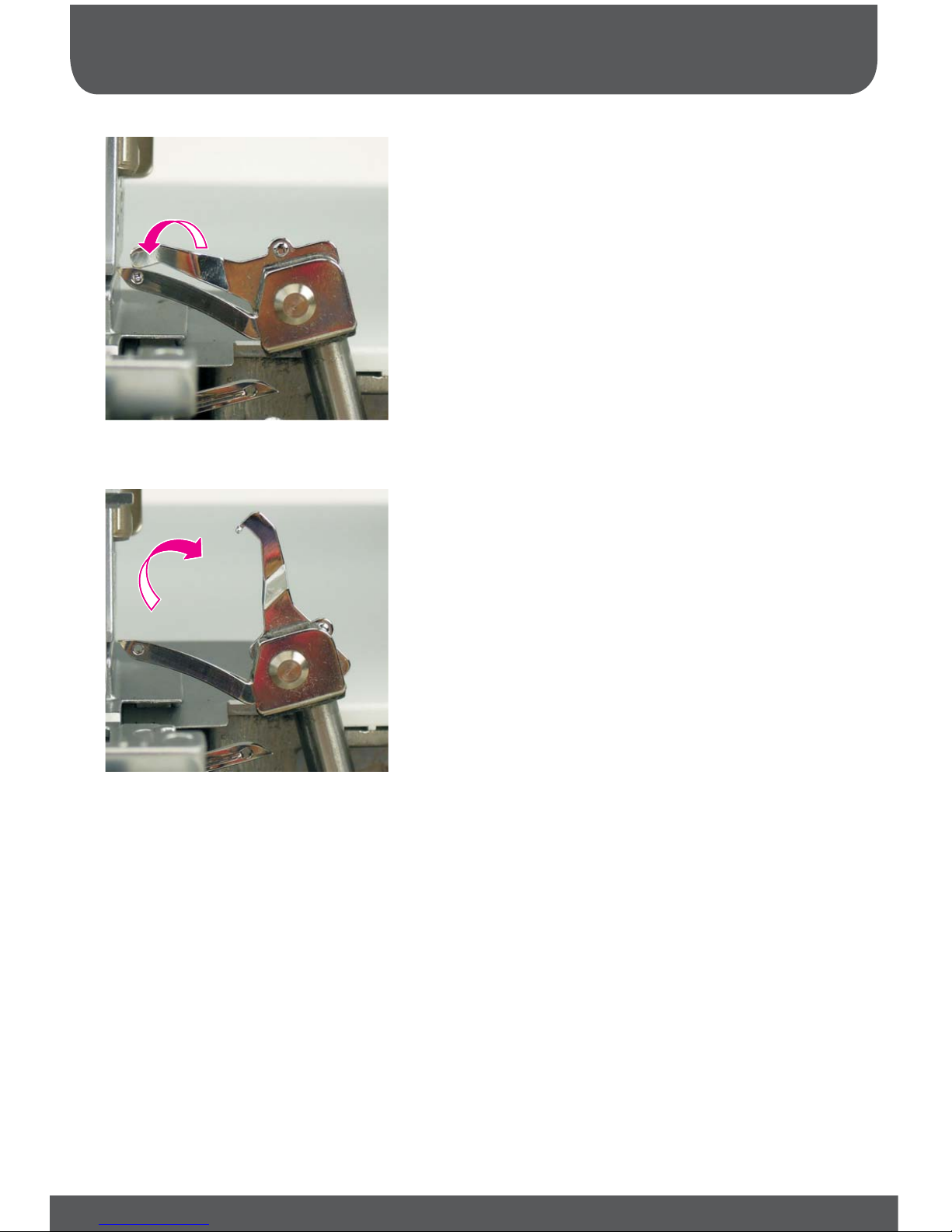

To engage the 2-thread converter

Hand turn the handwheel until the is
inan up position.

Lower the converter and insert the hook into the

.

lower looper

lower looper

28

2-thread converter

To disengage the 2-thread converter

Hand turn the handwheel until the is in
an up position.

Remove the hook from the looper eye and lift the
converter up until it secures in the far right position.

lower looper

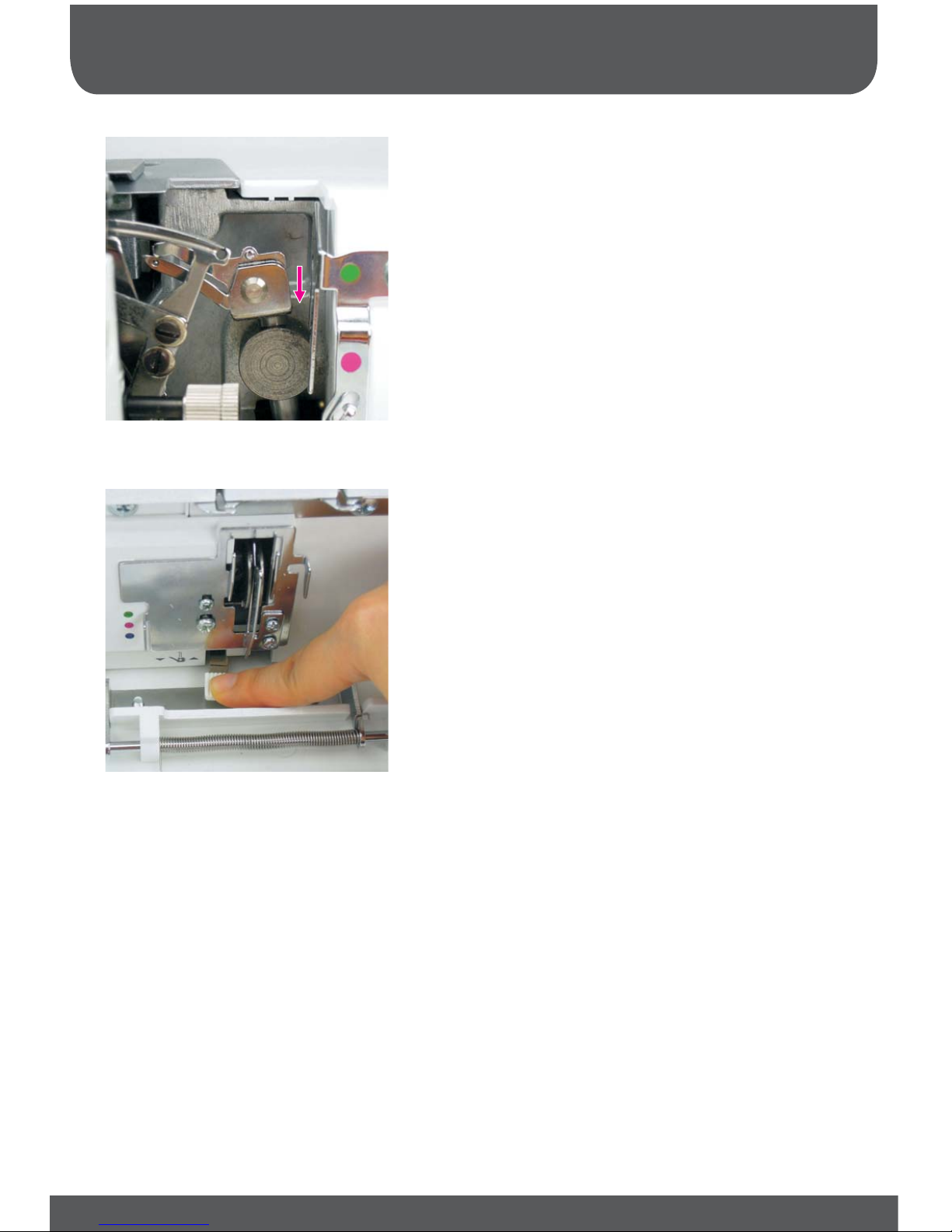

Press the upper looper disconnection lever down and
push it to the left. Turn the hand wheel to ensure that
the looper is indeed disengaged.

To engage the upper looper, push the upper looper
disconnection lever into its position to the right. Turn
the hand wheel until the looper engages with an
audible click and moves upwards again. Close the
front cover and attach the trim catcher.

You can disengage the upper overedge looper with
the upper looper disconnection lever. Remove the
trim catcher and open the front cover. Turn the hand
wheel to bring the looper to its lowest position.

29

Disengage the upper looper

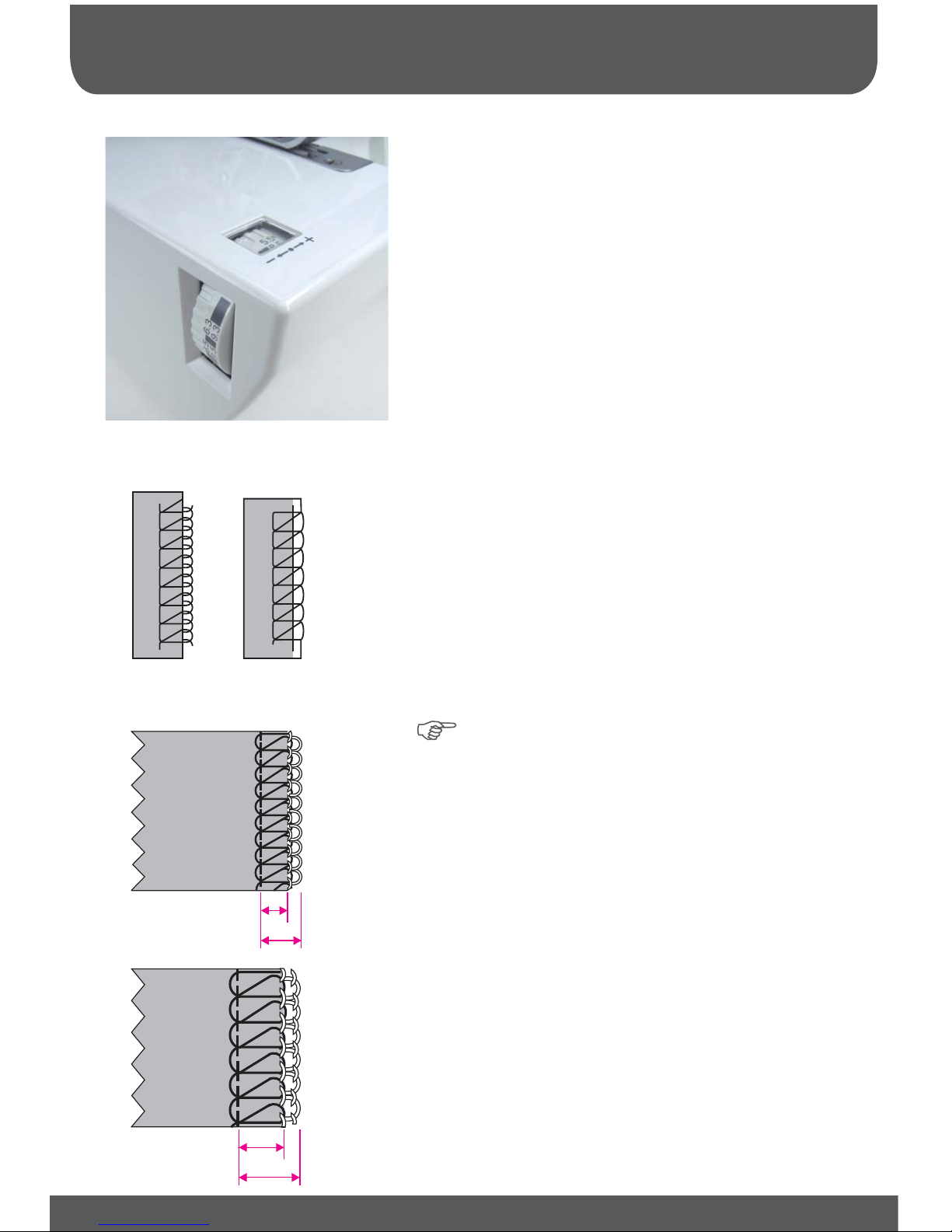

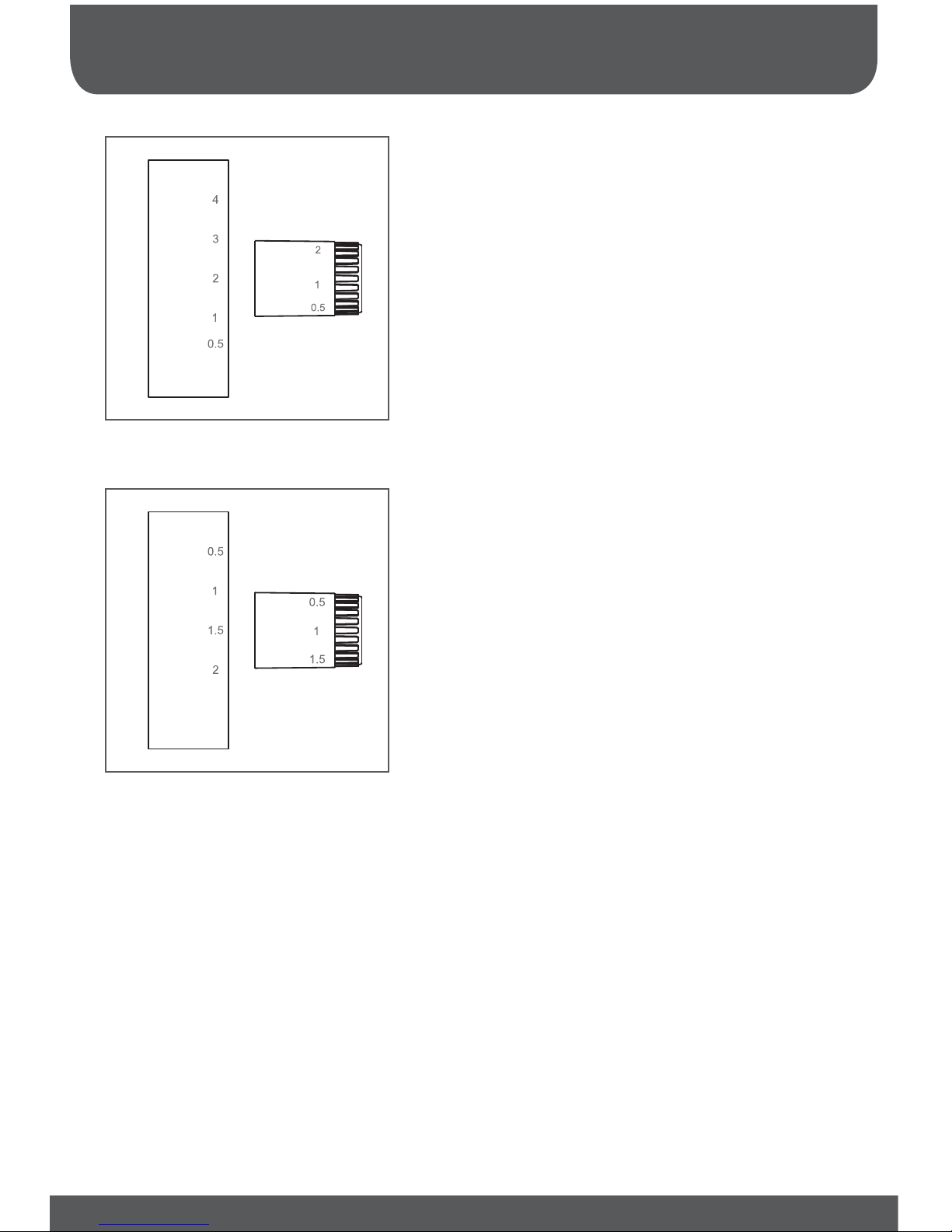

Turn the regulator wheel for differential feed to select
the differential ratio shown on the display panel by
setting the number to the setting mark. Differential
feed may be set from 0.5 to 2.

Turn the regulator wheel for differential feed to select
the stitch length shown on the display panel by
setting the number to the setting mark. Stitch length
may be set from 0.5 to 4.

30

Adjusting the stitch length/ Differential feed

To insert, place the knife guard under latch A and
push down into the front cover guides.

Remove the trim catcher and open the front cover.
Pull the knife guard up and off.

31

Remove knife guard

Important notes on sewing with the top cover stitch

Sewing table The sewing table is marked with various
measurement units. The fi gures at the top are
centimeters, those at the bottom represent inches.

Please Note: The sewing table (accessory) is

attached in the same way.

A

A

Figure A: If loops are protruding from the edge of
your seam, turn the seam width selection knob
upwards to shift the upper knife to the right.

Figure B: If your seam puckers at the edge, turn the
seam width selection knob downwards to shift the
upper knife to the left.

Turn the seam width adjustment knob to select any
seam width value from 3.5 to 6.0 mm; it will also be
displayed in the viewing window. (Double chain stitch
is sewn with a gap of 6.5 to 9 mm.)

32

Set seam width

Please Note: The seam width settings 4.8 mm
and 5.0 mm are only relevant for the needle R1.
This set-value is reduced by 2.0 mm when using
the needle R2. you have a seam width which is
completely adjustable from 3.0 mm to 4.8 mm.

3.0 mm

4.8 mm

AB

5.0 mm

4.8 mm

This setting allows you to sew all types of rolled hems.

33

Attaching the presser foot holder

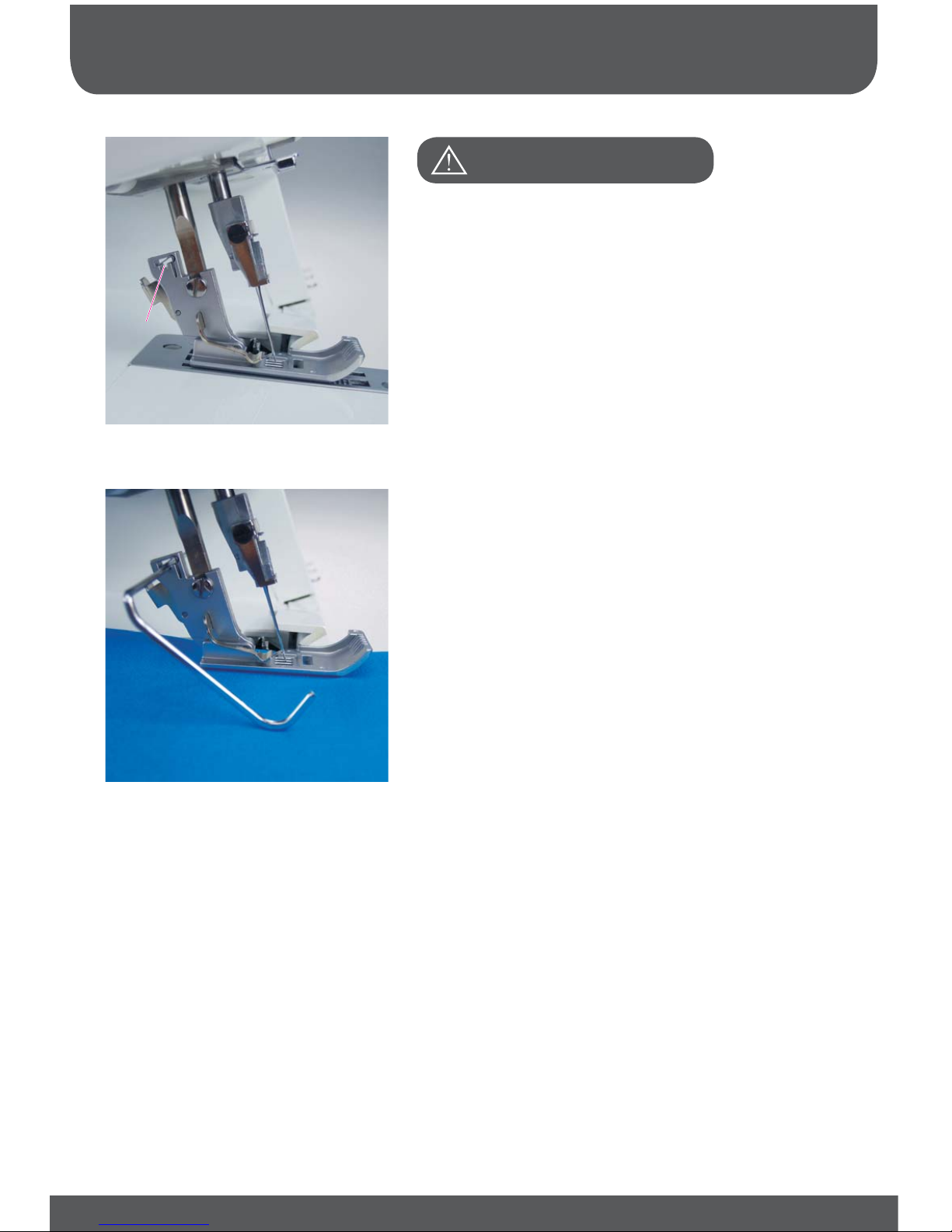

Slide the edge/ quilting guide from the accessory box
left to right into guide A of the presser foot holder.
You can adjust the ruler as you wish by sliding it in
the guide.

Turn off at the power switch

A

This chapter includes all the information you need for care and maintenance
of your Cover and Overlock and suggestions for solving certain problems.

Turn off at the power switch

Care and solving machine

34

In this position, the front edge of the upper knife must
be 0.5 to 1.0 mm below the cutting edge of the lower
fi xed knife.

When you have adjusted the upper knife precisely,
you can tighten retaining screw A fully.

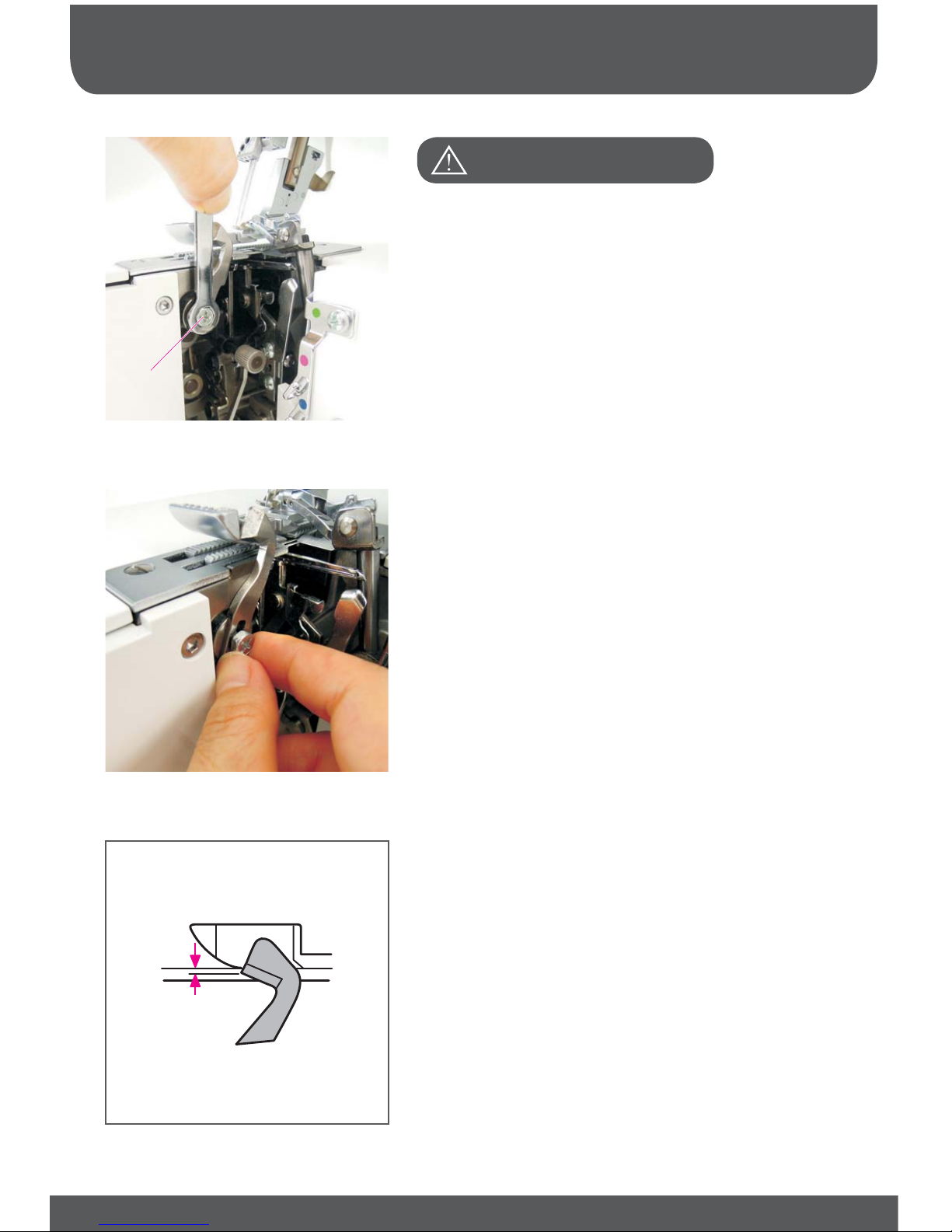

Loosen the screw to the upper knife.

Insertion: Insert the new upper knife and tighten
screw A very slightly. Turn the hand wheel until the
upper knife is in its lowest position.

Removal: Set the seam width adjustment knob to

3.5mm and secure the upper knife in place.

Loosen screw A with the spanner from the accessory
box and remove the upper knife.

Turn off at the power switch

35

Replacing the upper knife

A

0.5-1.0 mm

Oiling the machine

Bring the upper looper to its highest position by
turning the hand wheel. After every cleaning of the
machine, oil the points shown with the oil included in
the accessories. One or two drops of sewing machine
oil are sufficient. All other parts are made from
special materials and do not need to be oiled.

Cleaning of the machine

Remove the top cover hook or decorative thread
guides. Remove the trim catcher, open the front
cover and the swivel table. Disengage the upper knife.
Remove the presser foot and the needle plate. With
the lint brush provided in the accessory box, remove
lint from the upper and lower knives, the differential
feed and the looper area.

Turn off at the power switch

36

Care of the machine

Cleaning rubber feet

Clean the rubber feet of the machine with methyl
alcohol from time to time. This will ensure that the
machine will not move on the surface on which it is
standing.

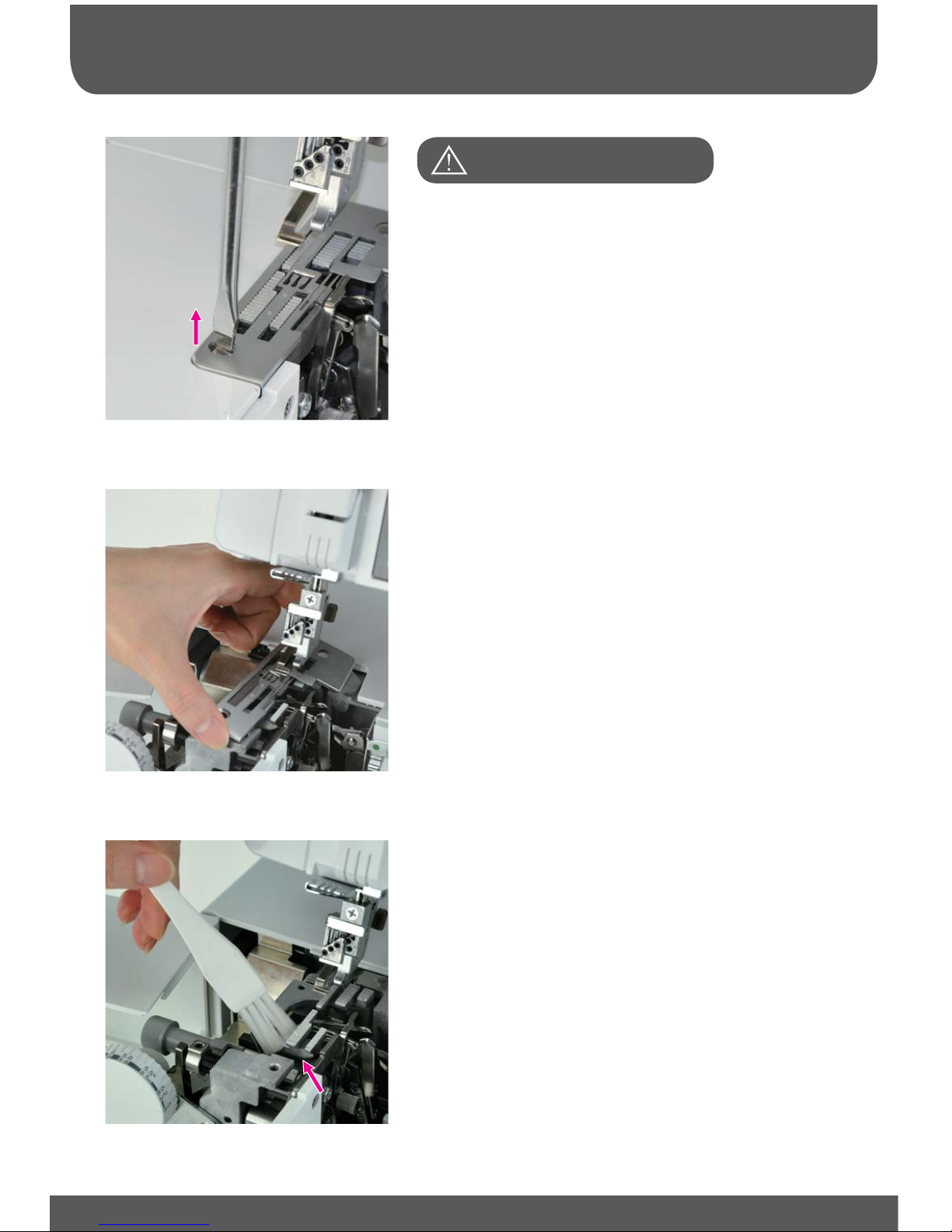

Remove the screws holding the needle plate and
remove the needle plate.

Removing the needle plate

Remove the needle, presser foot, and presser foot
holder.

Turn off at the power switch

37

Care of the machine

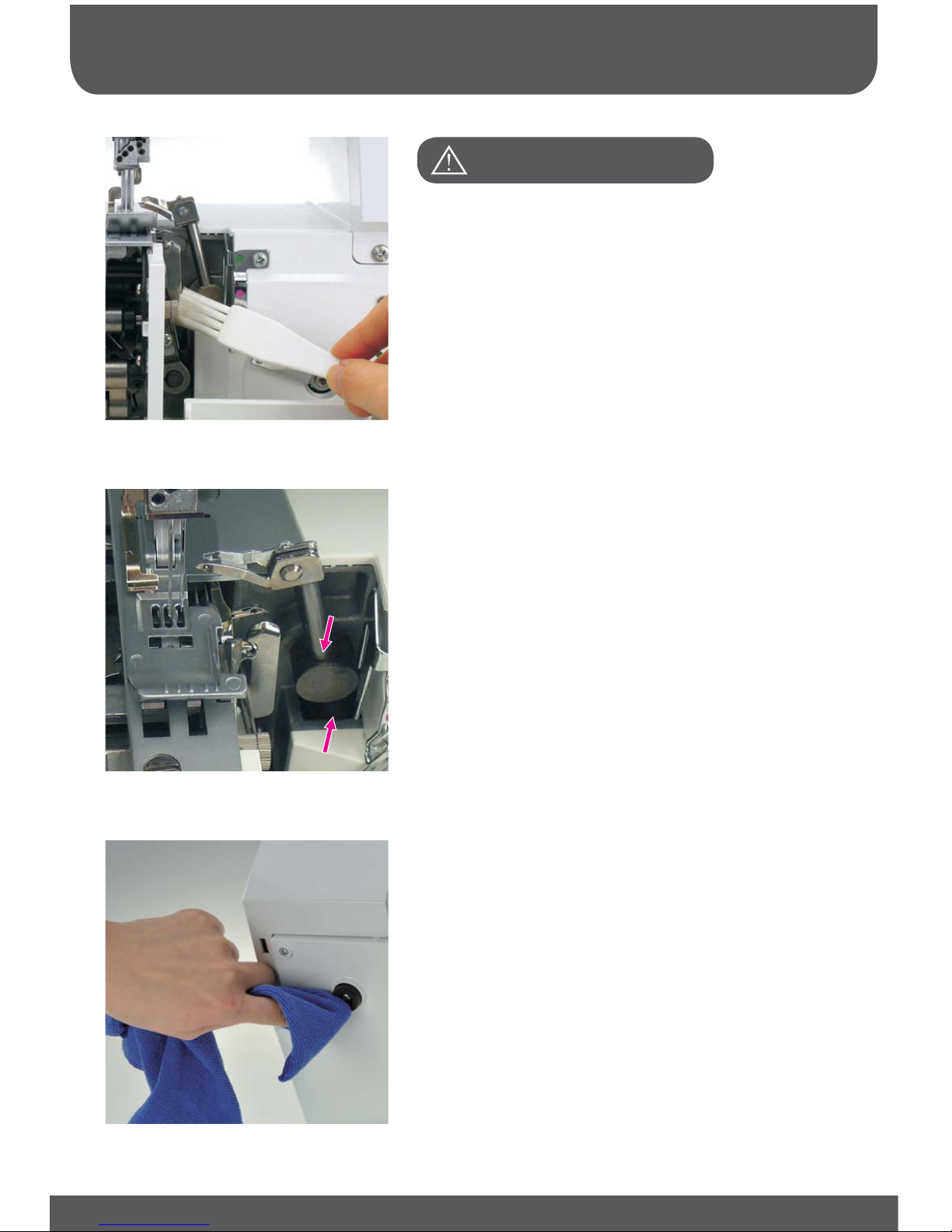

Clean the hook race, feed dog and bobbin case with
a brush. Also clean them, using a soft, dry cloth.

Programmes

For hemming stretch
fabrics and piping, for
decorative effects.

For hemming stretch
fabrics and for decorative
effects.

For hemming highly
stretch fabric and for
decorative effects.

As flatlock seam for sewing
stretchy fabrics together with
decorative effect, or for
overedging light fabrics.

As flatlock seam for
sewing stretchy fabrics
together with decorative
effect, or for overedging
medium fabrics.

For overedging light
fabrics.

For overedging very fine
fabrics and as decorative
edge finish.

For overedging very fine
fabrics and as decorative
edge finish.

For edging light, easily
fraying fabrics.

For sewing together
extremely durable fabrics
such as upholstery covers
and denim, both without
overedge. May also be used
for decorative effects.

Application

Needle

position

length width

Program 02

Program 01

Program 03

Program 04

Program 05

Program 06

Program 07

Program 08

Program 09

Program 10

1 1R 22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

Thread tension

Orange

Brown

Green

Pink Blue

38

Cover stitch, important notes on sewing

2.5

3.0

3.0

3.0

2.0

2.0

2.0

1.0

1.0

2.0

5.0

5.0

5.0

5.0

5.5

5.5

5.5

5.5

5.5

5.5

6.0

2.5

5.0

3.0

2.5

6.0

1.0

1.0

1.0

1.5

5.0

3.5

5.0

5.0

4.5

3.5

3.0

1.5

5.0

1.5

3.0

5.0

5.0

5.0

1.5

Needle position

Width

1

1

1

1

1

1

1

1

1

1

1R2

1R2

1R2

1R2

1R2

1R2

1R2

1R2

1R2

1R2

2L3

2L3

2L3

2L3

2L3

2L3

2L3

2L3

2L3

2L3

Length

Differential

2.5 1.0

3.0 1.0

3.0 1.0

3.0 1.0

2.0 1.0

2.0 1.0

2.0 1.0

1.0 1.0

1.0 1.0

2.0 1.0

5.0

5.0

5.0

5.0

5.5

5.5

5.5

5.5

5.5

5.5

39

Cover stitch, important notes on sewing

Upper

knife

Upper
looper

2-thread

converter

Stitch

finger

X

X

X

X

V

V

V

V

V

V

X

X

X

X

X

X

V

V

V

V

Programmes

For overedging medium
to heavy, easily fraying
fabrics.

For overedging heavy
fabrics not prone to
fraying

As flatlock seam for sewing
stretchy fabrics together
with decorative effect and as
decorative edge finish. Also
for overedging medium
weight fabrics.

For sewing together and
overedging light, highly
stretchy fabrics.

For overedging light to
medium fabrics and as
decorative edge finish.

For overedging light to
medium fabrics and as
decorative edge finish.

For sewing together all
fabrics with overedge,
particularly stretch
fabrics.

For sewing together
heavy fabrics with
overedge.

For sewing together
heavy fabrics with
overedge.

As flatlock seam for sewing
stretchy fabrics together
with decorative effect and as
decorative edge finish. Also
for overedging medium
weight fabrics.

Application

Program 12

Program 11

Program 13

Program 14

Program 15

Program 16

Program 17

Program 18

Program19

Program 20

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

1 1R22L3

length width

Thread tension

40

Cover stitch, important notes on sewing

Orange

Brown

Green

Pink Blue

3.0

2.0

2.0

2.0

2.0

1.0

1.0

2.5

2.5

3.0

5.5

5.0

5.5

5.5

5.5

5.5

5.5

5.5

8.0

8.5

1.5

1.0

7.5

6.0

7.0

1.0

6.0

4.0

1.0

2.0

0.5

2.5

2.0

3.0

2.0

0.5

2.5

3.0

1.0

2.5

2.0

2.0

3.5

1.0

0.5

1.5

1.5

3.0

4.5

3.0

0.5

4.0

3.5

3.0

Needle

position

41

Cover stitch, important notes on sewing

3.0

2.0

2.0

2.0

2.0

1.0

1.0

2.5

2.5

3.0

5.5

5.0

5.5

5.5

5.5

5.5

5.5

5.5

8.0

8.5

Needle position

Width

1

1

1

1

1

1

1

1

1

1

1R2

1R2

1R2

1R2

1R2

1R2

1R2

1R2

1R2

1R2

2L3

2L3

2L3

2L3

2L3

2L3

2L3

2L3

2L3

2L3

Length

Differential

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Upper

knife

Upper
looper

2-thread

converter

Stitch

finger

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

X

X

V

Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities.

Contact your local government for information regarding the collection systems
available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and
well-being.

When replacing old appliances with new once, the retailer is legally obligated to take
back your old appliance for disposal at least for free of charge.

L10A(EN)
