Page 1

Instruction Manual

Page 2

Important safety instructions

When using an electrical appliance, basic safety should always be followed, including the following:

Read all instructions before using this sewing machine.

DANGER

1. An appliance should never be left unattended when plugged in.

2. Always unplug this appliance from the electric outlet immediately after using and before cleaning.

WARNING

1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or near children.

2. Use this appliance only for its intended use as described in this manual. Use only the attachments recommended by the manufacturer as contained in this manual.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.

4. Never operate the appliance with any air openings block. Keep ventilation openings of the sewing machine and foot controller free from accumulation of lint, dust, and loose cloth.

5. Keep fingers away from all moving parts. Special care is required around the sewing machine needle.

6. Always use the proper needle plate, a wrong needle plate can cause the needle to break.

7. Do not use bent needles.

8. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

9. Switch the sewing machine off ("O") when making any adjustments in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, and the light.

10. Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.

11. Never drop or insert any object into any opening.

12. Do not use outdoors.

13. Do not operate where aerosol spray products are being used or where oxygen is being administered.

14. To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.

15. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

16. The sound pressure level under normal operating conditions is 75dB(A).

17. Please turn off the machine or unplug when the machine is not operating properly.

18. Never place anything on the foot controller.

19. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

20. Children should be supervised to ensure that they do not play with the appliance.

-To reduce the risk of electric shock:

-To reduce the risk of burns, fire, electric shock, or injury to persons:

SAVE THESE INSTRUCTIONS

This sewing machine is intended for household use only.

Page 3

Contents

Principal parts of the machine .....................................................................................................................1

Accessories ......................................................................................................................................................2

Connecting the machine to the power source.............................................................................................3

Starting sewing...............................................................................................................................................4

Start/stop button .........................................................................................................................................4

Foot control ................................................................................................................................................4

Changing the presser foot .............................................................................................................................5

Type of presser foot chart .............................................................................................................................6

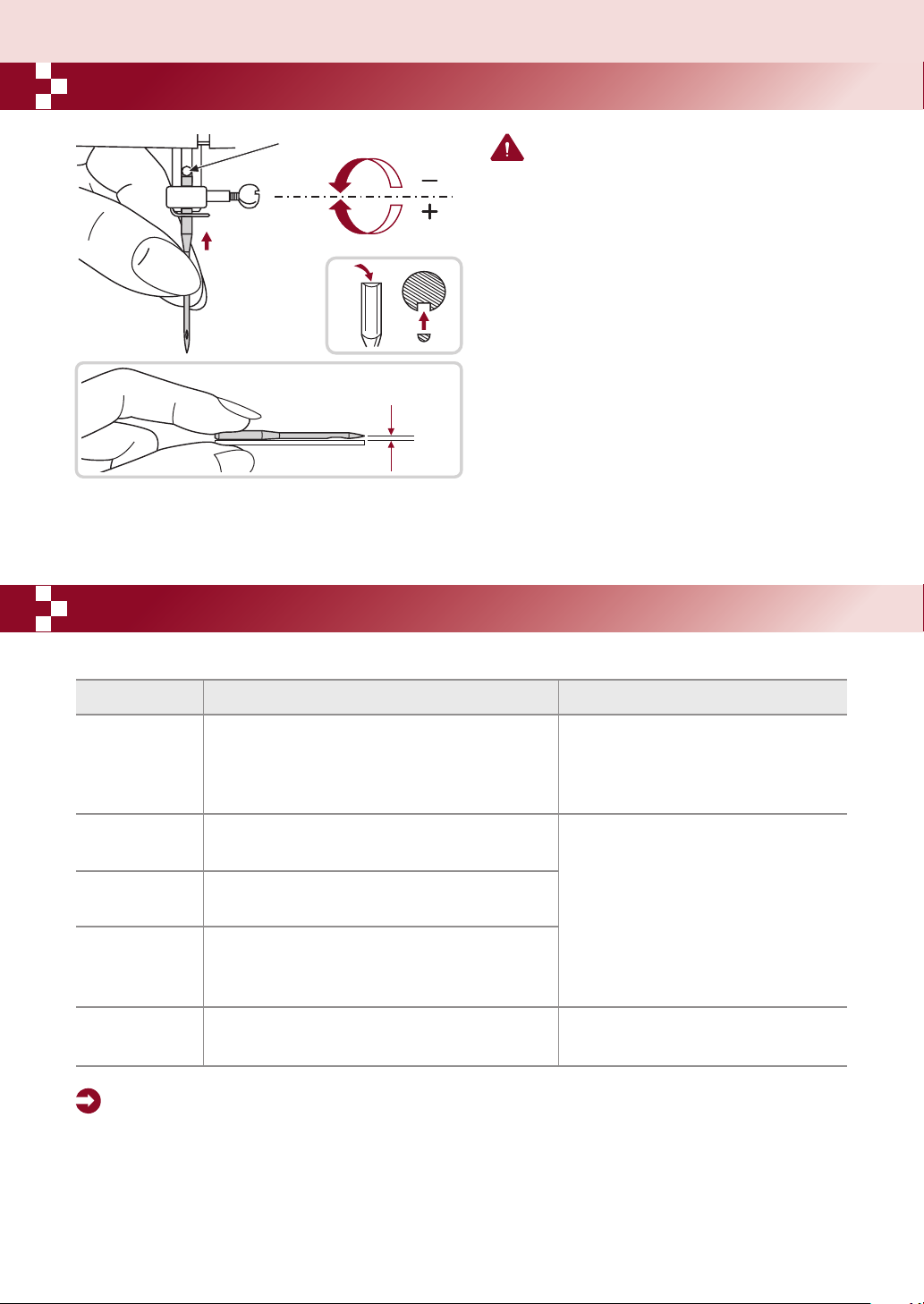

Replacing the needle......................................................................................................................................7

Matching needle/ fabric/ thread...................................................................................................................7

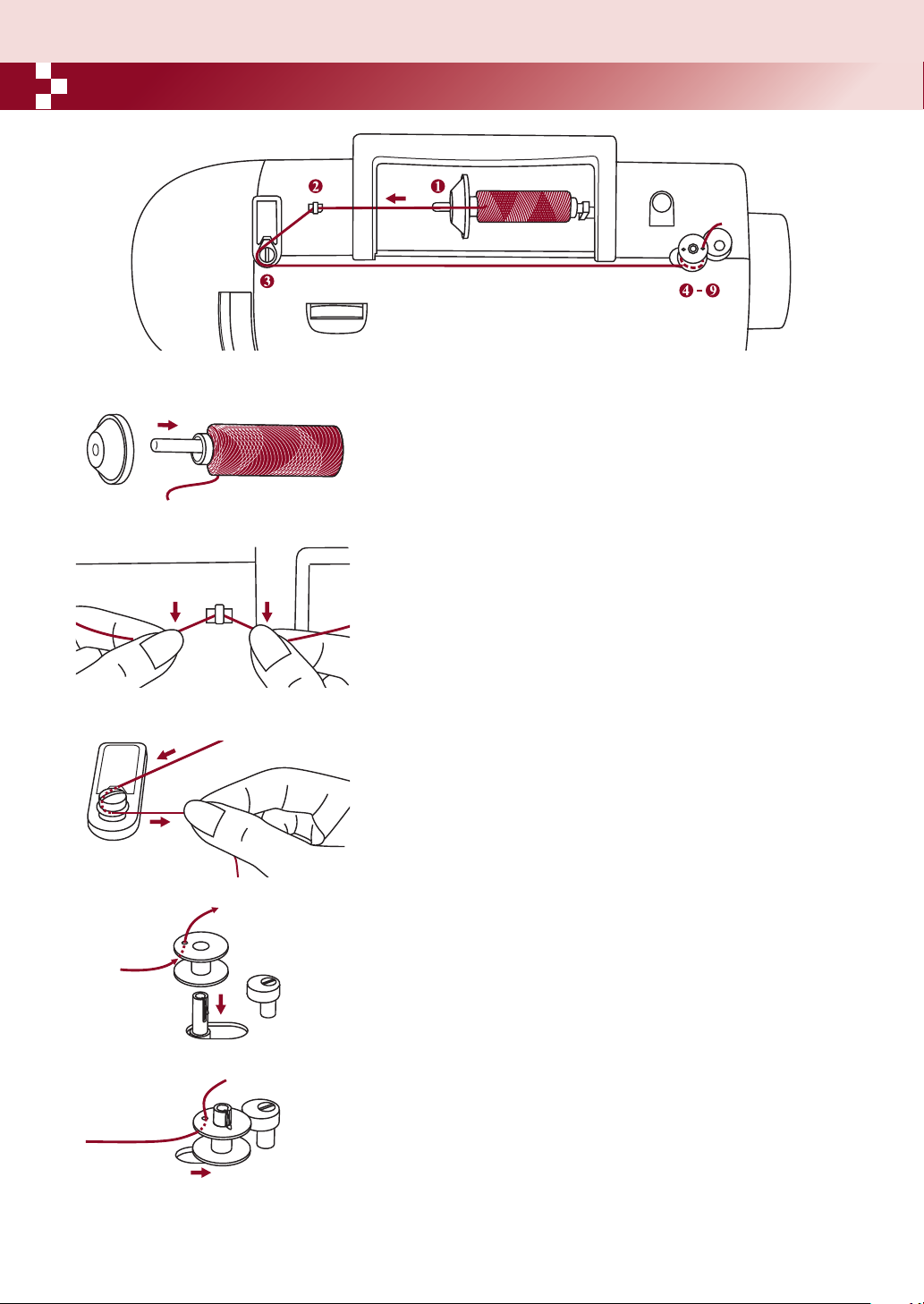

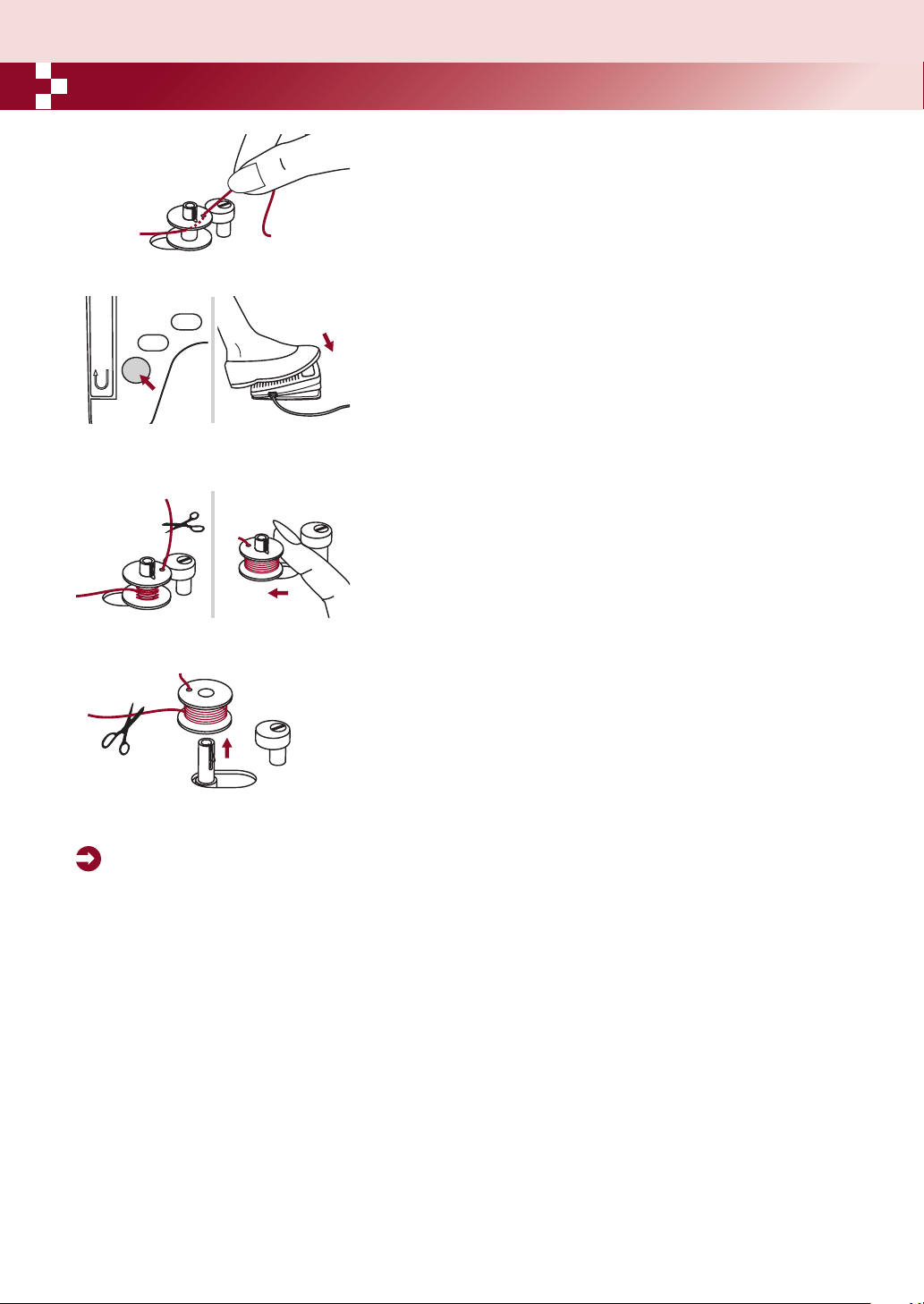

Winding the bobbin....................................................................................................................................8-9

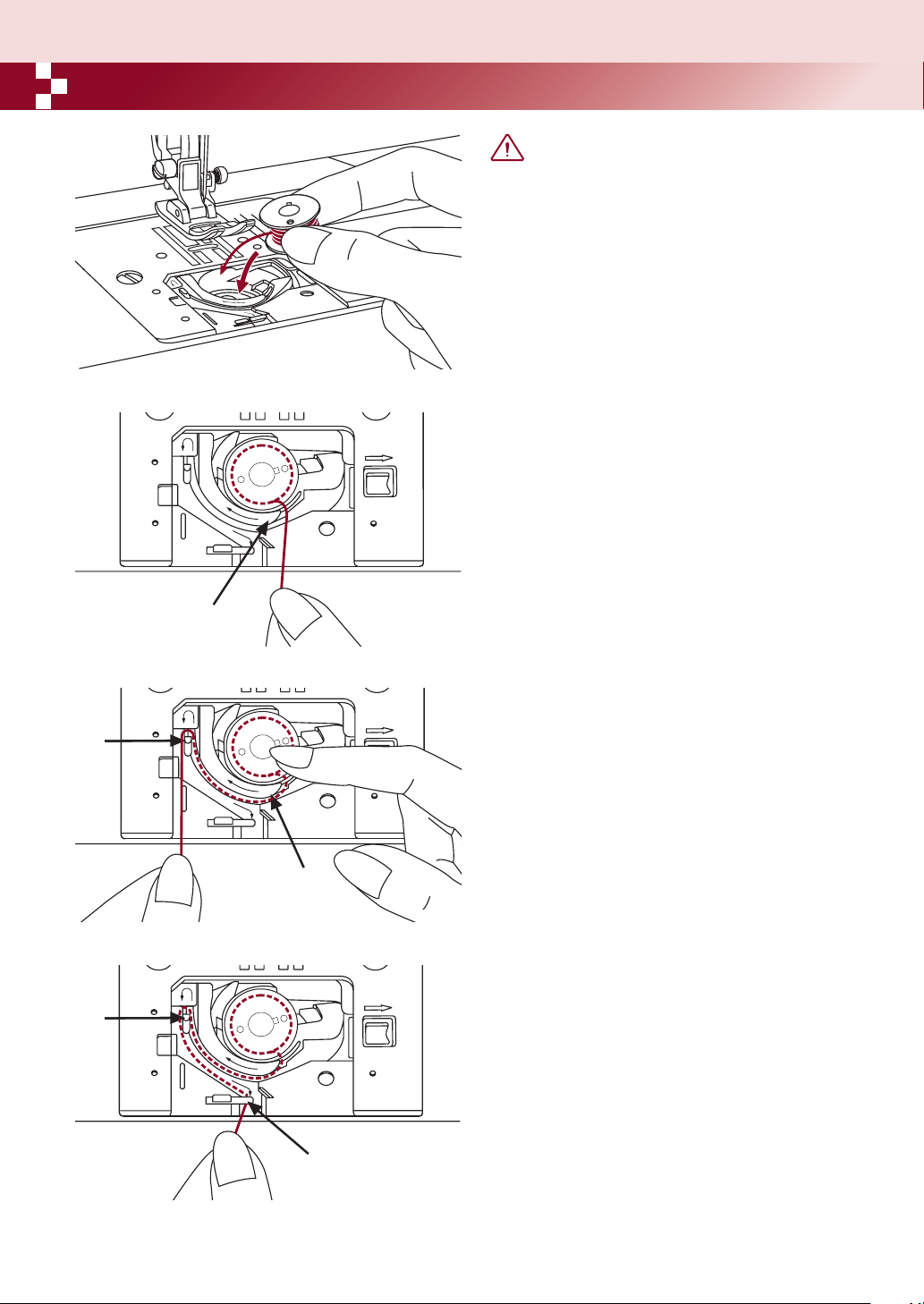

Inserting the bobbin ....................................................................................................................................10

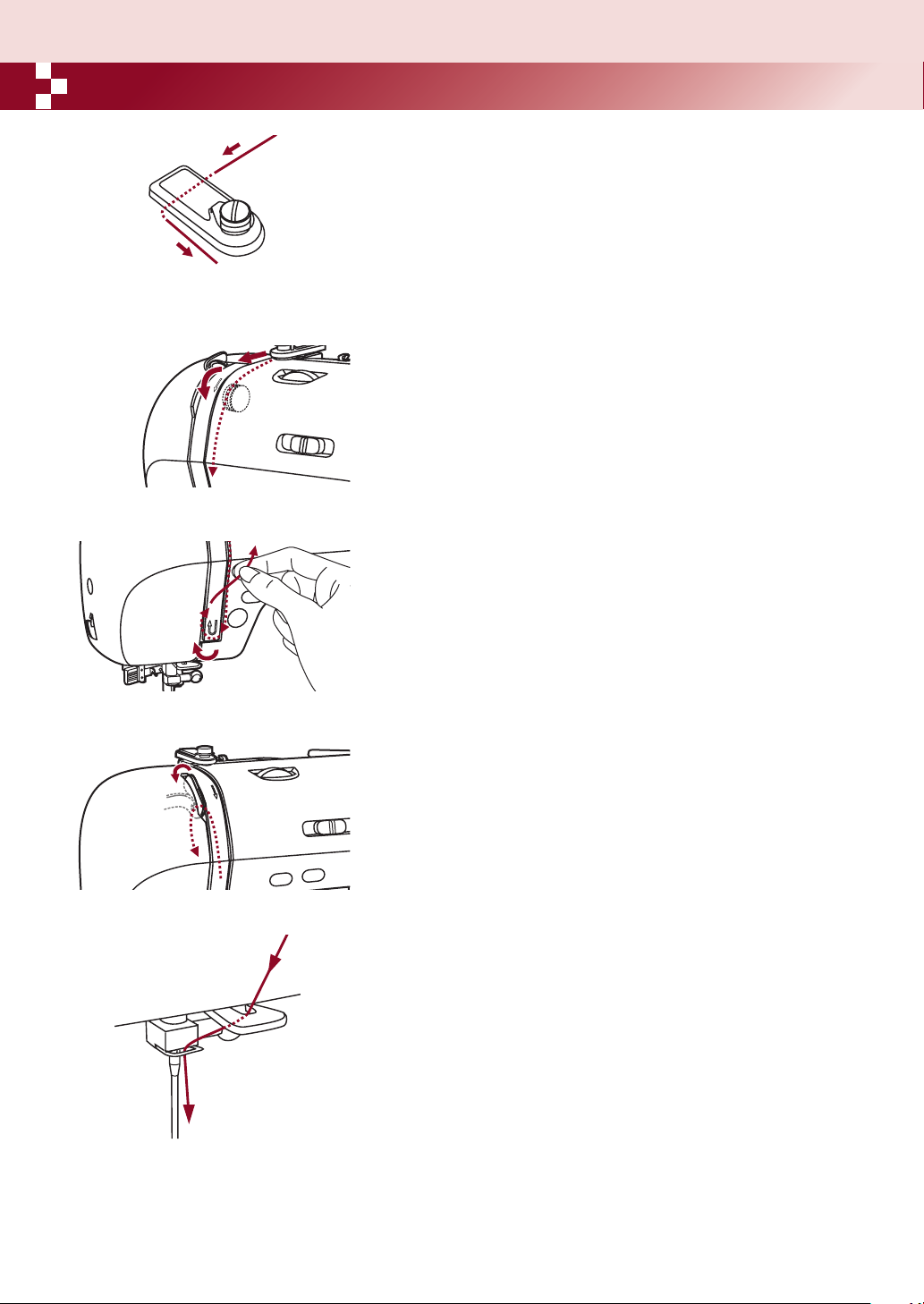

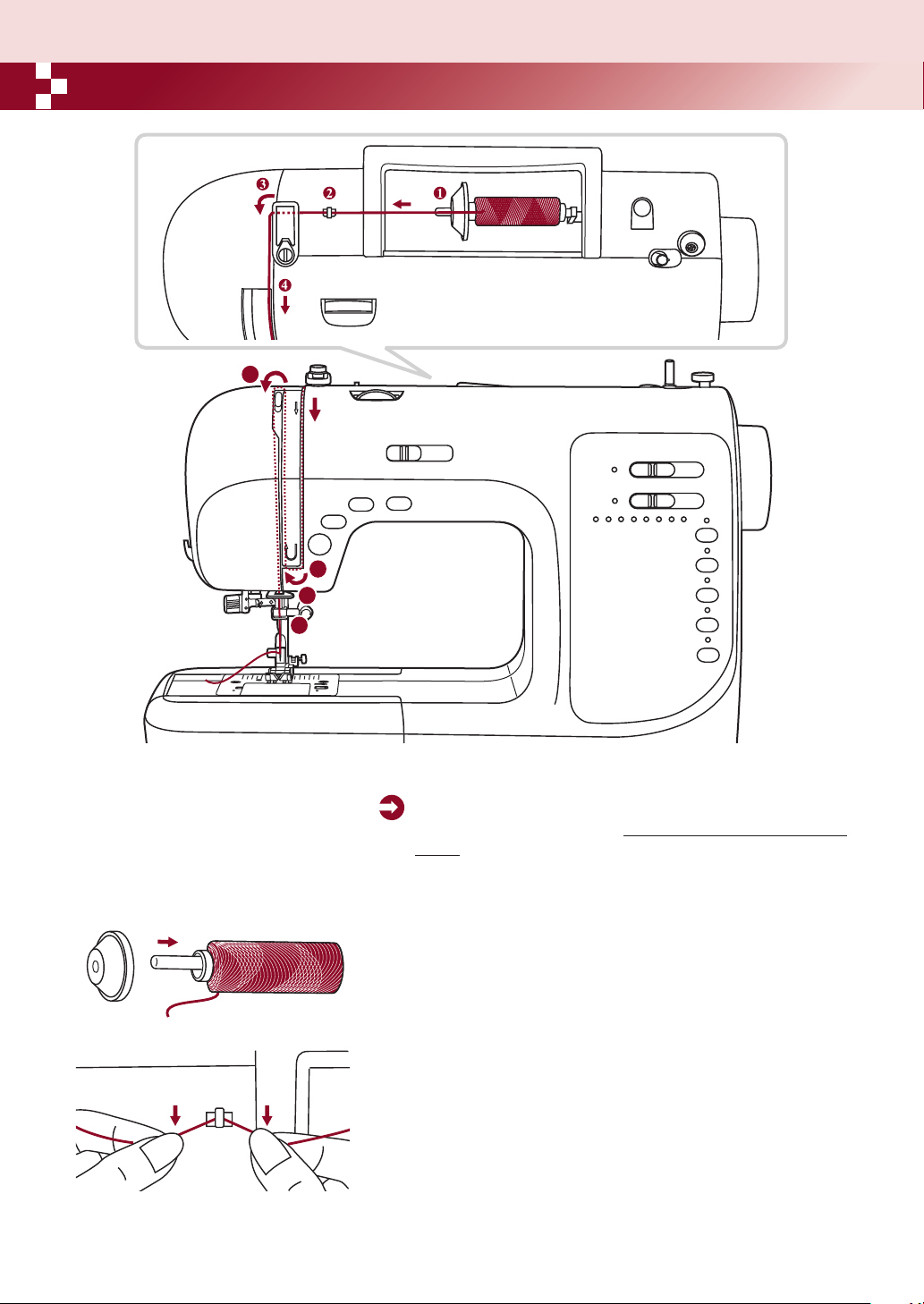

Threading the upper thread ..................................................................................................................11-12

Using the needle threader ...........................................................................................................................13

Thread tension .............................................................................................................................................14

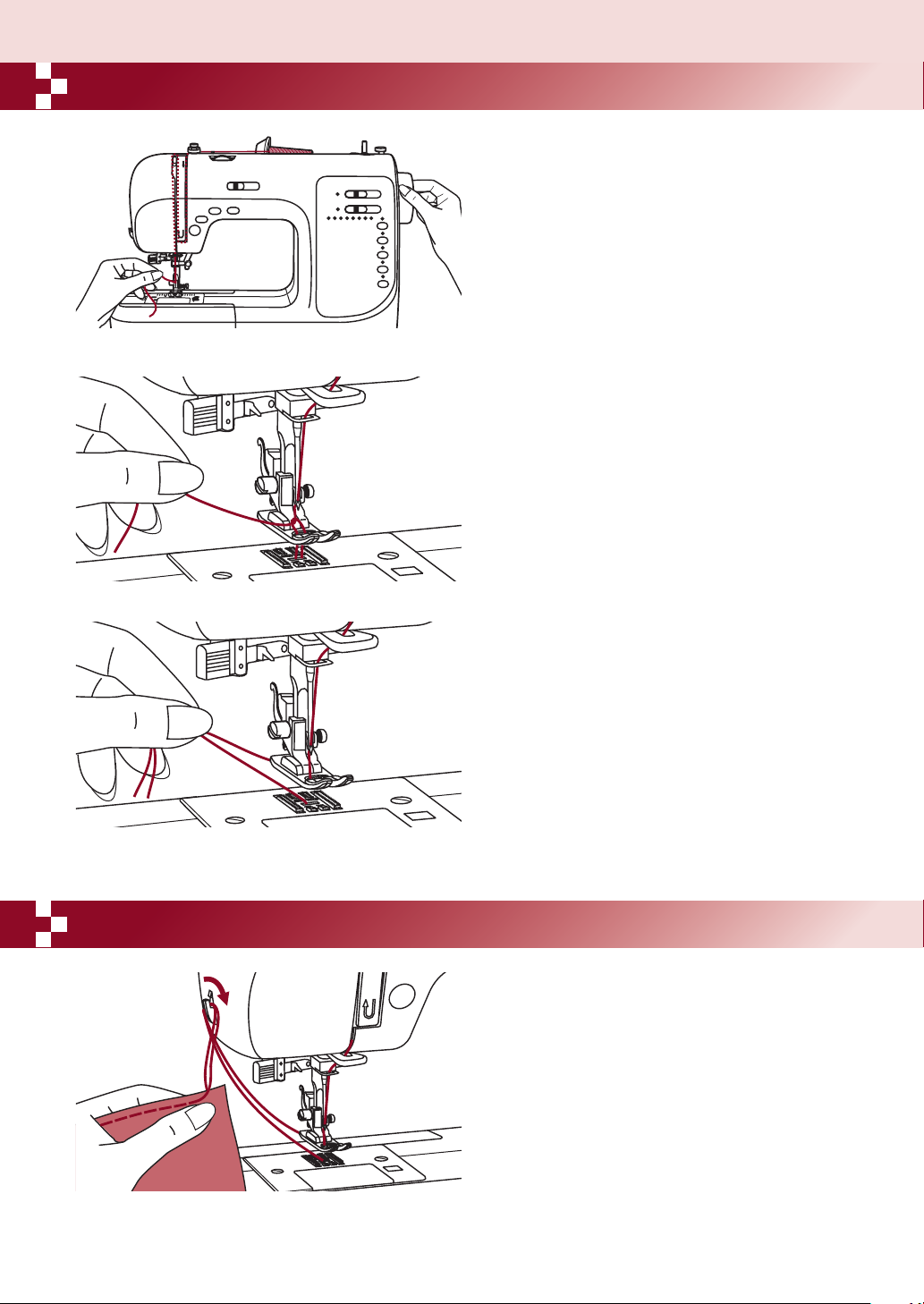

Raising up the lower thread .......................................................................................................................15

Cutting the thread .......................................................................................................................................15

Two-step presser foot lifter .........................................................................................................................16

To raise or drop the feed dogs....................................................................................................................16

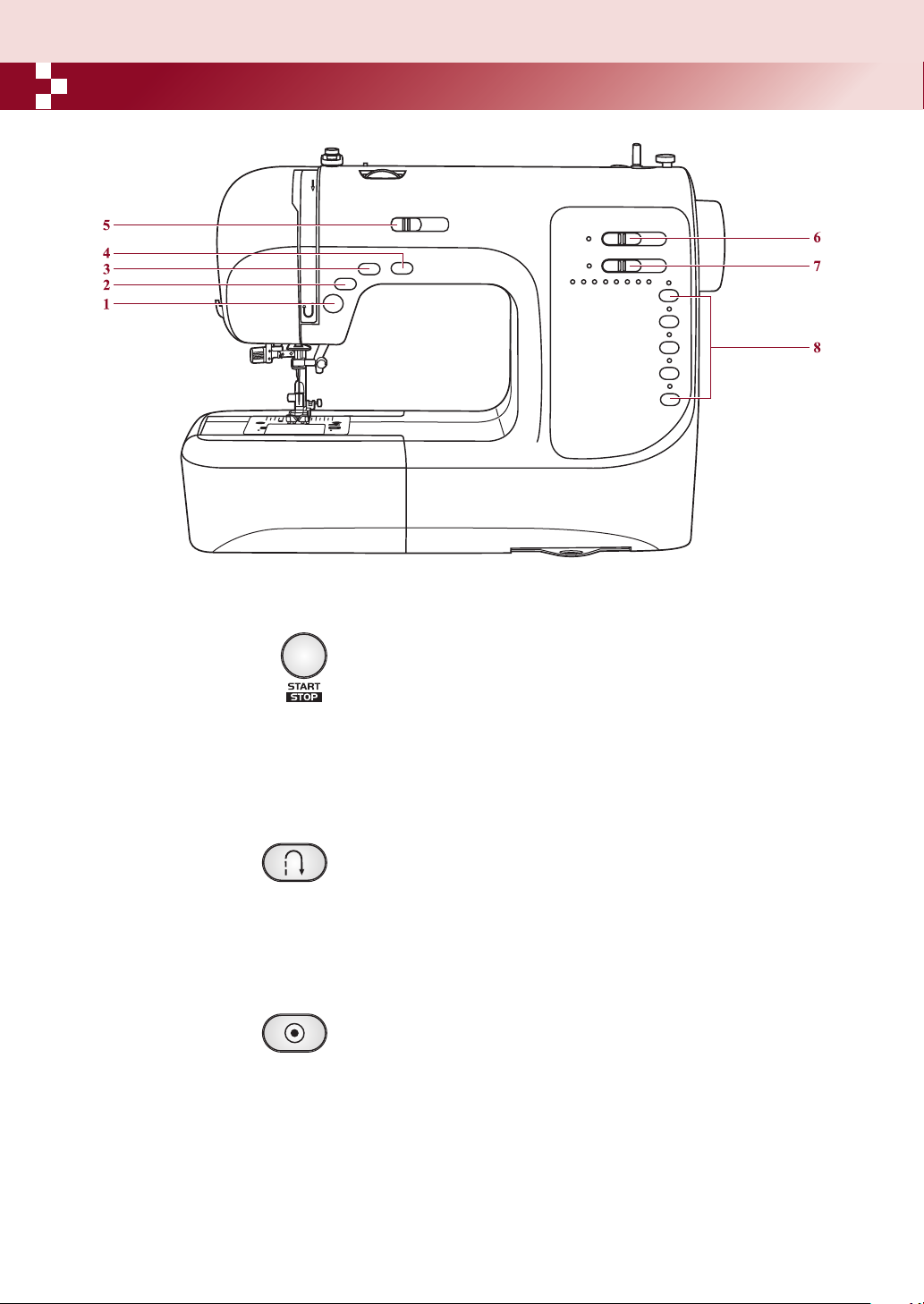

Function of machine...............................................................................................................................17-19

Start/stop button (1) .................................................................................................................................17

Reverse button (2)....................................................................................................................................17

Auto-lock button (3) ................................................................................................................................17

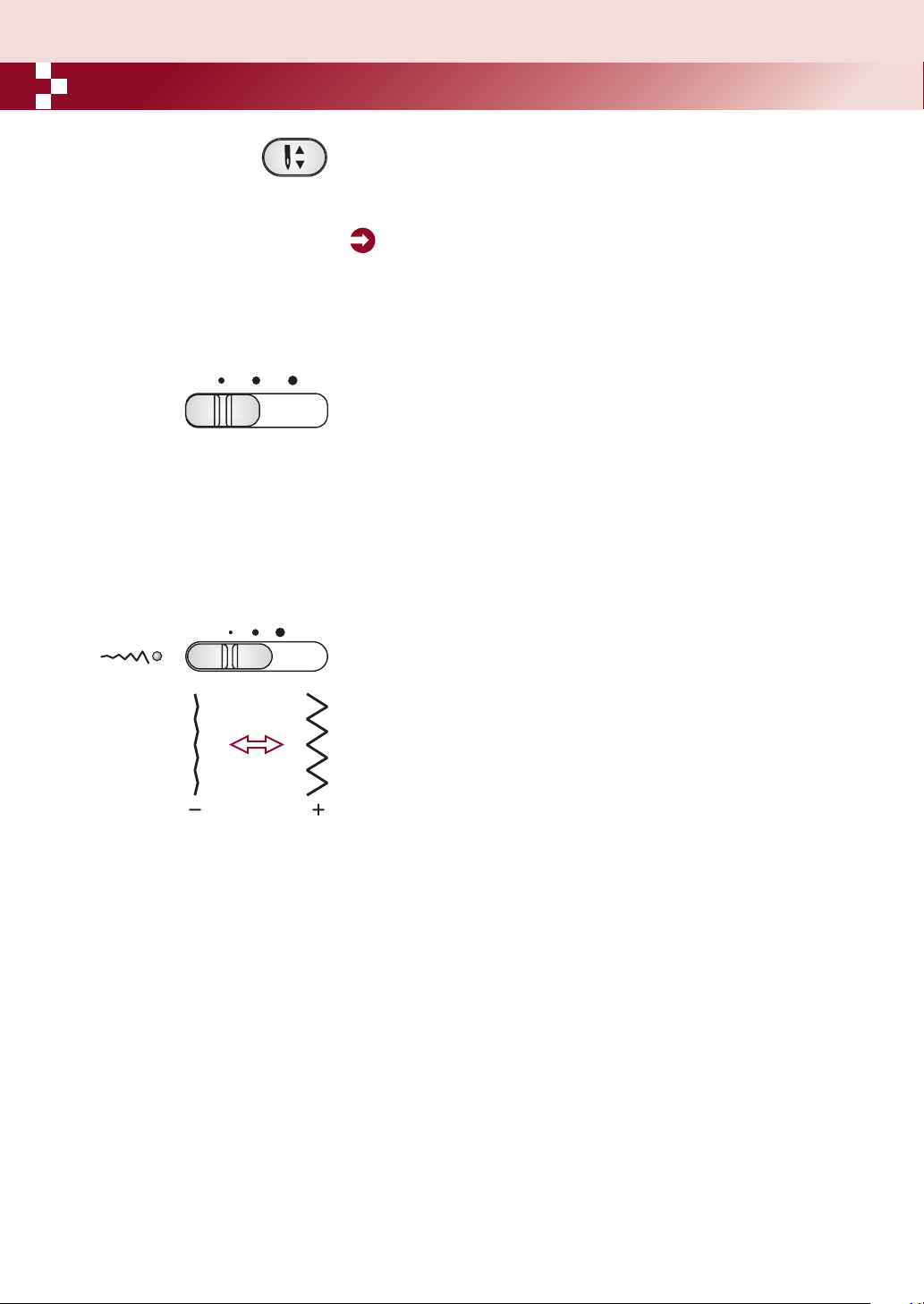

Needle up/ down position button (4).......................................................................................................18

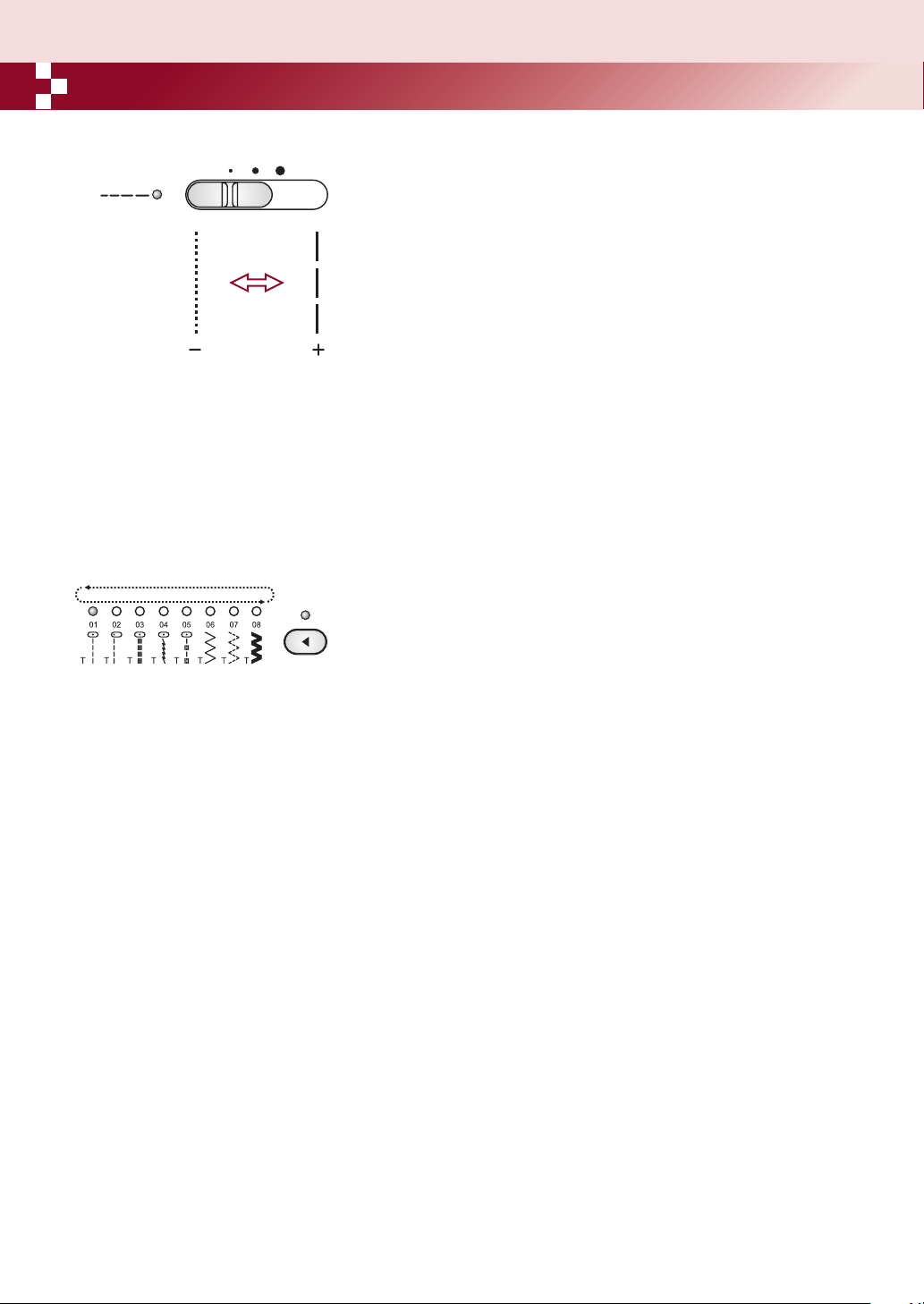

Speed limiting adjustment lever (5) ........................................................................................................18

Stitch width adjustment lever (6) ............................................................................................................18

Stitch length adjustment lever (7) ...........................................................................................................19

Pattern selection buttons (8) ....................................................................................................................19

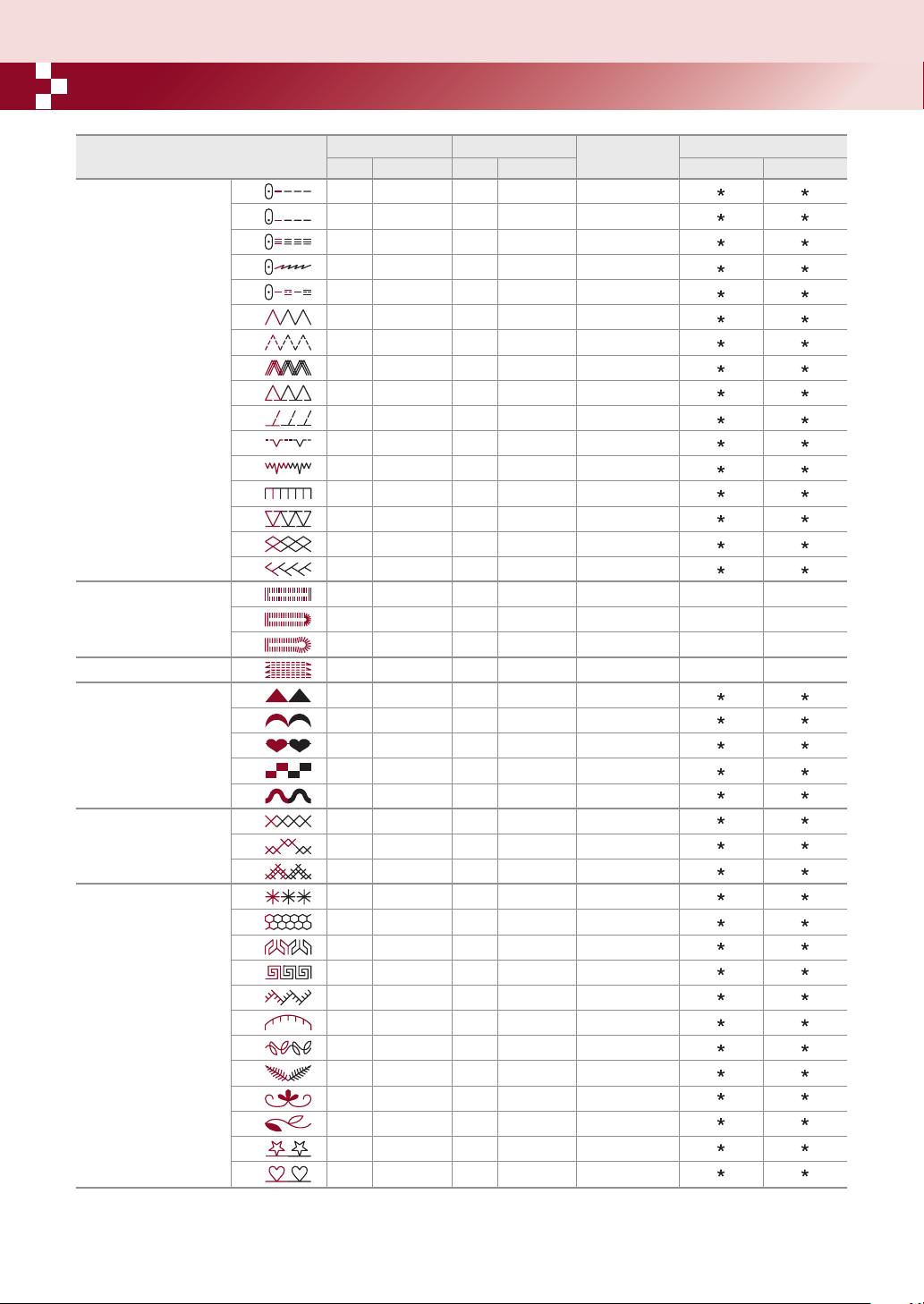

Pattern chart ................................................................................................................................................20

Useful skills .............................................................................................................................................21-22

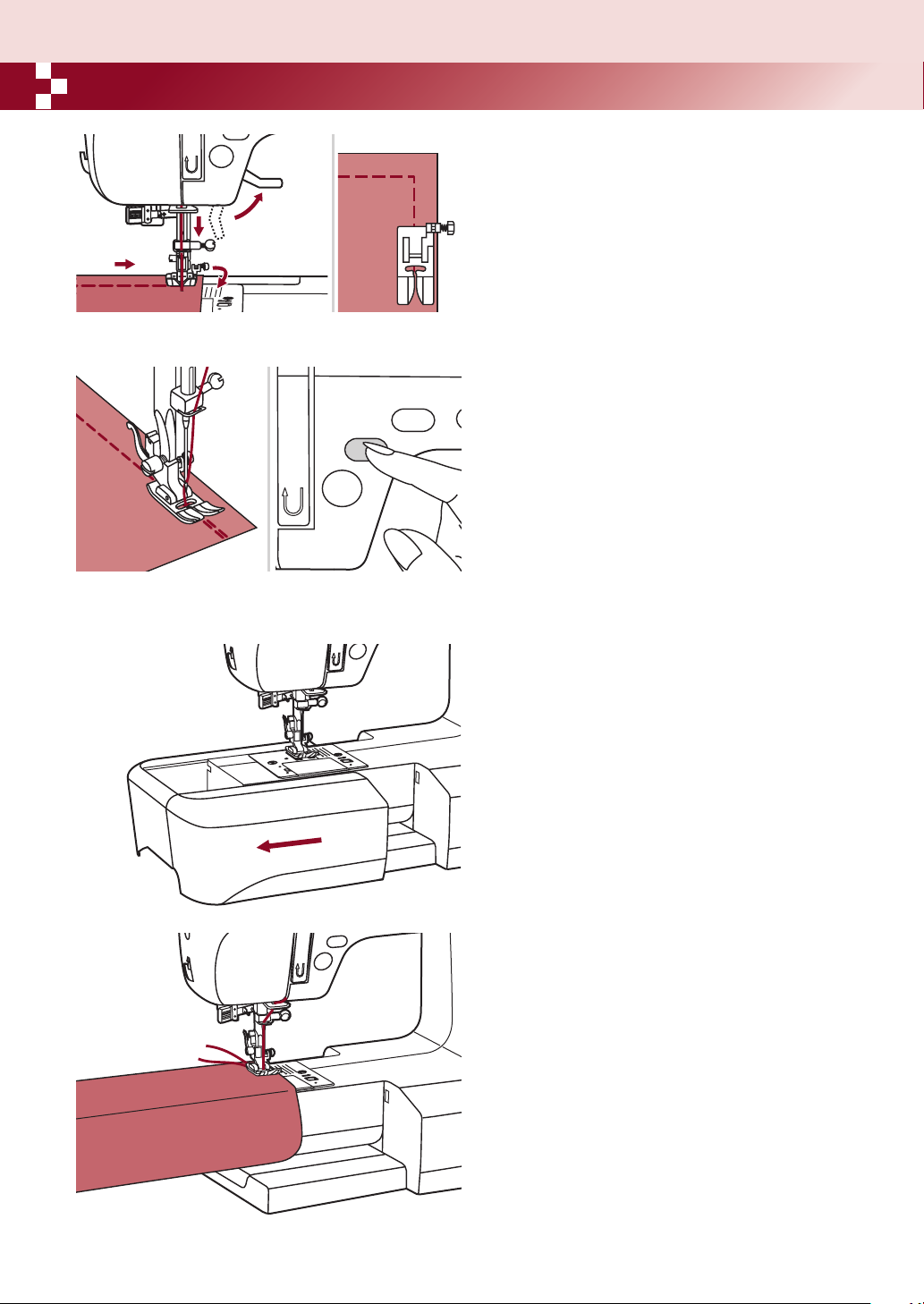

Sewing corners .........................................................................................................................................21

Reverse.....................................................................................................................................................21

Free arm ...................................................................................................................................................21

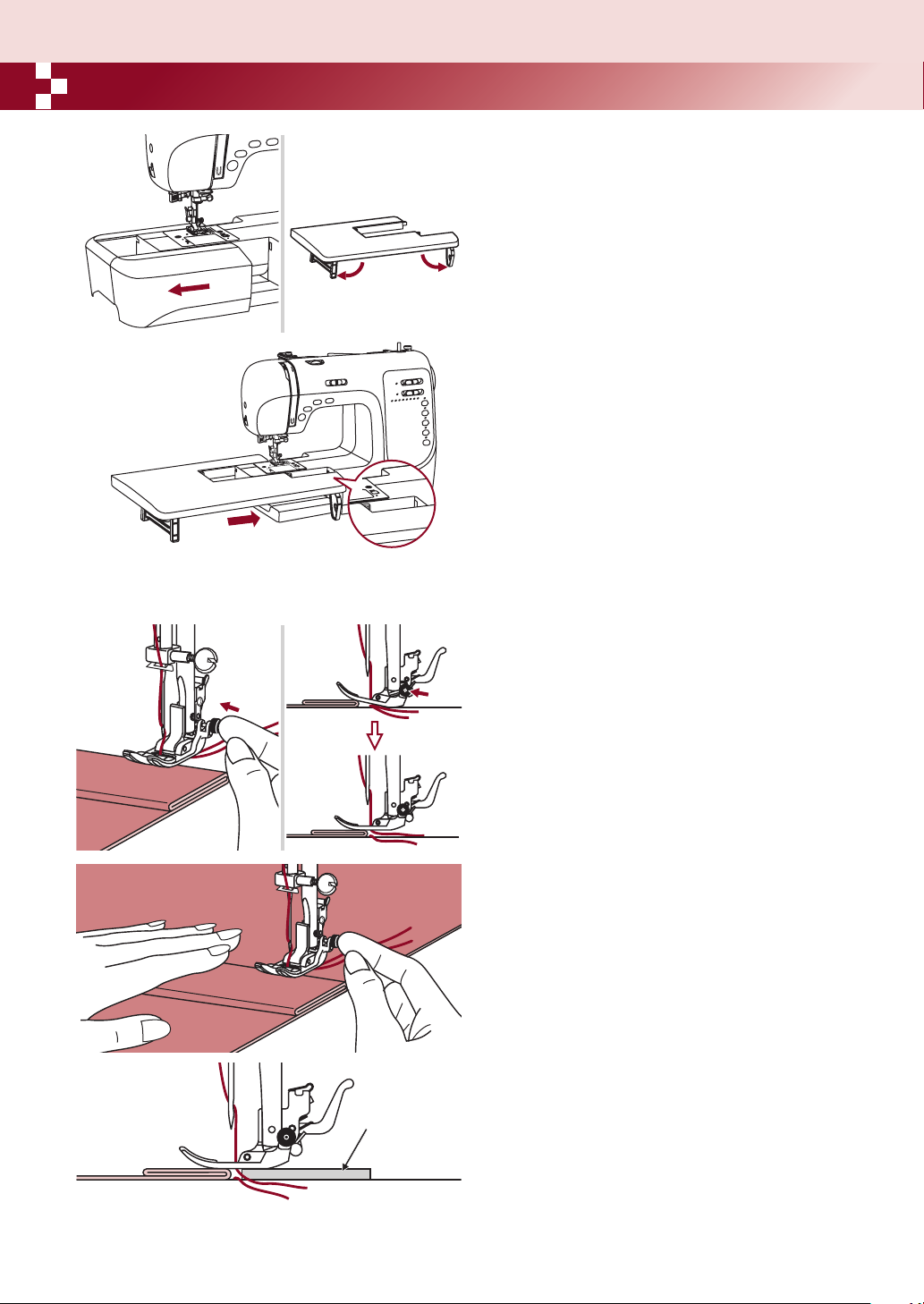

Installing the extension table ...................................................................................................................22

Sewing on the heavy fabric .....................................................................................................................22

Straight stitches and needle position .........................................................................................................23

Zigzag stitches ..............................................................................................................................................23

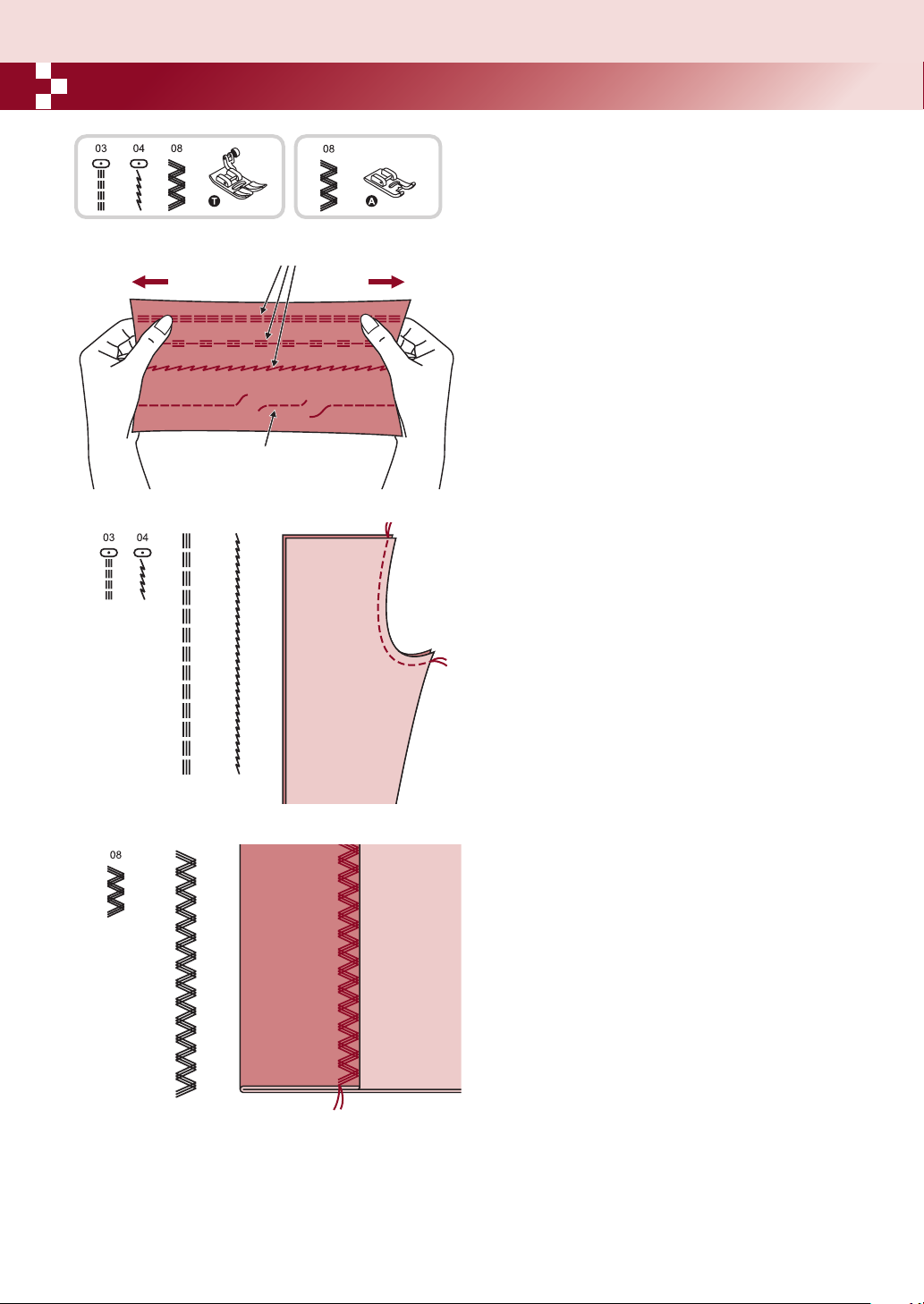

Stretch stitch.................................................................................................................................................24

Page 4

Contents

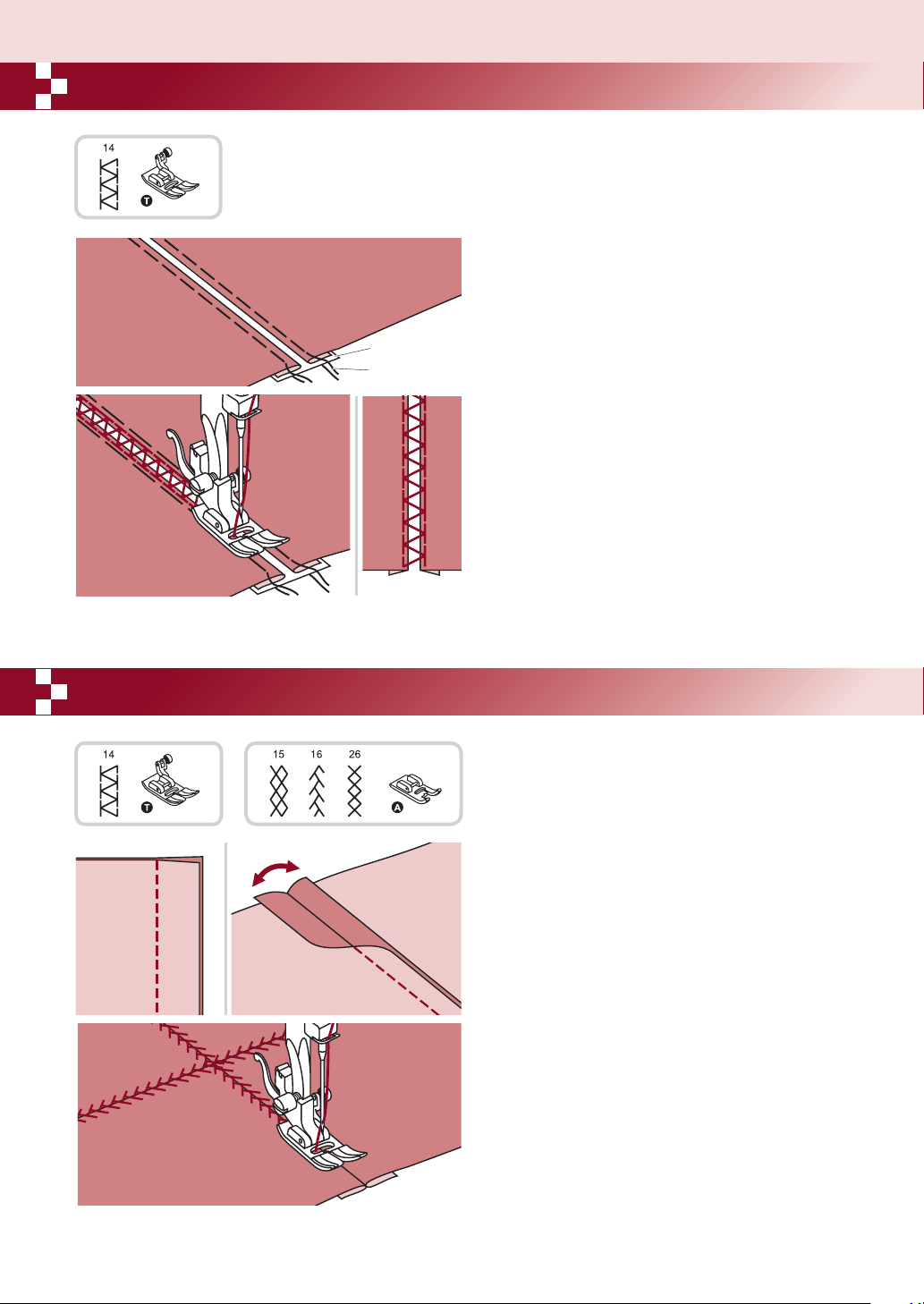

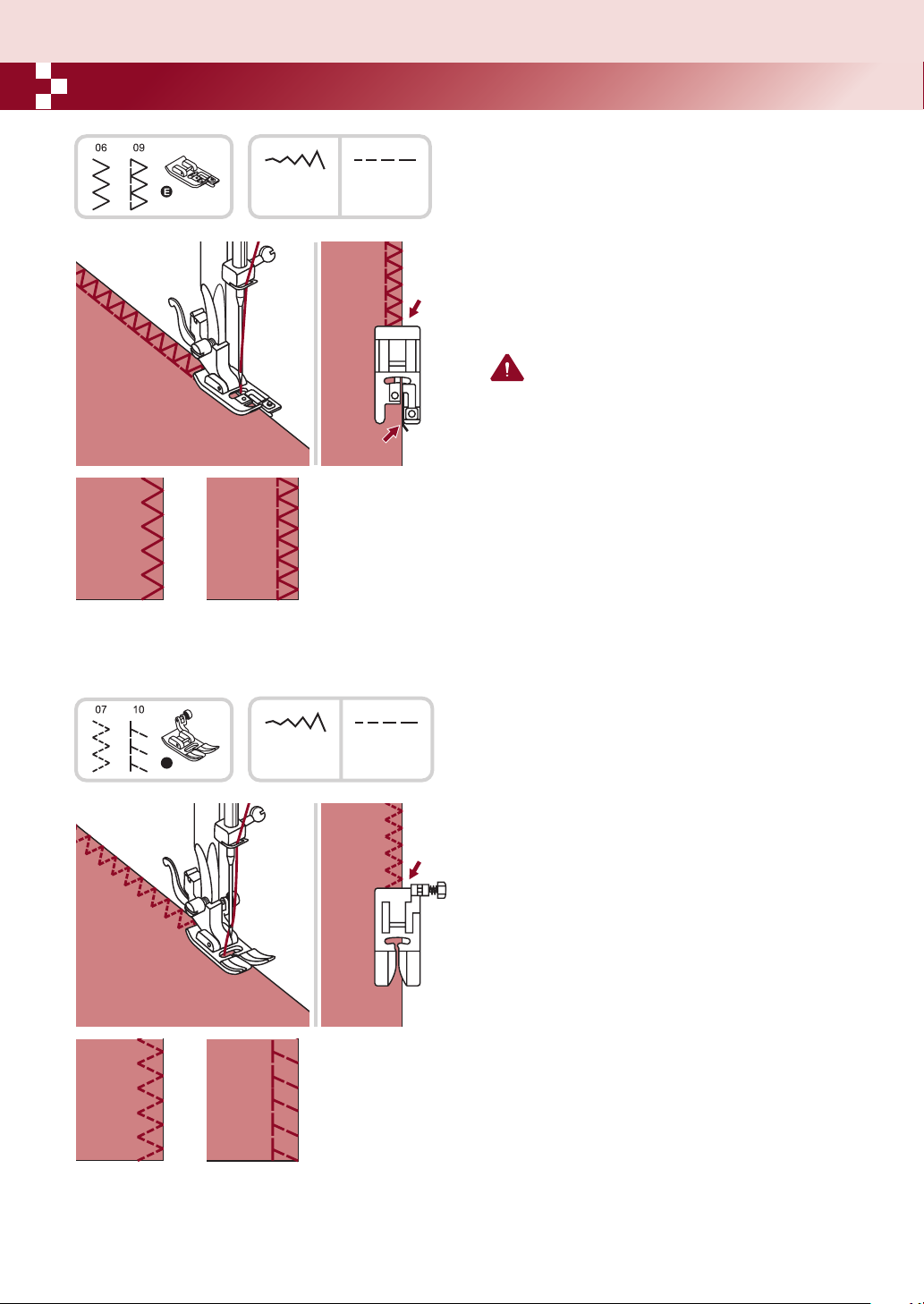

Overcasting stitches .....................................................................................................................................25

Using the overcasting foot.......................................................................................................................25

Using the all purpose foot .......................................................................................................................25

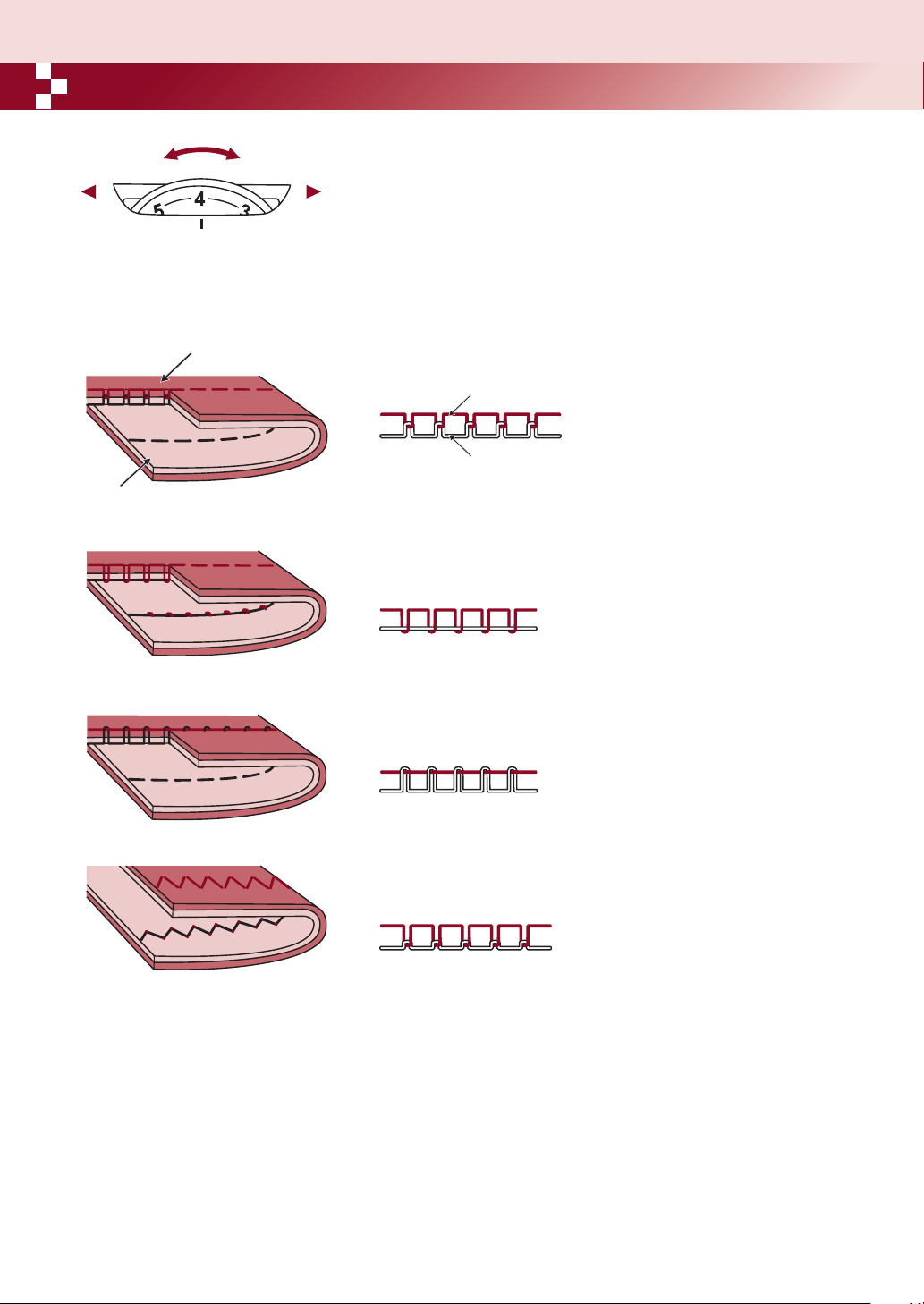

Blind hem/ Lingerie stitch ..........................................................................................................................26

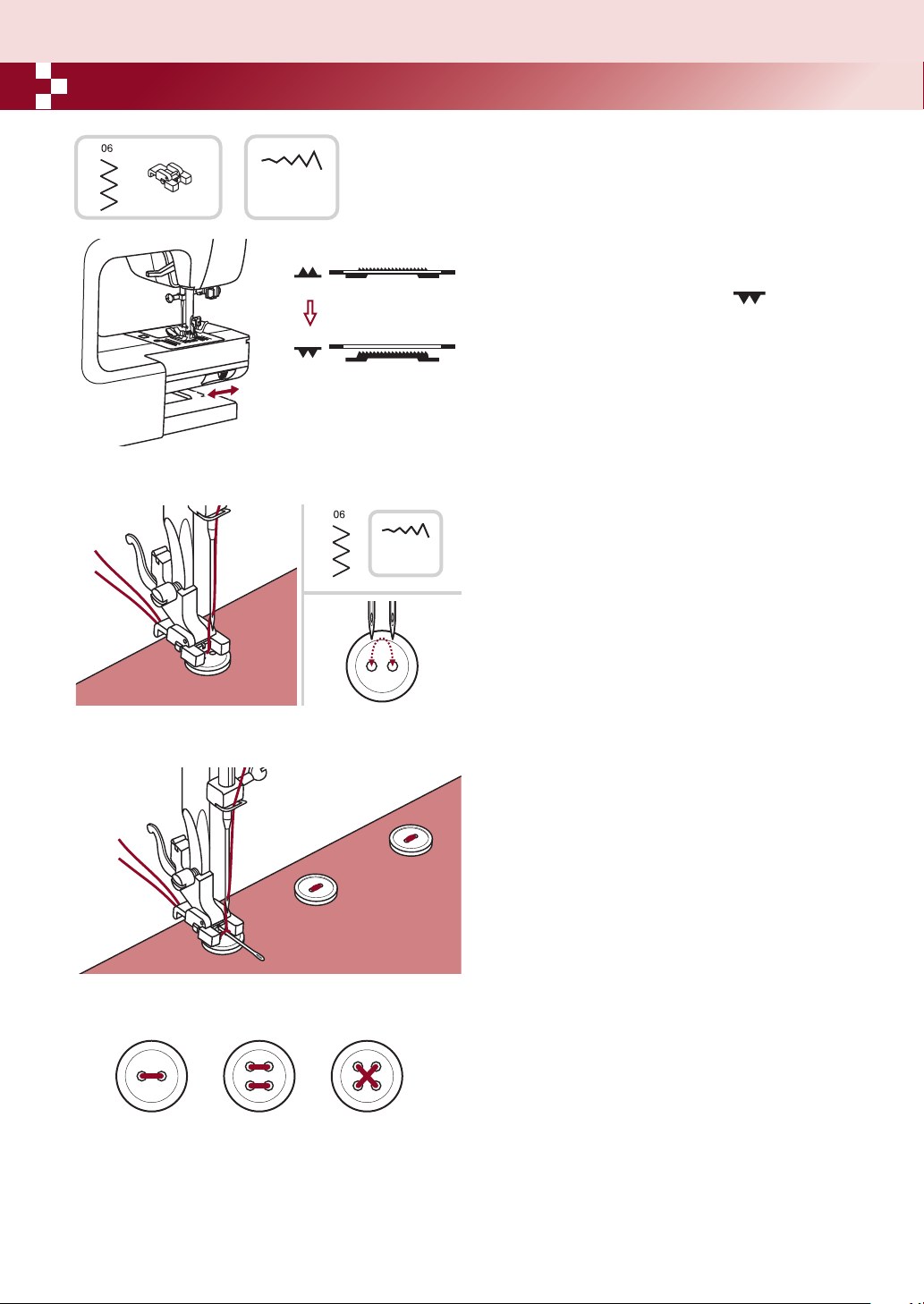

Button sewing ...............................................................................................................................................27

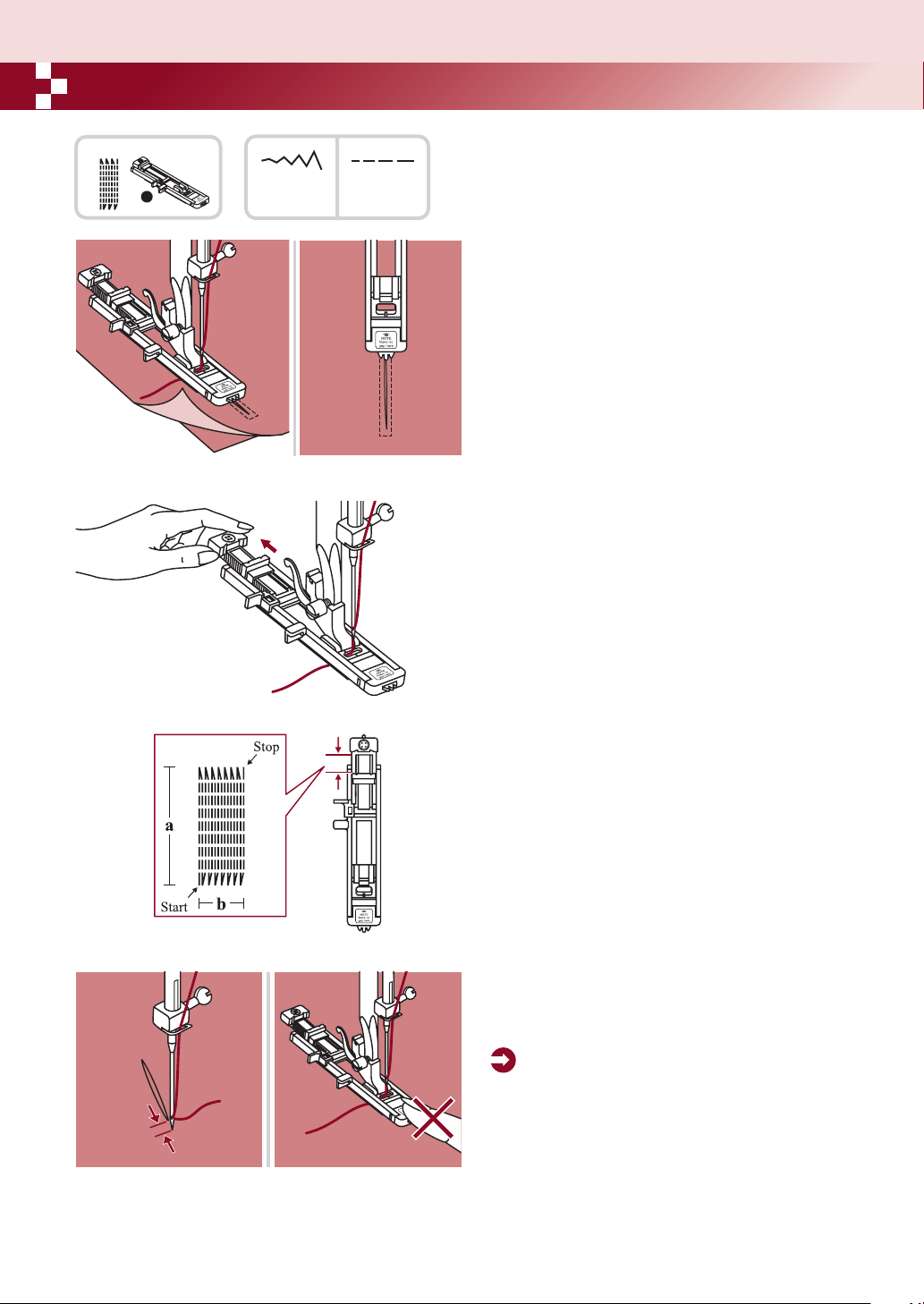

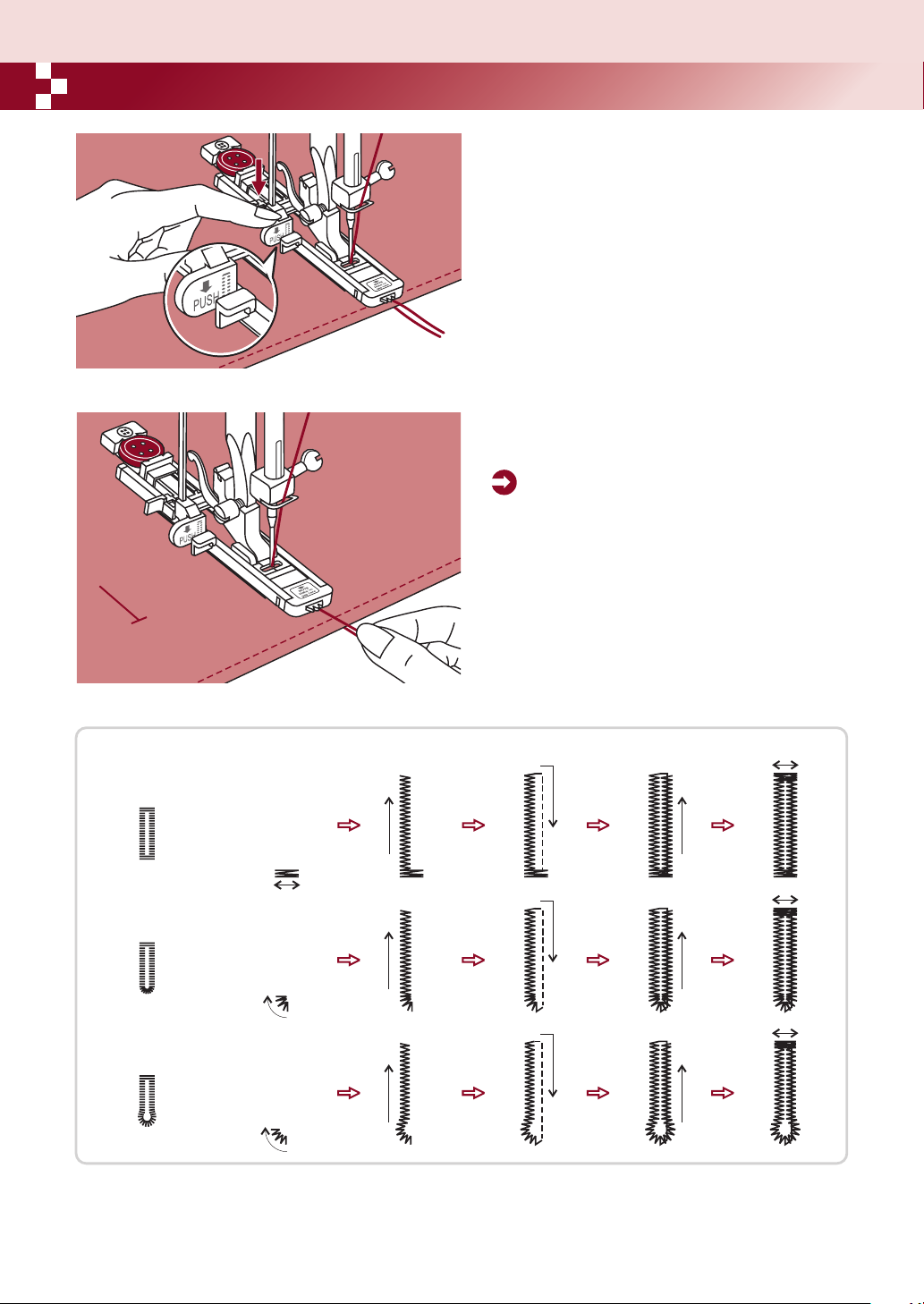

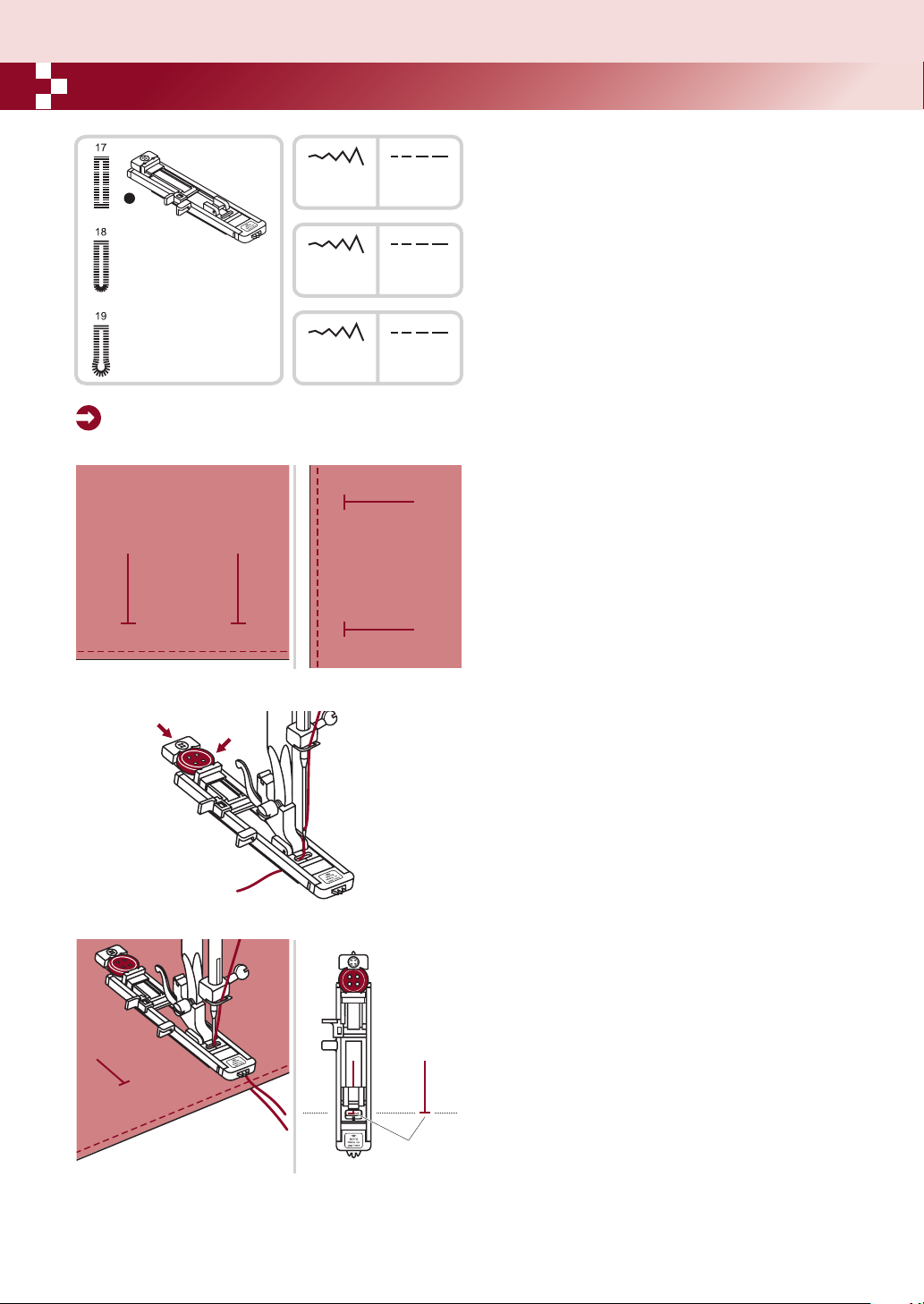

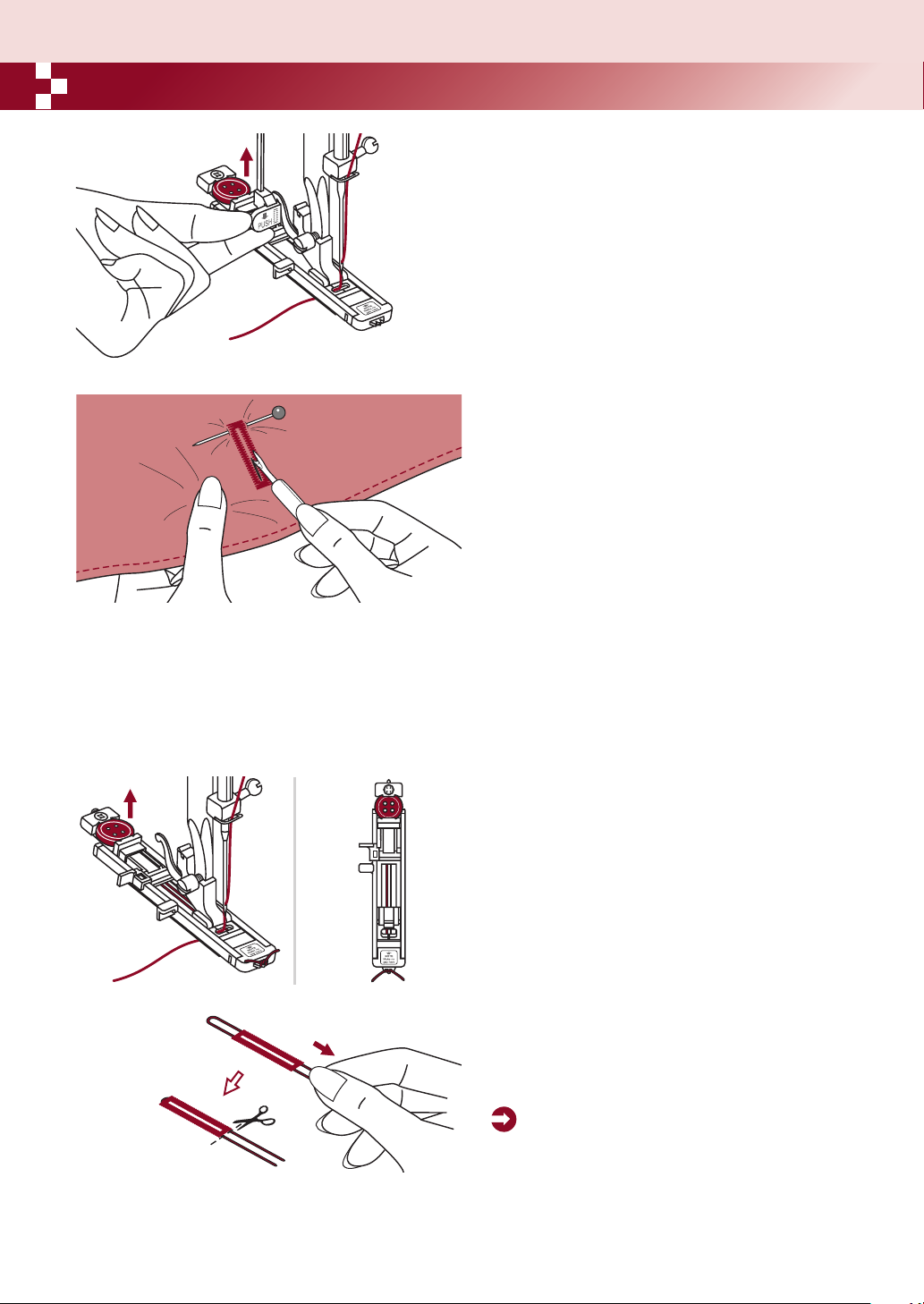

Buttonhole stitching ...............................................................................................................................28-30

Making a buttonhole on stretch fabrics ...................................................................................................30

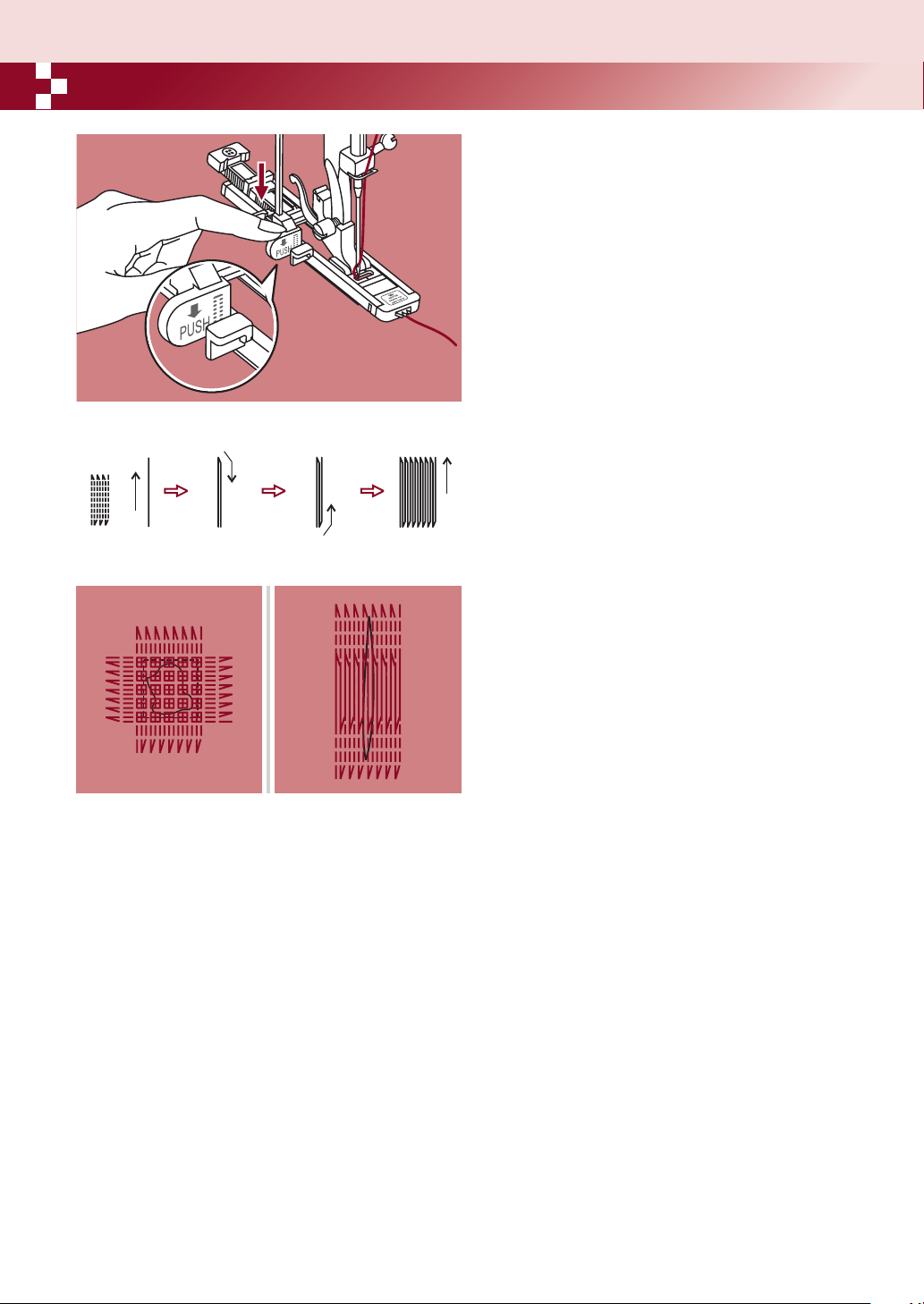

Darning stitch .........................................................................................................................................31-32

Zipper insertion ......................................................................................................................................33-34

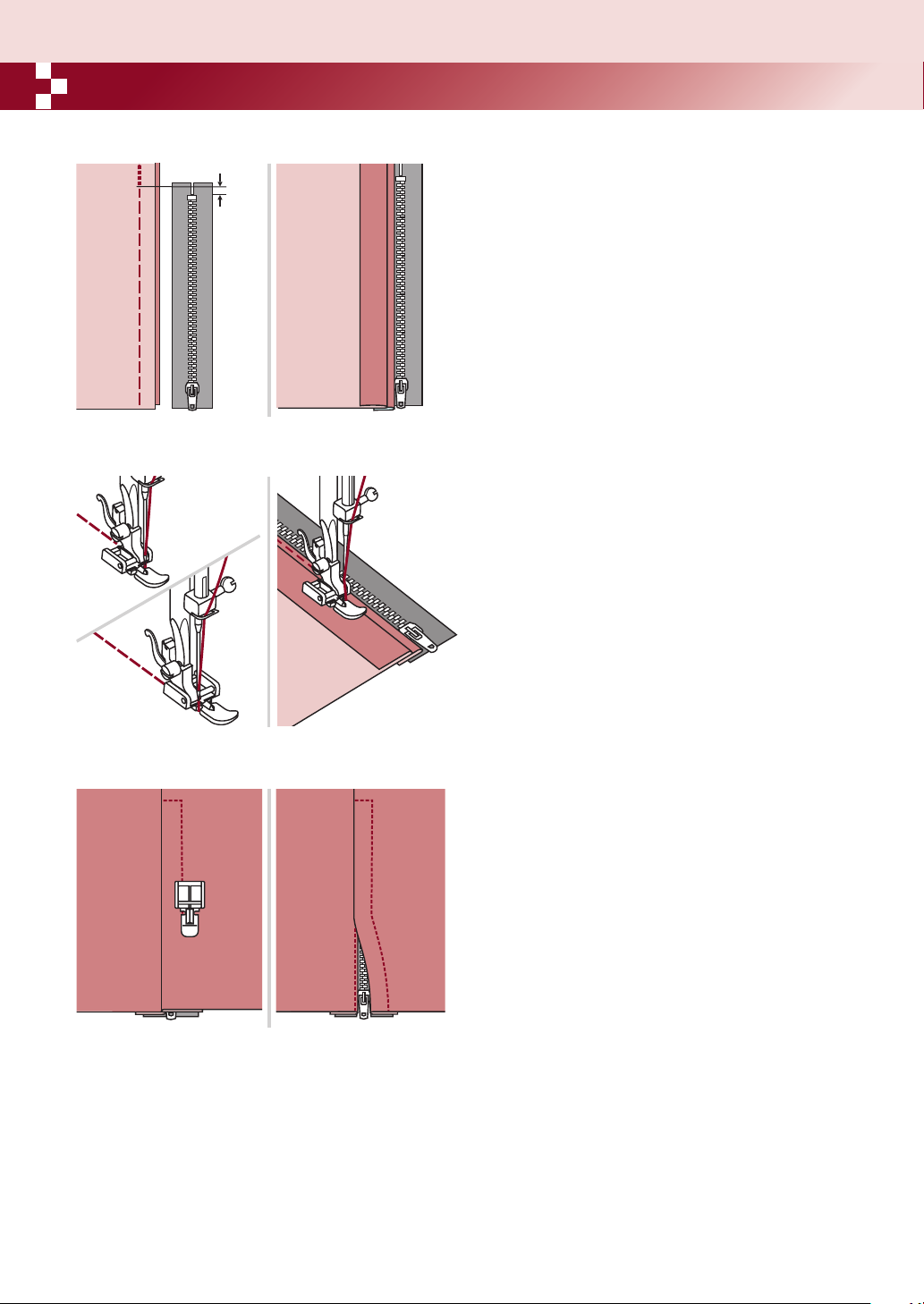

Inserting a centered zipper.......................................................................................................................33

Inserting a side zipper..............................................................................................................................34

Narrow hemming ........................................................................................................................................35

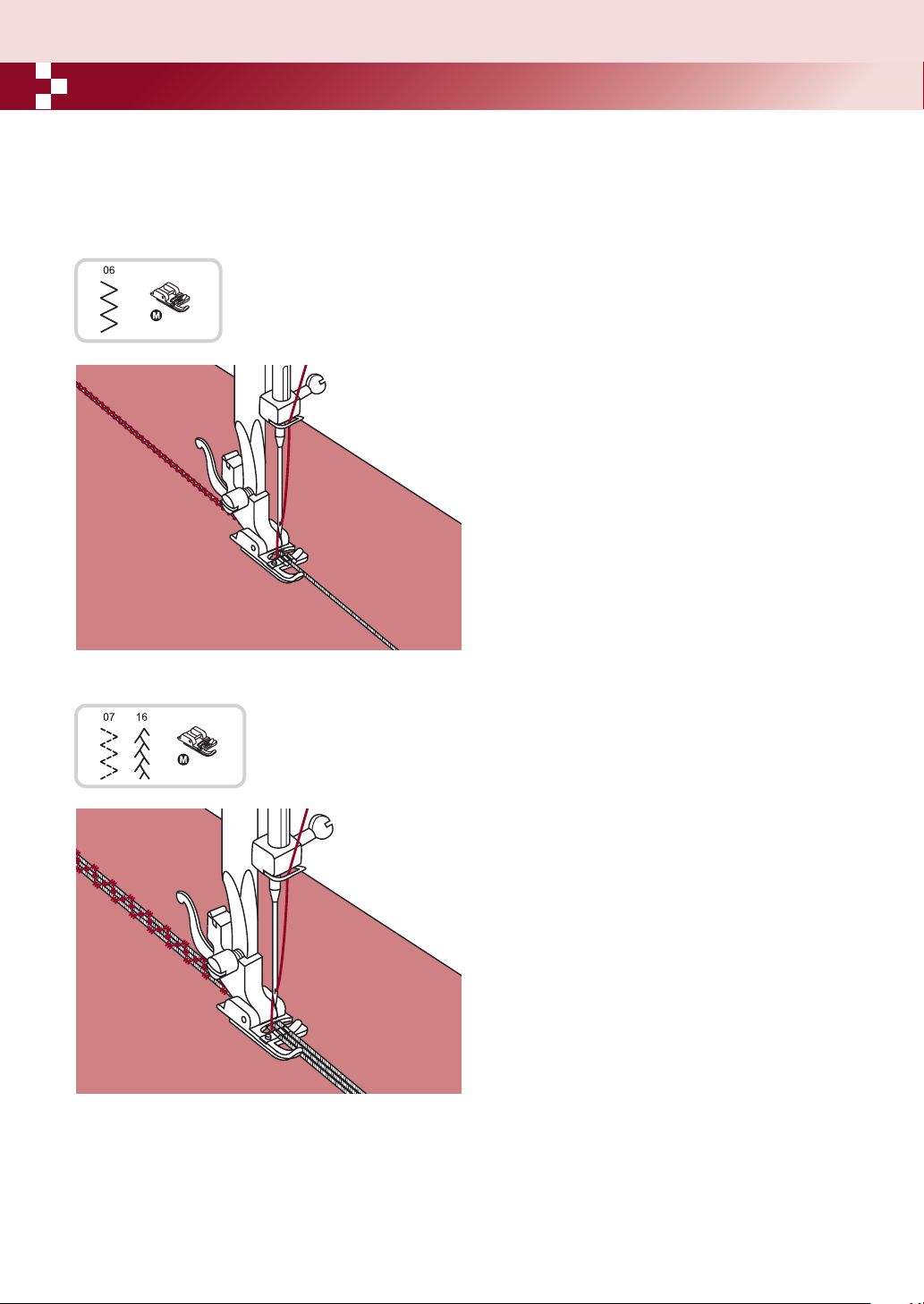

Cording .........................................................................................................................................................36

Single cording ..........................................................................................................................................36

Triple cording...........................................................................................................................................36

Satin stitch sewing .......................................................................................................................................37

Quilting .........................................................................................................................................................38

Scallop stitch.................................................................................................................................................38

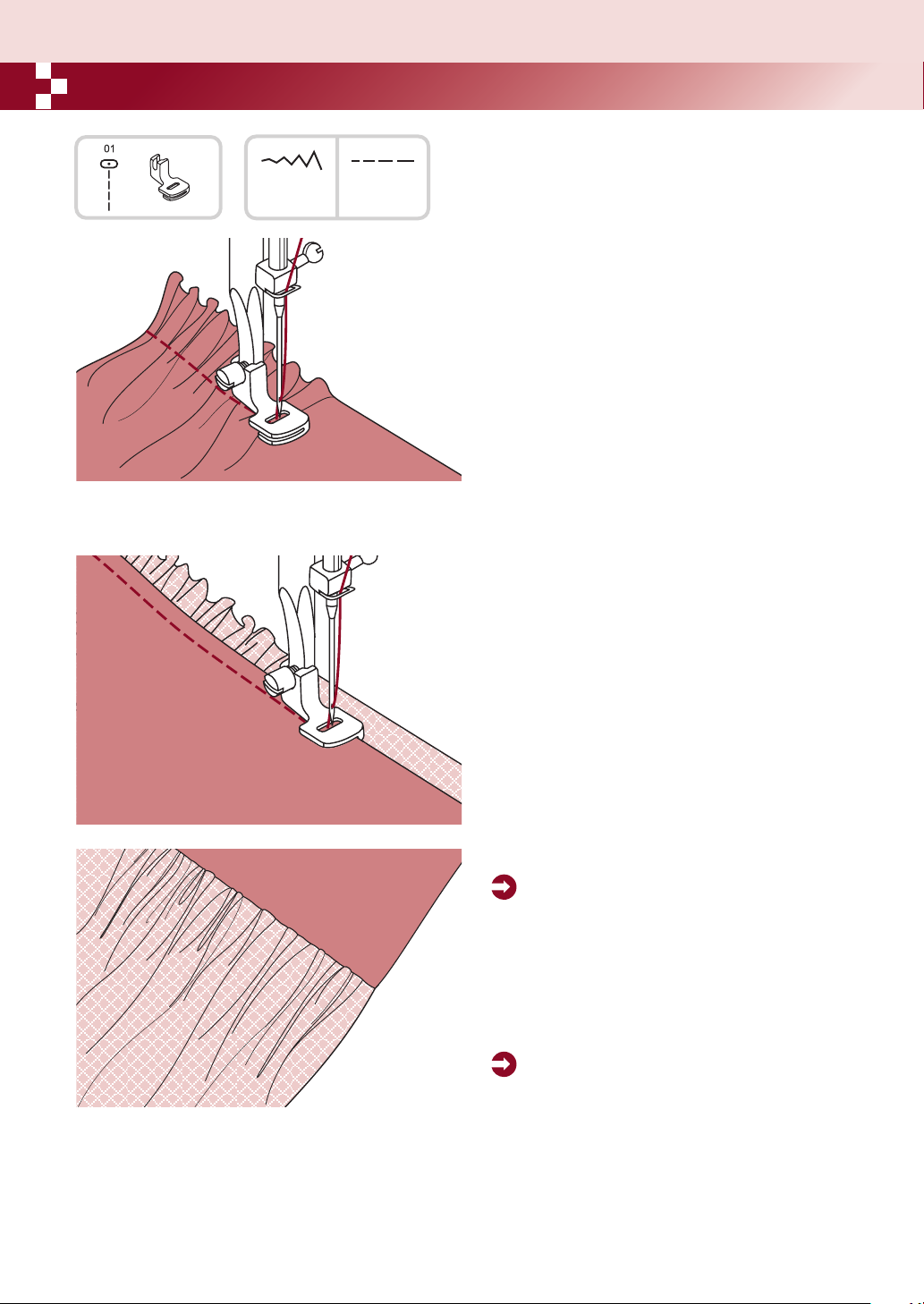

Gathering......................................................................................................................................................39

Gathered fabric.........................................................................................................................................39

To gather and attach gathered fabric in one step ....................................................................................39

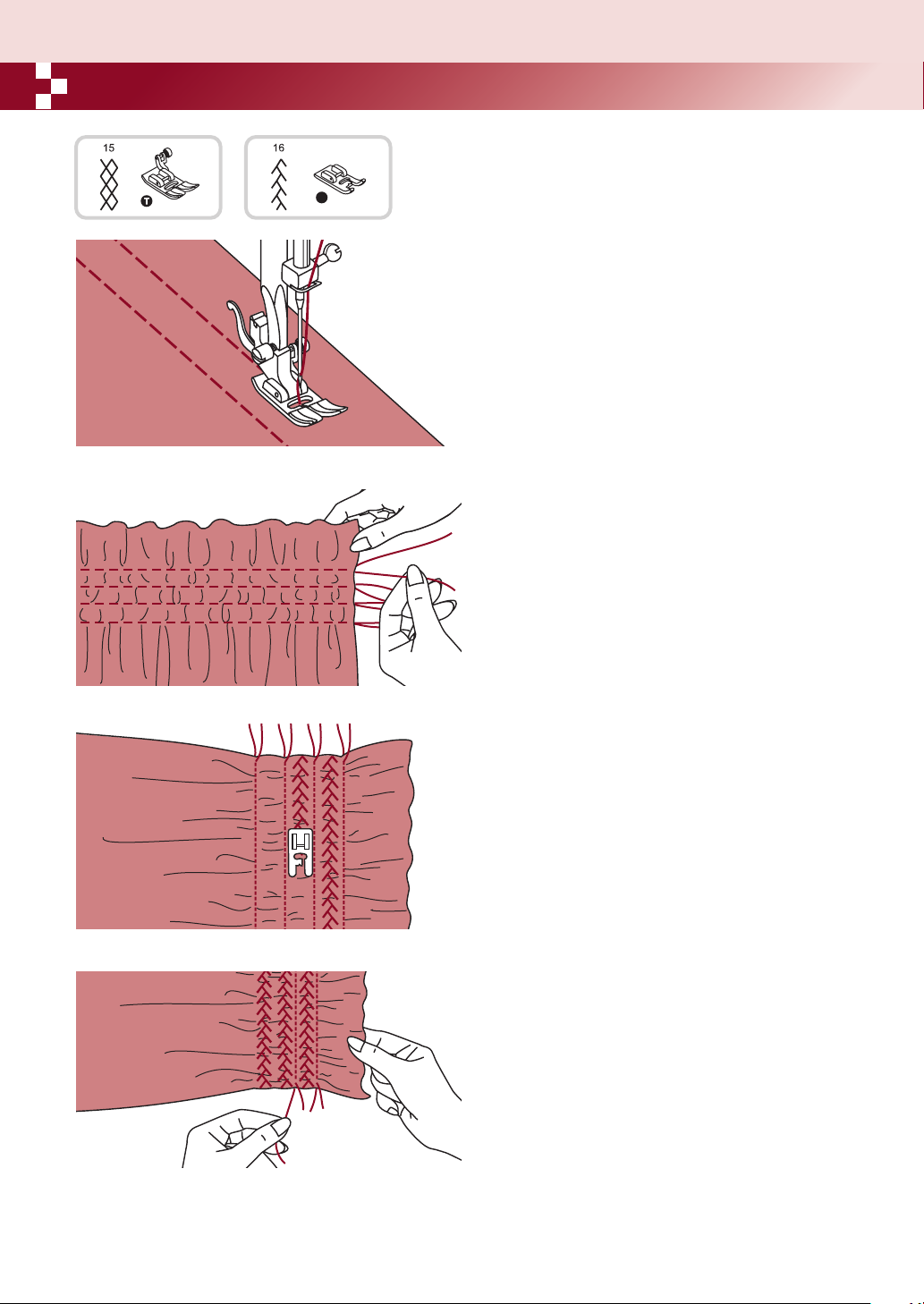

Smocking.......................................................................................................................................................40

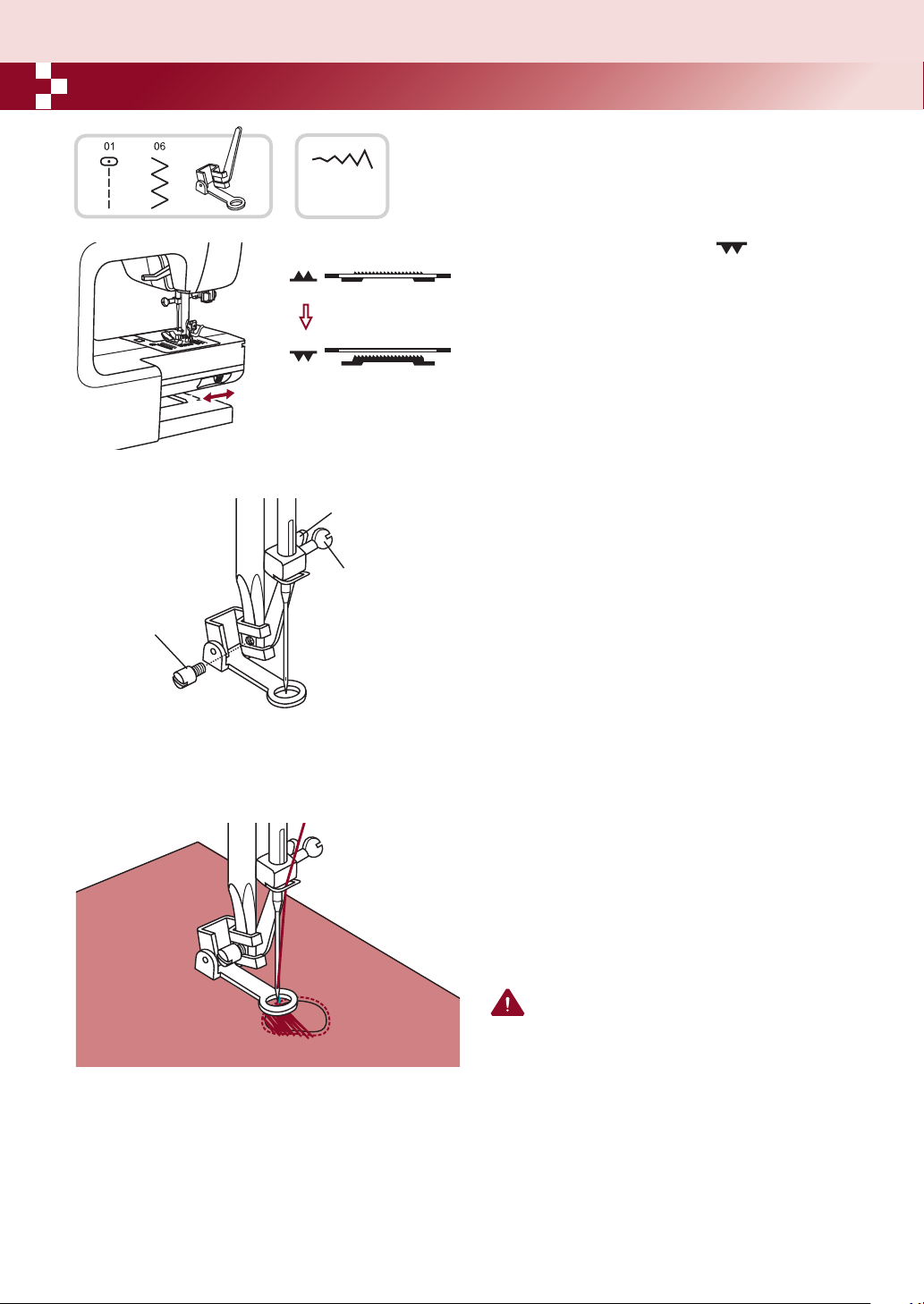

Free motion darning, embroidery and monogramming ....................................................................41-42

Darning.....................................................................................................................................................41

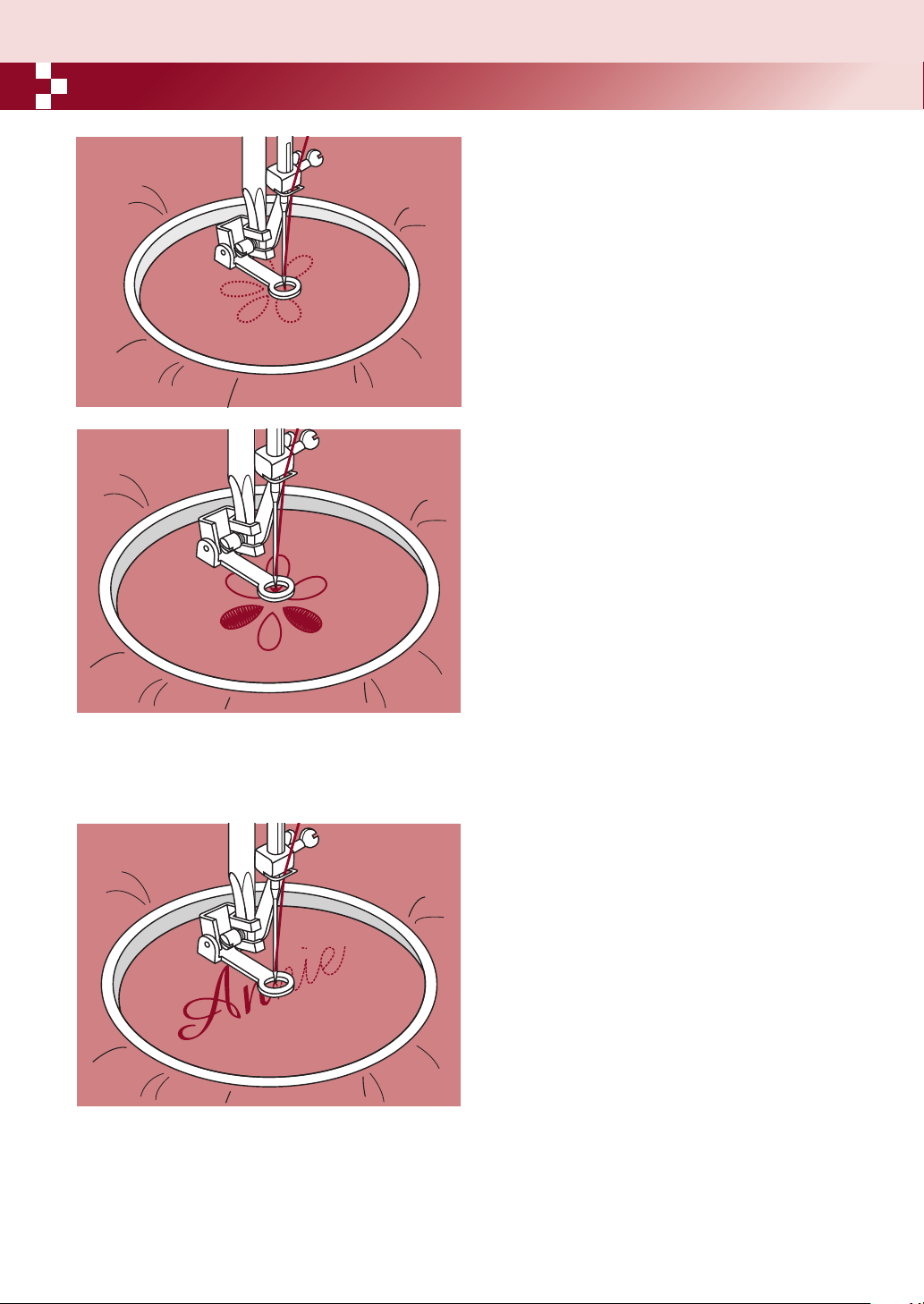

Embroidery...............................................................................................................................................42

Monogramming........................................................................................................................................42

Fagoting ........................................................................................................................................................43

Patchwork stitching .....................................................................................................................................43

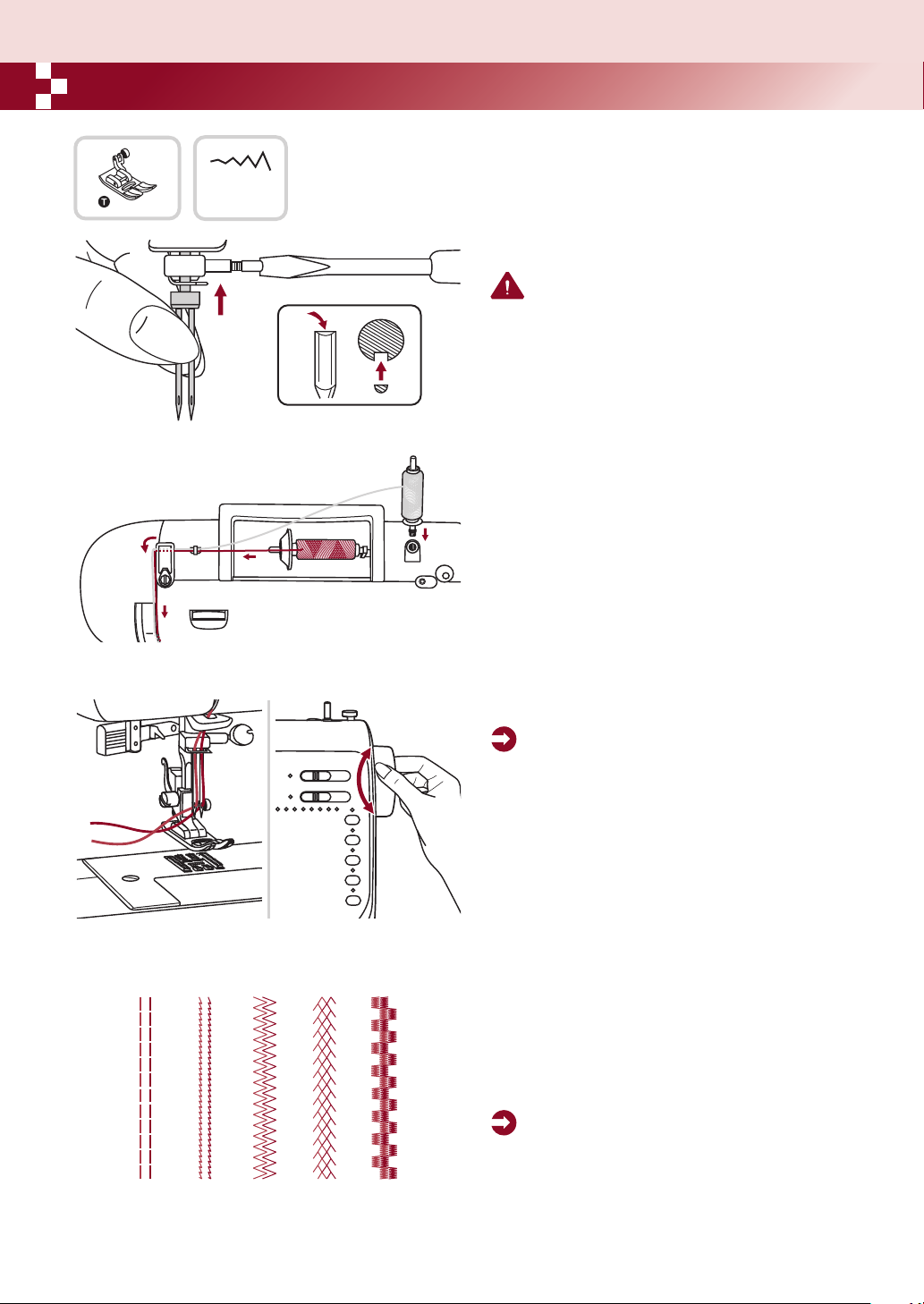

Twin needle...................................................................................................................................................44

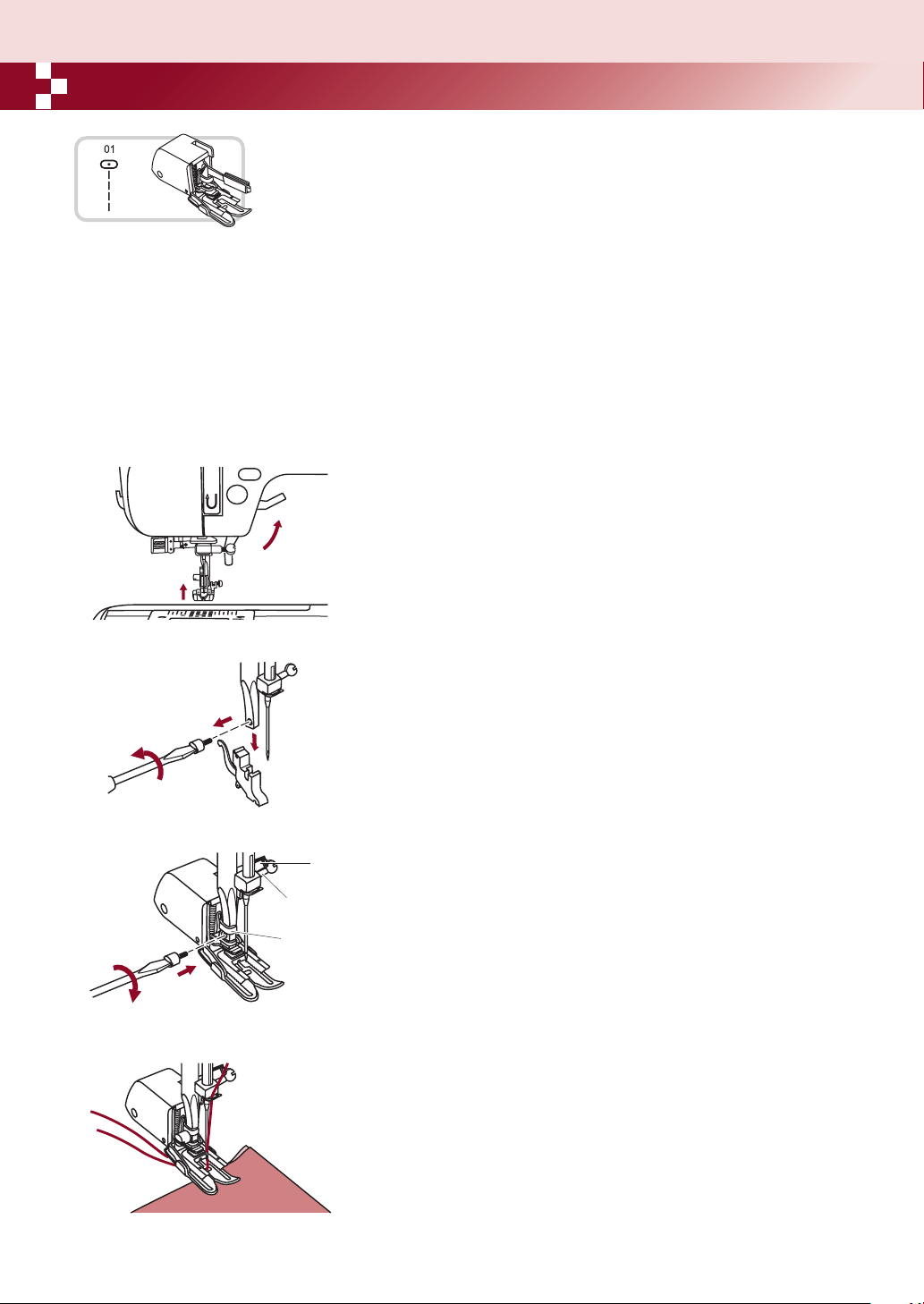

Walking foot ................................................................................................................................................45

Warning functions .......................................................................................................................................46

Warning beeping sound............................................................................................................................46

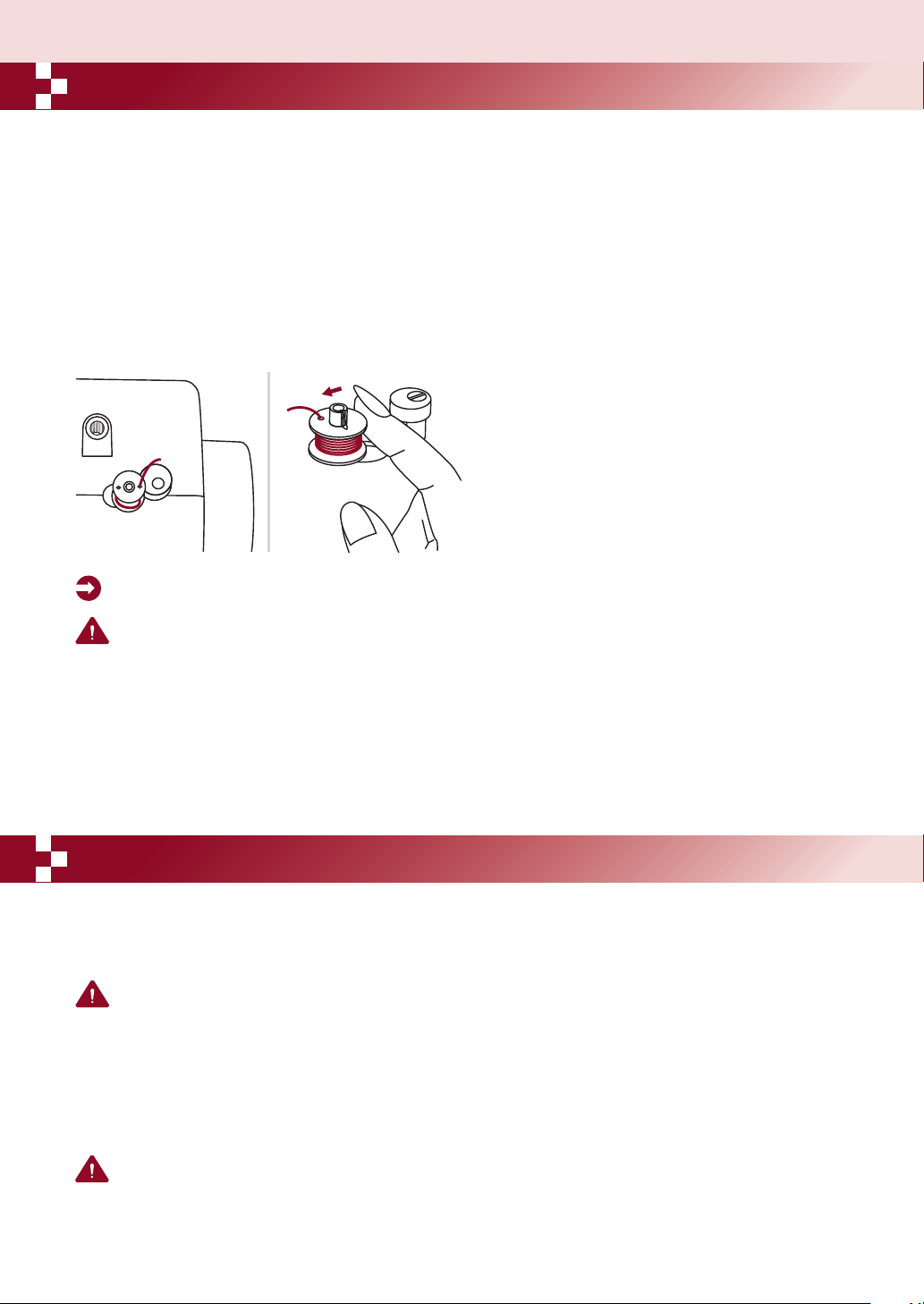

Return bobbin winder spindle to left.......................................................................................................46

Maintenance............................................................................................................................................46-47

Cleaning the sewing machine surface .....................................................................................................46

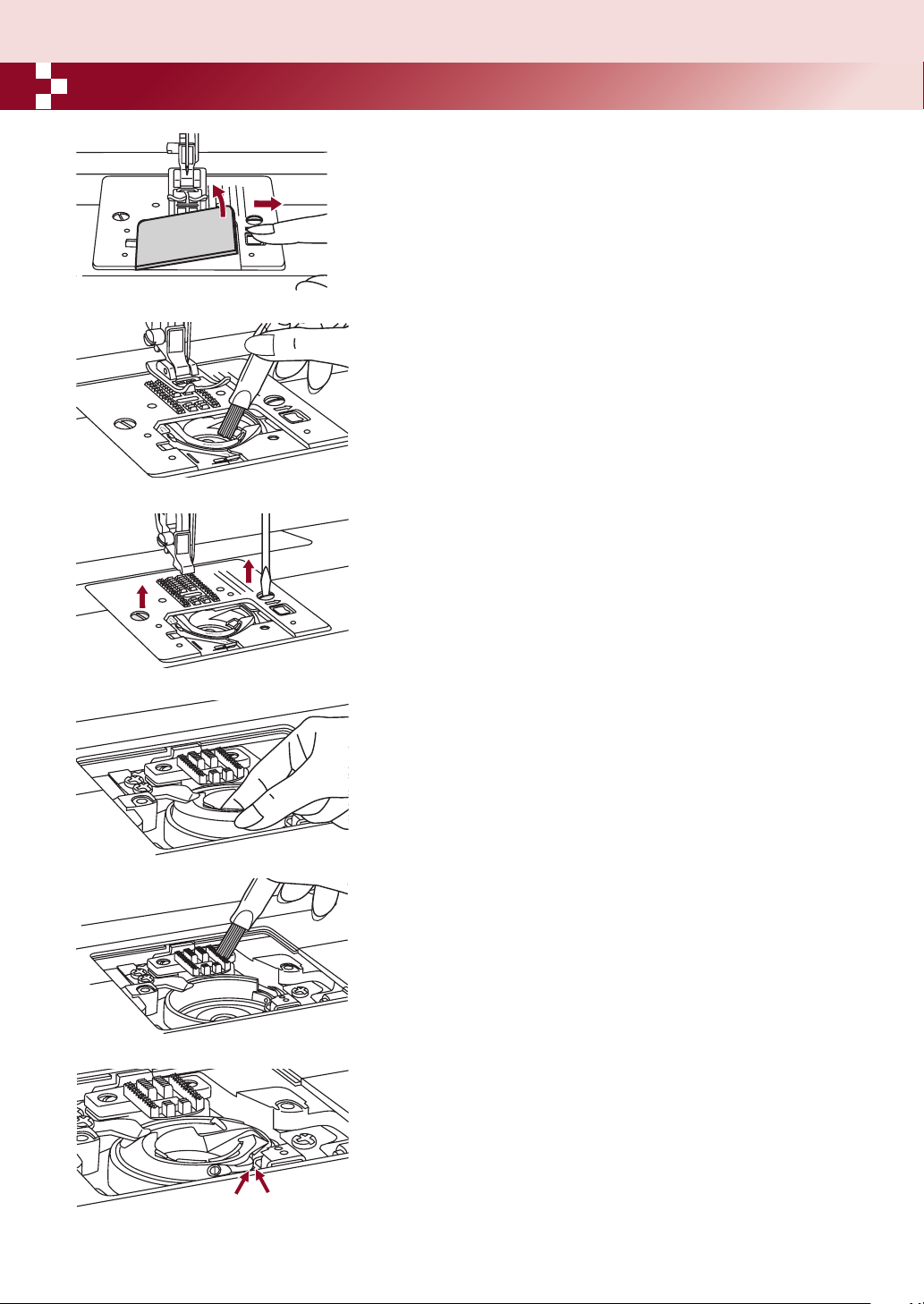

Cleaning the hook ....................................................................................................................................46

Trouble shooting guide...........................................................................................................................48-49

Page 5

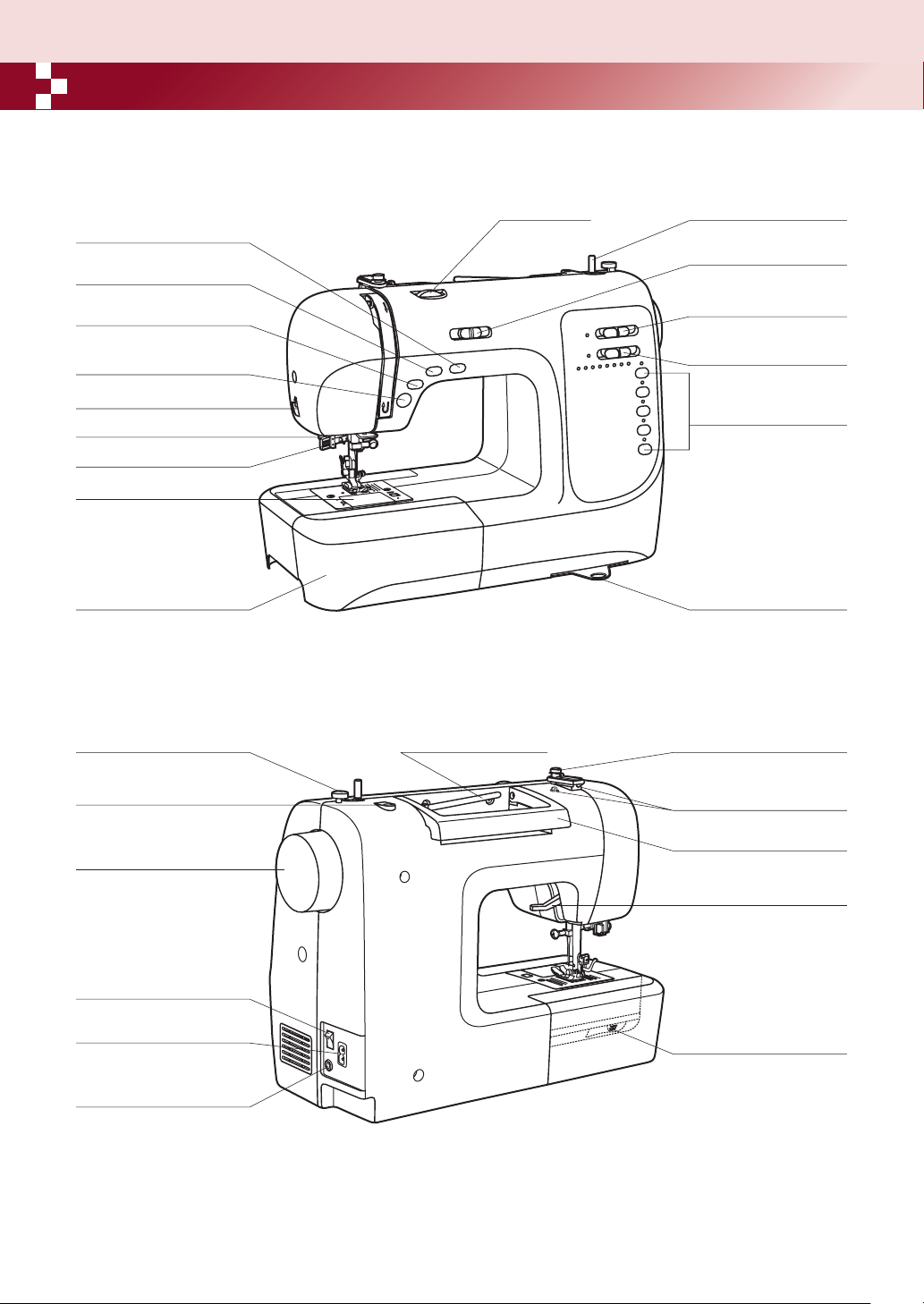

Principal parts of the machine

Needle up/down position button

Auto-lock button

Reverse button

Start/stop button

Thread cutter

Auto needle threader

Buttonhole lever

Bobbin cover plate

Sewing table and accessory box

Tension dial

Bobbin winder spindle

Speed limiting adjustment lever

Stitch width adjustment lever

Stitch length adjustment lever

Pattern Selection buttons

Quick reference plate

Bobbin winder stopper

Hole for second spool pin

Handwheel

Main power switch

Power cord

Foot controller connector

Horizontal spool pin

Bobbin thread guide

Upper thread guide

Handle

Presser foot lifter

Drop feed lever

Page 6

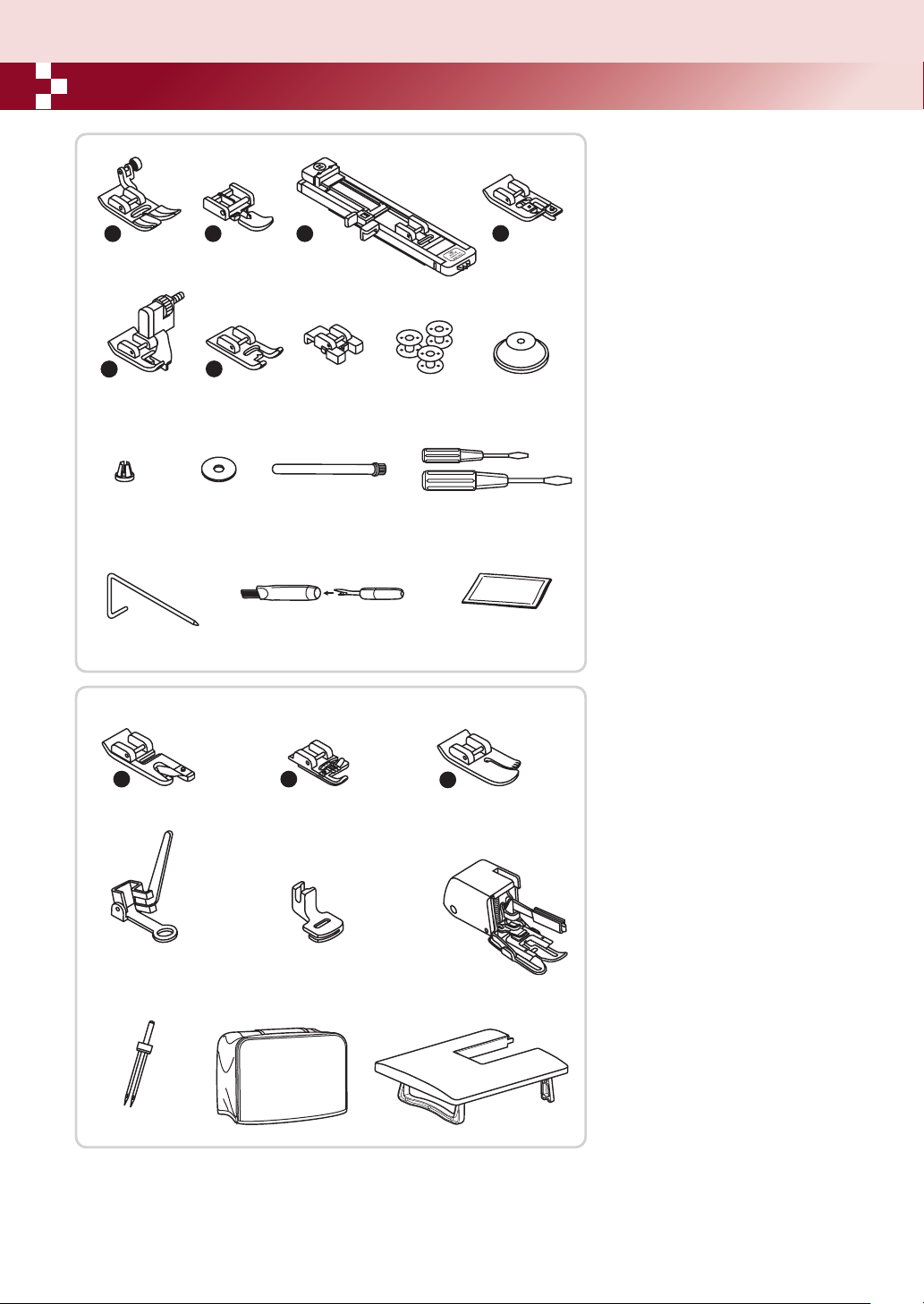

Accessories

123

006186008 006905008

006904008

TA10943209

006008001

006172008

006015009

15 16

006H1A0004

006914008

006099008

006084009

006012008

006907008

R12373209

Standard

1. All purpose foot (T)

2. Zipper foot (I)

3. Buttonhole foot (D)

4. Overcasting foot (E)

5. Blind hem foot (F)

6. Satin stitch foot (A)

7. Button sewing foot

8. Bobbin (3x)

9. Spool holder (Large)

10. Spool holder (Small)

11. Spool pin felt

12. Second spool pin

13. Screwdriver (L & S)

Edge/quilting guide

14.

15. Brush/ Seam ripper

16. Needle (3x)

006900008

006016008

006813008

006917008

23 24 25

006020008

006916008

0061850081

Optional

17. Hemmer foot (K)

18. Cording foot (M)

19. Quilting foot (P)

20. Darning/ Embroidery foot

21. Gathering foot

22. Walking foot

23. Twin needle

24. Rigid cover

25. Extension table

Page 7

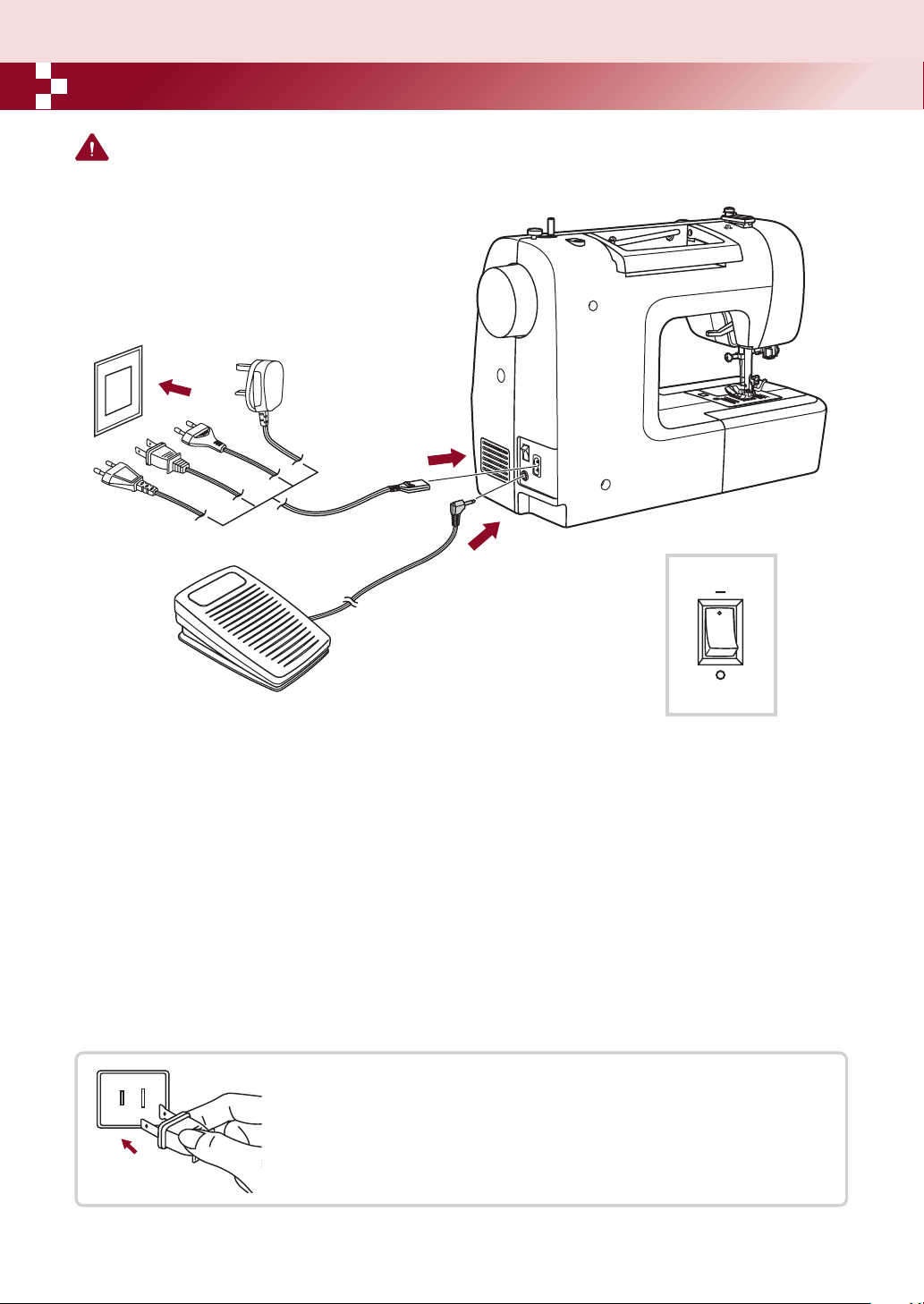

Connecting the machine to the power source

Caution: Always make sure that the machine is unplugged from power source and the main switch is on ("O"). when the machine is not in use and before inserting or removing parts.

OFF

Connecting the machine

Before connecting the power supply, make sure that the voltage and frequency shown on the machine is conforming with your electrical power.

Place the machine on a stable table.

1. Connect the power line cord to the machine by inserting the 2-hole plug into the terminal box.

2. Connect the power line plug to the electric outlet.

3. Turn on the power switch.

4. The sewing lamp will light up when the switch is turned on.

To disconnect, turn the power switch to the off position, then remove plug from outlet.

Polarized plug information

This appliance has a polarized plug (one blade wider than the other), to reduce the risk of electrical shock; this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

Page 8

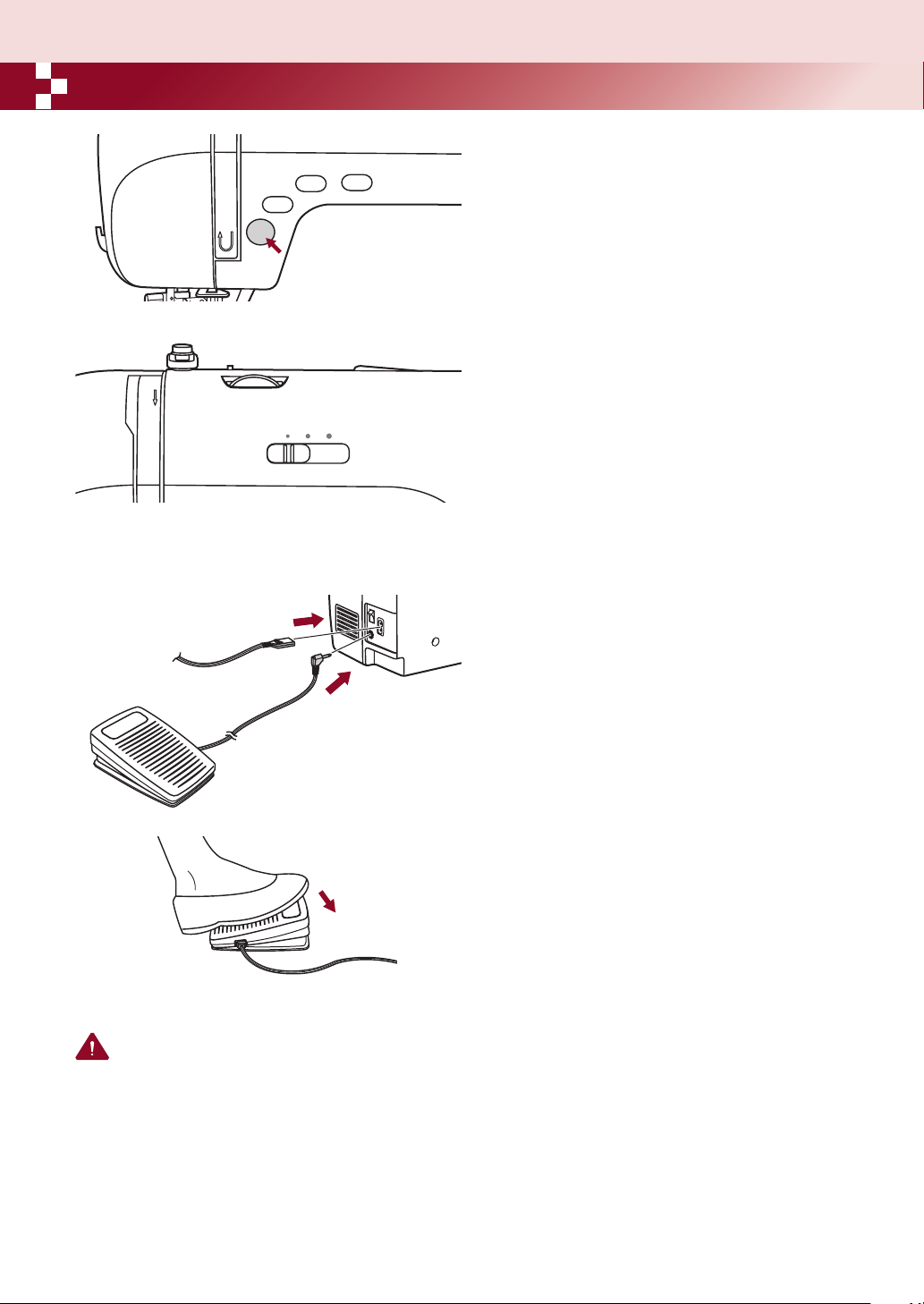

Starting sewing

Start/stop button

The machine will start running when Start/stop button is pressed and will stop when pressed the second time.

The machine will rotate slowly at the beginning of the sewing.

The speed limiting adjustment lever can control the sewing speed. To increases the speed, slide the lever to the right , To decrease the sewing speed, slide the lever to the left.

Foot control

With the sewing machine turned off, insert the foot control plug into its connector on the sewing machine.

Turn on the sewing machine, and then slowly depress the foot control to start sewing.

Release the foot control to stop the sewing machine.

Attention: Consult a qualified electrician if in doubt as how to connect the machine to the power source. Unplug the power cord when the machine is not in use.

The appliance must be used with the foot controller C-9000 manufactured by CHIEN HUNG TAIWAN., LTD.

Page 9

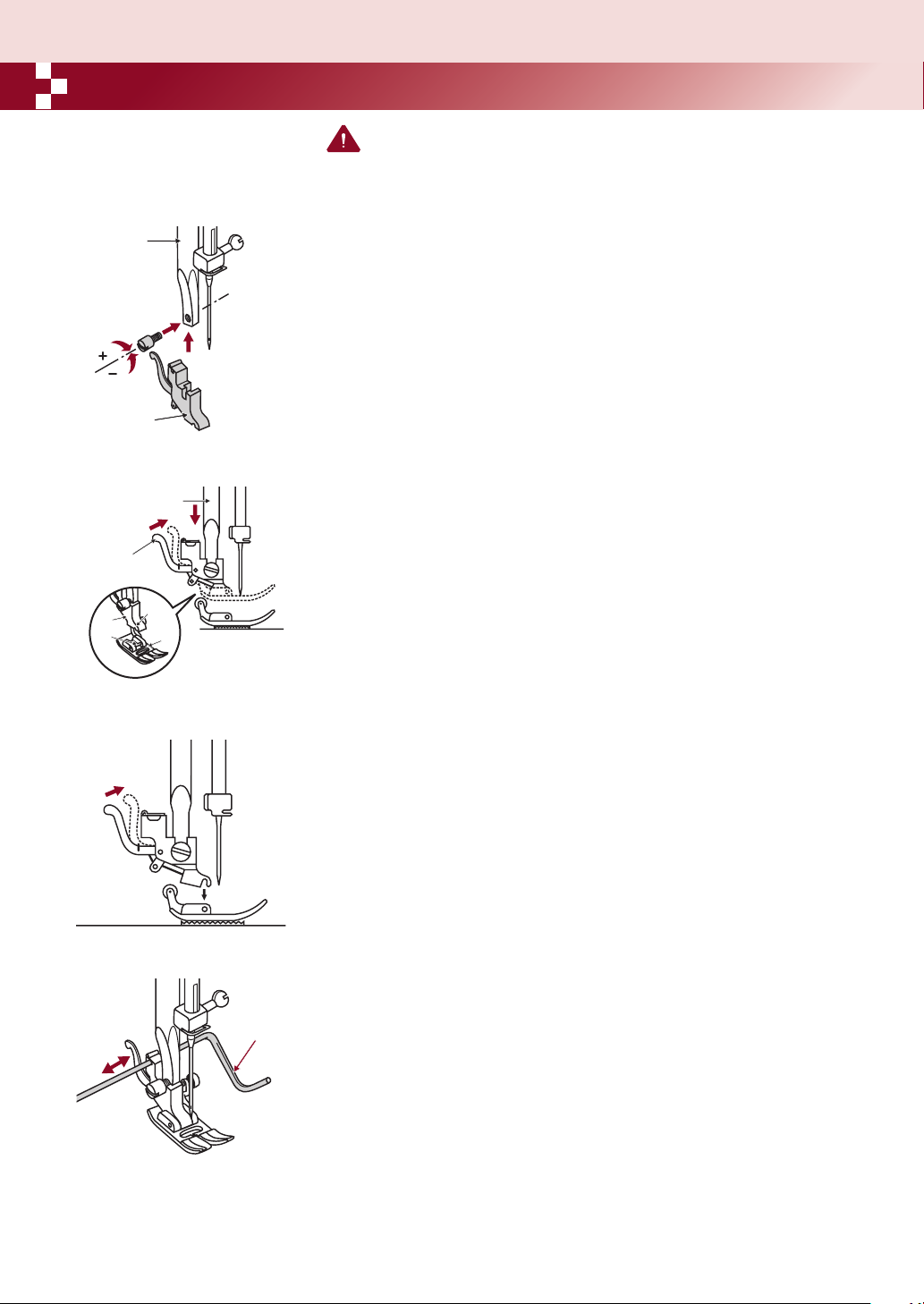

Changing the presser foot

Attention: Turn power switch to off ("O") when carrying out any of the below operations!

Attaching the presser foot holder

Raise the presser foot bar (a). Attach the presser foot holder (b) as illustrated.

Attaching the presser foot

Lower the presser foot holder (b) until the cut-out (c) is directly above the pin (d).

Press the black lever (e). Lower the presser foot holder (b) and the presser foot (f) will engage

automatically.

Removing the presser foot

Raise the presser foot. Press the black lever (e) and the foot will disengages.

Attaching the guide

Attach the guide (g) in the slot as illustrated. Adjust

according to need for hems, pleats, etc.

edge/quilting

Page 10

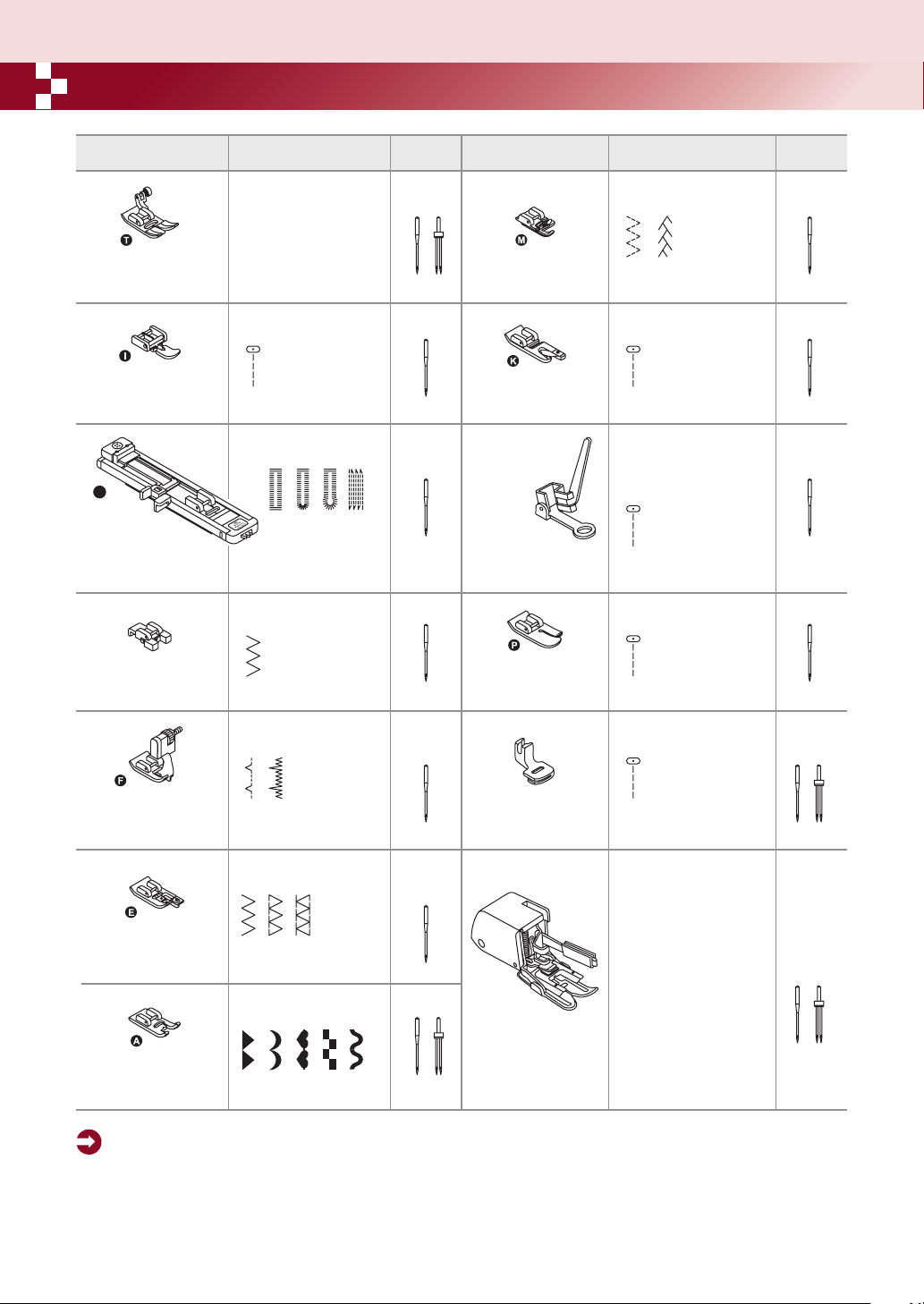

Type of presser foot chart

PRESSER FOOT

All purpose foot (T)

Zipper foot (I)

Buttonhole foot (D)

Button sewing foot

APPLICATION

General sewing, Patchwork stitches, Decorative stitching, Smocking, Fagoting, etc.

Inserting zippers

Buttonhole sewing

Button sewing

NEEDLE NEEDLE

PRESSER FOOT

APPLICATION

Cording

Cording foot (M)

(Optional)

Narrow hemming

Hemmer foot (K)

(Optional)

Darning Free embroidery Monogramming

Darning/ Embroidery foot

(Optional)

Quilting

Quilting foot (P)

(Optional)

Blind hem stitching

Blind hem foot (F)

Gathering foot

(Optional)

Overcasting

Overcasting foot (E)

Satin stitch sewing

Walking foot

(Optional)

Satin stitch foot (A)

Note: The twin needle is optional. It is not include with the accessories. When sewing with twin needle, the stitch width should be set at less than "5.0".

Gathering

This foot helps to prevent uneven feeding of very difficult fabrics

Page 11

Replacing the needle

Matching needle/ fabric/ thread

Attention: Turn power switch to off ("O") when carrying out any of the above operations!

Change the needle regularly, especially if it is showing signs of wear and causing problems. Insert the needle following the illustrated instructions.

A. Loosen the needle clamp screw and tighten

again after inserting the new needle. The f lat side of the shaft should be towards the back.

B. Insert the needle as far up as it will go.

Needles must be in perfect condition. Problems can occur with:

- Bent needles

- Blunt needles

- Damaged points

NEEDLE, FABRIC, THREAD SELECTION GUIDE

NEEDLE SIZE

9-11 (70-80) Lightweight fabrics-thin cottons, voile, serge,

silk, muslin, Qiana, interlocks, cotton knits, tricot, jerseys, crepes, woven polyester, shirt & blouse fabrics.

11-14 (80-90) Me dium we ight fa bric s-co tton , s atin,

sailcloth, double knits, lightweight woollens.

14 (90)

16 (100)

18 (110)

Please Note:

- In general, fine threads and needles are used for sewing fine fabrics, and thicker threads are used for sewing heavy fabrics.

- Always test thread and needle size on a small piece of fabric which will be used for actual sewing.

- Use the same thread for needle and bobbin.

Medium weight fabrics-cotton duck, woolen, heavier knits, terrycloth, denims.

Heavyweight fabrics-canvas, woolens, outdoor tent and quilted fabrics, denims, upholstery material (light to medium).

Heavy woollens, overcoat fabrics, upholstery fabrics, some leathers and vinyls.

FABRICS

THREAD

Light-duty thread in cotton, nylon, polyester or cotton wrapped polyester.

Most threads sold are medium size and suitable for these fabrics and needle sizes.

Use polyester threads on synthetic materials and cotton on natural woven fabrics for best results.

Always use the same thread on top and bottom.

Heavy duty thread, carpet thread.

Page 12

Winding the bobbin

1. Place the thread and spool holder onto the spool pin.

For smaller spools of thread, place spool holder with the small side next to the spool or use the small spool holder.

2. Snap the thread into the thread guide .

3. Wind the thread clockwise around the bobbin winder tension discs.

4. Place the thread end through one of the inner holes in the bobbin as illustrated and place empty bobbin on the spindle.

5. Push the bobbin to right.

contrary

Page 13

Winding the bobbin

6. Hold the thread tail securely in one hand.

7. Press on the foot control or the Start/Stop button to start winding the bobbin.

8. After the bobbin has wound a few turns stop the machine and cut the thread near the hole of the bobbin. Continue filling the bobbin until it is full. The motor stops automatically when the bobbin is full. Stop the machine. Push the bobbin winder spindle to left.

9. Cut the thread and then remove the bobbin.

Please Note: When the bobbin winder switch is placed on the right, "bobbin winding position", the machine will not sew and the handwheel will not turn. To start sewing, push the bobbin winder switch to the left "sewing position".

Page 14

Inserting the bobbin

Attention: Turn power switch to off ("O") before inserting or removing the bobbin.

When inserting or removing the bobbin, the needle must be fully raised.

Insert the bobbin in the bobbin case with the thread running in a counterclockwise direction (arrow).

Pull the thread through the slit (A).

With a finger held gently on top of the bobbin.

the thread at the arrow markings into the

Draw

stitch plate thread guide from (A) to (B)

Pull the thread at the arrow markings into the stitch plate thread guide from (B) to (C).

To cut off excess thread pull thread back over the cutting off blade at point (C). Close the bobbin cover plate.

Page 15

Threading the upper thread

Please Note: It is important to carry out the threading correctly as by not doing so several sewing problems could result.

Start by raising the needle to its highest point, and also raise the presser foot to release the tension discs.

1. Lift up the spool pin. Place the spool of thread on the spool pin

so that the thread comes from the front of the spool, then place the spool cap at the end of the spool pin.

2. Draw the thread from the spool through the upper thread

guide.

Page 16

Threading the upper thread

3. Guide the thread around the thread guide pulling the thread

through the pre-tension spring as illustrated.

4. Thread the tension module by passing the thread between the

silver discs.

5. Then, down and around the check spring holder.

6. At the top of this movement, pass the thread from right to the

left through the slotted eye of the take-up lever and then downwards again.

Pass the thread behind the flat, horizontal thread guide.

Guide the thread through the wire loop.

Pull the end of the thread through the needle from front to rear, and pull out about 10 cm of thread.

Use the needle threader to thread the needle. (On the next page.)

Page 17

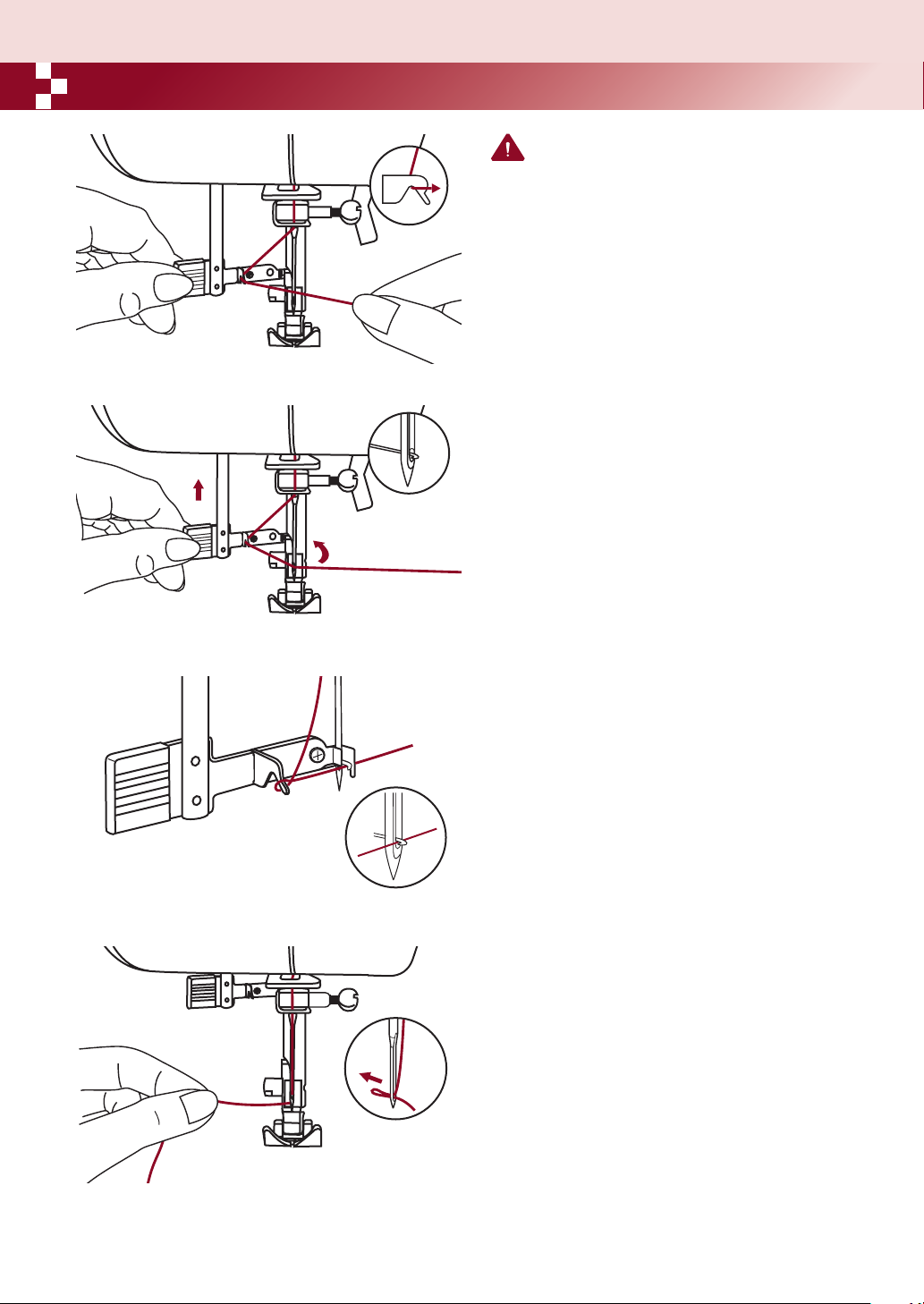

Using the needle threader

Attention: Turn power switch to the off position ("O").

Raise the needle to its highest position and lower the presser foot.

Lower the needle threader lever slowly and draw the thread through the thread guide as illustrated and then to the right.

The needle threader automatically turns to the threading position and the hook pin passes through the needle eye.

Take the thread in front of the needle.

Hold the thread loosely and release the lever slowly. The hook will turn and pass the thread through the needle eye forming a loop.

Pull the thread through the needle eye.

Page 18

Thread tension

- Basic thread tension setting: "4"

- To increase the tension, turn the dial to the next number up. To

reduce the tension, turn the dial to the next number down.

- Proper setting of tension is important to good sewing.

- For all decorative sewing you will always obtain a nicer stitch

and less fabric puckering when the upper thread appears on the bottom side of your fabric.

Reverse side

Surface

Normal thread tension for straight stitch sewing.

Upper thread

Bobbin thread

Thread tension is too loose for straight stitch sewing. Turn dial to higher number.

Thread tension is too tight for straight stitch sewing. Turn dial to lower number.

Normal thread tension for zig zag and decorative sewing.

Page 19

Raising up the lower thread

1. Hold the upper thread with the left hand. Turn the handwheel towards you (counterclockwise) lowering, then raising the needle.

2. Gently pull on the upper thread to bring the bobbin thread up through the needle plate hole. The bobbin thread will come up in a loop.

Cutting the thread

3. Pull both threads to the back under the presser foot.

Raise the presser foot. Remove the fabric, draw the threads to the left side of the face cover and cut using the thread cutter.

The threads are cut at the proper length to start the next seam.

Page 20

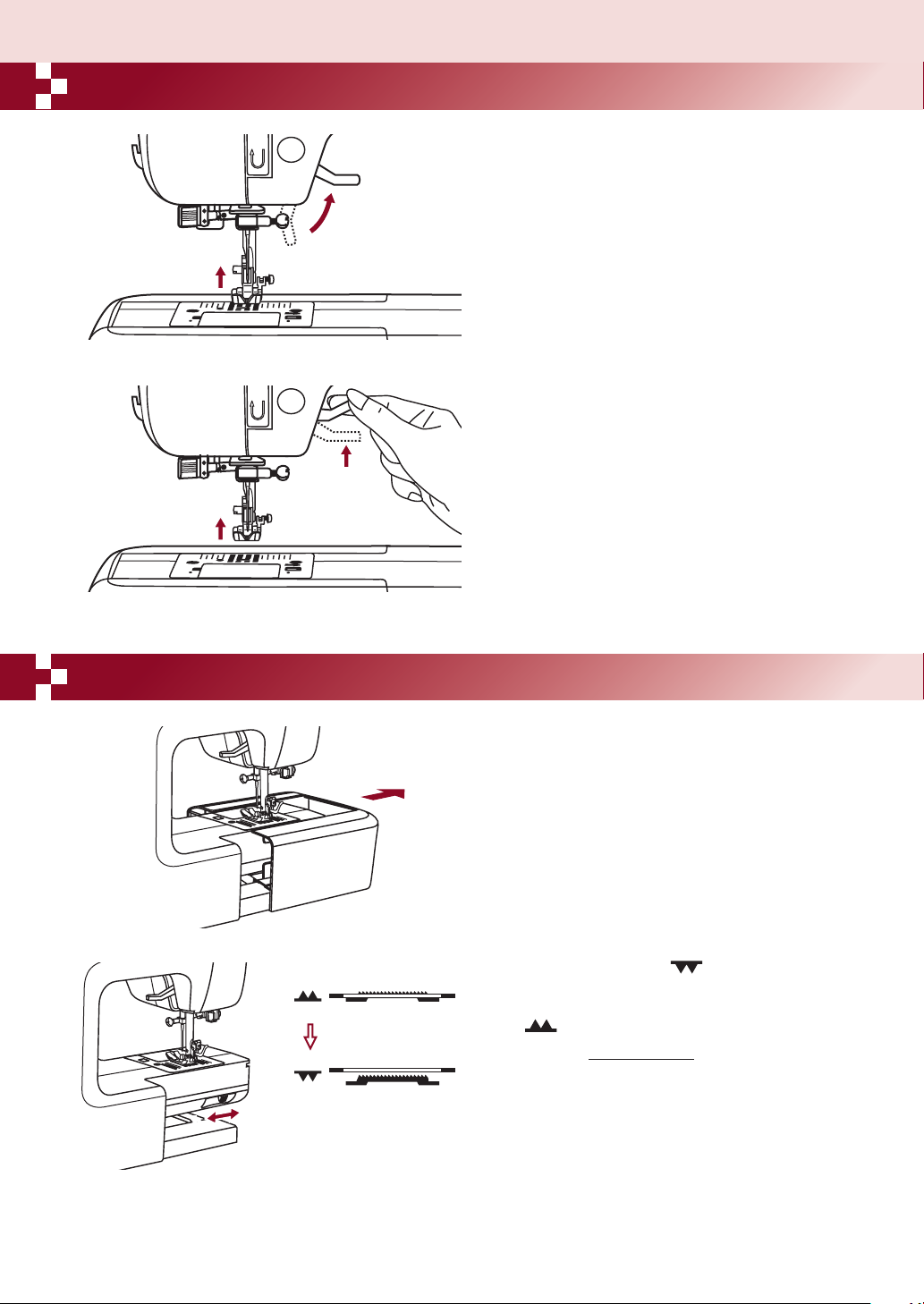

Two-step presser foot lifter

The presser foot lifter raises and lowers your presser foot.

When sewing several layers or thick fabrics, the presser foot can be raised a second stage for easy positioning of the work.

To raise or drop the feed dogs

With the sewing table off the machine, the feed dog adjustment lever can be seen on the base in back of the sewing machine.

Sliding the lever to the " " (b) will lower the feed dog, for example during button sewing. If you wish to continue sewing normally, slide the lever to the " " (a) in order to raise the feed dogs.

The feed dog if you do not turn the handwheel, even if the lever is slid to the right. Make a complete turn to raise the feed dogs.

will not rise up

Page 21

Function of machine

Start/stop button (1)

The machine will start running when start/stop button is pressed and will stop when pressed the second time. The machine will rotate slowly at the beginning of the sewing.

The sewing speed can be controlled by the speed limiting adjustment lever.

This way you may operate the machine without foot control.

Reverse button (2)

When the patterns 01-16, 21-40 are selected, the machine will sew reverse or a reinforcement stitch at a low speed if the reverse button is pressed. The machine will sew forward after the button is released.

Auto-lock button (3)

When the patterns 01-05 are selected, the machine will immediately sew 3 locking stitches when the Auto-lock button is pressed, then automatically stop.

When the patterns 06-16, 21-40 are selected, press the Auto-lock button, the machine will sew 3 locking stitches at the end of the current pattern and automatically stop.

The function will be cancelled if you press the button once again or select another pattern.

Page 22

Function of machine

Needle up/ down position button (4)

With the Needle up/ down position button, you decide whether the needle shall stop in the up position or in the material when you stop sewing.

Please Note: During sewing, press the button will be no function. Needle up/ down position button setting will only machine stop.

Speed limiting adjustment lever (5)

By adjusting the position of the speed limiting adjustment lever the top speed during sewing may be limited. The position of the slider defines the sewing speed at full stroke of the foot controller.

For slower speed: Slide toward left For higher speed: Slide toward right When the machine is run with the start/stop button the position of the

speed limiting slider defines the actual sewing speed.

Stitch width adjustment lever (6)

When you select a stitch, the machine will automatically set the recommended stitch width. The stitch width can be regulated by sliding the stitch width adjustment lever.

Auto settings are easily determined by sliding the lever. The LED indicator next to the lever will blink and beep 1 time to indicate the setting is at the auto position.

When the setting is at the auto position, you can manually change the width according to your preference. Starting at the auto position, slide the lever to the left or right to locate each potential adjustment. At each manual adjustment point, the LED will blink 3 times and beep once.

For a narrower stitch, slide the lever to left. For a wider stitch, slide the lever to right. The stitch width can be adjusted between "0.0-7.0". Certain stitches have limited stitch widths.

Page 23

Function of machine

Stitch length adjustment lever (7)

When you select a stitch, the machine will automatically set the recommended stitch length. The stitch length can be regulated by sliding the stitch length adjustment lever.

Auto settings are easily determined by sliding the lever. The LED indicator next to the lever will blink and beep 1 time to indicate the setting is at the auto position.

When the setting is at the auto position, you can manually change the length according to your preference. Starting at the auto position, slide the lever to the left or right to locate each potential adjustment. At each manual adjustment point, the LED will blink 3 times and beep once.

To shorten the stitch length, slide the lever to left. For a longer stitch length, slide the lever to right. The stitch length can be adjusted between "0.0-4.5". Certain stitches have limited lengths.

Pattern selection buttons (8)

Turn on the power switch and the LED indicator above the straight stitch pattern will be lit.

To select other patterns, press the pattern selection button to the right of the row that contains your desired pattern. Stop when the LED indicator above your pattern is lit.

Page 24

Pattern chart

Stitch Pattern

Utility stitches

Buttonhole stitches

Darning stitches

Satin stitches

Cross stitches

Decorative stitches

Width (mm) Length (mm)

3.5

0.0

3.5

5.0

3.5

5.0

7.0

5.0

7.0

5.0

4.0

6.0

5.0

7.0

5.0

7.0

5.0

7.0

6.0

7.0

5.0

Manual

0.0~7.0

1.0~6.0

0.0~7.0

2.0~7.0

2.5~7.0

3.5~7.0

2.5~7.0

2.5~5.5

5.5~7.0

3.5~7.0

2.5~7.0

3.0~7.0

5.0~7.0

3.0~7.0

2.5~7.0

3.5~7.0

2.5~7.0

Auto

The portion marked in colored on the chart shows the one unit of each pattern.below

Auto

2.5

2.0

1.0

2.5

2.0

1.0

2.5

0.5

2.0

0.5

2.5

1.0

3.0

2.0

2.5

1.5

2.5

1.0

3.0

2.0

2.5

2.0

Manual

0.0~4.5

1.0~3.0

1.5~3.0

0.3~4.5

1.0~3.0

0.5~4.5

1.5~3.0

1.0~3.0

0.3~1.0

1.0~2.0

0.3~1.0

1.0~3.0

1.5~3.0

1.0~3.0

1.5~3.0

1.0~3.0

1.0~4.5

1.0~3.0

2.0~3.0

1.5~3.0

1.0~3.0

Presser Foot

Functions

Reverse

Auto-lock

Page 25

Useful skills

Sewing corners

1. Stop the sewing machine when you reach a corner.

2. Lower the needle into the fabric manually or by pressing the needle up/ down button once.

3. Raise the presser foot.

4. Use the needle as a pivot and turn the fabric.

5. Lower the presser foot and resume sewing.

Reverse

Reverse stitching is used to secure the threads at the beginning and at the end of a seam.

Press the reverse button and sew 4-5 stitches. The machine will sew forward when the button is released.

Free arm

Free-arm sewing is convenient for sewing tubular areas such as pant hems and cuffs.

Page 26

Useful skills

Installing the extension table

* The accessory is optional. It is

Extension table

not included with this machine.

Pull the sewing table and accessory box off by sliding it to the left. (1)

Follow the arrow, and stretch the foot of the extension table. (2)

Snap (A) of the extension table into (B) of the machine. (3)

Extension table can help moving during sewing.

Sewing on the heavy fabric

The black button on the left side of the presser foot will lock the presser foot in a horizontal position if you push it in before lowering the presser foot. This ensures even feeding at the beginning of a seam and helps when sewing multiple layers of fabric such as sewing over seams when hemming jeans.

When you reach the point of an increased thickness, lower the needle and raise the presser foot. Press the toe of the foot and push in the black button, then lower the foot and continue sewing.

Cardboard or

thick fabric

The black button releases automatically after sewing few stitches.

You also can place another piece of fabric with the same thickness at the back of the seam. Or support the presser foot while feeding by hand and sewing toward the folded side.

Page 27

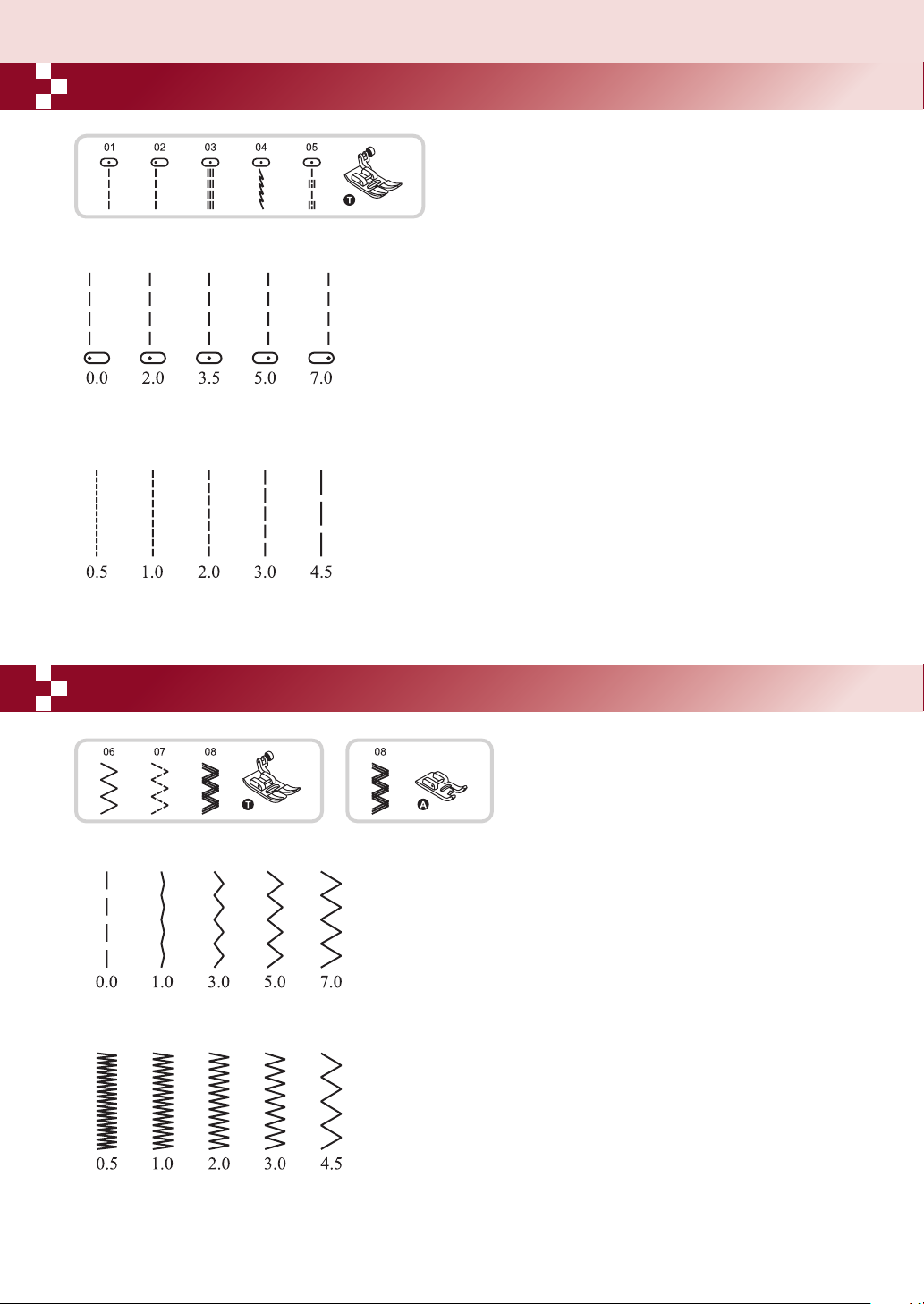

Straight stitches and needle position

Changing the needle position

These setting apply only to patterns 01-05. The pre-set position is "3.5", center position. When you slide the lever to the left you slide the , the needle position will move to the right.

Changing the stitch length

To shorten the stitch length, slide the length lever to the left stitch adjustment lever to the right

Generally speaking, the thicker the fabric, thread and needle, the longer the stitch should be.

, the needle position will move to the left. When

stitch width adjustment lever to the right

. For a longer stitch length, slide the length

stitch width adjustment

stitch adjustment

Zigzag stitches

Adjusting the stitch width

The maximum zigzag stitch width for zigzag stitching is "7.0"; however, the width can be reduced on any patterns. The width increases as you from "0.0-7.0".

Adjusting the stitch length

The density of zigzag stitches increase as the setting of stitch length approaches "0.3".

Neat zigzag stitches are usually achieved at "1.0-2.5".

Closed up zigzag stitches (close together) are referred to as a satin stitch.

slide the stitch width adjustment lever

Page 28

Stretch stitch

Straight stretch stitch

Straight stitch

It assures you of a stitch that is strong and flexible and will give with the fabric without breaking. Good for easy to ravel and knit fabrics. It is good for joining durable fabric such as denims.

These stitches can also be used as a decorative top stitch.

Straight stretch stitch is used to add triple reinforcement to stretch and hardwearing seams.

Triple zigzag stretch stitch is suitable for firm fabrics like denim, poplin, duck, etc.

Page 29

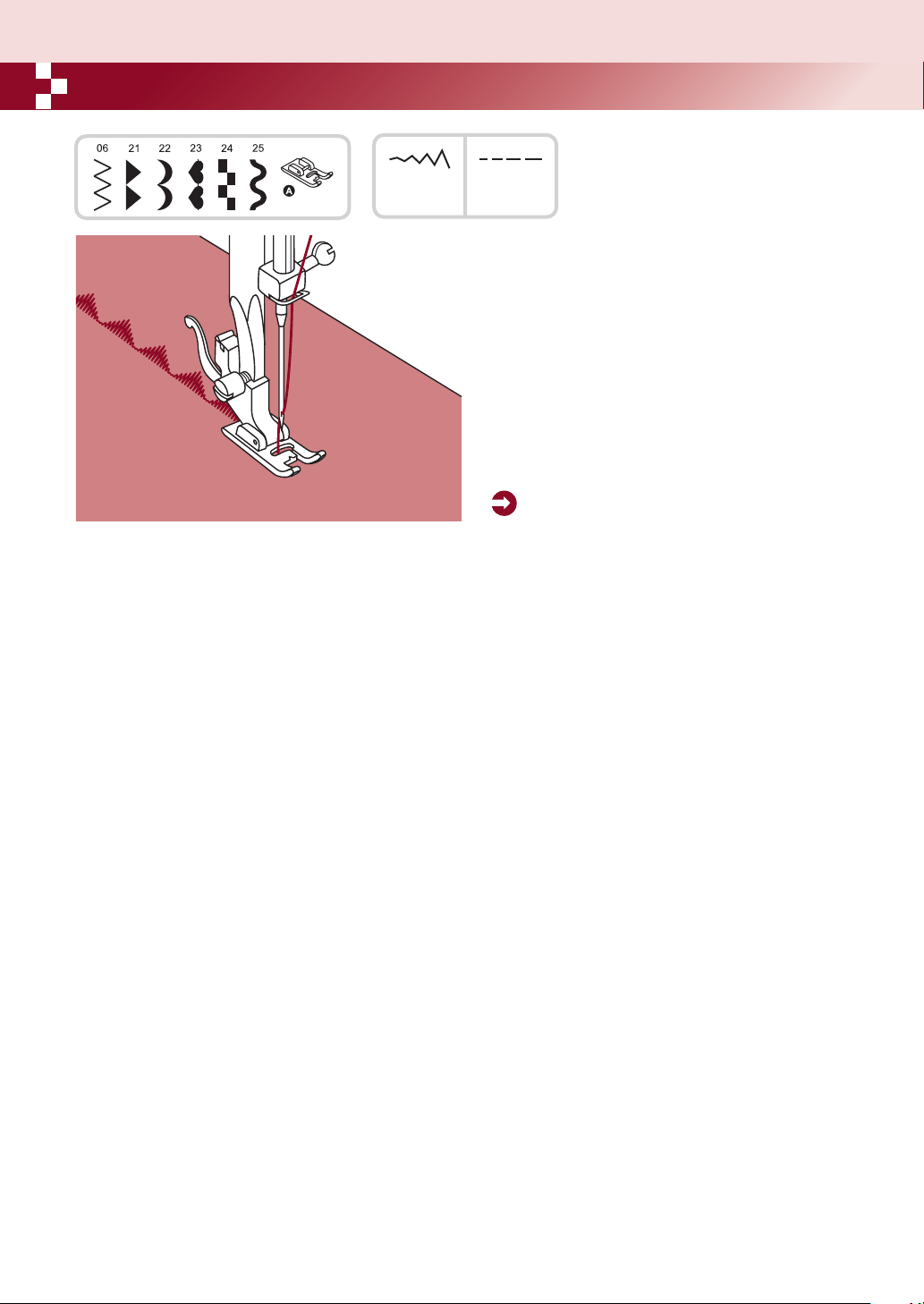

Overcasting stitches

Using the overcasting foot

5.0~7.0

2.0~3.0

Change the presser foot to the overcasting foot (E).

Sew the fabric with the fabric edge against the guide of the overcasting foot.

Attention: The overcasting foot should be used to sew with patterns 06 and 09 only and do not set the stitch width narrower than "5.0". It is possible that needle could hit the presser foot and break when sewing other patterns and width.

Using the all purpose foot

2.5~4.5

2.0~3.0

Change the presser foot to the all purpose foot (T) .

Sewing the overcasting along the edge of the fabric so that the needle drops over the edge of the fabric on the right side.

Page 30

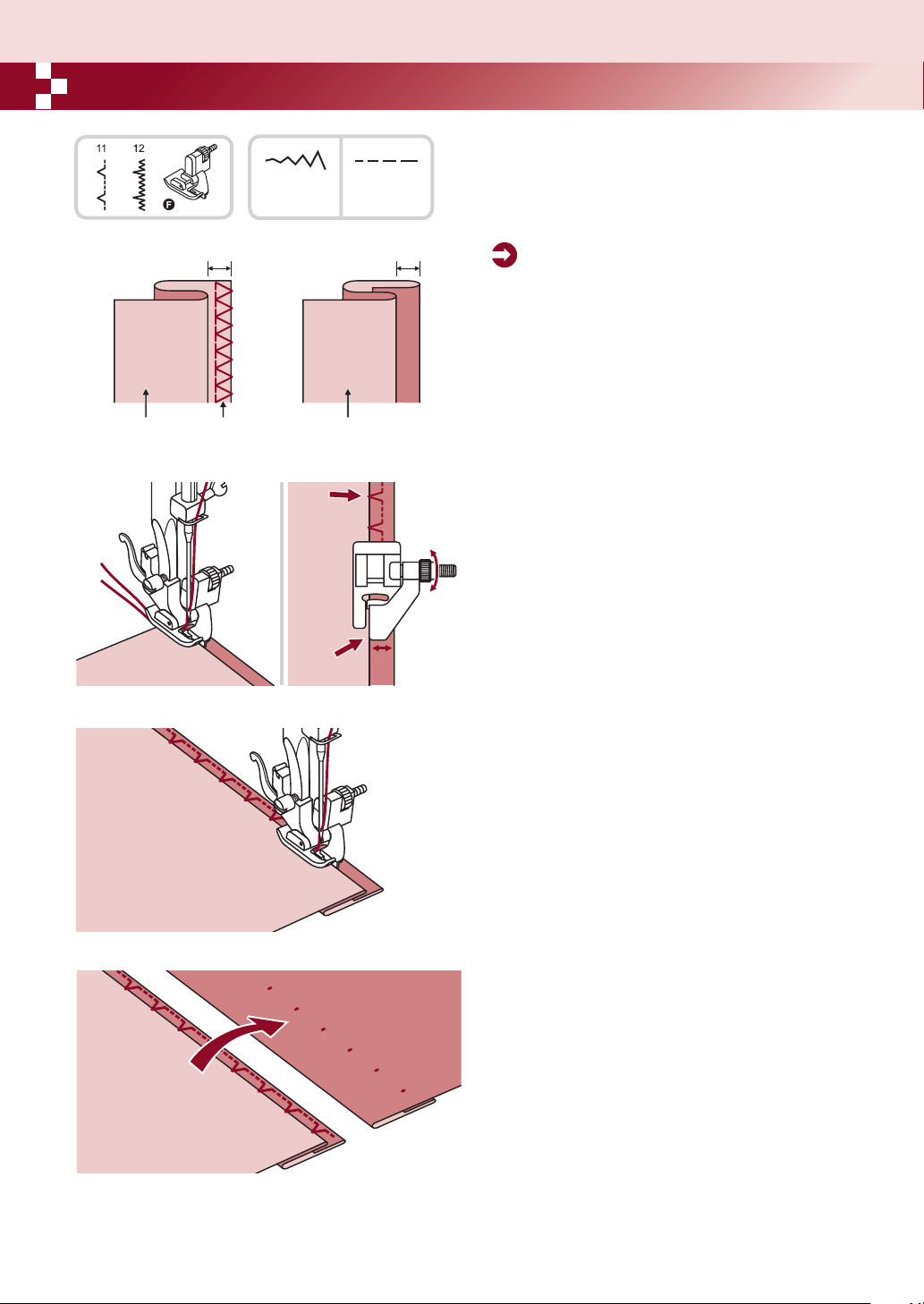

Blind hem/ Lingerie stitch

2.5~4.0

1.0~2.0

Blind hem/lingerie for firm fabrics

11:

Blind hem for stretch fabrics

12:

Reverse

side

5mm 5mm

Overcasting

stitches

Reverse

side

Please Note: It takes practice to sew blind hems. Always make a sewing test first.

Fold the fabric as illustrated with the wrong side uppermost.

Place the fabric under the foot. Turn the handwheel forwards by hand until the needle swings fully to the left. It should just pierce the

fold of the fabric. If it does not, adjust the stitch width accordingly.

Adjust the guide (b) by turning the knob (a) so that the guide just rests against the fold.

Sew slowly, guiding the fabric carefully along the edge of the guide.

Turn over the fabric.

Page 31

Button sewing

2.5~4.5

Change the presser foot to the button sewing foot.

Move the drop feed control to " " to lower the feed dogs.

2.5~4.5

Position the work under the foot. Place the button in the desired position, lower the foot.

Select zig zag pattern. Adjust the stitch width to "2.5-4.5" according to the distance between the two holes of the button.

Turn the handwheel to check that the needle goes cleanly into the left and right holes of the button.

Before sewing, press the Auto-lock button to sew reinforcement stitches automatically at the beginning and at the end of the stitch.

If a shank is required, place a darning needle on topofthebuttonandsew.

For buttons with 4 holes, sew through the front two holes first, push work forward and then sew through the back two holes.

Page 32

Buttonhole stitching

17: For thin or medium fabric

2.5~7.0

2.5~5.5

5.5~7.0

Please Note: Before sewing a buttonhole on your project, practice on a scrap piece of the same type of fabric.

0.3~1.0

18: For horizontal holes on blouses or shirts

made from thin or medium fabric

19: For suits or overcoats

Mark the positions of the buttonhole on the fabric.

The maximum buttonhole length is 3cm (1 3/16 inch). (Total of diameter + thickness of button.)

Starting

point

Attach the buttonhole foot, then pull out the button holder plate and insert the button.

The size of the buttonhole is determined by the button inserted in the button plate.

The thread should be passed through the hole in the presser foot, then be placed under the foot.

Select the buttonhole stitch.

Adjust the stitch width and the stitch length to the desired width and density.

Position the fabric under the presser foot with the front end of the buttonhole mark aligned with the center line on the buttonhole foot.

Page 33

Buttonhole stitching

Pull the buttonhole lever all the way down and position it behind the bracket on the buttonhole foot.

While lightly holding the end of upper thread and start sewing.

Please Note: Gently feed the fabric by hand.

Before stopping, the machine will automatically sew a reinforcement stitch after the buttonhole is sewn.

* Buttonholes are sewn from the front of the presser foot to the back, as shown.

Page 34

Buttonhole stitching

Buttonholes are sewn from the front of the presser foot to the back, as shown.

Raise the presser foot and cut thread. To sew over same buttonhole, raise the presser foot (will return to original position).

After sewing the buttonhole stitch, raise the buttonhole lever until it stops.

Cut the center of the buttonhole being careful not to cut any stitches on either side. Use a pin as a stopper at the bar tack so you do not cut too much.

Making a buttonhole on stretch fabrics

When sewing buttonholes on stretch fabric, hook heavy thread or cord under the button-hole foot.

Attach the buttonhole foot and hook the gimp thread onto the back of the presser foot.

Bring the two gimp thread ends to the front of the foot and insert them into the grooves, then temporarily tie them there. Lower the presser foot and start sewing.

Set the stitch width to match the diameter of the gimp thread.

Once sewing is completed, pull the gimp thread gently to remove any slack, then trim off any excess.

Please Note: It is suggested that you use interfacing on the backside of the fabric.

Page 35

Darning stitch

3.5~7.0

1.0~2.0

Select pattern 20 to get the darning stitch.

Chang the presser foot to the buttonhole foot.

Baste the upper fabric and the under fabric together. Select the needle position. Lower the presser foot over the center of the tear.

Pull the button holder to rear.

Set the button guide plate on buttonhole foot to the desired length.

2mm

The size of one darn cycle is variable.

However, the maximum stitch length is 2.6cm (1 inch) and the maximum stitch width is 7mm (9/32 inch).

a. The length of sewing.

b. The width of sewing.

Position the fabric so that the needle is 2mm (1/16 inch) in front of the area to be darned, and then lower the presser foot lever.

Please Note:

When lowering the presser foot, do not push in the front of the presser foot, otherwise the darning will not be sewn with the correct size.

Page 36

Darning stitch

Pass the upper thread down through the hole in the presser foot.

Pull down the buttonhole lever. The buttonhole lever is positioned behind the bracket on the buttonhole foot.

Gently hold the end of the upper thread in your left hand, and then start sewing.

Darning stitches are sewn from the front of the presser foot to the back, as shown.

If the sewing range is too big to sew, then we suggest you can sew several times (or cross sew) to get better sewing result.

Page 37

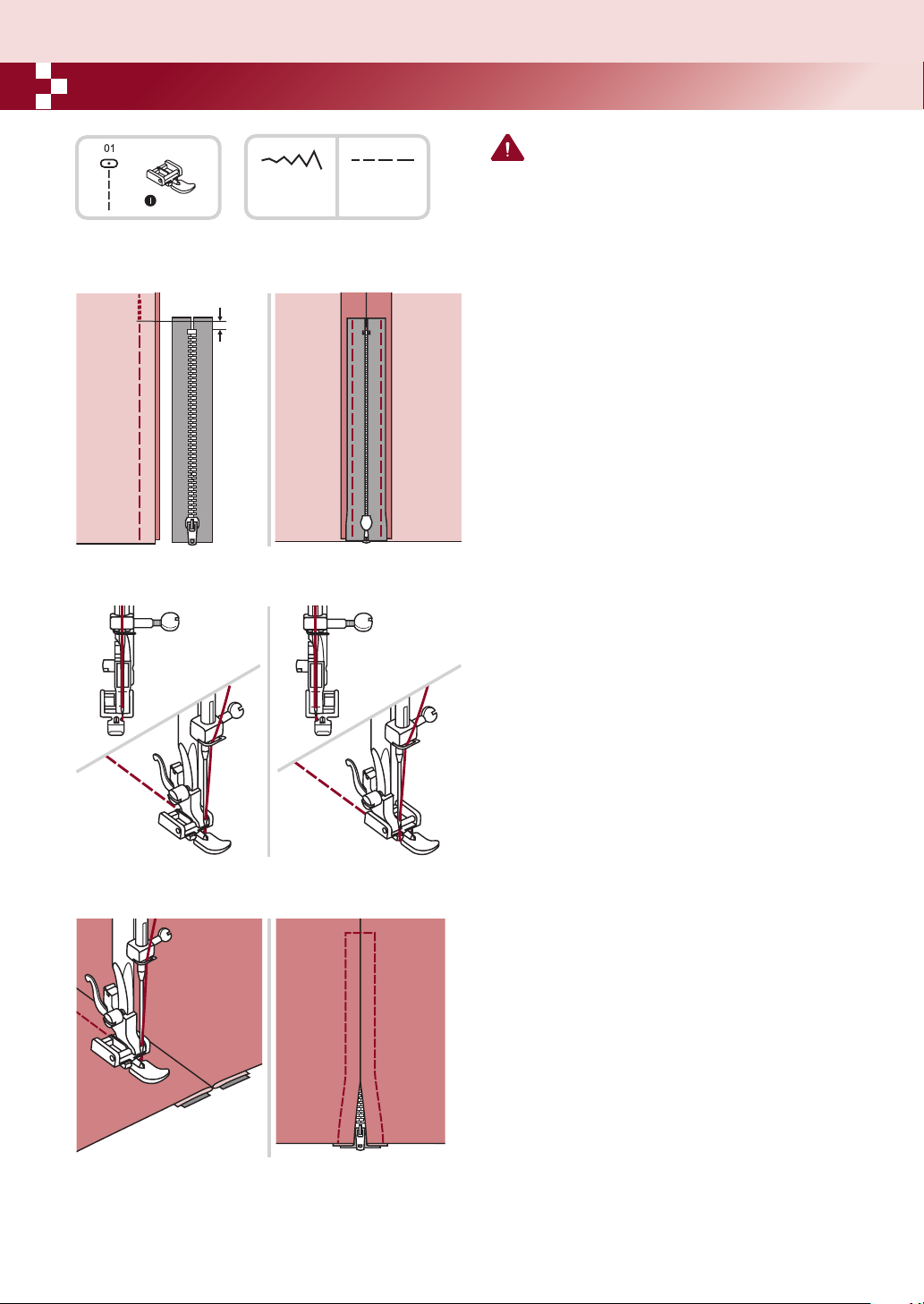

Zipper insertion

5mm

3.5

1.5~3.0

Attention: Zipper foot should be used for sewing width center needle position straight stitch only. It is possible that needle could hit the presser foot and break when sewing other patterns.

Inserting a centered zipper

- Baste the zipper opening on the garment.

- Press open the seam allowance. Place the zipper face down on the seam allowance with the teeth against the seam line. Baste the zipper tape.

- Attach the zipper foot. Attach the right side of the presser foot pin to the holder when sewing the left side of the zipper.

- Attach the left side of the presser foot pin to the presser foot holder when sewing the right side of the zipper.

- Stitch left side of the zipper from top to bottom.

- Stitch across the lower end and right side of zipper. Remove the basting and press.

Page 38

Zipper insertion

Inserting a side zipper

5mm

- Baste the zipper opening on the garment.

- Fold back to the left seam allowance.

Turn under the right seam allowance to form 3mm (1/8 inch) fold.

- Attach the zipper foot. Attach the right side of the presser foot pin to the holder when sewing the left side of the zipper. Attach the left side of the presser foot pin to the presser foot holder when sewing the right side of the zipper.

- Stitch the left side of zipper from bottom to top.

- Turn the fabric right side out, stitch across the lower end and right side of zipper.

- Stop about 5cm (2 inches) from the top of zipper. Remove the basting and open the zipper. Stitch the remainder of the seam.

Page 39

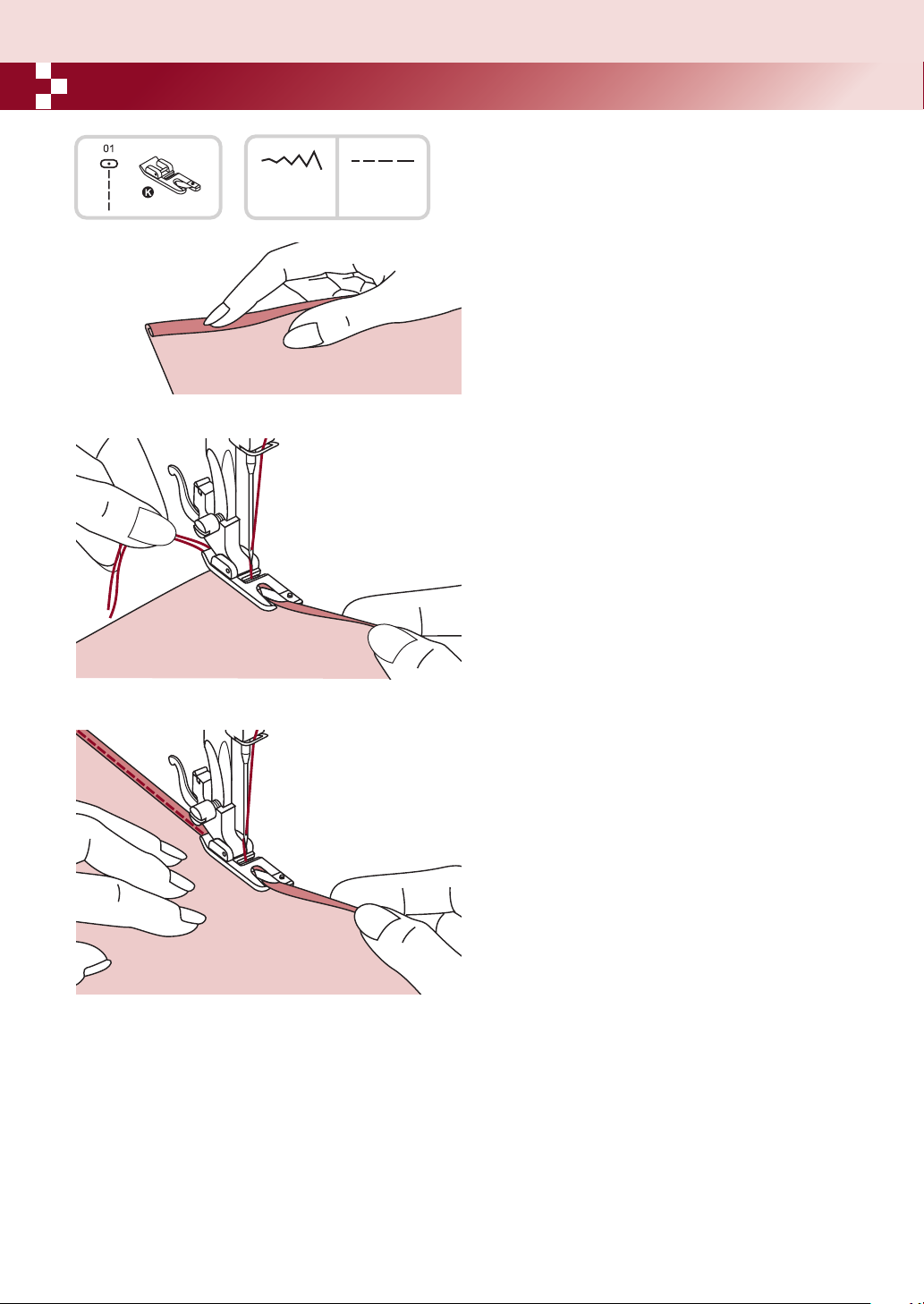

Narrow hemming

* The Hemmer foot accessory is optional. It is

not included with this machine.

3.5

1.5~3.0

Fold edge of fabric over about 3mm (1/8 inch), then fold it over again 3mm (1/8 inch) for about 5cm (2 inches) along the edge of the fabric.

Insert the needle into the fold by rotating the handwheel toward you, and lower the presser foot. Sew several stitches and raise the presser foot.

Insert the fabric fold into the spiral opening of hemmer foot. Move fabric back and forth until the fold forms a scroll shape.

Lower the presser foot and start sewing slowly guiding the raw edge of the fabric in front of the hemmer foot evenly into the scroll of the foot.

Page 40

Cording

Sew over one strand of cording to create a pretty swirled design on a jacket or vest or sew over three strands of cording for border trims. Pearl cotton, knitting yarn, embroidery floss, lace thread, fine wool or lily yarn can be used for cording.

* The foot accessory is optional. It is not included with this machine.Cording

Single cording

Mark the design on the fabric. Insert the cord in the center groove of the cording foot from the right side opening. Pull the cord about 5cm (2 inches) behind the foot.

The grooves under the foot will hold the length of the cord in place while the stitches are being form over the cord.

Select the stitch and adjust the stitch width so that the stitches are just covering the cord. Lower the foot and sew slowly, guiding the cord over the design.

Triple cording

Push the sewing thread to the left and insert three cords into the grooves of the foot and pull about 5cm (2 inches) of the cords behind the foot.

Select the desired pattern and adjust the stitch width so that the stitches are just covering the cords. Lower the foot and sew slowly guiding the cords.

Page 41

Satin stitch sewing

3.5~7.0

0.5~1.0

Use the satin stitch foot for satin stitching and sewing decorative stitches. This foot has a full indentation on the underside to allowed easy sewing over the thickness of the stitches form by closely spaced zigzag stitches, and even feeding of the fabric.

To tailor the satin or decorative stitch pattern, you may adjust the length and width of the pattern by pressing the stitch length and width adjustment buttons. Experiment with fabric scraps until you get the desired length and width.

Please Note: When sewing very thin fabrics, it is suggested that you use interfacing on the backside of the fabric.

Page 42

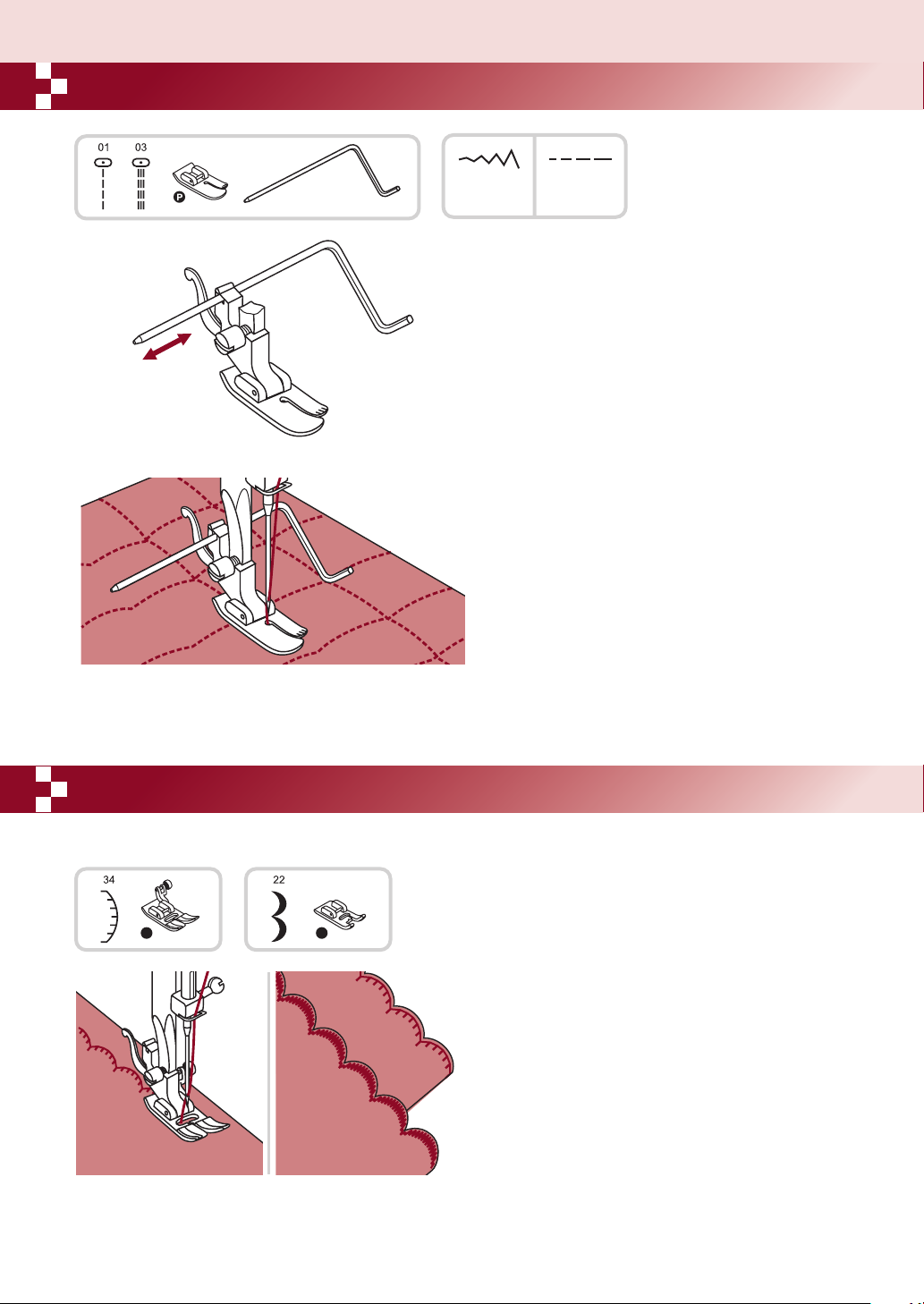

Quilting

3.5

* The Quilting foot accessory is optional. It is

Insert the e in the presser foot holder as illustrated and set the space as you desire.

Sew the first row and move over the fabric to sew successive rows with the guide riding along the previous row of stitching.

1.0~3.0

not included with this machine.

dge/quilting guide

Scallop stitch

- Stitch along the edge of the fabric, making sure

not to sew directly on the edge of the fabric. For better results, apply spray starch onto the

fabric and press with a hot iron before it is sewn.

- Trim along the stitches.

* Be careful not to cut the stitches.

Page 43

Gathering

3.5

4.5

* The Gathering foot accessory is optional. It is

not included with this machine.

Gathered fabric

Remove the presser foot holder and attach the gathering foot, lowering the tension setting to below 2.

Place fabric to be gathered under presser foot to the right of the presser foot.

Sew a row of stitching, keeping the raw edge of fabric aligned with the right edge of foot.

The stitches automatically cause the fabric to gather. fabrics.

To gather and attach gathered fabric in one step

Look closely at the gathering foot to see a slot on the bottom.

When using the slot, you can gather the bottom layer of the fabric while attaching it to a flat top layer, such as the waistband on a dress bodice.

- Remove the presser foot holder and attach

- Place the fabric to be gathered with right side

- Place top layer of the fabric right side down in

- Guide the two layers as illustrated.

Suitable for light to medium weight

gathering foot.

up under the foot.

the slot.

Note:

When testing machine for adjustments to achieve desired fullness, work with 10" increments of the fabric, trims or elastic. This makes it easier to determine the adjustments and how much change is needed for your project. Always test on your project fabric and on the same grainline as will be used in your finished project.

Sew slow to medium speed for better

Note:

fabric control.

Page 44

Smocking

Use the all purpose foot to sew straight lines 1cm (3/8 inch) apart, across the area to be smocked.

Knot the threads along one edge.

Pull the bobbin threads and distribute the gathers evenly. Secure the threads at the other end.

Reduce the tension, if necessary and sew decorative pattern stitches between the straight seams.

Pull out the gathering stitches.

Page 45

Free motion darning, embroidery and monogramming

* The Darning/ Embroidery foot accessory is

optional. It is not included with this machine.

3.5~5.0

Move the drop feed control to " " to lower the

feed dogs.

Remove the presser foot holder, and attach the darning foot to the presser foot holder bar.

The lever (a) should be behind the needle clamp screw (b). Press the darning foot on firmly from behind with your index finger and tighten the screw (c).

Darning

First sew around the edges of the hole (to secure the threads). Working from left to right, sew over the hole in a constant and continuous movement.

Turn the work by 1/4 and sew over the first stitching moving the work slower over the hole to separate the threads and not form big gaps between the threads.

Please Note: Free motion darning is accomplished without the sewing machine internal feed system. Movement of the fabric is controlled by the operator. It is necessary to coordinate sewing speed and movement of fabric.

Page 46

Free motion darning, embroidery and monogramming

Embroidery

Select zigzag stitch pattern and adjust the stitch width as desired. Stitch along the outline of the design by moving the embroidery hoop. Make sure to maintain a constant speed.

Fill in the design working from the outline towards the inside. Keep the stitches close together.

You will get longer stitches by moving the hoop faster and shorter stitches by moving the hoop more slowly.

Secure with a reinforcement stitches at the end by press Auto-lock button.

Monogramming

Select the zigzag stitch pattern and adjust the stitch width as desired. Sew at a constant speed, moving the hoop slowly along the lettering.

When the letter is finished. Secure with a reinforcement stitches at the end by press Autolock button.

* Embroider hoop is not included with the

machine.

Page 47

Fagoting

- Separate the folded edges of the fabric pieces with a gap of 4mm (1/8 inch) and baste them onto a piece of thin paper or water-soluble stabilizer sheet.

Thin paper

Basting

- Align the center of the presser foot with the center of the two pieces of fabric and begin sewing.

- After sewing, remove the paper.

Patchwork stitching

- Place the two pieces of fabric with the right side together and sew with the straight stitch.

- Open the seam allowances and presses it flat.

- Place the center of the presser foot on the seam line of the joined pieces of fabric and sew over the seam.

Page 48

Twin needle

* The twin needle is optional. It is not i n c l ud e

with the accessories.

2.0~5.0

Insert the twin needle.

Attention: When using twin needles, use the all purpose foot regardless of what kind of sewing foot will be carried out.

Use only twin needle assemblies with max. 2mm needle distance.

Follow the instructions for single-needle threading using the horizontal spool pin. Thread through the left needle.

Set the second spool pin (included with the accessories) into the hole on the top of the machine. Thread through remaining points, making certain to omit the thread guide above the needle and pass thread through the right needle.

Thread each needle separately.

Please Note: Make sure that the two threads used to thread the twin needle are of the same weight. You can use one or two colors

Before sewing adjust the stitch width, Turn the handwheel to check the needle clearance, so that needle does not hit the needle plate.

When sewing with twin needle, always proceed slowly, and make sure to maintain a low speed to insure quality stitching.

Select a stitch pattern and start to sewing. Utility and decorative patterns 01-16, 21-40 can

be used. Sewing result will be a pattern with two parallel

stitch lines.

Please Note: When sewing with twin needle, always proceed slowly, and make sure to maintain a low speed to insure quality stitching.

Page 49

Walking foot

* The walking foot accessory is optional. It is not included with

this machine.

Always try to sew first without the walking foot accessory which should be used only when necessary.

It is easier to guide the fabric and you have a better view of the seam when using the standard, regular foot on your machine.

Your sewing machine offers excellent stitch quality on a wide range of fabrics from delicate chiffons to multiple layers of denim.

The Walking Foot accessory equalizes the feeding of the upper and lower layers of fabric and improves the matching of plaids, stripes and patterns. It also helps to prevent uneven feeding of very difficult fabrics. The Walking Foot accessory equalizes the feeding of the upper and lower layers of fabric and improves the matching of plaids, stripes and patterns. It also helps to prevent uneven feeding of very difficult fabrics.

Lift the presser foot lifter to raise the presser foot bar.

Remove the presser foot holder by unscrewing (counterclockwise) the presser bar attaching screw.

Attach the Walking Foot to the machine as follows:

- The arm (a) should fit into above the needle screw and clamp (b).

- Slide the plastic attaching head (c) from your left to right so that it is fitted into the presser foot bar.

- Lower the presser foot bar.

- Replace and tighten (clockwise) the presser bar attaching screw.

- Make sure both the needle screw and the presser bar attaching screw are tightly secured.

Draw the bobbin thread up and place both the bobbin thread and the needle thread behind the walking foot attachment.

Page 50

Warning functions

Warning beeping sound

- When operating correctly: 1 beep

- When operating incorrectly: 3-short beeps

- When the sewing machine is in trouble and can't sew: 3-short beeps

It means that the thread is twisted or jammed and the hand wheel axle can't move. Please look t hrough the "Trouble shooting guide" on page 48/49 to find the solution. After the problem has been solved, the machine will continue to sew.

Return bobbin winder spindle to left

If you press any button on the machine when the bobbin is full or the bobbin winder spindle is in the right position, then the machine will beep 3 times as a warning.

Return the bobbin winder spindle to the left position.

Please Note: If the problem is still not solved, please contact your local dealer.

Attention: During the sewing, if the thread get jammed inside the hook stopping the needle from moving

and you continue pressing the foot control, the security switch will stop the machine completely. In order to restart the sewing machine, you will have to turn the on/off switch to the OFF position and then ON again.

Maintenance

Cleaning the sewing machine surface

If the surface of the sewing machine is dirty, lightly soak a cloth in mild detergent, squeeze it out firmly and then wipe the surface. After cleaning it once in this way, wipe the surface again with a dry cloth.

Attention: This machine is equipped with a 100mW LED lamp. If lamp replacement is needed, please contact nearest authorized retailer.

Cleaning the hook

If lint and bits of thread accumulate in the hook, this will interfere with the smooth operation of the machine. Check regularly and clean the stitching mechanism when necessary.

Attention: Disconnect the machine from the wall outlet before carrying out any maintenance.

Page 51

Maintenance

Remove the needle plate cover and bobbin.

Clean the bobbin holder with a brush.

Remove the needle, presser foot and presser foot holder.

Remove the bobbin cover plate and bobbin.

Remove the screw holding the needle plate and remove the needle plate.

Lift up the bobbin case and remove it.

Clean the hook race, feed dog and bobbin case with a brush. Also clean them, using a soft, dry cloth.

Replace the bobbin case into the hook race so that the tip (a) fits to the stopper (b) as shown.

Page 52

Trouble shooting guide

Before calling for service, check the following items. If the problem still persists, contact the place of purchase or your nearest authorized dealer.

Problem

Upper thread

breaks

Lower thread

breaks

Skipped

stitches

Needle breaks

Loose

stitches

Cause

1. The machine is not threaded correctly.

2. The thread tension is too tight.

3. The thread is too thick for the needle.

4. The needle is not inserted correctly.

5. The thread is wound around the spool holder pin.

6. The needle is damaged.

1. The bobbin case is not inserted correctly.

2. The bobbin case is threaded wrong.

3. The lower thread tension is too tight

1. The needle is not inserted correctly.

2. The needle is damaged.

3. The wrong size needle has been used.

4. The foot is not attached correctly.

5. The machine is not threaded correctly.

1. The needle is damaged.

2. The needle is not correctly inserted.

3. Wrong needle size for the fabric.

4. The wrong foot is attached.

5. The needle clamp screw is loose.

6. The presser foot that is used is not appropriate for the type of stitch that you wish to sew.

7. The upper thread tension is too tight.

1. The machine is not correctly threaded.

2. The bobbin case is not correctly threaded.

3. Needle/ fabric/ thread combination is wrong.

4. Thread tension is wrong.

Correction

1. Rethread the machine.

2. Reduce the thread tension (lower number).

3. Select a larger needle.

4. Remove and reinsert the needle (flat side towards the back).

5. Remove the reel and wind thread onto reel.

6. Replace the needle.

1. Remove and reinsert the bobbin case and pull on the thread. The thread should pull easily.

2. Check both bobbin and bobbin case.

3. Loosen lower thread tension as described.

1. Remove and reinsert needle(flat side towards the back).

2. Insert a new needle.

3. Choose a needle to suit the thread.

4. Check and attach correctly.

5. Rethread the machine.

1. Insert a new needle.

2. Insert the needle correctly (flat side towards the back).

3. Choose a needle to suit the thread and fabric.

4. Select the correct foot.

5. Use the screwdriver to firmly tighten the screw.

6. Attach the presser foot that is appro-priate for the type of stitch that you wish to sew.

7. Loosen the upper thread tension.

1. Check the threading.

2. Thread the bobbin case as illustrated.

3. The needle size must suit the fabric and thread.

4. Correct the thread tension.

Reference

Page 11

Page 14

Page 7

Page 11

Page 7

Page 10

Page 20

Page 7

Page 5

Page 11

Page 7

Page 20

Page 7

Page 20

Page 14

Page 11

Page 10

Page 7

Page 14

Seam

gather or

pucker

1. The needle is too thick for the fabric.

2. The stitch length is adjusted wrong.

3. The thread tension is too tight.

1. Select a finer needle.

2. Readjust the stitch length.

3. Loosen the thread tension.

Page 7

Page 18

Page 14

Page 53

Trouble shooting guide

Problem

Seam

puckering

Patterns are

distorted

The machine

jams

The

machine is

noisy

Uneven stitches,

uneven feed

The sewing

machine

doesn't operate

Cause

1. The needle thread tension is too tight.

2. The needle thread is not threaded correctly.

3. The needle is too heavy for the fabric being sewn.

4. The stitch length is too long for the fabric.

1. The correct presser foot is not used.

2. The needle thread tension is too tight.

1. Thread is caught in the hook.

2. The feed dogs are packed with lint.

1. Fluff or oil have collected on the hook or needle bar.

3. The needle is damaged.

4. Slight humming sound coming from internal motor.

5. Thread is caught in the hook.

6. The feed dogs are packed with lint.

1. Poor quality thread.

2. The bobbin case is threaded wrong.

3. Fabric has been pulled.

1. The machine is not turned on.

2. The presser foot lever is raised.

3. The machine is not plugged in.

Correction

1. Lossen the thread tension.

2. Rethread the machine.

3. Choose a needle to suit the thread and fabric.

4. Make stitch dense.

1. Select the correct foot.

2. Loosen the thread tension .

Remove the upper thread and bobbin case, turn the handwheel backwards and forwards by hand and remove the thread remands.

1. Clean the hook and feed dog as described.

3. Replace the needle.

4. Normal.

Remove the upper thread and bobbin case, turn the handwheel backwards and forwards by hand and remove the thread remands.

1. Select a better quality thread.

2. Remove the bobbin case, the thread and reinsert correctly.

3. Do not pull on the fabric while sewing, let it be taken up by the machine.

1. Turn on the machine.

2. Lower the presser foot lever.

3. Connect the power line plug to the electric outlet.

Reference

Page 14

Page 11

Page 7

Page 18

Page 20

Page 14

Page 46

Page 7

Page 46

Page 7

Page 10

Page 3

Page 16

Page 3

Page 54

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

H10A( ) Apr/09

Silver 1035 User Manual [nl]

Specifications and Main Features

Frequently Asked Questions

User Manual
