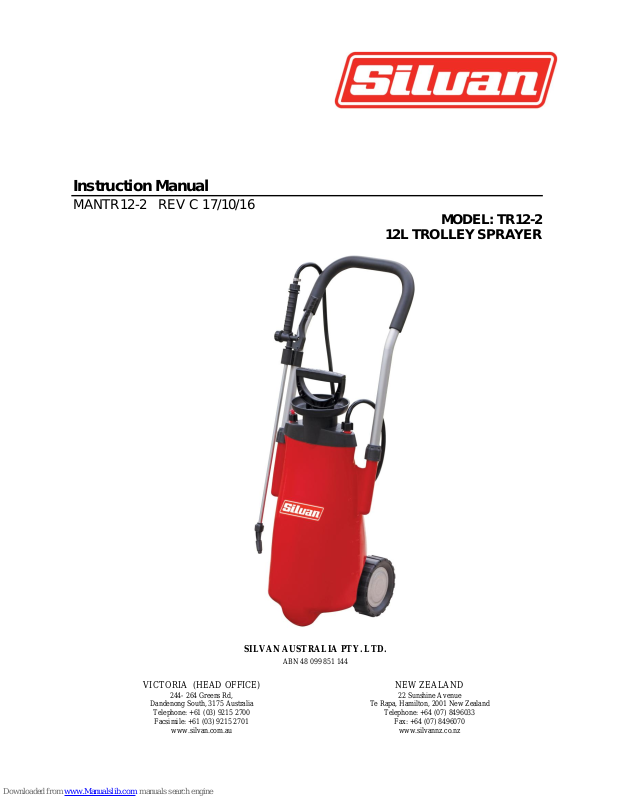

Silvan Selecta TR12-2 Instruction Manual

Instruction Manual

MANTR12-2 REV C 17/10/16

MODEL: TR12-2

12L TROLLEY SPRAYER

VICTORIA (HEAD OFFICE)

244- 264 Greens Rd,

Dandenong South, 3175 Australia

Telephone: [phone]

Facsimile: [phone]

www.silvan.com.au

NEW ZEALAND

22 Sunshine Avenue

Te Rapa, Hamilton, 2001 New Zealand

Telephone: [phone]

Fax: [phone]

www.silvannz.co.nz

SILVAN AUSTRALIA PTY. LTD.

ABN 48 099 851 144

Specifications

Before attempting to operate or install the sprayer carefully read and take note of the following
safety warnings.

Failure to comply with these warnings may result in serious injury or death.

Warning ! Prior to using the sprayer all operators must read and fully understand the contents of this instruction manual,
all safety information fitted to the sprayer and any other manual for associated equipment.

Warning ! Never allow an inadequately trained person to install or operate the sprayer.

Warning ! Do not spray or flammable liquids.

Warning ! Refer to the chemical manufacturer’s label for correct use and safe handling instructions of chemicals before

filling or using the sprayer. Always wear the recommended safety clothing and equipment when handling chemicals and
operating the sprayer. Ensure that all operators and associated personnel are familiar with the legal regulations and codes of
practice that apply to the safe use, storage and disposal of spray chemicals

Warning ! Exercise care to ensure proper stability when carrying or operating in hilly and uneven terrain, particularly if
the ground is wet or loose. Wear non-slip shoes.

Warning ! Before carrying out maintenance work, wash the sprayer thoroughly to remove all toxic chemicals that may
contaminate the sprayer. Wear appropriate safety clothing and equipment when carrying out maintenance. Do not clear
blocked nozzles by blowing out with your mouth.

Warning ! Never point the spray gun at any person or any part of the human body.

Warning! Dispose of empty chemical containers and chemical residues in accordance with the instructions supplied by
the chemical manufacturer

GENERAL

This trolley sprayer has been designed and manufactured primarily for the purpose of applying agricultural and
horticultural herbicides and insecticides to plants. It may also be used for cleaners and other products compatable with
Viton seals

PUMP
Flow: 2.4 L/min open flow
Pressure: 2.5 Bar

TANK
12L blow moulded translucent polyethylene tank, U.V. stabilized and impact resistant with calibrated fill mark moulded
into the tank. Safety pressure release valve fitted. Nominal capacity 12Litres

SPRAY LANCE

Trigger jet assembly with 500mm long lance supplied with adjustable nozzle

TROLLEY

2 wheel Trolley, Adjustable handle length, 150mm diameter wheels

FILTRATION:

Filter in spray lance handle.

DIMENSIONS

Length 340 mm Width 300 mm Height 900 mm Weight (dry) 3.25 kg

Safety Instructions

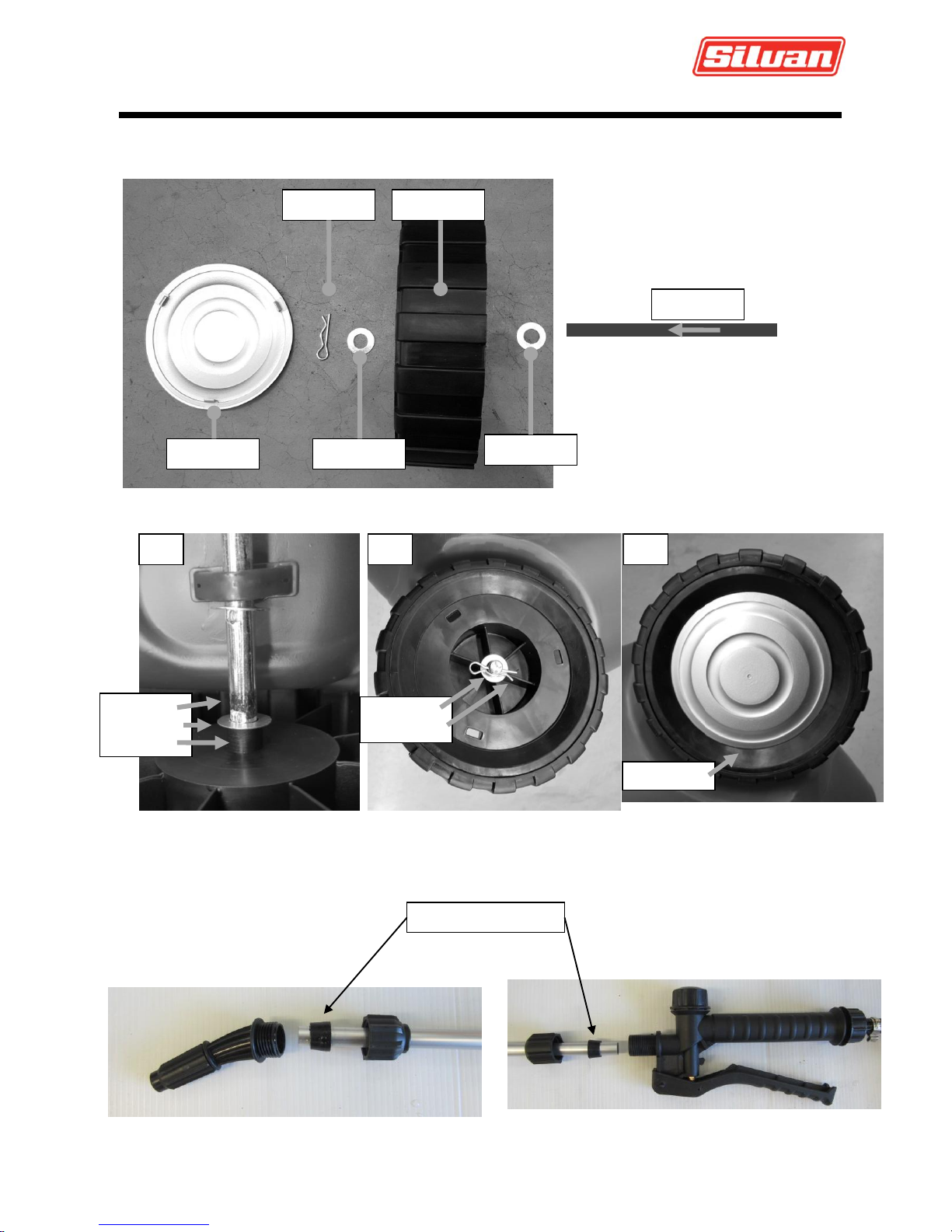

GUN ASSEMBLY

Fit the spray lance to the gun ensuring the rubber seal is fitted. Fit the 45 degree elbow and nozzle to the tip of
the lance again insuring the seal is in place.

SEAL POSITION

FITTING WHEELS

Fit each wheel with the supplied parts as shown

AXLE
WASHER
WHEEL

WASHER
R-CLIP

HUB CAP

AXLE

WASHER

WASHER

WHEEL

R-CLIP

HUB CAP

1.

2.

3.

Installation

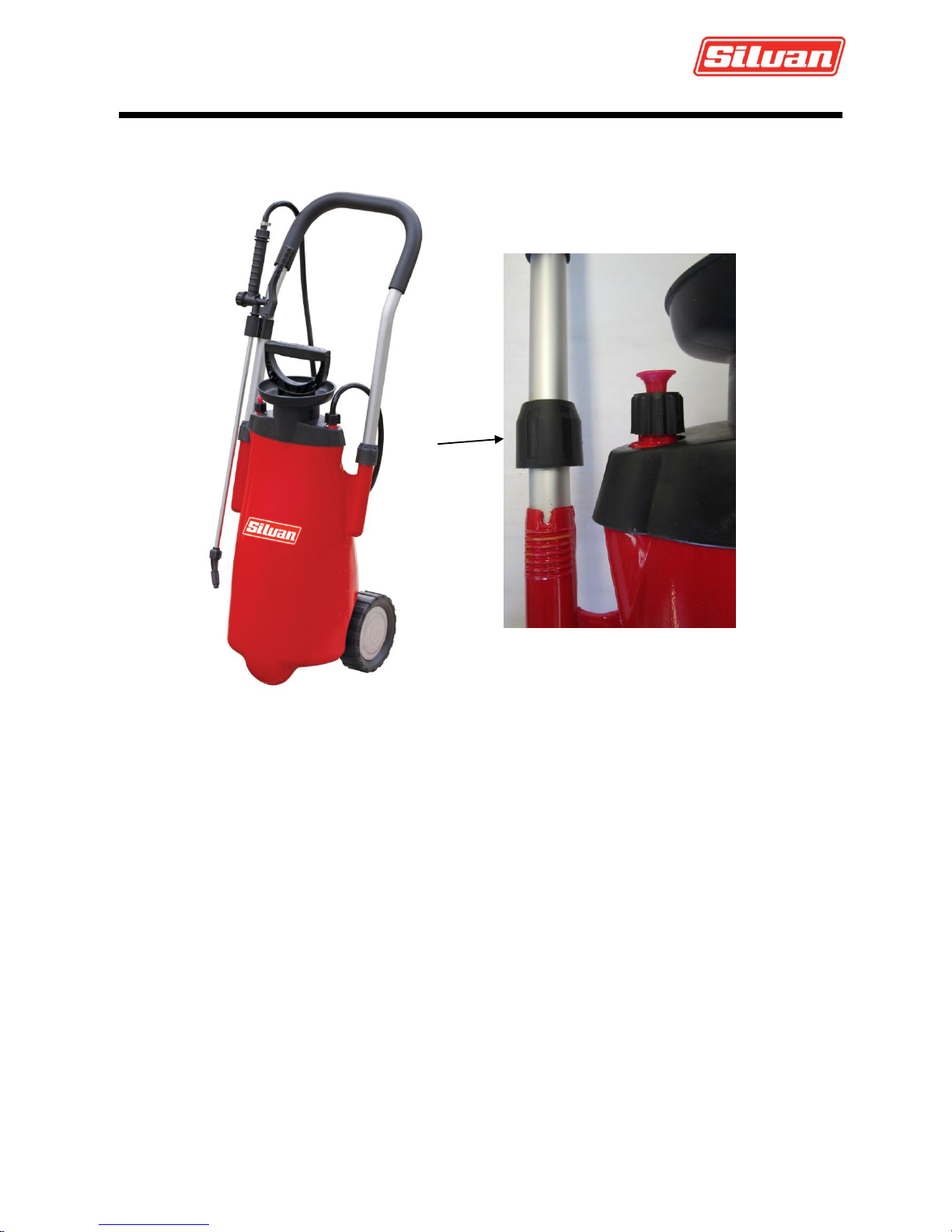

FIT THE TROLLEY HANDLES AND ADJUST THE HEIGHT

The handle length can be adjusted by loosening the nut shown in the diagram, adjusting the length and retightening trolley

Installation

FILLING THE TANK AND ADDING CHEMICAL
Warning : Before using the sprayer for the first time or adding chemical check the operation and function of the
sprayer with clean water.

Check that the filter is clean and all fittings, hoses and gun connections are tight.
Partly fill the sprayer before adding chemical. Always use clean water to prevent blockages and ensure chemical function is
not inhibited.
Add the chemical according to the directions on the chemical container following all safety and protective equipment
recommendations.
Do not use wet powders or chemicals that must remain suspended in solution and require agitation. Only use chemicals or
dyes that fully dissolve.
Do not use a sprayer that has been used to spray herbicides for insecticides or nutrients unless the sprayer has been
thoroughly cleaned including neutralizing the herbicide according to the manufactured directions if required.

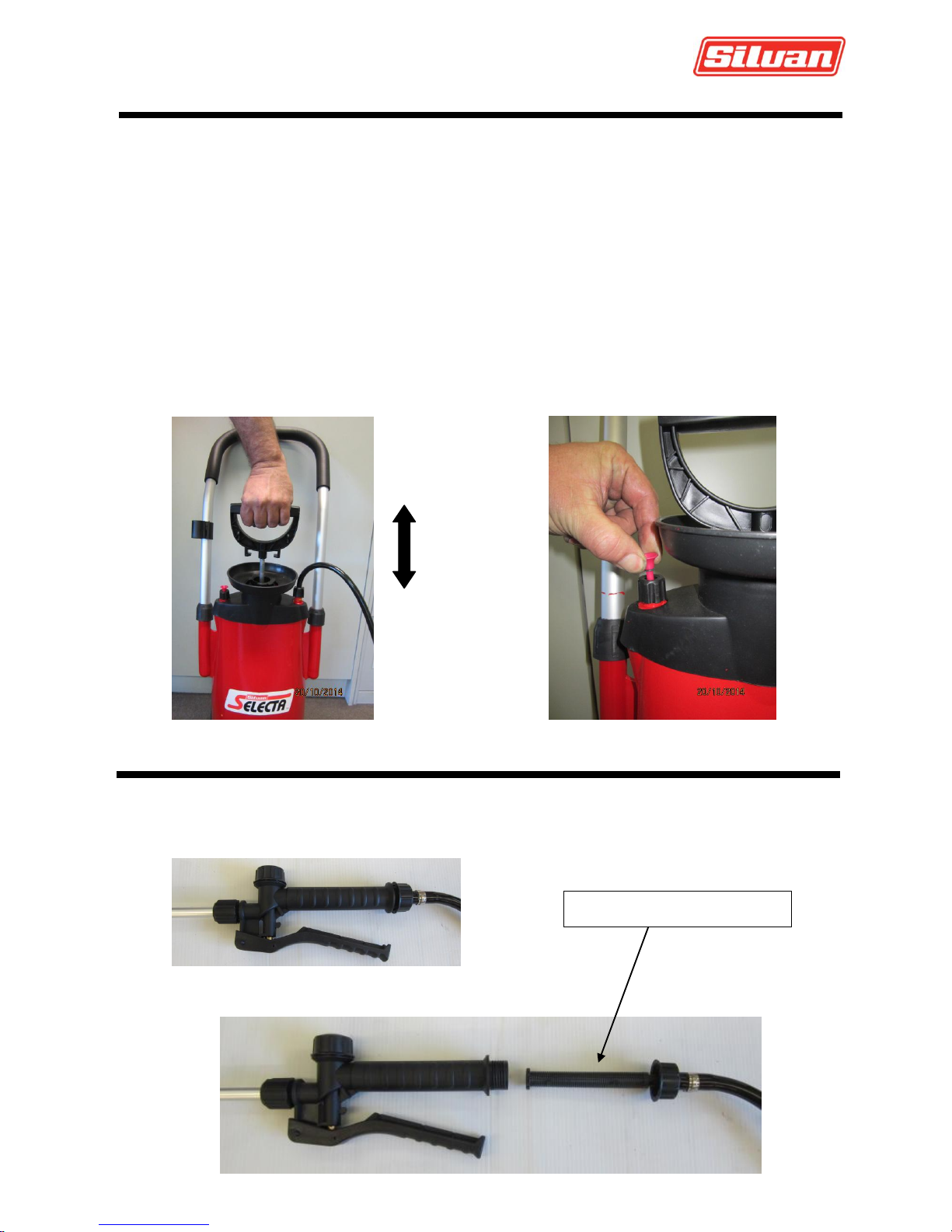

OPERATING THE PUMP

The tank is pressurised by manually pumping the handle up and down. A pressure safety valve prevents over pressurisation.
After use always release the air pressure inside the tank using the pressure safety valve, particularly in hot weather.
.

CLEANING THE FILTER IN THE GUN HANDLE
Use clean water and rinse out the sprayer after use to avoid the filter becoming clogged. The filter is fitted inside the handle
of the sprayer. Unscrew the hose connection to the gun and withdraw the filter using a pair of needle nose pliers and clean.

FILTER INSIDE GUN HANDLE

Service & Maintenance

Operation

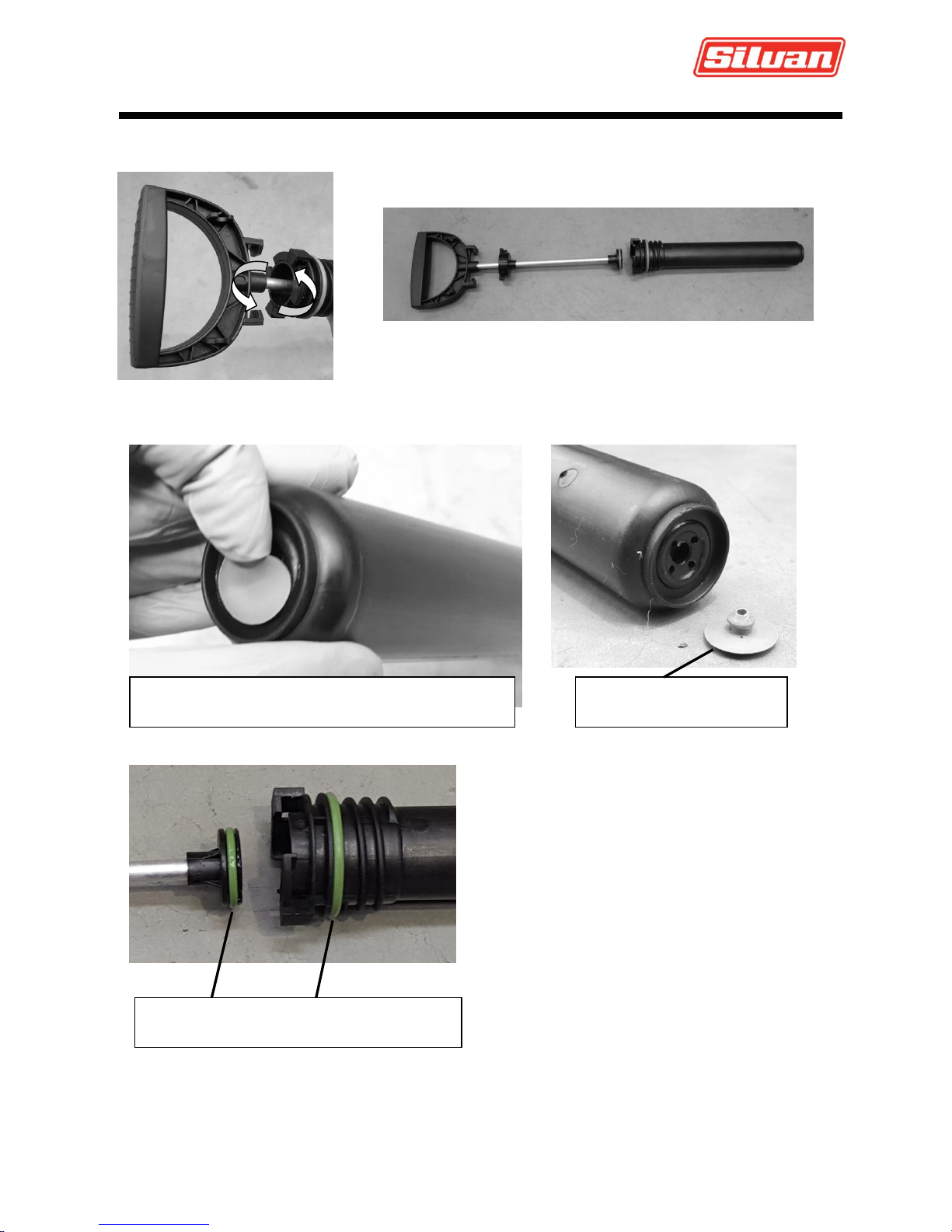

SERVICING THE PUMP
To access all o-rings and seals the pump will need to be opened. Top of pump will twist open then Piston can slide out.

To access all o-rings and seals the pump will need to be opened. Top of pump will twist open then Piston can slide out.

Remove diaphragm and clear,
replace if damaged

Check Piston O-Ring and pump O-ring is clean
and lubricated (Vaseline / Petroleum Jelly)

Service & Maintenance

Inspect under diaphragm for dirt or debris and clean

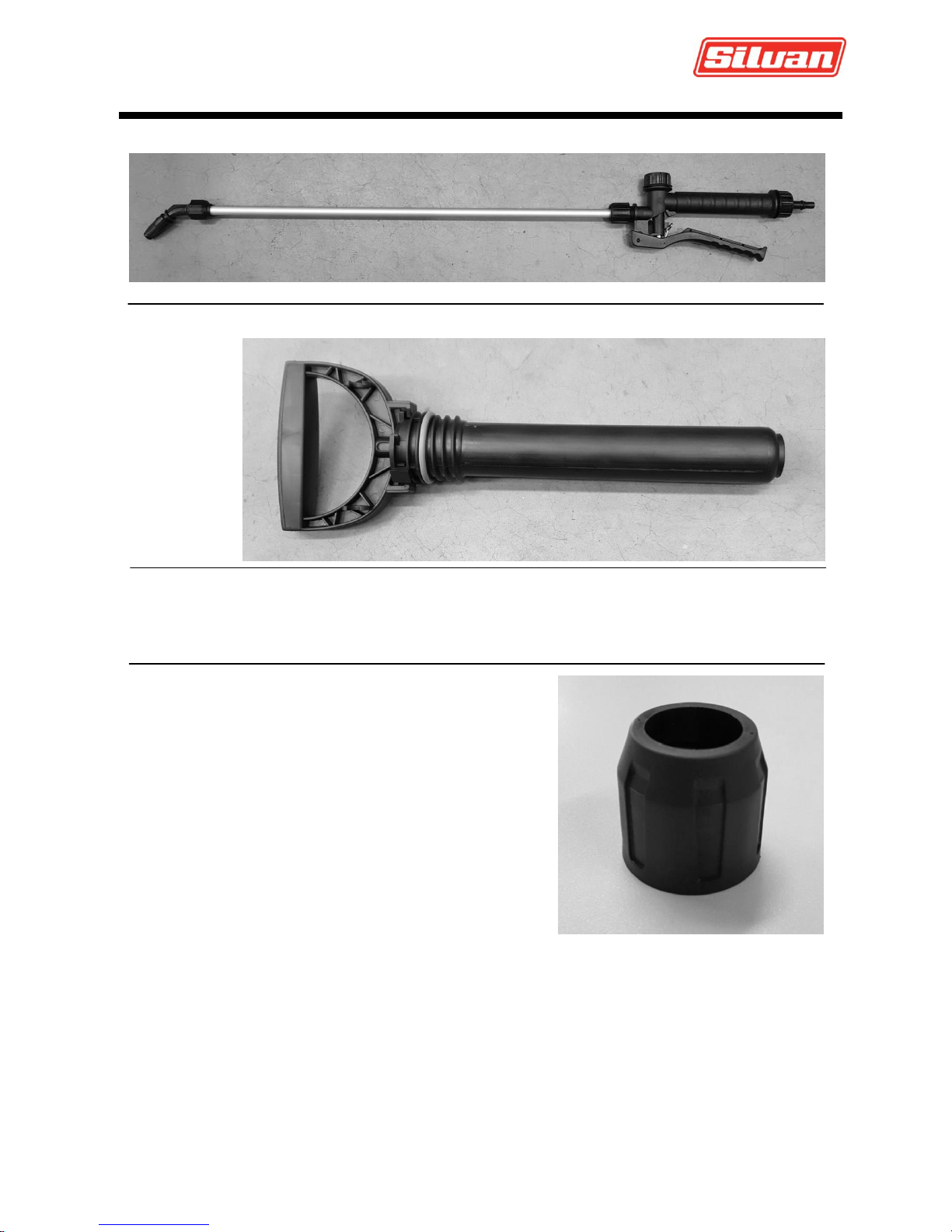

P/No TR12-20 -Spray lance

P/No TR12-21 -Pump Assembly

P/No TR12-22 -Seal Service Kit

Kit Not Shown. Includes common o-rings and seals for pump service and maintenance.

P/No TR12-23 -Handle Lock Nut

Spare Parts

TROUBLE SHOOTING GUIDE

Symptom

Remedy

No or limited pressure inside
the tank.

 Air Leak

-Check pump assembly is screwed in tight. Check for dirt or damage of
sealing gasket, replace if necessary

-Check safety air release valve is tightly fitted, not damaged or making
“hiss” noise. Remove, clean then refit.

-Check Spray hose connection, where hose exits tank is tightly fitted and
connection not making “hiss” noise

 Pump will not pump

-Check diaphragm on end of pump is clean, remove and wash under
clean water or replace if damaged

-Check O-Ring on piston is clean and lubricated or replace if necessary.

There is pressure inside tank
but limited or no flow from
the nozzle

 The suction foot filter on the end of the spray suction tube inside the tank

is blocked. The suction tube can be removed from the tank for cleaning
by unscrewing connection on the outside of the tank

 Unscrew the spray gun from the hose to access the filter inside the cun

handle to clean.

 The nozzle is blocked. Unscrew the black coloured nozzle from the end

of the gun and clean all parts.

The sprayer sprays air without
water

 The suction tube inside the tank has come loose. Refit

Trouble Shooting
