Silvan Selecta Selecta MANSECURE01 Instruction Manual

Instruction Manual

MANSECURE01 REV-A 23/07/13
Motion Activated Security Camera

VICTORIA (HEAD OFFICE)

244- 264 Greens Rd,

Dandenong South, 3175 Australia

Telephone: [phone]

Facsimile: [phone]

www.silvan.com.au

NEW ZEALAND

22 Sunshine Avenue

Te Rapa, Hamilton, 2001 New

Zealand

Telephone: [phone]

Fax: [phone]

www.silvannz.co.nz

SILVAN AUSTRALIA PTY. LTD.

ABN 48 099 851 144

Silvan Warranty

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure.

We warrant our goods to be free from defects in materials and workmanship for the warranty period of 12 months from the
date the product is delivered to the consumer.
Silvan warrants its authorised Dealer, who in turn warrants the original purchaser (consumer) of each new Silvan product that
it will repair or replace the product, or, pay the cost of repair or replacement, as determined by Silvan without charge for
labour or any defective or malfunctioning parts in accordance with the warranty limitations below.
This Warranty is in addition to any other rights and remedies available to consumers under the law

This Warranty Covers

Only conditions resulting directly from defects in workmanship or material under normal use and service.

Warranty Exclusions

The Warranty does not cover:

 Conditions resulting from misuse, use of incompatible chemicals, exceeding machine specifications including

overloading, impact damage, negligence, accidental damage or failure to perform recommended maintenance
services as specified in the Owner/Operator Manual applicable to the product.

 Damage caused by continued use of a product after initial failure
 Any product which has been repaired by other than an authorised Silvan service outlet in a way which, in the sole and

absolute judgment of Silvan, adversely affect its performance or reliability.

 The replacement of maintenance items such as diaphragms, batteries, V belts and ground engaging components, etc.

How to claim Warranty

Return the goods to the place of purchase at your cost and within the warranty period along with evidence of the purchase
date. If the original supplier cannot be contacted then contact Silvan as below and we can direct you on how to proceed with
your warranty claim.

How your claim will be managed

The repair of a defective product qualifying under this warranty will be performed by any authorised Silvan service outlet

within a reasonable time following the delivery of the product, at the cost of the owner, to the service outlet’s place of

business. The product will be repaired or replaced depending on the extent of the problem at the discretion of Silvan and the
Silvan dealer.

Silvan Australia Pty Ltd
264 -266 Greens Rd
Dandenong Sth
Victoria 3164
1300 SILVAN (745 826)
[e-mail]

New Product Warranty

General Information

1.1 Introduction

1.2 Application

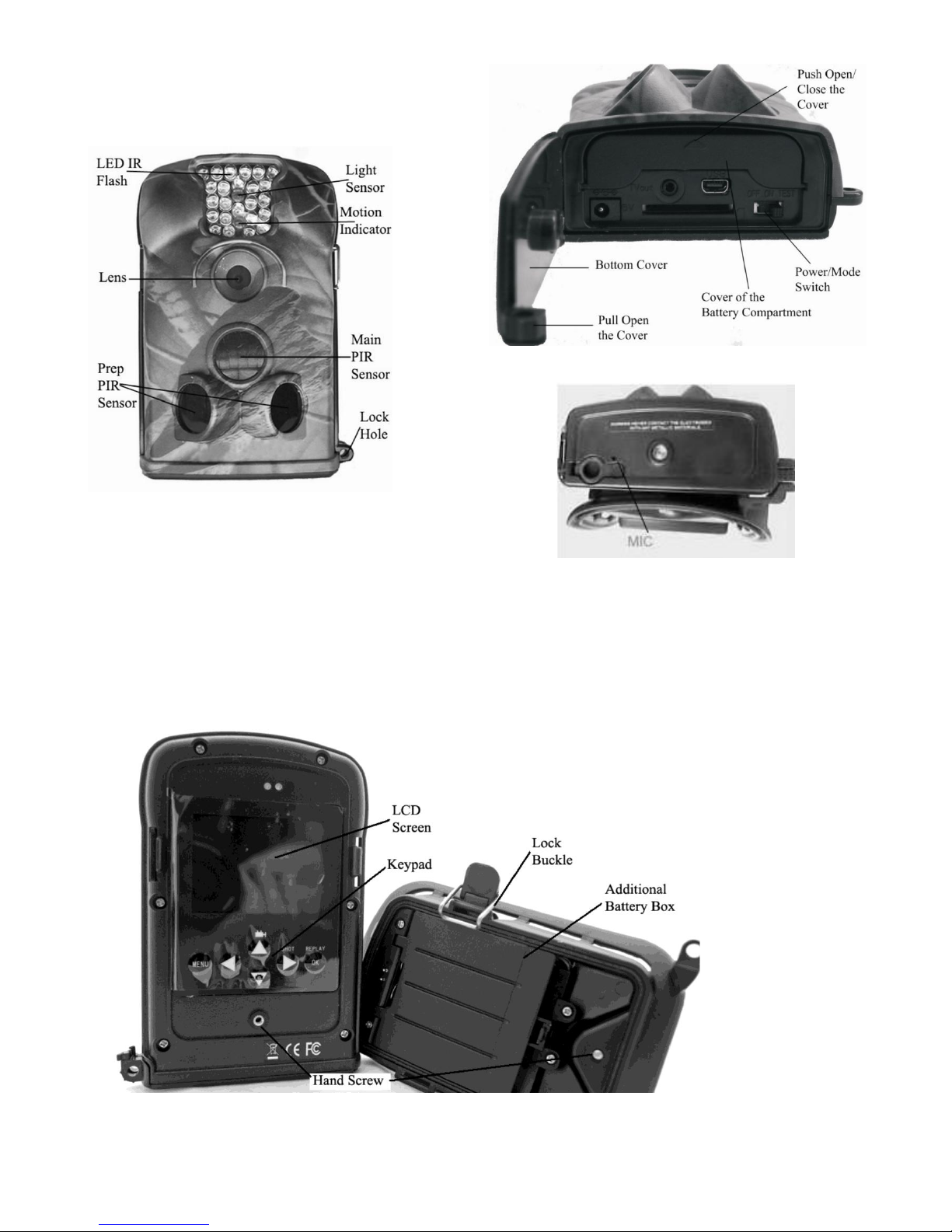

1.3 Illustration

Quick Start

2.1 Load Batteries

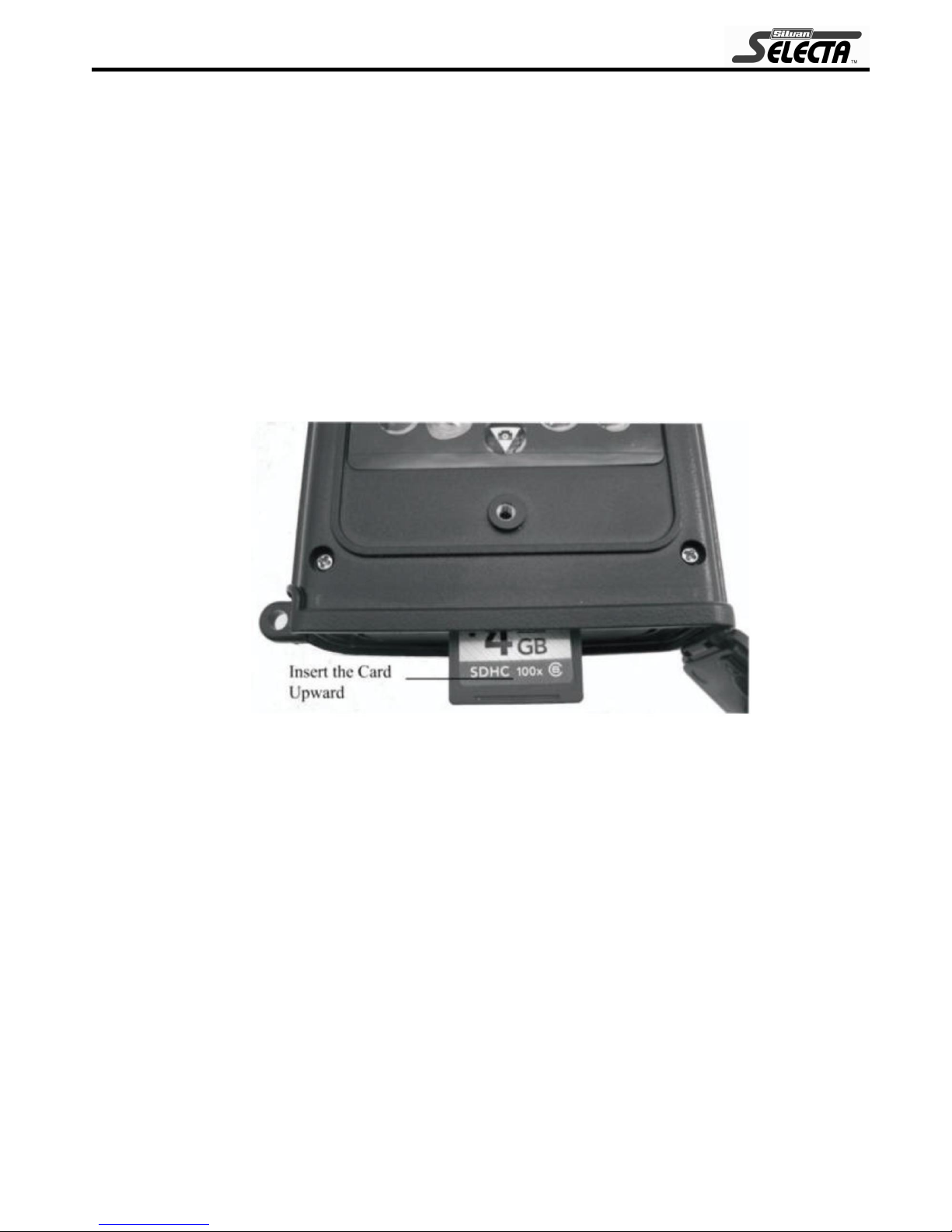

2.2 Insert SD Card

2.3 Enter Test Mode

2.4 Enter Live Mode

Advanced Settings

3.1 Parameter Settings

3.2 File Format

3.3 Review Pictures or Video

Appendix Technical Specifications
Appendix Instruction on Installing Additional Battery Box

1.1 Introduction

The Selecta Motion Activated Security Camera (also called Day & Night camera) can be triggered by sudden change of
ambient temperature caused by movement in a region of interest (ROI), which is detected by a highly sensitive Passive
Infra-Red (PIR) sensor, and then take pictures or video clips automatically.

SECURE01 features:

 12 Mega Pixels Color CMOS
 Records Photos and/or Video
 Audio recording function available
 Sharp and bright color pictures in daytime and clear black/white pictures at night
 Low standby power consumption. *Extremely long in-field life (in standby mode, up to 3 months with 4 x AA

batteries and 6 months with 8 x AA batteries). Note: * Requires good quality batteries, preferably camera batteries
to achieve maximum standby time period without activity.

 Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
 Perform in the most extreme temperatures from -30°C to 70°F
 Compact size (14 x 8.9 x 6.3cm).
 Trigger (or response) time 1 second
 Backpack-looking tree grabber makes mounting and aiming a snap
 Serial Number function enables you to record an 4 character alpha-numeric name onto photos. This helps multi-

camera users identify the location when reviewing the photos

 Date, time can be stamped in the pictures
 Lockable and password protected

Note the SECURE01 doesn’t not feature MMS functionality (other premium models of this camera are made to
feature MMS function and those cameras which have a SIM card slot in the camera). Some menu option refer to
MMS however they will not effect the operation of the SECURE01.

1.2 Application

 Motion-triggered security camera, for home, office and community
 Trail camera for hunting, stock monitoring
 Event observation (also refer to time lapse function)
 All other indoor/outdoor surveillance where invasion evidence needed
