Si4421 Universal ISM Band FSK Transceiver

DESCRIPTION

Silicon Labs’ Si4421 is a single chip, low power, multi-channel FSK

ransceiver designed for use in applications requiring FCC or ETSI conformance for unlicensed use in the 433, 868 and 915 MHz bands. The Si4421 transceiver is a part of Silicon Labs’ EZRadio line, which produces a flexible, low cost, and highly integrated solution

hat does not require production alignments. The chip is a complete analog RF and baseband transceiver including a multi-band PLL synthesizer with PA, LNA, I/Q down converter mixers, baseband filters and amplifiers, and an I/Q demodulator. All required RF functions are integrated. Only an external crystal and bypass filtering are needed for operation.

The Si4421 features a completely integrated PLL for easy RF design, and its rapid settling time allows for fast frequency-hopping, bypassin multipath fading and interference to achieve robust wireless links. The PLL’s high resolution allows the usage of multiple channels in any o

he bands. The receiver baseband bandwidth (BW) is programmable to accommodate various deviation, data rate and crystal tolerance requirements. The transceiver employs the Zero-IF approach with I/Q demodulation. Consequently, no external componen and decoupling) are needed in most applications.

The Si4421 dramatically reduces the load on the microcontroller with

he integrated digital data processing features: data filtering, clock recovery, data pattern recognition, integrated FIFO and TX data register. The automatic frequency control (AFC) feature allows the use of a low accuracy (low cost) crystal. To minimize the system cost, the Si4421 can provide a clock signal for the microcontroller, avoiding the need for two crystals.

For low power applications, the Si4421 supports low duty cycle operation based on the internal wake-up timer.

FUNCTIONAL BLOCK DIAGRAM

MIX

AMP OC

BB Amp/Filt./Limiter

WTM

with cal.

Low Power parts

Self cal.

I/Q

DEMOD

RSSI

ARSSI

SCK nSEL SDO nIRQ

SDI

3 4

DQDCOMP

AFC

ControllerXosc LBD

nRES

RF1

RF2

LNA

PLL & I/Q VCO

ith cal.

CLK div

8 9

CLK

XTL / REF

RF Parts Data processing units

product

s (except crystal

DCLK /

CFIL / FFIT /

clk

nINT /

Data Filt CLK Rec

FIFO

VDI

FSK /

data

DATA / nFFS

Bias

VDD

VSS

Si4421

PIN ASSIGNMENT

This document refers to Si4421-IC rev A1.

See www.silabs.com/integration for any applicable errata.

See back page for ordering information.

FEATURES

 Fully integrated (low BOM, easy design-in)  No alignment required in production  Fast-settling, programmable, high-resolution PLL synthesizer  Fast frequency-hopping capability  High bit rate (up to 115.2 kbps in digital mode and 256 kbps

in analog mode)

 Direct differential antenna input/output  Integrated power amplifier  Programmable TX frequency deviation (15 to 240 kHz)  Programmable RX baseband bandwidth (67 to 400 kHz)  Analog and digital RSSI outputs  Automatic frequency control (AFC)  Data quality detection (DQD)  Internal data filtering and clock recovery  RX synchron pattern recognition  SPI compatible serial control interface  Clock and reset signals for microcontroller  16-bit RX Data FIFO  Two 8-bit TX data registers  Low power duty cycle mode  Standard 10 MHz crystal reference with on-chip tuning  Wake-u

p timer

 2.2 to 3.8 V supply voltage  Low power consumption  Low standby current (0.3 A)  Compact 16 pin TSSOP package  Supports very short packets (down to 3 bytes)  Excellent temperature stability of the RF parameters  Good adjacent channel rejection/blocking

TYPICAL APPLICATIONS

 Home security and alarm  Remote control, keyless entry  Wireless keyboard/mouse and other PC peripherals  Toy controls  Remote keyless entry  Tire pressure monitoring  Telemetry  Personal/patient data logging  Remote automatic meter reading

Si4421-DS rev 2.4r 0708

www.silabs.com

Si4421

DETAILED FEATURE-LEVEL DESCRIPTION

The Si4421 FSK transceiver is designed to cover the unlicensed frequency bands at 433, 868 and 915 MHz. The device facilitates compliance with FCC and ETSI requirements.

The receiver block employs the Zero-IF approach with I/Q demodulation, allowing the use of a minimal number of external components in a typical application. The Si4421 incorporates a fully integrated multi-band PLL synthesizer, PA with antenna tuning, an LNA with switchable gain, I/Q down converter mixers, baseband filters and amplifiers, and an I/Q demodulator followed by a data filter.

PLL

The programmable PLL synthesizer determines the operating frequency, while preserving accuracy based on the on-chip crystalcontrolled reference oscillator. The PLL’s high resolution allows the usage of multiple channels in any of the bands.

RF Power Amplifier (PA)

The power amplifier has an open-collector differential output and can directly drive different PCB antennas with a programmable output power level. An automatic antenna tuning circuit is built in to avoid costly trimming procedures and the so-called “hand effect”.

LNA

The LNA has approximately 250 Ohm input impedance, which functions well with the proposed antennas (see: Application Notes available from www.silabs.com/integration)

If the RF input of the chip is connected to 50 Ohm devices, an external matching circuit is required to provide the correct matching and to minimize the noise figure of the receiver.

The LNA gain can be selected in four steps (between 0 and

-20dB relative to the highest gain) according to RF signal strength. It can be useful in an environment with strong interferers.

Baseband Filters

The receiver bandwidth is selectable by programming the bandwidth (BW) of the baseband filters. This allows setting up the receiver according to the characteristics of the signal to be received.

An appropriate bandwidth can be chosen to accommodate various FSK deviation, data rate and crystal tolerance requirements. The filter structure is 7 pass with 40 dB suppression at 2 · BW frequency. Offset cancellation is done by using a high-pass filter with a cut-off frequency below 7 kHz.

order Butterworth low-

Full Baseband Amplifier Transfer Function

BW=67kHz

Data Filtering and Clock Recovery

Output data filtering can be completed by an external capacitor or by using digital filtering according to the final application.

Analog operation: The filter is an RC type low-pass filter followed

a Schmitt-trigger (St). The resistor (10 kOhm) and the St are

by integrated on the chip. An (external) capacitor can be chosen according to the actual bit rate. In this mode, the receiver can handle up to 256 kbps data rate. The FIFO cannot be used in this mode and clock is not provided for the demodulated data.

Digital operation: A digital filter is used with a clock frequency at

mes the bit rate. In this mode, there is a clock recovery

29 ti circuit (CR), which can provide synchronized clock to the data. Using this clock the received data can fill a FIFO. The CR has three operation modes: fast, slow, and automatic. In slow mode, its noise immunity is very high, but it has slower settling time and requires more accurate data timing than in fast mode. In automatic mode, the CR automatically changes between fast and slow mode. The CR starts in fast mode, then after locking, it automatically switches to slow mode

(Only the digital data filter and the clock recovery use the bit rate clock. For analog operation, there is no need for setting the correct bit rate.)

Si4421

Data Validity Blocks

RSSI

A digital RSSI output is provided to monitor the input signal level. It goes high if the received signal strength exceeds a given preprogrammed level. An analog RSSI signal is also available. The RSSI settling time depends on the external filter capacitor. Pin 15 is used as analog RSSI output. The digital RSSI can be monitored by reading the status register.

Typical Analog ARSSI Voltage vs. RF Input Power

DQD

The operation of the Data Quality Detector is based on counting the spikes on the unfiltered received data. High output signal indicates an operating FSK transmitter within baseband filter bandwidth from the local oscillator. DQD threshold parameter can be set by using the Data Filter Command (page 19).

AFC

By using an integrated Automatic Frequency Control (AFC) feature, the receiver can minimize the TX/RX offset in discrete steps, allowing the use of:

 Narrower receiver bandwidth (i.e. increased

sensitivity)

 Higher data rate  Inexpensive crystals

Crystal Oscillator

The Si4421 has a single-pin crystal oscillator circuit, which provides a 10 MHz reference signal for the PLL. To reduce external parts and simplify design, the crystal load capacitor is internal and programmable. Guidelines for selecting the appropriate crystal can be found later in this datasheet.

The transceiver can supply a clock signal for the microcontroller; so accurate timing is possible without the need for a second crystal.

When the microcontroller turns the crystal oscillator off by clearing the appropriate bit using the Power Management Command (page 15), the chip provides a fixed number (192) further clock pulses (“clock tail”) for the microcontroller to let it go to idle or sleep mode. If this clock output is not used, it is

suggested to turn the output buffer off by the Power Management Command (page 15).

Low Battery Voltage Detector

The low battery detector circuit monitors the supply voltage and generates an interrupt if it falls below a programmable threshold level. The detector circuit has 50 mV hysteresis.

Wake-Up Timer

The wake-up timer has very low current consumption (1.5 µA typical) and can be programmed from 1 ms to several days with an accuracy of ±10%.

The wake-up timer calibrates itself to the crystal oscillator at every startup. For proper calibration of the wake-up timer the crystal oscillator must be running before the wake-up timer is enabled. The calibration process takes approximately 0.5ms. For the crystal start up time (tsx), see page 11.

Event Handling

In order to minimize current consumption, the transceiver supports different power saving modes. Active mode can be initiated by several wake-up events (negative logical pulse on nINT input, wake-up timer timeout, low supply voltage detection, on-chip FIFO filled up or receiving a request through the serial interface).

If any wake-up event occurs, the wake-up logic generates an interrupt signal, which can be used to wake up the microcontroller, effectively reducing the period the microcontroller has to be active. The source of the interrupt can be read out from the transceiver by the microcontroller through the SDO pin.

Interface and Controller

An SPI compatible serial interface lets the user select the frequency band, center frequency of the synthesizer, and the bandwidth of the baseband signal path. Division ratio for the microcontroller clock, wake-up timer period, and low supply voltage detector threshold are also programmable. Any of these auxiliary functions can be disabled when not needed. All parameters are set to default after power-on; the programmed values are retained during sleep mode. The interface supports the read-out of a status register, providing detailed information about the status of the transceiver and the received data.

The transmitter block is equipped with two 8-bit wide TX data registers. It is possible to write 8 bits into the register in burst mode and the internal bit rate generator transmits the bits out with the predefined rate. For further details, see the TX Register Buffered Data Transmission section (page 28).

is also possible to store the received data bits into a FIFO

It register and read them out in a buffered mode.

PACKAGE PIN DEFINITIONS

Pin type key: D=digital, A=analog, S=supply, I=input, O=output, IO=input/output

Pin Name Type Function

1 SDI DI Data input of the serial control interface

2 SCK DI Clock input of the serial control interface

3 nSEL DI Chip select input of the serial control interface (active low)

4 SDO DO Serial data output with bus hold

5 nIRQ DO Interrupt request output (active low)

FSK DI Transmit FSK data input (internal pull up resistor 133 k)

DATA DO Received data output (FIFO not used)

nFFS DI

DLCK DO Received data clock output (Digital filter used, FIFO not used)

CFIL AIO External data filter capacitor connection (Analog filter used)

FFIT DO FIFO interrupt (active high). In FIFO mode, when bit ef is set in Configuration Setting Command

8 CLK DO Microcontroller clock output

XTL AIO Crystal connection (the other terminal of crystal to VSS) or external reference input

REF AIO External reference input. Use 33 pF series coupling capacitor

10 nRES DIO Open drain reset output with internal pull-up and input buffer (active low)

11 VSS S Ground reference voltage

12 RF2 AIO RF differential signal input/output

13 RF1 AIO RF differential signal input/output

14 VDD S Positive supply voltage

15 ARSSI AO Analog RSSI output

nINT DI Interrupt input (active low)

VDI DO Valid data indicator output

Note: The actual mode of the multipurpose pins (pin 6 and 7) is dete

FIFO select input (active low). In FIFO mode, when bit ef is set in Configuration Setting Command, page 15 (internal pull up resistor 133 k)

rmined by the TX/RX data I/O settings of the transceiver.

Si4421

Internal Pin Connections

Pin Name Internal connection

Si4421

Pin Name Internal connection

1 SDI

2 SCK

3 nSEL

4 SDO

5 nIRQ

FSK

DATA

PAD

VDD

VSS

1.5k

10 nRES

11 VSS

12 RF2

13 RF1

14 VDD

nFFS

DLCK

CFIL

FFIT

8 CLK

XTL

REF

PAD

VDD

VSS

15 ARSSI

nINT

VDI

PIN6 Logic Diagram (FSK /

Si4421

DATA / nFFS)

PIN10 Logic Diagram (nRES

* Note: These pins can be left floating.

I/O)

Typical Application

CLKin

nRESin

Typical application with FIFO usage

VDD

2.2u

(optional)

VDI

SDI

SCK

nSEL

SDO

nIRQ

nFFS

FFIT

CLK

nRES

(optional)*

(optional)

2 3

Si4421

C3 C2

10n

2.2n

(opt.)

PCB

10MHz

Antenna

Note: * Connections needed only in time critical applications

Recommended supply decoupling capacitor values

C2 and C3 should be 0603 size ceramic capacitors to achieve the best supply decoupling.

Band [MHz] C1 C2 C3

433 2.2µF 10nF 220pF

868 2.2µF 10nF 47pF

915 2.2µF 10nF 33pF

Pin Function vs. Operation Mode

Mode Bit setting Function Pin 6 Pin 7

el = 0 Internal TX data register disabled TX data input

Transmit

el = 1 Internal TX data register enabled

ef = 0 Receiver FIFO disabled RX data output

Receive

ef = 1 Receiver FIFO disabled

The el and ef bits can be found in the Configuration Setting Command on page 15. Bit el Bit ef enables the FIFO mode.

Property C1 C2 C3

SMD size A 0603 0603

Dielectric Tantalum Ceramic Ceramic

nFFS input

(TX data register can be accessed)

RX data clock

nFFS input

(RX data FIFO can be accessed)

enables the internal TX data register.

Not used

output

FFIT output

GENERAL DEVICE SPECIFICATIONS

All voltages are referenced to Vss, the potential on the ground reference pin VSS.

Absolute Maximum Ratings (non-operating)

Symbol Parameter Min Max Units

Vdd Positive supply voltage -0.5 6 V

Vin Voltage on any pin (except RF1 and RF2) -0.5 Vdd+0.5 V

Voc Voltage on open collector outputs (RF1, RF2) -0.5 Vdd+1.5 (Note 1) V

Input current into any pin except VDD and VSS -25 25 mA

ESD Electrostatic discharge with human body model 1000 V

Storage temperature -55 125

Tld Lead temperature (soldering, max 10 s) 260

Recommended Operating Range

Symbol Parameter Min Max Units

Vdd Positive supply voltage 2.2 3.8 V

Voc Voltage range on open collector outputs (RF1, RF2) Vdd-1.5 (Note 2) Vdd+1.5 V

Top Ambient operating temperature -40 85

Note 1: The voltage on RF1 and RF2 pins can be higher than the actual Vdd but cannot exceed 7 V.

Note 2: The actual voltage on RF1 and RF2 pins can be lower than the current Vdd but never should go below 1.2 V.

Si4421

ELECTRICAL SPECIFICATION

Test Conditions: Top = 27 oC; Vdd = Voc = 3.3 V

DC Characteristics

Symbol Parameter Conditions/Notes Min Typ Max Units

dd_TX_0

dd_TX_PMAX

dd_RX

Supply current (TX mode, P

= 0 dBm)

out

= P

out

max

)

Supply current (RX mode)

Ipd Standby current (Sleep mode) All blocks disabled 0.3 1 µA

Ilb

Low battery voltage detector current consumption

Iwt Wake-up timer current consumption 1.5 3.5 µA

Ix Idle current Crystal oscillator on (Note 1) 0.6 1.2 mA

Vlb Low battery detect threshold Programmable in 0.1 V steps 2.25 3.75 V

Low battery detection accuracy ± 3 %

lba

Vil Digital input low level voltage 0.3·Vdd V

Vih Digital input high level voltage 0.7·Vdd V

Iil Digital input current V

Iih Digital input current V

Vol Digital output low level I

Voh Digital output high level I

433 MHz band 15

868 MHz band 16

915 MHz band 17

433 MHz band 22 26

868 MHz band 23 27

915 MHz band 24 28

433 MHz band 11 13

868 MHz band 12 14

915 MHz band 13 15

0.5 1.7 µA

= 0 V -1 1 µA

= Vdd, V

= 2 mA 0.4 V

= -2 mA Vdd-0.4 V

= 3.8 V -1 1 µA

Notes are on page 12.

Si4421

AC Characteristics (PLL parameters)

Symbol Parameter Conditions/Notes Min Typ Max Units

PLL reference frequency (Note 2) 9 10 11 MHz

ref

lock

stP

Receiver LO/Transmitter carrier frequency

PLL lock time

PLL startup time (Note 10) With a running crystal oscillator 200 300 µs

AC Characteristics (Receiver)

Symbol Parameter Conditions/Notes Min Typ Max Units

BW Receiver bandwidth

BRRX FSK bit rate (Note 10) With internal digital filters 0.6 115.2 kbps

BRARX FSK bit rate (Note 10) With analog filter 256 kbps

Receiver Sensitivity

min

AFC

AFC locking range

range

IIP3

Input IP3

inh

IIP3

Input IP3 Out of band interferers l f-fo l > 4 MHz -18 dBm

outh

IIP3

IIP3 (LNA –6 dB gain)

inl

IIP3

IIP3 (LNA –6 dB gain) Out of band interferers l f-fo l > 4 MHz -12 dBm

outl

Maximum input power LNA: high gain 0 dBm

max

Cin RF input capacitance 1 pF

RSa RSSI accuracy ± 6 dB

RSr RSSI range 46 dB

RSps RSSI power supply dependency

Filter capacitor for ARSSI 1 nF

ARSSI

RSSI programmable level steps 6 dB

step

DRSSI response time

resp

Receiver spurious emission -60 dBm

sp_rx

433 MHz band, 2.5 kHz resolution 430.24 439.75

868 MHz band, 5.0 kHz resolution 860.48 879.51

915 MHz band, 7.5 kHz resolution 900.72 929.27

Frequency error < 1kHz after 10 MHz step

30 µs

mode 0 67

mode 1 134

mode 2 200

mode 3 270

mode 4 340

mode 5 400

-3

BER 10 868 MHz Band (Note 3)

δf signal

In band interferers in high bands (868 MHz, 915 MHz)

In band interferers in low band (433 MHz)

When input signal level lower than -54 dBm and greater than -100 dBm

, BW=67 kHz, BR=1.2 kbps,

: FSK deviation in the received

FSK

-110 dBm

0.8·δf

FSK

-21 dBm

-15 dBm

+35 mV/V

Until the RSSI signal goes high after the input signal exceeds the preprogrammed limit C

ARRSI

= 4.7 nF

500 µs

MHz

kHz

Notes are on page 12.

AC Characteristics (Transmitter)

Symbol Parameter Conditions/Notes Min Typ Max Units

Open collector output DC current Programmable 0.5 6 mA

OUT

max_50

Ohm load over a suitable matching network (Note 4)

Max. output power delivered to 50

max_ant

out

Psp

harm

out

Max. EIRP with suitable selected PCB antenna (Note 6)

Typical output power Selectable in 2.5 dB steps (Note 7) P

Spurious emission l f-f

> 1 MHz

sp l

Harmonic suppression

Output capacitance (set by the automatic antenna tuning circuit)

Quality factor of the output capacitance

Output phase noise

BRTX FSK bit rate Via internal TX data register 172 kbps

BRATX FSK bit rate TX data connected to the FSK input 256 kbps

FSK frequency deviation Programmable in 15 kHz steps 15 240 kHz

fsk

In 433 MHz band 7

In 868 MHz / 915 MHz bands 5

In 433 MHz band with monopole antenna with matching network (Note 4)

In 868 MHz / 915 MHz bands (Note 5) 7

-17.5 P

max

At max power 50 Ohm load (Note 4) -55

With PCB antenna (Note 5) -60

At max power 50 Ohm load (Note 4) -35

With PCB antenna (Note 5) -42

In 433 MHz band 2 2.6 3.2

In 868 MHz / 915 MHz bands 2.1 2.7 3.3

In 433 MHz band 13 15 17

In 868 MHz / 915 MHz bands 8 10 12

100 kHz from carrier, in 868 MHz band -80

1 MHz from carrier, in 868 MHz band -103

dBm

Si4421

dBm

dBc

dBc/Hz

AC Characteristics (Turn-on/Turnaround timings)

Symbol Parameter Conditions/Notes Min Typ Max Units

Default capacitance bank setting, crystal

tsx Crystal oscillator startup time

ESR < 50 Ohm (Note 9). Crystal load

2 7 ms

capacitance = 16 pF.

tx_XTAL_ON

rx_XTAL_ON

tx_rx_SYNT_ON

rx_tx_SYNT_ON

Transmitter turn-on time

Receiver turn-on time

Transmitter – Receiver turnover time

Receiver – Transmitter turnover time

Synthesizer off, crystal oscillator on with 10 MHz step

Synthesizer and crystal oscillator on during TX/RX change with 10 MHz step

Synthesizer and crystal oscillator on during RX/TX change with 10 MHz step

250 µs

150 µs

AC Characteristics (Others)

Symbol Parameter Conditions/Notes Min Typ Max Units

Cxl

POR

PBt

inD

Crystal load capacitance, see crystal selection guide

Internal POR timeout

Wake-up timer clock accuracy

Digital input capacitance 2 pF

tr, tf Digital output rise/fall time 15 pF pure capacitive load 10 ns

Programmable in 0.5 pF steps, tolerance ± 10%

After V

has reached 90% of final value

(Note 8)

Crystal oscillator must be enabled to ensure proper calibration at the start up. (Note 9)

8.5 16 pF

100 ms

± 10 %

Notes are on page 12.

Si4421

Note 1: Measured with disabled clock output buffer

Note 2: Not using a 10 MHz crystal is allowed but not recommended because all crystal referred timing and frequency parameters

will change accordingly

Note 3: See the BER diagrams in the measurement results section (page 37) for detailed information

Note 4: See reference design with 50

Note 5: See reference design with Resonant PCB Antenna (BIFA) on page 41 for details

Note 6: Optimal antenna admittance/impedance:

Si4421 Y 433 MHz 2 – j5.9 52 + j152 62 868 MHz 1.2 - j11.9 7.8 + j83 15.4 915 MHz 1.49 - j12.8 9 + j77 13.6

Note 7: Adjustable in 8 steps

Note 8: During the Power-On Reset period, commands are not accepted by the

Command, page 25) the reset timeout is 0.25ms typical.

Note 9: The crystal oscillator start up time strongly depends on the cap

ESR crystal is recommended with low parasitic PCB layout design.

Note 10: By design

Ohm Matching Network (page 39) for details

[mS] Z

antenna

[Ohm] L

antenna

[nH]

antenna

chip. In case of software reset (see Wake-Up Timer

acitance seen by the oscillator. Low capacitance and low

Si4421

CONTROL INTERFACE

Commands to the transmitter are sent serially. Data bits on pin SDI are shifted into the device upon the rising edge of the clock on pin SCK whenever the chip select pin nSEL is low. When the nSEL signal is high, it initializes the serial interface. All commands consist of a command code, followed by a varying number of parameter or data bits. All data are sent MSB first (e.g. bit 15 for a 16bit command). Bits having no influence (don’t care) are indicated with X. Special care must be taken when the microcontroller’s builtin hardware serial port is used. If the port cannot be switched to 16-bit mode then a separate I/O line should be used to control the nSEL pin to ensure the low level during the whole duration of the command or a software serial control interface should be implemented. The Power-On Reset (POR) circuit sets default values in all control and command registers.

The receiver will generate an interrupt request (IT) for the microcontroller - by pulling the nIRQ pin low - on the following events:

 The TX register is ready to receive the next byte (RGIT)

 The RX FIFO has received the preprogrammed amount of bits (FFIT)

 Power-on reset (POR)

 RX FIFO overflow (FFOV) / TX register underrun (RGUR)

 Wake-up timer timeout (WKUP)

 Negative pulse on the interrupt input pin nINT (EXT)

 Supply voltage below the preprogrammed value is detected (LBD)

FFIT and FFOV are applicable when the RX FIFO is enabled. RGIT and RGUR are applicable only when the TX register is enabled. To identify the source of the IT, the status bits should be read out.

Timing Specification

Symbol Parameter Minimum value [ns]

tCH Clock high time 25

tCL Clock low time 25

tSS Select setup time (nSEL falling edge to SCK rising edge) 10

tSH Select hold time (SCK falling edge to nSEL rising edge) 10

Select high time 25

SHI

tDS Data setup time (SDI transition to SCK rising edge) 5

tDH Data hold time (SCK rising edge to SDI transition) 5

tOD Data delay time 10

Timing Diagram

SHI

nSEL

SCK

SDI

BIT15 BIT14 BIT13

BIT8 BIT 7

BIT1 BIT0

SDO

FFIT FFOV AT SCRL

OFFS (0) F IFO OU T

Si4421

Control Commands

Control Command Related Parameters/Functions Related control bits

1 Configuration Setting Command

2 Power Management Command

3 Frequency Setting Command Frequency of the local oscillator/carrier signal f11 to f0 4 Data Rate Command Bit rate cs, r6 to r0

5 Receiver Control Command

6 Data Filter Command Data filter type, clock recovery parameters al, ml, s, f2 to f0

7 FIFO and Reset Mode Command

8 Synchron Pattern Command Synchron pattern b7 to b0

9 Receiver FIFO Read Command RX FIFO read

10 AFC Command AFC parameters a1 to a0, rl1 to rl0, st, fi, oe, en 11 TX Configuration Control Command Modulation parameters, output power mp, m3 to m0, p2 to p0 12 PLL Setting Command CLK out buffer speed, dithering, PLL bandwidth ob1 to ob0, ddit, dly, bw0 13 Transmitter Register Write Command TX data register write t7 to t0 14 Wake-Up Timer Command Wake-up time period r4 to r0, m7 to m0 15 Low Duty-Cycle Command Enable and set low duty-cycle mode d6 to d0, en

Low Battery Detector and

Microcontroller Clock Divider Command

17 Status Read Command Status bit readout

Frequency band, crystal oscillator load capacitance, RX FIFO and TX register enable

Receiver/Transmitter mode change, synthesizer, crystal oscillator, PA, wake-up timer, clock output enable

Function of pin 16, Valid Data Indicator, baseband bandwidth, LNA gain, digital RSSI threshold

Data FIFO IT level, FIFO start control, FIFO enable and FIFO fill enable, POR sensitivity

LBD voltage and microcontroller clock division ratio d2 to d0, v3 to v0

el, ef, b1 to b0, x3 to x0

er, ebb, et, es, ex, eb, ew, dc

p16, d1 to d0, i2 to i0, g1 to g0, r2 to r0

f3 to f0, sp, ff, al, dr

In general, setting the given bit to one will activate the related function. In the following tables, the POR column shows the default values of the command registers after power-on.

Control Register Default Values

Control Register Power-On Reset Value

1 Configuration Setting Command 8008h

2 Power Management Command 8208h

3 Frequency Setting Command A680h

4 Data Rate Command C623h

5 Receiver Control Command 9080h

6 Data Filter Command C22Ch

7 FIFO and Reset Mode Command CA80h

8 Synchron Pattern Command CED4h

9 Receiver FIFO Read Command B000h

10 AFC Command C4F7h

11 TX Configuration Control Command 9800h

12 PLL Setting Command CC77h

13 Transmitter Register Write Command B8AAh

14 Wake-Up Timer Command E196h

15 Low Duty-Cycle Command C80Eh

16 Low Battery Detector and Microcontroller Clock Divider Command C000h

17 Status Read Command 0000h

Description of the Control Commands

1. Configuration Setting Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 0 0 0 0 0 0 0 el ef b1 b0 x3 x2 x1 x0 8008h

Bit el enables the internal data register. Bit ef enables the FIFO mode. If ef = 0 then DATA (pin 6) and DCLK (pin 7) are used for data and data clock output.

x3 x2 x1 x0 Crystal Load Capacita nce [pF ]

0 8.5 0 0 0

b1 b0

0 0 Reserved 0 1 3 43 1 0 8 86 1 1 5 91

Freq y Bauenc nd

0 9.0 0 0 1 0 9.5 0 1 0 0 10.00 1 1

…

1 15.51 1 0 1 16.01 1 1

2. Power Management Command

Si4421

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 0 0 0 0 0 1 0 er ebb et es ex eb ew dc 8208h

Bit Function of the control bit Related blocks

Enables the whole receiver chain RF front end, baseband, synthesizer, crystal oscillator

ebb

eb ew

The ebb, es, and ex bits are provided to optimize the TX to RX or RX to TX turnaround time.

The RF frontend consist of the LNA (low noise amplifier) and the mixer. The synthesizer block has two main components: the VCO and the PLL. The baseband section contains the baseband amplifier, low pass filter, limiter and the I/Q demodulator.

To decrease TX/RX turnaround time, it is possible to leave the baseband section powered on. Switching to RX mode means disabling the PA and enabling the RF frontend. Since the baseband block is already on, the internal startup calibration will not be performed, the turnaround time will be shorter.

The synthesizer also has an internal startup calibration procedure. If quick RX/TX switching needed it may worth to leave this block on. Enabling the transmitter using the et bit will turn on the PA, the synthesizer is already up and running. The power amplifier almost immediately produces TX signal at the output.

The crystal oscillator provides reference signal to the RF synthesizer, the baseband circuits and the digital signal processor part. When the receiver or the transmitter part frequently used, it is advised to leave the oscillator running because the crystal might need a few milliseconds to start. This time mainly depends on the crystal parameters.

It is important to note that leaving blocks unnecessary turned on can increase the current consumption thus decreasing the battery life.

The receiver baseband circuit can be separately switched on Baseband

Switches on the PLL, the power amplifier, and starts the

transmission (If TX register is enabled)

Turns on the synthesizer Synthesizer

Turns on the crystal oscillator Crystal oscillator

Enables the low battery detector Low battery detector

Enables the wake-up timer Wake-up timer

Disables the clock output (pin 8) Clock output buffer

Power amplifier, synthesizer, crystal oscillator

Logic connections between power control bits:

enable

power amplifier

Si4421

Edge detector

start TX

clear TX latch

enable

RF synthesizer

enable

power amplifier

enable

RF synthesizer

VCO and

enable

RF front end

PLL

start TX

clear TX latch

enable

crystal oscillator

TX latch

Crystal

oscillator

I/Q

demod

enable baseband

circuits

ebb

enable

RF front end

enable baseband

circuits

Digital signal

enable crystal

oscillator

processing

clock and data out

Note:

 If both et and er bits are set the chip goes to receive mode.

 FSK / nFFS input are equipped with internal pull-up resistor. To achieve minimum current consumption do not pull this input

to logic low in sleep mode.

 To enable the RF synthesizer, the crystal oscillator must be turned on

 To turn on the baseband circuits, the RF synthesizer (and this way the crystal oscillator) must be enabled.

 Setting the er bit automatically turns on the crystal oscillator, the synthesizer, the baseband circuits and the RF fronted.

 Setting the et bit automatically turns on the crystal oscillator, the synthesizer and the RF power amplifier.

Clock tail feature: When the clock output (pin 8) used to provide clock signal for the microcontroller (dc bit is set to 0), it is possible to use the clock tail feature. This means that the crystal oscillator turn off is delayed, after issuing the command (clearing the ex bit) 192 more clock pulses are provided. This ensures that the microcontroller can switch itself to low power consumption mode. In order to use this feature, a Status Read Command (page 27) must be issued before the ex bit set to then the clock output shuts down immediately leaving the microcontroller in unknown state.

Automatic crystal oscillator enable/disable feature: When an interrupt occurs, the crystal oscillator automatically turns on – regardless to the setting of the ex bit – to supply clock signal to the microcontroller. After clearing all interrupts by handling them properly (see the Interrupt Handling section, page 28) and performing Status

Read Command, the crystal oscillator is automatically turned off. The clock tail feature provides enough clock pulses for the microcontroller to go to low power mode. Due to this automatic feature, it is not possible to turn off the crystal by clearing the ex bit if any interrupt is active. For example, after power on the POR interrupt must be cleared by a status read then writing zero to the ex bit will put the part into sleep mode. Very important to clear all interrupts before turning the ex bit off because the extra current required by running crystal oscillator can shorten the battery life significantly.

Disabling the clock output (bit dc=1) turns off both the clock tail and the automatic crystal oscillator enable/disable feature, only the ex bit controls the crystal oscillator (supposing that both the er and et bits are cleared), the interrupts have no effect on it.

zero. If status read was not performed

3. Frequency Setting Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 0 1 0 f11 f10 f9 f8 f7 f6 f5 f4 f3 f2 f1 f0 A680h

The 12-bit parameter F (bits f11 to f0) should be in the range of 96 and 3903. When F value sent is out of range, the previous value is kept. The synthesizer center frequency f can be calculated as:

= 10 · C1 · (C2 + F/4000) [MHz]

The constants C1 and C2 are determined by

the selected band as:

Band [MHz] C1 C2

433 1 43

868 2 43

915 3 30

Si4421

Band Minimum FrequencyMaximum FrequencyPLL Frequency Step

433 MHz 430.2400 MHz 439.7575 MHz 2.5 kHz

868 MHz 860.4800 MHz 879.5150 MHZ 5.0 kHz

915 MHz 900.7200 MHz 929.2725 MHz 7.5 kHz

4. Data Rate Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 0 1 1 0 cs r6 r5 r4 r3 r2 r1 r0 C623h

The actual bit rate in transmit mode and the expected bit rate of the received data stream in receive mode is determined by the 7-bit parameter R (bits r6 to r0) and bit cs.

BR = 10000 / 29 / (R+1) / (1+cs · 7) [kbps]

In the receiver set R according to the next function:

R= (10000 / 29 / (1+cs · 7) / BR) – 1, where BR is the expected bit rate in kbps.

Apart from setting custom values, the standard bit rates from 600 bps to 115.2 kbps can be approximated with small error.

Data rate accuracy requirements:

Clock recovery in slow mode:

BR/BR < 1/(29 · N

BR is the bit rate set in the receiver and BR is the bit rate difference between the transmitter and the receiver. N number of consecutive ones or zeros in the data stream. It is recommended for long data packets to include enough 1/0 and 0/1 transitions, and to be careful to use the same division ratio in the receiver and in the transmitter.

) Clock recovery in fast mode: BR/BR < 3/(29 · N

bit

)

bit

is the maximum

5. Receiver Control Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 0 0 1 0 p16 d1 d0 i2 i1 i0 g1 g0 r2 r1 r0 9080h

Bit 10 (p16): Pin 16 function select

p16 Function of pin 16

0 Interrupt input 1 VDI output

Bits 9-8 (d1 to d0): VDI (valid data indicator) signal response time setting:

d1 d0 Response

0 0 Fast 0 1 Medium 1 0 Slow 1 1 Always on

VDI Logic Diagram:

Si4421

SEL0

SEL1

IN0

IN1

IN2

IN3

MUX

CLR

VDI

DRSSI

DQD

DRSSI

DQD

CR_LOCK

DQD

SET

CLR

R/S FF

d1CR_LOCK

FAST

MEDIUM

SLOW

LOGIC HIGH

er *

Note:

* For details see the Power Management Command

Slow mode: The VDI signal will go high only if the DRSSI, DQD and the CR_LOCK (Clock Recovery Locked) signals present at the same time. It stays high until any of the abovementioned signals present; it will go low when all the three input signals are low.

Medium mode: The VDI signal will be active when the CR_LOCK signal and either the DRSSI or the DQD signal is high. The valid data indicator will go low when either the CR_LOCK gets inactive or both of the DRSSI or DQD signals go low.

Fast mode: The VDI signal follows the level of the DQD signal.

Always mode: VDI is connected to logic high permanently. It stays always high independently of the receiving parameters.

Bits 7-5 (i2 to i0): Receiver baseband bandwidth (BW) select:

i2 i1 i0 BW [kHz]

0 0 0 Reserved 0 0 1 400 0 1 0 340 0 1 1 270 1 0 0 200 1 0 1 134 1 1 0 67 1 1 1 Reserved

Note: For the optimal bandwidth settings at different data rates see the table on page 37.

Bits 4-3 (g1 to g0): LNA gain select:

g1 g0 Gain relative to maximum [dB]

0 0 0 0 1 -6 1 0 -14 1 1 -20

Bits 2-0 (r2 to r0): RSSI detector threshold:

r2 r1 r0

0 0 0 -103 0 0 1 -97 0 1 0 -91 0 1 1 -85 1 0 0 -79 1 0 1 -73 1 1 0 Reserved 1 1 1 Reserved

RSSI

setth

The RSSI threshold depends on the LNA gain, the real RSSI threshold can be calculated:

RSSI

=RSSI

setth+GLNA

Si4421

6. Data Filter Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 0 0 1 0 al ml 1 s 1 f2 f1 f0 C22Ch

Bit 7 (al): Clock recovery (CR) auto lock control

1: auto mode: the CR starts in fast mode, after locking it switches to slow mode. Bit 6 (ml) has no effect. 0: manual mode, the clock recovery mode is set by Bit 6 (ml)

Bit 6 (ml): Clock recovery lock control

1: fast mode, fast attack and fast release (4 to 8-bit preamble (1010...) is recommended) 0: slow mode, slow attack and slow release (12 to 16-bit preamble is recommended) Using the slow mode requires more accurate bit timing (see Data Rate Command, page 17).

Bit 4 (s):

Note: Bit rate cannot exceed 115 kpbs in this mode.

Select the type of the data filter:

s Filter Type

0 Digital filter 1 Analog RC filter

Digital: This is a digital realization of an analog RC filter followed by a comparator with hysteresis. The time constant is automatically adjusted to the bit rate defined by the Data Rate Command (page 17).

Analog RC filter: The demodulator output is fed to pin 7 over a 10 kOhm resistor. The filter cut-off frequency is set by the external capacitor connected to this pin and VSS.

The table shows the optimal filter capacitor values for different data rates

Data Rate [kbps] 1.2 2.4 4.8 9.6 19.2 38.4 57.6 115.2 256

Filter Capacitor Value 12 nF 8.2 nF 6.8 nF 3.3 nF 1.5 nF 680 pF 270 pF 150 pF 100 pF

Note: If analog RC filter is selected the internal clock recovery circuit and the FIFO cannot be used.

Bits 2-0 (f2 to f0): DQD threshold parameter.

The Data Quality Detector is a digital processing part of the radio, connected to the demodulator - it is an indicator reporting the reception of an FSK modulated RF signal. It will work every time the receiver is on. Setting this parameter defines how clean incoming data stream would be stated as good data (valid FSK signal).

If the internally calculated data quality value exceeds the DQD threshold parameter for five consecutive data bits for both the high and low periods, then the DQD signal goes high.

The DQD parameter in the Data Filter Command should be chosen according to the following rules:

 The DQD parameter can be calculated with the following formula:

= 4 x (deviation – TX-RX

DQD

par

) / bit rate

offset

 It should be larger than 4 because otherwise noise might be treated as a valid FSK signal

 The maximum value is 7.

7. FIFO and Reset Mode Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 1 0 1 0 f3 f2 f1 f0 sp al ff dr CA80h

Bits 7-4 (f3 to f0): FIFO IT level. The FIFO generates IT when the number of received data bits reaches this level.

Bit 3 (sp): Select the length of the synchron pattern:

sp Byte1 B yte0 (POR) Synchron Pattern (Byte1+Byte0)

0 2Dh D4h 2DD4h 1 Not used D4h D4h

Note: The synchron pattern consists of one or t

the Synchron Pattern Command (page 21).

Bit 2 (al): Set the input of the FIFO fill start condition:

wo bytes depending on the sp bit. Byte1 is fixed 2Dh, Byte0 can be programmed by

al FIFO fill start condition

0 Synchron pattern 1 Always fill

Si4421

Bit 1 (ff): FIFO fill will be enabled after synchron pattern reception. The FIFO fill stops when this bit is cleared.

Bit 0 (dr): Disables the highly sensitive RESET mode.

dr Reset mode Reset triggered when

0 Sensitive reset Vdd below 1.6V, Vdd glitch greater than 600mV

1 Non-sensitive reset Vdd below 250mV

Note: To restart the synchron pattern recognition, bit 1 (ef, FIFO fill enable) should be cleared and set.

8. Synchron Pattern Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 1 1 1 0 b7 b6 b5 b4 b3 b2 b1 b0 CED4h

The Byte0 of the synchron pattern (see FIFO and Reset Mode command, page 20) can be reprogrammed by B <b7:b0>.

9. Receiver FIFO Read Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 B000h

With this command, the controller can read 8 bits from the receiver FIFO. Bit 6 (ef) must be set in Configuration Setting Command (page 15).

Note: During FIFO access f

clock signal is not 50 % the shorter period of the clock pulse width should be at least 2/f

cannot be higher than f

SCK

/4, where f

ref

is the crystal oscillator frequency. When the duty-cycle of the

ref

10. AFC Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 0 1 0 0 a1 a0 rl1 rl0 st fi oe en C4F7h

Bit 7-6 (a1 to a0): Automatic operation mode selector:

a1 a0 Operation mode

0 0 Auto mode off (Strobe is controlled by microcontroller) 0 1 Runs only once after each power-up 1 0 Keep the f 1 1 Keep the f

value independently from the state of the VDI signal

offset

only during receiving (VDI=high)

offset

Si4421

Bit 5-4 (rl1 to rl0): Range limit. Limits the value of the frequency offset register to the next values:

rl1 rl0 Max deviation

0 0 No restriction 0 1 +15 f 1 0 +7 f 1 1 +3 f

to -16 f

res

to -8 f

res

to -4 f

res

Bit 3 (st): Strobe edge, when st goes to high, the actual latest calculated frequency error is stored into the offset register of

the AFC block.

Bit 2 (fi): Switches the circuit to high accuracy (fine) mode. In this case, the processing time is about twice as long, but the

measurement uncertainty is about half.

Bit 1 (oe): Enables the frequency offset register. It allows the addition of the offset register to the frequency control word of

the PLL.

Bit 0 (en): Enables the calculation of the offset frequency by the AFC circuit.

res

433 MHz bands: 2.5 kHz 868 MHz band: 5 kHz 915 MHz band: 7.5 kHz

In manual mode, the strobe signal is provided by the microcontroller. One measurement cycle (and strobe) signal can compensate about 50-60% of the actual frequency offset. Two measurement cycles can compensate 80%, and three measurement cycles can compensate 92%. The ATGL bit in the status register can be used to determine when the actual measurement cycle is finished.

In automatic operation mode (no strobe signal is needed from the microcontroller to update the output offset register) the AFC circuit is automatically enabled when the VDI indicates potential incoming signal during the whole measurement cycle and the circuit measures the same result in two subsequent cycles.

Without AFC the transmitter and the receiver needs to be tuned precisely to the same frequency. RX/TX frequency offset can lower the range. The units must be adjusted carefully during production, stable, expensive crystal must be used to avoid drift or the output power needs to be increased to compensate yield loss. The AFC block will calculate the TX-RX offset. This value will be used to pull the RX synthesizer close to the frequency of the transmitter. The main benefits of the automatic frequency control: cheap crystal can be used, the temperature or aging drift will not cause range loss and no production alignment needed.

Si4421

There are four operation modes:

1. (a1=0, a0=0)

2. (a1=0, a0=1) The circuit measures the frequency offset only once after power up. This way, extended TX-RX distance can be

achieved. In the final application, when the user inserts the battery, the circuit measures and compensates for the frequency offset caused by the crystal tolerances. This method allows for the use of cheaper quartz in the application and provides protection against tracking an interferer.

3. (a1=1, a0=0 calculated value is dropped when the VDI goes low. To improve the efficiency of the AFC calculation two methods are recommended:

a. The transmit package should start with a low effective baud rate pattern (i.e.: 00110011) because it is easier to receive. The circuit automatically measures the frequency offset during this initial pattern and changes the receiving frequency accordingly. The further part of the package will be received by the corrected frequency settings.

b. The transmitter sends the first part of the packet with a step higher dev the receiving. After the frequency shift was corrected, the deviation can be reduced.

In both cases (3a and 3b), when the VDI indicates poor receiving conditions (VDI goes low), the output register is automatically cleared. Use this “drop offset” mode when the receiver communicates with more than one transmitter.

4. (a1=1, a0= measuring cycle, the measured value is kept independently of the state of the VDI signal. When the receiver is paired with only one transmitter, it is possible to use this “keep offset” mode. In this case, the DRSSI limit should be selected carefully to minimize the range hysteresis.

11. TX Configuration Control Command

Automatic operation of the AFC is off. Strobe bit can be controlled by the microcontroller.

) The frequency offset is calculated automatically and the center frequency is corrected when the VDI is high. The

iation than required during normal operation to ease

1) It is similar to mode 3, but suggested to use when a receiver operates with only one transmitter. After a complete

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 0 0 1 1 0 0 mp m3 m2 m1 m0 0 p2 p1 p0 9800h

Bits 8-4 (mp, m3 to m0): FSK modulation parameters:

The resulting output frequency can be calculated as:

= f0 + (-1)

out

where: f

is the channel center frequency (see the

SIGN

· (M + 1) · (15 kHz)

out

fsk

Frequency Setting Command) M is the four bit binary number <m3 : m0> SIGN = (mp) XOR FSK

Note: For the optimal FSK modulation settings at different

data rates see t

Bits 2-0 (p2 to p

p2 p1 p0 Relative Output Power [dB]

0 0 0 0

0 0 1 -2.5

0 1 0 -5

0 1 1 -7.5

1 0 0 -10

1 0 1 -12.5

1 1 0 -15

1 1 1 -17.5

0): Output power:

he table on page 37.

mp=0 and FSK= 0

mp=1 an d FS K=1 mp=1 and FSK= 0

Note: FSK represents the value of the actual data bit.

out

mp=0 and FSK= 1

oror

Note: The output power given in the table is relative to the maximum available power, which depends on the actual antenna impedance. (See: Antenna Application Note: IA ISM-AN1)

Si4421

)

12. PLL Setting Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 1 1 0 0 0 ob1 ob0 1 dly ddit 1 bw0 CC77h

Bits 6-5 (ob1-ob0): Microcontroller output clock buffer rise and fall time control. The ob1-ob0 bits are changing the output drive current of the CLK pin. Higher current provides faster rise and fall times but can cause interference.

ob1 ob0 Selected µC CLK frequenc

1 1 5 or 10 MHz(recommended

1 0 3.3 MHz

0 X 2.5 MHz or less

Note: Needed for optimization of the RF performa

Bit 3 (dly): Switches on the delay in the phase detector when this bit is set. Bit 2 (ddit): When set, disables the dithering in the PLL loop. Bit 0 (bw0): PLL bandwidth can be set for optimal TX RF performance.

bw0 Max bit rate [kbps]Phase noise at 1MHz offset [dBc/Hz]

0 86.2 -107

1 256 -102

Note: POR default settings of the register were carefully selected to cover almost all typical applications. When changing these

values, examine thoroughly the output RF spectrum. For more information, contact Silicon Labs Support.

nce. Optimal settings can vary according to the external load capacitance.

13. Transmitter Register Write Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 0 1 1 1 0 0 0 t7 t6 t5 t4 t3 t2 t1 t0 B8AAh

With this command, the controller can write 8 bits (t7 to t0) to the transmitter data register. Bit 7 (el) must be set in Configuration Setting Command (page 15).

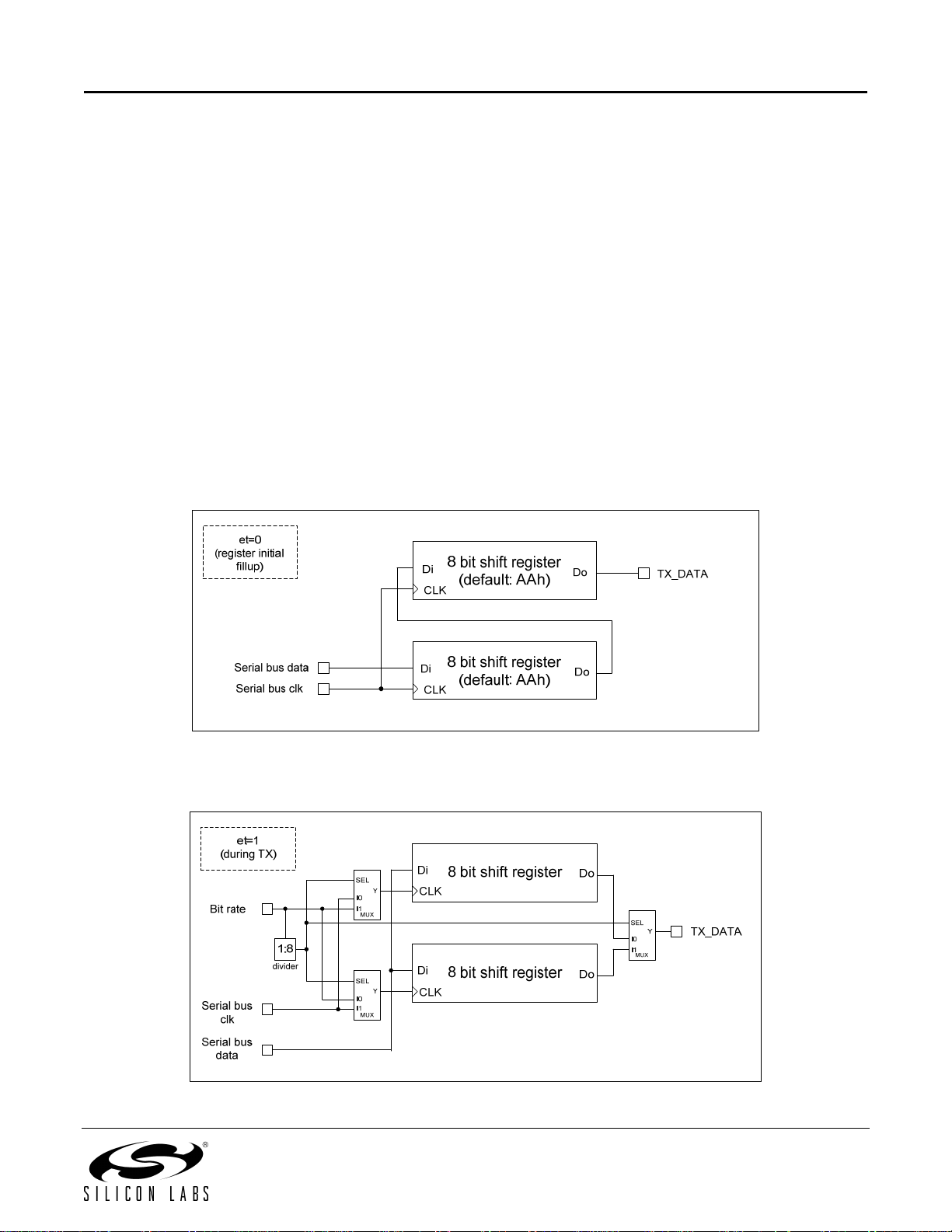

Multiple Byte Write with Transmit Register Write Command:

nSEL

SCK

SDI

T r a n s m i t R e g i s t e r W r i t e

command

SDO

(REGISTER IT

in TX mode*)

Note: *The transceiver is in transmit (TX) mode when bit er is cleared using the Power Management Command

TX BYTE1 TX BYTEnTX BYTE2

Note: Alternately the transmit register can be directly accessed by nFFS (pin6).

Si4421

14. Wake-Up Timer Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 1 r4 r3 r2 r1 r0 m7 m6 m5 m4 m3 m2 m1 m0 E196h

The wake-up time period can be calculated by (m7 to m0) and (r4 to r0):

= 1.03 · M · 2R + 0.5 [ms]

wake-up

Note:

 For continual operation, the ew bit should be cleared and set at the end of every cycle.

 For future compatibility, use R in a range of 0 and 29.

15. Low Duty-Cycle Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 1 0 0 0 d6 d5 d4 d3 d2 d1 d0 en C80Eh

With this command, autonomous low duty-cycle operation can be set in order to decrease the average power consumption in receive mode.

Bits 7-1 (d6-d0): The duty-cycle can be calculated by using (d6 to d0) and M. (M is parameter in a Wake-Up Timer Command, see

above). The time cycle is determined by the Wake-Up Timer Command.

duty-cycle= (D · 2 +1) / M · 100%

Bit 0 (en): Enables the low duty-cycle Mode. Wake-up timer interrupt is not generated in this mode.

Note: In this operation mode, bit er must be cleared and bit ew must be set in the Power Management Command (page 15).

n low duty-cycle mode the receiver periodically wakes up for a short period of time and checks if there is a valid FSK transmission in

progress. FSK transmission is detected in the frequency range determined by Frequency Setting Command (page 17) plus and

nus the baseband filter bandwidth determined by the Receiver Control Command (page 17). This on-time is automatically

mi extended while DQD indicates good received signal condition.

When calculating the on-time take into account:

- the crystal oscillator, the synthesizer and the PLL needs time to start, see the AC Characteristics (Turn-on/Turnaround timings) on page 11

- depending on signal condition (Data Filter Command, page 19)

Choosing too short on-time can prevent the crystal oscillator from starting or the DQD signal will not go high even when the received signal has good quality.

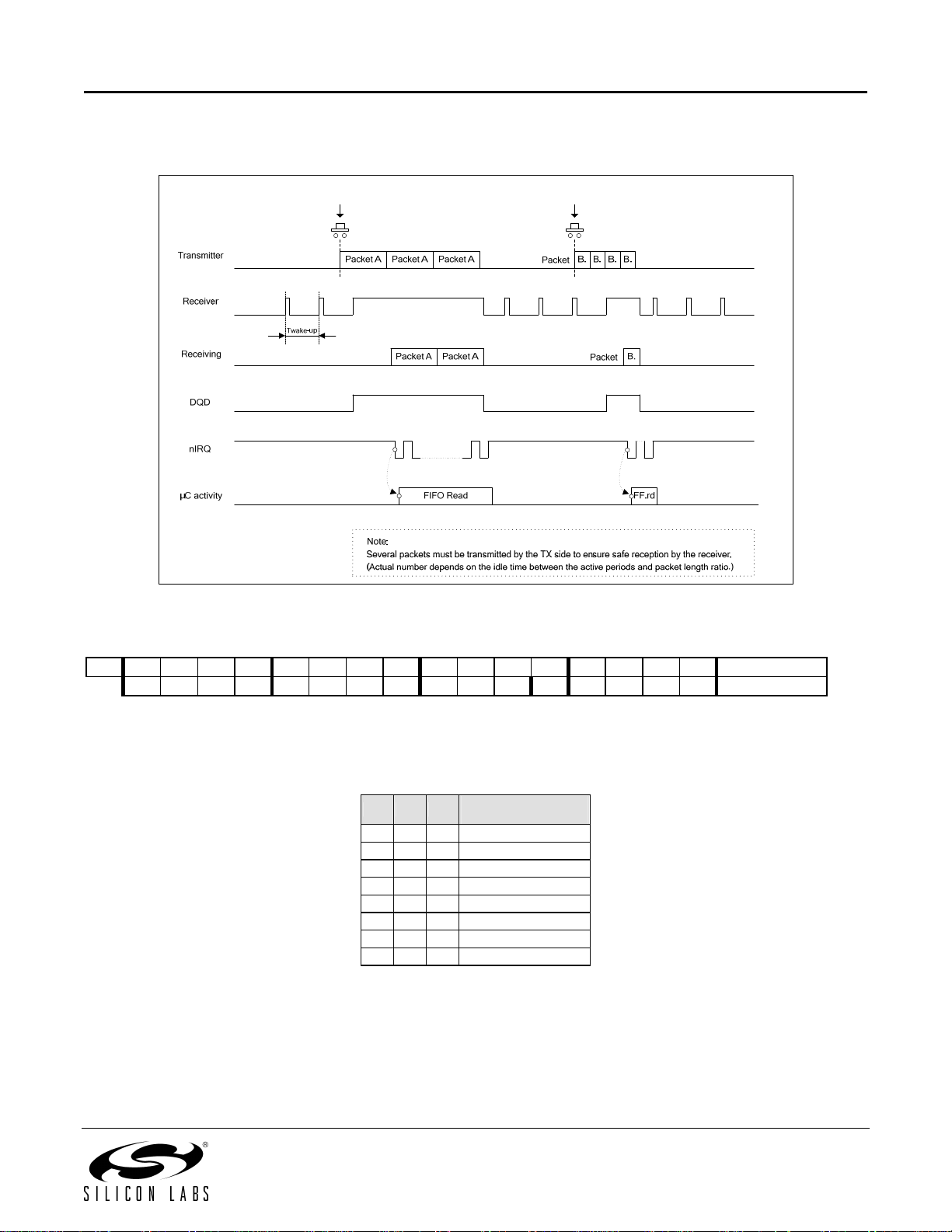

There is an application proposal on page 26. The Si4421 is configured to work in FIFO mode. The chip periodically wakes up and switches to receiving mode. If valid FSK data received, the chip sends an interrupt to the microcontroller and continues filling the RX FIFO. After the transmission is over and the FIFO is read out completely and all other interrupts are cleared, the chip goes back to low power consumption mode.

the DQD parameter, the chip needs to receive a few valid data bits before the DQD signal indicates good

Application Proposal for LPDM (Low Power Duty-Cycle Mode) Receivers:

Si4421

16. Low Battery Detector and Microcontroller Clock Divider Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

1 1 0 0 0 0 0 0 d2 d1 d0 0 v3 v2 v1 v0 C000h

The 4-bit parameter (v3 to v0) represents the value V, which defines the threshold voltage Vlb of the detector:

Vlb= 2.25 + V · 0.1 [V]

Clock divider configuration:

d2 d1 d0

0 0 0 1 0 0 1 1.25 0 1 0 1.66 0 1 1 2 1 0 0 2.5 1 0 1 3.33 1 1 0 5 1 1 1 10

The low battery detector and the clock output can be enabled or disabled by bits eb and dc, respectively, using the Power Management Command (page 15).

Clock Output

Frequency [MHz]

Si4421

17. Status Read Command

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 POR

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0000h

The read command starts with a zero, whereas all other control commands start with a one. If a read command is identified, the status bits will be clocked out on the SDO pin as follows:

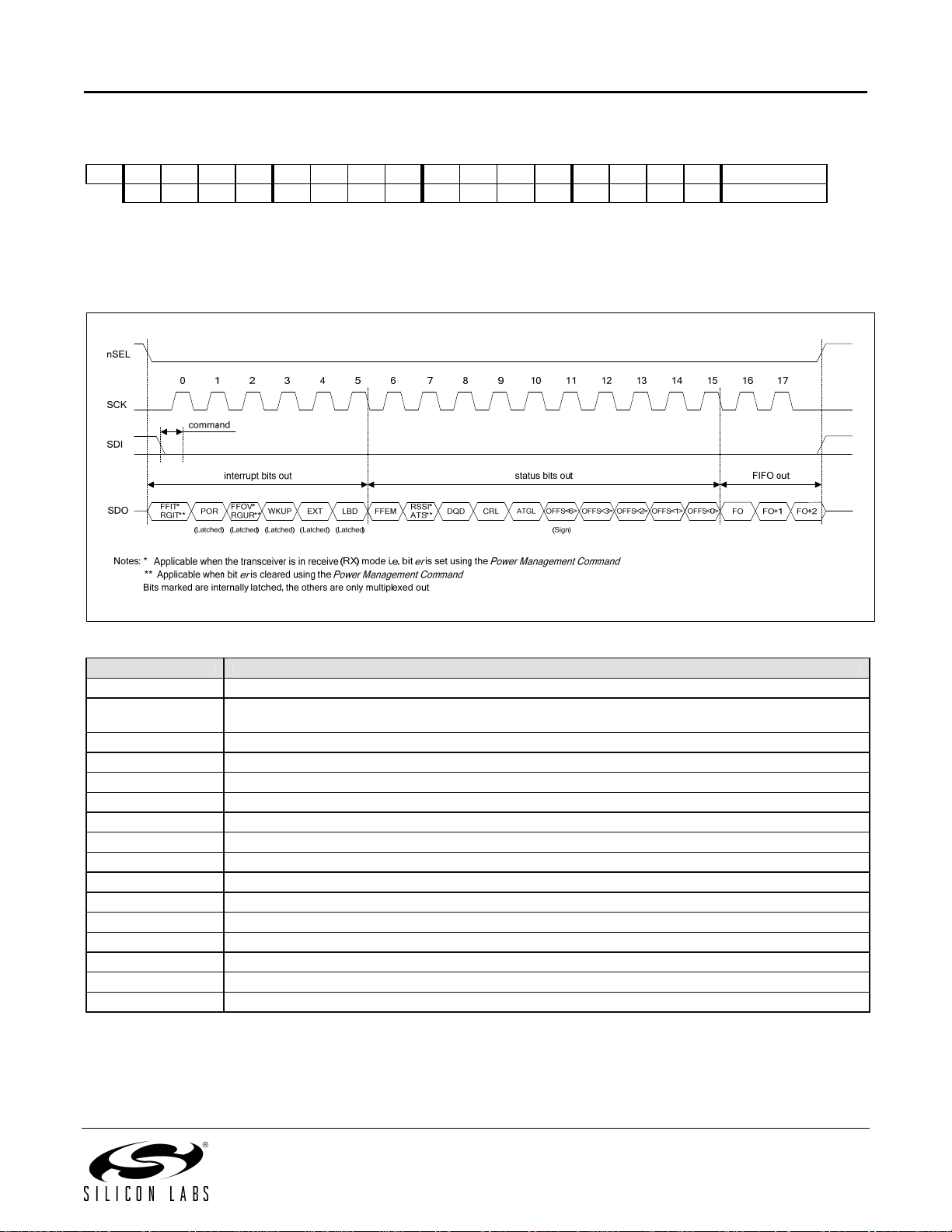

Status Register Read Sequence with FIFO Read Example:

Bit Name Function

RGIT TX register is ready to receive the next byte (Can be cleared by Transmitter Register Write Command, page 24)

FFIT

POR Power-on reset (Cleared after Status Read Command)

RGUR TX register under run, register over write (Cleared after Status Read Command)

FFOV RX FIFO overflow (Cleared after Status Read Command)

WKUP Wake-up timer overflow (Cleared after Status Read Command)

EXT Logic level on interrupt pin (pin 16) changed to low (Cleared after Status Read Command)

LBD Low battery detect, the power supply voltage is below the pre-programmed limit

FFEM FIFO is empty

ATS Antenna tuning circuit detected strong enough RF signal

RSSI The strength of the incoming signal is above the pre-programmed limit

DQD Data quality detector output

CRL Clock recovery locked

ATGL Toggling in each AFC cycle

OFFS(6) MSB of the measured frequency offset (sign of the offset value)

OFFS(3) -OFFS(0) Offset value to be added to the value of the frequency control parameter (Four LSB bits)

The number of data bits in the RX FIFO has reached the pre-programmed limit (Can be cleared by any of the FIFO read methods)

Note: In order to get accurate values the AFC has to be disabled during th

(page 21). The AFC offset value (OFFS bits in the status word) is represent

e read by clearing the en bit in the AFC Control Command

ed as a two’s complement number. The actual frequency offset can be calculated as the AFC offset value multiplied by the current PLL frequency step (see the Frequency Setting Command on page 17).

Si4421

INTERRUPT HANDLING

In order to achieve low power consumption there is an advanced event handling circuit implemented. The device has a very low power consumption mode, so called sleep mode. In this mode only a few parts of the circuit are working. In case of an event, the device wakes up, switches into active mode and an interrupt signal generated on the nIRQ pin to indicate the changed state to the microcontroller. The cause of the interrupt can be determined by reading the status word of the device (see Status Read Command, page 27).

eral interrupt sources are available:

Sev

 RGIT – TX register empty interrupt: This interrupt generated when the transmit register is empty. Valid only when the el

(enable internal data register) bit is set in the Configuration Setting Command (page 15), and the transmitter is enabled in the Power Man

 FFIT – the number of bits in the RX FIFO reached the preprogrammed level: When the number of received data bits in the

receiver FIFO reaches the threshold set by the f3…f0 bits of the FIFO and Reset Mode Command (page 20) an interrupt is fired.

Valid only when the ef (enable FIFO mode) bit is set in the Configuration Setting Command and the receiver is enabled

in the Power Management Command (page 15).

 POR – power on reset interrupt: An interrupt generated when the change on the VDD line triggered the internal reset circuit or

a software reset command was issued. For more details, see the Reset Modes section (page 34).

 RGUR –

before the register write occurred. Valid only when the el (enable internal data register) bit is set in the Configuration Setting Command and the transmitter is enabled in the Power Management command.

 FFOV – FIFO overflow: There are more bits received than the capacity of the FIFO (16 bits). Valid only when the ef (enable

FIFO mode) bit is set in the Configuration Setting Command and the receiver is enabled in the Power Management command

 WKUP – wake-up timer interrupt: This interrupt event occurs when the time specified by the Wake-Up Timer Command (page

25) has elapsed. Valid only when the ew b

 EXT – external interrupt: Follows the level of the nINT pin if it is configured as an external Interrupt pin in the Receiver Control

Command (page 17, p16 bi

 LBD – low battery detector interrupt: Occurs when the VDD goes below the programmable low battery detector threshold level

(v3…v0 bits in the Low Battery and Microcontroller Clock Divider Command, page 26). Valid only when the eb (enable low battery detector) bit is

If any of the sources becomes active, the nIRQ pin will change to logic low level, and the corresponding bit in the status byte will be HIGH.

Clearing an interrupt actually implies two things:

 Releasing the nIRQ pin to return to logic high

 Clearing the corresponding bit in the status byte

This may be completed with the following interrupt sources:

 RGIT: both the nIRQ pin and status bit remain active until the register is written (if under-run does not occur until the register

write), or the transmitter and the TX latch are switched off.

 FFIT: both the nIRQ pin and status bit remain active until the FIFO is read (a FIFO IT threshold number of bits have been

read), the receiver is switched off, or the RX FIFO is switched off.

 POR: both the nIRQ pin and status bit can be cleared by the read status command

 RGUR: this bit is always set together with RGIT; both the nIRQ pin and the status bit remain active until the transmitter and

the TX latch is switched off.

 FFOV: this bit is always set together with FFIT; it can be cleared by the status read command, but the FFIT bit and hence the

nIRQ pin will remain active until the FIFO is read fully, the receiver is switched off, or the RX FIFO is switched off.

 WKUP: both the nIRQ pin and status bit can be cleared by the read status command

 EXT: both the nIRQ pin and status bit follow the level of the nINT pin

 LBD: the nIRQ pin can be released by the reading the status, but the status bit will remain active while the VDD is below the

threshold.

agement command.

TX register under run: The automatic baud rate generator finished the transmission of the byte in the TX register

it is set in the Power Management Command.

t is cleared).

set in the Power Management Command.

Si4421

The best practice in interrupt handling is to start with a status read when interrupt occurs, and then make a decision based on the status byte. It is very important to mention that any interrupt can “wake-up” the EZradio chip from sleep mode. This means that the crystal oscillator starts to supply clock signal to the microcontroller even if the microcontroller has its own clock source. Also, the Si4421 will not go to low current sleep mode if any interrupt remains active regardless to the state of the ex (enable crystal oscillator) bit in the Power Management Command (page 15). This way the microcontroller always can have the interrupt. To prevent high current consumption and this way short battery life, it is strongly advised to process and clear every interrupt before going to sleep mode. All unnecessary functions should be turned off to avoid unwanted interrupts. Before freezing the microcontroller code, a thorough testing must be performed in order to make sure that all interrupt sources are handled before putting the radio device to low power consumption sleep mode. If the dc bit is set in the Power Management Command, then only the ex bit controls the crystal oscillator (supposing that both the er and et bits are cleared), the interrupts have no effect on it.

clock signal to process

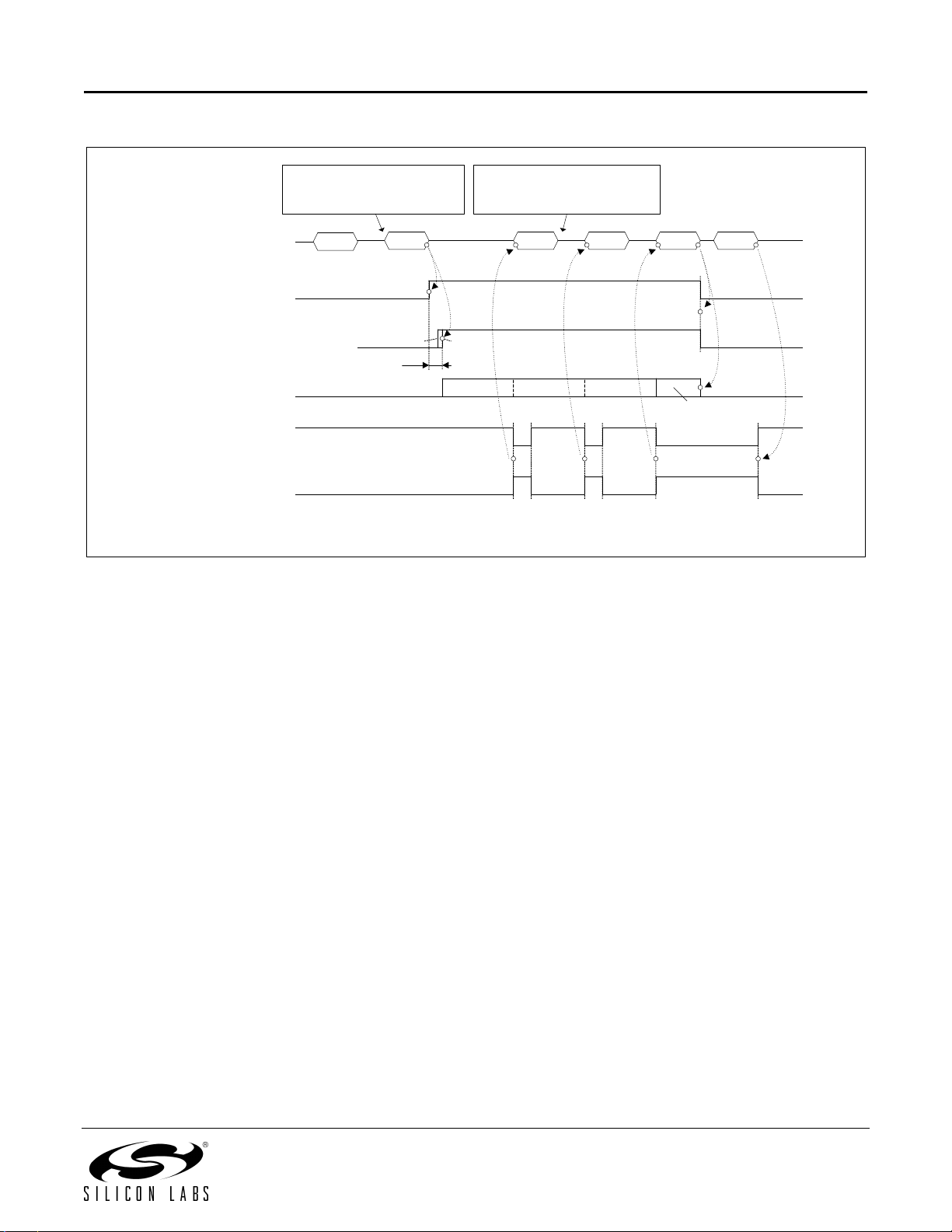

TX REGISTER BUFFERED DATA TRANSMISSION

In this operating mode (enabled by bit el, in the Configuration Setting Command, page 15) the TX data is clocked into one of the two 8-bit data registers. The transmitter starts to send out the data from the first register (with the given bit rate) when bit et is set with the Power Management Command (page 15). The initial value of the data registers (AAh) this mode, the SDO pin can be monitored to check whether the register is ready (SDO is high) to receive the next byte from the microcontroller.

TX register simplified block diagram (before transmit)

can be used to generate preamble. During

TX register simplified block diagram (during transmit)

Typical TX register usage

Si4421

Do not switch the et off here, becaus e the

TX byte1 is not transmitted out

only stored into the internal register!

TX latch wr

TX byte1

PASynt.

0xAA

Notes: *T ** SDO is tri-state if nSEL is logic high.

TX latch wr

is the start-up time of the PLL + PA with running crystal oscillator

tx_XTAL_ ON

Dummy TX byte

TX byte1

Power Man

et = 0

Fraction of the

Dummy byte

Conf. Set.

el = 0

SPI commands

(nSEL, SCK, SDI)

et bit

(enable transmitter)

enable

Synthesizer / PA

TX data

nIRQ

SDO**

Enabling the Transmitter preloads the TX

latch with 0xAAAA

tx_XTAL_ON

Power Man

et = 1

Conf. Set.

el = 1

Note: The content of the data registers are initialized by clearing bit et.

A complete transmit sequence should be performed as follows:

a. Enable the TX register by setting the el bit to 1 (Configuration Setting Command, page 15)

b. The TX regis

ter automatically filled out with 0xAAAA, which can be used to generate preamble.

c. Enable the transmitter by setting the et bit (Power Management Command, page 15)

d. The synthesizer and the PLL turns on, calibrates itself then the power amplifier automatically enabled

e. The TX data transmission starts

f. When the transmission of the byte completed, the nIRQ pin goes high, the SDO pin goes low at the same time. The nIRQ

pulse shows that the first 8 bits (the first byte, by default 0xAA) has transmitted. There are still 8 bits in the transmit register.

g. The microcontroller recognizes the interrupt and writes a data byte to the TX register

h. Repeat f. - g. until the last data byte reached

i. Using the same method, transmit a dummy byte. The value of this dummy byte can be anything.

j. The next high to low transition on the nIRQ line (or low to high on the SDO pin) shows that the transmission of the data

bytes ended. The dummy byte is still in the TX latch.

k. Turn off the transmitter by setting the et bit to 0. This event will probably happen while the dummy byte is being

transmitted. Since the dummy byte contains no useful information, this corruption will cause no problems.

l. Clearing the el bit clears the Register Underrun interrupt; the nIRQ pin goes high, the SDO low.

It is possible to perform this sequence without sending a dummy byte (step i.) but after loading the last data byte to the transmit register the PA turn off should be delayed for at least 16 bits time. The clock source of the microcontroller (if the clock is not supplied by the Si4421) should be stable enough over temperature and voltage to ensure this minimum delay under all operating circumstances.

When the dummy byte is used, the whole process is driven by interrupts. Changing the TX data rate has no effect on the algorithm and no accurate delay measurement is needed.

Si4421

RX FIFO BUFFERED DATA READ

In this operating mode, incoming data are clocked into a 16-bit FIFO buffer. The receiver starts to fill up the FIFO when the Valid Data Indicator (VDI) bit and the synchron pattern recognition circuit indicates potentially real incoming data. This prevents the FIFO from being filled with noise and overloading the external microcontroller.

Interrupt Controlled Mode:

The user can define the FIFO IT level (the number of received bits) which will generate the nFFIT when exceeded. The status bits report the changed FIFO status in this case.

Polling Mode:

When nFFS signal is low the FIFO output is connected directly to the SDO pin and its content can be clocked out by the SCK. Set the FIFO IT level to 1. In this case, as long as FFIT indicates received bits in the FIFO, the controller may continue to take the bits away. When FFIT goes low, no more bits need to be taken.

An SPI read command is also available to read out the content of the FIFO (Receiver FIFO Read Command, page 21).

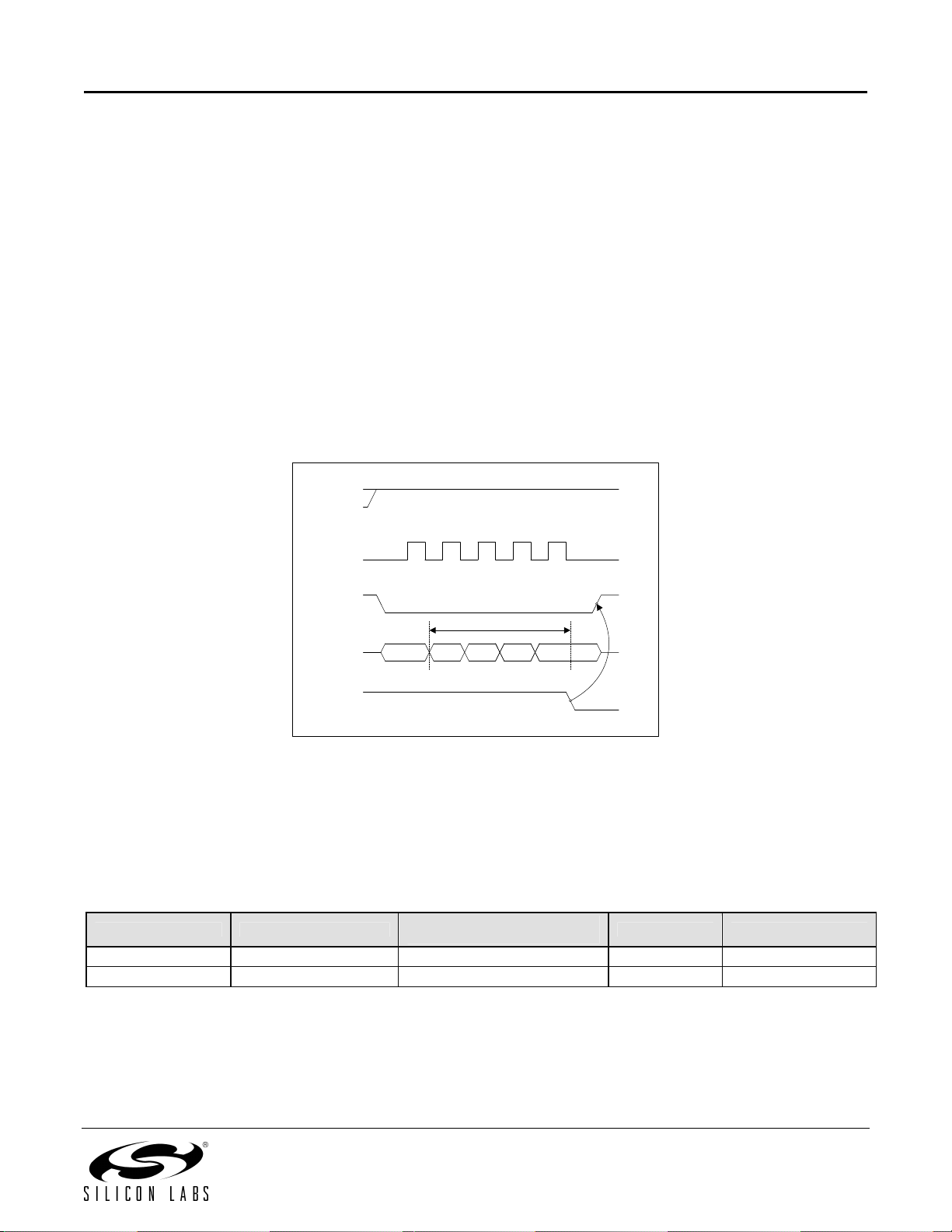

FIFO Read Example wit

h FFIT Polling

nSEL

SCK

1234

nFFS

FIFO read out

SDO

FFIT

FO+1 FO+2FIFO OUT FO+4FO+3

Note: During FIFO access f

clock signal is not 50% the shorter period of the clock pulse should be at least 2/f

cannot be higher than f

SCK

/4, where f

ref

is the crystal oscillator frequency. When the duty-cycle of the

ref

RECOMMENDED PACKET STRUCTURES

Preamble

Minimum length 4 - 8 bits (1010b or 0101b) D4h (programmable) ? 4 bit - 1 byte

Recommended length 8 -12 bits (e.g. AAh or 55h) 2DD4h (D4 is programmable) ? 2 byte

Synchron word

(Can be network ID)

Payload CRC

Si4421

CRYSTAL SELECTION GUIDELINES

The crystal oscillator of the Si4421 requires a 10 MHz parallel mode crystal. The circuit contains an integrated load capacitor in order to minimize the external component count. The internal load capacitance value is programmable from 8.5 pF to 16 pF in 0.5 pF steps. With appropriate PCB layout, the total load capacitance value can be 10 pF to 20 pF so a variety of crystal types can be used.

When the total load capacitance is not more than 20 pF and a worst case 7 pF shunt capacitance (C crystal, the oscillator is able to start up with any crystal having less than 100 ohms ESR (equivalent series loss resistance). However, lower C

and ESR values guarantee faster oscillator startup.

The crystal frequency is used as the reference of the PLL, which generates the local oscillator frequency (fLO). Therefore, fLO is directly proportional to the crystal frequency. The accuracy requirements for production tolerance, temperature drift and aging can thus be determined from the maximum allowable local oscillator frequency error.

Whenever a low frequency error is essential for the application, it is possible to “pull” the crystal to the accurate frequency by changing the load capacitor value. The widest pulling range can be achieved if the nominal required load capacitance of the crystal is in the “midrange”, for example 16 pF. The “pull-ability” of the crystal is defined by its motional capacitance and C

Maximum XTAL Tolerances Including Temperature and Aging [ppm]

Bit Rate: 2.4 kbps

Deviation [± kHz]

30 45 60 75 90 105 120 433 MHz 20 30 50 70 90 100 100 868 MHz 10 20 25 30 40 50 60 915 MHz 10 15 25 30 40 50 50

) value is expected for the

Bit Rate: 9.6 kbps

Deviation [± kHz]

30 45 60 75 90 105 120 433 MHz 15 30 50 70 80 100 100 868 MHz 8 15 25 30 40 50 60 915 MHz 8 15 25 30 40 50 50

Bit Rate: 38.4 kbps

Deviation [± kHz]

30 45 60 75 90 105 120 433 MHz don't use 5 20 30 50 75 75 868 MHz don't use 3 10 20 25 30 40 915 MHz don't use 3 10 15 25 30 40

Bit Rate: 115.2 kbps

Deviation [± kHz]

105 120 135 150 165 180 195 433 MHz don't use 3 20 30 50 70 80 868 MHz don't use don't use 10 20 25 35 45 915 MHz don't use don't use 10 15 25 30 40

Si4421

RX-TX ALIGNMENT PROCEDURES

RX-TX frequency offset can be caused only by the differences in the actual reference frequency. To minimize these errors it is suggested to use the same crystal type and the same PCB layout for the crystal placement on the RX and TX PCBs.

To verify the possible RX-TX offset it is suggested to measure the CLK output of both chips with a high level of accuracy. Do not measure the output at the XTL pin since the measurement process itself will change the reference frequency. Since the carrier frequencies are derived from the reference frequency, having identical reference frequencies and nominal frequency settings at the TX and RX side there should be no offset if the CLK signals have identical frequencies.

It is possible to monitor the actual RX-TX offset using the AFC status report included in the status byte of the receiver. By reading out the status byte from the receiver, the actual measured offset frequency will be reported. In order to get accurate values the AFC has to be disabled during the read by clearing the en bit in the AFC Control Command (page 21).

Si4421

RESET MODES

The chip will enter into reset mode if any of the following conditions are met:

 Power-on reset: During a power up sequence until the V

 Power glitch reset: Transients present on the V

line

 Software reset: Special control command received by the chip

Power-on reset

After power up the supply voltage starts to rise from 0V. The reset block has an internal ramping voltage reference (reset-ramp signal), which is rising at 100mV/ms (typical) rate. The chip remains in reset state while the voltage difference between the actual

and the internal reset-ramp signal is higher than the reset threshold voltage, which is 600 mV (typical). As long as the Vdd voltage

is less than 1.6V (typical) the chip stays in reset mode regardless the voltage difference between the V signal.

The reset event can last up to 100ms supposing that the V does not accept control commands via the serial control interface.

Power-on reset example:

has reached the correct level and stabilized

and the internal ramp

reaches 90% its final value within 1ms. During this period, the chip

Power glitch reset

The internal reset block has two basic mode of operation: normal and sensitive reset. The default mode is sensitive, which can be changed by the appropriate control command (see Related control commands at the end of this section). In normal mode the power glitch detection circuit is disabled.

There can be spikes or glitches on the Vdd line if the supply filtering is not satisfactory or the internal resistance of the power supply is too high. In such cases if the sensitive reset is enabled an (unwanted) reset will be generated if the positive going edge of the V has a rising rate greater than 100mV/ms and the voltage difference between the internal ramp signal and the V

reaches the reset

threshold voltage (600 mV). Typical case when the battery is weak and due to its increased internal resistance a sudden decrease of the current consumption (for example turning off the power amplifier) might lead to an increase in supply voltage. If for some reason the sensitive reset cannot be disabled step-by-step decrease of the current consumption (by turning off the different stages one by one) can help to avoid this problem.

Any negative change in the supply voltage will not cause reset event unless the V

level reaches the reset threshold voltage (250mV

in normal mode, 1.6V in sensitive reset mode).

If the sensitive mode is disabled and the power supply turned off the Vdd must drop below 250mV in order to trigger a power-on reset event when the supply voltage is turned back on. If the decoupling capacitors keep their charges for a long time it could happen that no reset will be generated upon power-up because the power glitch detector circuit is disabled.

Note that the reset event reinitializes the internal registers, so the sensitive mode will be enabled again.

Sensitive Reset Enabled, Ripple on Vdd:

1.6V

nRes

output

Sensitive reset disabled:

Reset threshold voltage

(600mV)

Reset threshold vol tage

(600mV)

Reset ramp line

(100mV/ms)

Si4421

time

Reset ramp line

(100mV/ms)

250mV

time

nRes

output

Software reset

Software reset can be issued by sending the appropriate control command (described at the end of the section) to the chip. The result of the command is the same as if power-on reset was occurred but the length of the reset event is much less, 0.25ms typical. The software reset works only when the sensitive reset mode is selected.

line filtering

During the reset event (caused by power-on, fast positive spike on the supply line or software reset command), it is very important to keep the Vdd line as smooth as possible. Noise or periodic disturbing signal superimposed the supply voltage may prevent the part getting out from reset state. To avoid this phenomenon use adequate filtering on the power supply line to keep the level of the disturbing signal below 100mV

in the DC – 50kHz range for 200ms from Vdd ramp start.. Typical example when a switch-mode

p-p

regulator is used to supply the radio, switching noise may be present on the Vdd line. Follow the manufacturer’s recommendations how to decrease the ripple of the regulator IC and/or how to shift the switching frequency.

Related control commands

FIFO and Reset Mode Command (page 20)

Setting bit<0> t

o high will change the reset mode to normal from the default sensitive.

SW Reset Command

Issuing FE00h command will trigger software reset (sensitive reset mode must be enabled). See the Wake-up Timer Command (page 25).

TYPICAL PERFORMANCE CHARACTERISTICS

Channel Selectivity and Blocking:

01234 567 89101112

CW interferer offset from carrier [MHz]

Note:

 LNA gain maximum, filter bandwidth 67 kHz, data rate 9.6 kbps, AFC switched off, FSK deviation ± 45 kHz, V

 Measured according to the descriptions in the ETSI Standard EN 300 220-1 v2.1.1 (2006-01 Final Draft), section 9

 The ETSI limit given in the figure is drawn by taking -106dBm at 9.6kbps typical sensitivity into account, and corresponds to

receiver class 2 requirements (section 4.1.1)

434 MHz

868 MHz

ETSI

= 2.7 V

Si4421

Phase Noise Performance in the 433, 868 and 915 MHz Bands:

433 MHz

868 MHz

915 MHz

(Measured under typical conditions: T

= 27 oC; Vdd = Voc = 2.7 V)

BER Curves in 433 MHz Band:

-1

-2

-3

-4

-5

-6

-120 -115 -110 -105 -100 -95 -90

Si4421

1.2k

2.4k

4.8k

9.6k

19.2k

38.4k

57.6k

115.2k

BER Curves in 868 MHz Band:

-1

-2

-3

-4

-5

-6

1.2k

2.4k

4.8k

9.6k

19.2k

38.4k

57.6k

115.2k

-115 -110 -105 -100 -95 -90 -85

The table below shows the optimal receiver baseband bandwidth (BW) and transmitter deviation frequency (δf different data-rates supposing no transmit receive offset frequency. If TX/RX offset (for example due to crystal tolerances) have to be taken into account, increase the BW accordingly.

) settings for

FSK

1.2 kbps 2.4 kbps 4.8 kbps 9.6 kbps 19.2 kbps 38.4 kbps 57.6 kbps 115.2 kbps

BW=67 kHz

f

=45 kHz

FSK

BW=67 kHz

f

=45 kHz

FSK

BW=67 kHz

f

=45kHz

FSK

BW=67 kHz

f

=45 kHz

FSK

BW=67 kHz

f

=45 kHz

FSK

BW=134 kHz

f

=90 kHz

FSK

BW=134 kHz

f

=90 kHz

FSK

BW=200 kHz

f

=120 kHz

FSK

Si4421

Receiver Sensitivity over Ambient Temperature (433 MHz, 2.4 kbps,  f

434 MHz

-100

-103

-106

dBm

-109

-112

-115

-50-25 0 255075100

Celsius

Receiver Sensitivity over Ambient Temperature (868 MHz, 2.4 kbps,  f

: 45 kHz, BW: 67 kHz):

FSK

2.2V

2.7V

3.3V

3.8V

: 45 kHz, BW: 67 kHz):

FSK

868 MHz

-100

-103

-106

dBm

-109

-112

-115

-50 -25 0 25 50 75 100

Celsius

2.2V

2.7V

3.3V

3.8V

REFERENCE DESIGNS

Evaluation Board with 50 Ohm Matching Network

Schematics

CN61

DCLK

SDI

3 4

DATA

SEL

SDO

7 8

SCK

IRQ

ARSSI

VDI

RESET

13 14

GND

VDD

C3 C2

GND

VDD

10nF

SDI

SCK

SEL

SDO

IRQ

DATA

DCLK

2.2uF

IC1

TP61

CLK_OUT

SDI

SCK

NSEL

SDO

NIRQ

FSK/DATA/NFFS

DCLK/CFIL/FFIT

CLK

IA4421

NINT/VDI

ARSSI

VDD

NRES

XTL/REF

RF1

RF2

VSS

GND

VDI

ARSSI

RESET

Q61

GND

4.7nF

10MHz

Si4421

ARSSI

TP62

MATCHING_ NETWORK

VDD

GND

L1L4

C10

GND

C9 C11

* See values in the table

VDD

GND

optional

CN62

GND

Frequency Dependent Component Values

f [MHz] L1 [nH] L2 [nH] L3 [nH] L4 [nH] C8 [pF] C9 [pF] C10 [pF] C11 [pF] C3 [pF]

434 18 47 390 18 5 2.7 2.7 220 220

868 3.9 18 100 3.9 2.7 1.2 1.8 47 47

915 3.6 16 100 3.6 2.7 1.2 1.8 33 33

Recommended Component Types

Component Manufacturer

434MHz 868 MHz 915MHz

L1 Coilcraft 0603CS-18NX 0603CS-3N9X 0603CS-3N9X 1

L4 Coilcraft 0603CS-18NX 0603CS-3N9X 0603CS-3N9X 1

L2 Coilcraft 0603CS-47NX 0603CS-18NX 0603CS-16NX 1

L3 Coilcraft 0603CS-R39X 0603CS-R10X 0603CS-R10X 2

C9 Murata GRM1885C1H2R7CZ01B GRM1885C1H1R2CZ01B GRM1885C1H1R2CZ01B 3

C8 Murata GRM1885C1H5R0CZ01B GRM1885C1H2R7CZ01B GRM1885C1H2R7CZ01B 3

C10 Murata GRM1885C1H2R7CZ01B GRM1885C1H1R8CZ01B GRM1885C1H1R8CZ01B 3, 4

C11 Murata GRM1885C1H221JA01B GRM1885C1H470JZ01B GRM1885C1H330JZ01B 3

C3 Murata GRM1885C1H221JA01B GRM1885C1H470JZ01B GRM1885C1H330JZ01B 3

Part number

For component selection guidelines, see the notes on the next page.

Note

Si4421

Notes:

1. SRF, DCR and Q should be similar if components from other manufacturer used

2. The SRF should be twice as much as the operation frequency

3. The dielectric type should be C0G and the resonant frequency should be similar if components from alternative vendor used.

4. The values are valid for 1.5mm thick FR4 PCB. If thinner board used the capacitor value should be increased (and vice versa)

to minimize the level of the second harmonic components.

PCB Layout

Top View

Bottom View

Evaluation Board with Resonant PCB Antenna (BIFA)

Schematics

FFS/DATA

SEL

SCK

SDI

CS1

10k

100k

10k

910

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CON40-0

GND

SDI SCK SEL DATA

VDI

CLKIN

DATA DCLK

DCLK

DATA

SDO

IRQ

FFE

VDI

C3 C2

DTO VDI RESET

DCLK

IRQ SDO

10nF

GND

2.2uF

SDI

SCK

DTO

SEL

SDO

IRQ

DATA

10k

100pF

GND

VDD

TP3 TP1

IC1

SDI

SCK

NSEL

SDO

NIRQ

FSK/DATA/NFFS

DCLK/CFIL

CLK

CLK_OUT

IA4421

NINT/VDI

ARSSI

VDD

RF1

RF2

VSS

NRES

XTL/RE F

GND

VDI

ARSSI

RESET

10nF

Si4421

ARSSI

VDD

GND

* See values in t he table

JP1

CLKIN

2 3

10MHz

GND

Note: Components R5 to R8 and C6 are needed for connection to the ISM Chipset Development Kit load board (IA ISM-DK3) and are

not necessary in an application.

Frequency Dependent Component Values

Band C3 [pF] L1 [nH]

868 MHz 47 22

Dual (868/915 MHz) 47/33 18

915 MHz 33 15

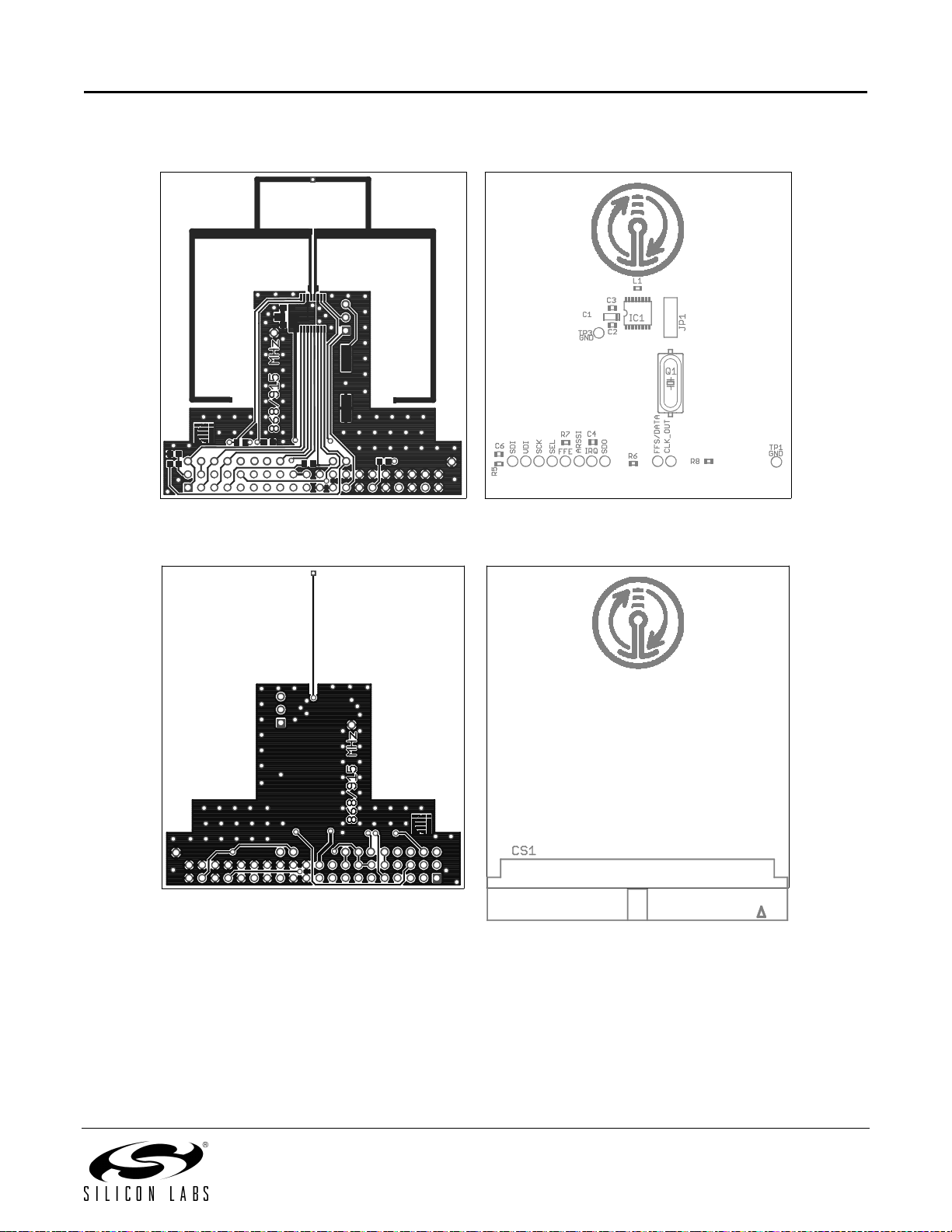

PCB Layout (Antenna designed for 868/915 MHz band)

Si4421

Top View

Bottom View

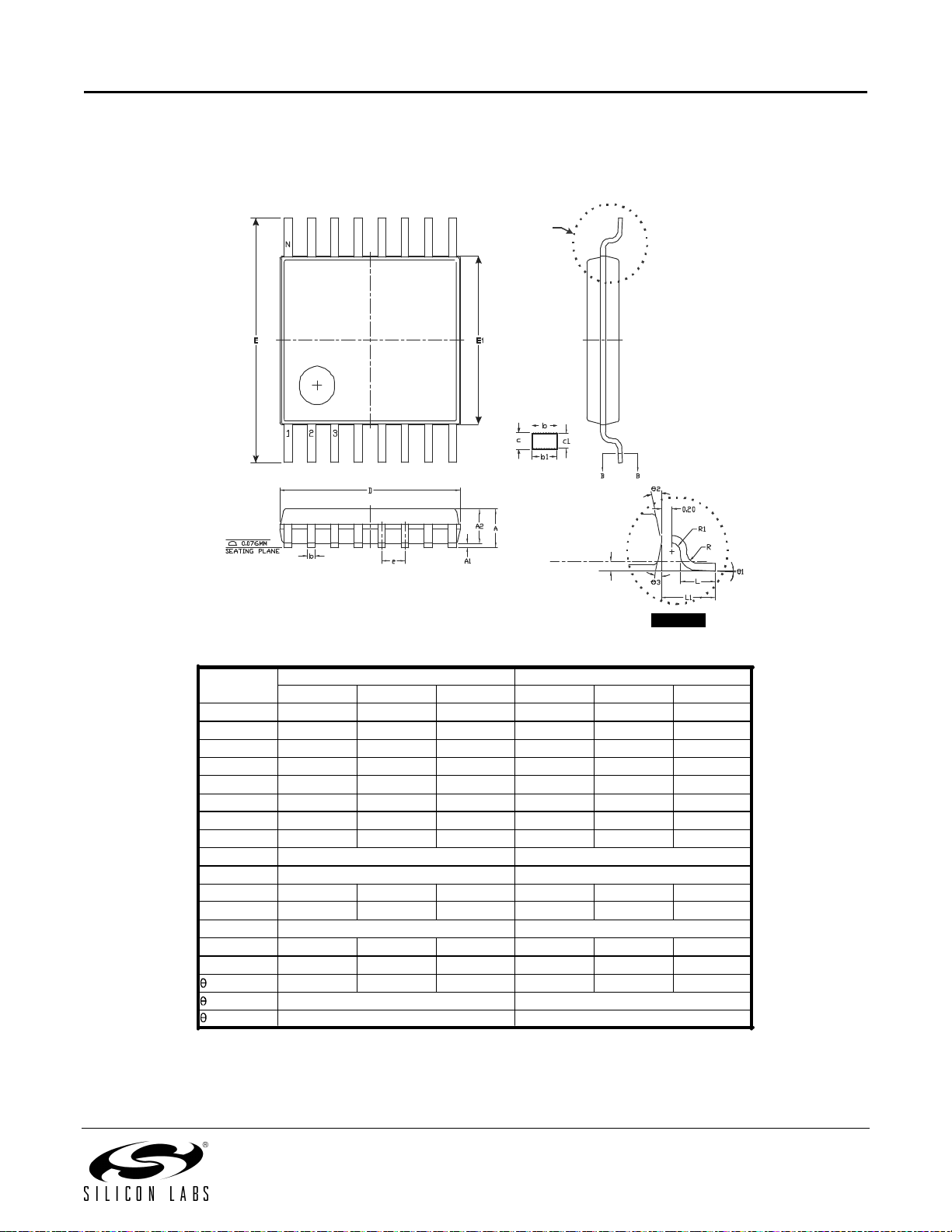

PACKAGE INFORMATION

16-pin TSSOP

Si4421

See Detail “A”

Section B-B

Gauge Plane

Symbol

A2 0,80 0,90 1,05 0,031 0,035 0,041

b1 0,19 0,22 0,25 0,007 0,009 0,010

D 4,90 5,00 5,10 0,193 0,197 0,201 e E

E1 4,30 4,40 4,50 0,169 0,173 0,177 L 0,50 0,60 0,75 0,020 0,024 0,030

2 3

Dimensions in mm Dimensionsin Inches

Min. Nom. Max. Min. Nom. Max.

6.40 BSC.

1.00 REF.

12 REF. 12 REF.

0.2 5

Detail “A””

740,002,1A

600,0200,051,050,01A

210,0700,003,091,0b

800,0400,002,090,0c

600,0400,061,090,01c

.CSB620.0.CSB56.0

0.252 BSC.

0.39 REF. 400,090,0R 400,090,01R

80801 12 REF. 12 REF.

Silicon Laboratories SI4421 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
