AMS00x • Embedded Bluetooth Low Energy Solutions

AMS001 / AMS002

Data Sheet

AMS00x • Embedded Bluetooth Low Energy Solution

Disclaimer

While the information provided in this document is believed to be accurate, it is under development and ACKme Networks reserves the right to make changes without further notice to the product described herein to improve reliability, function, or design, and makes no guarantee or warranty concerning the accuracy of said information, nor shall it be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon, such information. ACKme Networks makes no warranties of any kind, whether express, implied or arising by custom or course of trade or performance, and specifically disclaims the implied warranties of title, non-infringement, merchantability, or fitness for a particular purpose.

No part of this document may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photographic, or otherwise, or used as the basis for manufacture or sale of any items without the prior written consent of ACKme Networks.

Trademarks

Contact

http://ack.me/contact

About this Data Sheet

This document provides information on the family of AMS00x Bluetooth Low Energy (Bluetooth Smart) modules from ACKme Networks.

Organization

This data sheet is organized into the following sections:

 Features & Applications  General Description, Section 1  Block Diagram, Section 2  Electrical Specifications, Section 3  Bluetooth RF Specifications, Section 4  Pinout and Signal Descriptions, Section 5  Design Guidelines, Section 6  Regulatory Certification, Section 7  Packaging, Handling & Storage, RoHS, Section 8  Ordering Information, Section 9  Revision History & Glossary, Section 11

ACKme Networks and the ACKme Networks logo are

trademarks of ACKme Networks. WICED™ is a trade-

mark of Broadcom® Corporation, Inc. Bluetooth® is a trademark of the Bluetooth SIG. Other trademarks in this document belong to their respective owners.

Document Number: ADS-MS00x-102Dx

Release Date: TBD

AMS00x Family Data Sheet

Embedded Bluetooth Low Energy Solution

Features

 Bluetooth Low Energy (Bluetooth Smart) modules

fully certified to meet Bluetooth version 4.1.

 Integrated SPI-serial flash supports firmware up-

dates and multiple on-board applications

 On-board PCB-style antenna  ARM® Cortex™ M3-based microprocessor core  Programmable RF transmit power control  Operation directly from a battery or mains supply  Small size enables integration into most sensor

products and applications

 Secure Over-the-Air (OTA) software update using

industry-standard AES-128 security

 Easily integrated into existing or new products us-

ing TruConnect, ACKme’s configurable Bluetooth Low Energy application (pre-installed on every module)

 Multiple services including ACKme TruConnect,

Beacon, iBeacon, plus more …

Interfaces*

 A/D converter: 7 channels with 4 modes providing

variable resolution (10-13 ENOBs), sampling rate (5.9-187 kHz) and conversion latency (5-171 µs)

 USART: 1 x 4-wire up to 1.5 Mbit/s for general use,

1 x 2-wire for in-circuit programming

 SPI: 1 x master, 1 x slave at ≤12 Mbit/s

 I

C: 1 x I2C master interface up to 1 MHz

 GPIO: Up to 12 GPIOs (overlaid with peripherals),

programmable pull-up/pull-down resistors with 16 mA drive strength at 3.3V (2 mA standard).

 4 x PWM channels each with a 10-bit counter

clocked at 128 kHz.

 Wake-up: Wake from GPIO for ultra-low power

operation.

*Some interfaces share module pins

Operational & Radio

 Operational voltage : 1.8V - 3.6V  Operational Temperature Range: -30°C to +85°C  Size : 17.6 x 11.4 x 2.4mm (0.70” x 0.45” x 0.10”)  Weight : 0.04 oz (1.2g)  Current consumption @ 3.0V, 25°C

- Deep Sleep : 0.65 µA

- Sleep : 12 µA

- AMS001

 Active Receive : 12.8 mA  Active Transmit : 10.8 mA

- AMS002

 Active Receive : 26.6 mA  Active Transmit : 22.0 mA

 RF Transmit Power: +4 dBm (max.)  Receive Sensitivity : -94 dBm

Applications

 Health & Fitness

- Fitness Equipment

- Heart rate monitors

- Weight scales

- Thermometers

- Pedometers

- Glucose meters

- Blood pressure monitoring

 Retail

- Advertising and Beaconing

- Proximity detection

- Point-of-sale

 Home & Industrial Control and Automation

- Appliance control and monitoring

- Doors/Window monitoring

- Alarms

- Wireless cable replacement

- Environmental & Energy monitoring

- Wireless sensing, remote data logging

 Consumer

- Toys

- Robots

Remote controls

AMS00x • Embedded Bluetooth Low Energy Solution

Contents

1 General Description ............................................... 1

2 Block Diagram ........................................................ 2

3 Electrical Specifications .......................................... 3

3.1 Absolute Maximum Ratings ............................ 3

3.2 Recommended Operating Conditions ............ 3

DC Operating Conditions ........................ 3

Environmental Conditions ...................... 4

3.3 Power Consumption ....................................... 4

3.4 ADC Specifications .......................................... 4

4 Bluetooth RF Specifications ................................... 6

4.1 Summary RF Specifications ............................. 6

4.2 Receiver Specifications ................................... 6

4.3 Transmitter Specifications .............................. 7

5 Pinout and Signal Descriptions .............................. 8

5.1 Pinout.............................................................. 8

Labeling and User Information

Requirements....................................................... 14

RF Exposure .......................................... 15

External Antenna .................................. 15

Further Information .............................. 15

7.2 Canada .......................................................... 15

Labeling and User Information

Requirements....................................................... 15

External Antenna Types ........................ 16

Further Information .............................. 16

7.3 Europe .......................................................... 17

Labeling and User Information

Requirements....................................................... 17

External Antenna Requirements .......... 17

Further Information .............................. 17

7.4 Australia ........................................................ 18

5.2 Pin Description ................................................ 8

6 Design Guidelines ................................................. 10

6.1 Recommended PCB Footprint ...................... 10

6.2 Routing Recommendations .......................... 10

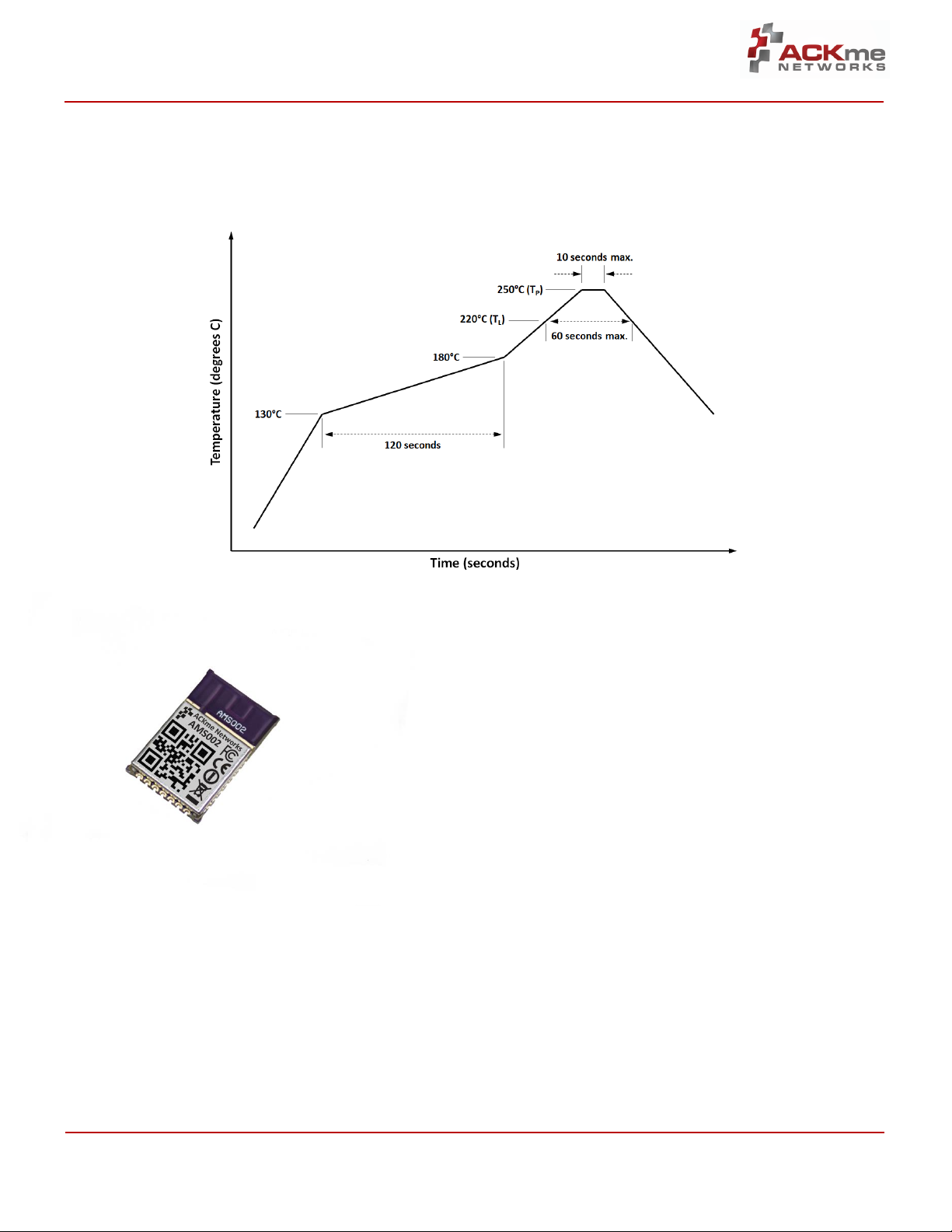

6.3 Soldering Information ................................... 11

6.4 AMS00x Photograph ..................................... 11

6.5 Application Examples .................................... 12

UART Application for Configuration and

Streaming ............................................................. 12

6.6 Operation using TruConnect ........................ 12

Bootup Configuration ........................... 12

Factory Reset ........................................ 13

Command and Stream Mode ............... 13

GPIO Configuration & Usage ................ 13

7 Regulatory Certification ....................................... 14

7.1 United States ................................................ 14

External Antenna Requirements .......... 18

Further Information .............................. 18

7.5 New Zealand ................................................. 19

External Antenna Requirements .......... 19

Further Information .............................. 19

8 Packaging, Handling & Storage, RoHS ................. 20

8.1 Packaging ...................................................... 20

8.2 Handling & Storage ....................................... 21

8.3 RoHS Directive .............................................. 21

9 Ordering Information ........................................... 22

10 Packaging ................ Error! Bookmark not defined.

11 Revision History & Glossary ................................. 23

11.1 Revision History ............................................ 23

11.2 Glossary ........................................................ 23

AMS00x • Embedded Bluetooth Low Energy Solution

General Description, Section 1

1 General Description

The family of AMS00x ‘Bobcat’ modules from ACKme Networks is based on an ultra-low power Bluetooth Low Energy (Bluetooth Smart) SoC from Broadcom Corporation. All modules incorporate serial-flash memory and a printed antenna to provide a state-of-the-art fully-certified Bluetooth 4.1 solution.

An integrated solution avoids difficult RF layout and enables designers to rapidly embed Bluetooth Low Energy into virtually any device.

The AMS001 (Low Power) version slashes active power consumption for applications requiring multi-year battery life, while the AMS002 (Low Cost) version provides the lowest cost solution suitable for price sensitive applications. The modules are 100% footprint compatible.

Modules ship with ACKme TruConnect, an easy-to-use application enabling control and configuration via UART-serial and remote terminal interfaces. TruConnect virtually eliminates difficult and time-consuming software development effort and vastly reduces product development cycles.

With dimensions of just 17.6 x 11.4 mm, a wide temperature range, and an ultra-low power version, the module is suitable for integration into any batterypowered embedded wireless application.

The Bluetooth Low Energy SoC from Broadcom is purpose-designed to support the entire spectrum of Bluetooth Smart use cases for medical, home automation, accessory, sensor, retail and wearable market segments. Superior receive sensitivity, an integrated RF transmit power amplifier and transmit/receive switch, along with the on-board antenna, provide extended range and full compatibility with all Bluetooth 4.1 devices.

At the heart of all AMS00x modules is a Bluetooth Low Energy SoC with a high-performance ARM® 32-bit Cortex™-M3 core operating at a frequency of 24 MHz. The SoC includes is configured to boot applications stored in the 512xkB serial flash memory available on-board the module.

 7 x A/D converter channels  2 x UART interfaces: 1 x 4-wire, 1 x 2-wire  1 x SPI master, 1 x SPI slave bus  1 x I  Up to 12 x ultra-low power wake input  32kHz crystal interface

The module may be powered directly from a battery supply in the range 1.8-3.6V including 2xAAA, 2xAA, or a single Lithium coin cell.

Internal power domains are automatically adjusted to minimize power dissipation based on user activity. Various power modes, including an ultra-low power deep sleep mode, are provided to minimize total average power consumption and maximize battery life.

Custom factory settings may be saved to a non-erasable area of static memory to enable out-of-the-box custom product configuration and the ability to return products incorporating the module to a known factory reset state.

The module may be woken from deep sleep mode by a level transition on the GPIO assigned for stream mode selection. Other GPIOs may be dynamically allocated for control and status including a BLE connection indicator, serial bus mode control and status indicator, audible alerts and factory reset.

An internal 32kHz low-power oscillator is available by default for non-critical timing requirements. Applications requiring an accurate real-time clock may connect an (optional) external 32kHz crystal.

All versions of the module have Bluetooth BQB SIG certification, and FCC & IC modular approval for use in the United States and Canada, and CE approval for use in Europe and other countries.

C interface

Each module provides an extensive array of I/O and peripheral interfaces. The following list of interfaces are available, many of which are accessible with I/O multiplexing and alternate function capabilities.

AMS00x • Embedded Bluetooth Low Energy Solution

VDD

GPIO

PWM

Reset

512 kByte

Serial Flash

AMS00x

Antenna

DC-DC

AMS001 Only

24MHz

Block Diagram, Section 2

2 Block Diagram

Figure 1 is a block diagram showing the architecture of AMS00x Bluetooth Low Energy modules. The major components are a Bluetooth Low Energy SoC from Broadcom, 24MHz crystal, 512xkbyte serial flash and a PCB-style antenna. The AMS001 version also includes a high-efficiency DC-DC switching regulator to significantly reduce active mode power consumption.

The Bluetooth SoC is powered by an ARM Cortex M3based processor running at 24 MHz. The SoC is driven by a 24 MHz crystal, an on-board real-time clock may be (optionally) enabled by connecting an external 32kHz crystal.

Figure 1. AMS00x Architecture

32kHz XTAL

SPI

UART

I2C

ADC

Bluetooth

Low Energy

SoC

ARM Cortex M3

The 512 kByte serial flash memory stores the ACKme TruConnect™ application and user configuration, and enables secure Over-the-Air (OTA) wireless firmware updates. The on-board PCB antenna simplifies RF integration into end products.

An extensive array of analog and digital peripherals including ADCs, GPIOs, PWMs and multiple serial interfaces such as UART, SPI and I2C are accessible via module pins.

The module is powered by a single-rail battery or mains supply.

AMS00x • Embedded Bluetooth Low Energy Solution

Symbol

Ratings

Min.

Max.

Unit

VDD

max

DC supply voltage applied to VDD pin

GND - 0.3

3.8

Characteristic

Note

Min.

Max.

Unit

Storage Temperature

–

-40

+125

°C

Relative Humidity

Non-condensing (storage)

–

Symbol

Ratings1

Min.

Typical

Max.

Unit

VDD

DC supply voltage applied to VDD pin

On-board serial flash read-only

1.8 – 3.63

On-board serial flash read and write

2.1 – 3.63

On-board serial flash at power-on

2.252

–

3.63

Electrical Specifications, Section 3

3 Electrical Specifications

3.1 Absolute Maximum Ratings

CAUTION! The absolute maximum ratings in Table 1 and Table 2 indicate levels where permanent damage to the device can occur, even if these limits are exceeded for only a brief duration. Functional operation is not guaranteed under these conditions. Operation at absolute maximum conditions for extended periods can adversely affect longterm reliability of the device.

Table 1. Absolute Maximum Voltage Ratings

Table 2. Absolute Maximum Environmental Ratings

3.2 Recommended Operating Conditions

Functional operation is not guaranteed outside the limits shown in Table 3 and Table 4, and operation outside these limits for extended periods can adversely affect long-term reliability of the device.

DC Operating Conditions

Table 3. Recommended DC Operating Conditions

Notes:

1. Overall performance degrades beyond minimum and maximum supply voltages.

2. The module may fail to boot if this condition is not met when power is initially applied.

AMS00x • Embedded Bluetooth Low Energy Solution

Characteristic

Note

Min.

Max.

Unit

Ambient Temperature

-30

+85

°C

Relative Humidity

Non-condensing (operating)

–

Operational State

Note

Typical

Unit

Deep sleep

Wake on interrupt

0.65

µA

Sleep

Wake in <5ms

12.0

µA

AMS001

Active Receive

Receiver enabled and operating at 100% duty cycle

12.8

Active Transmit1

Transmitter enabled and operating at 100% duty cycle

10.8

AMS002

Active Receive

Receiver enabled and operating at 100% duty cycle

26.6

Active Transmit1

Transmitter enabled and operating at 100% duty cycle

22.0

Parameter

Symbol

Conditions

Min.

Typ.

Max.

Unit

Input Channels

– – 8 –

–

Channel Switching Rate

fch –

133.33

–

kch/s

Input signal range

inp

0 – 3.63

Reference settling time

– 7.5 – –

µS

Input resistance

Rin

Effective, single ended

–

500

–

kΩ

Input capacitance

Cin – – 5

Conversion rate

Rc 5.859

–

187

kHz

Conversion time

Tc 5.35

–

170.7

µS

Electrical Specifications, Section 3

Environmental Conditions

Table 4. Recommended Environmental Conditions

3.3 Power Consumption

The AMS00x automatically adjusts power dissipation based on user activity to minimize power usage. The power consumption in each state, and for each version of the module, is specified in Table 5.

Table 5. Power Consumption (3.0V, 25°C)

Notes:

1. RF transmit power = 0dBm

3.4 ADC Specifications

Table 6. ADC Specifications (@ 25°C)

AMS00x • Embedded Bluetooth Low Energy Solution

Parameter

Symbol

Conditions

Min.

Typ.

Max.

Unit

Effective Number of Bits

ENOB

10 – 13

bits

Abs. Voltage Meas. Error

– –

±2 – %

Current

I – – 1

Leakage Current

leakage

– – 100

Power-up time

pup

– – 200

µS

Integral nonlinearity

INL

LSBs at the 10-bit level

-1 – 1

LSB

Differential nonlinearity

DNL

LSBs at the 10-bit level

-1 – 1

LSB

Electrical Specifications, Section 3

+ 19 hidden pages

Silicon Laboratories BB4EA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
