Chapter 1
1. Overview
This chapter provides an overview of the SGI Rackable C2005 2U server family:
• “Features” on page 2
• “System Configuration Options” on page 3
• “Storage Configurations” on page 5
• “Front and Rear Panel Components” on page 8
Figure 1-1 shows a typical C2005 server.
Figure 1-1 SGI Rackable C2005 Server
007-5717-002 1
1: Overview
Features
The SGI Rackable C2005 are half-depth, rackmount servers that leverage a unique,
industry-leading approach to thermal management and power efficiency. They provide power
savings and higher levels of reliability in any data center environment. Mounted back-to-back,
C2005s can achieve typically twice the density over competing solutions. The C2005 offers
industry-leading direct-attached storage and expansion capabilities unheard of at a 1U-effective
rack density.
With the processing power of up to 672 cores and local storage capacity of up to 420 TB per
cabinet, the C2005 server is ideal for IT environments where space and power are constrained. Its
high-efficiency AC and DC power technologies reduce overall power consumption and heat
output in any legacy data center while increasing uptime and reliability.
Flexible Configurations
The highly modular C2005 server is built to order to address specific data center needs while
eliminating unnecessary costs. Based on an open architecture approach using AMD Opteron™ or
Intel
modular zones determining the balance between multiple 2.5” and 3.5” hard drive configurations
and expansion slot capabilities.
®
Xeon® processors, the C2005 server takes configuration flexibility to the next level with two
Leading Efficiency
The unique SGI approach to thermal management begins with each component inside our servers.
Leveraging high-efficiency power supplies, memory and processors, the patented SGI solutions
strive to draw the lowest possible wattage and reduce heat output. Innovative, award-winning AC
and DC power solutions at the system, cabinet and data center level enable any legacy data center
to immediately achieve reduced power costs.
High Density
Our unique half-depth form factor enables back-to-back mounting to achieve high density levels
of up to 44 dual-processor servers or networking gear per cabinet. Supporting today’s fastest
AMD and Intel dual- and quad-core processors, one cabinet can deliver—and effectively cool—
the compute power of 352 processing cores and 220TB of local storage.
2 007-5717-002
Simplified Serviceability
Time-saving Roamer™ remote management technology helps reduce
administrative resources and overhead. This single, highly intuitive interface
provides effortless local or remote control with total lights-out management.
Front-facing IO means RJ-45 ports, connectors and cables are located in front for
rapid service and maintenance.
Ve rsatile 2.5” and 3.5” Local Storage Support
The C2005 server is an ideal match for many different applications. With up to ten
2.5” high-performance SAS or SSD drives, the C2005 is well-suited for
applications such as scale-out database servers. With up to five 3.5” SAT A drives,
it also meets the need for configurations requiring high-capacity local storage. The
C2005 can even support a mixture of drive technologies and sizes.
System Configuration Options
System Configuration Options
This versatile system allows for many different types of build-to-order options.
There are a few limitations:
• Maximum of 2 sockets
• Maximum 288 GB of memory (18 x 16GB DIMMs)
• Maximum storage capacity of 15TB (SAS/SATA 3.5” HDDs)
• Onboard Networking: Dual GigE native + PCIe
®
-based cards
• IPMI 2.0 support
The compute configurations for the C2005 support both Intel and AMD
processors. Limitations are based on what options are available on current
motherboards in the E-ATX form factor. Table 1-1 charts the configuration
options.
007-5717-002 3
1: Overview
Table 1-1 Configuration Options
Attribute Intel-based C2005 AMD-based C2005
Chassis Profile 2U half-depth 2U half-depth
Processors Up to two identical dual-core
processors from the following:
– Intel Xeon 5500 or 5600 Series
Up to two multi-core AMD
Opteron 4100 or 61xx Series
processors
– Intel Xeon E-5 2600 Series
– Intel Xeon E-5 2600v2 Series
Max. Cores 12 32
Chipset Intel 5400 or 5500 NVIDIA nForce Pro 3600
Front Side Bus Speed Up to 1600MHz N/A
Memory* Up to 288GB (18 x 16GB DIMMs);
max speed of 1333 Mhz
Hard Disk Drives Up to five 3.5”, ten 2.5” hot-swap
SAS or SATA II drives or a
combination of both
Max. Capacity SAS/SATA 3.5” HDDs: 15TB
SAS/SATA 2.5” HDDs: 10TB
RAID Card Levels
RAID 0, 1, 5, 6, 10, 50, 60* RAID 0, 1, 5, 6, 10, 50, 60*
Up to 256GB (16 x 16GB DIMMs);
max speed of 1600 Mhz
Up to five 3.5”, ten 2.5” hot-swap
SAS or SATA II drives or a
combination of both
SAS/SATA 3.5” HDDs: 15TB
SAS/SATA 2.5” HDDs: 10TB
(optional)
Expansion Cards Up to five PCI Express low-profile
slots or one slot on a riser*
Up to five PCI Express low-profile
slots or one slot on a riser*
Networking, Onboard* Up to 4GigE Up to 4GigE
Roamer Remote Mgmt.
Card/LCD (optional)
IPMI Remote System*
Management (optional)
Power Supply Auto-switching 100–240 VAC or
4 007-5717-002
Serial or IP + Keyboard, V ideo and
Mouse (KVM)
Serial or IP + Keyboard, Vi deo and
Mouse (KVM)
IPMI 2.0 IPMI 2.0
Auto-switching 100–240 VAC or
–48 VDC, optional redundant
power supply (AC 650W)
–48 VDC, optional redundant
power supply (AC 650W)
Table 1-1 Configuration Options (continued)
Attribute Intel-based C2005 AMD-based C2005
Chassis Mount SGI cabinets with back-to-back
Dimensions (HxWxD) 3.5” x 17.6” x 15.5” 3.5” x 17.6” x 15.5”
* Dependent on motherboard features.
Storage Configurations
Two modular zones of the C2005 chassis provide unparalleled build-to-order fl exibility for
configuring hard drives and expansion slots. This section describes those two zones:
• “Upper Modular Zone” on page 6
• “Lower Modular Zone” on page 7
Storage Configurations
mounting for double density;
standard 19-rack compatable
007-5717-002 5
1: Overview
Upper Modular Zone
The upper modular zone consists of a top drive tray coupled with either a horizontal or vertical

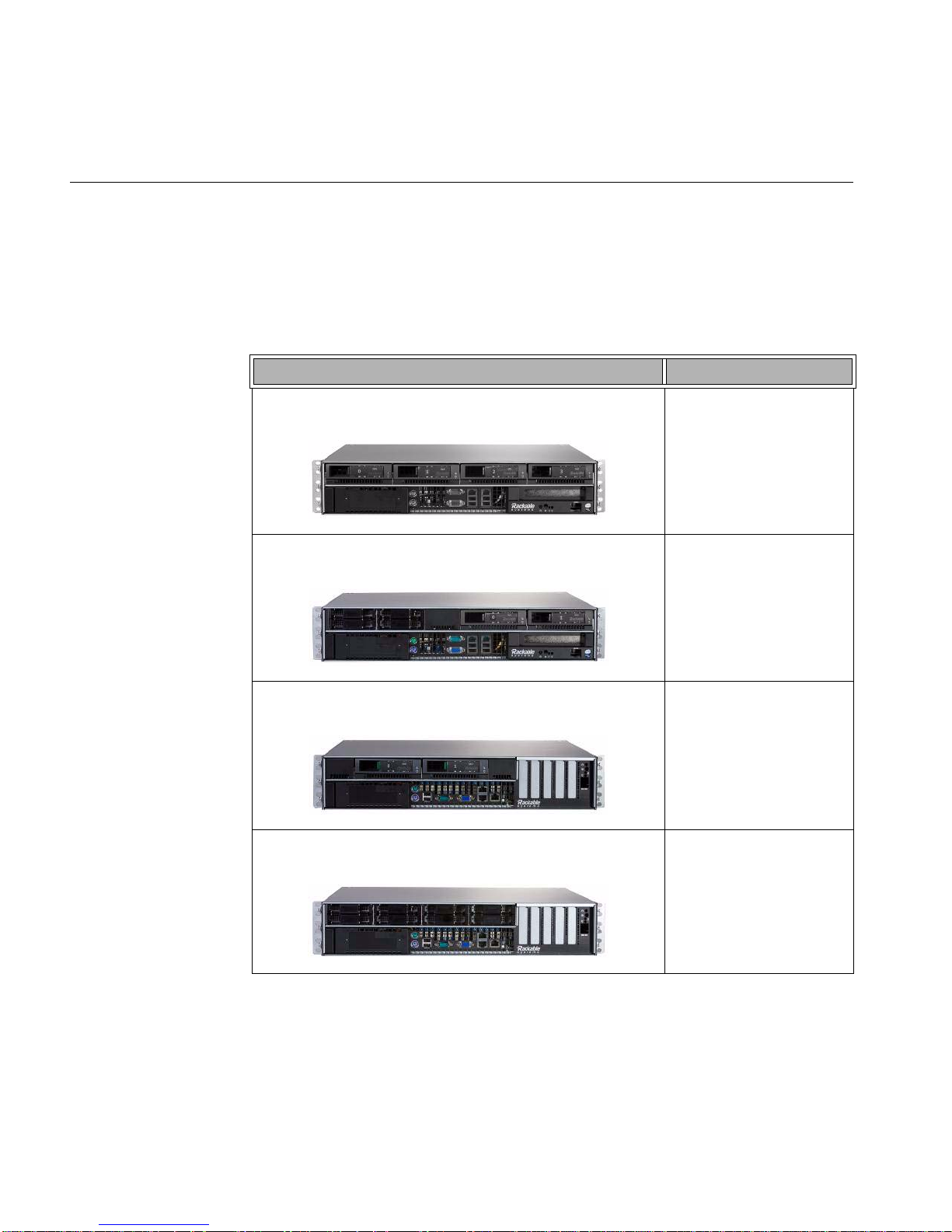

PCIe cage on the right of the chassis. Table 1-2 describes the configuration options.
Table 1-2 Storage Configuations—Upper Modular Zone
Storage Configuration Expansion Slots
Four 3.5” hot-swap drives One PCIe slot on riser
Two 3.5” and four 2.5” hot-swap drives One PCIe slot on riser
Two 3.5” hot-swap drives Up to five low-profile slots
Eight 3.5” hot-swap drives Up to five low-profile slots
6 007-5717-002
Lower Modular Zone
Storage Configurations
The lower modular zone is the lower left portion of the chassis. This zone provides the additional

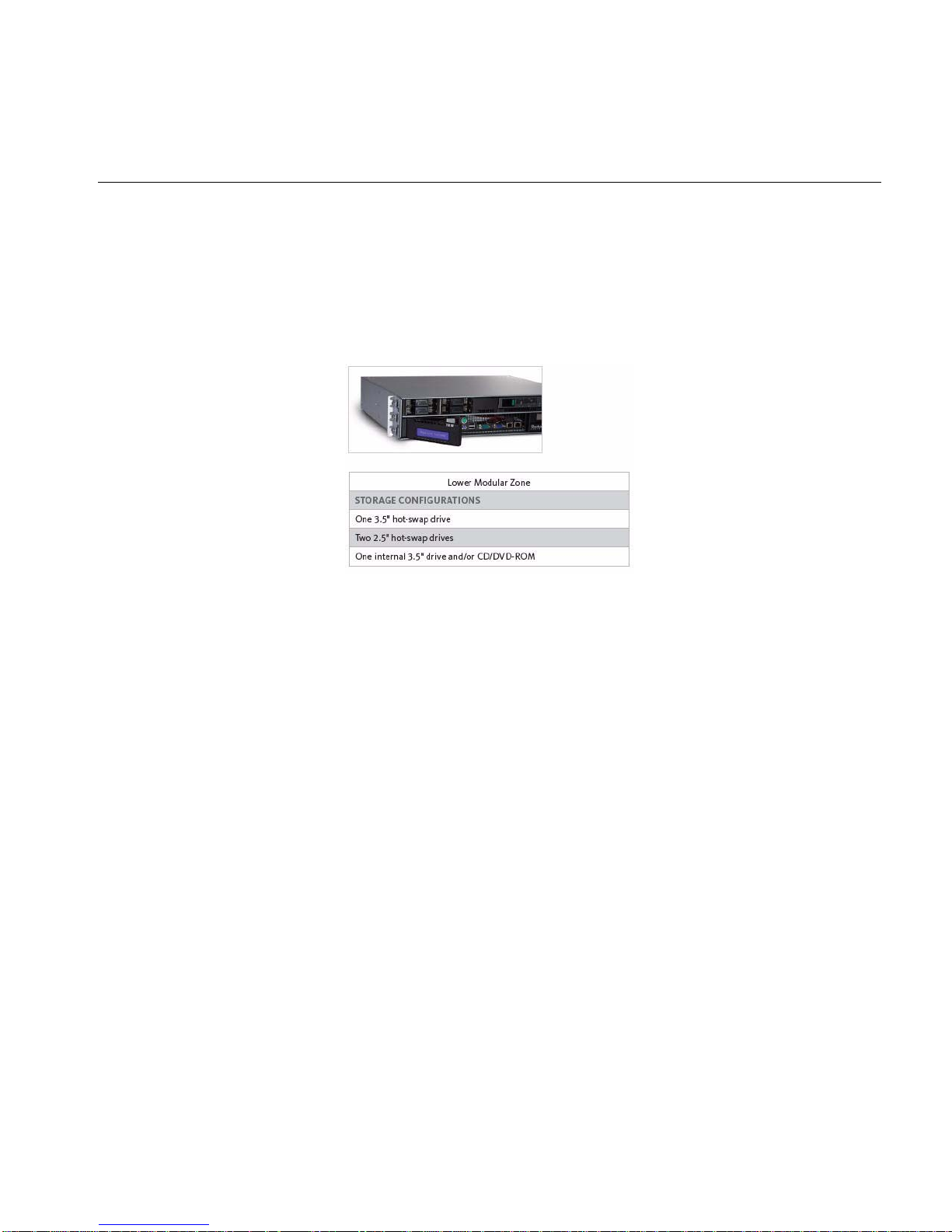

storage options shown in Figure 1-2. The 2.5” drives are SAS or SATA and the CD/DVD-ROM
is a low-profile device.
Figure 1-2 Lower Modular Zone—Additional Storage Options
007-5717-002 7
1: Overview
Disk drives
or
Front and Rear Panel Components

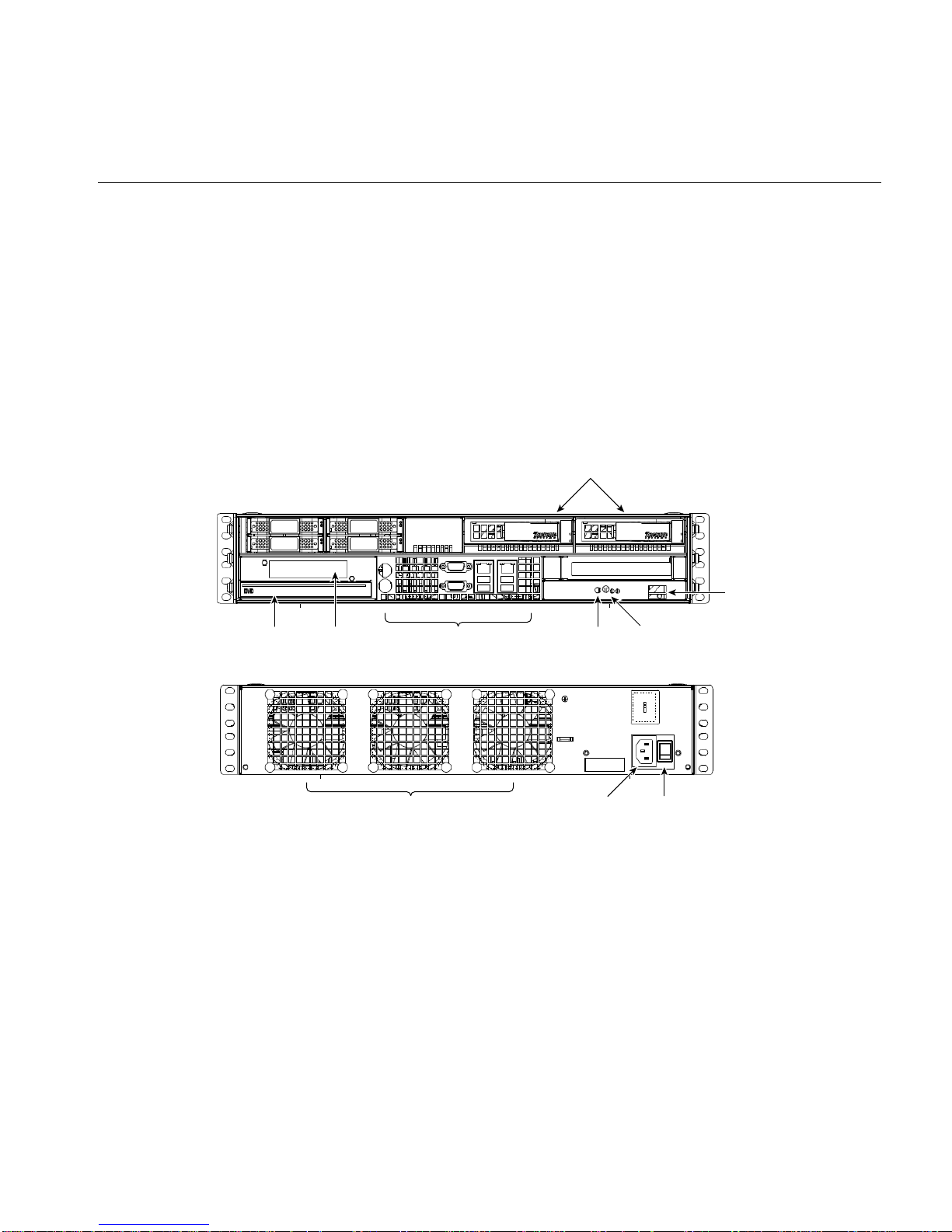

Figure 1-3 shows the components of the front and rear panels of a typical C2005 server.
Serial
connect
Front panel I/ODVD drive LCD
Rear fans Power
Power
button
connector
Figure 1-3 Front and Rear Panel Components
Power
cord
LED
indicator
lights
switch
8 007-5717-002
Front and Rear Panel Components
Table 1-3 describes the various components illustrated in Figure 1-3.
Table 1-3 Front Panel Components
Component Description
Disk drives These removable hard drives can be placed in drive
carriers and can be hot-swappable. The drive carriers are
connected to the system internally via a custom backplane
that interfaces with a RAID storage card. Specific s of the
RAID card used depend on the system specifications of
your order.
DVD drive Depending on the configuration of your server, a
DVD/DVD-RW or CD/CD-RW drive may be present.
Also, in this area is space for an LCD display that is used
with a Roamer remote management module if one was
purchased with the server.
Front panel I/O The I/O interface to the motherboard. The configuration
of the various I/O ports is dependent on the motherboard
used in your configuration. For detailed I/O
specifications, refer to the motherboard manual included
with the documentation and accessory kit. Typical I/O
includes the following:
– serial port (RS-232, 9600 baud)
– USB ports
– PS-2 connector for mouse and keyboard
– VGA port
– Ethernet ports (RJ-45, eth0/eth1, 10/100/1000Mb)
LCD (Optional)
The LCD screen is used to display messages from the
Roamer remote management solution. The Roamer
module has the ability to display information relating to
the system that can be customized according to your need.
007-5717-002 9
1: Overview
Table 1-3 Front Panel Components (continued)
Component Description
LED indicator lights These LEDs provide you with critical information related
to different parts of the system.
Green (PWR): The LED farthest to the left indicates that
power is applied to the server and the system is on. When
the LED is off, the system is off, even if the AC power
cord is plugged into the server.
Blue (HDD): The LED in the middle indicates that the
hard drive(s) are currently being accessed and activity is
occurring.
Red/Tri-color (ID2): The LED to the far right may have
several functions depending on the configuration of your
server. If your server was purchased with the Roamer
remote management module, then this LED can be turned
on or set to blink via Roamer so that a technician can
easily identify a unit that may need service.
Power button This single-push, push button is a power on/off button.
When the system is in an off state, pushing the button once
powers the system on. When the system is in a n on s tate,
pushing and releasing the button power the system off.
This button does not have a reset function.
Power supply
connector
AC: Connect only 100-240 V olt AC, 3A or 5A maximum,
50-60 Hz. Use a standard AC connector to connect power
to the server. An AC power cord is included in your
documentation and accessory kit.
DC: Connect only.
Power switch This power switch turns the server on and off. It controls
the power supply that is inside the chassis.
10 007-5717-002
Front and Rear Panel Components
Table 1-3 Front Panel Components (continued)
Component Description
Rear fans Keep the area behind the fans clear and unobstructed. This
will ensure proper airflow to the components inside the
server chassis.
Serial connector This port is accessed with an RJ-45 connector. When the
Roamer remote management module is installed, this port
functions as an interface to the module. When the Roamer
remote management module is not installed, the pinout for
the serial connector is as shown in Table 1-4.
Table 1-4 describes the pinouts for the serial connector when Roamer is not installed.
Table 1-4 Pinouts for the Serial Connector J3
Pin Name Description
1 RTS Request To Send (JP1 “A”)
CTS Clear To Send (JP1 “B”)
2 DSR Data Set Ready
3RxD Receive Data
4 GND Ground Return
5 GND Ground Return
6 TxD Transmit Data
7 DTR Data Terminal Ready
8 CTS Clear To Send (JP1 “B”)
RTS Request To Send (JP1 “B”)
007-5717-002 11
Chapter 2
2. Pre-Installation Guidelines
T o ensure safe and efficient operation of your server , proper planning is essential. Factors such as
the proper location of the server in its rack, adequate power to the components in the rack, and the
appropriate operating environment for the rack. The guidelines described in this chapter are
categorized as follows:
• “Server and Rack Positioning” on page 13
• “Electrical Power” on page 14
• “Operating Environment” on page 14
• “Rack Stability” on page 15
• “Cables” on page 15
• “Security” on page 15
Server and Rack Positioning
Follow these guidelines to ensure that the server is safely and appropriately positioned for efficient
operation and service.
• When determining the location for the server, position it so that there is adequate space for
airflow and servicing.
• When positioning the server in a rack, be sure to allow adequate space for airflow and
servicing from the front and the rear.
• Clearance in the front of the server should be a minimum of 36” to allow the chassis to easily
slide in and out of the rack.
• Clearance in the rear should be approximately 30” to allow for sufficient space for airflow
and ease of servicing.
• Do not cover the front or rear of the server or any of the openings on the server front and rear
panels.
007-5717-002 13
2: Pre-Installation Guidelines
Electrical Power
• If you are installing multiple servers or other components in the rack, place the components
and servers in positions that they can be easily opened and serviced. For example, the
heaviest components—such as a uninterruptible power supply—are placed at the bottom of
the rack; servers are often in the middle of the rack.
If installing this server in a rack that contains multiple components, be sure that the power
connections to the rack are sufficient for the combined power requirements of all the components.
Ensure adequate and safe power by following these guidelines:
• Check documentation of all the components in the rack to obtain the total power requirement
that the rack will use. Cross-reference this need with information on the total available
power to see if the power supply for the rack is sufficient for the planned components.
• When planning electrical power arrangements, make sure you have more power available
than specified for all components. Also, make sure the power load is distributed evenly
among circuits to the location of the rack.
• Make sure power connections for the server and all other components are grounded.
• See the Appendix A, “Technical Specifications” for specific data on the electrical power
requirements for this server.
Operating Environment
The operating environment where the server is installed must meet the following temperature and
ventilation requirements:
• Verify the temperature range of the datacenter or room where the server is installed. Ensure
that it is within the limits established for the server and all other components. This server is
designed to function within the temperature range of 10–35°C / 50–90°F.
• Adequate ventilation must be present to maintain the specified temperature range. This is
particularly important for a server or rack enclosed in a cabinet.
14 007-5717-002
Rack Stability
Cables
Rack Stability
The rack must be strong enough to hold the installed components.
• Ensure that the leveling jacks at the bottom of the rack are fully extended and are secure.
• If using a two-post (telco) rack, be sure that the rack is securely fastened to the building at
the top and the bottom.
• In single rack installations, stabilizers should be attached to the rack.
• When working with components in the rack, never slide out more than one unit at a time.
For optimal efficiency in server operation and ease of maintenance, handling cables properly is
required.
• Arrange all component cables so they do not interfere with access to the rack.
• To ensure full signal strength for Ethernet, serial, and other connections, make sure the
cables do not exceed established length limits.
Security
The following are security considerations:
• If using a server cabinet that is not in a secure room, be sure the cabinet is adequately locked
and access is limited to authorized staff.
• Control access to the server environment with a plan for distributing and controlling keys
and access information.
• Store a copy of server access information at a safe location away from the server site.
007-5717-002 15
Chapter 3
3. Installation Guidelines
This chapter describes how to install your server into the rack.
Warning: Your server is designed for rack mounting. It is not designed for use as a
desktop system. Do not place a monitor on the server or place anything on top of the
enclosure. Additional weight on top of the server could cause damage to internal
components.
Your server can be installed in these types of racks:
• Open four-post rack, 19” wide, 24–26” deep or 29–36” deep
• Cabinet with four-post rack inside, 19” wide, and 29–36” deep
• Two-post Telco rack, 19” wide.
The server is two rack units (2RUs) tall.
007-5717-002 17
3: Installation Guidelines
Getting Ready to Install
You can install the server into any four-post rack or two-post (Telco) rack. Preparations for
installing are the same regardless of what type of rack you using for the server.
Important: Check the documentation for your rack for any special instructions or requirements.
Before beginning work with the server and rack, make the following preparations:
• If possible, arrange to work with another person for safety.
• Assemble the tools, brackets, and connectors you will need for installation.
• Note the screw sizes that you will need to use with your rack. Typically, racks use one of the
following two:
n English size 10–32 or 12–24
n Metric size M5 for racks with metric holes
Check the documentation for your rack and if screws are provided, use those.
• Clear a table, cart, or other flat surface near the rack. You will need a space to temporarily
place the server during installation.
Determine Server Positioning in the Rack
Review the guidelines for positioning the server in the rack explained earlier. Then follow these
steps to determine its positioning.
1. Determine the exact position where you want to attach the server and mark it on the side of
the rack.
Some racks have marks already to aid in positioning a server. If your rack does not have
such aids, measure and count holes to determine desired positioning. The distance between
holes on a rack varies on racks made by different manufacturers.
2. Once positioning is correctly determined in the rack you are ready to connect the server to
the rack. The server can be connected to standard Tel co two- or four-post racks.
18 007-5717-002
Installing into a Rack or Cabinet
A rack can be either open or enclosed in a cabinet. Follow the same instructions to attach the server
to either type of rack. For a cabinet, it helps to remove the door before installing the server. The
server does not require conventional rack or server rails to be installed. The server is designed to
slide easily between the mounting rails of the rack. Once the exact position of the server is
determined on the rack, installation of the server is as follows:
1. Position the server so that the two “ears” on the side of the server are positioned equally and
level in the rack.
2. Install four screws through the mounting ears and into the rails of the rack.
Typical screw sizes are 10–32 and 12–24. Check the accessory kit for spare screws.
If your rack does not have threaded holes, you will be required to provide threaded inserts to
snap into the rails.
Installing into a Telco Rack
Installing the server into a Telco rack is exactly the same procedure as just described. The only
difference in the installation procedure will be the positioning of the server mounting ears to the
rack. The ears should be moved to the middle of the server to accommodate installation into a
Telco rack.
Installing into a Rack or Cabinet
007-5717-002 19
3: Installation Guidelines
Cabling
Once the server is secured in the rack, you can connect the Ethernet cables and power cord directly
to its front and back panels, respectively. Before connecting them, do the following:
1. Gather the cables you will connect to the server.
2. Make certain each cable has the proper connector and that it is designed for use in a
high-capacity server.
3. Label each cable so that you can locate a specific cable quickly.
Ethernet ports on the server are numbered 0 and 1. 0 is the primary Ethernet port, and 1 is
the secondary.
Warning: Because the server is being installed into a rack with other equipment, be
certain that the power used with the rack is designed to carry the electrical load of all of the
devices in the rack. Refer to Appendix A, “Technical Specifications” for details on the
power requirements for this server.
20 007-5717-002
Installing a Hard Drive into the Hard Drive Carrier
To install a hard drive into the hard drive carrier, perform the following steps after removing the
hard drive from the chassis:
1. Place the hard drive carrier on a flat, stable surface such as a desk, table, or work bench.
2. Slide the hard drive into the carrier with the printed circuit board side facing down (see
Figure 3-1).
3. Carefully align the mounting holes in the hard drive and the carrier. Make sure the bottom of
the hard drive and bottom of the hard drive carrier are flush.
4. Secure the hard drive using all four screws (see Figure 3-1).
5. Replace the drive carrier into the chassis. Make sure to close the drive carrier using the drive
carrier handle.
SAS/SATA
hard drive
Installing a Hard Drive into the Hard Drive Carrier
4
2
Hard drive
carrier
Figure 3-1 Inserting Hard Drive into Carrier
007-5717-002 21
4
Use a hard, stable
surface when installing
the hard drive
Chapter 4
4. Using the Server
This chapter describes basic server operation, how to turn the server on and off, and how to use
Roamer remote management.
Powering the Server On
After the server chassis is connected to AC power, the server can be turned on in any of the
following ways:
• Press the power-control button on the front of the server.
While the server is powering up, the power LED on the front of the chassis is lit.
• If a power failure occurs, the server can be started automatically when power is restored.
This is only available if the Rackable Roamer remote management module was ordered for
the server.
• If the operating system you installed on the server supports the Wake on LAN feature, the
Wake on LAN feature can turn on the server.
The W ake on LAN feature only works if it was not disabled through the system BIOS, and if
the server was previously turned on and the operating system was shut down properly.
007-5717-002 23
4: Using the Server
Powering the Server Off
When the server is turned off, it remains connected to AC power through the server chassis. The
server can respond to requests to turn on remotely or locally through Roamer. T o remove all power
from the server, power must be disconnected from the server chassis.
Shut down your operating system before turning off the server. Refer to the operating system
documentation in reference to proper operating system shutdown. Improper shutdown of a server
will not allow the server to be restarted using Wake on LAN.
The server can be turned off in the following ways:
• Press the power-control button on the front of the server.
This begins the shutdown of the operating system, if this feature is supported by your
system.
• If the operating system stops functioning, you can press and hold the power-control button to
turn off the server.
• The Roamer remote management module (if one is present in your server) can be used to
turn off the server.
24 007-5717-002
Working with Roamer Remote Management
Disk drives
or
connector
If the server you purchased has the optional Roamer remote management hardware present, then
the server can be managed remotely using this option. The Roamer option provides standard
motherboards with enhanced remote control and serial redirection capabilities. The Roamer is
accessed locally using an RJ-45 serial connection (shown in Figure 4-1).
With the Roamer option comes a LCD display. This display can be directly programmed within
the OS. The LCD display can also be used to display server status, and other information as
needed.
Working with Roamer Remote Management
Serial
connect
Front panel I/ODVD drive LCD
Rear fans Power
Figure 4-1 Front and Rear Panel Components
Power
button
Power
cord
LED
indicator
lights
switch
007-5717-002 25
E. Safety Guidelines
Electrical Safety
Appendix 5
The safety guidelines categorized as follows:
• “Electrical Safety” on page 27
• “General Safety” on page 28
• “Handling Your Server” on page 29
Observe the following basic electrical safety precautions to protect yourself from harm and the
server from damage:
• Be aware of the locations of the power on/off switch on the chassis as well as the room's
emergency power-off switch, disconnection switch, or electrical outlet. If an electrical
accident occurs, you can then quickly remove power from the system.
• Do not work alone when working with high voltage components.
• Power should always be disconnected from the system when removing or installing main
system components—such as the motherboard, memory modules, and drives. When
disconnecting power, you should first power down the system with the operating system first
and then unplug the power cords of all the power supply units in the system.
• When working around exposed electrical circuits, another person who is familiar with the
power-off controls should be nearby to switch off the power if necessary.
• Use only one hand when working with powered-on electrical equipment. This is to avoid
making a complete circuit, which will cause electrical shock. Use extreme caution when
using metal tools, which can easily damage any electrical components or circuit boards they
contact.
• Do not use mats designed to decrease static electrical discharge as protection from electrical
shock. Instead, use rubber mats that have been specifically designed as electrical insulators.
007-5717-002 27
5: Safety Guidelines
General Safety
• The power supply power cords must include a grounding plug and must be plugged into
grounded electrical outlets.
• Verify that the electrical outlets and power strips used by the server have reliable earthing.
• Verify that the server is plugged into an electrical outlet with appropriate circuit overloading
protection.
The following are general safety guidelines:
• Keep the area around the server clean and free of clutter.
• The server weighs approximately 27 lbs when fully loaded. When lifting the system, two
people at either end should lift slowly with their feet spread out to di stribute the weight.
Always keep your back straight and lift with your legs.
• Place the chassis top cover and any system components that have been removed away from
the system or on a table so that you will not step on them.
• While working on the system, do not wear loose clothing such as neckties and unbuttoned
shirt sleeves, which can come into contact with electrical circuits or be pulled into a cooling
fan.
• Remove any jewelry or metal objects from your body. They are excellent metal conductors
that can create short circuits and harm you if they come into contact with printed circuit
boards or areas where power is present.
• After accessing the inside of the system, close the system back up and secure it to the rack
unit with the retention screws after ensuring that all connections have been made.
• If you replace the motherboard battery, ensure that you install it properly. This battery must
be replaced only with the same or an equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions.
Caution: There is a danger of explosion if the onboard battery is installed upside down, which
will reverse its polarities
• To ensure proper cooling when the server is operating, take care to ensure that all chassis
covers are in place, that all drive bays either have a drive or a blank installed, and that the
room ambient temperature is within the specified operating temperature range.
28 007-5717-002
Handling Your Server
When handling the server, use the following guidelines:
• When the server is removed from the rack, set it on a sturdy and flat surface. Do not set any
• When connecting or disconnecting a cable, always hold the cable by its connector.
• Never force a connector into a port. If the connector and port do not join with ease, check the
• Protect the server and its components from direct sunlight and rain or other moisture.
• Keep all ventilation openings clear and unobstructed. Without proper air circulation,
Handling Your Server
heavy objects on top of the server. Any additional weight could possibly damage essential
internal components.
matching of the connector with the port. Correct positioning when joining a connector to a
port is also essential.
components can overheat, causing damage or unreliable operation.
007-5717-002 29
Appendix A
A. Technical Specifications
Table A-1 lists allowable ranges for temperature, humidity, and alti tude for the SGI Rackable
C2005 family of 2U servers.
Table A-1 Temperature, Humidity, and Altitude Specifications
Attribute Specification Rate of Change Constraints
While Product Operating
Temperature – Up to 1500m (5000ft)
ºC (41ºF) to +35ºC (95ºF)
+5
– 1525m (5000ft) to 3050m (10,000ft)
Reduce max temperature (35
305m (1000ft) of altitude above 1525m
(5000ft).
Humidity 20% to 80% Non-condensing Maximum: 10% relative
Altitude 3050m (10,000ft)
While Product Power Off
Temperature +5
Humidity 8% to 80% Non-condensing
Altitude 3050m (10,000ft)
While Product Packaged for Shipping
Temperature -40
Humidity 8% to 80% Non-condensing
Altitude 12,200m (40,000ft)
ºC (41ºF) to +45ºC (113ºF) Maximum: 20ºC/hour (36ºF/hour)
ºC (-40ºF) to +60ºC (140ºF) Maximum: 20ºC/hour (36ºF/hour)
ºC) by 1ºC per
Maximum: 10
humidity/hour
ºC/hour (18ºF/hour)
007-5717-002 31
A: Technical Specifications
Table A-2 lists physical, thermal, power, and compliance specifications for C2005 servers. The
numbers reflect a typical configuration with four hot-swap drives.
Table A-2 Physical, Thermal, Power, and Compliance Specifications
Attribute Specification
Form 2U rack mount / half-depth (14.5")
Dimensions 3.5" x 17.6" x 15.5" (HxWxD)
Gross weight ~27lbs.
Max. thermal sustained
output
Actual max. power number 346W (AC) and 256W (DC)
Power supply Input: 100–240VAC (standard), –48VDC (optional)
Compliance US (FCC, CFR47 Part 15, Class )
1121BTU/hr (AC) and 839BTU/hr (DC)
(approximate, based on a typical configuration)
(approximate, based on a typical configuration)
250W or 450W with +3.3V, +5V, +12V, –5V, and –12V main DC
outputs and a 5V standby
Canada (ICES Class A)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Japan (VCCI)
32 007-5717-002
Loading...
