Silicon Graphics Prism Hardware User's Manual

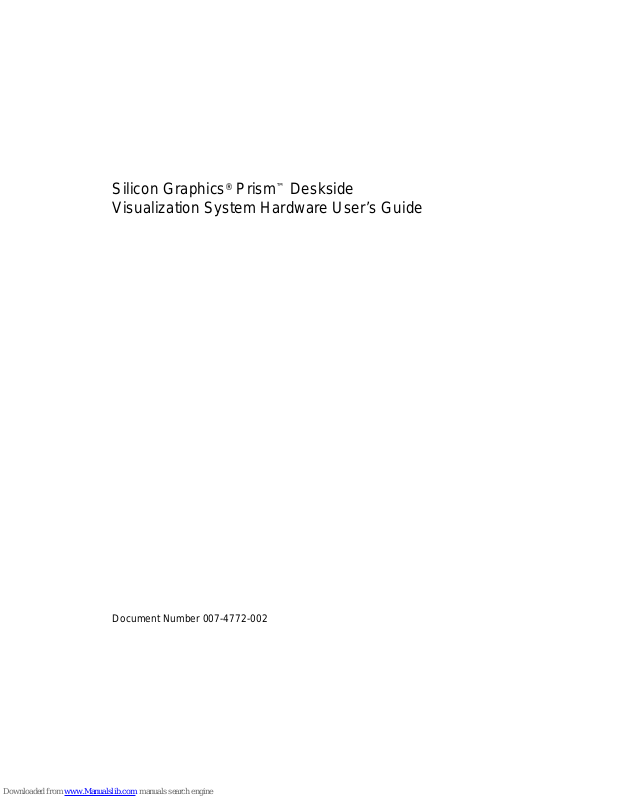

Silicon Graphics® Prism™ Deskside

Visualization System Hardware User’s Guide

Document Number 007-4772-002

CONTRIBUTORS

Written by Mark Schwenden and Eric Zamost
Illustrated by Chrystie Danzer and Dan Young
Engineering contributions by Craig Chandler, Scott Fitzpatrick, Matt Humphreys, Brad Juskiewicz, Eric Kunze, Jim Passint, Keith Rich, Bruce

Shifrin, Lyle Stoll, and Aaron Young.

COPYRIGHT

© 2005, Silicon Graphics, Inc. All rights reserved; provided portions may be copyright in third parties, as indicated elsewhere herein. No
permission is granted to copy, distribute, or create derivative works fr om the conten ts of this electr onic documentation in any manne r, in whole
or in part, without the prior written permission of Silicon Graphics, Inc.

LIMITED RIGHTS LEGEND

The electronic (software) version of this document was developed at private expen se; if acquired under an agreement with the USA government
or any contractor thereto, it is acquired as "commercial computer software" subject to the provisions of its applicable license agreement, as
specified in (a) 48 CFR 12.212 of the FAR; or, if acquired for Department of Defense units, (b) 48 CFR 227-7202 of the DoD FAR Supplement; or
sections succeeding thereto. Contractor/manufacturer is Silicon Graphics, Inc., 1500 Crittenden Lane, Mountain View, CA 94043, USA.

TRADEMARKS AND ATTRIBUTIONS

Silicon Graphics, SGI, and the SGI logo, are r egister ed trademar ks, ProPack a nd Silicon Graphics Prism a r e trademarks of Silicon Graphics, Inc.,
in the United States and/or other countries worldwide.

Intel is a registered trademark of the Intel Corporation in the United States and other countries.

Linux is a registered trademark of Linus Torvalds.

All other trademarks mentioned herein are the property of their respective owners.

For regulatory and compliance information, see Appendix B, “Regulatory Information.”

Record of Revision

Version Description

001 April 2005

Original Publication

002 October 2005

Updated to include Propack 4, Service Pack 2

007-4772-002 iii

Contents

Contents

Figures . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Tables . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Important Information . . . . . . . . . . . . . . . . . . . . xvii

Chapter Descriptions . . . . . . . . . . . . . . . . . . . . . xviii

Related Publications . . . . . . . . . . . . . . . . . . . . . . xix

Conventions . . . . . . . . . . . . . . . . . . . . . . . . xx

Product Support . . . . . . . . . . . . . . . . . . . . . . . xxi

Reader Comments. . . . . . . . . . . . . . . . . . . . . . . xxi

1. Quick Start Installation and Operation Procedures . . . . . . . . . . . . . 1

Setting Up the System. . . . . . . . . . . . . . . . . . . . . . 1

Checking Your Shipment . . . . . . . . . . . . . . . . . . . 2

Lifting the System. . . . . . . . . . . . . . . . . . . . . . 4

Getting Acquainted . . . . . . . . . . . . . . . . . . . . . 5

Front Panel Items . . . . . . . . . . . . . . . . . . . . 5

Rear Panel Items . . . . . . . . . . . . . . . . . . . . . 7

Cabling the System . . . . . . . . . . . . . . . . . . . . . 9

Using the System . . . . . . . . . . . . . . . . . . . . . . . 13

Powering On the System. . . . . . . . . . . . . . . . . . . . 13

Powering Off the System. . . . . . . . . . . . . . . . . . . . 15

2. System Overview . . . . . . . . . . . . . . . . . . . . . . . 19

System Enclosure . . . . . . . . . . . . . . . . . . . . . . . 20

System Node Board . . . . . . . . . . . . . . . . . . . . . . 22

Processors . . . . . . . . . . . . . . . . . . . . . . . . . 22

Memory DIMMs . . . . . . . . . . . . . . . . . . . . . . . 22

007-4772-002 v

Contents

System Base I/O Board . . . . . . . . . . . . . . . . . . . . . 24

I/O Daughtercard . . . . . . . . . . . . . . . . . . . . . . . 27

Internal Hard Disk Drives. . . . . . . . . . . . . . . . . . . . . 28

DVD-ROM Drive . . . . . . . . . . . . . . . . . . . . . . . 29

Graphics Boards . . . . . . . . . . . . . . . . . . . . . . . 30

PCI Buses . . . . . . . . . . . . . . . . . . . . . . . . . 32

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . 34

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 35

Optional Components, Peripherals, and Upgrades. . . . . . . . . . . . . . 37

PCI Boards . . . . . . . . . . . . . . . . . . . . . . . . 37

Memory Upgrades . . . . . . . . . . . . . . . . . . . . . 37

Processor Upgrades . . . . . . . . . . . . . . . . . . . . . 38

Storage Upgrades . . . . . . . . . . . . . . . . . . . . . . 38

Displays. . . . . . . . . . . . . . . . . . . . . . . . . 39

Peripherals . . . . . . . . . . . . . . . . . . . . . . . . 39

3. Maintenance and Upgrade Procedures . . . . . . . . . . . . . . . . . 41

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . 42

Ordering Parts . . . . . . . . . . . . . . . . . . . . . . . . 43

Required Tools . . . . . . . . . . . . . . . . . . . . . . . . 43

Preparing the System for Service . . . . . . . . . . . . . . . . . . . 44

Powering Off and Disconnecting the System . . . . . . . . . . . . . . 44

Removing the Enclosure Panels . . . . . . . . . . . . . . . . . . 46

Determining Which Enclosure Panels to Remove. . . . . . . . . . . . 46

Removing the Left or Right Side Panel. . . . . . . . . . . . . . . 47

Removing the Enclosure Bezel . . . . . . . . . . . . . . . . . 48

Installing or Removing Internal Parts . . . . . . . . . . . . . . . . 50

Returning the System to Service . . . . . . . . . . . . . . . . . . . 52

Installing the Enclosure Bezel . . . . . . . . . . . . . . . . . . 52

Installing the Side Panels . . . . . . . . . . . . . . . . . . . . 54

Cabling and Powering on the System . . . . . . . . . . . . . . . . 55

Installing or Removing a Memory DIMM . . . . . . . . . . . . . . . . 57

Removing a DIMM . . . . . . . . . . . . . . . . . . . . . 59

Installing a DIMM Group. . . . . . . . . . . . . . . . . . . . 61

vi 007-4772-002

Contents

Verifying Memory Installation . . . . . . . . . . . . . . . . . . 63

Installing or Removing Internal Hard Disk Drives . . . . . . . . . . . . . 64

Installing an Internal Hard Disk Drive . . . . . . . . . . . . . . . . 65

Removing an Internal Hard Disk Drive . . . . . . . . . . . . . . . 67

Replacing the DVD-ROM Drive . . . . . . . . . . . . . . . . . . . 69

Removing the DVD-ROM Drive . . . . . . . . . . . . . . . . . 69

Installing a New DVD-ROM Drive . . . . . . . . . . . . . . . . . 71

Replacing the Base I/O Board . . . . . . . . . . . . . . . . . . . 73

Removing the Base I/O Board . . . . . . . . . . . . . . . . . . 74

Installing the Base I/O Board . . . . . . . . . . . . . . . . . . 76

Installing or Removing PCI Boards . . . . . . . . . . . . . . . . . . 80

Installing a PCI Board . . . . . . . . . . . . . . . . . . . . 81

Removing a PCI Board . . . . . . . . . . . . . . . . . . . . 84

Installing or Removing External Devices . . . . . . . . . . . . . . . . 87

Replacing Cooling System Components . . . . . . . . . . . . . . . . 87

Replacing the Fan Wall . . . . . . . . . . . . . . . . . . . . 87

Replacing the Hard Disk Drive Fan. . . . . . . . . . . . . . . . . 89

Replacing the Rear Fan Assembly . . . . . . . . . . . . . . . . . 92

Replacing Internal Cables. . . . . . . . . . . . . . . . . . . . . 94

Replacing the L1 Display Cable . . . . . . . . . . . . . . . . . . 94

Replacing the LED Cable. . . . . . . . . . . . . . . . . . . . 98

Replacing the DVD-ROM Drive Cable . . . . . . . . . . . . . . . . 99

Replacing Enclosure Components . . . . . . . . . . . . . . . . . .101

Replacing the Enclosure Plastics . . . . . . . . . . . . . . . . .101

Replacing the Bezel Assembly . . . . . . . . . . . . . . . . .101

Replacing the Side Plastics . . . . . . . . . . . . . . . . . .1 01

Replacing the L1 Display . . . . . . . . . . . . . . . . . . .102

4. Troubleshooting and Diagnostics . . . . . . . . . . . . . . . . . .105

General Troubleshooting . . . . . . . . . . . . . . . . . . . . .106

Environmental Fault Monitoring . . . . . . . . . . . . . . . . .106

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . .106

L1 Controller Error Messages . . . . . . . . . . . . . . . . . .107

Reading Power Supply Status LEDs . . . . . . . . . . . . . . . .112

007-4772-002 vii

Contents

SGI Electronic Support . . . . . . . . . . . . . . . . . . . 113

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 116

Power-on Diagnostics. . . . . . . . . . . . . . . . . . . . 117

Online Diagnostics . . . . . . . . . . . . . . . . . . . . 118

Example 1: A Successful Execution . . . . . . . . . . . . . . . 120

Example 2: An Unsuccessful Execution . . . . . . . . . . . . . 121

XF86Config File Changes . . . . . . . . . . . . . . . . . . . . 122

Configuring a System for Stereo . . . . . . . . . . . . . . . . . 122

Example “Device” Section for Stereo . . . . . . . . . . . . . . 124

Sample Stereo Mode Entries. . . . . . . . . . . . . . . . . 124

Example “Monitor” Section for Stereo . . . . . . . . . . . . . . 124

Example “Screen” Section for Stereo . . . . . . . . . . . . . . 124

Configuring a System for Full Scene Anti-Aliasing . . . . . . . . . . . 125

Example “Device” Section for Full Scene Anti-Aliasing . . . . . . . . . 126

Configuring a System for Dual-Channel Operation . . . . . . . . . . . 127

Example “Device” Section for Dual Channel . . . . . . . . . . . . 128

Enabling Overlay Planes . . . . . . . . . . . . . . . . . . . 129

Example “Device” Section to Enable Overlay Planes. . . . . . . . . . 129

Configuring a System for External Genlock or Framelock . . . . . . . . . 130

Configuring Monitor Positions . . . . . . . . . . . . . . . . . 132

Example “ServerLayout” Section for Four Monitors in a Line . . . . . . . 132

Example “ServerLayout” Section for Four Monitors in a Square . . . . . . 133

Configuring Monitor Types . . . . . . . . . . . . . . . . . . 134

Example “Device” Section for Use With Two Analog Monitors. . . . . . . 134

™

Configuring a System for Multiple Xservers (ProPack

3, Service Pack 4 or later) . . 135

Identifying Event Devices . . . . . . . . . . . . . . . . . 136

Creating a Multi-Seat XF86Config File . . . . . . . . . . . . . . 137

Example “ServerLayout” Sections for Three Xservers . . . . . . . . . 141

Pointing X to the New XF86Config.Nserver File . . . . . . . . . . . 142

Example /etc/X11/gdm/gdm.conf Servers Section for Three Xservers . . . . 143

Configuring a System for Multiple Xservers (ProPack 4, Service Pack 2 or Later). . . 144

Identifying Keyboards and Pointing Devices . . . . . . . . . . . . 145

Creating a Multi-Seat XF86Config File . . . . . . . . . . . . . . 146

viii 007-4772-002

Contents

Example “ServerLayout” Sections for Three Xservers . . . . . . . . . .150

Pointing X to the New XF86Config.Nserver File . . . . . . . . . . . .151

A. Technical Specifications and Pinouts . . . . . . . . . . . . . . . . .153

Physical and Environmental Specifications. . . . . . . . . . . . . . . .154

I/O Port Specifications . . . . . . . . . . . . . . . . . . . . .156

Ethernet 10-100-1000 Base-T Port . . . . . . . . . . . . . . . . .157

Keyboard and Mouse Ports . . . . . . . . . . . . . . . . . . .1 59

Serial Console Port . . . . . . . . . . . . . . . . . . . . .160

Serial Cables and Adapter Specifications . . . . . . . . . . . . . . . .162

External Multi-port Serial Adapter Connector . . . . . . . . . . . . .162

Serial Port Adapter Cables . . . . . . . . . . . . . . . . . . .164

Graphics Board I/O Port Specifications. . . . . . . . . . . . . . . . .166

DVI-I Video Port . . . . . . . . . . . . . . . . . . . . . .1 66

B. Regulatory Specifications . . . . . . . . . . . . . . . . . . . .169

CMN Number . . . . . . . . . . . . . . . . . . . . . . . .169

CE Notice and Manufacturer’s Declaration of Conformity . . . . . . . . . . .170

Electromagnetic Emissions . . . . . . . . . . . . . . . . . . . .170

FCC Notice (USA Only) . . . . . . . . . . . . . . . . . . . .170

Industry Canada Notice (Canada Only) . . . . . . . . . . . . . . .171

VCCI Notice (Japan Only) . . . . . . . . . . . . . . . . . . .172

Chinese Class A Regulatory Notice. . . . . . . . . . . . . . . . .172

Korean Class A Regulatory Notice . . . . . . . . . . . . . . . . .172

Shielded Cables . . . . . . . . . . . . . . . . . . . . . . .172

Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . .173

Laser Compliance Statement . . . . . . . . . . . . . . . . . . . .173

Lithium Battery Compliance Statement. . . . . . . . . . . . . . . . .173

Index . . . . . . . . . . . . . . . . . . . . . . . . . .175

007-4772-002 ix

Contents

x 007-4772-002

Figures

Figures

Figure 1-1 Basic System Shipment Contents . . . . . . . . . . . 3

Figure 1-2 Lifting the System . . . . . . . . . . . . . . . 4

Figure 1-3 Front View of the System . . . . . . . . . . . . . 6

Figure 1-4 System Rear Panel Items . . . . . . . . . . . . . 8

Figure 1-5 Connecting the USB Keyboard and Mouse Cables . . . . . . 9

Figure 1-6 Connecting the Ethernet Cable . . . . . . . . . . . 10

Figure 1-7 Connecting the Monitor Cable Example. . . . . . . . . 11

Figure 1-8 Connecting the System and Monitor Power Cables Example . . . 12

Figure 1-9 Powering On the System and Monitor Example . . . . . . 13

Figure 1-10 Powering Off the System Using the Front Power Button . . . . 16

Figure 1-11 Power Button and Reset Switches . . . . . . . . . . 17

Figure 2-1 System Enclosure Layout (Right-Front View with Side Panel Removed)

20

Figure 2-2 System Enclosure Layout (Rear View) . . . . . . . . . 21

Figure 2-3 Memory DIMM Group Locations . . . . . . . . . . 23

Figure 2-4 System Base I/O Board External Connectors . . . . . . . 25

Figure 2-5 Serial Port Adapter Cable Connection . . . . . . . . . 26

Figure 2-6 Static I/O Daughter Card Connectors . . . . . . . . . 27

Figure 2-7 Hard Disk Drive Sled . . . . . . . . . . . . . . 28

Figure 2-8 Internal Hard Disk Drive Locations . . . . . . . . . . 28

Figure 2-9 Locating the Graphics Board(s) . . . . . . . . . . . 30

Figure 2-10 PCI Buses and Slots . . . . . . . . . . . . . . 33

Figure 2-11 Power Supply Location . . . . . . . . . . . . . 34

Figure 2-12 Cooling System Components . . . . . . . . . . . . 36

Figure 3-1 Powering Off the System . . . . . . . . . . . . . 44

007-4772-002 xi

Figures

Figure 3-2 Moving the System . . . . . . . . . . . . . . . 45

Figure 3-3 Removing the Enclosure Side Panel . . . . . . . . . . 47

Figure 3-4 Removing the Bezel. . . . . . . . . . . . . . . 49

Figure 3-5 Installing the Bezel and Door Assembly . . . . . . . . . 53

Figure 3-6 Replacing the Side Panel . . . . . . . . . . . . . 54

Figure 3-7 Reconnecting the Cables to the System . . . . . . . . . 56

Figure 3-8 Layout of Slots and DIMM Memory Groups. . . . . . . . 58

Figure 3-9 Removing a DIMM . . . . . . . . . . . . . . . 60

Figure 3-10 Locating the Notches on a DIMM . . . . . . . . . . . 62

Figure 3-11 DIMM Installation Example . . . . . . . . . . . . 62

Figure 3-12 Installing an Internal Hard Disk Drive . . . . . . . . . 66

Figure 3-13 Removing an Internal Hard Disk Drive . . . . . . . . . 68

Figure 3-14 Removing the DVD-ROM Drive . . . . . . . . . . . 70

Figure 3-15 Installing the DVD-ROM Drive . . . . . . . . . . . 72

Figure 3-16 Disconnecting the Cables and Retention Strap . . . . . . . 74

Figure 3-17 Opening the PCI Gate . . . . . . . . . . . . . . 74

Figure 3-18 Removing the Base I/O Board. . . . . . . . . . . . 75

Figure 3-19 Opening the PCI Gate . . . . . . . . . . . . . . 76

Figure 3-20 Installing the Base I/O Board . . . . . . . . . . . . 77

Figure 3-21 Connecting the Base I/O SATA and IDE Cables . . . . . . 78

Figure 3-22 Closing the PCI Gate . . . . . . . . . . . . . . 79

Figure 3-23 Opening the PCI Gate . . . . . . . . . . . . . . 81

Figure 3-24 Installing the PCI Board . . . . . . . . . . . . . 82

Figure 3-25 Closing the PCI Gate . . . . . . . . . . . . . . 83

Figure 3-26 Opening the PCI Gate . . . . . . . . . . . . . . 84

Figure 3-27 Graphics Card Synchronization Cable Example. . . . . . . 85

Figure 3-28 Removing a PCI Board . . . . . . . . . . . . . . 86

Figure 3-29 Replacing the Fan Wall . . . . . . . . . . . . . . 88

Figure 3-30 Removing the Hard Disk Drive Fan . . . . . . . . . . 90

Figure 3-31 Installing the Hard Disk Drive Fan . . . . . . . . . . 91

Figure 3-32 Replacing the Rear Fan Assembly. . . . . . . . . . . 93

Figure 3-33 Removing the L1 Display Cable . . . . . . . . . . . 95

Figure 3-34 Installing the L1 Display Cable . . . . . . . . . . . 97

xii 007-4772-002

Figures

Figure 3-35 Replacing the LED Cable . . . . . . . . . . . . . 98

Figure 3-36 Replacing the IDE DVD-ROM Drive Cable . . . . . . . .100

Figure 3-37 Removing the L1 Display Board . . . . . . . . . . .103

Figure 3-38 Installing the L1 Display Board . . . . . . . . . . .104

Figure 4-1 Full Support Sequence Example . . . . . . . . . . . 1 13

Figure 4-2 Four Monitors in a Line . . . . . . . . . . . . .132

Figure 4-3 Four Monitors in a Square. . . . . . . . . . . . .133

Figure A-1 Ethernet 10-100-1000 Base-T Port Pinout and Location . . . .157

Figure A-2 USB (Type A) Keyboard and Mouse Port Pinouts and Locations. .159

Figure A-3 System Console Serial Port Pinout and Location . . . . . .160

Figure A-4 Pin Number Locations for 36-pin MDR Connector. . . . . .162

Figure A-5 DVI-I Port Pinout and Location . . . . . . . . . . .166

Figure B-1 VCCI Notice (Japan Only). . . . . . . . . . . . .1 72

Figure B-2 Chinese Class A Regulatory Notice . . . . . . . . . .172

Figure B-3 Korean Class A Regulatory Notice . . . . . . . . . .172

007-4772-002 xiii

Figures

xiv 007-4772-002

Tables

Tables

Table 3-1 Component Access by Enclosure Panel . . . . . . . . . 46

Table 3-2 Customer-Replaceable Components and Service Procedures. . . 50

Table 4-1 Troubleshooting Chart. . . . . . . . . . . . . .106

Table 4-2 L1 Controller Messages . . . . . . . . . . . . .108

Table 4-3 L1 Controller Hexadecimal Boot Error Codes . . . . . . .110

Table 4-4 LED Status and Power Supply Condition . . . . . . . .112

Table 4-5 runalldiags Command-line Options . . . . . . . . .119

Table 4-6 Input Video Formats (Framelock) . . . . . . . . . .131

Table 4-7 Options for Monitor Layout . . . . . . . . . . . .134

Table A-1 Physical Environment Specifications. . . . . . . . . .154

Table A-2 Ethernet Port Pinout . . . . . . . . . . . . . .157

Table A-3 USB Type A Port Pinout . . . . . . . . . . . . .159

Table A-4 9-Pin Serial Port Pinout . . . . . . . . . . . . .160

Table A-5 Multi-port Serial Adapter Pinouts . . . . . . . . . .162

Table A-6 Female DB-9 to Female MiniDIN8 Adapter Cable Pinout . . . .164

Table A-7 Female DB-9 to Female DB-9 Adapter Cable Pinout . . . . .165

Table A-8 DVI-I Video Port Pinout . . . . . . . . . . . . .167

007-4772-002 xv

Tables

xvi 007-4772-002

About This Guide

Welcome to the user’s guide for the Silicon Graphics® Prism™ Deskside visualization
system. Your new deskside system offers one or two graphics pipes and a
high-bandwidth architecture in a convenient free-standing deskside tower chassis. The
system is available in a variety of configurations and can be upgraded to meet your
future needs.

This guide shows you how to set up, use, and troubleshoot your system. Go to the first
chapter for quick start information, or use the table of contents to find the topic area you
need. This guide is provided for all end-users, administrators and technical support staff.
Many of the hardware tasks are relatively simple and require minimal computer
knowledge. A few tasks are more difficult; they are easier to perform if you have some
computer hardware experience.

This guide is written for owners, system administrators, and users of the Silicon Graphics
Prism Deskside visualization system. It is written with the assumption that the reader
has a good general knowledge of computer graphics and computer operations.

Important Information

Your SGI system support engineer (SSE) should perform the addition or replacement of
parts, cabling, and service of your Silicon Graphics Prism Deskside system, with the
exception of the following tasks that you may perform yourself:

• Installing and booting your system.

• Cabling the system to standard and optional peripherals.

• Using your system console to enter commands and perform system functions such

as powering on and powering off.

• Using the On/Off, reset, and non-maskable interrupt (NMI) switches on the front
panel of your system.

• Removing and replacing the base I/O PCI card.

007-4772-002 xvii

About This Guide

• Installing and removing other PCI and PCI-X cards (including graphics cards).

• Installing and removing disk drives.

• Removing and replacing the DVD-ROM drive.

• Installing and removing memory modules (DIMMs).

• Removing and replacing the L1 controller display.

• Removing and replacing system cooling fans.

Chapter Descriptions

Warning: To ensure your safety and protect your system, do not add or replace

any components that this guide does not designate as customer replaceable.
Contact your SGI system support engineer (SSE) to install any hardware
components that are not designated as customer replaceable in this guide.

The following topics are covered in this guide:

• Chapter 1, “Quick Start Installation and Operation Procedures,” provides
instructions for unpacking and setting up your new system. It also explains how to
power the system on, log in, access programs, and power off the system.

• Chapter 2, “System Overview,” describes the parts of the system and gives an
overview of how they work together . It also pr ovides configuration information and
describes optional components.

• Chapter 3, “Maintenance and Upgrade Procedures,” provides instructions for
installing and removing parts of the system. If the part you wish to add or replace
does not appear in this chapter, please contact your SGI service representative.

• Chapter 4, “Troubleshooting and Diagnostics,” explains how to find problems with
your system and resolve them. The section on L1 error codes covers general errors
you might encounter as well as serious problems that may occur when a system is
unable to boot. It also includes instructions for running the system diagnostics,
which can help you find problems. Information on reconfiguring the XF86Config
file for specialized operation of the system is also found in this chapter.

xviii 007-4772-002

• Appendix A, “Technical Specifications and Pinouts‚" provides specifications for the

• Appendix B, “Regulatory Specifications‚" lists all regulatory information related to

Related Publications

• For additional information on working with your Silicon Graphics Prism Deskside

• SGI L1 and L2 Controller Software User’s Guide (007-3938-00x) (available online). This

• SGIconsole Hardware Connectivity Guide (007-4340-00x) (optional). This guide

Related Publications

size, weight, and power consumption of the system. It also lists environmental
specifications and connector and cable pinouts.

use of the system in the United States and other countries and provides a list of
safety instructions to follow when installing, operating, or servicing the system.

visualization system, see the following SGI documentation:

guide describes the L1 and L2 controller functions, commands, and error messages
that you may need to operate and maintain your system.

describes how to connect an optional SGIconsole to SGI systems. You can use an
optional SGIconsole to manage and monitor multiple Silicon Graphics systems.

• Obtaining Maximum Performance on Silicon Graphics Prism Visualization Systems

(007-4751-xxx). This document, intended primarily for application developers,
provides guidance on how to get the best performance from a Silicon Graphics
Prism Visualization System.

You can obtai n SGI documentation, release notes, or man pages in the following ways:

• See the SGI Technica l P ubl ications Library at http://docs.sgi.com. Various formats

are available. This library contains the most recent and most comprehensive set of
online books, release notes, man pages, and other information.

• SGI ProPack for Linux documentation, and all other documentation included in the

RPMs on the distribution CDs can be found on the CD titled “SGI ProPack vX.X for
Linux - Documentation CD.” To access the information on the documentation CD,
open the index.html file with a web browser. Because this online file can be updated
later in the release cycle than this document, you should check it for the latest
information.

• The release notes, which contain the latest information about software and

documentation in this release, are on the SGI ProPack for Linux Documentation CD
in the root directory, in a file named README.TXT.

007-4772-002 xix

About This Guide

Conventions

Note: There are no command line grelnotes or relnotes available on an SGI
Linux system. The InfoSearch tool is not available with Linux.

The following conventions are used throughout this publication:
Convention Meaning
Command This fixed-space font denotes literal items such as commands, files,

routines, path names, signals, messages, and pr ogramming language
structures.

variable Italic typeface denotes variable entries and words or concepts being

defined. Italic typeface also is used for book titles.

user input This fixed-space font denotes literal items that the user enters in

interactive sessions. (Output is shown in nonbold, fixed-space font.)
[ ] Brackets enclose optional portions of a command or directive line.
... Ellipses indicate that a preceding element can be repeated.
man page(x) Man page section identifiers appear in parentheses after man page

names.
GUI element This font denotes the names of graphical user interface (GUI)

elements such as windows, screens, dialog boxes, menus, toolbars,

icons, buttons, boxes, fields, and lists.

xx 007-4772-002

Product Support

Reader Comments

Product Support

SGI provides a comprehensive product support and maintenance program for its
products, as follows:

• If you are in North America, contact the Technical Assistance Center at
[phone]SGI or contact your authorized service provider.

• If you are outside North America, contact the SGI subsidiary or authorized
distributor in your country.

If you have comments about the technical accuracy, content, or organization of this
document, contact SGI. Be sure to include the title and document number of the manual
with your comments. (Online, the document number is located in the front matter of the
manual. In printed manuals, the document number is located at the bottom of each
page.)

You can cont act SGI in any of the following ways:

• Send e-mail to the following address:
[e-mail]

• Use the Feedback option on the Technical Publications Library webpage:
http://docs.sgi.com

• Contact your customer service representative and ask that an incident be filed in the
SGI incident tracking system.

• Send mail to the following address:
Technical Publications

SGI
1500 Crittenden Lane, M/S 535
Mountain View, CA 94043

• Send a fax to the attention of “Technical Publications” at [phone].

SGI values your comments and will respond to them promptly.

007-4772-002 xxi

Chapter 1

1. Quick Start Installation and Operation Procedures

This chapter shows you how to quickly set up and begin using your Silicon Graphics
Prism Deskside visualization system in the following sections:

•“Setting Up the System” on page 1

•“Using the System” on page 13

Setting Up the System

This section covers the following topics:

•“Checking Your Shipment” on page 2

•“Lifting the System” on page 4

•“Getting Acquainted” on page 5

•“Cabling the System” on page 9

007-4772-002 1

1: Quick Start Installation and Operation Procedures

Checking Your Shipment

Figure 1-1 shows the basic components that ship with your system. If parts of your
shipment are damaged or missing, contact your support provider. Note that the figure
shows only the basic single-pipe deskside system components. Systems with two
graphics pipes would have the additional components (monitor, cables, etc.) needed to
support a second display.

2 007-4772-002

Deskside

system

Setting Up the System

2

T
M

Monitor

Mouse

CDs

Keyboard

Wrist strap

Power cables - 10 ft. each

Monitor cable - 3 meters

Figure 1-1 Basic System Shipment Contents

007-4772-002 3

1: Quick Start Installation and Operation Procedures

Lifting the System

The base system configuration weighs approximately 60 lb. (27 kg). SGI highly
recommends that two people lift the unit when it must be moved. Lift the unit by placing
your hands under the bottom edges of the chassis, as shown in Figure 1-2.

Figure 1-2 Lifting the System

2

M
T

4 007-4772-002

Getting Acquainted

Front Panel Items

Setting Up the System

To become familiar with your system, refer to the following figures:

• Figure 1-3 on page 6, which shows the front view of the system.

• Figure 1-4 on page 8 shows the rear panel items on the system.

Items on the front panel include

• L1 controller panel display (behind the front door)

• Power button

• Two status LEDs

• One or two hard disk drives

• DVD-ROM drive

• USB option port

• Reset switch

• Recessed Non Maskable Interrupt (NMI) switch (use a paper clip to actuate)

For more information on front panel controls, see “Powering On the System” on page 13.

007-4772-002 5

1: Quick Start Installation and Operation Procedures

Door

Status LEDs

USB port

DVD ROM drive

L1 display

Open door

Power on/off
button

2

TM

COMPACT

Hard disc
drives

NMI reset switch

Reset switch

Figure 1-3 Front View of the System

6 007-4772-002

2

TM

Rear Panel Items

Setting Up the System

The rear panel of the Silicon Graphics Prism Deskside unit has the following items:

• AC power input. This connector attaches to an AC power outlet.

• Standard PCI daughter board. This static PCI card provides four USB ports for

keyboards and mice, a DB-9 serial port (L1 console and diagnostic port). ImageSync
In and ImageSync Repeat connectors for optional image sync functionality are also
included.

• Base I/O PCI card. Provides internal hard disk and removable media support, a
36-pin MDR serial port connector, and an Ethernet connection.

• One or (optionally) two graphics boards (pipes). Located near the bottom of the
unit.

007-4772-002 7

1: Quick Start Installation and Operation Procedures

Kensington
lock slot

Base I/O PCI card

Graphics card

USB

123

Console portUSB ports

AC power connector

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

CONSOLE IS REPEATIS IN

ImageSync repeat port
ImageSync in port

PCI gate

Graphics card

AGP-5

Figure 1-4 System Rear Panel Items

8 007-4772-002

Cabling the System

Setting Up the System

To set up the System, follow these st eps:

1. Connect the keyboard and mouse cables, as shown in Figure 1-5.

USB type A
connectors

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Figure 1-5 Connecting the USB Keyboard and Mouse Cables

007-4772-002 9

1: Quick Start Installation and Operation Procedures

2. Connect the Ethernet cable to the Ethernet port on the base I/O card, as shown in
Figure 1-6.

Ethernet connector

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Figure 1-6 Connecting the Ethernet Cable

3. Connect the monitor-to-graphics cable, as follows (see Figure 1-7):

• Connect one end of the monitor-to-graphics cable to the monitor.

• Connect the other end of the monitor-to-graphics cable to the DVI-I video

connector on the left side of the graphics board on the back of your system.

Note: The System can be connected to a variety of monitors. Your monitor and
monitor cable may differ from those shown. If your monitor has multiple inputs,
ensure that the source switch is set to the correct input port.

10 007-4772-002

Setting Up the System

Important: When using an optional compositor, you must always connect the graphics
output cable to the left side (as viewed from the rear of the system) graphics connector.

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Monitor cable

Figure 1-7 Connecting the Monitor Cable Example

007-4772-002 11

1: Quick Start Installation and Operation Procedures

4. Connect the power cables to your system and monitor . Then plug them into
approved electrical outlets (see Figure 1-8).

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

AC IN

Figure 1-8 Connecting the System and Monitor Power Cables Example

You have finished the quick start setup of your system. Proceed to the next sections for
information on booting, configuration, and use of the visualization system.

12 007-4772-002

Using the System

This section provides information about using your Silicon Graphics Prism Deskside
visualization system. The topics covered include:

•“Powering On the System” on page 13

•“Powering Off the System” on page 15

Powering On the System

Press the power buttons on your monitor and system as shown in the example in
Figure 1-9.

Using the System

Login name:

2

M
T

Figure 1-9 Powering On the System and Monitor Example

A green LED flashing on the front of the deskside unit indicates that the system is
booting.

Important: The monitor may remain blank for 90 seconds or longer during the boot
process, depending on your system configuration. Do not push the power button again
or you may disrupt the boot process. Check the L1 display for an error message if you
feel that the system is not booting properly. See Chapter 4, “Troubleshooting and
Diagnostics” for more information.

007-4772-002 13

1: Quick Start Installation and Operation Procedures

The front panel of the enclosure (see Figur e 1-3 on page 6) has the following controls and
indicators:

• L1 controller display. A liquid crystal display (LCD) that shows status and error
messages generated by the L1 controller.

Note: See Chapter 4, “Troubleshooting and Diagnostics” or refer to the SGI L1 and
L2 Controller Software User’s Guide (007-3938-00x) for more information on the L1
controller.

• Status LEDs. The front panel has the following LEDs:
– Power button LED. This LED illuminates green when the internal components

are on.

– Service-required LED. This LED illuminates yel low to indicate that an item is

not functioning properly (for example, a fan is off), but the system is still
operating. Check the L1 panel for any error indications, and see the section “L1
Cont rolle r Error Messages” on page 107 for more information.

– Failure LED. This LED illuminates red to indicate that a failure has occurred

and the system or module has shut down.

• Power button. Press this button to power on the deskside system. Alternatively,
you can power on the system from an optional system console.

• Reset button. Use a pen or other pointed object to press this button to reset the
internal processors and ASICs. The reset will cause a memory loss.

• NMI button. Pressing this button (using an inserted paper clip) issues a
non-maskable interrupt command to the system. When the system hangs, you can
send an NMI interrupt. The interrupt goes to PROM and causes the CPU state to be
captured. This information is saved in flash PROM and in the system log, and can
assist your service technician in debugging system hangs or other similar problems.

14 007-4772-002

Powering Off the System

You can shut down your system from a Linux prompt, or power off your system either
from the L1 console or using the power button on the front of the system.

To gracefully shut down the operating system, enter the following command from a
Linux shell window: shutdown -h now

To shut off power to the overall system, enter one of the following commands from an
optional L1 console:

Ctrl-t
or

pwr d

To power off your system with the power button, follow these steps:

1. Go to the front of your deskside system.

2. Press the power button, as shown in Figure 1-10.

Using the System

Within a few seconds, a shutdown notifier appears. Within a minute, the system
powers off automatically.

3. Turn off your monitor by pressing the monitor power button.

If your system does not power off and you do not see any activity for several
minutes, press the power button again.

Note: If you press the power button a second time, the system should power off
immediately, but this method does not perform a clean shutdown. Avoid using this
method unless the system does not respond for several minutes after you first pr ess
the power button.

If pressing the power button a second time does not work, use a pen to press the
reset switch, shown in Figure 1-11. If the system still fails to power off, unplug the
power cable from the rear of your deskside system and contact your service
provider.

007-4772-002 15

1: Quick Start Installation and Operation Procedures

Figure 1-10 Powering Off the System Using the Front Power Button

2

M
T

16 007-4772-002

2

TM

Using the System

Power on/off
button

NMI reset switch

Reset switch

2

TM

Figure 1-11 Power Button and Reset Switches

007-4772-002 17

1: Quick Start Installation and Operation Procedures

18 007-4772-002

Chapter 2

2. System Overview

The Silicon Graphics Prism Deskside visualization system is a high-power,
high-performance system. It features one or two graphics pipes, one or two 64-bit Intel
processors, and a high-bandwidth architecture in a convenient free-standing tower
chassis. This chapter provides general information about the major hardware
components of the system in the following sections:

•“System Enclosure” on page 20

•“System Node Board” on page 22

•“Processors” on page 22

•“Memory DIMMs” on page 22

•“Internal Hard Disk Drives” on page 28

•“DVD-ROM Drive” on page 29

•“Graphics Boards” on page 30

•“PCI Buses” on page 32

•“Power Supply” on page 34

•“Cooling System” on page 35

•“Optional Components, Peripherals, and Upgrades” on page 37

007-4772-002 19

2: System Overview

System Enclosure

The Silicon Graphics Prism Deskside visualization system is housed in the system
enclosure as shown in Figure 2-1 and Figure 2-2. The enclosure provides structure and
protection for the internal components.

Hard disc

drive housing

Disc drive backplane

I/O daughtercard

Disc drive
cooling fan

CAUTION!

CAUTION!

DIMMs

2

TM

Airflow baffle

Figure 2-1 System Enclosure Layout (Right-Front View with Side Panel Rem ove d)

20 007-4772-002

Kensington
lock slot

Base I/O PCI card

Graphics card

USB

123

System Enclosure

Console portUSB ports

AC power connector

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

CONSOLE IS REPEATIS IN

ImageSync repeat port
ImageSync in port

PCI gate

Graphics card

AGP-5

Figure 2-2 System Enclosure Layout (Rear View)

007-4772-002 21

2: System Overview

System Node Board

The system is powered by an scaleable system node board. The system node board
provides a mounting point and connectivity for the processor(s) and memory DIMMs.
The node board connects to the interface board via two connectors on its underside.
These boards are not customer replaceable.

Processors

The system is available with one or two 64-bit Intel processors. These processors are
available in different clock speeds and cache sizes. Each processor has on-board cache
memory and external cache memory. Each processor is mounted on the system node
board under a heat-dissipating protective cover. The processors are not customer
replaceable.

Memory DIMMs

The system is configured with a minimum of four DIMMs (2 GB) of memory and a
maximum of 12 DIMMs (24 GB) of memory. Your system uses double data rate
synchronous dynamic random-access memory (DDR SDRAM). The DIMMs are always
installed in groups of four. Each DIMM in a group of four must be the same speed and
memory capacity. Different DIMM groups may have different speed and memory
capacity values. “Installing or Removing a Memory DIMM” in Chapter 3 provides
additional detail on memory DIMMs including removal and replacement rules and
procedures. Figure 2-3 shows the memory DIMM group placement.

22 007-4772-002

Group 2

Memory DIMMs

Group 0

Group 1

Figure 2-3 Memory DIMM Group Locations

Important: The system will not be operational unless four DIMMs in memory group 0
are install.

Note: The DIMMs used in the Silicon Graphics Prism Deskside visualization platform
are not compatible with DIMMs used in the Origin 200, Origin 300, Origin 350 series,
Origin 2000, Origin 3000, SGI 3000 series, SGI 2000 series, Onyx systems, Fuel, Octane
Octane2, O2, O2+, or Tezro systems.

007-4772-002 23

2: System Overview

System Base I/O Board

The base I/O board is the full-length PCI board that is installed in PCI slot 1, (the top PCI
slot). It provides the following I/O connectors and interfaces for the system (see
Figure 2-4):

• An internal IDE connector for the internal DVD-ROM drive

• Internal serial ATA connectors for the hard disk drives

• An external 36-pin MDR connector for optional external serial devices

Note: The 36-pin connector uses a four-cable adapter with four 9-pin serial
connectors.

• Real time interrupt in and out connectors (RTI input and RTI output) located on the
left side of the PCI card (these connectors are not currently supported)

• A 10/100/1000-BaseT Ethernet connector (RJ45)

The I/O board also contains the non-volatile RAM and time-of-day clock for the system.

For technical specifications and pinouts of these connectors, see Appendix A, “Technical
Specifications and Pinouts.”

24 007-4772-002

System Base I/O Board

USB

1
2

B1-S1

B2-S2

3
4

L1 UPLINK

Ethernet

CONSOLE IS REPEATIS IN

port

Serial

connector

Figure 2-4 System Base I/O Board External Connectors

The 36-pin MDR serial connector on the base I/O board can connect to multiple serial
devices by way of the serial adapter cable shown in Figure 2-5 on page 26. Leave the
serial adapter cable unplugged if you are not connecting any serial devices to the system.

007-4772-002 25

2: System Overview

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Figure 2-5 Serial Port Adapter Cable Connection

26 007-4772-002

I/O Daughtercard

I/O Daughtercard

The standard (static) I/O daughter card is a long narrow board that is mounted on the
rear of the enclosure just below the power supply. It uses one of the system PCI slots. This
card acts as an extension of the base I/O board and is not customer replaceable. The
board provides the following connectors (see Figure 2-6):

• Four USB A ports used for keyboard and mouse connections

• One L1 diagnostic port (USB-B)

• One L1 console port (DB9)

• ImageSync in (IS IN) and ImageSync repeat (IS Repeat)

For technical specifications and pinouts of these connectors, refer to Appendix A,
“Technical Specifications and Pinouts.”.

USB

1
2

ports

3
4

L1 UPLINK

L1 uplinkUSB

CONSOLE IS REPEATIS IN

Console

ImageSync

port

in

ImageSync

repeat

Figure 2-6 Static I/O Daughter Card Connectors

007-4772-002 27

2: System Overview

Internal Hard Disk Drives

The Silicon Graphics Prism Deskside visualization system supports one or two internal
hard disk drives. These drives pr ovide the unit with lar ge amounts of storage and quick
access times.

The hard disk drives in the system are sled mounted (see Figure 2-7). The drive sleds
provide a safe and easy way to install and remove the drives. The drive sleds also
provides a positive, locking connection to the backplane, which connects the disk drives
to the base I/O board (see Figure 2-8).

Figure 2-7 Hard Disk Drive Sled

DVD ROM drive

COMPACT

Hard disc
drives

2

TM

Figure 2-8 Internal Hard Disk Drive Locations

28 007-4772-002

DVD-ROM Drive

DVD-ROM Drive

The disks are numbered 1 and 2, with 1 being the bottom disk and 2 being the top. Disk
1 is the system disk, which has the Linux operating system installed on it. Your system
will not function without the system disk.

For information on removing or installing an internal hard disk drive, refer to “Installing
or Removing Internal Hard Disk Drives” on page 64.

Your system supports an optional internal DVD-ROM drive.The drive is installed in the

5.25-in. drive bay, as shown in Figure 2-8. For information about removing the
DVD-ROM drive and installing a new one, refer to “Replacing the DVD-ROM Drive” on
page 69.

007-4772-002 29

2: System Overview

Graphics Boards

The graphics slots are located at the center-r ear section of the system (near the bottom of
the enclosure), as shown in Figure 2-9. The graphics board(s) installed are tested and
configured to work with your Silicon Graphics Prism Deskside system. You should not
replace them with graphics cards from other systems unless directed to do so by your
service provider.

B3-S2

B3-S1

B4-S2

B4-S1

Graphics card

Graphics card

AGP-5

AGP-6

Figure 2-9 Locating the Graphics Board(s)

The Prism deskside system graphics board has the following features:

• Dual DVI-I graphics connectors

• High speed DDR memory

• Full scene anti-aliasing

• AGP 4X/8X support

30 007-4772-002

Graphics Boards

Note: Some of the graphics boards come with an ImageSync connection for use with
optional ImageSync PCI cards. Check with your SGI sales or service repr esentative if you
need to install optional ImageSync functionality in your system.

007-4772-002 31

2: System Overview

PCI Buses

Each deskside system supports eight 64-bit, PCI-X slots which are divided into four
buses, as shown in Figure 2-10. Note that the top two slots of bus 1 are always occupied
by the static I/O daughter board and the base I/O PCI card. The system’s base I/O boar d
always occupies bus 1, slot 1, and the static I/O daughter board is permanently installed
in the top slot (bus 1, slot 2). The static I/O daughter card provides the USB, L1 USB,
serial console, and ImageSync connectors for the deskside unit.

The remaining six slots are available for other optional PCI/PCI-X boar ds. Each bus can
support card speeds of up to 133 MHz. The slots are divided into buses, as shown in
Figure 2-10.

• PCI Bus 1 has one usable slot, which always contains the base I/O board.

• PCI Buses 2, 3, and 4 each have two slots.

Follow these general rules when installing PCI and PCI-X boards on the PCI-X buses:

• A void placing high and low speed cards on the same bus. This forces the high speed
card to run at the same speed as the slower card. For example, placing a 100-MHz
board on the same bus as a 66-MHz board forces the 100-MHz board to run at the
slower speed.

• Avoid placing storage and network boards on the same bus. These types of boards
use large amounts of bandwidth. Placing both types on the same bus can cause the
system to exceed the bandwidth of the bus.

• Spread the PCI boards across the buses as evenly as possible. For example, if you
have three PCI boards and three available PCI buses, install one board on each bus.
If you must install more than one board on a bus, group the boards by speed.

32 007-4772-002

PCI Buses

USB

123

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

CONSOLE IS REPEATIS IN

PCI bus 1 slot 1
PCI bus 2 slot 2
PCI bus 2 slot 1
PCI bus 3 slot 2
PCI bus 3 slot 1
PCI bus 4 slot 2
PCI bus 4 slot 1
PCI AGP-6

PCI AGP-5

Figure 2-10 PCI Buses and Slots

For a list of available PCI boards see “PCI Boards” on page 37 or contact your SGI sales
representative.

007-4772-002 33

2: System Overview

Power Supply

The power supply for the system is located in the top rear quadrant of the chassis, as
shown in Figure 2-11.

Power supply

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Figure 2-11 Power Supply Location

The power supply provides up to 700 watts of power to the node and interface boards,
internal hard disk drives, DVD-ROM drive, and other optional components installed in
the enclosure.

34 007-4772-002

Cooling System

Cooling System

The system uses a total of eight fans to cool the internal components. The following
components make up the cooling system (see Figure 2-12):

• Fan Wall

The fan wall is a plastic housing that contains two 60-mm (2.4-in.) fans and two
80-mm (3.1-in.) fans. These fans provide cooling for the interface board, PCI boards,
and the graphics module.

• Disk Drive Fan

The disk drive fan is an 80-mm fan that mounts directly behind the disk drives.

• Rear Fan Assembly

The rear fan assembly is made up of a sheet metal enclosure and three 80-mm fans.
These fans provide cooling for the system node board and memory DIMMs. The
rear fan assembly is mounted to the rear of the enclosure with hooks and a screw.

Note: The power supply is cooled by its own internal fan.

007-4772-002 35

2: System Overview

Disk drive fan

Power supply fan

COMPACT

Fan wall

Rear fan assembly

Figure 2-12 Cooling System Components

36 007-4772-002

Optional Components, Peripherals, and Upgrades

Optional Components, Peripherals, and Upgrades

Various optional components, peripherals, and upgrades are available for your system.
The following sections describe some of these options:

•“PCI Boards” on page 37

•“Memory Upgrades” on page 37

•“Processor Upgrades” on page 38

•“Storage Upgrades” on page 38

•“Displays” on page 39

•“Peripherals” on page 39

For more information about upgrading your system contact your SGI sales
representative.

PCI Boards

A wide variety of PCI options are available for your system, including networking, serial,
USB, and video boards. The following boards are a sample of the available options:

• Dual port Ultra3 SCSI LVD or single-ended SCSI adapter

• Single- and dual-port 2-gigabit Fibre Channel boards with optical connectors

• 1-port 1000Base-SX gigabit Ethernet adapter

• Multi-channel audio I/O board

For a complete list of available boards, contact your sales representative.

Memory Upgrades

The following memory upgrades are available for the system:

• 2-GB DIMM group

• 4-GB DIMM group

• 8-GB DIMM group

007-4772-002 37

2: System Overview

Processor Upgrades

Storage Upgrades

Note: The system supports a maximum of 12 memory DIMMs. Memory DIMMs must
be installed in groups of four, and each group of four must be of the same speed and
memory capacity.

Each deskside visualization system is available with 1 or 2 processors. The processors ar e
available with different clock speeds and cache sizes. Processor upgrades are
accomplished by replacing the entire system node boar d (which requir es a service call by
a trained technician).

For a complete list of available processor, I/O, or graphics upgrades, contact your sales
representative.

The following storage upgrades are available for the system:

• One additional hard disk drive (total internal capacity is two hard drives)

• External SCSI DAT drive

An SGI InfiniteStorage TP900 non-RAID SCSI array is available for optional mass storage
capacity. This unit is normally mounted in a rack.

The system can also be connected by way of a fibre channel PCI option card to a
high-performance storage array, such as the SGI InfinitePerformance TP9700. These disk
arrays offer large storage capacities in RAID configurations.

In addition to the items listed above, there are a variety of other storage solutions
available from SGI. For more information, contact your SGI sales representative.

38 007-4772-002

Displays

Peripherals

Optional Components, Peripherals, and Upgrades

There are two basic types of displays available with the system:

• Silicon Graphics flat panel display with DVI-D to DVI-D cable

• SGI CRT monitor with DVI-I to VGA cable

Displays are available in different sizes. Check with your sales or service representative
for current offerings.

The following peripherals are available with the system:

• 3-button mouse

• Keyboard

• Speakers

For a complete list of available components, contact your SGI sales representative or see
the following web page:
http://www.sgi.com/peripherals/

007-4772-002 39

2: System Overview

40 007-4772-002

Chapter 3

3. Maintenance and Upgrade Procedures

This chapter provides safety information and instructions for adding or removing
components from your Silicon Graphics Prism Deskside visualization system. The
following topics are covered:

•“Safety Instructions” on page 42

•“Ordering Parts” on page 43

•“Required Tools” on page 43

•“Preparing the System for Service” on page 44

•“Returning the System to Service” on page 52

•“Installing or Removing a Memory DIMM” on page 57

•“Installing or Removing Internal Hard Disk Drives” on page 64

•“Removing the DVD-ROM Drive” on page 69

•“Removing the Base I/O Board” on page 74

•“Installing or Removing PCI Boards” on page 80

•“Installing or Removing External Devices” on page 87

•“Replacing Cooling System Components” on page 87

•“Replacing Internal Cables” on page 94

•“Replacing Enclosure Components” on page 101

Caution: For your own safety and to avoid damage to the system, do not attempt to
install or remove components that are not listed in this chapter as customer r eplaceable .

007-4772-002 41

3: Maintenance and Upgrade Procedures

Safety Instructions

Read and follow these instructions carefully before servicing your system.

1. Follow all warnings and instructions marked on the system and noted in this and
other documentation included with this system.

2. Unplug the system from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.

3. Do not use the system near water.

4. Do not place the system on an unstable cart, stand, or table. It may fall, causing
serious damage to the system.

5. Slots and openings on the system are provided for ventilation. To ensure reliable
operation of the system and to protect it from overheating, these openings must not
be blocked or covered. This system should never be placed near or over a radiator
or heat register, or in a built-in installation, unless proper ventilation is provided.

6. This system should be operated from the type of power indicated on the marking
label. If you are not sure of the type of power available, consult your dealer or local
power company.

7. Do not allow anything to rest on the power cord. Do not locate this system where
people will walk on the cord.

8. Never push objects of any kind into this system through cabinet slots as they may
touch dangerous voltage points or short out parts, which could result in a fire or
electric shock. Never spill liquid of any kind on the system.

9. Do not attempt to service this system yourself except as noted in this guide.
Opening or removing covers of internal components may expose you to dangerous
voltage points or other risks. Refer all servicing not specified as cu stomer
replaceable in this guide to qualified service personnel.

10. Unplug this system from the wall outlet and refer servicing to qualified service
personnel under the following conditions:

• When the power cord or plug is damaged or frayed.

• If liquid has been spilled into the system.

• If the system has been exposed to rain or water.

• If the system does not operate normally when the operating instructions are

followed. Adjust only those controls that are covered by the operating
instructions since improper adjustment of other controls may result in damage

42 007-4772-002

Ordering Parts

Ordering Parts

and will often require extensive work by a qualified technician to restore the
system to normal condition.

• If the system has been dropped or the cabinet has been damaged.

• If the system exhibits a distinct change in performance, indicating a need for

service.

11. Use only the proper type of power supply cord set (provided with the system) for

this unit.

12. Only qualified service personnel should replace the soldered lithium battery(s) in

the system. Please see “Lithium Battery Compliance Statement” on page 173 for
more information.

Replacement parts are available directly from your local service provider. Contact your
SGI sales or support representative for more information.

Required Tools

All of the procedures in this chapter can be performed with the following tools:

• Wrist grounding strap

• T15 Torx driver

• Small flat-blade screwdriver

• Small phillips-blade screwdriver

007-4772-002 43

3: Maintenance and Upgrade Procedures

Preparing the System for Service

This section shows you how to op en th e system for service and protect the compo n ents
from static damage. The following topics are covered:

•“Powering Off and Disconnecting the System” on page 44

•“Removing the Enclosure Panels” on page 46

•“Installing or Removing Internal Parts” on page 50

Powering Off and Disconnecting the System

Follow these steps to power off and remove cables from your system:

1. If you are logged in to the system, log out. Then, press the power buttons to power
off your system and monitor (see Figure 3-1).

2

M
T

Figure 3-1 Powering Off the System

2. Disconnect all of the cables from the rear of the system. Be sure to note where each
cable is connected, so that you can reconnect them correctly when you have finished
servicing the system.

Note: Y ou do not need to disconnect the cables or move the system for some procedur es.
Refer to the individual procedures for detailed instructions on preparing the system.

44 007-4772-002

Preparing the System for Service

3. Move the system to a sturdy, flat surface. Always use two people to move the

system (see Figure 3-2).

2

M
T

Figure 3-2 Moving the System

007-4772-002 45

3: Maintenance and Upgrade Procedures

Removing the Enclosure Panels

This section shows you how to open the enclosure in the following sections.

•“Determining Which Enclosure Panels to Remove” on page 46

•“Removing the Left or Right Side Panel” on page 47

•“Removing the Enclosure Bezel” on page 48

Determining Which Enclosure Panels to Remove

To determine which side(s) of the enclosure you need to remove to access specific
components, see Table 3-1. If a part appears in two columns, you must remove both
panels in order to access that component.

Note: Table 3-1 assumes that you are looking at the front of the system.

Table 3-1 Component Access by Enclosure Panel

Right Side Panel Left Side Panel Front Side Panel (Bezel)

Memory DIMMS
Hard Disk Drive Fan
Rear Fan Assembly

Base I/O board
L1 display cable
LED cable
PCI boards
DVD-ROM drive
Fan wall

L1 display
L1 display cable
LED cable

After you have determined which side(s) of the enclosure you need to open, proceed to
the appropriate section.

46 007-4772-002

Removing the Left or Right Side Panel

Follow these steps to open the left or right side of the enclosure:

1. Press the panel release button on the rear of the enclosur e. Then swing the top edge

of the panel away from the enclosure (see Figure 3-3).

2. Lift the panel until the hooks on the bottom edge clear the lip on the base of the

enclosure. Then swing the bottom edge of the panel away from the enclosure and
place it in a safe location (see Figure 3-3).

Panel
release
button

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Preparing the System for Service

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Panel
release
button

Figure 3-3 Removing the Enclosure Side Panel

If you only need to remove the left or right side panel, proceed to “Installing or
Removing Internal Parts” on page 50. If you need to remove the bezel of the system,
proceed to the next section.

007-4772-002 47

3: Maintenance and Upgrade Procedures

Removing the Enclosure Bezel

The front of the enclosure is covered by a decorative plastic bezel. The bezel is made up
of two pieces: the bezel frame and the drive shroud. The bezel frame covers the front of
the enclosure. The drive shroud mounts inside the bezel frame and covers the area
adjacent to the DVD-ROM drive and hard disk drives.

Follow these steps to remove the bezel from the front of the enclosure:

1. Open the door on the front of the bezel.

2. Remove the five screws that secure the front bezel and door assembly to the top of
the chassis.

3. Tilt the top of the bezel frame toward you slightly. Then lift the bezel and door
assembly off of the tabs that are supporting it.

4. Lift the bezel up, pull it away from the enclosure, and place it in a secure location.

48 007-4772-002

A B

COMPACT

COMPACT

Preparing the System for Service

OMPACT
C

COMPACT

2

M
T

C D

COMPACT

2

M
T

Figure 3-4 Removing the Bezel

2

M
T

COMPACT

2

M
T

Proceed to the next section to install or remove internal components.

007-4772-002 49

3: Maintenance and Upgrade Procedures

Installing or Removing Internal Parts

Warning: The heat sinks on the interface board get very hot. Wait 5 minutes

after powering off your system before you touch any internal components.
Touching the heat sinks could result in burns if a cooling-off period is not
observed.

Caution: The components inside your system are extremely sensitive to static electricity.

Always wear the wrist strap when you work with parts inside your system. Follow these
steps to use the wrist strap:

1. Unroll the first two folds of the strap.

2. Wrap the exposed adhesive side firmly around your wrist, unroll the rest of the
strap, and then peel the liner from the copper foil at the opposite end.

3. Attach the copper foil to an exposed electrical ground, such as a metal part of the
chassis.

After you attach the wrist strap, you can install or remove internal parts of the system.
Table 3-2 contains a list of all of the internal components that you can install or remove
and the procedure associated with each one.

Caution: Do not attempt to install or remove components that are not listed in Table 3-2.
Components not listed in T able 3-2 must be installed or removed by a qualified SGI field
engineer.

Table 3-2 Customer-Replaceable Components and Service Procedures

Component Procedure

Memory DIMMs “Installing or Removing a Memory DIMM” on page 57
Internal hard disk drives “Installing or Removing Internal Hard Disk Drives” on

page 64

DVD-ROM Drive “Removing the DVD-ROM Drive” on page 69

50 007-4772-002

Preparing the System for Service

Table 3-2 Customer-Replaceable Components and Service Procedures (continued)

Component Procedure

PCI and Base I/O board
PCI boards

“Removing the Base I/O Board” on page 74
“Installing or Removing PCI Boards” on page 80

Fans:
Fan wall
Hard disk drive fan
Rear fan assembly

“Replacing the Fan Wall” on page 87
“Replacing the Hard Disk Drive Fan” on page 89
“Replacing the Rear Fan Assembly” on page 92

Internal Cables:
L1 display cable
LED cable
DVD-ROM drive cable

“Replacing the L1 Display Cable” on page 94
“Replacing the LED Cable” on page 98
“Replacing the DVD-ROM Drive Cable” on page 99

Enclosure Components:
Enclosure Bezel Assembly
Enclosure Side Plastics
L1 Controller Display

“Replacing the Bezel Assembly” on page 101
“Replacing the Side Plastics” on page 101
“Replacing the L1 Display” on page 102

When you are finished installing or removing internal components, proceed to the next
section.

007-4772-002 51

3: Maintenance and Upgrade Procedures

Returning the System to Service

The following sections contain instructions for returning the system to service:

•“Installing the Enclosure Bezel” on page 52

•“Installing the Side Panels” on page 54

•“Cabling and Powering on the System” on page 55

Installing the Enclosure Bezel

Follow these instructions to install the bezel.

1. Align the tabs on the lower portion of the bezel with the holes in the enclosure.

2. Insert the tabs into the holes and press the bezel and door assembly against the
enclosure to ensure that it snaps into place and is properly seated.

3. Lift the bezel slightly if needed to align the screw holes with the mounting holes in
the enclosure. Then install the screws that secure the bezel to the enclosure.

52 007-4772-002

A B

COMPACT

2

M
T

C D

Returning the System to Service

COMPACT

2

M
T

COMPACT

COMPACT

2

M
T

COMPACT

COMPACT

2

M
T

Figure 3-5 Installing the Bezel and Door Assembly

007-4772-002 53

3: Maintenance and Upgrade Procedures

Installing the Side Panels

Follow these steps to install a side panel (see Figure 3-6):

1. Align the hooks on bottom edge of the side panel over the lip on the bottom edge of
the enclosure.

2. Swing the side of the panel up. Press the top edge of the panel against the enclosure
to ensure that it is properly seated.

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Figure 3-6 Replacing the Side Panel

54 007-4772-002

Cabling and Powering on the System

Follow these steps to cable and power on the system.

1. Reconnect all of the system cables to the rear of the enclosure (see Figure 3-7).

2. Press the power buttons on your system and monitor.

3. If your system does not boot correctly, see Chapter 4, “T roubleshooting and

Diagnostics.”

This completes the procedure for returning the system to service.

Returning the System to Service

007-4772-002 55

3: Maintenance and Upgrade Procedures

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Figure 3-7 Reconnecting the Cables to the System

56 007-4772-002

Installing or Removing a Memory DIMM

The Silicon Graphics Prism Deskside visualization system is configured with a minimum
of 2-GB of on-board system memory and a maximum of 24 GB of memory. Memory is
contained on small cards that are referred to as DIMMs (dual inline memory modules).
Each deskside system can contain four, eight, or twelve DIMMs installed in DIMM slots
located on the system node (mother) board.

The memory DIMM sockets are divided into three 4-DIMM groups (gr oups 0, 1, and 2).
The instructions in the following sections assume that you know the correct slots in
which to install the memory DIMMs. For information about DIMM configurations and
placement rules, continue reading the rest of this section.

Note: If you have not already done so, remove the right side of the enclosure to access
the DIMMS. Refer to “Preparing the System for Service” on page 44.

Instructions are provided in the following sections:

Installing or Removing a Memory DIMM

•“Removing a DIMM” on page 59

•“Verifying Memory Installation” on page 63

These twelve DIMM slots are organized into three groups of four DIMMs each, as shown
in Figure 3-8 on page 58 . DIMMs are installed one per DIMM slot, and four at a time
(group of four). Follow these guidelines when installing DIMM groups:

• Memory is increased or decreased in four-DIMM group increments only.

• Each of the four DIMMs that make up a DIMM group must be the same memory

size and speed; however, different groups of DIMMs can differ in memory size or
speed.

• The first four DIMMs (group 0) must be in place for the base module to operate

properly.

• Mixing DIMM groups with different access speeds will cause the memory bus to

default to the speed used for the slowest group.

• The maximum bus speed for a completely full set of DIMM memory slots (three

installed groups), defaults to 100 MHz or 133 MHz, depending on the type of
DIMMs installed.

007-4772-002 57

3: Maintenance and Upgrade Procedures

Note: The DIMMs used in the Silicon Graphics Prism Deskside visualization
platform are not compatible with DIMMs used in the Origin 200, Origin 300, Origin
350 series, Origin 2000, Origin 3000, SGI 3000 series, SGI 2000 series, Onyx systems,
Fuel, Octane Octane2, O2, O2+, or Tezro systems.

Group 2

Group 0

Group 1

Figure 3-8 Layout of Slots and DIMM Memory Groups

Caution: Electronic equipment can be irreparably damaged by electrostatic discharge

!

58 007-4772-002

(ESD). Always follow these preventive measur es when you han dle a system component:

- Remove a component from its antistatic bag only when you are ready to install it.

- If you handle a component before installation, do not place it on surfaces that produce

ESD (carpeting, for example) or near devices that create static electricity.

- Attach a static wrist strap to your wrist and to a grounded connection on your system

when you install or remove a component.

Removing a DIMM

Installing or Removing a Memory DIMM

To remove a DIMM, follow these steps:

1. Locate the DIMM that you want to remove.

2. Remove the DIMM, as follows (see Figure 3-9):

Note: For guidelines on removing or replacing the DIMMs, make sure to read the
introductory material in “Installing or Removing a Memory DIMM” on page 57 and
see Figure 3-8 on page 58.

a. Push out and down on the two ejector latches (located at each end of the DIMM

socket) to disengage the DIMM from its connector.

b. Carefully grasp the DIMM and pull it up and out of the guide rails.

Note: Hold the DIMM only by its edges. Be careful not to touch its components
or gold edge connectors.

c. Place the DIMM on an ESD-safe surface.

3. If you are installing a new DIMM, proceed to “Installi ng a DI MM Group” on

page 61. If you are not installing new DIMMs, repeat the procedures until all the
DIMMs have been removed from the group.

4. Place the DIMM(s) in an antistatic bag and store in a secure location.

Important: The four sockets in a DIMM bank must always be either empty or fully
populated. The system will not function if there are no memory DIMMs installed.
Four memory DIMMs of equal capacity and speed must always be installed in
DIMM bank (group) zero. See Figure 3-8 on page 58.

007-4772-002 59

3: Maintenance and Upgrade Procedures

CAUTION!

CAUTION!

Figure 3-9 Removing a DIMM

!

!

60 007-4772-002

Installing a DIMM Group

To install a DIMM group, follow these steps:

1. Power off the Silicon Graphics Prism Deskside platform. For specific powering off

2. Disconnect all of the cables at the rear of the module.

Warning: Components may be hot. To avoid injury, all ow th e components to cool

for approximately five minutes before you proceed with these instructions.

3. Install the DIMMs, as follows:

Installing or Removing a Memory DIMM

instructions, see “Powering Off the System” in Chapter 1.

Note: If you need to find the correct locations in which to install the DIMMs, make
sure to read the introductory material in “Installing or Removing a Memory DIMM”
on page 57.

a. Ensure the ejector latches are in the open position (leaning away from the slot).
b. Hold the DIMM only by its edges and remove it from its antistatic package.
c. Align the bottom edge of the DIMM with the keyed socket. Make sure that the

notches on the bottom of the DIMM align with the protrusions in the bottom of
the socket (see Figure 3-10).

d. Insert the bottom edge of the DIMM into the socket, and then press evenly on

the DIMM until it seats correctly. Use extreme care when you install a DIMM. If
you apply too much pressure, you can damage the socket. See Figure 3-11 for
an example.

007-4772-002 61

3: Maintenance and Upgrade Procedures

Figure 3-10 Locating the Notches on a DIMM

Notches

Figure 3-11 DIMM Installation Example

When the DIMM is fully seated in the connector , the ejector latches snap into place flush
with each end of the DIMM.

62 007-4772-002

Verifying Memory Installation

To verify the memory installation, follow these steps:

1. After you power on the system, check the amount of memory displayed for Main

Memory. Use the /usr/share/hwinfo inquiry to determine if the new memory
installation is recognized.

The displayed memory should equal the original amount of memory minus any
memory you removed, plus the amount of memory you installed.

2. If the amount of memory is incorrect, power off the sys tem and check the following:

• Check the angle of the DIMMs. They should be upright and completely seated.

• Ensure that each group is populated with four DIMMs, and that they are the

Installing or Removing a Memory DIMM

same memory size and speed. You must have either 4, 8, or 12 DIMMs installed.

007-4772-002 63

3: Maintenance and Upgrade Procedures

Installing or Removing Internal Hard Disk Drives

The Silicon Graphics Prism Deskside visualization system can have one or two internal
hard disk drives. These drives are sled mounted and can easily be installed and r emoved.
The following sections contain instructions for installing and removing hard disk drives:

•“Installing an Internal Hard Disk Drive” on page 65

•“Removing an Internal Hard Disk Drive” on page 67

Note: You do not need to prepare the system for service to install or remove hard disk
drives. If you are replacing the drive in the upper bay, ensure that it has stopped spinning
before you remove it. If you are replacing the system disk in the lower drive bay, you
must power down the system.

64 007-4772-002

Installing an Internal Hard Disk Drive

To install a disk drive, follow these steps:

1. Open the bezel door. If there is an empty drive sled in the drive bay, remove it. To

remove the drive sled, press in on the right side of the locking handle; the handle
will unlatch from the enclosure. Swing the handle all the way open; then slide the
drive sled out of the enclosure.

2. Move the handle on the drive you are installing to the fully open position. Then

position the drive sled so that it engages the drive bay guide rails (see Figure 3-12).

Note: If there is only one disk drive in your system, it must be located in the lower drive
bay.

3. Gently push the drive sled into the drive bay until the locking handle engages with

left side of the bay opening. Then swing the locking handle towards the enclosure
until it latches (see Figure 3-12).

Installing or Removing Internal Hard Disk Drives

007-4772-002 65

3: Maintenance and Upgrade Procedures

A

2

T
M

B

C D

Latches

C
O
MPACT

2

T
M

COMPACT

COMPACT

2

T
M

Figure 3-12 Installing an Internal Hard Disk Drive

66 007-4772-002

Removing an Internal Hard Disk Drive

1. Open the bezel door.

Note: If you are removing the drive in the upper drive bay, ensure that the drive has
stopped spinning before you remove it. If you ar e removin g the drive in the lower drive
bay, you must power down the system.

2. Press in on the right side of the locking handle; the handle will unlatch from the

enclosure (see Figure 3-12).

3. Swing the locking handle away from the enclosure until it is fully open. Then

carefully slide the drive sled out of the drive bay. Do not pull the drive sled out by
the locking handle (see Figure 3-12).

4. If you are not installing a replacement drive, install an empty drive sled to ensure

proper airflow.

Installing or Removing Internal Hard Disk Drives

007-4772-002 67

3: Maintenance and Upgrade Procedures

A

2

T
M

B

C D

Latches

C
OMP

ACT

2

TM

COMPACT

COMPACT

2

T
M

Figure 3-13 Removing an Internal Hard Disk Drive

68 007-4772-002

Replacing the DVD-ROM Drive

The Silicon Graphics Prism Deskside visualization system supports an internal
DVD-ROM drive which is installed in the 5.25-in. drive bay. This drive bay is located on
the upper left portion of the front of the enclosure. The following sections contain
instructions for removing an existing drive and replacing it with a new DVD-ROM:

•“Removing the DVD-ROM Drive” on page 69

•“Installing a New DVD-ROM Drive” on page 71

Note: If you have not already done so, prepare your system for service. Refer to

“Preparing the System for Service” on page 44. In order to install or remove the
DVD-ROM drive, you must remove the left side panel and the drive shroud. You do not
need to remove the entire bezel.

Removing the DVD-ROM Drive

Replacing the DVD-ROM Drive

Follow these steps to remove the DVD-ROM drive:

Note: You must remove the left side panel from the system before you can remove the
DVD-ROM drive.

1. Disconnect the IDE and power cables from the rear of the DVD-ROM drive.

2. Undo the side retention screws that hold the drive in place in the slot; then slide the

drive out of the drive cage (see Figure 3-14).

3. If you are replacing the drive with a new drive, refer to “Installing a New

DVD-ROM Drive” on page 71. If you are not replacing the DVD-ROM drive, install
a metal drive bay blanking plate in the DVD-ROM drive bay.

This completes the removal of the DVD-ROM drive. Go on to the next set of steps to
replace the drive with a new unit. Or , to r eturn the system to service, re fer to “Returning
the System to Service” on page 52.

007-4772-002 69

3: Maintenance and Upgrade Procedures

A

Power connector

Data connector

CB

COMPACT

2

M

T

Figure 3-14 Removing the DVD-ROM Drive

70 007-4772-002

Installing a New DVD-ROM Drive

Follow these steps to install a new DVD-ROM drive:

Note: You must remove the existing DVD-ROM drive before installing a new one. See
the previous steps and Figure 3-14 on page 70 if you have not yet removed the installed
drive.

1. Remove the metal blanking plate that covers the front of the DVD-ROM drive cage

if it is in place.

2. Insert the drive until it is flush with the front of the system, then secure it in place

with the two side retention screws.

3. Connect the IDE cable as follows (see Figure 3-15):

a. Insert one end of the IDE cable into the IDE connector on the rear of the

DVD-ROM drive.

b. Open the latches of the IDE connector on the base I/O board. Then, insert the

other end of the IDE cable into the base I/O board’s IDE connector.

Replacing the DVD-ROM Drive

c. Close the latches on the I/O board IDE connector. Press the bas e I/O boar d into

the interface board connectors to ensure that it is properly seated.

4. Connect the power cable to the rear of the drive (see Figure 3-15).

This completes the DVD-ROM drive installation. To return the system to service, see
“Returning the System to Service” on page 52.

007-4772-002 71

3: Maintenance and Upgrade Procedures

A B

C

COMPACT

2

M
T

Power connector

Data connector

Figure 3-15 Installing the DVD-ROM Drive

72 007-4772-002

Replacing the Base I/O Board

The base I/O board provides basic I/O functions for the system. It also provides
connectivity between the hard-disk drives, DVD-ROM drive, and the interface board.

Note: If you remove the base I/O board, you must install a replacement I/O boar d. The
system will not function without the base I/O board installed.

The following sections provide instructions that show you how to r emove and install the
base I/O board:

•“Removing the Base I/O Board” on page 74

•“Installing the Base I/O Board” on page 76

Note: If you have not already done so, prepare your system for service. Refer to

“Preparing the System for Service” on page 44. In order to replace the base I/O board,
you must remove the left side panel.

Replacing the Base I/O Board

007-4772-002 73

3: Maintenance and Upgrade Procedures

Removing the Base I/O Board

Follow these steps to remove the base I/O board:

1. Disconnect the SATA and IDE cables from the base I/O board. Then loosen the PCI
retention strap (see Figure 3-16).

SATA cables

IDE connector

Figure 3-16 Disconnecting the Cables and Retention Strap

2. Remove the three screws that secure the PCI gate. Then open the PCI gate (see
Figure 3-17).

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

PCI gate

Figure 3-17 Opening the PCI Gate

74 007-4772-002

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

Replacing the Base I/O Board

3. Gently grasp both ends of the base I/O board. Then pull it straight out until it clears

the PCI slot. Tilt the fr ont end of the I/O boar d upwar d until it clears the edge of the
chassis. Then remove the I/O board from the enclosure and place it in an antistatic
bag in a safe location (see Figure 3-18).

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-5

AGP-6

Figure 3-18 Removing the Base I/O Board

This completes the base I/O board removal. To install a new base I/O board, proceed to
the next section.

007-4772-002 75

3: Maintenance and Upgrade Procedures

Installing the Base I/O Board

Follow these steps to install a replacement base I/O board:

1. Remove the three screws that secure the PCI gate to the enclosure; then open the
PCI gate (see Figure 3-19).

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-6

AGP-5

PCI gate

Figure 3-19 Opening the PCI Gate

76 007-4772-002

Replacing the Base I/O Board

2. If another base I/O PCI board is installed in the slot where you will install the new

board, you must remove it before you can install the new base I/O PCI board. See
“Removing a PCI Board” on page 84.

3. Align the base I/O board with PCI slot 1 on Bus 1.

4. Position the I/O board in the enclosure’s PCI slot. Press in to seat the board in the

PCI connector on the interface board (see Figure 3-20).

USB

1
2

3

L1 UPLINK

4

B1-S1

B2-S2

B2-S1

B3-S2

B3-S1

B4-S2

B4-S1

AGP-5

AGP-6

Figure 3-20 Installing the Base I/O Board

007-4772-002 77

3: Maintenance and Upgrade Procedures

5. Connect the SATA and IDE cables to the base I/O board. To connect a cable, align
the cable connector with the socket on the I/O board and press down (see
Figure 3-21).

Note: The connectors and sockets are keyed. Ensure that you have pr operly aligned
the connector and socket before you attempt to connect them.

SATA cables

IDE connector

Figure 3-21 Connecting the Base I/O SATA and IDE Cables

78 007-4772-002
