Silex technology C-6400W User Manual

Users Manual CX2
WA01040XA ENG_200501
Users Manual SX2
Contents
1, Introduction ............................................................................................ 1-1
Safety Instructions........................................................................................1-3
2, PRICOM C-6400W ...................................................................................2-1
Environment .................................................................................................2-3
Equipment explanation.................................................................................2-4
Part name and function ............................................................................2-4
The PRICOM C-6400W is initialized.........................................................2-5
Start in Infrastructure mode ......................................................................2-6
How to Connect............................................................................................2-7

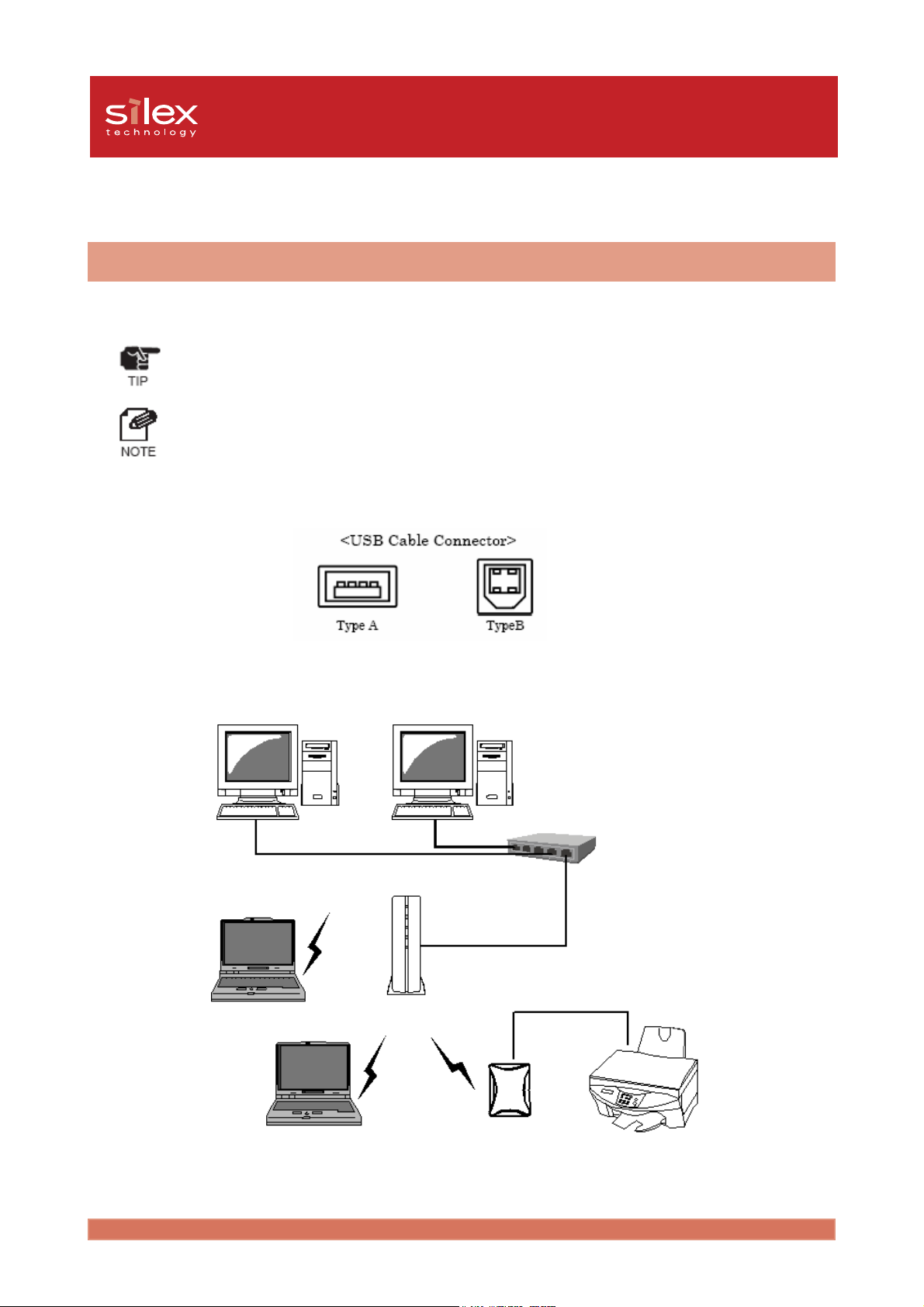

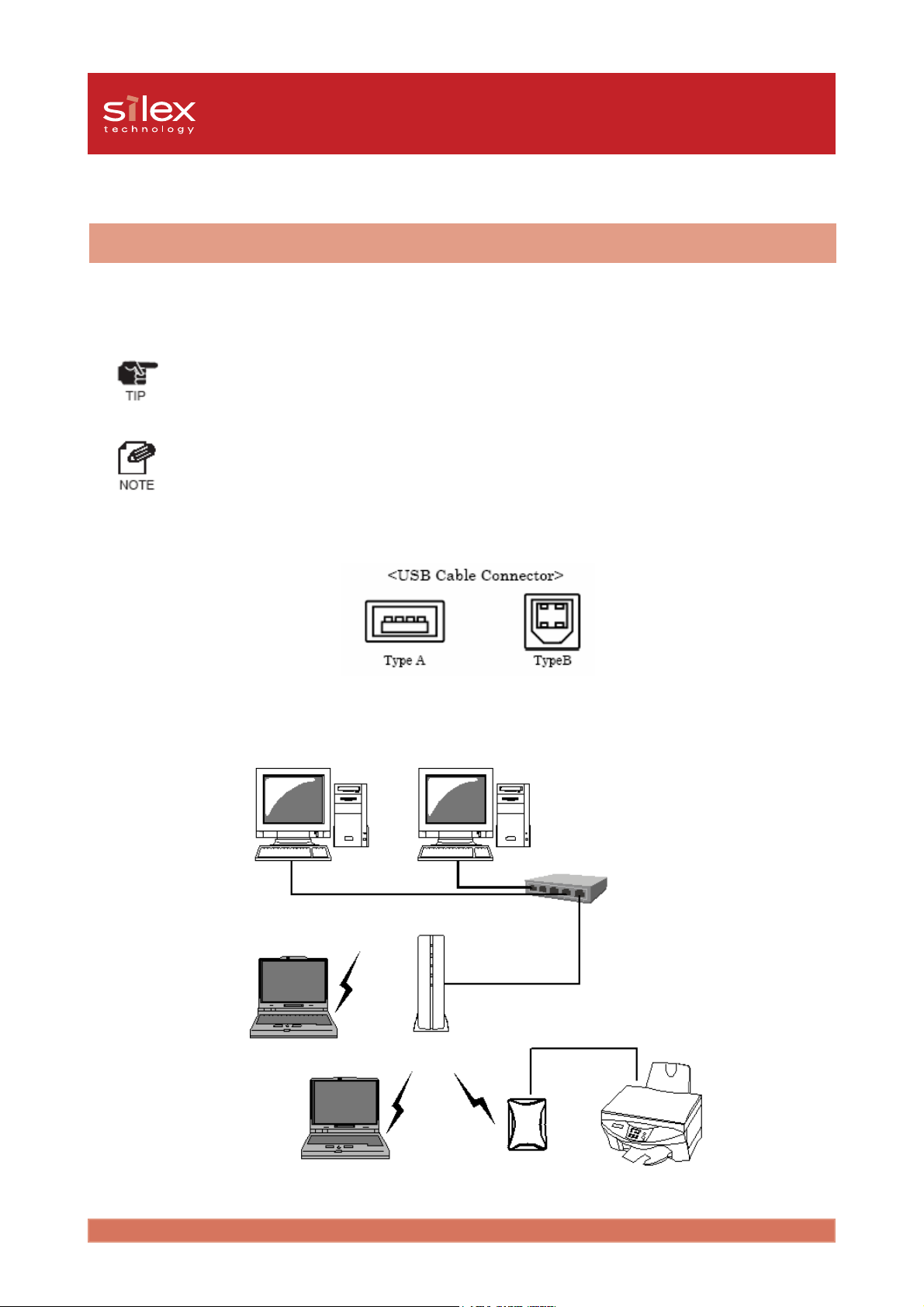

Connect the PRICOM C-6400W to Printer and Network..........................2-7
Other Functions............................................................................................2-9
Function....................................................................................................2-9
Specification...............................................................................................2-11
Hardware specification ...........................................................................2-11
Software Specification ............................................................................2-12
Using Wireless Communication..............................................................2-13
3, PRICOM User Software CX2 .................................................................. 3-1
How to set up the PRICOM C-6400W using
the PRICOM User Software CX2 .................................................................3-1
How to Communicate to the PRICOM C-6400W .........................................3-3

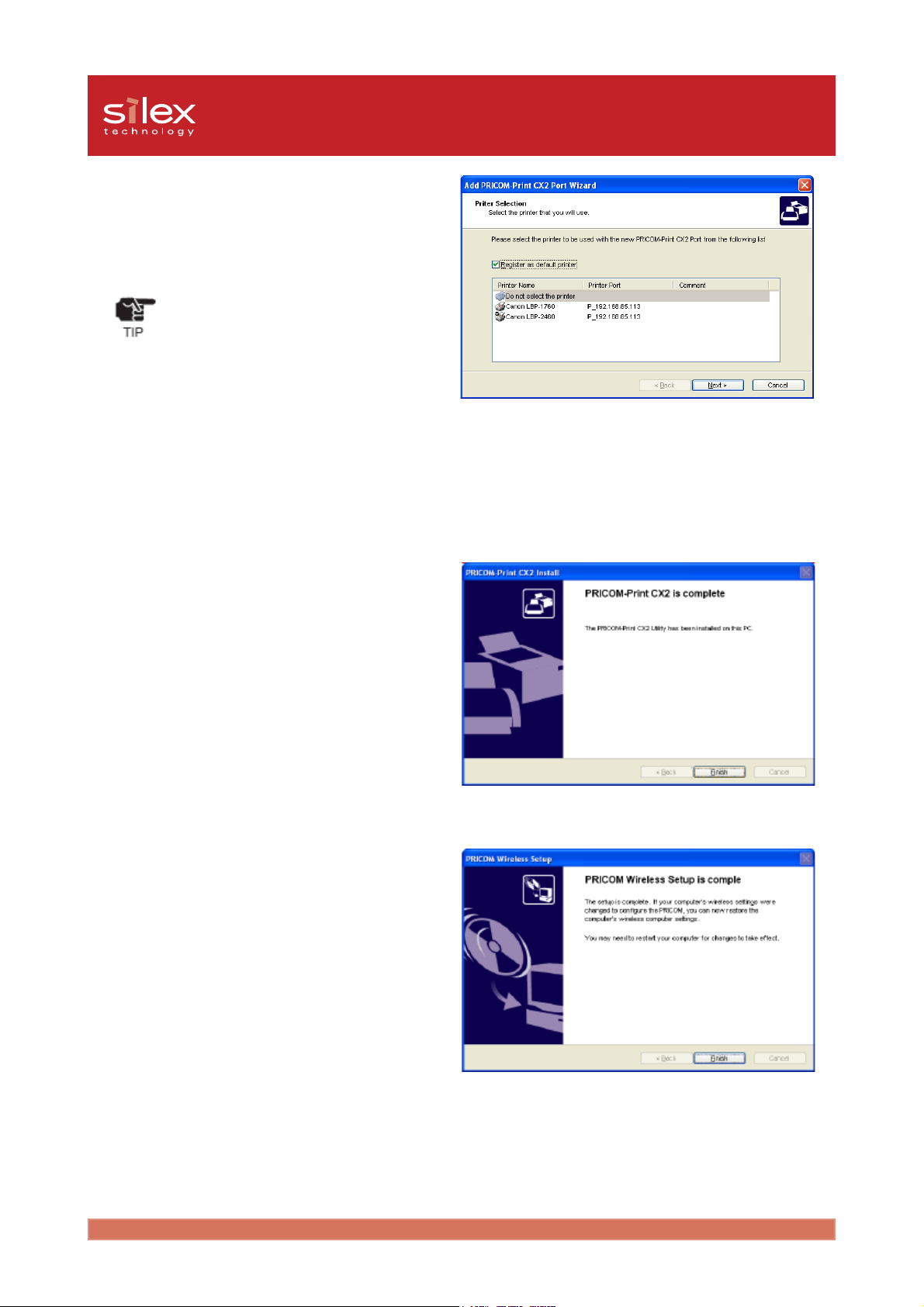

Procedure for initial communication with the PRICOM C-6400W.............3-3

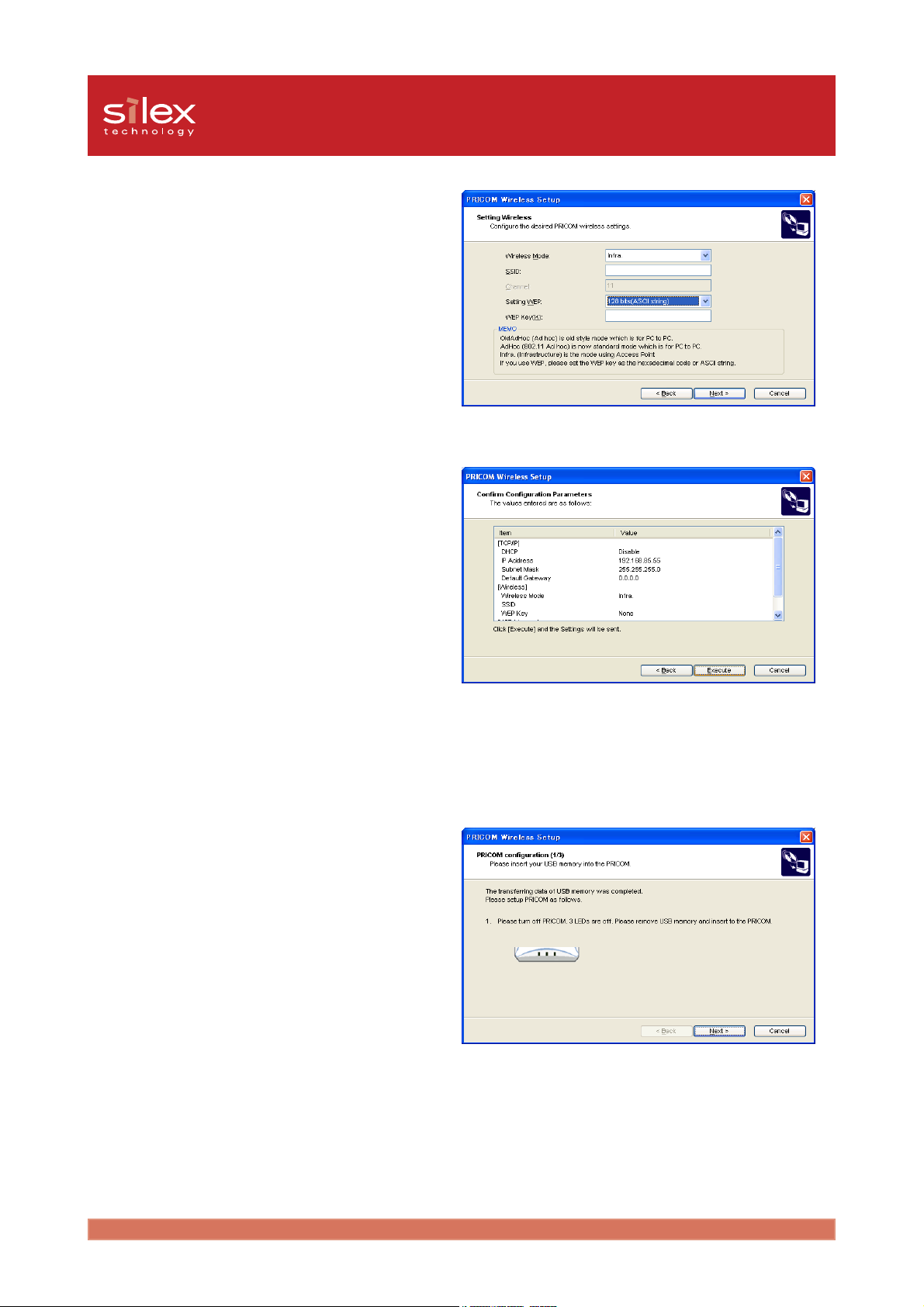

Set up using the PRICOM Setup Utility ....................................................3-4
Users Manual SX2
4, Scanner Server .......................................................................................4-1
Initial set up ..................................................................................................4-2
Connect the PRICOM C-6400W and USB scanner..................................4-2
Use the Scanner Server...............................................................................4-3
Install the PRICOM USB Utility.................................................................4-3
Use the PRICOM USB Utility....................................................................4-6
The PRICOM USB Utility..............................................................................4-9
The PRICOM USB Utility screen ..............................................................4-9
The Option Dialog...................................................................................4-10
5, Storage Server ........................................................................................5-1
Initial set up ..................................................................................................5-2
Install the PRICOM C-6400W and Canon MFP........................................5-2
Share the Memory Card Via the Network ....................................................5-3
Share the memory card in a Windows98/Me Environment.......................5-3
Verify the network configuration in Windows 98/Me (NetBEUI)................5-3
Verify the network configuration in Windows 98/Me
(NetBIOS over TCP/IP) ............................................................................5-4
Open the memory card in a Windows 98/Me environment.......................5-5
Share the memory card in a Windows 2000 Environment .......................5-6

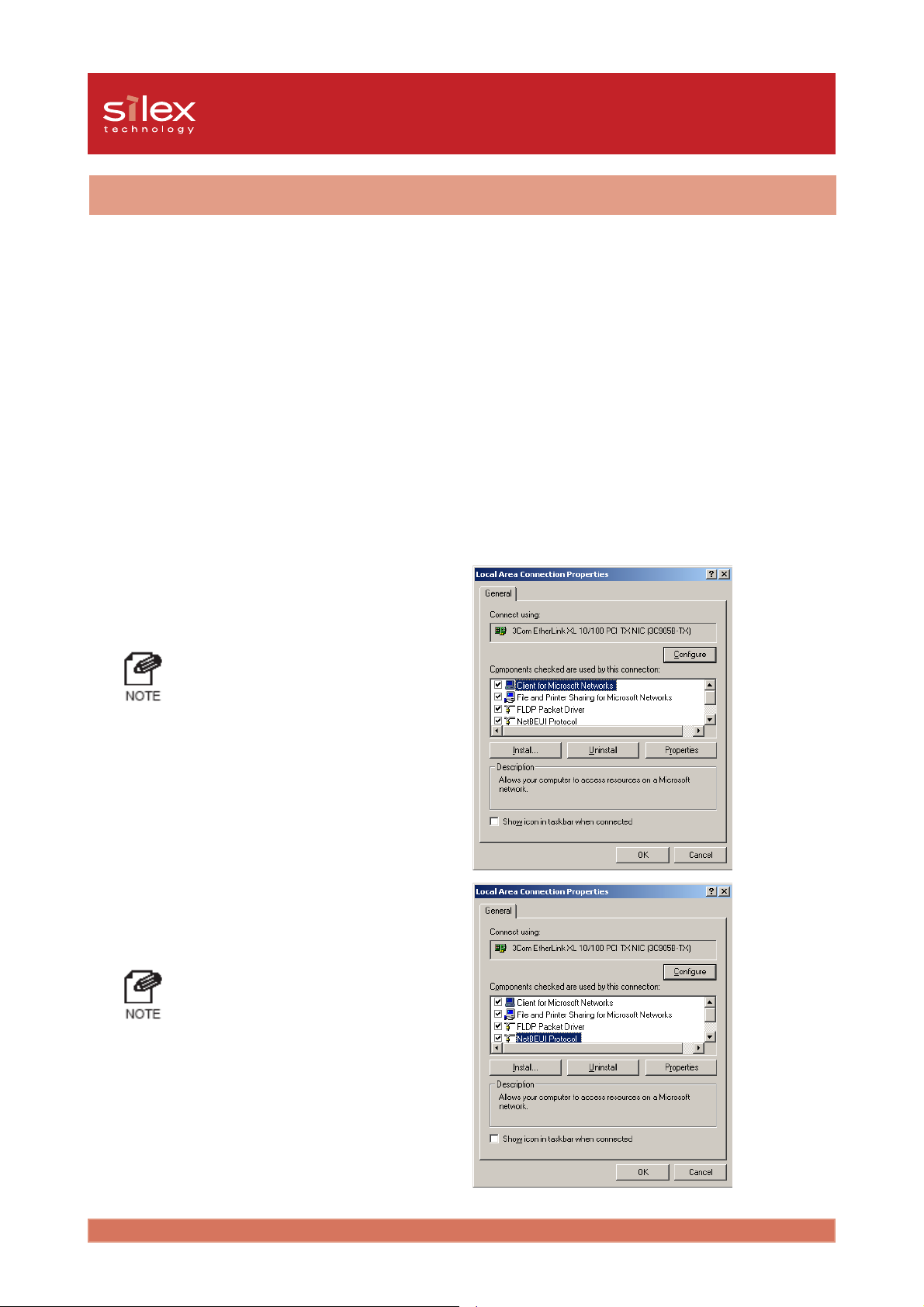

Verify the network configuration in Windows 2000(NetBEUI) ..................5-6
Verify the network configuration in Windows 2000
(NetBIOS over TCP/IP) ............................................................................5-7
Open the memory card in a Windows 2000 environment.........................5-8
Share the memory card in a Windows XP Environment...........................5-9

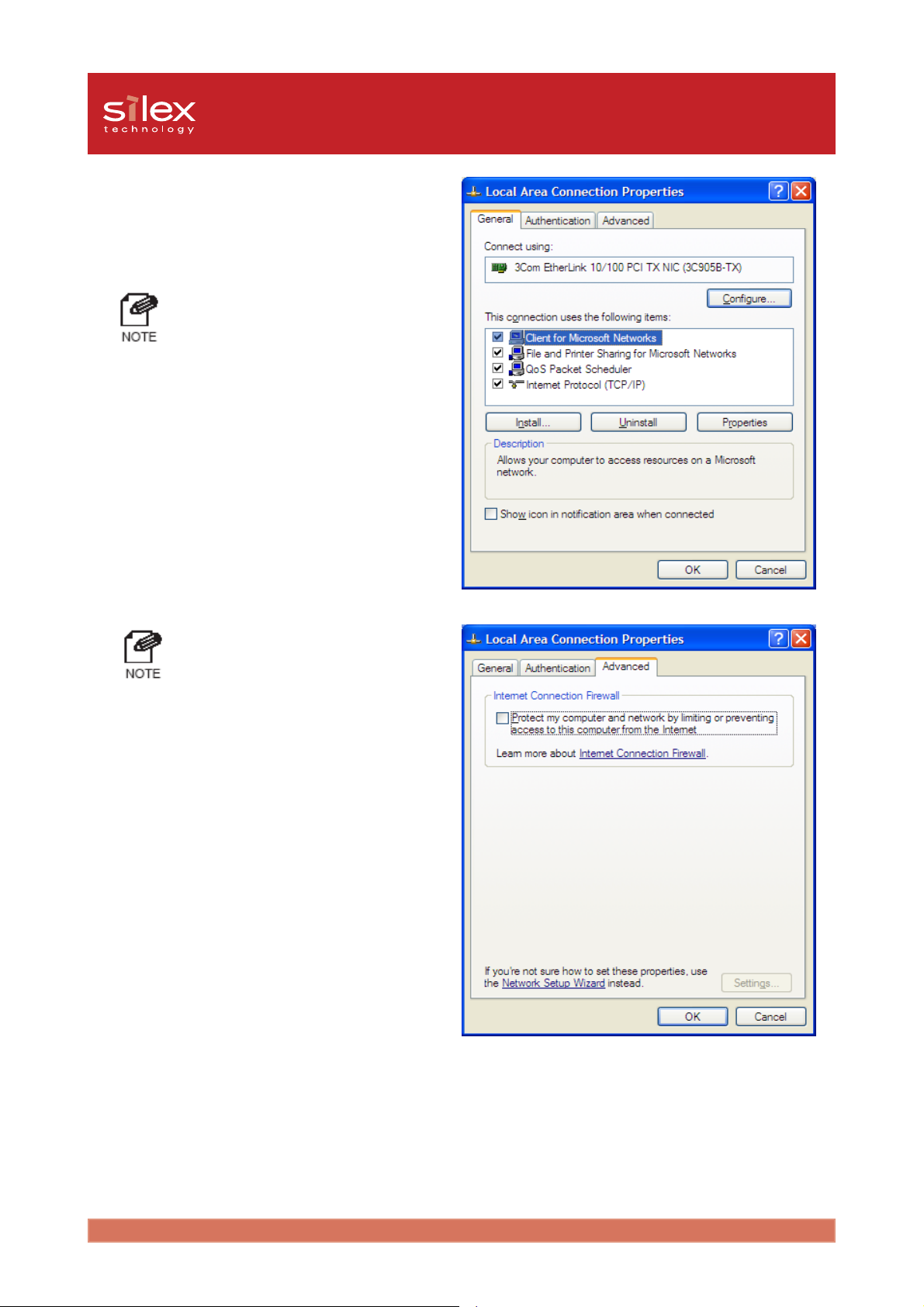

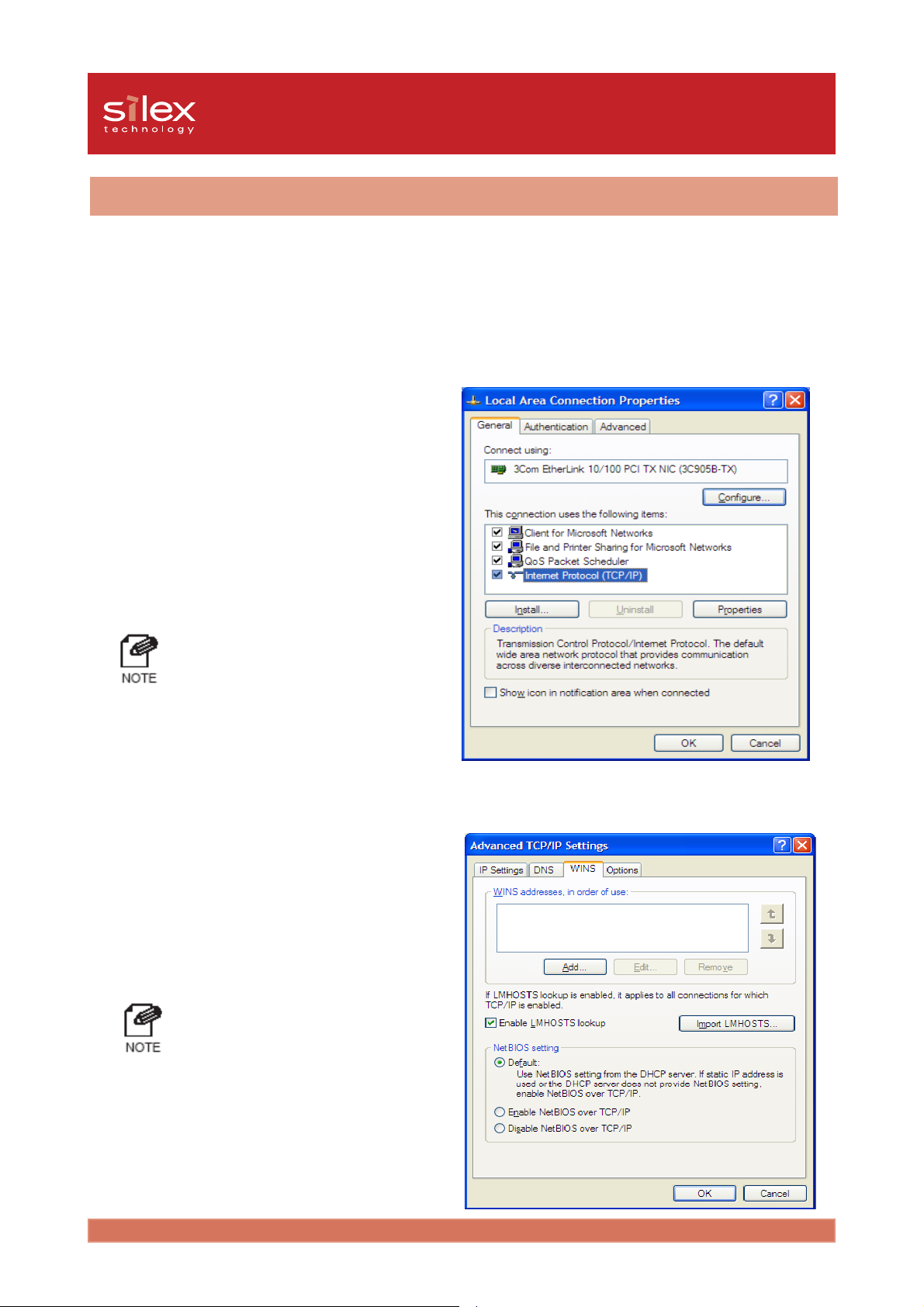

Verify the network configuration in Windows XP ......................................5-9
Open the memory card in a Windows XP environment..........................5-11
Users Manual SX2
6, Q&A .........................................................................................................6-1
The main menu does not start after Inserting the CD-ROM .....................6-1
The PRICOM C-6400W is not found in the configuration utility................6-1
I cannot print.............................................................................................6-2
Occasionally I cannot print .......................................................................6-3
I cannot print in LPR .................................................................................6-3
How can I return to factory default?..........................................................6-3
I cannot use the BJ print monitor..............................................................6-3
I cannot configure in the AdHoc mode .....................................................6-3
I cannot use Memory card via network.....................................................6-4
I cannot use the scanner ..........................................................................6-4
Appendix ........................................................................................................ 1
How to use USB memory................................................................................1
Save the wireless and TCP/IP settings
for the PRICOM C-6400W to use USB memory..........................................1
Write configuration information using an editor...............................................9
Using a standard OS print client ...................................................................11

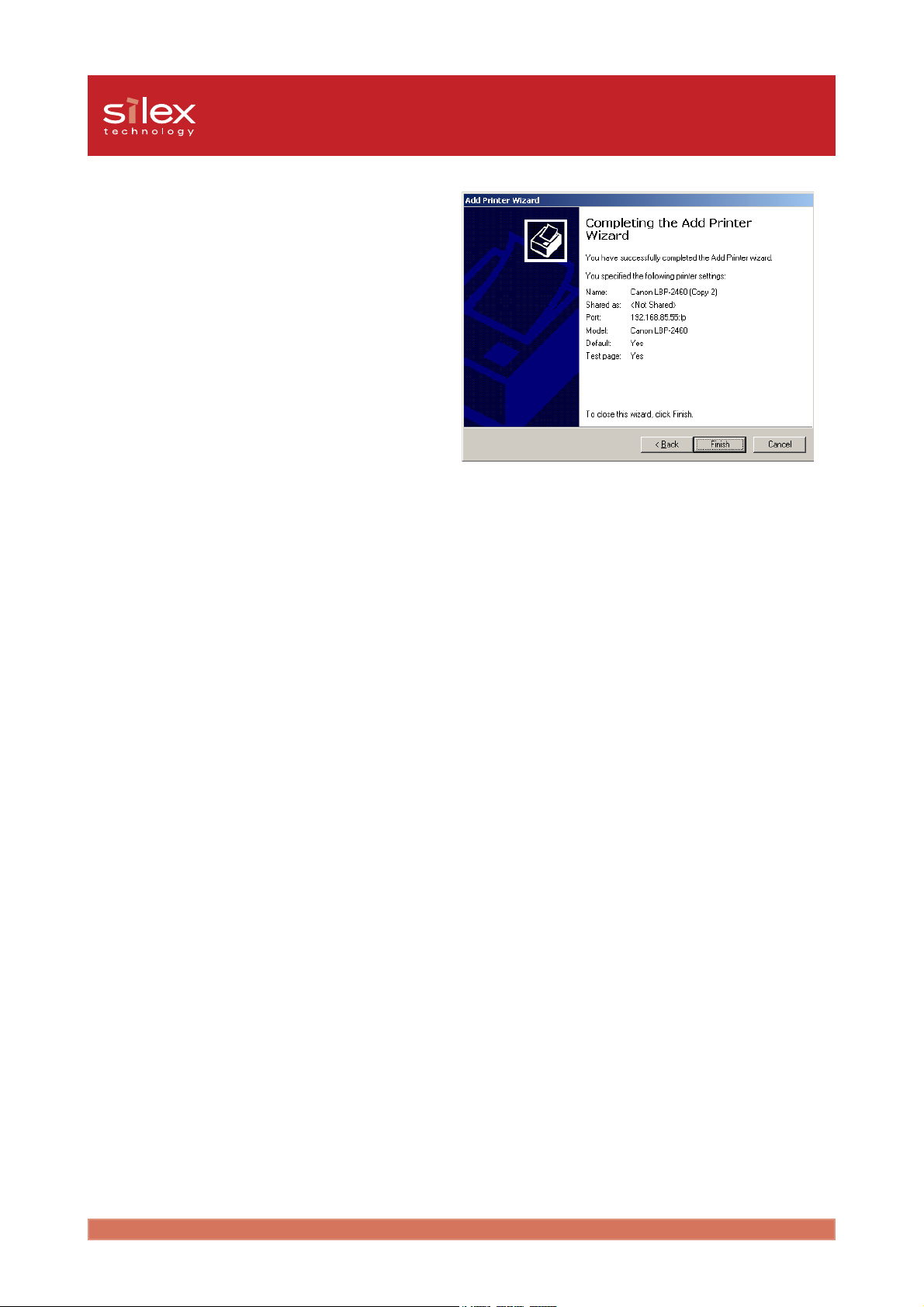

Print using the Windows 2000, Windows XP Standard TCP/IP port .........12
Print using the Windows 2000 LPR port....................................................17

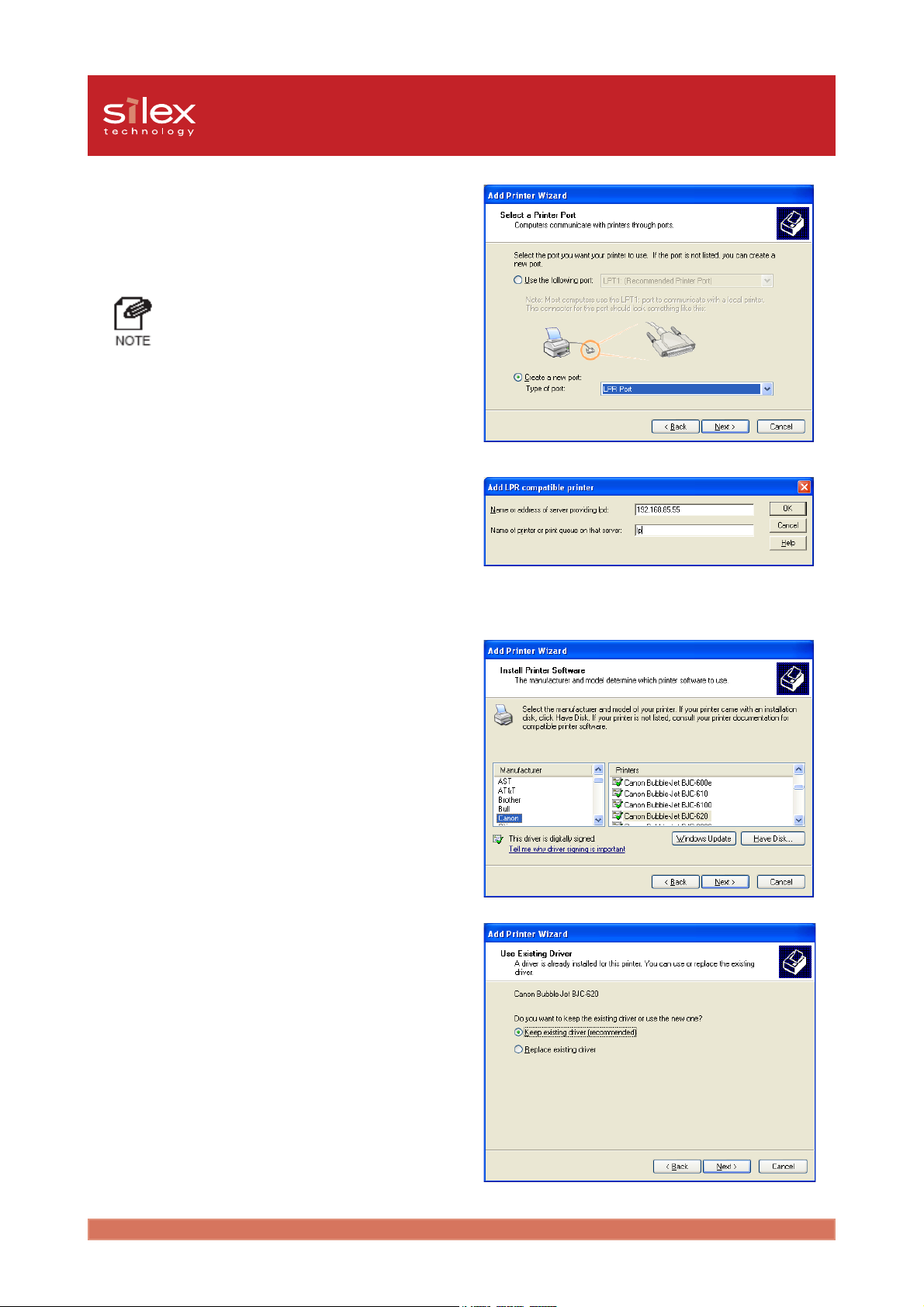

Print using the Windows XP LPR port .......................................................21
Print using the Windows 2000, Windows XP IPP port...............................24
Connect to the PRICOM C-6400W form a Web browser..............................26
Connect to the PRICOM C-6400W............................................................26

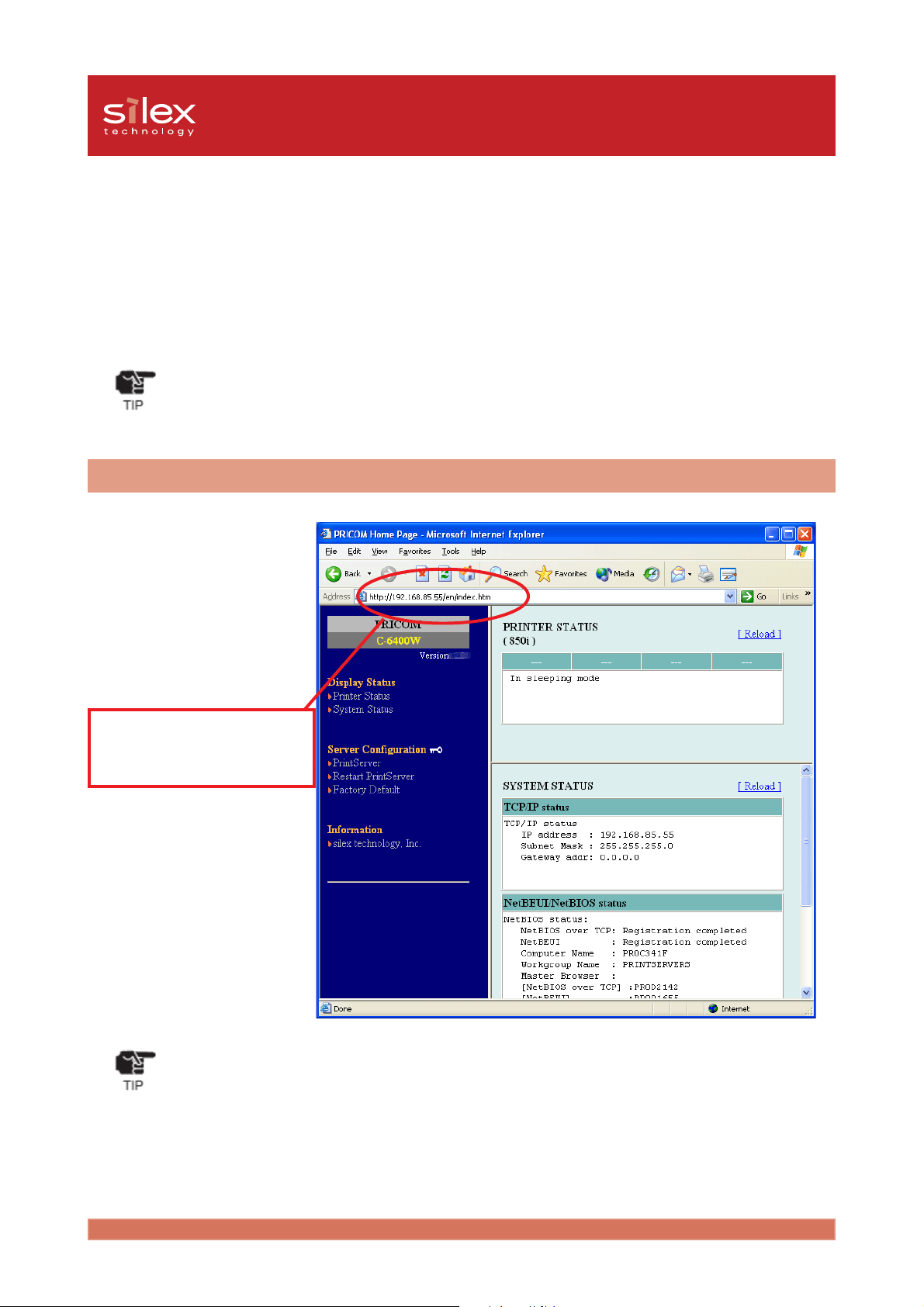

The PRICOM C-6400W HTTP screen.......................................................27
Other functions..............................................................................................30
IP filtering...................................................................................................3 0
TELNET ........................................................................................................31
Check and Verification of the PRICOM C-6400W.........................................36
Setting the PRICOM C-6400W parameters...............................................36
User Registration .......................................................................................... 1
Users Manual CX2

1, Introduction

Thank you for purchasing this product. This manual provides information on how to configure and use the PRICOM C-6400W.
Make sure to read all safety instructions carefully and fully understand them before starting to use the PRICOM C-6400W.
The PRICOM C-6400W is a mini Print/Scanner/Storage wireless server. It allows sharing a printer, scanner and storage across a network. The PRICOM C-6400W will also support the status monitor in the Canon printer driver. This allows monitoring the printer status (Ink level, paper empty, etc) from a PC.
PRICOM C-6400W Wireless USB Interface mini print/scan/storage server
Network Interface :IEEE 802.11b (1M/2M/5.5M/11Mbps Auto configuration) Device Interface :USB2.0 Full Speed* (Type A) Supported Protocol :TCP/IP, NetBEUI/NetBIOS** Supported OS :Windows 98/Me,Windows 2000,Windows XP
*Equivalent to USB1.1 performance. **NetBEUI/NetBIOS is used for sharing the storage and not for printing.
Introduction
1-1
Users Manual CX2
[About this Manual]
- Copying all or part of this manual without our permission is forbidden.
- The contents of this manual may be changed without advance notice.
- If you have any question about this manual or our products, please contact our customer
support.
- This manual has been edited very carefully. However, silex technology, Inc. is not
responsible for any mistakes included in this manual or any damages, direct or indirect, arising from the use of this manual.
- Copyright © 2005 silex technology, Inc.
- Canon is a registered trademark of Canon Inc., Bubble Jet is a trademark of Canon Inc.
- Microsoft, Windows, Windows NT etc. are registered trademarks of Microsoft Corporation
in the U.S. and other countries.
- Other brand or product names are registered trademarks or trademarks of their respective
companies.
Symbols used in this manual
This manual uses the following symbols to point out specific information. The information after the symbols should always be observed. Refer to “Safety Instructions” for the product safety information.
- This symbol indicates important information that needs to be observed when using this product. Make sure to read this information for safe and proper use.
- This symbol indicates useful information that will help operating this product.
If you experience difficulties operating this product, please refer to this information first.
Introduction
1-2
Users Manual CX2

Safety Instructions

To ensure safe and proper use, please read the following information carefully before starting to use our product. The safety instructions include important information on the safe handling of the product and on general safety issues for the user.
[Expression Meaning]
"Danger" indicates the existence of a hazard that could result in death
Danger
Warning
or serious bodily injury if the safety instruction is not observed.
"Warning" indicates the existence of a hazard that could result in bodily injury if the safety instruction is not observed.
[Example of picture]
- This symbol warns of possible danger.
- The danger symbol will contain another symbol or have a picture near it. (Left: this warns of possible electrocution)
- This is the prohibit symbol.
- This symbol will include another symbol or have a picture near it to indicate what is prohibited.
- This is the prohibit symbol.
- This symbol indicates what is prohibited specifically.
- This indicates a regulation by its contents.
- The regulation will appear inside or near this symbol. (Left: indicates to
Introduction
unplug).
1-3
Users Manual CX2
Danger
Warnings about physical connections
- Do not allow a power surge into this product. This could cause fire or an electric shock. If this product receives a power surge, unplug the AC adapter and contact us.
- Keep the cables away from children. They may be injured or receive a shock.
- If this product is detached from the printer, unplug the power to the printer before reconnecting.
- If the printer has a ground wire, it must be used to prevent electrocution and power surges.
Introduction
1-4
Users Manual CX2
Danger
The following are warnings to be observed during use.
- Do not remove the cover of this product.
- Do not use this product with the cover removed. You may receive an electric shock.
- Do not attempt to check, adjust or repair this product by yourself. You may receive an electric shock. Check with your dealer if the product needs to be repaired.
- If this product becomes hot, or you smell smoke, turn off the printer then unplug the power cable and disconnect this device immediately. Contact your dealer about repairing this product.
- If a foreign object (liquid, metal) gets into this product, turn off the printer then unplug the power cable and disconnect this device immediately. Contact your dealer about repairing this product.
Introduction
1-5
Users Manual CX2
Warning
Notice about physical installation.
- Do not use this product with the cover removed. You may receive an electric shock.When unplugging this product do not pull on the cord. The cord may break resulting fire and/or electric shock. Pull on the plug only.
- Do not put this product on an unstable location. The product may fall causing injury or damage the product.
- Do not put this product in a humid or dusty place. Fire or electric shock may occur.
- When moving this product, disconnect the power and printer cables. Fire or electric shock may occur.
Introduction
1-6
Users Manual CX2
Warning
Observe the following instructions while using this product.
- When the product will not be used for an extended time, disconnect and unplug the power cable.
- Verify all cables are connected properly before using this product.
Introduction
1-7
Users Manual CX2

2, PRICOM C-6400W

The PRICOM C-6400W is mini wireless print server/scanner server/storage server with a USB connection for Canon. This product supports Canon bubble jet printer, CAPT monochrome/color laser printer and MFP. You can monitor the print job status, printer status in Canon printer driver status monitor.
- For the latest compatibility information, refer to our web page (http://www.silex.jp/) or contact customer support.
When used correctly, the PRICOM C-6400W should not affect a radio or TV. However if you experience interference try the following.
- Move the PRICOM C-6400W far away from the radio and TV.
- Connect the PRICOM C-6400W and radio/TV to a different outlet.
2-1PRICOM C-6400W
Users Manual CX2

Emission Notice

PRICOM C-6400W
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit, different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
EN55022 Class-B EN55024
2-2PRICOM C-6400W
Users Manual CX2

Environment

The following are needed for the PRICOM C-6400W.
The followings are objects that connect to the network.
- PC with wireless communication
- USB Cable (A-B Type Connectors)
- Printer
Supported OS
Windows 98/Me, Windows 2000, Windows XP
Operating Environment
- Temperature : +10°C to +35°C
- Humidity : 20% to 80%RH (no dewing)
Storage Environment
- Temperature : -10°C to +50°C
- Humidity : 20% to 90%RH (no dewing)
Electric current
5V +- 5% 1.0A
EMI
VCCI Class-B FCC Class-B EN55022 Class-B EN55024
2-3PRICOM C-6400W
Users Manual CX2

Equipment explanation

Part name and function

Top
Infra LED (Green)
Front Side
Link LED (Green)
Status LED (Orange)
Bottom
Ethernet Address (The last 6 digits are the product serial number)
Right Side
Power Connector
USB Port
Push Switch
<Top/Front Side> The LED’s have the following meaning: Status LED (Orange)
Flashes during data transfer.
Link LED (Green)
Lights when an OldAdHoc mode network connection is established. Lights when an AdHoc mode network connection is established. Lights when an Infra mode network connection is established.
Infra LED (Green)
Lights when an Infra mode network connection is established. <Bottom> Ethernet Address
The Ethernet (MAC) Address of the device is found on the bottom.
The last 6 digits are the product’s serial number.
- If the Ethernet Address is 00:80:92:18:0E:1A (noted as 008092180E1A) then the product’s serial number is 180E1A.
2-4PRICOM C-6400W
Users Manual CX2
<Right Side> USB Port
Connect a USB Cable (A Type connector)
Power Connector
Connect AC adapter
<Front Side> Push Switch
The push switch is used to restore Factory Defaults and change to Infrastructure mode.

The PRICOM C-6400W is initialized.

1. Make sure that PRICOM C-6400W is not connected to the AC adapter.
2. While pushing the push switch of the PRICOM C-6400W, connect the AC Adapter.
3. Hold the push switch for 15 seconds. Only if Link LED is on, let go of the push switch.
Push Switch Link LED
- Do not turn off the PRICOM C-6400W while initializing to factory default.
- After restoring to factory default, do not push the push switch.
2-5PRICOM C-6400W
Users Manual CX2

Start in Infrastructure mode

- It is possible to put the PRICOM C-6400W into Infrastructure mode and connect to an access point if the access point does not use WEP.
1. With the PRICOM C-6400W set to factory default, verify the Link LED is on after the connecting the AC adapter to the PRICOM.
2. After holding the push switch for 15 seconds, release the switch.
3. After a few seconds, all of the LED’s will light and then go out immediately.
4. After a few seconds, the Infra. LED will light. Then if the PRICOM C-6400W can connect to an access point, the Link LED will light.
- If the Infra LED lights but Link LED does not, The PRICOM C-6400W cannot connect to an access point. Check the following and Reboot the PRICOM C-6400W.
1. Does the access point require a WEP key?
2. Does access point use a security setting?
3. Is anything blocking the PRICOM C-6400W and the access point?
4. Are the PRICOM C-6400W and Access point close enough?
2-6PRICOM C-6400W
Users Manual CX2

How to Connect

Connect the PRICOM C-6400W to Printer and Network

- If the PRICOM C-6400W has been used in another network environment, restore to factory default.
- The PRICOM C-6400W cannot connect to a USB hub.
The PRICOM C-6400W needs the following to connect to a network.
USB Cable
A-B Type
1. Connect the AC Adapter to the PRICOM C-6400W.
2. Plug in the Power cable to the printer/ Canon MFP.
3. Connect the PRICOM C-6400W to a printer/Canon MFP. The PRICOM uses a type A connector and the printer/MFP will use a type B connector.
- The USB Cable will have two types of connecters. Make sure of the connector type.
2-7PRICOM C-6400W
Users Manual CX2
4. Make sure that printer is working and turned on.
- Using an AC adapter other than the one provided with the PRICOM C-6400W can cause damage.
- Connect only to a printer/Canon MFP.
- Wait for 2 or more seconds after connecting/disconnecting the USB cable.
- Do not disconnect the USB cable during printing, scanning or reading/writing from a memory card.
- After turning on the PRICOM C-6400W or connecting the USB cable, printing will proceed according to priority.
2-8PRICOM C-6400W
Users Manual CX2

Other Functions

The other functions of the PRICOM C-6400W are shown below.

Function

Assign the IP address automatically using DHCP, BOOTP and RARP
- DHCP/BOOTP
If a DHCP/BOOTP server is working on your network, the DHCP/BOOTP protocol of the PRICOM C-6400W will assign the IP address to the PRICOM C-6400W.
- The PRICOM’s DHCP protocol is compatible with RFC2131/2132.
- If you use the DHCP function of the PRICOM C-6400W, talk to your administrator.
- RARP
If a RARP server is working on your network, the RARP protocol of the PRICOM C-6400W will assign the IP address to the PRICOM C-6400W.
- If you use the RARP function of the PRICOM C-6400W, talk to your administrator.
- IPP(TCP/IP)
The PRICOM C-6400W supports [Internet Printing Protocol] (IPP Ver.1.0) which can print via the internet. If you use IPP, you can easily print out to a remote place using Web access in HTTP.
- If you print out to a remote place using the IPP function, you should assign a global IP address to the PRICOM C-6400W. Talk to an administrator for details.
- Web Brower functionality
The PRICOM C-6400W supports HTTP. You can configure the PRICOM C-6400W and check its status via a Web browser. If you have Internet access, you link to the PRICOM C-6400W’s support information.
- We recommend using Internet Explorer 4.0 or Netscape Navigator 4.0 or newer. The Web browser must support HTTP 1.0(RFC1945) and HTML 2.0(RFC1866).
- If you use the Web browser function, you should configure the IP address of the PRICOM C­6400W and enable the TCP/IP protocol.
- An IP address must be assigned prior to using the Web browser.
2-9PRICOM C-6400W
Users Manual CX2
- IP Filter
The PRICOM C-6400W allows to accept/deny the communication from a pre-registered IP address scope. IP filtering can protect illegal access from unexpected network client users.
- When a DHCP server is assigning the IP address for the PRICOM C-6400W, the designated IP addresses must be within a reachable scope by the DHCP server.
- You can register up to 4 IP addresses scope with the PRICOM C-6400W.
- Scanner server
If you use a Canon MFP the PRICOM C-6400W will allow you to share the Canon MFP scanner via the bundled the PRICOM USB Utility.
- The PRICOM USB Utility is compatible with Windows 2000/Windows XP.
- The PRICOM C-6400W can connect to one Canon MFP.
- Storage server
The PRICOM C-6400W supports the NetBEUI/NetBIOS protocol, which will allow you to share the card slot in a Canon MFP.
- The PRICOM C-6400W does not support printing with the NetBEUI/NetBIOS protocol.
- The PRICOM C-6400W can connect to one Canon MFP.
2-10PRICOM C-6400W

Specification

Hardware specification

CPU
V850 CPU (40MHz)
Memory
RAM :8MByte Flash ROM :1MByte
Network Interface
IEEE802.11b compatible CF card
Users Manual CX2
USB Interface
Type A port
Other
Push switch :1 button LED :Status(Orange), Link(Green), Infra(Green)
2-11PRICOM C-6400W
Users Manual CX2

Software Specification

Support Protocol
TCP/IP,NetBEUI/NetBIOS
TCP/IP
Network layer :ARP, RARP, ICMP, IP Transport layer :TCP, UDP Presentation layer :WINS Application layer :LPR, TELNET, BOOTP, SNMP, HTTP, DHCP, IPP, #9100,
NetBIOS over TCP
- You can assign IP address via our original utility.
NetBEUI/NetBIOS
SMB, NetBIOS
- If you connect a CAPT printer, you cannot use the Windows standard LPR/IPP/FTP protocols.You should use the PRICOM-Print CX2.
2-12PRICOM C-6400W
Users Manual CX2

Using Wireless Communication

This product operates at 2.4GHz No radio license is required to use this product. Take note of the following points.
Do not use next to the following.
The following equipment may use the same band. If you use this product near this equipment, the radio waves from the PRICOM C-6400W and the following devices may interfere with each other.
- Microwave, scientific instruments, pacemaker or other medical equipment.
- Licensed radio station in a factory.
- Small power radio station (a none licensed radio station).
You should not use this product near cellular phone, TV, Radio.
- A cellular phone, TV, and radio use a different radio band than our product. Generally if they are used near our product, it will not cause a problem. However, when they approximate this product, sound or image noise can happen.
If there is reinforced concrete/metal between wireless devices, they may not connect.
- This product can connect through wood or glass, but can have trouble communicating through reinforced concrete/metal.
2-13PRICOM C-6400W
Users Manual CX2
Wireless Equipment for 2.4GHz band
This band of equipment is used by the microwave, industry, science, medical equipment and licensed in room or low power (non licensed) radio stations.
- Before you use this equipment, verify that it will not interfere with other broadcasting.
- If interference happens, stop using the equipment or change the band. Contact us to discuss ways of avoiding interference (example: create the wall).
2-14PRICOM C-6400W
Users Manual CX2
<Ad hoc mode> Each wireless product connects directory.
Connect the PRICOM C-6400W to the printer/scanner/MFP using a USB cable.
- The PC connects directly to our product in Ad hoc mode.
2-15PRICOM C-6400W
Users Manual CX2
<Infrastructure mode> In Infrastructure mode the PRICOM C-6400W connects through an access point. An Access point allows communication between wired and wireless environments.
Access Point
Connect the PRICOM C-6400W to the printer/scanner/MFP using a USB cable.
- The following are the two ways to put the PRICOM C-6400W into Infrastructure mode.
1. Set the mode to be Infrastructure during the configuration.
2. After boot, hold down the push switch.
2-16PRICOM C-6400W
Users Manual CX2

3, PRICOM User Software CX2

How to set up the PRICOM C-6400W using the PRICOM User Software CX2

Load the PRICOM User Software CX2 CD into the CD-ROM drive of your Windows PC. The Menu screen will automatically appear.
- If the screen does not appear automatically, execute Autorun.exe from the CD (D:\Autorun.exe if the CD-ROM drive is D).
The following will explain each menu of the PRICOM User Software CX2.
(1)Quick Setup Guide
This will give an introduction on how to configure the PRICOM C-6400W. Please read this prior to setting up the PRICOM C-6400W.
(2)PRICOM Setup
This will explain how to configure the PRICOM C-6400W’s parameters. Once the PRICOM C-6400W has been set up, it will continue on to the Printer Utility and the Scanner Utility.
PRICOM User Software CX2
3-1
Users Manual CX2
(3)Print Utility Setup Set up the PRICOM-Print CX2 utility to use the print server function.
(4)Scan Utility Setup Set up the PRICOM USB Utility to use the scanner function.
Online manual View the PRICOM C-6400W's online manual. If your PC does not have Adobe Acrobat Reader, the Adobe Acrobat Reader will be installed automatically.
PRICOM User Software CX2
3-2
Users Manual CX2

How to Communicate to the PRICOM C-6400W

Procedure for initial communication with the PRICOM C-6400W

The following explains how to initially communicate with the PRICOM C-6400W until the wireless parameters are configured.
- 802.11 Ad hoc mode
The PC's wireless parameters must match the PRICOM C-6400W's. Change the PC's wireless settings to match the default settings of the PRICOM C-6400W which are:
Mode : AdHoc mode (802.11 Ad hoc mode) SSID : GROUP Channel : 11 WEP : (none)
- Infrastructure mode
The PRICOM C-6400W's wireless mode can be changed to Infrastructure by using the push button. The PC's wireless settings and an access point will still need to match the default settings of the PRICOM C-6400W.
- If you configure to infrastructure mode, do not use WEP in your access point.
- If you cannot connect to the PRICOM C-6400W, initialize to factory default and try again.
- Refer to 2, PRICOM C-6400W - Start in Infrastructure mode for instructions on how to change to infrastructure mode.
PRICOM User Software CX2
3-3
Users Manual CX2

Set up using the PRICOM Setup Utility

To configure the parameters in Windows 2000 / Windows XP you must login as Administrator.
Also before configuring the PRICOM C-6400W, it is recommended that you connect the PRICOM C-6400W to a printer.
Refer 2, PRICOM C-6400W - How to Connect for information on how to connect the PRICOM C-6400W to Printer.
- For conducting the initial set up in Windows XP SP2 environment, be sure to disable the Windows embedded firewall feature temporarily during the PRICOM configuration. Select: Start . Control Panel . Security Center to disable firewall feature temporarily. Please remember to enable the firewall feature, if desired, after completing the PRICOM set up.
1. Put into the CD included with the PRICOM C-6400W into your Windows PC.Click PRICOM Setup.
- If the screen dose not appear automatically, execute Autorun .exe from the CD-ROM.
2. Select Setup PRICOM from PC by wireless LAN. Click Next.
PRICOM User Software CX2
3-4
Users Manual CX2
3. Click Yes if you agree to the
SOFTWARE LICENSE
AGREEMENT.
- If you do not agree to the license agreement, you cannot use our products.
4. Verify the PC's wireless settings match those on the PRICOM C­6400W. Then click Next.
- The displayed parameters are the PRICOM C-6400W's factory defaults. If the PRICOM C-6400W and the PC has different wireless parameters, they cannot communicate. If needed, change the PC's wireless parameters to match the PRICOM C-6400W.
5. Select the PRICOM C-6400W in search list. Then click Next.
- If you cannot find the PRICOM C­6400W in search list, click Search.
- If you have more than one PRICOM C-6400W in search list, use the Ethernet address of product to determine which to select.
PRICOM User Software CX2
3-5
Users Manual CX2
6. Configure the address for the PRICOM C-6400W. Then click Next.
- We recommend assigning a static IP address.
- To assign the address using a DHCP/ BOOTP server, select Get IP Address Automatically.
7. Change the wireless parameters to match that of your network environment. Click Next.
- The WEP key can be entered as a pass phrase or the actual key. When using the pass phrase the key will be created automatically for you.
8. Verify the parameters for the PRICOM C-6400W. Then click Execute.
- The PRICOM will receive the parameters via the network and the PRICOM C-6400W will restart.
PRICOM User Software CX2
3-6
Users Manual CX2
The PRICOM C-6400W configuration is now complete. You can continue to install "PRICOM-Print CX2" print utility and/or the "PRICOM USB Utility" scanner utility.
If you have already installed these applications, remove check marks from the PRICOM- Print CX2 and/or PRICOM USB Utility and quit the set up wizard. To continue to install the print utility, go to step 9.
- If you click Cancel and quit the install wizard, after you can install the print utility directly from the first menu.
9. Check PRICOM-Print CX2, and click Next.
- If you check PRICOM USB Utility, you can install the scanner utility after PRICOM-Print CX2 has finished install. Refer to 4, Scanner Server for more information.
10. Click Next.
PRICOM User Software CX2
3-7
Users Manual CX2
11. Select a folder to install to, and then click Next.
- The default folder is "c:\Program Files\silex technology\PRICOM CX2"
- Choose Browse to select a different folder.
12. Select a GROUP name and click Next.
- The default name is PRICOM-Print CX2. You can use any name you want.
13. Click Start to start installing the PRICOM-Print CX2.
PRICOM User Software CX2
3-8
Users Manual CX2
14. Select the printer driver for the printer connected to the PRICOM C-6400W. Click Next.
- If you cannot find the printer driver you want to use in the list, you do not have to install a printer driver right now.
- Select Do not select the printer if you did not wish to install a printer driver.
- You can configure the port after you install the printer driver.
15. Click Finish.
16. Click Finish.
The PRICOM C-6400W and PC have been set up. After rebooting the PC, print a test page and verify it printed correctly.
PRICOM User Software CX2
3-9
Users Manual CX2

4, Scanner Server

This section explains how to use the PRICOM C-6400W's scanner server function.
A Canon MFP's scanner function can be shared across the network using the PRICOM C­6400W.
- The PRICOM USB Utility is compatible with Windows 2000, Windows XP.
- The PRICOM C-6400W can connect to ONE Canon MFP.
- Refer to 3, PRICOM User Software CX2 about how to set up the product.
Scanner Server
4-1
Users Manual CX2

Initial set up

Connect the PRICOM C-6400W and USB scanner

Connect the PRICOM C-6400W and the USB scanners to allow scanning across the Network.
- Do not disconnect the USB Cable during scanning.
- The PRICOM C-6400W will support the scanner function of the Canon MFP.
- The PRICOM C-6400W can connect to ONE Canon MFP.
- The PRICOM C-6400W does not need to be powered off to connect or disconnect a USB device.
- Verify that the USB cable has the correct connectors.
- Connect the PRICOM C-6400W's USB Port directory to a Canon MFP.
Ethernet Hub
Access Point
C-6400W
Canon MFP
Scanner Server
4-2
Users Manual CX2

Use the Scanner Server

If you want to use the Canon MFP scanner function via a network, install the PRICOM USB Utility. The PRICOM USB Utility can connect a PC to the PRICOM C-6400W, allowing the PC to recognize the scanner function. The scanner can then be used the same as if it were connected directly to the PC.

Install the PRICOM USB Utility

1. Load the PRICOM User Software CX2 into the CD-ROM drive of your Windows PC. Click Scan Utility Setup.
- If the screen does not appear automatically, execute Autorun.exe.
2. Click Next.
3. Click Yes, if you agree to the
SOFTWARE LICENSE
AGREEMENT.
- If you do not agree to the license
Scanner Server
agreement, you cannot use our products.
4-3
Users Manual CX2
4. Verify the installation folder, click Next.
- The default installation folder is "c:\Program Files\silex technology\ PRICOM USB Utility". Choose Browse, to select another folder.
5. Verify the GROUP name and click Next.
- The Default is PRICOM USB Utility.You can use any name you want.
6. Click Start.
Scanner Server
4-4
Users Manual CX2
7. Specify an application program which starts automatically after the PRICOM USB Utility has connected to the scanner. Click Reference and specify the application program which starts automatically.
- If Canon MP Toolbox is installed, a name of executable file (extension ".exe”) of Canon MP Toolbox is shown.
- You can select the application program in the [Optional Setting] dialog box also.
8. Click Finish.
The PRICOM USB Utility installation is complete. The next section will explain how to configure the PRICOM USB Utility.
Scanner Server
4-5
Users Manual CX2

Use the PRICOM USB Utility

Start the PRICOM USB Utility and configure it to use scanner via the network.
1. Click start - All Programs - PRICOM
USB Utility - PRICOM USB Utility.
When using the PRICOM USB Utility for the first time, the screen to the right is displayed. Click Yes.
- When clicking No in the screen shown above, the server registration screen needs to be opened manually. Click Register when the main screen to the right is opened.
2. Click Search to display the C-6400W on the network. Find the C-6400W to be registered. Then click Register.
- The registered server name can be changed. The default is IP address.
Scanner Server
Click Search.
4-6
Users Manual CX2
3. Connect your PC to the C-6400W. Click Connect.
- When clicking Connect, your PC can detect the USB scanner over the network.
4. The network connection has been established between your PC and the USB scanner. Verify that the status has changed to connecting.
- Do not disconnect the USB cable or click Disconnect in the PRICOM USB Utility while the scanner is in use. This may cause the PC or the scanner to become unstable. If either happens, restart the C-6400W, scanner, and PC and then use them again.
- Your scanner can be used as a network scanner with the bundled utility such as TWAIN that comes with your scanner.
Scanner Server
4-7
Users Manual CX2
5. After using the scanner, click Disconnect to terminate the connection and close the PRICOM USB Utility.
- The connection will be terminated automatically if the network scanner is not used for 10 minutes.
- If the network scanner is frequently used, the icon of the USB utility can be added to the task tray in Windows. The network connection can be established by clicking the icon in the task tray.
- If It cuts automatically after an application end is selected in the optional setting dialog box, the connection will be terminated automatically when the application is closed.
Scanner Server
4-8
Users Manual CX2

The PRICOM USB Utility

This section will explain the options available in the PRICOM USB Utility

The PRICOM USB Utility screen

When starting the PRICOM USB Utility, the main screen will appear.
<Main Screen>
Server to be connected
Server name registered
Display the product to use.
Register button
Register a new PRICOM.
Delete button
Un- register a PRICOM C-6400W. The delete screen will appear and allow you to select the product you want to delete.
Server Status Selected
Display the selected server's current status.
Refresh button
Refresh the status information.
Main buttons
<Delete Screen>
Disconnect/Connect button
Disconnect/Connect your PC to the PRICOM C6400W.
Option button
Bring up the option configuration screen.
Exit button
Exit the PRICOM USB Utility.
Scanner Server
4-9
Users Manual CX2

The Option Dialog

Click Option on the main screen to bring up the Options screen.
<General>
Window configuration
Register at Startup
Register the USB Utility at startup (Default: OFF)
Start without Window
Minimize the USB Utility when started (Default: OFF). Minimized icon is displayed in task bar.
Always display in front
Make the USB Utility the top window (Default: OFF). Another window with the same setting could displace it from being on top.
Status refresh interval
Configure the status update interval time.(Default:10 seconds)
Option
Activate selected application when connected (Default: OFF).
Once connected, the USB Utility will automatically start the selected application.
It cuts automatically after an application end (Default: OFF).
When the selected application is closed the connection will automatically be closed.
- If you assign an application to be used with the scanner, all you will need to do is start the application.
- If you assign an application to start automatically during the installation, the parameter options will default to ON.
Scanner Server
4-10
Users Manual CX2
<Notification>
Notification
When the status of the scanner server changes, the PRICOM USB Utility can notify you by message and/or by sound (Default: Message ON/Sound OFF).
"When changing mode from waiting to connecting"
Notify you when the PC connects to the scanner server.
"When changing mode from connecting to waiting"
Notify you when the PC disconnects from the scanner server.
"When changing mode from waiting to other users engaged"
Notify you when the scanner server is connected to another user.
"When changing mode from other users engaged to waiting"
Notify you when another user disconnects form the scanner server.
"When Communication error"
Notify you when the PC and the scanner server have a communication problem.
Display message
Check this for each message that you would like to receive.
Sound is used
Check this to activate the sound for the selected change in status. You can select your favorite sound.
Scanner Server
4-11
Users Manual CX2

5, Storage Server

This section explains how to share a memory card in a Canon MFP's slot using NetBEUI and NetBIOS over TCP/IP.
- Refer to the Canon MFP manual for information about compatible memory cards and how to attach the card.
- The PRICOM C-6400W can connect to ONE Canon MFP.
Storage Server 5-1
Users Manual CX2

Initial set up

Install the PRICOM C-6400W and Canon MFP

The PRICOM C-6400W connect to a Canon MFP via a USB cable. The PRICOM C-6400W communicates in a network environment.
- Do not disconnect the USB cable/Memory Card while accessing storage device.
- The PRICOM C-6400W can connect to ONE Canon MFP.
- Use a password to control access to the MEMORY_CARD.
- File data in storage was assigned by NetBIOS of source PC.
- You do not have to turn off the PRICOM to connect or disconnect a USB device.
- A USB cable has 2 connector forms. Before connecting, make sure the form.
- Connect the PRICOM's USB Port directly to the Canon MFP.
Access Point
Ethernet Hub
C-6400W
Storage Server 5-2
Canon MFP
Users Manual CX2

Share the Memory Card Via the Network

In order to read/write to a memory card in a Canon MFP via the network, NetBEUI and Client for Microsoft Networks must be on your PC.

Share the memory card in a Windows98/Me Environment

Verify the network configuration in Windows 98/Me (NetBEUI)
NetBEUI and Client for Microsoft Networks will need to be installed, if they are not already installed.
1. Select Start - Settings - Control Panel.
2. Click Network icon of Control Panel.
3. If NetBEUI and Client for Microsoft Networks are not installed, click Add to add them.
- If current network component list does not have NetBEUI protocol, click Add - Protocol - Microsoft - NetBEUI.
- If current network component list does not have Client for Microsoft Networks, click Add - Client - Microsoft - Client for Microsoft Networks.
Storage Server 5-3
Users Manual CX2
Verify the network configuration in Windows 98/Me (NetBIOS over TCP/IP)
Verify that Client for Microsoft Networks and TCP/IP are added in the Network configuration on Windows 98/Me and NetBIOS over TCP/IP is enabled in TCP/IP in property.
1. Select Start - Settings - Control Panel.
2. Click Network icon of Control Panel.
3. Verify that Client for Microsoft Networks and TCP/IP are added in Network configuration.
- If the current network component list does not have TCP/IP protocol, click Add - Protocol - Microsoft - TCP/IP.
- If current network component list does not have Client for Microsoft Networks, click the Add
- Client - Microsoft - Client for Microsoft Networks.
4. Open TCP/IP properties, then select NetBIOS, then verify if I want to enable NetBIOS over TCP/IP is checked.
- Generally, the default state is enabled.
Storage Server 5-4
Users Manual CX2
Open the memory card in a Windows 98/Me environment
1. Connect a memory card to the Canon MFP's card slot.
2. Click the Network Neighborhood icon on desktop, select Printservers in WORKGROUP.
3. Click the PRICOM's icon.
- The name will be displayed as Pr + the last 6 digits of the Ethernet Address.
- If your product's Ethernet Address is 00:80:92:0c:34:1f, our product's computer name is Pr0c341f.
4. Click the memory_card on memory card folder.
Storage Server 5-5
Users Manual CX2

Share the memory card in a Windows 2000 Environment

Verify the network configuration in Windows 2000 (NetBEUI)
Verify that "NetBEUI Protocol" and "Client for Microsoft Networks" have been added in the network configuration of Windows 2000.
1. Select Start - Settings - Control Panel - Network and Dial-up Connections.
2. View the properties of Local Area Connection.
3. Click Properties on the main screen to bring up the properties screen.
4. Verify that Client for Microsoft Networks has been added.
- If Client for Microsoft Networks was not displayed, click install and select
client - then Client for Microsoft Networks.
5. Verify that NetBEUI Protocol has been added.
- If the NetBEUI Protocol was not displayed, click the Install and select Protocol then NetBEUI Protocol.
Storage Server 5-6
Users Manual CX2
Verify the network configuration in Windows 2000 (NetBIOS over TCP/IP)
Verify that Network - Internet Protocol(TCP/IP) - Client for Microsoft Networks has been added as well as NetBIOS Internet Protocol(TCP/IP).
1. Select Start - Settings - Control Panel - Network and Dial-up Connections.
2. Open the properties of Local Area Connection.
3. Click Properties on the main screen to bring up the Properties screen.
4. Verify that Client for Microsoft Networks has been added.
- If you cannot find Client for Microsoft Networks in the list, click Install then select Client - Client for Microsoft Networks.
5. Verify that Internet protocol (TCP/IP) has been installed.
- If you cannot find Internet protocol (TCP/IP) in the list, click Install then select Protocol - Internet Protocol(TCP/IP).
6. Open Internet Protocol (TCP/IP) - Properties - Advanced - WINS tab, and make sure the Enable NetBIOS over TCP/IP is selected.
- When receiving the TCP/IP settings automatically from DHCP, verify that the Use NetBIOS setting from the DHCP server is selected.
Storage Server 5-7
Users Manual CX2
Open the memory card in a Windows 2000 environment
1. Connect a memory card to the Canon MFP's card slot.
2. Click My Network Places - Entire Network, and open the Printservers in workgroup.
3. Click the PRICOM's icon.
- The name will be displayed as Pr + the last 6 digits of the Ethernet Address.
- If your product's Ethernet Address is 00:80:92:0c:34:1f, our product's computer name is Pr0c341f.
4. Click the MEMORY_CARD on memory card folder.
Storage Server 5-8
Users Manual CX2

Share the memory card in a Windows XP environment

Verify the network configuration in Windows XP
Verify that NetBIOS in Internet Protocol (TCP/IP) on Windows XP, and Client for Microsoft Networks have been added.
1. Select start - Control Panel - Network
Connections.
2. Open the properties of Local Area Connection.
- If "Internet protocol(TCP/IP)" is not in the list, click Install and add it from protocol.
3. Click Internet Protocol(TCP/IP), then Properties, then Advanced, then WINS and verify Default or Enable NetBIOS over TCP/IP is selected for NetBIOS configuration.
- When receiving the TCP/IP settings automatically from DHCP, verify that the Default is selected.
Storage Server 5-9
Users Manual CX2
4. Make sure Client for Microsoft Networks has been added.
- If you cannot find Client for Microsoft Networks in the list, click Install then select Client - Client for Microsoft Networks.
- If you use NetBIOS over TCP/IP protocol in Windows XP, uncheck
Protect my computer and .... in
Local Area Connection Properties
- detail setting.
Storage Server 5-10
Users Manual CX2
Open the memory card in a Windows XP environment
1. Connect a memory card to the Canon MFP's card slot.
2. Click My Network Places - View
workgroup computers - Microsoft Windows Network, open the Print servers in workgroup.
3. Click the PRICOM's icon.
- The name will be displayed as Pr + the last 6 digits of the Ethernet Address.
- If your product's Ethernet Address is 00:80:92:01:04:34, our product's computer name is Pr010434.
4. Click the MEMORY_CARD on memory card folder.
Storage Server 5-11
Users Manual CX2

6, Q&A

This section contains some Frequently Ask Questions (FAQ) and the corresponding answers. For a more detailed and up to date FAQ refer to our web page: http://www.silex.jp/.

The main menu does not start after inserting the CD-ROM

1. If your computer does not support Autorun, the menu will not start automatically. Execute Autorun.exe in the root directory of the CD-ROM.

The PRICOM C-6400W is not found in the configuration utility

1. Check the following and retry.
- Verify that the PRICOM C-6400W is powered up. If the PIRCOM C-6400W Status LED is not on, review the Hardware Installation section of this manual.
- Verify the Link LED is on.
- Verify the wireless settings are correct.
- If using more than one network interface card, disable the card not connected on the same LAN segment as the PRICOM.
- Print the PRICOM self test then verify the IP address is compatible with the one on the PC.
2. Restore factory defaults.
3. For conducting the initial set up in Windows XP SP2 environment, be sure to disable the Windows embedded firewall feature temporarily during the PRICOM configuration. Select: Start . Control Panel . Security Center to disable firewall feature temporarily. Please remember to enable the firewall feature, if desired, after completing the PRICOM set up.
6-1Q&A
Users Manual CX2

I cannot print

1. Make sure the Link LED of the PRICOM C-6400W is on. If not, verify the following settings.
- Does the PRICOM C-6400W turn on?
- Is the USB cable connected correctly?
[Infrastructure Mode]
- Are the SSID, Channel and WEP key correct ?
- Are the network cables for your PC and access point connected correctly?
- Are network cables for your PC and access point damaged ?
- Are the Link LED's for your PC and access point lighting ?
- Is the Ethernet HUB working correctly?
- If you can use the TCP/IP protocol, use the ping command to verify the proper response from the IP address assigned to the PRICOM C-6400W. If the PRICOM C-6400W does not respond, it is possible the IP address is incorrect. Restore factory defaults in the PRICOM C-6400W and configure the IP address again.
Example) Execute the ping on MS-DOS of Windows 98 To execute the ping XXX.XXX.XXX.XXX command click Start - Program - MS-DOS
prompt, then enter the ping command (XXX.XXX.XXX.XXX is IP address for the PRICOM).
<Response from ping>
Reply from XXX.XXX.XXX.XXX:bytes=32 time=58ms TTL=253 Reply from XXX.XXX.XXX.XXX:bytes=32 time=58ms TTL=253
Reply from XXX.XXX.XXX.XXX:bytes=32 time=58ms TTL=253 Reply from XXX.XXX.XXX.XXX:bytes=32 time=58ms TTL=253 <Response from ping>
Request timed out.
Request timed out.
Request timed out.
Request timed out.
2. Try to login using telnet. If you cannot login to the PRICOM C-6400W, you may not have assigned the IP address correctly. Verify the desired IP address for the PRICOM C-6400W and change the configuration.
3. If the PC and the PRICOM C-6400W are not on the same segment, you should configure the subnet mask and gateway address in the PRICOM C-6400W. This can be done using the PRICOM User Software CX2.
4. Make sure that the printer port name of the PRICOM C-6400W is displayed behind PRICOM -Print CX2 TCP Port.
6-2Q&A
Users Manual CX2

Occasionally I cannot print

1. If a DHCP/BOOTP server or RARP server resides on the network, the IP addresses are assigned automatically, which may rewrite the IP address that you have manually assigned to the PRICOM C-6400W. To avoid this problem, tick off Use DHCP/BOOTP check box and configure the IP address again.

I cannot print in LPR

1. LPR printing cannot be used with the Canon printer. Refer to our web page in more information.

How can I return to factory default?

1. Factory default is restored by holding down the push-button switch for 15 seconds while powering up.

I cannot use the BJ print monitor

1. If you can use the LPR function of Windows 2000, Windows XP you cannot use the monitor function of Canon print driver.
2. Old Canon printer drivers may not have BJ status monitor function, download the latest Canon driver from Canon web page.
3. The PRICOM C-6400W may not support to BJ status monitor, refer to our web page.
4. If you can use BJ status monitor click Start - Program - BJ laser printer - BJ Printer Monitor in Windows and select manual, or automatic mode.

I cannot configure in the AdHoc mode

1. You can change to infrastructure mode by using the push-button switch.
If you want to change to infrastructure mode, refer to 2, PRICOM C-6400W - Start in
Infrastructure mode.
6-3Q&A
Users Manual CX2

I cannot use Memory card via network

1. Check the following and retry.
- Can you use the card in another Canon MFP?
- Is the memory card supported in the Canon MFP?
- Is the memory card attached to the card slot in the Canon MFP?
- Did you finish the PRICOM C-6400W configuration?
- Is memory card locked?
- Does the memory card have space to write?
- If you need a password to open the folder, did you put in the correct password?

I cannot use the scanner

1. Check the following and retry.
- Is the PRICOM C-6400W turned on?
- Is the PRICOM USB Utility installed?
- One the PRICOM USB Utility connects to the PRICOM C-6400W?
- Is the scanner driver installed?
6-4Q&A
Users Manual CX2

Appendix

How to use USB memory

This section will explain how to configure the PRICOM C-6400W by using USB memory.
By connecting USB memory to the PRICOM C-6400W, the wireless and TCP/IP settings saved on the USB memory will configure the PRICOM C-6400W.

Save the wireless and TCP/IP settings for the PRICOM C-6400W to use USB memory

Once the settings are saved to USB memory, the USB memory can be used to configure the PRICOM.
- To configure the PRICOM C-6400W in Windows 2000, Windows XP you must have Administrator rights.
- This functionality requires software version 1.2.0 or newer.
1. Start the PRICOM User Software CX2.
- If the screen dose not appear automatically, execute Autorun .exe from the CD-ROM.
2. Click PRICOM Setup. The screen on the right will appear. Check Setup
PRICOM by USB memory then click Next.
1Appendix
Users Manual CX2
3. Click Yes, if you agree to the
SOFTWARE LICENSE AGREEMENT
- If you do not agree to the license agreement, you cannot use our products.
4. Connect the USB memory to the PC, click Next.
- Refer the USB memory documentation.
.
5. Select the USB memory drive, click Next.
6. Configure the TCP/IP parameters, click Next.
2Appendix
Users Manual CX2
7. Configure the wireless parameters, click Next.
8. Verify each parameter. Click Execute. The parameters will be saved to the USB memory.
9. Remove the USB memory from your PC. Click Next.
10 Disconnect the AC adapter from the
PRICOM C-6400W. Attach the Memory card to the USB port of the PRICOM C-6400W.
3Appendix
Users Manual CX2
11. Connect the USB memory to the PRICOM C-6400W, and boot the PRICOM C-6400W. Click Next.
- The PRICOM C-6400W will read the configuration saved on USB memory and then will reboot. The PRICOM C­6400W will take about 15 seconds to reboot. Do not disconnect the USB memory while rebooting.
12. Check the LED status. Click Next.
- The LED status will depend on the configuration. Verify the correct configuration.
The PRICOM C-6400W configuration is complete. You can continue to install the PRICOM­Print CX2. Or, the PRICOM USB Utility. If you are done, click Finish to quit the wizard.If you reinstall the PRICOM-Print CX2, to a PC which has already installed the PRICOM-Print CX2, you can use the printer port, which you have already created.
If you continue to install Print application, follow step 13.
- If you select Cancel and quit the wizard, you can install the print application later directly form the menu screen.
4Appendix
13. Click Next.
- If you check PRICOM USB Utility, you can install the PRICOM USB Utility after installing the PRICOM­Print CX2. Refer to 4. Scanner Server for instructions on how to install the PRICOM USB Utility.
14. Click Next.
Users Manual CX2
15. Verify the install folder. Click Next.
- The default folder is "c:\Program Files\silex technology\PRICOM-Print CX2". To select a another folder click the Browse button.
5Appendix
Users Manual CX2
16. Verify the group name, click Next.
- The default group name is the PRICOM- Print CX2. You can change the name to anything you want.
17. Click Start.
18. After the set up preparations are finished, click Finish.
6Appendix
Users Manual CX2
19. The PRICOM-Print CX2 for print configuration starts, click Next.
20. Select the PRICOM, that you want to set up, and click Next.
21. Assign the printer port name and click Next.
22. In the next step, the selected configuration will be displayed for you to check. If the configuration is correct, click Finish to implement it.
7Appendix
Users Manual CX2
23. Select the printer driver for the printer attached to the PRICOM C-6400W. Click Next.
- If you have not yet installed the printer driver, select Do not select printer, click Next. It is possible to install the printer driver later and create the printing port.
24. Click Finish.
25. Click Finish.
The PRICOM C-6400W configuration is complete. Restart your PC, and try a TEST print.
If you set up another PC, you do not need to configure the PRICOM C-6400W. Select [(3)Print Utility Setup] on menu screen and install the PRICOM- Print CX2.
8Appendix
Users Manual CX2
Write configuration information using an editor.
1. Connect the USB memory your PC.
2. Description of configure file. You can create a description file in Windows notepad. The following is a description of the format.
Format
---------------------------------------------------------------­silex Wireless Mode = 1 SSID = GROUP Channel = 11 USE WEP = 0 WEP Key = 00000000000000000000000000 DHCP/BOOTP = 1 RARP = 1
IP Address = 0.0.0.0 Subnet Mask = 0.0.0.0 Default Gateway = 0.0.0.0
----------------------------------------------------------------
- You should write silex in first line of the file.
- A file edited incorrectly in notepad may be not supported.
- Each parameter is specified by parameter name = parameter and enter.
Configure Name Parameter
Wireless Mode 0:OldAdHoc, 1:AdHoc, 2:Infra SSID
Wireless
Channel 1--14 USE WEP 0:NONE, 1: 64bit, 2:128bit WEP Key 10 or 26 line hex(0-9, a-f) DHCP/BOOTP 0:Desable, 1:Enable RARP 0:Desable, 1:Enable
TCP/IP
IP Address 0.0.0.0-255.255.255.255 Subnet Musk 0.0.0.0-255.255.255.255 Default Gateway 0.0.0.0-255.255.255.255
- The function is limited in using USB memory.
9Appendix
Users Manual CX2
3. File name If you create the configuration file using an editor, save as [config.txt] or cfgxxxxxx.txt. (xxxxxx is last 6 digits of the Ethernet Address for the PRICOM C-6400W).
Example for saving the configure file
1. Save [config.txt].
2. If this product’s MAC address is [00:80:92:34:c0:19], your file name is [cfg34c019.txt].
- If you have a lot of PRICOM C-6400W on your network, you create several files using the [cfgxxxxxx.txt] format in an editor to save time.
- When both a config.txt file and a cfgxxxxxx.txt file exist in USB memory, the second file that includes the Ethernet address will be the selected file.
4. Saved file Save to file in the root directory of USB memory.
5. Refer to the section 3-4 page 10-12 for instructions on how to configure the PRICOM
C-6400W.
6. Select [(3)Print Utility Setup] from the User Software CX2, and refer to section 5-8 page
14-24 for more details.
10Appendix
Users Manual CX2

Using a standard OS print client

This section explains how to print using the Windows print function.
- If you use the Windows printing function, you cannot use the Canon printer driver monitor function.
- To configure the PRICOM C-6400W in Windows 2000, Windows XP you must have Administrator rights.
11Appendix
Users Manual CX2

Print using the Windows 2000, Windows XP Standard TCP/IP port

- The following example used Windows XP. If you use Windows 2000, the screens will be different.
- To configure the PRICOM, you must be Administrator.
1. Click start - Control Panel - Printers and Faxes - Add a printer to start the wizard to add a printer. Then click Next.
- If you use Windows 2000, Click Start
- Settings - Control Panel - Printers. Then click the Add Printer icon.
2. Select Local printer attached to this computer. Be sure to remove a check mark from the Automatically detect and install my Plug and Play printer. Click Next.
- If you use the Windows 2000, select Local Printer. And be sure to remove a check mark from the Automatically
detect and install my Plug and Play
printer.
3. Check the Create a new port, and select Standard TCP/IP Port. Click Next.
12Appendix
Users Manual CX2
4. Click Next.
5. Input the IP address for the printer name . If you do not want to assign a port name, use the default name (IP_xxx.xxx.xxx.xxx).
6. Select Custom and then click Settings.
13Appendix
Users Manual CX2
7. Select LPR, check the LPR and input lp in Queue name and check LPR Byte Counting Enabled. Click OK.
- The OK will return you to number 6. Click Next.
8. Click Finish.
9. Select the printer driver. Click Next.
14Appendix
Users Manual CX2
10. If Use existing Driver appears, select
Keep existing driver (recommended)
or Replace existing driver. Click Next.
- If you have not installed the latest driver, select Replace existing driver.
11. Select default printer. Click Next.
12. Select whether to Share name or Do
not share this printer. If you select Share name, you can type printer
name you want to use. Click Next.
- If the printer is shared with other computers in the same network, select Do not share this product.
15Appendix
Users Manual CX2
13. Select Yes to print a test print. Click Next.
14. Verify the configuration and click Finish. If test print has been printed, the configuration was successful.
16Appendix
Users Manual CX2

Print using the Windows 2000 LPR port

- If you use a LPR port to print, you will need to add the LPR Port. Open the start - Settings - Control Panel - Add or Remove Programs. Click the Add/Remove Windows Components. Windows components are displayed, select other Network file and Printing service - Detail - UNIX printing service, and click the OK. Click finish. The LPR port software has been added.
1. Click Start - Settings - Control Panel
- Printers. Click the Add Printer icon. the Add Printer wizard will appear. Click Next.
2. Select Local printer in printer connection. Be sure to remove a check mark from the Automatically detect
and install my Plug and Play printer.
17Appendix
Users Manual CX2
3. Check Create a new port in select the printer port. Select LPR Port and click Next.
- If you have already created the port, select the created port. Click Next.
4. Input the IP address of the PRICOM for server name, input lp for the queue name. Click OK.
5. Select an appropriate printer in the list and click Next.
6. If Use existing Driver appears, select
Keep existing driver (recommended)
or Replace existing driver. Click Next.
18Appendix
Users Manual CX2
7. Enter a printer name. Select whether this will be the default printer or not. Click Next.
8. Select whether or not to share the printer and click Next.
9. Select Yes to print a Test page. Click Next.
19Appendix
Users Manual CX2
10. Verify the proper configuration, and click Finish. If test page has been printed, set up is completed.
20Appendix
Users Manual CX2

Print using the Windows XP LPR port

- In order to print using a LPR, the LPR port must be added. Go to start-Control Panel-Add or
Remove Programs-Add/Remove Windows Components and open Windows Components Wizard. In Components, select Other Network File and Print Services, click Details, select Print Services for Unix and click OK. Windows Components Wizard will be displayed, and
then click Next. After the component is added, click Finish. The LPR port is now added.
1. Go to start-Control Panel-Printers and Faxes and click Add a printer and start the wizard. Click Next.
2. Select Local printer attached to this computer. Be sure to remove a check from the Automatically detect and install my Plug and Play printer. Click Next.
21Appendix
Users Manual CX2
3. Select Create a new port in Select a Printer Port and create a new port.
Select LPR Port and click Next.
- If the destination print port was created when installing the PRICOM, select the port from Use the following port and click Next.
4. At Name or address of server providing lpd, type in the IP address which was set to the PRICOM. At
Name of printer or print queue on
that server, add lp and click OK.
5. At Install Printer Software, select the printer driver to be used. Click Next.
6. If Use existing Driver appears, select
Keep existing driver (recommended)
or Replace existing driver. Click Next.
22Appendix
Users Manual CX2
7. At Name your printer, add the printer name to be used in Windows XP. Select whether to use this printer as a default printer or not, then click Next .
8. Select Share name or Do not share this printer according to your environment on the Printer Sharing. If the printer is shared, type a share name. Click Next.
9. At the Print test page, select Yes. Click Next.
10. The information of the configuration will be listed. If there are no mistakes, click Finish. The new printer will be added to the list. If the test print is correct, the printer set up is complete.
23Appendix
Users Manual CX2
Print Using the Windows 2000, Windows XP IPP port
This section will explain how to print using IPP in Windows environments.
- To configure you shouted log in as Administrator.
- The example is for Windows XP. If you use Windows 2000, the screens may be different.
1. Select start - Control Panel - Printers and Faxes. Click Add a printer. the add wizard will appear.
- If you use the Windows 2000, Open the Start - Settings - Control Panel
- Printers. Click the Add Printer icon.
2. Select A network printer, or a printer attached to another computer.
- If you use the Windows 2000, Select Network printer.
24Appendix
Users Manual CX2
3. Select Connect to a printer on the
Internet or on a home or office
network. And enter the IP address or
the URL for the PRICOM port. Click Next.
Example:
URL is [abc.com] http://abc.com/ipp/lp else http://abc.com/ipp IP address is 192.168.85.55 http://192.168.85.55/ipp/lp else http://192.168.85.55/ipp
- If you use the Windows 2000, Occasionally a Printer connections screen will appear. If so, click OK.
4. Select the printer driver you want to use. Click Next.
5. Select whether or not this is the default printer. Click Next. Click Finish to complete adding the printer.
- If you use IPP printing, your PC will needed to be configured for proper proxy server setting to print via internet. If you use the Internet Explorer4/5, right click the internet in start menu. Open the Internet proxy, select the connection - configure LAN. And configure the proxy server.
25Appendix
Users Manual CX2

Connect to the PRICOM C-6400W from a Web browser

It is possible to view the parameters of the PRICOM C-6400W or printer status via web browser.
- To connect to the PRICOM C-6400W via Web browser, An IP address must have been already assigned to the PRICOM C-6400W.
- You cannot do the initial setting via Web browser.

Connect to the PRICOM C-6400W

Load your web browser, and enter the IP address of the PRICOM C-6400W in address bar.
If the PRICOM C-6400W’s IP address is
192.168.85.55, input the http://
192.168.85.55/.
- We recommend to use Netscape Navigator 4.0 or InternetExplorer4.0 later. If you use the another web browser, it must support HTTP 1.0(RFC1945) and HTML2.0(RFC1866).
- The screen may vary.
26Appendix
Users Manual CX2

The PRICOM C-6400W HTTP screen

<Printer Status>
The printer status is displayed as well as the printer name.
<System Status> The set up parameters for the PRICOM C-6400W are displayed.
27Appendix
Users Manual CX2
<PrintServer> The parameters can be changed for the PRICOM C-6400W from web browser.
- Input root for the username then click OK, or enter the password if you have created one. The default is no password (Blank).
- Restart the C-6400W when the parameters are changed.
<Restart PrintServer> If you are done, select Yes, the PRICOM C-6400W is restarted.
28Appendix
Users Manual CX2
<Factory Default>
If you select Yes, the PRICOM C-6400W is restored to factory default.
<silex technology,Inc.> You can access to our web page from the link. If you have any questions, visit our web site for support information.
29Appendix
Users Manual CX2

Other functions

This chapter explains other functions about the PRICOM C-6400W. A web browser or TELNET is required for configuration.
- For further details on how to use the PRICOM C-6400W Web browser, TELNET or the procedure to change the PRICOM C-6400W configuration, refer to "Connect to the PRICOM C-6400W from a Web browser" or "TELNET" in this section.

IP filtering

The PRICOM can define scopes of IP addresses to allow or deny communication. When setting up for "DENY", communications from the designated IP address scope will be prohibited. When setting up "ALLOW", communication will be allowed only from the designated IP addresses. Up to 4 IP address scopes can be registered for the DENY/ALLOW functions. IP filtering can protect illegal access from unexpected network client users.
(Example)
To allow access from the IP address scope between 192.168.20.1-192.168.20.50 using a web browser;
1. Log in to the PRICOM via a web browser, then go to the "TCP/IP" tab.
2. Enter the necessary parameters at "IP filter Configuration" in the "TCP/IP" item. For this case, enable "ALLOW" at the Filter Mode, then enter
192.168.20.1 and 192.168.20.50 for both "Start Address" and "End Address" area respectively.
30Appendix
Users Manual CX2

TELNET

After the IP address has been configured, you can configure the TCP/IP, SNMP parameters in the PRICOM C­6400W using TELNET. You can configure the PRICOM C-6400W using a command line. The following is example for each menu.
- The default login name = root, Password = (none))
- The following is an example of TELNET.
PRICOM C-6400W Ver x.x.x TELNET server.
Copyright (C) 2003 silex technology, Inc.
login: root
'root' user needs password to login.
password:
User 'root' logged in.
No. Item Value (level.1)
----------------------------------------------------------------------
1 : Configure General
2 : Configure TCP/IP
3 : Configure NetBEUI/NetBIOS
4 : Configure SNMP
96 : Display Status
97 : Reset Settings to Defaults
98 : Restart Print Server
99 : Exit
Please select(1 - 99)?
31Appendix
Users Manual CX2
- An example of Configure General menu[1]
No. Item Value (level.2)
----------------------------------------------------------------------
1 : Change root Password : "*******"
2 : Local Time Zone : "+9:00"
3 : Configure Wireless LAN
99 : Back to prior menu
Please select(1 - 99)?
- An example of Configure Wireless LAN menu[2]
No. Item Value (level.3)
----------------------------------------------------------------------
1 : Wireless Mode : Infra.
2 : SSID : "GROUP"
3 : Channel : 11
4 : Use WEP : None
5 : WEP Key : "**************************"
99 : Back to prior menu
Please select(1 - 99)?
- An example of Configure TCP/IP[3]
No. Item Value (level.2)
----------------------------------------------------------------------
1 : DHCP/BOOTP : ENABLE
2 : RARP : ENABLE
3 : IP Address : 0.0.0.0
4 : Subnet Mask : 0.0.0.0
5 : Default Gateway : 0.0.0.0
6 : WINS
7 : IP Filter Config
99 : Back to prior menu
Please select(1 - 99)?
32Appendix
Users Manual CX2
- An example of WINS[4] No. Item Value (level.3)
----------------------------------------------------------------------
1 : Primary Server : 0.0.0.0
2 : Secondary Server : 0.0.0.0
3 : Scope ID : ""
99 : Back to prior menu
Please select(1 - 99)?
- An example of IP Filter Config[5]
No. Item Value (level.3)
----------------------------------------------------------------------
1 : Filter Mode : DENY
2 : Filter #0 Start Address : 0.0.0.0
3 : Filter #0 End Address : 0.0.0.0
4 : Filter #1 Start Address : 0.0.0.0
5 : Filter #1 End Address : 0.0.0.0
6 : Filter #2 Start Address : 0.0.0.0
7 : Filter #2 End Address : 0.0.0.0
8 : Filter #3 Start Address : 0.0.0.0
9 : Filter #3 End Address : 0.0.0.0
99 : Back to prior menu
Please select(1 - 99)?
- An example of Configure NetBEUI/NetBIOS[6]
No. Item Value (level.2)
----------------------------------------------------------------------
1 : NetBEUI Protocol : ENABLE
2 : NetBIOS over TCP : ENABLE
3 : Computer Name : "PR0016BB"
4 : Workgroup : "PRINTSERVERS"
5 : Comment : "PRICOM C-6400W"
6 : Browse Master : ENABLE
99 : Back to prior menu
Please select(1 - 99)?
33Appendix
Users Manual CX2
- An example of Configure SNMP[7] No. Item Value (level.2)
----------------------------------------------------------------------
1 : Authentic Community : "***************"
2 : Trap Community : "public"
3 : Trap Address(IP) : 0.0.0.0
4 : SysContact : ""
5 : SysName : ""
6 : SysLocation : ""
7 : EnableAuthenTrap : 2
99 : Back to prior menu
Please select(1 - 99)?
- An example of Display Status[96]
Display Status
1 : prn1
2 : system
99 : Back to prior menu
Please select(1 - 99)?
- An example of executing prn1[96-1]
prn1:
Ready
- An example of executing system[96-2]
C-6400W Version x.x.x
TCP/IP status
IP address : 0.0.0.0
Subnet Mask : 0.0.0.0
Gateway addr : 0.0.0.0
Wireless LAN status : AP connected
Current SSID : GROUP
Current BSSID : 00:60:B3:6F:C0:FD
Current Channel : 11
34Appendix
Users Manual CX2
- An example of executeing Reset Settings to Defaults[97]
Reset Settings to Defaults
1 : YES
2 : NO
Please select(1 - 2)?
- An example of restarting Print Server Settings[98]
Restart Print Server
1 : YES
2 : NO
Please select(1 - 2)?
- An example of exiting [99]
Exit
1 : Save and Restart
2 : Save and Exit
3 : Exit without Saving
99 : Back to prior menu
35Appendix
Users Manual CX2

Check and Verification of the PRICOM C-6400W

Setting the PRICOM C-6400W parameters

This section explains the parameters in the PRICOM C-6400W.
- General parameter
Change root Pas sword
Wireless LAN
Topic
Local Tim e Zone
SSID
Channel
Use WEP
WEP Key
Explain Factory Default
Please enter the password(in ASCII TEXT). This password will be used for configuration changes via Telnet, Web page and Set up Tools Local Tim e Zone is s pecified. +9:00 Ad hoc is c alled 802.11Ad hoc. Generally, it used PC to PC
AdHoc
OldAdHoc W hen they connect, they use SSID
Infra Connection mode via access point
communication. When they connec t, they use SSID
SSID is ID to c onnect to each device GROUP Channel is band to communication each device 11 Enable/Dis able WEP operations. WEP is the one of encryption. 64/128bit 00000000000000000000000000
none
AdHocWireless Mode
None
36Appendix
- TCP/IP parameter
Users Manual CX2
DHCP/BOOTP
Default Gatew ay
WINS
IP Filter Config
Topic
Enable/Disable DHCP/BOOTP protocol operations. DHCP/BOOTP is a protocol, via which IP address gets ass igned by the BOOTP s erver or DHCP server. If you use DHCP/BOOTP s erver, the DHCP/BOOTP server m ust be in the sam e segment as the print server. This print server detects D HCP and BOOTP automatically. If more than 1 address get returned, the IP addres s which is returned first will be used. Enable/Dis able RARP protocol operations. R ARP is a
RARP
IP Address
SubnetMask
Primary Server
Secondary Server
Scope ID
Filter Mode
Filter #0 Start address 0.0.0.0 Filter #0 end addres s 0.0.0.0 Filter #1 Start address 0.0.0.0 Filter #1 end addres s 0.0.0.0 Filter #2 Start address 0.0.0.0 Filter #2 end addres s 0.0.0.0 Filter #3 Start address 0.0.0.0 Filter #3 end addres s 0.0.0.0
protocol, via which IP addres s gets assigned by the RARP server. If you use RARP server, the RARP server must be in the same segm ent as the print server. Setting the Print Server IP address . The IP address must be 4 numbers, each between 0-255 (eg.
192.168.100.10). Setting the print server subnet m ask. The subnet mask must be 4 numbers, each between 0-255 (eg.
255.255.255.0). However, entering 0.0.0.0 would not be valid, and the subnet m ask corresponding to the IP address would be used automatically. Setting the default gateway address . The default gateway address m ust be 4 numbers, each between 0­255 (eg. 192.168.100.240). If you use a gatew ay, the gateway m ust be in the same segment as the print server. However, entering 0.0.0.0 would not be valid. Setting the WINS server (primary) address. W INS server will resolve the IP address from the host name. Therefore you c an use a hos tname instead of the IP address when printing. The values must be 4 numbers, each between 0-255 (eg. 192.168.100.10). Setting the W INS server (s econdary) address. WINS server will resolve the IP address from the host name. Therefore you c an use a hos tname instead of the IP address when printing. The values must be 4 numbers, each between 0-255 (eg. 192.168.100.10). The scoop ID defines the c omputer group that recognized the registered host name. Setting of IP filter operations. Available options are "allow" and "deny". If you select "allow", only the data from the set IP address range are accepted. If you select "deny", the data from the set IP address range cannot be received. Setting IP filter range. IP address es to be filtered can be set to m aximum 4 address ranges . If address range setting is not required, please enter the address range from "0.0.0.0" to "0.0.0.0".
Explain Factory Default
ENABLE
ENABLE
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
none
DENY
- Communication from a designated range of IP addresses can be blocked when Filter Mode is set to “DENY.” On the other hand, when Filter Mode is set to “ALLOW,” communication from only a designated range of IP addresses can be enabled.
37Appendix
Users Manual CX2
A
y
- NetBEUI/NetBIOS parameter
Topic Explain Factory Default
NetBEUI Protocol Enable/Disable NetBEUI protocol operations ENABLE
NetBIOS over TCP Enable/Disable NetBIOS over TCP protocol operations ENABLE
Specify a computer name. The name set here is shown
Computer Name
Workgroup
Comment
Brower Master Enable/Disable Brower Master operations ENABLE
as a c omputer in Windows Explorer. The name must be different from those of other computers. Specify the workgroup that this print server belongs to. Enter the default workgroup name or an existing workgroup name. A new workgroup name that does not exit in the network is not shown as Workgroup. Set the description of the print server. The information set here is shown as the description of the print server in Windows Explorer.
xxxxxx is lower 6 digits
of Ethernet Address
PRINTSERVERS
PRICOM C-6400W
PRxxxxxx
- SNMP parameter
Topic Explain Factory Default
uthentic Communit
Trap Community
Trap Address(IP)
SysContact
SysName
SysLocation
Enable Authen Trap
Specify the authentication com munity name of SNMP. This community name is authenticated when an SNMP set request is received. Specify the trap community of SNMP. This community name is used when the print server send a trap. Specify the destination IP address of the SNMP trap. The value is a four-part series of numbers separated by decimal points. Such as "xxx.xxx.xxx.xxx". When the value is "0.0.0.0"(default), this item is disabled and a trap will not be generated in any case. Specify the SysContact of the MIB-2 object. The e-mail address of the network administrator is used. Specify the SysName of the MIB-2 object. The host name or domain name of the print server is used. Specify the SysLocation of the MIB-2 object. The location of the print server is used. Select whether to allow or disallow the "Enable Authen Trap" of the MIB-2 object. If a violation for the community occurs "allow" is the setting, the SNMP trap is sent to the IP address specified in "TRAP Address"
public
public
0.0.0.0
none
none
none
2
38Appendix
Loading...
