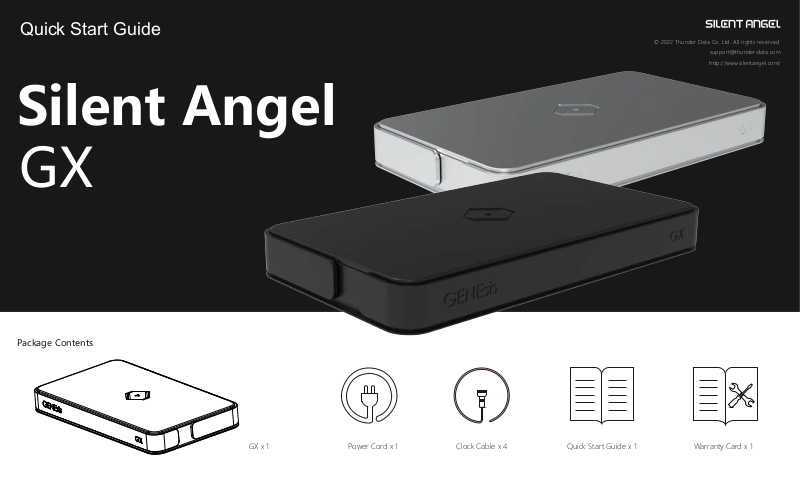

Page 1
Quick Start Guide
Silent Angel
GX
© 2022 Thunder Data Co. Ltd. All rights reserved.
support@thunder-data.com
http://www.silentangel.com/
Package Contents
Power Cord x 1GX x 1 Clock Cable x 4 Quick Start Guide x 1 Warranty Card x 1
Page 2
Product Features
Four clock outputs: Four digital clock outputs.
Gold-plated ports: Premium gold-plated housing ports enhance transmission quality.
Two different frequency: Two 10MHz outputs and two 25MHz outputs.

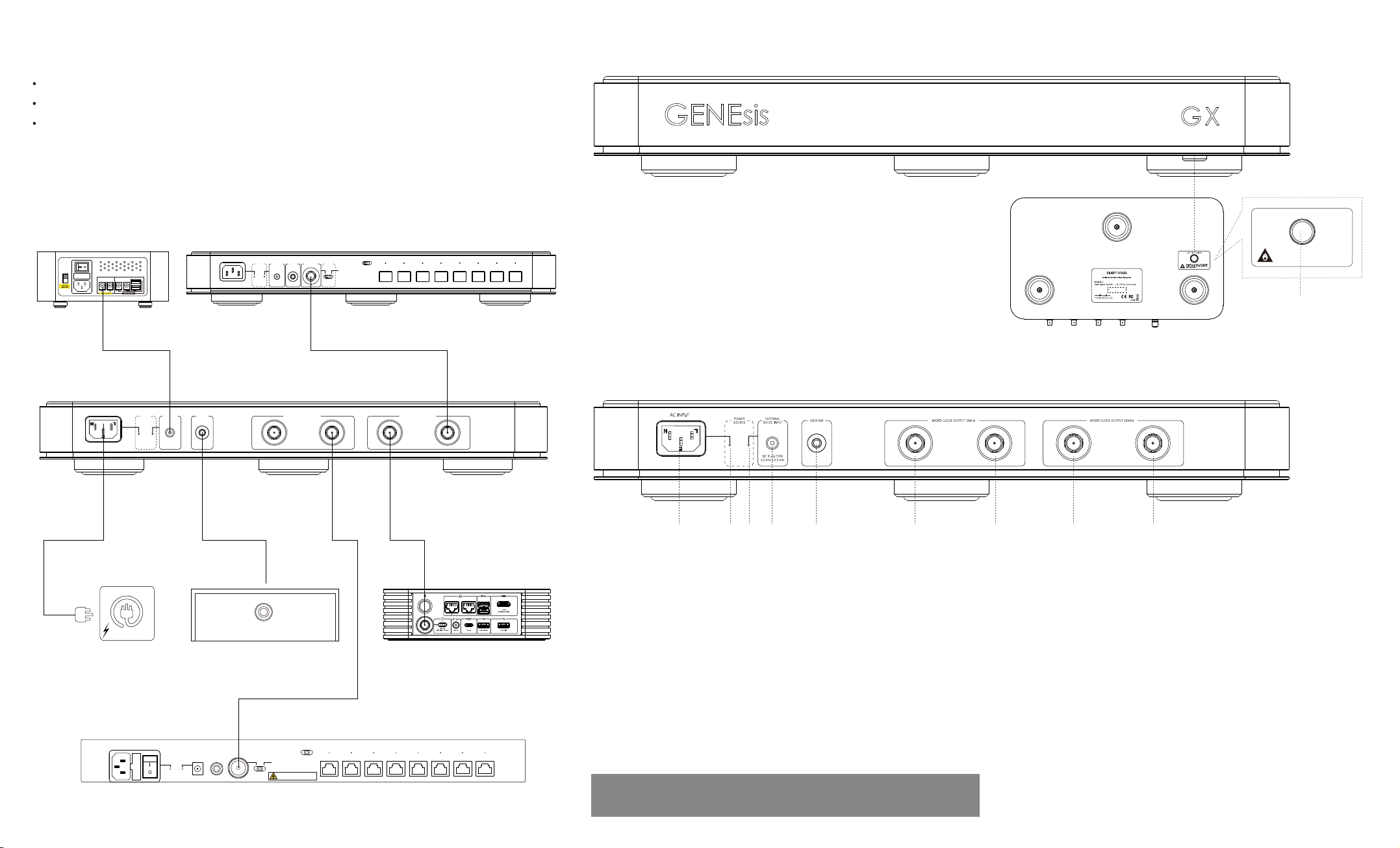

Connection Diagram
Front Panel
Power Cord
F2 NX
AC INPUT
POWER
EXTERNAL
WORD CLOCK
CLOCK
GROUND
SOURCE
12V DC INPUT
25MHz
SELECTOR
INTERNAL
CLOCK
AC INPUT
DC PLUG TYPE
5.5 mm x 2.5 mm
POWER
EXTERNAL
12V DC INPUT
DC PLUG TYPE
5.5 mm x 2.5 mm
GROUND
SOURCE
WORD CLOCK OUTPUT 10MHz WORD CLOCK OUTPUT 25MHz
GX
LED POWER
1 2 3 4 5 6 7 8
ONOFF
① Fuse Holder
1 fuses inside
Rear Panel
② AC Input
AC power input
② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
⑥ Grounding Port
Connect to grounding box
Bottom
⑩
FUSE TYPE: T1A 250VAC
For continued protection against risk of fire,
replace ONLY with fuse of the specified type
and current ratings.
①
AC Outlet
AC INPUT
FUSE TYPE: T1A 250VAC
Grounding Box
Z1 Plus
③ AC Power Indicator
When the AC power supply is connected and the output is good, the green light is on
When there is no AC power signal, no indicator light
④ DC Power Indicator
⑦ Clock Output Port 1
The output frequency is 10MHz
⑧ Clock Output Port 2
The output frequency is 10MHz
When the DC power supply is connected and the output is good, the green light is on
When there is no DC power signal, no indicator light
⑨ Clock Output Port 3
The output frequency is 25MHz
⑤ DC Input
5.5mm x 2.5mm DC 12V DC power input port (can be connected to Silent Angel F2 linear
power supply)
* When both DC and AC power are connected，the DC power input will be used and
the DC power indicator lights up
WORD CLOCK
10MHz
POWER
EXTERNAL
12VDC INPUT
DC PLUG TYPE
5.5 x 2.5 mm
GROUND
SOURCE
SELECTOR
CLOCK
INTERNAL
CLOCK
For continued protection against risk of fire,
replace ONLY with fuse of the specified type
and current ratings.
LED POWER
1 2 3 4 5 6 7
ON
OFF
8
N8 Pro-CLK
⑩ Clock Output Port 4
The output frequency is 25MHz
