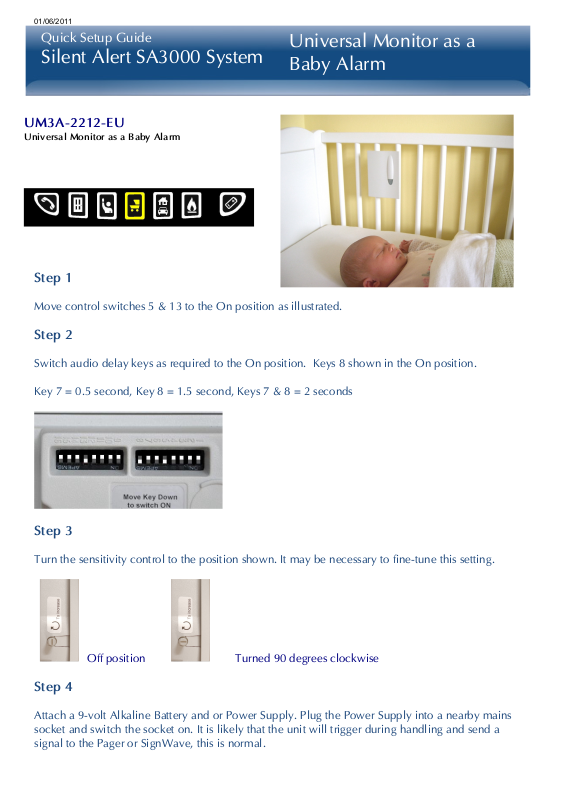

Quick Setup Guide

Silent Alert SA3000 System

UM3A-2212-EU

Universal Monitor as a Baby Alarm

Universal Monitor as a
Baby Alarm

Step 1

Move control switches 5 & 13 to the On position as illustrated.

Step 2

Switch audio delay keys as required to the On position. Keys 8 shown in the On position.

Key 7 = 0.5 second, Key 8 = 1.5 second, Keys 7 & 8 = 2 seconds

Step 3

Turn the sensitivity control to the position shown. It may be necessary to fine-tune this setting.

Off position Turned 90 degrees clockwise

Step 4

Attach a 9-volt Alkaline Battery and or Power Supply. Plug the Power Supply into a nearby mains
socket and switch the socket on. It is likely that the unit will trigger during handling and send a
signal to the Pager or SignWave, this is normal.

01/06/2011

f

NOTE: There is a period of 12 seconds after the unit has been triggered where the unit will do
nothing. This is referred to as the lockout period and should be taken into account when setting up
the unit.

It is recommended that a Power Supply be used without a battery. In this
way the Baby Alarm can be deactivated, simply by turning the unit off at
the mains when it is not required. If a battery is used with or without a
Power Supply the sensitivity control will need to be moved to the of
position then returned to the correct position when required.

Step 5

Place the Monitor on either a flat surface or attach it to a wall using the Velcro or screw fittings,
approximately 6 feet (2 metres) from the Baby’s cot.

Step 6

Make an noise or Blow the Silent Alert setup whistle close to the Baby’s Cot and observe the status
light. When the monitor detects a sound the light will shine amber. When the delay period of 0.5,

1.5 or 2 seconds is exceeded the light will change to green and the monitor will send a baby signal
to either the Pager or SignWave.

Key 7 = Half second

Key 8 = 1 and 1/2 second Delay Key 7+8 = two second Delay

Delay

Baby Alarm

Baby alarm sound level display

(NOTE: This is a new feature on MkIV Pagers produced after 14/04/2011. Pagers produced before this
date will receive a standard baby alarm signal only)
To use the Baby alarm sound level display feature plug in mains power supply adaptor PS3A-2207-UK.
Move switches 5,10 & 13 to on. Include any delays required as mentioned in step 6.
When the monitor detects a sound the pager will now display a baby alarm alert then 1 of 4 sound
levels .

No noise

Low Volume Medium Volume Loud Volume
Baby and Person to Person Baby, Person to Person, Baby, Person to

and Doorbell Person, Doorbell and

Set up Whistle

Telephone

NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS BECAUSE OF SMALL PARTS. DO NOT IMMERSE ANY PART OF
THE SILENT ALERT SYSTEM IN WATER OR ANY OTHER LIQUID. DO NOT SUBJECT THE UNIT TO EXCESSIVE
MECHANICAL SHOCK.
