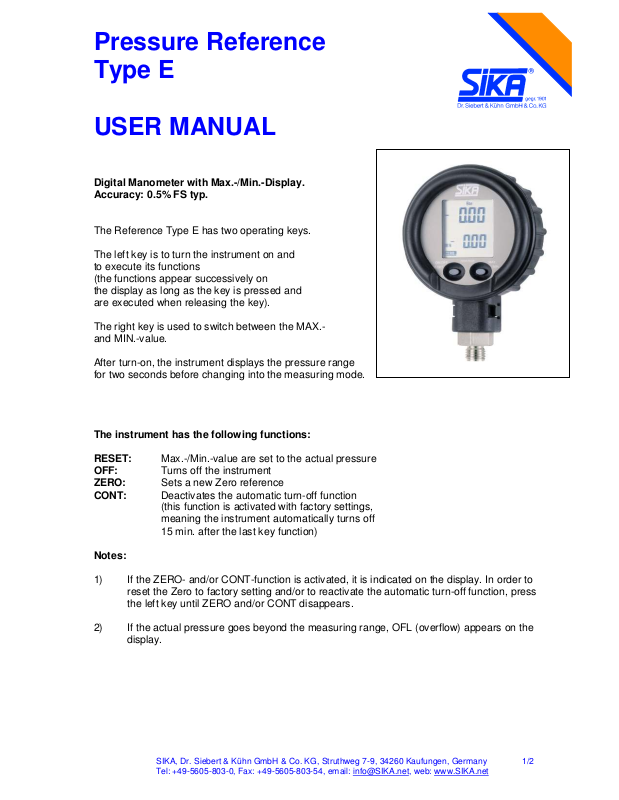

Page 1
Pressure Reference
Type E
USER MANUAL
Digital Manometer with Max.-/Min.-Display.
Accuracy: 0.5% FS typ.
The Reference Type E has two operating keys.
The left key is to turn the instrument on and
to execute its functions
(the functions appear successively on
the display as long as the key is pressed and
are executed when releasing the key).
The right key is used to switch between the MAX.and MIN.-value.
After turn-on, the instrument displays the pressure range
for two seconds before changing into the measuring mode.
The instrument has the following functions:
RESET: Max.-/Min.-value are set to the actual pressure
OFF: Turns off the instrument
ZERO: Sets a new Zero reference
CONT: Deactivates the automatic turn-off function
(this function is activated with factory settings,
meaning the instrument automatically turns off
15 min. after the last key function)
Notes:
1) If the ZERO- and/or CONT-function is activated, it is indicated on the display. In order to
reset the Zero to factory setting and/or to reactivate the automatic turn-off function, press
the left key until ZERO and/or CONT disappears.
2) If the actual pressure goes beyond the measuring range, OFL (overflow) appears on the
display.
SIKA, Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 1/2
Tel: +49-5605-803-0, Fax: +49-5605-803-54, email: [email protected]
, web: www.SIKA.net
Page 2
Installation:

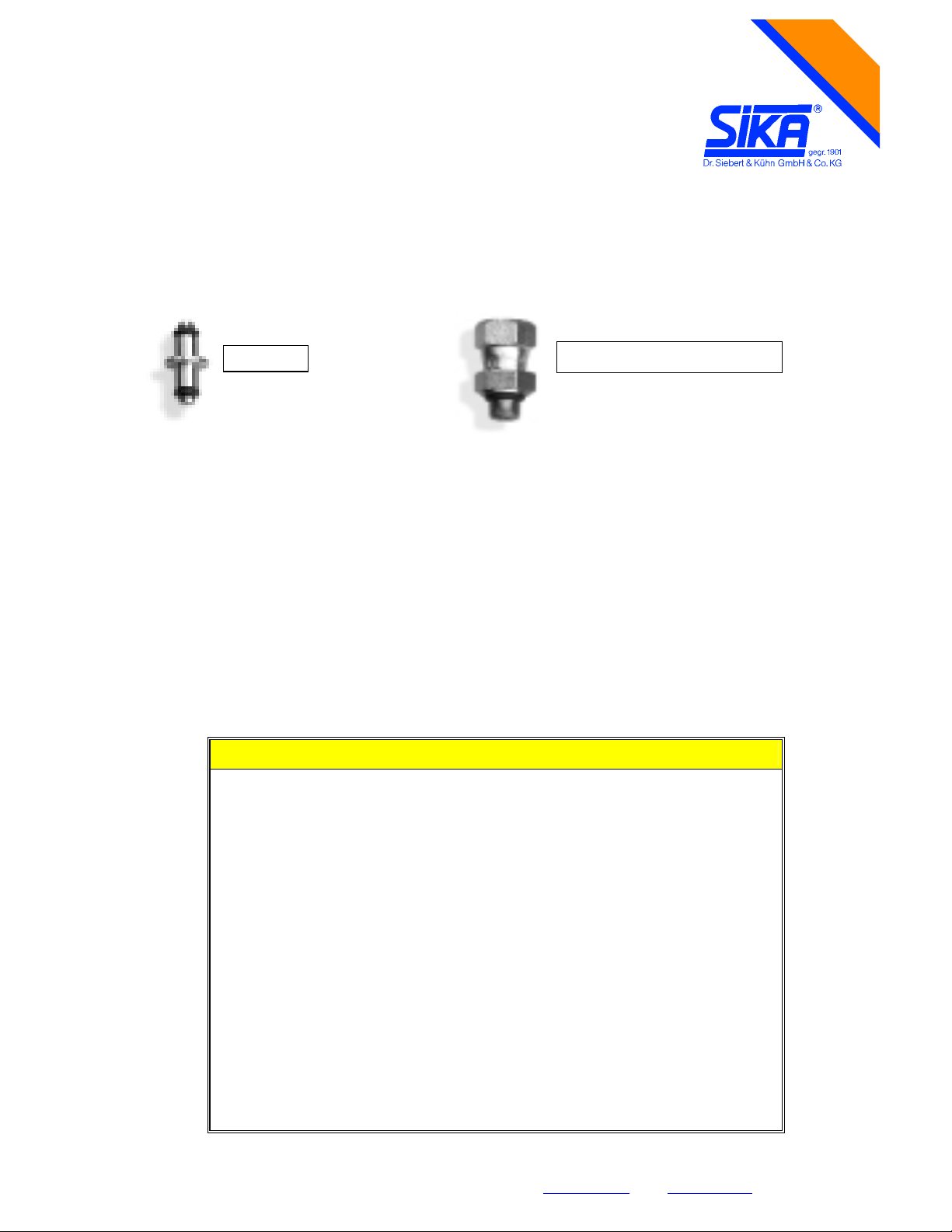

The Reference Type E has 7/16” UNF male thread and is delivered complete with an O-ring seal
swivel fitting which allows Reference Type E to be rotated through 360°.
Only minimal tightness is needed to seal up to 350 bar. Process pressure connection
is G 1/4” male.
process connection G1/4
Battery Change:
When the battery starts weakening, a low battery warning (BAT LOW) will appear in the upper left
corner of the display. For battery change, open the battery compartment and change the battery
(type CR 2430). The battery life is 1400 hours in normal measuring mode.
Ranges / Calibration:
The factory setting of the Zero for the range -1…40 bar is at 0 bar absolute. For sealed gauge
pressure measurements, activate “ZERO SEt” at ambient pressure.
Instruments with the range 0…350 bar are calibrated in a sealed gauge mode with 1 bar absolute
pressure as a Zero reference.
Digital reference test gauge
Pressure medium fluids and gas media
Pressure connection G1/4'', male
Display multi-purpose LCD, 30 x 30 mm
Function keys 'SELECT' (reset, off, zero, cont) 'MIN/MAX'
Casing 70 x 100 x 30 mm (d x h x w), IP65, weight approx. 130 g, rubber cap
Power supply 3 V battery
1400 h service life continuous operation, LOW-BAT-display, AUTO-Off
Accuracy +/-0.5 % FS +/-1 digit
Measuring range
Model A -1......30)40 bar
Model B 0...(300)350 bar
Type E
Resolution
0.01 bar
0.1 bar
Option
EEx ia IIC T5/T6 - 01ATEX6001X
SIKA, Dr. Siebert & Kühn GmbH & Co. KG, Struthweg 7-9, 34260 Kaufungen, Germany 2/2
Tel: +49-5605-803-0, Fax: +49-5605-803-54, email: [email protected]
, web: www.SIKA.net
