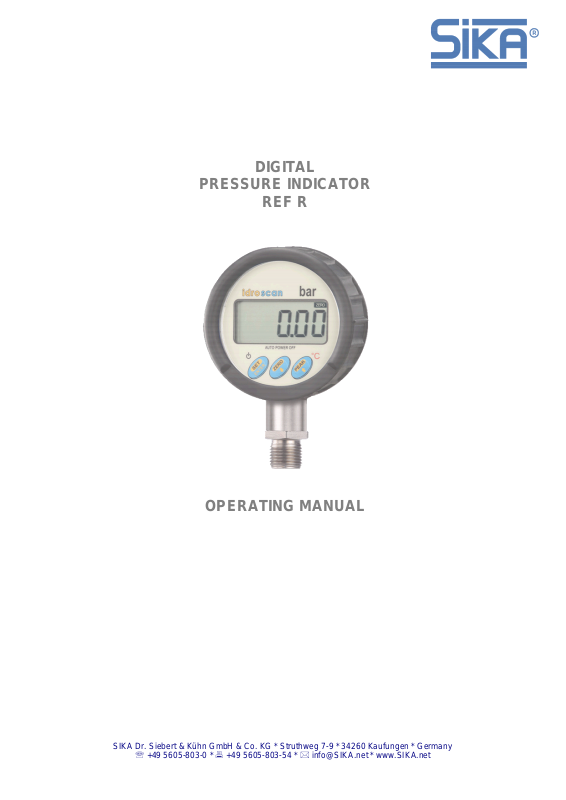

SIKA Idroscan, Ref R Operating Manual

PRESSURE INDICATOR

DIGITAL

REF R

OPERATING MANUAL

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

GENERAL INDEX

INTRODUCTION
TECHNICAL DATA
INSTALLATION
INSTRUMENT SWITCHING ON
KEYS DESCRIPTION
SETTING MENU
DATALOGGER MANAGEMENT
FULL SCALE ADJUSTMENT (PRESSURE)
COMMUNICATION PROTOCOL
BATTERIES REPLACEMENT
DISPOSAL
ERROR MESSAGES
RS232 CONNECTIONS
DIMENSIONS

SIKA has the right to make any change when necessary, without
notice. Data enclosed in this manual are just indicative and the
manufacturer declines any responsibility for errors or
discrepancies contained in this manual.

INTRODUCTION

Ref R is a digital manometer controlled by a microprocessor.
It is a practical and economical solution to perform measures
of pressure and temperature while maintaining a good
accuracy and reliability.
The Ref R has set the DATA LOGGER function which allows
you to store up to 60,000 measurement points in regular time
steps from 1s to 10 hours per point.
The measurement system consists of an analog section
particularly stable and an A /D converter with 16-bit
resolution (65000 divisions).
To increase the level of integration of components has been
used a mixed technology, traditional and SMT, that makes the
indicator resistant to vibration and mechanical stress as well
as ensuring the reliability of the circuit.
2 Internal batteries (size AAA - 1.5V) provide a range of 1
year, thanks to the function of AUTO POWER OFF which
occurs when there are no changes in the measure for a time
of 30 minutes.
By selecting the reading of the TEMPERATURE can be
displayed on the display the temperature of the fluid in contact
with the pressure sensor

The indicator has a setting menu which allows to choose the
resolution and the digital filter according to the measurement to
be calculated.

Main characteristics:

• PROGRAMMABLE RESOLUTION

• PROGRAMMABLE DIGITAL FILTER

• PROGRAMMABLE BAUD RATE

• ZERO FUNCTION

• PEAK FUNCTION (positive and negative)

• RS232C SERIAL OUTPUT (on request)

• DATA LOGGER FUNCTION

• TEMPERATURE DISPLAY

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 2/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

TECHNICAL DATA Ref R

(Idroscan)

RELATIVE PRESSURE (R) 1-2.5-5-10-20-40-50-60 bar

LINEARITY and HYSTERESIS

TEMPERATURE INDICATION
a) Resolution
b) Class

INTERNAL RESOLUTION
READINGS PER SEC. (0 filter)

REFERENCE TEMPERATURE
SERVICE TEMPERATURE
STORAGE TEMPERATURE
TEMPERATURE EFFECT (per 1°C)
a) on zero
b) on full scale

100-250-350-500 bar

700-1000-1500-2000 bar

≤ ± 0.20 % F.S.

0.1 °C
± 1 °C

30.000 div.

10 (100ms)

+23 °C

-10 / +70 °C

-10 / +80 °C

≤ ± 0.005%
≤ ± 0.005%

DISPLAY 16mm (custom LCD)
PROGRAMMABLE RESOLUTION
PROGRAMMABLE BAUD RATE

1, 2, 5, 10

38400, 19200,9600
DATA LOGGER FUNCTION 60000 points in step from 1s to 10 hours
ZERO FUNCTION

PEAK FUNCTION

(Positive and Negative)

POWER SUPPLY
AUTONOMY
not rechargeable ALKALINE BATTERIES

PROTECTION CLASS (EN 60529)
CASE
DIMENSIONS (HxLxW)

125 Readings per sec. (8ms)

50% F.S.

BATTERIES

∼ 1 year

2x 1,5V size AAA

IP65

ALUMINIUM

128 × 84 × 29 mm

PRESSURE CONNECTION G ½’’

st. st. 1.4542

OPTIONALS

RUBBER COVER
SERIAL OUTPUT
RS232C CONNECTION
VACUUM scale

Tank SUB D 9 pole FEMALE

-1/+1 -1/+2.5 -1/+5 bar

PVC

RS232C

Pressure Positive Vacuum Resolution

1 bar 1.000 -1.000 0.001

2.5 bar 2.500 -1.000 0.001
5 bar 5.000 -1.000 0.001
10 bar 10.00 -1.00 0.01
20 bar 20.00 -1.00 0.01
40 bar 40.00 -1.00 0.01
50 bar 50.00 -1.00 0.01
60 bar 60.00 -1.00 0.01
100 bar 100.0 0.1
250 bar 250.0 0.1
350 bar 350.0 0.1
500 bar 500.0 0.1
700 bar 700.0 0.1
1000 bar 1000 1
1500 bar 1500 1
2000 bar 2000 1

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 3/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

RECOMMENDED MECHANICAL MOUNTING

WARNING

During the gauge mounting DO NOT force the

case but tight with the wrench.

O-RING tight for pressures <1000bar USIT RING 12.70X18X1.5

for pressures <1000bar

Double cone tight: pressures ≥1000bar

INSTALLATION

Installation shall be done by authorized personnel only; for

a fast installation follows the instructions listed below:

• PRELIMINARY CHECKS

• SWITCH ON - check the display during the test phase

• PROGRAMMING (digital filter, resolution, etc.)

INSTRUMENT SWITCHING ON

When instrument switches on, it performs the display check with
the switching on of all the segments, then it shows the release for
a few second and finally the pressure measured; in case a series
of “L” (negative full scale overload) or a series of "U" (positive full
scale overload) appears, please act in order to bring the pressure
back within its full scale value.

PROGRAMMING

All the functions can be recalled through the following

SETTING MENU

1) Digital Filter

2) Resolution

3) Power Off Time

4) DataLogger Parameters

5) Baud Rate RS232

KEYS DESCRIPTION

Key with three functions:

1) ON to switch on the indicator.

2) SET to enter into the configuration menu (keep the key

pressed for approx. 3 seconds).

3) During the measurement, if pressed for 5 seconds it
performs the manual indicator switching (OFF).

Key with 3 functions:

1) During the measurement it performs the display ZERO
(max 50% FS);

2) If kept pressed for about 5 sec. it deactivates the ZERO
function displaying the offset of the manometer.

3) Inside the setting menu it decreases () the value on the
display.

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 4/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

Key with 4 functions:

1) During the measurement, if pressed for a second, it
activates the PEAK+ function, (it displays the highest pressure
detected after having activated the function).

2) During the measurement, if pressed for 5 sec., it activates
the PEAK- function (it displays the lowest pressure detected
after having activated the function).

3) During the measurement, if pressed for 8 sec., it activates
the temperature measure.

4) Inside the setting menu increases () the value on the
display.

To enter into setting menu press the SET key (approx.3sec.) until
the first parameter appears on display (FL digital filter). Press
SET either to go to next parameters or to exit from setting menu.
Press SET after the last parameter both to save data and to
come back to measurement mode. New set values become
active at the exit of setting menu.

FL XX

r XX

oFFXX

t1

h.mm.ss

h = hours
mm = minutes
ss = seconds

t2

hhh.mm

hhh = hours
mm = minutes

t On

t OFF

SETTING MENU

This parameter changes the effect of the
Digital Filter. By increasing the XX value,
filter effect increases, allowing the user to
detect the average value of unsteady or
pulsating pressures. Selectable values go
from 0 to 99.
This function also acts on display conversion
speed, therefore if the operator wants to detect
the peaks, it is recommendable to decrease at
the minimum the filter effect.

RESOLUTION
In this step it is possible to set the resolution
used to display the pressure, the selectable
values are: 1, 2, 5 and 10.

AUTO-POWER OFF TIME
It set the time in minutes (from 1 up to 30)
before the Auto-power off function activates, in
case of constant measurement; by setting
0(zero) the instrument never switches off.
Auto power off function starts working if the
indicator does not detect changes higher than
±10% of set pressure.

Define the time between 2 point acquisition.
The format of the field t1 is the following:

Example:

0.00.05 : t1 = 5s

0.01.15 : t1 = 1min e 15s

2.00.00 : t1 = 2hours

Define how long the cycle will last.
The format of the field t2 is the following:

Example:

001.00 : t2 = 1 hour

000.30 : t2 = 30 minutes

Enable/Disable the temperate acquisition.
With the temperature acquisition the maximum
number of points that can be stored is limited to

30.000

bAUd

This parameter set the baud rate of RS232C
interface (if provided).
values: 38400; 19200,9600
0=RS232 disabled.

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 5/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

The DataLogger can store up to 60,000 measurement points
(30.000 if also the temperature is stored) in steps ranging from
1s to 10 hours according to the parameter t1 defined in the
Setting Menu. Cycle length is determined by the parameter t2
always defined in the Setting Menu.
Data stored during the last Datalogging are permanently saved in
nonvolatile memory within the gauge so that the measures will
always be accessible until the creation of a new cycle of
measurement
Note:
The functionality of the DataLogger is fully manageable from the
PC using the AnalyzerLight software through which you can:

• View the status of the current cycle.

• Download all the measurements.

• Save all measurements on a file.

• Display the test curve.

• Print the test curve.

• Export to Microsoft Excel the test curve.

• Make the START / STOP of a cycle.

• Set the parameters t1 and t2 and temperature

CYCLE START:

CYCLE STOP:

VIEW

DATA:

DATALOGGER Management

Press simultaneously and hold for a few
seconds the keys  e .

The acceptance of START will be shown
on the display by the presence of the icon
SP1.

Each time a measurement point is saved,
the icon SP2 will flash for a one second.

The cycle will stop automatically at the set
time t2.

Alternatively hold down simultaneously,
for a few seconds, the keys  e .

The icon SP1 will be turned off.

Press and hold simultaneously for a few
seconds, the SET and  keys.
The acceptance of the setting will be
displayed on the display by flashing SP1
and SP2.

It is possible now to see all points of
measurement using the button .
To go back of a measurement point use
the key .

To exit from the View Cycle page press
the SET button

ON/OFF

.

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 6/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

WARNING: These procedures are included in this manual for

documentation, but must be performed by authorized
calibration centers and only if necessary.
SIKA disclaims any liability with respect to measurement
errors or malfunctions that may result from not properly
enforced regulations, which also invalidate any manometer
certification

Keep the ON and PEAK keys pressed for some seconds.

P0000 Select the password 3124 (), confirm withSET

P1…P5

VACUUM

Protocol: 8 bit data, 1 bit stop, NO parity.
Note: The Baud Rate is set in the Setting Menu.

To read the manometer pressure send the following string:

p000cr

The answer will be the following string:

SXX.XXX UM Z PY LB cr
S sign + / -

XX.XXX Pressure with the decimal point
UM Unit code 03=bar
Z if presents indicates that the ZERO function is activate
PY if presents indicates that the PEAK function is activate

positive(p+) or negative (p-).
LB if presents indicates a low battery condition

Command and programming string to send to the manometer.
p2XXcr Digital Filter. Select XX from 00 to 99
p3XXcr Resolution. Select XX to 00=1, 01=2, 02=5, 03=10
p4XXcr Auto Off Time. Select XX from 01 to 30
p6XXcr ZERO. Select XX to 00 = OFF, 01=ON
p7XXcr Positive Peak. Select XX to 00 = OFF, 01=ON
p8XXcr Negative Peak. Select XX to 00 = OFF, 01=ON

The instrument is supplied with 2 not rechargeable Alkaline
batteries (AAA type 1,5V), with an average autonomy of 1 year.
Batteries consumption is signaled by the LbAtt message, the
measurements performed during this phase could be altered:
replace therefore the batteries. During this operation clean up the

Verify the electrical contact also in presence of malfunctions.

Deliver the instrument to companies specialized in scrapping
according to the laws in force in the country where intrument is
sold.

FULL SCALE CALIBRATION (PRESSURE)

.

P0

dp

Open the pressure circuit to have zero pressure
Press the ZERO key and confirm with SET.
Generate the pressure steps. Using the keys (),
set the pressure values 20%(P1), 40%(P2), 60%(P3),
80%(P4) e 100%(P5) and confirm with SET
Select the decimal point position (), confirm with
SET.
For the VACUUM calibration set the password 2124
and repeat the above procedure from -P0 to -P5

RS232C SERIAL COMMUNICATION PROTOCOL

BATTERIES REPLACEMENT

clips contacts from
possible oxydation and
check the pressure
exerted by external flaps
on each battery: please
increase it if necessary.

ALKALINE batteries shall be
either recycled or disposed

WARNING:

If the instrument won’t be used for long time it is
suggested to REMOVE batteries from manometer.

properly.

DISPOSAL

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 7/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

ERROR MESSAGES

UUUUU

-LLLLL

Positive Overload: the manometer is measuring

a pressure higher than its nominal rate.
Negative Overload: the manometer is measuring a
vacuum higher than –1 bar

Warning:

if an overload occurs, check if calibration has been altered.

HHHHH

LbAtt

Out of the Scale: the instrument shows the overflow of
display phisical limit (99999).
Low Battery : battery level is low. Please change batteries

RS232C CONNECTION

9 poles SUB D female

Ref R

PC - HOST

GND

TX

RX

DCD

Pin 1) DCD
Pin 2) RX
Pin 3) TX
Pin 5) GND

DIMENSIONS (mm)

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 8/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net

Double cone tight: pressures ≥1000bar

SIKA Dr. Siebert & Kühn GmbH & Co. KG * Struthweg 7-9 * 34260 Kaufungen * Germany 9/9

℡ [phone] *  [phone] *  [e-mail] * www.SIKA.net
