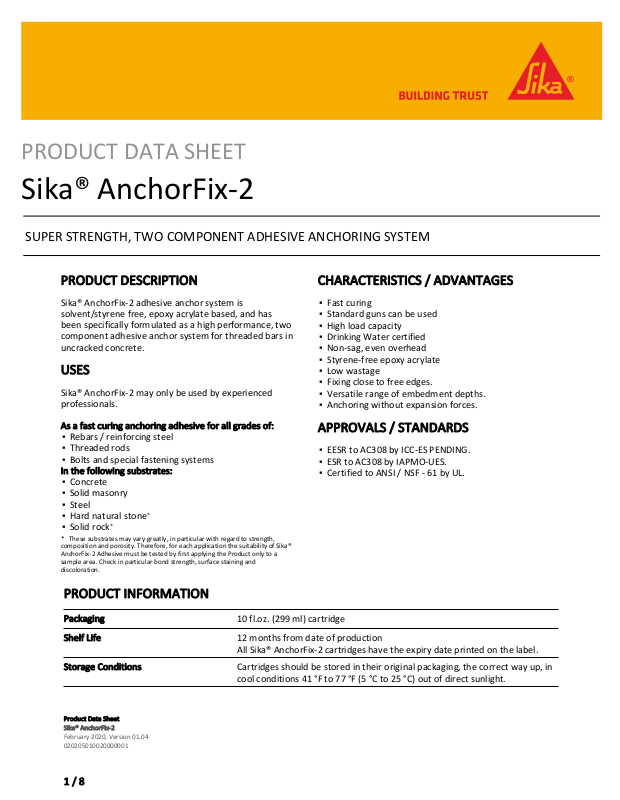

PRODUCT DATA SHEET
8
Sika® AnchorFix-2
SUPER STRENGTH, TWO COMPONENT ADHESIVE ANCHORING SYSTEM
PRODUCT DESCRIPTION
Sika® AnchorFix-2 adhesive anchor system is
solvent/styrene free, epoxy acrylate based, and has
been specifically formulated as a high performance, two
component adhesive anchor system for threaded bars in
uncracked concrete.
USES
Sika® AnchorFix-2 may only be used by experienced
professionals.
As a fast curing anchoring adhesive for all grades of:
Rebars / reinforcing steel▪
Threaded rods▪
Bolts and special fastening systems▪
In the following substrates:
Concrete▪
Solid masonry▪
Steel▪
Hard natural stone
▪
Solid rock
▪
* These substrates may vary greatly, in particular with regard to strength,
composition and porosity. Therefore, for each application the suitability of Sika®
AnchorFix-2 Adhesive must be tested by first applying the Product only to a
sample area. Check in particular bond strength, surface staining and
discoloration.
*
*
CHARACTERISTICS / ADVANTAGES
Fast curing▪
Standard guns can be used▪
High load capacity▪
Drinking Water certified▪
Non-sag, even overhead▪
Styrene-free epoxy acrylate▪
Low wastage▪
Fixing close to free edges.▪
Versatile range of embedment depths.▪
Anchoring without expansion forces.▪
APPROVALS / STANDARDS
EESR to AC308 by ICC-ES PENDING.▪
ESR to AC308 by IAPMO-UES.▪
Certified to ANSI / NSF - 61 by UL.▪
PRODUCT INFORMATION
Packaging
Shelf Life
Storage Conditions
Product Data Sheet
Sika® AnchorFix-2
February 2020, Version 01.04
020205010020000001
1 /
10 fl.oz. (299 ml) cartridge
12 months from date of production
All Sika® AnchorFix-2 cartridges have the expiry date printed on the label.
Cartridges should be stored in their original packaging, the correct way up, in
cool conditions 41 °F to 77 °F (5 °C to 25 °C) out of direct sunlight.
Page 2

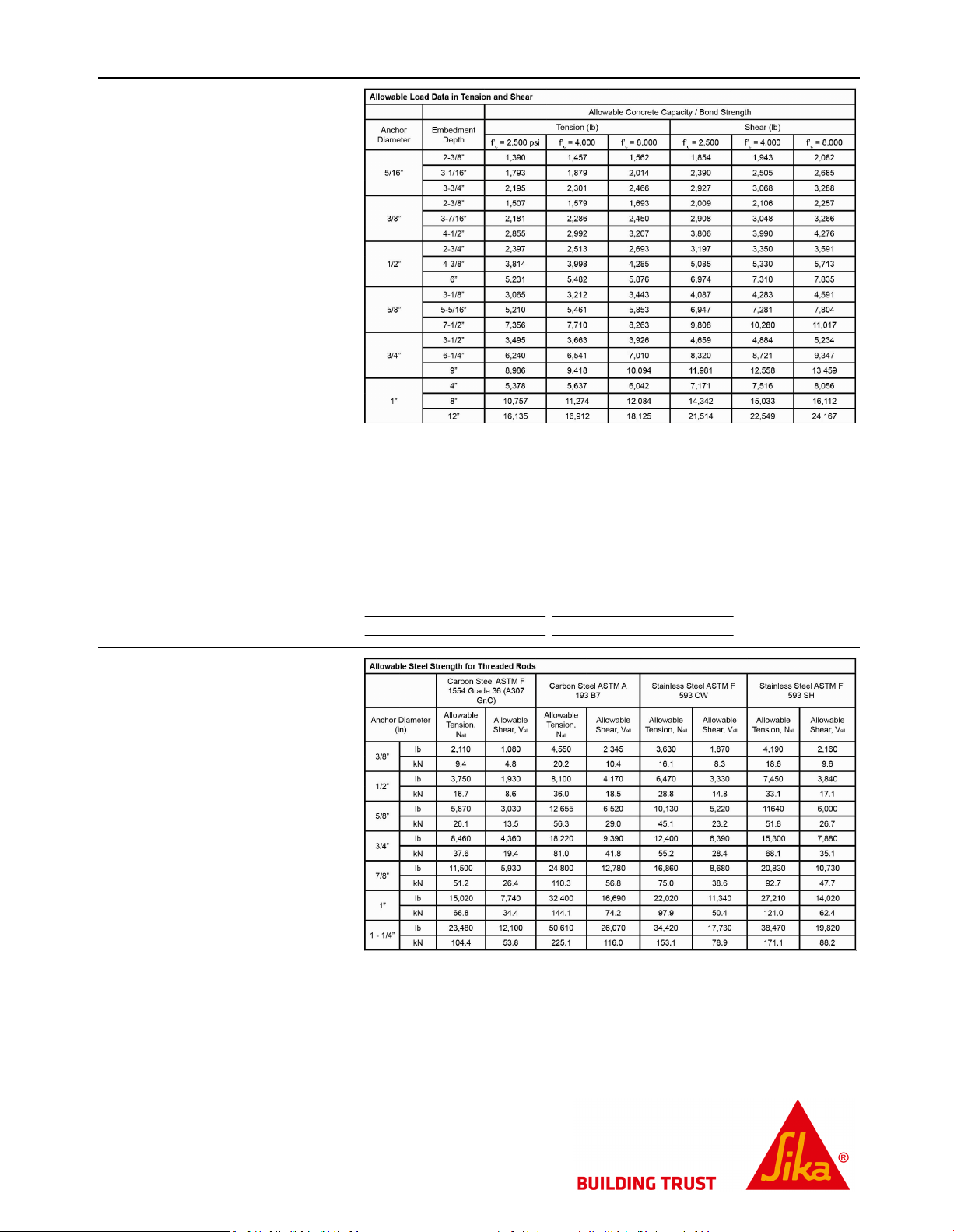

TECHNICAL INFORMATION
8
Tensile Adhesion Strength
Service Temperature
The above values represent mean ultimate values and allowable working loads. The allowable working loads
1.
have been reduced using a safety factor of 4.0 for tension and 3.0 for shear, however, in some cases, such as
life safety, safety factors of 10.0 or higher may be necessary.
Allowable loads must be checked against steel capacity. The lowest value controls.2.
Tabulated data is applicable to single anchors in normal weight concrete unaffected by edge or spacing
3.
reduction factors. Values are valid for anchors installed into dry concrete in holes drilled with a hammer drill
and ANSI carbide drill bit.
Service temperatures should remain approximately constant. The maximum long term temperature being
4.
122 °F and the maximum short term temperature being 176 °F. Short term temperatures are those that
occur over brief intervals, for example, diurnal cycling.
Linear interpolation is allowed.5.
*The design professional on the job is ultimately responsible for the interpretation of the data provided above.
Long term 40 °F (4 °C) min. / 122 °F (50
(ETAG 001, Part 5)
°C) max.
Short term (1–2 hours) 176 °F (80 °C)
Design Considerations
Product Data Sheet
Sika® AnchorFix-2
February 2020, Version 01.04
020205010020000001
Allowable Tension, N
Allowable Shear, V
*The design professional on the job is ultimately responsible for the interpretation of the data provided above.
= 0.33 x fu x nominal cross sectional area
all
= 0.17 x fu x nominal cross section area
all
2 /
Page 3

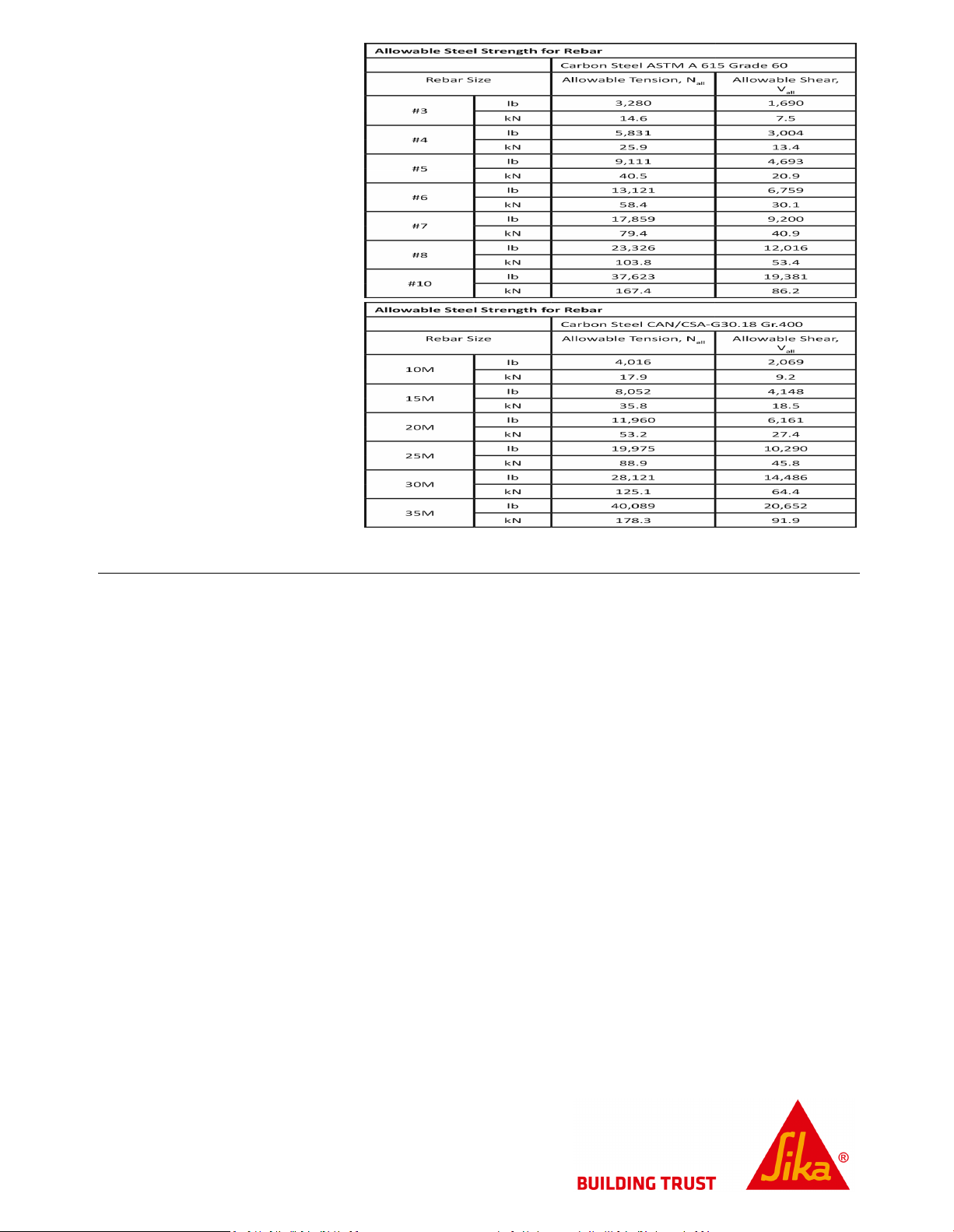

Tension = 0.33 x fu x nominal cross sectional area
8
Shear = 0.17 x fu x nominal cross section area
*The design professional on the job is ultimately responsible for the interpretation of the data provided above.
Product Data Sheet
Sika® AnchorFix-2
February 2020, Version 01.04
020205010020000001
3 /
Page 4

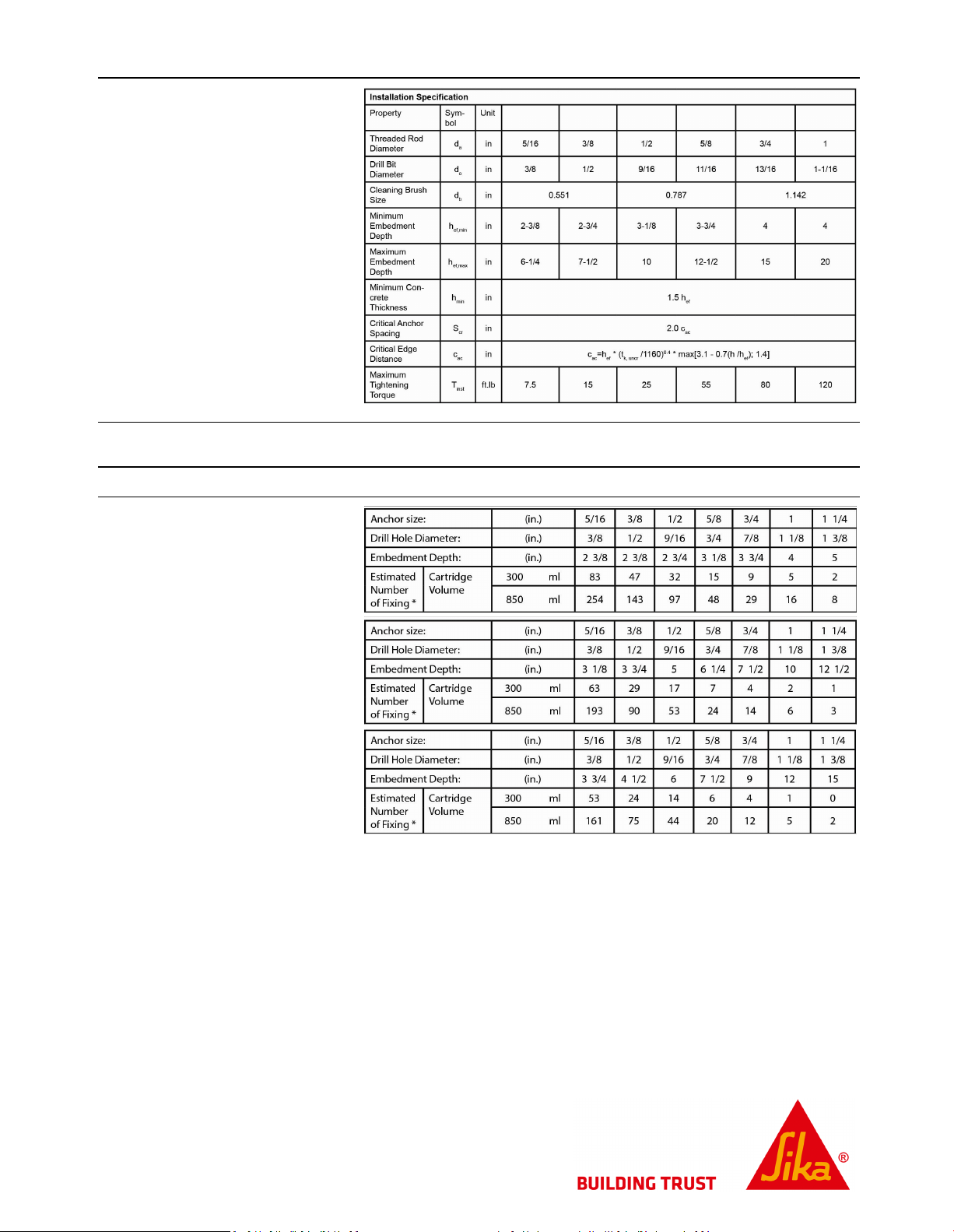

SYSTEM INFORMATION
8
System Structure
APPLICATION INFORMATION
*The design professional on the job is ultimately responsible for the interpretation of the data provided above.
Mixing Ratio
Coverage
Component A : component B = 10 : 1 by volume
*Number of fixings assumes 30ml wastage in initial extrusion and holes filled to 3/4 full
Product Data Sheet
Sika® AnchorFix-2
February 2020, Version 01.04
020205010020000001
4 /
Page 5
Sag Flow
8
Non-sag, even overhead
Product Temperature
Dew Point
Open Time
Sika® AnchorFix-2 must be at a temperature of between 41 °F (5 °C) to 68 °F
(20 °C) for application.
Beware of condensation.▪
Beware of frost.▪
Working & Loading Times
Cartridge
Temperature
T Work (minutes) Base Material
Temperature
T Load (hours)
Minimum 41°F - 14 °F to 32 °F* 24 hours
Minimum 41 °F - 32 °F to 41°F 180 minutes
41 °F to 50 °F 8 41 °F to 50 °F 100 minutes
50 °F to 68 °F 4 50 °F to 68 °F 70 minutes
68 °F to 77 °F 3 68 °F to 77 °F 40 minutes
77 °F to 86 °F 2 77 °F to 86 °F 40 minutes
86 °F 1 86 °F 40 minutes
T Work is the typical time to gel at the highest temperature in the range
T Load is the typical time to reach full capacity
* The design professional on the job is ultimately responsible for the interpretation of the data provided
above.
Product Data Sheet
Sika® AnchorFix-2
February 2020, Version 01.04
020205010020000001
5 /
Page 6
APPLICATION INSTRUCTIONS
8
SUBSTRATE QUALITY
Mortar and concrete must be older than 28 days.
Substrate strength (concrete, masonry, natural stone)
must be verified. Pull-out tests must be carried out if the
substrate strength is unknown. The anchor hole must
always be clean, dry, free from oil and grease etc. Loose
particles must be removed from the holes.
Threaded rods and rebars have to be cleaned thoroughly
from any oil, grease or any other substances and
particles such as dirt etc.
MIXING

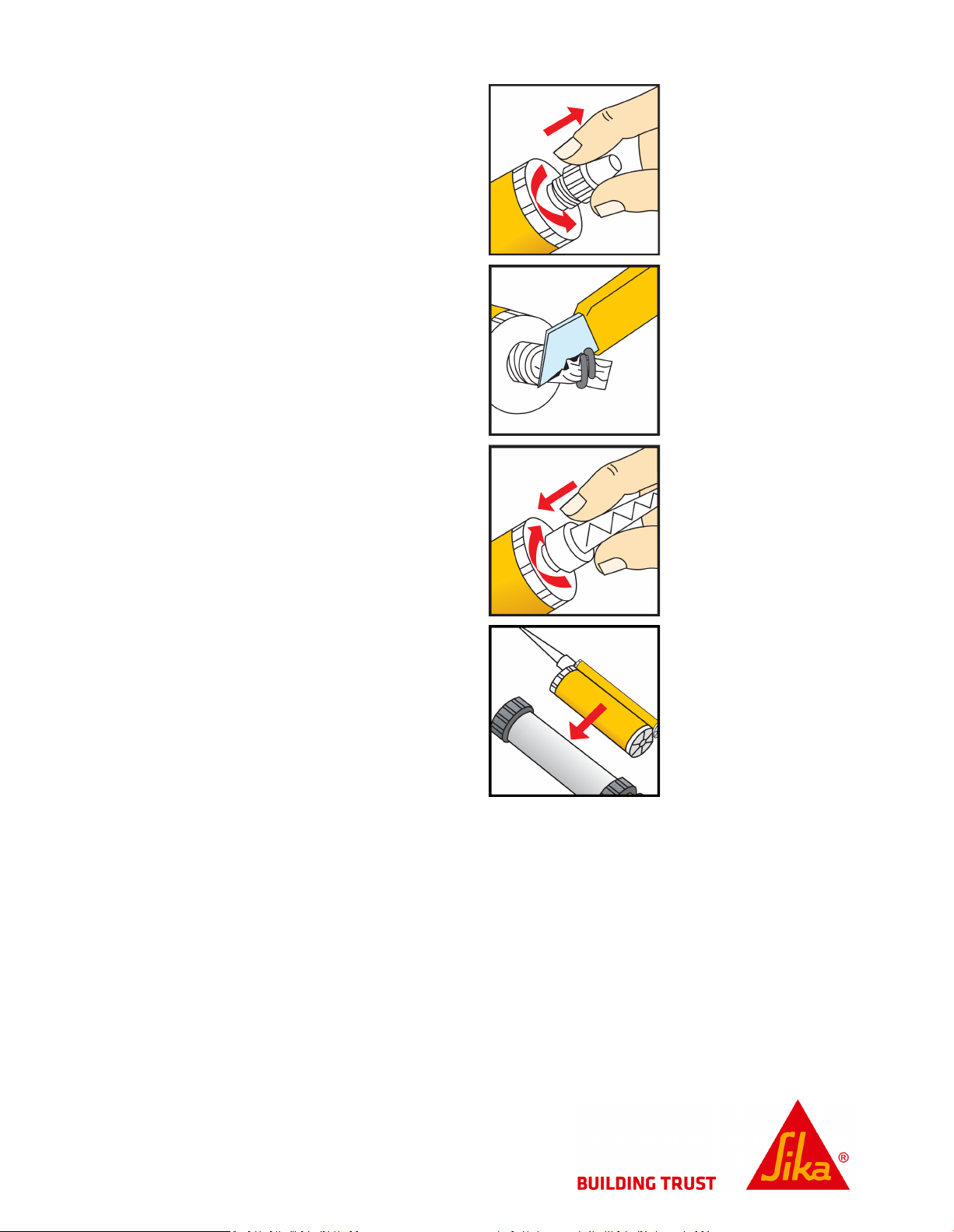

Getting the cartridge ready
1. Unscrew the cap
2. Cut the film
3. Screw on the static
mixer
4. Place the cartridge into
the gun and start
application
When the work is interrupted the static mixer can
remain on the cartridge after the gun pressure has been
relieved. If the resin has hardened in the nozzle when
work is resumed, a new nozzle must be attached.
Product Data Sheet
Sika® AnchorFix-2
February 2020, Version 01.04
020205010020000001
6 /
Page 7
APPLICATION METHOD / TOOLS
8

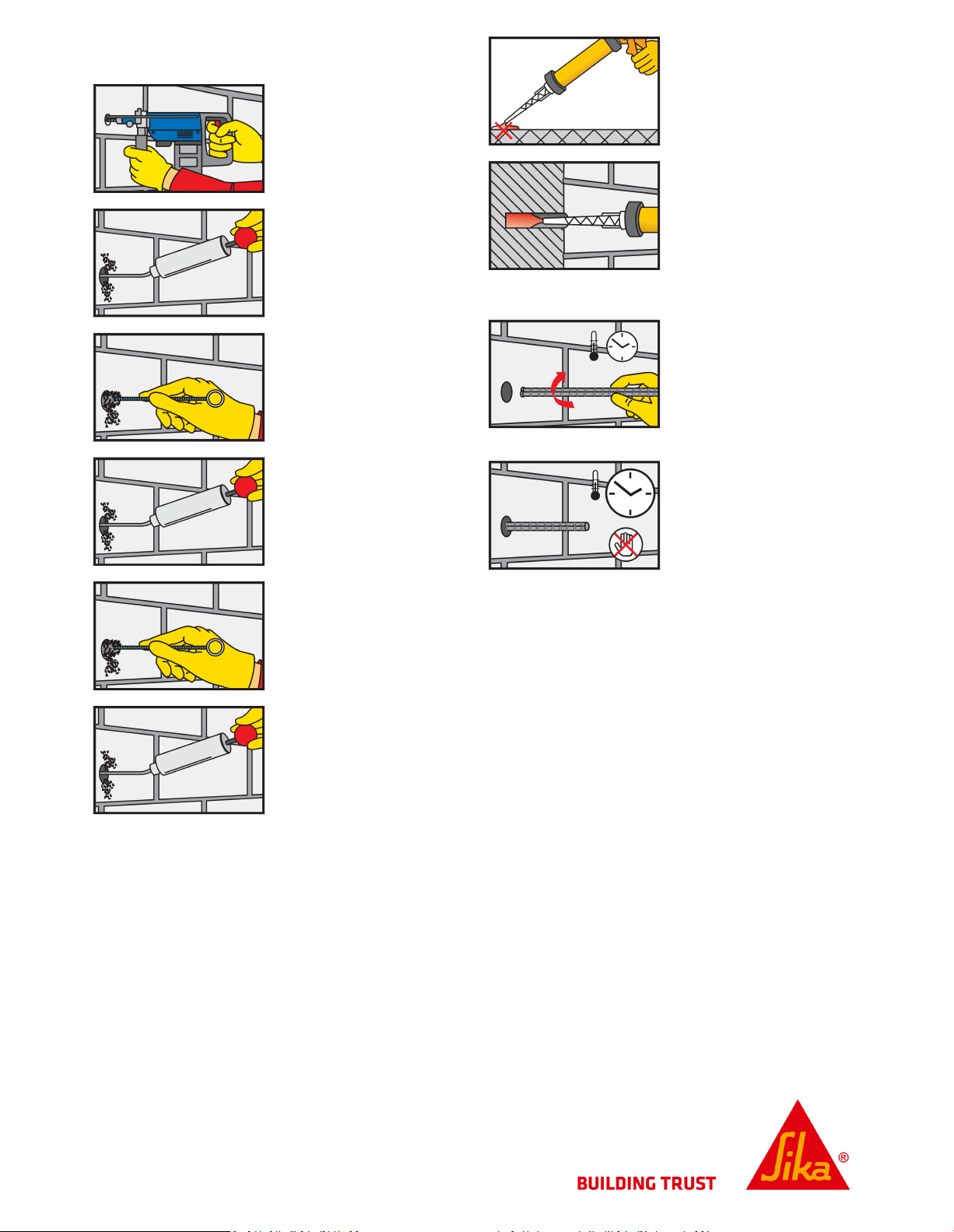

Anchors in solid masonry/concrete:
Drilling of hole with an
electric drill to the
diameter and depth
required. Drill hole
diameter must be in
accordance with anchor
size.
The drill hole must be
cleaned with a blow pump
or by compressed air,
starting from the bottom
of the hole. (at least 2×)
Important: use oil-free
compressors.
The drill hole must be
thoroughly cleaned with
the special steel brush
(brush at least 2×). The
diameter of the brush
must be larger than the
diameter of the drill hole.
The drill hole must be
cleaned with a blow pump
or by compressed air,
starting from the bottom
of the hole (at least 2×).
Important: use oil-free
compressors.
The drill hole must be
thoroughly cleaned with
the special steel brush
(brush at least 2×). The
diameter of the brush
must be larger than the
diameter of the drill hole.
The drill hole must be
cleaned with a blow pump
or by compressed air,
starting from the bottom
of the hole (at least 2×).
Important: use oil-free
compressors.
Pump approx. twice until
both parts come out
uniformly. Do not use this
material. Release the gun
pressure and clean the
cartridge opening with a
cloth.
Inject the adhesive into
the hole, starting from the
bottom, while slowly
drawing back the static
mixer.In any case avoid
entrapping air. For deep
holes extension tubing can
be used.
Insert the anchor with a
rotary motion into the
filled drill hole. Some
adhesive must come out
of the hole.
Important: the anchor
must be placed within the
open time.
During the resin hardening
time the anchor must not
be moved or loaded. Wash
tools immediately with
Sika® Colma Cleaner.
Wash hands and skin
thoroughly with warm
soap water.
CLEANING OF TOOLS
Tools must be cleaned as soon as possible with a clean
rag.
Product Data Sheet
Sika® AnchorFix-2
February 2020, Version 01.04
020205010020000001
7 /
Page 8
BASIS OF PRODUCT DATA
8
LEGAL DISCLAIMER
Results may differ based upon statistical variations
depending upon mixing methods and equipment,
temperature, application methods, test methods, actual
site conditions and curing conditions.
OTHER RESTRICTIONS
See Legal Disclaimer.
ENVIRONMENTAL, HEALTH AND SAFETY
For further information and advice regarding
transportation, handling, storage and disposal of
chemical products, user should refer to the actual Safety
Data Sheets containing physical, environmental,
toxicological and other safety related data. User must
read the current actual Safety Data Sheets before using
any products. In case of an emergency, call CHEMTREC
at 1-800-424-9300, International 703-527-3887.
• KEEP CONTAINER TIGHTLY CLOSED
• KEEP OUT OF REACH OF CHILDREN
• NOT FOR INTERNAL CONSUMPTION
• FOR INDUSTRIAL USE ONLY
• FOR PROFESSIONAL USE ONLY
