SIIG US2263 User guide

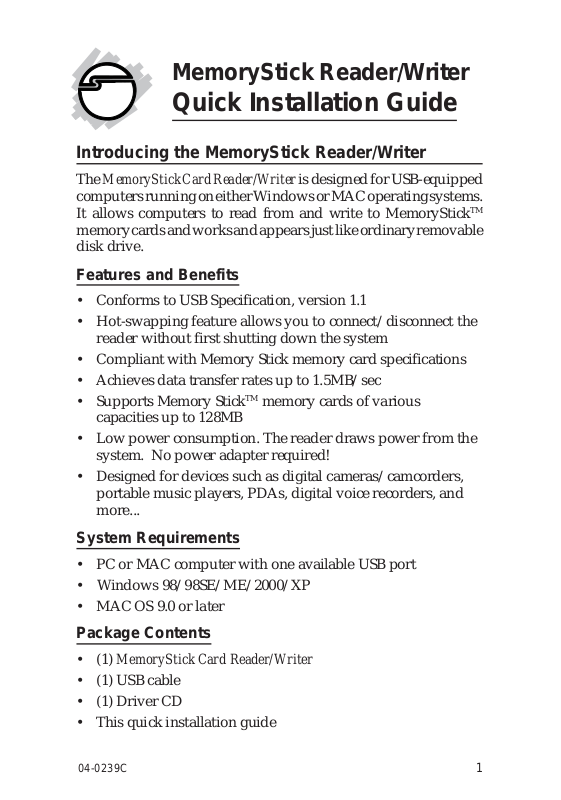

MemoryStick Reader/Writer

Quick Installation Guide

Introducing the MemoryStick Reader/Writer

The MemoryStick Card Reader/Writer is designed for USB-equipped
computers running on either Windows or MAC operating systems.
It allows computers to read from and write to MemoryStick
memory cards and works and appears just like ordinary removable
disk drive.

Features and Benefits

• Conforms to USB Specification, version 1.1

• Hot-swapping feature allows you to connect/disconnect the
reader without first shutting down the system

• Compliant with Memory Stick memory card specifications

• Achieves data transfer rates up to 1.5MB/sec

• Supports Memory StickTM memory cards of various
capacities up to 128MB

• Low power consumption. The reader draws power from the
system. No power adapter required!

• Designed for devices such as digital cameras/camcorders,
portable music players, PDAs, digital voice recorders, and
more...

TM

System Requirements

• PC or MAC computer with one available USB port

• Windows 98/98SE/ME/2000/XP

• MAC OS 9.0 or later

Package Contents

• (1) MemoryStick Card Reader/Writer

• (1) USB cable

• (1) Driver CD

• This quick installation guide

04-0239C

1

Installing the MemoryStick Card Reader/Writer

Throughout Windows driver installation, you may be prompted
to insert Windows Installation CD. Some files on this CD are
neccessary to complete driver installation. Please insert CD when
prompted and follow on-screen instructions.

Windows 98/98SE Installation

1. Boot to Windows and insert the Driver CD.

2. Autorun should start. If autorun doesn't start, click Start,

Run, type in D:\Autorun.exe, then click OK. (Assumming
D: is the drive letter of your CD-ROM)

3. Click Memory Stick, Next, choose Complete, then Next.

4. Click Next, Next, then Finish to restart Windows.

5. After Windows resumes, connect the reader to an available

USB port. A removeable drive should now show up in My
computer.

Windows ME/2000/XP Installation

Windows ME, 2000 and Windows XP have built-in driver support
for this reader. Simply connect the reader and the driver will
install automatically. A removeable drive should now show up in
My computer.

Mac OS 9.0 or later Installation

Mac OS 9.0 or later has built-in driver support for this reader.
Simply connect the reader and the driver will install automatically.
A new drive icon should show up on your desktop when a
Memory Stick is inserted.

Inserting the memory card

Insert the Memory Stick with gold pins facing down.

Removing the memory card

For Windows systems, you can remove the memory card from the
reader at anytime.

For MAC systems, before removing the memory card from the reader,
click and drag the disk icon to the trash box, then pull the card out.

2

Technical Support

QUESTIONS? SIIG’s Online Support has the answers! Simply visit
our web site at www.siig.com and click on SUPPORT. Our online
support database is updated daily with new drivers and solutions. The
answers to your problems could be just a few clicks away.

Return Merchandise Authorization (RMA)

SIIG warrants to the original buyer of the product that the hardware is
free of defects in materials and workmanship for a period of one, two
or five years from the date of purchase. If your product fails to be in
good working order during the warranty period, you may return it to
SIIG for repair or replacement at SIIG's option.

To return the product, you need to follow these steps:

Step 1: Contact SIIG's RMA Department

To obtain an RMA number, SIIG's RMA Department can be reached
by phone at [phone] or fax at [phone] or email at
[e-mail]. In order to issue an RMA number, the product serial
number is required. This number can be found on the side of the box
and on the back of the product.

Step 2: Complete the RMA form

• Fill out your Return Merchandise Authorization (RMA) form,
and include it in the package with the product.

• Properly pack the product for shipping. All software, cable(s)
and other accessories that came with the original package
must be included.

• Clearly write your RMA number on the top of the returned
package and on the accompanying RMA form.

SIIG will refuse to accept any shipping package, and will not be
responsible for a product returned without an RMA number
posted on the outside of the shipping carton.

Step 3: Ship the Product

You are responsible for the cost of shipping back to SIIG at the following
address:

SIIG, Inc. RMA#_______________
6078 Stewart Ave.
Fremont, CA 94538

SIIG will ship the repaired or replaced product via UPS Ground or US
Mail at no cost to you.

3

UK Warranty & Support Information

The 5 year warranty supplied with this product is offered by SIIG,
Inc. If you should happen to encounter any problems with this
product, please follow the procedures below.

1. If it is within the first year of purchase, please return product
to the outlet you purchased from.

2. If your product is between 2 and 5 years old from date of
purchase, please contact SIIG using the contact details below.

For UK Technical Support

Telephone: [phone]
Fax: [phone]

Email: [e-mail]

Website: http://www.siig.uk.com

PRODUCT NAME MODEL NUMBER

MemoryStick Card Reader/Writer US2263

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B
OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCC COMPLIANCE STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR

PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Ave.

Fremont, CA 94538-3152

MemoryStick Card Reader/Writer is a trademark of SIIG, Inc.
SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered
trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation.
Other names used in publication are for identification only and may be trademarks of their
respective companies.

November, 2002 Copyright ©2002 by SIIG, Inc. All rights reserved.
