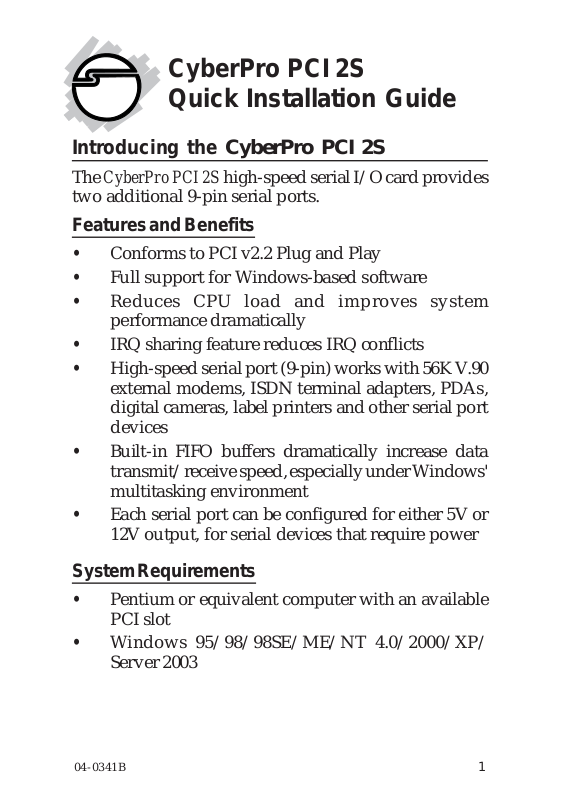

SIIG PCI 2S User Manual

CyberPro PCI 2S
Quick Installation Guide

Introducing the CyberPro PCI 2S

The CyberPro PCI 2S high-speed serial I/O card provides
two additional 9-pin serial ports.

Features and Benefits

• Conforms to PCI v2.2 Plug and Play

• Full support for Windows-based software

• Reduces CPU load and improves system

performance dramatically

• IRQ sharing feature reduces IRQ conflicts

• High-speed serial port (9-pin) works with 56K V.90

external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices

• Built-in FIFO buffers dramatically increase data

transmit/receive speed, especially under Windows'
multitasking environment

• Each serial port can be configured for either 5V or

12V output, for serial devices that require power

System Requirements

• Pentium or equivalent computer with an available

PCI slot

• Windows 95/98/98SE/ME/NT 4.0/2000/XP/

Server 2003

04-0341B

1

Package Contents

• CyberPro PCI 2S board

• Driver CD

• Quick installation guide

Layout

JP2 (Serial port 2)

Serial Port 2

Serial Port 1

JP1 (Serial port 1)

Figure 1. Layout

Jumper Settings (JP1, JP2)

Open = 0 volts (default)
Short 1-2 = 5V
Short 2-3 = 12V

Note: Most serial devices do not require additional
power through the serial port. Refer to your serial
device's manual for more information.

2

Hardware Installation

General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.

Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.

1. Turn OFF the power to your computer and any
other connected peripheral devices.

2. Unplug the power cord from the back of the
computer.

3. Remove your computer’s cover.

4. Remove the slot bracket from an available PCI slot.

5. Change JP1 and JP2 jumper settings to the desired
voltage only if your serial device needs additional
power from the serial port. However, most serial
devices do not require additional power. For more
information see Figure 1 on page 2. Skip this step if
power is not required.

6. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.

7. Replace the slot bracket's holding screw to secure
the card.

8. Replace the computer cover and reconnect the power
cord.

3
