SIIG MiniTouch Plus Quick Installation Manual

1
Introducing Your MiniTouch Plus
The MiniTouch Plus has all the features and functions of a standard 101-key keyboard in two-thirds the size. It provides compact, space-saving benefits without giving up the power and the extended functions offered by a full-sized 101-key keyboard.
80-key mini-keyboard with 12 function keys
PS/2 and IBM AT enhanced 101/102-key keyboard compatible
PS/2 or AT (5-pin DIN) keyboard connector (depending on the model purchased)
Separate Scroll Lock, Num Lock, and Caps Lock LED indicators
Embedded numeric keypad with cursor and screen control capabilities
Special Fn key for accessing the cursor and screen control keys, F11 and F12 key functions, and embedded numeric keypad
Ctrl and Alt keys, one on each side for added convenience
High-quality keyswitches for the click and feel that typists prefer
Standard QWERTY keyboard layout
Snap-open legs for height adjustment
MiniTouch Plus Quick Installation Guide
04-0131B
2
Specifications
Electrical characteristics:
Input power: +5V DC
Switch activation mechanism: Conductive rubber
Physical & mechanical characteristics:
Connector type : PS/2 or AT (5-pin DIN)
Number of keys: 80
Key switch life: 20 million cycles
Travel distance: 3.0 + 0.5 mm
Dimensions: 11 5/8" (L) x 6" (W) x 1 1/2" (H)
Weight: 1.6 lbs
Environmental operating conditions:
Operating temperature: 32o F to 130o F
Storage temperature: 10o F to 160o F
Relative humidity: 20% to 95%, non-condensing
Altitude: –1000 ft. to 10,000 ft.
Package Contents
MiniTouch Plus
Quick Installation Guide
Setting Up Your Keyboard
Turn your computer OFF before plugging the keyboard into your computer. The keyboard's connector is keyed for proper insertion. Use the snap-open legs on the bottom of the keyboard to adjust the slant/height for your comfort.
3
Keyboard Functions
The MiniTouch Plus' space-saving design requires the dual alpha/numeric function of certain keys. Since the numeric keypad feature is controlled by the Num Lock key, an inconvenient situation will occur when using a computer that automatically enables the Num Lock key with each boot up. Refer to the following solutions:
1. If your computer's BIOS setup utility has a Num Lock option, set it to OFF.
2. If your computer's BIOS setup utility does not have a Num Lock option, press the Num Lock key to turn off the numeric keypad after each boot up.
Num Lock – Embedded Numeric Keypad
Press the Num Lock key to enable the numeric keypad function. The Num Lock LED at the top right corner indicates its ON/OFF status. The shaded keys in the following keyboard layout identify the locations of the numeric keypad keys.

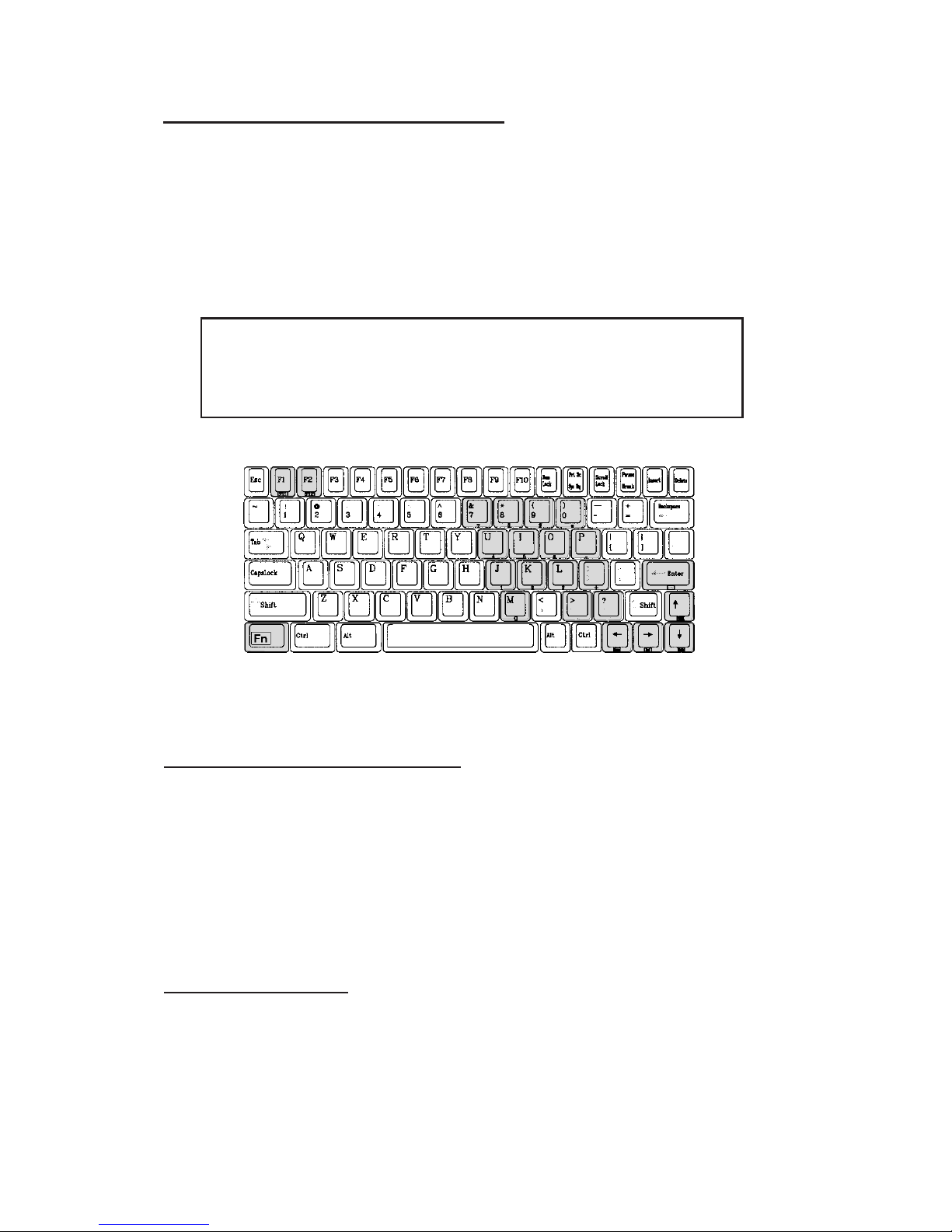

Figure 1. Embedded Numeric Keypad
