Standing Desk Converter with

Height Adjustable Keyboard &

Counterbalance Monitor Arm

Installation Instructions

04-1105B

P/N: CE-MT2G12-S1

Page 2

Unpacking

•

Carefully remove the contents and lay them out on cardboard or other protective surface

• Check package contents against the parts list to ensure that all components are received undamaged. Do not use damaged or defective parts

• Carefully read all instructions before attempting installation

Safety Information

• Use proper safety equipment during installation

• If you don't understand the installation instructions, please consult an installation specialist

• This mount contains small parts which can act as a choking hazard if swallowed

• Do not use this product for any purpose or in any conguration not explicitly speciedintheseinstructions

Tools Required

• Phillips screwdriver

• 3/8" drill bit & electric drill (for grommet hole installation)

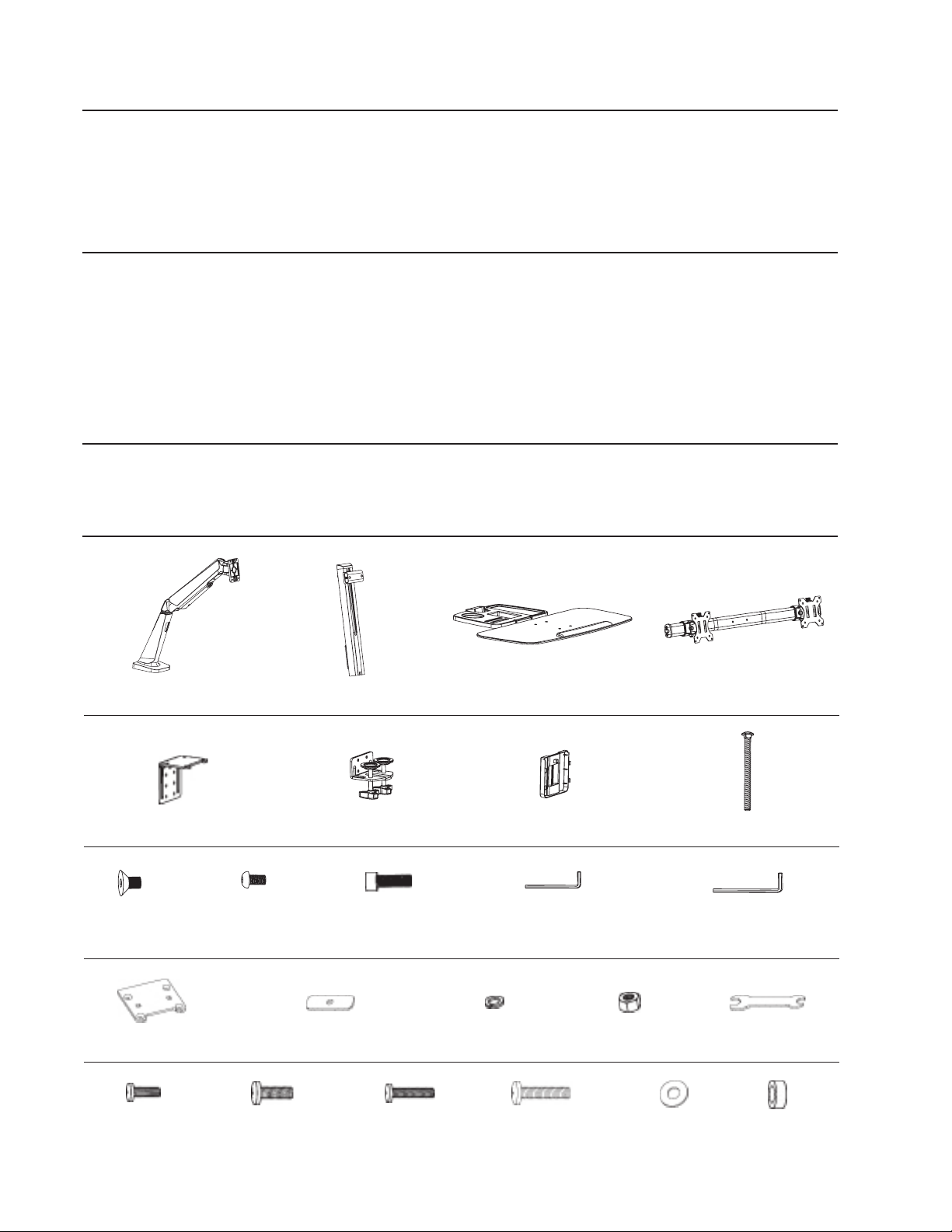

Parts List

(1x)ExtensionArm(A)

(1x)C-ClampBrace(E) (1x)GrommetBolt(H)

(4x)Bolt(I)

(1x)GrommetPlate(N)

(8x)M4x12Bolt(M-

(4x)Bolt(J)

(8x)M5x12Bolt

(1x)SupportPole(B)

(1x)C-Clamp(F)

(2x)Bolt(K)

(2x)GrommetClamp(O)

(8x)M4x16Bolt

(M-B)

(M-C)

(1x)KeyboardTray(C) (1x)VESAPlatewithArm(D)

(1x)DecorativeCap(G)

(1x)4mmAllenKey(L)

(2x)Washer(P)

(8x)M5x16Bolt

(M-D)

(2x)Bolt(Q)

(8x)D5Washer

(1x)6mmAllenKey(M)

(1x)Wrench(R)

(M-E)

(8x)Spacer

(M-F)

Page 3

Installation

10-55mm

40-92mm

Caution:

This desk mount must be securely attached to the horizontal desktop. If the

mount is not properly installed it may fall, resulting in bodily injury and/or property damage.

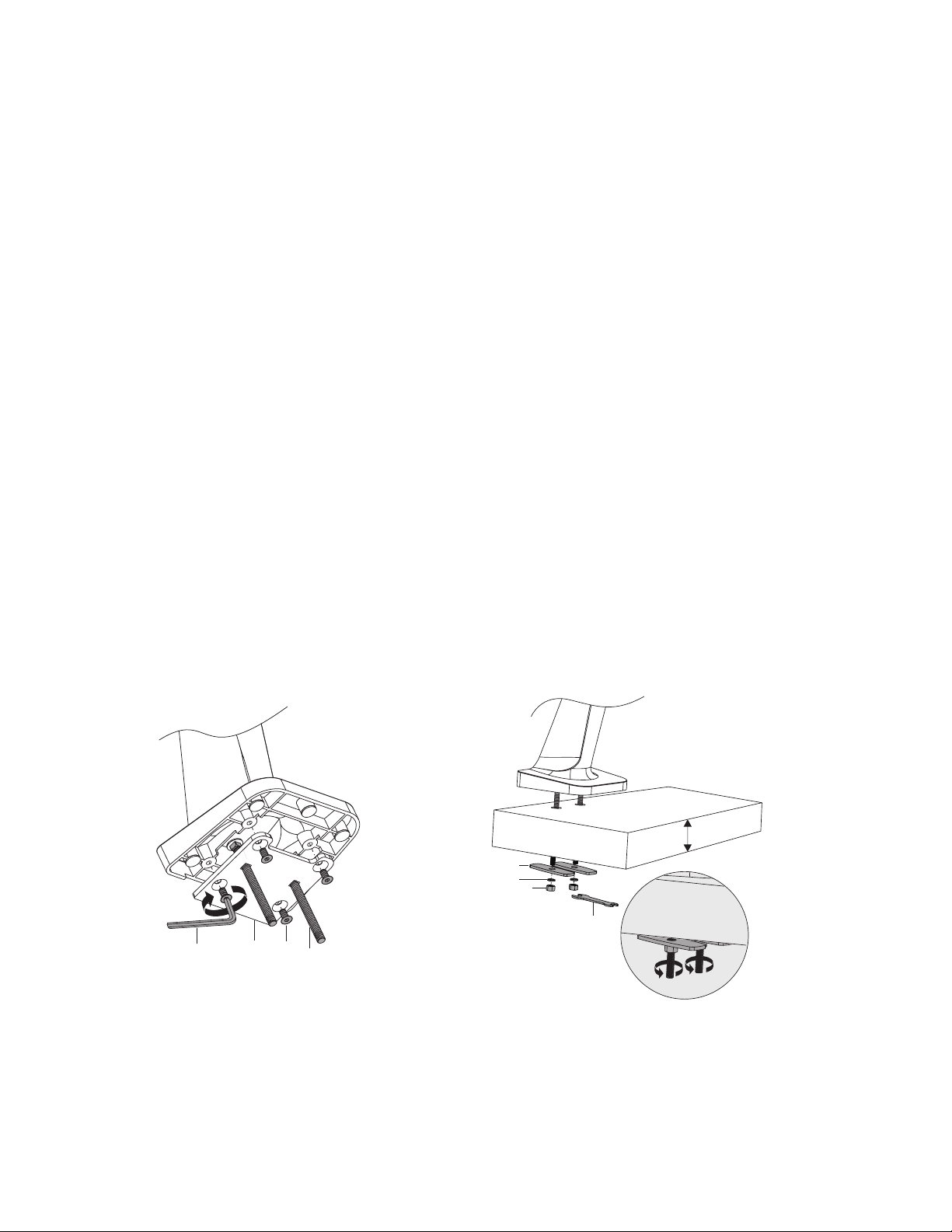

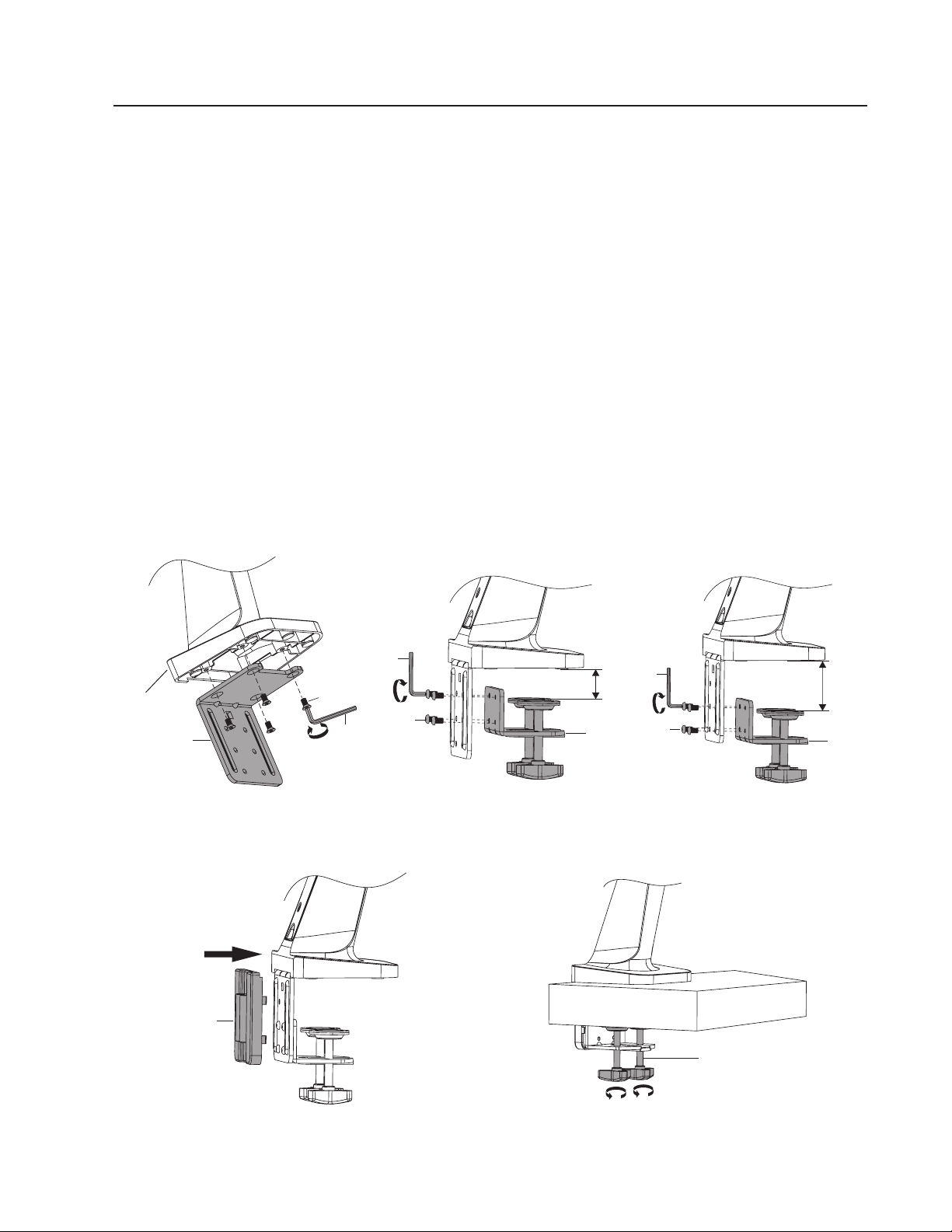

1A) C-Clamp Installation

1. InstalltheC-ClampBrace(E)totheExtensionArm(A),securethemusingBolt(I) withAllenKey(L)turningclockwiseuntiltight,seeFigure1.

InstalltheC-Clamp(F)totheC-ClampBraceaccordingtothethicknessofyourdesktop.

a) Desktops of 10mm-55mm thickness: Select the two upper mounting holes and

securethemusingBolt(J)withAllenKey(L)turningclockwiseuntiltight,seeFigure2A.

b) Desktops of 40mm-92mm thickness: Select the two lower mounting holes and

securethemusingBolt(J)withAllenKey(L)turningclockwiseuntiltight,seeFigure2B.

3. InstalltheDecorativeCap(G)totheC-ClampBrace,seeFigure3.

4. PositiontheArmAssemblytothedesktop.Loosentheclampscrewaccordingto

the thickness of the desktop. Tighten the C-Clamp to the desktop by turning the

clampscrewclockwise,seeFigure4.

Figure 1 Figure 2B

Figure 3

Figure 2A

Clamp Screw

Figure 4

Page 4

1B) Grommet Hole Installation

10-80mm

This installation requires you to either drill two 3/8" (10mm) diameter holes through the desktop or use an existing grommet hole (2.25" diameter max). Note: This mounting type use only with desktops of 10mm-80mm thickness.

Existing Grommet Hole Installation

Iftheexistinggrommetholecomeswithaplasticprotector,removeittoensureaat surfacebeforeinstallingtheExtensionArmAssembly.

1. InserttheGrommetBolts(H)intotheGrommetPlate(N),seeFigure5

2. AttachtheGrommetPlate(N)totheExtensionArm(A),securethemusingBolt(I) withAllenKey(L)turningclockwiseuntiltight,seeFigure5.

3. Positiontheextensionarmassemblyontothedesktopatthegrommethole.

4. SecureitusingGrommetClamp(O),Washer(P)andBolt(Q),seeFigure6.

Self Drilled Grommet Hole Installation

1. InserttheGrommetBolts(H)intotheGrommetPlate(N),seeFigure5

2. AttachtheGrommetPlate(N)totheExtensionArm(A),securethemusingBolt(I) withAllenKey(L)turningclockwiseuntiltight,seeFigure5.

3. Positiontheextensionarmassemblyontothedesktopatthedesiredposition.

MarkthepositionofeachGrommetBolt,thenplacetheextensionarmassemblyaside.

Note: Please double check the marked position for accuracy before proceeding to step 5.

5. Drill a 3/8" (10mm) diameter hole through the desktop at the marked positions.

6. Position the extension arm assembly onto the desktop and secure it using GrommetClamp(O),Washer(P)andBolt(Q),seeFigure6.

Figure 5 Figure 6

Page 5

Support Pole with Keyboard Tray Assembly

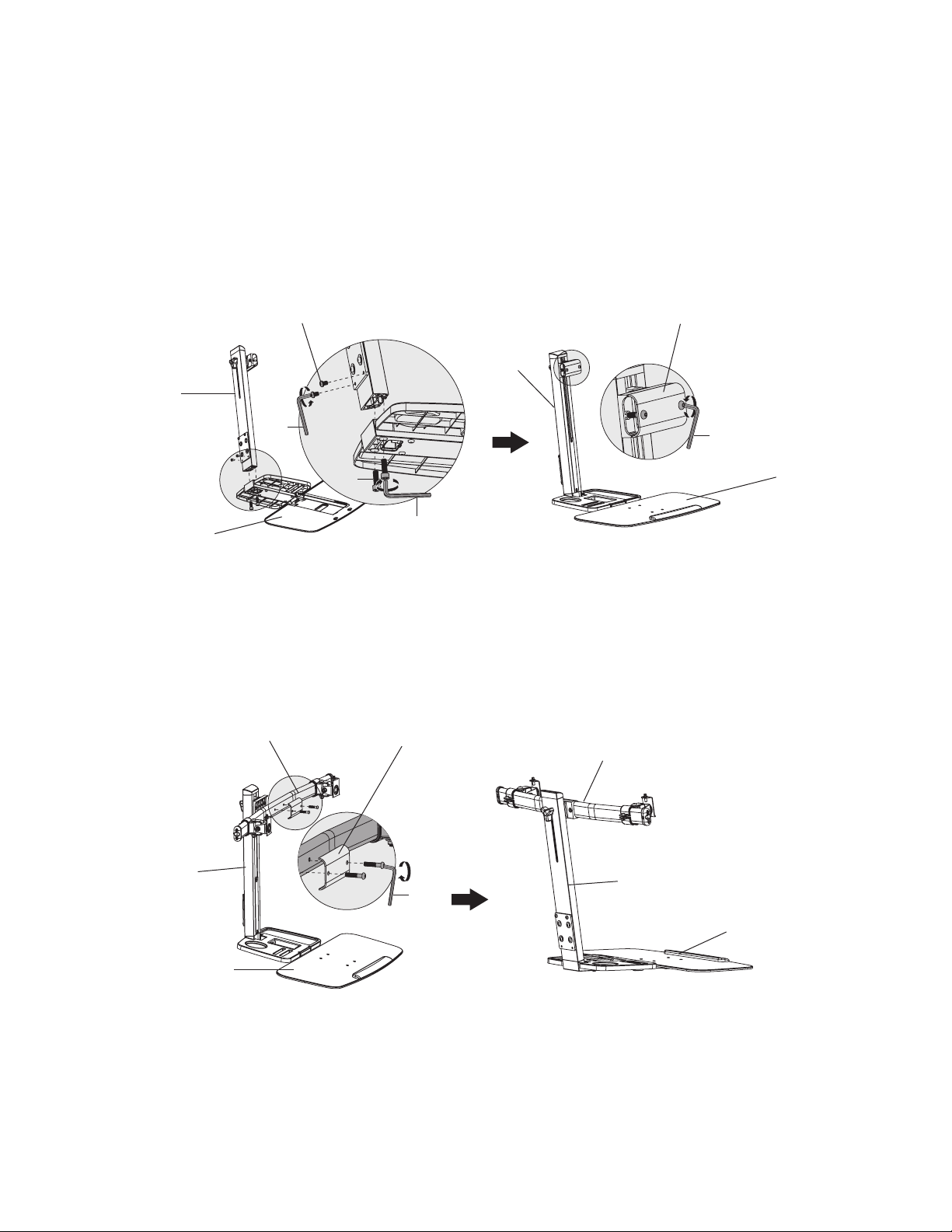

1. InstalltheSupport Pole (B)intothe Keyboard Tray(C),insert Bolt (K)andturn it clockwiseusingAllenKey(M)untilfullytighttosecurethem,seeFigure7A.

2. Removethe2lowermountingbolts,fromtheSupportPole (B), by turning them counterclockwiseusingAllenKey(L)andsavethemforlateruse,seeFigure7A.

3. RemovetheVESAPlatewithArmmountingbracketcoverusingAllenKey(L)and savethepartsforlateruse,seeFigure7B.

Remove and save

for later use

Figure 7A

PositiontheVESAPlatewithArm(D)ontotheSupportPole(B),reinstallthemounting

Remove the mounting

bracket cover

Figure 7B

bracketcoverandboltsremovedinstep3tosecureittothesupportpole,seeFigure8.

Install the mounting

bracket cover

Keyboard Tray

Figure 8

Keyboard Tray

Page 6

5mm

1 2 3

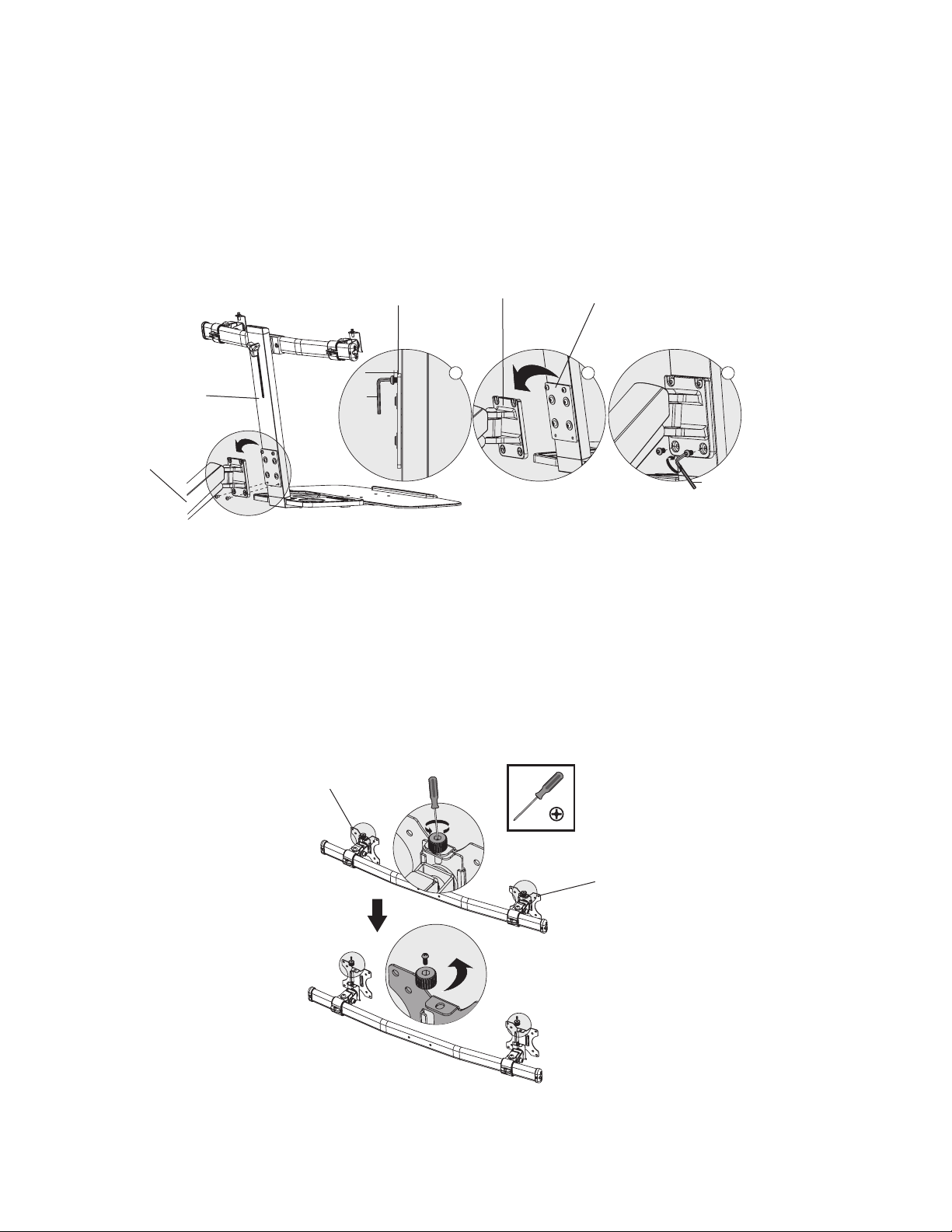

5. Use Allen Key (L) loosen the 2 upper bolts, located on the Support Pole (B), by turningthemcounterclockwise,leavea5mmgap,seeFigure9A.

6.

Hangthesupportpolewithkeyboardtrayassemblyontotheextensionarmbracket usingtheuppermountingboltsandpivotuntilitrestsonthebracket,seeFigure9B.

7. Installtheboltsremovedin Step3intothelowermountingholesandtighten all boltswithAllenKey(L)untilfullytight,seeFigure9C.

Extension Arm

Support pole with Keyboard Tray assembly

Leave 5mm gap

Bracket

Hang and pivot

Figure 9A

RemovetheVESAplatesfromtheMountingArm.UsingaPhillipsscrewdriver,turn

Figure 9B

Figure 9C

themountingscrewcounterclockwisetoremoveit,thenslidetheVESAplateaway fromthemountingarm,seeFigure10.Note: Save the removed parts for later use.

VESAPlate

Figure 10

Page 7

Mounting the Monitor to the VESA Plate and Mounting Arm

M-C M-D

M-E

M-F

M-A M-B

M-E

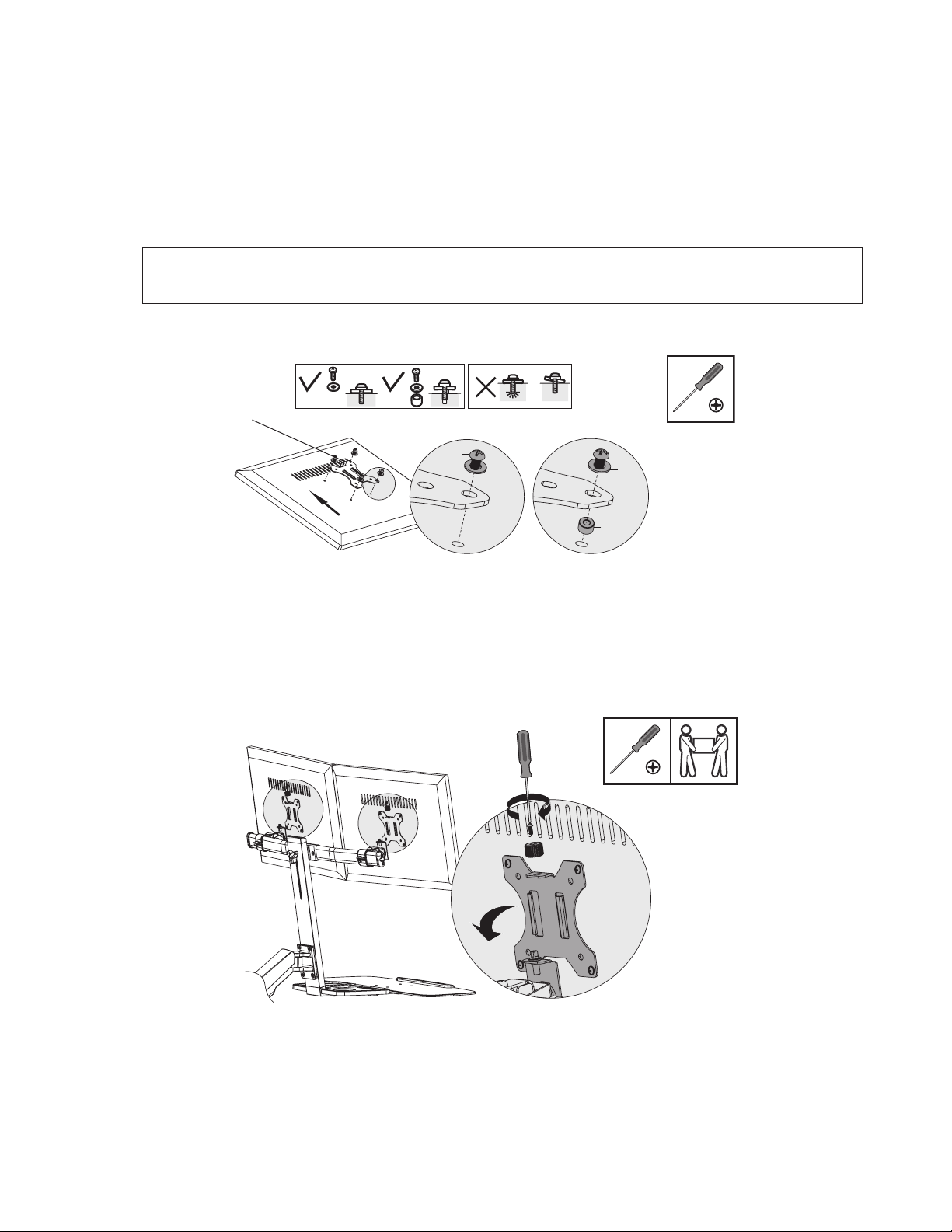

1. TurntheVESAPlatesothetabfacesup,thenmountitontothemonitor,seeFigure11A.

2. InstallWasher(M-E)withBolt(M-A/M-B)intothemonitor'smountingholes,tightenthem usingaPhillipsscrewdriveruntilfullytight,seeFigure11B.

3. If your display has a curved back or recessed thread mounting point, a Spacer (M-F) must be used. Then choose Bolt (M-C/M-D) to match. Place the Spacer (M-F) between the VESA plate and display, see Figure 11C.

Note: When assembling/disassembling the monitor, the spring arm rebound tension

may cause serious personal injury if not handled correctly.

Tab

Figure 11A

Figure 11B

Figure 11C

4. MountthemonitorwithVESAPlateontotheMountingArmandsecureitusingaPhillips

screwdriver,seeFigure12.

Figure 12

Page 8

Final Adjustments and Arranging the Cables

Gas Spring, Tilt, Swivel and Height Adjustment

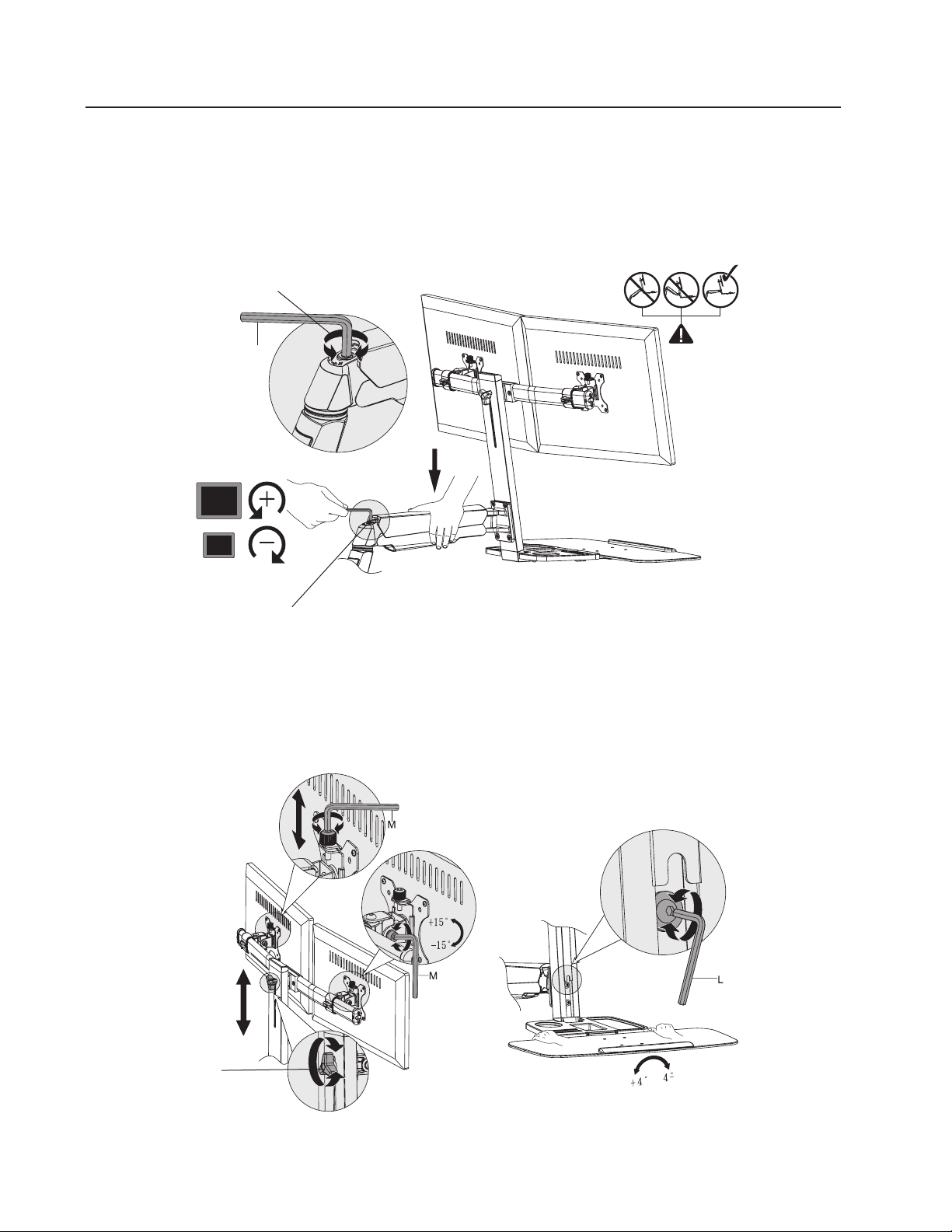

1. Adjustthe tensionof thegas springusing AllenKey (M),turn thescrew counter

clockwise to increase the tension (for heavier monitors) and clockwise to decrease

thetension(forlightermonitors),seeFigure13.

Gas Spring Tension: Turn the screw

counter clockwise to increase and clockwise to decrease the tension

Gas Spring Adjustment

Figure 13

2. AdjusttightnessoftheMonitorTiltandSwivelusingAllenKey(M).Adjustmonitor heightusingtheHeightAdjustmentKnob,seeFigure14.

Height Adjustment

Knob

Figure 14

Page 9

Keyboard Tray

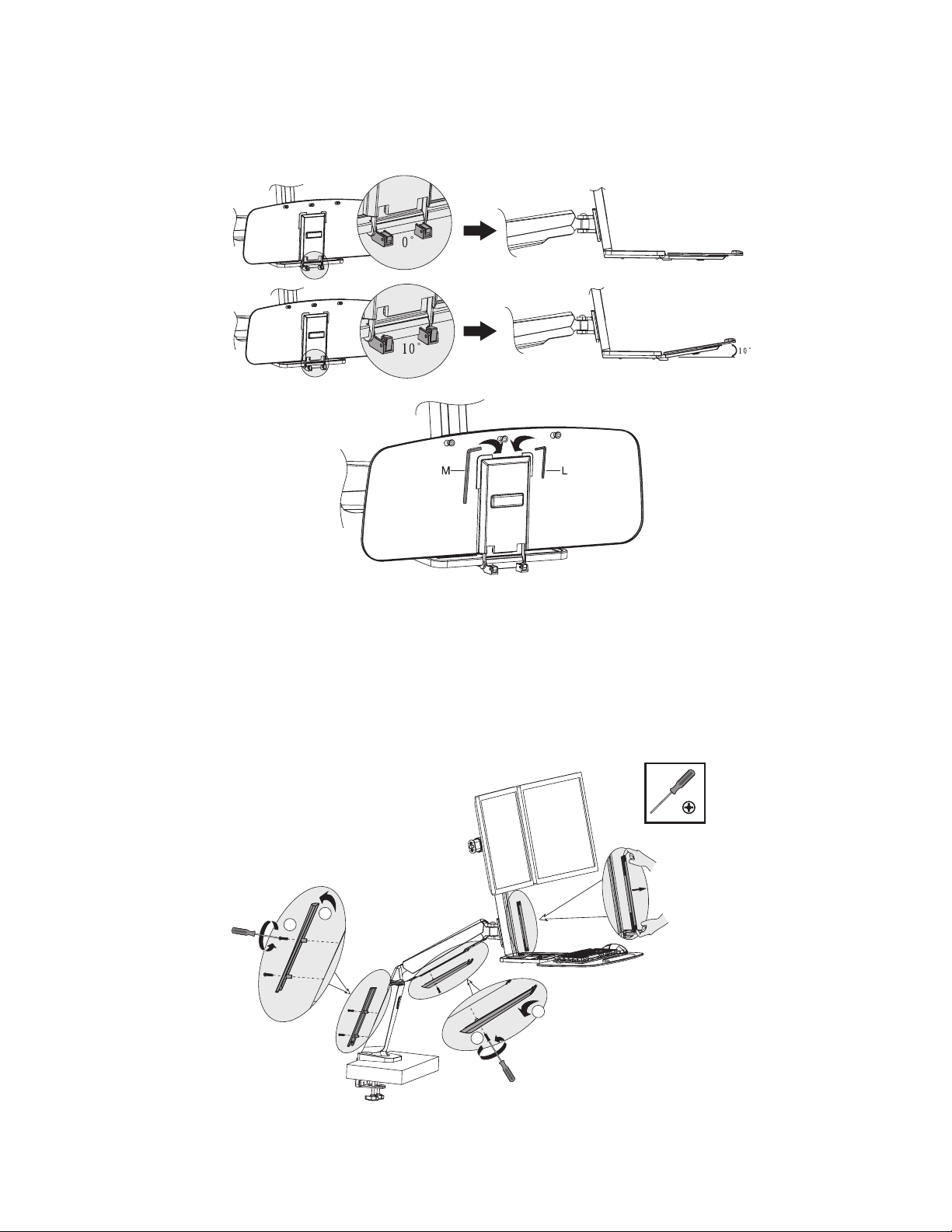

The keyboard tray can be placed in 90 degree, 10 degree or 0 degree orientation to meet

yourneeds.AconvenientAllenKeyholderisincludedforsafestorage,seeFigure15.

Figure 15

Arrange the Cables into the Cable Management Covers

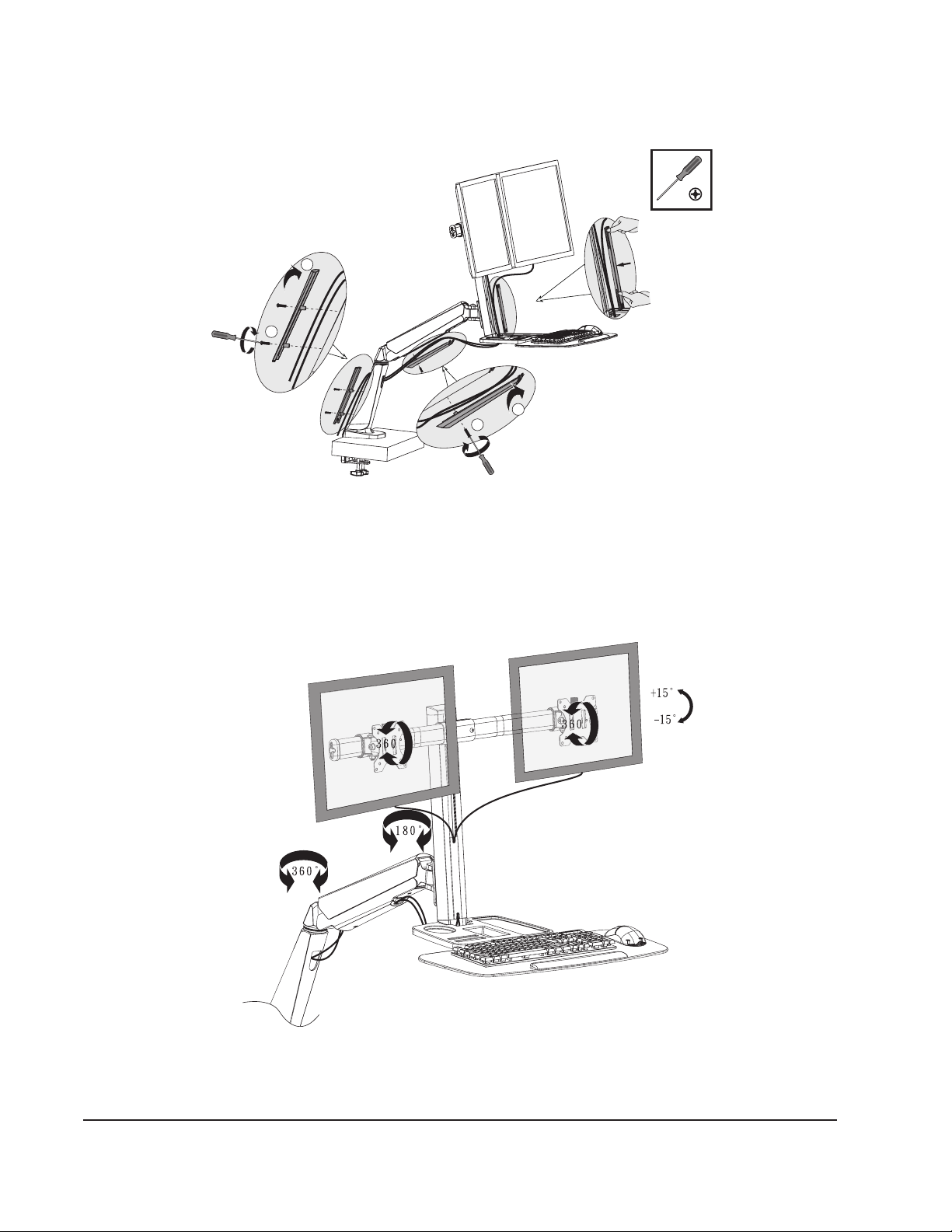

1. Removethecable management coversfromthe mounting armsusinga Phillips screwdriver,seeFigure16.

Figure 16

Page 10

2. Arrangethecablestheninstallthecablemanagementcoversbackontothearms, seeFigure17.

Figure 17

Adjust the Monitor to the Desired Viewing Angle

This Standing Desk Converter allows virtually limitless viewing angles. It can move

(leftandright,upanddown),tilt,swivelandrotate,seeFigure18.

Figure 18

Maintenance

Check the mounting hardware every two months for tightness.

Page 11
