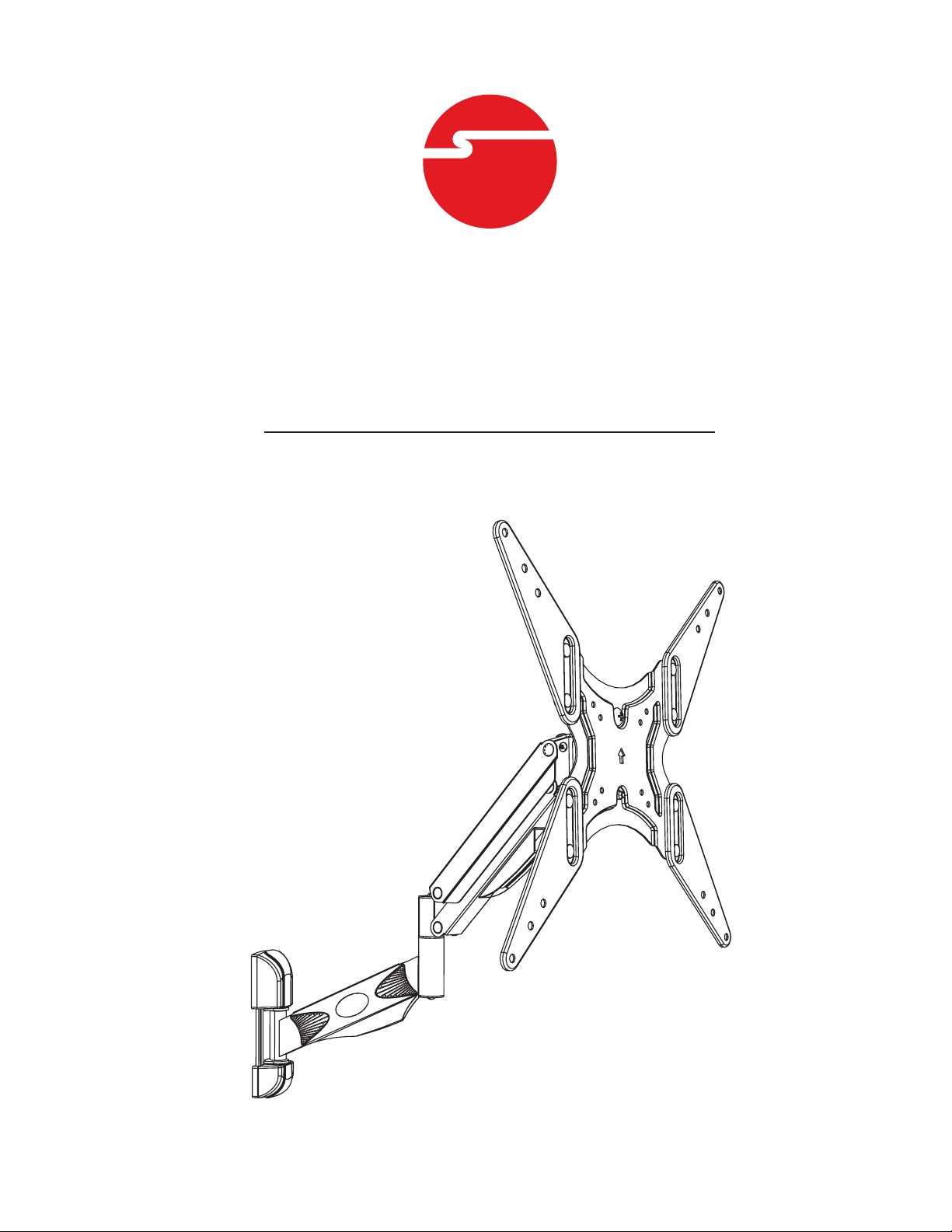

SIIG CE-MT2F12-S1 User guide

Full Motion Gas Spring TV Wall

Mount - 24" to 55"

Installation Instructions

04-1102B

Caution

• Prior to installation of this product, the installation instructions should be read
and completely understood. The installation instructions must be read to prevent
personal injury and property damage. Keep these installation instructions in an
easily accessible location for future reference.

• The maximum load capacity is 48.5lbs (22kg). Use with products exceeding the
maximum load capacity may cause serious injury. See apparatus instructions.

• Recommendedmountingsurfaces:woodstudandsolid-atconcrete/brick.Ifthe
mountistobeinstalledonanysurfaceotherthanwoodstudsorsolidconcrete/

brick, use suitable hardware (not included but commercially available).

• Do not install on a structure that is prone to vibration, movement or chance of

impact.Failuretodosocouldresultindamagetothedisplayand/ordamageto

the mounting surface.

• Do not install near heater, replace, air conditioning, in direct sunlight or any

other heat producing source. Failure to do so may result in damage to the display

andcouldincreasetheriskofre.

• The wall structure must be capable of supporting at least five (5) times the

maximumloadcapacityasindicated.Ifnot,thewallmustbereinforced.

• Proper installation procedure by yourself or a qualied service technician, as

outlined in the installation instructions, must be adhered to. Failure to do so
could result in serious personal injury.

• When mounting to a wall thatcontains wood studs,conrm the deadcenter of

the wood stud prior to installation.

• Itisrecommendedthattwopeopleperformtheinstallation.Personalinjuryand/

or property damage can result from dropping or mishandling the display.

Unpacking

• Carefully remove the contents and lay them out on cardboard or other protective
surface

• Check package contents against the parts list to ensure that all components were
received and undamaged. Do not use damaged or defective parts

• Carefully read all instructions before attempting the installation

2

Safety Information

• Use proper safety equipment during installation

• Ifyoudon'tunderstandtheinstallationinstructions,pleaseconsultaninstallation

specialist

• This stand contains small parts which can act as a choking hazard if swallowed

• Do not use this product for any purpose or in any conguration not explicitly
speciedintheseinstructions

Tools Required

• Phillips screwdriver

• Allen Key

• Adjustable wrench

• Stud Finder

• Electric drill

• 3/16"drillbit(woodstudinstallation)

• 3/8"masonrydrillbit,hammer(concrete/brickinstallation)

Parts List

A1- (3x) M8 Screw

C-(4x)M6x12mmBolt E - (4x) M4x12mm BoltD - (4x) M8x15mm Bolt

A2 -(3x) M8 Concrete Anchor

A3 -(3x) M8 Washer

B1-(4x)M6Washer

a - (8x) Nut

B2 - (1x) Bubble level

b - (8x) Washer

c - (8x) Bolt

3

Installation

Step 1A - Wood Stud Installation

1. Use a high quality Stud Finder (commercially available) to locate dead center of a
wood stud and mark the location with a pencil, see Figure 1.

2.

Hold the wall mount to the wall, line up the mounting holes to dead center of the
wood stud, use the included Bubble Level (B2) to verify the wall mount is level, and
mark the locations to be used for mounting the wall mount to the wall, see Figure 2.

3. Takedownthewallmountanddrilla2inch(50mm)deephole,usinga3/16inch
(3mm)drillbit,atthepositionsyou'vemarked.

4. Place the wall mount back onto the wall over the drilled holes, use the bubble
level to verify the wall mount is level.

5. InsertScrew (A1) with Washer (A3) into the drilled holes and tighten them with a
Phillips screwdriver by turning clockwise until fully tight, see Figure 2.

Figure 1

Figure 2

4

Step 1B - Concrete / Brick Installation

1. Place the wall mount onto the wall in the desired mounting location, use the
included Bubble Level (B2) to ensure the wall mount is level, see Figure 3.

2. Mark the locations to be used for securing the wall mount to the wall, and place
the wall mount aside, see Figure 3. Note: Locate the holes directly into the
concrete or brick, never into the mortar between the blocks.

3. Drilla2inch(50mm)deephole,usinga3/8inch(10mm)masonrydrillbit,atthe
positionsyou'vemarked.

4. InsertaConcrete Anchor (A2) into each hole, see Figure 3.

5. Ifnecessary,ahammercanbeusedtolightlytapeachconcreteanchorintoplace
sothattheyareushwiththewall.

6. Placethewallmountbackontothewallovertheconcrete anchors and use the

bubble level to verify the wall mount is level.

7. InsertScrew (A1) with Washer (A3) into the concrete anchors and tighten them
with a Phillips screwdriver by turning clockwise until fully tight, see Figure 3.

Figure 3

5

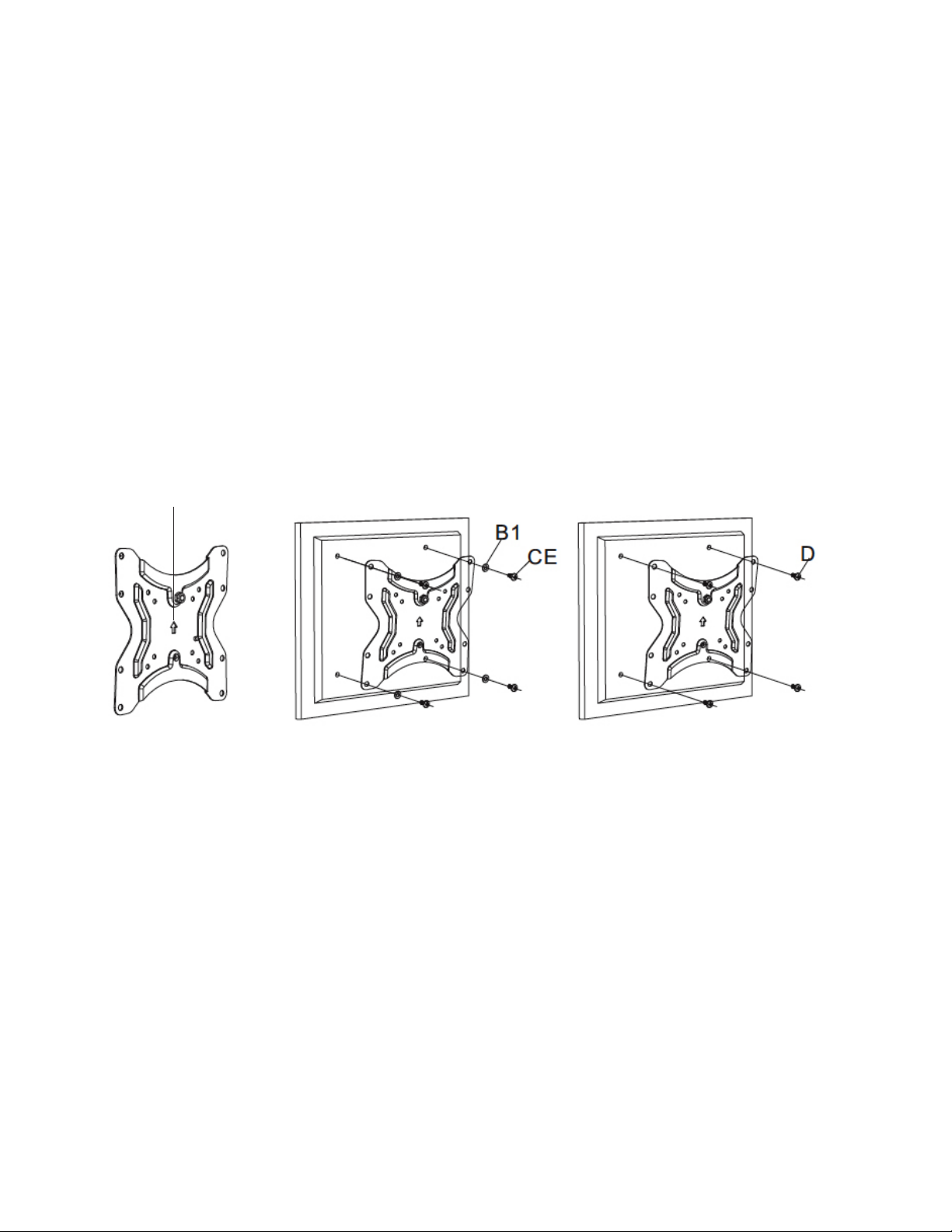

Step 2A - Attach VESA Plate to TV

The VESA Plate ts VESA mounting pattern 75x75, 100x100, 200x100 and 200x200.
ForaTVwithdierentmountingpattern,installtheVESA Plate Extender as shown on

the next page.

VESA Mounting Pattern: 75x75mm / 100x100mm / 200x100mm / 200x200mm

1. Place your TV screen side down on asoft at surface, and locatethe threaded
mountingholesthatarelocatedonthebackoftheTV.

2. PositiontheVESAplateoverthethreadedmountingholeswiththearrowpointing

up, see Figure 4A, 4B, 4C.

3. Select the Bolt (C, D, E) with the correct diameter of the mounting holes of your

TV.

4. Thread the bolts along with Washer (B1) into the TV, then tighten them with
a Phillips screwdriver by turning clockwise until fully tight, see Figure 4B & 4C.

Note: A washer is not required with Bolt (D).

Point Arrow Up

Figure 4A

6

Figure 4B

Figure 4C

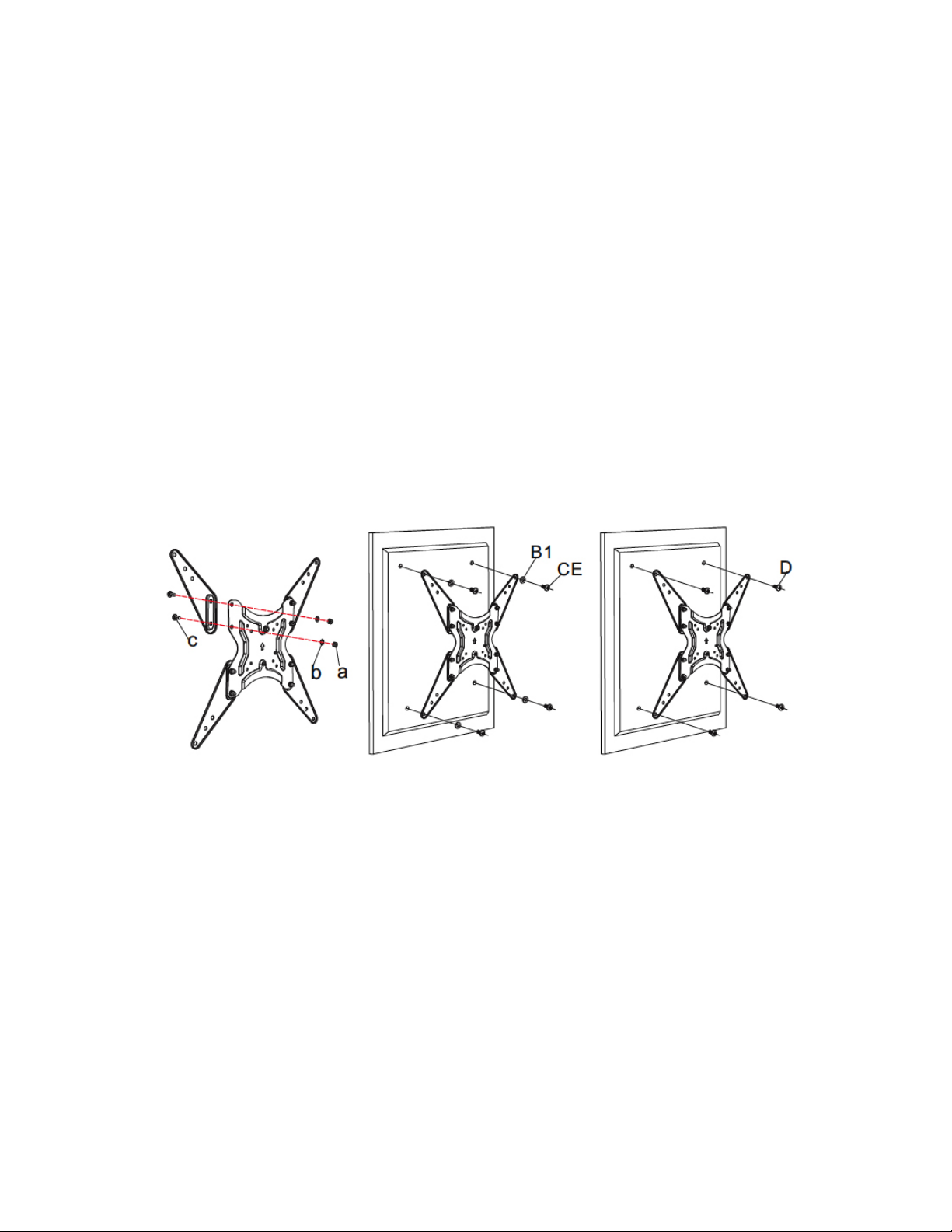

2B - Install the VESA Plate Extender onto the VESA Plate

VESA Mounting Pattern: 300x300, 300x400, 400x300, 400x400

1. PositiontheVESAPlatewiththearrowpointingup,seeFigure 5A.

2. InstalltheVESAPlateExtendertotheVESAPlateinthepositionshown,seeFigure

5A.

3. Use Bolt (c), Washer (b)and Nut(a) and fully tighten by turning the nut clockwise

withawrenchtosecuretheVESAPlateExtendertotheVESAPlate,seeFigure 5A.

4. Place your TV screen sidedown on a soft atsurface, and locate the threaded
mountingholesthatarelocatedonthebackoftheTV.

5. PositiontheVESAplateoverthethreadedmountingholeswiththearrowpointing

up, see Figure 5B & 5C.

6. SelectBolt (C, D, E)withthecorrectdiameterofthemountingholesofyourTV.

7. Thread the bolts, along with Washer (B1), into the TV then tighten them with
a Phillips screwdriver by turning clockwise until fully tight, see Figure 5B & 5C.

Note: A washer is not required with Bolt (D).

Point Arrow Up

Figure 5A Figure 5B

Figure 5C

7

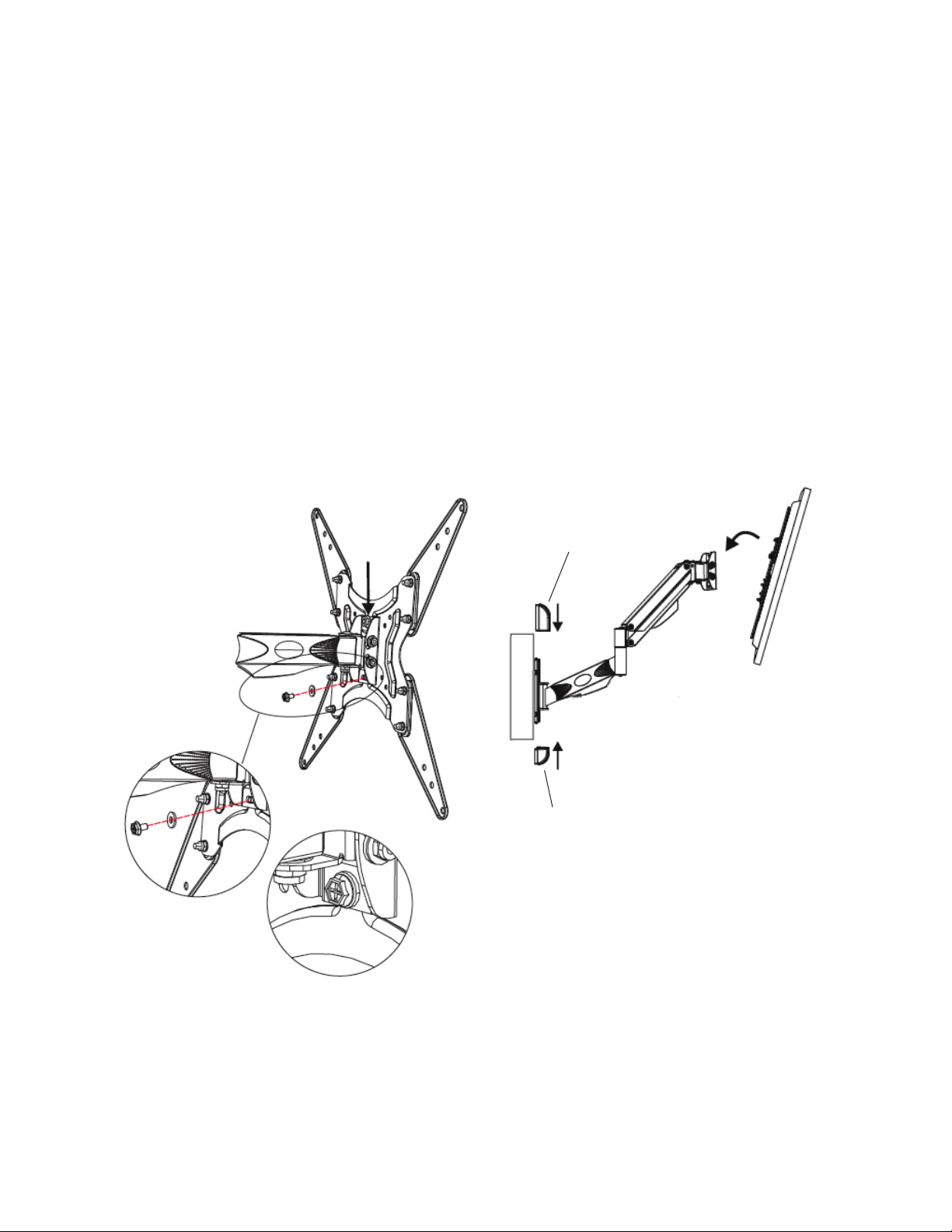

Step 3 - Install the TV onto the Extension Arm

Warning:SomeTVsmayrequiretwopeopletoliftandpositionitontotheextension

arm.  SIIG, Inc. is NOT RESPONSIBLE for any damage or injury caused by incorrect

installation, assembly or use.

1. Loosen the Mounting Nut using a wrench (not included), and remove the

Mounting BoltusingaPhillipsscrewdriverfromtheTVwithVESAPlateassembly,
see Figure 6.

2. HangtheTVwithVESAplateassemblyontothetopoftheextensionarmbracket,
thenletthebottomoftheVESAplaterotatetothebottomofthebracket,seeFigure 7.
Note:Ifneeded,loosenthemountingnutslightlyforeasierinstallation.

3. Replace the mounting bolt removed earlier, then tighten both mounting nut and

mounting bolt by turning them clockwise until fully tight to secure the TV with
VESAplateassemblytotheextensionarm,seeFigure 6.

4. InstalltheDecorativeCapsontothewallbracket,seeFigure 7.

Remove Mounting Bolt

Mounting Nut

Decorative Cap

Figure 7

Decorative Cap

Tighten Mounting Bolt

Figure 6

8

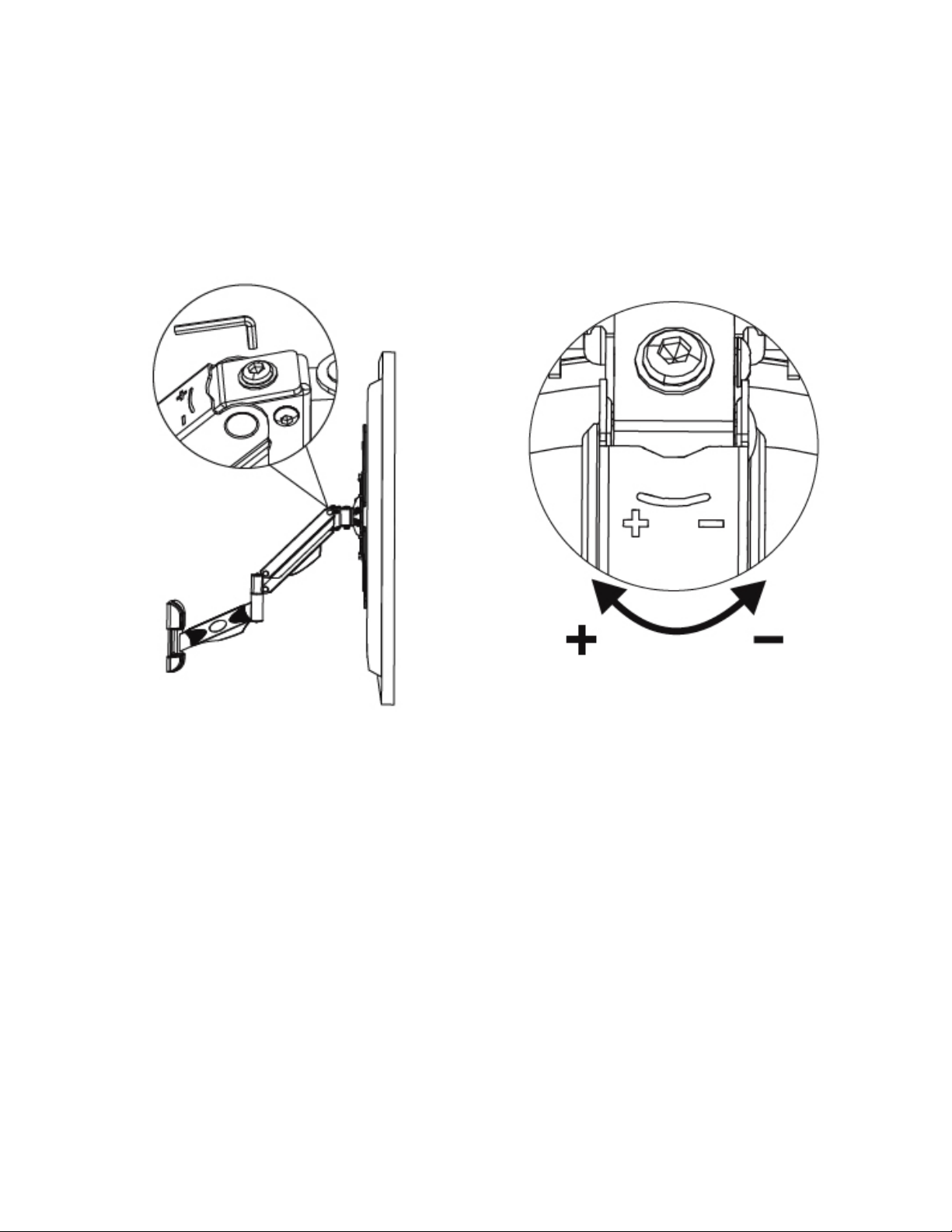

Step 4 - Gas Spring Adjustment

1. Adjust the tension of the gas spring using an Allen Key (not included), see Figure 8.

2. Turn the allen key clockwise to increase the tension for heavier monitors, or turn
it counter clockwise to decrease the tension for lighter monitors, see Figure 9.

Turn Clockwise to

Increase Tension

for Heavier TVs

Figure 8 Figure 9

Turn Counter Clockwise
to Decrease Tension for

Lighter TVs

9

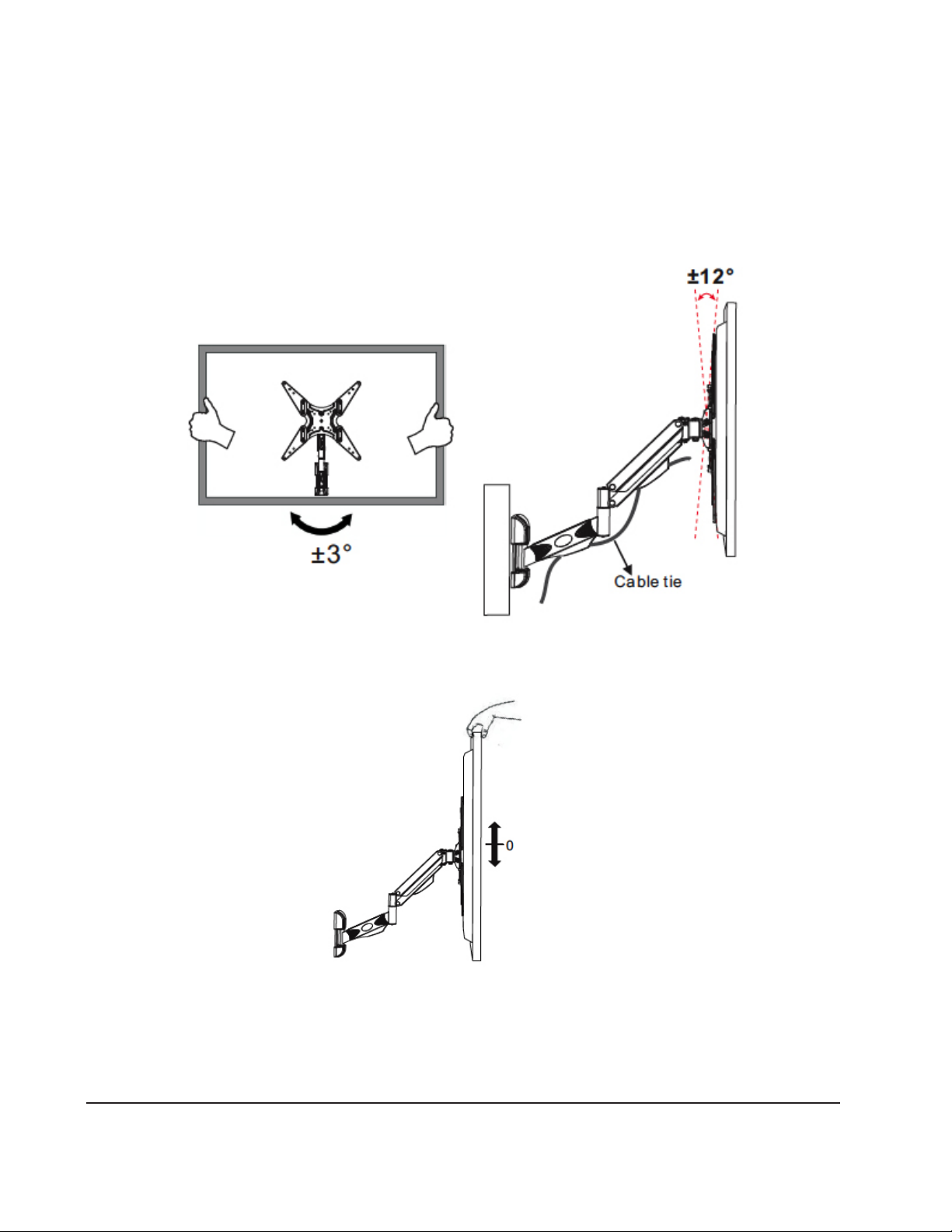

Step 5 - Final Installation

1.

 Adjustthehorizontalaxisupto3degreesleft/rightforvisualalignment,seeFigure 10.

2.

Adjust the tilt angle up to 12 degrees up or down for viewing comfort, see Figure 11.

3.

RoutethecablesfromtheTVthroughthecablemanagementsystem,seeFigure 11.

4. PlacetheheightoftheTVtotheoptimalviewangle,seeFigure 12.

Figure 10

Figure 11

Figure 12

Maintenance

Check the mounting hardware every two months for tightness

10
