•Carefully remove the contents and lay them out on cardboard or other protective
surface
•Check package contents against the parts list to ensure that all components are
received undamaged. Do not use damaged or defective parts
•Carefully read all instructions before attempting installation
Safety Information
•Use proper safety equipment during installation
•If you don't understand the installation instructions, please consult an installation
specialist
•This mount contains small parts which can act as a choking hazard if swallowed
•Do not use this product for any purpose or in any configuration not explicitly
specified in these instructions
Tools Required
•Phillips and flat head screwdriver
•3/8" drill bit and electric drill (for grommet hole installation)
•Ratchet set or adjustable wrench

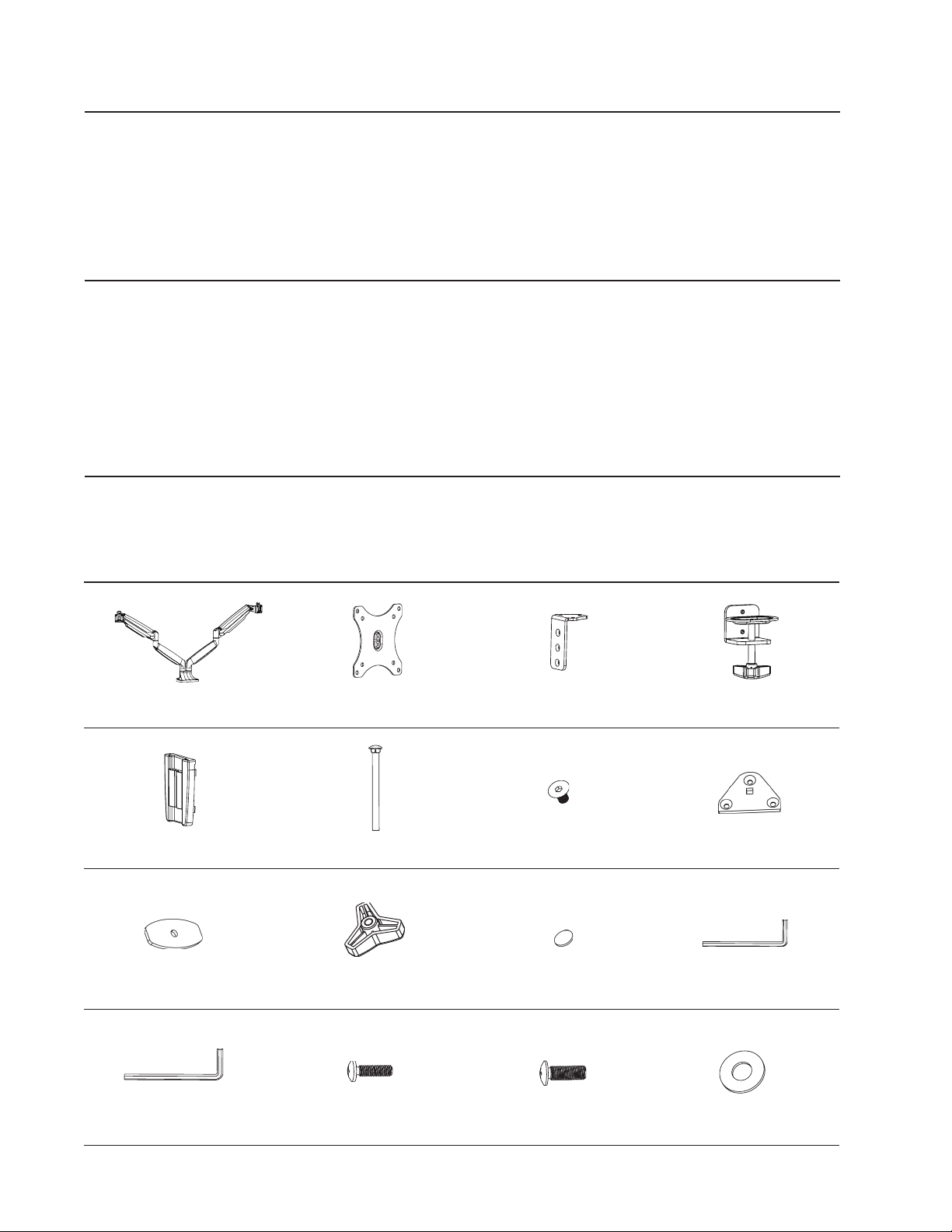

Parts List
(1x) Extension Arm (A)
(1x) Decorative Cap (E)(1x) Grommet Plate (H)
(1x) Grommet Clamp (I)(1x) 4mm Allen Key (L)
(1x) 6mm Allen Key (M)
(2x) VESA Plate (B)
(1x) Grommet Bolt (F)
(1x) Wing Nut (J)
(4x) M4x12 Bolt (M-A)
(1x) C-Clamp Brace (C)
(5x) Bolt (G)
(2x) Protective Pad (K)
(4x) M5x12 Bolt (M-B)
(1x) C-Clamp (D)
(4x) Washer (M-C)
2
Page 3
Installation
Caution: This desk mount must be securely attached to the horizontal desktop. If the
mount is not properly installed it may fall, resulting in bodily injury and/or property
damage.

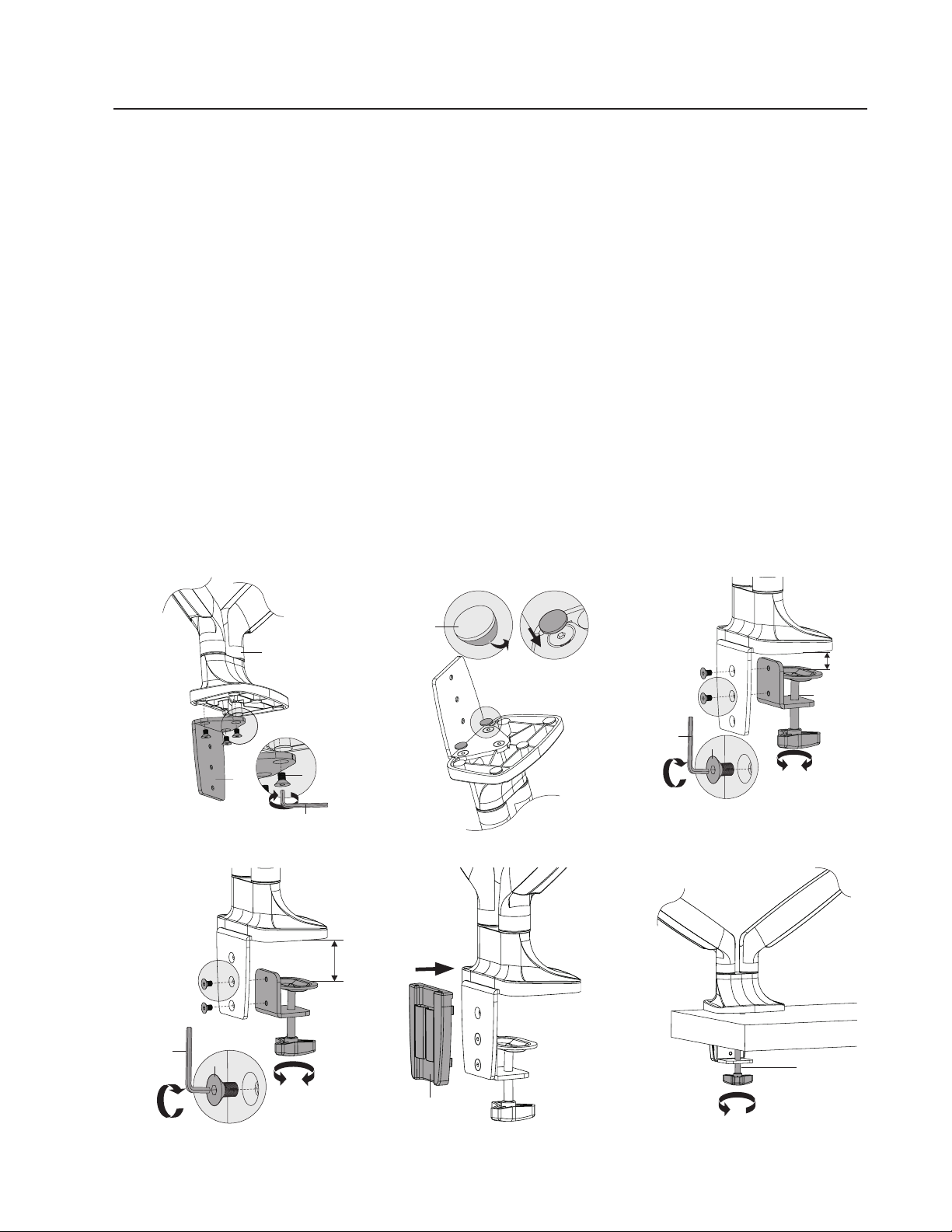

1A) C-Clamp Installation
1.Install the C-Clamp Brace (C) to the Extension Arm (A), secure them using Bolt (G)
with Allen Key (L) turning clockwise until tight, see Figure 1.
2.Install Protective Pad (K) to cover the bolt, see Figure 2.
3.Install the C-Clamp (D) to the C-Clamp Brace (C) according to the thickness of your
desktop.
a) Desktops of 10mm-55mm thickness: Select the two upper mounting holes and
secure them using Bolt (G) with Allen Key (L) turning clockwise until tight, see Figure
3A
b) Desktops of 50mm-85mm thickness: Select the two lower mounting holes and
secure them using Bolt (G) with Allen Key (L) turning clockwise until tight, see Figure
3B.
4.Install the Decorative Cap (E) to the C-Clamp Brace, see Figure 3C.
5.Position the Arm Assembly to the desktop. Loosen the clamp screw according to
the thickness of the desktop. Tighten the C-Clamp to the desktop by turning the
clamp screw clockwise, see Figure 4.
K
A
10-55mm
D
L
G
C
L
G
G
L
Figure 2Figure 1Figure 3A
50-85mm
Clamp Screw
E
Figure 3BFigure 3CFigure 4
3
Page 4

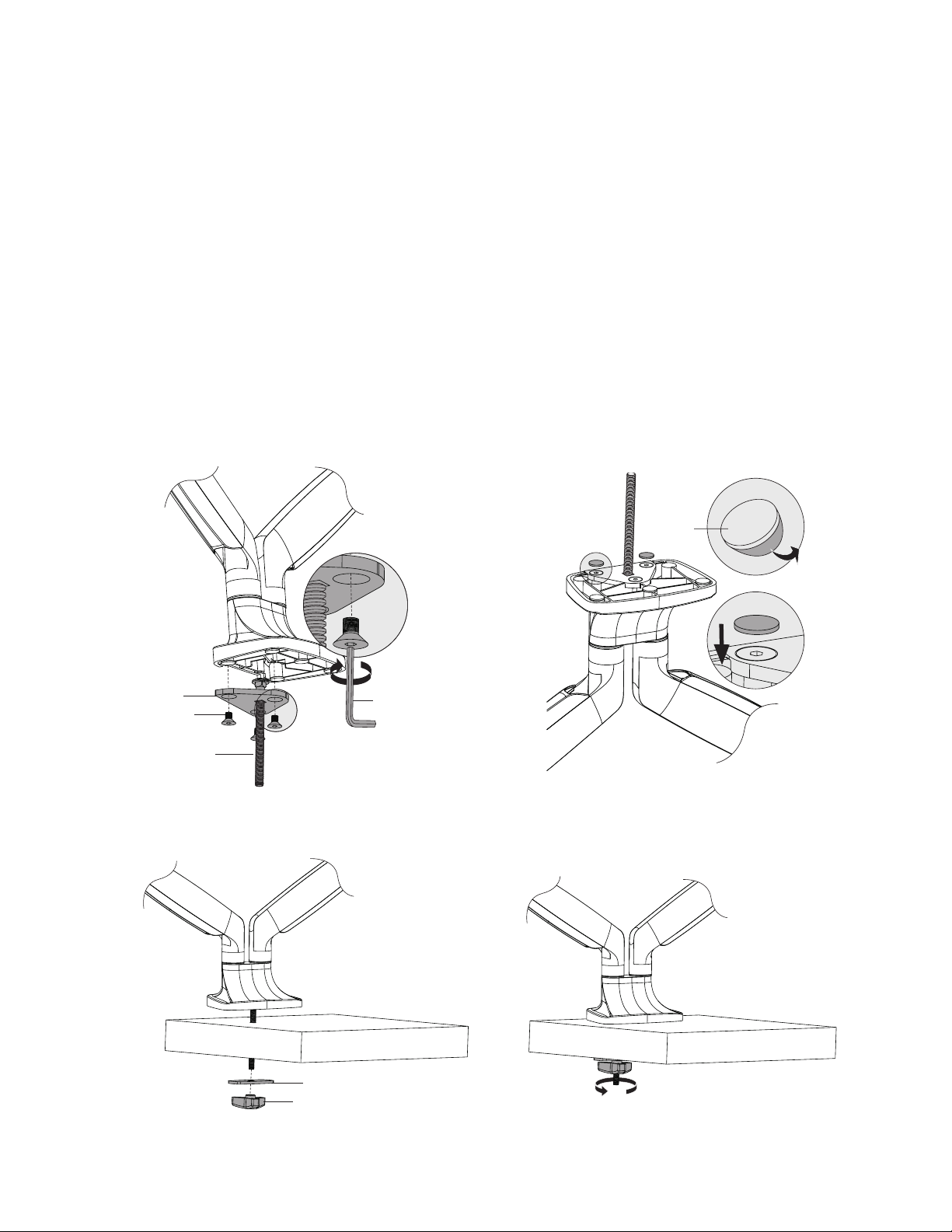

1B) Grommet Hole Installation
This installation requires you to either drill a 3/8" (10mm) diameter hole through the
desktop or use an existing grommet hole (2.25" diameter max). Note: If the existing
grommet hole comes with a plastic protector, remove it to ensure a flat surface before
installing the Extension Arm.
1.Insert the Grommet Bolt (F) into the Grommet Plate (H), see Figure 5
2.Attach the Grommet Plate (H) to the Extension Arm (A), secure them using Bolt (G)
with Allen Key (L) turning clockwise until tight, see Figure 5.
3.Install the Protective Pad (K) to cover the bolt, see Figure 6.
4.Position the Arm Assembly onto the desktop, secure it using the Grommet Clamp
(I) and Wing Nut (J), see Figure 7. Warning: Carefully screw the Wing Nut to prevent
cross-threading and damage to the grommet bolt.
5.Tighten the grommet mount to the desktop by turning the Wing Nut (J) clockwise,
see Figure 8.
K
H
G
F
Figure 5
I
J
Figure 7Figure 8
L
Figure 6
4
Page 5

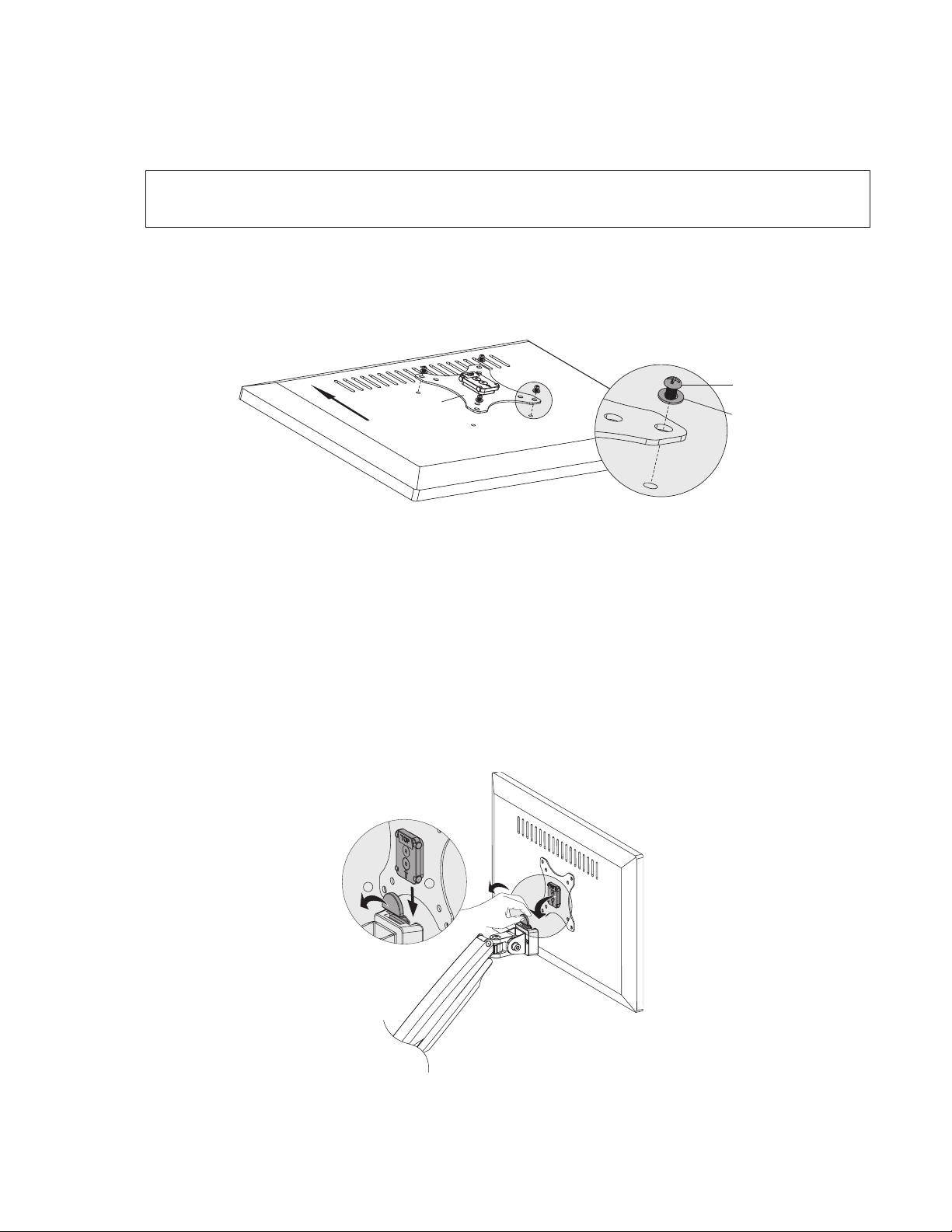

Mounting the Monitor to the VESA Plate and Extension Arm
C
1.Turn the VESA Plate so that "TOP" faces up, then mount it onto the monitor, see Figure 9.
2.Install Washer (M-C) with either M4x12 Bolt (M-A) or M5x12 Bolt (M-B) into the monitor's
mounting holes, tighten them using a Phillips screwdriver, see Figure 9.
Note: When assembling/disassembling the monitor, the spring arm rebound tension may
cause serious personal injury if not handled correctly.
M-A
B
M-B
M-
Figure 9
3.Push the tab back and mount the VESA Plate onto the Extension Arm, see Figure 10.
1
2
Figure 10
5
Page 6
Final Adjustments and Arranging the Cables
Gas Spring, Monitor Tilt and Swivel Adjustment
1.Adjust the tension of the gas spring using a 6mm Allen Key (M), turn the screw
counter clockwise to increase the tension and clockwise to decrease the tension,
see Figure 11.
2.Adjust tightness of the Monitor Tilt and Swivel using a 6mm Allen Key, see Figure 11.
Gas Spring Tension: Turn the screw
counter clockwise to increase and
clockwise to decrease the tension
Swivel
M
M
Gas Spring Adjustment
Figure 11

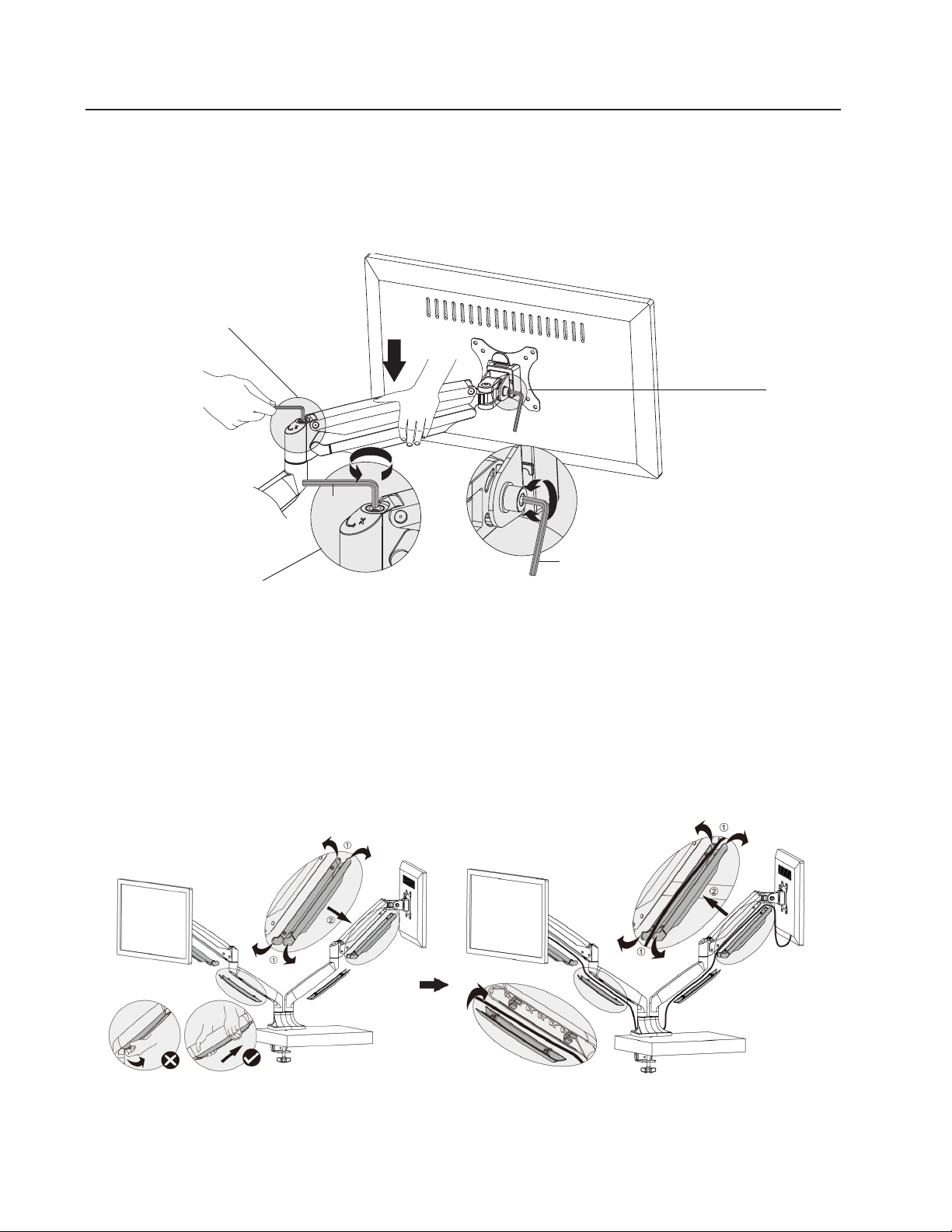

Arrange the Cables into the Cable Covers
1.Remove the cable covers from the mounting arms, see Figure 12.
2.Arrange the cables into the covers and place the covers back onto the arms, see
Figure 13.
Figure 12Figure 13
6
Page 7
Adjust the Monitor to the Desired Viewing Angle

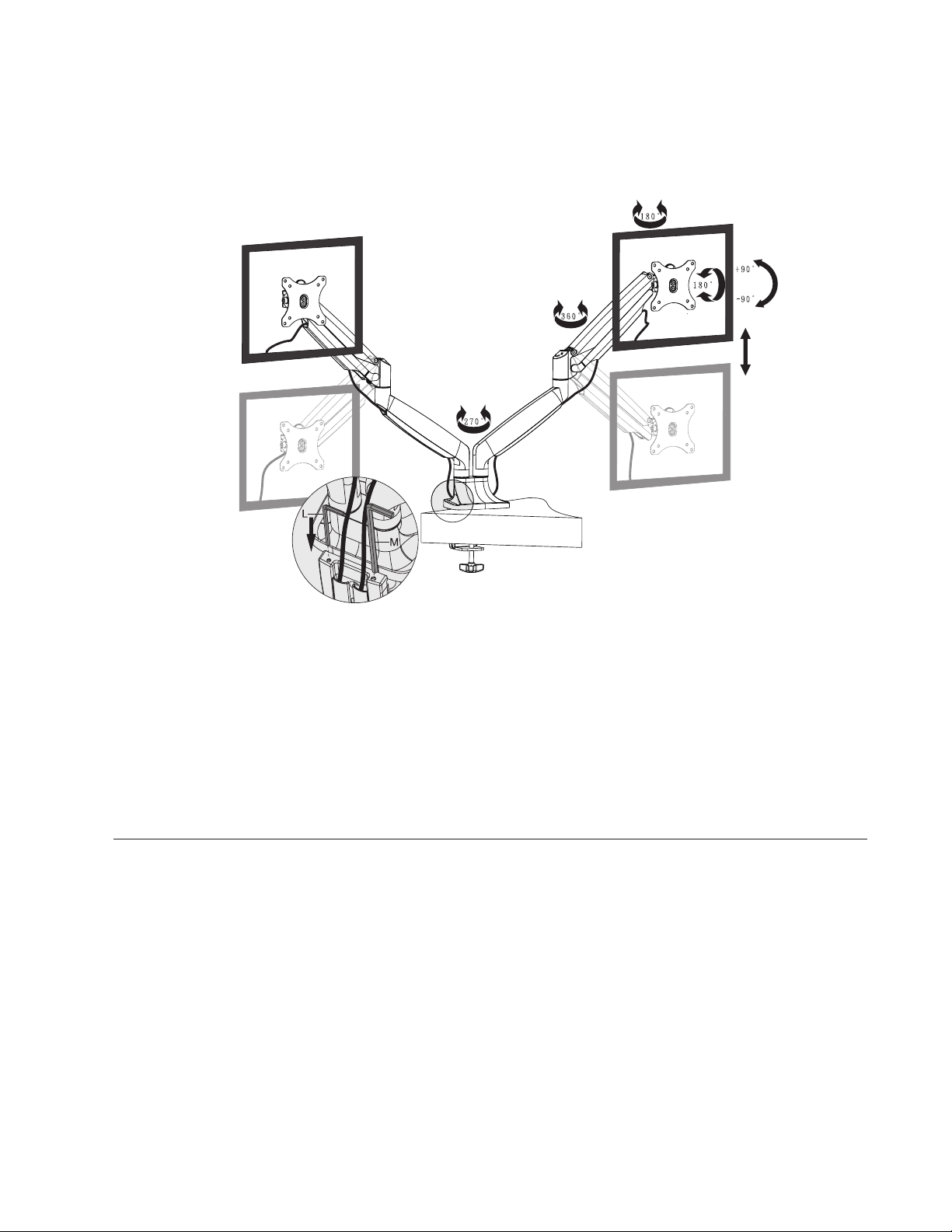

This desk mount allows virtually limitless viewing angles. It can move (left and right, up
and down), tilt, swivel and rotate, see Figure 14.
Figure 14
Maintenance
Check the mounting hardware every two months for tightness.
7
Page 8
Technical Support and Warranty
