SIIG CE-MT2D12-S1 User guide

High Premium Aluminum

Gas Spring Desk Mount - Single

Installation Instructions

04-1100C

1

Unpacking

• Carefully remove the contents and lay them out on cardboard or other protective surface

• Check package contents against the parts list to ensure that all components are
received undamaged. Do not use damaged or defective parts

• Carefully read all instructions before attempting installation

Safety Information

• Use proper safety equipment during installation

•

If you don't understand the installation instructions, please consult an installation specialist

• This mount contains small parts which can act as a choking hazard if swallowed

• Do not use this product for any purpose or in any conguration not explicitly
speciedintheseinstructions

Tools Required

• Phillipsandatheadscrewdriver

• 3/8" drill bit and electric drill (for grommet hole installation)

• Ratchet set or adjustable wrench

Parts List

(1x)ExtensionArm(A)

(1x)DecorativeCap(E)

(1x)GrommetClamp(I) (1x)4mmAllenKey(L)

(1x)VESAPlate(B)

(1x)GrommetBolt(F)

(1x)WingNut(J)

(1x)C-ClampBrace(C)

(5x)Bolt(G)

(2x)ProtectivePad(K)

(1x)C-Clamp(D)

(1x)GrommetPlate(H)

(1x)6mmAllenKey(M)

2

(4x)M4x12Bolt(M-A)

(4x)M5x12Bolt(M-B)

(4x)Washer(M-C)

Installation

A

C

L

G

K

10-55mm

D

L

G

E

Caution: This desk mount must be securely attached to the horizontal desktop. If the
mount is not properly installed it may fall, resulting in bodily injury and/or property
damage.

1A) C-Clamp Installation

1. InstalltheC-ClampBrace(C)totheExtensionArm(A),securethemusingBolt(G)
withAllenKey(L)turningclockwiseuntiltight,seeFigure1.

2. InstallProtectivePad(K)tocoverthebolt,seeFigure2.

3. InstalltheC-Clamp(D)totheC-ClampBrace(C)accordingtothethicknessofyour

desktop.

a) Desktops of 10mm-55mm thickness: Select the two upper mounting holes and
securethemusingBolt(G)withAllenKey(L)turningclockwiseuntiltight,seeFigure3A

b) Desktops of 50mm-85mm thickness: Select the two lower mounting holes and
securethemusingBolt(G)withAllenKey(L)turningclockwiseuntiltight,seeFigure3B.

4. InstalltheDecorativeCap(E)totheC-ClampBrace,seeFigure3C.

5. PositiontheArmAssemblytothedesktop.Loosentheclampscrewaccordingto

the thickness of the desktop. Tighten the C-Clamp to the desktop by turning the

clampscrewclockwise,seeFigure4.

Figure 1 Figure 3A

50-85mm

Figure 3B

Figure 2

Figure 3C

ClampScrew

Figure 4

3

K

1B) Grommet Hole Installation

L

F

H

G

J

I

This installation requires you to either drill a 3/8" (10mm) diameter hole through the

desktoporuseanexistinggrommethole (2.25"diametermax). Note:Iftheexisting
grommetholecomeswithaplasticprotector,removeittoensureaatsurfacebefore
installingtheExtensionArm.

1. InserttheGrommetBolt(F)intotheGrommetPlate(H),seeFigure5

2. AttachtheGrommetPlate(H)totheExtensionArm(A),securethemusingBolt(G)
withAllenKey(L)turningclockwiseuntiltight,seeFigure5.

3. InstalltheProtectivePad(K)tocoverthebolt,seeFigure6.

4. PositiontheArmAssemblyontothedesktop,secureitusingtheGrommetClamp(I)

and WingNut(J),seeFigure7.Warning:CarefullyscrewtheWingNuttoprevent
cross-threading and damage to the grommet bolt.

5. TightenthegrommetmounttothedesktopbyturningtheWingNut(J)clockwise,
seeFigure8.

Figure 5

4

Figure 7 Figure 8

Figure 6

Mounting the Monitor to the VESA Plate and Extension Arm

M-A
M-B

M-C

B

2

1

1. TurntheVESAPlatesothat"TOP"facesup,thenmountitontothemonitor,seeFigure9.

2. InstallWasher(M-C)witheitherM4x12Bolt(M-A)orM5x12Bolt(M-B)intothemonitor's
mountingholes,tightenthemusingaPhillipsscrewdriver,seeFigure9.

Note: When assembling/disassembling the monitor, the spring arm rebound tension

may cause serious personal injury if not handled correctly.

Figure 9

3. PushthetabbackandmounttheVESAPlateontotheExtensionArm,seeFigure10.

Figure 10

5

Final Adjustments and Arranging the Cables

M

M

Gas Spring, Monitor Tilt and Swivel Adjustment

1.

Adjustthetensionofthegasspringusinga6mmAllenKey(M),turnthescrewcounter
clockwisetoincreasethetensionandclockwisetodecreasethetension,seeFigure11.

2.

AdjusttightnessoftheMonitorTiltandSwivelusinga6mmAllenKey,seeFigure11.

Gas Spring Tension: Turn the screw

counter clockwise to increase and
clockwise to decrease the tension

Swivel

Gas Spring Adjustment

Figure 11

Arrange the Cables into the Cable Covers

1. Removethecablecoversfromthemountingarms,seeFigure12.

2.

Arrangethecablesintothecoversandplacethecoversbackontothearms,seeFigure13.

Figure 12 Figure 13

6

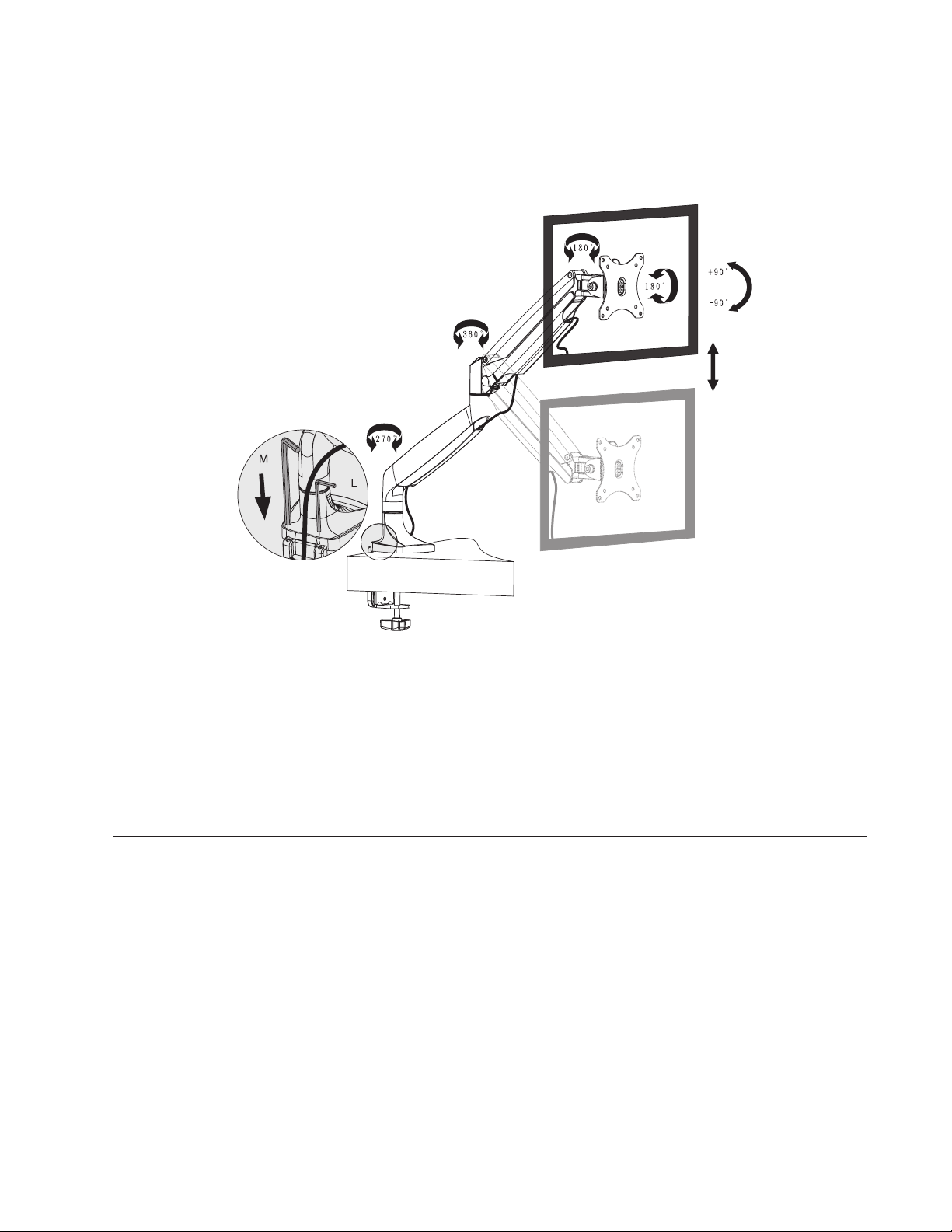

Adjust the Monitor to the Desired Viewing Angle

This desk mount allows virtually limitless viewing angles. It can move (left and right, up

anddown),tilt,swivelandrotate,seeFigure14.

Figure 14

Maintenance

Check the mounting hardware every two months for tightness.

7

Technical Support and Warranty

QUESTIONS?

online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few
clicks away. You can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a 2-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees the
product to be free of any defects in materials or workmanship for two (2) years from the date of purchase of the product.
This warranty is not transferable and is available only to the original purchaser of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and

functionality) the product if defective in materials or workmanship. This warranty gives you specic legal rights, and

you may also have other rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store where you purchased from.

B) If your purchase has passed the store's return policy period, please follow the steps below to have the product
repaired or replaced.

Step 1:

Go to
request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA
number will be issued.

Step 2:

• Properly pack the product for shipping. All accessories that came with the original package must be included.

• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping
package, and will not be responsible for a product returned without an RMA number posted on the outside of the
shipping carton.

• You are responsible for the cost of shipping to SIIG. Ship the product to the following address:

SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:

• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S.
at no cost to the customer.

SIIG’s

Submit your RMA request.

www.siig.com
