Page 1

Full-Motion Gas Spring Single Monitor

Desk Mount 13" to 27" - Black

Installation Instructions

04-1042A

Page 2

Unpacking

• Carefully remove the contents and lay them out on cardboard or other protective surface

• Check package contents against the parts list to ensure that all components are received undamaged. Do not use damaged or defective parts

• Carefully read all instructions before attempting installation

Safety Information

• Use proper safety equipment during installation

• If you don't understand the installation instructions, please consult an installation specialist

• This mount contains small parts which can act as a choking hazard if swallowed

• Do not use this product for any purpose or in any configuration not explicitly specified in these instructions

Tools Required

• Phillips and flat head screwdriver

• 3/8" drill bit and electric drill (for grommet hole installation)

• Ratchet set or adjustable wrench

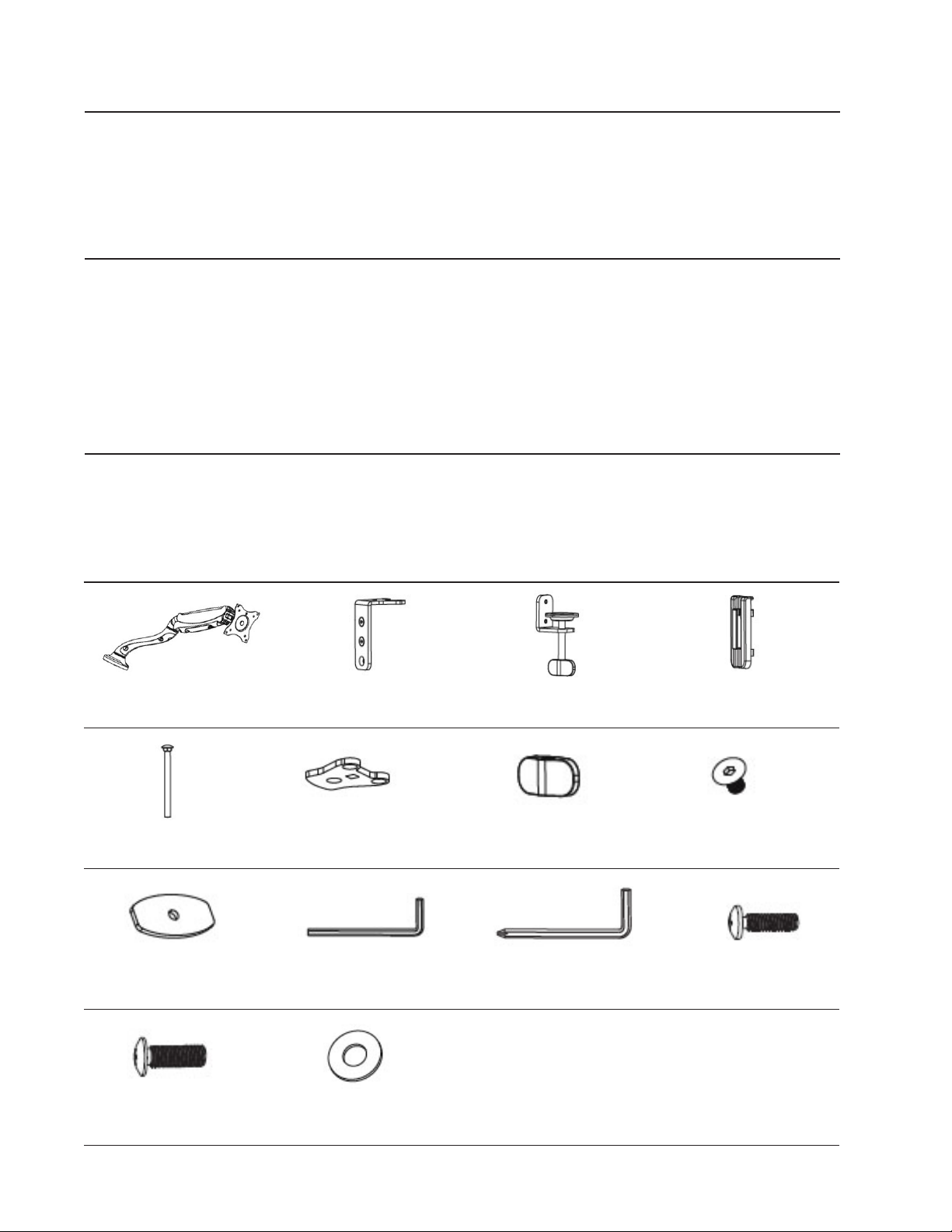

Parts List

(1x) Extension Arm (A) (1x) Decorative Cap (D)

(1x) Grommet Bolt (E)

(1x) Grommet Clamp (I) (1x) 4mm Allen Key (J) (1x) 5mm Allen Key (K)

(1x) C-Clamp Brace (B) (1x) C-Clamp (C)

(1x) Wing Nut (G)

(5x) Bolt (H)(1x) Grommet Plate (F)

(4x) M4x12 Bolt (M-A)

(4x) M5x12 Bolt (M-B)

(4x) Washer (M-C)

Page 3

Installation

Caution: This desk mount must be securely attached to the horizontal desktop. If the mount is not properly installed it may fall, resulting in bodily injury and/or property damage.

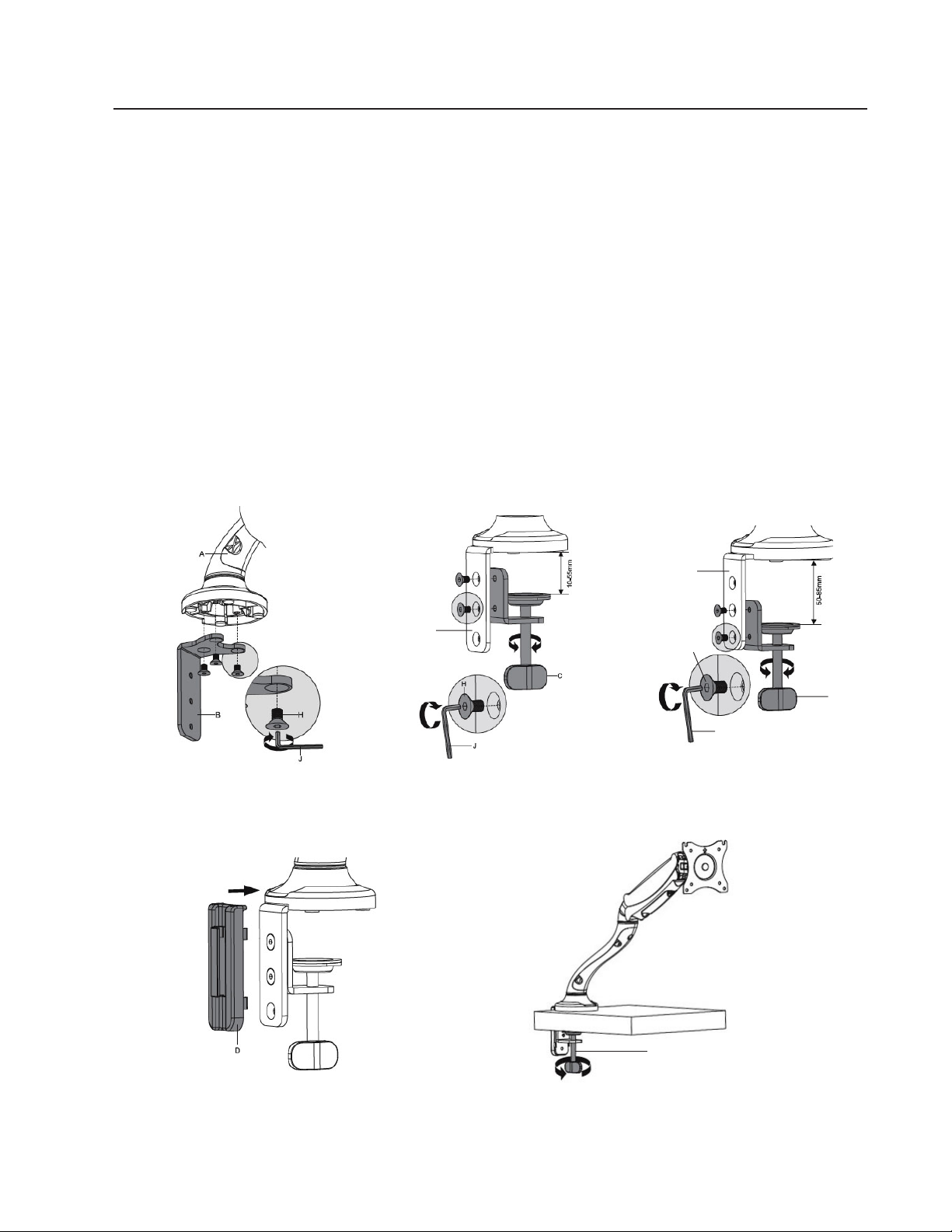

1A) C-Clamp Installation

1. Install the C-Clamp Brace (B) to the Extension Arm (A), secure them using Bolt (H) with Allen Key (J) turning clockwise until tight, see Figure 1.

2. Install the C-Clamp (C) to the C-Clamp Brace (B) according to the thickness of your desktop.

2a) Desktops of 10mm-55mm thickness: Select the two upper mounting holes and secure them using Bolt (H) with Allen Key (J) turning clockwise until tight, see Figure 2A

2b) Desktops of 50mm-85mm thickness: Select the two lower mounting holes and secure them using Bolt (H) with Allen Key (J) turning clockwise until tight, see Figure 2B.

3. Install the Decorative Cap (D) to the C-Clamp Brace, see Figure 2C.

4. Position the Arm Assembly to the desktop. Loosen the clamp screw according to the thickness of the desktop. Tighten the C-Clamp to the desktop by turning the clamp screw clockwise, see Figure 3.

Figure 1 Figure 2B

Figure 2A

Figure 2C

Clamp Screw

Figure 3

Page 4

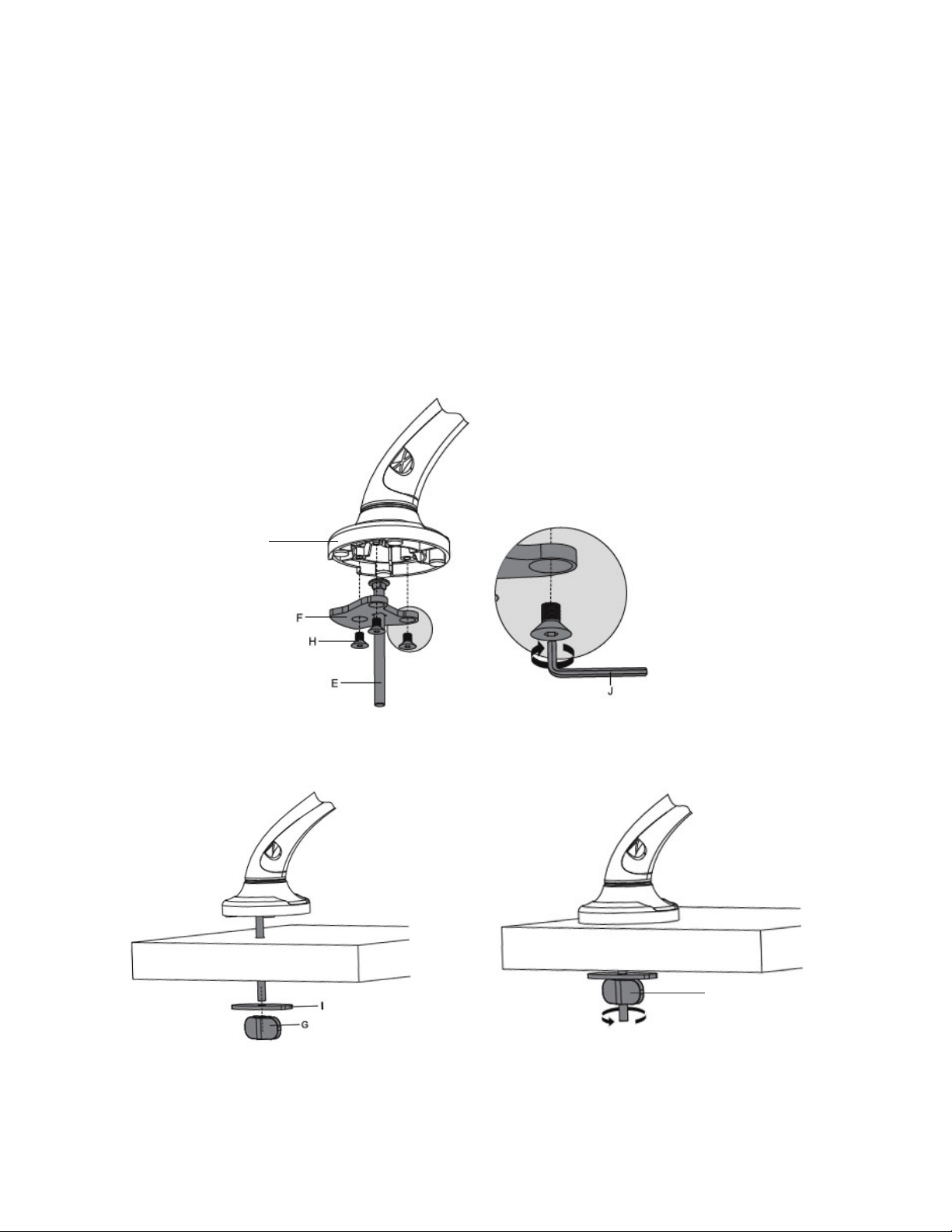

1B) Grommet Hole Installation

This installation requires you to either drill a 3/8" (10mm) diameter hole through the desktop or use an existing grommet hole (2.25" diameter max). Note: If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the Extension Arm.

1. Insert the Grommet Bolt (E) into the Grommet Plate (F), see Figure 4

2. Attach the Grommet Plate (F) to the Extension Arm (A), secure them using Bolt (H) with Allen Key (J) turning clockwise until tight, see Figure 4.

3. Position the Arm Assembly onto the desktop, secure it using the Grommet Clamp (I) and Wing Nut (G), see Figure 5. Warning: Carefully screw the Wing Nut to prevent crossthreading and damage to the grommet bolt.

4. Tighten the grommet mount to the desktop by turning the Wing Nut (G) clockwise, see Figure 6.

Figure 4

Figure 5 Figure 6

Page 5

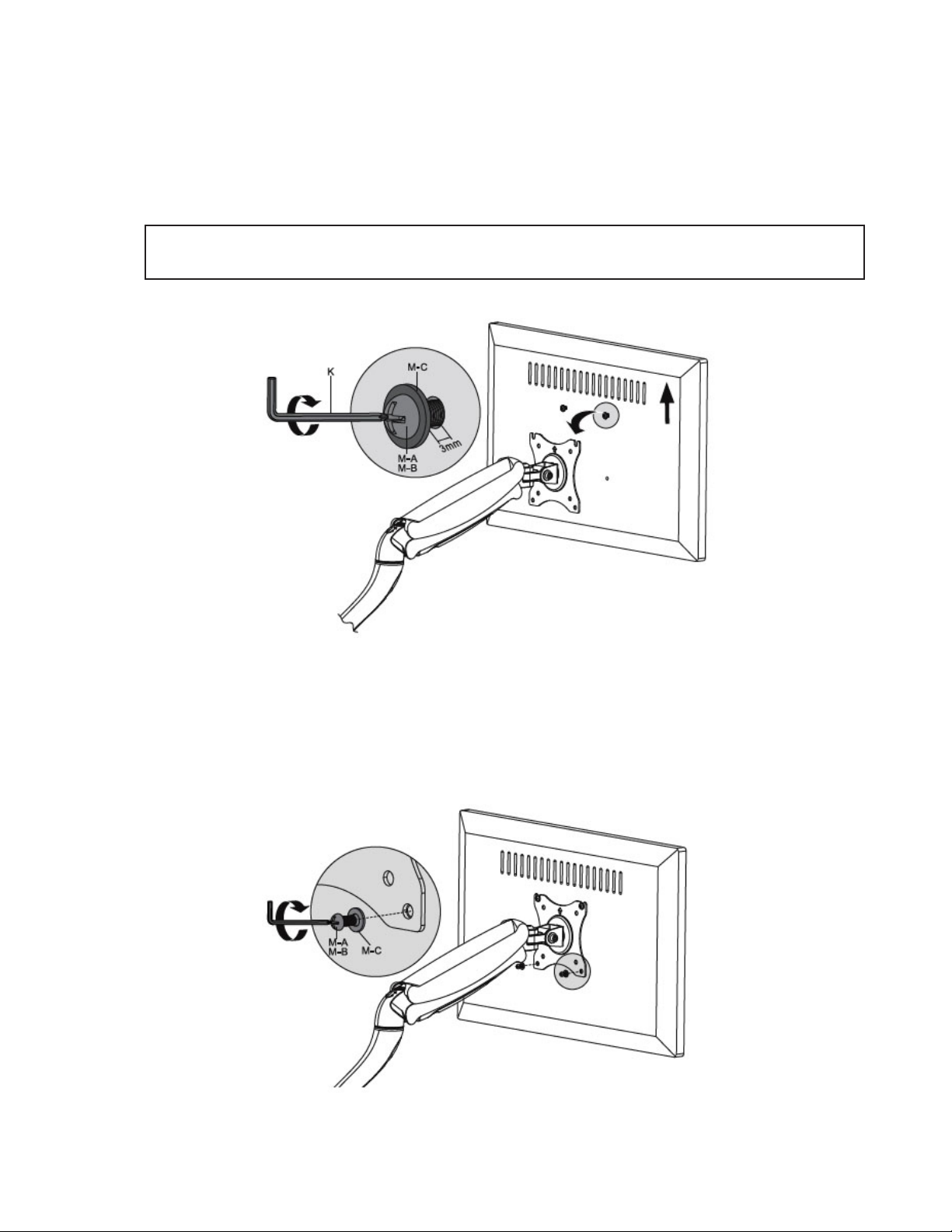

Mounting the Monitor to the VESA Plate

1. Install Washer (M-C) with either M4x12 Bolt (M-A) or M5x12 Bolt (M-B) into the monitor's upper mounting holes, tighten them using Allen Key (K) or a Phillips screwdriver leaving 3mm gap, see Figure 7.

2. Turn the VESA plate so that the slotted mounting holes are facing up, then mount the monitor onto the VESA plate, see Figure 7.

Note: When assembling/disassembling the monitor, the spring arm rebound tension may cause serious personal injury if not handled correctly.

Figure 7

3. Install Washer (M-C) with either M4x12 Bolt (M-A) or M5x12 Bolt (M-B) into the monitor's lower mounting holes and fully tighten all bolts using Allen Key (K) or a Phillips screwdriver, see Figure 8.

Figure 8

Page 6

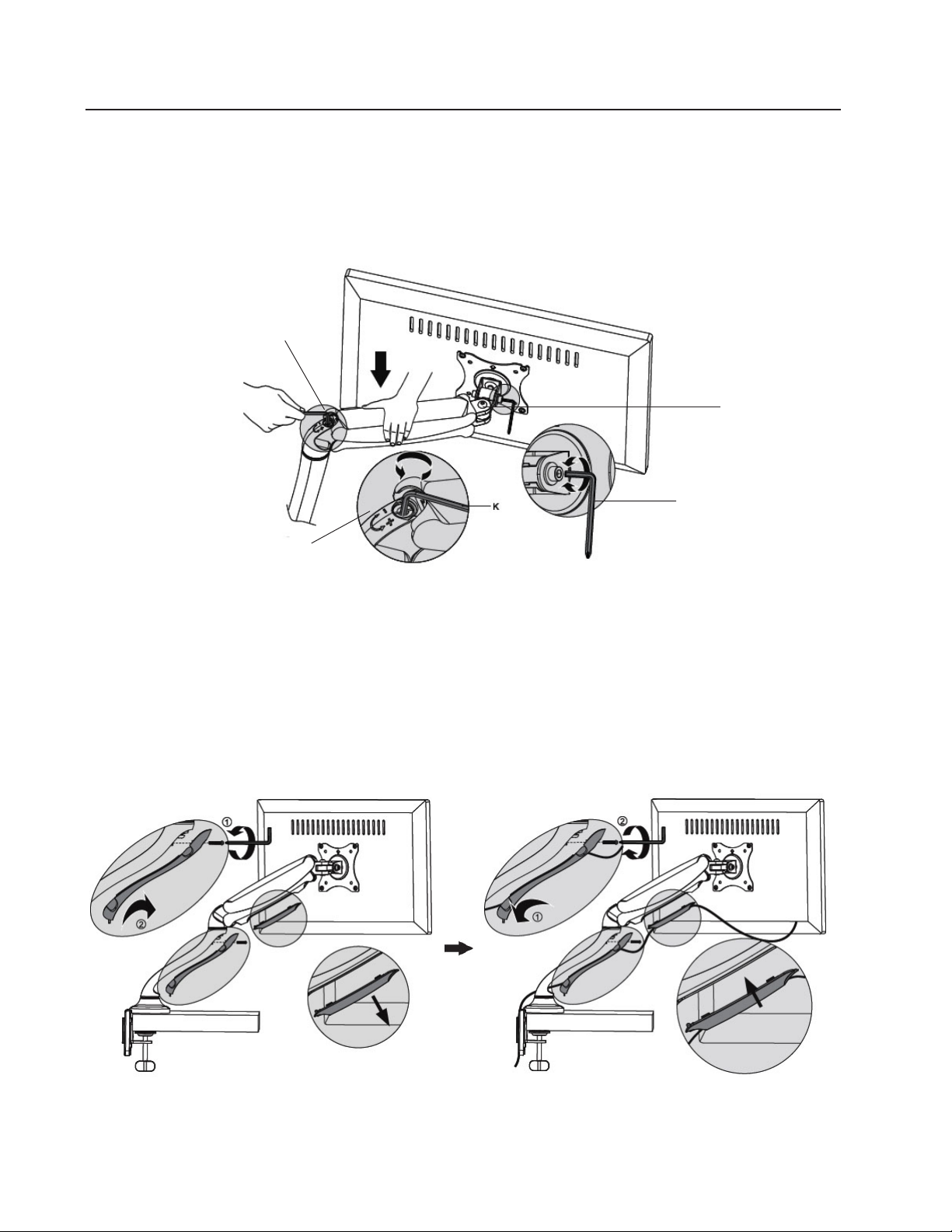

Final Adjustments and Arranging the Cables

Gas Spring, Monitor Tilt and Swivel Adjustment

1. Adjust the tension of the gas spring using a 5mm Allen Key (K), turn the screw counter clockwise to increase the tension and clockwise to decrease the tension, see Figure 9.

2. Adjust tightness of the Monitor Tilt and Swivel using a 5mm Allen Key, see Figure 9.

Gas Spring Tension: Turn the screw

counter clockwise to increase and clockwise to decrease the tension

Swivel

Tilt: 5mm Allen Key

Gas Spring Adjustment

Figure 9

Arrange the Cables into the Cable Covers

1. Remove the cable covers from the mounting arms, see Figure 10.

2. Arrange the cables into the covers and place the covers back onto the arms, see Figure 11.

Figure 10 Figure 11

Page 7

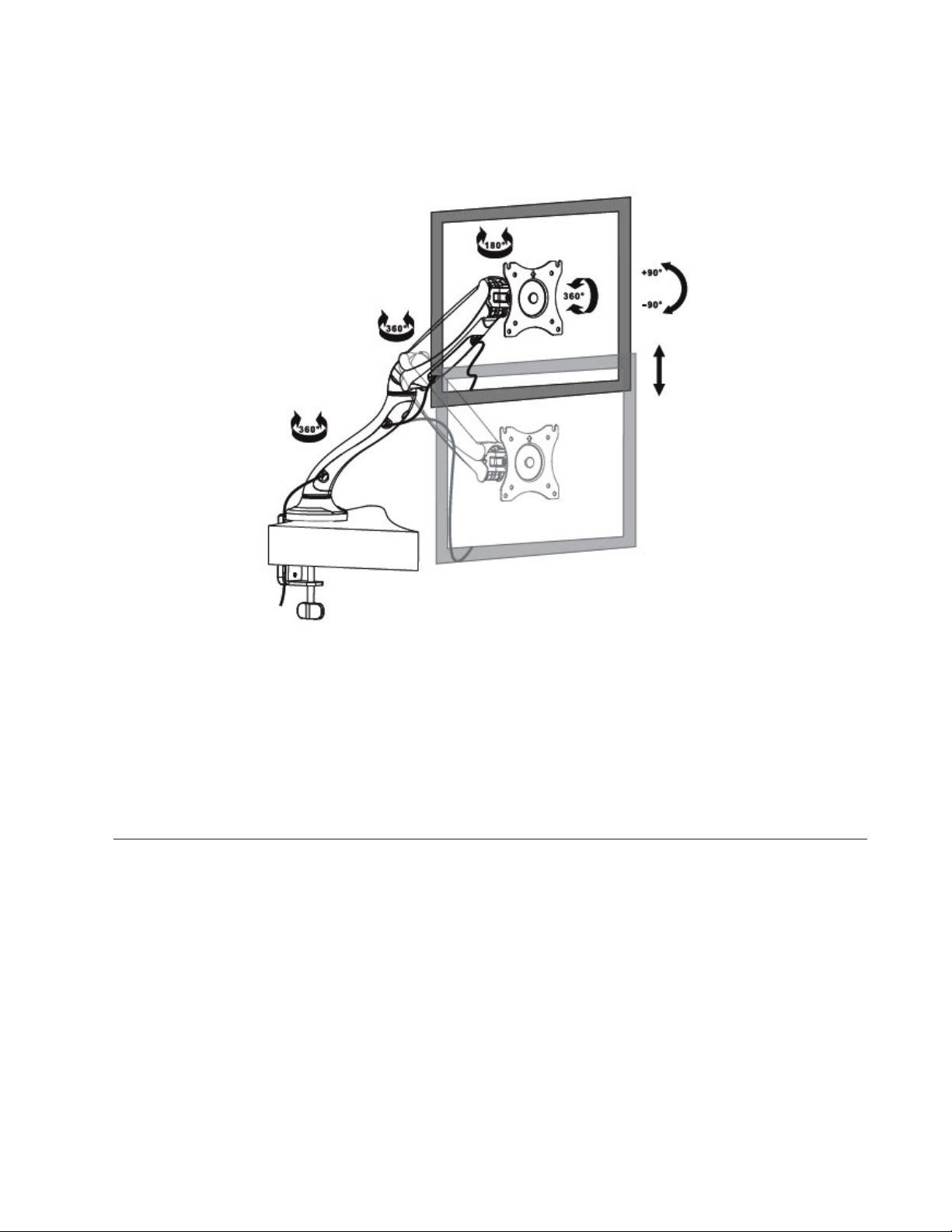

Adjust the Monitor to the Desired Viewing Angle

This full-motion desk mount allows virtually limitless viewing angles. It can move (left and right, up and down), tilt, swivel and rotate, see Figure 12.

Figure 12

Maintenance

Check the mounting hardware every two months for tightness.
