Page 1
Full-Motion Gas Spring
Desk Mount for Latest iMac
Installation Instructions
04-1036A
1
Page 2
Unpacking
• Carefully remove the contents and lay them out on cardboard or other protective surface
• Check package contents against the parts list to ensure that all components are received
undamaged. Do not use damaged or defective parts
• Carefully read all instructions before attempting installation
Safety Information
• Use proper safety equipment during installation
• If you don't understand the installation instructions, please consult an installation
specialist
• This mount contains small parts which can act as a choking hazard if swallowed
• Do not use this product for any purpose or in any configuration not explicitly specified
in these instructions
Tools Required
• Phillips and flat head screwdriver
• 3/8" drill bit and Electric drill (for grommet installation)
• Ratchet set or adjustable wrench

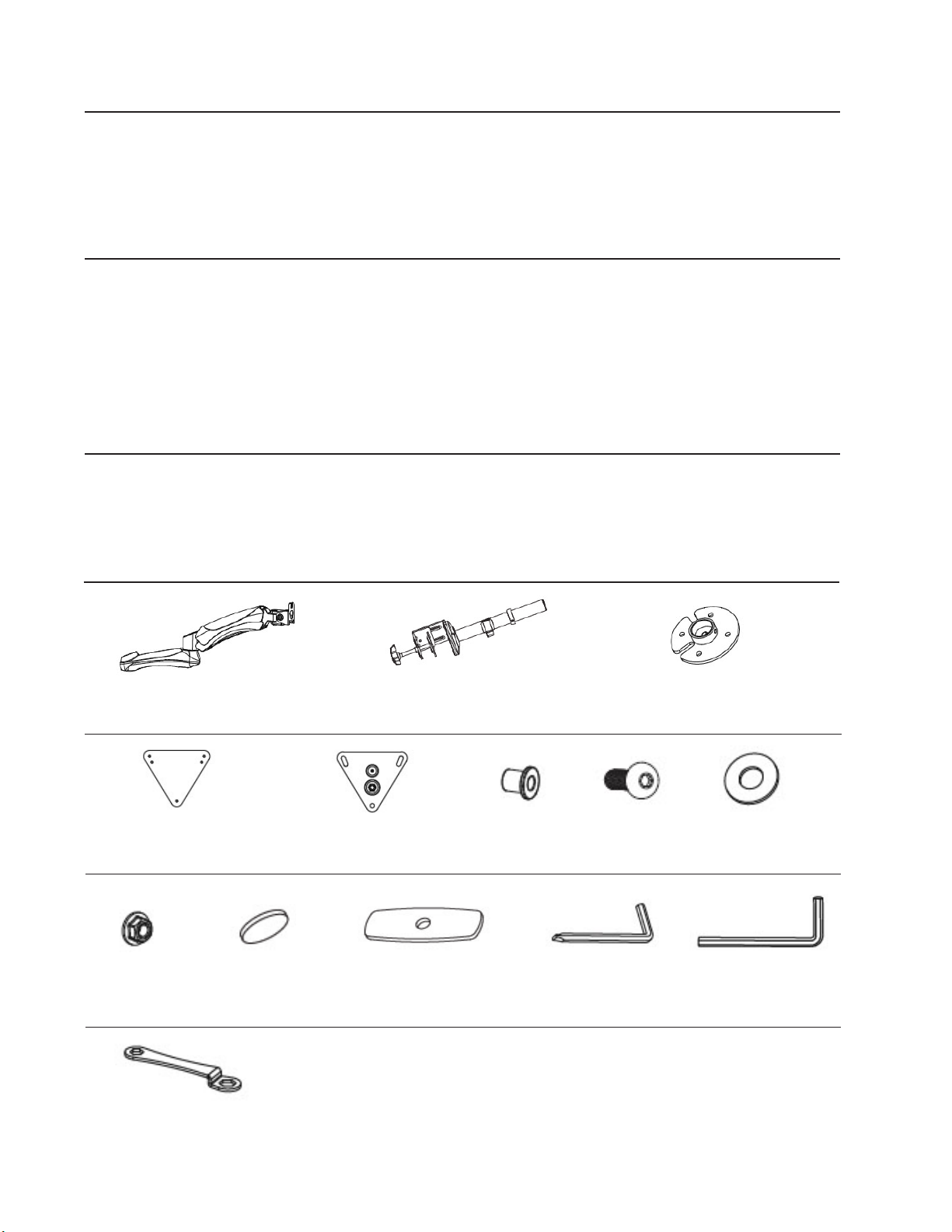

Parts List
(1x) Extension Arm (A)
(1x) Front Mounting Plate (D)
(1x) Nut (I)
(5x) Protective Pad (J)
(1x) Tube Support with C-Clamp (B)
(1x) Rear Mounting Plate (E)
(1x) Grommet Clamp (K)
(1x) Grommet Plate (C)
(3x) Spacer (F) (3x) Bolt (G)
(1x) 3mm Allen Key (L)
(3x) Washer (H)
(1x) 6mm Allen Key (M)
(1x) Wrench (N)
2
Page 3
Installation
Caution: This desk mount must be securely attached to the horizontal desktop. If the mount
is not properly installed it may fall, resulting in bodily injury and/or property damage.

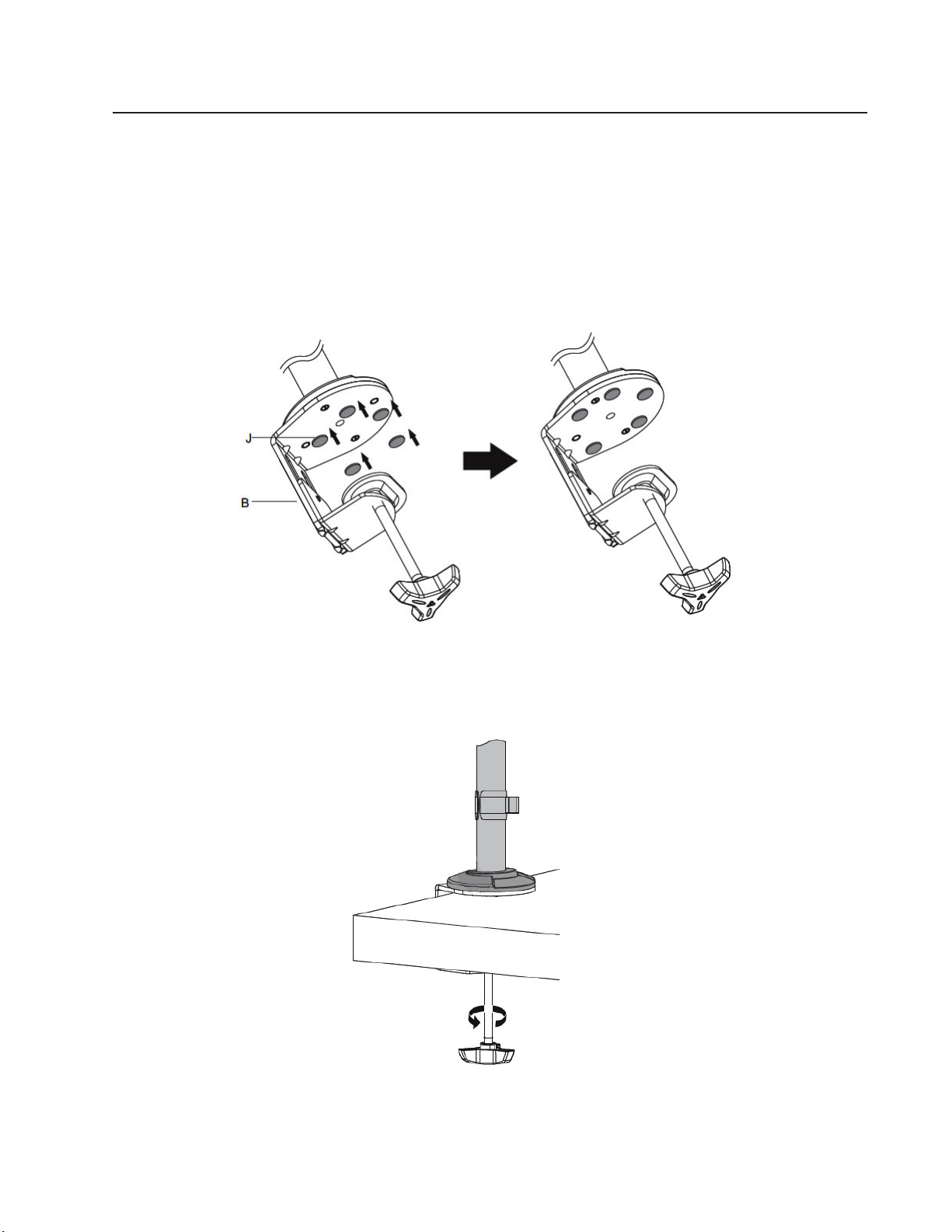

1A) C-Clamp Installation
1. Place the Protective Pads (J) onto the C-Clamp (B), see Figure 1.
2. Position the Tube Support to the desktop. Loosen the clamp screw according to the
thickness of the desktop. Tighten the C-Clamp to the desktop by turning the clamp screw
clockwise, see Figure 2.
Figure 1
Figure 2
3
Page 4

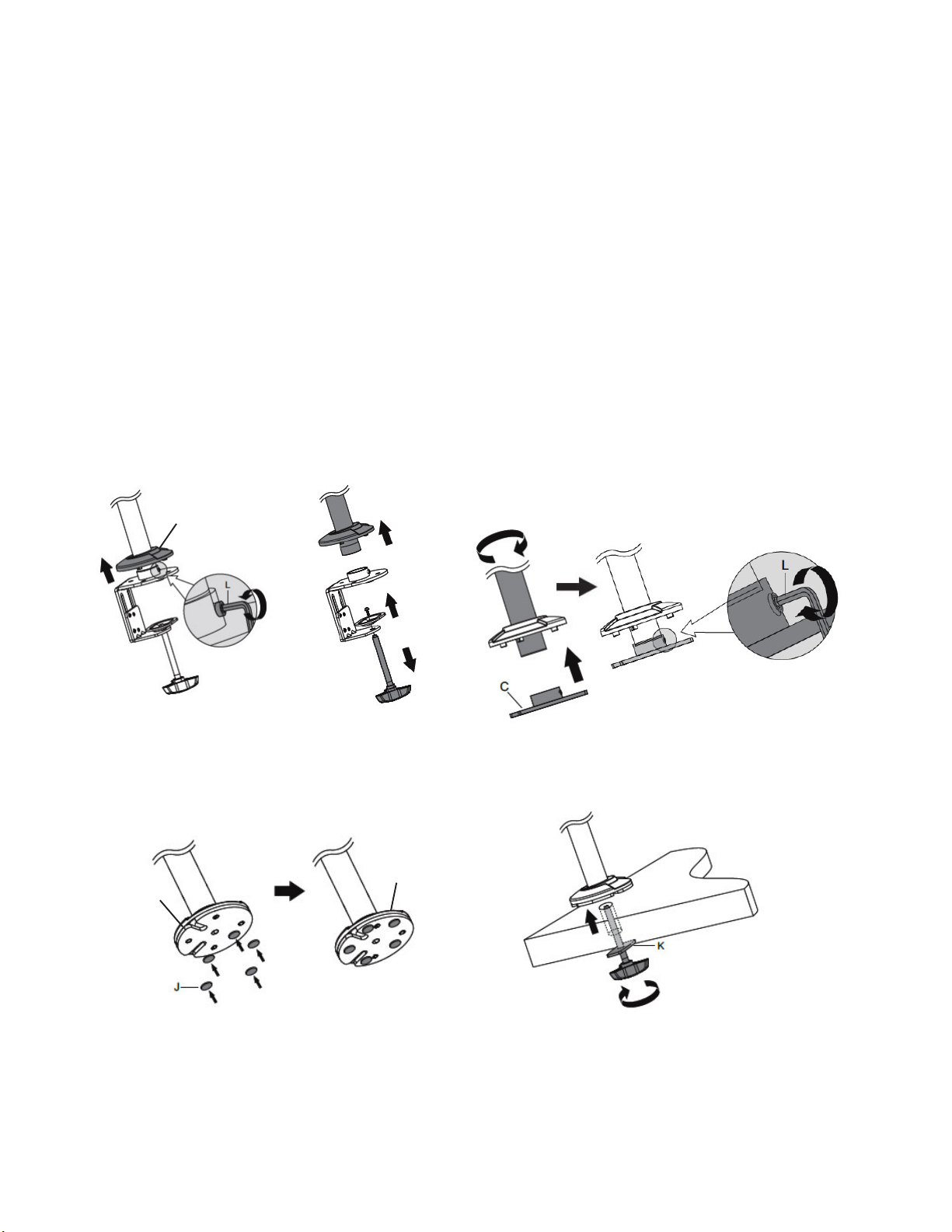

1B) Grommet Hole Installation
This installation requires you to either drill a 3/8" (10mm) diameter hole through the desktop or use an
existing grommet hole (2.25" diameter max). Note: If the existing grommet hole comes with a plastic
protector, remove it to ensure a flat surface before installing the Tube Support.
1. Lift up the plastic cover and use a 3mm Allen Key (L) to remove the Hex Nut from
the C-Clamp, see Figure 3.
2. Rotate the Steel Tube counter clockwise to separate it from the C-Clamp. Remove the
support plate from the clamp screw using a phillips screwdriver, see Figure 4.
3. Connect the Steel Tube into the Grommet Plate (C) and turn it clockwise until tight. Use
the 3mm Allen Key (L) to tighten the Hex Nut to secure the Steel Tube, see Figure 5.
4. Place the Protective Pads (J) onto the bottom of the Grommet Plate (C), see Figure 6.
5. Insert the clamp screw into the Grommet Clamp (K). Position the Tube Support on the
mounting surface, then secure it using the Grommet Clamp (K) and clamp screw, see
Figure 7. Warning: Carefully screw the clamp screw into the Grommet Plate to prevent
cross-threading and damage to the clamp screw.
Plastic cover
Figure 3
C
Figure 6
4
Figure 4
Figure 5
C
Figure 7
Page 5

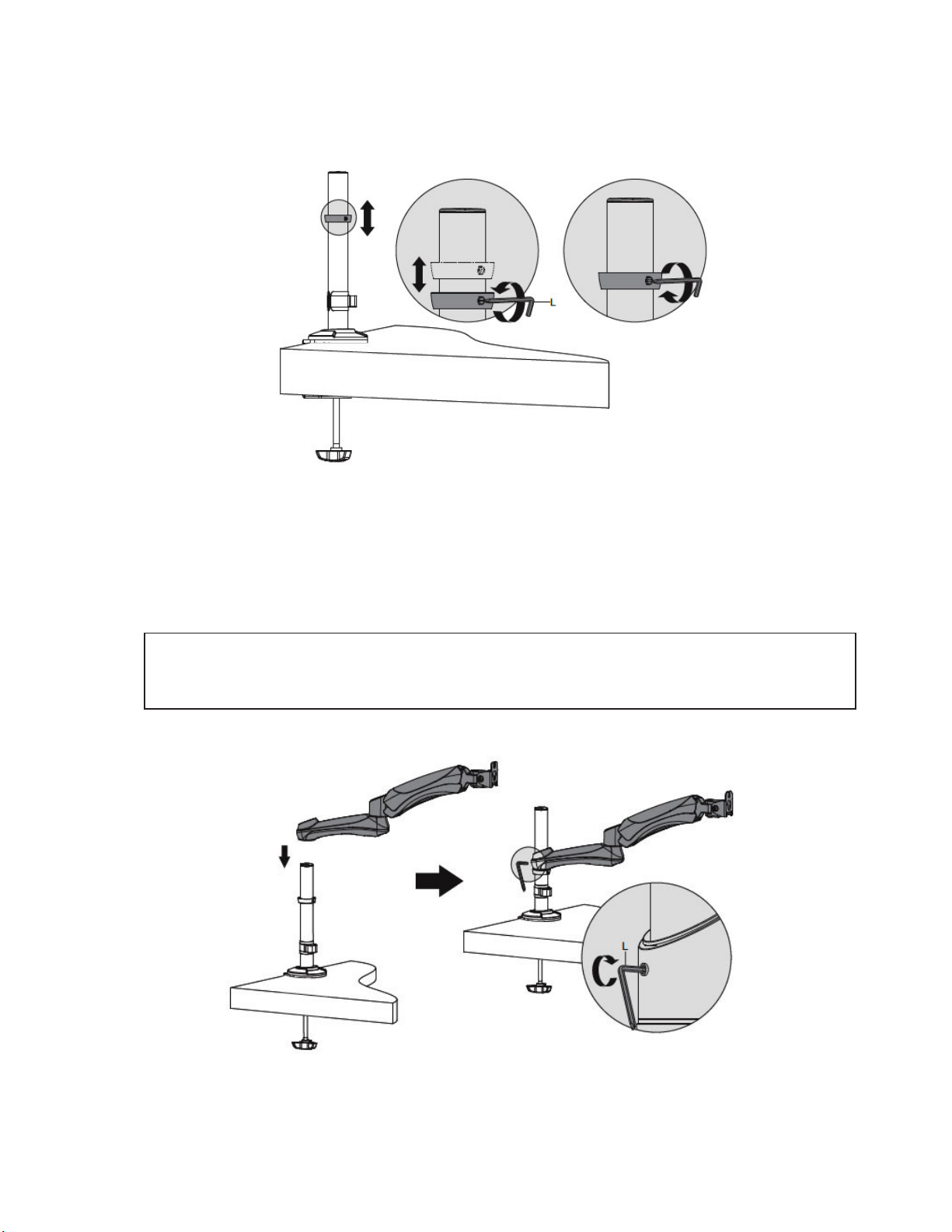

2. Install the Position Ring at the desired height and tighten the Hex Nut using the
3mm Allen Key (L) or a screwdriver, see Figure 8.
Figure 8
3. Slide the Extension Arm over the Tube Support until it rests on the Position Ring, then tighten
the Hex Nut finger tight using a 3mm Allen Key (L), see Figure 9.
Caution: DO NOT over tighten the Hex Nut. The Extension Arm is intended to rotate and
is not meant to be attached in a fixed position. Over tightening the Hex Nut may result in
damage to the Extension Arm and Tube Support.
Figure 9
5
Page 6

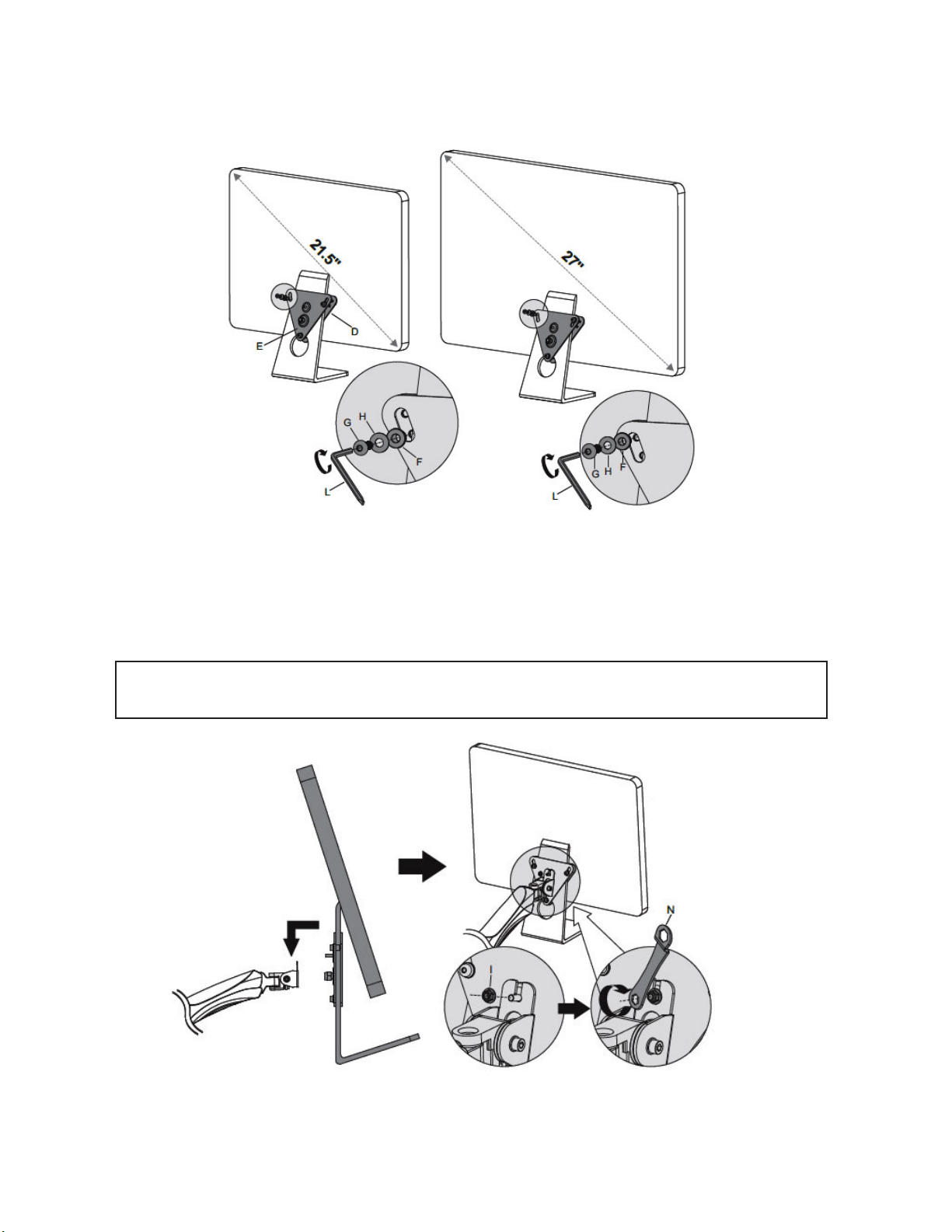

4. Mount the Front and Rear Mounting Plate (D & E) onto the iMac's desk stand, use Spacer (F),
Washer (H) and Bolt (G) and tighten them using the 3mm Allen Key (L), see Figure 10.
Figure 10
4. Mount the iMac to the Extension Arm, using Nut (I) and tighten it using Wrench (N),
see Figure 11.
Note: When mounting/removing the iMac, the spring arm rebound tension may cause
serious personal injury if not handled correctly.
Figure 11
6
Page 7

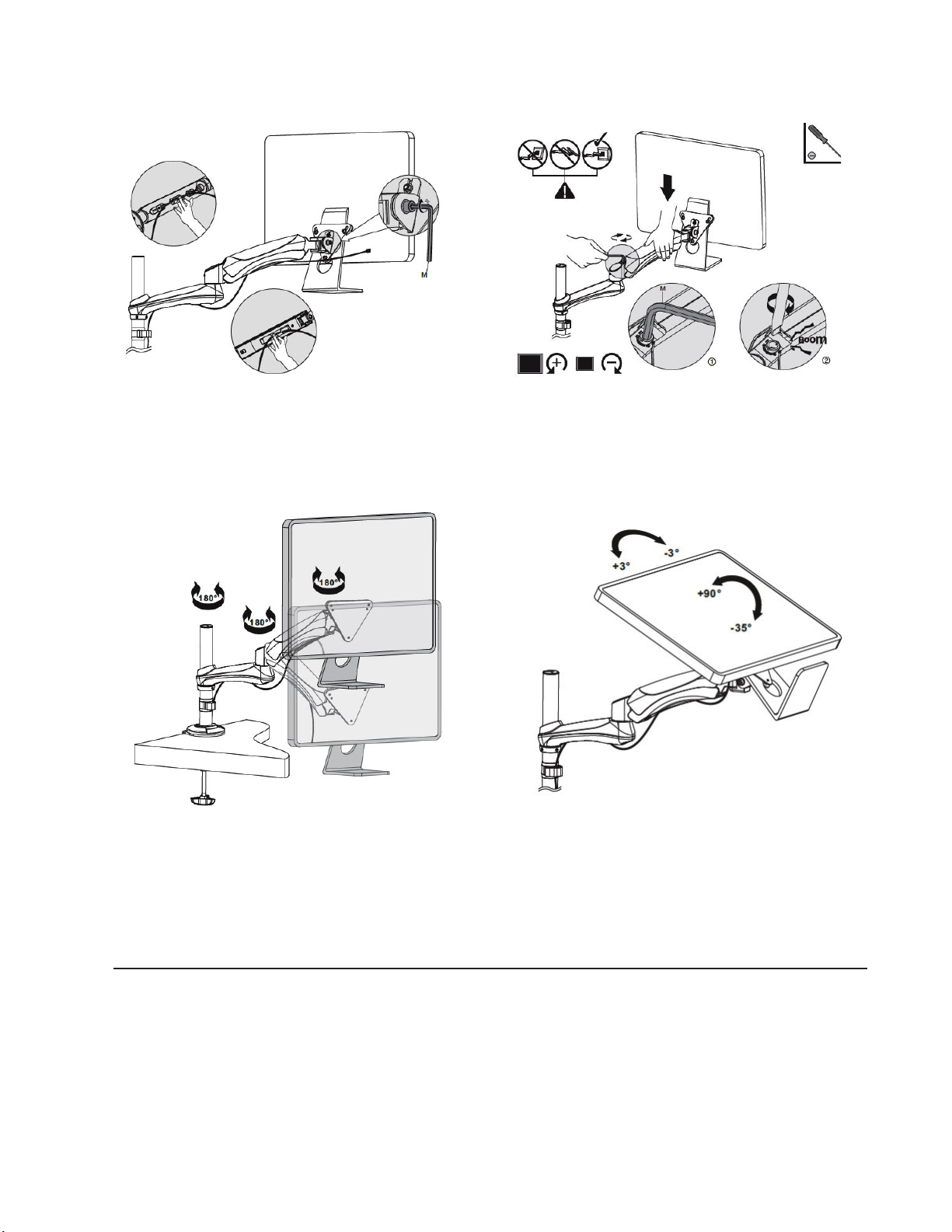

4. Check the tightness, arrange the cables, and make any final adjustments.
Arrange the cables into the cable covers.
Adjust the tightness of tilt and swivel
joint using the 6mm Allen Key (M)
Move the iMac to the desired viewing position.
Adjust the tension of the Gas Shock using the 6mm
Allen Key (G). Turn clockwise to decrease the tension
or turn counter clockwise to increase the tension.
Maintenance
Check the mounting screws every two months for tightness.
7
