Easy-Adjust Dual Monitor Desk Stand
13" to 27"
Installation Instructions
04-1038A
1
Page 2
Unpacking
• Carefully remove the contents and lay them out on cardboard or other protective surface
• Check package contents against the parts list to ensure that all components were received
and undamaged. Do not use damaged or defective parts
• Carefully read all instructions before attempting the installation
Safety Information
• Use proper safety equipment during installation
• If you don't understand the installation instructions, please consult an installation
specialist
• This mount contains small parts which can act as a choking hazard if swallowed
• Do not use this product for any purpose or in any configuration not explicitly specified
in these instructions
Tools Required
• Phillips screwdriver

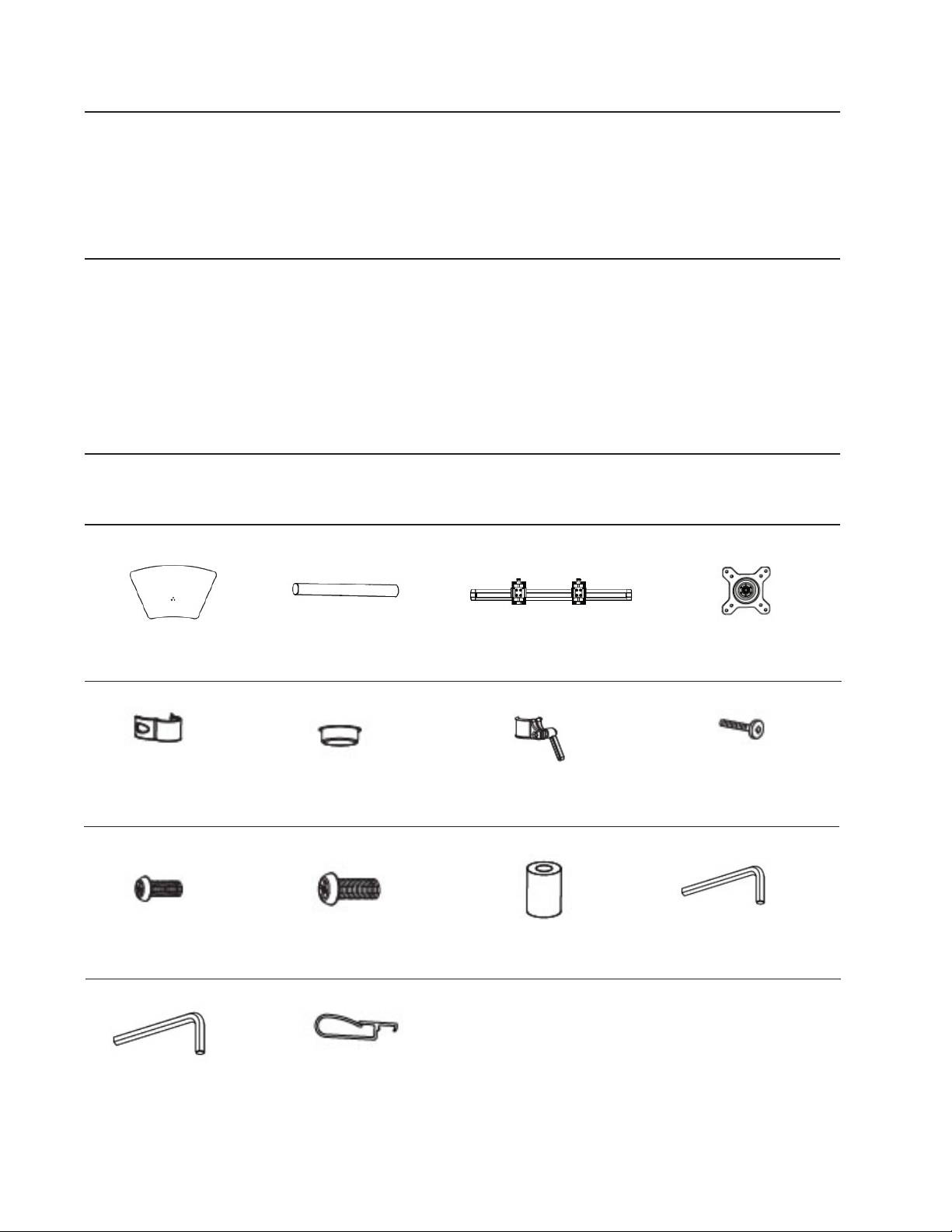

Parts List
Weighted Base
Cable Management Clip
A - (8x) M4x12 Bolt
E - (1x) 4mm Allen Key
Tube Support Arm Assembly
a1 - (1x) Plastic Cap
B - (8x) M4x30 Bolt
F - (2x) Wire Clip
b1 - (1x) Position Ring
C - (8x) Spacer
VESA Plate
c1 - (3x) M6x16 Bolt
D - (1x) 3mm Allen Key
2
Page 3
Installation

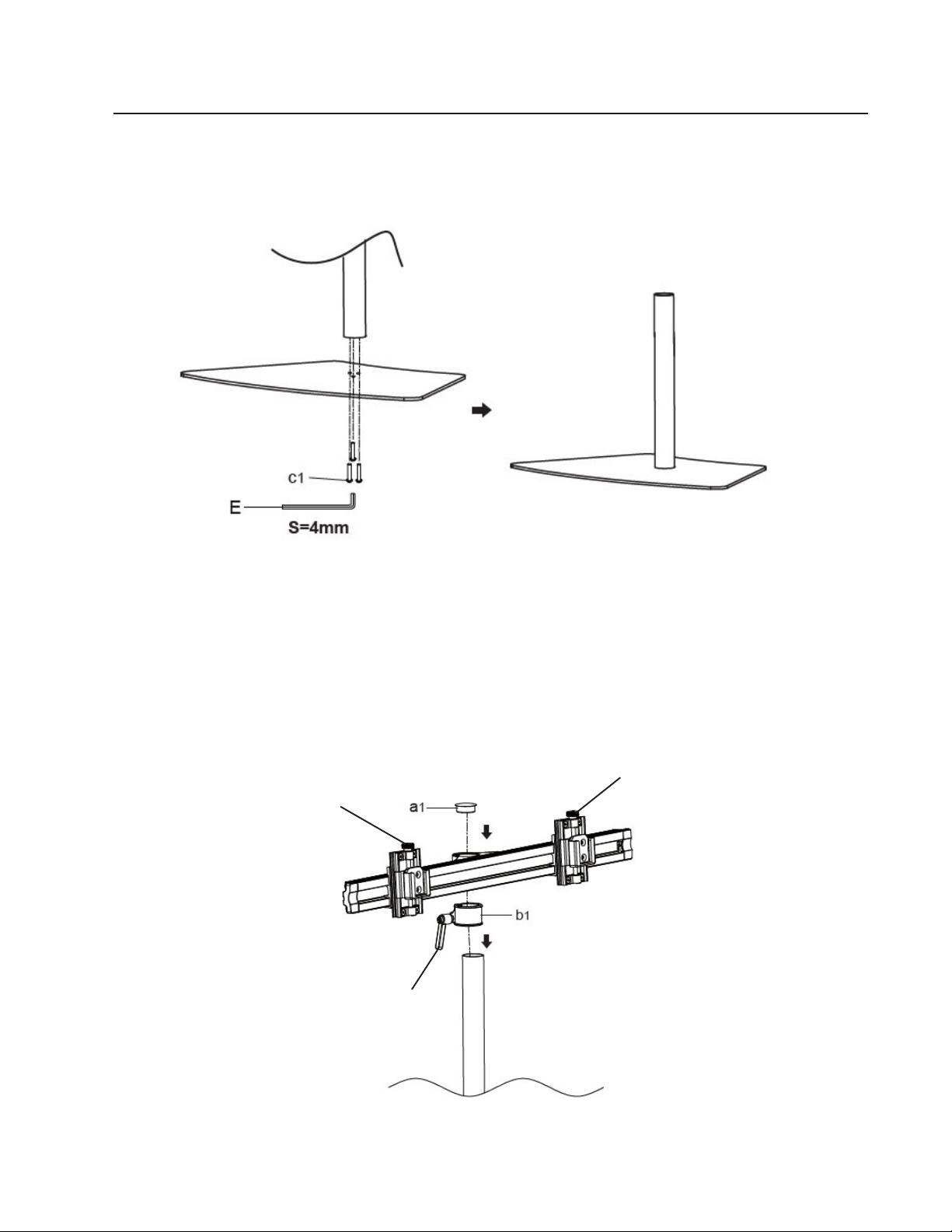

Step 1 - Mount the Tube Support to the Weighted Base
Mount the Tube Support to the Weighted Base using 3 M6x16 Bolts (c1), tighten them using
the 4mm Allen Key (E), see Figure 1.
Figure 1
Step 2 - Install the Arm Assembly onto the Tube Support
1. Install the Position Ring (b1) at the desired height then tighten the screw to secure it.
Next, slide the Arm Assembly onto the tube support so it rests on the Position Ring.
Make sure the Fine Tune Height Adjustment Knob is facing up. Install the Plastic Cap
(a1), see Figure 2A.
Fine Tune Height Adjustment Knob
Fine Tune Height Adjustment Knob
Screw
Figure 2A
3
Page 4

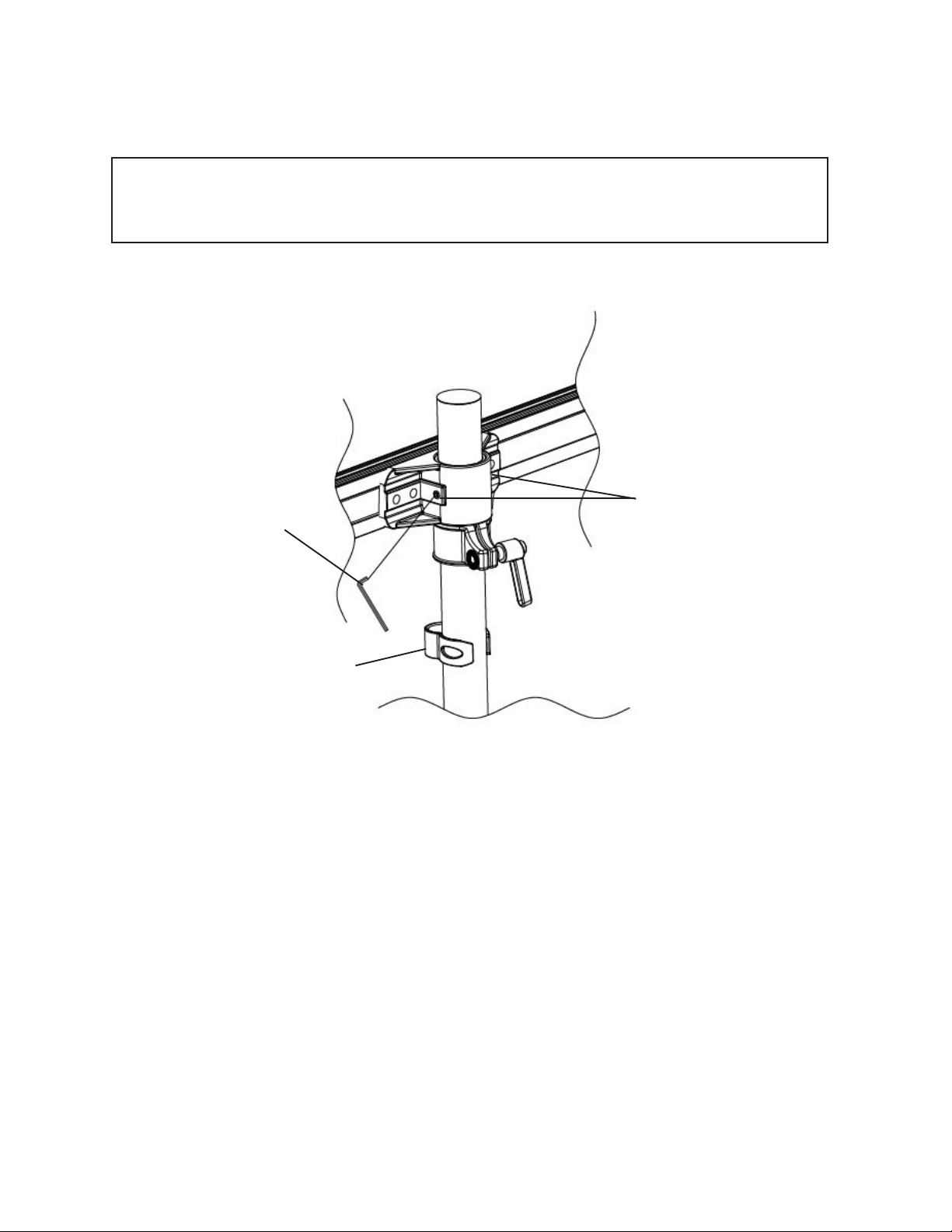

2. Secure the Arm Assembly by tightening the Hex Nuts finger tight using the included
3mm Allen Key (D) as shown in Figure 2B. Install the Cable Management Clip onto the
Tube Support, see Figure 2B.
Note: The Arm Assembly is intended to rotate and is not meant to be attached in a fixed
position. Over tightening the Hex Nuts may result in damage to the Arm Assembly
and Tube Support.
Hex Nut
D
Cable Management Clip
Figure 2B
4
Page 5

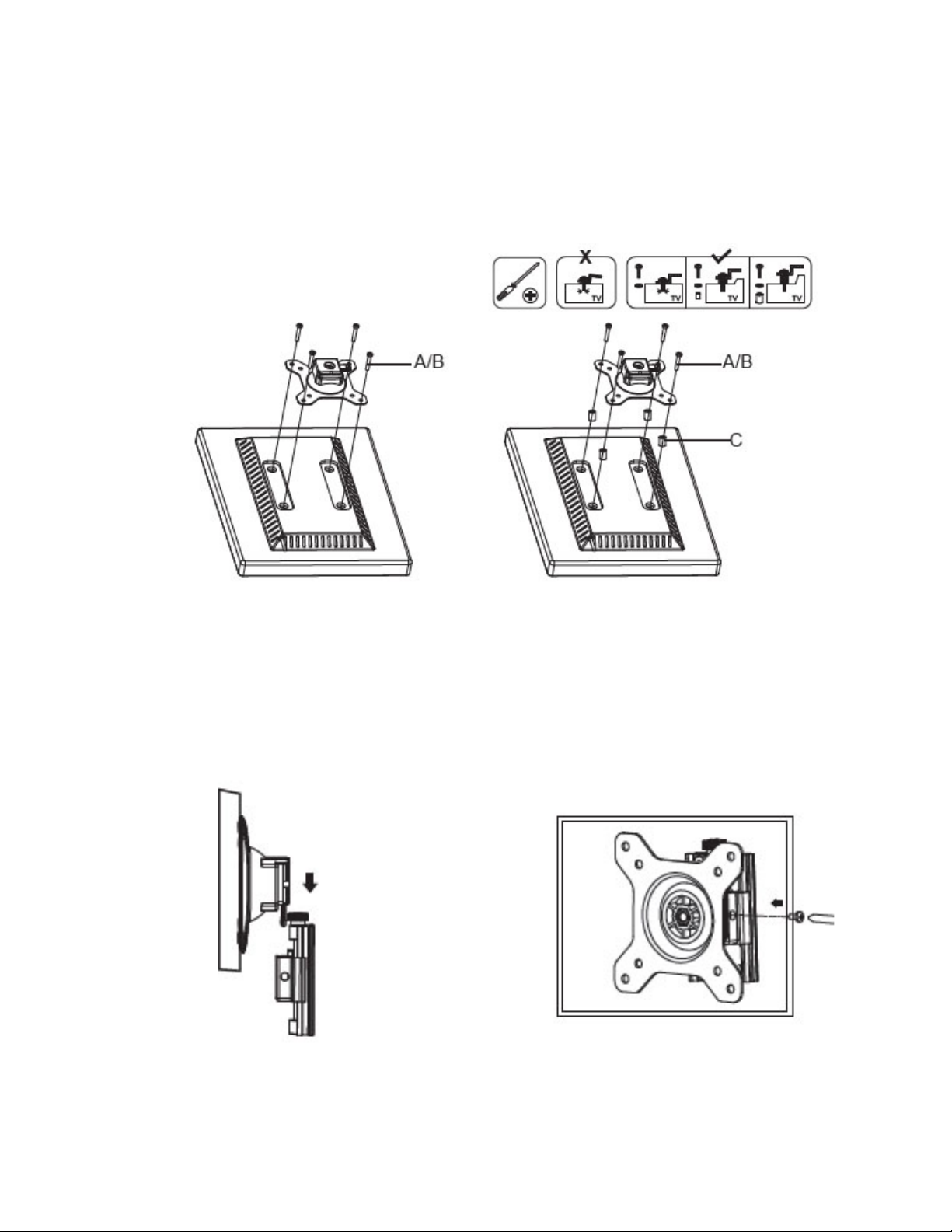

Step 3 - Mounting the Displays to the VESA plate.
1. For flat back display surface install M4x12 Bolt (A) through the faceplate into the
display's mounting holes, see Figure 3A.
2. For recessed or curved back display surface place Spacer (C) between the faceplate and
display and install M4x30 Bolt (B) through the faceplate into the display's mounting
holes, see Figure 3B.
Figure 3A
Figure 3B
Step 4 - Mounting the Displays to the Arm Assembly
1. Slide the Vesa Plate onto the VESA plate holder, see Figure 4A.
2. Use a Phillips screwdriver to secure the VESA Plate to the holder, see Figure 4B.
Figure 4A
Figure 4B
We suggest you have a helper hold the desk stand upright while attaching your displays to
prevent damage to the displays or desk stand and to ensure your personal safety.
5
Page 6

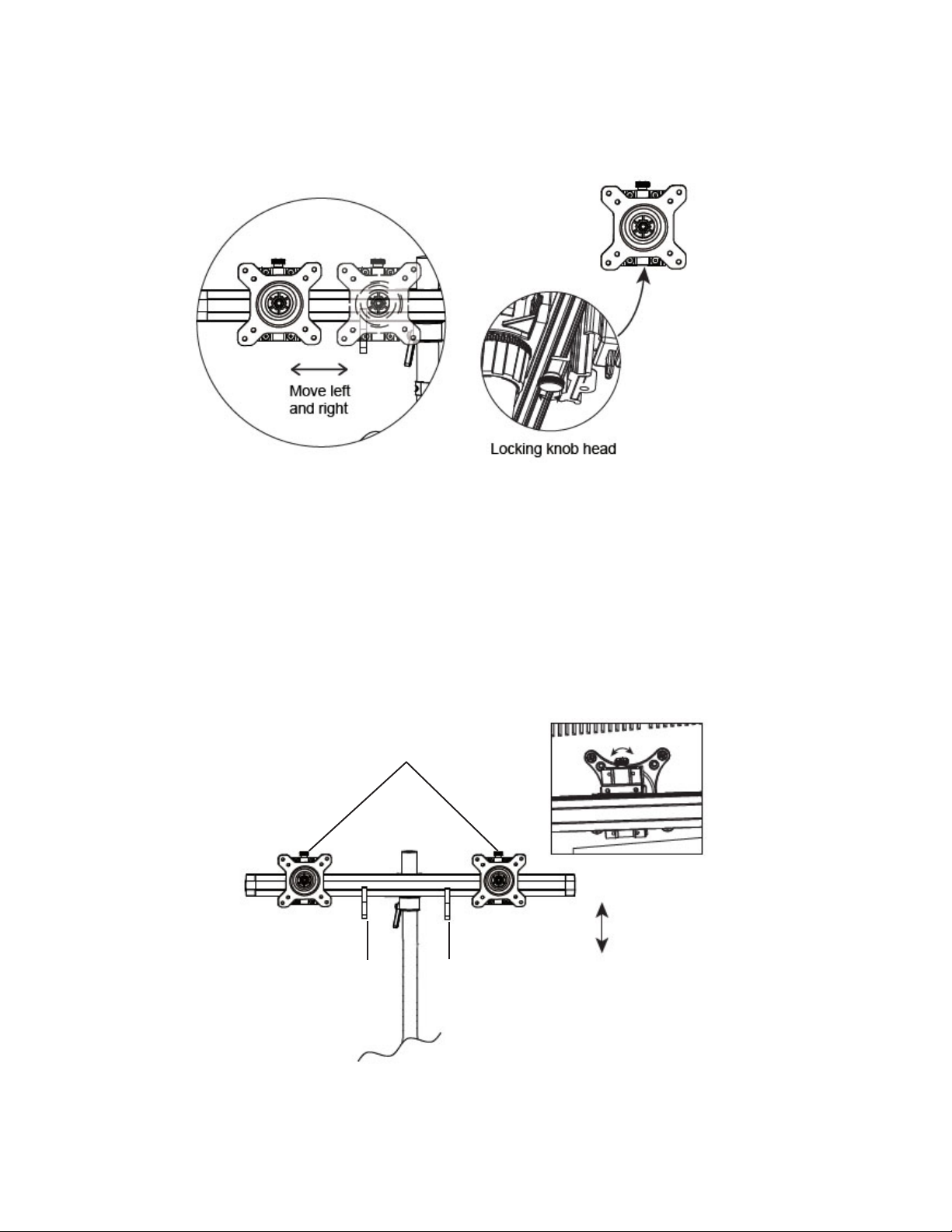

Step 5 - Arranging the Displays
1. Move the displays horizontally into the desired position and secure them using the
locking knob at the bottom of the VESA plate holder, see Figure 5.
Figure 5
2. Move the displays vertically into the desired position using the Fine Tune Height
Adjustment Knob at the top of the VESA plate holder and install the Wire Clips (F), see
Figure 6.
Fine Tune Height
Adjustment Knob
F F
Figure 6
6
Page 7

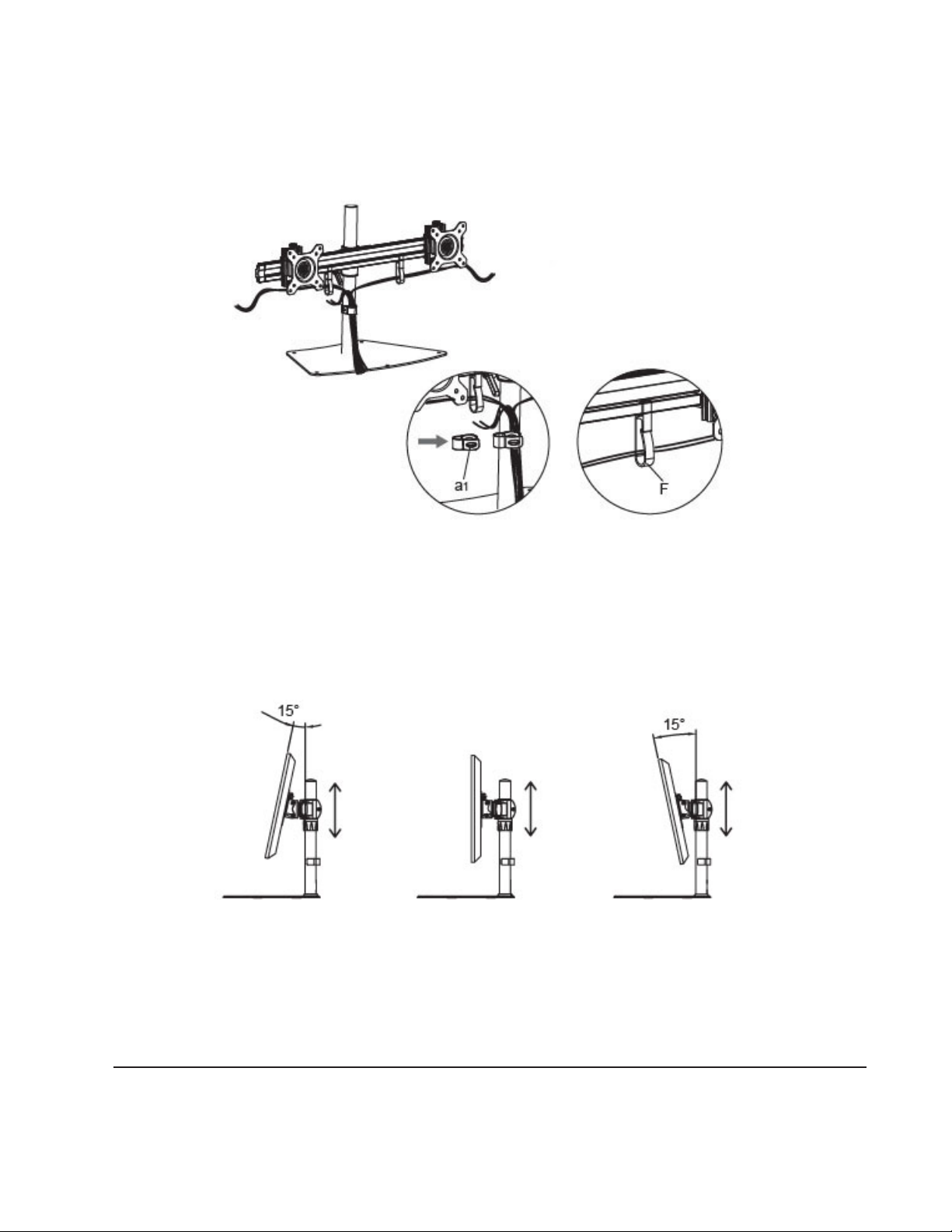

Step 6 - Final Adjustment and Cable Management
1. Route the cables through the wire clips and down the tube support, see Figure 7.
Figure 7
2. Adjust the display tilt angle to the desired position, see Figure 8.
Figure 8
Maintenance
Check the mounting screws every two months for tightness.
7
Page 8
Technical Support and Warranty
QUESTIONS? SIIG’s Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online
support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks
away. You can also submit questions online and a technical support analyst will promptly respond.
SIIG offers a 3-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees
the product to be free of any defects in materials or workmanship for three (3) years from the date of purchase of the product.
SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality)
the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Please see our web site for more warranty details.
If you encounter any problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the product to the store where you purchased from.
B) If your purchase has passed the store's return policy period, please follow the steps below to have the product repaired
or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then Request A Product Replacement to submit a request to
request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA
number will be issued.
Step 2: After obtaining an RMA number, ship the product.
• Properly pack the product for shipping. All accessories that came with the original package must be included.
• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package,
and will not be responsible for a product returned without an RMA number posted on the outside of the shipping
carton.
• You are responsible for the cost of shipping to SIIG. Ship the product to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S.
at no cost to the customer.
SIIG RMA or fax a
