Page 1
Articulated Freestanding Triple Monitor
Desk Stand - 13" to 27"
Installation Instructions
04-1020A
1
Page 2
Unpacking
• Carefully remove the contents and lay them out on cardboard or other protective surface
• Check package contents against the parts list to ensure that all components were received
undamaged. Do not use damaged or defective parts
• Carefully read all instructions before attempting installation
Safety Information
• Use proper safety equipment during installation
• If you don't understand the installation instructions, please consult an installation
specialist
• This mount contains small parts which can act as a choking hazard if swallowed
• Do not use this product for any purpose or in any configuration not explicitly specified
in these instructions
Tools Required
• Flat head screwdriver
• Phillips screwdriver

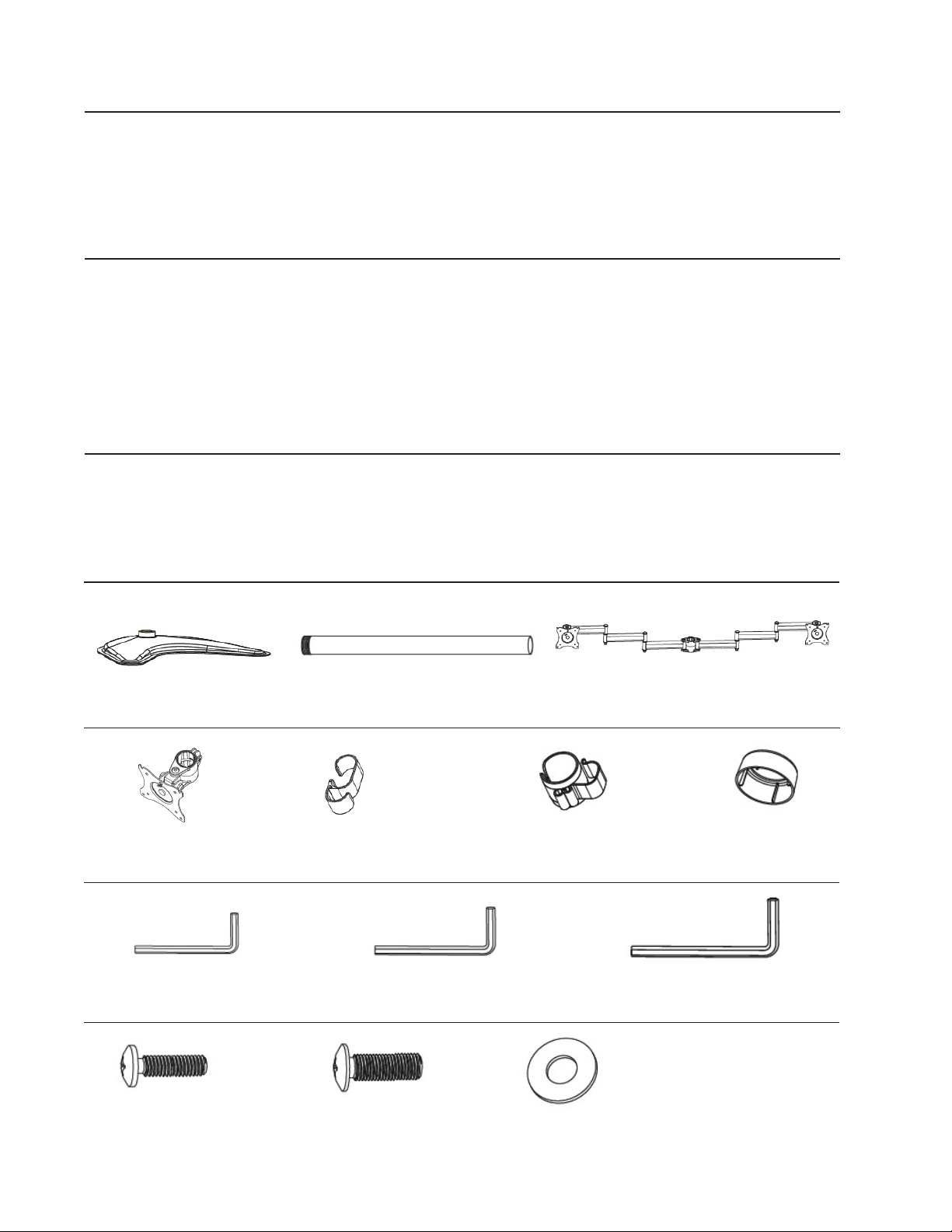

Parts List
A - (1x) Weighted Base
D - (1x) VESA Plate
H - (1x) 3mm Allen Key
B - (1x) Tube Support C - (1x) Arm Assembly with Vesa Plate
E - (6x) Cable Management Clip
I - (1x) 5mm Allen Key
F - (1x) Cable Management Clip
G - (1x) Plastic Cover
J - (1x) 6mm Allen Key
M-A - (12x) M4x12 Bolt
2
M-B - (12x) M5x12 Bolt M-C - (12x) Washer
Page 3
Installation

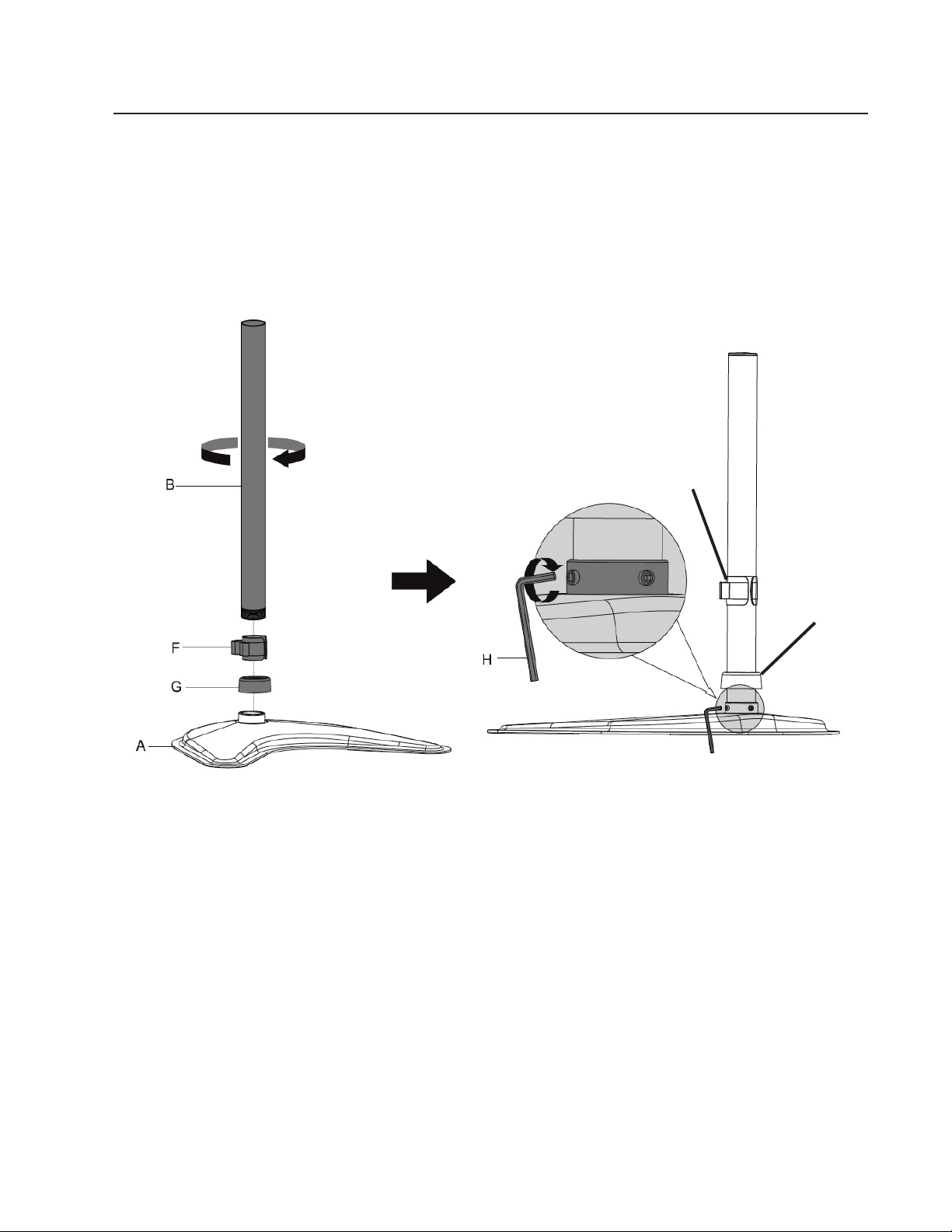

Step 1 - Mounting the Tube Support to the Weighted Base
Slide the Cable Management Clip (F) and Plastic Cover (G) onto the tube support, then mount
the Tube Support (B) to the Weighted Base (A) by turning it clockwise until hand tight. Next,
use the 3mm Allen Key (H) to tighten the set screws to secure the tube support, see Figure 1.
Continue to Step 2.
F
Figure 1
G
3
Page 4

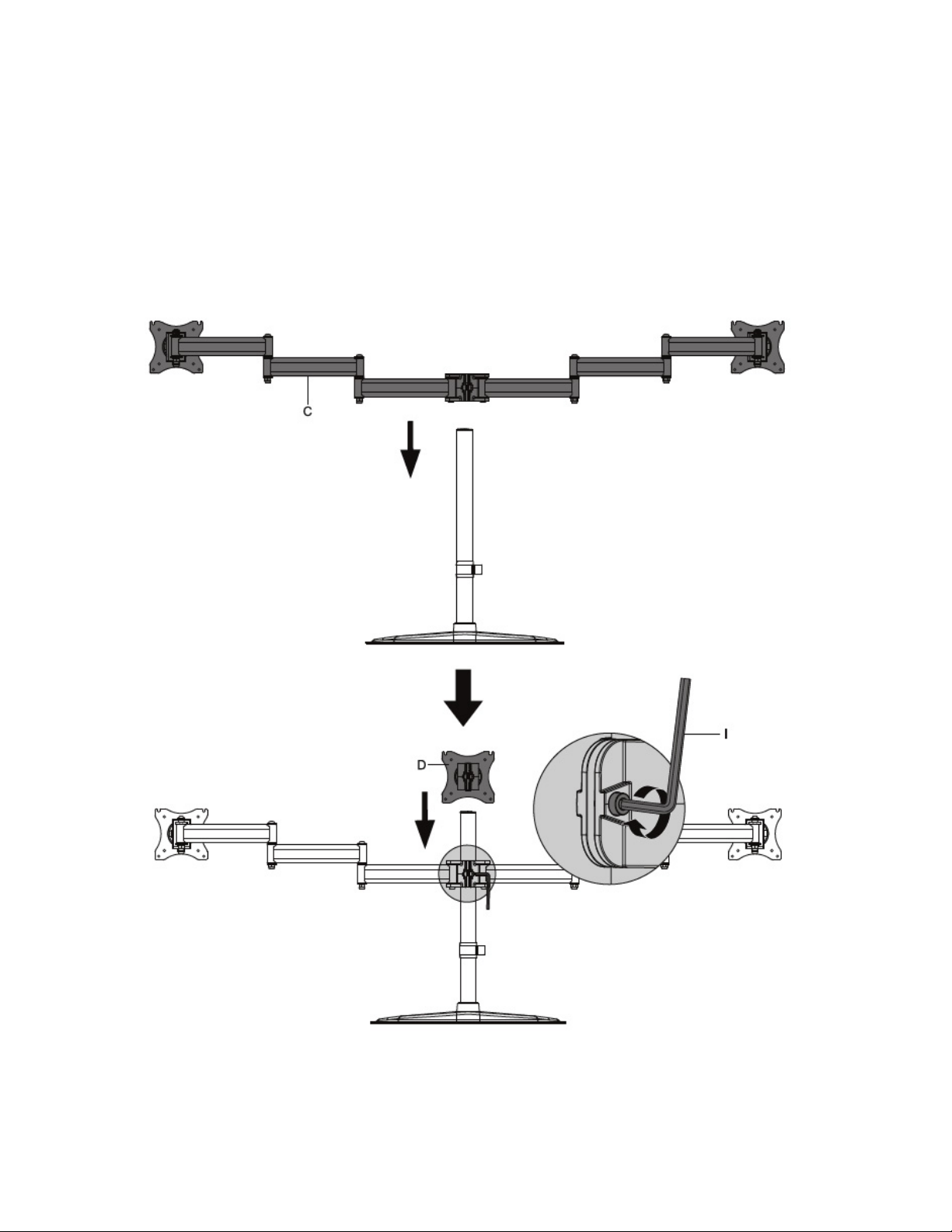

Step 2 - Install the Arm Assembly and VESA Plate onto the Tube Support
1. Mount the Arm Assembly with VESA Plate (C) to the tube support, secure it by
tightening the clamp bolt using the included 5mm Allen Key (I) as shown in Figure 2A.
Do not overtighten the clamp bolt, doing so may damage the clamp or tube support.
2. Mount the VESA Plate (D) to the tube support, secure it by tightening the clamp bolt
using the included 5mm Allen Key (I) as shown in Figure 2A. Do not overtighten the
clamp bolt, doing so may damage the clamp or tube support.
Figure 2A
4
Page 5

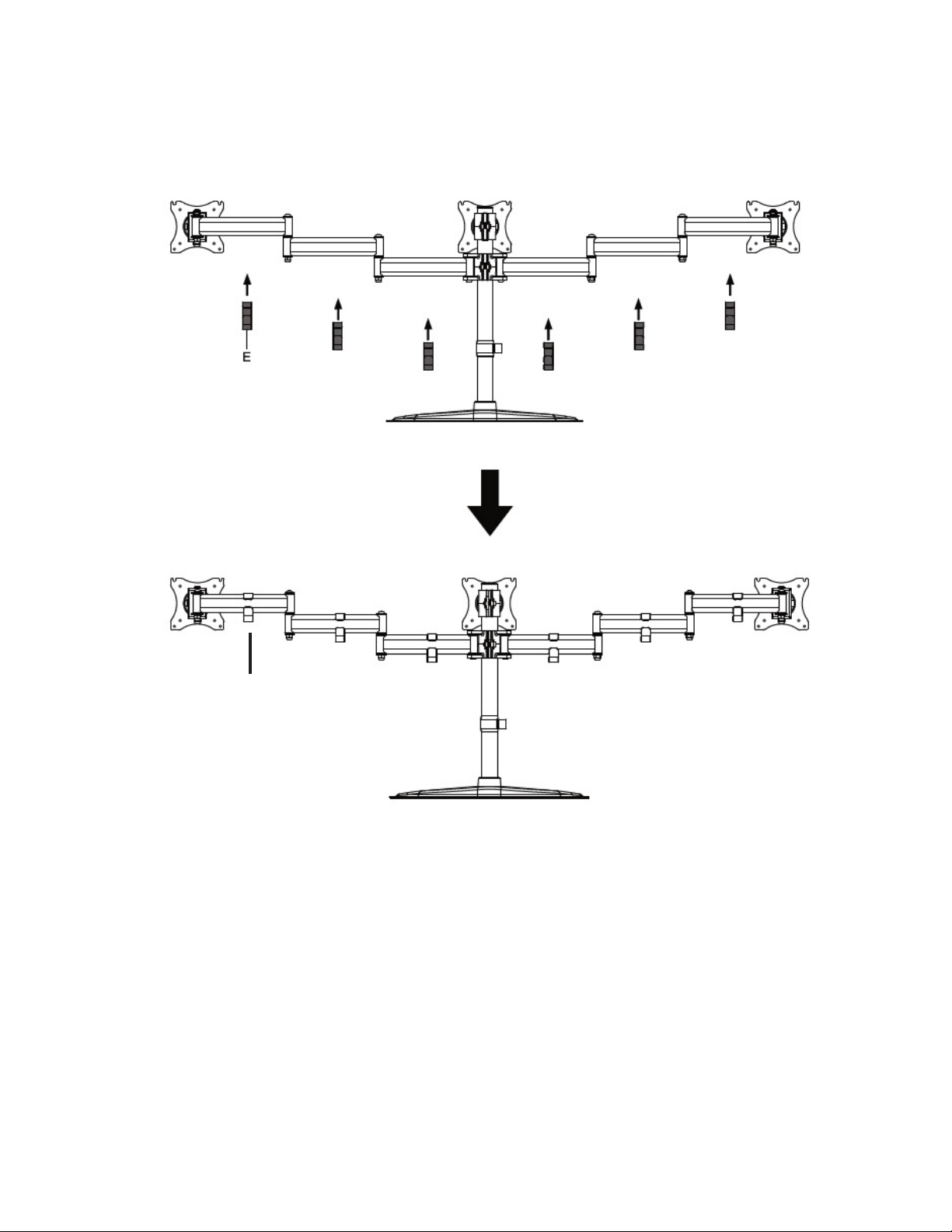

3. Attach the Cable Management Clip (E) to the arm assembly at the positions shown in
Figure 2B.
E
Figure 2B
5
Page 6

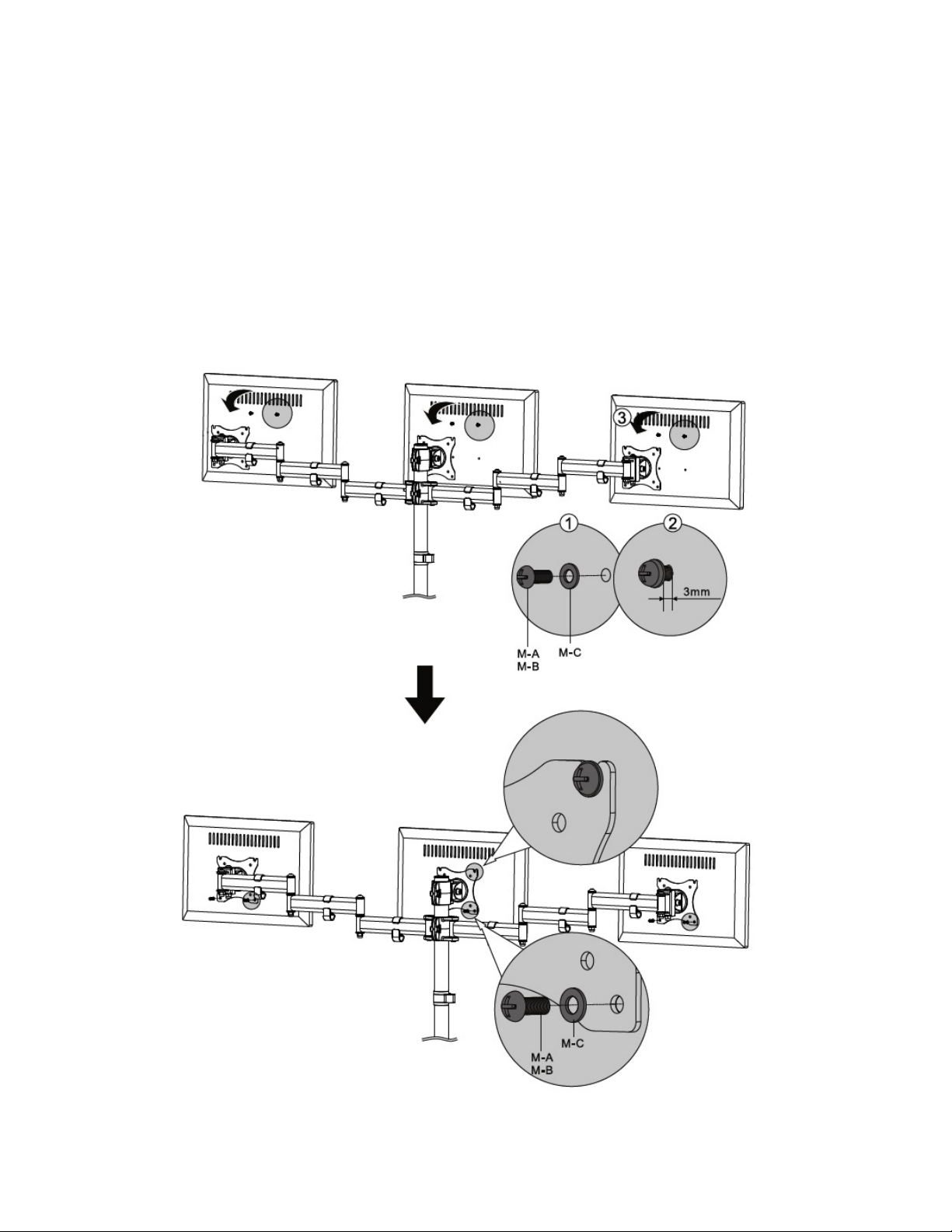

Step 3 - Mounting the Displays to the VESA Plate.
We suggest you have a helper hold the desk stand upright while attaching your displays to
prevent damage to the displays or desk stand and to ensure your personal safety.
1. Rotate the VESA plate so that the mounting arrow is pointing upwards. In this
orientation the slotted mounting holes will be on top.
2. Install either M4x12 bolt (M-A) or M5x12 bolt (M-B), Washer (M-C) into the display's 2
upper mounting holes only. Do not full tighten the bolts, leave approximately 3mm
space for easy mounting onto the VESA plate.
3. Mount the display onto the VESA plate, insert bolts into the remaining mounting holes,
then fully tighten all 4 bolts using a Phillips screwdriver to secure the display.
Figure 3
6
Page 7

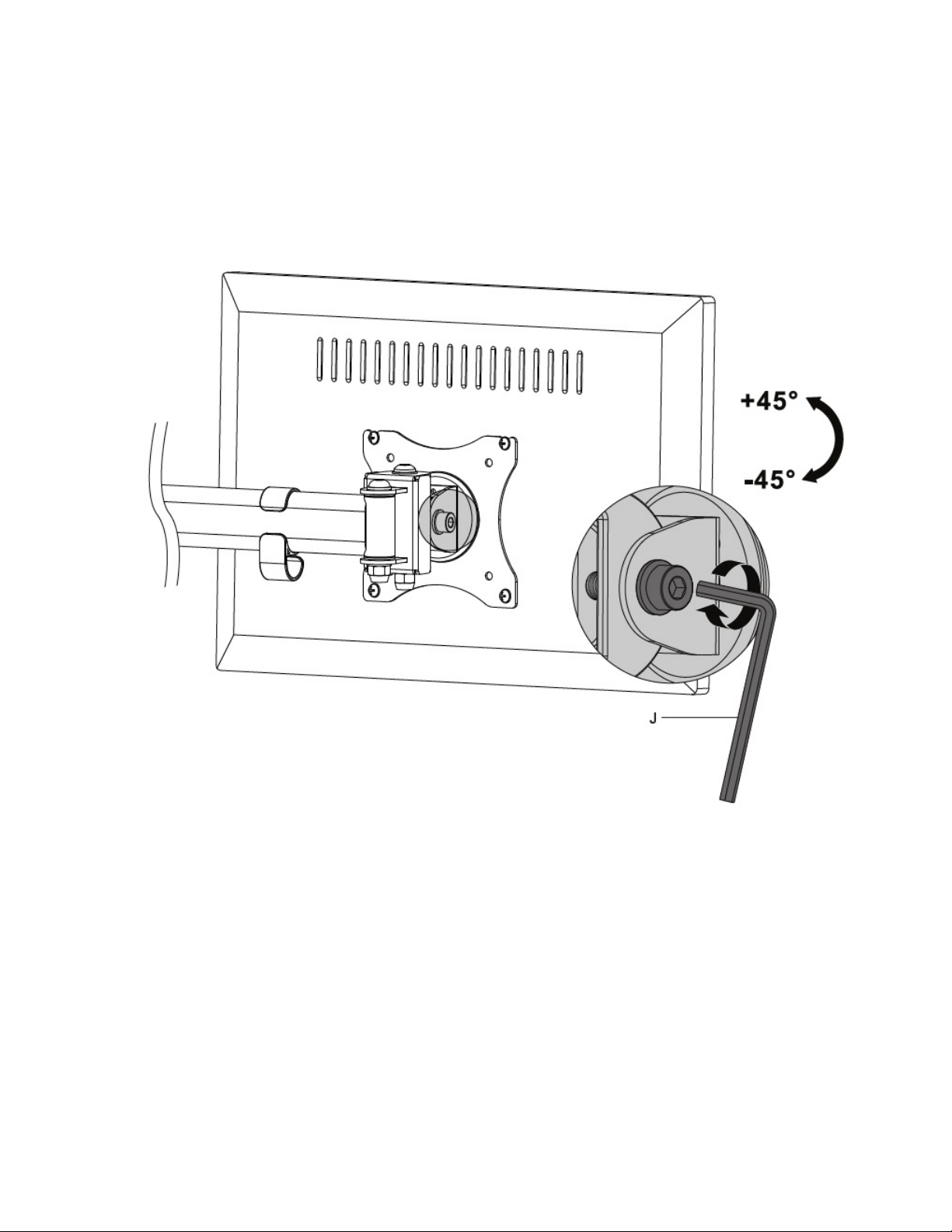

Step 4 - Tilt Angle Adjustment
1. Use the 6mm Allen Key (J) to loosen the Tightening Bolt, then tighten the bolt to fix the
tilt angle as shown in Figure 4.
Figure 4
7
Page 8

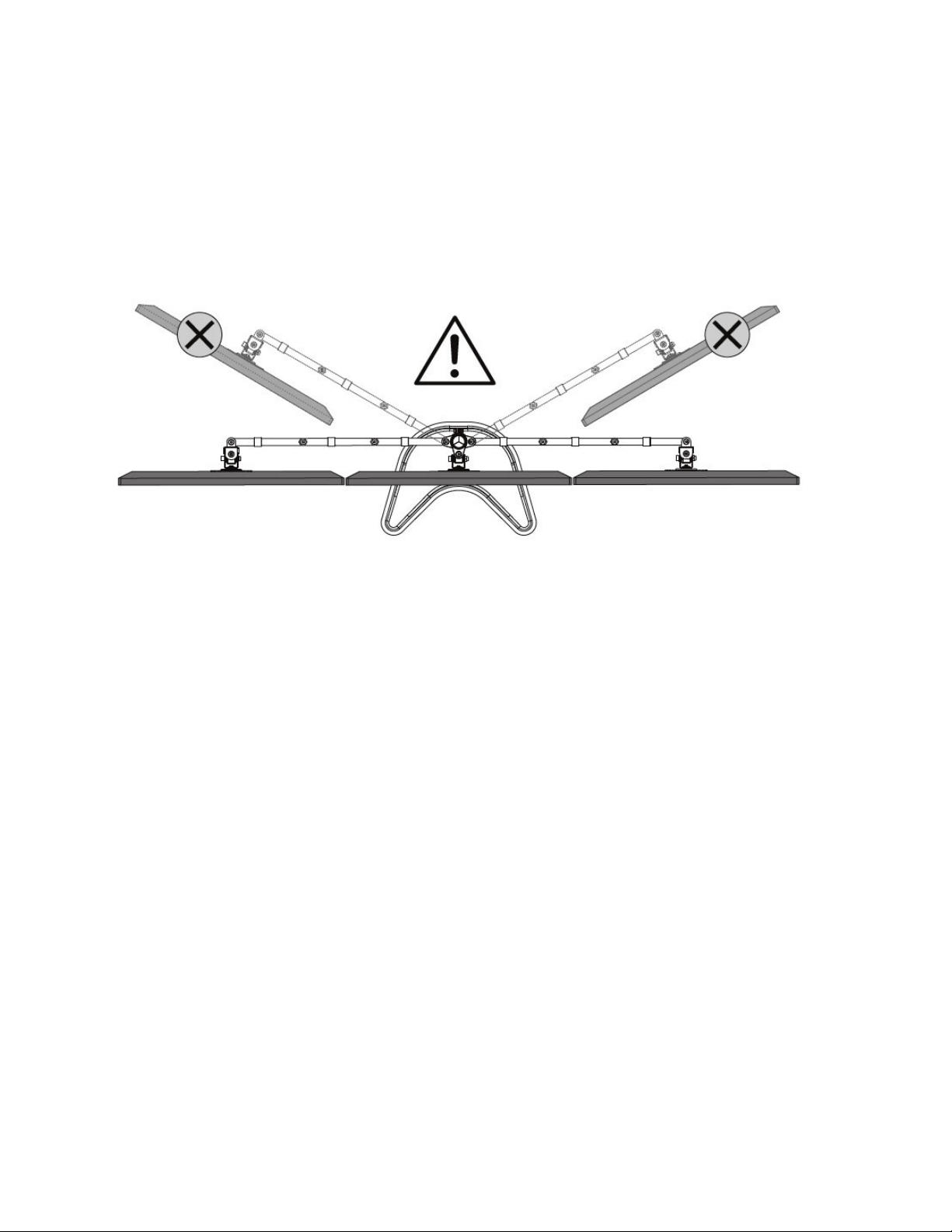

Step 5 - Final Adjustment and Cable Management
Adjusting the Position of the Displays
Position the displays so that they are centered over the weighted base. Placing the displays
either forward or behind the center may cause the desk stand to tip over. See Figure 5a.
Figure 5a
8
Page 9

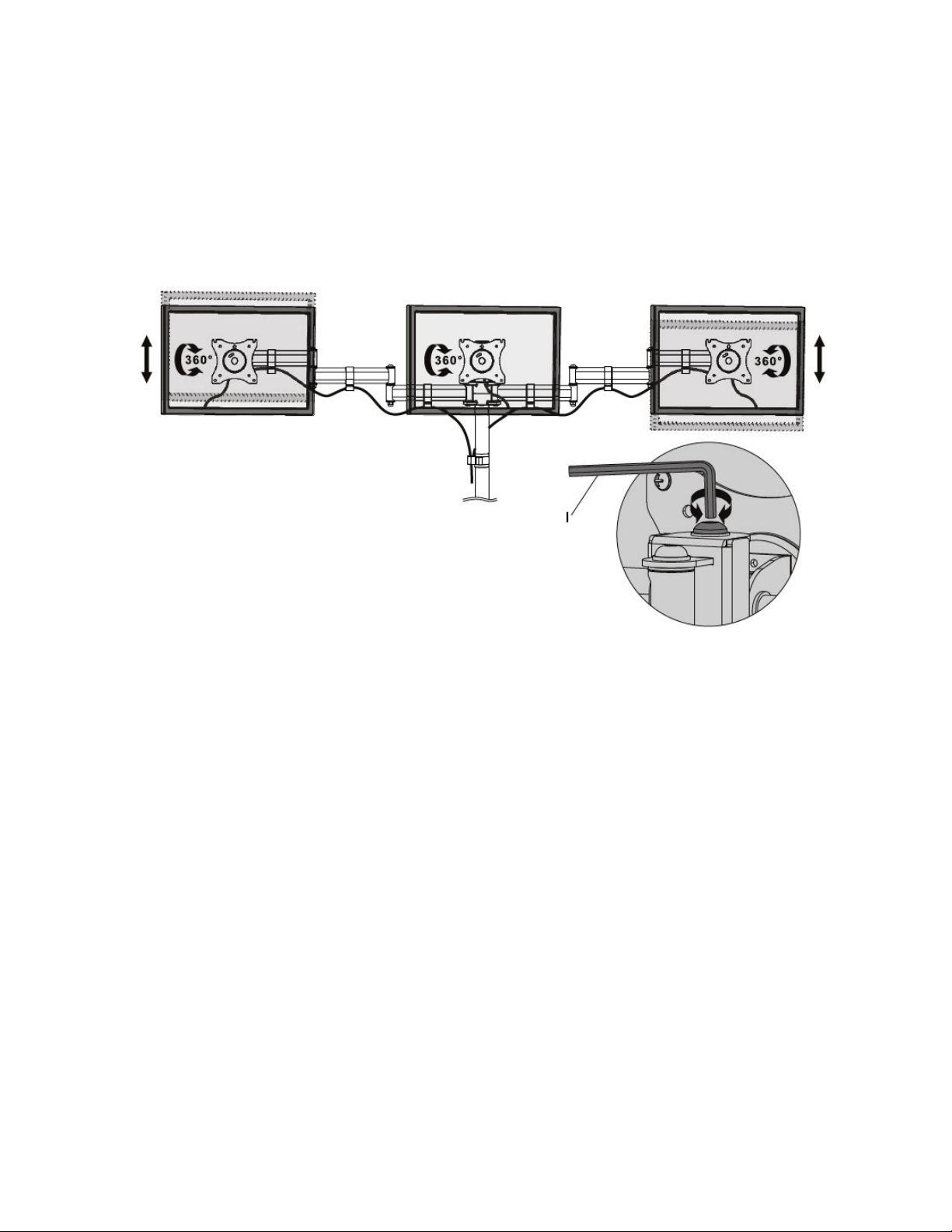

Cable Management, Rotation, and Height Adjusment
1. Route the cables through the wire clips and down the tube support.
2. Rotate the displays to the desired position.
3. To adjust the height of the outer displays, use the 5mm Allen Key (I) to turn the height
adjustment bolt clockwise to raise the display and counter clockwise to lower the
display.
Figure 5b
9
Page 10

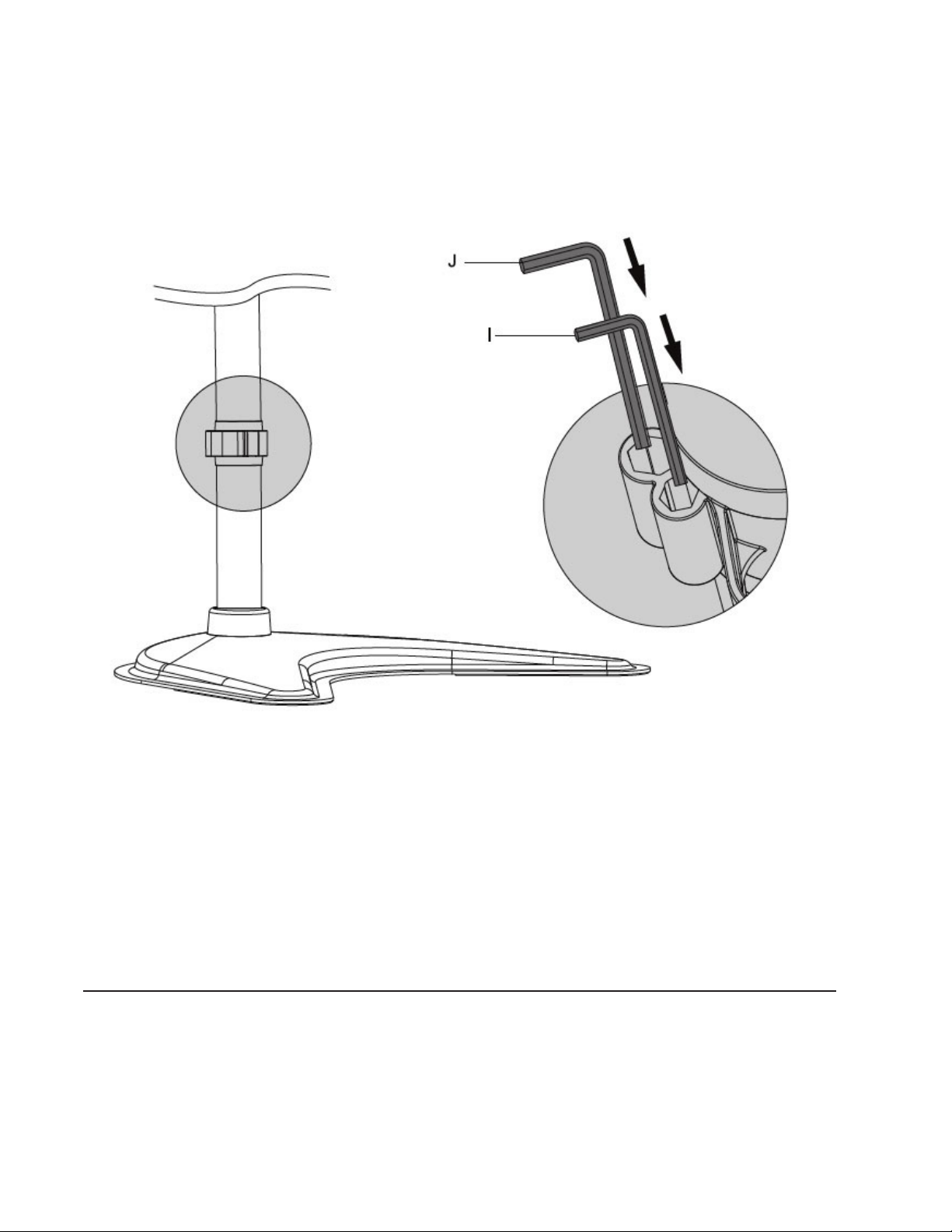

Storage
Store the Allen Keys into the Cable Management clip as shown in Figure 5c.
Figure 5c
Maintenance
Check the mounting screws every two months for tightness.
10
Page 11
Blank Page
11
Page 12
Technical Support and Warranty
QUESTIONS? SIIG’s Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online
support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks
away. You can also submit questions online and a technical support analyst will promptly respond.
SIIG offers a 5-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees
the product to be free of any defects in materials or workmanship for five (5) years from the date of purchase of the product.
SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality)
the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Please see our web site for more warranty details.
If you encounter any problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the product to the store where you purchased from.
B) If your purchase has passed the store's return policy period, please follow the steps below to have the product repaired
or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then Request A Product Replacement to submit a request to
request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA
number will be issued.
Step 2: After obtaining an RMA number, ship the product.
• Properly pack the product for shipping. All accessories that came with the original package must be included.
• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package,
and will not be responsible for a product returned without an RMA number posted on the outside of the shipping
carton.
• You are responsible for the cost of shipping to SIIG. Ship the product to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S.
at no cost to the customer.
SIIG RMA or fax a
