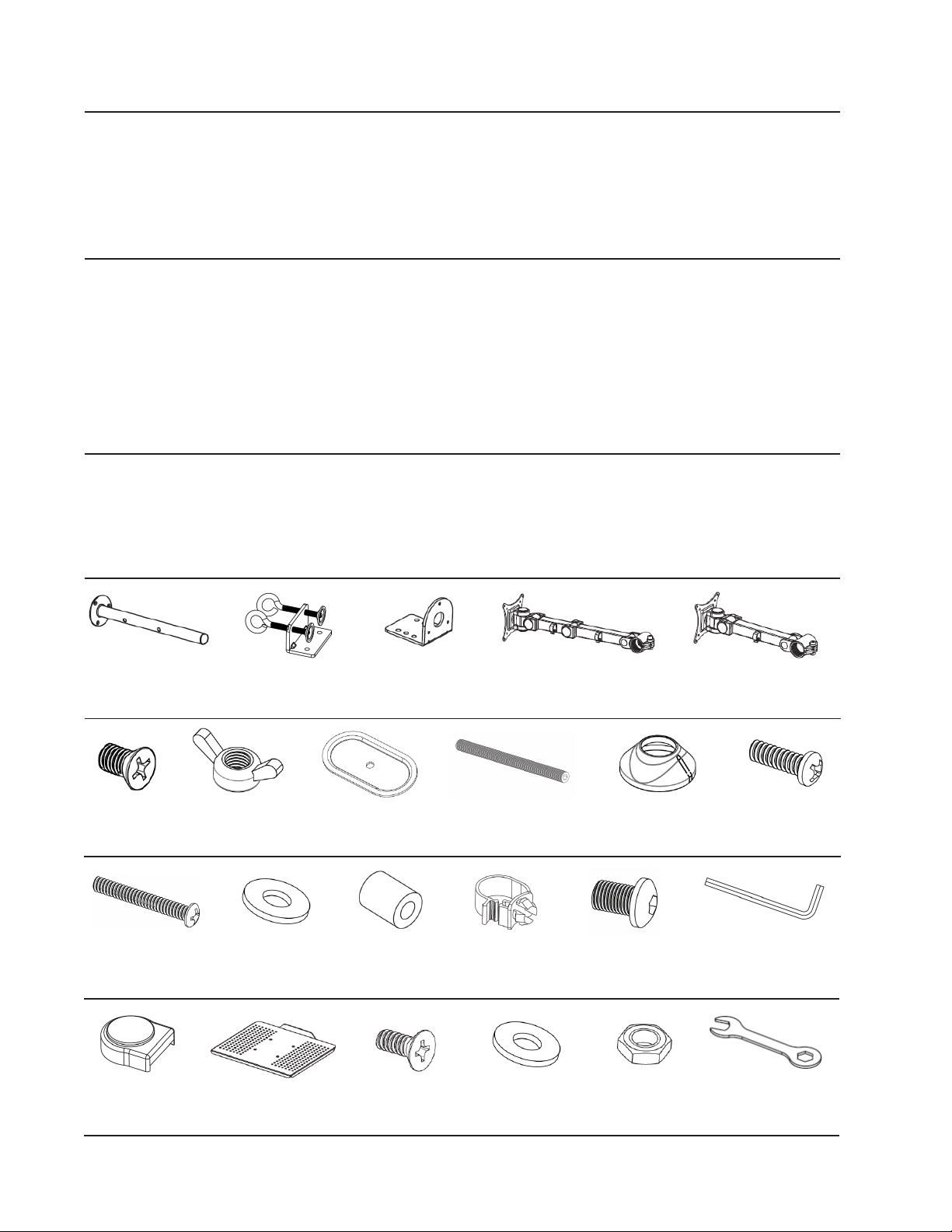

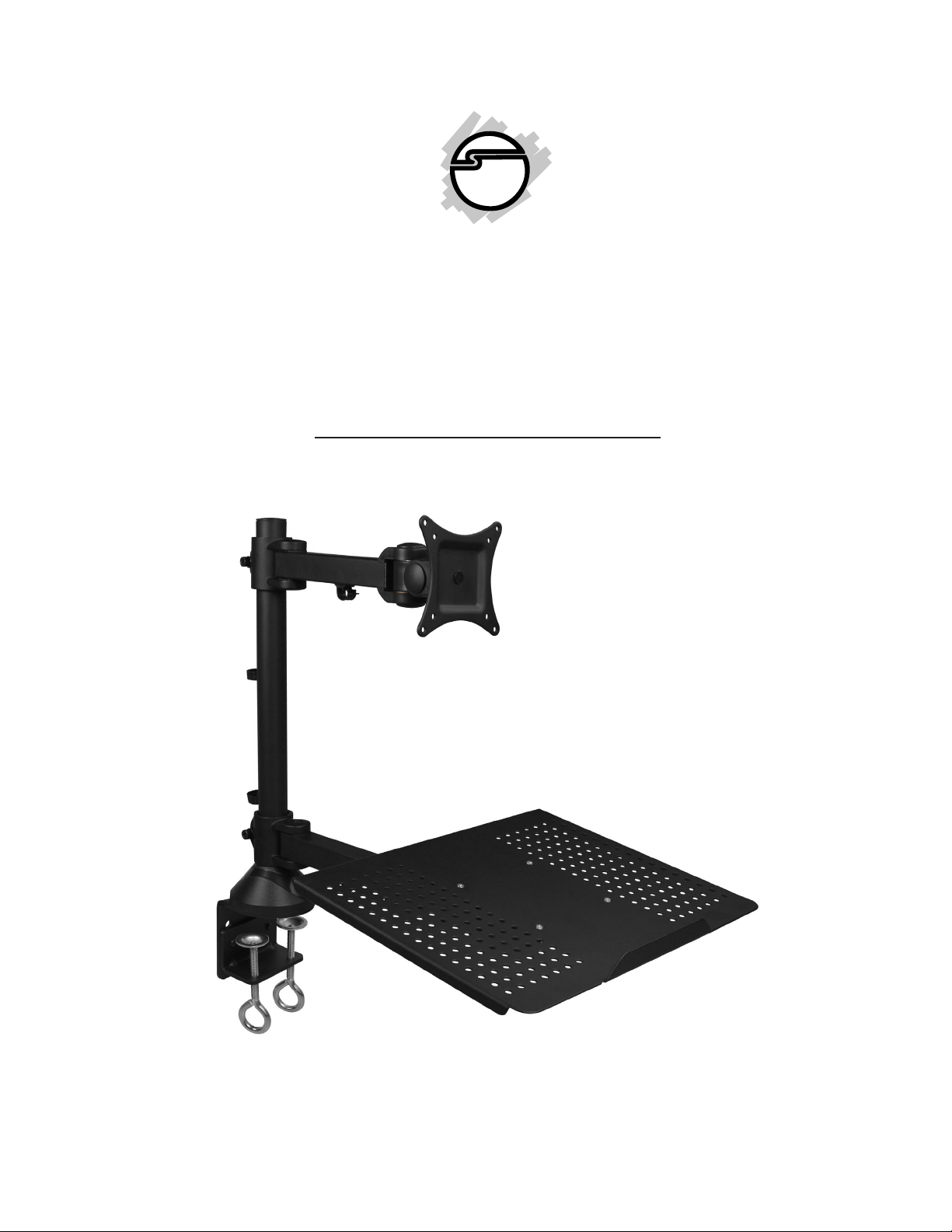

Caution: This desk mount must be securely attached to the horizontal desktop. If the mount
is not properly installed it may fall, resulting in possible injury and/or damage.

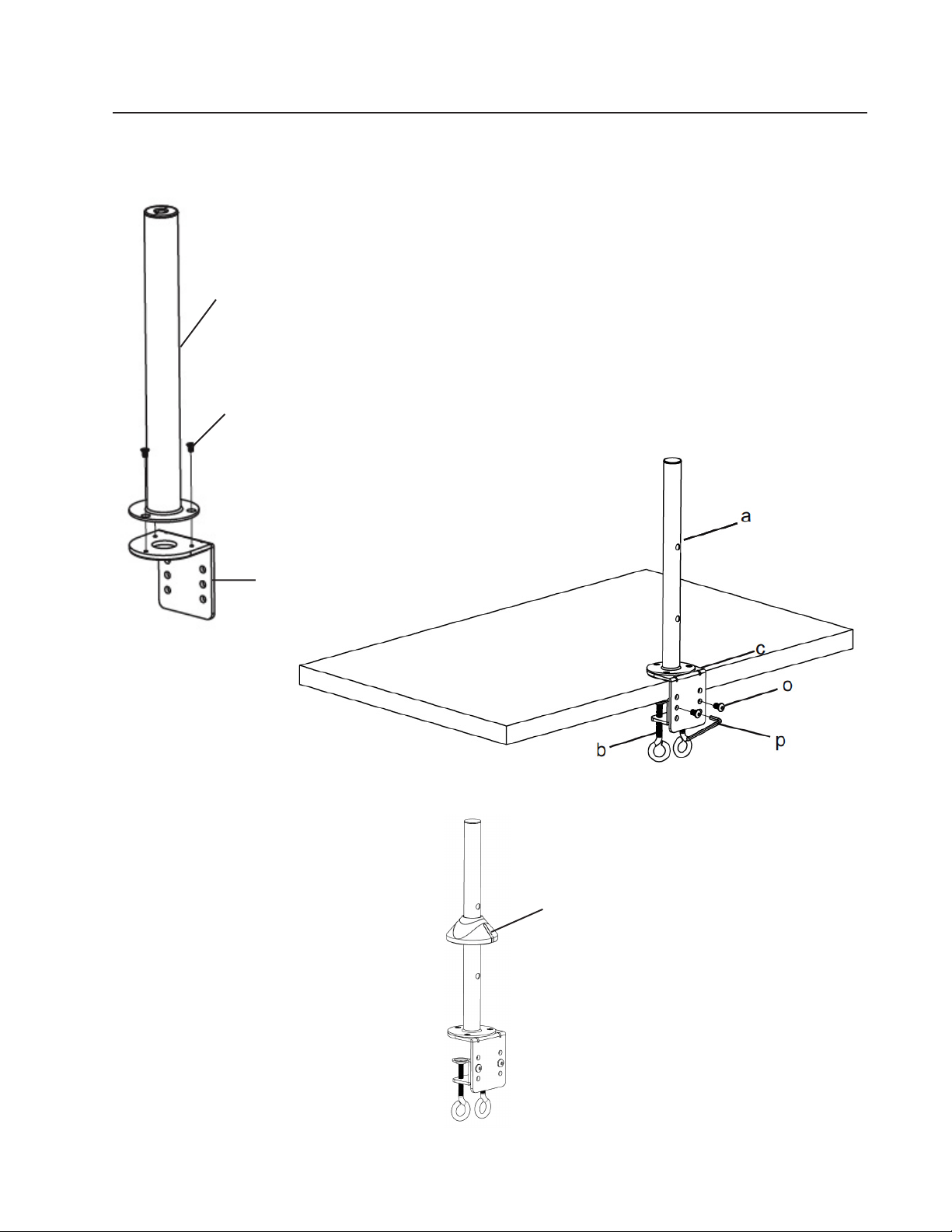

1A) C-Clamp Installation
1.Install the C-Clamp Brace (c) to the Tube Support (a) using
3 C-Clamp Brace Bolts (e ), see Figure 1.
2.Install the C-Clamp (b) to the Tube Support assembly (a) according
a
3.Install the Decorative Cap (i) over the Tube Support, see Figure 2a.
e
to the thickness of the desktop. The thickness can be changed in
three positions. Connect it using two M10x15 Bolts (o) and tighten
them using the Allen Key (p). Tighten the C-Clamp to the desktop
using the 2 eye bolts, see Figure 2.
This step is optional. The Decorative Cap covers the mounting
surface to provide a cleaner installation.
Figure 1
c
Figure 2
Decorative Cap (i)
Figure 2a
3
Page 4

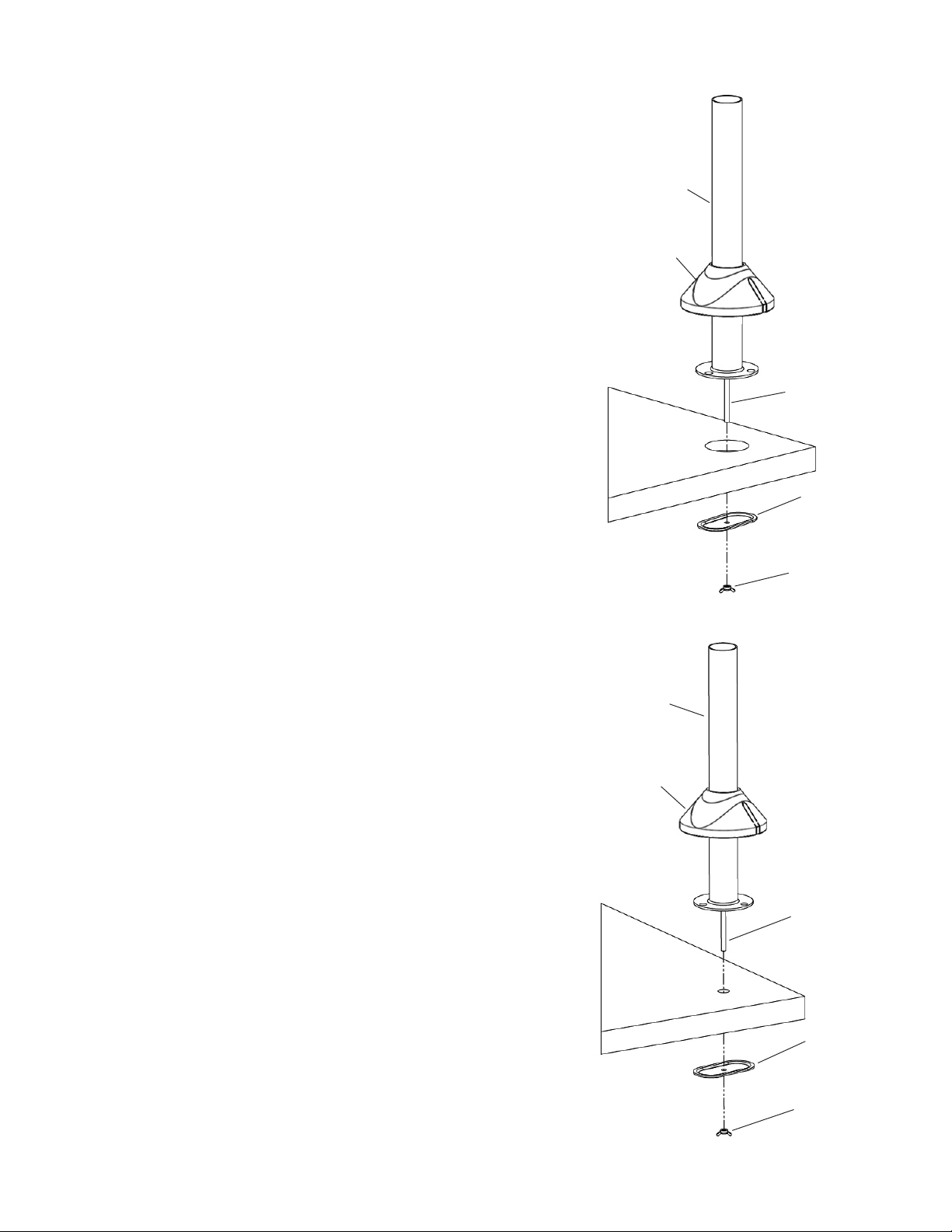

1B) Existing Grommet Hole Installation
If the existing grommet hole comes with a plastic protector,
remove it to ensure a flat surface before installing the desk
mount.
1.Thread the Grommet Bolt (h) into the center screw hole
located on the bottom of the Tube Support (a). Turn the
grommet bolt so that the top is protruding approximately
1/4" above the screw hole.
2.Position the Tube Support (a) on the mounting surface
and secure it using the Grommet Plate (g) and Wing Nut
(f), see Figure 3.
3.Install the Decorative Cap over the Tube Support, see
Figure 3. This step is optional. The Decorative Cap
covers the mounting surface to provide a cleaner
installation.
a
Decorative Cap
h
Figure 3
1C) Self Drilled Grommet Hole Installation
1.Position the Tube Support (a) on the mounting surface
and mark the center hole. Remove the Tube Support.
Drill a 3/8" (10mm) diameter hole at the marked position
through the mounting surface.
2.Thread the Grommet Bolt (h) into the center screw hole
located on the bottom of the Tube Support (a). Turn the
grommet bolt so that the top is protruding
approximately 1/4" above the screw hole.
3Place the Tube Support on the mounting surface and
secure it using the Grommet Plate (g ) and Wing Nut (f),
see Figure 4.
4.Install the Decorative Cap over the Tube Support, see
Figure 4. This step is optional. The Decorative Cap
covers the mounting surface to provide a cleaner
installation.
g
f
a
Decorative Cap
h
Figure 4
g
f
4
Page 5

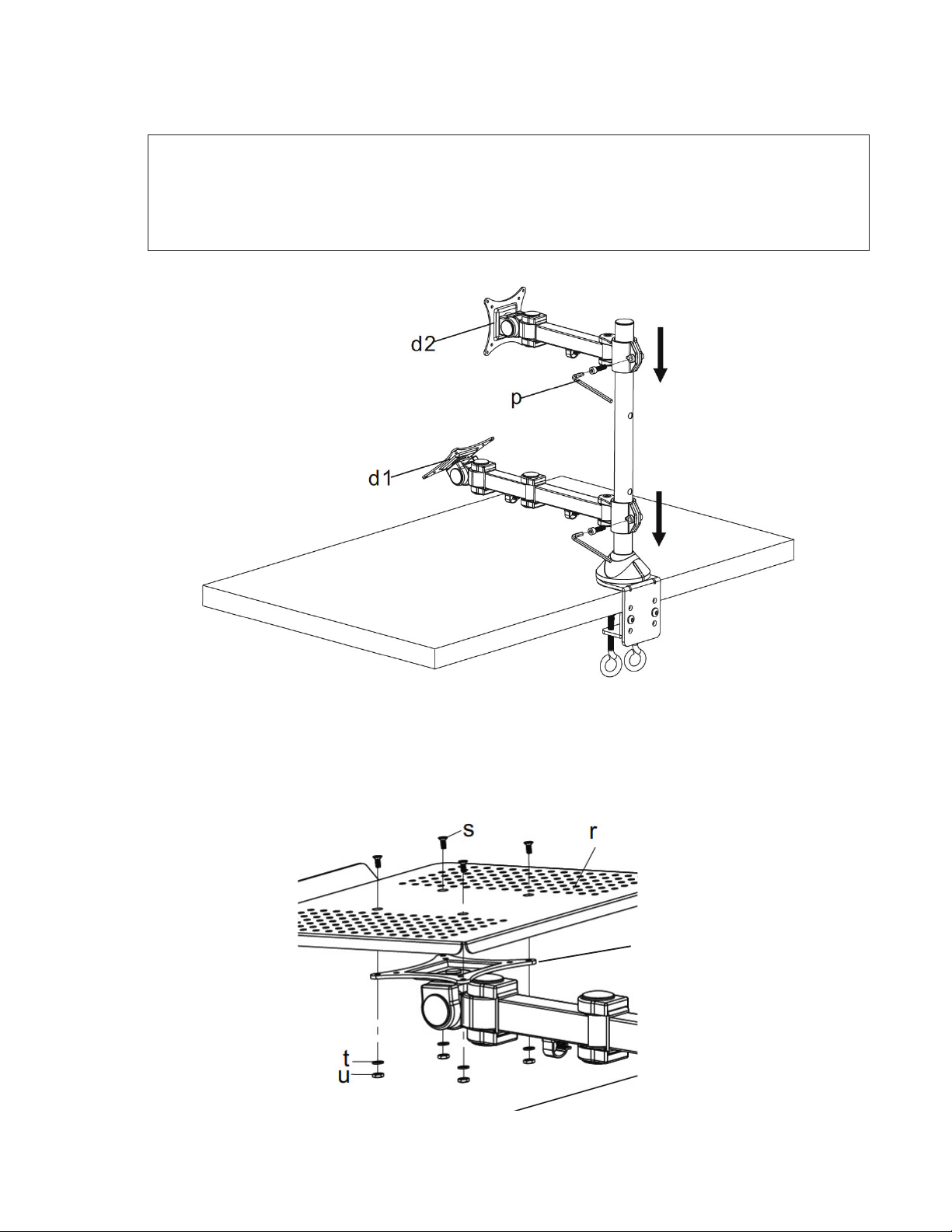

2.Install both VESA Plate with Arm (d1 & d2) onto the Tube Support, make sure the wire clips
are pointing downwards. Tighten the clamp bolt using Allen Key (p), see Figure 5.
Caution: When installing the VESA Plate with Arm, DO NOT over tighten the clamp bolt.
The VESA Plate with Arm is intended to rotate and is not meant to be attached in a fixed
position. Tighten the clamp bolt only tight enough to keep the VESA Plate with Arm at the
desired height position. Overtightening the clamp bolt may result in damage to the clamp
and/or tube support.
Figure 5
3.Mount the Laptop Tray (r) to the VESA plate (d1) using M4x10 Bolt (s), Washer (t) and M4 Nut
(u), tighten them using a Phillips screwdriver and the included wrench.
d1
Figure 6
5
Page 6

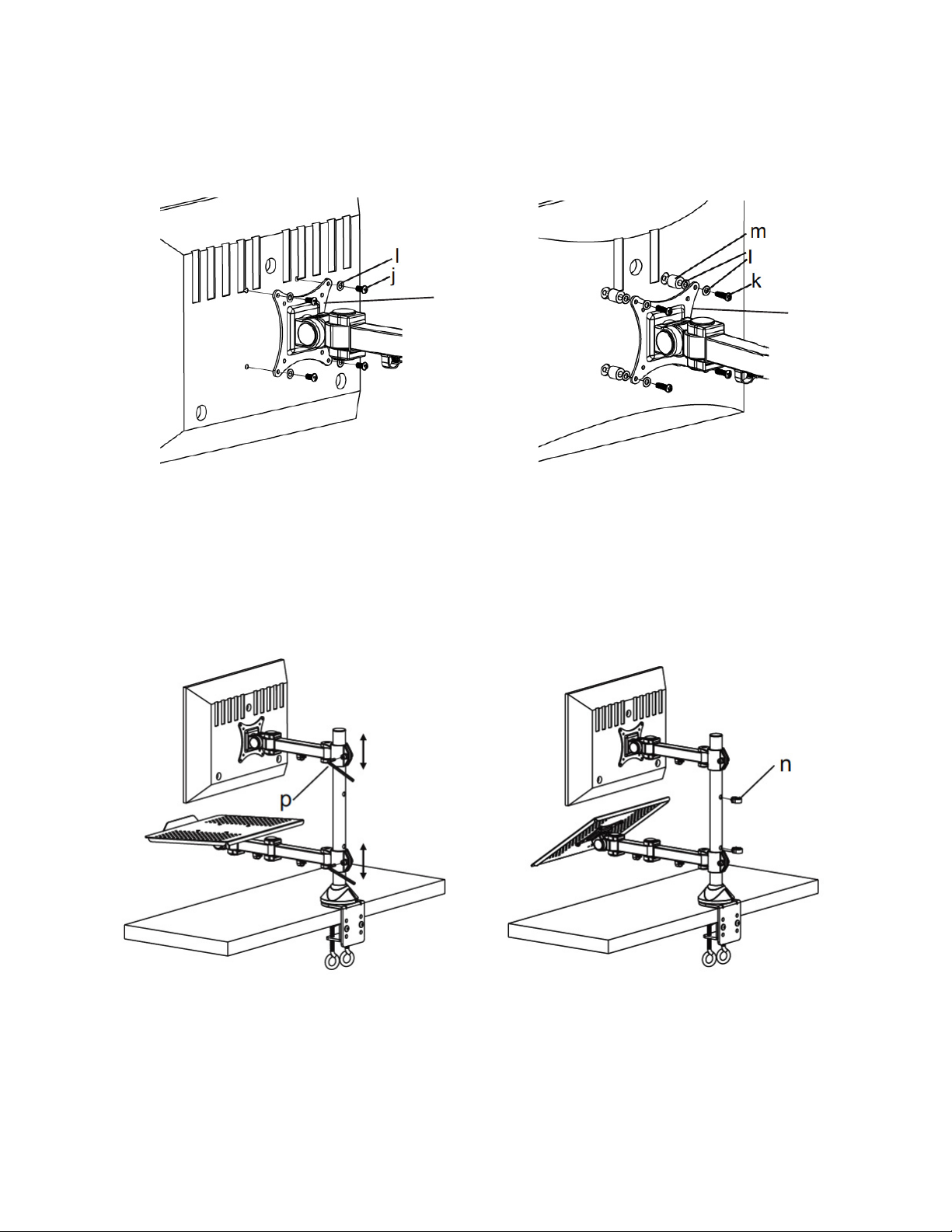

4.Mount the monitor to the VESA plate (d2).
4-1) For flat back monitors use M4 Washer (l) and M4x12 Bolt (j).
4-2) For curved back monitors use M4 Spacer (m), M4 Washer (l), and M4x30 Bolt (k).
d2
d2
4-1: Flat Back Monitor
5.Adjust the height and install the Wire Clips.
4-2: Curved Back Monitor
Adjust height, use Allen Key (p) to make the necessary
adjustment. Tighten the clamp bolt only tight enough to
keep the arm at the desired height position. Overtightening
the clamp bolt may result in damage to the clamp and/or
tube support.
6
Install the Wire Clips (n)
onto the tube support.
Page 7

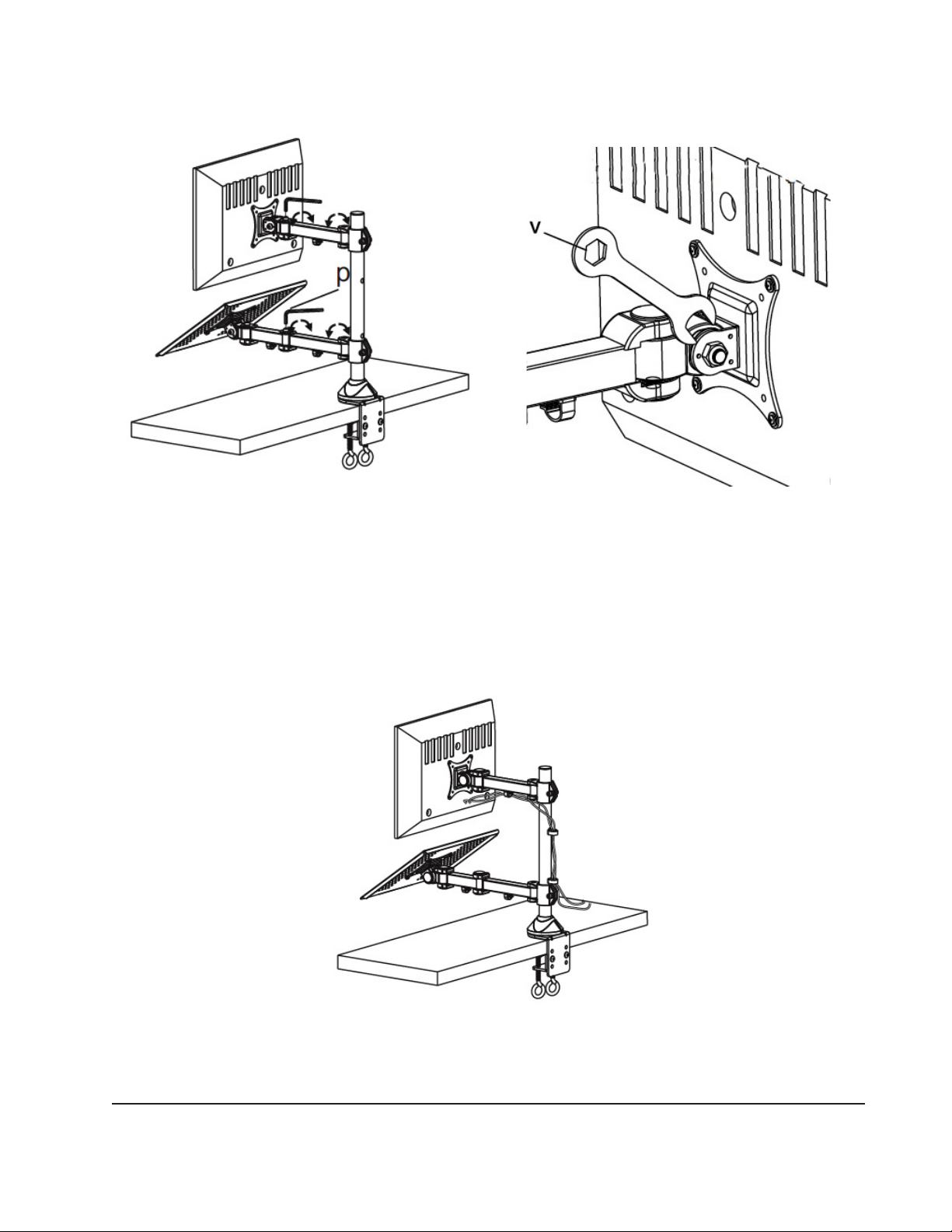

6.Check the tightness and adjust the tilt angle.
Check tightness, remove the plastic cover to
access the tightening bolt. Use the provided
Allen Key (p) to adjust the tightening bolt.
Tilt adjustment, remove the plastic cover to
access the tightening nut. Use the provided
Wrench (v) to adjust the tightening nut.
7.Arrange the cables through the cable management clips and down the Tube Support. Make
any final adjustments.
Arrange Cables
Maintenance
Check the mounting screws every two months for tightness.
7
Page 8
Technical Support and Warranty
QUESTIONS? SIIG’s Online Support has answers! Simply visit our website at www.siig.com and click Support. Our online
support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away.
You can also submit questions online and a technical support analyst will promptly respond.
SIIG offers a 3-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees
the product to be free of any defects in materials or workmanship for three (3) years from the date of purchase of the product.
SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality)
the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Please see our website for more warranty details.
If you encounter any problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the product to the store where you purchased from.
B) If your purchase has passed the store's return policy period, please follow the steps below to have the product repaired
or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then Request A Product Replacement to submit a request to
request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA
number will be issued.
Step 2: After obtaining an RMA number, ship the product.
• Properly pack the product for shipping. All accessories that came with the original package must be included.
• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package,
and will not be responsible for a product returned without an RMA number posted on the outside of the shipping
carton.
• You are responsible for the cost of shipping to SIIG. Ship the product to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S.
at no cost to the customer.
