Articulating Triple Monitor Desk Mount 13" to 27"

Installation Instructions

04-0708D

Page 2

Unpacking

• Carefully remove the contents and lay them out on cardboard or other protective surface

• Check package contents against the parts list to ensure that all components were received undamaged. Do not use damaged or defective parts

• Carefully read all instructions before attempting installation

Safety Information

• Use proper safety equipment during installation

• If you don't understand the installation instructions, please consult an installation specialist

• This mount contains small parts which can act as a choking hazard if swallowed

• Do not use this product for any purpose or in any configuration not explicitly specified in these instructions

Tools Required

• Phillips screwdriver and adjustable wrench

• 3/8" drill bit (for Grommet installation)

• Electric drill (for Grommet installation)

Parts List

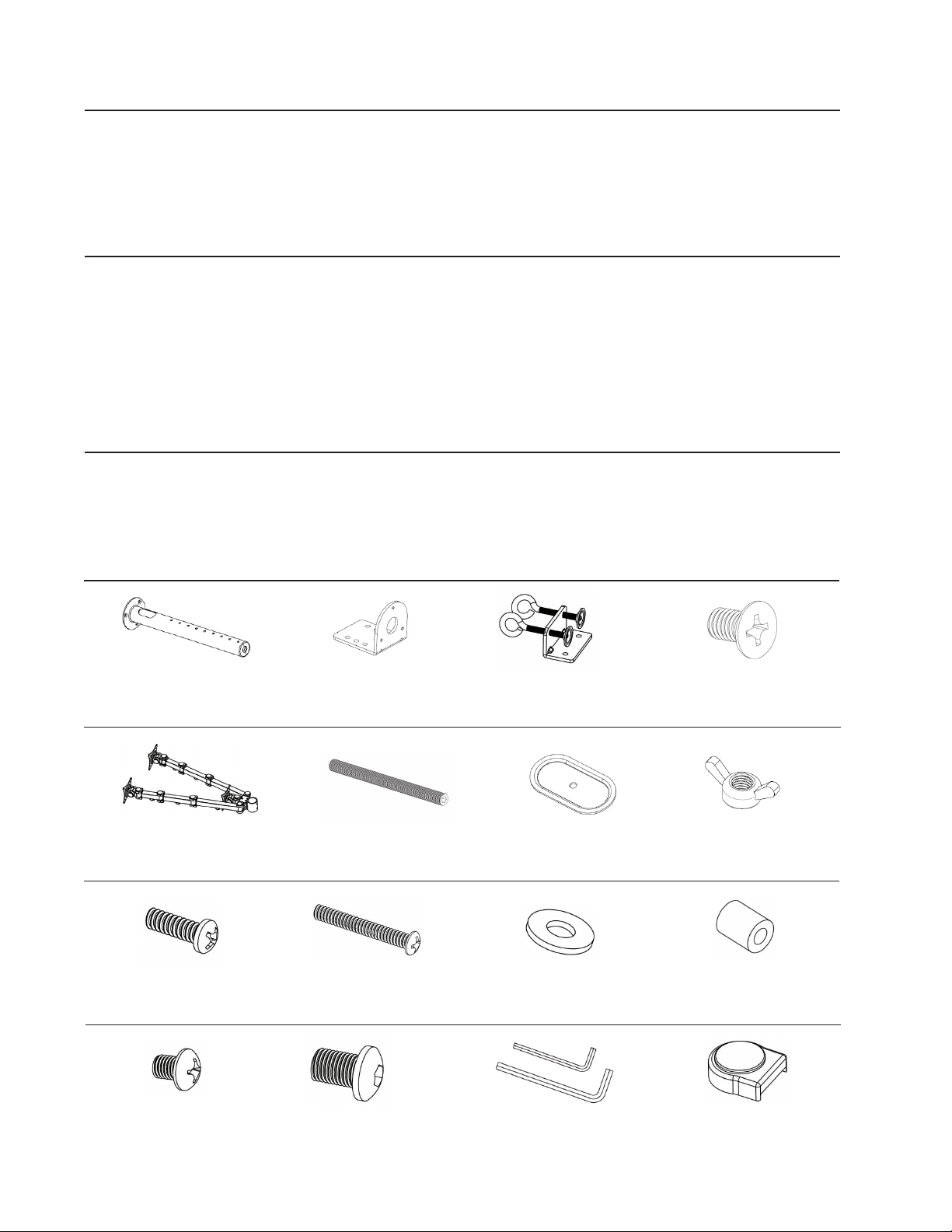

a - (1x) 48mm Tube Support

e - (1x) Vesa plate with Arm

i - (12x) M4x12 Bolt

b - (1x) C-clamp brace

f - (1x) 3/8" Grommet bolt g - (1x) Grommet plate h - (1x) Wing nut

j - (12x) M4x30 Bolt k - (24x) M4 Washer

c - (1x) C-clamp

d - (3x) C-clamp brace bolt

l - (12x) M4 Spacer

m - (2x) M8x10 Bolt

n - (2x) M10x15 Bolt

o - (2x) Allen Key

p - (2x) Spare Plastic Cover

Page 3

Installation

Caution: This monitor desk mount must be securly attached to the horizontal desktop. If the mount is not properly installed it may fall, resulting in possible injury and/or damage.

1A) C-clamp Installation

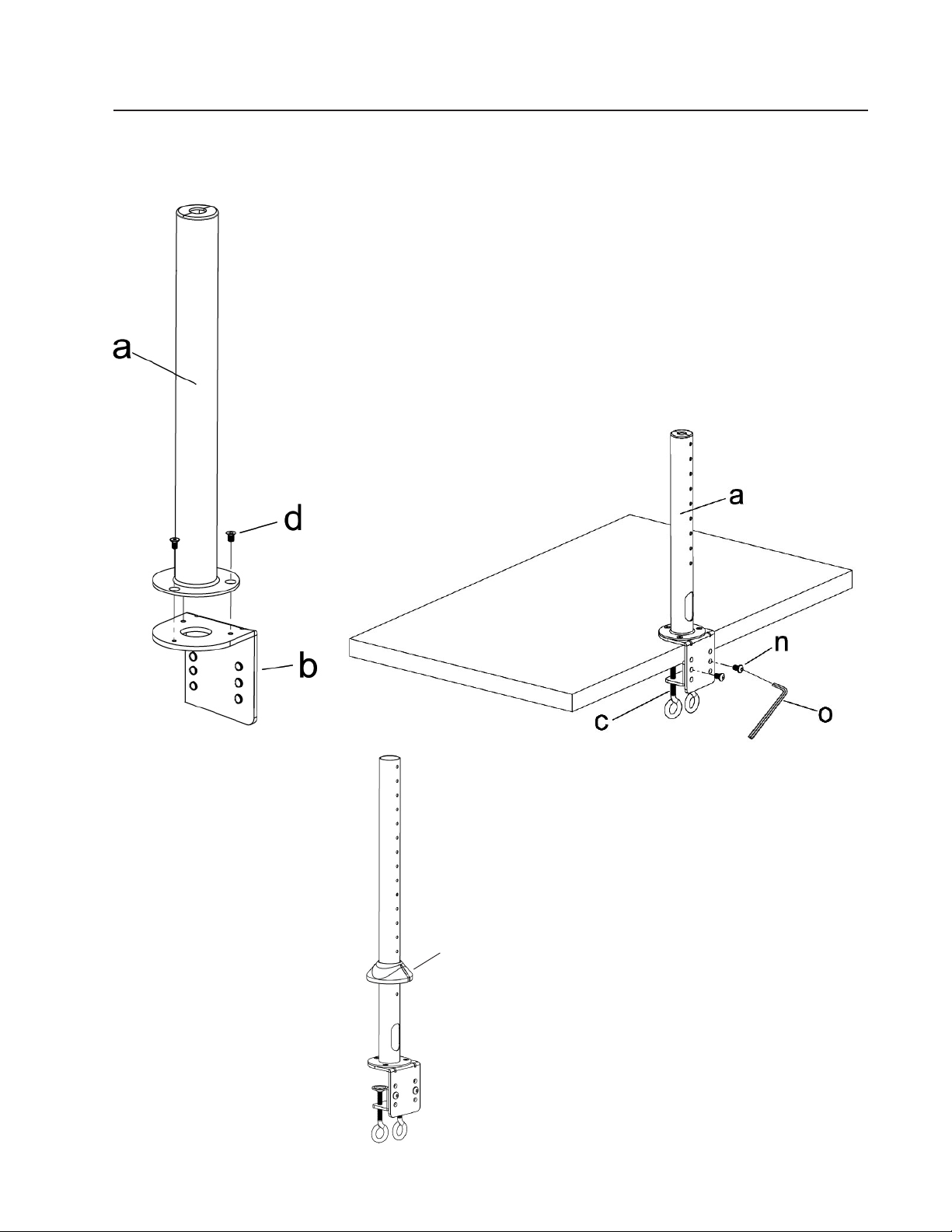

1. Install the C-clamp brace (b) to the 48mm Tube Support (a) using 3 C-clamp brace bolts (d ), see Figure 1.

2. Install the C-clamp (c) to the 48mm Tube Support assembly according to the thickness of the desktop. The thickness can be changed in three positions. Connect it using 2 M10x15 Bolts (n) and tighten using the Allen Key (o). Tighten the C-clamp to the desktop using the 2 eye bolts, see Figure 2.

3. Install the Plastic cap over the 48mm Tube support, see Figure 2a. This step is optional. The plastic cap covers the mounting surface to provide a cleaner installation.

Figure 1

Figure 2

Plastic cap

Figure 2a

Page 4

1B) Existing Grommet Hole Installation

If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount.

1. Thread the 3/8" Grommet bolt (f) into the center screw hole located on the bottom of the 48mm Tube Support (a). Turn the grommet bolt so that the top is protruding approximately 1/4" above the screw hole.

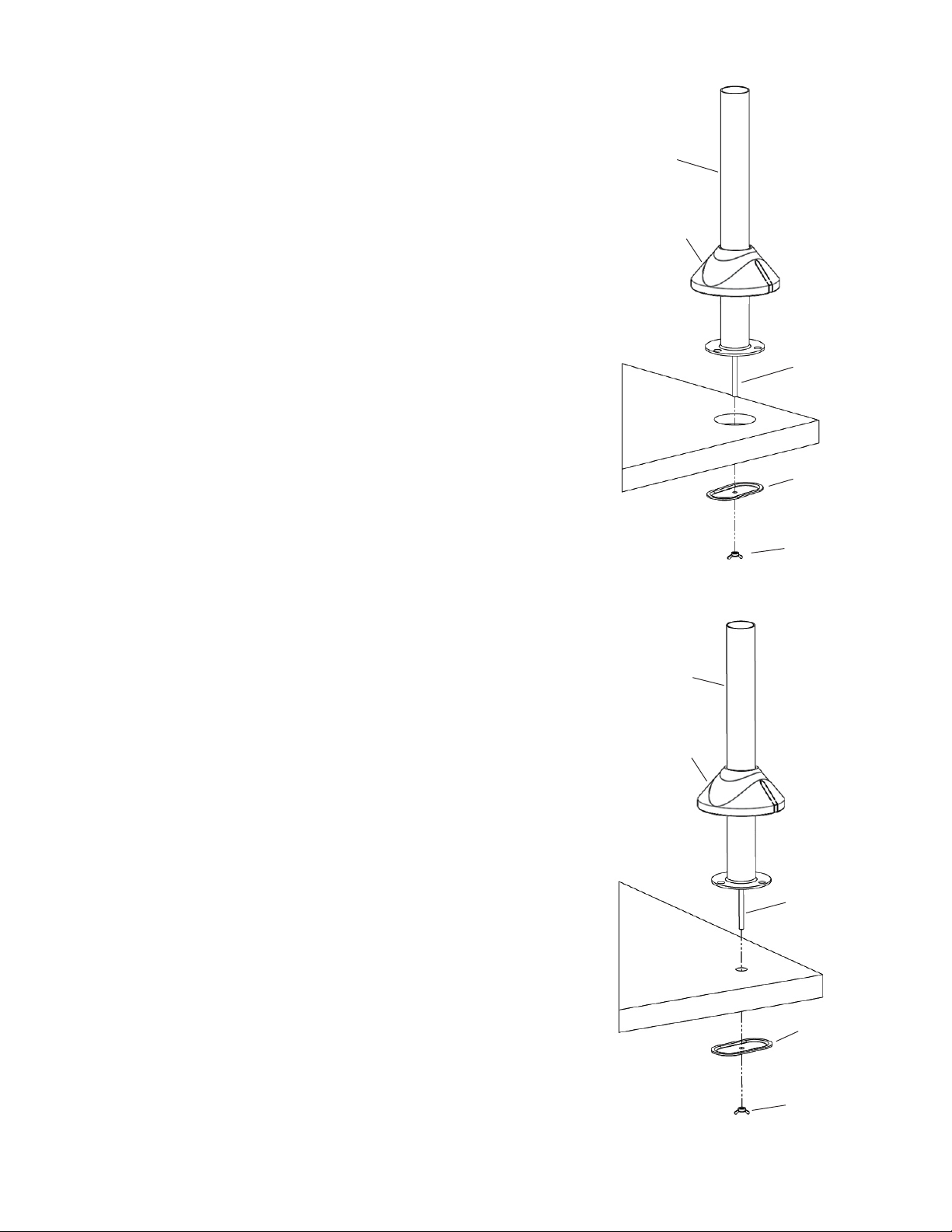

2. Position the 48mm Tube Support (a) on the mounting surface and secure it using the Grommet plate (g) and Wing nut (h), see Figure 3.

Plastic cap

3. Install the Plastic cap over the 48mm Tube support. This step is optional. The plastic cap covers the mounting surface to provide a cleaner looking installation.

Figure 3

1C) Self Drilled Grommet Hole Installation

1. Position the 48mm Tube Support (a) on the mounting surface and mark the center hole. Remove the tube support. Drill a 3/8" (10mm) diameter hole at the marked position through the mounting surface.

2. Thread the 3/8" Grommet bolt (f) into the center screw hole located on the bottom of the 48mm Tube Support (a). Turn the grommet bolt so that the top is protruding approximately 1/4" above the screw hole.

Plastic cap

3 Place the tube support on the mounting surface and

secure it using the Grommet plate (g ) and Wing nut (h), see Figure 4.

4. Install the Plastic cap over the 48mm Tube Support. This step is optional. The plastic cap covers the mounting surface to provide a cleaner looking installation.

Figure 4

Page 5

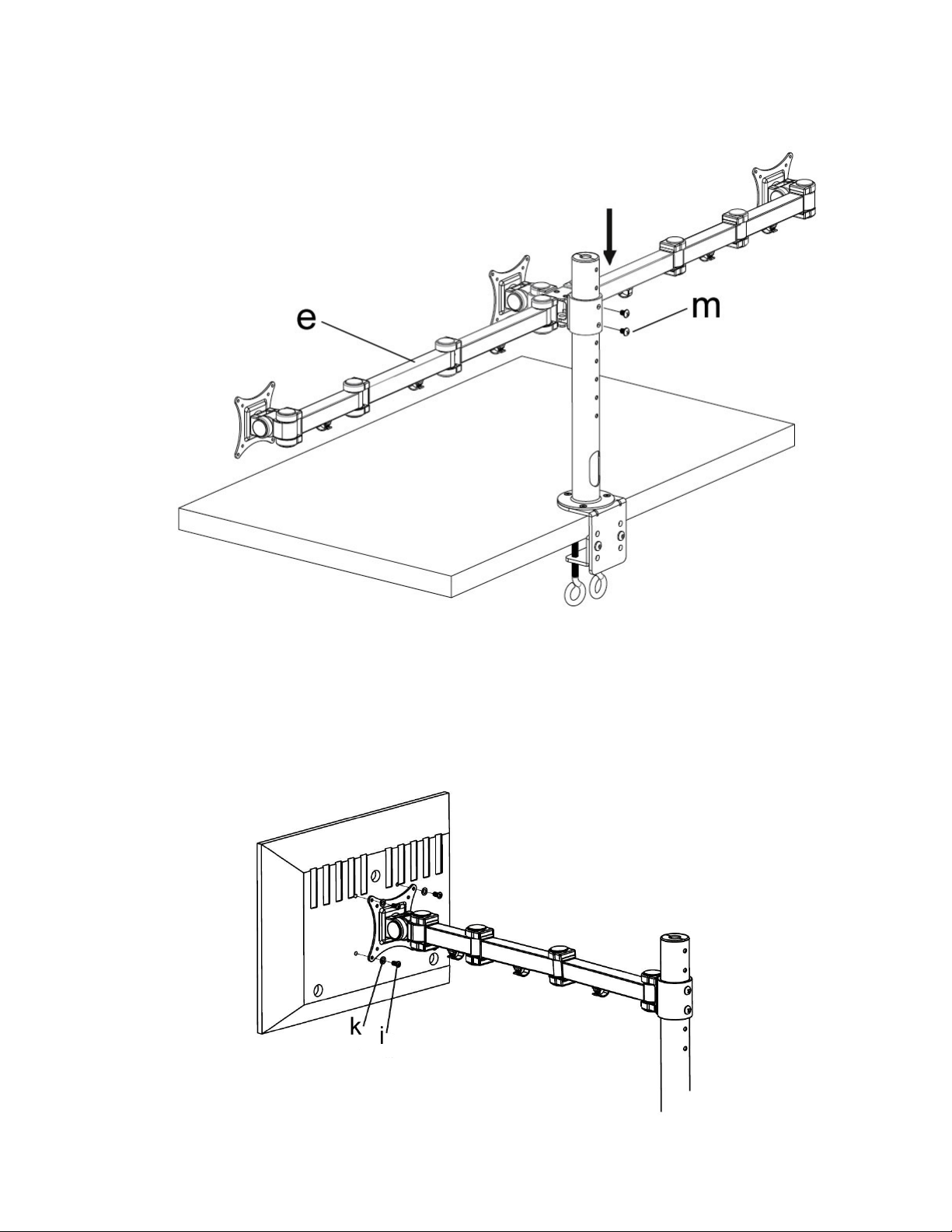

2. Install the Vesa Plate with Arm (e) to the tube support, make sure the wire clips are on the bottom. Connect it using 2 M8x10 Bolt (m) and tighten using a Phillips screwdriver.

Figure 5

3. Mount the monitor to the Vesa plate.

3-1. For flat back monitors use M4x12 Bolt (i) and M4 Washer (k).

Flat Back Monitor

Page 6

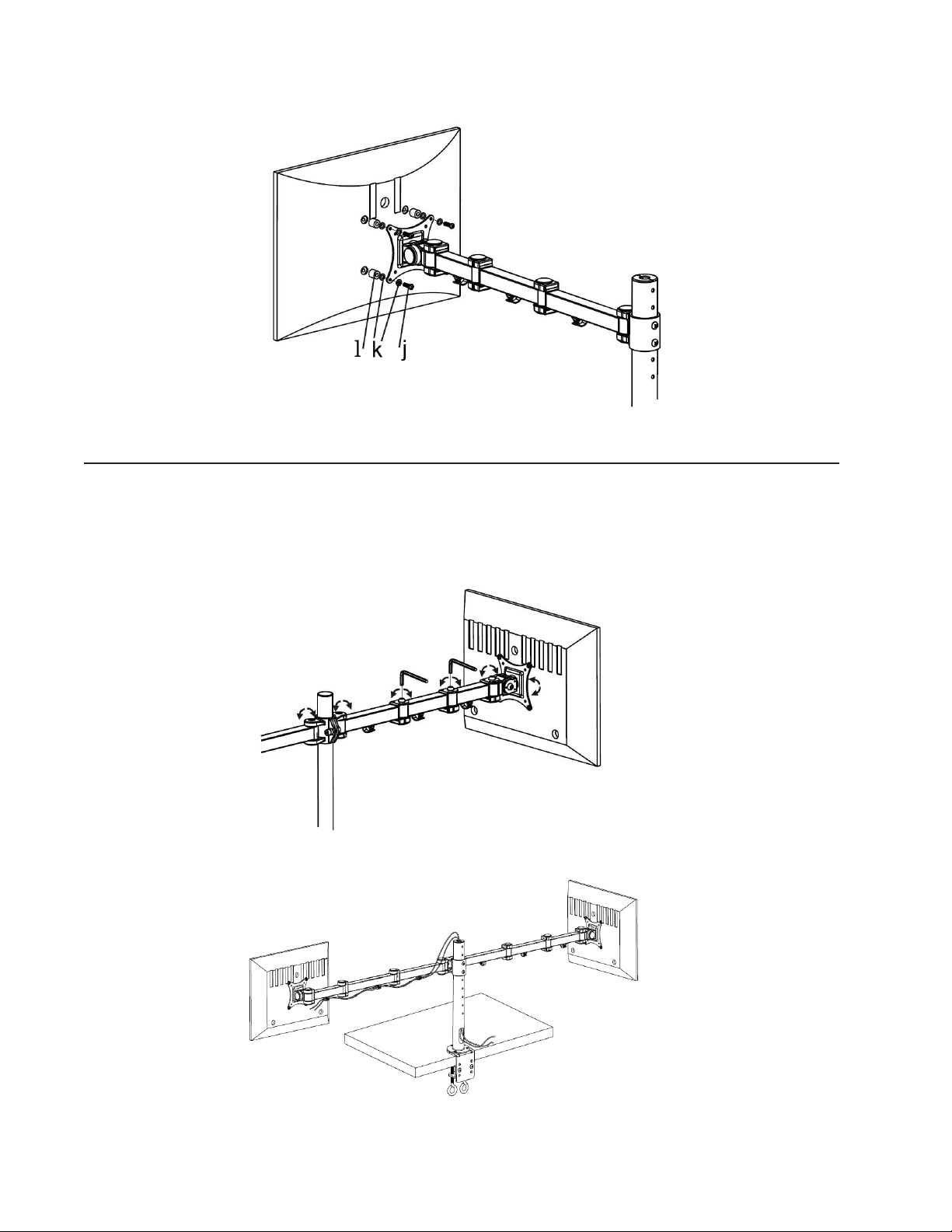

3-2. For curved back monitors use M4 Spacer (l), M4x30 Bolt (j), and M4 Washer (k).

Curved Back Monitor

Final Adjustments and Cable Management

1. Check the tightness, arrange the cables through the cable management clips and down the tube support, and make any final adjustments. Note: Remove the plastic covers at each position to access the tightening screws.

Check Tightness

Arrange Cables

Page 7

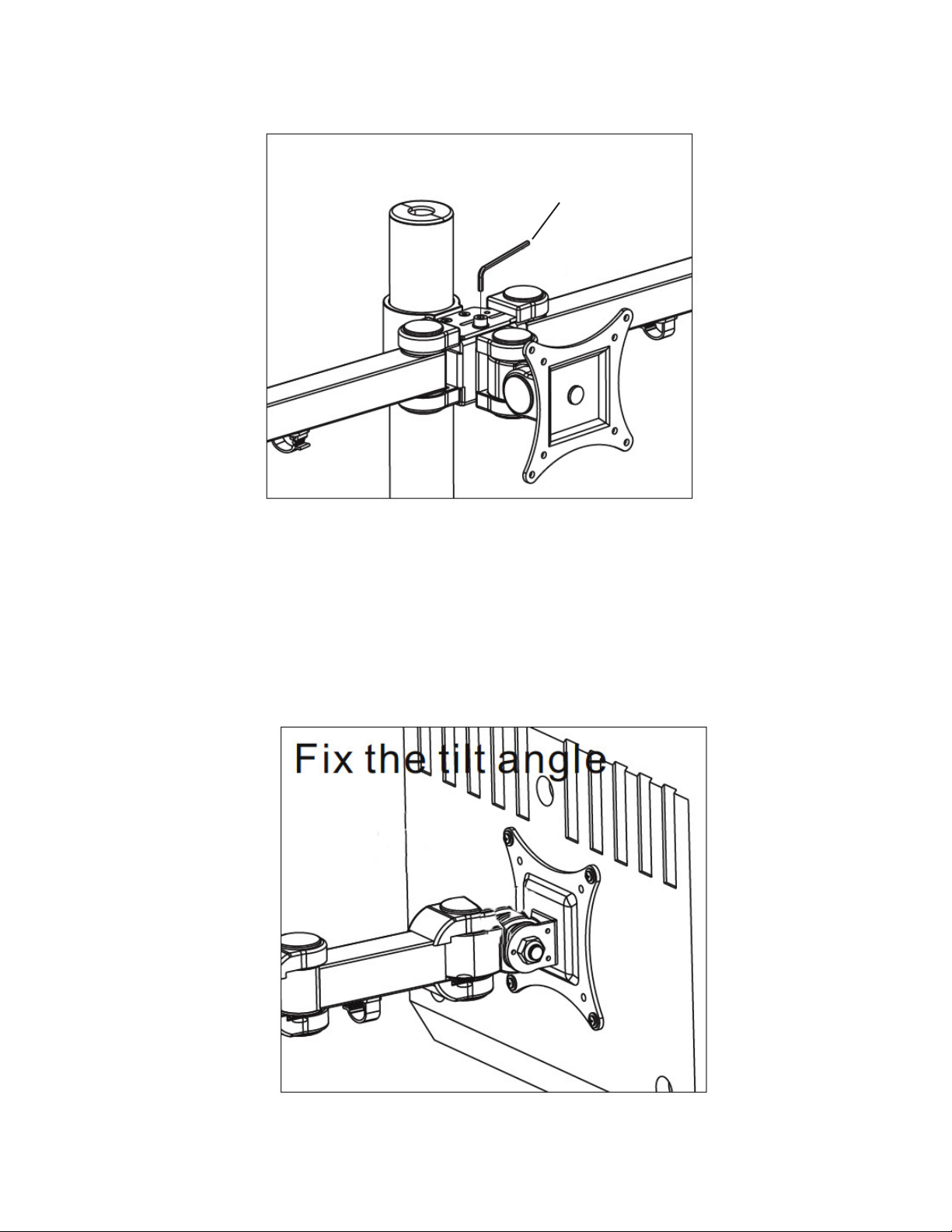

2. Use Allen Key (o) to raise or lower the height of the center monitor.

Height Adjustment

3. To adjust the monitor tilt angle, use an adjustable wrench to tighten or loosen the tightening screw then place the monitor at the desired position and tighten the screw to fix the position of the monitor. Note: Remove the plastic cover to access the tightening screw.

Monitor Tilt Angle Adjustment

Page 8
