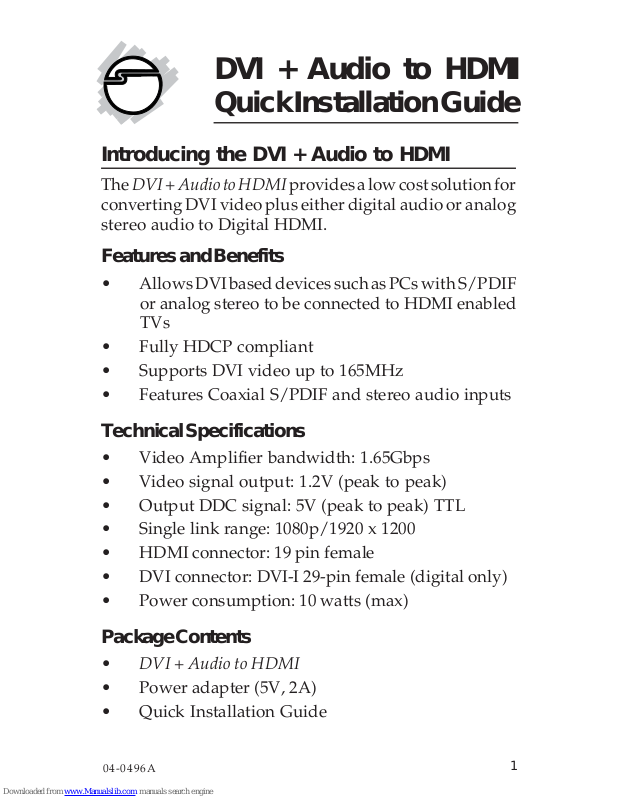

DVI + Audio to HDMI
Quick Installation Guide
Introducing the DVI + Audio to HDMI
The DVI + Audio to HDMI provides a low cost solution for
converting DVI video plus either digital audio or analog
stereo audio to Digital HDMI.
Features and Benefits
• Allows DVI based devices such as PCs with S/PDIF
or analog stereo to be connected to HDMI enabled
TVs
• Fully HDCP compliant
• Supports DVI video up to 165MHz
• Features Coaxial S/PDIF and stereo audio inputs
Technical Specifications
• Video Amplifier bandwidth: 1.65Gbps
• Video signal output: 1.2V (peak to peak)
• Output DDC signal: 5V (peak to peak) TTL
• Single link range: 1080p/1920 x 1200
• HDMI connector: 19 pin female
• DVI connector: DVI-I 29-pin female (digital only)
• Power consumption: 10 watts (max)
Package Contents
• DVI + Audio to HDMI
• Power adapter (5V, 2A)
• Quick Installation Guide
04-0496A
Page 2
2

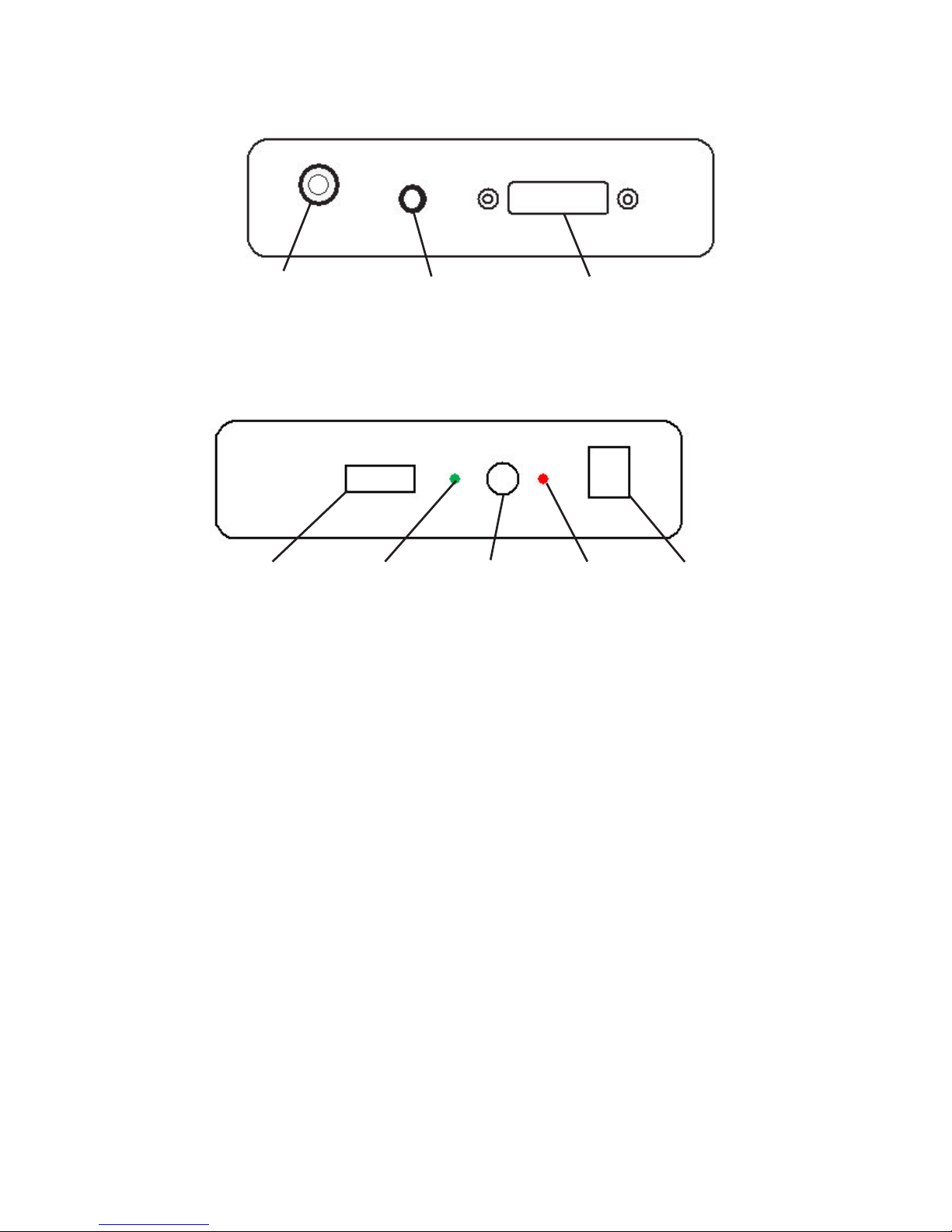

Front Panel
Rear Panel
HDMI
Out
S/PDIF In
DVI In
Status
Indicator
Rotary
Switch
Power
Indicator
Power
Jack
Rotary Switch Modes
• 0: Analog mode
• 1: S/PDIF audio mode
• 2-5: Reserved
• 6: EDID default
• 7: EDID update from HDMI port. To enable image,
set rotary switch to 7, when image appears return to
0.
Status Indicator
Green indicates a good connection.
Stereo Audio In
Page 3
3
Hardware Installation
1. Connect your DVI source to the DVI In of the DVI +
Audio to HDMI.
2. Connect either your digital S/PDIF or stereo audio
source to S/PDIF In or Stereo Audio In, respectively,
of the DVI + Audio to HDMI.
3. Connect your HDMI TV or other HDMI enabled
display to HDMI Out of the DVI + Audio to HDMI.
4. Plug the power adapter into the Power Jack of the
DVI + Audio to HDMI, then plug the power adapter
into a reliable power outlet.
Safety Precautions
Like all electronic equipment the DVI + Audio to HDMI
should be used with care. Please read and follow the
safety precautions to protect yourself from possible injury
and minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on the
unit
• Provide proper ventilation and air circulation, do
not use near water
• Do not attempt to service the unit yourself, except
where explained in the manual
• Keep objects that might damage the device at a safe
distance and assure that the placement of this unit is
on a stable surface
• Do not use liquid or aerosol cleaners to clean this
unit and always unplug the power to the device
before cleaning
• Use only the power adapter and accessories that
came with the unit
Page 4
4
FAQs
• Only HDMI enabled TVs with underscan/overscan*
support can accurately display full active video.
Some HDMI equipped TVs cannot support this
feature. If underscan/overscan is not supported,
the top, bottom, left and right border of the active
video may be distorted, and the S/PDIF audio may
not sound right.
*Note: Underscan mode displays full video frame,
which reveals content recorded on the edges of the
screen. In overscan mode, the field monitor zooms
into the area that would be visible on most TVs. Set
the field monitor to underscan if your video will be
viewed on a computer monitor or shown with a
projector, also look for light stands, microphones
and other unwanted objects on the edges of your
shot. Set to overscan to see how the video will look
on a television.
• Stereo Audio In: supports 2-channel analog audio.
This port does not support 8-channel analog audio.
• S/PDIF In: supports up to 8-channel audio input.
• S/PDIF In: supports 48KHz audio sampling rate
only. Adjust your audio source's output signal to
48KHz in order to send the correct audio signal.
• Rotary Switch: mode 7; to read EDID of the HDMI
port. Set rotary switch to 7, then return to 0 when the
image appears.
Page 5
5
Blank Page
Page 6
6
Blank Page
Page 7
7
Technical Support and Warranty
QUESTIONS? SIIG’s Online Support has answers! Simply visit our
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
to your questions could be just a few clicks away. You can also submit
questions online and a technical support analysts will promptly
respond.
SIIG offers a 2-year manufacturer warranty with this product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) If your purchase has passed the store's return policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
• Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
• Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
• You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
• SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.
