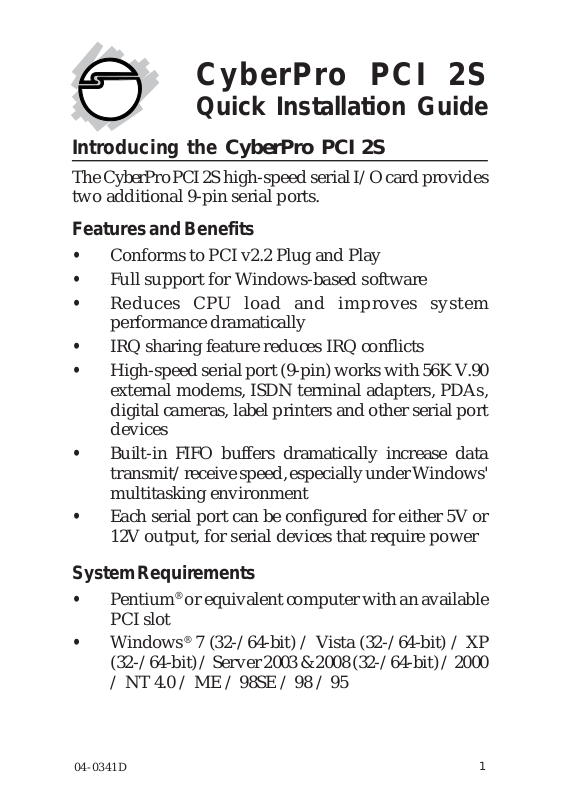

CyberPro PCI 2S

Quick Installation Guide

Introducing the CyberPro PCI 2S

The CyberPro PCI 2S high-speed serial I/O card provides
two additional 9-pin serial ports.

Features and Benefits

• Conforms to PCI v2.2 Plug and Play

• Full support for Windows-based software

• Reduces CPU load and improves system

performance dramatically

• IRQ sharing feature reduces IRQ conflicts

• High-speed serial port (9-pin) works with 56K V.90

external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices

• Built-in FIFO buffers dramatically increase data

transmit/receive speed, especially under Windows'
multitasking environment

• Each serial port can be configured for either 5V or

12V output, for serial devices that require power

System Requirements

• Pentium® or equivalent computer with an available

PCI slot

• Windows® 7 (32-/64-bit) / Vista (32-/64-bit) / XP

(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
/ NT 4.0 / ME / 98SE / 98 / 95

04-0341D

1

Package Contents

• CyberPro PCI 2S board

• Driver CD

• Quick installation guide

Layout

JP2 (Serial port 2)

Serial Port 2

Serial Port 1

JP1 (Serial port 1)

Figure 1. Layout

Jumper Settings (JP1, JP2)

Open = 0 volts (default)
Short 1-2 = 5V
Short 2-3 = 12V

Note: Most serial devices do not require additional
power through the serial port. Refer to your serial
device's manual for more information.

2

Hardware Installation

General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.

Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.

1. Turn OFF the power to your computer and any
other connected peripheral devices.

2. Unplug the power cord from the back of the
computer.

3. Remove your computer’s cover.

4. Remove the slot bracket from an available PCI slot.

5. Set JP1 and JP2 jumper settings to the desired voltage
only if your serial device needs additional power
from the serial port. However, most serial devices
do not require additional power. For more
information see Figure 1 on page 2. Skip this step if
power is not required.

6. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.

7. Replace the slot bracket holding screw to secure the
card.

8. Replace the computer cover and reconnect the power
cord.

3

Driver Installation

This section provides information on how to install the
CyberPro PCI 2S drivers.

Windows 7 (32-/64-bit)

1. Right click Computer, click Manage, click Device
Manager.

2. Insert the driver CD. Right click PCI Serial Port,
click Update Driver Software.

3. Click Browse my computer for driver software.

4. Type D:, then click Next. (Change D: to match your
CD/DVD-ROM drive letter)

5. At Windows has successfully updated your driver
software, click Close.

6 Right click Other PCI Bridge Device, click Update

Driver Software.

7. Repeat steps 3-5.

8. Right click CyberSerial Communication Port, click
Update Driver Software.

9. Click Browse my computer for driver software.

10. Type D:, click Next. (Change D: to match your CD/
DVD-ROM drive letter)

11. At Windows has successfully updated your driver
software, click Close.

12. Repeat steps 8-11 to complete the installation.

Windows Vista™ (32-/64-bit)

1. At the Found New Hardware window, insert the
driver CD, click Locate and install driver software
(recommended), then click Continue.

2. Click Next, then click Close.
