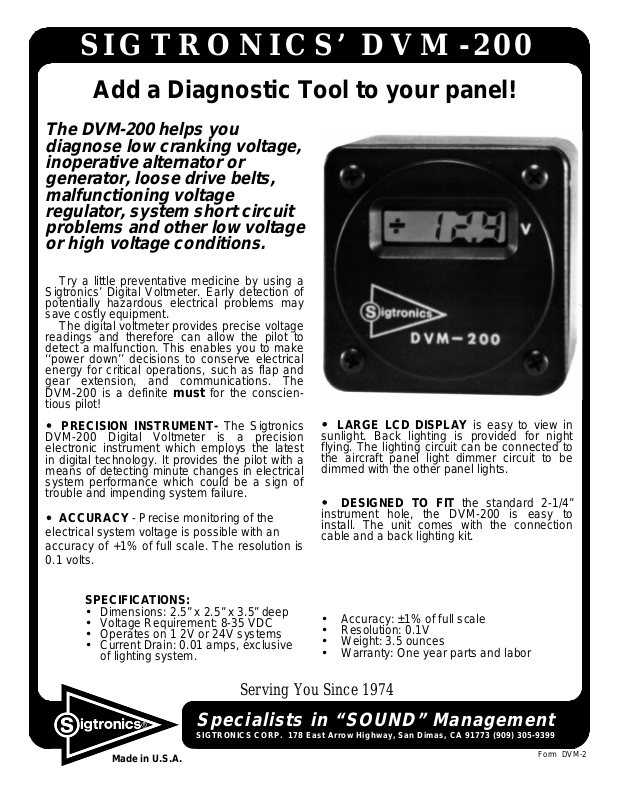

SIGTRONICS’ DVM -200

Add a Diagnostic Tool to your panel!

The DVM-200 helps you
diagnose low cranking voltage,
inoperative alternator or
generator, loose drive belts,
malfunctioning voltage
regulator, system short circuit
problems and other low voltage
or high voltage conditions.

Try a little preventative medicine by using a
Sigtronics’ Digital Voltmeter. Early detection of
potentially hazardous electrical problems may
save costly equipment.

The digital voltmeter provides precise voltage
readings and therefore can allow the pilot to
detect a malfunction. This enables you to make
‘‘power down’’ decisions to conserve electrical
energy for critical operations, such as flap and
gear extension, and communications. The
DVM-200 is a definite
tious pilot!

must

for the conscien-

PRECISION INSTRUMENT-

•

DVM-200 Digital Voltmeter is a precision
electronic instrument which employs the latest
in digital technology. It provides the pilot with a
means of detecting minute changes in electrical
system performance which could be a sign of
trouble and impending system failure.

ACCURACY

•

electrical system voltage is possible with an
accuracy of +1% of full scale . The resolution is

0.1 volts.

SPECIFICATIONS:

• Dimensions: 2.5” x 2.5” x 3.5” deep

• Voltage Requirement: 8-35 VDC

• Operates on 1 2V or 24V systems

• Current Drain: 0.01 amps, exclusive

of lighting system.

- Precise monitoring of the

The Sigtronics

Serving You Since 1974

LARGE LCD DISPLAY

•

sunlight. Back lighting is provided for night
flying. The lighting circuit can be connected to
the aircraft panel light dimmer circuit to be
dimmed with the other panel lights.

DESIGNED TO FIT

•

instrument hole, the DVM-200 is easy to
install. The unit comes with the connection
cable and a back lighting kit.

• Accuracy: ±1% of full scale

• Resolution: 0.1V

• Weight: 3.5 ounces

• Warranty: One year parts and labor

is easy to view in

the standard 2-1/4”

Made in U.S.A.

Specialists in “SOUND” Management

SIGTRONICS CORP. 178 East Arrow Highway, San Dimas, CA 91773 [phone]

-

SIGTRONICS’ DVM-200 INSTALLATION INSTRUCTIONS

The Sigtronics DVM-200 Digital Voltmeter is de-

signed for mounting in the conventional 2¼” instru­ment panel cutout. Parts Supplied: backlighting kit,
power supply cable, and 4 ea. mounting screws.

BACK LIGHTING KIT - Prior to mounting the DVM,

determine the aircraft’s electrical system voltage.
Then select the proper voltage lamp from the
backlighting kit. The kit consists of a lamp socket and
two wedge base incandescent lamps.

For 12V electrical systems, install the #73 lamp into
the lamp socket. A 24V system requires the #85 lamp.
(The lamp identification numbers appear on the bulb’s
glass envelope).

Install the lamp/socket assembly into the hole on
the rear of the instrument case by inserting and
rotating 1/8 turn clockwise.

ELECTRICAL CONNECTIONS

PIN NO. COLOR FUNCTION CONNECT TO

1 RED
2

3
4

BLACK

WH/RED

WH/BLACK

DVM Power Input
12V or 24V

DVM Power Ground Aircraft Chassis Ground
DVM Back-Light Power Avionics Panel Lighting Dimmer Control
DVM Back-Light Ground Aircraft Chassis Ground

Power through 1 amp inline fuse or
appropriate circuit breaker.
