SigTEL Compact Installation And Configuration Manual

SigTEL Compact

Emergency Voice
Communication
System (EVCS)

Installation and
Configuration
Manual

Approved Document No. DAU0000091 Rev 5

SigTEL Compact Installation and Configuration Manual

AN EXPLANTION OF TERMS AND DEFINITIONS USED IN THESE INSTRUCTIONS IS LISTED IN SECTION 21.

Contents

1 IMPORTANT NOTES ...................................................................................................................................................... 4

2 REGULATIONS AFFECTING EVCS ................................................................................................................................... 4

3 SIGTEL COMPACT COMPONENTS ................................................................................................................................. 5

3.1 MCU (PART NOS. ECU-4, ECU-8, ECU-16) ...................................................................................................................... 5

3.2 LCU (PART NO. ECU-8NT) .............................................................................................................................................. 5

3.3 GREY FLUSH BEZEL (PART NO. AFP385) ............................................................................................................................. 5

3.4 TYPE A FIRE TELEPHONE OUTSTATION (PART NOS. EVC301RPO, EVC301RLK) ....................................................................... 5

3.5 FLUSH-MOUNTING BEZEL (PART NO. T-BEZ301) .................................................................................................................. 5

3.6 TYPE B DISABLED REFUGE OUTSTATION - SURFACE MOUNTED (PART NO. EVC302S/GS) ............................................................ 5

3.7 TYPE B DISABLED REFUGE OUTSTATION - FLUSH MOUNTED (PART NO. EVC302F/GF) ................................................................ 6

3.8 TYPE B OUTSTATION ENCLOSURE (PART NO. BF359/1) ......................................................................................................... 6

3.9 MCU ENCLOSURE (PART NO. BF359/3D) .......................................................................................................................... 6

3.10 DISABLED PERSONS TOILET ALARM (PART NO. NC951) .......................................................................................................... 6

3.11 NETWORK COMMUNICATIONS CARD (PART NO. ECU722)...................................................................................................... 6

3.11.1 Key features of the EVCS networked system: .............................................................................................. 7

4 CABLES ......................................................................................................................................................................... 7

5 TYPICAL SYSTEMS ......................................................................................................................................................... 8

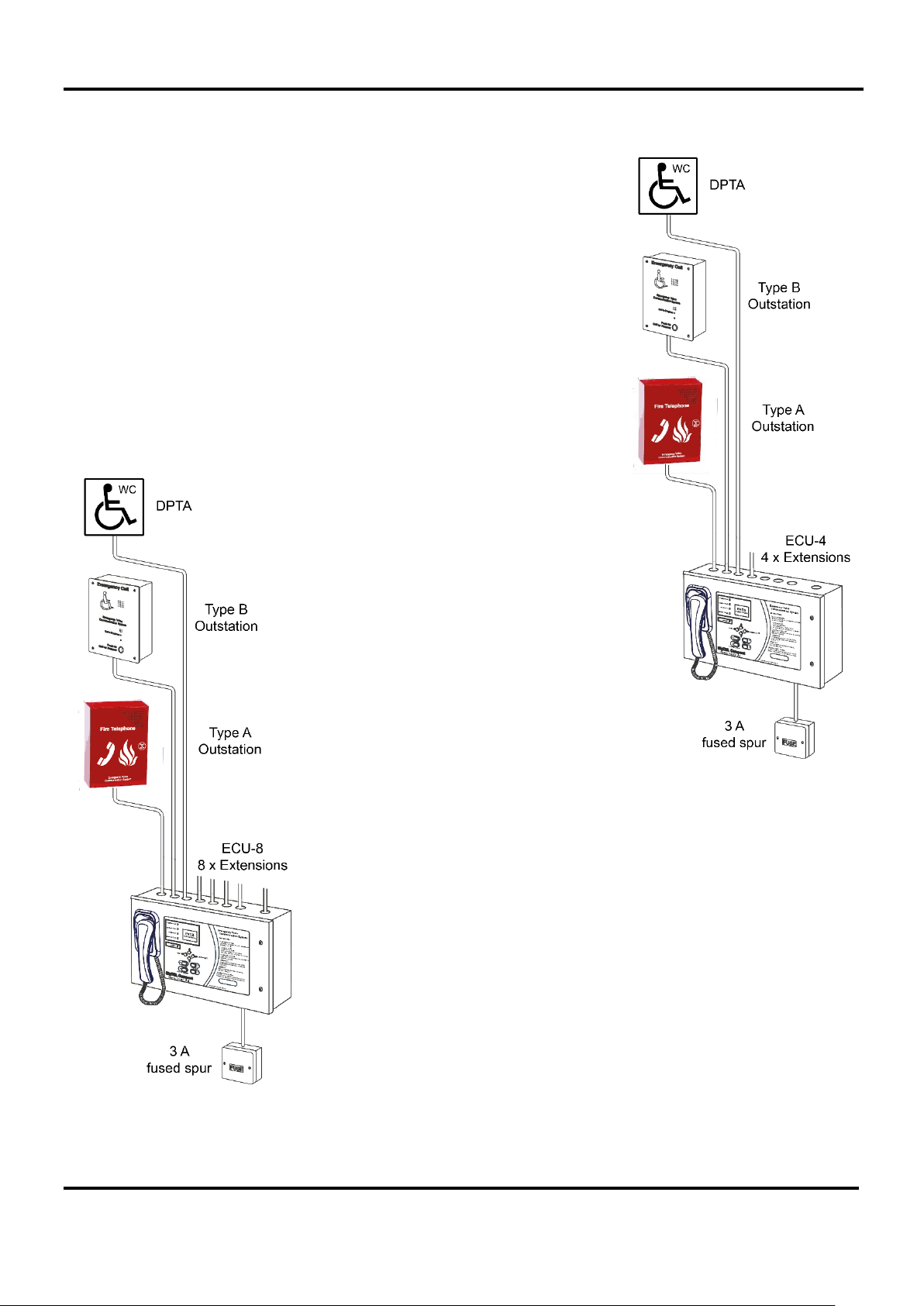

5.1 SYSTEM UP TO 4 EXTENSIONS ............................................................................................................................................ 8

5.2 SYSTEM UP TO 8 EXTENSIONS ............................................................................................................................................ 8

5.3 SYSTEM UP TO 16 EXTENSIONS .......................................................................................................................................... 9

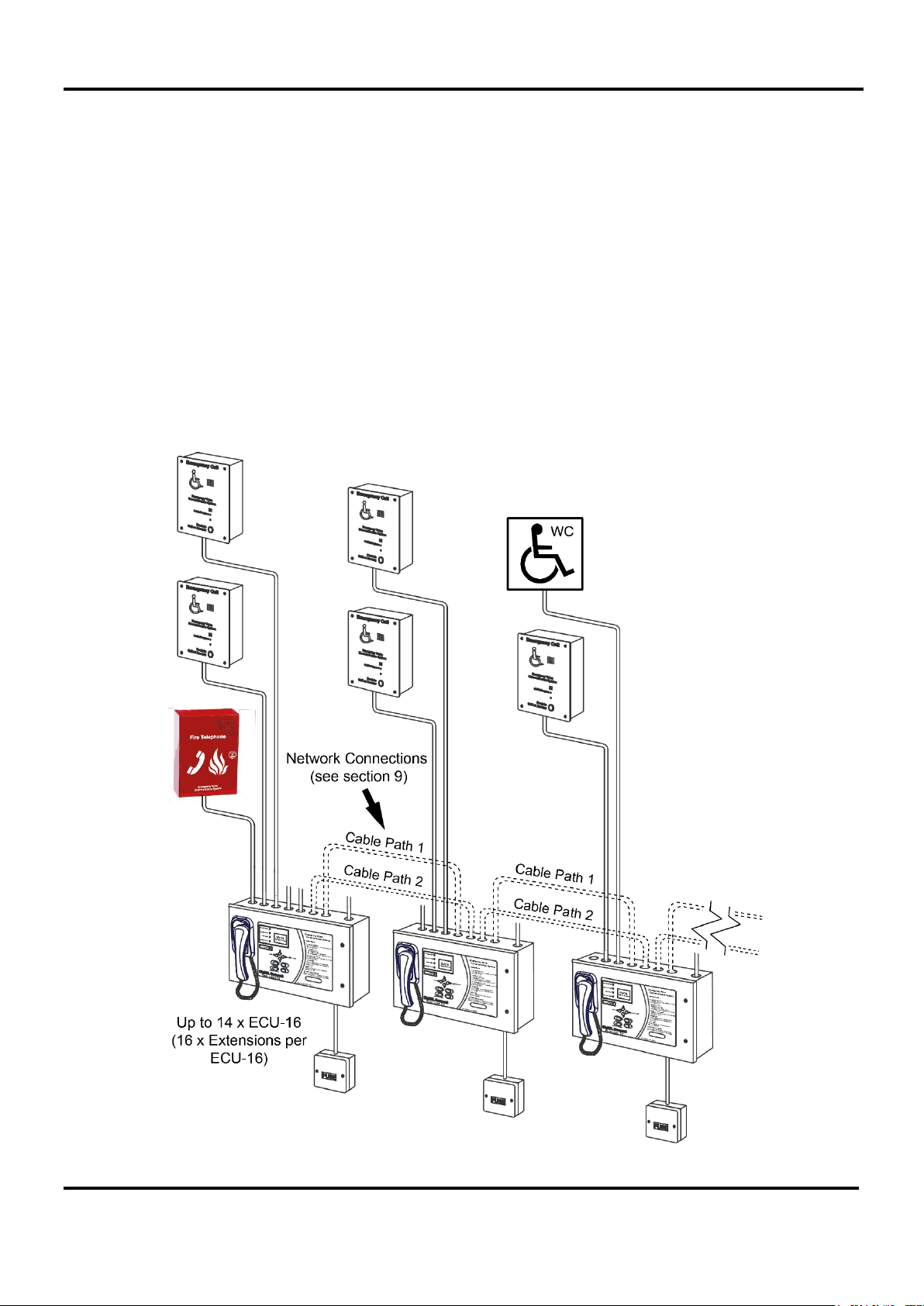

5.4 NETWORKED SYSTEM UP TO 224 EXTENSIONS .................................................................................................................... 10

6 FIRST FIX INSTALLATION ............................................................................................................................................. 11

6.1 EQUIPMENT LOCATION .................................................................................................................................................. 11

7 MOUNTING ENCLOSURES ........................................................................................................................................... 12

7.1 REMOVE THE BASE PCBS ............................................................................................................................................... 12

7.2 REMOVE THE LID .......................................................................................................................................................... 12

7.3 REMOVE KNOCKOUTS & CUT GLAND HOLES ....................................................................................................................... 12

7.4 FIX THE BASE TO THE WALL ............................................................................................................................................. 13

7.5 RE-INSTALL THE BASE PCBS ............................................................................................................................................ 14

8 INSTALLING THE ECU722 NETWORK COMMS CARD (OPTIONAL) ................................................................................ 15

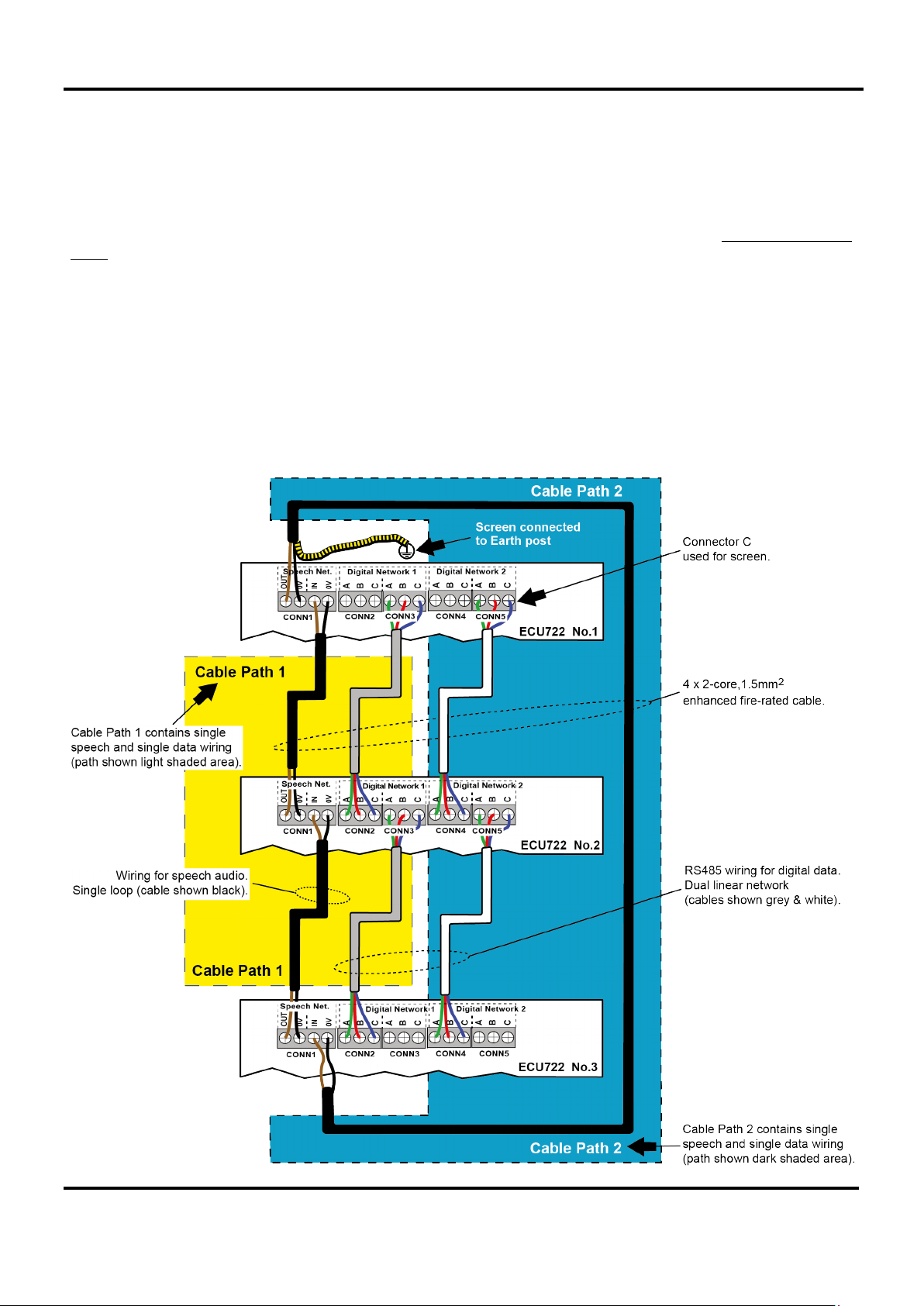

9 NETWORK CONNECTIONS (OPTIONAL) ....................................................................................................................... 16

10 MAINS WIRING .......................................................................................................................................................... 17

11 FITTING OUTSTATIONS & DPTA INTERFACE ................................................................................................................ 18

11.1 CABLES ....................................................................................................................................................................... 18

11.2 LOCATION ................................................................................................................................................................... 18

11.3 FITTING TYPE A OUTSTATION (EVC301RPO/EVC301RLK) ................................................................................................ 18

11.4 FITTING TYPE B OUTSTATION (EVC302S/GS AND EVC302F/GF) ........................................................................................ 18

11.5 WIRING TO A DISABLED PERSONS TOILET ALARM (DPTA) ..................................................................................................... 18

12 TESTING EXTENSIONS ................................................................................................................................................. 19

12.1 INSULATION RESISTANCE TESTING..................................................................................................................................... 19

12.2 THE FITT LINE TESTER .................................................................................................................................................... 19

SigTEL Approved Document No. DAU0000091 Rev 5 Page 2 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Errors and omissions excepted. The manufacturer of this product operates a policy of continuous improvement and reserves the right to

13 SECOND FIX INSTALLATION ........................................................................................................................................ 19

13.1 CONNECTING EXTENSIONS TO THE MCU/LCU ................................................................................................................... 19

13.2 FAULT MONITORING ...................................................................................................................................................... 19

13.3 INPUT CONNECTIONS ..................................................................................................................................................... 20

13.4 OUTPUT CONNECTIONS .................................................................................................................................................. 20

14 MCU/LCU INDICATORS & CONTROLS ......................................................................................................................... 21

14.1 EXTERNAL INDICATORS .................................................................................................................................................. 21

14.2 THE DISPLAY ................................................................................................................................................................ 21

14.3 EXTERNAL CONTROLS .................................................................................................................................................... 22

14.4 INTERNAL CONTROLS ..................................................................................................................................................... 22

15 FAULT MESSAGES ....................................................................................................................................................... 22

16 POWERING UP AND TESTING ..................................................................................................................................... 23

17 AUTOMATIC CONFIGURATION ................................................................................................................................... 24

17.1 SINGLE, NON-NETWORKED MCU CONFIGURATION ............................................................................................................. 24

17.2 NETWORKED MCU/LCU CONFIGURATION ........................................................................................................................ 25

17.3 ADDING OR REPLACING MCU/LCU, OUTSTATIONS OR DPTA AFTER COMMISSIONING ............................................................... 27

17.4 DEFAULT EXTENSION NAMES ........................................................................................................................................... 27

17.5 NAMING EXTENSIONS .................................................................................................................................................... 27

17.5.1 Interactive naming .................................................................................................................................... 28

17.5.2 Manual naming ......................................................................................................................................... 28

17.5.3 EVC Configurator ....................................................................................................................................... 28

18 ADDITIONAL ENGINEER FUNCTIONS ........................................................................................................................... 29

18.1 CHANGE THE SECURITY PIN CODE .................................................................................................................................... 29

18.2 HARMONISE NAMES (NETWORKED SYSTEM ONLY) ............................................................................................................... 29

18.3 LATCH FAULTS .............................................................................................................................................................. 30

18.4 CLEAR RECENT CALLS ..................................................................................................................................................... 31

18.5 AUTO-ANSWER ............................................................................................................................................................ 31

19 COMPONENT SPECIFICATIONS ................................................................................................................................... 32

19.1 FIRMWARE VERSION ...................................................................................................................................................... 34

20 INSTALLATION AND COMMISSIONING CERTIFICATE ................................................................................................... 35

21 TERMS AND DEFINITIONS ........................................................................................................................................... 36

alter product specifications at its discretion and without prior notice. All of the instructions covered in this manual have been carefully
checked prior to publication. However, no responsibility can be accepted by the manufacturer for any inaccuracies, or any misinterpretations
of an instruction or guidance note.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 3 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

1 Important Notes

READ THIS SECTION BEFORE INSTALLING/MAINTAINING THIS PRODUCT

CAUTION

This equipment must only be installed and maintained by a suitably skilled and technically competent
person. No responsibility can be accepted by the manufacturer, or distributors of this product for any
misinterpretation of an instruction, or guidance note, or for the compliance of the system as a whole.

About this guide

This guide explains how to install, commission and maintain a SigTEL EVCS disabled refuge and fire telephone
system. A separate user manual (ref. DAU0000092) includes detailed operational information, some of which will
need to be referred to by the installation engineer when setting up the system.

No responsibility can be accepted by the manufacturer, or distributors for any misinterpretation of these instructions,
or for the compliance of the system as a whole.

This installation guide must not be accessible to the user.

System design

EVCS design is beyond the scope of this document. An understanding of system components and their use is
assumed.

We recommend that you read the latest edition of BS 5839 Part 9 (available from the BSI, http://www.bsigroup
for this information. Contact the building control, or fire officer in case he has any special requirements.

.com,

Equipment guarantee

This equipment is not guaranteed unless the system is installed and commissioned in accordance with national
standards by an approved and competent person, or organisation.

General precautions

Do not test wiring with an insulation tester (Megger) with any equipment connected as the 500 volt test will destroy
these devices totally. You must observe local wiring regulations.

Do not run SELV and LV cables in the same enclosure without adequate insulation between them.
SigTEL EVCS control equipment is designed to be installed indoors. Outstations are not IP rated so should not be

installed outdoors unless an IP65, or better housing, is used and cables are installed so as to prevent the ingress of
moisture.

Anti-static handling guidelines

Make sure that electro-static handling precautions are taken immediately before handling PCBs and
other static sensitive components. Before handling any static-sensitive items, Operators should get
rid of any electrostatic charge by touching a sound safety earth.

Always handle PCBs by their sides and avoid touching any components. PCBs should be stored in
a clean, dry place that is free from vibration, dust and excessive heat. Storing the PCBs in a suitable
cardboard box will also guard them against mechanical damage.

2 Regulations Affecting EVCS

Disabled refuge systems are called for by DETR Approved document B (Fire safety) volume 2, section 4, Design for
vertical escape and BS 5588 Fire precautions in the design, construction and use of buildings, Part 8, Code of
practice for means of escape for disabled people.
Fire telephone systems for buildings are called for by BS 5588 Fire precautions in the design, construction and use
of buildings Part 5, Code of practice for firefighting stairs and lifts, Part 10, Code of practice for shopping complexes
and Part 11, Code of practice for shops, offices, industrial, storage and other similar buildings.
Fire telephone systems for sports venues are called for by the Guide to safety at sports grounds.
The installation of EVCS’s is covered by BS 5839-9 Fire detection and fire alarm systems for buildings – Part 9:
Code of practice for the design, installation, commissioning and maintenance of emergency voice communication
systems.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 4 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

3.1 MCU (part nos. ECU-4, ECU-8, ECU-16)

3.2 LCU (part no. ECU-8NT)

3.3 Grey flush bezel (part no. AFP385)

3.4 Type A Fire Telephone Outstation (part nos. EVC301RPO, EVC301RLK)

3.5 Flush -mounting bezel (part no. T-BEZ301)

3.6 Type B Disabled Refuge Outstation - surface mounted (part no. EVC302S/GS)

3 SigTEL Compact Components

Note: See Specification (section 19) for component details.

The master control unit (MCU) controls the EVCS and allows the MCU’s Operator
to communicate with the outstations.
Each MCU has either four extensions (ECU-4), eight extensions (ECU-8), or 16
extensions (ECU-16).
One extension typically has one outstation (Type A or B) or a DPTA connected.
A flush bezel (AFP385) and an anti-tamper enclosure (BF359/3D) are available
to house the unit.

Note: Up to 14 MCUs and LCUs can be connected on a network by installing a
Network Communications Card (ECU722) in each unit.

The line control unit (LCU) is identical to an MCU but it does not have a handset
mounted on its front. Each LCU has eight extensions.

This flush mounting bezel is used with the MCU/LCU and provides a neat finish when an enclosure is semi-recessed
(up to 60 mm).

One Type A outstation is connected to one extension so that the control room can call out to
specific locations and also know which location is calling in.

The outstation consists of a telephone-style handset housed within a wall-mounted, red steel
case. Two versions are available a magnetic ‘push to open’ version (EVC301RPO) right, and
a ‘lift lock’ version (EVC301RLK) used to prevent unauthorised access.

Both units can be surface mounted, or a flush mounting bezel (T-BEZ301) is available.

This red flush bezel provides a neat finish when a Type A fire telephone is semi-recessed.

One Type B outstation is connected to one extension so that the control room can call out to
specific locations and also know which location is calling in. The EVC302S has a stainless
steel fascia and the EVC302GS has a green mild steel fascia. Both units use hands-free,
duplex operation and have a ‘Push to Call or Answer’ button, Call in Progress LED, buzzer
and apertures for a microphone and loudspeaker.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 5 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

3.7 Type B Disabled Refuge Outstation - flush mount ed (part no. EVC302F/GF)

3.8 Type B outstation enclosure (part no. BF359/1)

3.9 MCU enclosure (part no. BF359/3D)

3.10 Disabled persons toilet alarm (part no. NC951)

3.11 Network communication s card (part no. ECU722)

Identical to the EVC302S/GS version but with a flat fascia suitable for flush installation. The
EVC302F has a stainless steel fascia and the EVC302GF has a green mild steel fascia. An
IP66 rated housing (BF359/1) is available to allow the outstation to be used outdoors.

This weatherproof enclosure is used to protect an EVC302F/GF outstation when used at an
external disabled refuge. It is supplied with a non-locking handle (as disabled refuge points
should not normally be locked) and has an IP66 rating.

This is a stainless steel, anti-tamper enclosure used to house an MCU. It is supplied
with two optional locking kits; BF359/3CL (camlock kit) or BF359/3SL (solenoid kit).

The EVCS is able to interface to a disabled persons toilet alarm (DPTA) system. This is a
secondary function to the primary purpose of the EVCS. If the site has toilet alarms AND
they are connected into the EVCS, then active toilet alarms will be displayed at the
MCU/LCU. As toilet alarm monitoring is a secondary function, any activated toilet alarms will
be suppressed from being displayed if there are any calls from/to any outstations. At the end
of outstation calls the activated toilet alarms will then be displayed.

The ECU722 Network Communications Card enables up to 14 MCUs or LCUs to be
connected on a communication network, up to 1 km in length. Any MCU/LCU connected
on the network requires the installation of an ECU722 card which is mounted inside the
control unit and transmits both speech audio and digital data.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 6 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

3.11.1 Key features of the EVCS networked system:

1. Allows the interconnection of up to 14 MCUs or LCUs using 4 x 2-core, 1.5 mm

2. Maximum length on the speech wiring loop, or digital linear wiring = 1 km.

3. Each MCU/LCU monitors both the network wiring and each other for faults (open and short circuits).

4. Fault tolerant network that allows the system to continue working in the event of a single cable break in the
speech or digital wiring. Speech audio is transmitted via one wiring loop and digital data via two linear RS485
networks.

5. Each networked MCU can be programmed with the following configuration:

• One MCU is configured as the ‘master’ MCU and has control over the system. The other MCUs act as repeaters but
can take control from the master MCU when a security PIN code is entered, either at the master MCU, or a repeater
MCU. For example, control can be transferred from one control point in a building to another to cater for different
day/night shift patterns.

• The master MCU displays the location of calls and the description of faults on the EVCS. Faults on repeater MCUs
are displayed at the master MCU as remote faults.

• Calls from any outstation, regardless of which MCU they are connected to, are automatically routed to the master
MCU. Repeater MCUs indicate that units are calling the master MCU and can take control of the system by picking
up their handsets and entering a security PIN code.

• Ability to take control from the master MCU at any repeater MCU (by entering a security PIN code). For example,
the nearest MCU to the building entry point. Also, able to give control from the master MCU to any repeater MCU
(by entering a security PIN code).

• Changes made at the master MCU (e.g. security PIN codes, extension names, addition/removal of an outstation or
MCU) are automatically updated on all repeater MCUs.

• The master MCU is automatically dialled to by repeater MCUs when their handsets are picked up (in ‘no-call’ mode).

2

, enhanced fire-rated wiring.

4 Cables

Generally, cables used between EVCS components, and for the low voltage Mains supply to the system, should be enhanced
fire-resistant [see 26.2e of BS 5839-1]. Please note the following exceptions.

BS 5839-9: section 14 the following recommendations are applicable:
c) Standard fire resisting cables [see 26.2d of BS 5839-1] should be considered to provide sufficient resistance to the effects of

fire with appropriate methods of support and jointing [see 26.2g of BS 5839-1] for:

1) EVC systems for use in disabled refuges but not for fire-fighting or similar purposes by, e.g. the fire and rescue service, in:

• i) sprinklered buildings;

• ii) unsprinklered buildings less than 30 m in height, provided that evacuation takes place in three or fewer phases.

2) Underground sections of cabling at sports and similar venues.

Interconnection Cable Type

2-core, 1.0 mm

Extensions to outstations

Extensions to DPTA systems (NC951) 2-core cable is required for each extension.

Power supplies

Networked systems

Either MCU to MCU
Or,
MCU to LCU

MCU/LCU to ECU722 – Networked
systems

cables will stress the connectors. The maximum cable resistance is 40 ohms, which
is 1 km of 1.0 mm

The MCU/LCU requires fixed wiring using 2-core cable and earth/CPC cable (no
less than 0.75 mm
spur, fused at 3 amps. A plug and socket MUST NOT be used.

4 x 2-core, 1.5 mm
mounted inside the MCU/LCU.

Note: To provide full network reliability only 2-core cable should only be used. This
allows two separate cable paths to be run with each path containing a single speech
and data cable (which should not be mixed in the same cable).

Connects the MCU/LCU to the ECU722 comms card using one Cat 5 patch cable
(supplied with ECU722).

2

or 1.5 mm2 cable is recommended for each extension. Larger

2

. If this is exceeded audio quality will degrade.

2

and no more than 2.5 mm2) fed from an isolating switched fused

2

, up to 1 km in length. This cable connects ECU722 cards

SigTEL Approved Document No. DAU0000091 Rev 5 Page 7 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

5.1 System up to 4 extension s

5.2 System up to 8 extension s

5 Typical Systems

Equipment required (shown right)

One MCU (ECU-4), requires two 12 volt 7 Ah batteries (BC286/2).
One 3 A fused spur and back box.
One Type A Outstation (EVC301RPO/EVC301RLK), or one Type B Outstation

(EVC302F/GF/S/GS), or one DPTA (NC951) per extension.
One Telephone Line Tester (FiTT).

Interconnections

For each extension to outstation: up to 1 km of 2-core, 1.5 mm
fire-rated cable.

For each extension to DPTA (NC951): 2-core cable.

2

enhanced

Equipment required (shown left)

One MCU (ECU-8), requires two 12 volt 7 Ah batteries (BC286/2).
One 3 A fused spur and back box.
One Type A Outstation (EVC301RPO/EVC301RLK ), or one Type

B Outstation (EVC302F/GF/S/GS), or one DPTA (NC951) per
extension.

One Telephone Line Tester (FiTT).

Interconnections

For each extension to outstation: up to 1 km of 2-core, 1.5 mm
enhanced fire-rated cable.

For each extension to DPTA (NC951): 2-core cable.

2

SigTEL Approved Document No. DAU0000091 Rev 5 Page 8 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

5.3 System up to 16 extension s

Equipment required

One MCU (ECU-16), requires two 12 volt 7 Ah batteries (BC286/2).
One 3 A fused spur and back box.
One Type A Outstation (EVC301RPO/RLK), or one Type B Outstation (EVC302F/GF/S/GS), or one DPTA (NC951)

per extension.
One Telephone Line Tester (FiTT).

Interconnections

For each extension to outstation: up to 1 km of 2-core, 1.5 mm
fire-rated cable.

For each extension to DPTA (NC951): 2-core cable.

Application Note 0012.0 details a suggested method when wiring
FP200 cable to an ECU-16 panel using a junction box.

See

www.c-tec.com.

2

enhanced

SigTEL Approved Document No. DAU0000091 Rev 5 Page 9 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

5.4 Networked s ystem up to 224 extensions

Equipment required

Up to 14 MCU (ECU-16), requires two 12 volt 7 Ah batteries (BC286/2) per MCU.
One 3 A fused spur and back box per MCU.
One Type A Outstation (EVC301RPO/RLK), or one Type B Outstation (EVC302F/GF/S/GS), or one DPTA (NC951)

per extension.
One Telephone Line Tester (FiTT).

Interconnections

For each extension to outstation: up to 1 km of 2-core, 1.5 mm
For each extension to DPTA (NC951): 2-core cable.
Network Connections (MCU to MCU): 4 x 2-core, 1.5 mm

paths (Cable Paths 1 & 2) to be run with each path containing a single speech and data cable. The network wiring is
fault-tolerant - see network diagram (section 9).

2

enhanced fire-rated cable.

2

, enhanced fire-rated cable. This allows two separate cable

SigTEL Approved Document No. DAU0000091 Rev 5 Page 10 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

6.1 Equipment location

6 First Fix Installation

Control equipment

Unless installed in an enclosure of at least IP65 rating, all equipment must be sited indoors and MUST NOT be
subjected to conditions likely to affect its performance, such as damp, salt air, water, extreme temperatures, physical
abuse, etc. As far as practical, control equipment should be located where background noise is normally low
(preferably not more than 40 dBA).

If an additional enclosure is used for any component, care must be taken to ensure that the functionality of the
components is not impaired. For example, all indicators must be visible and necessary tones must be audible at the
levels required by BS 5839-9 when the door is closed.

The MCU/LCU must be wall mounted at an easily accessible height, with the LCD at eye level, typically 1.4 metres
above final floor level and should be located in areas of low fire risk, usually in the control room.

Outstations

Type A outstations should be located at entrances and fire fighting lobbies and normally mounted 1.3 m to 1.4 metres
above final floor level. Type B outstations should be located in disabled refuges at each storey exit and normally
mounted 0.9 to 1.2 metres above final floor level.

As far as practical, outstations should be located where background noise is normally low (preferably not more than
40 dBA). Where there is a higher level of background noise, the installation of an acoustic hood around the outstation
may help to reduce the effect of background noise to an acceptable level

Disabled persons toilet alarm (DPTA) System

Refer to the documentation supplied with the DPTA (Part No. NC951).

Outdoor installations

Outstations may be mounted in an IP65 enclosure with an easily opened door. Steps should be taken to ensure that
moisture does not enter and damage the electronics and that necessary functionality is not impaired.

Sports stadiums

In sports stadiums, Type A outstations should be located no more than 30 metres from stewards’ positions, or other
normally manned areas as listed in the Guide to Safety in Sports Grounds. If they are exposed to the elements they
should be mounted in an IP65 enclosure with an easily opened door. Steps should be taken to ensure that moisture
does not enter and damage the electronics and that necessary functionality is not impaired.

Strobe driver module (part no. SDM)

If the ringer is not loud enough a flashing red strobe light and/or sounder may be fitted to any outstation.
A strobe driver module, part number SDM should be connected across the line to sense when the outstation rings.
An external 12 VDC EN 54 power supply must be connected to the strobe module to provide power for the module

and/or sounder. This may be provided local to the outstation, or centrally, in which case two extra cores will be
required and voltage drop should be taken into account.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 11 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

7.1 Remove the base PCBs

7.2 Remove the lid

7.3 Remove knockouts & cut gland holes

Power Supply PCB

7 Mounting Enclosures

The MCU/LCU is supplied in a steel back-box with a hinged steel lid and several printed circuit boards (PCBs), as
shown below.

MCU Hinged Lid MCU Back Box

MCU

Control PCB

Master Exchange PCB

The MCU/LCU can be surface, or semi-flush mounted (maximum depth 60 mm including dimples). To expose the
base mounting holes the lid and PCBs must first be removed before installation. Before any of the following is carried
out ensure that the Mains power supply is isolated and the MCU/LCU batteries are removed.

Disconnect the cable from the Power Supply PCB to the Master Exchange PCB and the earth strap from the base
to the lid. Disconnect the earth strap spade connector from the main chassis earth point.

Carefully remove the PCB retaining screw located at the bottom left hand side of the Master Exchange and Power
Supply PCBs.

Push the PCB upwards and then pull forwards over the mounting pillars taking care not to damage any of the
components.

Undo the two screws on the right hand side of the lid using the tool supplied.
Hinge the lid fully to the left. Unplug the earth strap and the two RJ45 plugs on the wiring looms. Carefully remove

the four M4 retaining nuts that secure the hinges.

The MCU/LCU lid and base PCBs should now be removed from site to prevent accidental damage.
Note: All PCBs are static sensitive and anti-static handling precautions MUST be observed when handling them.

Mains should normally be brought into the base via a knockout
in the bottom right-hand corner. However, if top-entry is
required, it should enter through the knockout on the extreme
right. Cable segregation must be maintained.

If the MCU/LCU is fully populated with extensions then extra
20 mm holes may be cut in the top and rear, as required.

Note: This must be done before re-installation of PCBs to
avoid swarf getting into the electronics.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 12 of 36

Emergency Voice
Communication System

Existing top knockouts
Extra 20 mm hole

SigTEL Compact Installation and Configuration Manual

7.4 Fix the base to the wall

Using the four mounting holes, fix the base securely to the wall using suitable screw fixings. The mounting holes are
designed for No. 8 round-head, or countersunk wood-screws. Any dust, or swarf, must be kept out of the enclosure
and great care must be taken not to damage the wiring or components.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 13 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

7.5 Re-install the base PCBs

Cat 5 cables (supplied)

To Operator handset

Re-install the base PCBs and refit the lid. Ensure the fixing screws and all interconnection cables are refitted
correctly, as shown below.

+ -

Conn 1

Reset

Engineer Mod e

C

B

G

B

C

Master Exchange PCB

Power

Supply PCB

Control
PCB

Conn 2

CAUTION: If re-connecting the
Power Supply lead, check that

Power Supply lead

the pins are not mis-aligned!

MCU Lid MCU Back Box

MCU internal connections

Control PCB

Master Exchange PCB

G connects to
ECU722
(see Section 8).

C

B

G

B

C

CAUTION: Double check all looms
are plugged into the correct ports!

SigTEL Approved Document No. DAU0000091 Rev 5 Page 14 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

CAT 5 cable (supplied)

8 Installing the ECU722 Network Comms Card (Optional)

The MCU/LCU has a Master Exchange PCB and Power Supply PCB mounted in its base unit and a lid-mounted Control
PCB. The ECU722 card has to be mounted on top of the Master Exchange PCB. Before carrying out the steps below,
ensure that Mains power is isolated and the MCU/LCU batteries are disconnected.

Note: All PCBs are static-sensitive and therefore anti-static handling precautions MUST be observed when handling
them.

To install an ECU722 card follow the steps below:

1. Open the MCU/LCU lid by removing the two retaining lid screws (using an Allen key).

2. Disconnect the 10-way wiring loom between the Master Exchange PCB and the Power Supply PCB. Ensure
the loom remains connected to the Power Supply PCB to prevent it being misplaced.

3. Unplug the RJ45 connectors from terminals B&C
on the Master Exchange PCB. Ensure these
cables remain connected to the Control PCB to
prevent them being misplaced. Care should be
taken when detaching these connectors to
depress the locking tabs to prevent damage.

4. Unfasten the one retaining screw, located bottom
left side on the Master Exchange PCB, using a
crosshead screwdriver. Carefully slide the Master
Exchange PCB up and over its mounting pillars,
taking care not to damage any components.

5. Take the ECU722 card and carefully line up its
four holes with the holes in the Master Exchange
PCB, see right.

6. Insert four M3 x 15 mm slotted screws and hex
spacers (supplied) through the front holes in both
the ECU722 card and Master Exchange PCB so
they protrude through the back of the PCB. Next,
secure the ECU722 card and PCB together using
four M3 nuts (supplied), see right.

7. Refit the Master Exchange PCB (and mounted
ECU722 card) back into the base unit. Ensure the
retaining screw on the Master Exchange PCB is
firmly fastened down. Reconnect the RJ45 cables
and 10-way wiring loom.

8. Connect a Cat 5 cable (supplied) from terminal G
on the Control PCB to PL1 on the ECU722 card.
See below.

ECU722

MCU Lid

Control PCB

Master Exchange PCB

Fitting the ECU722 card

MCU

Back Box

Power Supply PCB

9. When all connections have been correctly made, re-connect power to the MCU/LCU.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 15 of 36

Emergency Voice
Communication System

Control

PCB

ECU722

G

SigTEL Compact Installation and Configuration Manual

9 Network Connections (Optional)

The EVCS network allows up to 14 MCUs and LCUs to be connected by installing a Network Communications
Card (ECU722) in each unit.
The ECU722 card transmits speech audio via a single wiring loop and digital data via two linear RS485 networks
(Digital Networks 1 & 2). The network should be connected using 4 x 2-core, 1.5 mm
Maximum length on the speech wiring loop, or digital linear wiring = 1 km. We recommend that two separate cable
paths be run with each path containing a single speech and single data cable which should not be mixed in the
same cable. MIXING SPEECH AND DIGITAL CABLES MAY CAUSE MAJOR PROBLEMS AND DEGRADE THE AUDIO SIGNAL!

A typical EVCS network showing three connected MCU/LCU units is shown below.

Speech loop wiring: ECU722 No.1 (Speech OUT/0V) to ECU722 No.3 (Speech IN/0V); ECU722 No.3 (Speech
OUT/0V) to ECU722 No.2 (Speech IN/0V); ECU722 No.2 (Speech OUT/0V) to ECU722 No.1 (Speech IN/0V).

Digital Network 1 wiring: ECU722 No.1 (Digital A/B/C) to ECU722 No.2 (Digital A/B/C); ECU722 No.2 (Digital
A/B/C) to ECU722 No.3 (Digital A/B/C).

2

enhanced fire-rated cable.

Digital Network 2 wiring: Same wiring configuration as Digital Network 1.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 16 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

MCU/LCU mains connections

10 Mains Wiring

Connect Mains to the MCU/LCU

See BS 5839-9 section 13.

The MCU/LCU requires fixed wiring using 3-core enhanced fire-rated cable (no less than 0.75 mm
than 2.5 mm
plug and socket. The 230 VAC cable MUST enter the enclosure via one of the inlets at the bottom right hand corner
of the enclosure.

Ensure that Mains cables are kept as far away as possible from all other cables.
Mains supply should be exclusive to the EVCS. Circuit breakers supplying power to the system should be marked

‘EMERGENCY VOICE COMMUNICATION SYSTEM - DO NOT SWITCH OFF’.
A separate fused spur should be used for the MCU/LCU and should be marked ‘EMERGENCY VOICE

COMMUNICATION SYSTEM - DO NOT SWITCH OFF’.
See BS 5839-9 section 13.2 for more details.
Terminate the Mains input cable using the three-way plug supplied with the power supply PCB and ensure that

correct polarity is observed. The incoming Mains earth connection must be connected directly to the three-way plug
(P2) and NOT to the main chassis earth-point.

2

) fed from an isolating switched fused spur, fused at 3 amps and MUST NOT be connected using a

2

and no more

SigTEL Approved Document No. DAU0000091 Rev 5 Page 17 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

11.1 Cables

11.2 Location

11.3 Fitting type A outstation (EVC301RPO/EVC301RLK)

11.4 Fitting type B outstation (EVC302S/GS and EVC302F/GF)

11.5 Wiring to a disabled persons toilet alarm (DPTA)

To MCU

Red +

Black

-

Red +

Green

-

11 Fitting Outstations & DPTA Interface

See section 4.

See section 6.1.

Open the case and unscrew the fixing screw at the bottom of the unit and
remove the internal cover (see far right). This reveals the terminals and
earth stud. Fix to the wall, remove the knockout above the terminals and
fit a suitable cable gland. Connect the wires, as shown right.

For further details refer to Type A outstation instructions (DCM0003819).

Type B outstations are supplied complete with a back box that should be fitted to the wall using suitable fasteners.
The back box has 20 mm knockouts at the top and bottom. Gland the cable correctly and connect a sleeved earth
wire to the earth stud.

Connect the line to the LINE IN + and LINE IN – terminals.
When installation is complete, secure the lid using the four machine screws. These have a secure pin-hex design

that requires a special Allen key (supplied).
For further details refer to Type B outstation instructions (DAU0302000).

To install the DPTA system, refer to the documentation supplied with the DPTA (Part No. NC951).

To interface the DPTA system to the EVCS, see wiring
diagram right. The NC951 has an on-board volt-free
relay.

Two 1.5k, 0.25 W, 10% resistors are supplied with the
NC951; the EOL resistor identifies the extension as a
DPTA and the trigger resistor when switched in, asserts
an active alarm on the EVCS.

Please note the stainless steel DPTA (Part No.
NC951/SS) does not have an on-board volt-free relay.
An additional 12 volt relay (Part No. NC883D) is
required to interface to the EVCS. Contact your supplier
for purchase information.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 18 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

12.1 Insulation resistance testing

12.2 The FiTT line tester

13.1 Connecting extension s to t he MCU/LCU

13.2 Fault monitoring

12 Testing Extensions

Insulation resistance testing should be carried out with no electronic devices
connected. Any devices connected to the extensions will be destroyed and will not
be covered by factory warranty.

Note: See Specification (section 19) for component details.
Each extension should be tested prior to termination and connection to the Master

Exchange PCBs. We recommend that a SigTEL FiTT line tester is used to save time
proving the cables and outstations are working correctly.

It also avoids the need for Mains power testing.
If a FiTT line tester is not available, use a multimeter to check wiring for continuity

and correct polarity.

13 Second Fix Installation

Do not connect the extensions until they have been tested and are fault-free.
Bring each extension into the case via a suitable cable gland and connect to the terminals on the Master Exchange

PCB, as shown below. Master Exchange PCBs are fitted in the MCU/LCU.
Connect the screens to the earth terminal in the back of the case.

Once configured, the line fault monitoring system monitors for open and short circuits (absence of an outstation
constitutes open-circuit).

The MCU will also detect (and report a fault) if its handset is missing, e.g. the handset cord has been cut.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 19 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

13.3 Input connections

13.4 Output connections

Fault O/P

1. I/P A (Disable controls) – Disables Type A and Type B outstations.

2. I/P B (Disable controls) – Disables input signals from the DPTA.

In order to prevent unauthorized use of the system it is possible to disable the controls until an external trigger
is received, e.g. from a fire alarm control panel. I/P A & B are open-circuit, fail-safe system disablement inputs.
Closing these inputs (shorting the connections) disables the system so that the system can then be enabled
by opening the connections. No system configuration is required to use this facility and if they are left
unconnected it will operate normally.

Note: For a network system, only one MCU/LCU requires I/P A or I/P B wiring to the disablement source.

3. I/P C - Not currently used.

1. Fault output - The terminals marked N/O, C and N/C
(see right) provide fail-safe fault outputs that can be
connected to a fire alarm panel or other monitoring
equipment.

The end-of-line device supplied with the input unit should
be connected at the MCU/LCU in order to monitor the
wiring (see example right). When a fault occurs the relay
disconnects the end-of-line device from the fire alarm
panel.

Note: For a network system, all MCU/LCU fault output
relays will be activated.

2. +24 V - Used to supply the output’s auxiliary equipment,
e.g. relays, etc.

3. OP1 output – activates whenever the master MCU is
ringing. Its main purpose is to provide an indication
(possibly remote), e.g. to a strobe, beacon, etc. when
someone is seeking assistance.

4. OP2 output – provides the equivalent function as OP1
output (above) for active toilet alarms.

5. OP3 output – closes when the handset is off hook and
remains active for 2 minutes after the handset is put
down. This function may be used to turn off noisy
equipment in the locality of the controller that may affect
communication.

I/P A I/P B I/P C

+ - + - + -

N/O C N/C 0V +24V OP3 OP2 OP1

End-of-line device

N/C

C

N/O

OP1, 2 or 3

To protect the output stage, only 24V polarised
relays with back EMF diodes should be used

Example use of Fault O/P

+ 24 V

Relay
coil

Example use of OP1, OP2, OP3

I/P +

I/P -

SigTEL Approved Document No. DAU0000091 Rev 5 Page 20 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Indicator

Colour

What this means

The EVCS is powered up and checking for faults but

until an external trigger is applied, e.g. from a fire

of the EVCS until the system is required.

There is a problem with the microprocessor.

the service company responsible for the EVCS.

There is a fault with the Mains power supply or back­up batteries.

There is a local or remote fault on the EVCS. The
display will show more information.

Power

Green

Power (Mains or battery) is present.

Graphic symbol

What this means

□

wc

Example display

14 MCU/LCU Indicators & Controls

14.1 External indic ators

the MCU is disabled from making, or receiving calls,

Disablement

System Fault

PSU Fault

General Fault

Amber

Amber

Amber

Amber

alarm panel. This is NOT a fault indicator.
This function is used to stop nuisance/malicious use

If this indicator cannot be extinguished, there may be
a serious problem with the microprocessor. Contact

14.2 The display

The liquid crystal display (LCD) shows call status, system information, fault information and uses the following
graphic symbols:

MCU (ECU-16, ECU-8 or ECU-4)

LCU (ECU-8NT)

Type A (fire telephone) outstation

Type B (disabled refuge) outstation

Disabled persons toilet alarm (DPTA)

Rcnt Calls

>

Extension 3

w

c

Extension 1

Extension 2

Extension 4

>

Display conventions

Standard / non-active displays are shown normally, e.g. ‘ Extension 2’
Active displays are shown reversed, e.g. ‘> Extension 1’’

The flashing graphic symbol in front of an extension name means this extension is calling the MCU, or the MCU is
calling the extension. The display’s backlight also flashes red when the MCU is receiving or making a call.
A reversed graphic symbol in front of an extension name means you are connected to this extension.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 21 of 36

Emergency Voice
Communication System

The display entry is highlighted, ready to be selected

SigTEL Compact Installation and Configuration Manual

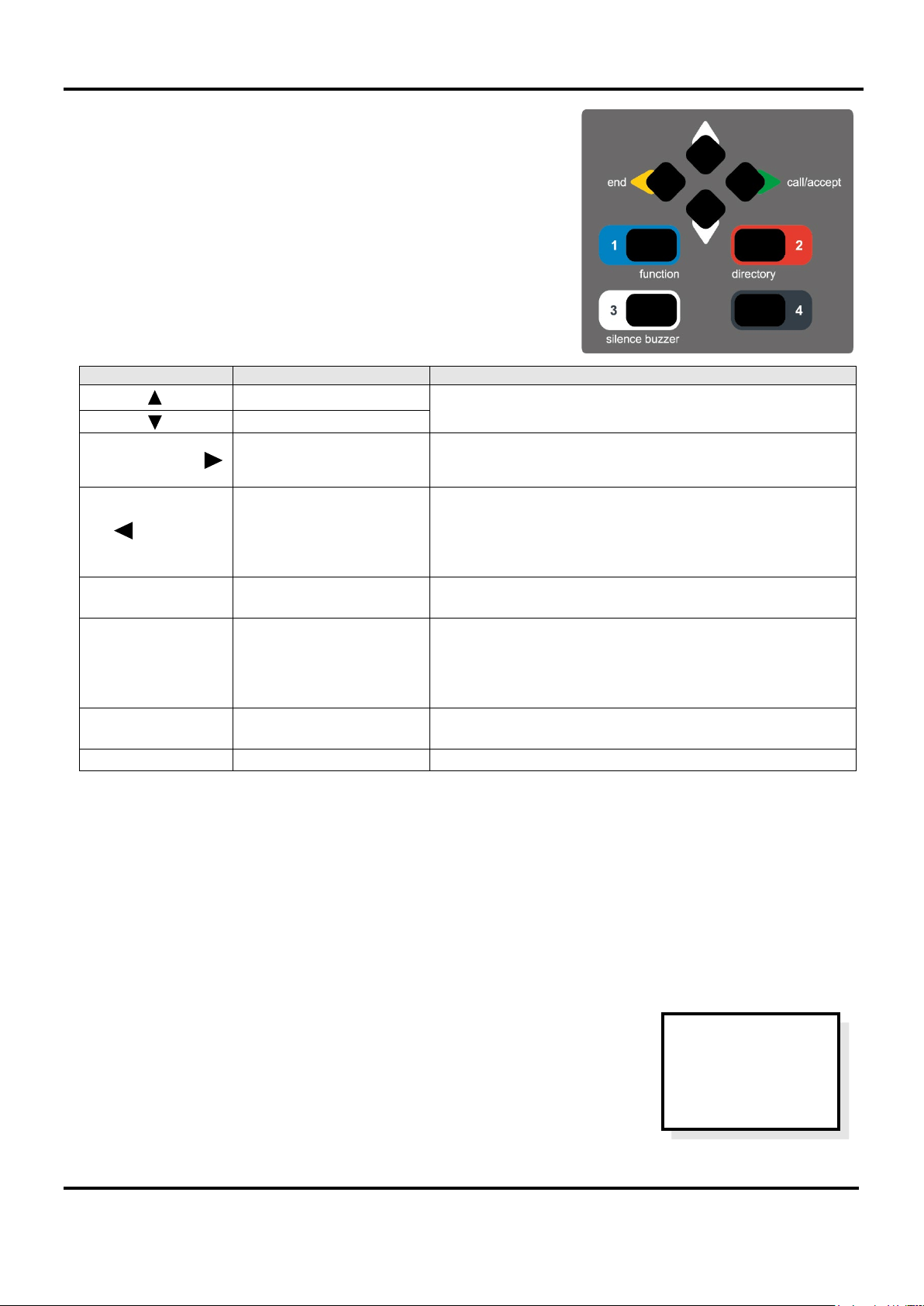

14.3 External controls

Button label

What this means

When to press this button

Scroll Down

When the MCU’s handset is off-hook press this button to

incoming call from an extension. Also, selects menu options.

When the MCU’s handset is off-hook press this button to

tton to escape back to a previous

hold this button.

FUNCTION

& 1

& security PIN code entry

With the MCU’s handset off-hook, toggles between a full list

system engineer). Also, can be manually cleared.

SILENCE BUZZER

& 3

Silence buzzer

4

Security PIN code entry

14.4 Internal controls

The MCU/LCU external control buttons are located on its keypad. They
are multifunctional dependent on the unit’s current status.

Note: The numbers 1, 2, 3, & 4 are used for entering security PIN codes
using the keypad (by responsible persons only).

Scroll Up

CALL /

ACCEPT

END

DIRECTORY

& 2

Make/Accept Calls &

Select Menus

Ends a Call &

ESC back to previous

display & Lamp test

Additional functions

Telephone directory

& security PIN code entry

& security PIN code entry

Used to scroll up and down lists (e.g. phone lists) and menus
(e.g. User Options menu).

either make an outgoing call to an extension, or accept an

disconnect the current caller. When the MCU’s handset is
on-hook press this bu
menu. Note: To perform a lamp and buzzer test, press and

Used to access to the ‘User Opts’ menu.

of extensions and a list of recent calls from extensions (if
any). Note: The recent calls list is automatically cleared after
a set time period (settable between 6 to 24 hours by a

Used to silence the MCU’s internal buzzer.

Note: The controls inside the MCU/LCU are for use by the service company responsible for the EVCS. Under no
circumstances should these internal controls be accessed by Operators.

The Reset and an Engineer Mode buttons are located on the Control PCB inside the front lid. The Engineer Mode button
is used to allow configuration and testing of the system. The Reset button is normally only used to manually initiate a
clean restart to the system, or to reset test calls that have been made from unassigned Type B outstations.

15 Fault Messages

Faults on the EVCS are normally non-latching and will clear if the fault disappears.
The only exception being a watchdog fault which occurs at initial power-up, or after
a system reset and stays latched until manually cleared. Normally this fault clears
when accepted and the MCU/LCU reverts to normal operation.

If the EVCS has been configured previously and any extensions are now missing, or
are incorrectly connected the relevant faults are displayed.

The display (right) shows a typical display but may have a different number of faults.

Press CALL/ACCEPT button to view the fault(s).

SigTEL Approved Document No. DAU0000091 Rev 5 Page 22 of 36

Emergency Voice
Communication System

EVCS

2 Faults

Press Accept

To View

SigTEL Compact Installation and Configuration Manual

Format 1: Extension faults

Format 2: Non-extension faults

Line 1 - Extension name
Line 2 - Fault description

Line 1 - Fault description, e.g. Mains fail
Line 2 - Blank

Each fault display has two lines. The format depends on whether the fault relates to an extension or not.

Clearing faults

Most faults can be cleared in turn (e.g. watchdog fault), by pressing the CALL/ACCEPT button. Each fault that is no
longer present will clear and the next fault will be presented.

You can also press ▲ and ▼ to navigate through the faults and select which ones to clear.

Remaining faults

All outstation faults should be cleared before configuration. Some faults, such as Mains fail when setting up on
batteries, may not clear and will stay on the display. Some faults may require investigation, or assistance from the
service company responsible for the EVCS. If required, contact them directly for assistance quoting the exact nature
of the fault which is shown on the display.

16 Powering Up and Testing

Setup using batteries

These instructions assume that the system is being set up and
configured on batteries only. If it is configured on Mains only, or
Mains and batteries, the fault displays will change accordingly.

Two 12 volt, 7 Ah VRLA batteries (BC286/2) should be used with
each MCU/LCU. These should be connected in series using the
link supplied with each unit. The terminal voltage of the batteries
must be at least 22 V.

Do not leave batteries attached for long time periods whilst the
Mains is not connected as they will become fully discharged and
will have to be replaced.

Setup using Mains

Fit a 3 amp fuse into the switched fused spur and turn the power on.

Turn the power on

As soon as the MCU receives power the handsets may ring for a moment and the MCU will sound an intermittent
fault buzzer due, at least, to a Watchdog Fault. The Power LED, System Fault LED, PSU Fault and General Fault
LED will be lit.

Cancel the fault buzzer by pressing SILENCE BUZZER button.

Check the outstations are working

Go to each outstation in turn.
At Type A outstations the LED on the handset cradle will be lit. Pick up the MCU’s handset and speak. If you hear

yourself in the earpiece then it is correctly connected.
At Type B outstations press the ‘Push to Call or Answer’ button and the red LED will light. This cannot be cancelled

so when you have finished checking them all, press the Reset button inside the MCU/LCU lid.
When all outstations are working, clear the fault display to make sure that there are no other problems and then use

Auto Learn option to begin the system configuration (see section 17). If faults are present, handsets are off-hook, or
call/answer buttons have been pressed, then the Auto Learn option will abort.

Check the toilet alarms are working

Go to each toilet alarm system in turn. Initiate an alarm from a call unit on each system and confirm the call is
displayed at the MCU/LCU. Ensure all toilet alarms are cleared and reset.

Note: Toilet alarms can only be reset at the alarm point and cannot be reset at the MCU/LCU.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 23 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

17.1 Single, n on -networked MCU configuration

17 Automatic Configuration

If the fault menu is displayed, press END button to exit
the menu. The backlight will go out and the display will
say ‘System Healthy’ or display the number of faults.

Note: If a networked MCU system is being configured refer to section 17.2.
Before configuring the system, ensure the MCU, all outstations and DPTA interfaces have been installed, connected

and tested. Ensure that all handsets are on-hook and toilet alarms are cleared and reset.

1. Open the MCU lid and press the Engineer Mode button.
The ‘Eng. Opts’ menu is displayed. Press ▼ to highlight the ‘Config’ option and

press CALL/ACCEPT button.

2. The ‘Config’ menu is displayed.
‘System Cfg’ option is highlighted. Press CALL/ACCEPT button.

3. The ‘Sys Cfg’ menu is displayed.
‘Unit Count’ option is highlighted.
Check the unit count is set to 1.

Press ▼ to highlight ‘Auto Learn’ option and press CALL/ACCEPT.

4. The system will automatically perform an Auto Learn and detect the attached
extensions. The Auto Learn system configuration is displayed at the MCU.

The symbol denotes the number of MCU (ECU-16, ECU-8 or ECU-4).
Note: This is limited to one unit for a non-networked system.
The symbol denotes the number of Type A (fire telephone) outstations.

The symbol denotes the number of Type B (disabled refuge) outstations.

EVCS

2 Faults

Press Accept

To View

System Healthy

Eng. Opts

Edit Phonebook

> C onfig

About...

Config

> System Cfg
Change PIN
System Opts
Harmonise Names
Reset Names
Factory Dfts

Sys Cfg

Unit Count 1

> Auto Learn

Auto Learn

: 1
: 3
: 7

w

c: 2

System Updated

w

The

Check the number of and and
Note: If at this stage there is a mismatch between the expected and the displayed number of system devices,

press the CALL/ACCEPT button again at the MCU whilst the Auto Learn system configuration is displayed.
This will cause the system to perform another learn of the devices on the system.

5. Press END button multiple times to exit to the system healthy display. The system is now configured and
can be used. Add/edit extension names at this point (see naming extensions – sections 17.5).

symbol denotes the number of DPTA on the system.

c

w

match the number of connected extensions.

c

SigTEL Approved Document No. DAU0000091 Rev 5 Page 24 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

17.2 Networked MCU/LCU configuration

Note: If a single, non-networked MCU is being configured refer to section 17.1.

Before configuring the network, ensure all MCU/LCU, outstations and DPTA interfaces have been installed,
connected and tested. Ensure that all handsets are on-hook and toilet alarms are cleared and reset.

The network requires one MCU to be nominated as the master MCU for commissioning purposes. This MCU will
have overall control of the EVCS. The remaining MCU/LCU on the network act as repeaters but have the ability to
take control from the master MCU by entering a security PIN code after configuration.

Select a master MCU

1. At the chosen master MCU, open the lid and press the Engineer Mode button. The ‘Eng. Opts’ menu is
displayed.

2. Press ▼ to highlight the ‘Config’ option and press CALL/ACCEPT button.

3. The ‘Config’ menu is displayed.

‘System Cfg’ option is highlighted. Press CALL/ACCEPT button.

4. The ‘Syst Cfg’ menu is displayed.

‘Unit Count’ option is highlighted. Press CALL/ACCEPT button to select the
Unit Count number.

Press ▼ or ▲ to set the total number of MCU/LCU on the network including the
master MCU, (2 to 14) and press CALL/ACCEPT button.

The master MCU then requests repeater MCU/LCU to join it on the network.

5. Go to a repeater MCU/LCU and press CALL/ACCEPT button to join the
network. Repeat this step for all remaining repeater MCU/LCu on the network.

Eng. Opts

Edit Phonebook

> C onfig

About...

Config

>System Cfg
Change PIN
System Opts
Harmonise Names
Reset Names
Factory Dfts

Syst Cfg

>Unit Count 4
Auto Learn

Network

Detected

Press Accept

to Join

SigTEL Approved Document No. DAU0000091 Rev 5 Page 25 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Networked ‘master’ MCU

Networked ‘repeater’ MCU

6. After all repeater MCU/LCU have joined the network, the system will automatically perform an Auto Learn
and detect the attached extensions. The Auto Learn system configuration is displayed at the master MCU,
see example below right.

Note: If a fault message is displayed at the master MCU an Auto Learn may not have been performed. Press
END button to exit the fault menu and start the Auto Learn process.

The symbol denotes the number of MCU (ECU-16, ECU-8 or ECU-4).
Note: This is a maximum of 14 units for a networked system.

□ symbol denotes the number of LCU (ECU-8NT).

The

The symbol denotes the number of Type A (fire telephone) outstations.

The symbol denotes the number of Type B (disabled refuge) outstations.

The

w

symbol denotes the number of DPTA on the system.

c

Auto Learn

: 3

□: 1

: 3
: 13

w

4

c:

System Updated

Check the number of and

Note: If at this stage there is a mismatch between the expected and the displayed number of network devices,
press the CALL/ACCEPT button again at the master MCU whilst the Auto Learn system configuration is
displayed. This will cause the system to perform another learn of the network devices.

7. Press END button multiple times to exit to the system healthy display.

The master MCU and repeater MCU/LCU will display their network status. See examples below.

□ and and and

w

match the number of network devices.

c

System Healthy

Controller 1

System Healthy

Master is

The system is now configured and can be used.

Note: Extension names can be added/edited at this point (see naming extensions – sections 17.5).

SigTEL Approved Document No. DAU0000091 Rev 5 Page 26 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

17.3 Adding or re placing MCU/LCU, outstations or DPTA after commissioning

17.4 Default extension names

Controller 1: Extension 1 to Extension 16

Controller 6: Extension 81 to Extension 96

Controller 11: Extension 161 to Extension 176

Controller 2: Extension 17 to Extension 32

Controller 7: Extension 97 to Extension 112

Controller 12: Extension 177 to Extension 192

Controller 4: Extension 49 to Extension 64

Controller 9: Extension 129 to Extension 144

Controller 14: Extension 209 to Extension 224

Controller 5: Extension 65 to Extension 80

Controller 10: Extension 145 to Extension 160

17.5 Naming extensions

Note: Compatibility issues may arise if adding/replacing a panel with the latest firmware onto a networked system
with earlier firmware. Some features of the new firmware may be disabled/unavailable to ensure smooth compatibility
with the panels with earlier firmware. If the latest features are required, the other panels on the network must be
replaced.

Firstly, make the necessary electrical or mechanical changes and all faults are cleared on the system.

To add an MCU/LCU (network system): Open the lid of the MCU/LCU and press the Engineer Mode button.
Select the ‘Config’ menu, then ‘System Cfg’ menu and then select ‘Unit Count’ option. Press ▼ or ▲ to set the
number of MCU/LCU on the network including the master MCU (2 to 14) and press CALL/ACCEPT button. The
master MCU then requests repeater MCU/LCU to join it on the network. If an MCU/LCU is joining the network,
go to that unit and press CALL/ACCEPT button. The system will automatically perform an Auto Learn, search
the network for all MCU/LCU and display the system configuration at the master MCU.

To replace a faulty MCU/LCU (network system): Make sure that the faulty panel you are replacing is not the
designated ‘Master’. At the master MCU, open the lid and press the Engineer Mode button. Select the ‘Config’
menu, then ‘System Cfg’ menu and then select ‘Unit Count’ option. Press ▼ or ▲ to set the number of MCU/LCU
on the network including the master MCU (2 to 14) and press CALL/ACCEPT button. The master MCU then
requests repeater MCU/LCU to join it on the network. If an MCU/LCU is joining the network, go to that unit and
press CALL/ACCEPT button. The system will automatically perform an Auto Learn, search the network for all
MCU/LCU and display the system configuration at the master MCU.

To add/remove an outstation or DPTA (non-network and network system): Open the lid of the master MCU
and press the Engineer Mode button. The ‘Eng. Opts’ menu is displayed. Select the ‘Config’ menu, then ‘System
Cfg’ menu, and then select ‘Auto Learn’ option. The system will automatically perform an Auto Learn and search
for connected extensions. The system configuration is displayed at the MCU (or master MCU on a networked
system).

On a networked system, the controller (MCU/LCU) extensions are allocated the following default names:

Controller 3: Extension 33 to Extension 48 Controller 8: Extension 113 to Extension 128 Controller 13: Extension 193 to Extension 208

Open the lid of the MCU/LCU (or, in the case of a networked system, the master MCU) and press the Engineer
Mode button. The ‘Eng. Opts’ menu is displayed.

Select ‘Edit Phonebook’ option, see right.
A list of all system devices will be displayed:

> Edit Phonebook

or □ or or or

w

symbols denote whether they

c

are an MCU, LCU, Type A outstation, Type B outstation, or
DPTA, see far right.

To edit the extension names, see manual naming section 17.5.2.

Config
About...

Eng. Opts

Name List

> Extension 1
Extension 2
w

Extension 3

c

Extension 4

SigTEL Approved Document No. DAU0000091 Rev 5 Page 27 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Character set

17.5.1 Interactive naming

This function reduces the chance of errors with outstation locations and their names. It also tests that the audio is
working acceptably. This function has limited use when naming toilet alarms as you cannot make an audio call to
the MCU using the toilet alarm.

With a person at the MCU (or, in the case of a networked system, the master MCU) go to each outstation in turn.
At each outstation, pick up the handset, or press ‘Push to Call or Answer’ button. This automatically selects that

outstation for editing and the channel is opened for speech.
Check the audio quality of the line and tell the Operator at the MCU your position and they can edit the extension

name immediately – see Manual naming, below.
Note: To avoid confusion, select one extension at a time during the naming process. If more than one extension is

selected during this process, the lowest number will be selected for editing.

17.5.2 Manual naming

Press ▲ and ▼ to highlight the extension you want to name and then press
CALL/ACCEPT button to select the first letter, as shown right.

Press ▲ and ▼ to change the letter, press CALL/ACCEPT button to accept and move
to the next letter and press END button to move to the previous letter.

Press FUNCTION button to change the character set as follows:

Name List

> Extension 2

Extension 2
wc Extension 3

Extension 4

Starting with letter ‘E’ for example Starting with a non-alphabetic character

1st press changes to lower case ‘e’ 1st press changes to characters ‘SPACE’

2nd press changes to characters ‘SPACE’ 2nd press changes to numbers ‘0’

3rd press changes to numbers ‘0’ 3rd press changes to upper case ‘A’

4th press returns to upper case ‘E’ 4th press returns to lower case ‘a’

Characters - SPACE ! “ # $ % & ‘ < > * + , - . /
Numbers - 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @
Uppercase - A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _ °
Lower case - a b c d e f g h I j k l m n o p q r s t u v w x y z ® ( )

When you have finished editing an extension, press DIRECTORY button to save the changes and then ▲ and ▼ to
select another extension to name.

When you have finished naming extensions, press END button multiple times to return to the default screen.
If you want to cancel editing an extension name, press button ‘4’ to return to the previously saved description.

17.5.3 EVC Configurator

The EVC423 Configurator, supplied with software and leads, facilitates quick and easy editing of extension names
and also provides limited engineering functions. Features include:

• Graphical representation of the EVCS including controllers and connected extensions

• Quick and easy editing of extensions names

• Set up can be saved to, and from, a PC

• Requires a Configurator (Part No. EVC423) and a PC/Laptop (Windows compatible) loaded with the EVCS

Contact your supplier for details.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 28 of 36

Emergency Voice
Communication System

Configurator software.

SigTEL Compact Installation and Configuration Manual

18.1 Change the security PIN code

18.2 Harmonise names (networked system only)

18 Additional Engineer Functions

Note: For a networked system, this option can only be accessed at the master MCU. The default security PIN code

is

2222.

1. Open the lid of the MCU and press the Engineer Mode button. The ‘Eng. Opts’ menu is displayed.

2. Press ▼ to highlight the ‘Config’ option and press CALL/ACCEPT button.

3. The ‘Config’ menu is displayed.
Press ▼ to highlight ‘Change PIN’ option and press CALL/ACCEPT button.

4. Enter, then re-enter the new PIN number. Press CALL/ACCEPT button to
confirm the PIN number change.

Press END button multiple times to exit to the system healthy display.

Eng. Opts

Edit Phonebook

> C onfig

About...

Config

System Cfg
>Change PIN
System Opts
Harmonise Names
Reset Names
Factory Dfts

Type New

PIN

Harmonise Names option is used to globally update all network settings, e.g. security PIN code changes, extension
names, etc. This option is not normally required but could be used, for example, to update the extension name list if
there was a mismatch on the controller panels.

1. Follow steps 1 and 2, previously listed in section 18.1, to access the ‘Config’ menu.

2. Press ▼ to highlight ‘Harmonise Names’ option and press CALL/ACCEPT
button.

All network settings will be updated globally on the network.
After the harmonisation process is complete, press END button multiple times

to exit to the system healthy display.

Config

System Cfg
Change PIN
System Opts
>Harmonise Names
Reset Names
Factory Dfts

SigTEL Approved Document No. DAU0000091 Rev 5 Page 29 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

18.3 Latch faults

Note: For a networked system, this option can only be accessed at the master MCU.
Latch Faults option is not normally enabled but is available, if required for fault diagnosis purposes, e.g. identifying

intermittent faults.

1. Open the lid of the MCU and press the Engineer Mode button. The ‘Eng. Opts’ menu is displayed.

2. Press ▼ to highlight the ‘Config’ option and press CALL/ACCEPT button.

3. The ‘Config’ menu is displayed.
Press ▼ to highlight the ‘System Opts’ option and press CALL/ACCEPT button.

4. The ‘System Opts’ menu is displayed and the ‘Latch Faults’ option is

highlighted.

5. Press CALL/ACCEPT button to select the ‘Latch Faults’ option.
Press END button multiple times to exit to the system healthy display.

Eng. Opts

Edit Phonebook

> C onfig

About...

Config

System Cfg
Change PIN
>System Opts
Harmonise Names
Reset Names
Factory Dfts

System Opts

>Latch Faults O
Auto-Answer 
Compatibility

Clr Rcnt calls
after (hrs) : 24

System Opts

>Latch Faults 
Auto-Answer 
Compatibility

Clr Rcnt calls
after (hrs) : 24

O

O

SigTEL Approved Document No. DAU0000091 Rev 5 Page 30 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

18.4 Clear recent calls

18.5 Auto -answer

Note: For a networked system, this option can only be accessed at the master MCU.
Clear Recent Calls enables the call activity log, held by the system, to be automatically cleared after a set time period.

It can be set at hourly increments from 6 to 24 hours (default setting is 24 hours).

1. Follow steps 1, 2 & 3, previously listed in section 18.3, to access the ‘System Opts’ menu.

2. Press ▼ to highlight ‘Clr Rcnt calls after (hrs)’ option and press CALL/ACCEPT
button.

3. Press ▼ or ▲ to set the time in hours, e.g. 6 hours, and press CALL/ACCEPT
button to confirm the setting.

Press END button multiple times to exit to the system healthy display.

System Opts

Latch Faults O
Auto-Answer
Compatibility



O

>Clr Rcnt calls
>after (hrs) : 24

System Opts

Latch Faults O
Auto-Answer
Compatibility



O

>Clr Rcnt calls
>after (hrs) : 6

Note: For a networked system, this option can only be accessed at the master MCU.
By default Auto-Answer mode is enabled, which means an MCU automatically answers an incoming call when the

MCU’s handset is picked up. This provides a simple method of answering calls.
When Auto-Answer is enabled, and there are multiple incoming calls, there is less control for an Operator to manually

select which call to answer first, or to make an outgoing call. As a rule, the lowest system numbered extension will
be answered first at the MCU.

To disable Auto-Answer mode and revert to Manual-Answer mode follow the steps below:

1. Follow steps 1, 2 & 3, previously listed in section 18.3, to access the ‘System Opts’ menu.

2. Press ▼ to highlight ‘Auto-Answer’ option.

3. Press CALL/ACCEPT button to disable the ‘Auto-Answer’ option.

Press END button multiple times to exit to the system healthy display.

System Opts

Latch Faults O
>Auto-Answer 
Compatibility O

Clr Rcnt calls
after (hrs) : 24

System Opts

Latch Faults O
>Auto-Answer O
Compatibility O

Clr Rcnt calls
after (hrs) : 24

SigTEL Approved Document No. DAU0000091 Rev 5 Page 31 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Power Supply and Batteries

Mains supply

230 VAC, 50/60 Hz

Power supply output 1

24 VDC

Power supply output 2

5 VDC

Output current @ 24 VDC

0.5 A max.

Batteries per MCU/LCU

2 x 12 V, 7 Ah (Part No. BC286/2)

Mains supply/battery charger monitored for failure

Yes

Batteries monitored for disconnection and failure

Yes

Earth fault monitoring

Yes

Quiescent current when operating on batteries only

MCU/LCU only with Mains fault buzzer silenced

85 mA

MCU/LCU only with Mains fault buzzer sounding

100 mA

Quiescent current per Type A outstation

1 mA

Quiescent current per Type B outstation

3.2 mA

Off-hook current per Type A outstation

25 mA

Off-hook current per Type B outstation

25 mA

Max current *

500 mA

* 16 Type B outstations fitted; one connected, 15 calling in.

Output Ratings

OP1, OP2, OP3 open collector outputs

24 V, 50 mA maximum

Change-over relay

30 V, 1 A maximum.

24 V output

200 mA maximum

Audio Section

Microphone frequency response

250 Hz to 5 kHz +/- 3 dB

Earpiece frequency response

Loudspeaker frequency response

Extension Specification

Maximum number of extensions per MCU/LCU

16 (ECU-16), 8 (ECU-8), 4 (ECU-4) / 8 (ECU-8NT)

Number of outstations or DPTA per extension

1

Extensions monitored for open-circuit and short-circuit

Yes

Fuses

Mains fuse

1 A (T) 20 mm HRC

Battery fuse

1 A (F) 20 mm

DPTA Resistors

EOL & trigger resistors

1.5K, 0.25 W, 10% (supplied in accessory pack)

Cables

2-core, 1.0 mm2 or 1.5 mm2, enhanced fire-rated cable, up to 1 km per
extension (maximum cable resistance is 40 ohms)

Extensions to DPTA systems (NC951)

2-core cable is required for each extension

Fixed wiring using 3-core fire-rated cable (no less than 0.75 mm2 and no
more than 2.5 mm2) fed from an isolating switched fused spur, fused at 3 A

MCU to MCU/LCU – networked system

4 x 2-core, 1.5 mm2 enhanced fire-rated cable, up to 1 km in length

MCU/LCU to ECU722 – networked
system

Controls & Indicators

Liquid Crystal Display (LCD)

128 x 64 pixel graphic LCD unit, two-colour backlight

Scroll Up , Scroll Down , End , Call/Accept , Function, Directory,
Silence Buzzer, Four numbered buttons (1, 2, 3 & 4)

Disablement (Amber), System Fault (Amber), PSU Fault (Amber),
General Fault (Amber), Power (Green)

Internal controls (pushbuttons)

Engineer Mode, Reset

Case Colours

MCU/LCU

Label background Pantone 429C. Lid and base RAL7035 (Grey texture)

EVC301RPO and EVC301RLK

RAL 3000 (Red)

Fascia stainless steel (EVC302F and EVC302S), Fascia mild steel green
(EVC302GF and EVC302GS). Base RAL 9005 (Jet Black)

19 Component Specifications

Note: This specification applies to MCUs (ECU-16, ECU-8, ECU-4) & LCU (ECU-8NT) unless stated.

Extensions to outstations

Power supplies

Controls (pushbuttons)

Indicators (LEDs)

250 Hz to 4 kHz +/- 3 dB

One Cat 5 patch cable (supplied with ECU722)

EVC302F/GF and EVC302S/GS

SigTEL Approved Document No. DAU0000091 Rev 5 Page 32 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Dimensions & Weight (unpacked)

MCU

435 mm (w) x 270 mm (h) x 85 mm (d). Weight: 3.1 Kg

Enclosure BF359/3D

725 mm (w) x 448 mm (h) x 193 mm (d). Weight 11.1 Kg

Type A Outstation EVC301RPO/RLK

202 mm (w) x 278 mm (h) x 100 mm (d). Weight: 3 Kg

Bezel T-BEZ301

244 mm (w) x 320 mm (h) x 20 mm (d). Weight: 0.5 Kg

Type B Outstation EVC302S/GS

160 mm (w) x 240 mm (h) x 53 mm (d). Weight: 1.3 Kg

Type B Outstation EVC302F/GF

175 mm (w) x 250 mm (h) x 53 mm (d). Weight: 1.5 Kg

Enclosure BF359/1

200 mm (w) x 302 mm (h) x 123 mm (d). Weight: 3.3 Kg

FiTT

77 mm (w) x 135 mm (h) x 35 mm (d). Weight: 0.16 Kg

SDM

48 mm (w) x 60 mm (h) x 30 mm (d). Weight: 0.003 Kg

SigTEL Approved Document No. DAU0000091 Rev 5 Page 33 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Network Capability



 

Latch Faults



 

Off-Hook and Jammed

Installation & Configuration Manual

DAU0000091

Operator Instructions

DAU0000092

Quick Start Installation Guide

DAU0000093

19.1 Firmware version

Enhanced Features

As the firmware for the SigTEL Compact range of panels has been developed, new enhanced features have been
added. The enhanced features and corresponding firmware versions are listed in Table 1, below:

Firmware Version

V 2.2.1 V 2.5.14 V 2.6.14 V 3.1.17




Enhanced

Features

Selectable Time for
‘Auto-Clear Recent Calls’

Auto-Answer

Button Detection

DPTA Interface

PC Tools Support for EVCS

OP3 activates on system use













Table 1 – Enhanced Features for SigTEL Compact

* In default mode Auto-Answer feature is disabled.
** In default mode Auto-Answer feature is enabled.

V 4.1.2

(or above)





















*













*













**









To find out which firmware version is installed on the EVCS follow the steps below:

1. At the MCU, with the handset on-hook, press FUNCTION button.

2. The ‘User Opts’ menu is displayed (see right).

User Opts

Clr Rcnt Calls
Reset System
> About...

3. Press the down cursor ▼ on the keypad to highlight the ‘About...’ option and
press CALL/ACCEPT button. The firmware version is displayed (typical display
shown right).

EVCS

v 4 . 1 . 2

Exch No 1

Controller 1

Note: Compatibility issues may arise if adding/replacing a panel with the latest firmware onto a networked system
with earlier firmware. Some features of the new firmware may be disabled/unavailable to ensure smooth compatibility
with the panels with earlier firmware. If the latest features are required, the other panels on the network must be
replaced. Should there be any technical problems with SigTEL Compact, contact the technical support department
for assistance.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 34 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

Certificate for the EVCS at:

Address:

I/we being the person(s) responsible (as indicated by my/our signatures below) for the supply, installation and
commissioning of the EVCS, particulars of which are set out below, certify that the system complies to the best
of my/our knowledge and belief with the

, except for the variations, if any, stated

in this certificate.

Name (in block letters):

Position: ………………………………….

Signature:

Date:

For and on behalf of:

Address:

Postcode:

The extent of liability of the signatory is limited to the system described below.

Variations (see BS5839-9, Clause 6): ………………………………………

All equipment operates correctly.

The following documents have been provided to the purchaser or user:

‘As fitted’ drawings.

Operating and maintenance instructions.

Sufficient representatives of the user have been properly instructed in the use of the system.

Maintenance

It is strongly recommended that, after completion, the system is tested, inspected and serviced in accordance
wi

The user should appoint a responsible person to supervise all matters pertaining to the EVCS in accordance
with the recommendations

20 Installation and Commissioning Certificate

Before the system and the Operator Instructions are handed over to the responsible person on site, the following
certificate should be completed by the installer, or commissioning engineer.

recommendations of BS5839-9

th Section five of BS5839-9.

of Section six of BS 5839-9.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 35 of 36

Emergency Voice
Communication System

SigTEL Compact Installation and Configuration Manual

21 Terms and Definitions

For the purposes of these instructions the following terms and definitions apply:

disabled persons toilet alarm (DPTA) interface

DPTA interfacing is a secondary function to the primary purpose of the system which is to act as an EVCS. Toilet
alarms can only be reset at the alarm point and cannot be reset by the EVCS. DPTA part number: NC951.

disabled refuge system

type of EVCS. A disabled refuge system connects hands-free Type B (disabled refuge) outstations to an MCU and
is used during a fire emergency to inform a responsible person that someone needs immediate assistance to
evacuate from the building.

emergency voice communication system (EVCS)

system that allows voice communication in either direction between an MCU and a number of other points throughout
a building, or building complex, particularly in a fire emergency situation. There are two types of EVCS; disabled
refuge systems and fire telephone systems. They may be separate, or they may be combined into one system and
are designed to operate reliably in a fire emergency.

extension

each MCU has either 16 extensions (ECU-16), eight extensions (ECU-8) or four extensions (ECU-4). One extension
typically has one outstation (Type A or B) or a DPTA connected to it.

fire telephone system

type of EVCS. A fire telephone system connects Type A outstations to an MCU and is used by management, marshals
at a sports ground and the fire service before, during and after a fire to communicate with fire marshals and fire
fighters.

line control unit (LCU)

control unit that controls the EVCS. On a networked system, up to 14 MCU and/or LCU can be installed. The LCU is
identical to an MCU but does not have a handset mounted on its front fascia. Part number: ECU-8NT.

master control unit (MCU)

control unit that controls the EVCS. On a networked system, up to 14 MCU and/or LCU can be installed. The MCU
has a handset mounted on its front panel. Part number: ECU-16, ECU-8 or ECU-4.

master MCU

control unit on a network that has control over the EVCS, i.e. the ‘master’. Any other MCU on a network acts as a
repeater. The master MCU can give control to a repeater MCU by entering a security PIN code. There can only be
one master MCU at any one time. Part number: ECU-16, ECU-8 or ECU-4.

outstation

unit located at a strategic point in a building, or building complex, that allows two-way voice conversation with an
MCU. There are two types; Type A (fire telephone) and Type B (disabled refuge).

repeater MCU

control unit that forms part of a networked EVCS. They repeat messages displayed at the master MCU and have
ability to take control from the master MCU by entering a PIN code. Part number: ECU-16, ECU-8 or ECU-4.

type A (fire telephone) outstation

outstation that uses a telephone-style handset for communication. Part numbers: EVC301RPO/EVC301RLK.

type B (disabled refuge) outstation

outstation that uses hands-free operation and has a call/answer button, built-in microphone and loudspeaker. Part
numbers: EVC302S/EVC302GS or EVC302F/EVC302GF.

SigTEL Approved Document No. DAU0000091 Rev 5 Page 36 of 36

Emergency Voice
Communication System
