PRODUCT
SPECIFICATION
Changing Content List
Updated Date Change Request No. Remarks
2016/09/12 Initial version
The LED module is a general purpose Zigbee certified building block for SMART TLED lighting
applications e.g. SMART TLED and luminaires. It does not work stand-alone but is meant to be
connected by socket on a application specific motherboard that contains the proper interfacing for
stand-alone usage (i.e. connectors, supply voltage, ...)
Signature
Technical Project Leader Quality Project Leade
(12nc)
324131254491
Product Manage
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-1 8 p L A4
Machine &
r
r
Product
Documentation
Lighting
(Product family)
LED Module
(Document type)
PRODUCT
SPECIFICATION
1. Module layout and drawings
Name Value Tolerance Remarks
Width (mm)
Length (mm) 45 ±0.2
Height (mm) 12 ±1

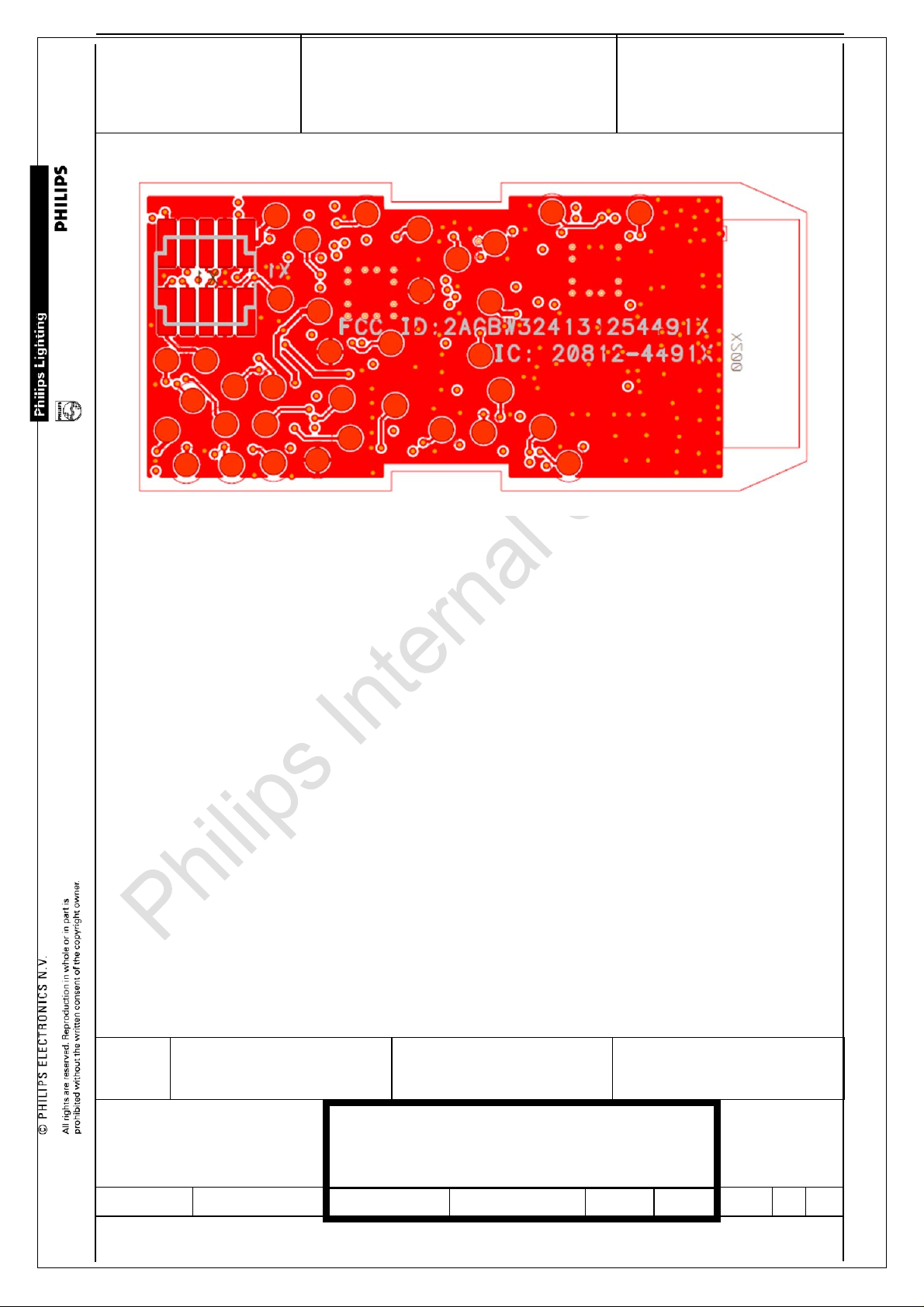

Drawings:
20.8 ±0.2
Signature
Technical Project Leader Quality Project Leade
(12nc)
324131254491
Product Manage
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-2 8 p L A4
Machine &
r
r
Product
Documentation
Lighting
I/O definition:
(Product family)
LED Module
(Document type)
PRODUCT
SPECIFICATION
Pad Number Function
1 PWM PWM output
2 5V DC input
3 GND Ground
4 GND Ground
5 NTC NTC input
6 ON/OFF ON/OFF output
7 V_LED V_LED input
8 Relay_ON_OFF Relay control output
9 I_LED I_LED output
10 V_CTRL V_CTRL output
Signature
Technical Project Leader Quality Project Leade
(12nc)
324131254491
Product Manage
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-3 8 p L A4
Machine &
r
r
Product
Documentation
Lighting
(Product family)
LED Module
(Document type)
PRODUCT
SPECIFICATION
2. ELECTRICL SPECIFICATION
Name Value Tolerance Remarks
Vcc voltage (V)
Current (normal, mA) 35
5V ±5%
3. RF PERFORMANCE SPECIFICATION
Item Conditions Spec
Frequency tolerances
(ppm) Continuous single tone +/-40
Output power (dBm) Measured at antenna feed point 4
Spurious emissions*
(dBm)
30 – 1000MHz
1 – 12.75GHz
Min Typical Max
-36
-30
1.8 – 1.9GHz
5.15 – 5.3GHz
EVM (%rms) <10
Receiver Sensitivity
(dBm) PER < 1% -99
when connected to motherboard (i.e.
TRP
SMART TLED) -2dBm
-47
-47
4. Approbation
PMN(product marketing name): SMART RF Module
Signature
Technical Project Leader Quality Project Leade
Product Manage
(12nc)
324131254491
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-4 8 p L A4
Machine &
r
r
Product
Documentation
Lighting
(Product family)
LED Module
(Document type)
PRODUCT
SPECIFICATION
FCC Labelling Requirements
When integrating HUE Engine V1.0 into a product it must be
ensured that the FCC labelling requirements are met. This
includes a clearly visible label on the outside of the finished
product specifying the FCC identifier (FCCID:2AGBW324131254491X).
This exterior label can use wording such as “Contains Transmitter
Module FCC ID:2AGBW324131254491X” although any similar wording
that expresses the same meaning may be used.
Note: Changes or modifications made to this device that are not
expressly approved by Philips Lighting North America
Corporation(“Philips”) may void the user's authority to operate
the device.
The advance interface module complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
The module and associated antenna must be installed to provide a
separation distance of at least 20cm from all persons and must
not transmit simultaneously with any other antenna or transmitter.
FCC Approvals
FCC statement:
Signature
Technical Project Leader Quality Project Leade
(12nc)
324131254491
Product Manage
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-5 8 p L A4
Machine &
r
r
Product
Documentation
Lighting
(Product family)
LED Module
(Document type)
PRODUCT
SPECIFICATION
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC notice:
This device has been tested and found to comply with the limits
for a Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be
determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the device and receiver
Connect the device into an outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/television technician
for help .
IC (Industry Canada) Approvals
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and
Signature
Technical Project Leader Quality Project Leade
(12nc)
324131254491
Product Manage
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-6 8 p L A4
Machine &
r
r
Product
Documentation
Lighting
(Product family)
LED Module
(Document type)
PRODUCT
SPECIFICATION
its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for
successful communication
This module complies with FCC and Industry Canada RF radiation
exposure limits set forth for general population. To maintain
compliance, this module must not be co-located or operating in
conjunction with any other antenna or transmitter
Immediately following the above notice, the manufacturer shall
provide a list of all
antenna types approved for use with the transmitter, indicating
the maximum permissible
antenna gain (in dBi) and required impedance for each.
The labelling requirements for Industry Canada are similar to
those of the FCC. Again a clearly visibly label must be placed on
the outside of the finished product stating something like
“Contains Transmitter Module, IC-ID: 20812-4491X”, although any
similar wording that expresses the same meaning may be used.
En vertu de la réglementation d’Industrie Canada, cet émetteur
radio risquera uniquement à l’aide d’une antenne de type et de
gain maximum (ou moins) pour l’émetteur a approuvé par Industrie
Canada. Pour réduire les interférences radio potentielles à
d’autres utilisateurs, le type d’antenne et son gain doivent être
choisies que la puissance isotrope rayonnée équivalente (p.i.r.e.)
n’est pas plus que celle autorisée pour une communication réussie
Ce module est conforme à la FCC et Industrie Canada RF limites
d’exposition aux rayonnements définies pour l’ensemble de la
population. Pour maintenir la conformité, ce module ne doit pas
être co-implanté ou fonctionner en conjonction avec toute autre
antenne ou émetteur
À la suite de l’avis ci-dessus, le fabricant doit fournir une
liste de tous les
types d’antenne approuvés pour une utilisation avec l’émetteur,
indiquant au maximum
gain d’antenne (en dBi) et impédance requise pour chacun.
Signature
Technical Project Leader Quality Project Leade
(12nc)
324131254491
Product Manage
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-7 8 p L A4
Machine &
r
r
Product
Documentation
Lighting
(Product family)
LED Module
(Document type)
PRODUCT
SPECIFICATION
Les exigences d’étiquetage pour Industrie Canada sont semblables
à celles de la FCC. Encore une fois un clairement visiblement
étiquette doit être placée à l’extérieur du produit fini
indiquant quelque chose comme "Module émetteur de Contains, IC ID:
20812-2630 X", bien que tout même libellé qui exprime que le même
sens peuvent être utilisé.
IC notice:
This Class B complies with Canadian ICES-005.--Cet appareil numérique de la classe B est conforme à la norme NMB
005 du Canada
Signature
Technical Project Leader Quality Project Leade
Product Manage
(12nc)
324131254491
©
Philips Lighting
Product Sheet 190 BMS BLLL TND-410-TP-SHA
Release Nr 2.0
190-8 8 p L A4
