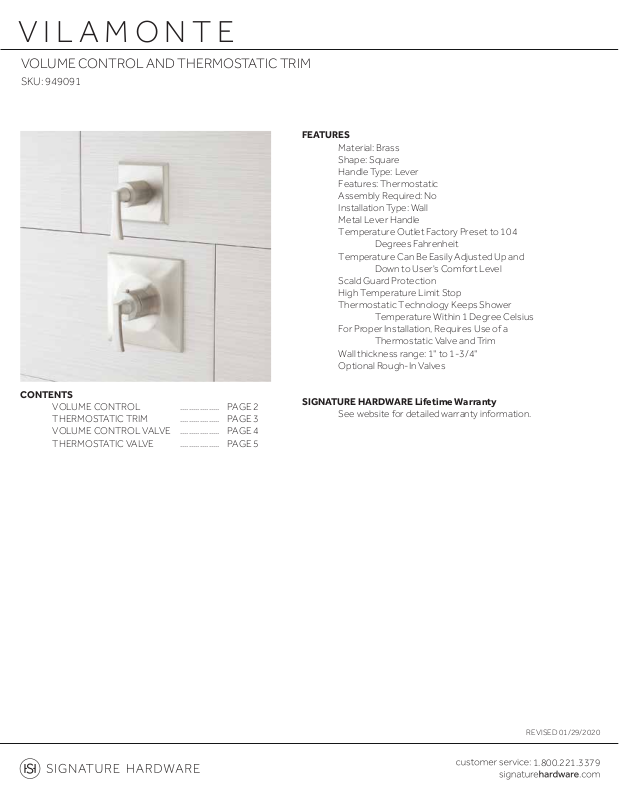

Page 1
VILAMONTE
VOLUME CONTROL AND THERMOSTATIC TRIM
SKU: 949091
FEATURES
Material: Brass
Shape: Square
Handle Type: Lever
Features: Thermostatic
Assembly Required: No
Installation Type: Wall
Metal Lever Handle
Temperature Outlet Factory Preset to 104
Degrees Fahrenheit
Temperature Can Be Easily Adjusted Up and
Down to User's Comfort Level
Scald Guard Protection
High Temperature Limit Stop
Thermostatic Technology Keeps Shower
Temperature Within 1 Degree Celsius
For Proper Installation, Requires Use of a
Thermostatic Valve and Trim
Wall thickness range: 1" to 1-3/4"
Optional Rough-In Valves
CONTENTS
VOLUME CONTROL
THERMOSTATIC TRIM
VOLUME CONTROL VALVE
THERMOSTATIC VALVE
..................
..................
..................
..................
PAGE 2
PAGE 3
PAGE 4
PAGE 5
SIGNATURE HARDWARE Lifetime Warranty
See website for detailed warranty information.
REVISED 01/29/2020
1.800.221.3379
Page 2
VILAMONTE

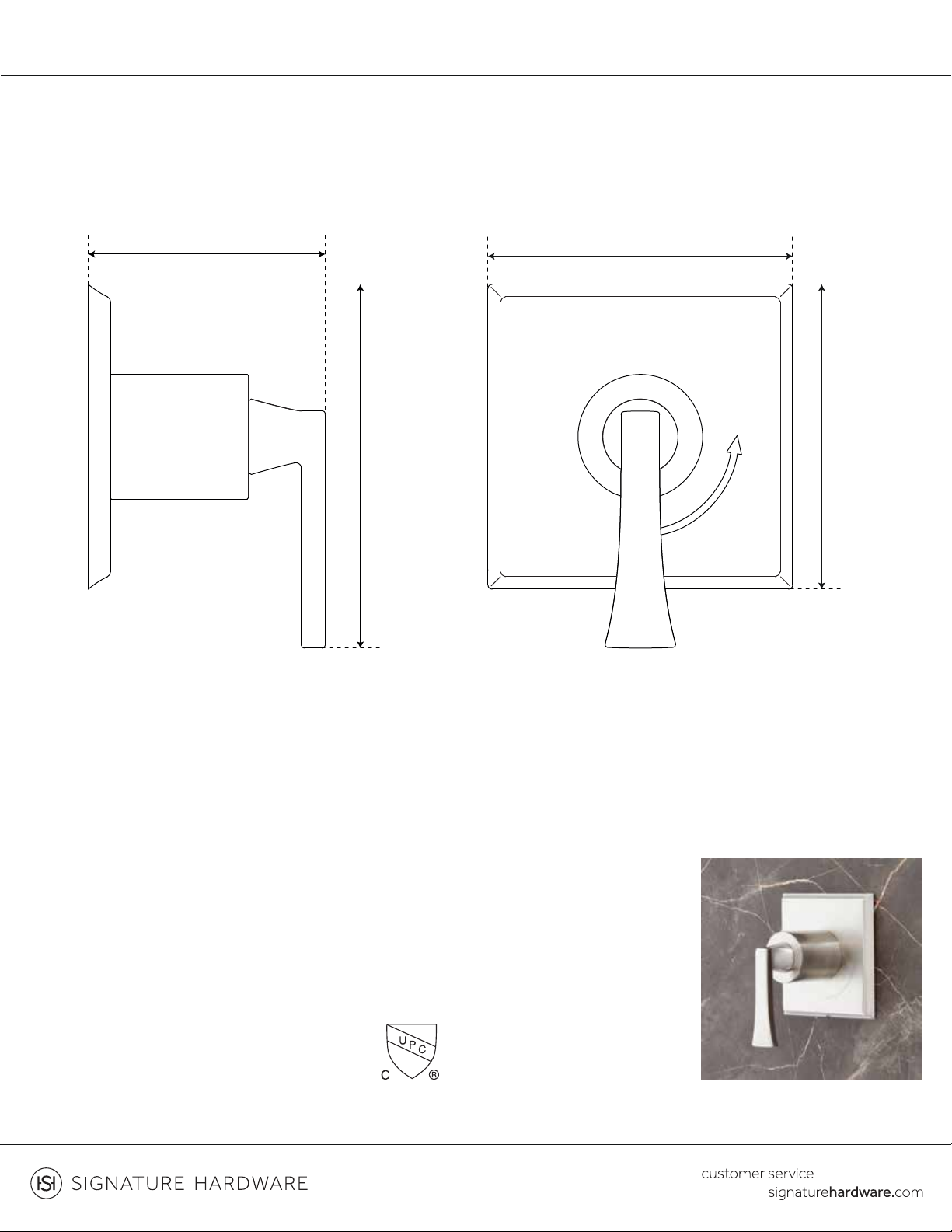

VOLUME CONTROL
SKU: 949091
3-3/8" (86 mm)
5-1/8"
(130 mm)
4-3/8" (111 mm)
4-3/8"
(111 mm)
FEATURES
Width: 4-3/8"
Height: 4-3/8"
Depth: 3-3/8"
Wall Thickness Range: 1" to 1-3/4"
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
ICC/ANSI A117.1 (when installed according
to ADA standards)
Massachusetts Accepted
SIGNATURE HARDWARE
LIFETIME WARRANTY
See website for warranty information
PAGE 2
Code: SHVL9007BN/SHVL9007CP
SHVL9007ORB/SHVL9007PN
1.800.221.3379
Page 3
VILAMONTE

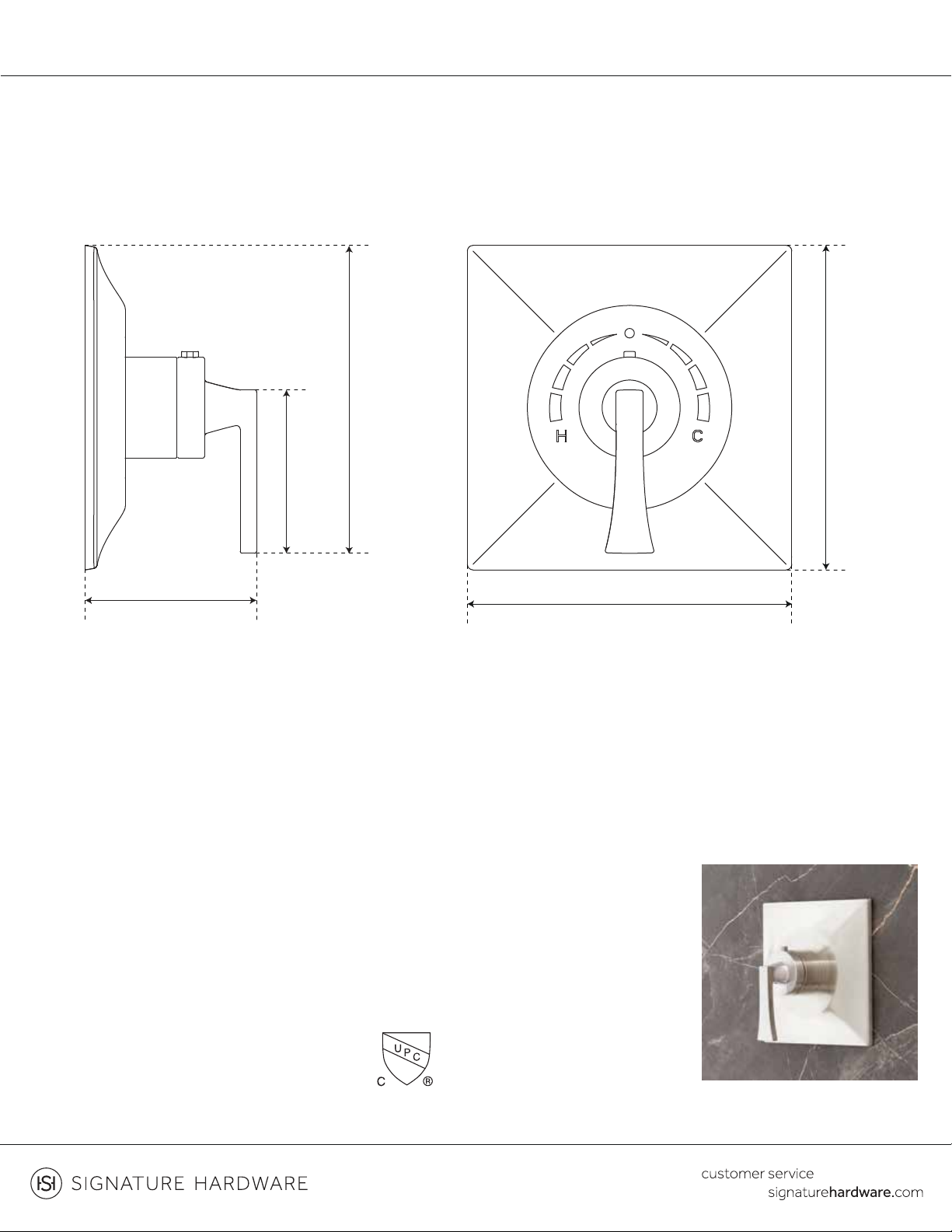

THERMOSTATIC TRIM
SKU: 949091
3-1/2" (89 mm)
FEATURES
Width: 6-5/8"
Height: 6-5/8"
Depth: 3-1/2"
Wall Thickness Range: 1" to 1-3/4"
6-3/8"
(162 mm)
3"
(76 mm)
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
ADA compliant (when installed according
to ADA standards)
Massachusetts Accepted
6-5/8" (168 mm)
6-5/8"
(168 mm)
SIGNATURE HARDWARE
LIFETIME WARRANTY
See website for warranty information
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
Code: SHVL9009BN/SHVL9009CP
PAGE 3
SHVL9009ORB/SHVL9009PN
1.800.221.3379
Page 4
VILAMONTE

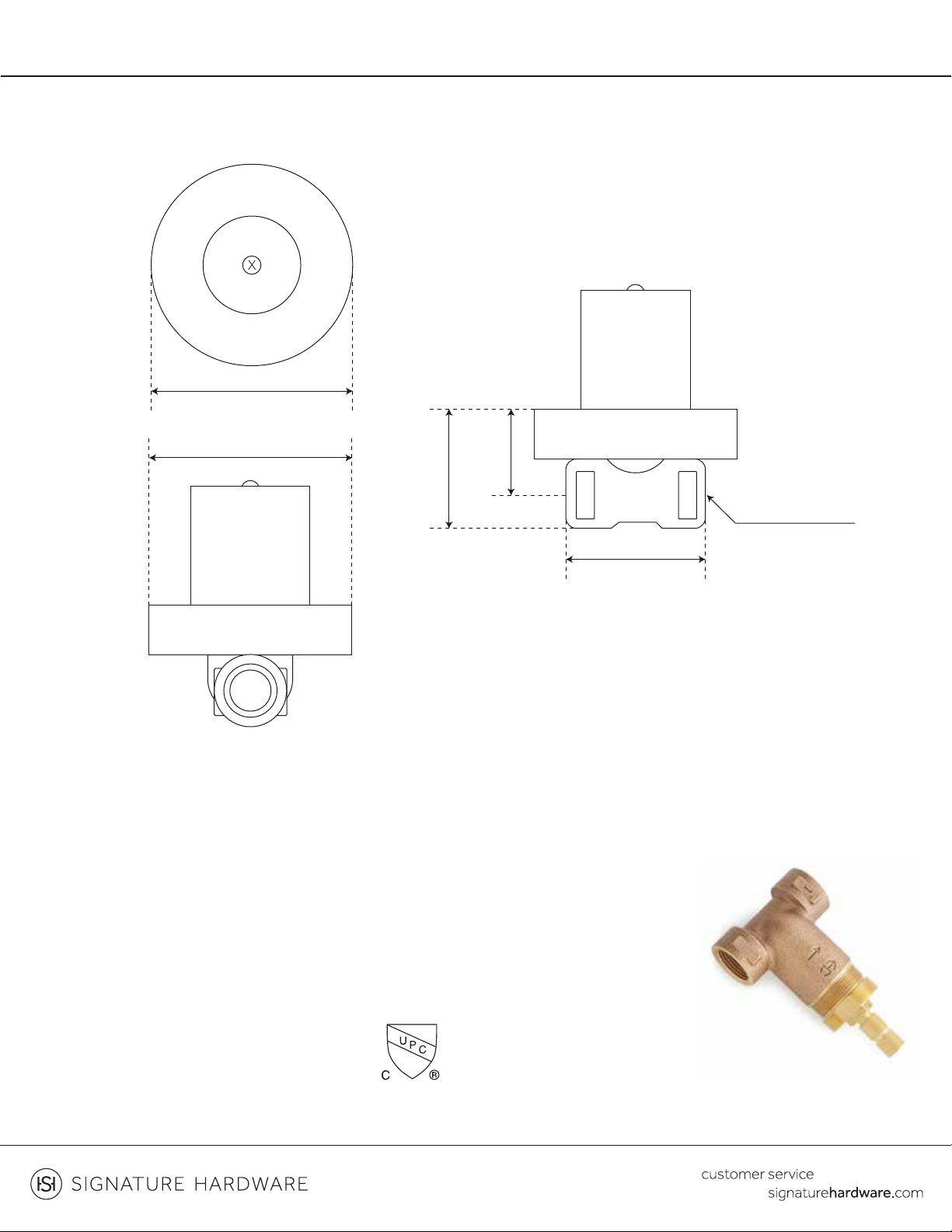

OPTIONAL VOLUME CONTROL VALVE WITH 1/2" -OR- 3/4” CONNECTION
SKU: 949091
3-1/2” (89 mm)
3-1/2” (89 mm)
FEATURES
Optional Rough-In Valve
Brass Valve Body
Ceramic Cartridge
Recommended Valve Installation
Depth 1-5/8" to 2-3/8"
1-5/8”
2-1/4”
(57 mm)
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
(41 mm)
SH6020: 1/2”-14NPT
SH6040: 3/4”-14NPT
2-3/4” (70 mm)
SIGNATURE HARDWARE
LIFETIME WARRANTY
See website for warranty information
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
Code: SH6020/SH6040
PAGE 4
1.800.221.3379
Page 5
VILAMONTE

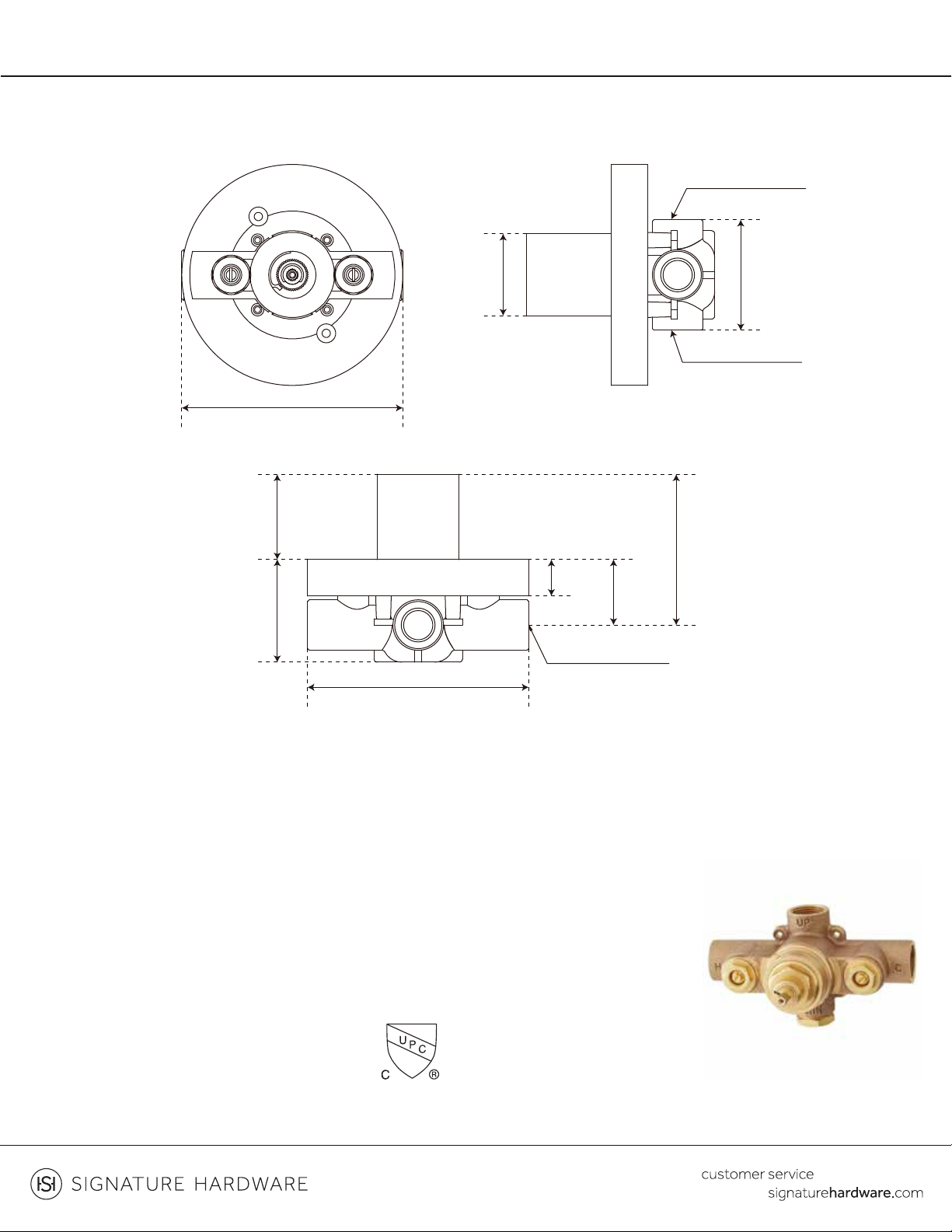

OPTIONAL THERMOSTATIC VALVE WITH 1/2" -OR- 3/4" CONNECTION
SKU: 949091
2”
(51 mm)
5-1/2” (140 mm)
2-1/8”
(54 mm)
7/8”
(22 mm)
2-1/2”
(64 mm)
1-5/8”
(41 mm)
SH6004: 1/2”-14NPT
SH6006: 3/4”-14NPT
SH6004
2-3/4”
(70 mm)
SH6006
3-1/8”
(79 mm)
SH6004: 1/2”-14NPT
SH6006: 3/4”-14NPT
3-3/4”
(95 mm)
FEATURES
Bronze Valve Body
Ceramic Cartridge
Integral Water Stops and
Check Valve
Recommended Valve Installation
Depth 1-5/8" to 2-3/8"
Must Be Installed in Accordance
With Provided Installation
Instructions
SH6004
5-1/2”
(140 mm)
SH6006
6-1/8”
(156 mm)
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
ASSE 1016 Type T
SH6004: 1/2”-14NPT
SH6006: 3/4”-14NPT
SIGNATURE HARDWARE
LIFETIME WARRANTY
See website for warranty information
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
Code: SH6004/SH6006
PAGE 5
1.800.221.3379
