BOCA RATON

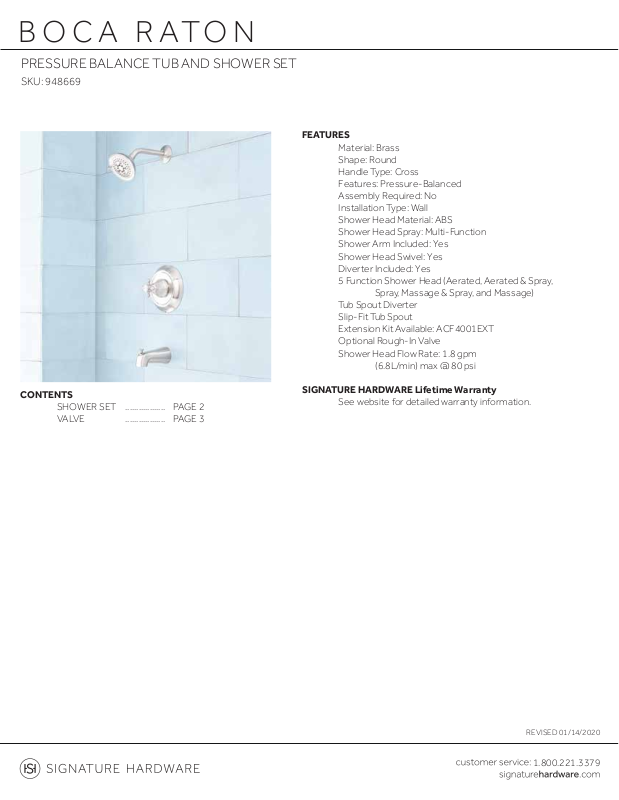

PRESSURE BALANCE TUB AND SHOWER SET
SKU: 948669
FEATURES
Material: Brass
Shape: Round
Handle Type: Cross
Features: Pressure-Balanced
Assembly Required: No
Installation Type: Wall
Shower Head Material: ABS
Shower Head Spray: Multi-Function
Shower Arm Included: Yes
Shower Head Swivel: Yes
Diverter Included: Yes
5 Function Shower Head (Aerated, Aerated & Spray,
Spray, Massage & Spray, and Massage)
Tub Spout Diverter
Slip-Fit Tub Spout
Extension Kit Available: ACF4001EXT
Optional Rough-In Valve
Shower Head Flow Rate: 1.8 gpm
(6.8L/min) max @ 80 psi
CONTENTS
SHOWER SET
VALVE
..................
..................
PAGE 2
PAGE 3
SIGNATURE HARDWARE Lifetime Warranty
See website for detailed warranty information.
REVISED 01/14/2020
1.800.221.3379
Page 2
BOCA RATON
PRESSURE BALANCE TUB AND SHOWER SET
SKU: 948669

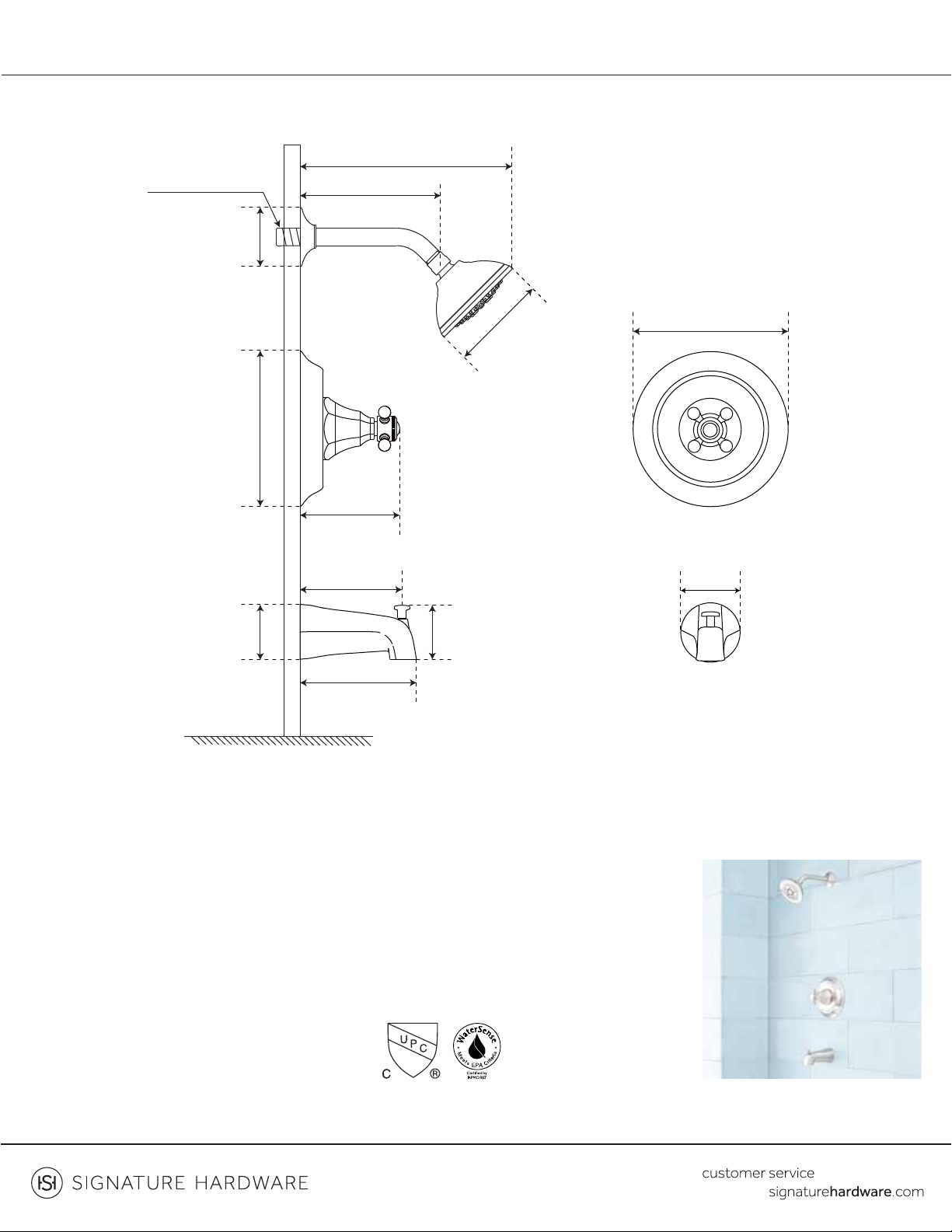

9-13/16" (250 mm)
1/2" (13 mm)-14NPT
2-3/4"
(70 mm)
7-1/4"
(184 mm)
2-5/8"
(66 mm)
7" (178 mm)
4-11/16"
(120 mm)
4-3/4" (121 mm)
2-1/2"
(64 mm)
4-1/2"
(114 mm)
7-1/4" (184 mm)
2-5/8"
(67 mm)
5-7/16" (138 mm)
FEATURES
Shower Head Diameter: 4-1/2"
Shower Arm Extension: 7"
Shower Head IPS: 1/2"
Tub Filler Spout Reach: 4-3/4"
Valve Trim Width: 7-1/4"
Valve Trim Height: 7-1/4"
NPT Connection: 1/2"
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
WaterSense
CEC Listed
Cal Green
Massachusetts Accepted
SIGNATURE HARDWARE
LIFETIME WARRANTY
See website for warranty information
PAGE 2
Code: SHBR8030GBN
SHBR8030GCP/SHBR8030GPN
1.800.221.3379
Page 3
BOCA RATON
OPTIONAL PRESSURE BALANCE TUB AND SHOWER ROUGH IN VALVE
SKU: 948669

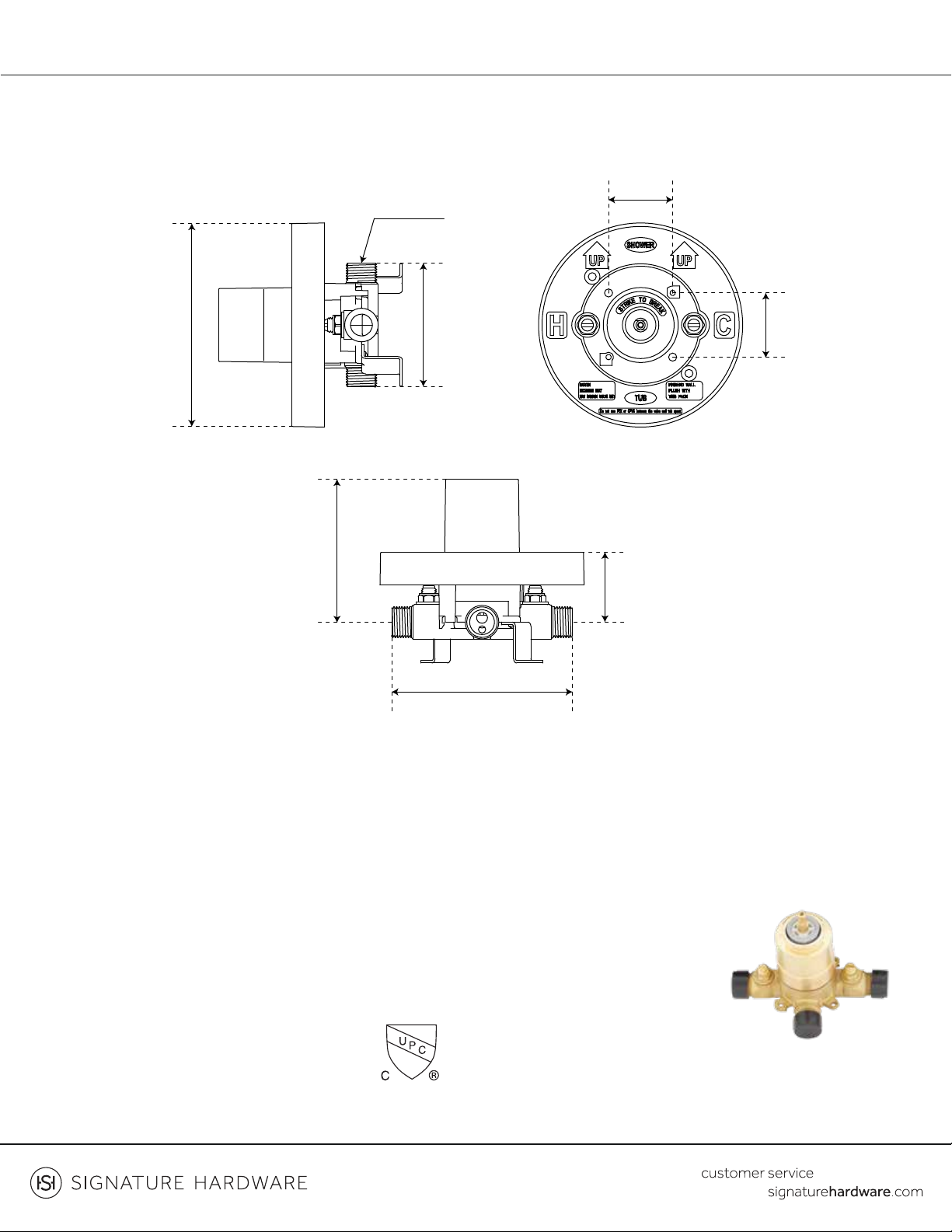

1-3/4"
(44 mm)
1/2"-14NPT
5-1/2"
(140 mm)
3-7/8"
(98 mm)
3-3/8"
(86 mm)
4-7/8" (124 mm)
1-7/8"
(48 mm)
1-3/4"
(44 mm)
FEATURES
Pressure Balance Valve With
Integral Stops
One-Piece Cartridge Design For Ease
Of Maintenance
Back-To-Back Capability
Ceramic Disc Valve Cartridge
Cast Bronze Valve Body
Adjustable Temperature Limit Stop
Quick Remove Plaster Guard
Easy Mounting Brackets
Check Valve
ACF4001STOP: Replacement
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
Massachusetts Accepted
SIGNATURE HARDWARE
LIFETIME WARRANTY
See website for warranty information
PAGE 3
Code: SH4001
1.800.221.3379
