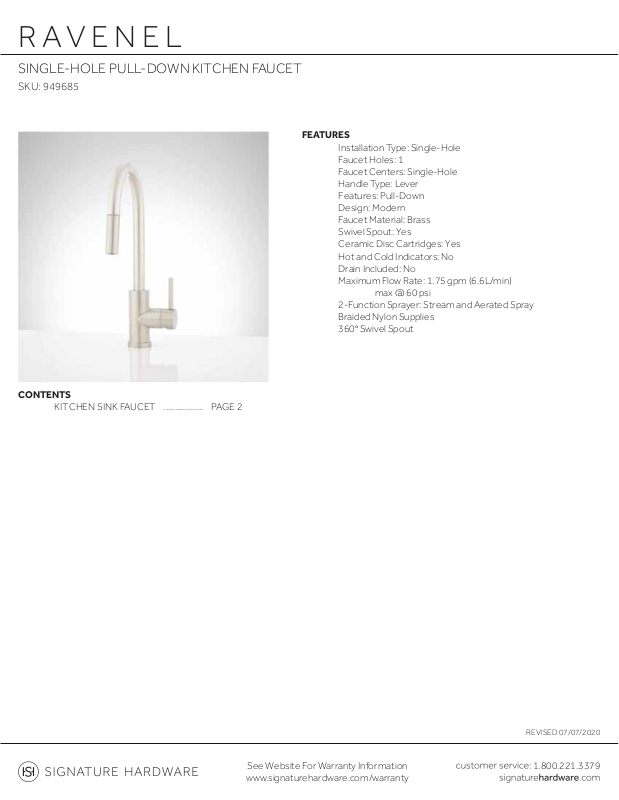

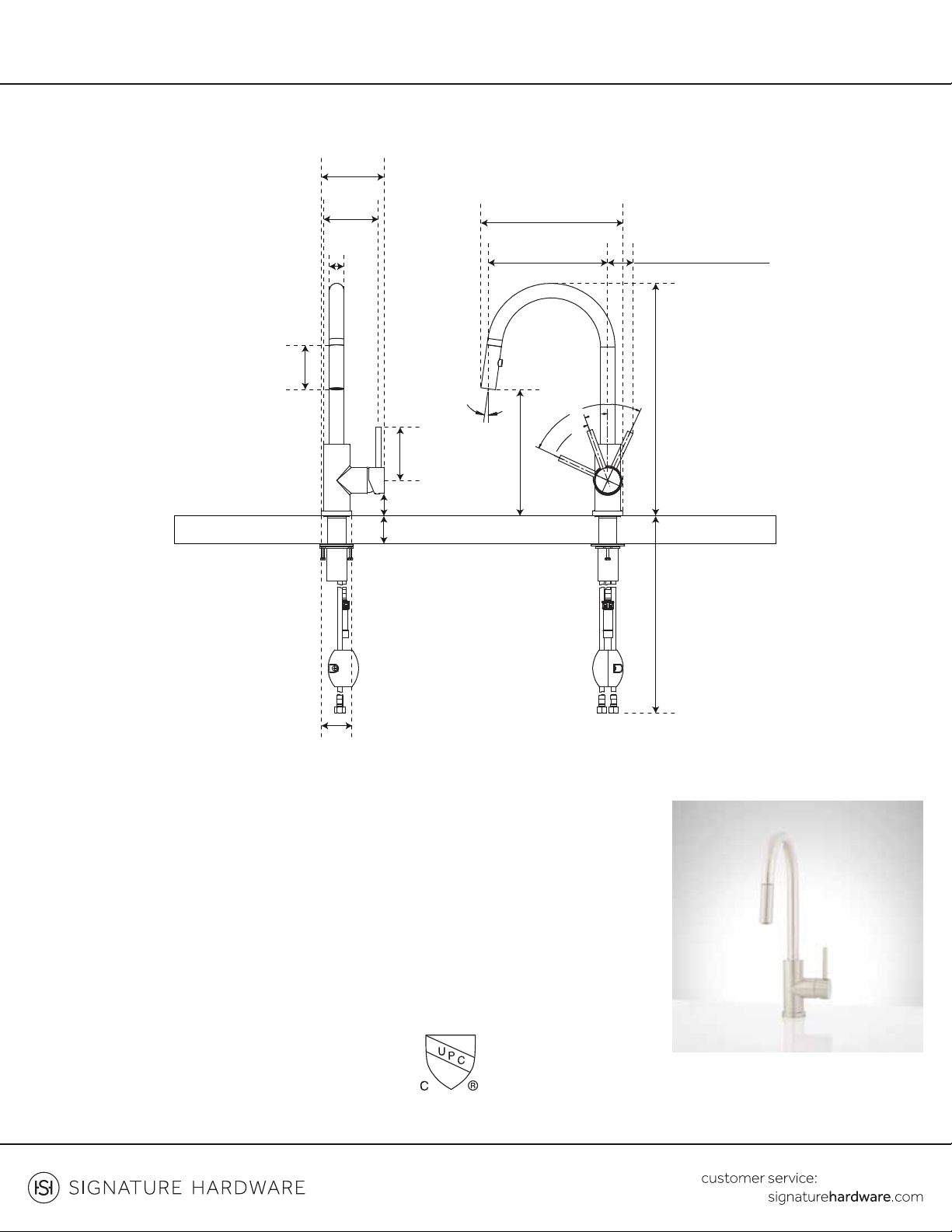

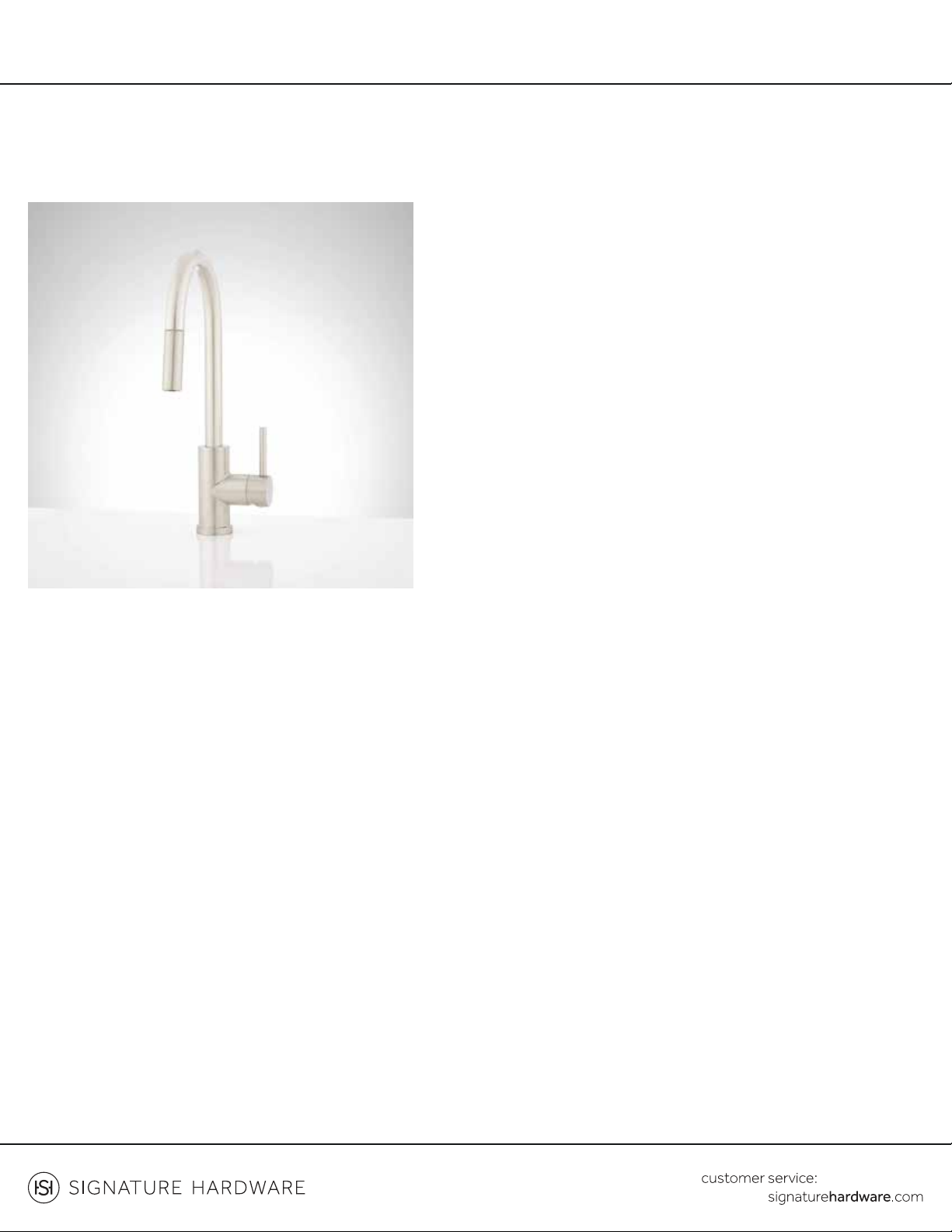

RAVENEL
SINGLE-HOLE PULL-DOWN KITCHEN FAUCET
SKU: 949685
FEATURES
Installation Type: Single-Hole
Faucet Holes: 1
Faucet Centers: Single-Hole
Handle Type: Lever
Features: Pull-Down
Design: Modern
Faucet Material: Brass
Swivel Spout: Yes
Ceramic Disc Cartridges: Yes
Hot and Cold Indicators: No
Drain Included: No
Maximum Flow Rate: 1.75 gpm (6.6L/min)
max @ 60 psi
2-Function Sprayer: Stream and Aerated Spray
Braided Nylon Supplies
360° Swivel Spout
CONTENTS
KITCHEN SINK FAUCET .................. PAGE 2
See Website For Warranty Information
www.signaturehardware.com/warranty
REVISED 07/07/2020
1.800.221.3379
Page 2
RAVENEL
SINGLE-HOLE PULL-DOWN KITCHEN FAUCET
SKU: 949685
4-3/16"
(106 mm)
3-15/16"
(99 mm)
1"
(25 mm)
3-1/2"
(89 mm)
3-1/2"
(89 mm)
1-1/2" (38 mm)
3" (76 mm) Max
8-1/16" (204 mm)
8°
8-9/16"
(217 mm)
9-9/16" (243 mm)
º
90
20
º
45
Min: 1-15/16"(49mm)
Clearance to back splash
15-3/4"
º
(400 mm)
FEATURES
Length: 4-3/16"
Width: 9-9/16"
Height: 15-3/4"
Height To Spout: 8-9/16"
Spout Reach: 8-1/16"
Base Plate Diameter: 2"
Handle Length: 3-1/2"
Height to Bottom of Handle: 1-1/2"
IPS: 3/8"
2"
(51mm)
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
CEC Listed
CALGreen
Massachusetts Accepted
25-1/8"
(638 mm)
PRODUCT IMAGE
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
See Website For Warranty Information
www.signaturehardware.com/warranty
Code: SHXCRA102
PAGE 2
1.800.221.3379
