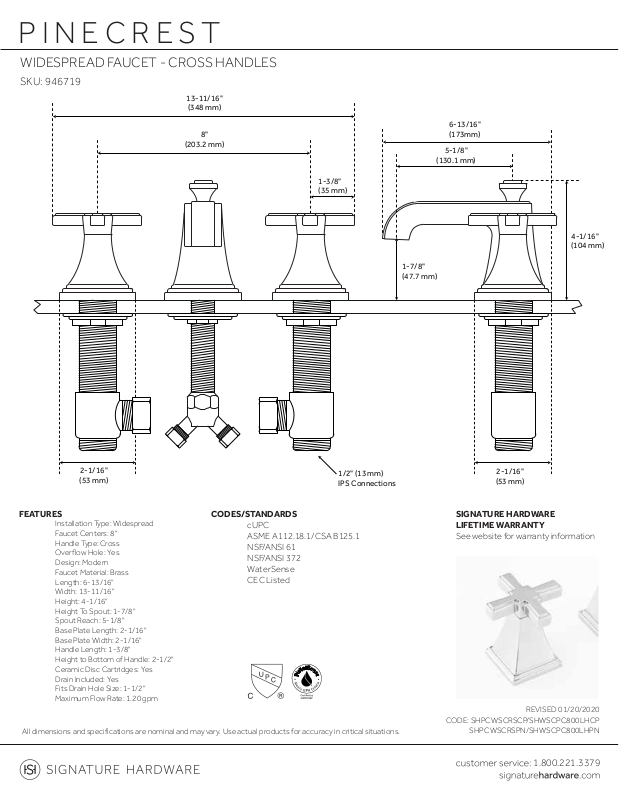

Page 1
PINECREST
WIDESPREAD FAUCET - CROSS HANDLES
SKU: 946719
13-11/16"
(348 mm)
8"
(203.2 mm)
6-13/16"
(173mm)
5-1/8"
(130.1 mm)
1-3/8"
(35 mm)
4-1/16"
(104 mm)
1-7/8"
(47.7 mm)
2-1/16"
(53 mm)
FEATURES
Installation Type: Widespread
Faucet Centers: 8"
Handle Type: Cross
Overflow Hole: Yes
Design: Modern
Faucet Material: Brass
Length: 6-13/16"
Width: 13-11/16"
Height: 4-1/16"
Height To Spout: 1-7/8"
Spout Reach: 5-1/8"
Base Plate Length: 2-1/16"
Base Plate Width: 2-1/16"
Handle Length: 1-3/8"
Height to Bottom of Handle: 2-1/2"
Ceramic Disc Cartridges: Yes
Drain Included: Yes
Fits Drain Hole Size: 1-1/2"
Maximum Flow Rate: 1.20 gpm
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
CODES/STANDARDS
cUPC
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
WaterSense
CEC Listed
1/2" (13 mm)
IPS Connections
2-1/16"
(53 mm)
SIGNATURE HARDWARE
LIFETIME WARRANTY
See website for warranty information
REVISED 01/20/2020
CODE: SHPCWSCRSCP/SHWSCPC800LHCP
SHPCWSCRSPN/SHWSCPC800LHPN
1.800.221.3379
