Owner’s Manual
IMPORTANT SAFETY INSTRUCTIONS
The lighting flash with arrowhead symbol, within an equilateral
triangle, is intended to alert user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may
be of sufficient magnitude to constitute a risk of electric.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instruction in the literature
accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
B Read these instructions – All the safety and operating instructions should be read before this product is
operated.
C Keep these instructions – The safety and operating instructions should be retained for future reference.
D Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
E Follow all instructions.
F Do not use this apparatus near water – The appliance should not be used near water or moisture – for
example, in a wet basement or near a swimming pool, and the like.
G Clean only with dry cloth. Unplug the deepblue3 before cleaning.
H Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
I Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles,
and at the point where they exit from the apparatus.
J Only use attachments/accessories specied by the manufacturer.
K Unplug this apparatus during lightning storms or when unused for long periods of time.
L Refer all servicing to qualied personnel. Servicing is required when the apparatus has been damaged in
any way such as the power cord or plug is damaged. Other damage may occur if liquid or objects have
been dropped or spilled into the apparatus. Dropping the apparatus, exposure to rain, and excessive
moisture may cause additional damage.
M Please keep the unit in a well ventilation environment.
N CAUTION: These servicing instructions are for use by qualied service personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualied to do so.
O WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and objects lled with liquids, such as vases,
shall not be placed on apparatus.
P WARNING: The mains plug/appliance coupler is used as disconnect device, the disconnect device shall
remain readily operable.
Q The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to
the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
DO NOT OPEN
R No naked ame sources, such as lighted candles, should be placed on the apparatus.
S Correct disposal of this product. This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for environmentally safe recycling.
T Move the deepblue3 away from other wireless devices that could be causing interference.
U Install deepblue3 far away from heat sources.
V Use only the accessories provided.
UNPACKING AND WARRANTY
B Please keep all packing materials for future shipments.
C Please keep a record of your bill of sale and a copy of the serial number for warranty and insurance
purposes.
D Please register your product on our website: www.peachtreeaudio.com.
WARNING: To reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualied personnel.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
Introduction
Contents and Rear Panel Connections
Top Panel Buttons
Remote Control
Useful Tips and More...
Troubleshooting and Specications
Product Warranty and Service
3
(Rev. 8/2017)
INTRODUCTION
Thank you for purchasing a Peachtree Audio deepblue3!
At Peachtree Audio we design products that utilize a unique combination of
analog and digital technologies that work together to provide a compelling
music listening experience. The deepblue3 combines a high-performance
all-in-one speaker with the convenience of a Bluetooth wireless receiver
to connect to any Bluetooth equipped mobile device or PC. The deepblue3
also provides analog and optical digital inputs so you can connect up to
three separate devices. The deepblue3 features two 1-inch tweeters, two
3-inch midranges and a dedicated 6.5-inch woofer all driven by a second
generation 440-watt power amplier to provide amazing sound quality and
output capability from a relatively small footprint.
This manual is intended as an overall guide to your deepblue3. It explains
how to set it up, pair and connect devices and use it from the top panel
and remote control. There are also some tips and troubleshooting should
you have additional questions. We sincerely hope the deepblue3 provides
you with many years of music listening enjoyment!
Please visit our website at www.peachtreeaudio.com for the latest tips
on getting the best sound quality from the music stored or streamed from
your computer and from all of your sources. Please contact your dealer or
Peachtree Audio directly if you have any questions that this manual does
not answer. Also, now is a great time to visit our website and register your
deepblue3.
Thanks again for you support and happy listening!
-The Peachtree Audio team
CONTENTS & REAR PANEL CONNECTIONS
Contents of Packaging:
• deepblue
3
• AC power cord
• IR remote control with battery
• 3.5mm to RCA adapter cable to connect analog audio devices
• Optical cable to connect digital audio devices
• 3.5mm to 3.5mm cable to connect portable devices with a headphone output

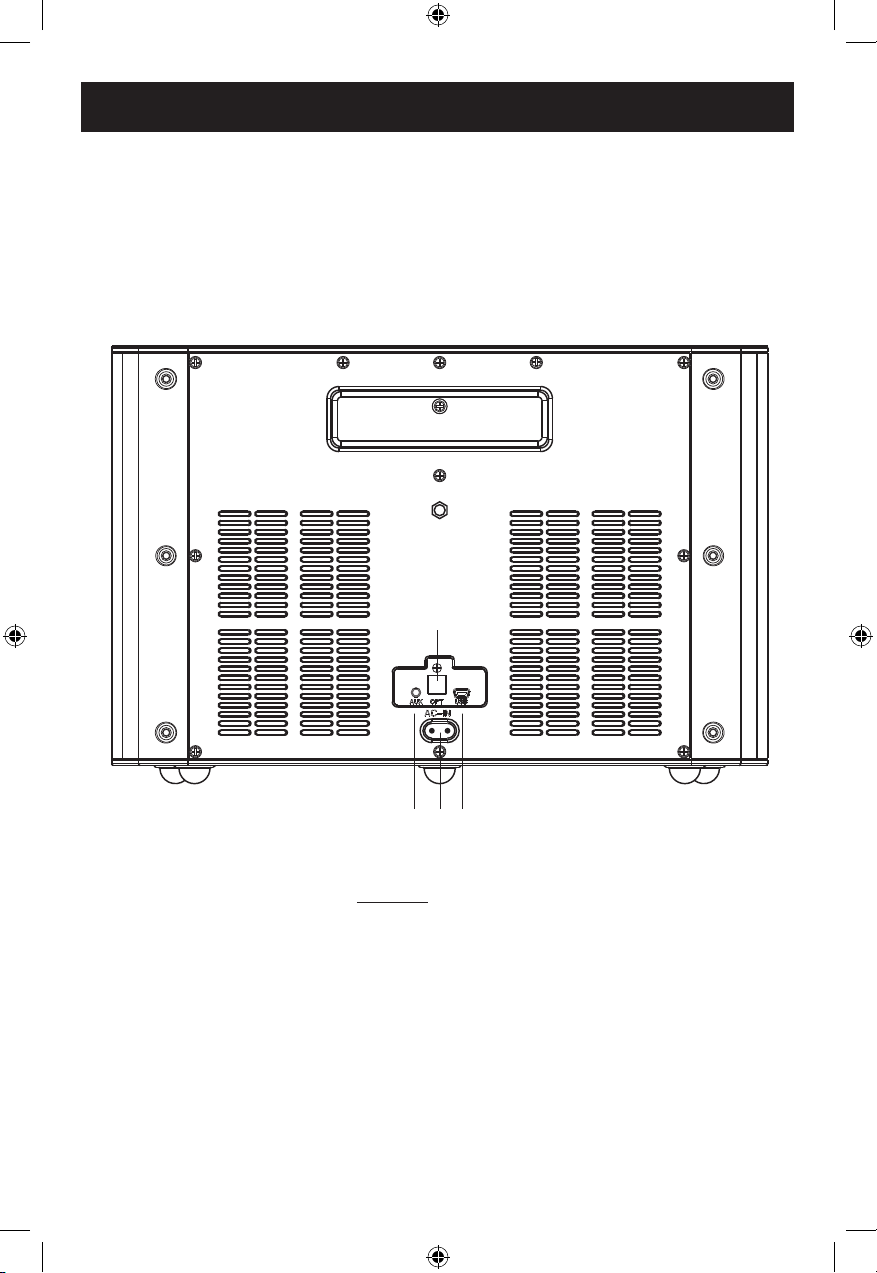

E
B C D
B AUX Analog Audio Input: Accepts line-level analog input from a tuner, cassette deck,
phono preamp or other type of line-level analog source.
Notes: Phono input requires the use of a phono preamplier. When using the headphone
output of a connected device, that device’s volume control will affect the input level to
the deepblue3. The maximum output level of the deepblue3 will be limited if the volume
control of the connected device is set to a relatively low level.
C AC-IN: For connection to a compatible AC power source using the included power cord.
D USB Port: For service use only. Note: Does NOT function as a USB digital audio input.
E OPT Digital Audio Input: Accepts digital audio input from a Toslink optical digital audio
output up to 96kHz. Toslink digital audio outputs are common on most digital audio
sources including; disc players, cable boxes, Apple TVs, etc...
TOP PANEL BUTTONS
B C D E F
B Bluetooth: Push and release to select the Bluetooth input. The LED will light blue
for 10 seconds indicating the input is selected. Push and hold for 5 seconds to
enter Bluetooth pairing mode. The Bluetooth LED will ash blue and white in this
mode. Enter the Bluetooth menu on your device and select “deepblue3” to conrm
the pairing. The Bluetooth LED will light solid blue and you will hear a double-beep
when the deepblue3 is connected to a Bluetooth device.
Notes: deepblue3 will pair with up to 5 Bluetooth devices. After they are paired,
pressing and releasing the Bluetooth button will switch between them. To clear
all paired devices, press and hold the power button for 10 seconds. The power
LED will blink white to conrm that the Bluetooth paired device memory has been
cleared.
C INPUT: Push and release to toggle between the AUX (blue LED) and OPT (white
LED) inputs on the rear panel. The LED will light blue for 10 seconds indicating the
AUX input is selected. The LED will light white for 10 seconds indicating the OPT
input is selected.
D On/Standby: Push and release to toggle between power on and standby modes.
The current input LED will light for 10 seconds after the unit is powered on.
E Volume “-”: Push and release to decrease the volume level by 1 step. Push and
hold for more than 1 second to continually decrease the volume level. The volume
level will continue decreasing until you release the button or achieve the minimum
volume level.
F Volume “+”: Push and release to increase the volume level by 1 step. Push and
hold for more than 1 second to continually increase the volume level. The volume
level will continue increasing until you release the button or achieve the maximum
volume level.
Notes: The five LEDs flash white while the volume level is muted. The blue
LEDs indicate the volume level for 10 seconds after a volume button is released.
Each LED represents ~20% of the volume level range.
REMOTE
VOL
VOL
BASS
+
BASS
_
AUX
OPT
1
2
5
6
4
3
8
7
9
B On / Standby: Push and release to toggle
between power on and standby modes.
The current input LED will light for 10
seconds after the unit is toggled on.
C VOL ^: Push and release to increase the
volume level by 1 step. Push and hold
for more than 1 second to continually
increase the volume level. The volume
level will continue increasing until
you release the button or achieve the
maximum volume level.
D
E
F BASS +: Push and release to increase the bass level by 1 step. Push and hold for
more than 1 second to continually increase the bass level. The bass level will continue
increasing until you release the button or achieve the maximum bass level.
G BASS -: Push and release to decrease the bass level by 1 step. Push and hold for
more than 1 second to continually decrease the bass level. The bass level will continue
decreasing until you release the button or achieve the minimum bass level.
Notes: The rst press of the BASS+ or BASS- buttons will display the current setting
via the white LEDs. Subsequent presses within 10 seconds will adjust the bass setting.
Each white LED represents ~20% of the bass range. The lowest bass setting (1) is
indicated by the left-most LED lit white @ 50%. The highest setting (10) is indicated by
all the LEDs lit white @ 100%.
H AUX: Push and release to select the AUX input on the rear panel. The LED will light
blue for 10 seconds indicating the AUX input is selected. Note: When the unit is in
standby mode, this will also power the unit on.
I OPT: Push and release to select the OPT input on the rear panel. The LED will light
white for 10 seconds indicating the OPT input is selected. Note: When the unit is in
standby mode, this will also power the unit on.
J Bluetooth Symbol: Push and release to select the Bluetooth input. The LED will light
blue for 10 seconds indicating the input is selected. Note: deepblue3 will pair with up to
5 Bluetooth devices. After they are paired, pressing and releasing the Bluetooth button
will switch between them.
^
VOL : Push and release to decrease the
volume level by 1 step. Push and hold
for more than 1 second to continually
decrease the volume level. The volume
level will continue decreasing until
you release the button or achieve the
minimum volume level.
Mute Symbol: Push and release to toggle
volume level muting on and off. The ve
LEDs ash white while audio is muted.
Notes: The blue LEDs indicate the volume
level for 10 seconds after a volume button
is released. Each LED represents 20% of
the volume level range.
USEFUL TIPS AND MORE…
Pairing Your Device
Refer to your Bluetooth device’s owner’s manual for details on how to enter the device’s
Bluetooth pairing mode.
B Push and hold the Bluetooth button on the top panelfor at least 4 seconds to enter
Bluetooth pairing mode. The Bluetooth LED will ash blue and white in this mode.
C Turn on the Bluetooth feature on your device. Typically, Bluetooth controls are found
in the device settings menu. Enter the Bluetooth menu on your device and select
“deepblue3” to conrm the pairing.
D Once paired with a device, the Bluetooth LED will light blue. A double-beep sound will
also indicate that the connection is estabilished.
Note: Pairing remains even when the unit or the Bluetooth device is powered off or
is taken out of range. The unit will attempt to connect with the last connected device
when that device is powered on and in range. Your Bluetooth device may pause music
playback when the Bluetooth connection is lost. You may need to press the play button
on the Bluetooth device to resume playback after the Bluetooth connection is restored.
Reconnecting Your Device
If you move out of range or turn off the Bluetooth feature the deepblue3 will be disconnected
from your device and the LED will ash blue. To reconnect, simply move back into range,
conrm Bluetooth is on and open the Bluetooth menu and, if necessary, tap on the
“deepblue3” to reestablish the connection.
Out of Range or Lost Signal
When the paired device is more than ~33 feet away from the deepblue3 or there is something
blocking the Bluetooth signal (wall, oor, etc.). The LED will ash blue to indicate the
connection between the device and the deepblue3 is lost. To reestablish a lost connection:
B Move the connected device back into range (within ~33 feet), and make sure there’s
a clear line of sight and there are no obstructions between the deepblue3 and the
Bluetooth device.
C The connection will automatically be reestablished and the LED will turn light blue.
D If the connection is lost, you may need to reconnect the device and the deepblue3 again.
Please follow the “Reconnecting Your Device” instructions above.
AUX Analog Audio Input
Use the included 3.5mm to 3.5mm cable or 3.5mm to RCA cable to connect the line-level
analog audio output from a TV, set-top box or similar device.
Notes: Phono input requires the use of a phono preamplier. When using the headphone
output of a connected device, that device’s volume control will affect the input level to
the deepblue3. The maximum output level of the deepblue3 will be limited if the volume
control of the connected device is set to a relatively low level.
OPT Digital Audio Input
Use the included optical cable to connect the S/PDIF digital audio output from a media
player, CD player, TV, set-top box or similar device.
TROUBLESHOOTING & SPECIFICATIONS
“I don’t hear anything playing.”
Make sure the deepblue3 is plugged in and turned on (LEDs lit after buttons are touched).
Check that the correct input is selected; Bluetooth (Bluetooth LED blue), AUX (Input LED lit
blue) or OPT (Input LED lit white).
If the Bluetooth LED is ashing blue, the input is selected but a Bluetooth device is not
currently connected. Check the following next:
Make sure Bluetooth is enabled on your device.
Make sure your Bluetooth device is within ~33 feet of the deepblue3. Move closer or adjust the
position of the deepblue3 to establish a connection.
Make sure music is playing on your device (not paused) and that the volume on the device
is not muted or set to a very low level. Many devices will pause playback if the Bluetooth
connection is lost.
If AUX is selected, make sure the wired connection is fully inserted on the connected device
and the deepblue3. If the connection is ok, check the volume level of the connected device (if
using a headphone output) to make sure it is not muted or set to a very low volume level.
If OPT is selected, make sure the wired connection is fully inserted on the connected device
and the deepblue3. If the connection is ok, check the volume level of the connected device (if
using a device with a built-in volume control) to make sure it is not muted or set to a very low
volume level.
Make sure the volume of the deepblue3 is set to a comfortable listening level.
Specications:
• Acoustic Design:
(2) 1-inch high frequency drivers
(2) 3-inch midrange frequency drivers
(1) 6.5-inch low frequency driver
Acoustically sealed cabinet
• Power Amplier: 440 Watts
• Inputs:
Bluetooth wireless with up to 5 connected devices
Optical Digital Audio (Toslink)
Line-level Analog Audio (3.5mm)
• Dimensions (H x W x D): 9.1 x 14.2 x 6.5 (inches) / 230 x 360x 164 (mm)
• Weight: 16 pounds / 7.3 kg
• AC Input: 100-240V 50/60Hz
PRODUCT WARRANTY AND SERVICE
International Warranty
The deepblue3 has a 1 year parts and labor warranty from the date of purchase. Units that
are covered under this warranty include deepblue3’s purchased directly from authorized
Peachtree Audio dealers or distributors.
Peachtree Audio takes no responsibility for defects arising from accident, misuse, abuse,
unusual wear and tear, neglect, unauthorized adjustment or repair. This warranty does not
cover shipping costs. Visit www.peachtreeaudio.com for a copy of the complete warranty.
Claims Under Warranty
In the unlikely event that you experience a failure with your product, please email
service@peachtreeaudio.com for a Return Authorization (RA) number BEFORE
shipping the product for service. Any product received without an RA number may be
refused or lost. You may also wish to initiate a RA through your dealer or distributor,
which is encouraged.
The unit should be packed in its original shipping carton and packaging and returned to
the dealer or distributor from whom it was purchased, or if unavailable, directly to the
service center as directed by Peachtree Audio.
Please use a specialized package carrier like FedEx or UPS. DO NOT SEND BY
POSTAL SERVICE. Peachtree Audio cannot accept responsibility for products while
they are in transit to the dealer, distributor, or service facility. Please insure the product
against potential loss or damage while in transit. Products with wood cabinets are
susceptible to physical damage if they are not packaged properly before transit.
For technical support (not RA number requests), please call 704-391-9337 or email
service@peachtreeaudio.com.
Main ofce:
Peachtree Audio
12777 East Independence Blvd.
Suite C
Matthews, NC 28105
USA
www.peachtreeaudio.com
Warning Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful inter
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different rom that to which
the receiver is connected.
• Consult the dealer o an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
ference in a
This device complies with part 15 of the FCC Rules. Operation is subject to the
⑨ ⑨
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
www.peachtreeaudio.com
⑨
Owner’s Manual
Loading...
