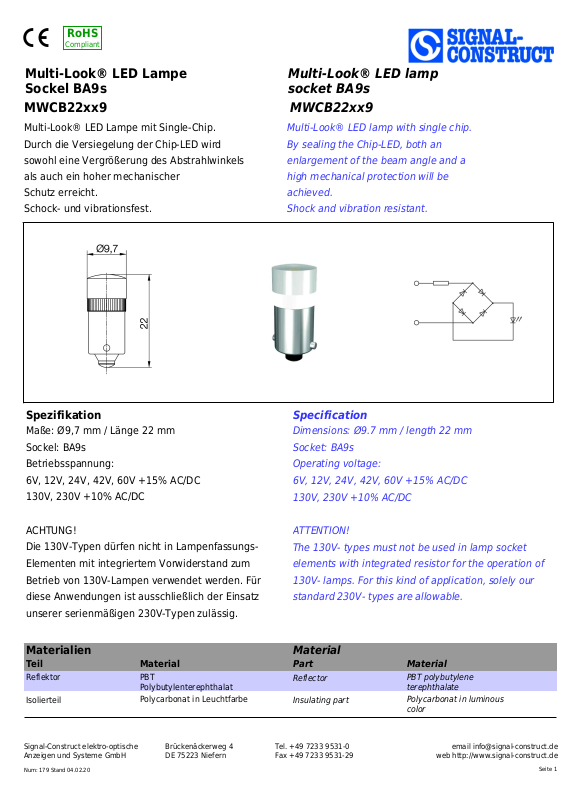

SIGNAL CONSTRUCT MWCB 22029 Datasheet [de, en]

RoHS

Compliant

Multi-Look® LED Lampe
Sockel BA9s

Multi-Look® LED Lampe mit Single-Chip.
Durch die Versiegelung der Chip-LED wird
sowohl eine Vergrößerung des Abstrahlwinkels
als auch ein hoher mechanischer
Schutz erreicht.
Schock- und vibrationsfest.

Multi-Look® LED lamp
socket BA9s

MWCB22xx9MWCB22xx9

Multi-Look® LED lamp with single chip.

By sealing the Chip-LED, both an

enlargement of the beam angle and a

high mechanical protection will be

achieved.

Shock and vibration resistant.

SpecificationSpezifikation

Maße: Ø9,7 mm / Länge 22 mm
Sockel: BA9s
Betriebsspannung:
6V, 12V, 24V, 42V, 60V +15% AC/DC
130V, 230V +10% AC/DC

ACHTUNG!
Die 130V-Typen dürfen nicht in Lampenfassungs­Elementen mit integriertem Vorwiderstand zum
Betrieb von 130V-Lampen verwendet werden. Für
diese Anwendungen ist ausschließlich der Einsatz
unserer serienmäßigen 230V-Typen zulässig.

Materialien

Teil Material MaterialPart

Reflektor

Isolierteil

PBT
Polybutylenterephthalat

Polycarbonat in Leuchtfarbe

Dimensions: Ø9.7 mm / length 22 mm

Socket: BA9s

Operating voltage:

6V, 12V, 24V, 42V, 60V +15% AC/DC

130V, 230V +10% AC/DC

ATTENTION!

The 130V- types must not be used in lamp socket

elements with integrated resistor for the operation of

130V- lamps. For this kind of application, solely our

standard 230V- types are allowable.

Material

Reflector

Insulating part

PBT polybutylene
terephthalate

Polycarbonat in luminous
color

Signal-Construct elektro-optische
Anzeigen und Systeme GmbH

Num: 179 Stand 04.02.20

Brückenäckerweg 4
DE 75223 Niefern

Tel. [phone]
Fax [phone]

email [email protected]

web http://www.signal-construct.de

Seite 1

Operation Temperature -30°C/+75°CBetriebstemperatur -30°C/+75°C

Lagertemperatur -40°C/+100°C

Storage Temperature

OptionsOptionen

Sockel E10
Multi-Look® LED Lampe
MWCE22xx9_180.pdf

Baureihe mit Höhe 28 mm Series in height 28 mm

Socket E10
Multi-Look® LED lamp
MWCE22xx9_180.pdf

-40°C/+100°C

Artikel/ Part

Color

Voltage

Spannung

Farbe

MWCB22019

6 V

rot
red

MWCB22029

12 V

rot
red

MWCB22049

24 V

rot
red

MWCB22059

48 V

rot
red

MWCB22069

60 V

rot
red

MWCB22119

6 V

gelb
yellow

MWCB22129

12 V

gelb
yellow

MWCB22149

24 V

gelb
yellow

MWCB22159

48 V

gelb
yellow

MWCB22169

60 V

gelb
yellow

MWCB22419

6 V

blau
blue

MWCB22429

12 V

blau
blue

MWCB22449

24 V

blau
blue

MWCB22459

48 V

blau
blue

MWCB22469

60 V

Signal-Construct elektro-optische
Anzeigen und Systeme GmbH

Num: 179 Stand 04.02.20

blau
blue

Artikel-Text Part-Text

Strom

Current

Lichtstärke

Luminous Intensity

Multi-Look® LED Lampe rot 6V AC/DC BA9s Multi-Look® LED lamp red 6V AC/DC BA9s

130 mcd/
@ 14,400 mA

Multi-Look® LED Lampe rot 12V AC/DC BA9s Multi-Look® LED lamp red 12V AC/DC BA9s

140 mcd/
@ 15,900 mA

Multi-Look® LED Lampe rot 24V AC/DC BA9s Multi-Look® LED lamp red 24V AC/DC BA9s

170 mcd/
@ 19,500 mA

Multi-Look® LED Lampe rot 48V AC/DC BA9s Multi-Look® LED lamp red 48V AC/DC BA9s

120 mcd/
@ 14,800 mA

Multi-Look® LED Lampe rot 60V AC/DC BA9s Multi-Look® LED lamp red 60V AC/DC BA9s

100 mcd/
@ 10,900 mA

Multi-Look® LED Lampe gelb 6V AC/DC BA9s Multi-Look® LED lamp yellow 6V AC/DC BA9s

110 mcd/
@ 13,900 mA

Multi-Look® LED Lampe gelb 12V AC/DC BA9s Multi-Look® LED lamp yellow 12V AC/DC BA9s

120 mcd/
@ 15,700 mA

Multi-Look® LED Lampe gelb 24V AC/DC BA9s Multi-Look® LED lamp yellow 24V AC/DC BA9s

150 mcd/
@ 19,400 mA

Multi-Look® LED Lampe gelb 48V AC/DC BA9s Multi-Look® LED lamp yellow 48V AC/DC BA9s

130 mcd/
@ 14,900 mA

Multi-Look® LED Lampe gelb 60V AC/DC BA9s Multi-Look® LED lamp yellow 60V AC/DC BA9s

90 mcd/
@ 10,900 mA

Multi-Look® LED Lampe blau 6V AC/DC BA9s Multi-Look® LED lamp blue 6V AC/DC BA9s

160 mcd/
@ 15,000 mA

Multi-Look® LED Lampe blau 12V AC/DC BA9s Multi-Look® LED lamp blue 12V AC/DC BA9s

150 mcd/
@ 13,900 mA

Multi-Look® LED Lampe blau 24V AC/DC BA9s Multi-Look® LED lamp blue 24V AC/DC BA9s

190 mcd/
@ 18,500 mA

Multi-Look® LED Lampe blau 48V AC/DC BA9s Multi-Look® LED lamp blue 48V AC/DC BA9s

150 mcd/
@ 14,700 mA

Multi-Look® LED Lampe blau 60V AC/DC BA9s Multi-Look® LED lamp blue 60V AC/DC BA9s

110 mcd/
@ 10,700 mA

Brückenäckerweg 4
DE 75223 Niefern

Vollwinkel

Lichtstrom

Viewing Angle

Luminous Flux

Tel. [phone]
Fax [phone]

Leuchtdichte

luminous density

Illumination Level

Beleuchtungsstärke

14,4mA

15,9mA

19,5mA

14,8mA

10,9mA

13,9mA

15,7mA

19,4mA

14,9mA

10,9mA

15 mA

13,9mA

18,5mA

14,7mA

10,7mA

Power

Leistung

Lebensdauer

90 mW

200 mW

470 mW

710 mW

660 mW

90 mW

190 mW

470 mW

720 mW

660 mW

90 mW

170 mW

450 mW

710 mW

640 mW

email [email protected]

web http://www.signal-construct.de

60000 h160° 0,58 lm

60000 h160° 0,64 lm

60000 h160° 0,79 lm

60000 h160° 0,69 lm

60000 h160° 0,44 lm

60000 h160° 0,64 lm

60000 h160° 0,73 lm

60000 h160° 0,9 lm

60000 h160° 0,6 lm

60000 h160° 0,5 lm

60000 h160° 0,63 lm

60000 h160° 0,58 lm

60000 h160° 0,77 lm

60000 h160° 0,61 lm

60000 h160° 0,45 lm

Anzahl LED

Life-Time(1)

Number of LED

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Seite 2

Artikel/ Part

Voltage

Spannung

MWCB22479

130 V

MWCB22489

230 V

MWCB22519

6 V

MWCB22529

12 V

MWCB22549

24 V

MWCB22569

60 V

MWCB22579

130 V

MWCB22589

230 V

MWCB22619

6 V

MWCB22629

12 V

MWCB22649

24 V

MWCB22659

48 V

MWCB22669

60 V

MWCB22679

130 V

MWCB22689

230 V

MWCB22719

6 V

MWCB22729

12 V

MWCB22749

24 V

Color

Farbe

blau
blue

blau
blue

warmweiß
warm white

warmweiß
warm white

warmweiß
warm white

warmweiß
warm white

warmweiß
warm white

warmweiß
warm white

weiß
white

weiß
white

weiß
white

weiß
white

weiß
white

weiß
white

weiß
white

grün
green

grün
green

grün
green

Artikel-Text Part-Text

Strom

Current

Lichtstärke

Luminous Intensity

Multi-Look® LED Lampe blau 130V AC/DC BA9s Multi-Look® LED lamp blue 130V AC/DC BA9s

60 mcd/
@ 5,800 mA

Multi-Look® LED Lampe blau 230V AC/DC BA9s Multi-Look® LED lamp blue 230V AC/DC BA9s

30 mcd/
@ 3,000 mA

Multi-Look® LED Lampe warmweiß 6V AC/DC BA9s Multi-Look® LED lamp warm white 6V AC/DC BA9s

740 mcd/
@ 16,000 mA

Multi-Look® LED Lampe warmweiß 12V AC/DC BA9s Multi-Look® LED lamp warm white 12V AC/DC BA9s

560 mcd/
@ 14,100 mA

Multi-Look® LED Lampe warmweiß 24V AC/DC BA9s Multi-Look® LED lamp warm white 24V AC/DC BA9s

860 mcd/
@ 18,600 mA

Multi-Look® LED Lampe warmweiß 60V AC/DC BA9s Multi-Look® LED lamp warm white 60V AC/DC BA9s

500 mcd/
@ 10,700 mA

Multi-Look® LED Lampe warmweiß 130V AC/DC BA9s Multi-Look® LED lamp warm white 130V AC/DC BA9s

270 mcd/
@ 5,800 mA

Multi-Look® LED Lampe warmweiß 230V AC/DC BA9s Multi-Look® LED lamp warm white 230V AC/DC BA9s

140 mcd/
@ 3,000 mA

Multi-Look® LED Lampe weiß 6V AC/DC BA9s Multi-Look® LED lamp white 6V AC/DC BA9s

1.080 mcd/
@ 16,000 mA

Multi-Look® LED Lampe weiß 12V AC/DC BA9s Multi-Look® LED lamp white 12V AC/DC BA9s

950 mcd/
@ 14,100 mA

Multi-Look® LED Lampe weiß 24V AC/DC BA9s Multi-Look® LED lamp white 24V AC/DC BA9s

1.250 mcd/
@ 18,600 mA

Multi-Look® LED Lampe weiß 48V AC/DC BA9s Multi-Look® LED lamp white 48V AC/DC BA9s

1.000 mcd/
@ 14,800 mA

Multi-Look® LED Lampe weiß 60V AC/DC BA9s Multi-Look® LED lamp white 60V AC/DC BA9s

720 mcd/
@ 10,700 mA

Multi-Look® LED Lampe weiß 130V AC/DC BA9s Multi-Look® LED lamp white 130V AC/DC BA9s

390 mcd/
@ 5,800 mA

Multi-Look® LED Lampe weiß 230V AC/DC BA9s Multi-Look® LED lamp white 230V AC/DC BA9s

200 mcd/
@ 3,000 mA

Multi-Look® LED Lampe grün 6V AC/DC BA9s Multi-Look® LED lamp green 6V AC/DC BA9s

460 mcd/
@ 13,000 mA

Multi-Look® LED Lampe grün 12V AC/DC BA9s Multi-Look® LED lamp green 12V AC/DC BA9s

470 mcd/
@ 13,500 mA

Multi-Look® LED Lampe grün 24V AC/DC BA9s Multi-Look® LED lamp green 24V AC/DC BA9s

640 mcd/
@ 18,300 mA

Vollwinkel

Lichtstrom

Viewing Angle

Luminous Flux

Leuchtdichte

luminous density

Illumination Level

Beleuchtungsstärke

5,8mA

3 mA

16 mA

14,1mA

18,6mA

10,7mA

5,8mA

3 mA

16 mA

14,1mA

18,6mA

14,8mA

10,7mA

5,8mA

3 mA

13 mA

13,5mA

18,3mA

Power

Leistung

750 mW

700 mW

100 mW

170 mW

450 mW

650 mW

750 mW

700 mW

100 mW

170 mW

450 mW

710 mW

650 mW

750 mW

700 mW

80 mW

170 mW

440 mW

Life-Time(1)

Lebensdauer

60000 h160° 0,24 lm

60000 h160° 0,13 lm

60000 h160° 3,13 lm

60000 h160° 2,76 lm

60000 h160° 3,64 lm

60000 h160° 2,09 lm

60000 h160° 1,13 lm

60000 h160° 0,59 lm

60000 h160° 4,26 lm

60000 h160° 3,75 lm

60000 h160° 4,95 lm

60000 h160° 3,94 lm

60000 h160° 2,85 lm

60000 h160° 1,54 lm

60000 h160° 0,8 lm

60000 h160° 1,74 lm

60000 h160° 1,81 lm

60000 h160° 2,45 lm

Anzahl LED

Number of LED

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Signal-Construct elektro-optische
Anzeigen und Systeme GmbH

Num: 179 Stand 04.02.20

Brückenäckerweg 4
DE 75223 Niefern

Tel. [phone]
Fax [phone]

email [email protected]

web http://www.signal-construct.de

Seite 3

Artikel/ Part

Color

Voltage

Spannung

Farbe

MWCB22759

48 V

grün
green

MWCB22769

60 V

grün
green

MWCB22779

130 V

grün
green

MWCB22789

230 V

(1) Lebensdauer bei 25° C Umgebungstemperatur

Lebensdauer: Die Lebensdauer einer LED ist definiert als Abnahme der
Helligkeit auf 50% des Ausgangswertes

grün
green

Artikel-Text Part-Text

Lichtstärke

Luminous Intensity

Multi-Look® LED Lampe grün 48V AC/DC BA9s Multi-Look® LED lamp green 48V AC/DC BA9s

520 mcd/
@ 14,700 mA

Multi-Look® LED Lampe grün 60V AC/DC BA9s Multi-Look® LED lamp green 60V AC/DC BA9s

370 mcd/
@ 10,600 mA

Multi-Look® LED Lampe grün 130V AC/DC BA9s Multi-Look® LED lamp green 130V AC/DC BA9s

200 mcd/
@ 5,800 mA

Multi-Look® LED Lampe grün 230V AC/DC BA9s Multi-Look® LED lamp green 230V AC/DC BA9s

100 mcd/
@ 3,000 mA

Vollwinkel

Viewing Angle

Lichtstrom

Leuchtdichte

Luminous Flux

luminous density

The life time of an LED is defined as decrease of brightness by 50% of
the initial value

Strom

Current

Illumination Level

Beleuchtungsstärke

14,7mA

10,6mA

5,8mA

3 mA

Power

Leistung

710 mW

640 mW

750 mW

700 mW

Life-Time(1)

Lebensdauer

60000 h160° 1,97 lm

60000 h160° 1,42 lm

60000 h160° 0,78 lm

60000 h160° 0,4 lm

Anzahl LED

Number of LED

1

1

1

1

LIT

Technische Änderungen vorbehalten. Datenblatt unterliegt nicht dem
Änderungsdienst.

Helligkeitswerte nach CIE127 falls nicht anders angegeben. Photometry according to CIE127 unless otherwise indicated.

Wir empfehlen das Dokument mit der Einstellung "Seitengröße
anpassen" zu Drucken

Wir achten bei Entwicklung und Herstellung unserer Produkte auf einen
möglichst geringen Einsatz von Ressourcen und auf niedrigen
Energiebedarf im Betrieb.
Bitte prüfen Sie, ob es unbedingt erforderlich ist, das gesamte
Dokument zu Drucken. So schonen Sie zusätzlich Ressourcen und
unsere Umwelt.

Signal-Construct elektro-optische
Anzeigen und Systeme GmbH

Num: 179 Stand 04.02.20

Brückenäckerweg 4
DE 75223 Niefern

Specifications are subject to change without notice.

The technical data are typical figures.Die angegebenen technischen Daten sind typische Durchschnittswerte.

We recommend to print the document with option "Fit to Page"

We care for environment when producing and manufacturing our
products. Also we care for a low power consumption and a low
consumption of resources.
Please consider environmental responsibility before printing this
document

Tel. [phone]
Fax [phone]

email [email protected]

web http://www.signal-construct.de

Seite 4
