SIGNAL CONSTRUCT LED 105 I RT Datasheet

RoHS
Compliant

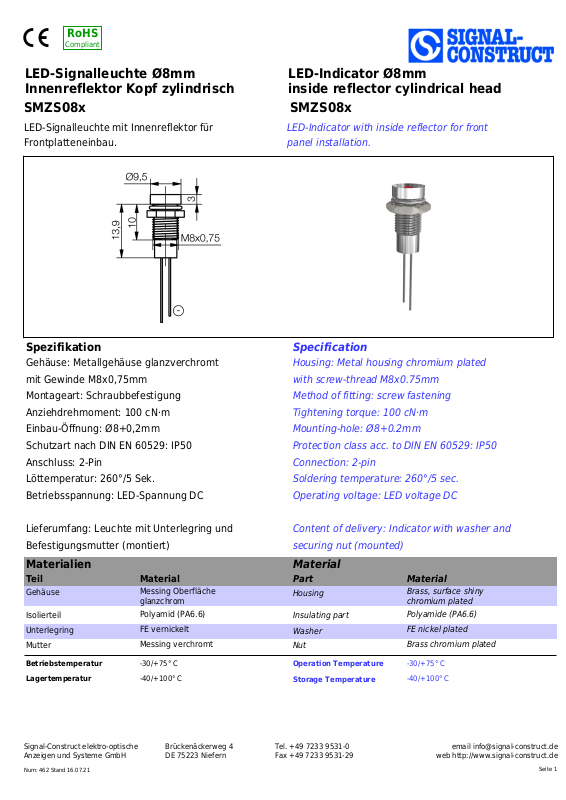

LED-Signalleuchte Ø8mm Innenreflektor Kopf zylindrisch
LED-Signalleuchte mit Innenreflektor für Frontplatteneinbau.
Gehäuse: Metallgehäuse glanzverchromt
LED-Indicator Ø8mm inside reflector cylindrical head
SMZS08xSMZS08x
LED-Indicator with inside reflector for front panel installation.
SpecificationSpezifikation
Housing: Metal housing chromium plated
mit Gewinde M8x0,75mm Montageart: Schraubbefestigung Anziehdrehmoment: 100 cN·m Einbau-Öffnung: Ø8+0,2mm Schutzart nach DIN EN 60529: IP50 Anschluss: 2-Pin Löttemperatur: 260°/5 Sek. Betriebsspannung: LED-Spannung DC
Lieferumfang: Leuchte mit Unterlegring und Befestigungsmutter (montiert)
Materialien
Teil Material MaterialPart
Gehäuse
Isolierteil Unterlegring Mutter
Messing Oberfläche glanzchrom
Polyamid (PA6.6) FE vernickelt Messing verchromt
with screw-thread M8x0.75mm
Method of fitting: screw fastening
Tightening torque: 100 cN·m
Mounting-hole: Ø8+0.2mm
Protection class acc. to DIN EN 60529: IP50
Connection: 2-pin
Soldering temperature: 260°/5 sec.
Operating voltage: LED voltage DC
Content of delivery: Indicator with washer and
securing nut (mounted)
Material
Housing
Insulating part
Washer
Nut
Brass, surface shiny chromium plated
Polyamide (PA6.6)
FE nickel plated
Brass chromium plated
Lagertemperatur -40/+100° C
Signal-Construct elektro-optische Anzeigen und Systeme GmbH
Num: 462 Stand 16.07.21
Brückenäckerweg 4 DE 75223 Niefern
Operation Temperature -30/+75° CBetriebstemperatur -30/+75° C
Storage Temperature
Tel. +49 7233 9531-0 Fax +49 7233 9531-29
-40/+100° C
email info@signal-construct.de
web http://www.signal-construct.de
Seite 1
OptionsOptionen
Gehäuse schwarzchrom Housing black chromium-plated Einbau anderer LED Typen gleicher Bauform auf
Anfrage möglich Abweichende Anschlussmöglichkeiten Different connecting possibilities
Einbau von 2-Farb/3-Pin LEDs in diesem Gehäuse Bei Rot/grün 3. Farbe Mischfarbe (gelb) möglich
Mounting of other LED types in the same size on request
Using a 2-Color/3-Pin LED in this housing Red/Green LED 3rd color (mixed color) possible
Artikel/ Part
Voltage
Spannung
SMZS080
SMZS081
SMZS082
SMZS084
SMZS086
PCB
Artikel-Text
Color
Farbe
Lichtstärke
LED-Leuchte EØ8 ROT Innenreflektor LED-Indicator EØ8 RED inside reflector red 100 mW rot
yellow 60 mW gelb
green 100 mW grün
blue 120 mW blau
white 105 mW weiß
@ 20,000 mA
LED-Leuchte EØ8 GELB Innenreflektor LED-Indicator EØ8 YELLOW inside reflector
@ 20,000 mA
LED-Leuchte EØ8 GRÜN Innenreflektor LED-Indicator EØ8 GREEN inside reflector
@ 20,000 mA
LED-Leuchte EØ8 BLAU Innenreflektor LED-Indicator EØ8 BLUE inside reflector
@ 20,000 mA
LED-Leuchte EØ8 WEISS Innenreflektor LED-Indicator EØ8 WHITE inside reflector
@ 20,000 mA
Luminous Intensity
Vollwinkel
Viewing Angle
Lichtstrom
Luminous Flux
LED-Data vallid for a single LEDLED-Daten für jeweils eine einzelen LED
Strom
20 mA2.00 V 138 mcd/
20 mA2.10 V 158 mcd/
20 mA2.10 V 138 mcd/
20 mA3.30 V 11.400 mcd/
20 mA3.20 V 12.320 mcd/
Part-Text
Current
Max. Power
Max. Leistung
Life-Time
Lebensdauer
60000 h50°
60000 h50°
60000 h50°
60000 h20°
60000 h65°
Anzahl LED
Number of LED
Lebensdauer: Die Lebensdauer einer LED ist definiert als Abnahme der Helligkeit auf 50% des Ausgangswertes
Technische Änderungen vorbehalten. Datenblatt unterliegt nicht dem Änderungsdienst.
Helligkeitswerte nach CIE127 falls nicht anders angegeben. Photometry according to CIE127 unless otherwise indicated.
Wir empfehlen das Dokument mit der Einstellung "Seitengröße anpassen" zu Drucken
Wir achten bei Entwicklung und Herstellung unserer Produkte auf einen möglichst geringen Einsatz von Ressourcen und auf niedrigen Energiebedarf im Betrieb. Bitte prüfen Sie, ob es unbedingt erforderlich ist, das gesamte Dokument zu Drucken. So schonen Sie zusätzlich Ressourcen und unsere Umwelt.
The life time of an LED is defined as decrease of brightness by 50% of the initial value
Specifications are subject to change without notice.
The technical data are typical figures.Die angegebenen technischen Daten sind typische Durchschnittswerte.
We recommend to print the document with option "Fit to Page"
We care for environment when producing and manufacturing our products. Also we care for a low power consumption and a low consumption of resources. Please consider environmental responsibility before printing this document
