SIGLENT SDS2000X-E Series Quick Start Manual

SDS2000X-E Series

Super Phosphor

Oscilloscope

Quick Start

Copyright

Information

SIGLENT TECHNOLOGIES CO., LTD. All Rights Reserved.

Declaration

SIGLENT products are protected by patent law in and outside of P.R.C.

SIGLENT reserves the right to modify or change parts of or all the specications or pricing policies at company’s sole decision.

Information in this publication replaces all previously corresponding material.

Any way of copying, extracting or translating the contents of this manual is not allowed without the permission of SIGLENT.

Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD.

SIGLENT TECHNOLOGIES CO., LTD.

Address: Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China.

Tel:[phone]

E-mail:[email protected]

Http://www.siglent.com

SDS2000X-E Series Digital Oscilloscope -I

General

Safety

Summary

Carefully read the following safety precautions to avoid any personal injury
or damage to the instrument and any products connected to it. To avoid

potential hazards, please use the instrument as specied.

Use Proper Power Cord

Only the power cord designed for the instrument and authorized by local
country could be used.

Ground the Instrument

The instrument is grounded through the protective earth conductor of the
power cord. To avoid electric shock, please make sure the instrument is
grounded correctly before connecting its input or output terminals.

Connect the Signal Wire Correctly

The potential of the signal wire ground is equal to the earth, so do not
connect the signal wire to a high voltage.

Look Over All Terminals’ Ratings

To avoid re or electric shock, please look over all ratings and sign instruction

of the instrument. Before connecting the instrument, please read the manual
carefully to gain more information about the ratings.

Use Proper Overvoltage Protection

Make sure that no overvoltage (such as that caused by a thunderstorm) can
reach the product, or else the operator might expose to danger of electrical
shock.

Electrostatic Prevention

Operate in an electrostatic discharge protective area environment to avoid
damages induced by static discharge. Always ground both the internal and
external conductors of the cable to release static before connecting.

Keep Well Ventilation

Inadequate ventilation may cause increasing of temperature, which may
eventually damage the instrument. So keep well ventilation and inspect the
intake and fan regularly.

Avoid Circuit or Components Exposed

Do not touch exposed contacts or components when the power is on.

Use Only the Specied Fuse

Do Not Operate Without Covers

Do not operate the instrument with covers or panels removed.

II- SDS2000X-E Series Digital Oscilloscope

Safety Terms and Symbols

General Care and Cleaning

Terms on the product. These terms may appear on the product:

DANGER
WARNING
CAUTION

Symbols on the product. These symbols may appear on the product:

SDS2000X-E Series Digital Oscilloscope -III

Indicates direct injuries or hazards that may happen.
Indicates potential injuries or hazards that may happen.
Indicates potential damages to the instrument or other property
that may happen.

Warning Hazardous

Voltage

Protective
Earth Ground

Earth
Ground

Chassis

Ground

Care

Do not store or leave the instrument in direct sunshine for long periods of
time.

Notice:

To avoid damages to the instrument or probe, please do not leave them in
fog, liquid, or solvent.

Cleaning

Please perform the following steps to clean the instrument and probe
regularly according to its operating conditions.

1. Disconnect the instrument from all power sources, and then clean it with
a soft wet cloth.

2. Clean the loose dust on the outside of the instrument and probe with a
soft cloth. When cleaning the LCD, take care to avoid scratching it.

Notice:

To avoid damages to the surface of the instrument and probe, please do not
use any corrosive liquid or chemical cleanser.

Make sure that the instrument is completely dry before restarting it to avoid
short circuits or personal injuries.

Contents

Copyright Information............................................................................................................................................

General Safety Summary........................................................................................................................................

Quick start............................................................................................................................................................

The Front Panel ....................................................................................................................................................

The Rear Panel......................................................................................................................................................

Front Panel Overview.............................................................................................................................................

User Interface.......................................................................................................................................................

Using Security Lock................................................................................................................................................

Troubleshooting.....................................................................................................................................................

Contact SIGLENT...................................................................................................................................................

I

II

2

6

8

10

19

20

21

23

1- SDS2000X-E Series Digital Oscilloscope

Quick Start

General Inspection

1. Inspect the shipping container

Keep the damaged shipping container or
cushioning material until the contents of the
shipment have been completely checked and
the instrument has passed both electrical and
mechanical tests.

The consigner or carrier will be responsible
for damages to the instrument resulting from
shipment. SIGLENT would not provide free
maintenance or replacement if the instrument
has been damaged in shipment.

2. Inspect the instrument

If there are instruments found damaged,
defective or failure in electrical and mechanical
tests, please contact SIGLENT.

Scope Front View

3. Check the accessories

Please check the accessories according to the
packing list. If the accessories are incomplete
or damaged, please contact your SIGLENT sales
representative.

SDS2000X-E Series Digital Oscilloscope -2

Scope Top View

Quick Start

Adjust the Supporting Legs

Adjust the supporting legs properly to use them as stands to tilt the
oscilloscope upwards for stable placement as well as easier operation and
observation of the instrument.

Before adjusting After adjusting To Connect to Power Supply

Connect to AC Power Supply

The oscilloscope accept 100-240V, 50/60/440Hz AC power supply. Please
use the power cord provided as accessories to connect the instrument to the

power source as shown in the gure below.

Power
Socket

Note: If at any time the fuse requires replacement, please replace only
with a fuse of the same rating as the original. If there are questions, please
contact Siglent directly.

3- SDS2000X-E Series Digital Oscilloscope

Quick Start

Power-on Inspection

When the scope is energized, turn on the power switch at the lower left corner on the front panel. During the start-up
process, the instrument performs a series of self-test items and you can hear the sound of relay switching. After the
self-test completed, the User Interface displays immediately.

Connect the Probe

SIGLENT provides passive probe for the SDS2000X-E series oscilloscope. Please refer to corresponding Probe User
Manual for detailed technical information.

Connect the probe:

1.Connect the BNC terminal of the probe to one of the channel BNC connector of the front panel.

2.Connect the probe tip to the circuit point to test and the ground alligator clip of the probe to the ground terminal of
the circuit.

Functional Inspection

1. Press to reset the oscilloscope to its factory default setup.

2. Connect the ground alligator clip of the probe to the Ground Terminal on the front panel.

3. Use the probe to connect the CH1 Input Terminal and the Compensation Signal Output Terminal on the front
panel.

4. Press

5. Observe the waveform on the screen. In normal condition, the display should be a square waveform as shown
in the photo to the right.

6. Test the other channels in the same method. If the actual square waveforms does not match that in the photo
shown, please perform “Probe Compensation”.

Note: To avoid electric shock when using the probe, rst please make certain that the insulated wire of the probe

is in good condition, and do not touch the metallic part of the probe when it is connected to a high voltage.

SDS2000X-E Series Digital Oscilloscope -4

Ground
Terminal

Compensation Signal
Output Terminal

Quick Start

Probe Compensation

You should properly compensate the probe at rst use of it. Non-compensated or inadequate compensated probe may cause inaccurate measurement. The

following steps are about probe compensation:

1. Perform step 1, 2 , 3 and 4 of “Functional Inspection”.

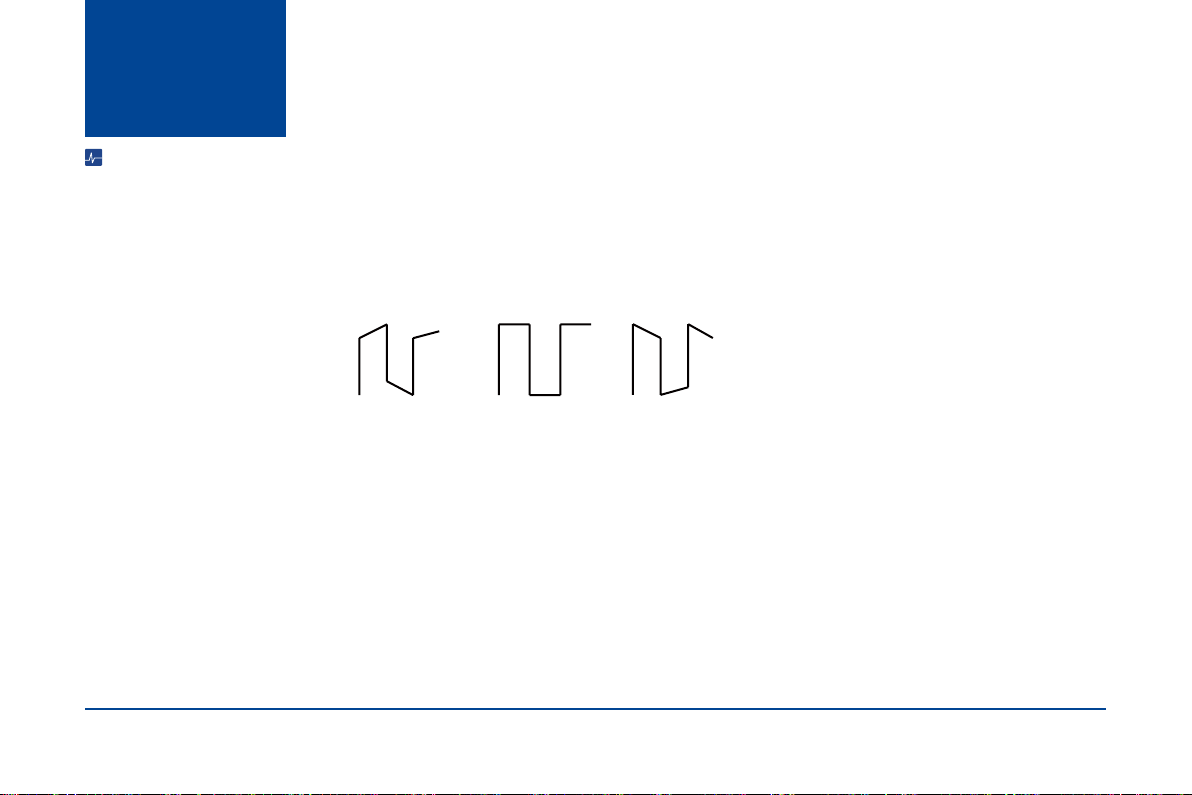

2. Check the displayed waveforms and compare them with the following gure.

Under

Compensated

3. Use a nonmetallic driver to adjust the low-frequency compensation adjustment hole on the probe until the waveform changes to be correct as the gure above.

Compensated

Correctly

Over

Compensated

5- SDS2000X-E Series Digital Oscilloscope

Scope Front

Panel

5

2

1

3

8

11

4

7

6

9

10

13

12

14

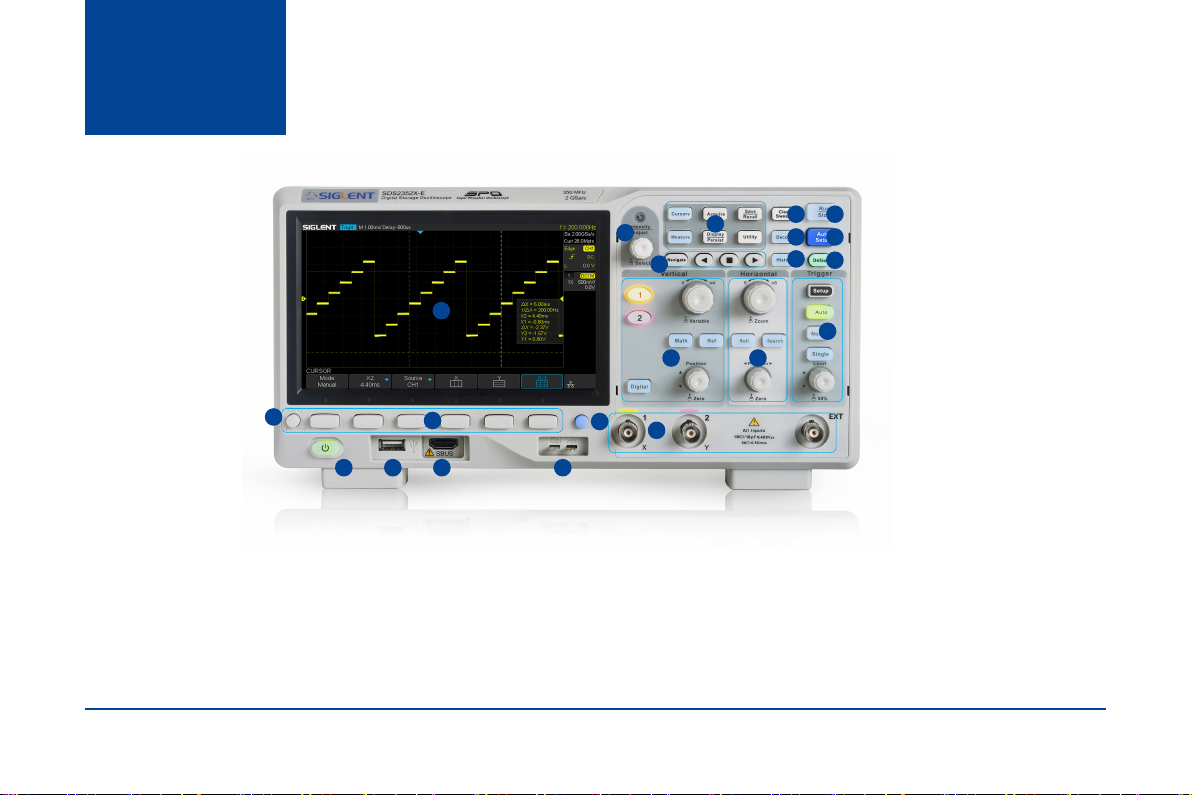

1. LCD Display

2. Universal Knob

3. Common Function Menus

4. Clear Sweeps

5. Run/Stop

6. Decode

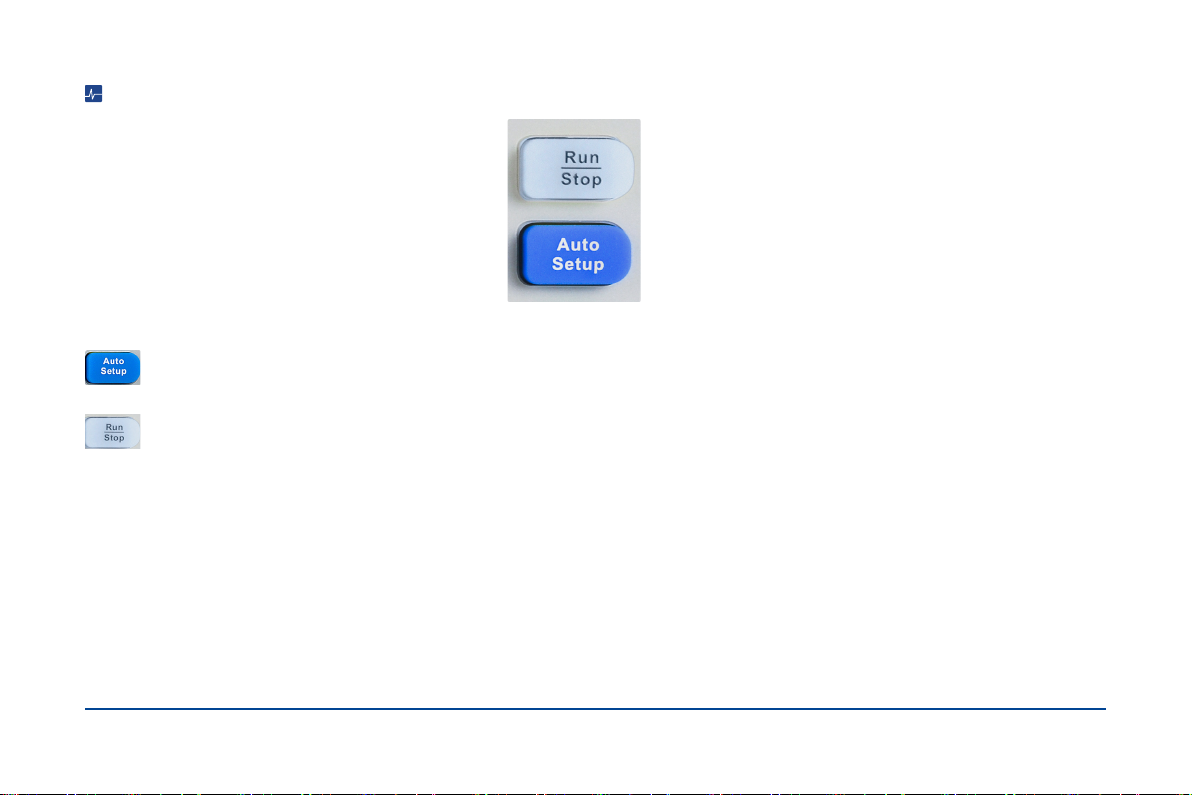

7. Auto Setup

WARNING: Non-standard HDMI interface, Siglent device ONLY, or you will damage your devices.

①

SDS2000X-E Series Digital Oscilloscope -6

18 19

15

20

8. Navigate

9. History

10. Default

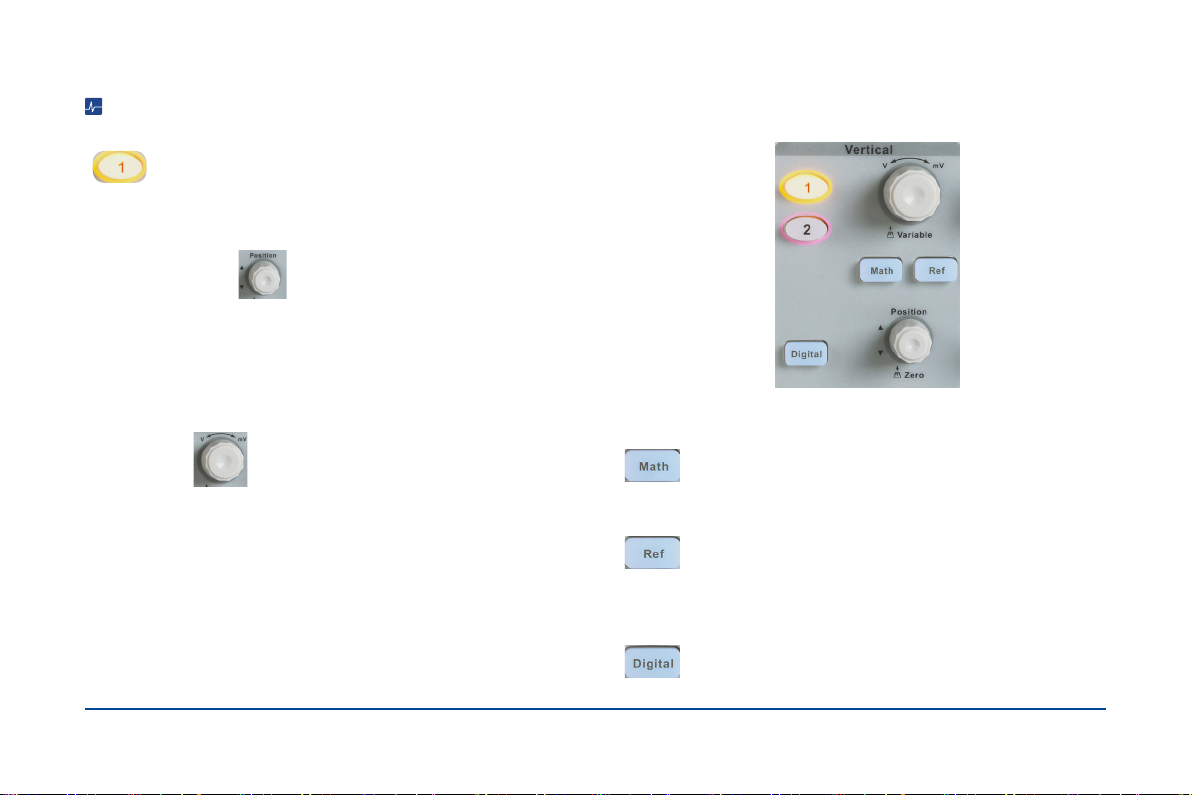

11. Vertical Control, Math, REF and Digital

12. Horizontal Control

13. Trigger Control

14. Menu on/off

16

17

21

15. Menu Softkey

16. One- Button shortcut for Save

17. Analog Channel

18. Power Button

19. USB Host

20. SBUS Digital Inputs

①

21. Probe Compensation/ Ground Terminal

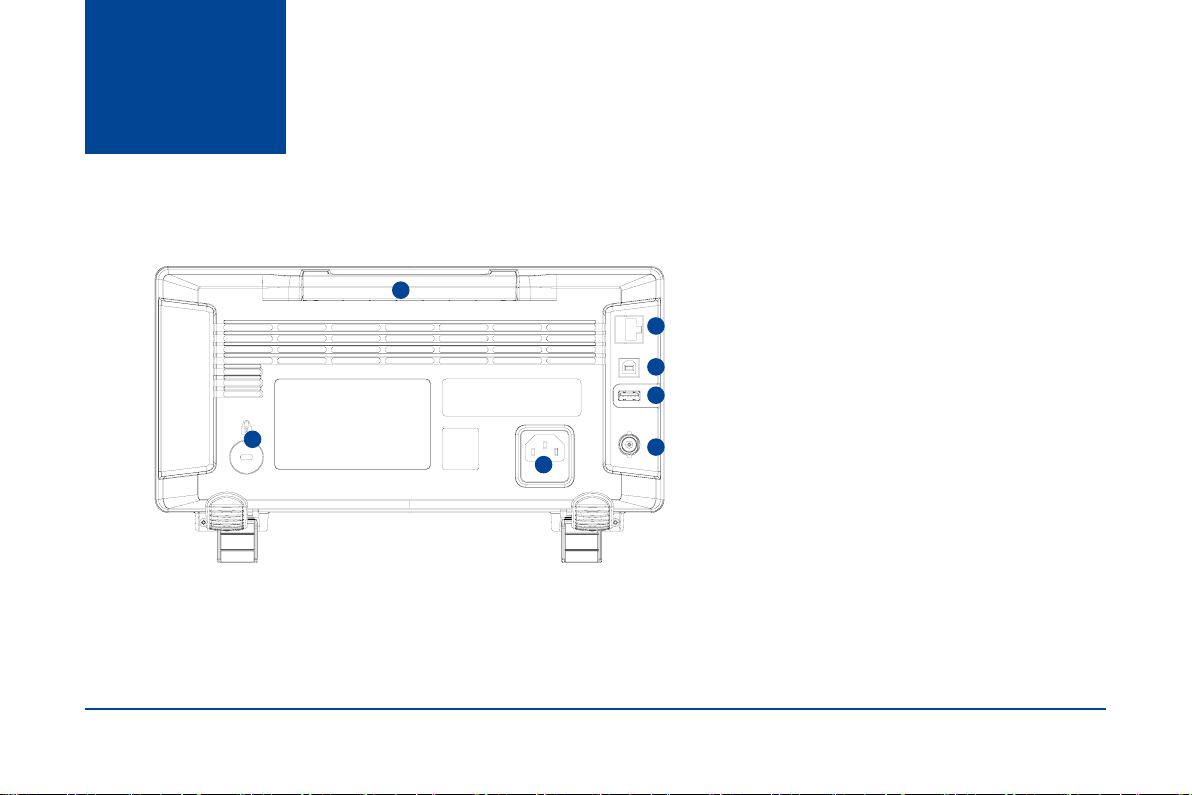

Scope Rear

Panel

5

1.Handle

Pull up the handle vertically for easy carrying of the
instrument. When you do not need the handle, press it
down.

2.LAN

The instrument can be connected to network via this
interface to perform remote control.

1

2

3

4

7

6

3.USB Device

The oscilloscope support SCPI remote control commands,
user can control the oscilloscope through this interface.

4.USB Host

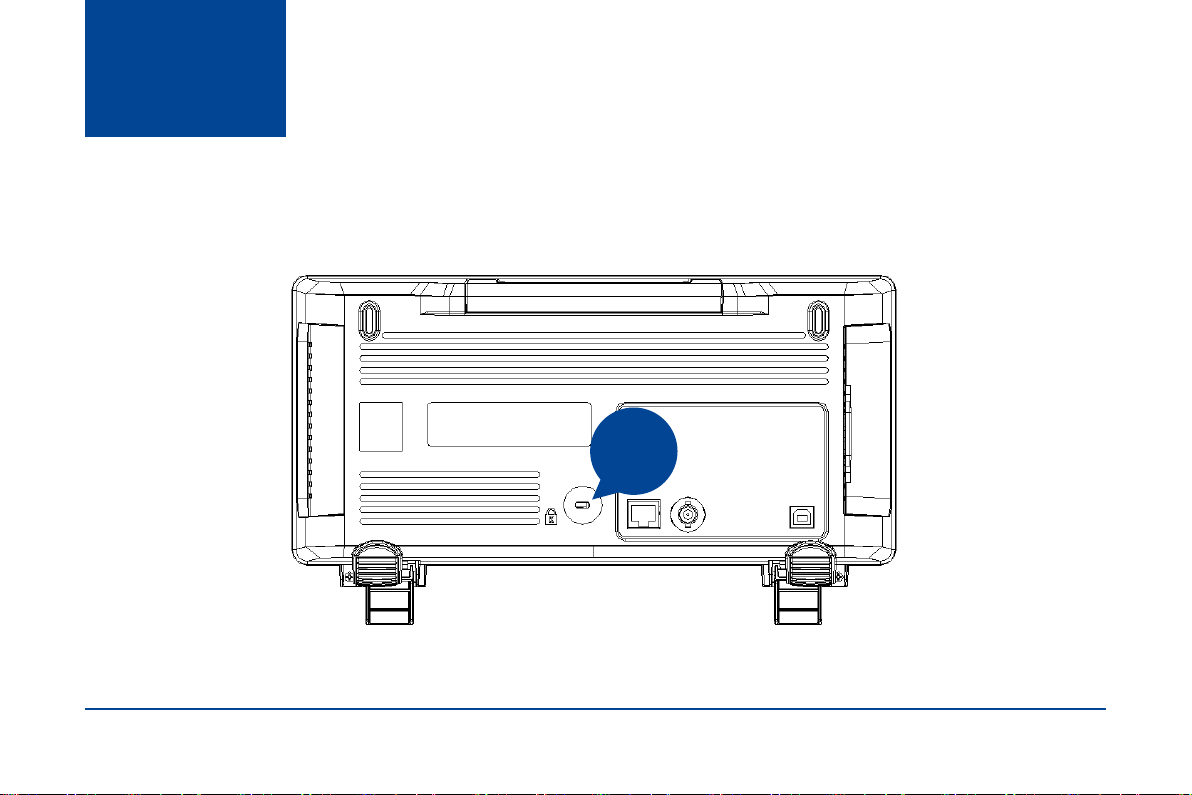

5.Safety lock Hole

You can lock the instrument to a xed location using the

security lock (please buy it yourself) via the lock hole.

6.AC Power Socket

AC power input terminal. The power requirements of this
oscilloscope are 100-240 V, 50/60/400 Hz. Use the power
cord provided with the instrument to connect it to AC
power.

7.Pass/Fail or Trigger Out

The BNC port can output a signal that reects the current

waveform capture rate of the oscilloscope at each trigger or
a pass/fail test pulse.

7- SDS2000X-E Series Digital Oscilloscope

Front Panel

Overview

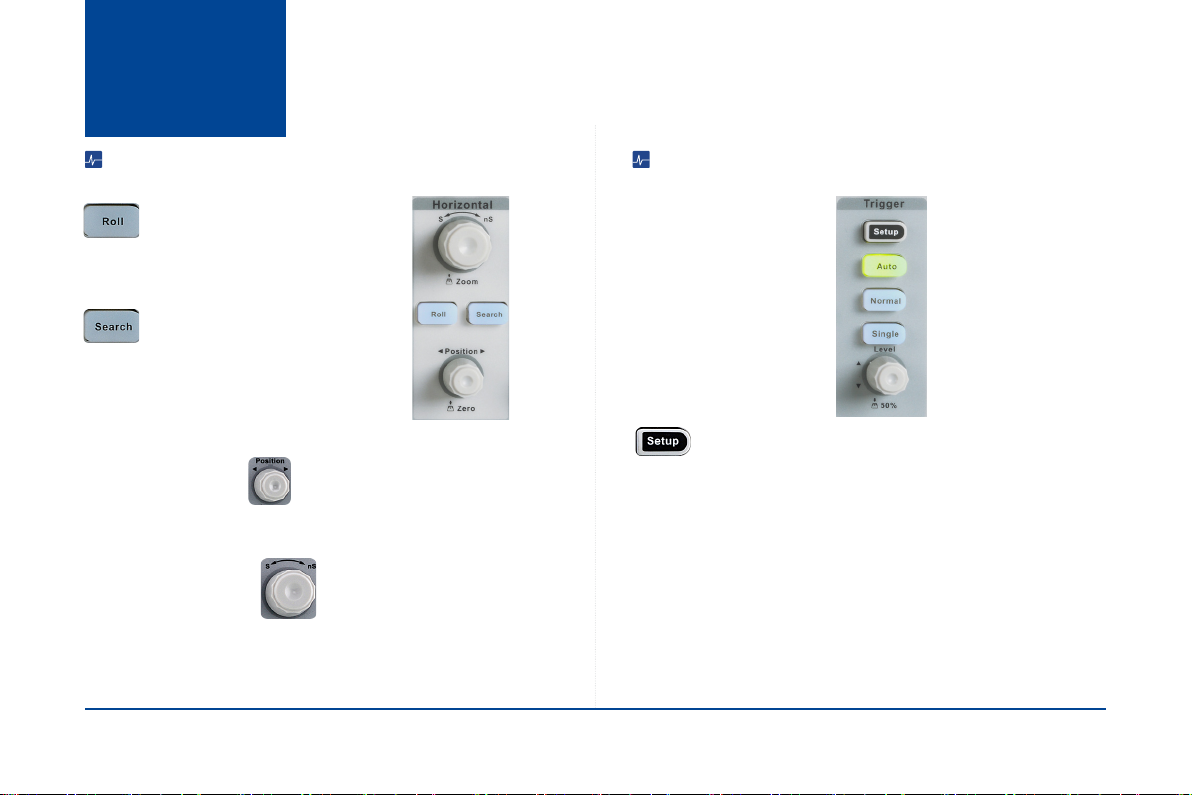

Horizontal Control Trigger Control

Quickly enter into the Roll
mode.

The timebase range is from 50
ms/div to 100 s/div.

Enable or disable search
function. This function can
search for the events that users
specify in the acquired data, the
results are displayed with white
triangle symbol.

Horizontal POSITION Sets the horizontal location of the trigger
event on the display. The waveform will move left or right when you turn
the knob. Meanwhile, the Delay value will increase or decrease as the
waveform moves. Press down the knob to reset the trigger delay to zero.

Horizontal Time Base Set the timebase Turn it clockwise
or aticlock wise to reduce or increase the timebase. The wave will be
expanded or compressed when the timebase changes. Press down the knob
to enter into the Zoom.

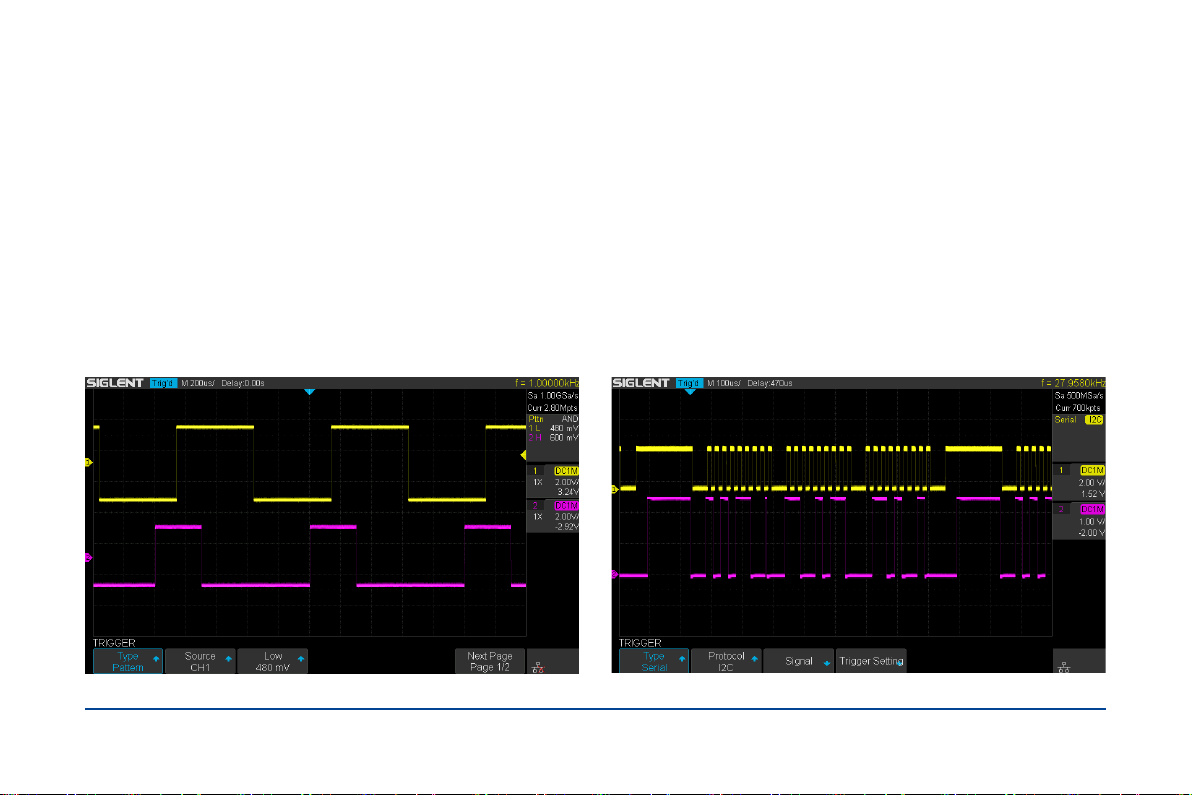

Press the button to open trigger menu.This oscilloscope provides
various trigger types: Edge, Slope,Pulse, Video, Window,Interval, DropOut,
Runt, Pattern and Serial Bus (IIC/SPI/UART/RS232/CAN/LIN)

We will introduce Video, Interval, Runt, Pattern and Serial Bus trigger in the
following

HDTV Video Trigger

SDS2000X-E supports analog video signal (NTSC/PAL) trigger and HDTV
signal trigger. In video trigger, you can select custom to set any line and

eld

SDS2000X-E Series Digital Oscilloscope -8

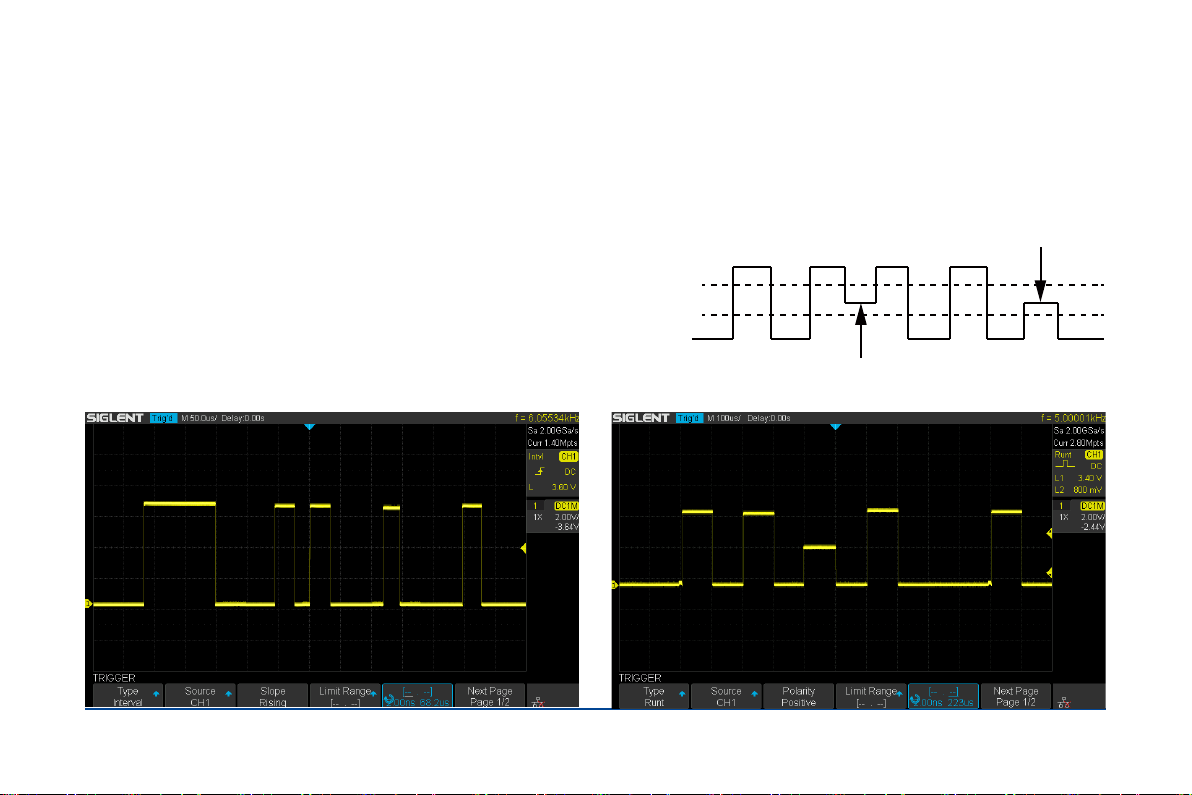

Interval Trigger

The time interval from the rising edge (or falling edge) of input signal passes
through the trigger level to the next rising edge(or falling edge) passes
through the trigger level and the currently set time satisfy the Limit Range (

＜=,＞

= , [ --.--], --] [--) selected

In the gure below, the time interval between two continuous rising edge and

the currently set time satisfy the limit range ([ --.--])

Runt Trigger

Runt trigger includes positive runt trigger and negative runt trigger.This mode
is used to trigger pulses that pass through one trigger level but fails to pass

through the other trigger level as shown in the gure below.

Positive runt pulse

High Level

Low Level

Negative runt pulse

In the gure below, the trigger signal is positive runt pulse.

9- SDS2000X-E Series Digital Oscilloscope

Pattern Trigger

Identify a trigger condition by looking for a specied pattern. This pattern

is a logical combination (AND/OR/NAND/NOR) of the two channels. Each
channel can be set a value among High, Low or Invalid.

In the gure below, the selected logic is “NAND”, channel 1 is set to

“Low”,channel 2 is set to “High”.

IIC Trigger

After setting the serial 1 or 2 to IIC type in trigger menu, you can use
universal knob to set to trigger on start/stop condition, restart, no

ack,EEPROM, or on the read/write frame with specic device address and

data value. During IIC trigger settings, it is essential to set source channel
previously in decode menu.

In the gure below,the trigger condition is set to “Start”, channel 1 is set as

Clock signal, channel 2 is set as Data signal

SDS2000X-E Series Digital Oscilloscope -10

SPI Trigger

After setting the serial trigger to SPI type in trigger menu, you can select to trigger on MISO data or MOSI data. The data length are variable to set from 4 to 96.

UART/RS232 Trigger

After setting the serial trigger to UART/RS232 type in trigger menu, you can select to trigger on start , stop, checksum error or data. The data width are variable to
set from 5 to 8bits.

CAN Trigger

After setting the serial trigger to CAN type in trigger menu, you can select to trigger on start, remote, ID, ID+DATA or Error of CAN-H or CAN-L signal.

LIN Trigger

After setting the serial trigger to LIN type in trigger menu, you can select to trigger on Start, ID, ID+DATA or Data Error.

Notes: For more trigger types and corresponding operation information, please refer to the trigger chapter of SDS2000X-E User Manual.

Press the button to set to Auto trigger mode.

Press the button to set to Normal trigger mode.

Press the button to set to Single trigger mode.

Level Set the trigger level. Turn it clockwise or anticlockwise to make the level move up or down. In the meanwhile, the level value displayed at the
upper right of the screen will increase or decrease. Press it down to quickly reset the trigger level to the 50% of waveforms.

11- SDS2000X-E Series Digital Oscilloscope

Vertical Control

Analog input channels. The four channels are marked by different
colors which are also used to mark both the waveforms on the screen and the
channel input connectors.

Press channel button to open the corresponding channel and press again to
turn it off.

Vertical POSITION Set the vertical offset of current waveform.
Turn clockwise to increase the offset while turn anticlockwise to decrease the
offset.

During the modication, the waveform will move up and down and the offset

message at the lower part of the screen will change along. Press down the
knob to quickly reset the offset to zero

Vertical Scale: Set the vertical scale of current waveform.

Turn clockwise to decrease the scale and while turn anticlockwise to increase

it. During the modication, the ‘amplitude’ of the waveform will enlarge or

reduce and the scale message at the right side of the screen will also change.

Press down the knob to quickly switch the vertical scale adjustment modes
between “Coarse” and “Fine”.

SDS2000X-E Series Digital Oscilloscope -12

Press the button to open math operation menu under which the
operation of adding, subtracting, multiplying, dividing, FFT, integral,
differential and square root are supported.

Press the button to enable the reference waveform function, thus
to compare the current waveform with the reference waveform to
decide circuit failures. SDS2000X-E supports 2 reference waveforms
saving

Press the button to open the digital channel function menu (Optional
function). The SDS2000X-E supports 16 digital channels.

Run Control

Press the button to enable the waveform auto setup function. The oscilloscope will automatically adjust the horizontal time base, vertical scale and trigger
mode according to the input signal to provide a triggered stable display.

Press the button to set the state of the instrument to “RUN” or “STOP”. In the “RUN” state, the button glows yellow; In “STOP” state, the button glows
red.

13- SDS2000X-E Series Digital Oscilloscope

Universal Knob

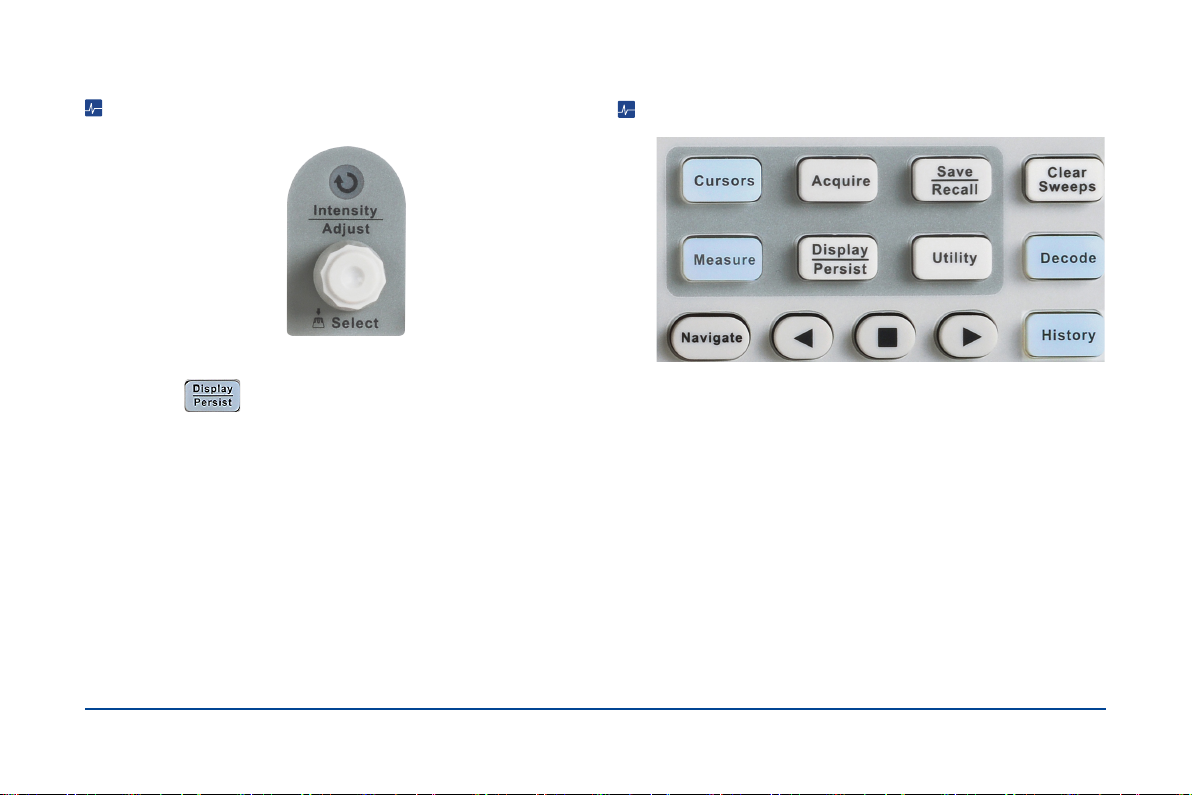

Adjust Waveform Intensity/ Graticule/ Transparence

Function Menus

You can press

intensity (0% ~ 100%). To adjust graticule (0% ~ 100%) or transparency(20%

~ 80%) ,please operate in the same way as waveform intensity.

Universal Knob

In menu operation, when the light below the knob is lit, you could turn the

knob to select between submenus under the current menu and press it down

to select the current submenu. In addition, it can also be used to modify

parameters and input the lename.

SDS2000X-E Series Digital Oscilloscope -14

→

Intensity and use the knob to adjust waveform

Press the button to open the cursor function. It provides manual and track cursor mode.

Press the button to enter the display menu and quickly enabled the persist function. User can set the grid, intensity, graticule, transparency.

Press the button to enter the utility menu to set system functions or parameters, such as IO set, sound, language. In addition, some advanced functions

(such as Pass/Fail, Do Self Cal, install option function and Update) are also supported.

Press the button to enter the history mode. In history mode, it can record most 80000 frame waves

Press the button to enter the measurement setting menu. You could set measurement type, statistic function, all measure and gate measure. You can

select as many as four parameters. In statistic function, the Curent value, Mean, Min, Max, Std-Dev and Count are shown on the screen.In all measure, you could

show all the parameters of the channel you select

Press the button to enter the sample menu. You can set the acquisition mode (Normal/Peak-Detect/Average/Eres), interpolation mode (Sinx/X or linear)

and memory depth. You could enable the XY function and sequence function.

Press the button to enter the le save and recall function menu. The storable le types includes Setups, Waveforms, Picture and CSV.

Press the button to reset the oscilloscope to its default setup. In the le save and recall function menu, user can customize the default setup.

Press it to open decode menu. Decode is a optional function.SDS2000X-E supports two serial buses including 1 and 2 for analog signal decoding. The

protocols includes IIC, SPI, UART/RS232, CAN and LIN.

Press the button to turn off or turn on the navigate function. SDS2000X-E supports three navigate types: time, search event, history frame.

15- SDS2000X-E Series Digital Oscilloscope

User

Interface

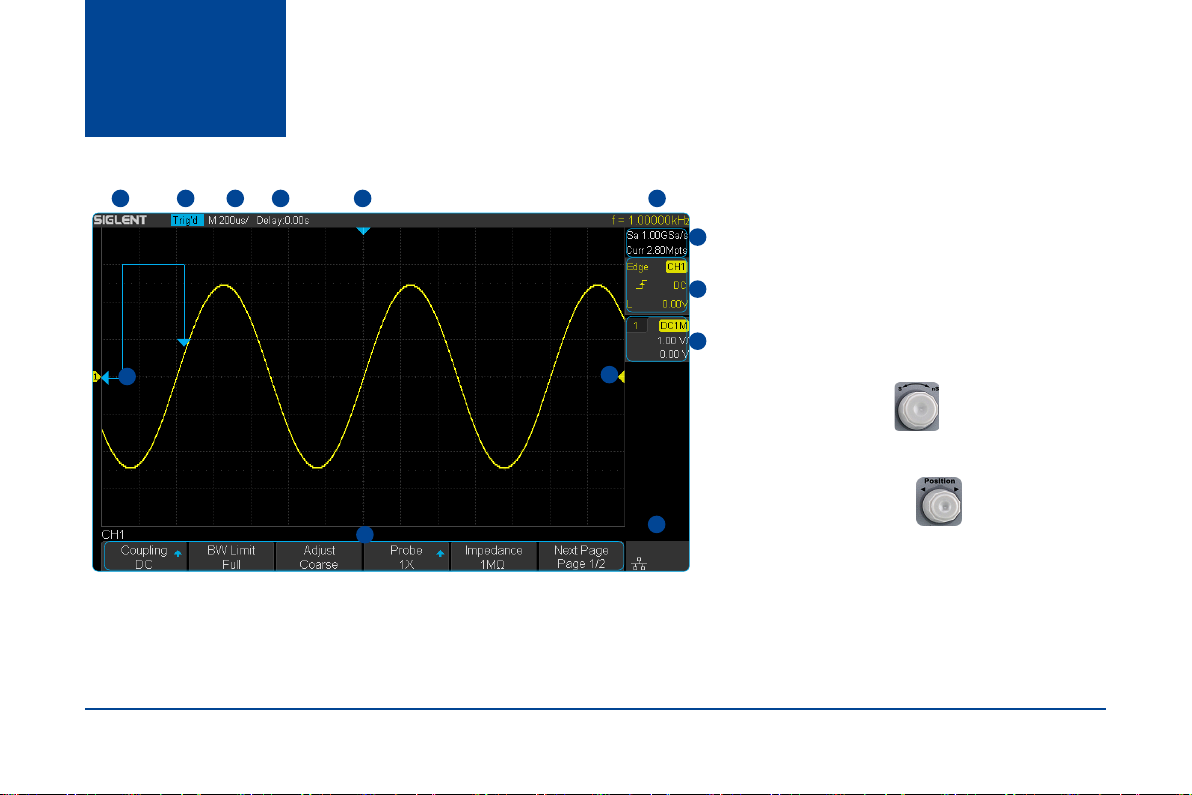

1 3 4 5 6 7

2

13

11

12

1. Product Logo

SIGLENT is the registered trademark of our company.

2. Channel Label/Waveform

8

Different channels are marked by different colors and the
color of the waveform complies with the color of the channel.

3. Working state

9

Available states include Arm, Ready, Trig’d, Stop, Auto.

10

4. Horizontal Time Base

Represent the time of each grid on the horizontal axis of the

screen. You could revolve to modify the parameter

which is variable from 500ps ~ 100s.

5. Trigger Position

Use horizontal POSITION knob to modify the
parameter. Turn clockwise or counterclockwise to make the
waveform move right or left, which will respectively cause
the Delay parameter to decrease or increase. Press down the
knob to automatically reset the parameter to zero as well as
make the waveform return to horizontal center of the screen.

SDS2000X-E Series Digital Oscilloscope -16

6. Trigger position

Display the trigger position of the waveform on the screen.

7. Frequency Counter

Display the rmware frequency of current waveform.

8. Sample Rate/Memory Depth

Display the current sample rate and memory depth of the oscilloscope. Use horizontal SCALE knob to modify the parameter.

9. Trigger Setting

Trigger Source Display the trigger source currently selected. Different labels are displayed when different trigger source are selected and the color of the trigger
parameter area will change accordingly.

Coupling Mode Display coupling mode(DC/AC/ LF Reject/HF Reject) of the current trigger source

Trigger Level Display the trigger level value of the current waveform. Press down the knob to reset the parameter to 50% of the waveform.

Trigger Type Display the currently selected trigger type and trigger condition setting. Different labels are displayed when different trigger types are selected. For
example: means triggered on Slop side in edge trigger.

10. Channel Setting

Channel Coupling Display the selected coupling mode of the current channel. All modes are: DC/AC/GND.

Voltage Scale Represent the voltage value of each grid on the vertical axis of the screen.

BW Limit If the current “BW Limit” is “On”, then the mark is displayed.

Impedance Display currently selected impedance (1MΩ) of the channel.

11. Trigger Level Position

Display position of the current channel trigger level. Pressdown the konb to reset the level to vertical center of the waveform.

12. I/O Connection Status

Indicates the USB Host is connected.

Indicate that the WLAN port is connected. Indicate that the WLAN port is disconnected.

Indicates the Lan port is connected. Indicates the Lan port is not connected.

13. Menu

Display menus of the currently selected function module. Press any menu softkey to perform corresponding setting

17- SDS2000X-E Series Digital Oscilloscope

Using

Security

Lock

If needed, you could use the security lock (please buy it yourself) to lock the instrument in a xed location. The method: align the clock with the clock hole and plug

it into the lock hole vertically, turn the key clockwise to lock the instrument and then pull the key out.

Security

lock hole

SDS2000X-E Series Digital Oscilloscope -18

Trouble
Shooting

The general failures and consequential solutions are listed below. When you nd them, please deal with them in the following corresponding ways. If the problem

proves to be unsolvable, please contact SIGLENT as soon as possible.

1. The screen remains dark after power on:

(1) Check if the power is correctly connected.

(2) Check if the power switch is faulted.

(3) Check whether the fuse is burned out. If the fuse needs to be changed, please contact SIGLENT as soon as possible and return the instrument to the factory to
have it repaired by service personnel authorized by SIGLENT.

(4) Restart the instrument after completing inspections above

(5) If it still does not work normally, please contact SIGLENT.

2. After the signal is sampled, there is no corresponding waveform displaying:

(1)Check if the probe is correctly connected to the signal connecting cord.

(2) Check if the signal connecting cord is correctly connected to BNC.

(3) Check if the probe is correctly connected to the item under test.

(4) Check if there are signal generated from the item under test.

(5) Resample the signal.

3.The voltage amplitude measured is higher or lower than the actual value (the error usually occurs in use of the probe):Check if the attenuation

coefcient of the current channel matches with the attenuation ratio of the probe.

4.There is waveform displaying but not stable:

(1) Check the trigger source: check whether the “Source” in menu of “TRIG” is the actual operating channel.

(2) Check if the waveform is wrong: it is easy for us to regard the wrong waveform as the real when a high frequency signal is connected to the instrument. You’d

better make sure that the current time base is correct.
(3) Check the trigger type: “Edge” trigger suits to general signal and “Video” trigger suits to video signal. Only in correct trigger type can the waveform stably
displays.
(4) Change the setting of trigger holdoff.

19- SDS2000X-E Series Digital Oscilloscope

Trouble
Shooting

5. No display after pressing :

Check whether the trigger Mode is “Normal” or “Single”, and if the trigger level exceeds the waveform range. If yes, set the trigger level to the middle or change the
trigger Mode to “Auto”.

Note: press “Auto Scale” could automatically replace the above setting.

6.The waveform displays like ladder:

(1) The horizontal time base may be too low, you can increase it to improve the horizontal resolution so as to make a good waveform displaying.

(2) The lines between the sample points may also cause ladder-like displaying if the “Type” in menu of “DISPLAY” is “Vectors”. Please turn the “Type” to “Dots” to
solve the problem.

7.USB storage can’t be recognized:

(1) Check if the USB ash disk can work normally.

(2) Check if the USB Device Host can work normally.

(3) Make sure the USB disk being used is of ash type, the instrument does not support USB of hardware type.

(4) Restart the instrument and then insert the USB to check it.
(5) If it is still in abnormal use, please contact with SIGLENT.

SDS2000X-E Series Digital Oscilloscope -20

Contact

SIGLENT

America

SIGLENT Technologies America, Inc

6557 Cochran Rd Solon, Ohio 44139
Tel: [phone]
Toll Free:877-515-5551
Fax: [phone]
[email protected]
www.siglentamerica.com

Headquarters

SIGLENT TECHNOLOGIES CO., LTD.

Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao’an District, Shenzhen, 518101, China.

Tel:+ 86 755 3661 5186
Fax:+ 86 755 3359 1582
[email protected]
www.siglent.com/ens

Europe

SIGLENT TECHNOLOGIES EUROPE GmbH

Liebigstrasse 2-20, Gebaeude 14, 22113 Hamburg Germany
Tel: [phone]
Fax: [phone]
[email protected]
www.siglenteu.com

21- SDS2000X-E Series Digital Oscilloscope

www.siglent.com
