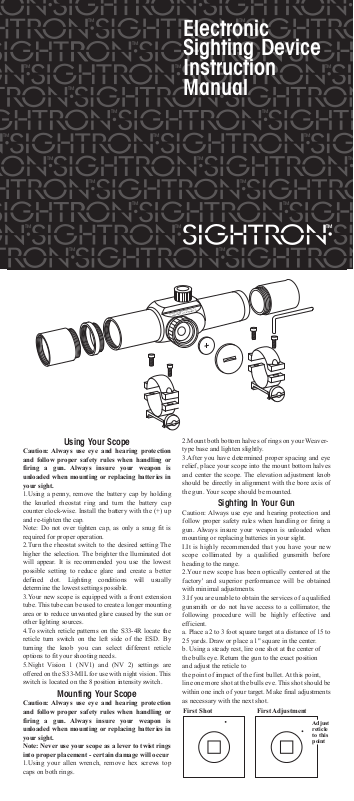

Sightron S30-5 User Manual

TM

TM

TM

TM

TM

TM

Electronic

TM

TM

Sighting Device

TM

TM

TM

Instruction

TM

TM

TM

TM

TM

TM

TM

TM

TM

Manual

TM

TM

TM

TM

TM

TM

TM

TM

TM

Using Your Scope

Caution: Always use eye and hearing protection
and follow proper safety rules when handling or
firing a gun. Always insure your weapon is
unloaded when mounting or replacing batteries in
your sight.

1.Using a penny, remove the battery cap by holding
the knurled rheostat ring and turn the battery cap
counter clock-wise. Install the battery with the (+) up
and re-tighten the cap.
Note: Do not over tighten cap, as only a snug fit is
required for proper operation.

2.Turn the rheostat switch to the desired setting The
higher the selection. The brighter the lluminated dot
will appear. It is recommended you use the lowest
possible setting to reduce glare and create a better
defined dot. Lighting conditions will usually
determine the lowest settings possible.

3.Your new scope is equipped with a front extension
tube. This tube can be used to create a longer mounting
area or to reduce unwanted glare caused by the sun or
other lighting sources.

4.To switch reticle patterns on the S33-4R locate the
reticle turn switch on the left side of the ESD. By
turning the knob you can select different reticle
options to fit your shooting needs.

5.Night Vision 1 (NV1) and (NV 2) settings are
offered on the S33-MIL for use with night vision. This
switch is located on the 8 position intensity switch.

Mounting Your Scope

Caution: Always use eye and hearing protection
and follow proper safety rules when handling or
firing a gun. Always insure your weapon is
unloaded when mounting or replacing batteries in
your sight.
Note: Never use your scope as a lever to twist rings
into proper placement - certain damage will occur

1.Using your allen wrench, remove hex screws top
caps on both rings.

2.Mount both bottom halves of rings on your Weaver­type base and lighten slightly.

3.After you have determined proper spacing and eye
relief, place your scope into the mount bottom halves
and center the scope. The elevation adjustment knob
should be directly in alignment with the bore axis of
the gun. Your scope should be mounted.

Sighting In Your Gun

Caution: Always use eye and hearing protection and
follow proper safety rules when handling or firing a
gun. Always insure your weapon is unloaded when
mounting or replacing batteries in your sight.
I.It is highly recommended that you have your new
scope collimated by a qualified gunsmith before
heading to the range.

2.Your new scope has been optically centered at the
factory' and superior performance will be obtained
with minimal adjustments.

3.If you are unable to obtain the services of a qualified
gunsmith or do not have access to a collimator, the
following procedure will be highly effective and
efficient.
a. Place a 2 to 3 foot square target at a distance of 15 to
25 yards. Draw or place a 1" square in the center.
b. Using a steady rest, lire one shot at the center of
the bulls eye. Return the gun to the exact position
and adjust the reticle to
the point of impact of the first bullet. At this point,
line one more shot at the bulls eve. This shot should be
within one inch of your target. Make final adjustments
as necessary with the next shot.

First Shot First Adjustment

Adjust
reticle
to this
point

S30-5 S33-4R/RST S33-MIL

The S30-5 is equipped with
an 11 position rheostat to
adjust for varying light con­ditions. Higher settings are
for use on bright days when
contrast can be low the lower
settings provide dimmer
light when shooting in low
light conditions or dark
backgrounds.

S30-5 5 MOA Dot Reticle S33-4R/RST Reticles S33-MIL Reticle

The S33-4R and 4RST offer
four reticle patterns for use
in a wide variety of hunting
and shooting situations. For
target use on your favorite
handgun to turkey hunting
with your favorite shotgun a
pattern is available for every

Reticle A

need. The Sightron S33-4R
may be the most versatile
sighting device in the
Sightron family of scopes.

Reticle B Reticle DReticle C

The S33-MIL ESD features
four reticle options. NV1
and NV2 are designed for
use with Generation 1 and 2
Night Vision Devices. A
manual 8 position selector
switch provides a wide range
of options for all lighting
conditions. The Auto Mode
allows for automatic adjust­ment by the internal light
system.

ESD Specifications

Dot Size/ Field of View Click Value
Item Number Magnification Overall Length Weight Objective Diameter Tube Diameter Retcile Type @100 Yards @100 Yards Battery Finish

Note: 1 MOA is approximately equal to 1” at 100yards, 1/2” at 50 yards and 1/4” at 25 yards.

S-30-5 1X 4.75” 5.0 oz. 25mm 30mm 5 MOA 52’ 1.0” CR2032 Matte Black
S33-4R 1X 5.70” 6.3 oz. 27mm 33mm 4 Patterns 76’ 1.0” CR2032 Matte Black
S33-4RST 1X 5.70” 6.3 oz. 27mm 33mm 4 Patterns 76’ 1.0” CR2032 Stainless
S33-MIL 1X 00 00 27mm 33mm 5MOA 00 1.0” CR2032 Matte Black

Reticle B Reticle DReticle CReticle A

C

A

B

A

A

B B

ESD Reticle Subtensions

Item Number Distance Reticle A Reticle B Reticle C Reticle D

C

D

A

Note: All values are in inches.

S30-5 25 yards 1.25
50 yards 2.5
75 yards 3.75
100 yards 5
S33-4R/RST 25 yards 0.25/30/1.25 1 2/18.75 0.5/30/7.5/.25
50 yards 0.5/60/.250 2 4/37.5 1.0/60/15.0/.50
75 yards 0.75/90/.375 3 6/56.25 1.5/90/22.5/.75
100 yards 1.0/120/.5 4 8/75 2/120/30/1.0
S33-MIL 25 yards 1.25
50 yards 2.5
75 yards 3.75
100 yards 5

Sightron, Inc. Products Limited Warranty

Sightron, Inc., will repair this product or replace the
product, at Sightron's sole option, free of charge
(except for a $7.50 handling charge) for two (2) years
from the date of original purchase in the event of a
defect in material or workmanship. This warranty only
covers failures due to defects in materials or workman­ship which occur during normal and regular use. It
does not cover damage which occurs in shipment or
failures which are not supplied by Sightron, Inc., or
failures which result from accident, mis¬use, abuse,
neglect, mishandling, misapplication, alteration,
modification or service by anyone other than a
Sightron, Inc. factory or authorized service center or
damage that is attributable to acts of God.

There are no express warranties except as listed above.

SIGHTRON, INC. SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THIS PRODUCT
OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY. ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUD¬ING THE WARRANTY
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations
may not apply to you. This warranty gives you specific
legal rights and you may also have other legal rights
which vary from state to state. If a problem with this
product develops during or after the warranty period,
you should contact Sightron, Inc. factory, your dealer
or return your product with a brief explanation of the
problem you are experiencing. Please include your
complete shipping address and your daytime
telephone number so we may contact you if necessary.

TM

100 Jeffrey Way, Suite A, Youngsville, NC 27596

Telephone: [phone] Fax: [phone] www.sightron.com Email: [e-mail]
