1
FEATURES:
• 2000 lumen Cree® LED
• Pressure switch
• Recoil resistant
• Type II mil-spec anodizing
• Waterproof
• Rechargeable batteries
• Weapons mountable
ENGLISH
Page 5
2
TECHNICAL SPECIFICATIONS
H2000 INCLUDES:
• Two 18650 Li-Ion rechargeable
batteries
• Recharger
• 3 Filters (green, red, blue)
• Weapons mount
• Pressure pad
Bulb type 3x Cree T6 LED
Bezel Diameter 59mm
Output Power Max 2000 lumens
Battery life 2000 Lumens - 1 hr
1150 Lumens - 2 hr
270 Lumens - 10 hr
Battery type 2x 18650Li-Ion recharge-
able batteries
Finish Type II anodizing
Dimensions 251x29mm / 25.4mm
(mounting section)
Weight
(includes batteries)
20.5oz
Waterproof rating IPX-7, submergible to
1m for 1 hr
H2000
Page 6
3
1. Bezel head cap
2. Bulb assembly
3. Flashlight body
4. Weapon mount placement
5. Battery compartment
6. Battery cap/push button switch
7. Battery cap/pressure switch
8. Weapon mount
9. Lens lters
10. Recharger
DIAGRAM
1
2
3
4
5
6
7
8
9
10
Page 7
4
ABOUT THE SIGHTMARK H2000 FLASHLIGHT
The Sightmark H2000 Flashlight features Cree® LEDs to provide 2000 lumens of light for the most dicult shots or
furthest point in the dark of night. The H2000 Triple Duty Flashlight is constructed with Type II mil-spec anodizing
aircraft grade aluminum for durability and protection against corrosion. The Sightmark H2000 Tactical Flashlight
is equipped with two rechargeable batteries, a battery recharger, a weapon mount, on/o push button, pressure
switch, and three color lters. This product is recoil resistant, waterproof, lightweight and protected by Sightmark’s
limited lifetime warranty. This is the perfect addition to the award winning Triple Duty Series- shooting, hunting,
tactical as well as for camping, hiking, home use and vehicle emergencies.
BATTERIES
The H2000 is powered by two CR18650 rechargeable batteries.
To insert or remove the battery:
1)Rotate the battery cap/switch (6/7) counter clockwise until it sperates from the ashlight body (3).

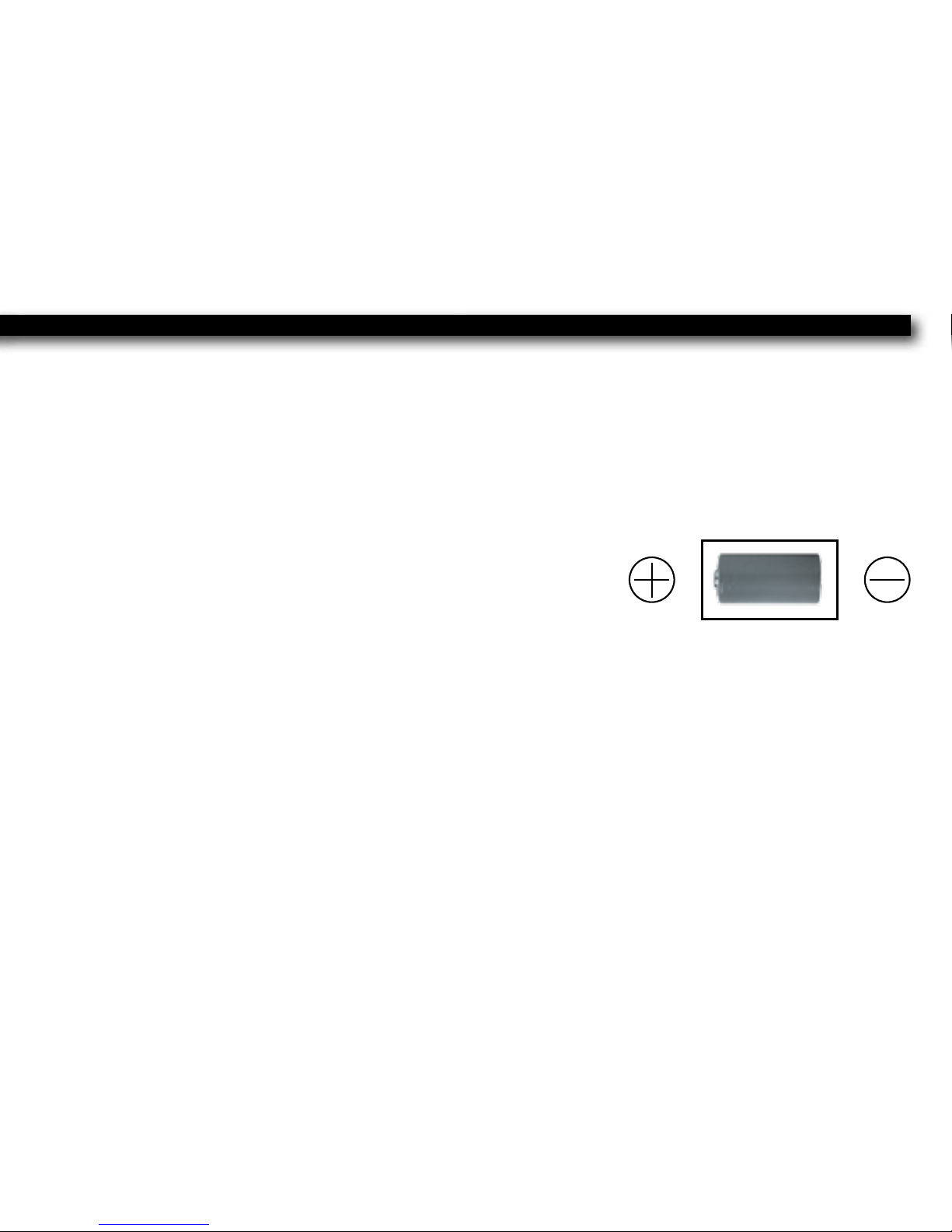

2) Insert both CR18650 rechargeable batteries into the battery compartment (5), with the positive end rst, as
shown on the battery cap.
3) Replace the battery cap/switch (6/7) onto the ashlight body (3). To tighten, rotate the cap/switch clockwise until
xed rmly. Do not overtighten.
Charging the CR18650 batteries
1) Plug in the recharger into a wall outlet. The LED indicators should turn green.
2) Place the two CR18650 batteries in the recharger according to the polarity indication on the recharger. The LED
indicators should turn red.
3) Once charging is complete, the LED indicators will turn green.
4) Remove the batteries, unplug the recharger and store properly.
NOTE:Charging from full-discharge to full charge takes approximately 5 hours.
Page 8
SWITCH OPERATION
After inserting the batteries, install the desired battery cap/switch.
Push button switch:
1) For momentary operation, press lightly on the rubber button on the back of the switch.
2) For permanent operation, press the rubber button until you hear or feel a “click”, then release.
3) To turn the ashlight o, press the rubber button a second time until you hear or feel a “click”, then release.
4) The Push Button switch has built in various brightness, strobe, and S.O.S. modes. Each on/o cycle will rotate to
the next mode. First mode is 2,000 lumens. Second mode is 1, 150 lumens. Third mode is 270 lumens. Fourth mode
is strobe. Fifth mode is S.O.S. The ashlight will return to 2,000 lumen mode if turned o for at least 20 seconds.
Pressure switch:
1) For momentary operation, press rmly on the pressure pad.
2) To turn the ashlight o, release the pressure on the pressure pad.
5
Page 9
6
MOUNTING

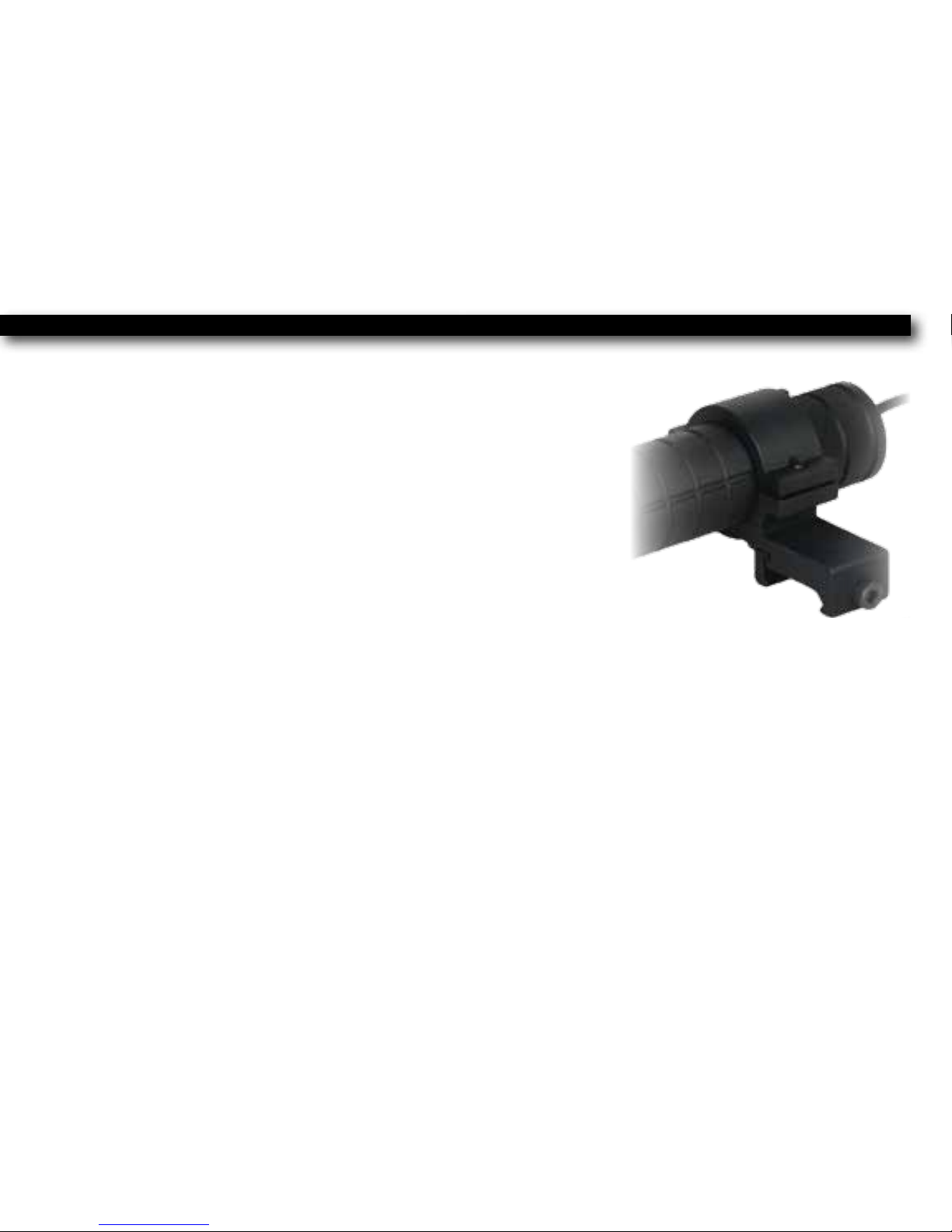

Before mounting the ashlight onto your rearm, be sure the rearm
is unloaded and safe to handle.
To mount:
1) Using the Allen wrench, loosen the two screws on the weapon mount’s
(8) ring.
2) Remove the top part of the ring mount and insert the weapon placement (4) portion of the ashlight into the mount’s base ring.
3) Attach the top part of the ring mount and tighten the ring screws. Do
not over tighten.
4) Next, loosen the mounting bolt on the weapon mount using the provided Allen wrench.
5) Position the weapon mount onto your rearm’s base. Due to the size of the ashlight, the head must extend
beyond the end of the quad rail to t properly.
ATTACHING LENS FILTERS
The H2000 Triple Duty Flashlight includes a blue, red and green lens lter. Green lters provide the best visibility in
a forest or jungle setting while using the lowest light spectrum possible. Red lters help perserve night vision and
assists with varmint hunting without easily being detected by prey. They also assist users with reading maps in low
light conditions. Blue lters are ideal for tracking game, as they assist in illuminating blood trails.
Page 10
WARNING
Before handling the ashlight, read and understand the contents of your rearm’s manual, and the Sightmark
H2000 ashlight manual. Follow all standard safety precautions and procedures during rearm operation, even
when the ashlight is not in use.
MAINTENANCE
The ashlight may be cleaned using a soft cloth and water, or a gun cleaning solvent, when exposed to dirt, dust, or
other residue. Clean the lens using a soft cloth dipped in water or denatured alcohol. To clean residue from contacts,
use a cotton swab dipped in denatured alcohol. Maintain threads and O-rings by applying silicon-based grease to
those areas.
STORAGE
Make sure that your Sightmark tactical ashlight is securely attached to your rearm before storing, and be sure the
unit is turned o. Remove the battery if the ashlight will be stored for an extended period of time.
To attach the lens lter:
1) Locate the bezel head cap (1) and unscrew counterclockwise until the bezel head cap is removed.
2) Place the preferred lens lter on top of the clear protective lens or t the lter in the bezel head cap.
3) Screw clockwise the bezel head cap until rmly tight. Do not over tighten.
7
Page 11
8
SIGHTMARK LIMITED WARRANTY
Please visit www.sightmark.com for warranty details and information.
• NEVER point the ashlight directly at, or into, an eye. This may cause damage to the eye, or blindness. The
ashlights produce enough light to identify an individual without direct illumination to the face.
• Avoid looking directly into the ashlight’s beam.
• Avoid shining the ashlight into mirrors or other reective surfaces.
• Avoid hitting or dropping the unit.
• ALWAYS check that the chamber of your weapon is clear before mounting or dismounting the ashlight.
• ALWAYS remove the ashlight when cleaning, or performing other maintenance, on your rearm.
• The ashlight should be tested during periods of non-use to make sure it is still operating properly.
• NEVER place the ashlight bulb side down on a surface while it is turned on. The bulb generates heat that can
damage the unit or the surface it is on.
Failure to follow standard rearm safety precautions and procedures, as well as the above warnings, is dangerous
and may result in serious injury, damage to property, or death.
