Chapter 1
Introduction
SiFive’s E31 Core Complex is a high performance implementation of the RISC‑V RV32IMAC
architecture. The SiFive E31 Core Complex is guaranteed to be compatible with all applicable
RISC‑V standards, and this document should be read together with the official RISC‑V userlevel, privileged, and external debug architecture specifications.
A summary of features in the E31 Core Complex can be found in Table 1.
E31 Core Complex Feature Set
Feature Description
Number of Harts 1 Hart.
E31 Core 1× E31 RISC‑V core.
Local Interrupts 16 Local Interrupt signals per hart which can be connected to
off core complex devices.
PLIC Interrupts 127 Interrupt signals which can be connected to off core
complex devices.
PLIC Priority Levels The PLIC supports 7 priority levels.
Hardware Breakpoints 4 hardware breakpoints.
Physical Memory Protection
Unit
Table 1: E31 Core Complex Feature Set
PMP with 8 x regions and a minimum granularity of 4 bytes.
1.1 E31 Core Complex Overview

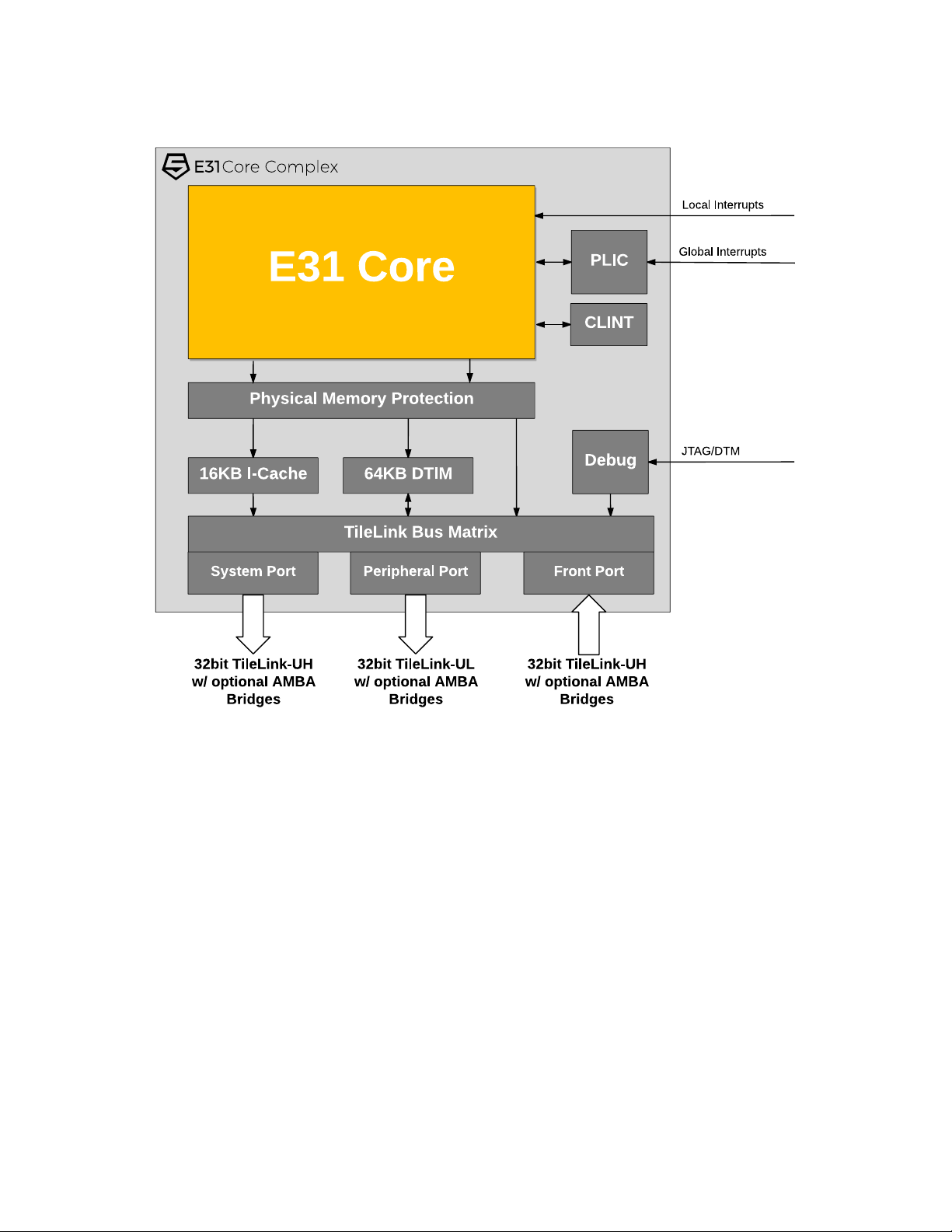

An overview of the SiFive E31 Core Complex is shown in Figure 1. This RISC-V Core IP
includes a 32-bit RISC‑V microcontroller core, memory interfaces including an instruction cache
as well as instruction and data tightly integrated memory, local and global interrupt support,
physical memory protection, a debug unit, outgoing external TileLink platform ports, and an
incoming TileLink master port.
4
Copyright © 2017–2018, SiFive Inc. All rights reserved. 5
Figure 1: E31 Core Complex Block Diagram
The E31 Core Complex memory map is detailed in Chapter 4, and the interfaces are described
in full in the E31 Core Complex User Guide.
1.2 E31 RISC‑V Core
The E31 Core Complex includes a 32-bit E31 RISC‑V core, which has a high-performance single-issue in-order execution pipeline, with a peak sustainable execution rate of one instruction
per clock cycle. The E31 core supports Machine and User privilege modes as well as standard
Multiply, Atomic, and Compressed RISC‑V extensions (RV32IMAC).
The core is described in more detail in Chapter 3.
1.3 Debug Support
The E31 Core Complex provides external debugger support over an industry-standard JTAG
port, including 4 hardware-programmable breakpoints per hart.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 6
Debug support is described in detail in Chapter 8, and the debug interface is described in the
E31 Core Complex User Guide.
1.4 Interrupts
The E31 Core Complex supports 16 high-priority, low-latency local vectored interrupts per-hart.
This Core Complex includes a RISC-V standard platform-level interrupt controller (PLIC), which
supports 127 global interrupts with 7 priority levels. This Core Complex also provides the standard RISC‑V machine-mode timer and software interrupts via the Core Local Interruptor
(CLINT).
Interrupts are described in Chapter 5. The CLINT is described in Chapter 6. The PLIC is
described in in Chapter 7.
1.5 Memory System
The E31 Core Complex memory system has Tightly Integrated Instruction and Data Memory
sub-systems optimized for high performance. The instruction subsystem consists of a 16 KiB
2-way instruction cache with the ability to reconfigure a single way into a fixed-address tightly
integrated memory. The data subsystem allows for a maximum DTIM size of 64 KiB.
The memory system is described in more detail in Chapter 3.
Chapter 2
List of Abbreviations and Terms
Term Definition
BHT Branch History Table
BTB Branch Target Buffer
RAS Return-Address Stack
CLINT Core Local Interruptor. Generates per-hart software interrupts and timer
interrupts.
hart HARdware Thread
DTIM Data Tightly Integrated Memory
ITIM Instruction Tightly Integrated Memory
JTAG Joint Test Action Group
LIM Loosely Integrated Memory. Used to describe memory space delivered in
a SiFive Core Complex but not tightly integrated to a CPU core.
PMP Physical Memory Protection
PLIC Platform-Level Interrupt Controller. The global interrupt controller in a
RISC-V system.
TileLink A free and open interconnect standard originally developed at UC Berke-
ley.
RO Used to describe a Read Only register field.
RW Used to describe a Read/Write register field.
WO Used to describe a Write Only registers field.
WARL Write-Any Read-Legal field. A register field that can be written with any
value, but returns only supported values when read.
WIRI Writes-Ignored, Reads-Ignore field. A read-only register field reserved for
future use. Writes to the field are ignored, and reads should ignore the
value returned.
WLRL Write-Legal, Read-Legal field. A register field that should only be written
with legal values and that only returns legal value if last written with a
legal value.
WPRI Writes-Preserve Reads-Ignore field. A register field that might contain
unknown information. Reads should ignore the value returned, but writes
to the whole register should preserve the original value.
7
Chapter 3
E31 RISC-V Core
This chapter describes the 32-bit E31 RISC‑V processor core used in the E31 Core Complex.
The E31 processor core comprises an instruction memory system, an instruction fetch unit, an
execution pipeline, a data memory system, and support for local interrupts.
The E31 feature set is summarized in Table 2.
Feature Description
ISA RV32IMAC.
Instruction Cache 16 KiB 2-way instruction cache.
Instruction Tightly Integrated Memory The E31 has support for an ITIM with a maxi-
mum size of 8 KiB.
Data Tightly Integrated Memory 64 KiB DTIM.
Modes The E31 supports the following modes:
Machine Mode, User Mode.
Table 2: E31 Feature Set
3.1 Instruction Memory System
The instruction memory system consists of a dedicated 16 KiB 2-way set-associative instruction
cache. The access latency of all blocks in the instruction memory system is one clock cycle. The
instruction cache is not kept coherent with the rest of the platform memory system. Writes to
instruction memory must be synchronized with the instruction fetch stream by executing a
FENCE.I instruction.
The instruction cache has a line size of 64 bytes, and a cache line fill triggers a burst access
outside of the E31 Core Complex. The core caches instructions from executable addresses,
with the exception of the Instruction Tightly Integrated Memory (ITIM), which is further described
in Section 3.1.1. See the E31 Core Complex Memory Map in Chapter 4 for a description of executable address regions that are denoted by the attribute X.
Trying to execute an instruction from a non-executable address results in a synchronous trap.
8
Copyright © 2017–2018, SiFive Inc. All rights reserved. 9
3.1.1 I-Cache Reconfigurability
The instruction cache can be partially reconfigured into ITIM, which occupies a fixed address
range in the memory map. ITIM provides high-performance, predictable instruction delivery.
Fetching an instruction from ITIM is as fast as an instruction-cache hit, with no possibility of a
cache miss. ITIM can hold data as well as instructions, though loads and stores from a core to
its ITIM are not as performant as loads and stores to its Data Tightly Integrated Memory (DTIM).
The instruction cache can be configured as ITIM for all ways except for 1 in units of cache lines
(64 bytes). A single instruction cache way must remain an instruction cache. ITIM is allocated
simply by storing to it. A store to the nthbyte of the ITIM memory map reallocates the first n+1
bytes of instruction cache as ITIM, rounded up to the next cache line.
ITIM is deallocated by storing zero to the first byte after the ITIM region, that is, 8 KiB after the
base address of ITIM as indicated in the Memory Map in Chapter 4. The deallocated ITIM space
is automatically returned to the instruction cache.
For determinism, software must clear the contents of ITIM after allocating it. It is unpredictable
whether ITIM contents are preserved between deallocation and allocation.
3.2 Instruction Fetch Unit
The E31 instruction fetch unit contains branch prediction hardware to improve performance of
the processor core. The branch predictor comprises a 28-entry branch target buffer (BTB) which
predicts the target of taken branches, a 512-entry branch history table (BHT), which predicts the
direction of conditional branches, and a 6-entry return-address stack (RAS) which predicts the
target of procedure returns. The branch predictor has a one-cycle latency, so that correctly predicted control-flow instructions result in no penalty. Mispredicted control-flow instructions incur a
three-cycle penalty.
The E31 implements the standard Compressed (C) extension to the RISC‑V architecture, which
allows for 16-bit RISC‑V instructions.
3.3 Execution Pipeline
The E31 execution unit is a single-issue, in-order pipeline. The pipeline comprises five stages:
instruction fetch, instruction decode and register fetch, execute, data memory access, and register writeback.
The pipeline has a peak execution rate of one instruction per clock cycle, and is fully bypassed
so that most instructions have a one-cycle result latency. There are several exceptions:
• LW has a two-cycle result latency, assuming a cache hit.
• LH, LHU, LB, and LBU have a three-cycle result latency, assuming a cache hit.
• CSR reads have a three-cycle result latency.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 10
• MUL, MULH, MULHU, and MULHSU have a 2-cycle result latency.
• DIV, DIVU, REM, and REMU have between a 2-cycle and 33-cycle result latency, depending
on the operand values.
The pipeline only interlocks on read-after-write and write-after-write hazards, so instructions
may be scheduled to avoid stalls.
The E31 implements the standard Multiply (M) extension to the RISC‑V architecture for integer
multiplication and division. The E31 has a 32-bit per cycle hardware multiply and a 1-bit per
cycle hardware divide. The multiplier is fully pipelined and can begin a new operation on each
cycle, with a maximum throughput of one operation per cycle.
Branch and jump instructions transfer control from the memory access pipeline stage. Correctlypredicted branches and jumps incur no penalty, whereas mispredicted branches and jumps
incur a three-cycle penalty.
Most CSR writes result in a pipeline flush with a five-cycle penalty.
3.4 Data Memory System
The E31 data memory system consists of a DTIM interface, which supports up to 64 KiB. The
access latency from a core to its own DTIM is two clock cycles for full words and three clock
cycles for smaller quantities. Misaligned accesses are not supported in hardware and result in a
trap to allow software emulation.
Stores are pipelined and commit on cycles where the data memory system is otherwise idle.
Loads to addresses currently in the store pipeline result in a five-cycle penalty.
3.5 Atomic Memory Operations
The E31 core supports the RISC‑V standard Atomic (A) extension on the DTIM and the Peripheral Port. Atomic memory operations to regions that do not support them generate an access
exception precisely at the core.
The load-reserved and store-conditional instructions are only supported on cached regions,
hence generate an access exception on DTIM and other uncached memory regions.
See The RISC‑V Instruction Set Manual, Volume I: User-Level ISA, Version 2.1 for more infor-
mation on the instructions added by this extension.
3.6 Local Interrupts
The E31 supports up to 16 local interrupt sources that are routed directly to the core. See Chapter 5 for a detailed description of Local Interrupts.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 11
3.7 Supported Modes
The E31 supports RISC‑V user mode, providing two levels of privilege: machine (M) and user
(U).
U-mode provides a mechanism to isolate application processes from each other and from
trusted code running in M-mode.
See The RISC‑V Instruction Set Manual, Volume II: Privileged Architecture, Version 1.10 for
more information on the privilege modes.
3.8 Physical Memory Protection (PMP)
The E31 includes a Physical Memory Protection (PMP) unit compliant with The RISC‑V Instruction Set Manual, Volume II: Privileged Architecture, Version 1.10. PMP can be used to set mem-
ory access privileges (read, write, execute) for specified memory regions. The E31 PMP supports 8 regions with a minimum region size of 4 bytes.
This section describes how PMP concepts in the RISC‑V architecture apply to the E31. The
definitive resource for information about the RISC‑V PMP is The RISC‑V Instruction Set Manual,
Volume II: Privileged Architecture, Version 1.10.
3.8.1 Functional Description
The E31 includes a PMP unit, which can be used to restrict access to memory and isolate
processes from each other.
The E31 PMP unit has 8 regions and a minimum granularity of 4 bytes. Overlapping regions are
permitted. The E31 PMP unit implements the architecturally defined pmpcfgX CSRs pmpcfg0
and pmpcfg1 supporting 8 regions. pmpcfg2 and pmpcfg3 are implemented but hardwired to
zero.
The PMP registers may only be programmed in M-mode. Ordinarily, the PMP unit enforces permissions on U-mode accesses. However, locked regions (see Section 3.8.2) additionally
enforce their permissions on M-mode.
3.8.2 Region Locking
The PMP allows for region locking whereby, once a region is locked, further writes to the configuration and address registers are ignored. Locked PMP entries may only be unlocked with a
system reset. A region may be locked by setting the L bit in the pmpicfg register.
In addition to locking the PMP entry, the L bit indicates whether the R/W/X permissions are
enforced on M-Mode accesses. When the L bit is set, these permissions are enforced for all
privilege modes. When the L bit is clear, the R/W/X permissions apply only to U-mode.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 12
When implementing less than the maximum DTIM RAM, a PMP region encompassing the unimplemented address space must be locked with no R/W/X permissions. Doing so forces all
access to the unimplemented address space to generate an exception.
For example, if implementing 32 KiB of DTIM RAM, then setting pmp0cfg=0x98 and
pmpaddr0=0x2000_0FFF disables access to the unimplemented 32 KiB region above.
3.9 Hardware Performance Monitor
The E31 Core Complex supports a basic hardware performance monitoring facility compliant
with The RISC‑V Instruction Set Manual, Volume II: Privileged Architecture, Version 1.10. The
mcycle CSR holds a count of the number of clock cycles the hart has executed since some
arbitrary time in the past. The minstret CSR holds a count of the number of instructions the
hart has retired since some arbitrary time in the past. Both are 64-bit counters. The mcycle and
minstret CSRs hold the 32 least-significant bits of the corresponding counter, and the mcycleh
and minstreth CSRs hold the most-significant 32 bits.
The hardware performance monitor includes two additional event counters, mhpmcounter3 and
mhpmcounter4. The event selector CSRs mhpmevent3 and mhpmevent4 are registers that con-
trol which event causes the corresponding counter to increment. The mhpmcounters are 40-bit
counters. The mhpmcounter_i CSR holds the 32 least-significant bits of the corresponding
counter, and the mhpmcounter_ih CSR holds the 8 most-significant bits.
The event selectors are partitioned into two fields, as shown in Table 3: the lower 8 bits select
an event class, and the upper bits form a mask of events in that class. The counter increments if
the event corresponding to any set mask bit occurs. For example, if mhpmevent3 is set to
0x4200, then mhpmcounter3 will increment when either a load instruction or a conditional
branch instruction retires. Note that an event selector of 0 means "count nothing."
Copyright © 2017–2018, SiFive Inc. All rights reserved. 13
Machine Hardware Performance Monitor Event Register
Instruction Commit Events, mhpeventX[7:0] = 0
Bits Meaning
8 Exception taken
9 Integer load instruction retired
10 Integer store instruction retired
11 Atomic memory operation retired
12 System instruction retired
13 Integer arithmetic instruction retired
14 Conditional branch retired
15 JAL instruction retired
16 JALR instruction retired
17 Integer multiplication instruction retired
18 Integer division instruction retired
Microarchitectural Events , mhpeventX[7:0] = 1
Bits Meaning
8 Load-use interlock
9 Long-latency interlock
10 CSR read interlock
11 Instruction cache/ITIM busy
12 Data cache/DTIM busy
13 Branch direction misprediction
14 Branch/jump target misprediction
15 Pipeline flush from CSR write
16 Pipeline flush from other event
17 Integer multiplication interlock
Memory System Events, mhpeventX[7:0] = 2
Bits Meaning
8 Instruction cache miss
9 Memory-mapped I/O access
Table 3: mhpmevent Register Description
Chapter 4
Memory Map
The memory map of the E31 Core Complex is shown in Table 4.
Base Top Attr. Description Notes
0x0000_0000 0x0000_00FF Reserved
0x0000_0100 0x0000_0FFF RWX A Debug
0x0000_1000 0x01FF_FFFF Reserved
0x0200_0000 0x0200_FFFF RW A CLINT
0x0201_0000 0x07FF_FFFF Reserved
0x0800_0000 0x0800_1FFF RWX A ITIM (8 KiB)
0x0800_2000 0x0BFF_FFFF Reserved
0x0C00_0000 0x0FFF_FFFF RW A PLIC
0x1000_0000 0x1FFF_FFFF Reserved
0x2000_0000 0x3FFF_FFFF RWX A Peripheral Port
(512 MiB)
0x4000_0000 0x5FFF_FFFF RWX System Port (512 MiB)
0x6000_0000 0x7FFF_FFFF Reserved
0x8000_0000 0x8000_FFFF RWX A Data Tightly Integrated
Memory (DTIM)
(64 KiB)
0x8001_0000 0xFFFF_FFFF Reserved
Debug Address Space
On Core Complex
Devices
Off Core Complex
Address Space for External I/O
On Core Complex
Address Space
Table 4: E31 Core Complex Memory Map. Memory Attributes: R - Read, W - Write, X - Exe-
cute, C - Cacheable, A - Atomics
14
Chapter 5
Interrupts
This chapter describes how interrupt concepts in the RISC‑V architecture apply to the E31 Core
Complex. The definitive resource for information about the RISC‑V interrupt architecture is The
RISC‑V Instruction Set Manual, Volume II: Privileged Architecture, Version 1.10.
5.1 Interrupt Concepts
E31 Core Complex has support for the following interrupts: local (including software and timer)
and global.
Local interrupts are signaled directly to an individual hart with a dedicated interrupt value. This
allows for reduced interrupt latency as no arbitration is required to determine which hart will service a given request and no additional memory accesses are required to determine the cause of
the interrupt. Software and timer interrupts are local interrupts generated by the Core Local
Interruptor (CLINT).
Global interrupts, by contrast, are routed through a Platform-Level Interrupt Controller (PLIC),
which can direct interrupts to any hart in the system via the external interrupt. Decoupling global
interrupts from the hart(s) allows the design of the PLIC to be tailored to the platform, permitting
a broad range of attributes like the number of interrupts and the prioritization and routing
schemes.
This chapter describes the E31 Core Complex interrupt architecture. Chapter 6 describes the
Core Local Interruptor. Chapter 7 describes the global interrupt architecture and the PLIC
design.

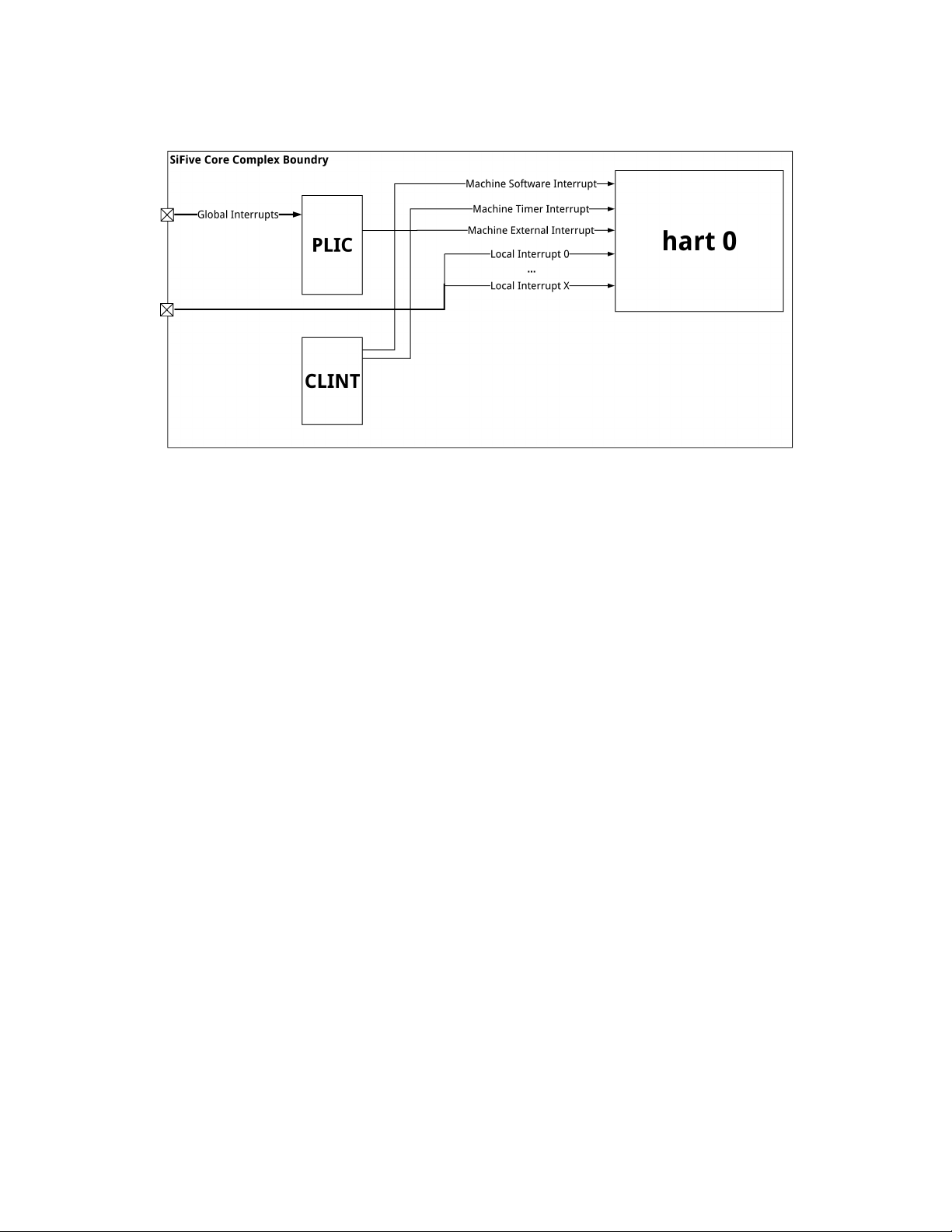

The E31 Core Complex interrupt architecture is depicted in Figure 2.
15
Copyright © 2017–2018, SiFive Inc. All rights reserved. 16
Figure 2: E31 Core Complex Interrupt Architecture Block Diagram.
5.2 Interrupt Entry and Exit
When a RISC‑V hart takes an interrupt, the following occurs:
• The value of mstatus.MIE is copied into mstatus.MPIE, and then mstatus.MIE is cleared,
effectively disabling interrupts.
• The current pc is copied into the mepc register, and then pc is set to the value of mtvec. In
the case where vectored interrupts are enabled, pc is set to mtvec.BASE + 4 × exception
code.
• The privilege mode prior to the interrupt is encoded in mstatus.MPP.
At this point, control is handed over to software in the interrupt handler with interrupts disabled.
Interrupts can be re-enabled by explicitly setting mstatus.MIE or by executing an MRET instruction to exit the handler. When an MRET instruction is executed, the following occurs:
• The privilege mode is set to the value encoded in mstatus.MPP.
• The value of mstatus.MPIE is copied into mstatus.MIE.
• The pc is set to the value of mepc.
At this point control is handed over to software.
The Control and Status Registers involved in handling RISC‑V interrupts are described in Section 5.3
Copyright © 2017–2018, SiFive Inc. All rights reserved. 17
5.3 Interrupt Control Status Registers
The E31 Core Complex specific implementation of interrupt CSRs is described below. For a
complete description of RISC‑V interrupt behavior and how to access CSRs, please consult The
RISC‑V Instruction Set Manual, Volume II: Privileged Architecture, Version 1.10.
5.3.1 Machine Status Register (mstatus)
The mstatus register keeps track of and controls the hart’s current operating state, including
whether or not interrupts are enabled. A summary of the mstatus fields related to interrupts in
the E31 Core Complex is provided in Table 5. Note that this is not a complete description of
mstatus as it contains fields unrelated to interrupts. For the full description of mstatus, please
consult the The RISC‑V Instruction Set Manual, Volume II: Privileged Architecture, Version 1.10.
Machine Status Register
CSR mstatus
Bits Field Name Attr. Description
[2:0] Reserved WPRI
3 MIE RW Machine Interrupt Enable
[6:4] Reserved WPRI
7 MPIE RW Machine Previous Interrupt Enable
[10:8] Reserved WPRI
[12:11] MPP RW Machine Previous Privilege Mode
Table 5: E31 Core Complex mstatus Register (partial)
Interrupts are enabled by setting the MIE bit in mstatus and by enabling the desired individual
interrupt in the mie register, described in Section 5.3.2.
5.3.2 Machine Interrupt Enable Register (mie)
Individual interrupts are enabled by setting the appropriate bit in the mie register. The mie register is described in Table 6.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 18
Machine Interrupt Enable Register
CSR mie
Bits Field Name Attr. Description
[2:0] Reserved WPRI
3 MSIE RW Machine Software Interrupt Enable
[6:4] Reserved WPRI
7 MTIE RW Machine Timer Interrupt Enable
[10:8] Reserved WPRI
11 MEIE RW Machine External Interrupt Enable
[15:12] Reserved WPRI
16 LIE0 RW Local Interrupt 0 Enable
17 LIE1 RW Local Interrupt 1 Enable
18 LIE2 RW Local Interrupt 2 Enable
…
31 LIE15 RW Local Interrupt 15 Enable
Table 6: mie Register
5.3.3 Machine Interrupt Pending (mip)
The machine interrupt pending (mip) register indicates which interrupts are currently pending.
The mip register is described in Table 7.
Machine Interrupt Pending Register
CSR mip
Bits Field Name Attr. Description
[2:0] Reserved WIRI
3 MSIP RO Machine Software Interrupt Pending
[6:4] Reserved WIRI
7 MTIP RO Machine Timer Interrupt Pending
[10:8] Reserved WIRI
11 MEIP RO Machine External Interrupt Pending
[15:12] Reserved WIRI
16 LIP0 RO Local Interrupt 0 Pending
17 LIP1 RO Local Interrupt 1 Pending
18 LIP2 RO Local Interrupt 2 Pending
…
31 LIP15 RO Local Interrupt 15 Pending
Table 7: mip Register
5.3.4 Machine Cause Register (mcause)
When a trap is taken in machine mode, mcause is written with a code indicating the event that
caused the trap. When the event that caused the trap is an interrupt, the most-significant bit of
mcause is set to 1, and the least-significant bits indicate the interrupt number, using the same
Copyright © 2017–2018, SiFive Inc. All rights reserved. 19
encoding as the bit positions in mip. For example, a Machine Timer Interrupt causes mcause to
be set to 0x8000_0007. mcause is also used to indicate the cause of synchronous exceptions, in
which case the most-significant bit of mcause is set to 0. See Table 8 for more details about the
mcause register. Refer to Table 9 for a list of synchronous exception codes.
Machine Cause Register
CSR mcause
Bits Field Name Attr. Description
[30:0] Exception Code WLRL A code identifying the last exception.
31 Interrupt WARL 1 if the trap was caused by an interrupt; 0
otherwise.
Table 8: mcause Register
Interrupt Exception Codes
Interrupt Exception Code Description
1 0–2 Reserved
1 3 Machine software interrupt
1 4–6 Reserved
1 7 Machine timer interrupt
1 8–10 Reserved
1 11 Machine external interrupt
1 12–15 Reserved
1 16 Local Interrupt 0
1 17 Local Interrupt 1
1 18–30 …
1 31 Local Interrupt 15
1 ≥ 32 Reserved
0 0 Instruction address misaligned
0 1 Instruction access fault
0 2 Illegal instruction
0 3 Breakpoint
0 4 Load address misaligned
0 5 Load access fault
0 6 Store/AMO address misaligned
0 7 Store/AMO access fault
0 8 Environment call from U-mode
0 9–10 Reserved
0 11 Environment call from M-mode
0 ≥ 12 Reserved
Table 9: mcause Exception Codes
Copyright © 2017–2018, SiFive Inc. All rights reserved. 20
5.3.5 Machine Trap Vector (mtvec)
By default, all interrupts trap to a single address defined in the mtvec register. It is up to the
interrupt handler to read mcause and react accordingly. RISC‑V and the E31 Core Complex also
support the ability to optionally enable interrupt vectors. When vectoring is enabled, each interrupt defined in mie will trap to its own specific interrupt handler. This allows all local interrupts to
trap to exclusive handlers. Even with vectoring enabled, all global interrupts will trap to the same
global interrupt vector.
Vectored interrupts are enabled when the MODE field of the mtvec register is set to 1.
Machine Trap Vector Register
CSR mtvec
Bits Field Name Attr. Description
[1:0] MODE WARL MODE determines whether or not interrupt
vectoring is enabled. The encoding for the
MODE field is described in Table 11.
[31:2] BASE[31:2] WARL Interrupt Vector Base Address. Must be
aligned on a 128-byte boundary when
MODE=1. Note, BASE[1:0] is not present in
this register and is implicitly 0.
Table 10: mtvec Register
MODE Field Encoding mtvec.MODE
Value Name Description
0 Direct All exceptions set pc to BASE
1 Vectored Asynchronous interrupts set pc to BASE + 4 ×
cause.
≥ 2 Reserved
Table 11: Encoding of mtvec.MODE
If vectored interrupts are disabled (mtvec.MODE =0), all interrupts trap to the mtvec.BASE
address. If vectored interrupts are enabled (mtvec.MODE=1), interrupts set the pc to
mtvec.BASE + 4 × exception code. For example, if a machine timer interrupt is taken, the pc is
set to mtvec.BASE + 0x1C. Typically, the trap vector table is populated with jump instructions to
transfer control to interrupt-specific trap handlers.
In vectored interrupt mode, BASE must be 128-byte aligned.
All machine external interrupts (global interrupts) are mapped to exception code of 11. Thus,
when interrupt vectoring is enabled, the pc is set to address mtvec.BASE + 0x2C for any global
interrupt.
See Table 10 for a description of the mtvec register. See Table 11 for a description of the
mtvec.MODE field. See Table 9 for the E31 Core Complex interrupt exception code values.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 21
5.4 Interrupt Priorities
Local interrupts have higher priority than global interrupts. As such, if a local and a global interrupt arrive at a hart on the same cycle, the local interrupt will be taken if it is enabled.
Priorities of local interrupts are determined by the local interrupt ID, with Local Interrupt 15 being
highest priority. For example, if both Local Interrupt 15 and Local Interrupt 14 arrive in the same
cycle, Local Interrupt 15 will be taken.
Local Interrupt 15 is the highest-priority interrupt in the E31 Core Complex. Given that Local
Interrupt 15’s exception code is also the greatest, it occupies the last slot in the interrupt vector
table. This unique position in the vector table allows for Local Interrupt 15’s trap handler to be
placed in-line, without the need for a jump instruction as with other interrupts when operating in
vectored mode. Hence, Local Interrupt 15 should be used for the most latency-sensitive interrupt in the system for a given hart. Individual priorities of global interrupts are determined by the
PLIC, as discussed in Chapter 7.
E31 Core Complex interrupts are prioritized as follows, in decreasing order of priority:
• Local Interrupt 15
• …
• Local Interrupt 0
• Machine external interrupts
• Machine software interrupts
• Machine timer interrupts
5.5 Interrupt Latency
Interrupt latency for the E31 Core Complex is 4 cycles, as counted by the numbers of cycles it
takes from signaling of the interrupt to the hart to the first instruction fetch of the handler.
Global interrupts routed through the PLIC incur additional latency of 3 cycles where the PLIC is
clocked by clock. This means that the total latency, in cycles, for a global interrupt is: 4 + 3
(core_clock_0 Hz clock Hz). This is a best case cycle count and assumes the handler is
cached or located in ITIM. It does not take into account additional latency from a peripheral
source.
Additionally, the hart will not abandon a Divide instruction in flight. This means if an interrupt
handler tries to use a register that is the destination register of a divide instruction the pipeline
stalls until the divide is complete.
Chapter 6
Core Local Interruptor (CLINT)
The CLINT block holds memory-mapped control and status registers associated with software
and timer interrupts. The E31 Core Complex CLINT complies with The RISC‑V Instruction Set
Manual, Volume II: Privileged Architecture, Version 1.10.
6.1 CLINT Memory Map
Table 12 shows the memory map for CLINT on SiFive E31 Core Complex.
Address Width Attr. Description Notes
0x200000 4B RW msip for hart 0 MSIP Registers (1 bit wide)
0x204008
…
0x20bff7
0x204000 8B RW mtimecmp for hart 0 MTIMECMP Registers
0x204008
…
0x20bff7
0x20bff8 8B RW mtime Timer Register
0x20c000 Reserved
Reserved
Reserved
Table 12: CLINT Register Map
6.2 MSIP Registers
Machine-mode software interrupts are generated by writing to the memory-mapped control register msip. Each msip register is a 32-bit wide WARL register where the upper 31 bits are tied to
0. The least significant bit is reflected in the MSIP bit of the mip CSR. Other bits in the msip register are hardwired to zero. On reset, each msip register is cleared to zero.
Software interrupts are most useful for interprocessor communication in multi-hart systems, as
harts may write each other’s msip bits to effect interprocessor interrupts.
22
Copyright © 2017–2018, SiFive Inc. All rights reserved. 23
6.3 Timer Registers
mtime is a 64-bit read-write register that contains the number of cycles counted from the
rtc_toggle signal described in the E31 Core Complex User Guide. A timer interrupt is pending
whenever mtime is greater than or equal to the value in the mtimecmp register. The timer interrupt is reflected in the mtip bit of the mip register described in Chapter 5.
On reset, mtime is cleared to zero. The mtimecmp registers are not reset.
Chapter 7
Platform-Level Interrupt Controller
(PLIC)
This chapter describes the operation of the platform-level interrupt controller (PLIC) on the E31
Core Complex. The PLIC complies with The RISC‑V Instruction Set Manual, Volume II: Privi-
leged Architecture, Version 1.10 and can support a maximum of 127 external interrupt sources
with 7 priority levels.
The E31 Core Complex PLIC resides in the clock timing domain, allowing for relaxed timing
requirements. The latency of global interrupts, as perceived by a hart, increases with the ratio of
the core_clock_0 frequency and the clock frequency.
7.1 Memory Map
The memory map for the E31 Core Complex PLIC control registers is shown in Table 13. The
PLIC memory map has been designed to only require naturally aligned 32-bit memory
accesses.
24
Copyright © 2017–2018, SiFive Inc. All rights reserved. 25
PLIC Register Map
Address Width Attr. Description Notes
0x0C00_0000 Reserved
0x0C00_0004 4B RW source 1 priority
…
0x0C00_0200 4B RW source 127 priority
0x0C00_0204
…
0x0C00_1000 4B RO Start of pending array
…
0x0C00_100C 4B RO Last word of pending array
0x0C00_1010
…
0x0C00_2000 4B RW Start Hart 0 M-Mode interrupt
Reserved
Reserved
enables
…
0x0C00_200C 4B RW End Hart 0 M-Mode interrupt
See Section 7.3 for more
information
See Section 7.4 for more
information
See Section 7.5 for more
information
enables
0x0C00_2010
…
0x0C20_0000 4B RW Hart 0 M-Mode priority
0x0C20_0004 4B RW Hart 0 M-Mode claim/com-
0x0C20_0008
…
0x1000_0000 End of PLIC Memory Map
Reserved
threshold
plete
Reserved
See Section 7.6 for more
information
See Section 7.7 for more
information
Table 13: SiFive PLIC Register Map. Only naturally aligned 32-bit memory accesses are
required.
7.2 Interrupt Sources
The E31 Core Complex has 127 interrupt sources. These are exposed at the top level via the
global_interrupts signals. Any unused global_interrupts inputs should be tied to logic 0.
These signals are positive-level triggered.
In the PLIC, as specified in The RISC‑V Instruction Set Manual, Volume II: Privileged Architec-
ture, Version 1.10, Global Interrupt ID 0 is defined to mean "no interrupt," hence
global_interrupts[0] corresponds to PLIC Interrupt ID 1.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 26
7.3 Interrupt Priorities
Each PLIC interrupt source can be assigned a priority by writing to its 32-bit memory-mapped
priority register. The E31 Core Complex supports 7 levels of priority. A priority value of 0 is
reserved to mean "never interrupt" and effectively disables the interrupt. Priority 1 is the lowest
active priority, and priority 7 is the highest. Ties between global interrupts of the same priority
are broken by the Interrupt ID; interrupts with the lowest ID have the highest effective priority.
See Table 14 for the detailed register description.
PLIC Interrupt Priority Register (priority)
Base Address 0x0C00_0000 + 4 × Interrupt ID
Bits Field Name Attr. Rst. Description
[2:0] Priority RW X Sets the priority for a given global inter-
rupt.
[31:3] Reserved RO 0
Table 14: PLIC Interrupt Priority Registers
7.4 Interrupt Pending Bits
The current status of the interrupt source pending bits in the PLIC core can be read from the
pending array, organized as 4 words of 32 bits. The pending bit for interrupt ID
of word . As such, the E31 Core Complex has 4 interrupt pending regis-
ters. Bit 0 of word 0, which represents the non-existent interrupt source 0, is hardwired to zero.
A pending bit in the PLIC core can be cleared by setting the associated enable bit then performing a claim as described in Section 7.7.
PLIC Interrupt Pending Register 1 (pending1)
Base Address 0x0C00_1000
Bits Field Name Attr. Rst. Description
0 Interrupt 0 Pend-
ing
1 Interrupt 1 Pend-
ing
2 Interrupt 2 Pend-
ing
31 Interrupt 31 Pend-
ing
Table 15: PLIC Interrupt Pending Register 1
RO 0 Non-existent global interrupt 0 is hard-
wired to zero
RO 0 Pending bit for global interrupt 1
RO 0 Pending bit for global interrupt 2
…
RO 0 Pending bit for global interrupt 31
is stored in bit
Copyright © 2017–2018, SiFive Inc. All rights reserved. 27
PLIC Interrupt Pending Register 4 (pending4)
Base Address 0x0C00_100C
Bits Field Name Attr. Rst. Description
0 Interrupt 96 Pend-
ing
31 Interrupt 127
Pending
Table 16: PLIC Interrupt Pending Register 4
RO 0 Pending bit for global interrupt 96
…
RO 0 Pending bit for global interrupt 127
7.5 Interrupt Enables
Each global interrupt can be enabled by setting the corresponding bit in the enables registers.
The enables registers are accessed as a contiguous array of 4 × 32-bit words, packed the
same way as the pending bits. Bit 0 of enable word 0 represents the non-existent interrupt ID 0
and is hardwired to 0.
Only 32-bit word accesses are supported by the enables array in SiFive RV32 systems.
PLIC Interrupt Enable Register 1 (enable1) for Hart 0 M-Mode
Base Address 0x0C00_2000
Bits Field Name Attr. Rst. Description
0 Interrupt 0 Enable RO 0 Non-existent global interrupt 0 is hard-
wired to zero
1 Interrupt 1 Enable RW X Enable bit for global interrupt 1
2 Interrupt 2 Enable RW X Enable bit for global interrupt 2
…
31 Interrupt 31
Enable
Table 17: PLIC Interrupt Enable Register 1 for Hart 0 M-Mode
PLIC Interrupt Enable Register 4 (enable4) for Hart 0 M-Mode
Base Address 0x0C00_200C
Bits Field Name Attr. Rst. Description
0 Interrupt 96
Enable
31 Interrupt 127
Enable
Table 18: PLIC Interrupt Enable Register 4 for Hart 0 M-Mode
RW X Enable bit for global interrupt 31
RW X Enable bit for global interrupt 96
…
RW X Enable bit for global interrupt 127
Copyright © 2017–2018, SiFive Inc. All rights reserved. 28
7.6 Priority Thresholds
The E31 Core Complex supports setting of an interrupt priority threshold via the threshold register. The threshold is a WARL field, where the E31 Core Complex supports a maximum
threshold of 7.
The E31 Core Complex masks all PLIC interrupts of a priority less than or equal to threshold.
For example, a threshold value of zero permits all interrupts with non-zero priority, whereas a
value of 7 masks all interrupts.
PLIC Interrupt Priority Threshold Register (threshold)
Base Address 0x0C20_0000
[2:0] Threshold RW X Sets the priority threshold
[31:3] Reserved RO 0
Table 19: PLIC Interrupt Threshold Register
7.7 Interrupt Claim Process
A E31 Core Complex hart can perform an interrupt claim by reading the claim/complete register (Table 20), which returns the ID of the highest-priority pending interrupt or zero if there is no
pending interrupt. A successful claim also atomically clears the corresponding pending bit on
the interrupt source.
A E31 Core Complex hart can perform a claim at any time, even if the MEIP bit in its mip (Table
7) register is not set.
The claim operation is not affected by the setting of the priority threshold register.
7.8 Interrupt Completion
A E31 Core Complex hart signals it has completed executing an interrupt handler by writing the
interrupt ID it received from the claim to the claim/complete register (Table 20). The PLIC
does not check whether the completion ID is the same as the last claim ID for that target. If the
completion ID does not match an interrupt source that is currently enabled for the target, the
completion is silently ignored.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 29
PLIC Claim/Complete Register (claim)
Base Address 0x0C20_0004
[31:0] Interrupt Claim/
Complete for Hart
0 M-Mode
Table 20: PLIC Interrupt Claim/Complete Register for Hart 0 M-Mode
RW X A read of zero indicates that no inter-
rupts are pending. A non-zero read
contains the id of the highest pending
interrupt. A write to this register signals
completion of the interrupt id written.
Chapter 8
Debug
This chapter describes the operation of SiFive debug hardware, which follows The RISC‑V
Debug Specification 0.13. Currently only interactive debug and hardware breakpoints are sup-
ported.
8.1 Debug CSRs
This section describes the per-hart trace and debug registers (TDRs), which are mapped into
the CSR space as follows:
CSR Name Description Allowed Access Modes
tselect Trace and debug register select D, M
tdata1 First field of selected TDR D, M
tdata2 Second field of selected TDR D, M
tdata3 Third field of selected TDR D, M
dcsr Debug control and status register D
dpc Debug PC D
dscratch Debug scratch register D
Table 21: Debug Control and Status Registers
The dcsr, dpc, and dscratch registers are only accessible in debug mode, while the tselect
and tdata1-3 registers are accessible from either debug mode or machine mode.
8.1.1 Trace and Debug Register Select (tselect)
To support a large and variable number of TDRs for tracing and breakpoints, they are accessed
through one level of indirection where the tselect register selects which bank of three
tdata1-3 registers are accessed via the other three addresses.
The tselect register has the format shown below:
30
Copyright © 2017–2018, SiFive Inc. All rights reserved. 31
Trace and Debug Select Register
CSR tselect
Bits Field Name Attr. Description
[31:0] index WARL Selection index of trace and debug registers
Table 22: tselect CSR
The index field is a WARL field that does not hold indices of unimplemented TDRs. Even if
index can hold a TDR index, it does not guarantee the TDR exists. The type field of tdata1
must be inspected to determine whether the TDR exists.
8.1.2 Trace and Debug Data Registers (tdata1-3)
The tdata1-3 registers are XLEN-bit read/write registers selected from a larger underlying
bank of TDR registers by the tselect register.
Trace and Debug Data Register 1
CSR tdata1
Bits Field Name Attr. Description
[27:0] TDR-Specific Data
[31:28] type RO Type of the trace & debug register selected
by tselect
Table 23: tdata1 CSR
Trace and Debug Data Registers 2 and 3
CSR tdata2/3
Bits Field Name Attr. Description
[31:0] TDR-Specific Data
Table 24: tdata2/3 CSRs
The high nibble of tdata1 contains a 4-bit type code that is used to identify the type of TDR
selected by tselect. The currently defined types are shown below:
Type Description
0 No such TDR register
1 Reserved
2 Address/Data Match Trigger
≥ 3 Reserved
Table 25: tdata Types
The dmode bit selects between debug mode (dmode=1) and machine mode (dmode=1) views of
the registers, where only debug mode code can access the debug mode view of the TDRs. Any
Copyright © 2017–2018, SiFive Inc. All rights reserved. 32
attempt to read/write the tdata1-3 registers in machine mode when dmode=1 raises an illegal
instruction exception.
8.1.3 Debug Control and Status Register (dcsr)
This register gives information about debug capabilities and status. Its detailed functionality is
described in The RISC‑V Debug Specification 0.13.
8.1.4 Debug PC dpc
When entering debug mode, the current PC is copied here. When leaving debug mode, execution resumes at this PC.
8.1.5 Debug Scratch dscratch
This register is generally reserved for use by Debug ROM in order to save registers needed by
the code in Debug ROM. The debugger may use it as described in The RISC‑V Debug Specifi-
cation 0.13.
8.2 Breakpoints
The E31 Core Complex supports four hardware breakpoint registers per hart, which can be flexibly shared between debug mode and machine mode.
When a breakpoint register is selected with tselect, the other CSRs access the following information for the selected breakpoint:
CSR Name Breakpoint Alias Description
tselect tselect Breakpoint selection index
tdata1 mcontrol Breakpoint match control
tdata2 maddress Breakpoint match address
tdata3 N/A Reserved
Table 26: TDR CSRs when used as Breakpoints
8.2.1 Breakpoint Match Control Register mcontrol
Each breakpoint control register is a read/write register laid out in Table 27.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 33
Breakpoint Control Register (mcontrol)
Register Offset CSR
Bits Field
Name
0 R WARL X Address match on LOAD
1 W WARL X Address match on STORE
2 X WARL X Address match on Instruction FETCH
3 U WARL X Address match on User Mode
4 S WARL X Address match on Supervisor Mode
5 Reserved WPRI X Reserved
6 M WARL X Address match on Machine Mode
[10:7] match WARL X Breakpoint Address Match type
11 chain WARL 0 Chain adjacent conditions.
[17:12] action WARL 0 Breakpoint action to take. 0 or 1.
18 timing WARL 0 Timing of the breakpoint. Always 0.
19 select WARL 0 Perform match on address or data.
20 Reserved WPRI X Reserved
[26:21] maskmax RO 4 Largest supported NAPOT range
27 dmode RW 0 Debug-Only access mode
[31:28] type RO 2 Address/Data match type, always 2
Attr. Rst. Description
Always 0.
Table 27: Test and Debug Data Register 3
The type field is a 4-bit read-only field holding the value 2 to indicate this is a breakpoint containing address match logic.
The bpaction field is an 8-bit read-write WARL field that specifies the available actions when
the address match is successful. The value 0 generates a breakpoint exception. The value 1
enters debug mode. Other actions are not implemented.
The R/W/X bits are individual WARL fields, and if set, indicate an address match should only be
successful for loads/stores/instruction fetches, respectively, and all combinations of implemented bits must be supported.
The M/S/U bits are individual WARL fields, and if set, indicate that an address match should
only be successful in the machine/supervisor/user modes, respectively, and all combinations of
implemented bits must be supported.
The match field is a 4-bit read-write WARL field that encodes the type of address range for
breakpoint address matching. Three different match settings are currently supported: exact,
NAPOT, and arbitrary range. A single breakpoint register supports both exact address matches
and matches with address ranges that are naturally aligned powers-of-two (NAPOT) in size.
Breakpoint registers can be paired to specify arbitrary exact ranges, with the lower-numbered
breakpoint register giving the byte address at the bottom of the range and the higher-numbered
Copyright © 2017–2018, SiFive Inc. All rights reserved. 34
breakpoint register giving the address 1 byte above the breakpoint range, and using the chain
bit to indicate both must match for the action to be taken.
NAPOT ranges make use of low-order bits of the associated breakpoint address register to
encode the size of the range as follows:
maddress Match type and size
a…aaaaaa Exact 1 byte
a…aaaaa0 2-byte NAPOT range
a…aaaa01 4-byte NAPOT range
a…aaa011 8-byte NAPOT range
a…aa0111 16-byte NAPOT range
a…a01111 32-byte NAPOT range
… …
a01…1111
231-byte NAPOT range
Table 28: NAPOT Size Encoding
The maskmax field is a 6-bit read-only field that specifies the largest supported NAPOT range.
The value is the logarithm base 2 of the number of bytes in the largest supported NAPOT range.
A value of 0 indicates that only exact address matches are supported (1-byte range). A value of
31 corresponds to the maximum NAPOT range, which is 231bytes in size. The largest range is
encoded in maddress with the 30 least-significant bits set to 1, bit 30 set to 0, and bit 31 holding
the only address bit considered in the address comparison.
To provide breakpoints on an exact range, two neighboring breakpoints can be combined with
the chain bit. The first breakpoint can be set to match on an address using action of 2 (greater
than or equal). The second breakpoint can be set to match on address using action of 3 (less
than). Setting the chain bit on the first breakpoint prevents the second breakpoint from firing
unless they both match.
8.2.2 Breakpoint Match Address Register (maddress)
Each breakpoint match address register is an XLEN-bit read/write register used to hold significant address bits for address matching and also the unary-encoded address masking information for NAPOT ranges.
8.2.3 Breakpoint Execution
Breakpoint traps are taken precisely. Implementations that emulate misaligned accesses in software will generate a breakpoint trap when either half of the emulated access falls within the
address range. Implementations that support misaligned accesses in hardware must trap if any
byte of an access falls within the matching range.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 35
Debug-mode breakpoint traps jump to the debug trap vector without altering machine-mode registers.
Machine-mode breakpoint traps jump to the exception vector with "Breakpoint" set in the
mcause register and with badaddr holding the instruction or data address that caused the trap.
8.2.4 Sharing Breakpoints Between Debug and Machine Mode
When debug mode uses a breakpoint register, it is no longer visible to machine mode (that is,
the tdrtype will be 0). Typically, a debugger will leave the breakpoints alone until it needs them,
either because a user explicitly requested one or because the user is debugging code in ROM.
8.3 Debug Memory Map
This section describes the debug module’s memory map when accessed via the regular system
interconnect. The debug module is only accessible to debug code running in debug mode on a
hart (or via a debug transport module).
8.3.1 Debug RAM and Program Buffer (0x300–0x3FF)
The E31 Core Complex has 16 32-bit words of program buffer for the debugger to direct a hart
to execute arbitrary RISC-V code. Its location in memory can be determined by executing aiupc
instructions and storing the result into the program buffer.
The E31 Core Complex has one 32-bit words of debug data RAM. Its location can be determined by reading the DMHARTINFO register as described in the RISC-V Debug Specification.
This RAM space is used to pass data for the Access Register abstract command described in
the RISC-V Debug Specification. The E31 Core Complex supports only general-purpose register access when harts are halted. All other commands must be implemented by executing from
the debug program buffer.
In the E31 Core Complex, both the program buffer and debug data RAM are general-purpose
RAM and are mapped contiguously in the Core Complex memory space. Therefore, additional
data can be passed in the program buffer, and additional instructions can be stored in the debug
data RAM.
Debuggers must not execute program buffer programs that access any debug module memory
except defined program buffer and debug data addresses.
The E31 Core Complex does not implement the DMSTATUS.anyhavereset or
DMSTATUS.allhavereset bits.
8.3.2 Debug ROM (0x800–0xFFF)
This ROM region holds the debug routines on SiFive systems. The actual total size may vary
between implementations.
Copyright © 2017–2018, SiFive Inc. All rights reserved. 36
8.3.3 Debug Flags (0x100–0x110, 0x400–0x7FF)
The flag registers in the debug module are used for the debug module to communicate with
each hart. These flags are set and read used by the debug ROM and should not be accessed
by any program buffer code. The specific behavior of the flags is not further documented here.
8.3.4 Safe Zero Address
In the E31 Core Complex, the debug module contains the address 0x0 in the memory map.
Reads to this address always return 0, and writes to this address have no impact. This property
allows a "safe" location for unprogrammed parts, as the default mtvec location is 0x0.
Chapter 9
References
Visit the SiFive forums for support and answers to frequently asked questions:
https://forums.sifive.com
[1] A. Waterman and K. Asanovic, Eds., The RISC-V Instruction Set Manual, Volume I: UserLevel ISA, Version 2.2, May 2017. [Online]. Available: https://riscv.org/specifications/
[2] ——, The RISC-V Instruction Set Manual Volume II: Privileged Architecture Version 1.10,
May 2017. [Online]. Available: https://riscv.org/specifications/
37
Loading...
